1. Presentation on
CRUSOE PROCESSOR
Department of Electronics & Communication Engineering
Jaipur National University, Jaipur
Presented by : PRIYANKA SINGH ( Roll No: 8EC29)

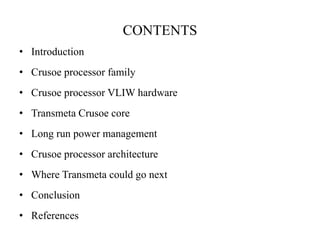

2. CONTENTS
• Introduction
• Crusoe processor family
• Crusoe processor VLIW hardware
• Transmeta Crusoe core
• Long run power management
• Crusoe processor architecture
• Where Transmeta could go next
• Conclusion
• References

3. INTRODUCTION
• Crusoe processor is 128 bit microprocessor which is build for
mobile computing devices where low power consumption is
required.
• Developed by small silicon valley startup company called
Transmeta Corp.
• Easily understood from simple sketch of the processor
architecture called AMOEBA.
• Processor core operates at 500-700 MHz.

4. CRUSOE PROCESSOR
• Hybrid processor.
• It has a software part and a hardware part with the software
part layer surrounding the hardware unit.
• 128 – bit microprocessor.
• Fabricated on CMOS process.
• Based on technique called VLIW.
 It uses Transmeta’s two patent technologies
• Code morphing software
• Long run power management

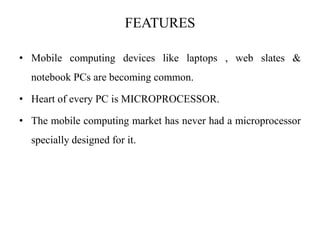

5. FEATURES
• Mobile computing devices like laptops , web slates &
notebook PCs are becoming common.
• Heart of every PC is MICROPROCESSOR.
• The mobile computing market has never had a microprocessor
specially designed for it.

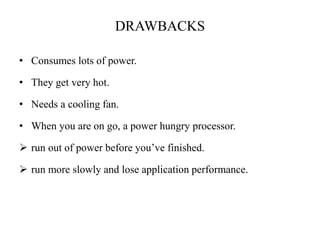

6. DRAWBACKS
• Consumes lots of power.
• They get very hot.
• Needs a cooling fan.
• When you are on go, a power hungry processor.
 run out of power before you’ve finished.
 run more slowly and lose application performance.

7. CRUSOE PROCESSOR FAMILY
•TM 5400:-500-700 mhz 256k L2 cache.
•TM 5500:-667-800 mhz 256k L2 cache.
•TM 5600:-500-700 mhz 512k L2 cache.
•TM 5800:-667-800 mhz 512k L2 cache.

8. CRUSOE PROCESSOR VLIW HARDWARE
• Very Long Instruction Word.
• Combines multiple standard instructions into one long
instruction word.
• Explicit parallelism.
• Trace scheduling.
• A Very Long Instruction Word is called a molecule.
• Each molecule contains 4 atoms: one instruction for each FU.
• A molecule is either 128 bits or 64 bits wide.

9. TRANSMETA’S CRUSOE CORE

10. LONG RUN POWER MANAGEMENT
• The TM5600 can adjust its power consumption without
turning itself off.
• It can adjust its clock frequency on the fly.
• It does so quick and without requiring an operating system
reboot or having to go through a slow sequence of suspending
to and restarting from RAM.

11. CRUSOE PROCESSOR ARCHITECHTURE

12. WHERE TRANSMETA COULD GO NEXT
• The current emphasis is on mobile computing.
• Different applications of Code Morphing could be made to
allow a different emphasis or target.
• Optimization techniques could be tailored to different target
architectures.
• Workstation/Server chips were hinted at in the documentation.

13. REFERENCES
IEEE SPECTRUM, MAY 2000, “Transmeta’s Magic Show”
CHIP, JUNE 2000
Pc Magazine , November 2000, “The Mobile Edge”

14. THANK YOU!
Thank you all so much for watching and listening my
presentation.
