This document provides instructions for using Cross Hole Sonic Logging (CSL) software to acquire CSL test data, edit the data, and prepare a report. It describes the steps to create a new project, configure the tubes and acquisition parameters, collect data while monitoring graphs of the signals, and process the data to produce a sonic map and analyze defects. It also explains how to trim unwanted top data, select arrival times and energy calculations, and prepare a report with sortable properties. The goal is to use CSL to nondestructively test deep foundations.

1. CROSS HOLE SONIC
LOGGINGTEST
Software – CHA
1
Erandi H. Chandanayake
BSc. Eng. Civil & Infrastructure

2. Cross Hole Analyzer-software
Step 1- Data Acquisition
Step 2- Data Editing
Step 3- Report preparation
2

3. Data Acquisition

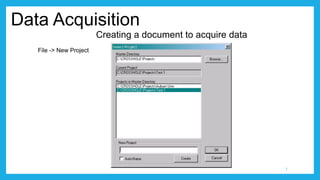

Creating a document to acquire data
3
File -> New Project

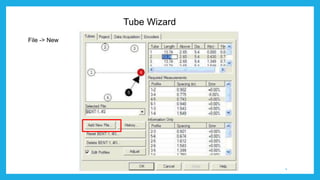

4. Tube Wizard
4
File -> New

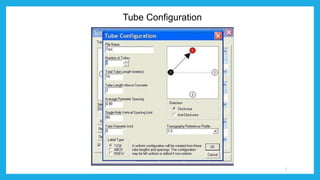

5. Tube Configuration
5

6. Project Information
6

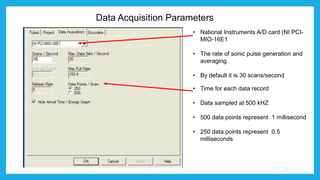

7. Data Acquisition Parameters
• National Instruments A/D card (NI PCI-
MIO-16E1
• The rate of sonic pulse generation and
averaging.
• By default it is 30 scans/second
• Time for each data record
• Data sampled at 500 kHZ
• 500 data points represent 1 millisecond
• 250 data points represent 0.5
milliseconds
7

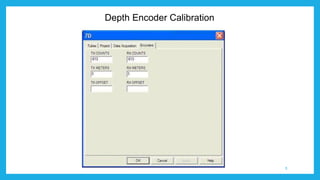

8. Depth Encoder Calibration
8

9. 9

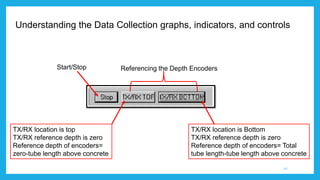

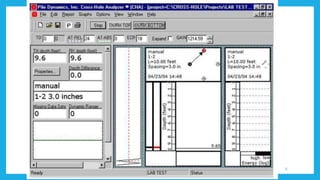

10. Understanding the Data Collection graphs, indicators, and controls
Start/Stop Referencing the Depth Encoders
TX/RX location is Bottom
TX/RX reference depth is zero
Reference depth of encoders= Total
tube length-tube length above concrete
TX/RX location is top
TX/RX reference depth is zero
Reference depth of encoders=
zero-tube length above concrete
10

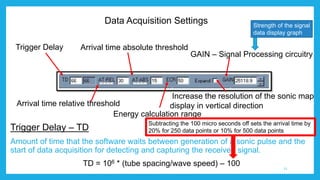

11. Data Acquisition Settings
Trigger Delay – TD
Amount of time that the software waits between generation of a sonic pulse and the
start of data acquisition for detecting and capturing the received signal.
TD = 106 * (tube spacing/wave speed) – 100
Trigger Delay
Arrival time relative threshold
Arrival time absolute threshold
Energy calculation range
GAIN – Signal Processing circuitry
Increase the resolution of the sonic map
display in vertical direction
11
Strength of the signal
data display graph
Subtracting the 100 micro seconds off sets the arrival time by
20% for 250 data points or 10% for 500 data points

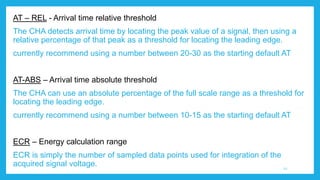

12. AT – REL - Arrival time relative threshold
The CHA detects arrival time by locating the peak value of a signal, then using a
relative percentage of that peak as a threshold for locating the leading edge.
currently recommend using a number between 20-30 as the starting default AT
AT-ABS – Arrival time absolute threshold
The CHA can use an absolute percentage of the full scale range as a threshold for
locating the leading edge.
currently recommend using a number between 10-15 as the starting default AT
ECR – Energy calculation range
ECR is simply the number of sampled data points used for integration of the
acquired signal voltage. 12

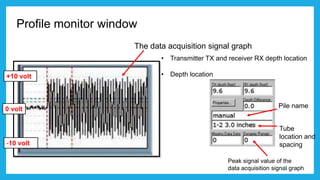

13. Profile monitor window
• Transmitter TX and receiver RX depth location
• Depth location
The data acquisition signal graph
Pile name
Tube
location and
spacing
+10 volt
0 volt
-10 volt
Peak signal value of the
data acquisition signal graph13

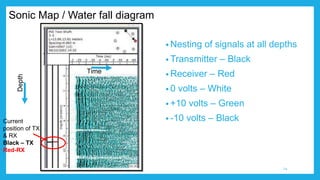

14. Sonic Map / Water fall diagram
• Nesting of signals at all depths
• Transmitter – Black
• Receiver – Red
• 0 volts – White
• +10 volts – Green
• -10 volts – Black
Depth
Time
Current
position of TX
& RX
Black – TX
Red-RX
14

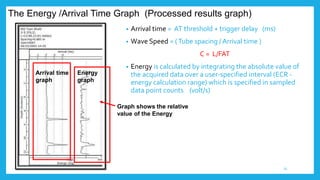

15. The Energy /Arrival Time Graph (Processed results graph)
• Arrival time = AT threshold + trigger delay (ms)
• Wave Speed = (Tube spacing / Arrival time )
C = L/FAT
• Energy is calculated by integrating the absolute value of
the acquired data over a user-specified interval (ECR -
energy calculation range) which is specified in sampled
data point counts (volt/s)
Arrival time
graph
Energy
graph
Graph shows the relative
value of the Energy
15

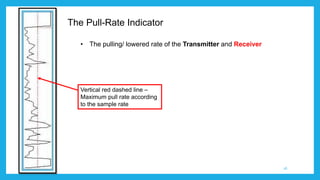

16. The Pull-Rate Indicator
• The pulling/ lowered rate of the Transmitter and Receiver
Vertical red dashed line –
Maximum pull rate according
to the sample rate
16

17. Data Editing
Signal for
individual depth
Processed
Results
Sonic Map
File -> Open -> Select the project ( .chx ) -> ok
17

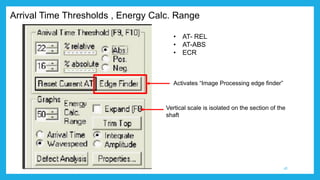

18. Arrival Time Thresholds , Energy Calc. Range
• AT- REL
• AT-ABS
• ECR
Vertical scale is isolated on the section of the
shaft
Activates “Image Processing edge finder”
18

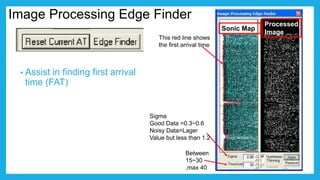

19. Image Processing Edge Finder
• Assist in finding first arrival
time (FAT)
Sonic Map
Processed
This red line shows
the first arrival time
Between
15~30
,max 40
Sigma
Good Data =0.3~0.6
Noisy Data=Lager
Value but less than 1.2
19

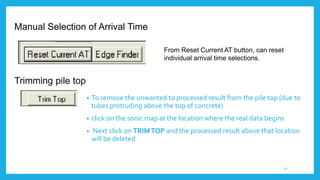

20. Trimming pile top
• To remove the unwanted to processed result from the pile top (due to
tubes protruding above the top of concrete)
• click on the sonic map at the location where the real data begins
• Next click on TRIMTOP and the processed result above that location
will be deleted
From Reset Current AT button, can reset
individual arrival time selections.
Manual Selection of Arrival Time
20

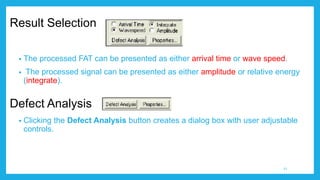

21. Result Selection
• The processed FAT can be presented as either arrival time or wave speed.
• The processed signal can be presented as either amplitude or relative energy
(integrate).
• Clicking the Defect Analysis button creates a dialog box with user adjustable
controls.
Defect Analysis
21

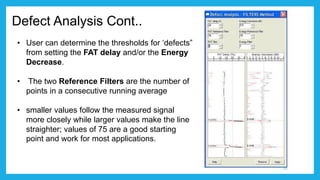

22. Defect Analysis Cont..
• User can determine the thresholds for ‘defects”
from setting the FAT delay and/or the Energy
Decrease.
• The two Reference Filters are the number of
points in a consecutive running average
• smaller values follow the measured signal
more closely while larger values make the line
straighter; values of 75 are a good starting
point and work for most applications.
22

23. Report Preparation

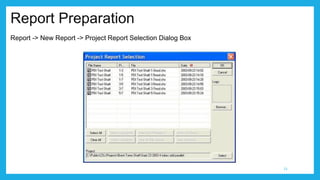

Report -> New Report -> Project Report Selection Dialog Box
23

24. 24

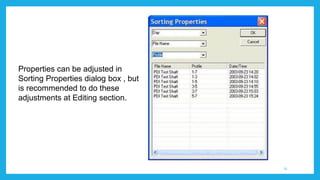

25. Properties can be adjusted in
Sorting Properties dialog box , but
is recommended to do these
adjustments at Editing section.
25

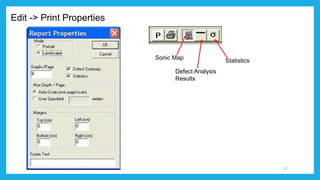

26. Edit -> Print Properties
Sonic Map
Defect Analysis
Results
Statistics
26

27. References
 Pile Dynamics, Inc. Cross-Hole Analyzer (CHA) Operation Manual Version 2005.0010 Q May 2006
