James McFadyen and Jacolon Walker
(jtm) (disable)

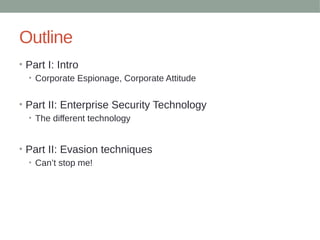

2. Outline
• Part I: Intro
• Corporate Espionage, Corporate Attitude
• Part II: Enterprise Security Technology
• The different technology
• Part II: Evasion techniques
• Can’t stop me!

3. PART I
Introduction

4. “Corporate Espionage”
• Not really, but…
• Focuses on technology found in real business
environments.
• Considers the human element - the security analyst.
• Discusses techniques used by attackers to evade
detection and compromise protected networks.
• This is NOT comprehensive – the purpose is to introduce
the concepts.

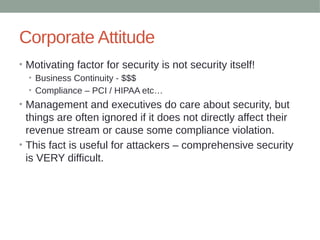

5. Corporate Attitude
• Motivating factor for security is not security itself!
• Business Continuity - $$$
• Compliance – PCI / HIPAA etc…
• Management and executives do care about security, but
things are often ignored if it does not directly affect their
revenue stream or cause some compliance violation.
• This fact is useful for attackers – comprehensive security
is VERY difficult.

6. S.O.C
• Security Operations Center
• Comprised of analysts who monitor for attacks in real time
for scans, attacks, compromises, policy violations and
infections.
• 24/7
• Research and create signatures and policies for client
networks
• MSSP (Managed Security Service Provider)
• Have many clients who outsource their security needs to the S.O.C

7. PART II
Enterprise Security Technology

8. Firewall
• Software or hardware based
• Controls incoming / outgoing network traffic
• Firewalls today can handle routing / NAT
• Hardware firewalls generally sit at network perimeter
• Stateful packet inspection:
• Maintain information and context in a session
• Stateless packet inspection:
• Simpler filtering, does not keep track of active session
• Rules define which traffic gets accepted and rejected.
• Usually the first line of defense.

9. Firewall
• Hardware examples:
• Cisco ASA
• SonicWALL
• Watchguard
• Software examples:
• pf
• iptables
• Windows Firewall

10. Firewall

11. IDS / HIDS
• IDS: Intrusion Detection System
• HIDS: Host based Intrusion Detection System
• Appliance (software or hardware) that detects malicious
traffic, or any traffic violating the defined policies.
• Use keyword matching or content matching
• Searching for something specific within a packet or session
• Can also use regular expression matching in payload
• Ex: content:”sEleCt”; pcre:”/^INSERT INTO”
• Analyst would see the alerts based on priority
• False positives

12. IDS / HIDS
• IDS
• Snort
• Suricata
• HIDS
• OSSEC

13. IDS / HIDS

14. IPS
• Intrusion Prevention System
• Similar to IDS, but also attempts to prevent the traffic
from passing through the device.
• Rule / Signature based
• Like a firewall, the packets will be dropped.
• Rules and signatures are more complex than that of a
firewall.

15. IPS
• Sourcefire
• TippingPoint
• McAfee IPS
• Fortinet
• Secureworks

16. Web Application Firewall
• Software or hardware
• Plugins or filters
• Applies to HTTP sessions
• Some vendors can handle HTTPS
• Checks for web attacks such as XSS and SQL Injection
• Content matching, regular expressions

17. Web Application Firewall
• Blue Coat
• Barracuda
• Trustwave
• Imperva

18. Log Analysis
• Dynamic or static
• Great forensics tools, but can be difficult to find security
events in real time.
• Regular expression searches
• Keyword searches
• Solution such as Splunk can allow analyst to search for
events easily.
• Pulls from logs, not network traffic
• Splunk

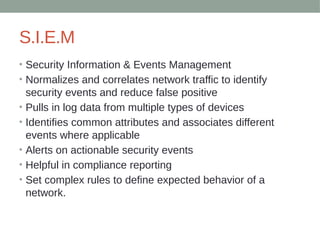

19. S.I.E.M
• Security Information & Events Management
• Normalizes and correlates network traffic to identify
security events and reduce false positive
• Pulls in log data from multiple types of devices
• Identifies common attributes and associates different
events where applicable
• Alerts on actionable security events
• Helpful in compliance reporting
• Set complex rules to define expected behavior of a
network.

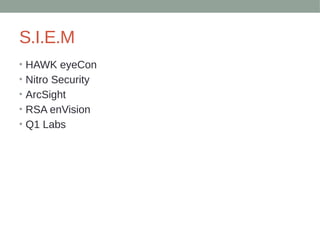

20. S.I.E.M
• HAWK eyeCon
• Nitro Security
• ArcSight
• RSA enVision
• Q1 Labs

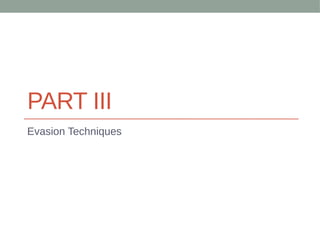

21. PART III
Evasion Techniques

22. Tools
• Useful tools:
• hping3, firewalk, nmap, custom tools (scapy is great!), netcat,
tcpdump, wireshark, fragroute
• … so you discovered a firewall, now what?

23. Evasion: Basics
• Firewalls will drop packets that do not adhere to protocol
specification
• Ex: Sending a SYN ACK without first sending SYN is not how TCP
works!
• Tools like “xprobe” can be used to detect operating
systems behind a firewall by using the TCP / UDP / ICMP
protocols. This is ‘fingerprinting’.
• Firewalls behave differently!
• Firewalking:
• Send TCP / UDP / ICMP packets and examine response
• Window size, sequence numbers, type encode, etc…

24. TCP Header
struct tcpheader {
unsigned short int th_sport;
unsigned short int th_dport;
unsigned int th_seq;
unsigned int th_ack;
unsigned char th_x2:4, th_off:4;
unsigned char th_flags;
unsigned short int th_win;
unsigned short int th_sum;
unsigned short int th_urp;
}; /* total tcp header length: 20 bytes (=160 bits) */

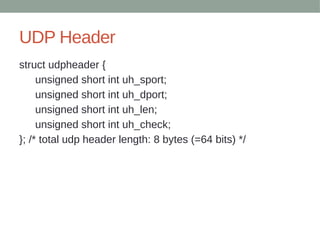

26. UDP Header
struct udpheader {
unsigned short int uh_sport;
unsigned short int uh_dport;
unsigned short int uh_len;
unsigned short int uh_check;
}; /* total udp header length: 8 bytes (=64 bits) */

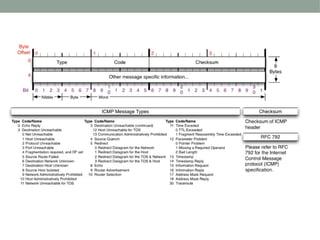

28. ICMP Header
struct icmpheader {
unsigned char icmp_type;
unsigned char icmp_code;
unsigned short int icmp_cksum;
/* The following data structures are ICMP type specific
*/
unsigned short int icmp_id;
unsigned short int icmp_seq;
}; /* total icmp header length: 8 bytes (=64 bits) */

30. Evasion: Scan Techniques
• Different Types of scans will produce different results
• XMAS scan: FIN PSH URG flags set on TCP segment.
• NULL scan: TCP flags are set to all 0
• FIN scan: FIN flag set on TCP segment
• ACK scan: ACK flag set on TCP segment
• SYN scan: SYN flag set
• SYN ACK: SYN ACK flag set
• FTP Bounce: uses another host to act as proxy
• Zombie Scan: Use idle host on a network to hide real
source address

31. Evasion: Scan Techniques
• Specify different source port
• Some poorly configured systems may block packets from a certain
source port
• Default UNIX based firewalls can be bypassed with an
XMAS or a NULL scan.
• Inverted Technique – crafting malformed TCP packets
• Closed ports will respond with RA (Reset Acknowledge) – RFC793

32. Evasion: Fragmentation
• Can be used to bypass Firewalls, IDS
• Can also cause Denial of Service by exhausting
resources
• IP packet has a MTU (maximum transmission unit) that is
smaller than the MTU of the current network it is
traversing.
• Can occur on ANY router the packet travels through
• Destination host will reassemble the packet

33. Evasion: Fragmentation
• Fragments of packets must include:
• Fragment ID # (IP ID)
• Offset (multiple of 8 bytes)
• Length of the data
• MF flag – more fragments

35. Evasion: Fragmentation
• Fragment Offset
• Fragment offset field maximum = 8191 (13 bits)
• Max IP packet = 65535 bytes
• Fragment offset * 8 = real offset

36. Evasion: Fragmentation

37. Evasion: Fragmentation
• Sample tcpdump output
ping.com > myhost.com: icmp: echo request (frag
21223:1480@0+)
ping.com > myhost.com: (frag 21223:1480@1480+)
ping.com > myhost.com: (frag 21223:1480@2960)

38. Evasion: Fragmentation
• Protocol header found in first fragment
• Stateful packet filtering sees all fragments as one packet
• Stateless sees each individually
• Packet can have DF (don’t fragment) flag set, which tells
routers that it cannot be fragmented.
• Routers will respond with “unreachable – need to frag”
message if DF flag is set and it needs to be fragmented.
• ICMP error message returns MTU of the network which is
useful in Path MTU discovery.
• Can leverage this to discover MTU of a network
• router.ru > mail.mysite.ru: icmp: host.ru unreachable – need to frag
(mtu 308) (DF)

39. Evasion: Fragmentation
• Fragment packets with nmap:
• nmap -f host
• Specify MTU with nmap
• nmap --mtu host

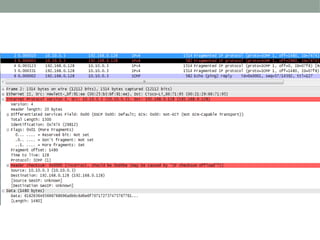

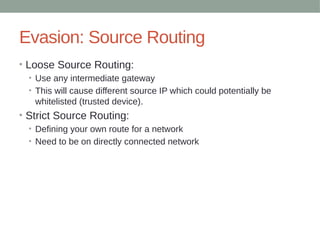

42. Evasion: Source Routing
• Loose Source Routing:
• Use any intermediate gateway
• This will cause different source IP which could potentially be
whitelisted (trusted device).
• Strict Source Routing:
• Defining your own route for a network
• Need to be on directly connected network

43. Evading Snort Rules
• Simple case:
• A rule exists to pick up certain user agent
• Simply change user agent.

44. Snort Example Signatures
•# jwalker
•alert tcp $EXTERNAL_NET $HTTP_PORTS -> $HOME_NET any (msg:"ET WORM AirOS admin.cgi/css Exploit Attempt";
flow:established,to_server; content:"POST"; http_method; content:"/admin.cgi/"; http_uri; fast_pattern:only; content:".css HTTP/1.";
http_raw_header; content:"Content-Type|3A| multipart/form-data"; http_header; reference:url,seclists.org/fulldisclosure/2011/Dec/419;
classtype:trojan-activity; sid:2014041; rev:2;)
•# jwalker
•alert udp $HOME_NET any -> $EXTERNAL_NET 53 (msg:"DNS Query to msnsolution.nicaze.net"; content:"msnsolution|06|nicaze|03|net";
offset:12; fast_pattern; reference:md5,89332c92d0360095e2dda8385d400258; sid:10000500; rev:1;)
•# jwalker
•alert tcp $EXTERNAL_NET any -> $HOME_NET $HTTP_PORTS (msg:"ET LOIC Javascript DDoS Inbound"; flow:established,to_server;
content:"GET /?id="; nocase; pcre:"/[0-9]{13}/"; content:"&msg="; nocase; detection_filter:track by_src, count 100, seconds 60;
reference:url,isc.sans.org/diary/Javascript+DDoS+Tool+Analysis/12442; reference:url,www.wired.com/threatlevel/2012/01/anons-rickroll-botnet;
classtype:attempted-dos; sid:10000101; rev:1;)
•# jwalker
•alert tcp $HOME_NET any -> $EXTERNAL_NET $HTTP_PORTS (msg:"ET LOIC Javascript DDoS Outbound"; flow:established,from_client;
content:"GET /?id="; nocase; pcre:"/[0-9]{13}/"; content:"&msg="; nocase; detection_filter:track by_src, count 100, seconds 60;
reference:url,isc.sans.org/diary/Javascript+DDoS+Tool+Analysis/12442; reference:url,www.wired.com/threatlevel/2012/01/anons-rickroll-botnet;
classtype:attempted-dos; sid:10000102; rev:1;)
•# jwalker
•alert udp $EXTERNAL_NET any -> $HOME_NET any (msg:"Combat Arms UDP DDoS"; detection_filter:track by_src, count 10, seconds 30;
dsize:1024<>2048; sid:10000103; rev:1;)
•# jwalker
•alert tcp $EXTERNAL_NET any -> $HOME_NET $HTTP_PORTS (msg:"ET SCAN FHScan core User-Agent Detect"; flow:to_server,established;
content:"FHScan Core 1."; http_header; reference:url,www.tarasco.org/security/FHScan_Fast_HTTP_Vulnerability_Scanner/index.html;
classtype:attempted-recon; sid:2014541; rev:4;)
•# jwalker
•alert tcp $HOME_NET any -> $EXTERNAL_NET 443 (msg:"ET TROJAN Possible Variant.Kazy.53640 Malformed Client Hello SSL 3.0
(Session_Id length greater than Client_Hello Length)"; flow:to_server,established; content:"|16 03 00|"; depth:3; content:"|01 00 00 33 03 00|";
distance:2; within:6; byte_test:1,>,51,32,relative; reference:md5,a01d75158cf4618677f494f9626b1c4c; classtype:trojan-activity; sid:2014634;
rev:3;)

45. Snort Rule Example
• Sample w3af signature:
(envelope) – (alert, log, passive) (protocol) (usually defined as any) (anything coming inbound) (to
our servers that are defined) (ports)
alert tcp $EXTERNAL_NET any -> $HTTP_SERVERS $HTTP_PORTS (msg:"ET SCAN w3af User
Agent"; flow: established,to_server; content:"User-Agent|3a| w3af.sourceforge.net"; http_header;
fast_pattern:only; reference:url,w3af.sourceforge.net; reference:url,doc.emergingthreats.net/2007757;
classtype:attempted-recon; sid:2007757; rev:12;)
(message tag) defines what the signature name is (alert that pops up)
alert tcp $EXTERNAL_NET any -> $HTTP_SERVERS $HTTP_PORTS (msg:"ET SCAN w3af User
Agent"; flow: established,to_server; content:"User-Agent|3a| w3af.sourceforge.net"; http_header;
fast_pattern:only; reference:url,w3af.sourceforge.net; reference:url,doc.emergingthreats.net/2007757;
classtype:attempted-recon; sid:2007757; rev:12;)
(rule) what to look for
alert tcp $EXTERNAL_NET any -> $HTTP_SERVERS $HTTP_PORTS (msg:"ET SCAN w3af User
Agent"; flow: established,to_server; content:"User-Agent|3a| w3af.sourceforge.net";
http_header; fast_pattern:only; reference:url,w3af.sourceforge.net;
reference:url,doc.emergingthreats.net/2007757; classtype:attempted-recon; sid:2007757; rev:12;)

46. Snort Rule Example
• Other tags – flow, content, reference, classtype, sid, rev
• Classtype – different classes lump together alerts of similar
priorities
• sid: (signature ID) – can track signature through their life cycle on
Emerging Threats or through Sourcefire. “rev” is the revision
number for the signature ID.
• Need to understand the HTTP headers!!

47. Snort Rule Example
• Attacker settings:
• Snort Alerts:

49. Snort Rules Example
• User agent can be changed..
• Since it looks for that User Agent, this won’t be detected
by that specific rule.

50. MS08-067
• Extremely popular.
• First attempt uses a meterpreter reverse TCP payload…
• Success!

51. MS08-067
• But Snort looked
at the payload…

52. MS08-067

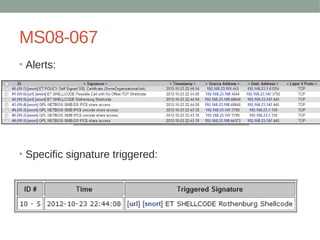

• Alerts:
• Specific signature triggered:

53. MS08-067
• Changing the payload will bypass this specific signature.
• Payload was changed to a reverse https handler

54. About the payload
• Switching the payload evaded the signature.
• The IDS / IPS could be detecting other payloads, or even
characteristics of a payload.
• Using different encodings for the payload can be effective.

55. Tunnels
• Scenario:
• Attacker is blocked by firewall (System A).
• Attacker finds another host (System B), perhaps a partner website
or a portal with open services.
• Attacker breaches that host (System B), and tunnels through to the
original target (System A).
• System B’s IP address may be whitelisted, or maybe even on a
VPN.
• Tunneling allows us to attack from different computers.
• Good for “anonymous pentesting”.

56. Tunnels

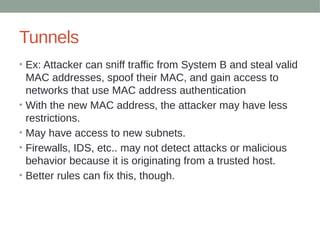

• Ex: Attacker can sniff traffic from System B and steal valid
MAC addresses, spoof their MAC, and gain access to
networks that use MAC address authentication
• With the new MAC address, the attacker may have less
restrictions.
• May have access to new subnets.
• Firewalls, IDS, etc.. may not detect attacks or malicious
behavior because it is originating from a trusted host.
• Better rules can fix this, though.

57. Tunnels
• “SSH Gymnastics and Tunneling with ProxyChains” – magikh0e
• Tunneling through hosts using proxychains
• Explanation of how to reach protected hosts by tunneling through a
different host
• Tunnel all UDP/TCP traffic from a specific process over a proxy.

58. • From magikh0e’s SSH Gymnastics and Tunneling with ProxyChains
• http://magikh0e.ihtb.org/pubPapers/ssh_gymnastics_tunneling.html

59. Tunnels and Logging
• Can hop through Tor.
• Bounce through different countries.
• Many systems can be easily compromised by attackers
and used to hide their identity.
• General attack set up:
• Attacker -> Cracked wifi -> Compromised Host -> Compromised
Host -> Compromised Host -> ……. -> Target Host

60. Tunnels and Logging
• How do attackers find machines to tunnel through?
• Leverage vulnerabilities to gain remote access.
• Backdoor, rootkits.
• How do attackers use these machines to stay
anonymous?
• Forward all of their traffic through compromised machine.
• Bouncing through a single machine is not a good idea.
• Multiple hosts on multiple devices in multiple countries.

61. Tunnels and Logging
• Automation example (not tested. The grep –b4 would probably need to be
more dynamic):
• max_ms=250
• hosts=( $(nmap -PN -sV -p$port $host | grep -b4 $service | egrep -o '[[:digit:]]{1,3}.[[:digit:]]
{1,3}.[[:digit:]]{1,3}.[[:digit:]]{1,3}') )
• for ip in "${hosts[@]}"
• do
• # want to make sure ping response time is within our specified $max_ms
• time=$(ping -c1 $ip | egrep -o 'time=[0-9]{1,5}' | sed -e 's/time=//g' | tr -d 'n')
• if [[ "${time:-1000}" -ge $max_ms ]]
• then
• echo "$ip $time too slow, ignoring"
• else
• echo "$ip $time OK.. attempting to connect"
• # do stuff here with discovered device...
• fi
• done

62. Tunnels and Logging
• Useful for finding target by known vulnerable “service”.
• Once service is discovered, attacker can try to exploit the
vulnerable service, or brute force.
• Once access is gained, target can be used as a tunnel or
a proxy for web traffic.
• When analysts see attacks, they do not see the real
hosts.
• Tracking down the attackers becomes difficult, the log
data does not provide much useful information.
• Blacklisting IP addresses is futile.

63. Proprietary Protocols
• It can be difficult to write signatures for proprietary
protocols.
• A lot of traffic can appear to be legitimate, but actually
malicious.
• The protocol specification and the source code for the
service may not be readily available.
• The analyst will have hard time detecting these.
• Attacks can target the application to gain access to the
network or trigger an application layer DoS.
• Example: game servers

64. References
• http://www.linuxjunkies.org/network/tcpip/intro8.html
• http://
en.wikipedia.org/wiki/Intrusion_detection_system_evasio
n_techniques
• http://
www.sans.org/security-resources/idfaq/fragroute.php
• http://
csis.bits-pilani.ac.in/faculty/dk_tyagi/Study_stuffs/raw.html
• http://pentestlab.wordpress.com/2012/04/02/nmap-techniqu
es-for-avoiding-firewalls
/
• http://darkcodecracker.blogspot.com/2009/03/hping-tutoria
l.html

65. References
• “TCP/IP Illustrated, Vol. 1: The Protocols (Addison-Wesley
Professional Computing Series)” – W. Richard Stevens
