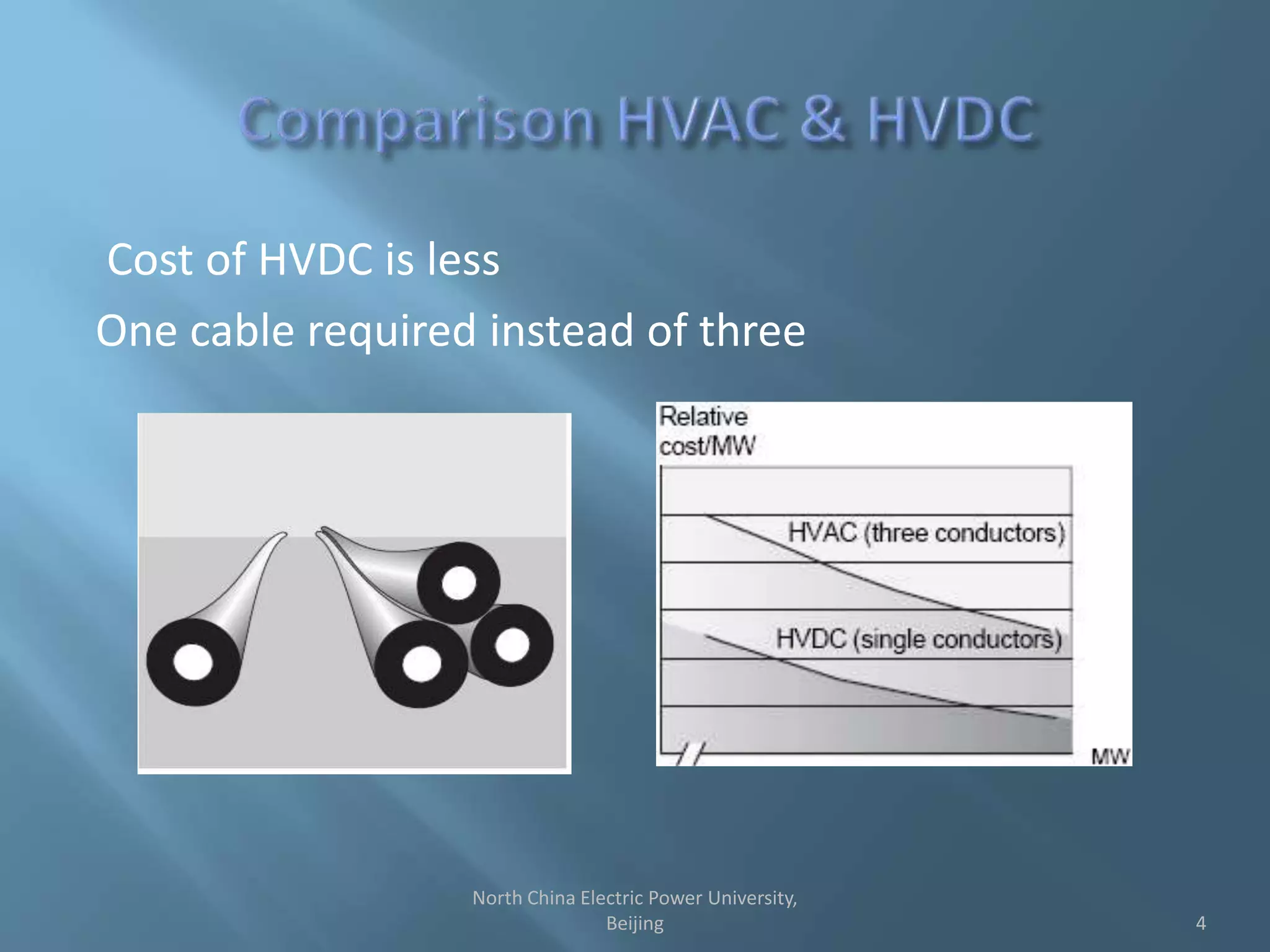

4. Cost of HVDC is less
One cable required instead of three
4
North China Electric Power University,
Beijing

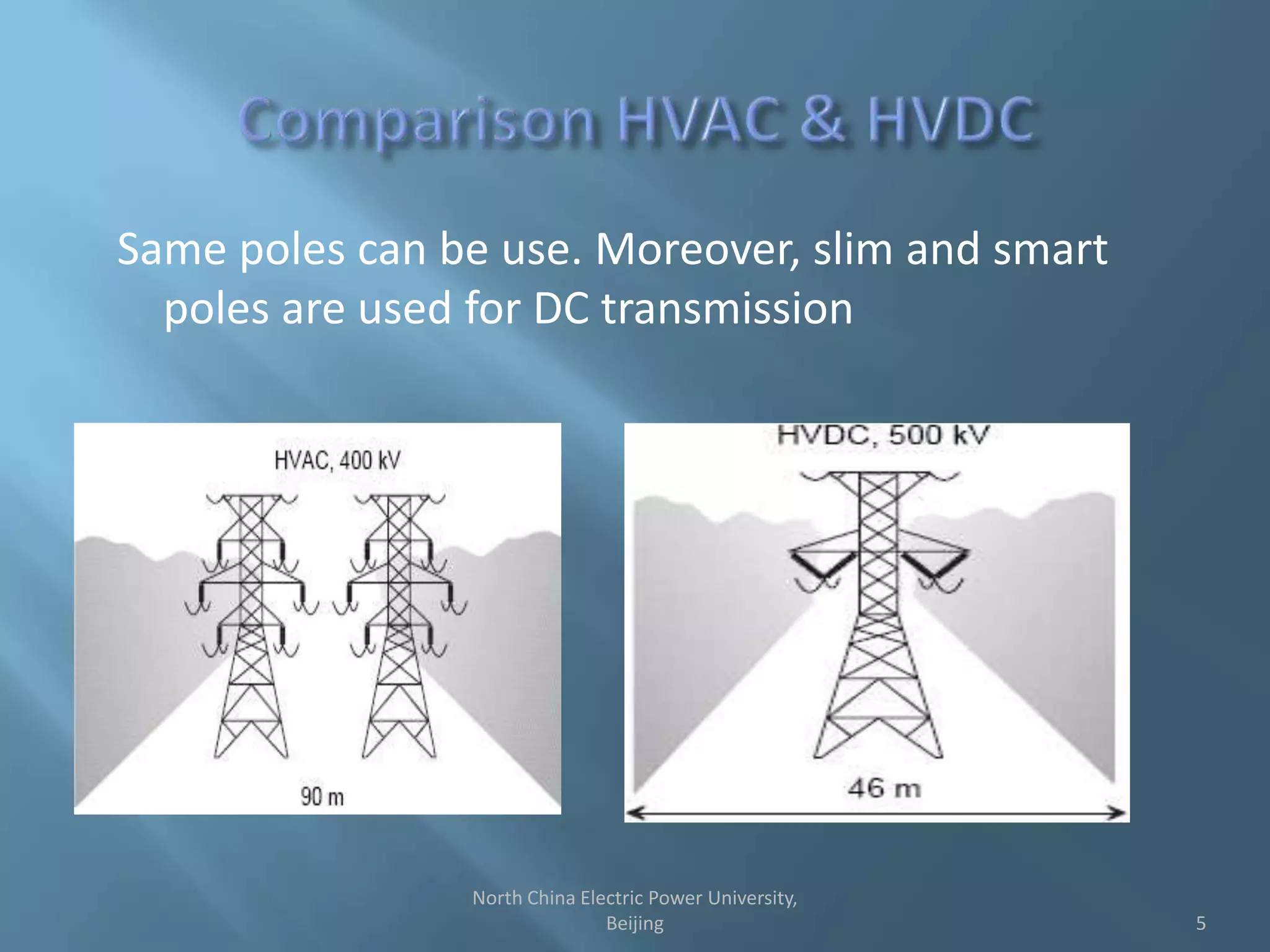

5. Same poles can be use. Moreover, slim and smart
poles are used for DC transmission
5
North China Electric Power University,
Beijing

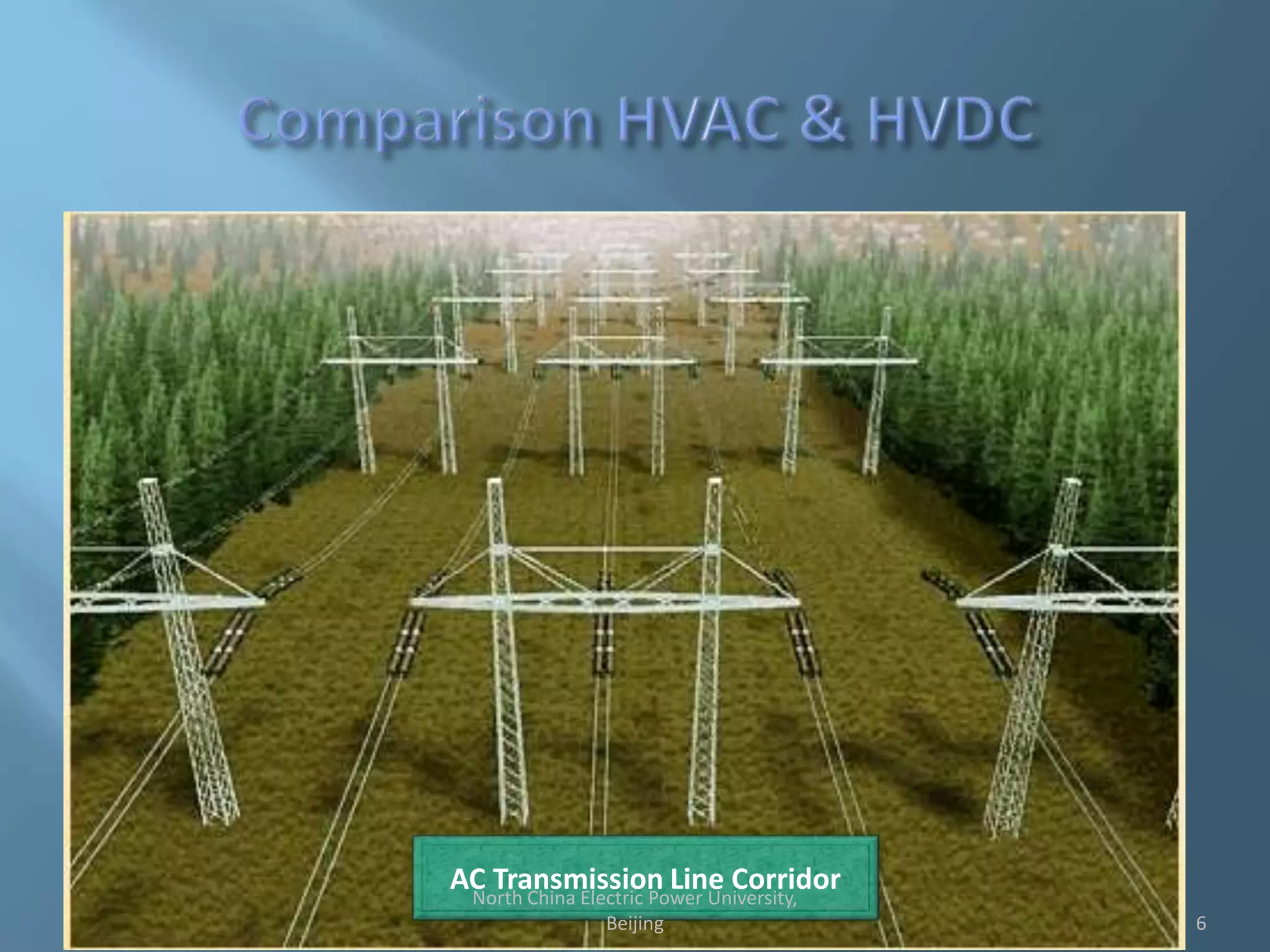

6. AC Transmission Line Corridor
6
North China Electric Power University,
Beijing

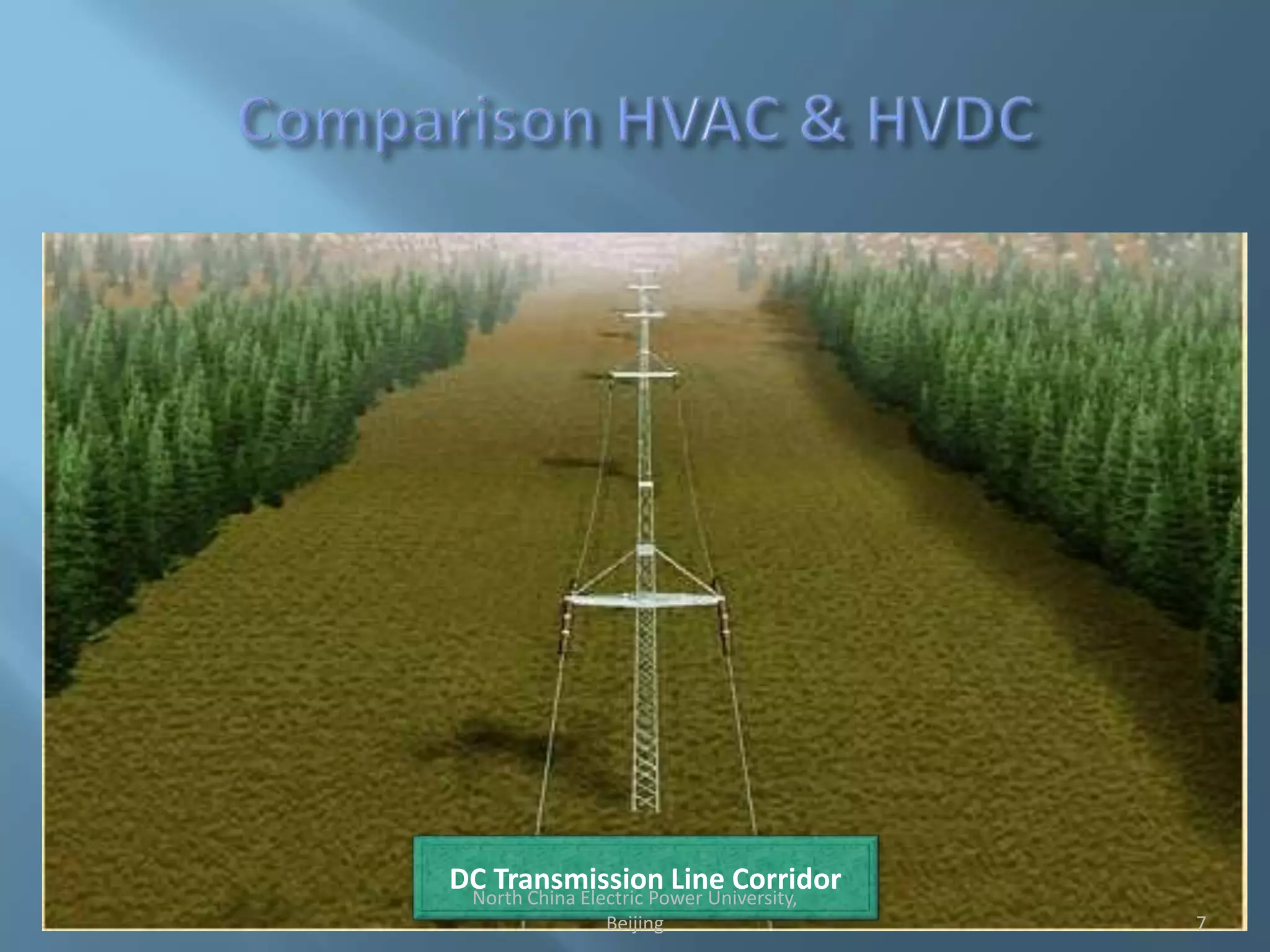

7. DC Transmission Line Corridor
7
North China Electric Power University,
Beijing

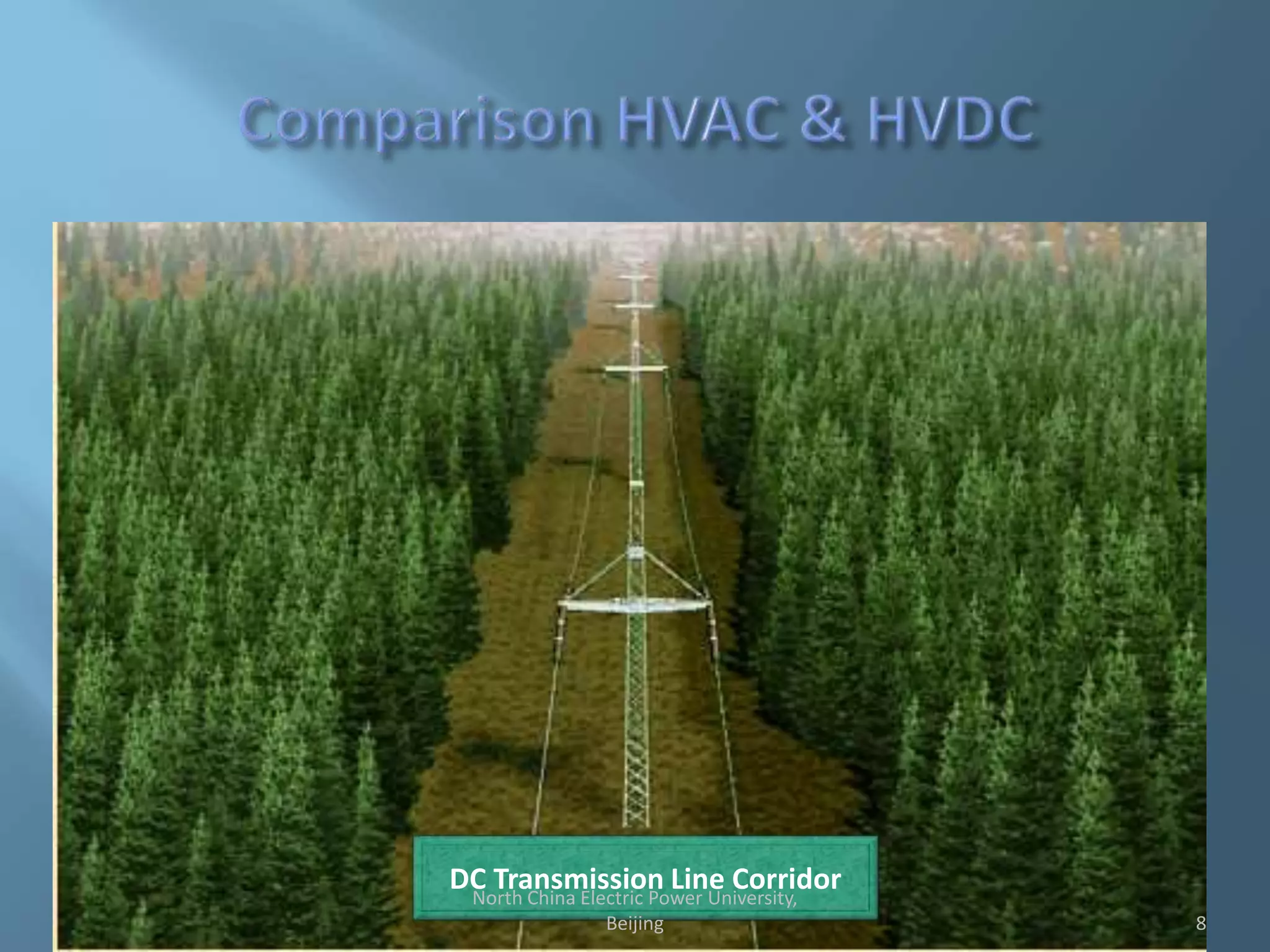

8. DC Transmission Line Corridor
8
North China Electric Power University,
Beijing

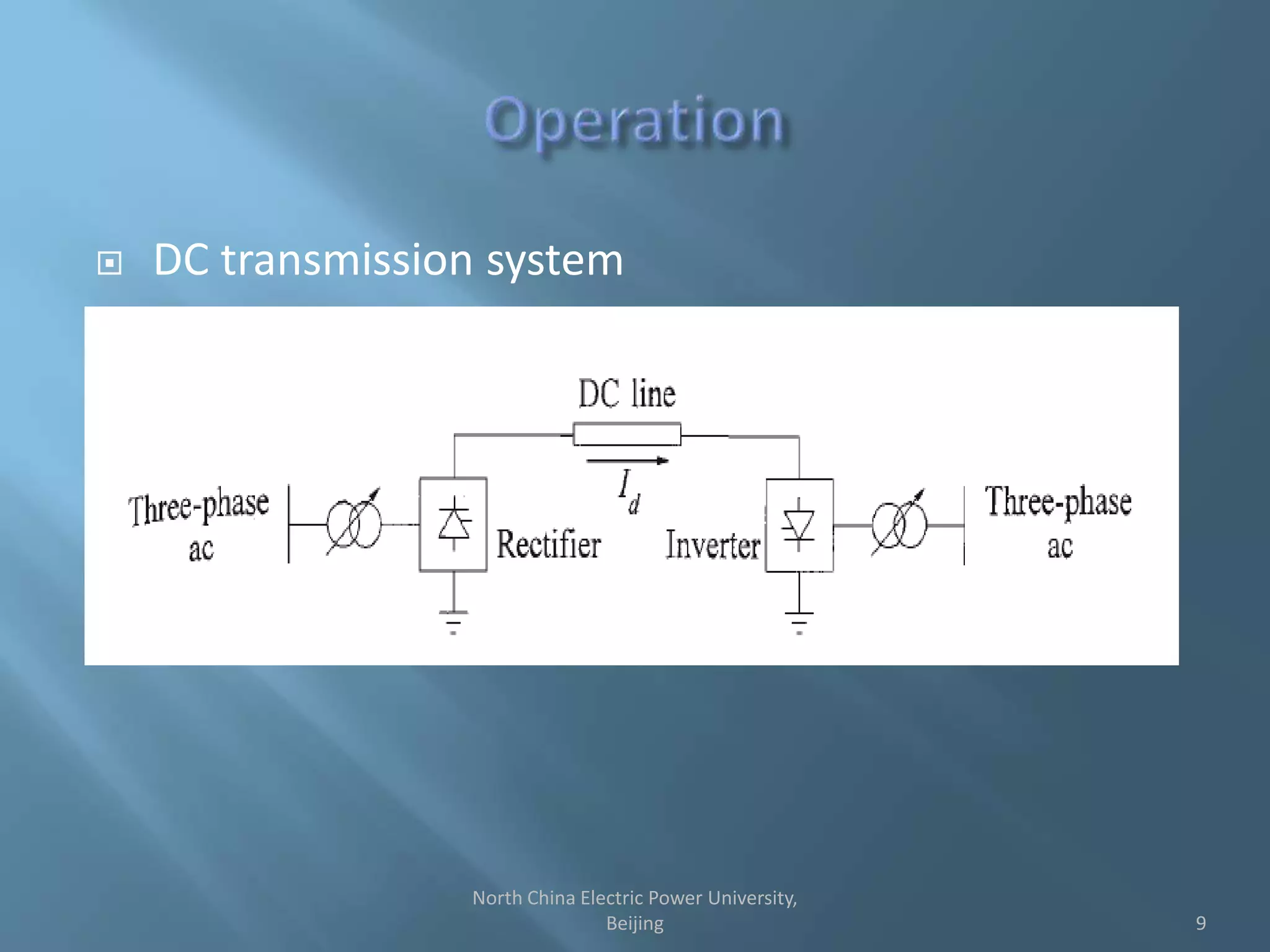

9.  DC transmission system
9
North China Electric Power University,
Beijing

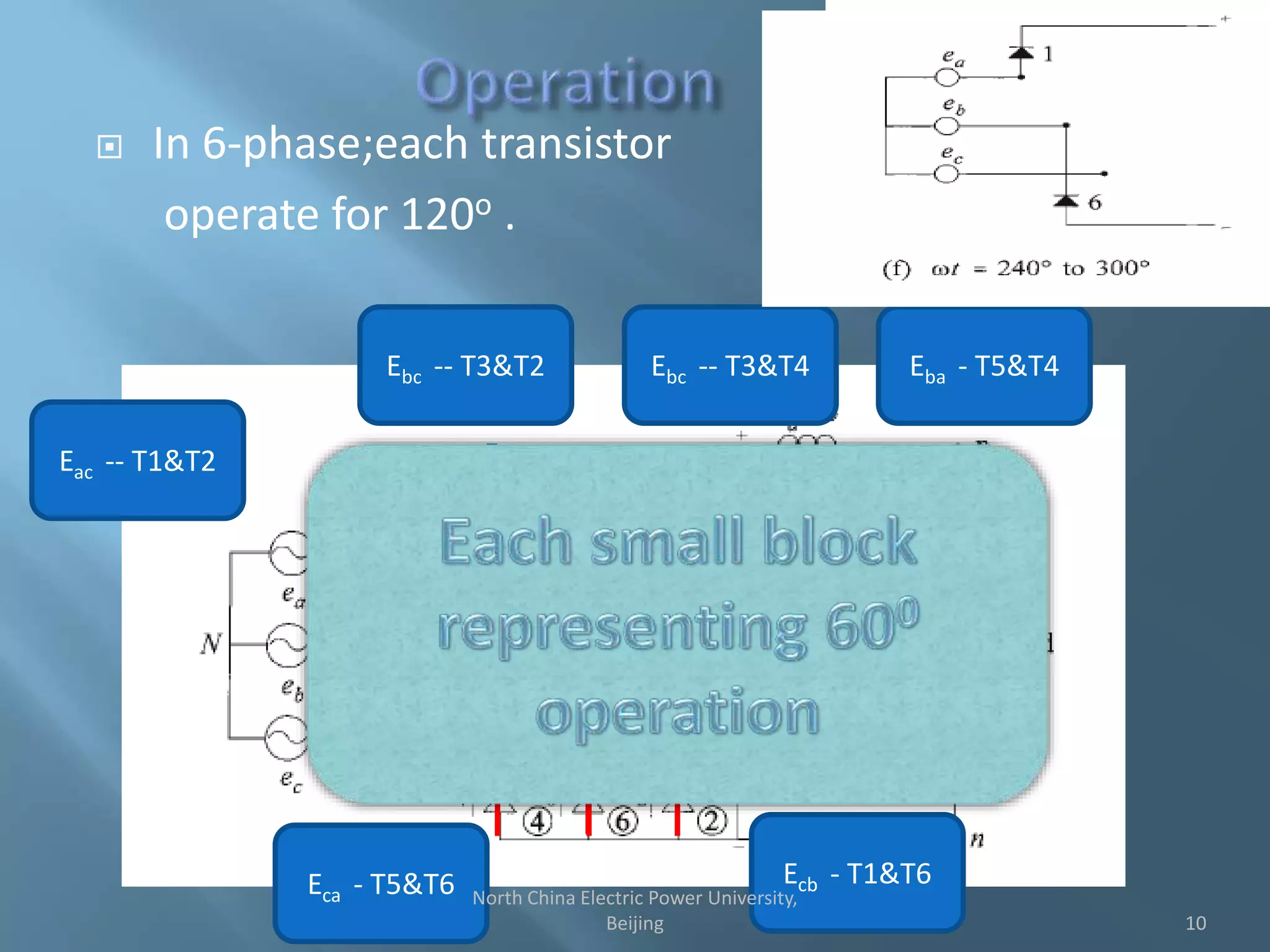

10.  In 6-phase;each transistor
operate for 120o .
Eac -- T1&T2
Ebc -- T3&T2 Ebc -- T3&T4 Eba - T5&T4
Eca - T5&T6 Ecb - T1&T6
10
North China Electric Power University,
Beijing

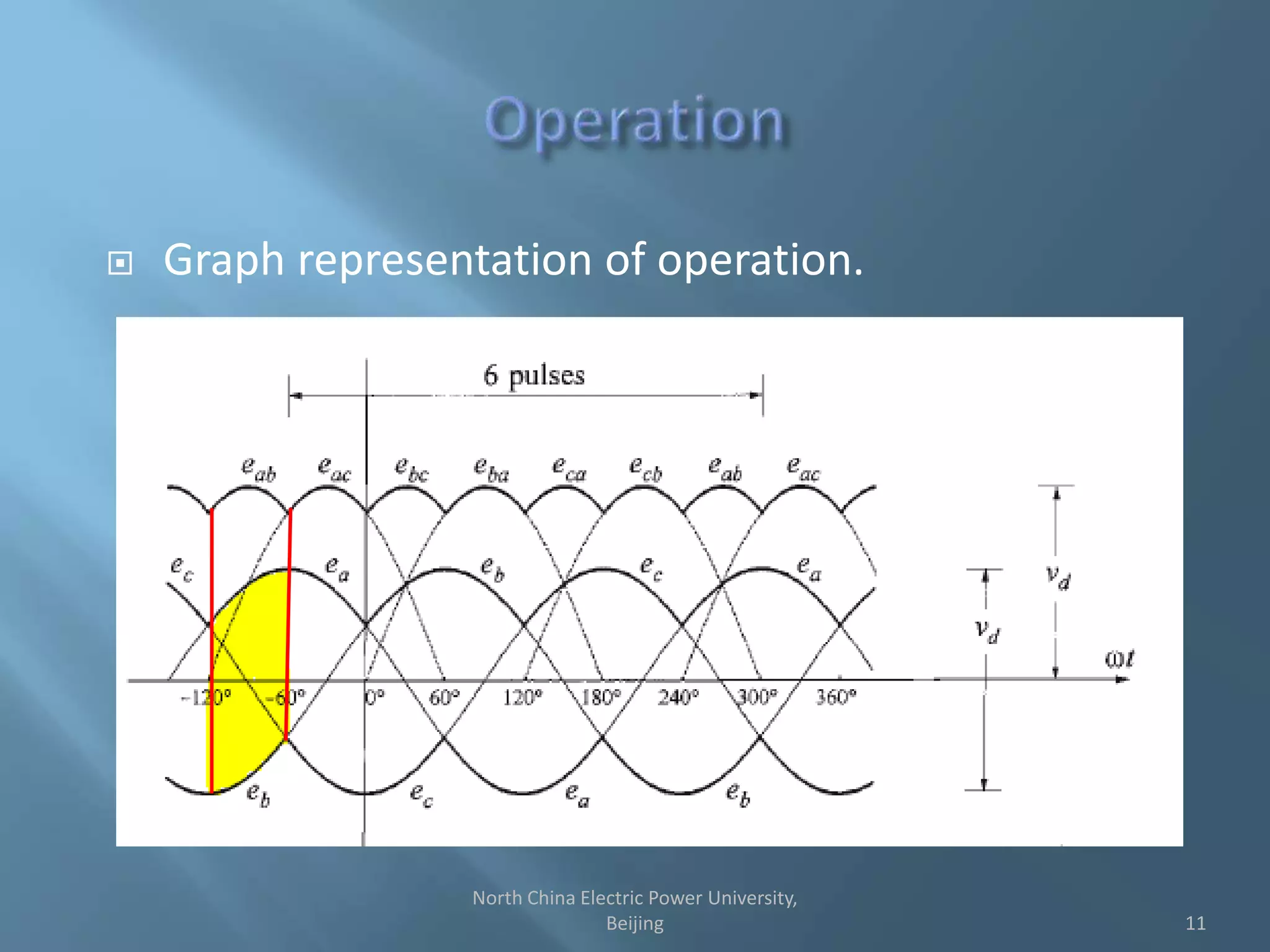

11.  Graph representation of operation.
11
North China Electric Power University,
Beijing

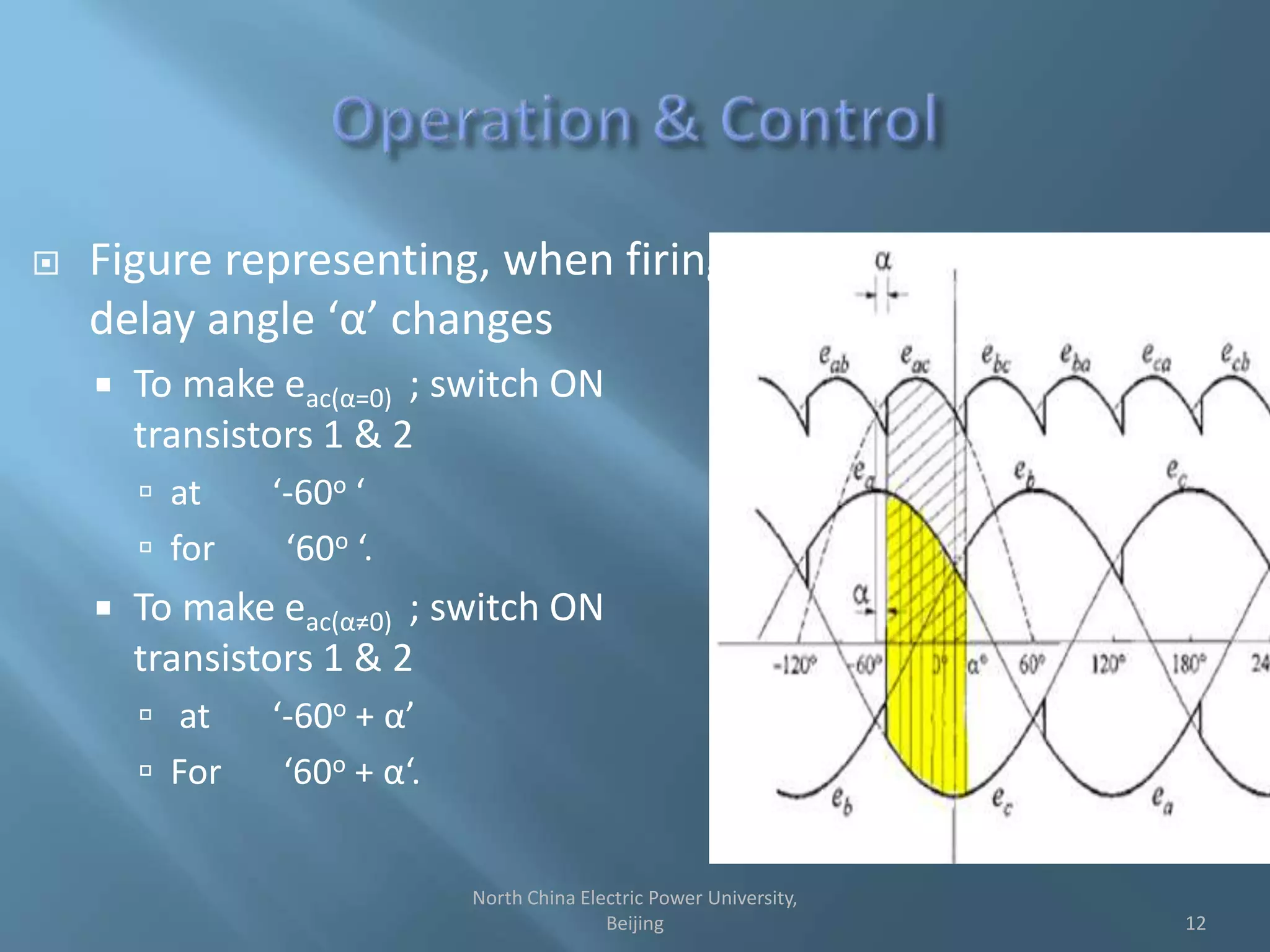

12.  Figure representing, when firing
delay angle ‘α’ changes
 To make eac(α=0) ; switch ON
transistors 1 & 2
 at ‘-60o ‘
 for ‘60o ‘.
 To make eac(α≠0) ; switch ON
transistors 1 & 2
 at ‘-60o + α’
 For ‘60o + α‘.
12
North China Electric Power University,
Beijing

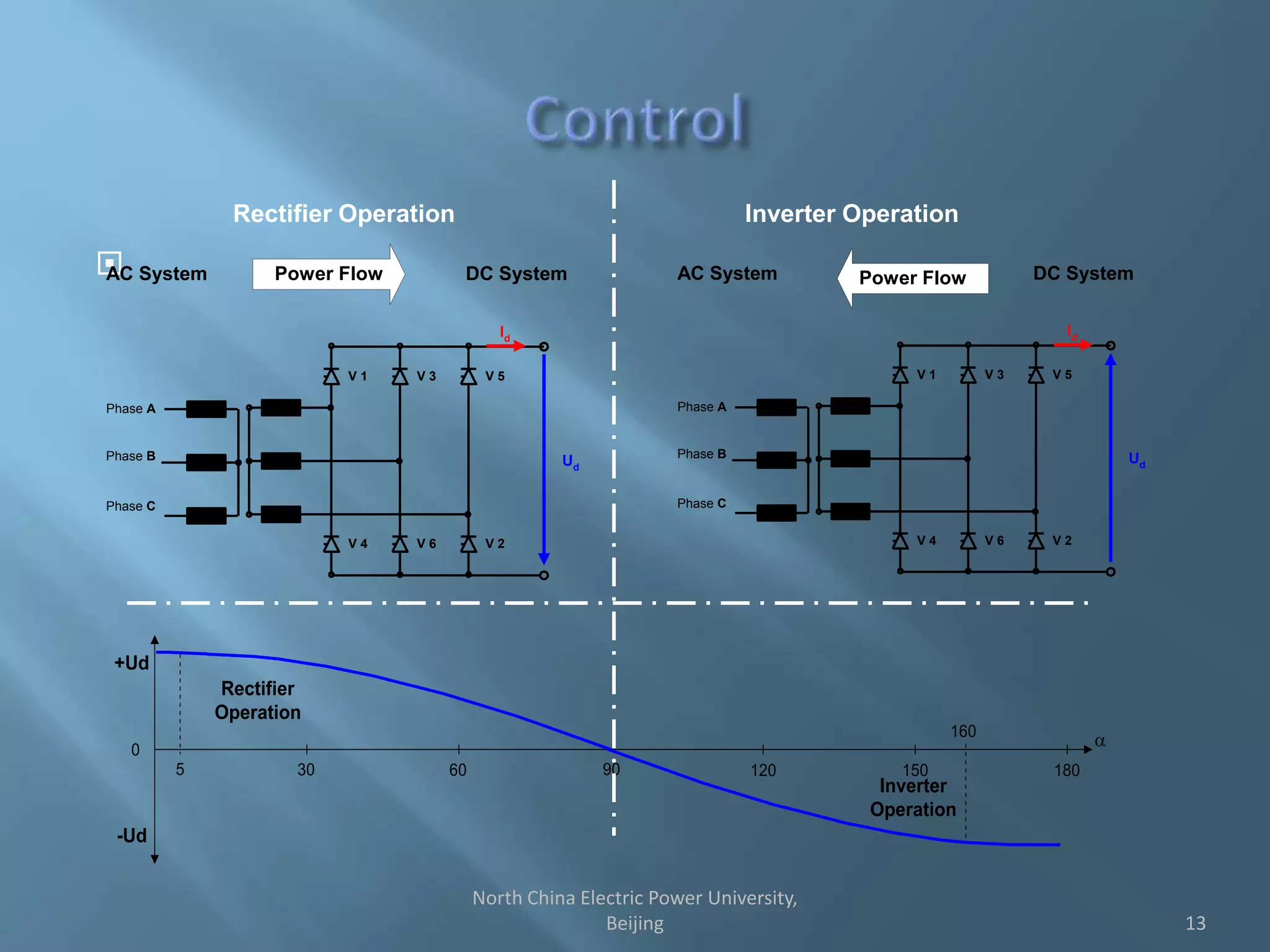

13. 
V 1 V 3 V 5
V 2V 6V 4
Phase A
Ud
Phase B
Phase C
Id
Power FlowAC System DC System
V 1 V 3 V 5
V 2V 6V 4
Phase A
Ud
Phase B
Phase C
Id
AC System DC SystemPower Flow
30 60 90 120 150 180
0
+Ud
-Ud
160
5
Rectifier
Operation
Inverter
Operation
a
Rectifier Operation Inverter Operation
13
North China Electric Power University,
Beijing

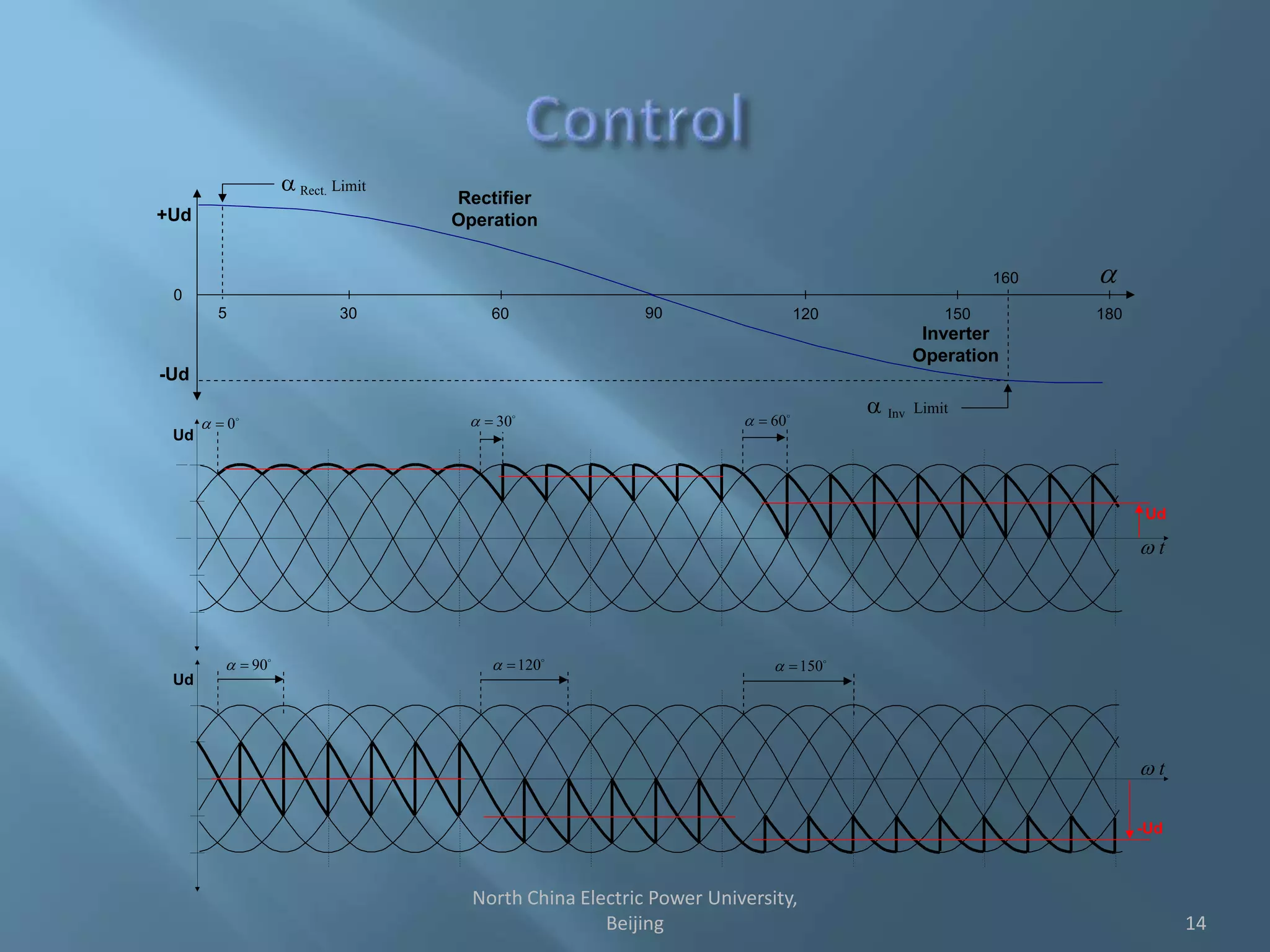

14. 30 60 90 120 150 180
0
a
+Ud
-Ud
160
Limita Inv
5
Limita Rect.
Rectifier
Operation
Inverter
Operation
tw
o
60=a
Ud
o
30=ao
0=a
o
90=a o
120=a o
150=a
-Ud
tw
Ud
Ud
14
North China Electric Power University,
Beijing

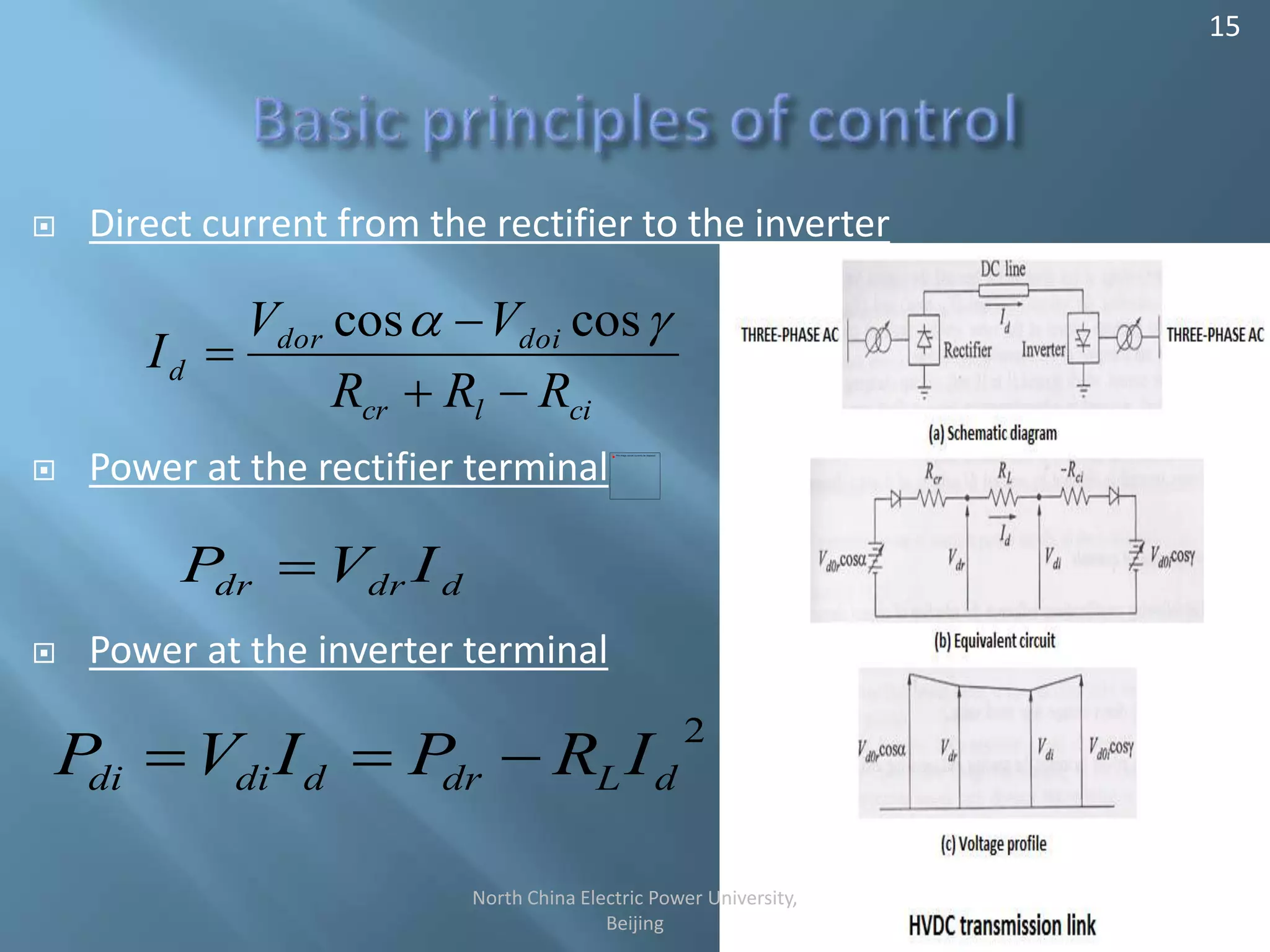

15.  Direct current from the rectifier to the inverter
 Power at the rectifier terminal
 Power at the inverter terminal
cilcr
doidor
d
RRR
VV
I


=
a coscos
ddrdr IVP =
2
dLdrddidi IRPIVP ==
15
North China Electric Power University,
Beijing

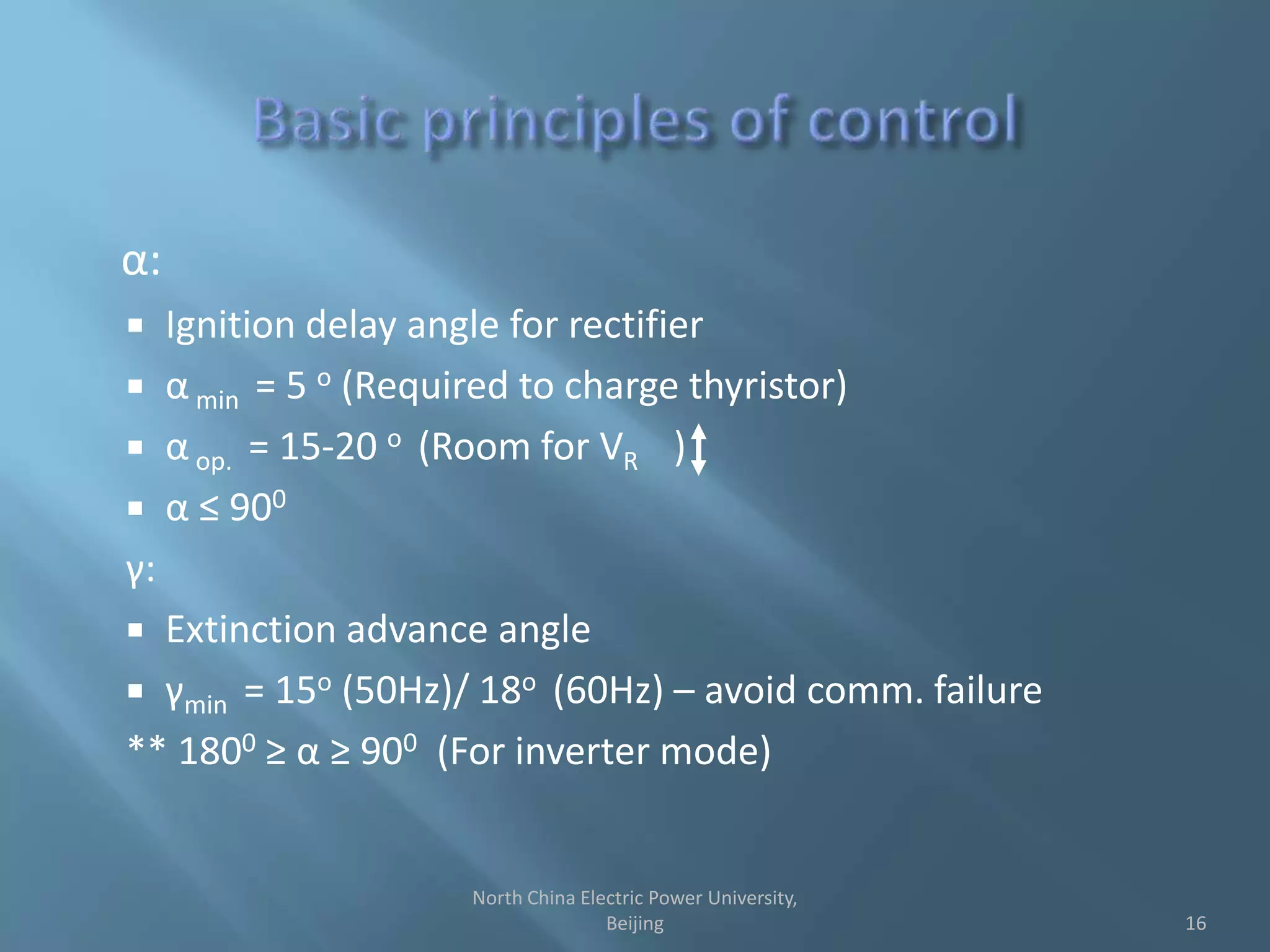

16. α:
 Ignition delay angle for rectifier
 α min = 5 o (Required to charge thyristor)
 α op. = 15-20 o (Room for VR )
 α ≤ 900
γ:
 Extinction advance angle
 γmin = 15o (50Hz)/ 18o (60Hz) – avoid comm. failure
** 1800 ≥ α ≥ 900 (For inverter mode)
16
North China Electric Power University,
Beijing

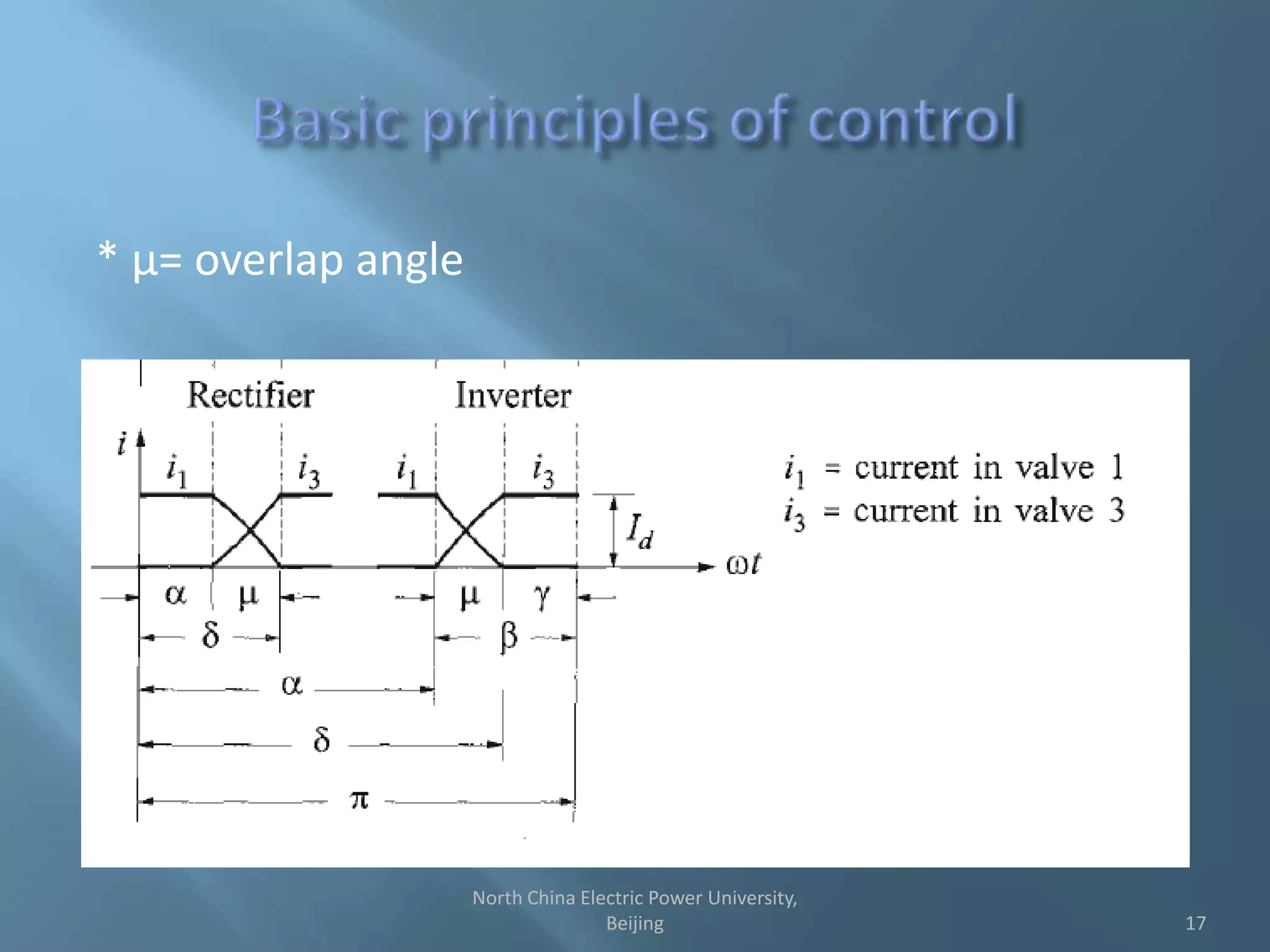

17. * µ= overlap angle
17
North China Electric Power University,
Beijing

18. B
A
2
C
1
a
u u
Vd
u
3
a a

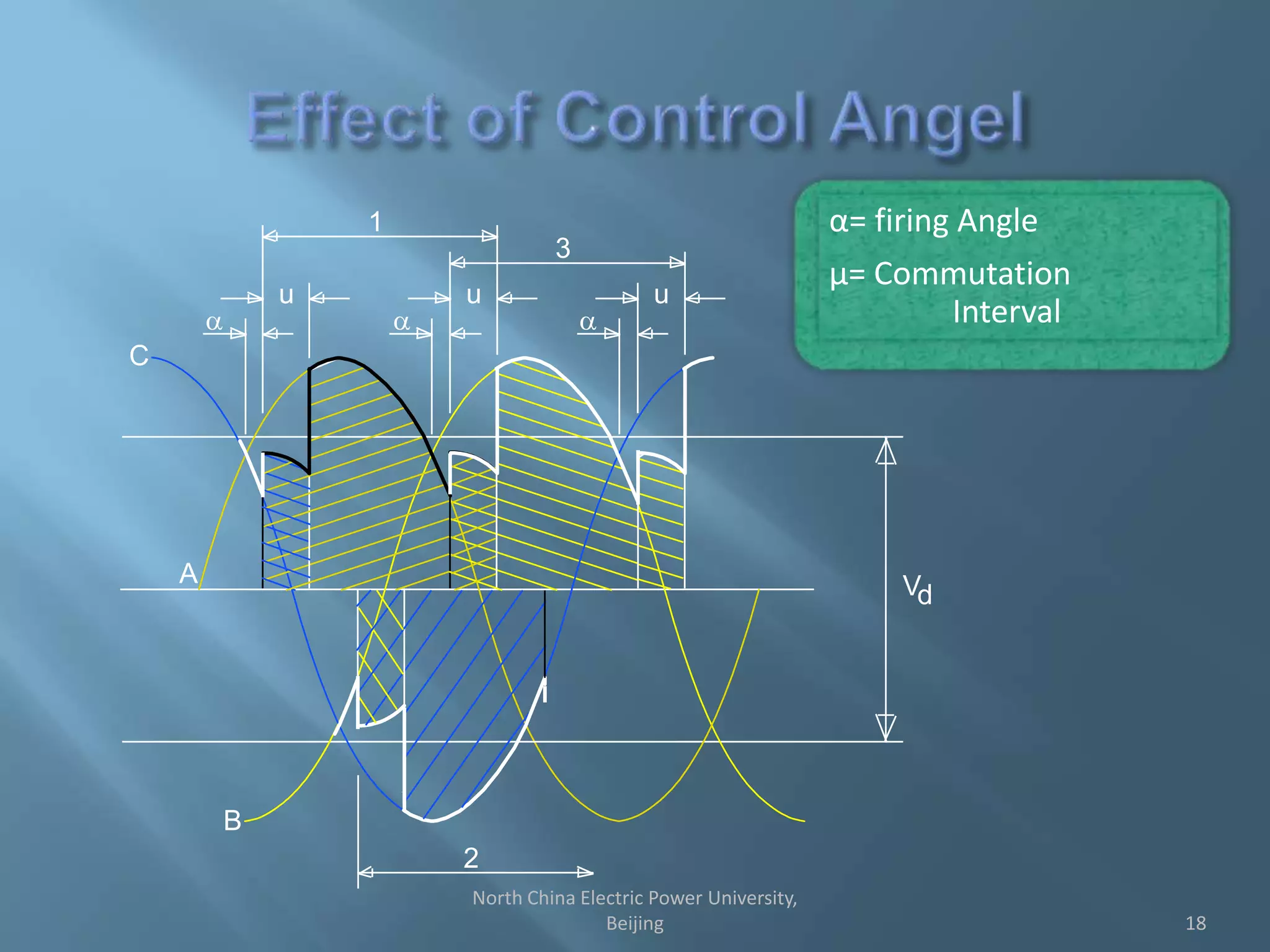

α= firing Angle
μ= Commutation
Interval
18
North China Electric Power University,
Beijing

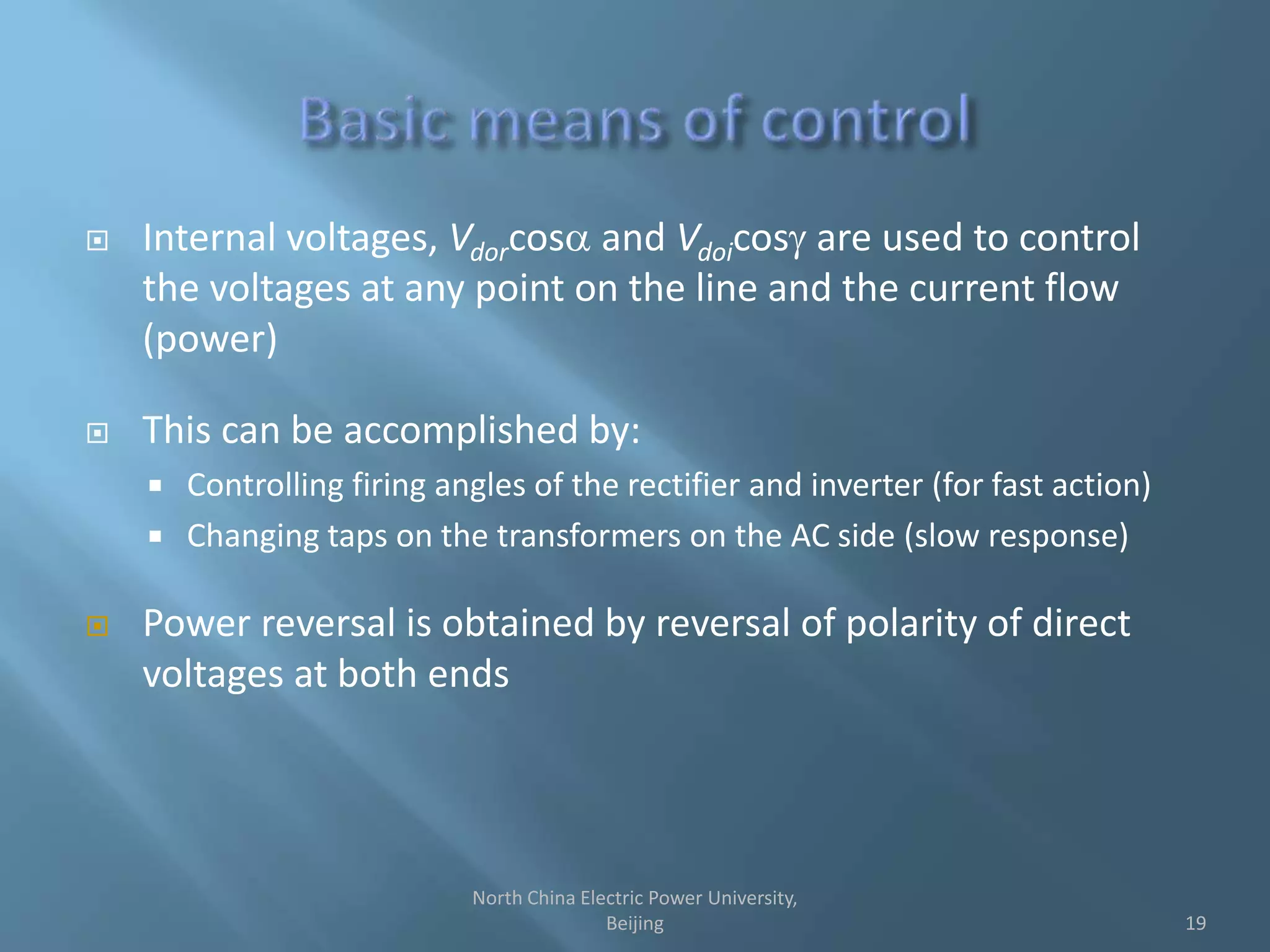

19.  Internal voltages, Vdorcosa and Vdoicos are used to control
the voltages at any point on the line and the current flow
(power)
 This can be accomplished by:
 Controlling firing angles of the rectifier and inverter (for fast action)
 Changing taps on the transformers on the AC side (slow response)
 Power reversal is obtained by reversal of polarity of direct
voltages at both ends
19
North China Electric Power University,
Beijing

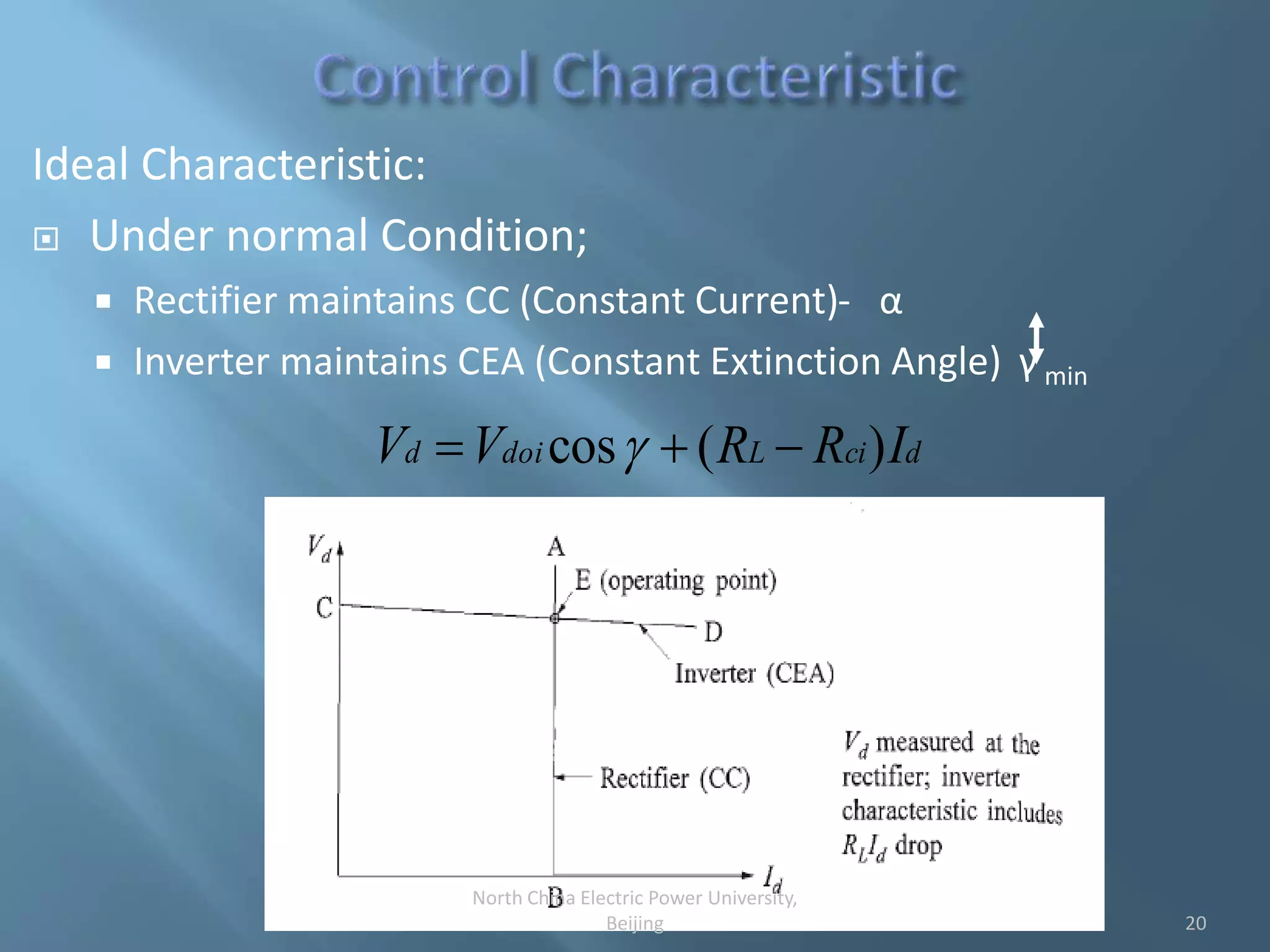

20. Ideal Characteristic:
 Under normal Condition;
 Rectifier maintains CC (Constant Current)- α
 Inverter maintains CEA (Constant Extinction Angle) γ min
dciLdoid IRRVV )(cos = 
20
North China Electric Power University,
Beijing

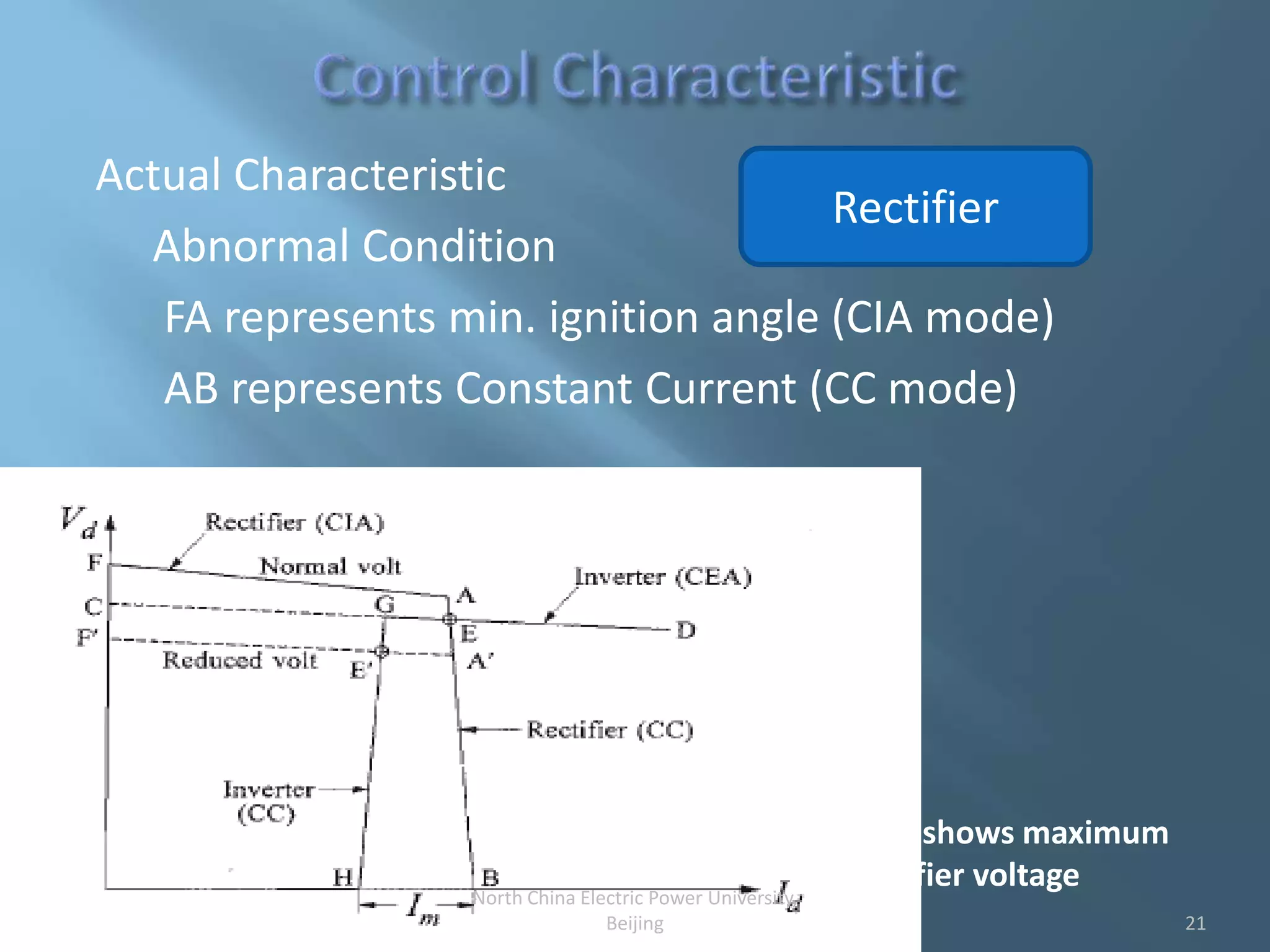

21. Actual Characteristic
Abnormal Condition
FA represents min. ignition angle (CIA mode)
AB represents Constant Current (CC mode)
Rectifier
*CIA shows maximum
rectifier voltage
21
North China Electric Power University,
Beijing

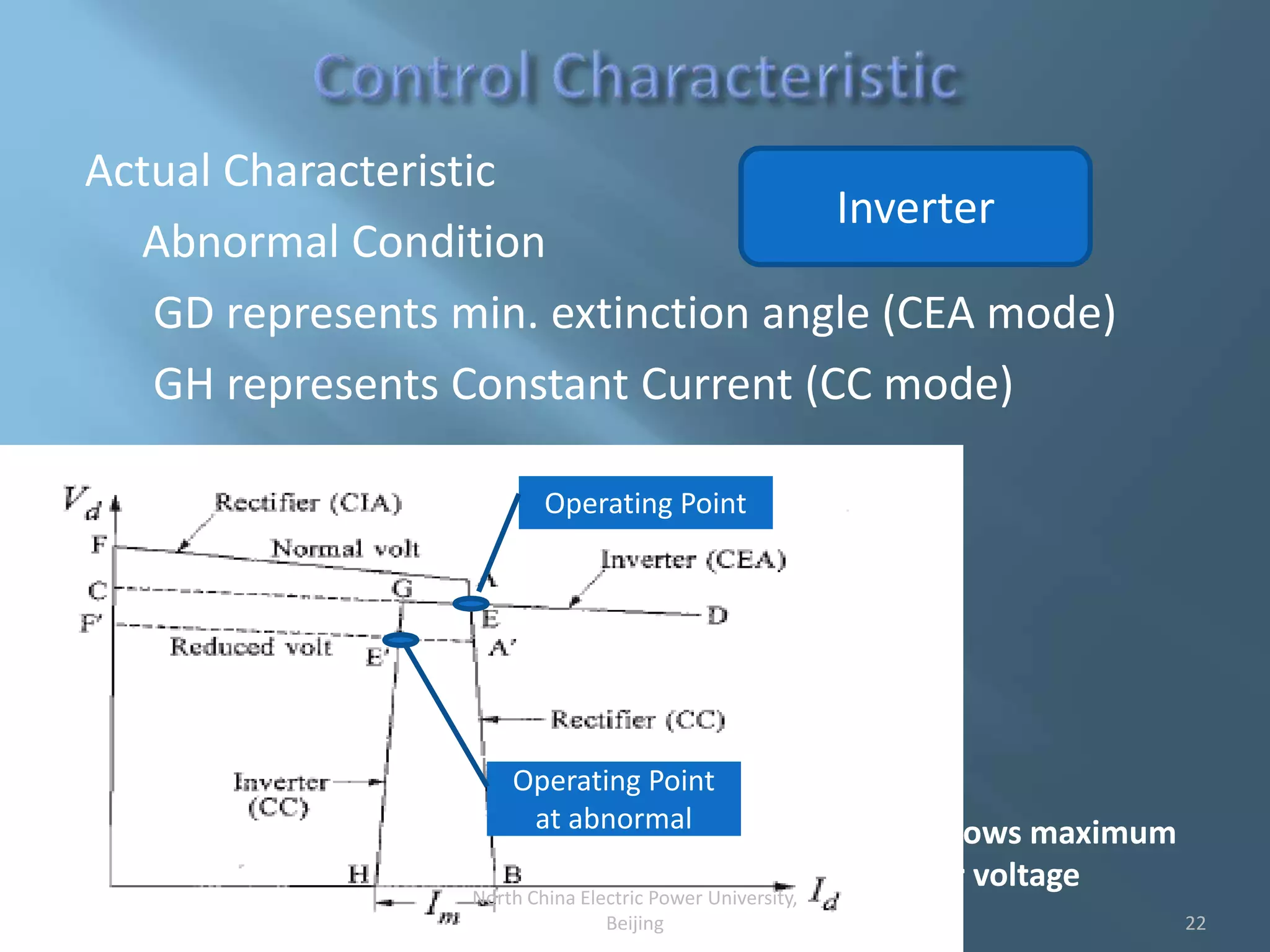

22. Actual Characteristic
Abnormal Condition
GD represents min. extinction angle (CEA mode)
GH represents Constant Current (CC mode)
Inverter
*CEA shows maximum
inverter voltage
Operating Point
Operating Point
at abnormal
22
North China Electric Power University,
Beijing

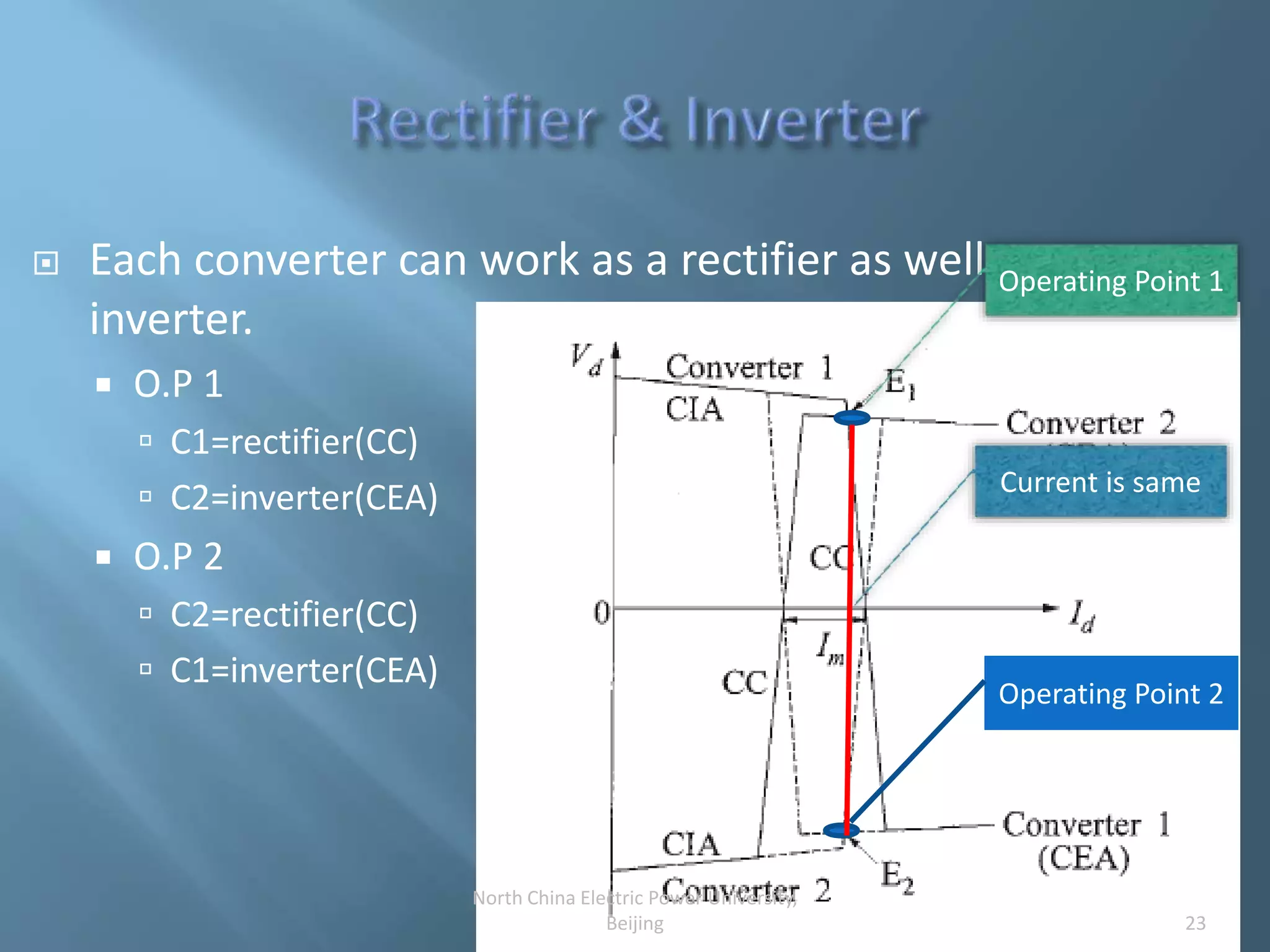

23.  Each converter can work as a rectifier as well as
inverter.
 O.P 1
 C1=rectifier(CC)
 C2=inverter(CEA)
 O.P 2
 C2=rectifier(CC)
 C1=inverter(CEA)
Operating Point 2
Operating Point 1
Current is same
23
North China Electric Power University,
Beijing

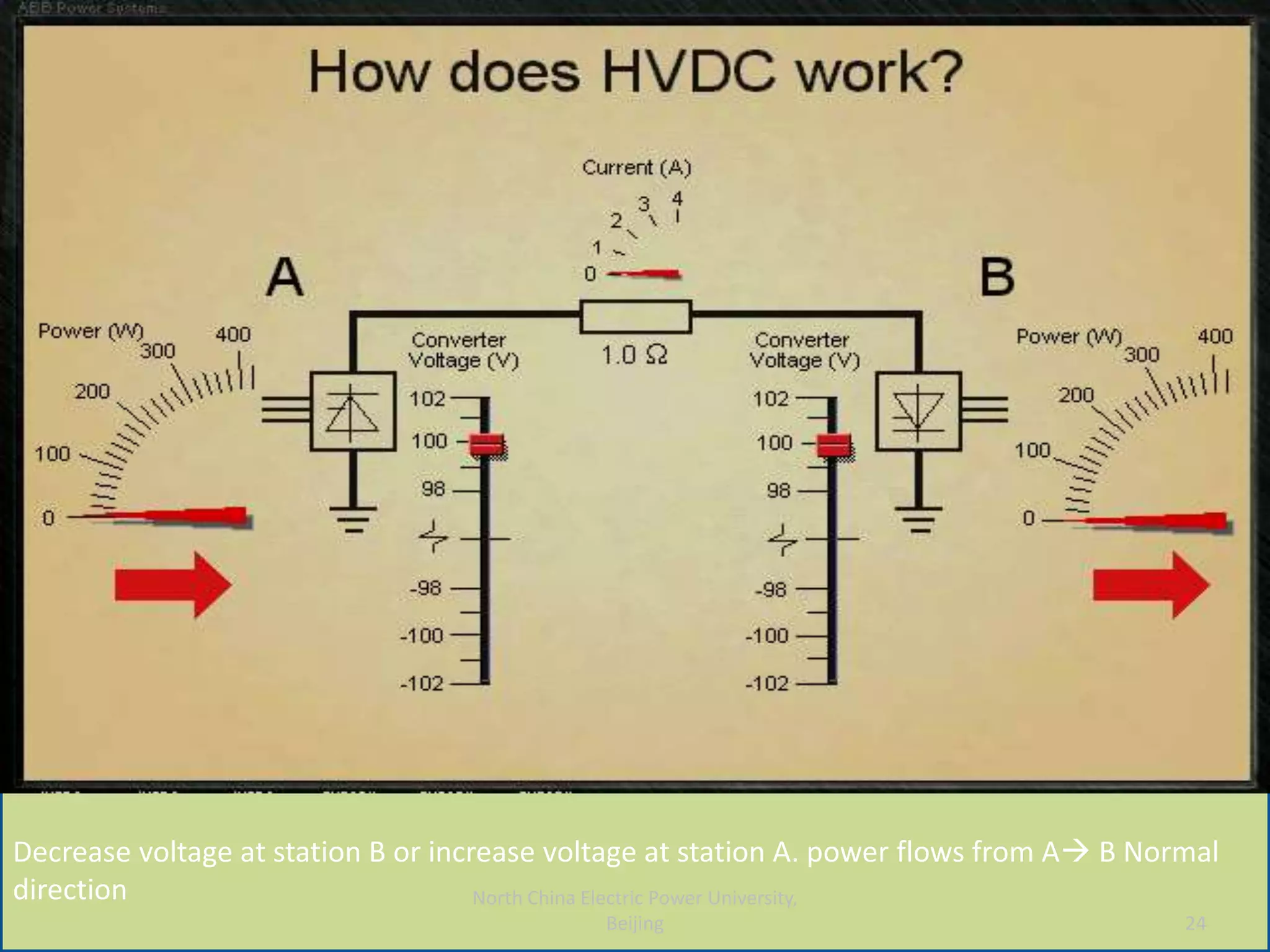

24. Decrease voltage at station B or increase voltage at station A. power flows from A B Normal
direction
Decrease voltage at station B or increase voltage at station A. power flows from A B Normal
direction
24
North China Electric Power University,
Beijing

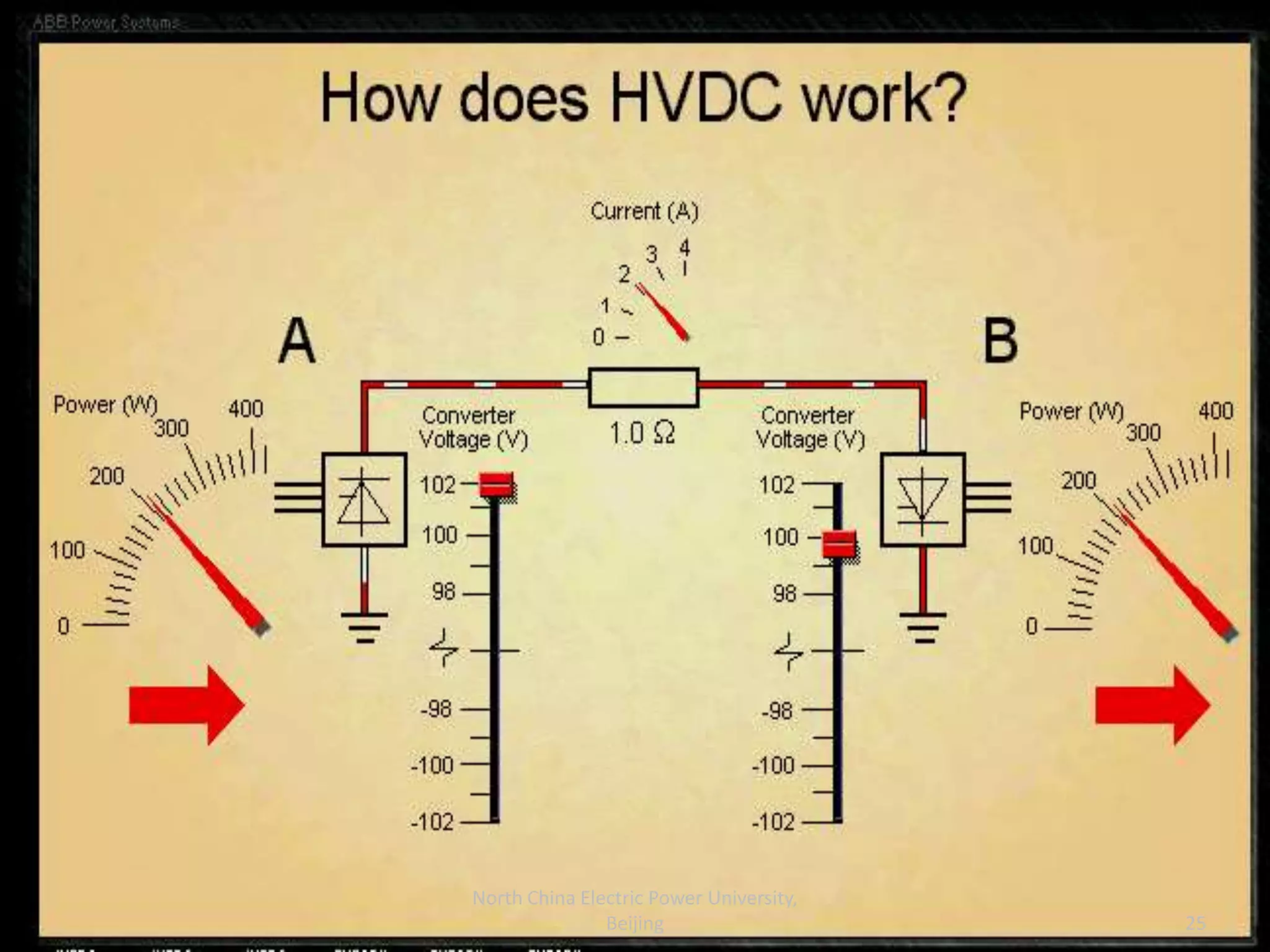

25. 25
North China Electric Power University,
Beijing

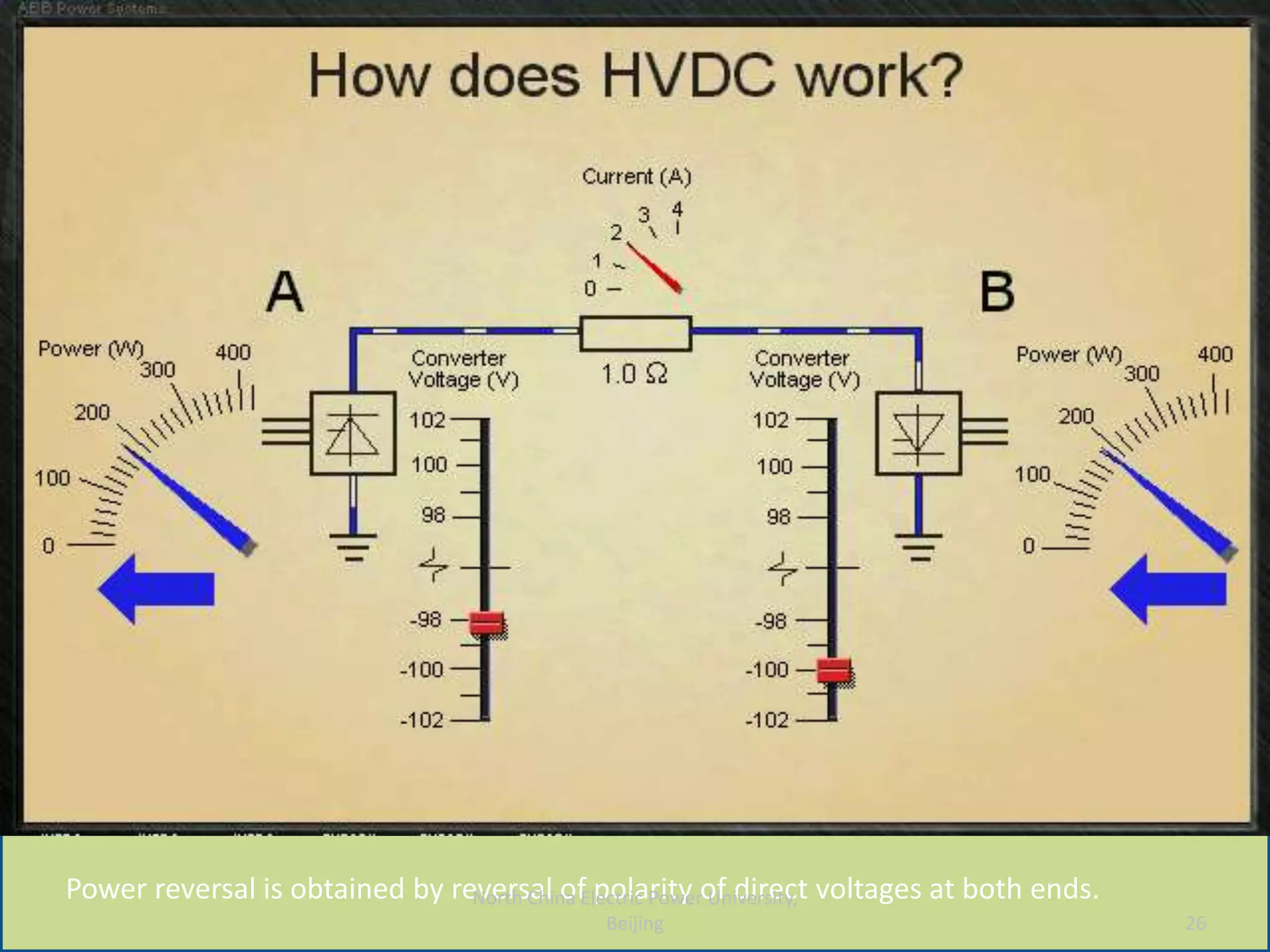

26. Power reversal is obtained by reversal of polarity of direct voltages at both ends.
26
North China Electric Power University,
Beijing

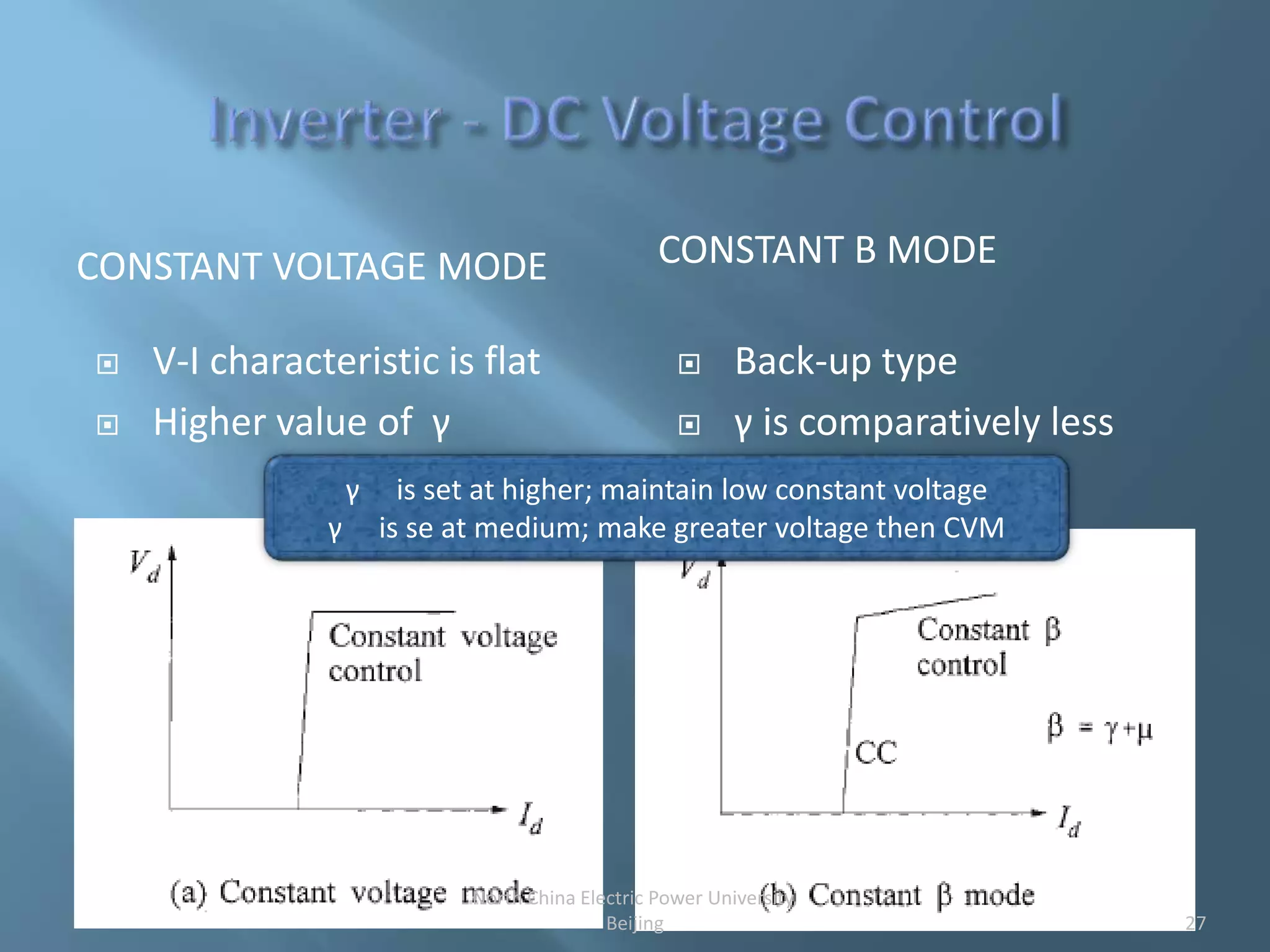

27. CONSTANT VOLTAGE MODE CONSTANT B MODE
 V-I characteristic is flat
 Higher value of γ
 Back-up type
 γ is comparatively less
γ is set at higher; maintain low constant voltage
γ is se at medium; make greater voltage then CVM
27
North China Electric Power University,
Beijing

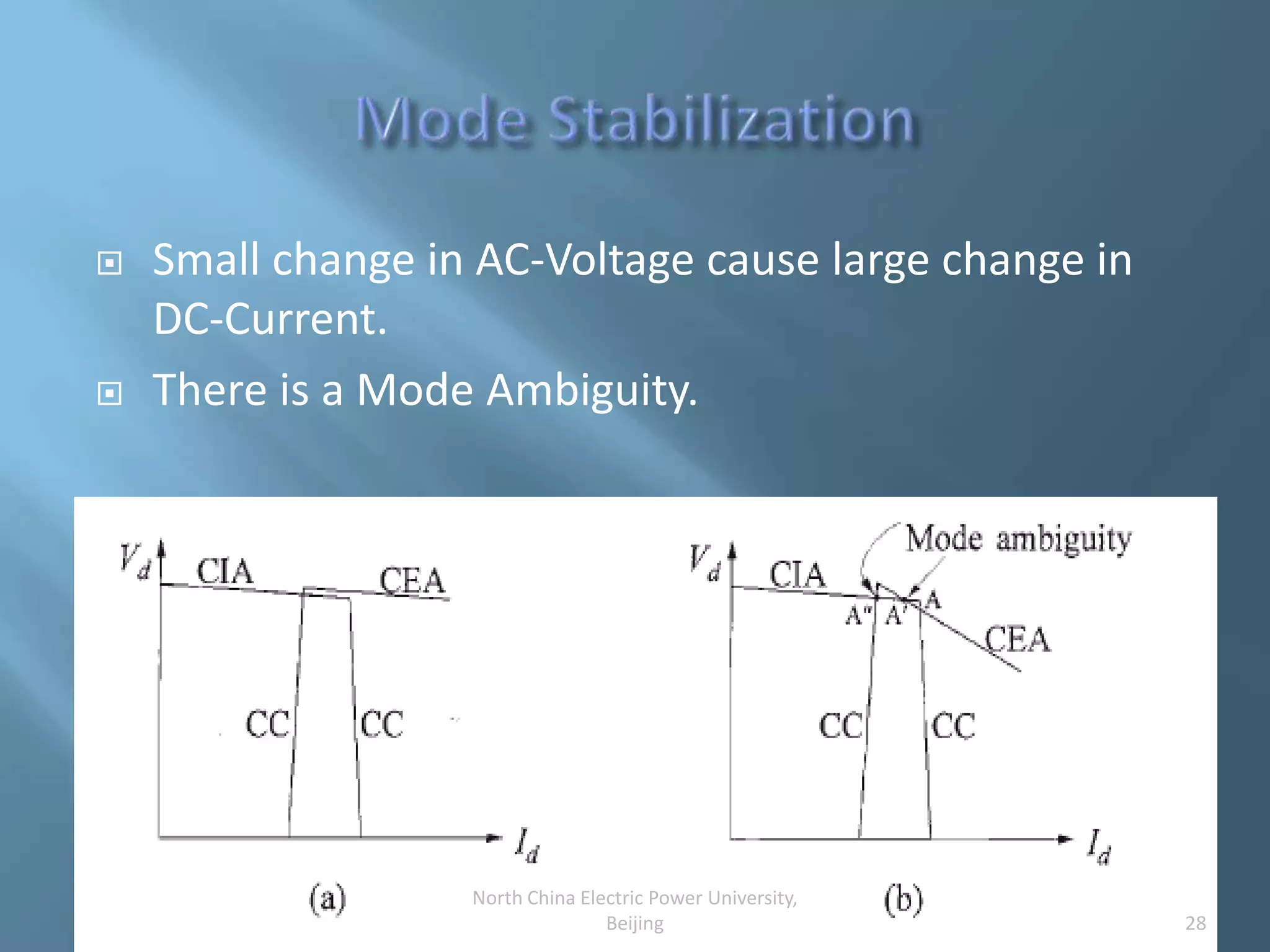

28.  Small change in AC-Voltage cause large change in
DC-Current.
 There is a Mode Ambiguity.
28
North China Electric Power University,
Beijing

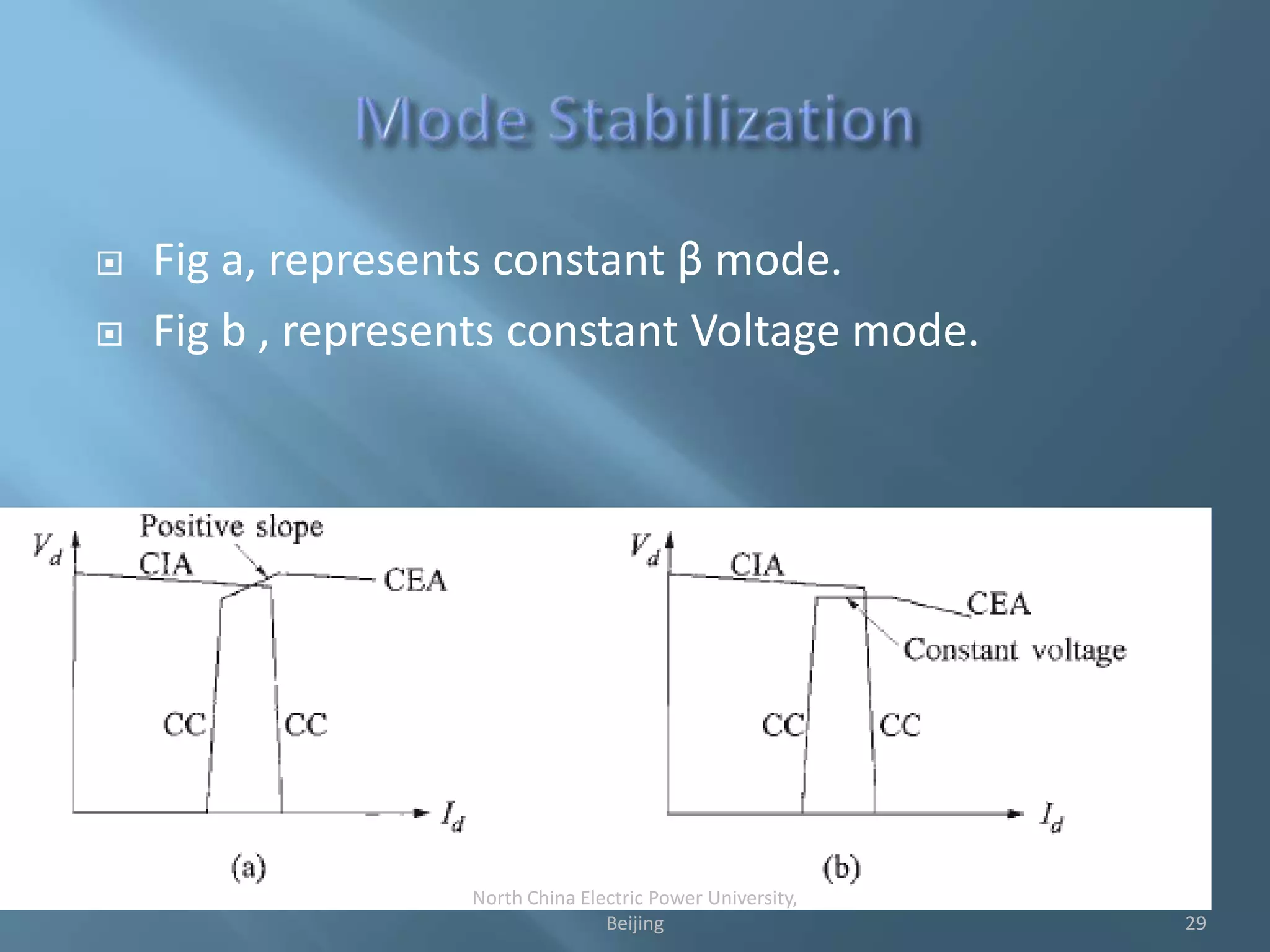

29.  Fig a, represents constant β mode.
 Fig b , represents constant Voltage mode.
29
North China Electric Power University,
Beijing

30.  Voltage-Dependent Current-Order Limit.
 Under low voltage(drop >30%);current also decreases to
low level
30
North China Electric Power University,
Beijing

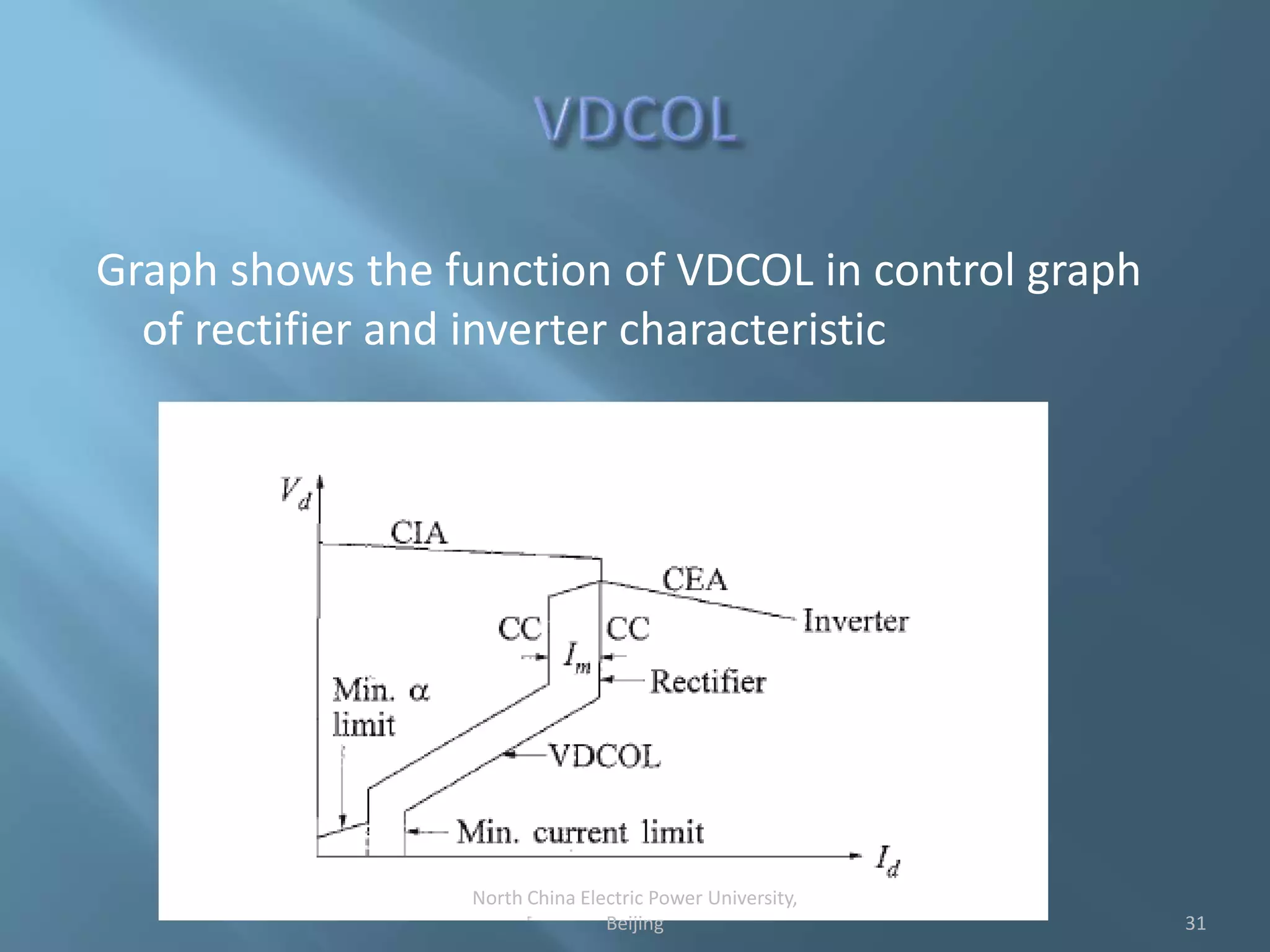

31. Graph shows the function of VDCOL in control graph
of rectifier and inverter characteristic
31
North China Electric Power University,
Beijing

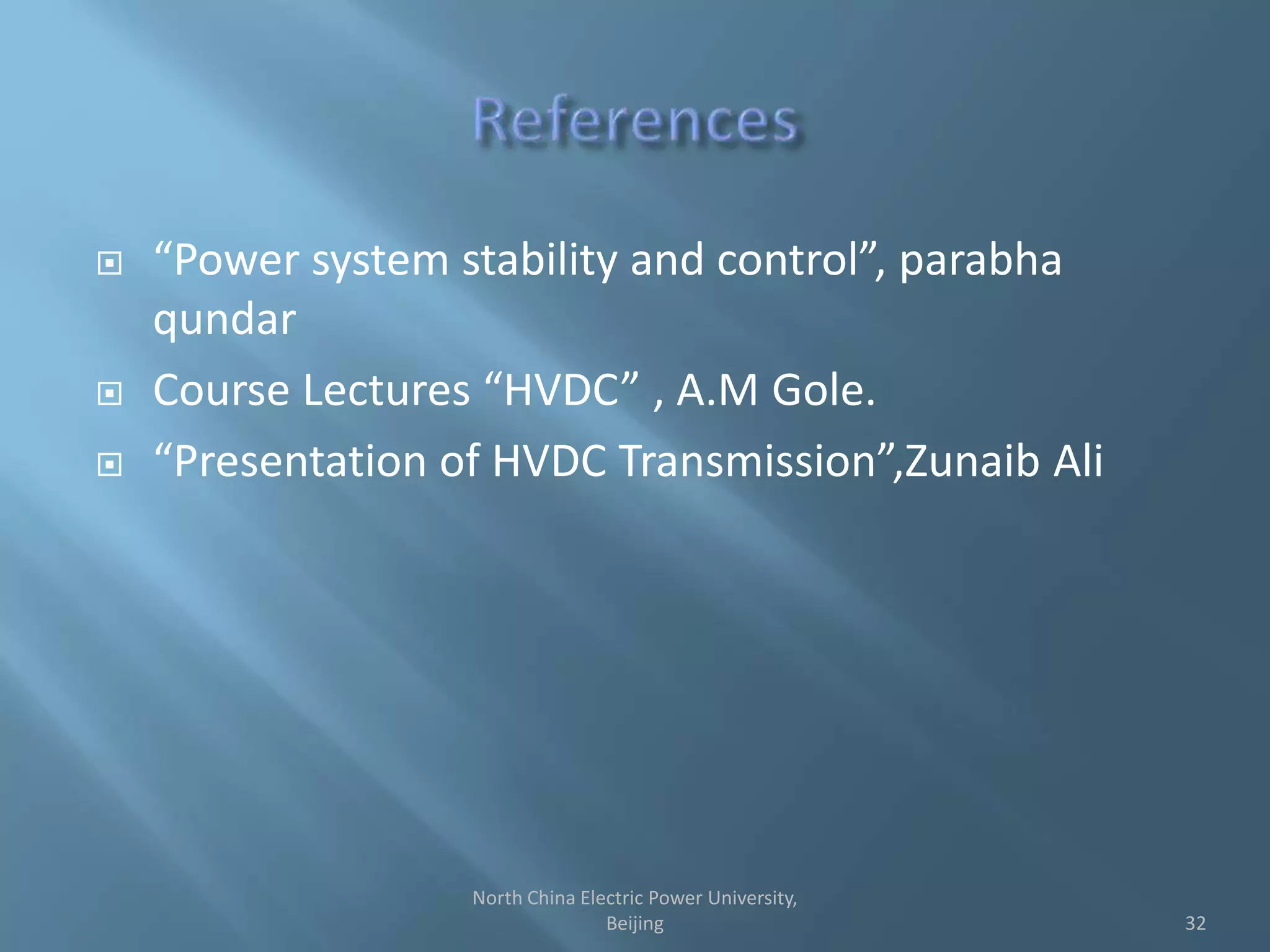

32.  “Power system stability and control”, parabha
qundar
 Course Lectures “HVDC” , A.M Gole.
 “Presentation of HVDC Transmission”,Zunaib Ali
