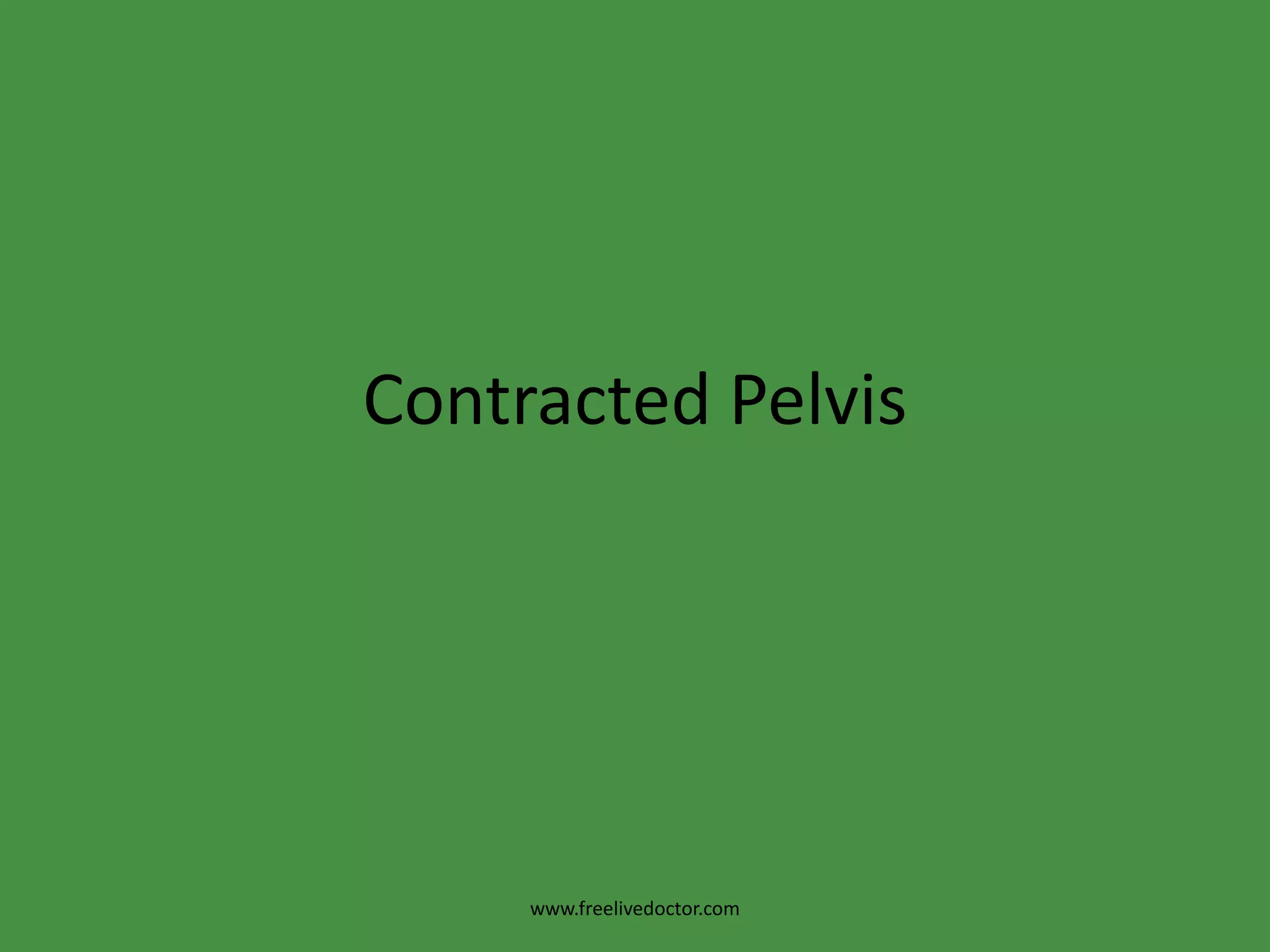

Contracted Pelviswww.freelivedoctor.com

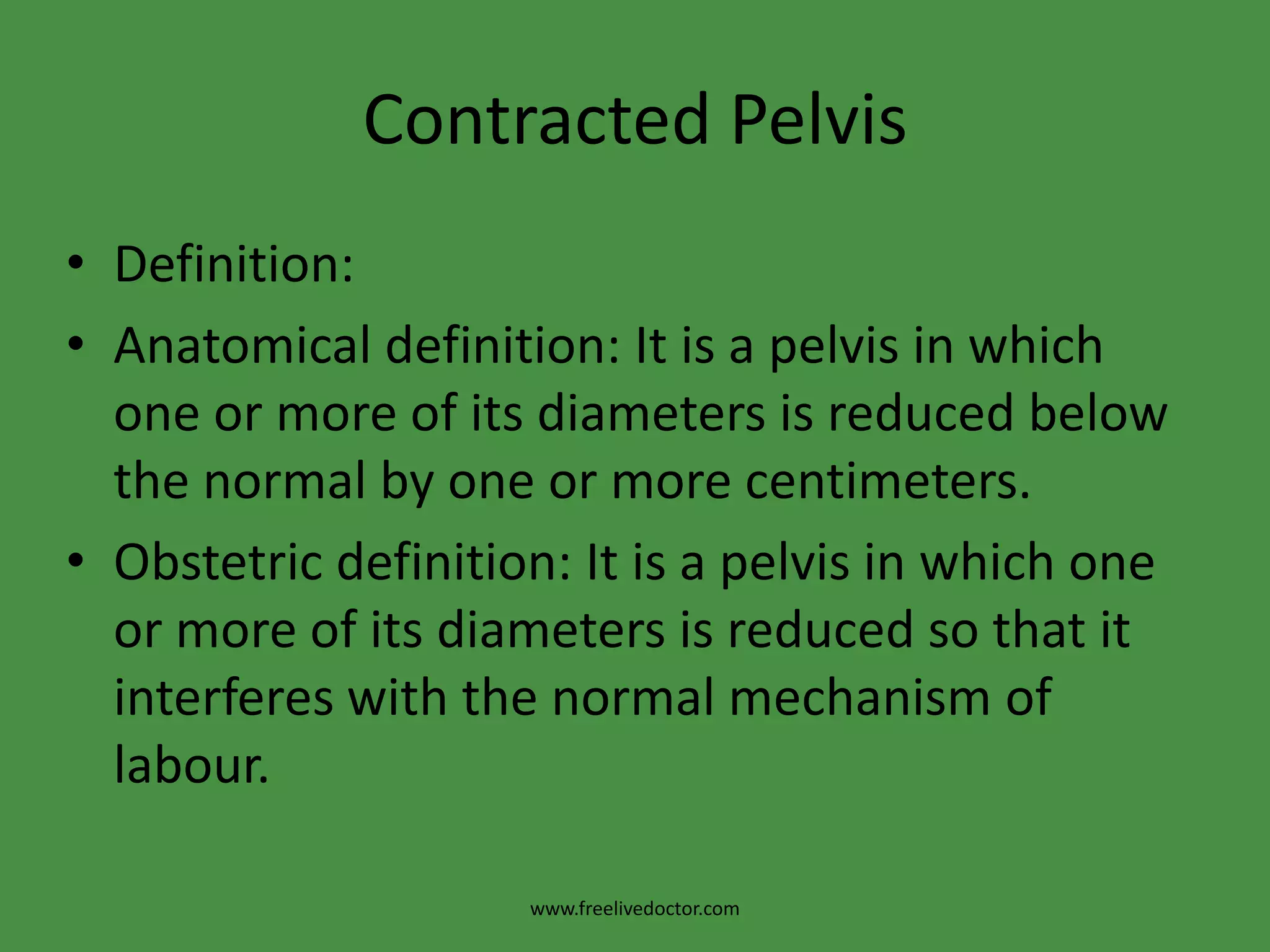

Contracted PelvisDefinition:Anatomical definition: It is a pelvis in which one or more of its diameters is reduced below the normal by one or more centimeters.Obstetric definition: It is a pelvis in which one or more of its diameters is reduced so that it interferes with the normal mechanism of labour.www.freelivedoctor.com

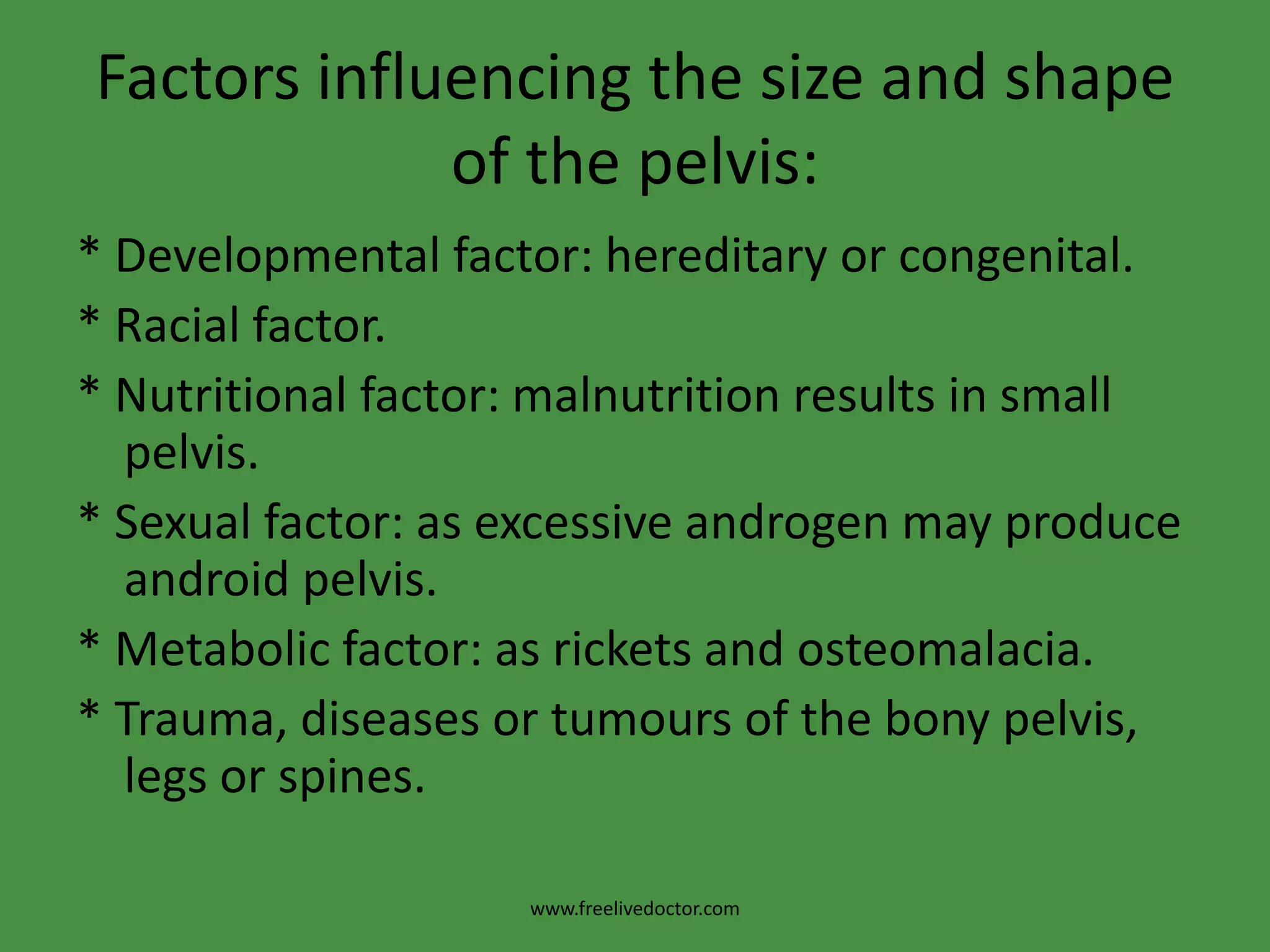

Factors influencing the size and shape of the pelvis:* Developmental factor: hereditary or congenital.* Racial factor.* Nutritional factor: malnutrition results in small pelvis.* Sexual factor: as excessive androgen may produce android pelvis.* Metabolic factor: as rickets and osteomalacia.* Trauma, diseases or tumours of the bony pelvis, legs or spines.www.freelivedoctor.com

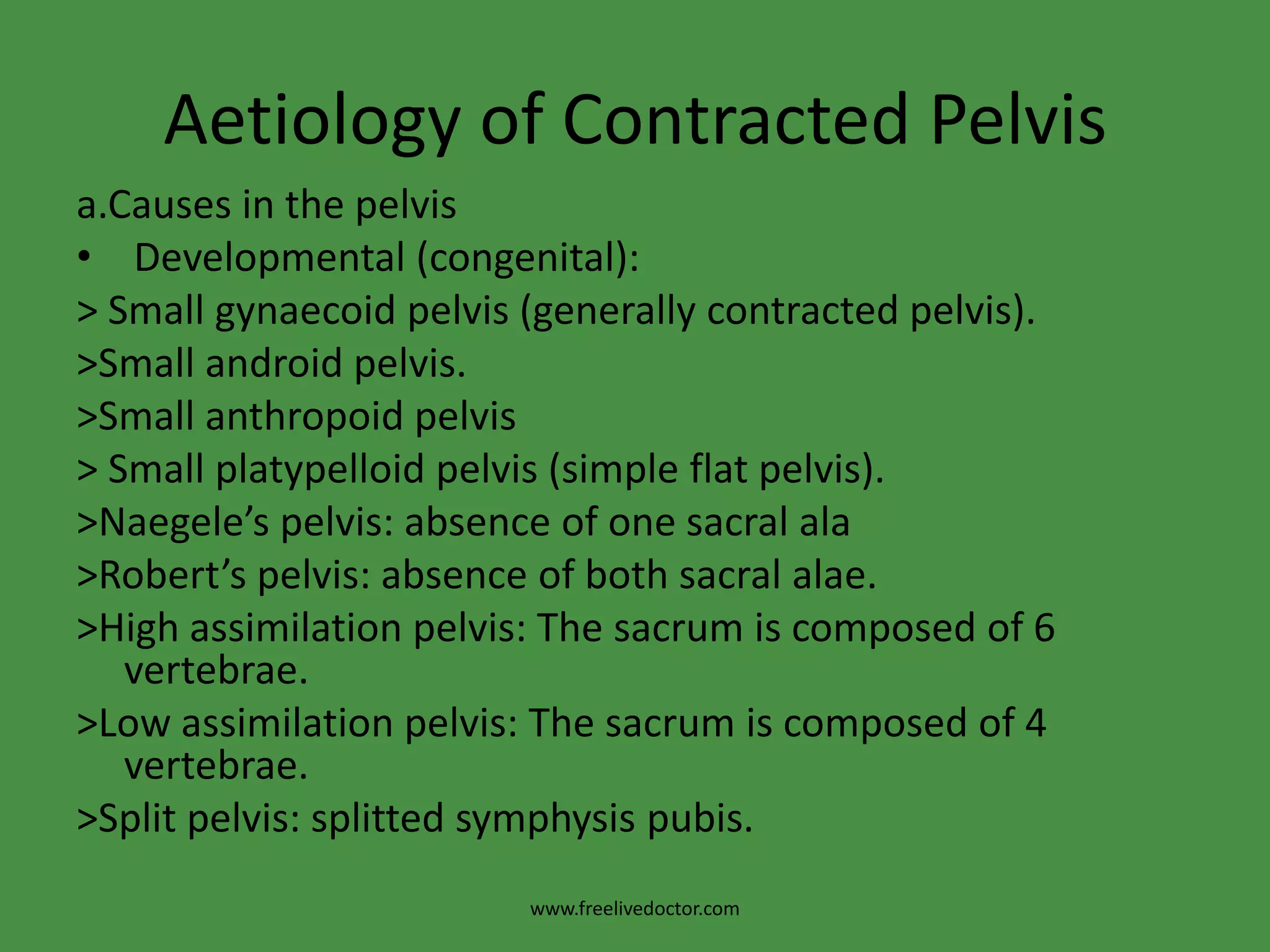

Aetiology of Contracted Pelvisa.Causes in the pelvis Developmental (congenital):> Small gynaecoid pelvis (generally contracted pelvis).>Small android pelvis.>Small anthropoid pelvis> Small platypelloid pelvis (simple flat pelvis).>Naegele’s pelvis: absence of one sacral ala>Robert’s pelvis: absence of both sacral alae.>High assimilation pelvis: The sacrum is composed of 6 vertebrae.>Low assimilation pelvis: The sacrum is composed of 4 vertebrae.>Split pelvis: splittedsymphysis pubis.www.freelivedoctor.com

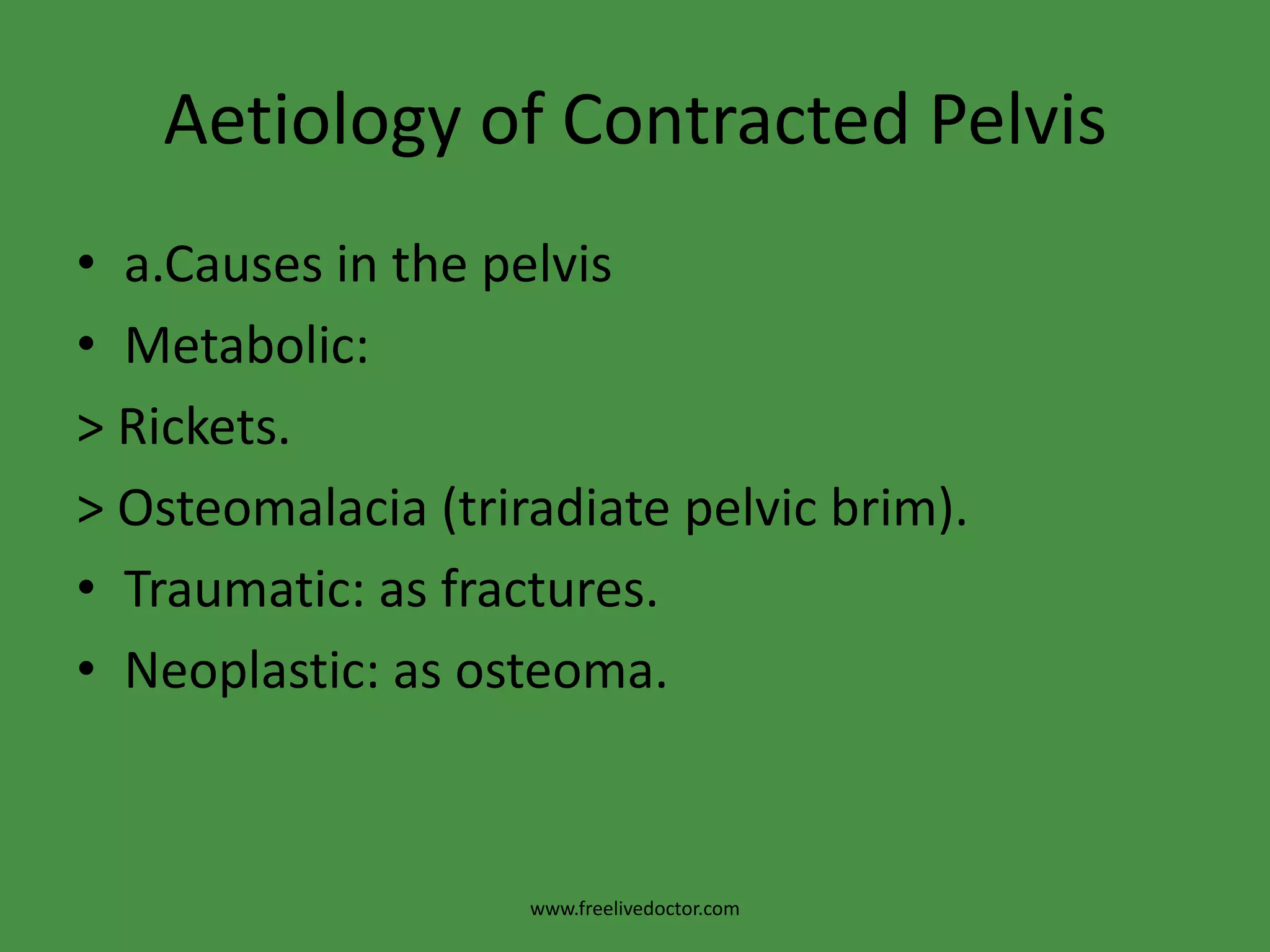

Aetiology of Contracted Pelvisa.Causes in the pelvisMetabolic:> Rickets.> Osteomalacia (triradiate pelvic brim).Traumatic: as fractures.Neoplastic: as osteoma.www.freelivedoctor.com

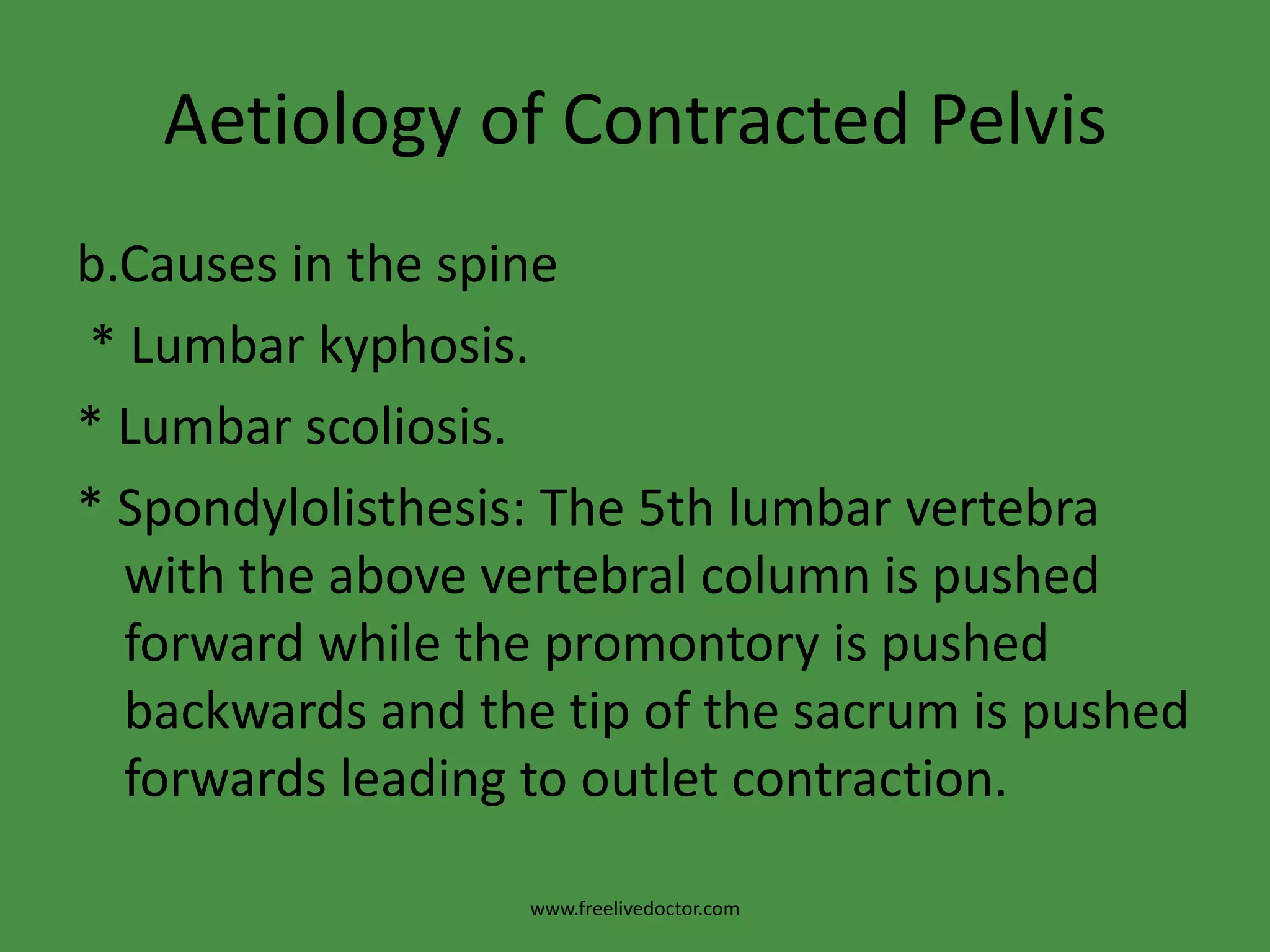

Aetiology of Contracted Pelvisb.Causes in the spine * Lumbar kyphosis.* Lumbar scoliosis.* Spondylolisthesis: The 5th lumbar vertebra with the above vertebral column is pushed forward while the promontory is pushed backwards and the tip of the sacrum is pushed forwards leading to outlet contraction.www.freelivedoctor.com

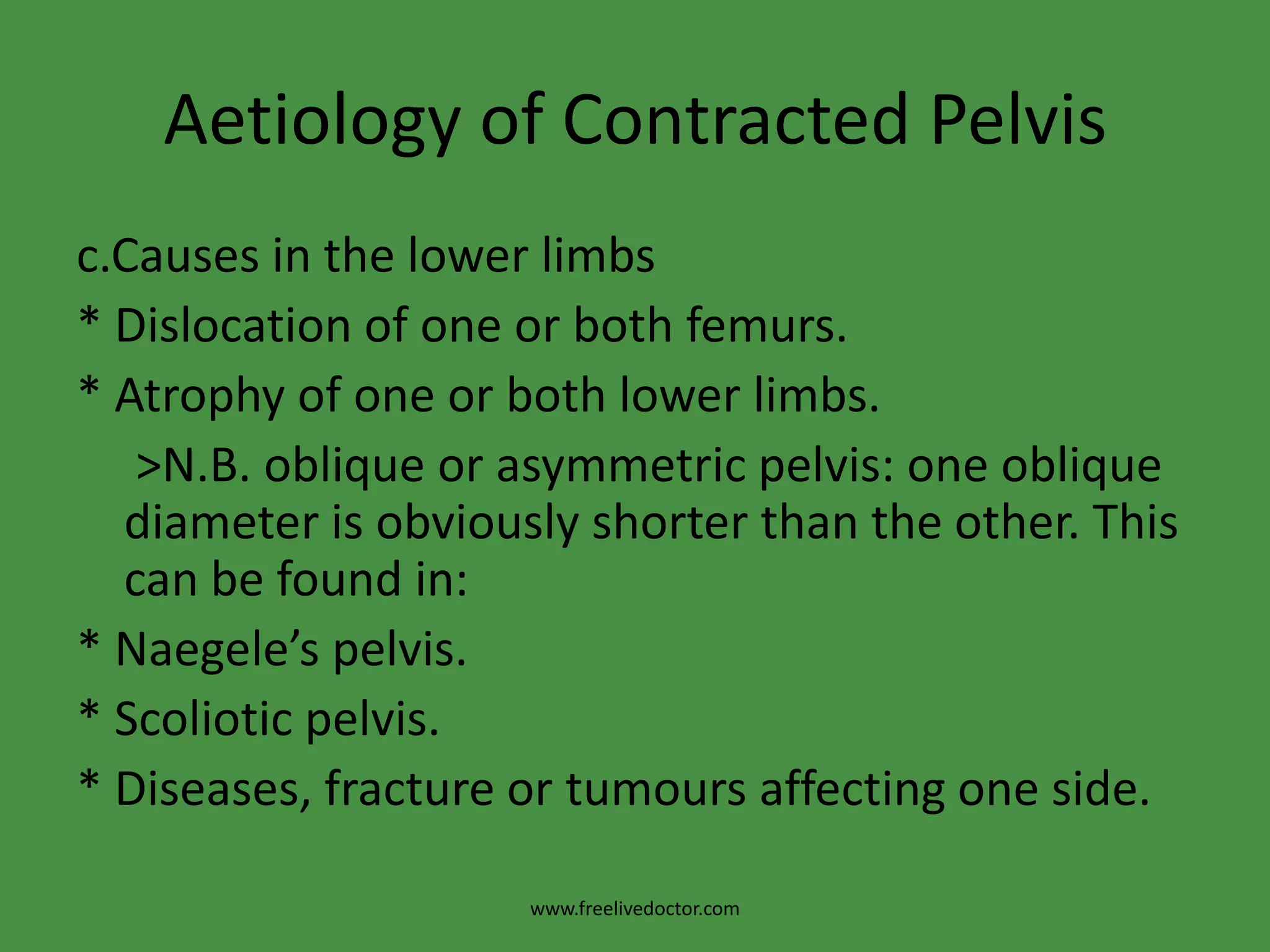

Aetiology of Contracted Pelvisc.Causes in the lower limbs* Dislocation of one or both femurs.* Atrophy of one or both lower limbs.     >N.B. oblique or asymmetric pelvis: one oblique diameter is obviously shorter than the other. This can be found in:* Naegele’s pelvis.* Scoliotic pelvis.* Diseases, fracture or tumours affecting one side.www.freelivedoctor.com

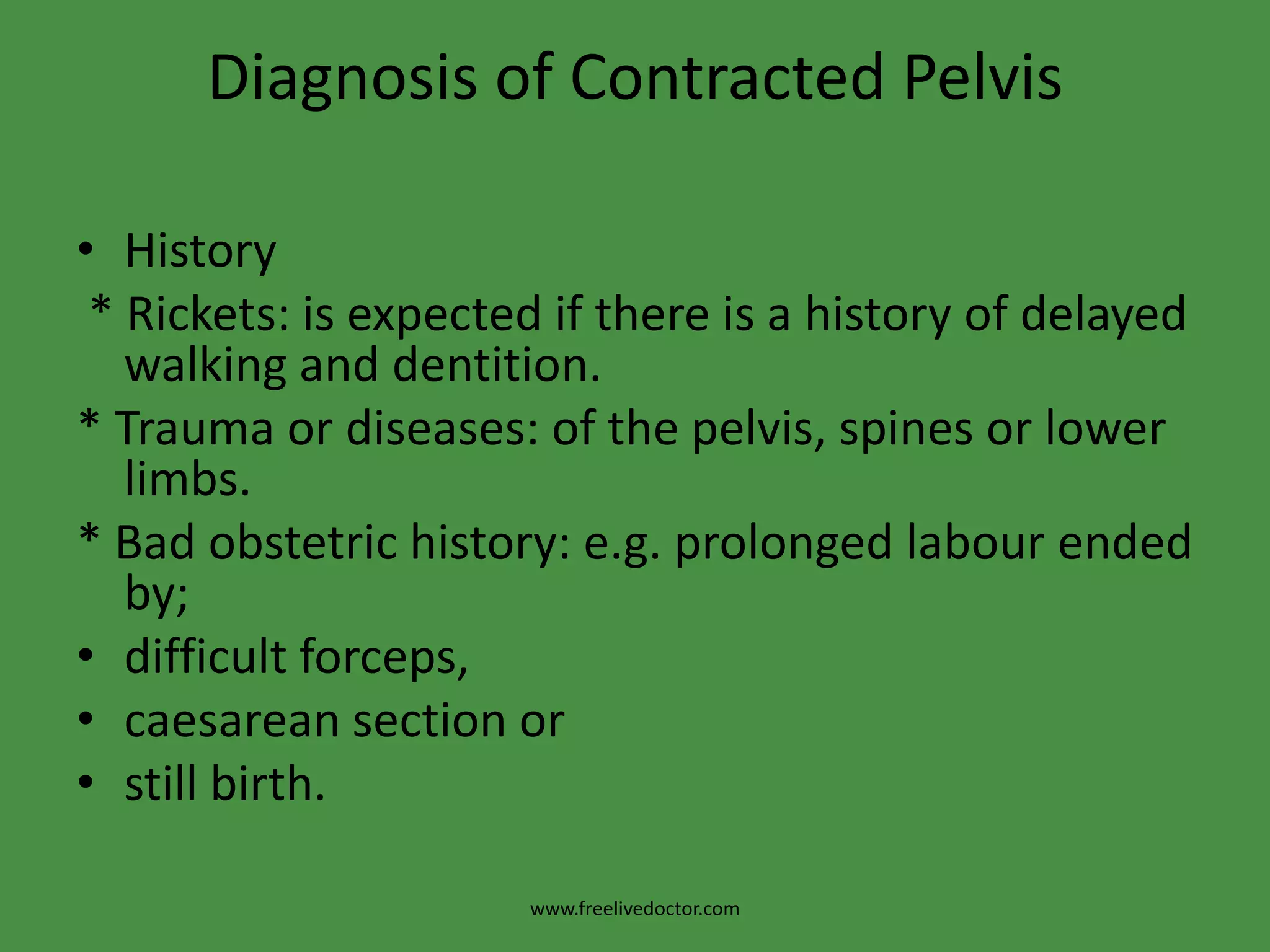

Diagnosis of Contracted PelvisHistory * Rickets: is expected if there is a history of delayed walking and dentition. * Trauma or diseases: of the pelvis, spines or lower limbs.* Bad obstetric history: e.g. prolonged labour ended by;difficult forceps,caesarean section orstill birth.www.freelivedoctor.com

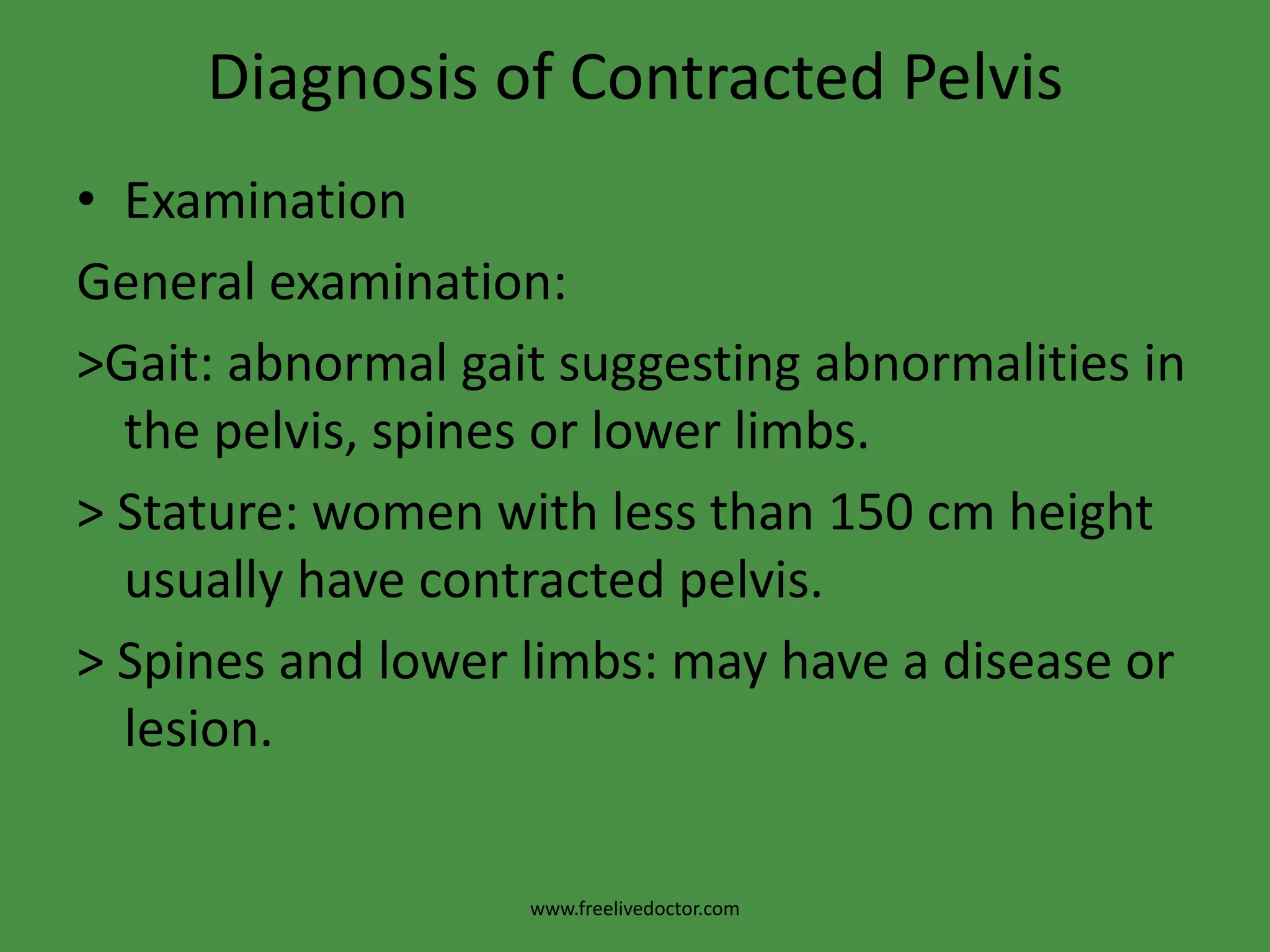

Diagnosis of Contracted PelvisExaminationGeneral examination:>Gait: abnormal gait suggesting abnormalities in the pelvis, spines or lower limbs.> Stature: women with less than 150 cm height usually have contracted pelvis.> Spines and lower limbs: may have a disease or lesion.www.freelivedoctor.com

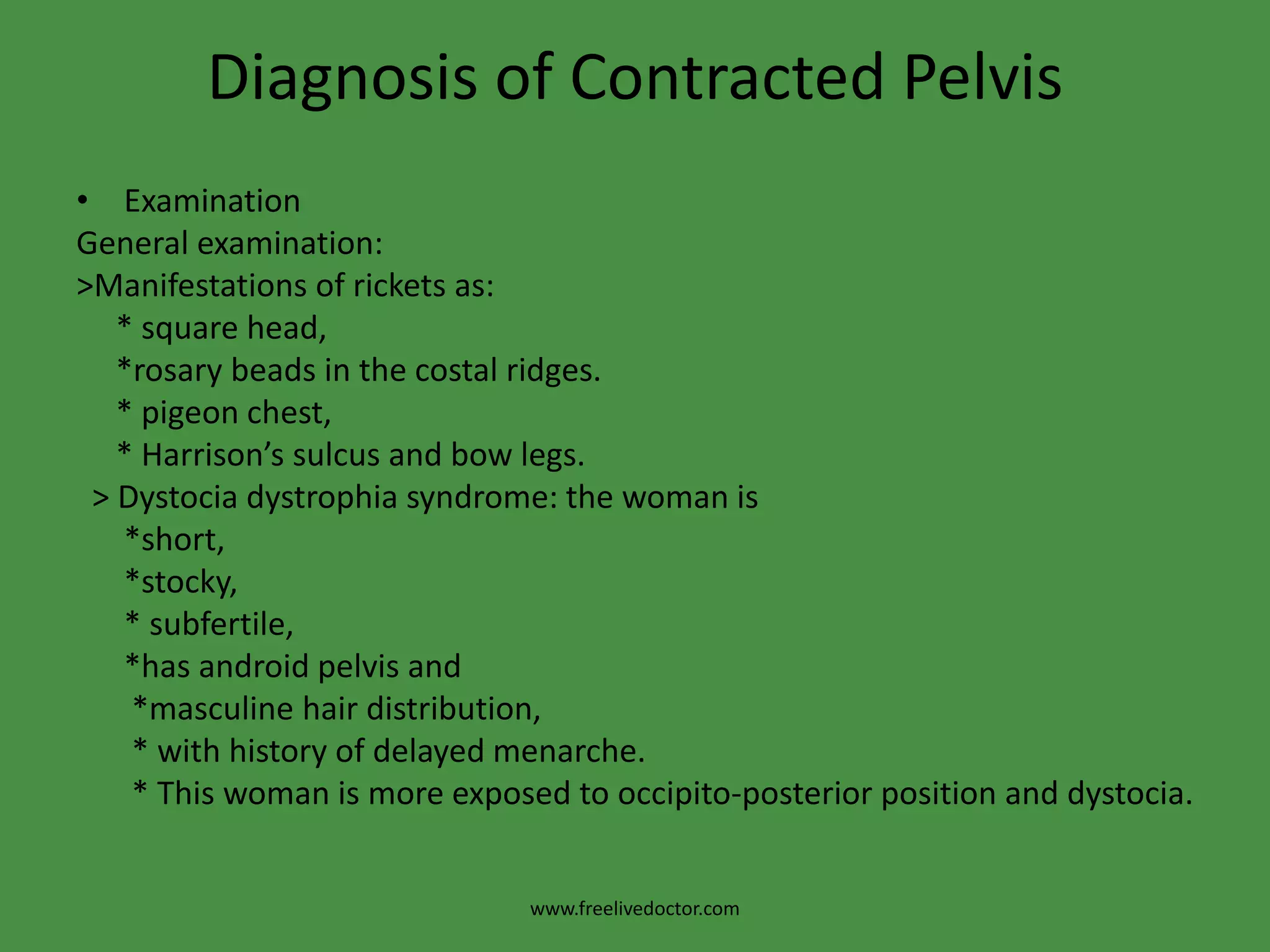

Diagnosis of Contracted PelvisExaminationGeneral examination:>Manifestations of rickets as:     * square head,     *rosary beads in the costal ridges.     * pigeon chest,     * Harrison’s sulcus and bow legs.  > Dystociadystrophia syndrome: the woman is      *short,      *stocky,      * subfertile,      *has android pelvis and       *masculine hair distribution,         * with history of delayed menarche.       * This woman is more exposed to occipito-posterior position and dystocia.www.freelivedoctor.com

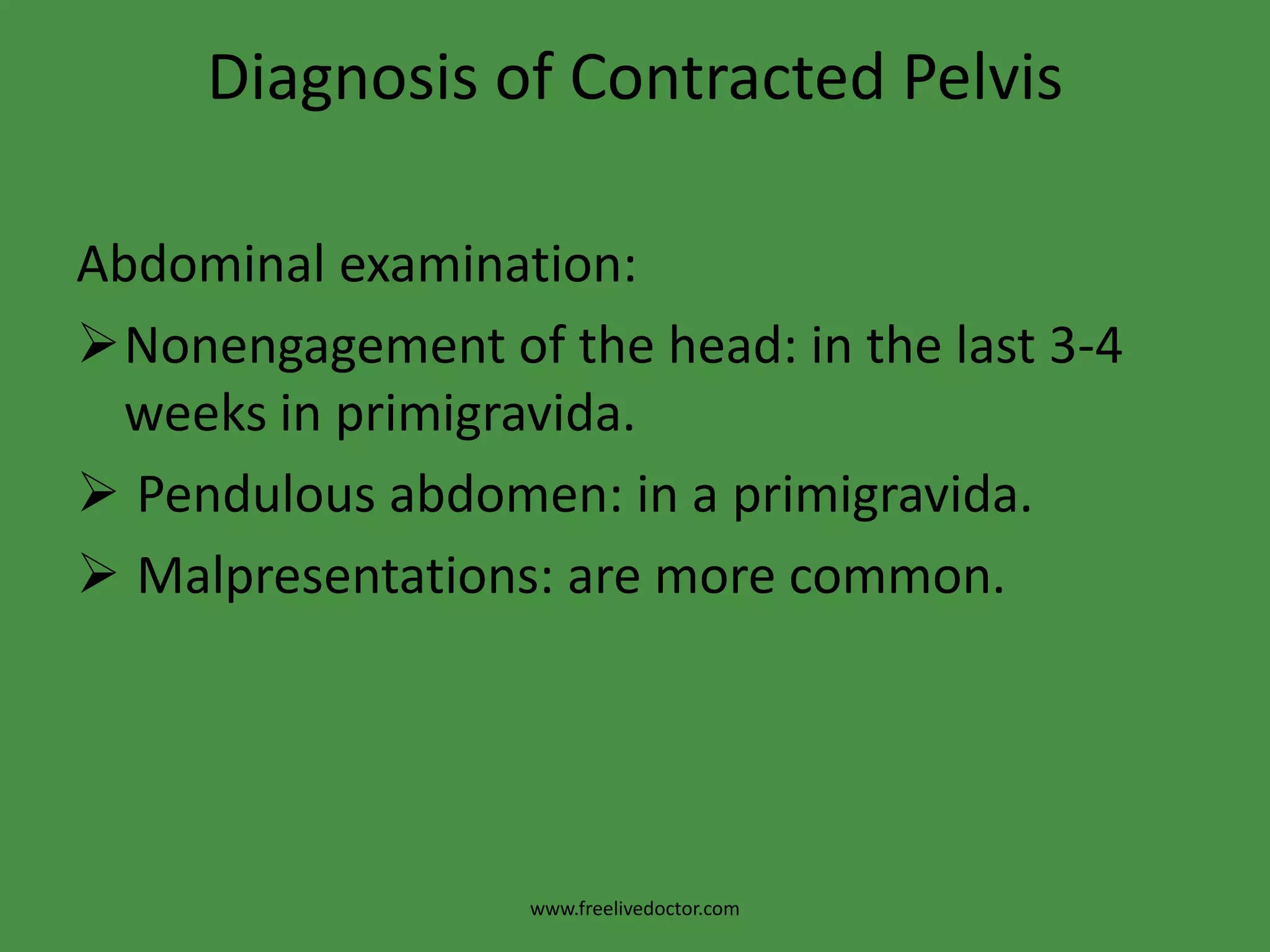

Diagnosis of Contracted PelvisAbdominal examination:Nonengagement of the head: in the last 3-4 weeks in primigravida.
 Pendulous abdomen: in a primigravida.
Malpresentations: are more common.www.freelivedoctor.com

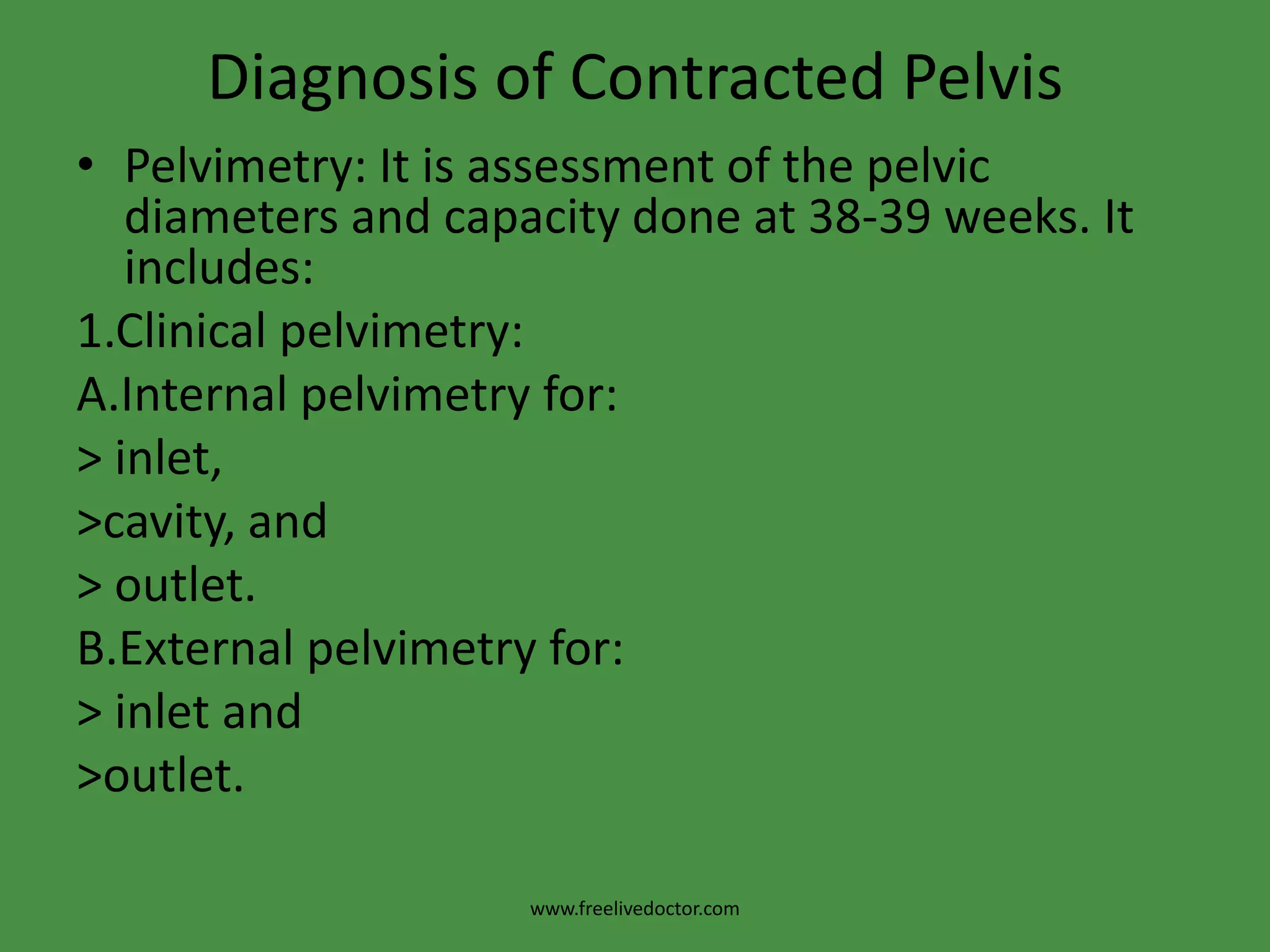

Diagnosis of Contracted PelvisPelvimetry: It is assessment of the pelvic diameters and capacity done at 38-39 weeks. It includes:1.Clinical pelvimetry:A.Internalpelvimetry for:> inlet,>cavity, and> outlet.B.Externalpelvimetry for:> inlet and >outlet.www.freelivedoctor.com

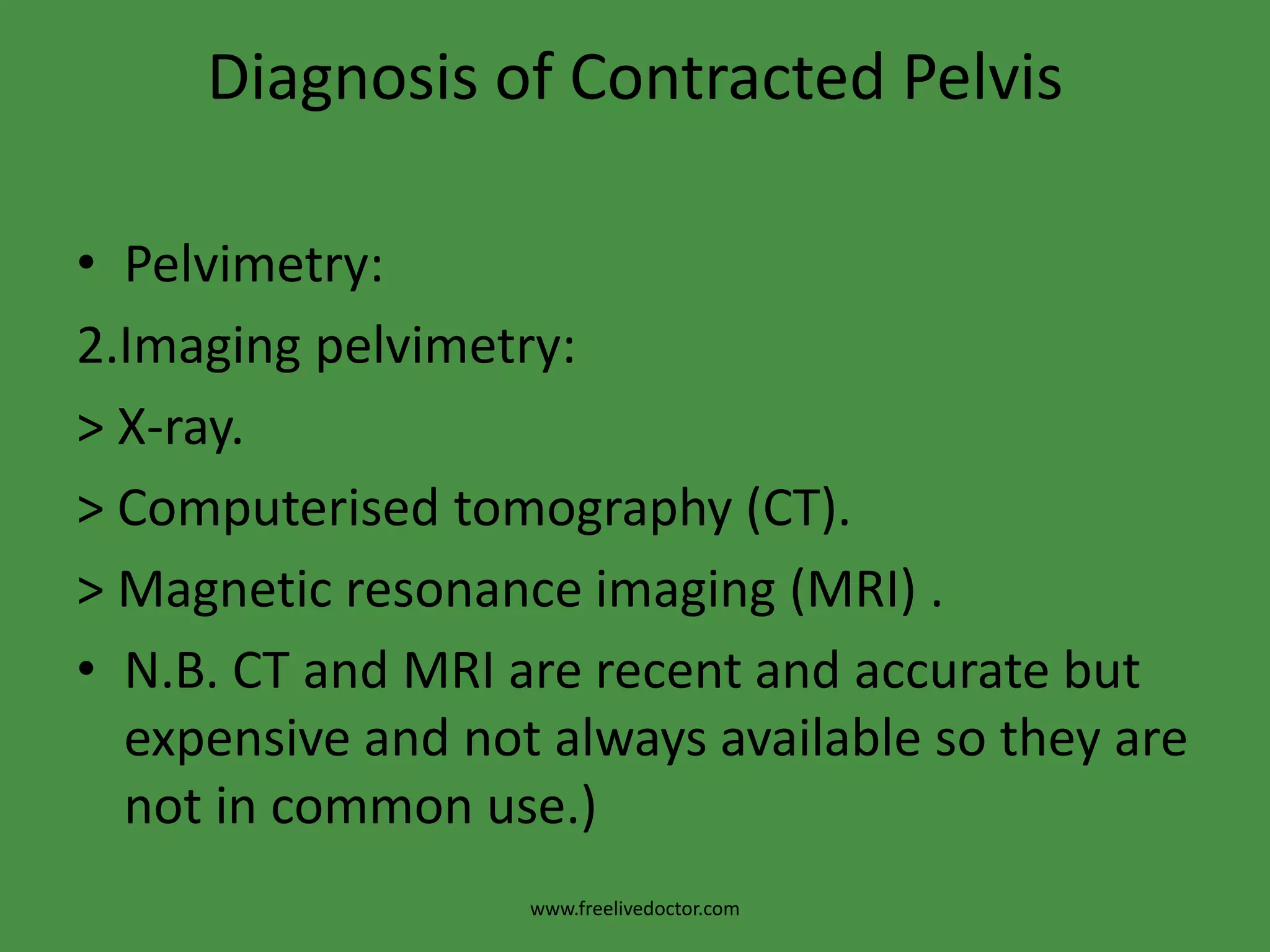

Diagnosis of Contracted PelvisPelvimetry:2.Imaging pelvimetry:> X-ray.>Computerised tomography (CT).> Magnetic resonance imaging (MRI) .N.B. CT and MRI are recent and accurate but expensive and not always available so they are not in common use.)www.freelivedoctor.com

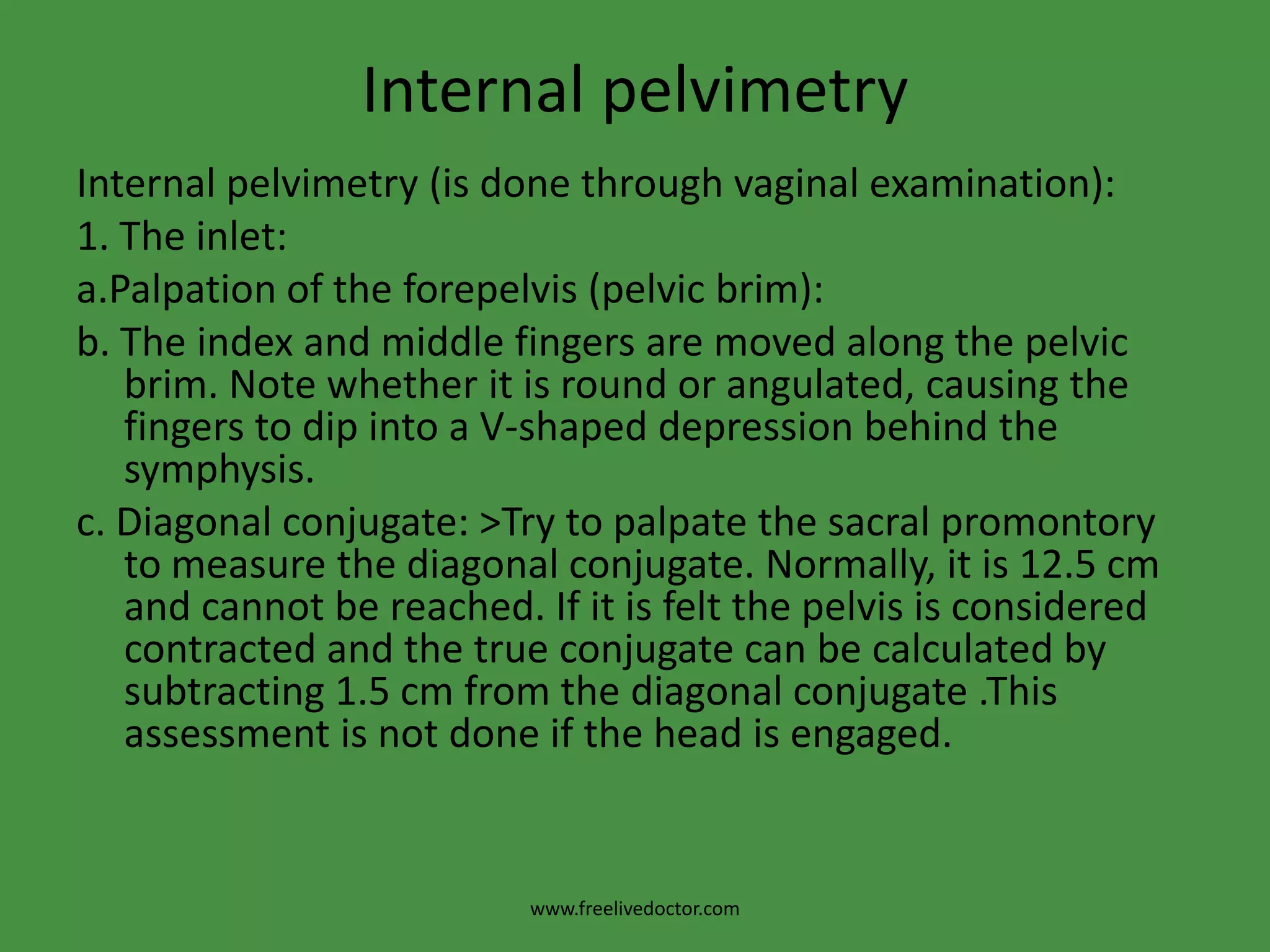

Internal pelvimetryInternal pelvimetry (is done through vaginal examination): 1. The inlet:a.Palpation of the forepelvis (pelvic brim):b. The index and middle fingers are moved along the pelvic brim. Note whether it is round or angulated, causing the fingers to dip into a V-shaped depression behind the symphysis.c. Diagonal conjugate: >Try to palpate the sacral promontory to measure the diagonal conjugate. Normally, it is 12.5 cm and cannot be reached. If it is felt the pelvis is considered contracted and the true conjugate can be calculated by subtracting 1.5 cm from the diagonal conjugate .This assessment is not done if the head is engaged.www.freelivedoctor.com

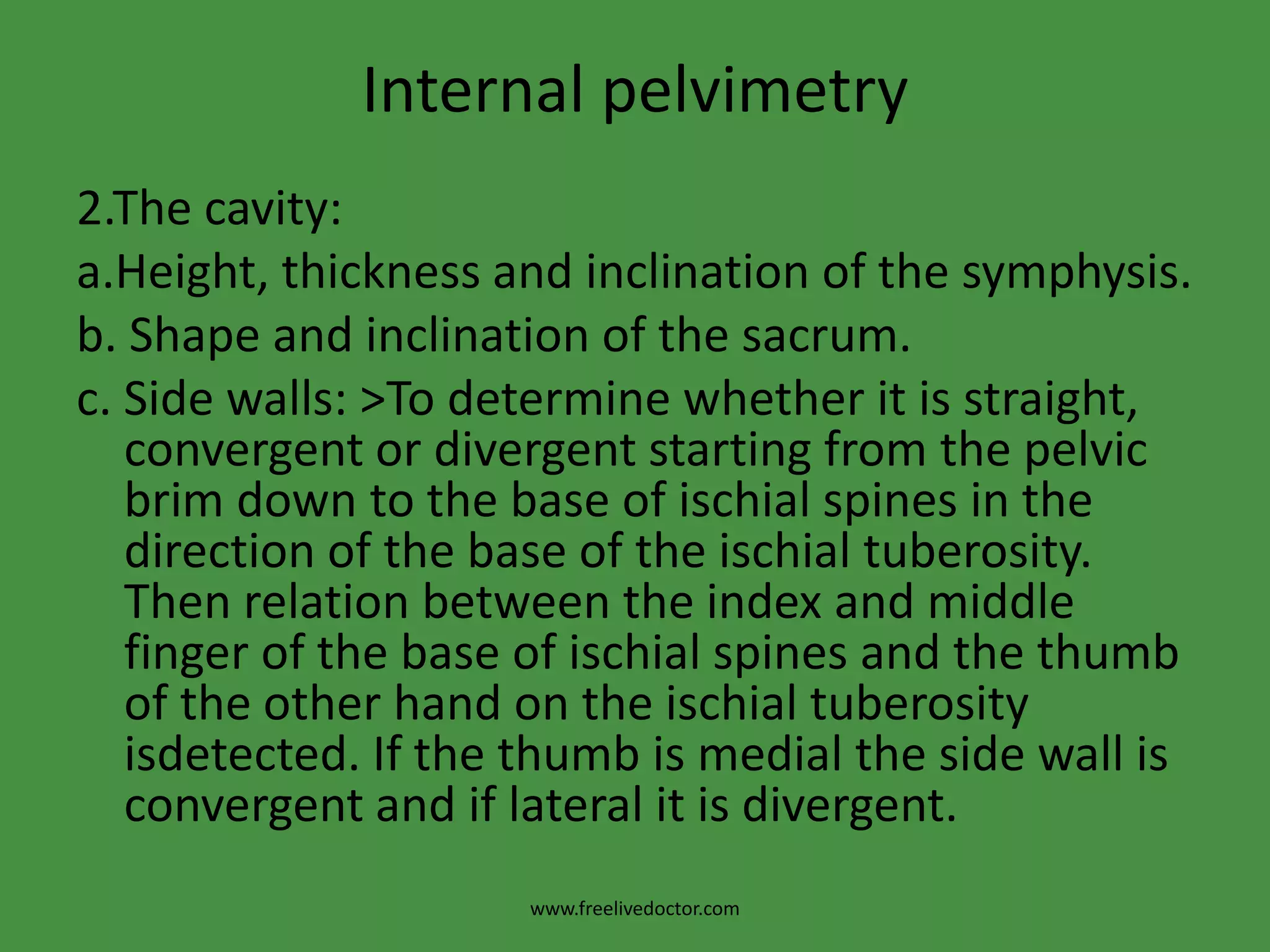

Internal pelvimetry2.The cavity:a.Height, thickness and inclination of the symphysis.b. Shape and inclination of the sacrum.c. Side walls: >To determine whether it is straight, convergent or divergent starting from the pelvic brim down to the base of ischial spines in the direction of the base of the ischialtuberosity. Then relation between the index and middle finger of the base of ischial spines and the thumb of the other hand on the ischialtuberosityisdetected. If the thumb is medial the side wall is convergent and if lateral it is divergent.www.freelivedoctor.com

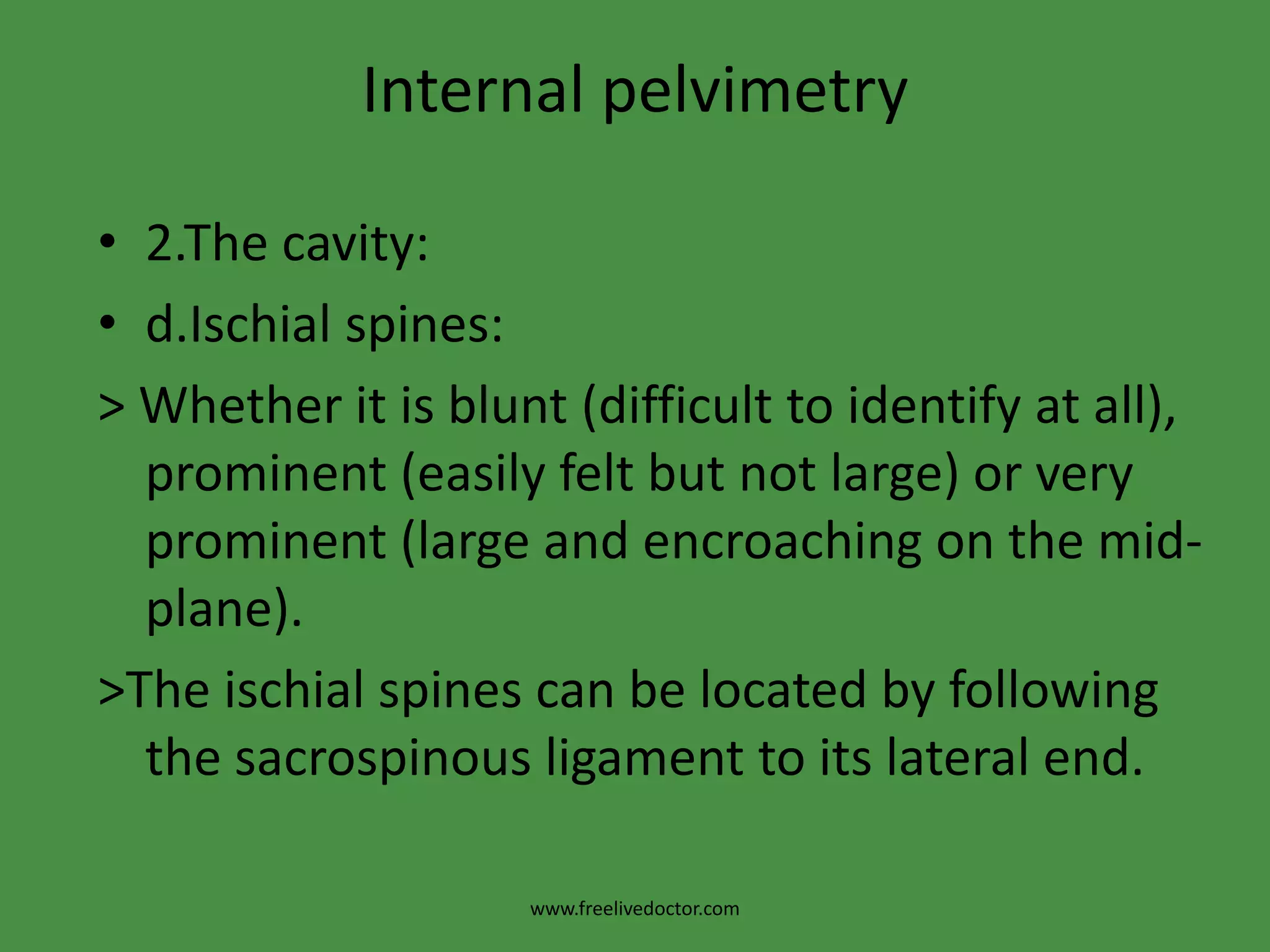

Internal pelvimetry2.The cavity:d.Ischial spines:> Whether it is blunt (difficult to identify at all), prominent (easily felt but not large) or very prominent (large and encroaching on the mid-plane).>The ischial spines can be located by following the sacrospinous ligament to its lateral end.www.freelivedoctor.com

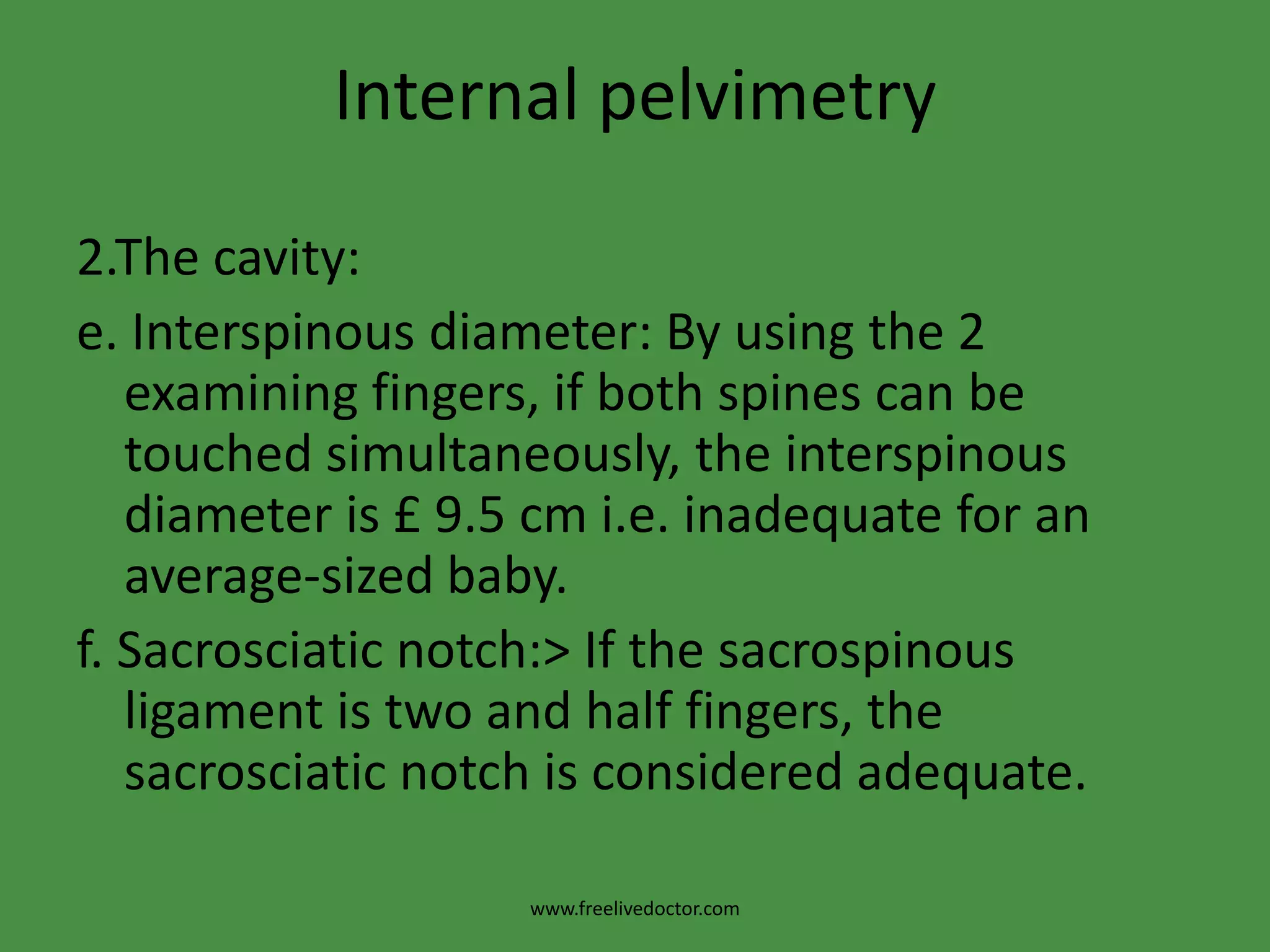

Internal pelvimetry2.The cavity:e. Interspinous diameter: By using the 2 examining fingers, if both spines can be touched simultaneously, the interspinous diameter is £ 9.5 cm i.e. inadequate for an average-sized baby.f. Sacrosciatic notch:> If the sacrospinous ligament is two and half fingers, the sacrosciatic notch is considered adequate.www.freelivedoctor.com
Internal pelvimetry3.The outlet:a. Subpubic angle:> Normally, it admits 2 fingers.b.Bituberous diameter:>Normally, it admits the closed   fist of the hand (4 knuckle).c.Mobility of the coccyx:> by pressing firmly on it while      an external hand on it can determine its mobility. d. Anteroposterior diameter of the outlet:> from the tip of      the sacrum to the inferior edge of the symphysis.www.freelivedoctor.com
www.freelivedoctor.com

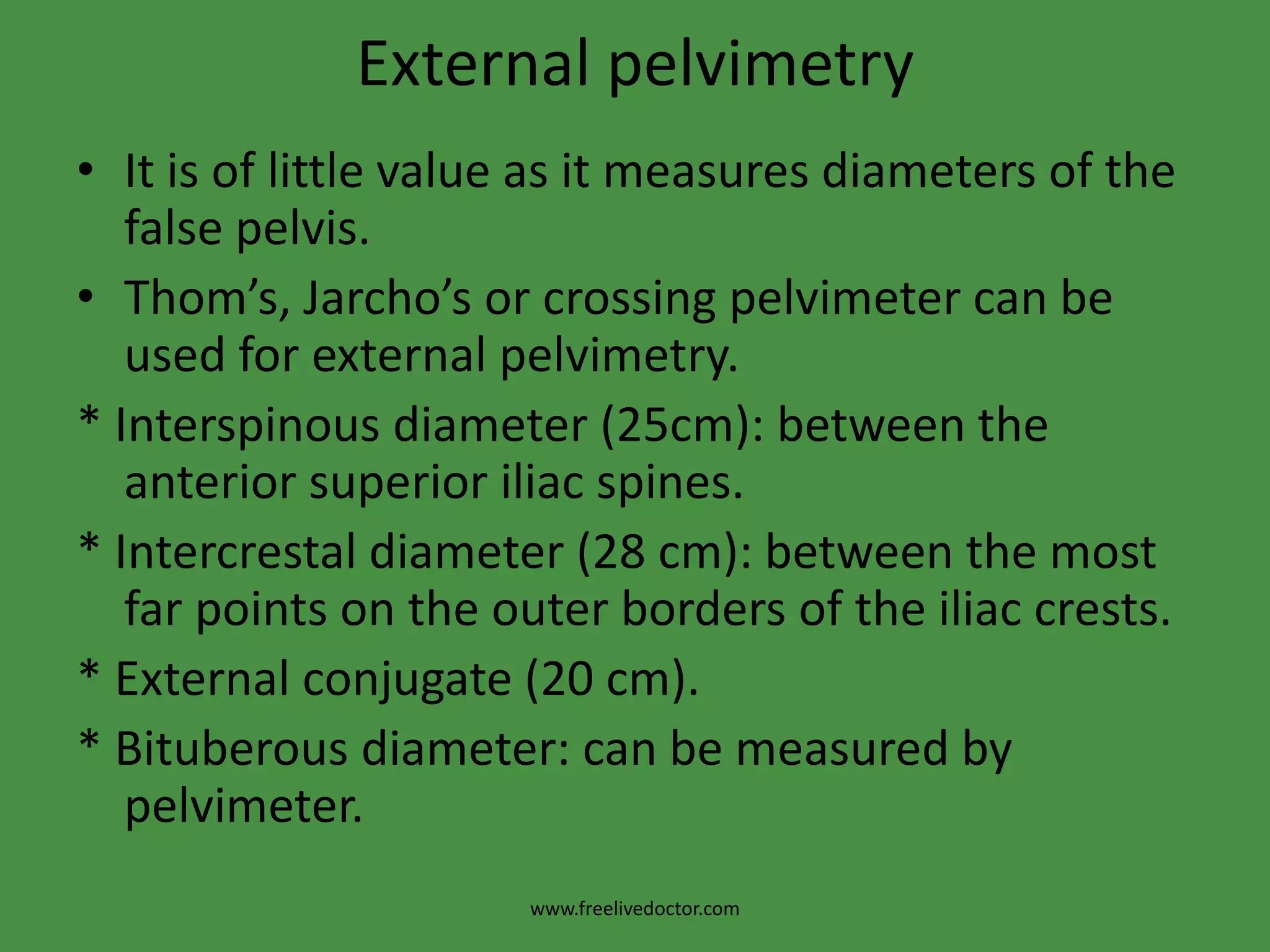

External pelvimetryIt is of little value as it measures diameters of the false pelvis.Thom’s, Jarcho’s or crossing pelvimeter can be used for external pelvimetry.* Interspinous diameter (25cm): between the anterior superior iliac spines.* Intercrestal diameter (28 cm): between the most far points on the outer borders of the iliac crests.* External conjugate (20 cm).* Bituberous diameter: can be measured by pelvimeter.www.freelivedoctor.com

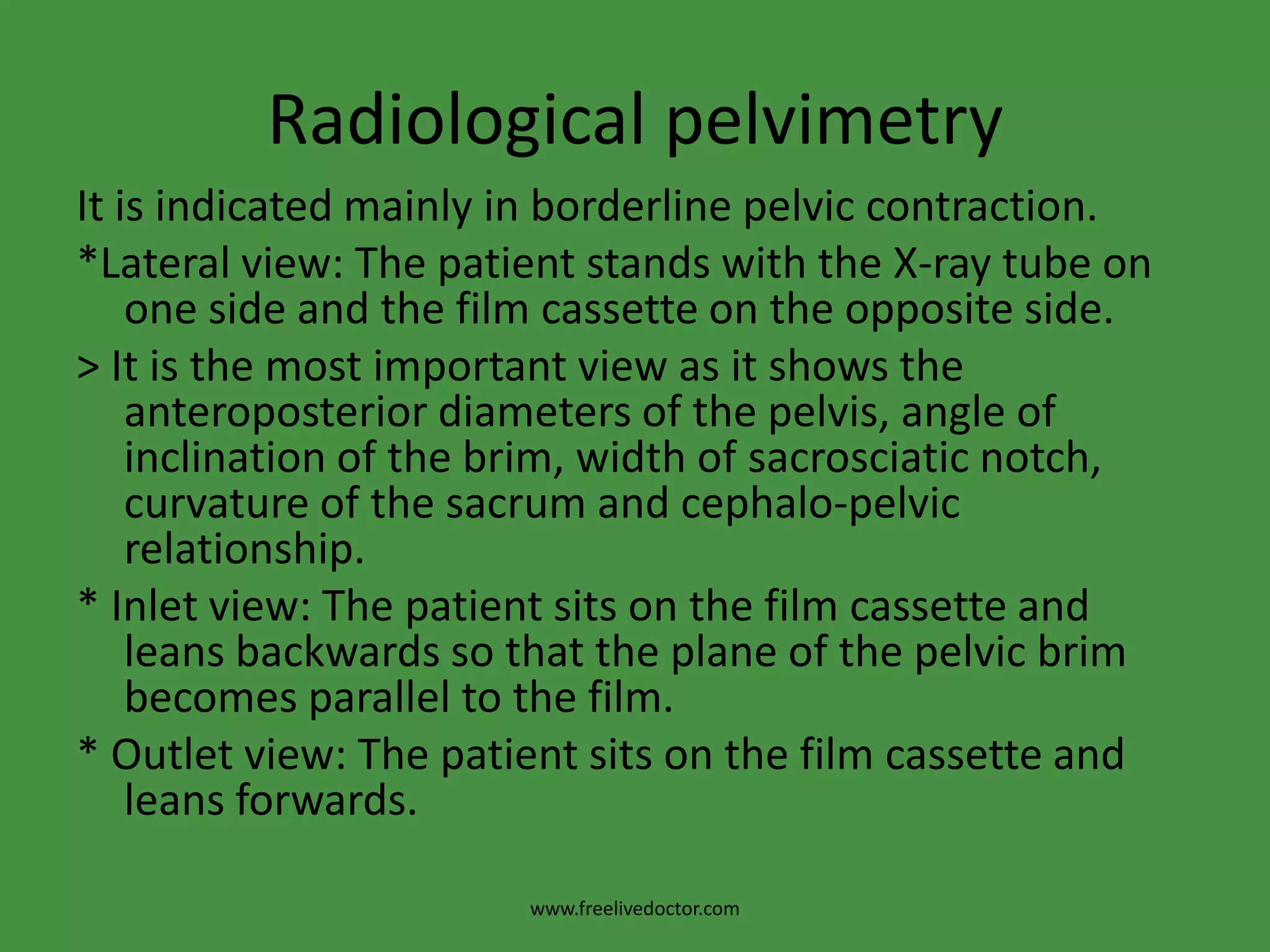

Radiological pelvimetryIt is indicated mainly in borderline pelvic contraction.*Lateral view: The patient stands with the X-ray tube on one side and the film cassette on the opposite side.> It is the most important view as it shows the anteroposterior diameters of the pelvis, angle of inclination of the brim, width of sacrosciatic notch, curvature of the sacrum and cephalo-pelvic relationship.* Inlet view: The patient sits on the film cassette and leans backwards so that the plane of the pelvic brim becomes parallel to the film.* Outlet view: The patient sits on the film cassette and leans forwards.www.freelivedoctor.com

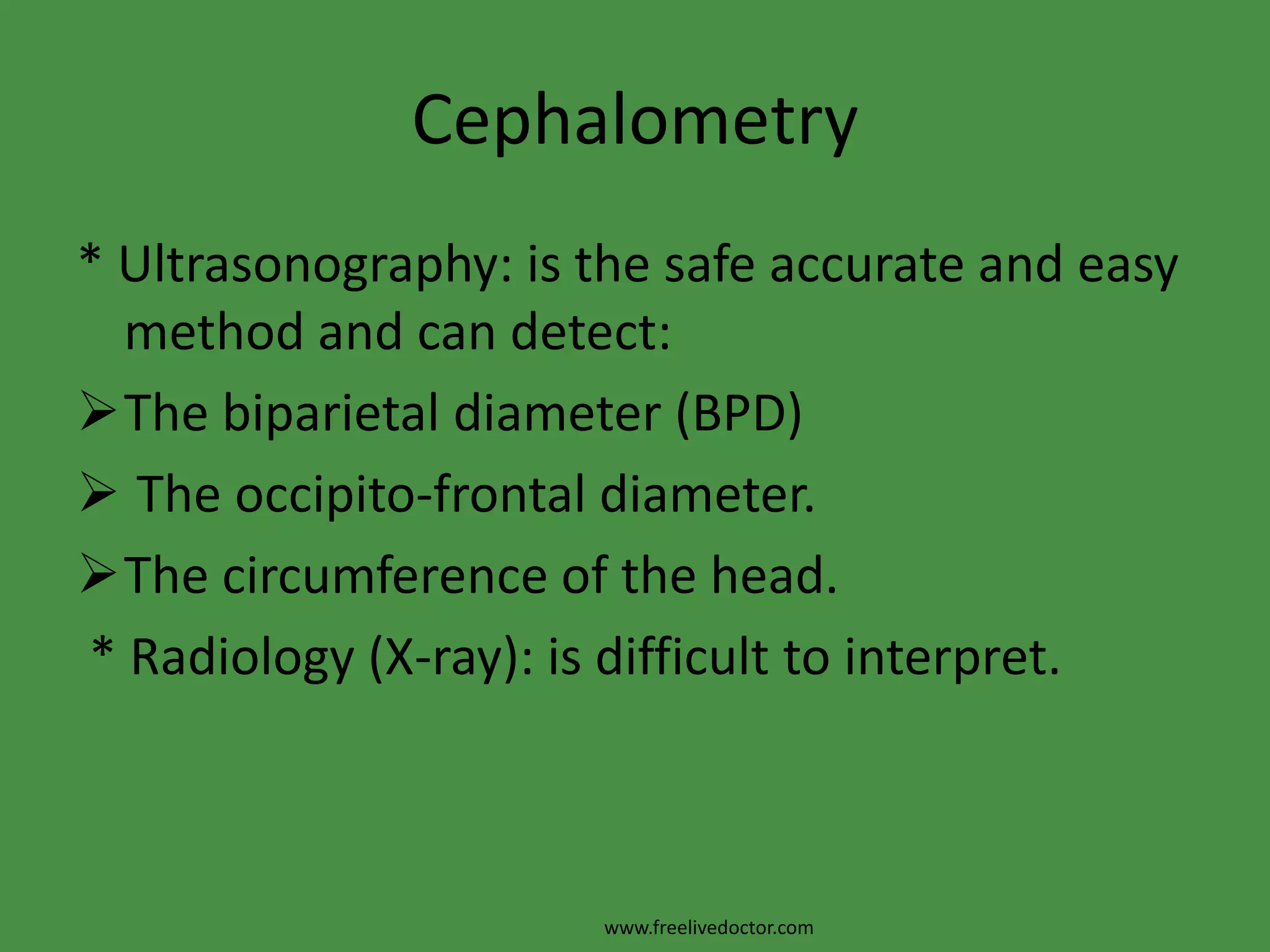

Cephalometry* Ultrasonography: is the safe accurate and easy method and can detect:The biparietal diameter (BPD)
 The occipito-frontal diameter.
The circumference of the head. * Radiology (X-ray): is difficult to interpret.www.freelivedoctor.com

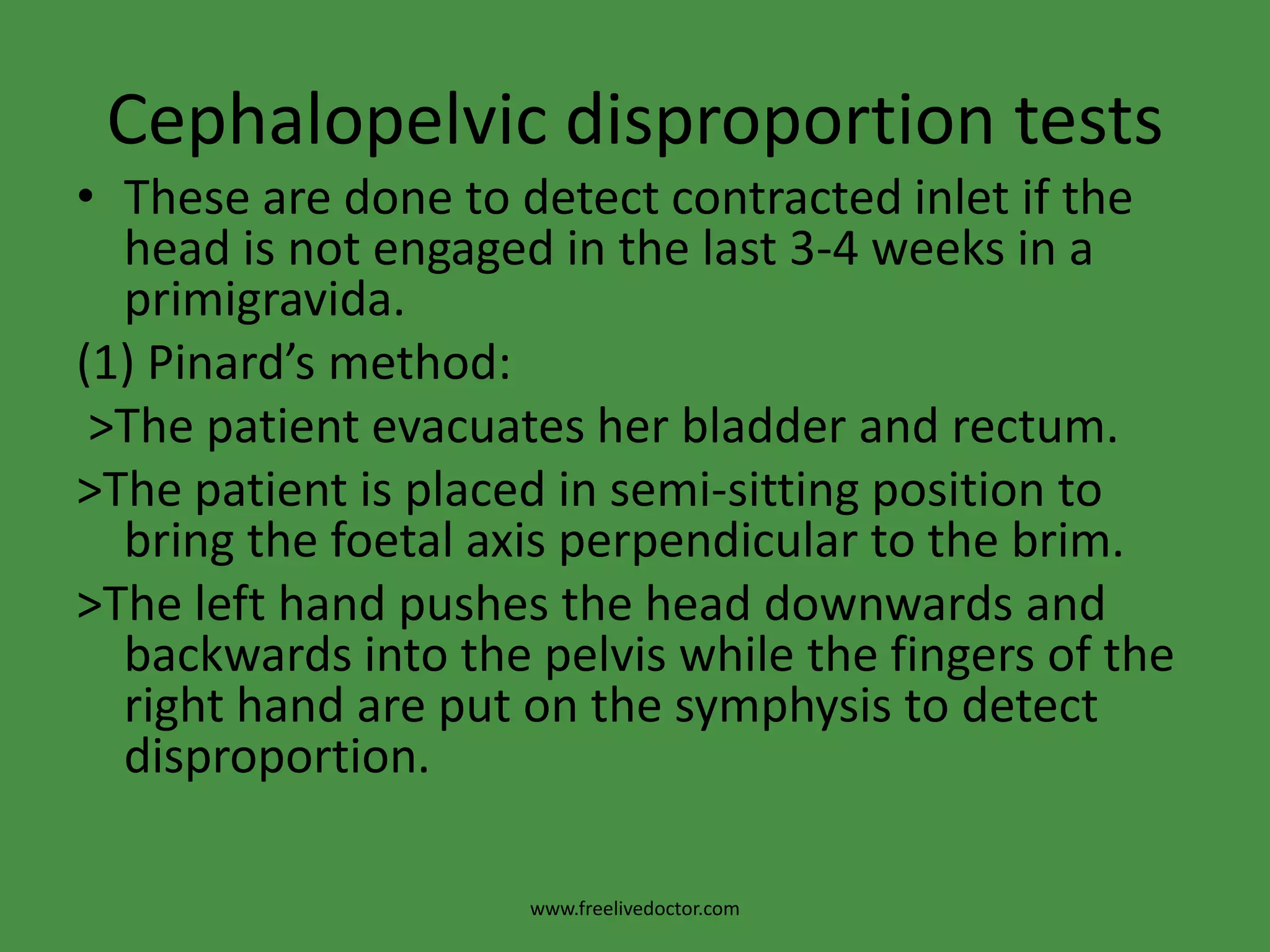

Cephalopelvic disproportion testsThese are done to detect contracted inlet if the head is not engaged in the last 3-4 weeks in a primigravida.(1) Pinard’s method: >The patient evacuates her bladder and rectum.>The patient is placed in semi-sitting position to bring the foetal axis perpendicular to the brim.>The left hand pushes the head downwards and backwards into the pelvis while the fingers of the right hand are put on the symphysis to detect disproportion.www.freelivedoctor.com

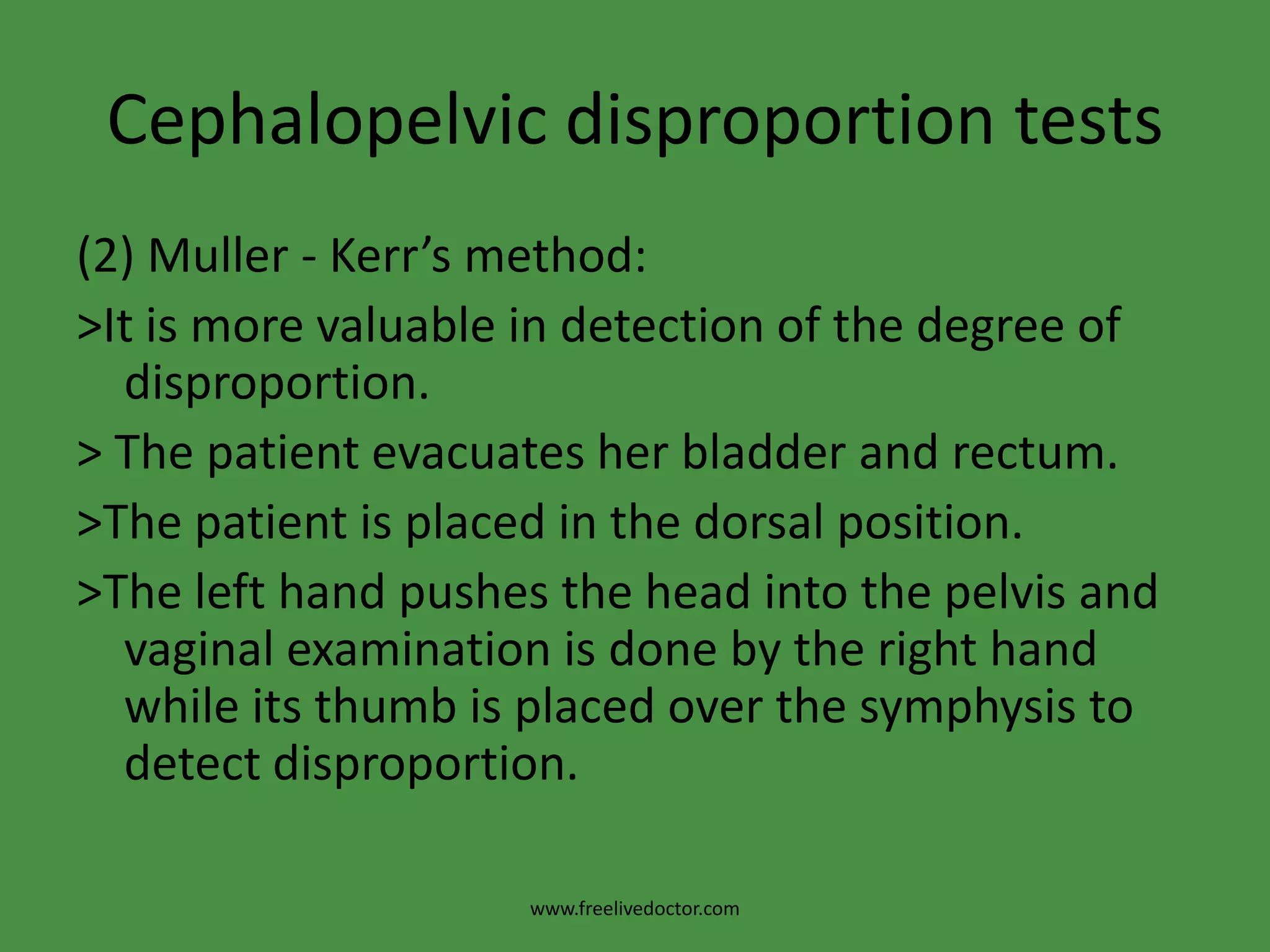

Cephalopelvic disproportion tests(2) Muller - Kerr’s method:>It is more valuable in detection of the degree of disproportion.> The patient evacuates her bladder and rectum.>The patient is placed in the dorsal position.>The left hand pushes the head into the pelvis and vaginal examination is done by the right hand while its thumb is placed over the symphysis to detect disproportion.www.freelivedoctor.com

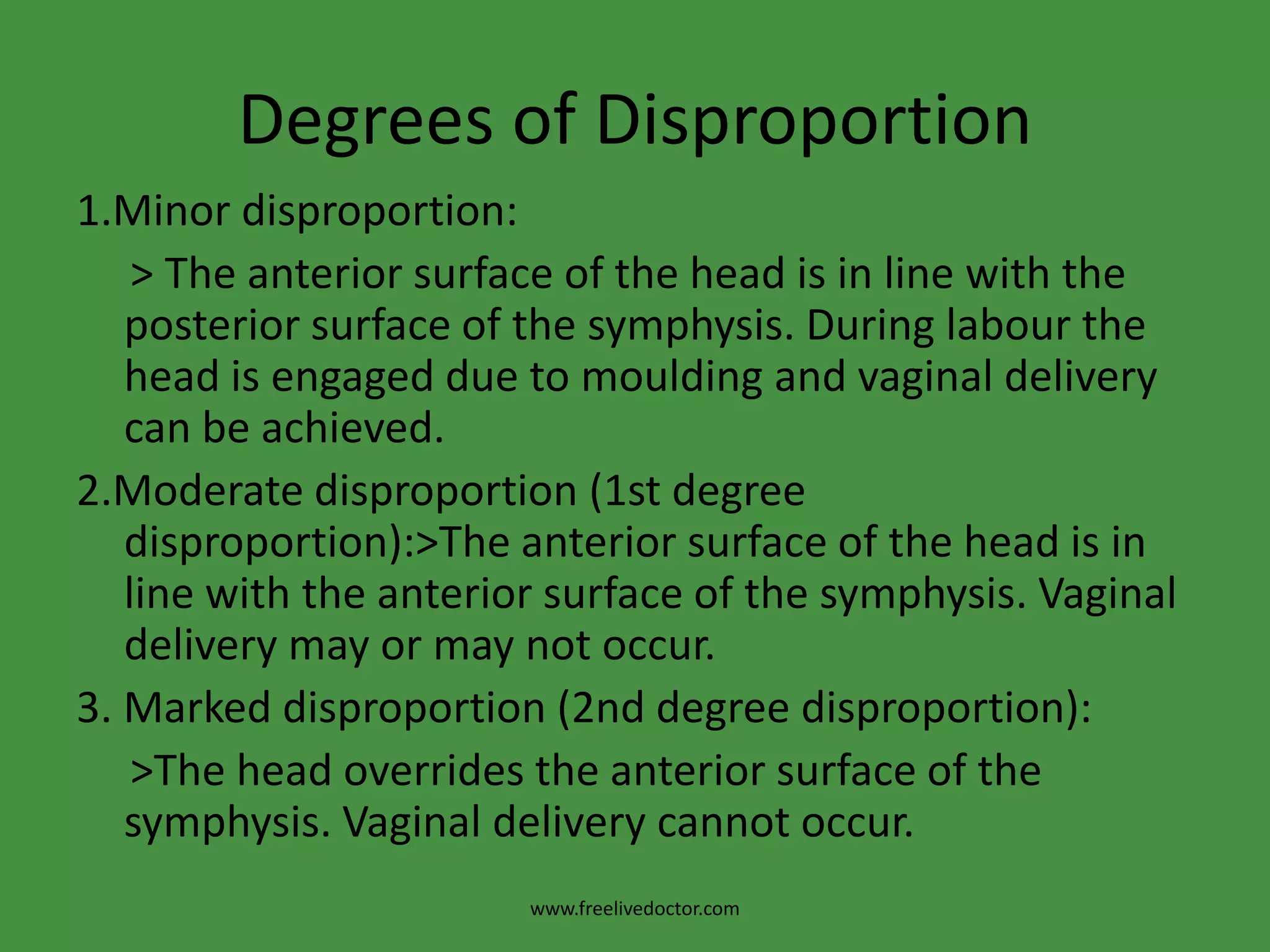

Degrees of Disproportion1.Minor disproportion:     > The anterior surface of the head is in line with the posterior surface of the symphysis. During labour the head is engaged due to moulding and vaginal delivery can be achieved.2.Moderate disproportion (1st degree disproportion):>The anterior surface of the head is in line with the anterior surface of the symphysis. Vaginal delivery may or may not occur.3. Marked disproportion (2nd degree disproportion):     >The head overrides the anterior surface of the symphysis. Vaginal delivery cannot occur.www.freelivedoctor.com

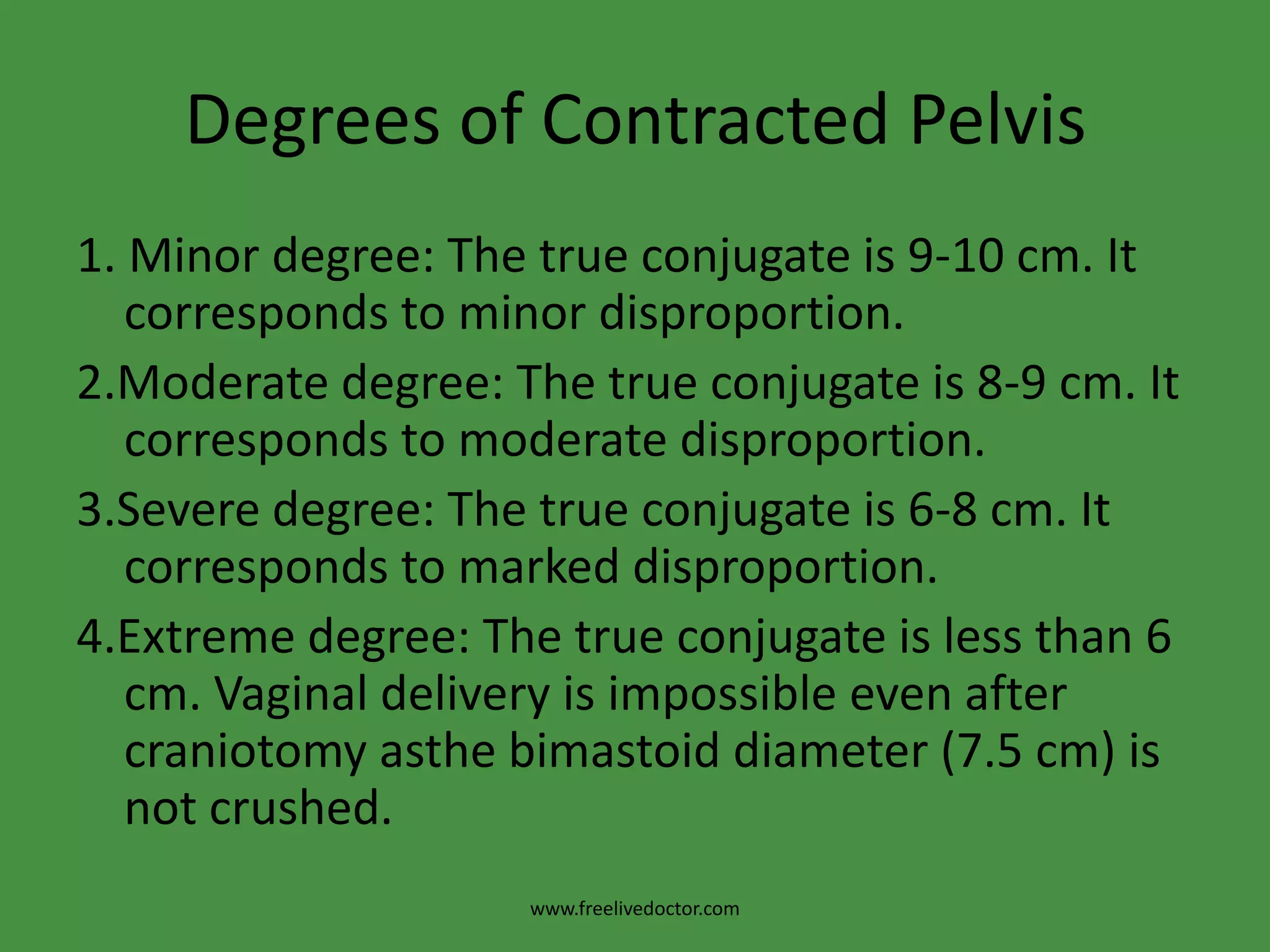

Degrees of Contracted Pelvis1. Minor degree: The true conjugate is 9-10 cm. It corresponds to minor disproportion.2.Moderate degree: The true conjugate is 8-9 cm. It corresponds to moderate disproportion.3.Severe degree: The true conjugate is 6-8 cm. It corresponds to marked disproportion.4.Extreme degree: The true conjugate is less than 6 cm. Vaginal delivery is impossible even after craniotomy asthebimastoid diameter (7.5 cm) is not crushed.www.freelivedoctor.com

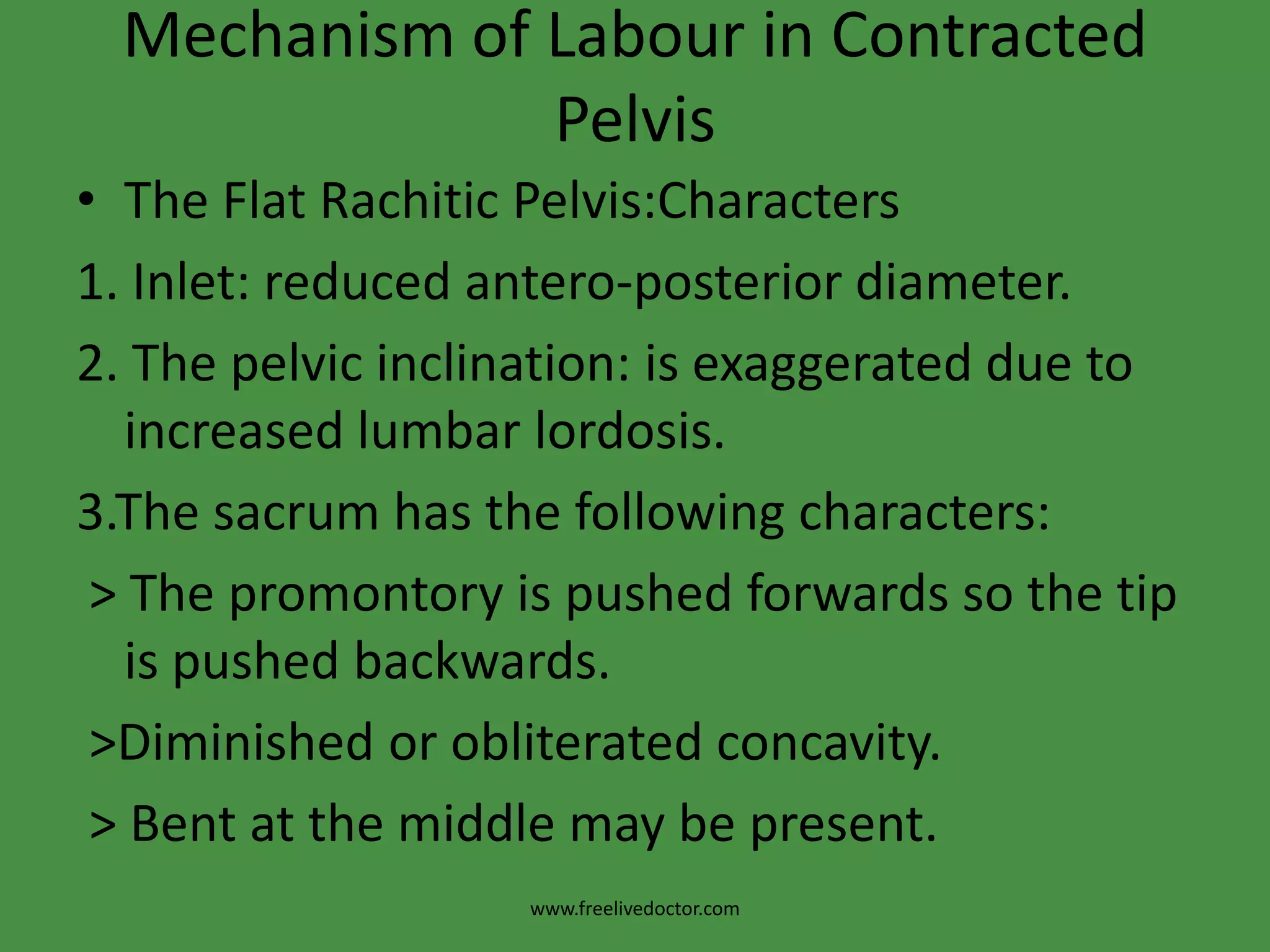

Mechanism of Labour in Contracted PelvisThe Flat Rachitic Pelvis:Characters1. Inlet: reduced antero-posterior diameter.2. The pelvic inclination: is exaggerated due to increased lumbar lordosis.3.The sacrum has the following characters: > The promontory is pushed forwards so the tip is pushed backwards. >Diminished or obliterated concavity. > Bent at the middle may be present.www.freelivedoctor.com

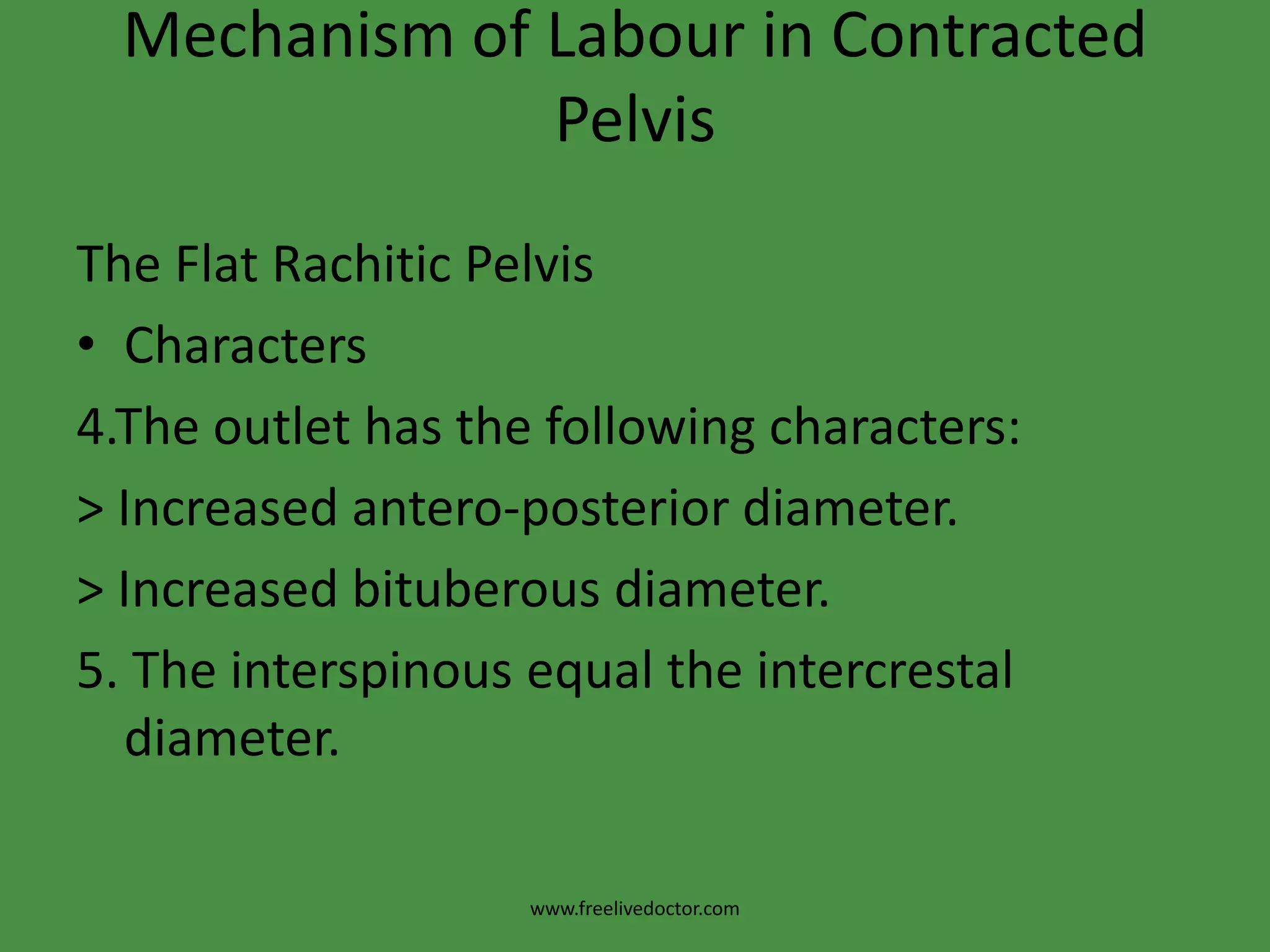

Mechanism of Labour in Contracted PelvisThe Flat Rachitic PelvisCharacters4.The outlet has the following characters:> Increased antero-posterior diameter.> Increased bituberous diameter.5. The interspinous equal the intercrestal diameter.www.freelivedoctor.com
Mechanism of labour:a.Engagement: with the sagittal suture in the transverse diameter.b.Asynclitism with anterior parietal bone presentation so that the shorter subparietalsupraparietal diameter (9cm) is passed instead of the biparietal (9.5cm) in the narrow true conjugate.c. Lateral displacement of the head so that the bitemporal diameter is passed through the narrow true conjugate www.freelivedoctor.com

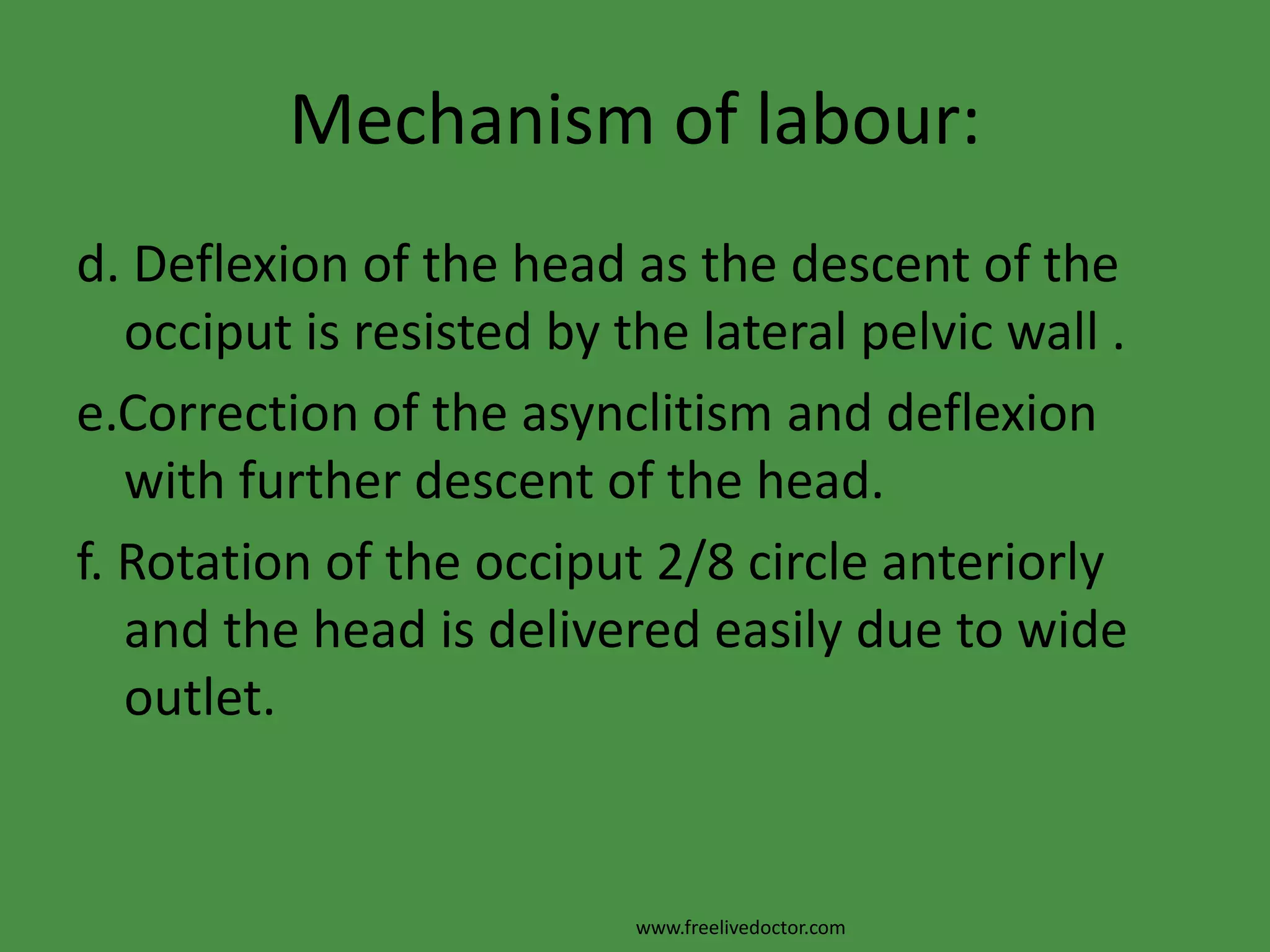

Mechanism of labour:d. Deflexion of the head as the descent of the occiput is resisted by the lateral pelvic wall .e.Correction of the asynclitism and deflexion with further descent of the head.f. Rotation of the occiput 2/8 circle anteriorly and the head is delivered easily due to wide outlet.www.freelivedoctor.com

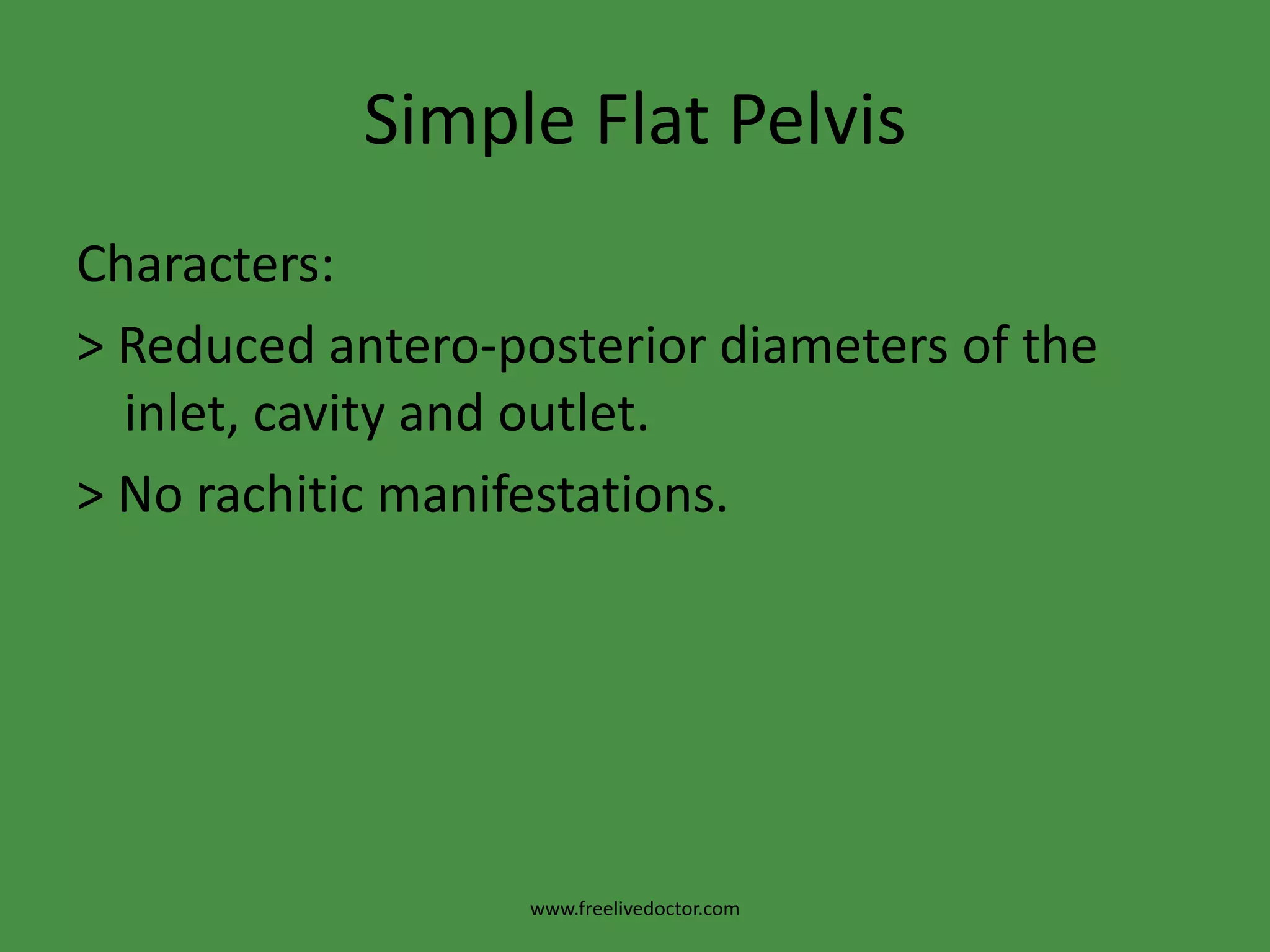

Simple Flat PelvisCharacters:> Reduced antero-posterior diameters of the inlet, cavity and outlet.> No rachitic manifestations.www.freelivedoctor.com

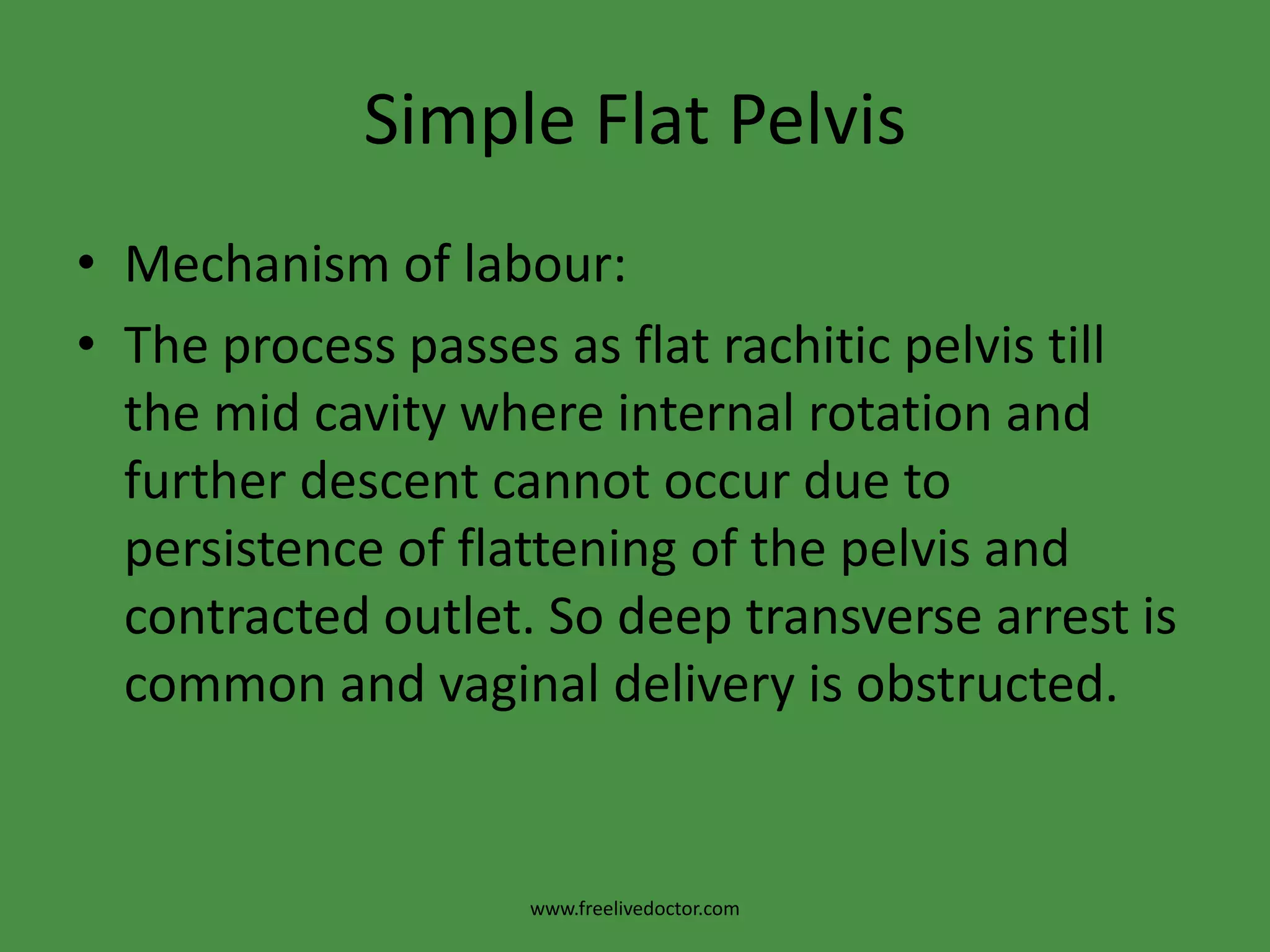

Simple Flat PelvisMechanism of labour:The process passes as flat rachitic pelvis till the mid cavity where internal rotation and further descent cannot occur due to persistence of flattening of the pelvis and contracted outlet. So deep transverse arrest is common and vaginal delivery is obstructed.www.freelivedoctor.com

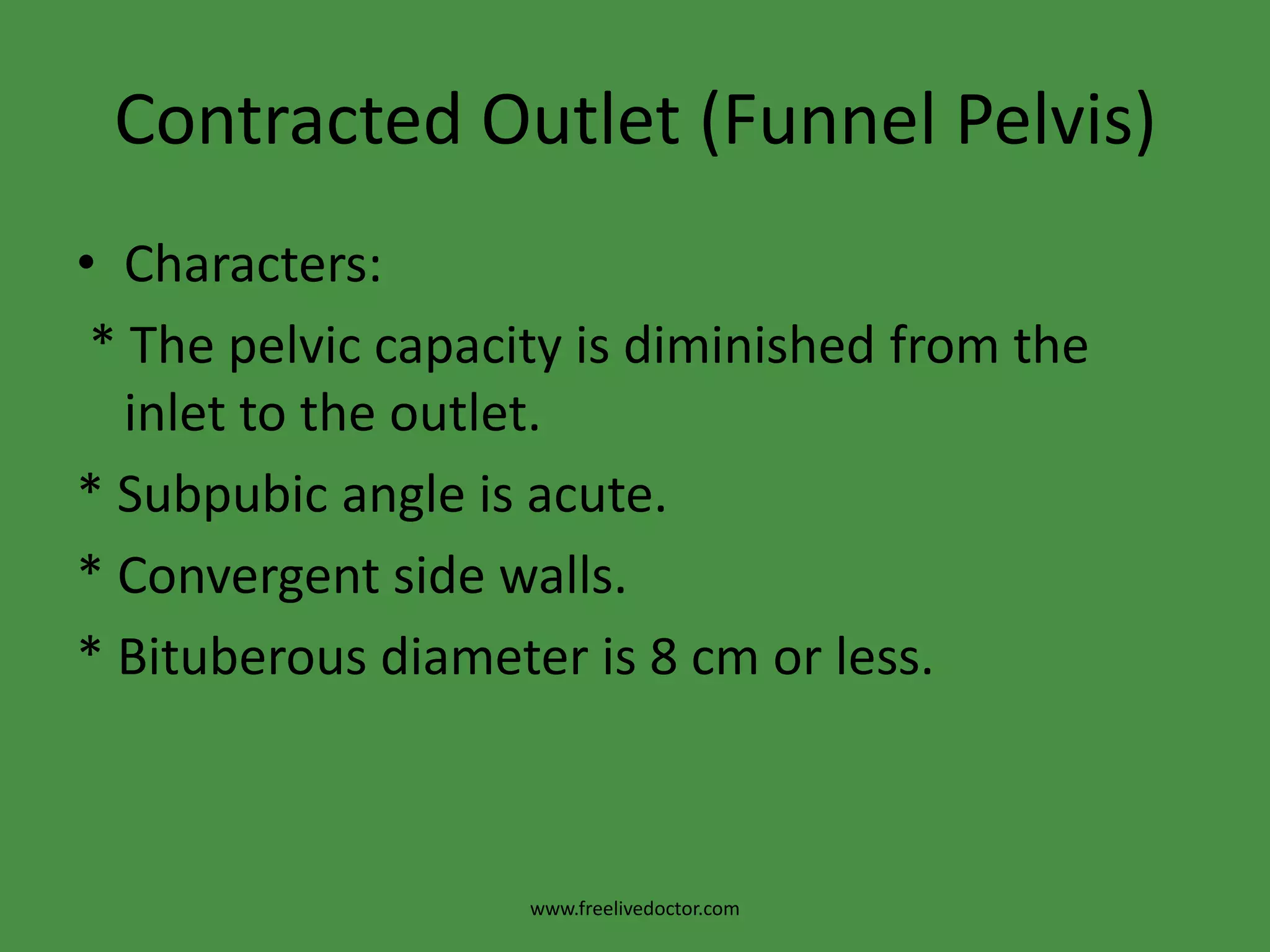

Contracted Outlet (Funnel Pelvis)Characters: * The pelvic capacity is diminished from the inlet to the outlet.* Subpubic angle is acute.* Convergent side walls. * Bituberous diameter is 8 cm or less.www.freelivedoctor.com

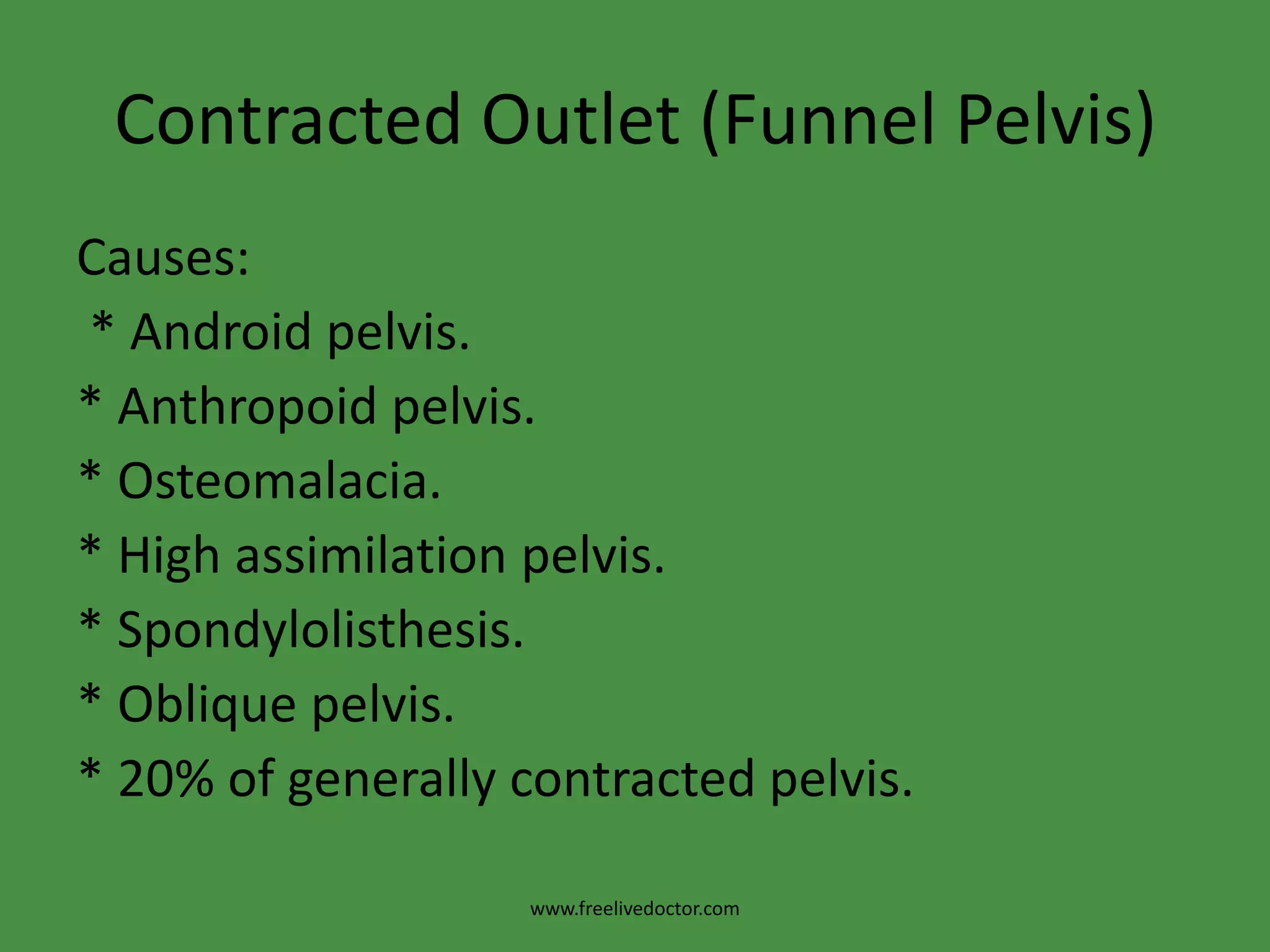

Contracted Outlet (Funnel Pelvis)Causes: * Android pelvis.* Anthropoid pelvis.   * Osteomalacia.  * High assimilation pelvis.* Spondylolisthesis.* Oblique pelvis.               * 20% of generally contracted pelvis.www.freelivedoctor.com

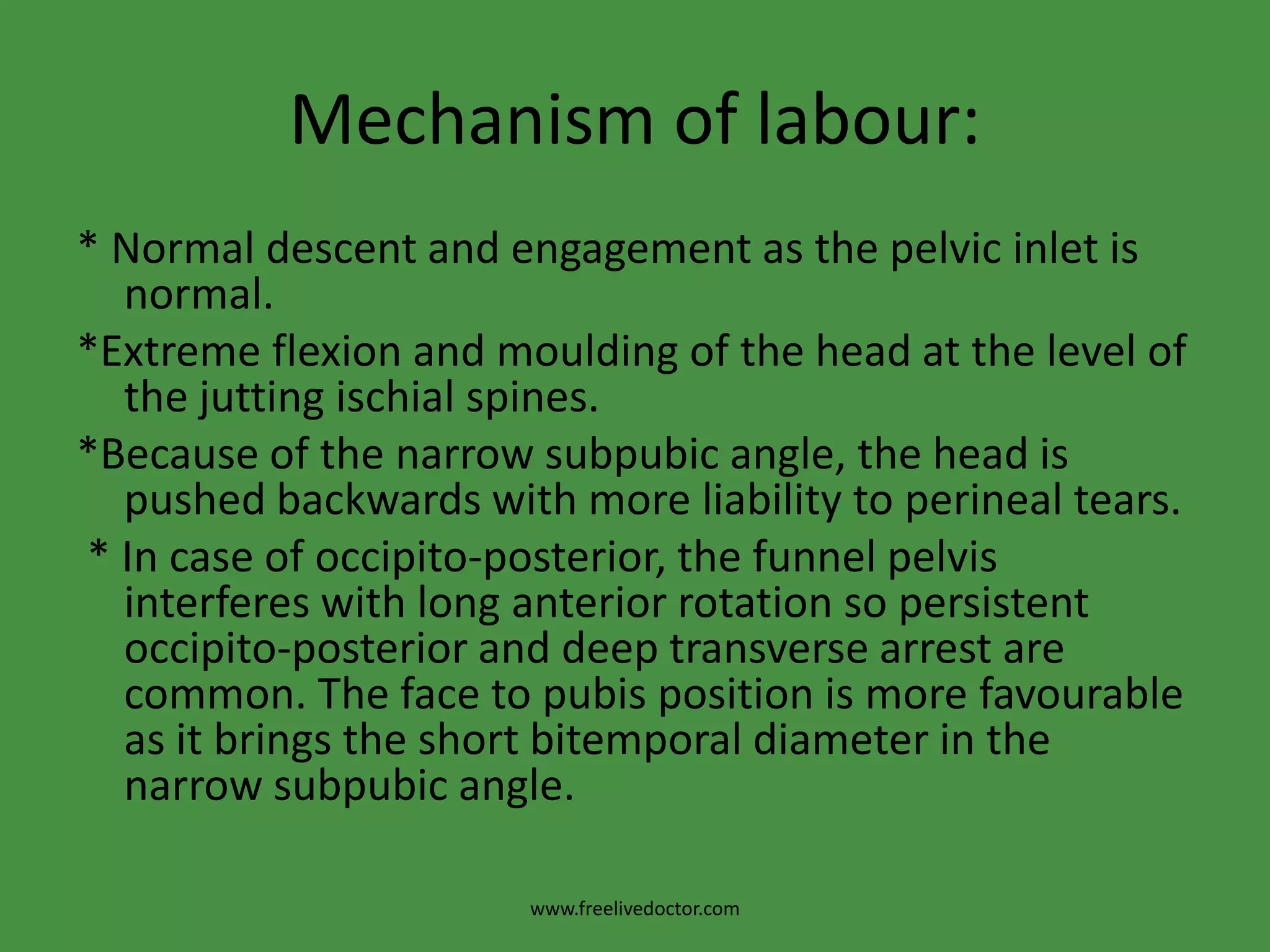

Mechanism of labour:* Normal descent and engagement as the pelvic inlet is normal.*Extreme flexion and moulding of the head at the level of the jutting ischial spines.*Because of the narrow subpubic angle, the head is pushed backwards with more liability to perineal tears. * In case of occipito-posterior, the funnel pelvis interferes with long anterior rotation so persistent occipito-posterior and deep transverse arrest are common. The face to pubis position is more favourable as it brings the short bitemporal diameter in the narrow subpubic angle.www.freelivedoctor.com
Management:It depends on Thom’s dictum:* If the sum of bituberous + posterior sagittal is >15 cm and bituberous diameter is >8cm: vaginal delivery is allowed with episiotomy and low forceps. * If the Thom’s dictum is <15 cm or the bituberous diameter is <8cm: caesarean section is performed.* Symphysiotomy: may be done in distant areas with no facilities for C.S. and the foetus is living.www.freelivedoctor.com

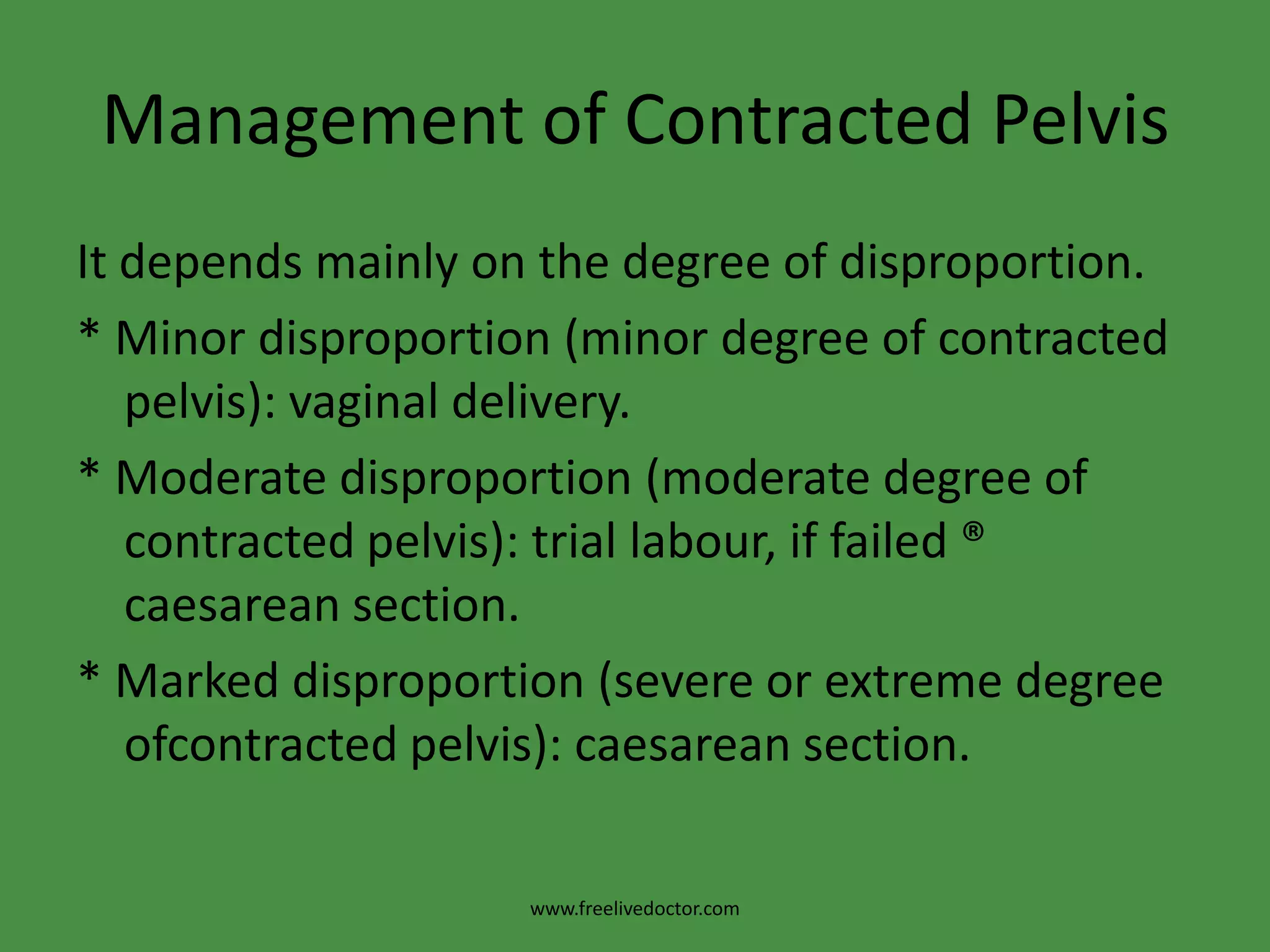

Management of Contracted PelvisIt depends mainly on the degree of disproportion.* Minor disproportion (minor degree of contracted pelvis): vaginal delivery.* Moderate disproportion (moderate degree of contracted pelvis): trial labour, if failed ® caesarean section.* Marked disproportion (severe or extreme degree ofcontracted pelvis): caesarean section.www.freelivedoctor.com

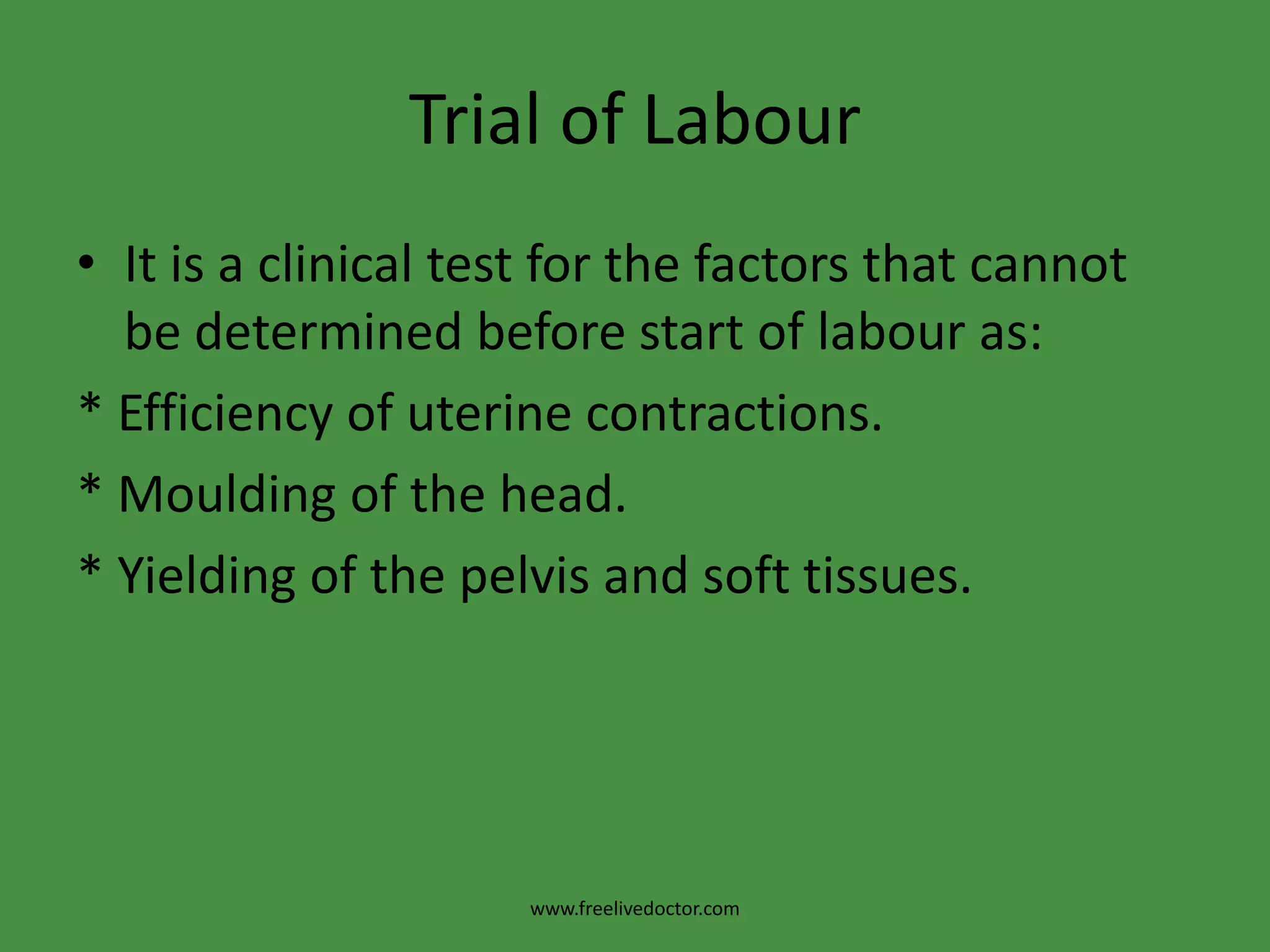

Trial of LabourIt is a clinical test for the factors that cannot be determined before start of labour as:* Efficiency of uterine contractions.* Moulding of the head.* Yielding of the pelvis and soft tissues.www.freelivedoctor.com

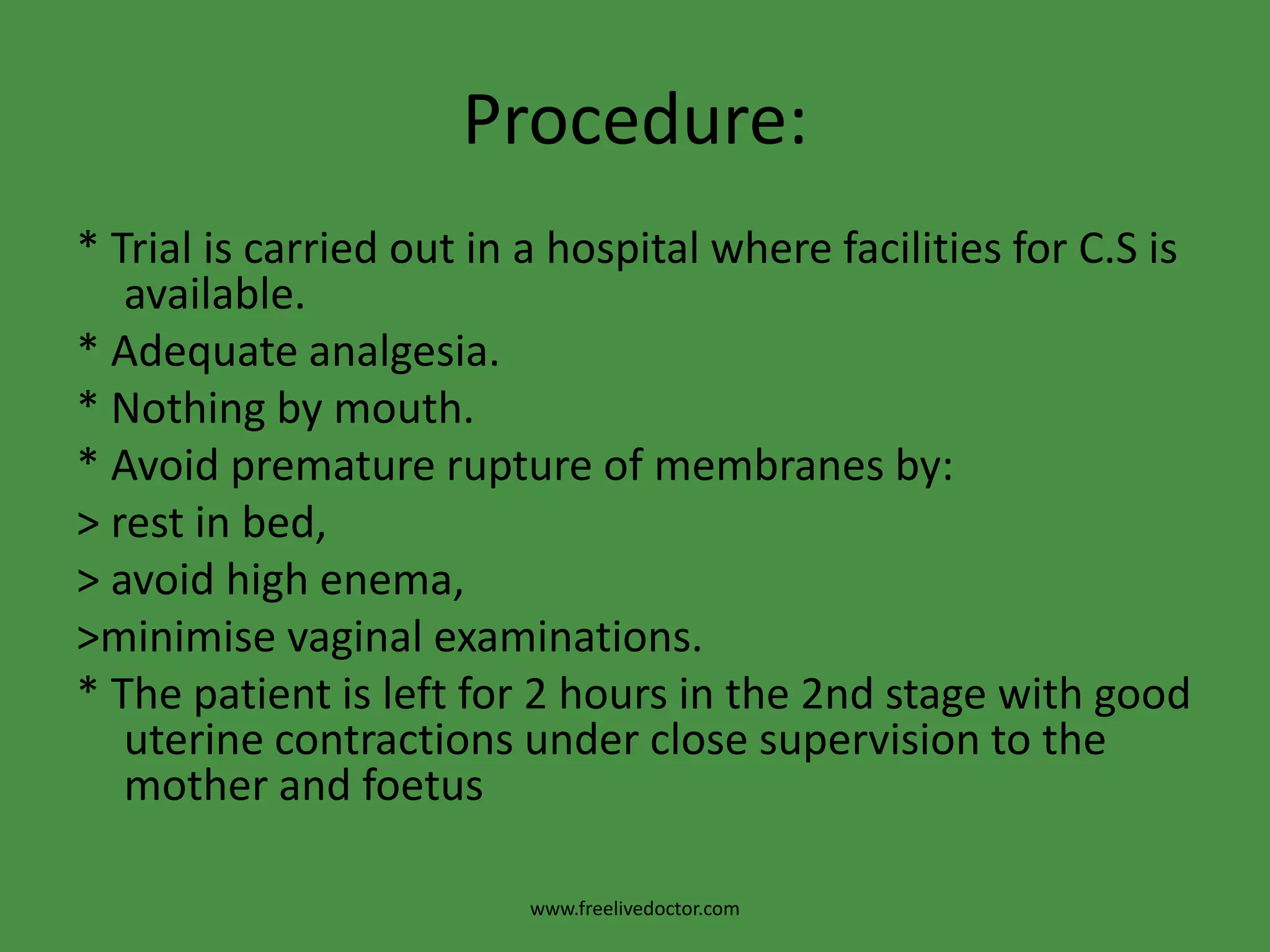

Procedure:* Trial is carried out in a hospital where facilities for C.S is available.* Adequate analgesia.* Nothing by mouth.* Avoid premature rupture of membranes by:> rest in bed,> avoid high enema,>minimise vaginal examinations.* The patient is left for 2 hours in the 2nd stage with good uterine contractions under close supervision to the mother and foetuswww.freelivedoctor.com

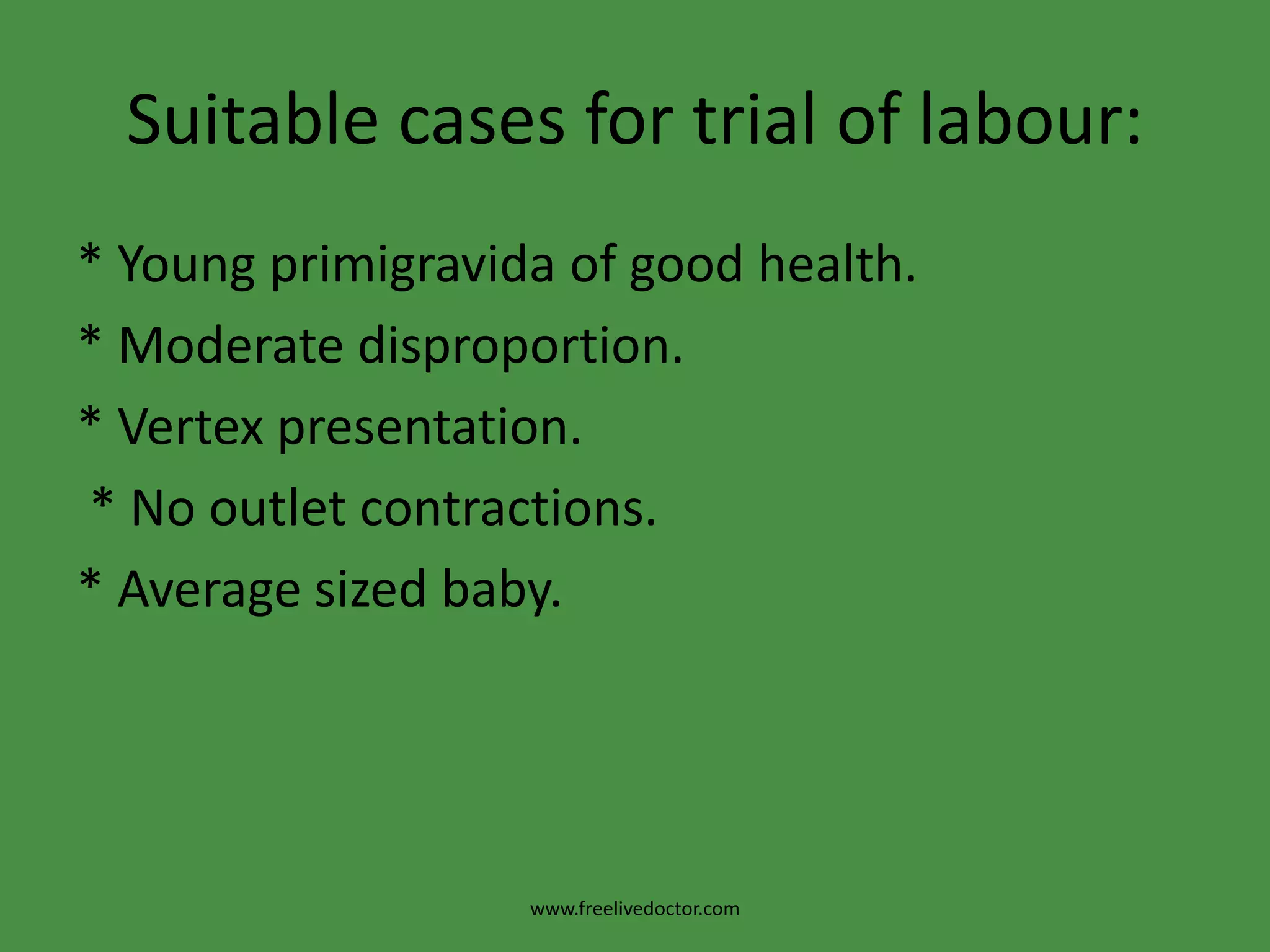

Suitable cases for trial of labour:* Young primigravida of good health.* Moderate disproportion.* Vertex presentation. * No outlet contractions.* Average sized baby.www.freelivedoctor.com

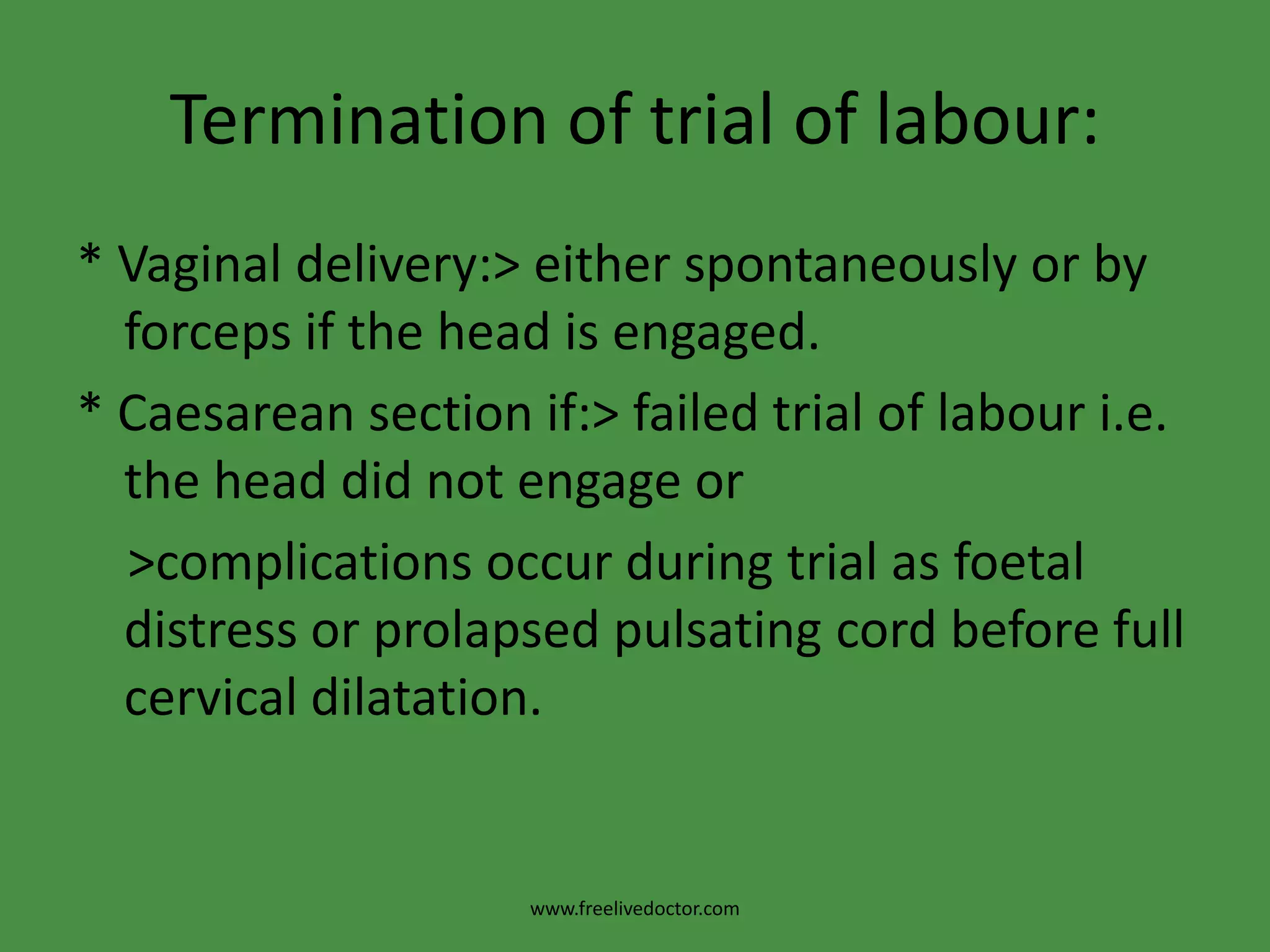

Termination of trial of labour:* Vaginal delivery:> either spontaneously or by forceps if the head is engaged.* Caesarean section if:> failed trial of labour i.e. the head did not engage or    >complications occur during trial as foetal distress or prolapsed pulsating cord before full cervical dilatation.www.freelivedoctor.com

More Related Content

What's hot

Polyhydramios
PolyhydramiosPolyhydramios
Polyhydramios
raj kumar

Breech presentation
Breech presentationBreech presentation
Breech presentation
raj kumar

Presentation episiotomy
Presentation episiotomyPresentation episiotomy
Presentation episiotomy
suji kalai

1st stage managment
1st stage managment1st stage managment
1st stage managment
Nirsuba Gurung

Shoulder dystocia
Shoulder dystociaShoulder dystocia
Shoulder dystocia
Shrooti Shah

Puerperal Pyrexia
Puerperal PyrexiaPuerperal Pyrexia
Puerperal Pyrexia
Farjad Baig

Mechanism of normal labour
Mechanism of normal labourMechanism of normal labour
Mechanism of normal labour
Jasleen Kaur

Malpresentations
MalpresentationsMalpresentations
Malpresentations
Shrooti Shah

Vaginal examination
Vaginal examinationVaginal examination
Vaginal examination
Nikita Sharma

Third stage of labour
Third stage of labourThird stage of labour
Third stage of labour
Deepthy Philip Thomas

Rupture of the uterus
Rupture of the uterusRupture of the uterus
Rupture of the uterus
Fahad Zakwan

Partograph
PartographPartograph
Partograph
Shrooti Shah

Abnormalities of-placenta-and-cordppt
Abnormalities of-placenta-and-cordpptAbnormalities of-placenta-and-cordppt
Abnormalities of-placenta-and-cordppt
obgymgmcri

Eclampsia ppt
Eclampsia pptEclampsia ppt
Eclampsia ppt
Snehlata Parashar

Puerperal infections
Puerperal infectionsPuerperal infections
Puerperal infections
jagadeeswari jayaseelan

Assessment of fetal wellbeing
Assessment of fetal wellbeingAssessment of fetal wellbeing
Assessment of fetal wellbeing
Shrooti Shah

Pre mature rupture of membrene
Pre mature rupture of membrenePre mature rupture of membrene
Pre mature rupture of membrene
Krupa Meet Patel

Cord Prolapse
Cord ProlapseCord Prolapse
Cord Prolapse
Kattey Kattey

Fetal skull
Fetal skullFetal skull
Fetal skull
Arya Anish

Puerperal sepsis
Puerperal sepsisPuerperal sepsis
Puerperal sepsis
Sonali Nayak


What's hot (20)

Polyhydramios
PolyhydramiosPolyhydramios
Polyhydramios

Breech presentation
Breech presentationBreech presentation
Breech presentation

Presentation episiotomy
Presentation episiotomyPresentation episiotomy
Presentation episiotomy

1st stage managment
1st stage managment1st stage managment
1st stage managment

Shoulder dystocia
Shoulder dystociaShoulder dystocia
Shoulder dystocia

Puerperal Pyrexia
Puerperal PyrexiaPuerperal Pyrexia
Puerperal Pyrexia

Mechanism of normal labour
Mechanism of normal labourMechanism of normal labour
Mechanism of normal labour

Malpresentations
MalpresentationsMalpresentations
Malpresentations

Vaginal examination
Vaginal examinationVaginal examination
Vaginal examination

Third stage of labour
Third stage of labourThird stage of labour
Third stage of labour

Rupture of the uterus
Rupture of the uterusRupture of the uterus
Rupture of the uterus

Partograph
PartographPartograph
Partograph

Abnormalities of-placenta-and-cordppt
Abnormalities of-placenta-and-cordpptAbnormalities of-placenta-and-cordppt
Abnormalities of-placenta-and-cordppt

Eclampsia ppt
Eclampsia pptEclampsia ppt
Eclampsia ppt

Puerperal infections
Puerperal infectionsPuerperal infections
Puerperal infections

Assessment of fetal wellbeing
Assessment of fetal wellbeingAssessment of fetal wellbeing
Assessment of fetal wellbeing

Pre mature rupture of membrene
Pre mature rupture of membrenePre mature rupture of membrene
Pre mature rupture of membrene

Cord Prolapse
Cord ProlapseCord Prolapse
Cord Prolapse

Fetal skull
Fetal skullFetal skull
Fetal skull

Puerperal sepsis
Puerperal sepsisPuerperal sepsis
Puerperal sepsis


Viewers also liked

Preterm labour seminar
Preterm labour seminarPreterm labour seminar
Preterm labour seminar
Sneha Jadhav

Pph 2016
Pph 2016Pph 2016
Pph 2016
Eddie Lim

PPh umum in Bahasa Indonesia
PPh umum in Bahasa IndonesiaPPh umum in Bahasa Indonesia
PPh umum in Bahasa Indonesia
Yesica Adicondro

Pph drill
Pph drillPph drill
Pph drill
Lifecare Centre

Cpd and contracted pelvis
Cpd and contracted pelvisCpd and contracted pelvis
Cpd and contracted pelvis
Shaells Joshi

Post Partum Hemorrhage (PPH)
Post Partum Hemorrhage (PPH)Post Partum Hemorrhage (PPH)
Post Partum Hemorrhage (PPH)
earler

Postpartum Hemorrhage Lecture Notes
Postpartum Hemorrhage Lecture NotesPostpartum Hemorrhage Lecture Notes
Postpartum Hemorrhage Lecture Notes
Chukwuma Onyeije, MD, FACOG

Postpartum haemorrhage (pph)
Postpartum haemorrhage (pph)Postpartum haemorrhage (pph)
Postpartum haemorrhage (pph)
Ezmeer Emiral

Post partum Haemorrhage
Post partum HaemorrhagePost partum Haemorrhage
Post partum Haemorrhage
Dr Zharifhussein

Preterm labour
Preterm labourPreterm labour
Preterm labour
drmcbansal


Viewers also liked (10)

Preterm labour seminar
Preterm labour seminarPreterm labour seminar
Preterm labour seminar

Pph 2016
Pph 2016Pph 2016
Pph 2016

PPh umum in Bahasa Indonesia
PPh umum in Bahasa IndonesiaPPh umum in Bahasa Indonesia
PPh umum in Bahasa Indonesia

Pph drill
Pph drillPph drill
Pph drill

Cpd and contracted pelvis
Cpd and contracted pelvisCpd and contracted pelvis
Cpd and contracted pelvis

Post Partum Hemorrhage (PPH)
Post Partum Hemorrhage (PPH)Post Partum Hemorrhage (PPH)
Post Partum Hemorrhage (PPH)

Postpartum Hemorrhage Lecture Notes
Postpartum Hemorrhage Lecture NotesPostpartum Hemorrhage Lecture Notes
Postpartum Hemorrhage Lecture Notes

Postpartum haemorrhage (pph)
Postpartum haemorrhage (pph)Postpartum haemorrhage (pph)
Postpartum haemorrhage (pph)

Post partum Haemorrhage
Post partum HaemorrhagePost partum Haemorrhage
Post partum Haemorrhage

Preterm labour
Preterm labourPreterm labour
Preterm labour


Similar to Contracted pelvis

UcNABpQPT2Oog9ho916.pptx
UcNABpQPT2Oog9ho916.pptxUcNABpQPT2Oog9ho916.pptx
UcNABpQPT2Oog9ho916.pptx
IslamSaeed19

f920Fe566ePpQKKc699.pptx
f920Fe566ePpQKKc699.pptxf920Fe566ePpQKKc699.pptx
f920Fe566ePpQKKc699.pptx
IslamSaeed19

cpd-190209143022.pdf
cpd-190209143022.pdfcpd-190209143022.pdf
cpd-190209143022.pdf
Ashraf Shaik

CPD.pptx
CPD.pptxCPD.pptx
CPD.pptx
MrsP6

Contracted pelvis.PPT
Contracted pelvis.PPTContracted pelvis.PPT
Contracted pelvis.PPT
Simrannkauur

cpdandcontractedpelvis-140305095223-phpapp01.pptx
cpdandcontractedpelvis-140305095223-phpapp01.pptxcpdandcontractedpelvis-140305095223-phpapp01.pptx
cpdandcontractedpelvis-140305095223-phpapp01.pptx
vijaymala00

Malposition and malpresentations
Malposition and malpresentationsMalposition and malpresentations
Malposition and malpresentations
raj kumar

contractedpelvis & CEPHALOPELVIC DISPROPOTION
contractedpelvis & CEPHALOPELVIC DISPROPOTIONcontractedpelvis & CEPHALOPELVIC DISPROPOTION
contractedpelvis & CEPHALOPELVIC DISPROPOTION
Pari Pratik

Contracted pelvis
Contracted pelvisContracted pelvis
Contracted pelvis
Neethu Satheesan

Cpd & contracted pelvis
Cpd & contracted pelvisCpd & contracted pelvis
Cpd & contracted pelvis
SREEVIDYA UMMADISETTI

Dr charan ddh
Dr charan ddhDr charan ddh
Hernia.ppt
Hernia.pptHernia.ppt
Hernia.ppt
Hernia.pptHernia.ppt
Hernia.ppt
Gunjan Mishra

Anorectal malformation seminar
Anorectal malformation seminarAnorectal malformation seminar
Anorectal malformation seminar
Dr. Dixit

Anorectal malformation ppt 5
Anorectal malformation ppt 5Anorectal malformation ppt 5
Anorectal malformation ppt 5
RamanUppal3

Pediatric laparoscopy
Pediatric laparoscopyPediatric laparoscopy
Pediatric laparoscopy
mostafa hegazy

cpd presentation.pptx
cpd presentation.pptxcpd presentation.pptx
cpd presentation.pptx
lovely sarangi

CPD presentation
CPD presentationCPD presentation
CPD presentation
lovely sarangi

Slipped Capital Femoral Epiphysis
Slipped Capital Femoral EpiphysisSlipped Capital Femoral Epiphysis
Slipped Capital Femoral Epiphysis
vinod naneria

Malpositionandmalpresentations 100515015735-phpapp01 (1) (1)
Malpositionandmalpresentations 100515015735-phpapp01 (1) (1)Malpositionandmalpresentations 100515015735-phpapp01 (1) (1)
Malpositionandmalpresentations 100515015735-phpapp01 (1) (1)
anan anan


Similar to Contracted pelvis (20)

UcNABpQPT2Oog9ho916.pptx
UcNABpQPT2Oog9ho916.pptxUcNABpQPT2Oog9ho916.pptx
UcNABpQPT2Oog9ho916.pptx

f920Fe566ePpQKKc699.pptx
f920Fe566ePpQKKc699.pptxf920Fe566ePpQKKc699.pptx
f920Fe566ePpQKKc699.pptx

cpd-190209143022.pdf
cpd-190209143022.pdfcpd-190209143022.pdf
cpd-190209143022.pdf

CPD.pptx
CPD.pptxCPD.pptx
CPD.pptx

Contracted pelvis.PPT
Contracted pelvis.PPTContracted pelvis.PPT
Contracted pelvis.PPT

cpdandcontractedpelvis-140305095223-phpapp01.pptx
cpdandcontractedpelvis-140305095223-phpapp01.pptxcpdandcontractedpelvis-140305095223-phpapp01.pptx
cpdandcontractedpelvis-140305095223-phpapp01.pptx

Malposition and malpresentations
Malposition and malpresentationsMalposition and malpresentations
Malposition and malpresentations

contractedpelvis & CEPHALOPELVIC DISPROPOTION
contractedpelvis & CEPHALOPELVIC DISPROPOTIONcontractedpelvis & CEPHALOPELVIC DISPROPOTION
contractedpelvis & CEPHALOPELVIC DISPROPOTION

Contracted pelvis
Contracted pelvisContracted pelvis
Contracted pelvis

Cpd & contracted pelvis
Cpd & contracted pelvisCpd & contracted pelvis
Cpd & contracted pelvis

Dr charan ddh
Dr charan ddhDr charan ddh
Dr charan ddh

Hernia.ppt
Hernia.pptHernia.ppt
Hernia.ppt

Hernia.ppt
Hernia.pptHernia.ppt
Hernia.ppt

Anorectal malformation seminar
Anorectal malformation seminarAnorectal malformation seminar
Anorectal malformation seminar

Anorectal malformation ppt 5
Anorectal malformation ppt 5Anorectal malformation ppt 5
Anorectal malformation ppt 5

Pediatric laparoscopy
Pediatric laparoscopyPediatric laparoscopy
Pediatric laparoscopy

cpd presentation.pptx
cpd presentation.pptxcpd presentation.pptx
cpd presentation.pptx

CPD presentation
CPD presentationCPD presentation
CPD presentation

Slipped Capital Femoral Epiphysis
Slipped Capital Femoral EpiphysisSlipped Capital Femoral Epiphysis
Slipped Capital Femoral Epiphysis

Malpositionandmalpresentations 100515015735-phpapp01 (1) (1)
Malpositionandmalpresentations 100515015735-phpapp01 (1) (1)Malpositionandmalpresentations 100515015735-phpapp01 (1) (1)
Malpositionandmalpresentations 100515015735-phpapp01 (1) (1)


More from raj kumar

The umbilical cord
The umbilical cordThe umbilical cord
The umbilical cord
raj kumar

The placenta
The placentaThe placenta
The placenta
raj kumar

The foetal membranes
The foetal membranesThe foetal membranes
The foetal membranes
raj kumar

Physiology of reproduction
Physiology of reproductionPhysiology of reproduction
Physiology of reproduction
raj kumar

Minor complaints during pregnancy
Minor complaints during pregnancyMinor complaints during pregnancy
Minor complaints during pregnancy
raj kumar

Diagnosis of pregnancy
Diagnosis of pregnancyDiagnosis of pregnancy
Diagnosis of pregnancy
raj kumar

Antenatal care
Antenatal careAntenatal care
Antenatal care
raj kumar

Postpartum mood disorders
Postpartum mood disordersPostpartum mood disorders
Postpartum mood disorders
raj kumar

Normal and abnormal puerperium
Normal and abnormal puerperiumNormal and abnormal puerperium
Normal and abnormal puerperium
raj kumar

Version
VersionVersion
Version
raj kumar

Vacuum extraction (ventouse)
Vacuum extraction (ventouse)Vacuum extraction (ventouse)
Vacuum extraction (ventouse)
raj kumar

Symphysiotomy
SymphysiotomySymphysiotomy
Symphysiotomy
raj kumar

Forceps delivery
Forceps deliveryForceps delivery
Forceps delivery
raj kumar

Episiotomy
EpisiotomyEpisiotomy
Episiotomy
raj kumar

Caesarean section
Caesarean sectionCaesarean section
Caesarean section
raj kumar

Normal labour
Normal labourNormal labour
Normal labour
raj kumar

Anatomy of the foetal skull
Anatomy of the foetal skullAnatomy of the foetal skull
Anatomy of the foetal skull
raj kumar

Anatomy of the female pelvis
Anatomy of the female pelvisAnatomy of the female pelvis
Anatomy of the female pelvis
raj kumar

Active management of normal labour
Active management of normal labourActive management of normal labour
Active management of normal labour
raj kumar

Thyrotoxicosis in pregnancy
Thyrotoxicosis in pregnancyThyrotoxicosis in pregnancy
Thyrotoxicosis in pregnancy
raj kumar


More from raj kumar (20)

The umbilical cord
The umbilical cordThe umbilical cord
The umbilical cord

The placenta
The placentaThe placenta
The placenta

The foetal membranes
The foetal membranesThe foetal membranes
The foetal membranes

Physiology of reproduction
Physiology of reproductionPhysiology of reproduction
Physiology of reproduction

Minor complaints during pregnancy
Minor complaints during pregnancyMinor complaints during pregnancy
Minor complaints during pregnancy

Diagnosis of pregnancy
Diagnosis of pregnancyDiagnosis of pregnancy
Diagnosis of pregnancy

Antenatal care
Antenatal careAntenatal care
Antenatal care

Postpartum mood disorders
Postpartum mood disordersPostpartum mood disorders
Postpartum mood disorders

Normal and abnormal puerperium
Normal and abnormal puerperiumNormal and abnormal puerperium
Normal and abnormal puerperium

Version
VersionVersion
Version

Vacuum extraction (ventouse)
Vacuum extraction (ventouse)Vacuum extraction (ventouse)
Vacuum extraction (ventouse)

Symphysiotomy
SymphysiotomySymphysiotomy
Symphysiotomy

Forceps delivery
Forceps deliveryForceps delivery
Forceps delivery

Episiotomy
EpisiotomyEpisiotomy
Episiotomy

Caesarean section
Caesarean sectionCaesarean section
Caesarean section

Normal labour
Normal labourNormal labour
Normal labour

Anatomy of the foetal skull
Anatomy of the foetal skullAnatomy of the foetal skull
Anatomy of the foetal skull

Anatomy of the female pelvis
Anatomy of the female pelvisAnatomy of the female pelvis
Anatomy of the female pelvis

Active management of normal labour
Active management of normal labourActive management of normal labour
Active management of normal labour

Thyrotoxicosis in pregnancy
Thyrotoxicosis in pregnancyThyrotoxicosis in pregnancy
Thyrotoxicosis in pregnancy


Contracted pelvis

  • 2. Contracted PelvisDefinition:Anatomical definition: It is a pelvis in which one or more of its diameters is reduced below the normal by one or more centimeters.Obstetric definition: It is a pelvis in which one or more of its diameters is reduced so that it interferes with the normal mechanism of labour.www.freelivedoctor.com
  • 3. Factors influencing the size and shape of the pelvis:* Developmental factor: hereditary or congenital.* Racial factor.* Nutritional factor: malnutrition results in small pelvis.* Sexual factor: as excessive androgen may produce android pelvis.* Metabolic factor: as rickets and osteomalacia.* Trauma, diseases or tumours of the bony pelvis, legs or spines.www.freelivedoctor.com
  • 4. Aetiology of Contracted Pelvisa.Causes in the pelvis Developmental (congenital):> Small gynaecoid pelvis (generally contracted pelvis).>Small android pelvis.>Small anthropoid pelvis> Small platypelloid pelvis (simple flat pelvis).>Naegele’s pelvis: absence of one sacral ala>Robert’s pelvis: absence of both sacral alae.>High assimilation pelvis: The sacrum is composed of 6 vertebrae.>Low assimilation pelvis: The sacrum is composed of 4 vertebrae.>Split pelvis: splittedsymphysis pubis.www.freelivedoctor.com
  • 5. Aetiology of Contracted Pelvisa.Causes in the pelvisMetabolic:> Rickets.> Osteomalacia (triradiate pelvic brim).Traumatic: as fractures.Neoplastic: as osteoma.www.freelivedoctor.com
  • 6. Aetiology of Contracted Pelvisb.Causes in the spine * Lumbar kyphosis.* Lumbar scoliosis.* Spondylolisthesis: The 5th lumbar vertebra with the above vertebral column is pushed forward while the promontory is pushed backwards and the tip of the sacrum is pushed forwards leading to outlet contraction.www.freelivedoctor.com
  • 7. Aetiology of Contracted Pelvisc.Causes in the lower limbs* Dislocation of one or both femurs.* Atrophy of one or both lower limbs. >N.B. oblique or asymmetric pelvis: one oblique diameter is obviously shorter than the other. This can be found in:* Naegele’s pelvis.* Scoliotic pelvis.* Diseases, fracture or tumours affecting one side.www.freelivedoctor.com
  • 8. Diagnosis of Contracted PelvisHistory * Rickets: is expected if there is a history of delayed walking and dentition. * Trauma or diseases: of the pelvis, spines or lower limbs.* Bad obstetric history: e.g. prolonged labour ended by;difficult forceps,caesarean section orstill birth.www.freelivedoctor.com
  • 9. Diagnosis of Contracted PelvisExaminationGeneral examination:>Gait: abnormal gait suggesting abnormalities in the pelvis, spines or lower limbs.> Stature: women with less than 150 cm height usually have contracted pelvis.> Spines and lower limbs: may have a disease or lesion.www.freelivedoctor.com
  • 10. Diagnosis of Contracted PelvisExaminationGeneral examination:>Manifestations of rickets as: * square head, *rosary beads in the costal ridges. * pigeon chest, * Harrison’s sulcus and bow legs. > Dystociadystrophia syndrome: the woman is *short, *stocky, * subfertile, *has android pelvis and *masculine hair distribution, * with history of delayed menarche. * This woman is more exposed to occipito-posterior position and dystocia.www.freelivedoctor.com
  • 11. Diagnosis of Contracted PelvisAbdominal examination:Nonengagement of the head: in the last 3-4 weeks in primigravida.
  • 12. Pendulous abdomen: in a primigravida.
  • 13. Malpresentations: are more common.www.freelivedoctor.com
  • 14. Diagnosis of Contracted PelvisPelvimetry: It is assessment of the pelvic diameters and capacity done at 38-39 weeks. It includes:1.Clinical pelvimetry:A.Internalpelvimetry for:> inlet,>cavity, and> outlet.B.Externalpelvimetry for:> inlet and >outlet.www.freelivedoctor.com
  • 15. Diagnosis of Contracted PelvisPelvimetry:2.Imaging pelvimetry:> X-ray.>Computerised tomography (CT).> Magnetic resonance imaging (MRI) .N.B. CT and MRI are recent and accurate but expensive and not always available so they are not in common use.)www.freelivedoctor.com
  • 16. Internal pelvimetryInternal pelvimetry (is done through vaginal examination): 1. The inlet:a.Palpation of the forepelvis (pelvic brim):b. The index and middle fingers are moved along the pelvic brim. Note whether it is round or angulated, causing the fingers to dip into a V-shaped depression behind the symphysis.c. Diagonal conjugate: >Try to palpate the sacral promontory to measure the diagonal conjugate. Normally, it is 12.5 cm and cannot be reached. If it is felt the pelvis is considered contracted and the true conjugate can be calculated by subtracting 1.5 cm from the diagonal conjugate .This assessment is not done if the head is engaged.www.freelivedoctor.com
  • 17. Internal pelvimetry2.The cavity:a.Height, thickness and inclination of the symphysis.b. Shape and inclination of the sacrum.c. Side walls: >To determine whether it is straight, convergent or divergent starting from the pelvic brim down to the base of ischial spines in the direction of the base of the ischialtuberosity. Then relation between the index and middle finger of the base of ischial spines and the thumb of the other hand on the ischialtuberosityisdetected. If the thumb is medial the side wall is convergent and if lateral it is divergent.www.freelivedoctor.com
  • 18. Internal pelvimetry2.The cavity:d.Ischial spines:> Whether it is blunt (difficult to identify at all), prominent (easily felt but not large) or very prominent (large and encroaching on the mid-plane).>The ischial spines can be located by following the sacrospinous ligament to its lateral end.www.freelivedoctor.com
  • 19. Internal pelvimetry2.The cavity:e. Interspinous diameter: By using the 2 examining fingers, if both spines can be touched simultaneously, the interspinous diameter is £ 9.5 cm i.e. inadequate for an average-sized baby.f. Sacrosciatic notch:> If the sacrospinous ligament is two and half fingers, the sacrosciatic notch is considered adequate.www.freelivedoctor.com
  • 20. Internal pelvimetry3.The outlet:a. Subpubic angle:> Normally, it admits 2 fingers.b.Bituberous diameter:>Normally, it admits the closed fist of the hand (4 knuckle).c.Mobility of the coccyx:> by pressing firmly on it while an external hand on it can determine its mobility. d. Anteroposterior diameter of the outlet:> from the tip of the sacrum to the inferior edge of the symphysis.www.freelivedoctor.com
  • 22. External pelvimetryIt is of little value as it measures diameters of the false pelvis.Thom’s, Jarcho’s or crossing pelvimeter can be used for external pelvimetry.* Interspinous diameter (25cm): between the anterior superior iliac spines.* Intercrestal diameter (28 cm): between the most far points on the outer borders of the iliac crests.* External conjugate (20 cm).* Bituberous diameter: can be measured by pelvimeter.www.freelivedoctor.com
  • 23. Radiological pelvimetryIt is indicated mainly in borderline pelvic contraction.*Lateral view: The patient stands with the X-ray tube on one side and the film cassette on the opposite side.> It is the most important view as it shows the anteroposterior diameters of the pelvis, angle of inclination of the brim, width of sacrosciatic notch, curvature of the sacrum and cephalo-pelvic relationship.* Inlet view: The patient sits on the film cassette and leans backwards so that the plane of the pelvic brim becomes parallel to the film.* Outlet view: The patient sits on the film cassette and leans forwards.www.freelivedoctor.com
  • 24. Cephalometry* Ultrasonography: is the safe accurate and easy method and can detect:The biparietal diameter (BPD)
  • 26. The circumference of the head. * Radiology (X-ray): is difficult to interpret.www.freelivedoctor.com
  • 27. Cephalopelvic disproportion testsThese are done to detect contracted inlet if the head is not engaged in the last 3-4 weeks in a primigravida.(1) Pinard’s method: >The patient evacuates her bladder and rectum.>The patient is placed in semi-sitting position to bring the foetal axis perpendicular to the brim.>The left hand pushes the head downwards and backwards into the pelvis while the fingers of the right hand are put on the symphysis to detect disproportion.www.freelivedoctor.com
  • 28. Cephalopelvic disproportion tests(2) Muller - Kerr’s method:>It is more valuable in detection of the degree of disproportion.> The patient evacuates her bladder and rectum.>The patient is placed in the dorsal position.>The left hand pushes the head into the pelvis and vaginal examination is done by the right hand while its thumb is placed over the symphysis to detect disproportion.www.freelivedoctor.com
  • 29. Degrees of Disproportion1.Minor disproportion: > The anterior surface of the head is in line with the posterior surface of the symphysis. During labour the head is engaged due to moulding and vaginal delivery can be achieved.2.Moderate disproportion (1st degree disproportion):>The anterior surface of the head is in line with the anterior surface of the symphysis. Vaginal delivery may or may not occur.3. Marked disproportion (2nd degree disproportion): >The head overrides the anterior surface of the symphysis. Vaginal delivery cannot occur.www.freelivedoctor.com
  • 30. Degrees of Contracted Pelvis1. Minor degree: The true conjugate is 9-10 cm. It corresponds to minor disproportion.2.Moderate degree: The true conjugate is 8-9 cm. It corresponds to moderate disproportion.3.Severe degree: The true conjugate is 6-8 cm. It corresponds to marked disproportion.4.Extreme degree: The true conjugate is less than 6 cm. Vaginal delivery is impossible even after craniotomy asthebimastoid diameter (7.5 cm) is not crushed.www.freelivedoctor.com
  • 31. Mechanism of Labour in Contracted PelvisThe Flat Rachitic Pelvis:Characters1. Inlet: reduced antero-posterior diameter.2. The pelvic inclination: is exaggerated due to increased lumbar lordosis.3.The sacrum has the following characters: > The promontory is pushed forwards so the tip is pushed backwards. >Diminished or obliterated concavity. > Bent at the middle may be present.www.freelivedoctor.com
  • 32. Mechanism of Labour in Contracted PelvisThe Flat Rachitic PelvisCharacters4.The outlet has the following characters:> Increased antero-posterior diameter.> Increased bituberous diameter.5. The interspinous equal the intercrestal diameter.www.freelivedoctor.com
  • 33. Mechanism of labour:a.Engagement: with the sagittal suture in the transverse diameter.b.Asynclitism with anterior parietal bone presentation so that the shorter subparietalsupraparietal diameter (9cm) is passed instead of the biparietal (9.5cm) in the narrow true conjugate.c. Lateral displacement of the head so that the bitemporal diameter is passed through the narrow true conjugate www.freelivedoctor.com
  • 34. Mechanism of labour:d. Deflexion of the head as the descent of the occiput is resisted by the lateral pelvic wall .e.Correction of the asynclitism and deflexion with further descent of the head.f. Rotation of the occiput 2/8 circle anteriorly and the head is delivered easily due to wide outlet.www.freelivedoctor.com
  • 35. Simple Flat PelvisCharacters:> Reduced antero-posterior diameters of the inlet, cavity and outlet.> No rachitic manifestations.www.freelivedoctor.com
  • 36. Simple Flat PelvisMechanism of labour:The process passes as flat rachitic pelvis till the mid cavity where internal rotation and further descent cannot occur due to persistence of flattening of the pelvis and contracted outlet. So deep transverse arrest is common and vaginal delivery is obstructed.www.freelivedoctor.com
  • 37. Contracted Outlet (Funnel Pelvis)Characters: * The pelvic capacity is diminished from the inlet to the outlet.* Subpubic angle is acute.* Convergent side walls. * Bituberous diameter is 8 cm or less.www.freelivedoctor.com
  • 38. Contracted Outlet (Funnel Pelvis)Causes: * Android pelvis.* Anthropoid pelvis. * Osteomalacia. * High assimilation pelvis.* Spondylolisthesis.* Oblique pelvis. * 20% of generally contracted pelvis.www.freelivedoctor.com
  • 39. Mechanism of labour:* Normal descent and engagement as the pelvic inlet is normal.*Extreme flexion and moulding of the head at the level of the jutting ischial spines.*Because of the narrow subpubic angle, the head is pushed backwards with more liability to perineal tears. * In case of occipito-posterior, the funnel pelvis interferes with long anterior rotation so persistent occipito-posterior and deep transverse arrest are common. The face to pubis position is more favourable as it brings the short bitemporal diameter in the narrow subpubic angle.www.freelivedoctor.com
  • 40. Management:It depends on Thom’s dictum:* If the sum of bituberous + posterior sagittal is >15 cm and bituberous diameter is >8cm: vaginal delivery is allowed with episiotomy and low forceps. * If the Thom’s dictum is <15 cm or the bituberous diameter is <8cm: caesarean section is performed.* Symphysiotomy: may be done in distant areas with no facilities for C.S. and the foetus is living.www.freelivedoctor.com
  • 41. Management of Contracted PelvisIt depends mainly on the degree of disproportion.* Minor disproportion (minor degree of contracted pelvis): vaginal delivery.* Moderate disproportion (moderate degree of contracted pelvis): trial labour, if failed ® caesarean section.* Marked disproportion (severe or extreme degree ofcontracted pelvis): caesarean section.www.freelivedoctor.com
  • 42. Trial of LabourIt is a clinical test for the factors that cannot be determined before start of labour as:* Efficiency of uterine contractions.* Moulding of the head.* Yielding of the pelvis and soft tissues.www.freelivedoctor.com
  • 43. Procedure:* Trial is carried out in a hospital where facilities for C.S is available.* Adequate analgesia.* Nothing by mouth.* Avoid premature rupture of membranes by:> rest in bed,> avoid high enema,>minimise vaginal examinations.* The patient is left for 2 hours in the 2nd stage with good uterine contractions under close supervision to the mother and foetuswww.freelivedoctor.com
  • 44. Suitable cases for trial of labour:* Young primigravida of good health.* Moderate disproportion.* Vertex presentation. * No outlet contractions.* Average sized baby.www.freelivedoctor.com
  • 45. Termination of trial of labour:* Vaginal delivery:> either spontaneously or by forceps if the head is engaged.* Caesarean section if:> failed trial of labour i.e. the head did not engage or >complications occur during trial as foetal distress or prolapsed pulsating cord before full cervical dilatation.www.freelivedoctor.com

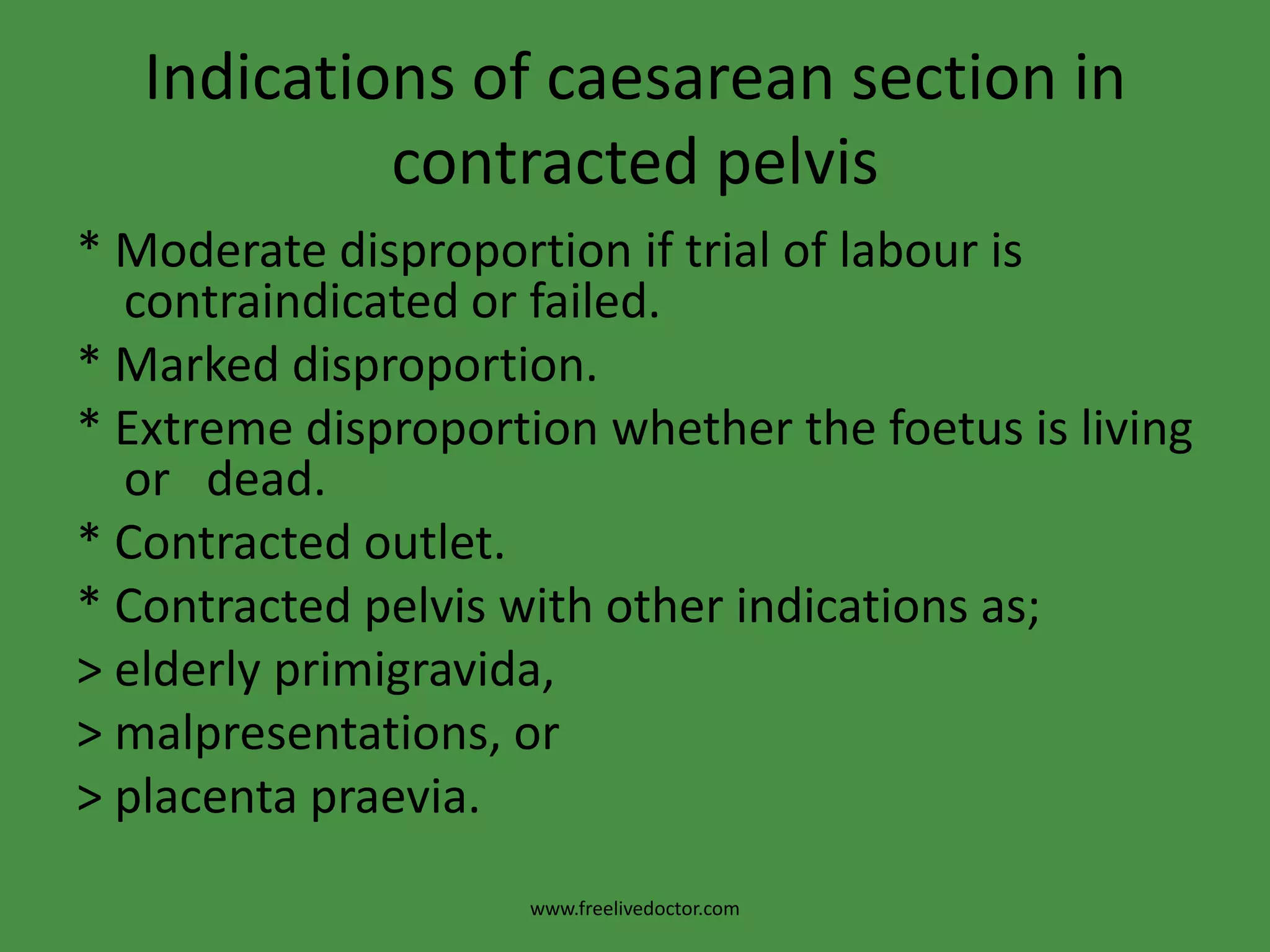

  • 46. Indications of caesarean section in contracted pelvis* Moderate disproportion if trial of labour is contraindicated or failed.* Marked disproportion.* Extreme disproportion whether the foetus is living or dead.* Contracted outlet.* Contracted pelvis with other indications as;> elderly primigravida,> malpresentations, or > placenta praevia.www.freelivedoctor.com

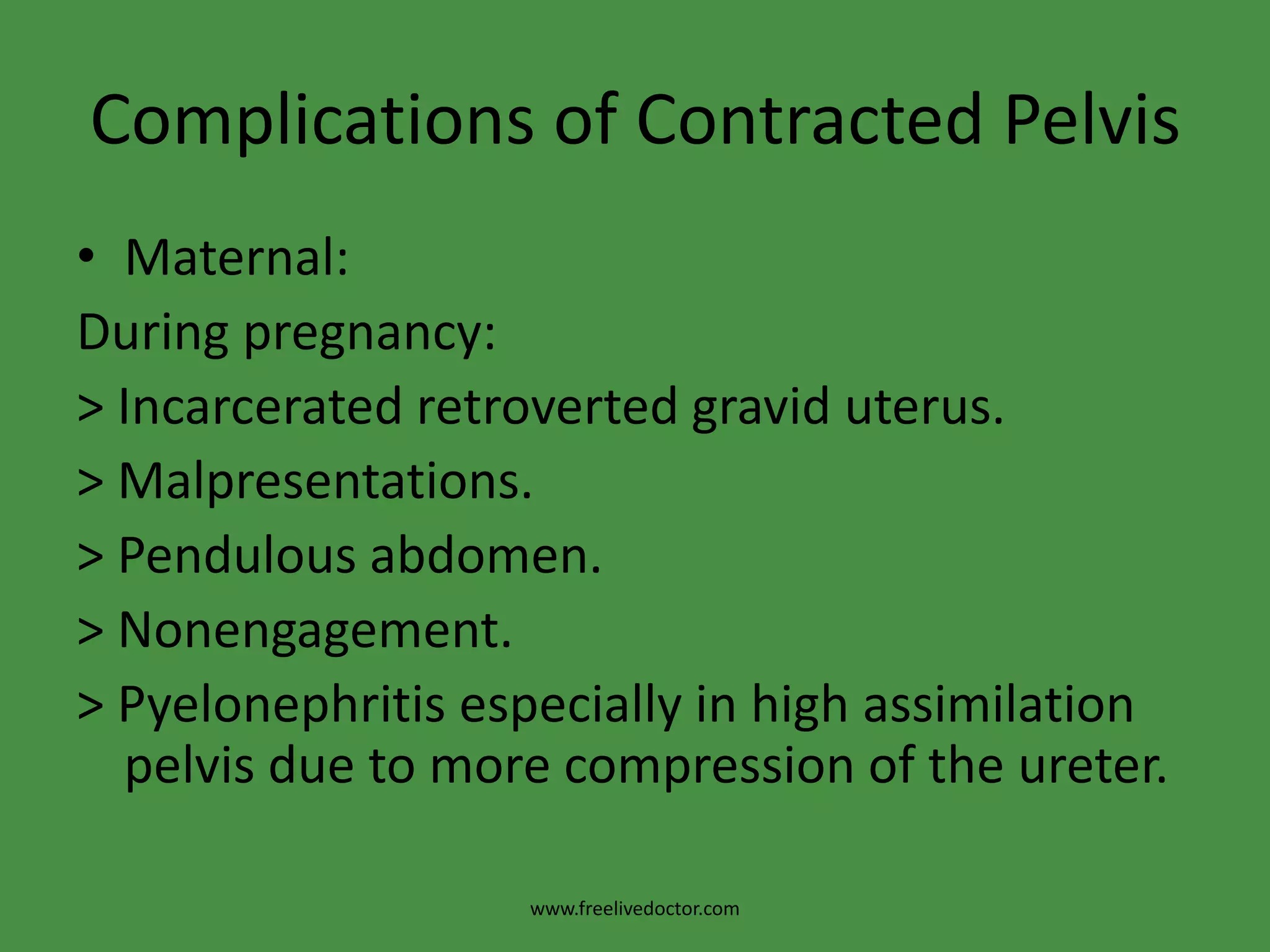

  • 47. Complications of Contracted PelvisMaternal: During pregnancy:> Incarcerated retroverted gravid uterus. >Malpresentations.> Pendulous abdomen. > Nonengagement.>Pyelonephritis especially in high assimilation pelvis due to more compression of the ureter.www.freelivedoctor.com
  • 48. Complications of Contracted Pelvis During labour:>Inertia, slow cervical dilatation and prolonged labour.> Premature rupture of membranes and cord prolapse.> Obstructed labour and rupture uterus.> Necrotic genito-urinary fistula.> Injury to pelvic joints or nerves from difficult forceps delivery.> Postpartum haemorrhage.www.freelivedoctor.com

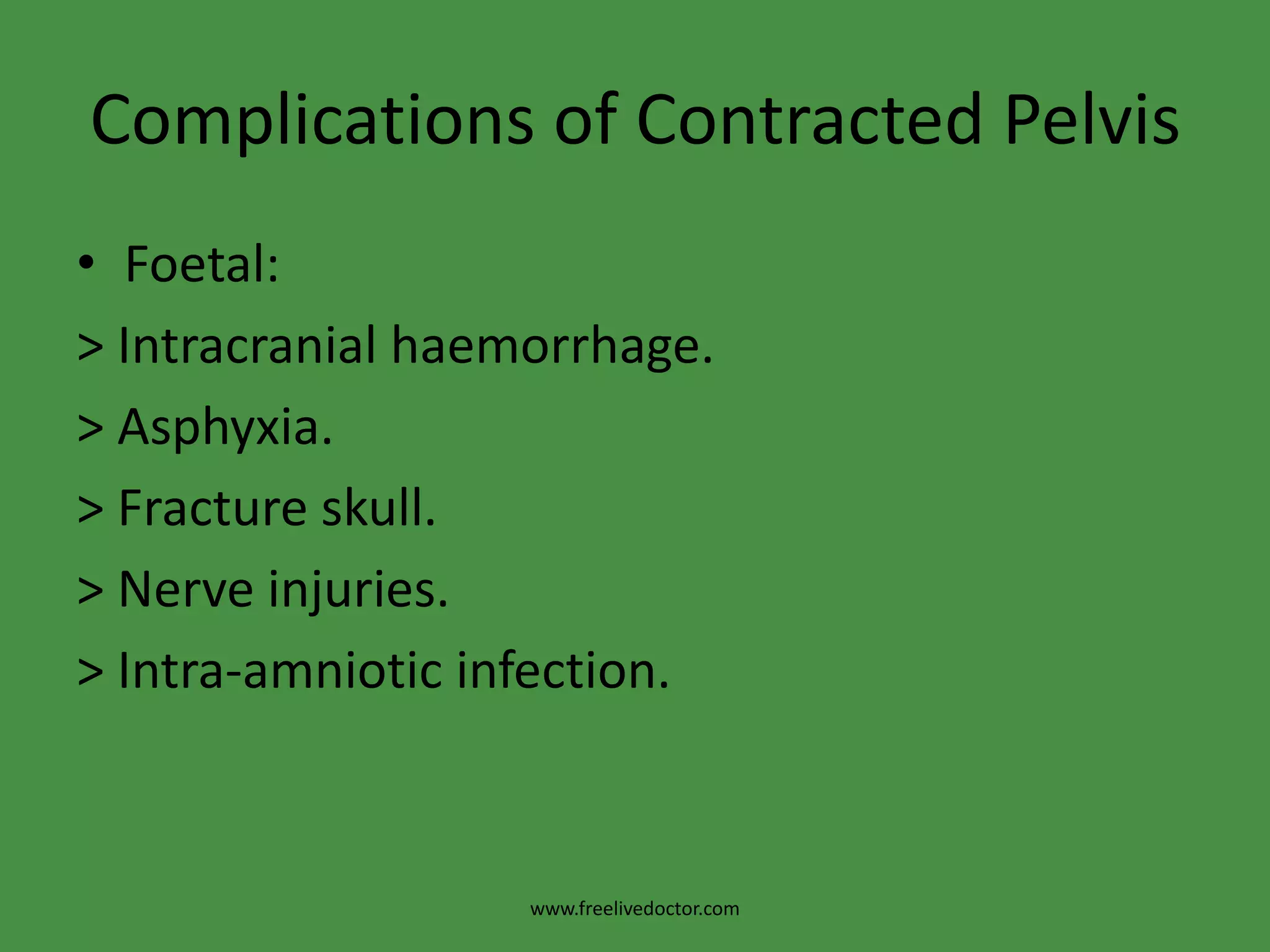

  • 49. Complications of Contracted PelvisFoetal:> Intracranial haemorrhage. > Asphyxia. > Fracture skull.> Nerve injuries. > Intra-amniotic infection.www.freelivedoctor.com
