CONTACT LENS PARAMETERS
Some Basic Definitions
 Blank or the button from which the rigid or a soft
lens is fabricated by lathe(Fig 2.1)
 Semi finished blank—A blank where base curve is
pre-generated
 Semi finished lens—A lens that has the back and
the front curve cut. The peripheral curves and the
edge is not yet fabricated.
 Finished lens—A lens ready to be worn on the eye.

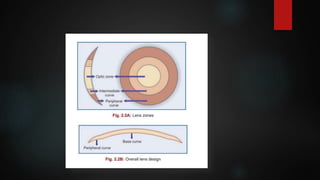

The Overall Contact Lens has Following
Key Design Features
 1. Base curve
 2. Power
 3. Lens diameter
 4. Peripheral curves
 5. Optic zone
 6. Central thickness
 7. Edge design

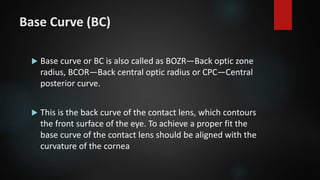

Base Curve (BC)
 Base curve or BC is also called as BOZR—Back optic zone
radius, BCOR—Back central optic radius or CPC—Central
posterior curve.
 This is the back curve of the contact lens, which contours
the front surface of the eye. To achieve a proper fit the
base curve of the contact lens should be aligned with the
curvature of the cornea

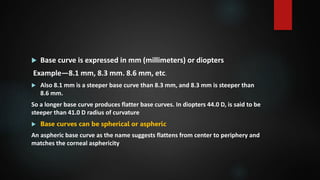

 Base curve is expressed in mm (millimeters) or diopters
Example—8.1 mm, 8.3 mm. 8.6 mm, etc.
 Also 8.1 mm is a steeper base curve than 8.3 mm, and 8.3 mm is steeper than
8.6 mm.
So a longer base curve produces flatter base curves. In diopters 44.0 D, is said to be
steeper than 41.0 D radius of curvature
 Base curves can be spherical or aspheric
An aspheric base curve as the name suggests flattens from center to periphery and
matches the corneal asphericity
 The apshericity is specified by e-value. Following are the
e-values and their shape correlation:
 e-value shape
Zero spherical
Between 0-1 elliptical
1.0 parabolic
> 1.0 hyperbolic

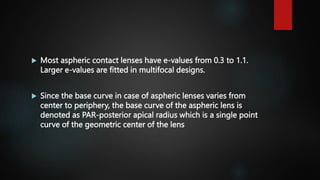

 Most aspheric contact lenses have e-values from 0.3 to 1.1.
Larger e-values are fitted in multifocal designs.
 Since the base curve in case of aspheric lenses varies from
center to periphery, the base curve of the aspheric lens is
denoted as PAR-posterior apical radius which is a single point
curve of the geometric center of the lens

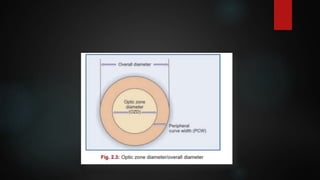

Overall Diameter (OD) (Fig. 2.3)
 The length of the lens across its widest diameter is called the overall diameter or the lens diameter.
It is specified in millimeters.
 A soft lens is usually 12-15 mm and a rigid lens is of 8 to 10 mm diameter.
 Diameter depends upon the corneal diameter and the palpebral aperture.
 Larger the corneal diameterThe length of the lens across its widest diameter is called the overall
diameter or the lens diameter. It is specified in millimeters.
 A soft lens is usually 12-15 mm and a rigid lens is of 8 to 10 mm diameter. Diameter depends upon
the corneal diameter and the palpebral aperture.
 Larger the corneal diameter greater is the overall diameter of the lens required. greater is the
overall diameter of the lens required.
Peripheral Curve/Curves
 A lens with a single base curve is called a Monocurve Lens.
 A lens with two curves at the back is called a Bicurve lens.
 A lens with three curves is called as a Tricurve lens.
 A lens with more than three curves is called a Multicurve lens
 The peripheral curve or PC is the curve surrounding the base curve
on the posterior surface of the lens. If there is more than one
peripheral curve then the inner curves are called secondary or
intermediate curves.
 PC is also alternatively called as PPCR – posterior peripheral
curve radius.
 The peripheral curves are flatter than the base curve, and the
peripheral most curves will be the flattest one in a normal
contact lens design, which is done to match the corneal
shape.

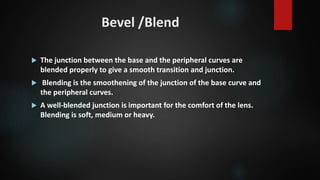

Bevel /Blend
 The junction between the base and the peripheral curves are
blended properly to give a smooth transition and junction.
 Blending is the smoothening of the junction of the base curve and
the peripheral curves.
 A well-blended junction is important for the comfort of the lens.
Blending is soft, medium or heavy.

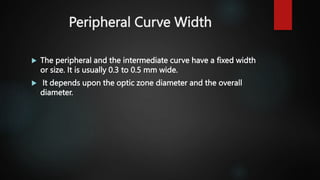

Peripheral Curve Width
 The peripheral and the intermediate curve have a fixed width
or size. It is usually 0.3 to 0.5 mm wide.
 It depends upon the optic zone diameter and the overall
diameter.

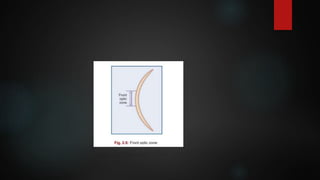

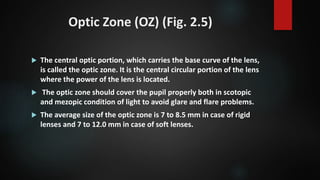

Optic Zone (OZ) (Fig. 2.5)
 The central optic portion, which carries the base curve of the lens,
is called the optic zone. It is the central circular portion of the lens
where the power of the lens is located.
 The optic zone should cover the pupil properly both in scotopic
and mezopic condition of light to avoid glare and flare problems.
 The average size of the optic zone is 7 to 8.5 mm in case of rigid
lenses and 7 to 12.0 mm in case of soft lenses.

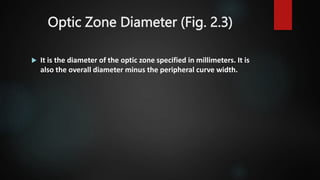

Optic Zone Diameter (Fig. 2.3)
 It is the diameter of the optic zone specified in millimeters. It is
also the overall diameter minus the peripheral curve width.

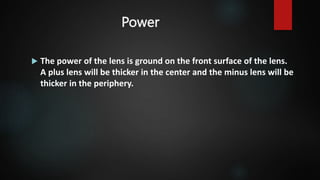

Power
 The power of the lens is ground on the front surface of the lens.
A plus lens will be thicker in the center and the minus lens will be
thicker in the periphery.

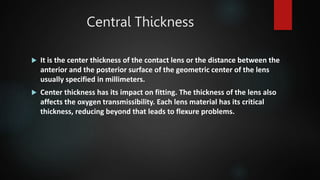

Central Thickness
 It is the center thickness of the contact lens or the distance between the
anterior and the posterior surface of the geometric center of the lens
usually specified in millimeters.
 Center thickness has its impact on fitting. The thickness of the lens also
affects the oxygen transmissibility. Each lens material has its critical
thickness, reducing beyond that leads to flexure problems.
Single Cut vs Lenticular Lens Design
 Single cut design is the lens design, which has a single continuous curve in the front.
 The back surface is either monocurve (with single curve), bicurve (with two
curves—base curve and peripheral curve), tricurve (with three curves—base curve,
intermediate curve and peripheral curve ) or multicurve ( base curve and more than
2 peripheral curves)
 A lenticular design is a lens designed with the optically powered portion of the front
surface confined to the middle of the lens surrounded by the peripheral portion.

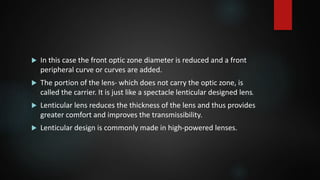

 In this case the front optic zone diameter is reduced and a front
peripheral curve or curves are added.
 The portion of the lens- which does not carry the optic zone, is
called the carrier. It is just like a spectacle lenticular designed lens.
 Lenticular lens reduces the thickness of the lens and thus provides
greater comfort and improves the transmissibility.
 Lenticular design is commonly made in high-powered lenses.

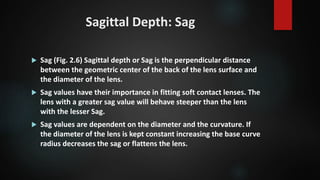

Sagittal Depth: Sag

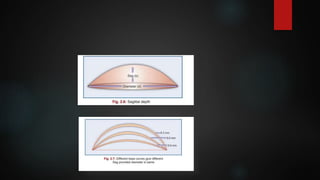

 Sag (Fig. 2.6) Sagittal depth or Sag is the perpendicular distance
between the geometric center of the back of the lens surface and
the diameter of the lens.
 Sag values have their importance in fitting soft contact lenses. The
lens with a greater sag value will behave steeper than the lens
with the lesser Sag.
 Sag values are dependent on the diameter and the curvature. If
the diameter of the lens is kept constant increasing the base curve
radius decreases the sag or flattens the lens.
 Let us suppose there are 2 lenses of same 14 mm diameter, and if the radius of
curvature is increased from 8.3 to 8.6 the lens with 8.6 mm radius will have
lesser Sag or will behave flatter.
 Similarly if the base curve is kept constant and the diameters are changed, the
lens with smaller diameter will have lesser Sag or will behave flatter (Fig. 2.7).
 Suppose there are 2 lenses with 8.6 BC but one lens has a diameter of 13.0 mm
and the second lens has a diameter of 14 mm.
 The 13 mm lens will have lesser Sag.
 Increasing the sagittal height tightens the lens, which can be done by either
decreasing the base curve or by increasing the diameter.
Edge Lift

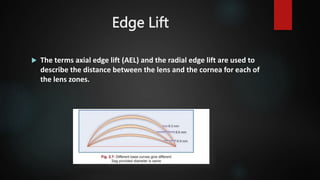

 The terms axial edge lift (AEL) and the radial edge lift are used to
describe the distance between the lens and the cornea for each of
the lens zones.

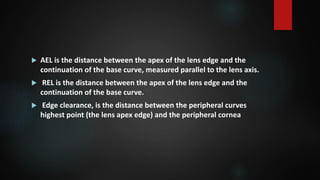

 AEL is the distance between the apex of the lens edge and the
continuation of the base curve, measured parallel to the lens axis.
 REL is the distance between the apex of the lens edge and the
continuation of the base curve.
 Edge clearance, is the distance between the peripheral curves
highest point (the lens apex edge) and the peripheral cornea

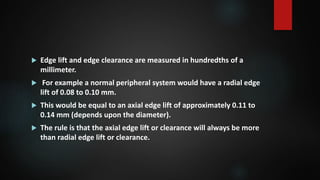

 Edge lift and edge clearance are measured in hundredths of a
millimeter.
 For example a normal peripheral system would have a radial edge
lift of 0.08 to 0.10 mm.
 This would be equal to an axial edge lift of approximately 0.11 to
0.14 mm (depends upon the diameter).
 The rule is that the axial edge lift or clearance will always be more
than radial edge lift or clearance.
CONTACT             LENS PARAMETERS.pptx
CONTACT             LENS PARAMETERS.pptx

More Related Content

Similar to CONTACT LENS PARAMETERS.pptx

Base curve
Base curveBase curve
Base curve
KAUSTAV GOGOI

Special type of lenses
Special  type of lensesSpecial  type of lenses
Special type of lenses
OPTOM FASLU MUHAMMED

Ophthalmic lens design
Ophthalmic lens designOphthalmic lens design
fitting RGP lenses
fitting RGP lensesfitting RGP lenses
fitting RGP lenses
Hossein Mirzaie

laser lenses for retinal diseases
 laser lenses for retinal diseases laser lenses for retinal diseases
laser lenses for retinal diseases
nalini2218

01 & 02 Introduction & history of Contact Lenses.pptx
01 & 02  Introduction  & history of Contact Lenses.pptx01 & 02  Introduction  & history of Contact Lenses.pptx
01 & 02 Introduction & history of Contact Lenses.pptx
Al-Shifa College of Paramedical Science,Perinthalmanna

Optics and design of soft contact lens.pptx
Optics and design of soft contact lens.pptxOptics and design of soft contact lens.pptx
Optics and design of soft contact lens.pptx
Ashi Lakher

Types of lenses by Sajjad Kayani
Types of lenses by Sajjad KayaniTypes of lenses by Sajjad Kayani
Types of lenses by Sajjad Kayani
PTV

Progressive addition lenses
Progressive addition lensesProgressive addition lenses
Progressive addition lenses
OPTOM FASLU MUHAMMED

Optical
OpticalOptical
Optical
eskaparetus

Contact lens fitting in keratoconus copy
Contact lens fitting in keratoconus   copyContact lens fitting in keratoconus   copy
Contact lens fitting in keratoconus copy
kamal thakur

Contact lens in keratoconus
Contact lens in keratoconusContact lens in keratoconus
Contact lens in keratoconus
RabindraAdhikary

Progressive lens dispensing
Progressive lens dispensingProgressive lens dispensing
Progressive lens dispensing
Manoj Km

Design of imaging system of fundus camera
Design of imaging system of fundus cameraDesign of imaging system of fundus camera
Design of imaging system of fundus camera
Mark Gokhler Ph. D

Types of Lenses used in photography
Types of Lenses used in photographyTypes of Lenses used in photography
Types of Lenses used in photography
Amit Dash

The lenses used for photography worldwide
The lenses used for photography worldwideThe lenses used for photography worldwide
The lenses used for photography worldwide
Amit Dash

Ef lens work_book_7_en
Ef lens work_book_7_enEf lens work_book_7_en
Ef lens work_book_7_en
Truong Pham Khang

Ef lens work_book_7_en
Ef lens work_book_7_enEf lens work_book_7_en
Ef lens work_book_7_en
Truong Pham Khang

Visionbf 1h-fin
Visionbf 1h-finVisionbf 1h-fin
Visionbf 1h-fin
MUBOSScz

Frame measurementsand markings
Frame measurementsand markingsFrame measurementsand markings
Frame measurementsand markings
OPTOM FASLU MUHAMMED


Similar to CONTACT LENS PARAMETERS.pptx (20)

Base curve
Base curveBase curve
Base curve

Special type of lenses
Special  type of lensesSpecial  type of lenses
Special type of lenses

Ophthalmic lens design
Ophthalmic lens designOphthalmic lens design
Ophthalmic lens design

fitting RGP lenses
fitting RGP lensesfitting RGP lenses
fitting RGP lenses

laser lenses for retinal diseases
 laser lenses for retinal diseases laser lenses for retinal diseases
laser lenses for retinal diseases

01 & 02 Introduction & history of Contact Lenses.pptx
01 & 02  Introduction  & history of Contact Lenses.pptx01 & 02  Introduction  & history of Contact Lenses.pptx
01 & 02 Introduction & history of Contact Lenses.pptx

Optics and design of soft contact lens.pptx
Optics and design of soft contact lens.pptxOptics and design of soft contact lens.pptx
Optics and design of soft contact lens.pptx

Types of lenses by Sajjad Kayani
Types of lenses by Sajjad KayaniTypes of lenses by Sajjad Kayani
Types of lenses by Sajjad Kayani

Progressive addition lenses
Progressive addition lensesProgressive addition lenses
Progressive addition lenses

Optical
OpticalOptical
Optical

Contact lens fitting in keratoconus copy
Contact lens fitting in keratoconus   copyContact lens fitting in keratoconus   copy
Contact lens fitting in keratoconus copy

Contact lens in keratoconus
Contact lens in keratoconusContact lens in keratoconus
Contact lens in keratoconus

Progressive lens dispensing
Progressive lens dispensingProgressive lens dispensing
Progressive lens dispensing

Design of imaging system of fundus camera
Design of imaging system of fundus cameraDesign of imaging system of fundus camera
Design of imaging system of fundus camera

Types of Lenses used in photography
Types of Lenses used in photographyTypes of Lenses used in photography
Types of Lenses used in photography

The lenses used for photography worldwide
The lenses used for photography worldwideThe lenses used for photography worldwide
The lenses used for photography worldwide

Ef lens work_book_7_en
Ef lens work_book_7_enEf lens work_book_7_en
Ef lens work_book_7_en

Ef lens work_book_7_en
Ef lens work_book_7_enEf lens work_book_7_en
Ef lens work_book_7_en

Visionbf 1h-fin
Visionbf 1h-finVisionbf 1h-fin
Visionbf 1h-fin

Frame measurementsand markings
Frame measurementsand markingsFrame measurementsand markings
Frame measurementsand markings


More from Al-Shifa College of Paramedical Science,Perinthalmanna

PLACIDO DISC .pdf
PLACIDO DISC                              .pdfPLACIDO DISC                              .pdf
Aberrometry .pdf
Aberrometry                                   .pdfAberrometry                                   .pdf
TOPOGRAPHY .pdf
TOPOGRAPHY                             .pdfTOPOGRAPHY                             .pdf
asigmatic clock and fan .pdf
asigmatic clock and fan                .pdfasigmatic clock and fan                .pdf
INTRAOCULAR PRESSURE .pdf
INTRAOCULAR PRESSURE                  .pdfINTRAOCULAR PRESSURE                  .pdf
Keratometer .pdf
Keratometer                                    .pdfKeratometer                                    .pdf
ANATOMY AND PHYSIOLOGY OF ANTR AND POSTR CHAMBER (1).pdf
ANATOMY AND PHYSIOLOGY OF ANTR AND POSTR CHAMBER (1).pdfANATOMY AND PHYSIOLOGY OF ANTR AND POSTR CHAMBER (1).pdf
ANATOMY AND PHYSIOLOGY OF ANTR AND POSTR CHAMBER (1).pdf
Al-Shifa College of Paramedical Science,Perinthalmanna

INTRAOCULAR PRESSURE.pdf
INTRAOCULAR                    PRESSURE.pdfINTRAOCULAR                    PRESSURE.pdf
ANATOMY OF SCLERA.pdf
ANATOMY OF                     SCLERA.pdfANATOMY OF                     SCLERA.pdf
ANATOMY OF UVEA.pdf
ANATOMY OF                              UVEA.pdfANATOMY OF                              UVEA.pdf
07 INDICATIONS & CONTRA INDICATIONS OF CL.pptx
07  INDICATIONS & CONTRA INDICATIONS OF CL.pptx07  INDICATIONS & CONTRA INDICATIONS OF CL.pptx
07 INDICATIONS & CONTRA INDICATIONS OF CL.pptx
Al-Shifa College of Paramedical Science,Perinthalmanna

3 physiology (Ant.segment) .ppt
3 physiology (Ant.segment)            .ppt3 physiology (Ant.segment)            .ppt
2 anatomy(Ant.segment-2) .pptx
2 anatomy(Ant.segment-2)                          .pptx2 anatomy(Ant.segment-2)                          .pptx
1 Anatomy(Ant.segment-1) .pptx
1 Anatomy(Ant.segment-1)           .pptx1 Anatomy(Ant.segment-1)           .pptx
Quality Assurance and Inspection OF CL.pptx
Quality Assurance and Inspection OF CL.pptxQuality Assurance and Inspection OF CL.pptx
Quality Assurance and Inspection OF CL.pptx
Al-Shifa College of Paramedical Science,Perinthalmanna

03 Optics of CL .ppt
03 Optics of CL                             .ppt03 Optics of CL                             .ppt
05 & 06 Introduction to CL materials.pptx
05 & 06  Introduction to CL materials.pptx05 & 06  Introduction to CL materials.pptx
05 & 06 Introduction to CL materials.pptx
Al-Shifa College of Paramedical Science,Perinthalmanna

08 CONTACT LENS PARAMETERS .pptx
08 CONTACT LENS PARAMETERS                .pptx08 CONTACT LENS PARAMETERS                .pptx
09 Contact Lens MATERIALS .pptx
09 Contact Lens MATERIALS              .pptx09 Contact Lens MATERIALS              .pptx
Aberrometry .pdf
Aberrometry                               .pdfAberrometry                               .pdf

More from Al-Shifa College of Paramedical Science,Perinthalmanna (20)

PLACIDO DISC .pdf
PLACIDO DISC                              .pdfPLACIDO DISC                              .pdf
PLACIDO DISC .pdf

Aberrometry .pdf
Aberrometry                                   .pdfAberrometry                                   .pdf
Aberrometry .pdf

TOPOGRAPHY .pdf
TOPOGRAPHY                             .pdfTOPOGRAPHY                             .pdf
TOPOGRAPHY .pdf

asigmatic clock and fan .pdf
asigmatic clock and fan                .pdfasigmatic clock and fan                .pdf
asigmatic clock and fan .pdf

INTRAOCULAR PRESSURE .pdf
INTRAOCULAR PRESSURE                  .pdfINTRAOCULAR PRESSURE                  .pdf
INTRAOCULAR PRESSURE .pdf

Keratometer .pdf
Keratometer                                    .pdfKeratometer                                    .pdf
Keratometer .pdf

ANATOMY AND PHYSIOLOGY OF ANTR AND POSTR CHAMBER (1).pdf
ANATOMY AND PHYSIOLOGY OF ANTR AND POSTR CHAMBER (1).pdfANATOMY AND PHYSIOLOGY OF ANTR AND POSTR CHAMBER (1).pdf
ANATOMY AND PHYSIOLOGY OF ANTR AND POSTR CHAMBER (1).pdf

INTRAOCULAR PRESSURE.pdf
INTRAOCULAR                    PRESSURE.pdfINTRAOCULAR                    PRESSURE.pdf
INTRAOCULAR PRESSURE.pdf

ANATOMY OF SCLERA.pdf
ANATOMY OF                     SCLERA.pdfANATOMY OF                     SCLERA.pdf
ANATOMY OF SCLERA.pdf

ANATOMY OF UVEA.pdf
ANATOMY OF                              UVEA.pdfANATOMY OF                              UVEA.pdf
ANATOMY OF UVEA.pdf

07 INDICATIONS & CONTRA INDICATIONS OF CL.pptx
07  INDICATIONS & CONTRA INDICATIONS OF CL.pptx07  INDICATIONS & CONTRA INDICATIONS OF CL.pptx
07 INDICATIONS & CONTRA INDICATIONS OF CL.pptx

3 physiology (Ant.segment) .ppt
3 physiology (Ant.segment)            .ppt3 physiology (Ant.segment)            .ppt
3 physiology (Ant.segment) .ppt

2 anatomy(Ant.segment-2) .pptx
2 anatomy(Ant.segment-2)                          .pptx2 anatomy(Ant.segment-2)                          .pptx
2 anatomy(Ant.segment-2) .pptx

1 Anatomy(Ant.segment-1) .pptx
1 Anatomy(Ant.segment-1)           .pptx1 Anatomy(Ant.segment-1)           .pptx
1 Anatomy(Ant.segment-1) .pptx

Quality Assurance and Inspection OF CL.pptx
Quality Assurance and Inspection OF CL.pptxQuality Assurance and Inspection OF CL.pptx
Quality Assurance and Inspection OF CL.pptx

03 Optics of CL .ppt
03 Optics of CL                             .ppt03 Optics of CL                             .ppt
03 Optics of CL .ppt

05 & 06 Introduction to CL materials.pptx
05 & 06  Introduction to CL materials.pptx05 & 06  Introduction to CL materials.pptx
05 & 06 Introduction to CL materials.pptx

08 CONTACT LENS PARAMETERS .pptx
08 CONTACT LENS PARAMETERS                .pptx08 CONTACT LENS PARAMETERS                .pptx
08 CONTACT LENS PARAMETERS .pptx

09 Contact Lens MATERIALS .pptx
09 Contact Lens MATERIALS              .pptx09 Contact Lens MATERIALS              .pptx
09 Contact Lens MATERIALS .pptx

Aberrometry .pdf
Aberrometry                               .pdfAberrometry                               .pdf
Aberrometry .pdf


Recently uploaded

biomechanics of running. Dr.dhwani.pptx
biomechanics of running.   Dr.dhwani.pptxbiomechanics of running.   Dr.dhwani.pptx
biomechanics of running. Dr.dhwani.pptx
Dr. Dhwani kawedia

Travel Clinic Cardiff: Health Advice for International Travelers
Travel Clinic Cardiff: Health Advice for International TravelersTravel Clinic Cardiff: Health Advice for International Travelers
Travel Clinic Cardiff: Health Advice for International Travelers
NX Healthcare

Hemodialysis: Chapter 5, Dialyzers Overview - Dr.Gawad
Hemodialysis: Chapter 5, Dialyzers Overview - Dr.GawadHemodialysis: Chapter 5, Dialyzers Overview - Dr.Gawad
Hemodialysis: Chapter 5, Dialyzers Overview - Dr.Gawad
NephroTube - Dr.Gawad

NARCOTICS- POLICY AND PROCEDURES FOR ITS USE
NARCOTICS- POLICY AND PROCEDURES FOR ITS USENARCOTICS- POLICY AND PROCEDURES FOR ITS USE
NARCOTICS- POLICY AND PROCEDURES FOR ITS USE
Dr. Ahana Haroon

Dr. Tan's Balance Method.pdf (From Academy of Oriental Medicine at Austin)
Dr. Tan's Balance Method.pdf (From Academy of Oriental Medicine at Austin)Dr. Tan's Balance Method.pdf (From Academy of Oriental Medicine at Austin)
Dr. Tan's Balance Method.pdf (From Academy of Oriental Medicine at Austin)
GeorgeKieling1

PGx Analysis in VarSeq: A User’s Perspective
PGx Analysis in VarSeq: A User’s PerspectivePGx Analysis in VarSeq: A User’s Perspective
PGx Analysis in VarSeq: A User’s Perspective
Golden Helix

pharmacology for dummies free pdf download.pdf
pharmacology for dummies free pdf download.pdfpharmacology for dummies free pdf download.pdf
pharmacology for dummies free pdf download.pdf
KerlynIgnacio

pharmacy exam preparation for undergradute students.pptx
pharmacy exam preparation for undergradute students.pptxpharmacy exam preparation for undergradute students.pptx
pharmacy exam preparation for undergradute students.pptx
AdugnaWari

Pharmacology of Prostaglandins, Thromboxanes and Leukotrienes
Pharmacology of Prostaglandins, Thromboxanes and LeukotrienesPharmacology of Prostaglandins, Thromboxanes and Leukotrienes
Pharmacology of Prostaglandins, Thromboxanes and Leukotrienes
Dr. Nikhilkumar Sakle

Demystifying Fallopian Tube Blockage- Grading the Differences and Implication...
Demystifying Fallopian Tube Blockage- Grading the Differences and Implication...Demystifying Fallopian Tube Blockage- Grading the Differences and Implication...
Demystifying Fallopian Tube Blockage- Grading the Differences and Implication...
FFragrant

Pharmacology of Drugs for Congestive Heart Failure
Pharmacology of Drugs for Congestive Heart FailurePharmacology of Drugs for Congestive Heart Failure
Pharmacology of Drugs for Congestive Heart Failure
Dr. Nikhilkumar Sakle

June 2024 Oncology Cartoons By Dr Kanhu Charan Patro
June 2024 Oncology Cartoons By Dr Kanhu Charan PatroJune 2024 Oncology Cartoons By Dr Kanhu Charan Patro
June 2024 Oncology Cartoons By Dr Kanhu Charan Patro
Kanhu Charan

Pollen and Fungal allergy: aeroallergy.pdf
Pollen and Fungal allergy: aeroallergy.pdfPollen and Fungal allergy: aeroallergy.pdf
Pollen and Fungal allergy: aeroallergy.pdf
Chulalongkorn Allergy and Clinical Immunology Research Group

Ageing, the Elderly, Gerontology and Public Health
Ageing, the Elderly, Gerontology and Public HealthAgeing, the Elderly, Gerontology and Public Health
Ageing, the Elderly, Gerontology and Public Health
phuakl

Hemodialysis: Chapter 6, Hemodialysis Adequacy and Dose - Dr.Gawad
Hemodialysis: Chapter 6, Hemodialysis Adequacy and Dose - Dr.GawadHemodialysis: Chapter 6, Hemodialysis Adequacy and Dose - Dr.Gawad
Hemodialysis: Chapter 6, Hemodialysis Adequacy and Dose - Dr.Gawad
NephroTube - Dr.Gawad

acne vulgaris -Mpharm (2nd semester) Cosmetics and cosmeceuticals
acne vulgaris -Mpharm (2nd semester) Cosmetics and cosmeceuticalsacne vulgaris -Mpharm (2nd semester) Cosmetics and cosmeceuticals
acne vulgaris -Mpharm (2nd semester) Cosmetics and cosmeceuticals
MuskanShingari

Gene Expression System-viral gene delivery Mpharm(Pharamaceutics)
Gene Expression System-viral gene delivery Mpharm(Pharamaceutics)Gene Expression System-viral gene delivery Mpharm(Pharamaceutics)
Gene Expression System-viral gene delivery Mpharm(Pharamaceutics)
MuskanShingari

Computer in pharmaceutical research and development-Mpharm(Pharmaceutics)
Computer in pharmaceutical research and development-Mpharm(Pharmaceutics)Computer in pharmaceutical research and development-Mpharm(Pharmaceutics)
Computer in pharmaceutical research and development-Mpharm(Pharmaceutics)
MuskanShingari

STUDIES IN SUPPORT OF SPECIAL POPULATIONS: GERIATRICS E7
STUDIES IN SUPPORT OF SPECIAL POPULATIONS: GERIATRICS E7STUDIES IN SUPPORT OF SPECIAL POPULATIONS: GERIATRICS E7
STUDIES IN SUPPORT OF SPECIAL POPULATIONS: GERIATRICS E7
shruti jagirdar

Call Girl Pune 7339748667 Vip Call Girls Pune
Call Girl Pune 7339748667 Vip Call Girls PuneCall Girl Pune 7339748667 Vip Call Girls Pune
Call Girl Pune 7339748667 Vip Call Girls Pune
Mobile Problem


Recently uploaded (20)

biomechanics of running. Dr.dhwani.pptx
biomechanics of running.   Dr.dhwani.pptxbiomechanics of running.   Dr.dhwani.pptx
biomechanics of running. Dr.dhwani.pptx

Travel Clinic Cardiff: Health Advice for International Travelers
Travel Clinic Cardiff: Health Advice for International TravelersTravel Clinic Cardiff: Health Advice for International Travelers
Travel Clinic Cardiff: Health Advice for International Travelers

Hemodialysis: Chapter 5, Dialyzers Overview - Dr.Gawad
Hemodialysis: Chapter 5, Dialyzers Overview - Dr.GawadHemodialysis: Chapter 5, Dialyzers Overview - Dr.Gawad
Hemodialysis: Chapter 5, Dialyzers Overview - Dr.Gawad

NARCOTICS- POLICY AND PROCEDURES FOR ITS USE
NARCOTICS- POLICY AND PROCEDURES FOR ITS USENARCOTICS- POLICY AND PROCEDURES FOR ITS USE
NARCOTICS- POLICY AND PROCEDURES FOR ITS USE

Dr. Tan's Balance Method.pdf (From Academy of Oriental Medicine at Austin)
Dr. Tan's Balance Method.pdf (From Academy of Oriental Medicine at Austin)Dr. Tan's Balance Method.pdf (From Academy of Oriental Medicine at Austin)
Dr. Tan's Balance Method.pdf (From Academy of Oriental Medicine at Austin)

PGx Analysis in VarSeq: A User’s Perspective
PGx Analysis in VarSeq: A User’s PerspectivePGx Analysis in VarSeq: A User’s Perspective
PGx Analysis in VarSeq: A User’s Perspective

pharmacology for dummies free pdf download.pdf
pharmacology for dummies free pdf download.pdfpharmacology for dummies free pdf download.pdf
pharmacology for dummies free pdf download.pdf

pharmacy exam preparation for undergradute students.pptx
pharmacy exam preparation for undergradute students.pptxpharmacy exam preparation for undergradute students.pptx
pharmacy exam preparation for undergradute students.pptx

Pharmacology of Prostaglandins, Thromboxanes and Leukotrienes
Pharmacology of Prostaglandins, Thromboxanes and LeukotrienesPharmacology of Prostaglandins, Thromboxanes and Leukotrienes
Pharmacology of Prostaglandins, Thromboxanes and Leukotrienes

Demystifying Fallopian Tube Blockage- Grading the Differences and Implication...
Demystifying Fallopian Tube Blockage- Grading the Differences and Implication...Demystifying Fallopian Tube Blockage- Grading the Differences and Implication...
Demystifying Fallopian Tube Blockage- Grading the Differences and Implication...

Pharmacology of Drugs for Congestive Heart Failure
Pharmacology of Drugs for Congestive Heart FailurePharmacology of Drugs for Congestive Heart Failure
Pharmacology of Drugs for Congestive Heart Failure

June 2024 Oncology Cartoons By Dr Kanhu Charan Patro
June 2024 Oncology Cartoons By Dr Kanhu Charan PatroJune 2024 Oncology Cartoons By Dr Kanhu Charan Patro
June 2024 Oncology Cartoons By Dr Kanhu Charan Patro

Pollen and Fungal allergy: aeroallergy.pdf
Pollen and Fungal allergy: aeroallergy.pdfPollen and Fungal allergy: aeroallergy.pdf
Pollen and Fungal allergy: aeroallergy.pdf

Ageing, the Elderly, Gerontology and Public Health
Ageing, the Elderly, Gerontology and Public HealthAgeing, the Elderly, Gerontology and Public Health
Ageing, the Elderly, Gerontology and Public Health

Hemodialysis: Chapter 6, Hemodialysis Adequacy and Dose - Dr.Gawad
Hemodialysis: Chapter 6, Hemodialysis Adequacy and Dose - Dr.GawadHemodialysis: Chapter 6, Hemodialysis Adequacy and Dose - Dr.Gawad
Hemodialysis: Chapter 6, Hemodialysis Adequacy and Dose - Dr.Gawad

acne vulgaris -Mpharm (2nd semester) Cosmetics and cosmeceuticals
acne vulgaris -Mpharm (2nd semester) Cosmetics and cosmeceuticalsacne vulgaris -Mpharm (2nd semester) Cosmetics and cosmeceuticals
acne vulgaris -Mpharm (2nd semester) Cosmetics and cosmeceuticals

Gene Expression System-viral gene delivery Mpharm(Pharamaceutics)
Gene Expression System-viral gene delivery Mpharm(Pharamaceutics)Gene Expression System-viral gene delivery Mpharm(Pharamaceutics)
Gene Expression System-viral gene delivery Mpharm(Pharamaceutics)

Computer in pharmaceutical research and development-Mpharm(Pharmaceutics)
Computer in pharmaceutical research and development-Mpharm(Pharmaceutics)Computer in pharmaceutical research and development-Mpharm(Pharmaceutics)
Computer in pharmaceutical research and development-Mpharm(Pharmaceutics)

STUDIES IN SUPPORT OF SPECIAL POPULATIONS: GERIATRICS E7
STUDIES IN SUPPORT OF SPECIAL POPULATIONS: GERIATRICS E7STUDIES IN SUPPORT OF SPECIAL POPULATIONS: GERIATRICS E7
STUDIES IN SUPPORT OF SPECIAL POPULATIONS: GERIATRICS E7

Call Girl Pune 7339748667 Vip Call Girls Pune
Call Girl Pune 7339748667 Vip Call Girls PuneCall Girl Pune 7339748667 Vip Call Girls Pune
Call Girl Pune 7339748667 Vip Call Girls Pune


CONTACT LENS PARAMETERS.pptx

  • 2. Some Basic Definitions  Blank or the button from which the rigid or a soft lens is fabricated by lathe(Fig 2.1)  Semi finished blank—A blank where base curve is pre-generated  Semi finished lens—A lens that has the back and the front curve cut. The peripheral curves and the edge is not yet fabricated.  Finished lens—A lens ready to be worn on the eye.
  • 3.
  • 4. The Overall Contact Lens has Following Key Design Features  1. Base curve  2. Power  3. Lens diameter  4. Peripheral curves  5. Optic zone  6. Central thickness  7. Edge design
  • 5.
  • 6. Base Curve (BC)  Base curve or BC is also called as BOZR—Back optic zone radius, BCOR—Back central optic radius or CPC—Central posterior curve.  This is the back curve of the contact lens, which contours the front surface of the eye. To achieve a proper fit the base curve of the contact lens should be aligned with the curvature of the cornea
  • 7.  Base curve is expressed in mm (millimeters) or diopters Example—8.1 mm, 8.3 mm. 8.6 mm, etc.  Also 8.1 mm is a steeper base curve than 8.3 mm, and 8.3 mm is steeper than 8.6 mm. So a longer base curve produces flatter base curves. In diopters 44.0 D, is said to be steeper than 41.0 D radius of curvature  Base curves can be spherical or aspheric An aspheric base curve as the name suggests flattens from center to periphery and matches the corneal asphericity
  • 8.  The apshericity is specified by e-value. Following are the e-values and their shape correlation:  e-value shape Zero spherical Between 0-1 elliptical 1.0 parabolic > 1.0 hyperbolic
  • 9.  Most aspheric contact lenses have e-values from 0.3 to 1.1. Larger e-values are fitted in multifocal designs.  Since the base curve in case of aspheric lenses varies from center to periphery, the base curve of the aspheric lens is denoted as PAR-posterior apical radius which is a single point curve of the geometric center of the lens
  • 10. Overall Diameter (OD) (Fig. 2.3)  The length of the lens across its widest diameter is called the overall diameter or the lens diameter. It is specified in millimeters.  A soft lens is usually 12-15 mm and a rigid lens is of 8 to 10 mm diameter.  Diameter depends upon the corneal diameter and the palpebral aperture.  Larger the corneal diameterThe length of the lens across its widest diameter is called the overall diameter or the lens diameter. It is specified in millimeters.  A soft lens is usually 12-15 mm and a rigid lens is of 8 to 10 mm diameter. Diameter depends upon the corneal diameter and the palpebral aperture.  Larger the corneal diameter greater is the overall diameter of the lens required. greater is the overall diameter of the lens required.
  • 11.
  • 12. Peripheral Curve/Curves  A lens with a single base curve is called a Monocurve Lens.  A lens with two curves at the back is called a Bicurve lens.  A lens with three curves is called as a Tricurve lens.  A lens with more than three curves is called a Multicurve lens
  • 13.  The peripheral curve or PC is the curve surrounding the base curve on the posterior surface of the lens. If there is more than one peripheral curve then the inner curves are called secondary or intermediate curves.  PC is also alternatively called as PPCR – posterior peripheral curve radius.  The peripheral curves are flatter than the base curve, and the peripheral most curves will be the flattest one in a normal contact lens design, which is done to match the corneal shape.
  • 14. Bevel /Blend  The junction between the base and the peripheral curves are blended properly to give a smooth transition and junction.  Blending is the smoothening of the junction of the base curve and the peripheral curves.  A well-blended junction is important for the comfort of the lens. Blending is soft, medium or heavy.
  • 15. Peripheral Curve Width  The peripheral and the intermediate curve have a fixed width or size. It is usually 0.3 to 0.5 mm wide.  It depends upon the optic zone diameter and the overall diameter.
  • 16. Optic Zone (OZ) (Fig. 2.5)  The central optic portion, which carries the base curve of the lens, is called the optic zone. It is the central circular portion of the lens where the power of the lens is located.  The optic zone should cover the pupil properly both in scotopic and mezopic condition of light to avoid glare and flare problems.  The average size of the optic zone is 7 to 8.5 mm in case of rigid lenses and 7 to 12.0 mm in case of soft lenses.
  • 17.
  • 18. Optic Zone Diameter (Fig. 2.3)  It is the diameter of the optic zone specified in millimeters. It is also the overall diameter minus the peripheral curve width.
  • 19. Power  The power of the lens is ground on the front surface of the lens. A plus lens will be thicker in the center and the minus lens will be thicker in the periphery.
  • 20. Central Thickness  It is the center thickness of the contact lens or the distance between the anterior and the posterior surface of the geometric center of the lens usually specified in millimeters.  Center thickness has its impact on fitting. The thickness of the lens also affects the oxygen transmissibility. Each lens material has its critical thickness, reducing beyond that leads to flexure problems.
  • 21. Single Cut vs Lenticular Lens Design  Single cut design is the lens design, which has a single continuous curve in the front.  The back surface is either monocurve (with single curve), bicurve (with two curves—base curve and peripheral curve), tricurve (with three curves—base curve, intermediate curve and peripheral curve ) or multicurve ( base curve and more than 2 peripheral curves)  A lenticular design is a lens designed with the optically powered portion of the front surface confined to the middle of the lens surrounded by the peripheral portion.
  • 22.  In this case the front optic zone diameter is reduced and a front peripheral curve or curves are added.  The portion of the lens- which does not carry the optic zone, is called the carrier. It is just like a spectacle lenticular designed lens.  Lenticular lens reduces the thickness of the lens and thus provides greater comfort and improves the transmissibility.  Lenticular design is commonly made in high-powered lenses.
  • 23. Sagittal Depth: Sag  Sag (Fig. 2.6) Sagittal depth or Sag is the perpendicular distance between the geometric center of the back of the lens surface and the diameter of the lens.  Sag values have their importance in fitting soft contact lenses. The lens with a greater sag value will behave steeper than the lens with the lesser Sag.  Sag values are dependent on the diameter and the curvature. If the diameter of the lens is kept constant increasing the base curve radius decreases the sag or flattens the lens.
  • 24.  Let us suppose there are 2 lenses of same 14 mm diameter, and if the radius of curvature is increased from 8.3 to 8.6 the lens with 8.6 mm radius will have lesser Sag or will behave flatter.  Similarly if the base curve is kept constant and the diameters are changed, the lens with smaller diameter will have lesser Sag or will behave flatter (Fig. 2.7).  Suppose there are 2 lenses with 8.6 BC but one lens has a diameter of 13.0 mm and the second lens has a diameter of 14 mm.  The 13 mm lens will have lesser Sag.  Increasing the sagittal height tightens the lens, which can be done by either decreasing the base curve or by increasing the diameter.
  • 25.

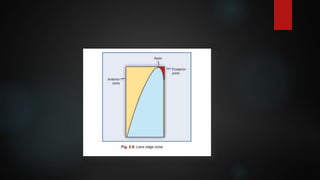

  • 26. Edge Lift  The terms axial edge lift (AEL) and the radial edge lift are used to describe the distance between the lens and the cornea for each of the lens zones.
  • 27.  AEL is the distance between the apex of the lens edge and the continuation of the base curve, measured parallel to the lens axis.  REL is the distance between the apex of the lens edge and the continuation of the base curve.  Edge clearance, is the distance between the peripheral curves highest point (the lens apex edge) and the peripheral cornea
  • 28.  Edge lift and edge clearance are measured in hundredths of a millimeter.  For example a normal peripheral system would have a radial edge lift of 0.08 to 0.10 mm.  This would be equal to an axial edge lift of approximately 0.11 to 0.14 mm (depends upon the diameter).  The rule is that the axial edge lift or clearance will always be more than radial edge lift or clearance.
