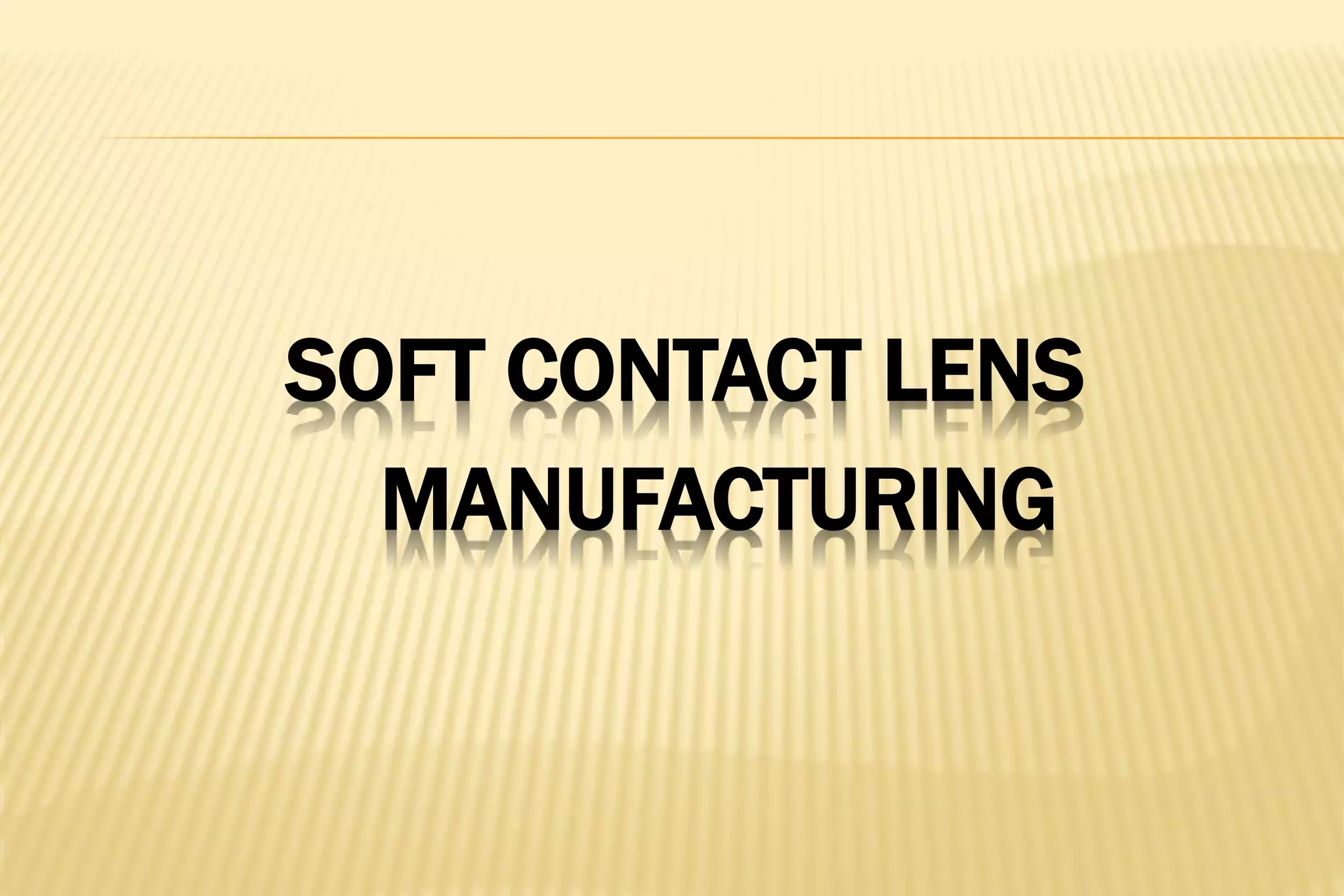

1. SOFT CONTACT LENS
MANUFACTURING

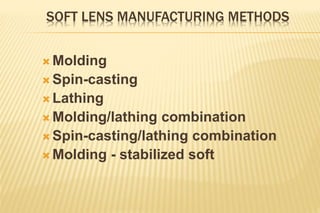

2. SOFT LENS MANUFACTURING METHODS
 Molding
 Spin-casting
 Lathing
 Molding/lathing combination
 Spin-casting/lathing combination
 Molding - stabilized soft

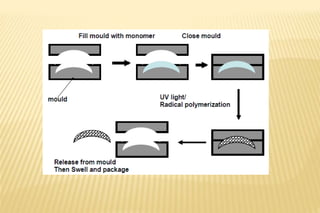

3. SOFT LENS MANUFACTURING MOLDING
 Starts with liquid monomers
 Requires controlled environment,
especially humidity, and often needs to be
O2-free
 Polymerization initiator required (usually
UV)
 Subsequent steps.

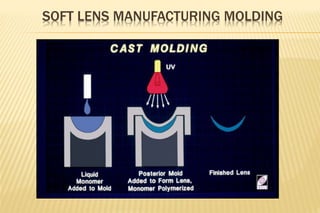

4. SOFT LENS MANUFACTURING MOLDING

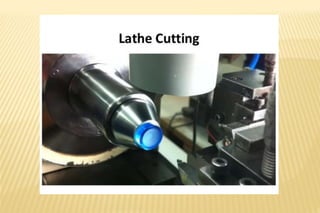

6. SOFT LENS MANUFACTURING LATHING
 Starts with an anhydrous button
 Requires strict control of environment especially
of humidity
 Cleaning and hydration required upon completion
 Lens sealed in normal saline
 Packaged product then autoclaved
(121oC for 15 minutes)

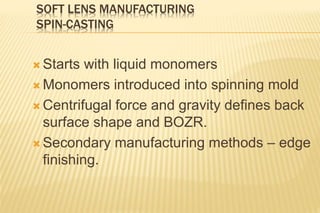

8. SOFT LENS MANUFACTURING
SPIN-CASTING
 Starts with liquid monomers
 Monomers introduced into spinning mold
 Centrifugal force and gravity defines back
surface shape and BOZR.
 Secondary manufacturing methods – edge
finishing.

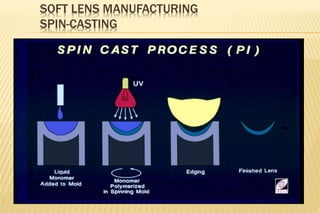

9. SOFT LENS MANUFACTURING
SPIN-CASTING

10. SOFT LENS MANUFACTURING

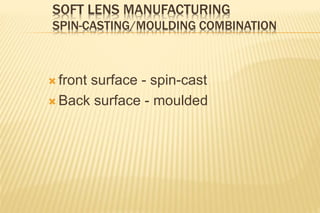

SPIN-CASTING/MOULDING COMBINATION
 front surface - spin-cast
 Back surface - moulded

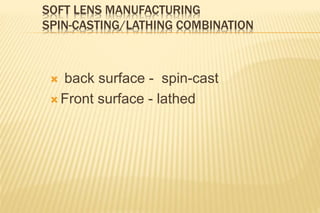

11. SOFT LENS MANUFACTURING
SPIN-CASTING/LATHING COMBINATION
 back surface - spin-cast
 Front surface - lathed

12. SOFT LENS MANUFACTURING
STABILIZED SOFT MOLDING
 Developed for volume production
 An inert water substitute is mixed with
lens monomers before polymerization
 Water replaces the substitute at
hydration

13. SOFT LENS MANUFACTURING
STABILIZED SOFT MOLDING
 Better optical quality
Quicker hydration
 Enhanced reproducibility

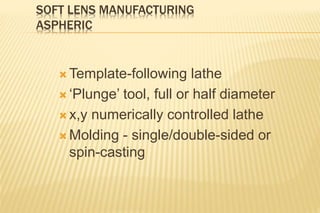

14. SOFT LENS MANUFACTURING
ASPHERIC
 Template-following lathe
 ‘Plunge’ tool, full or half diameter
 x,y numerically controlled lathe
 Molding - single/double-sided or
spin-casting

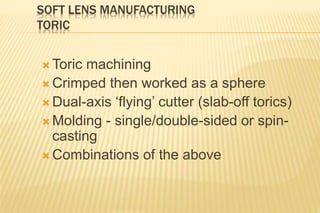

15. SOFT LENS MANUFACTURING
TORIC
 Toric machining
 Crimped then worked as a sphere
 Dual-axis ‘flying’ cutter (slab-off torics)
 Molding - single/double-sided or spin-
casting
 Combinations of the above

16. FRONT SURFACE TORIC GENERATOR
(FLYING CUTTER)
rB = Radius of rotation - lens button
rC = Radius of travel - traversing cutterMotor
Button path
Rotating lens button
rB & rC define the readii
of the principal meridians
Traversing cutter axis
Traversing cutter
Cutter path rC
Motor

17. SOFT LENS MANUFACTURING
BIFOCALS
 Concentric (annular) with
- Distance centre
- Near centre
- Distance centre, progressive near
- Best suited type –molding or spin
casting.

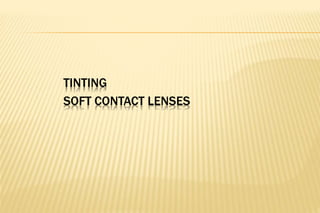

18. TINTING
SOFT CONTACT LENSES

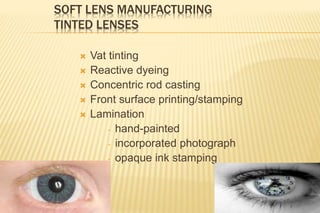

19. SOFT LENS MANUFACTURING
TINTED LENSES
 Vat tinting
 Reactive dyeing
 Concentric rod casting
 Front surface printing/stamping
 Lamination
- hand-painted
- incorporated photograph
- opaque ink stamping

20. TINTED SOFT LENSES
TINTING PROCESS
 Dye or pigment is dissolved in monomer before
mixing and polymerization.

21. TINTED SOFT LENSES
OPAQUES
Lamination was the original method
• Artwork on scl -
- the image is hand painted
- a stock image is inserted
- a thin photograph is used
- an opaque ink is stamped

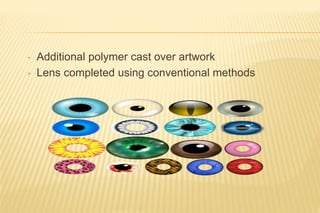

22. • Additional polymer cast over artwork
• Lens completed using conventional methods
