1. Keratoconic Contact Lenses
Rabindra Adhikary
ravinems@iom.edu.np

2. Introduction

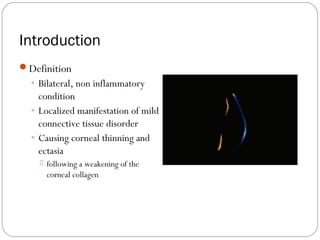

Definition
◦ Bilateral, non inflammatory
condition
◦ Localized manifestation of mild
connective tissue disorder
◦ Causing corneal thinning and
ectasia
 following a weakening of the
corneal collagen

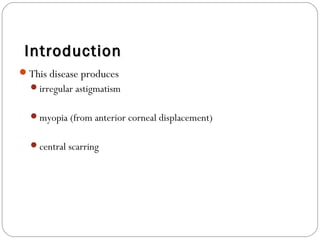

3. This disease produces
irregular astigmatism
myopia (from anterior corneal displacement)
central scarring
IntroductionIntroduction

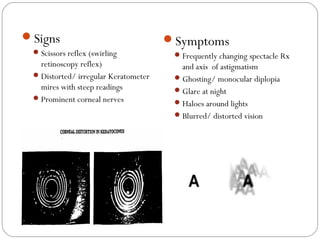

4. Signs
Scissors reflex (swirling
retinoscopy reflex)
Distorted/ irregular Keratometer
mires with steep readings
Prominent corneal nerves
Symptoms
Frequently changing spectacle Rx
and axis of astigmatism
Ghosting/ monocular diplopia
Glare at night
Haloes around lights
Blurred/ distorted vision

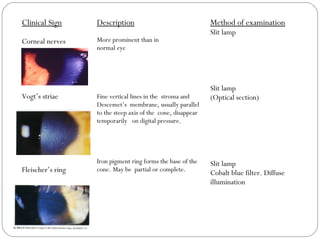

5. Clinical Sign
Corneal nerves
Vogt’s striae
Fleischer’s ring
Description
More prominent than in
normal eye
Fine vertical lines in the stroma and
Descemet’s membrane, usually parallel
to the steep axis of the cone, disappear
temporarily on digital pressure.
Iron pigment ring forms the base of the
cone. May be partial or complete.
Method of examination
Slit lamp
Slit lamp
(Optical section)
Slit lamp
Cobalt blue filter. Diffuse
illumination

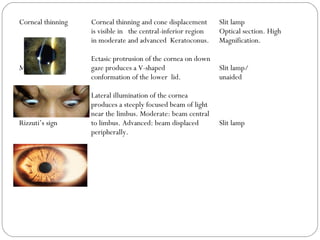

6. Corneal thinning
Munson’s sign
Rizzuti’s sign
Corneal thinning and cone displacement
is visible in the central-inferior region
in moderate and advanced Keratoconus.
Ectasic protrusion of the cornea on down
gaze produces a V-shaped
conformation of the lower lid.
Lateral illumination of the cornea
produces a steeply focused beam of light
near the limbus. Moderate: beam central
to limbus. Advanced: beam displaced
peripherally.
Slit lamp
Optical section. High
Magnification.
Slit lamp/
unaided
Slit lamp

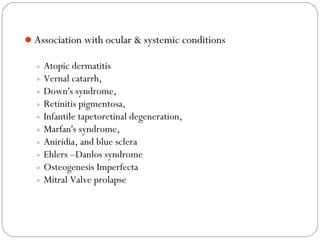

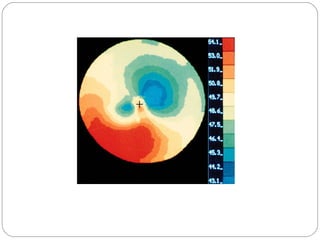

8. Association with ocular & systemic conditions
◦ Atopic dermatitis
◦ Vernal catarrh,
◦ Down's syndrome,
◦ Retinitis pigmentosa,
◦ Infantile tapetoretinal degeneration,
◦ Marfan's syndrome,
◦ Aniridia, and blue sclera
◦ Ehlers –Danlos syndrome
◦ Osteogenesis Imperfecta
◦ Mitral Valve prolapse

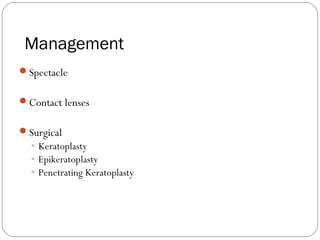

9. Management
Spectacle
Contact lenses
Surgical
◦ Keratoplasty
◦ Epikeratoplasty
◦ Penetrating Keratoplasty

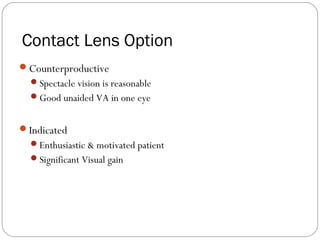

10. Contact Lens Option
Counterproductive
Spectacle vision is reasonable
Good unaided VA in one eye
Indicated
Enthusiastic & motivated patient
Significant Visual gain

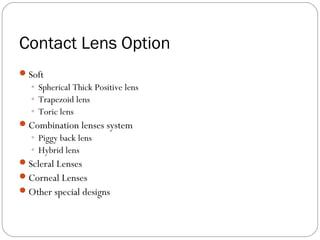

11. Contact Lens Option
Soft
◦ Spherical Thick Positive lens
◦ Trapezoid lens
◦ Toric lens
Combination lenses system
◦ Piggy back lens
◦ Hybrid lens
Scleral Lenses
Corneal Lenses
Other special designs

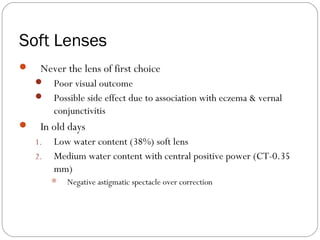

12. Soft Lenses
 Never the lens of first choice
 Poor visual outcome
 Possible side effect due to association with eczema & vernal
conjunctivitis
 In old days
1. Low water content (38%) soft lens
2. Medium water content with central positive power (CT-0.35
mm)
 Negative astigmatic spectacle over correction

13. Soft lenses

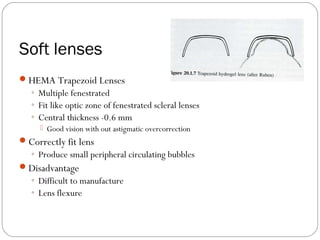

HEMA Trapezoid Lenses
◦ Multiple fenestrated
◦ Fit like optic zone of fenestrated scleral lenses
◦ Central thickness -0.6 mm
 Good vision with out astigmatic overcorrection
Correctly fit lens
◦ Produce small peripheral circulating bubbles
Disadvantage
◦ Difficult to manufacture
◦ Lens flexure

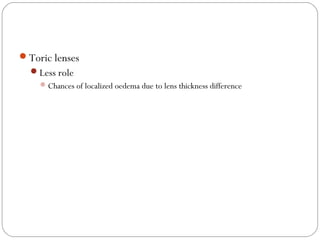

14. Toric lenses
Less role
Chances of localized oedema due to lens thickness difference

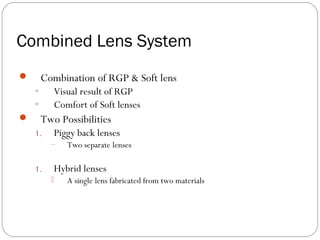

15. Combined Lens System
 Combination of RGP & Soft lens
◦ Visual result of RGP
◦ Comfort of Soft lenses
 Two Possibilities
1. Piggy back lenses
– Two separate lenses
1. Hybrid lenses
 A single lens fabricated from two materials

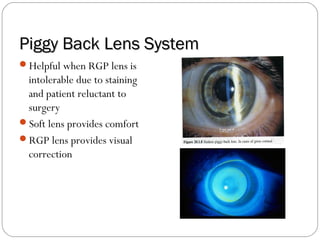

16. Piggy Back Lens SystemPiggy Back Lens System
Helpful when RGP lens is
intolerable due to staining
and patient reluctant to
surgery
Soft lens provides comfort
RGP lens provides visual
correction

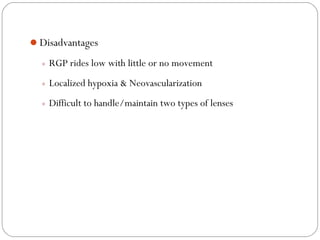

17. Disadvantages
◦ RGP rides low with little or no movement
◦ Localized hypoxia & Neovascularization
◦ Difficult to handle/maintain two types of lenses

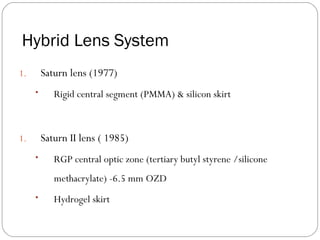

18. Hybrid Lens System
1. Saturn lens (1977)
• Rigid central segment (PMMA) & silicon skirt
1. Saturn II lens ( 1985)
• RGP central optic zone (tertiary butyl styrene /silicone
methacrylate) -6.5 mm OZD
• Hydrogel skirt

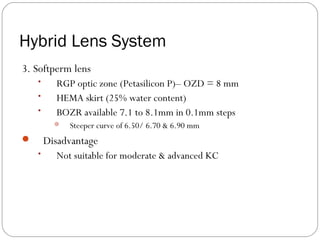

19. Hybrid Lens System
3. Softperm lens
• RGP optic zone (Petasilicon P)– OZD = 8 mm
• HEMA skirt (25% water content)
• BOZR available 7.1 to 8.1mm in 0.1mm steps
 Steeper curve of 6.50/ 6.70 & 6.90 mm
 Disadvantage
• Not suitable for moderate & advanced KC

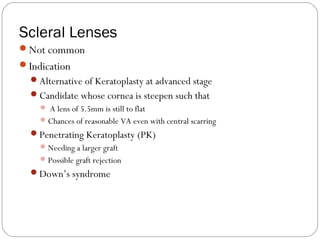

20. Scleral Lenses
Not common
Indication
Alternative of Keratoplasty at advanced stage
Candidate whose cornea is steepen such that
 A lens of 5.5mm is still to flat
Chances of reasonable VA even with central scarring
Penetrating Keratoplasty (PK)
Needing a larger graft
Possible graft rejection
Down’s syndrome

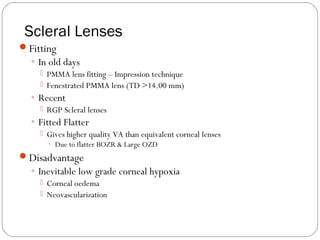

21. Scleral Lenses
Fitting
◦ In old days
 PMMA lens fitting – Impression technique
 Fenestrated PMMA lens (TD >14.00 mm)
◦ Recent
 RGP Scleral lenses
◦ Fitted Flatter
 Gives higher quality VA than equivalent corneal lenses
◦ Due to flatter BOZR & Large OZD
Disadvantage
◦ Inevitable low grade corneal hypoxia
 Corneal oedema
 Neovascularization

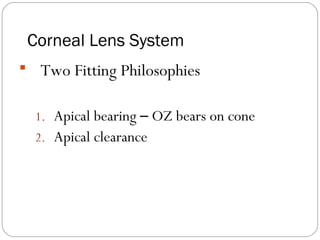

22. Corneal Lens System
 Two Fitting Philosophies
1. Apical bearing – OZ bears on cone
2. Apical clearance

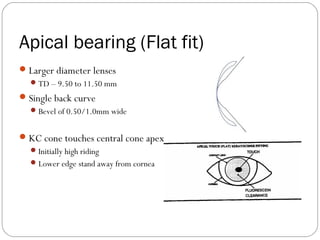

23. Apical bearing (Flat fit)
Larger diameter lenses
TD – 9.50 to 11.50 mm
Single back curve
Bevel of 0.50/1.0mm wide
KC cone touches central cone apex
Initially high riding
Lower edge stand away from cornea

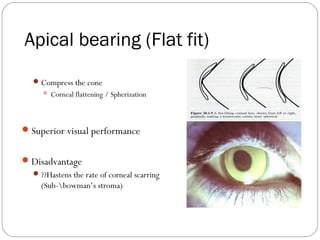

24. Apical bearing (Flat fit)
Compress the cone
 Corneal flattening / Spherization
Superior visual performance
Disadvantage
??Hastens the rate of corneal scarring
(Sub-bowman’s stroma)

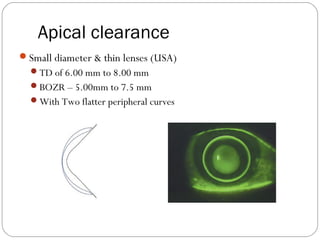

25. Apical clearance
Small diameter & thin lenses (USA)
TD of 6.00 mm to 8.00 mm
BOZR – 5.00mm to 7.5 mm
With Two flatter peripheral curves

26. • Advantage
– Less role on corneal scarring
– Well tolerated by atopic eye disease
• Disadvantage
– Optical
• Flare/monocular diplopia
– OZD is only 4 mm

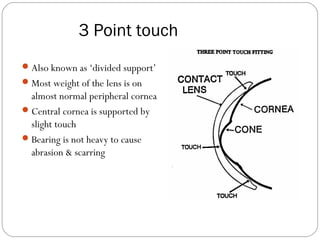

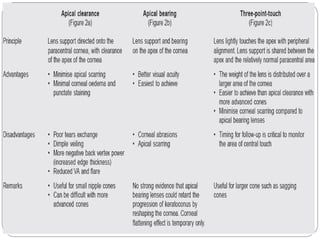

27. 3 Point touch
Also known as ‘divided support’
Most weight of the lens is on
almost normal peripheral cornea
Central cornea is supported by
slight touch
Bearing is not heavy to cause
abrasion & scarring

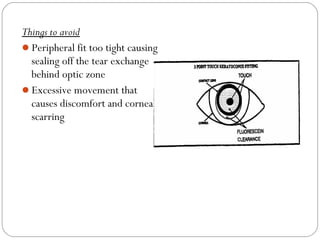

28. Things to avoid
Peripheral fit too tight causing
sealing off the tear exchange
behind optic zone
Excessive movement that
causes discomfort and corneal
scarring

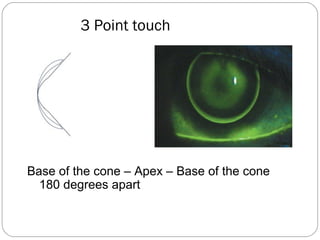

29. 3 Point touch
Base of the cone – Apex – Base of the cone
180 degrees apart

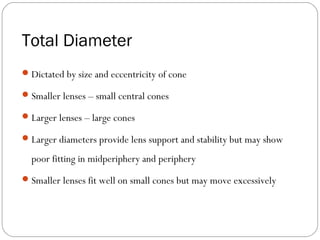

31. Total Diameter
Dictated by size and eccentricity of cone
Smaller lenses – small central cones
Larger lenses – large cones
Larger diameters provide lens support and stability but may show
poor fitting in midperiphery and periphery
Smaller lenses fit well on small cones but may move excessively

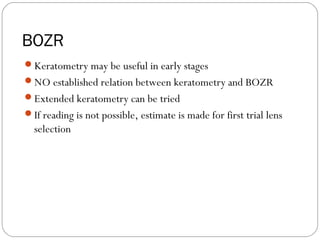

32. BOZR
Keratometry may be useful in early stages
NO established relation between keratometry and BOZR
Extended keratometry can be tried
If reading is not possible, estimate is made for first trial lens
selection

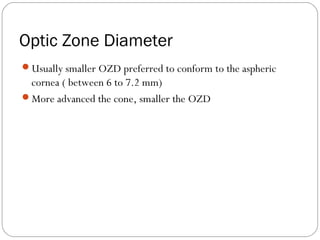

33. Optic Zone Diameter
Usually smaller OZD preferred to conform to the aspheric
cornea ( between 6 to 7.2 mm)
More advanced the cone, smaller the OZD

34. Intermediate & Peripheral Curves
Intermediate curve is about 2 mm flatter than the base curve ( BOZR)
Peripheral curve (PC) is about 2 mm flatter than the intermediate
curve
Steep PC – inadequate tear reservoir, restricted lens movement, lens
adherence
Flat PC – lid irritation, excessive lens movement

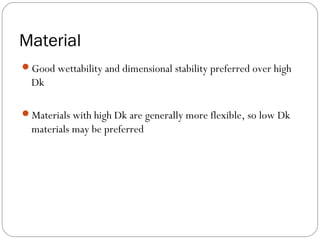

35. Material
Good wettability and dimensional stability preferred over high
Dk
Materials with high Dk are generally more flexible, so low Dk
materials may be preferred

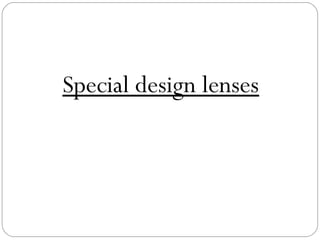

36. Special design lenses

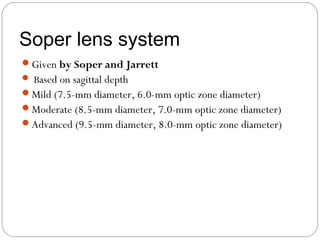

37. Soper lens system
Given by Soper and Jarrett
 Based on sagittal depth
Mild (7.5-mm diameter, 6.0-mm optic zone diameter)
Moderate (8.5-mm diameter, 7.0-mm optic zone diameter)
Advanced (9.5-mm diameter, 8.0-mm optic zone diameter)

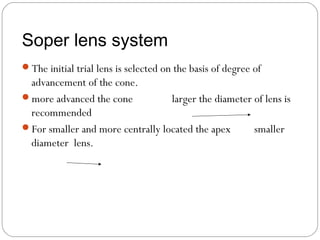

38. Soper lens system
The initial trial lens is selected on the basis of degree of
advancement of the cone.
more advanced the cone larger the diameter of lens is
recommended
For smaller and more centrally located the apex smaller
diameter lens.

39. McGuire lens system
Modification of the Soper lens design
Nipple (8.1 mm diameter, 5.5 mm optic zone)
Oval (8.6 mm diameter, 6 mm optic zone)
Globus (9.1 mm diameter, 6.5 mm optic zone)
Four peripheral curves
Three inner curves are each 0.3 mm wide and the peripheral
curve is 0.4 mm wide.

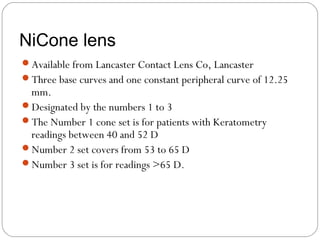

40. NiCone lens
Available from Lancaster Contact Lens Co, Lancaster
Three base curves and one constant peripheral curve of 12.25
mm.
Designated by the numbers 1 to 3
The Number 1 cone set is for patients with Keratometry
readings between 40 and 52 D
Number 2 set covers from 53 to 65 D
Number 3 set is for readings >65 D.

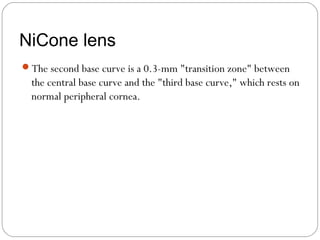

41. NiCone lens
The second base curve is a 0.3-mm "transition zone" between
the central base curve and the "third base curve," which rests on
normal peripheral cornea.

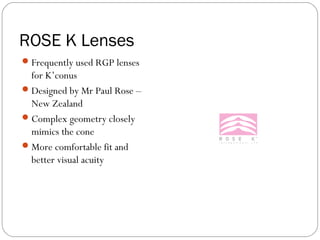

42. ROSE K Lenses
Frequently used RGP lenses
for K’conus
Designed by Mr Paul Rose –
New Zealand
Complex geometry closely
mimics the cone
More comfortable fit and
better visual acuity

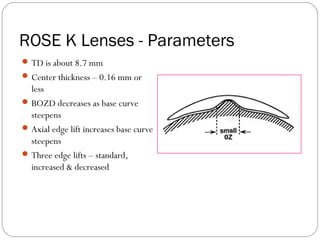

43. ROSE K Lenses - Parameters
TD is about 8.7 mm
Center thickness – 0.16 mm or
less
BOZD decreases as base curve
steepens
Axial edge lift increases base curve
steepens
Three edge lifts – standard,
increased & decreased

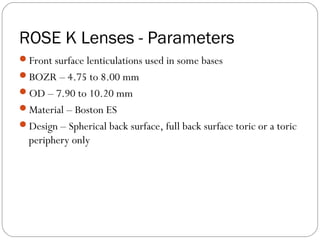

44. ROSE K Lenses - Parameters
Front surface lenticulations used in some bases
BOZR – 4.75 to 8.00 mm
OD – 7.90 to 10.20 mm
Material – Boston ES
Design – Spherical back surface, full back surface toric or a toric
periphery only

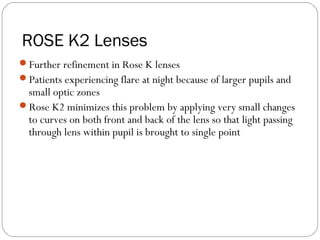

45. ROSE K2 Lenses
Further refinement in Rose K lenses
Patients experiencing flare at night because of larger pupils and
small optic zones
Rose K2 minimizes this problem by applying very small changes
to curves on both front and back of the lens so that light passing
through lens within pupil is brought to single point

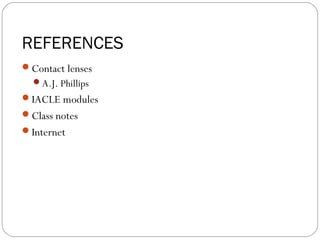

46. REFERENCES
Contact lenses
A.J. Phillips
IACLE modules
Class notes
Internet
