This document discusses concrete cloth, a flexible concrete material that comes in rolls. It has several properties including flexibility, durability, and fire resistance. The document outlines the methodology for using concrete cloth, which involves overlapping rolls, placing a water resistant layer on the bottom, and cutting as needed. It then discusses applications of concrete cloth in civil engineering such as for ditch lining, slope protection, and pipeline protection. Military uses are also mentioned such as for force protection, structure upgrades, and expedient resurfacing. In conclusion, the document states that concrete cloth is improving construction and management by changing perceptions of concrete.

1. By :BY
K.V.ANUHYA
II. B.TECH
DEPT.OF CIVIL ENGINEERING
RISE KRISHNA SAI GANDHI GROUP OF
INSTITUTIONS::ONGOLE

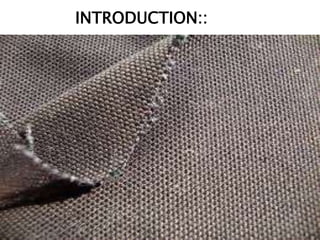

2. INTRODUCTION::

3.  About concrete cloth
 Material properties
 Methodology
 Application of CC in Civil Engineering

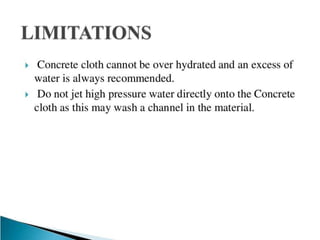

 Limitations
 Conclusion

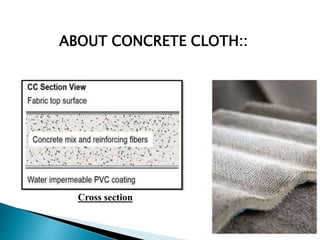

4. Cross section
ABOUT CONCRETE CLOTH::

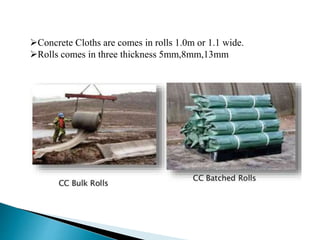

5. Concrete Cloths are comes in rolls 1.0m or 1.1 wide.
Rolls comes in three thickness 5mm,8mm,13mm

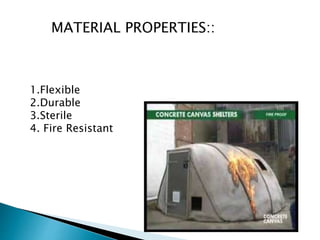

6. MATERIAL PROPERTIES::
1.Flexible
2.Durable
3.Sterile
4. Fire Resistant

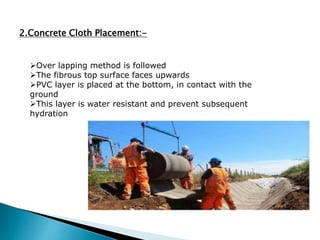

8. 2.Concrete Cloth Placement:-
Over lapping method is followed
The fibrous top surface faces upwards
PVC layer is placed at the bottom, in contact with the
ground
This layer is water resistant and prevent subsequent
hydration

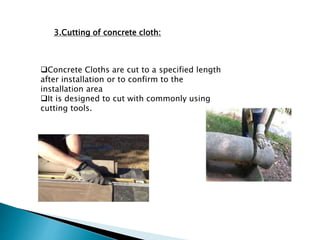

9. 3.Cutting of concrete cloth:
Concrete Cloths are cut to a specified length
after installation or to confirm to the
installation area
It is designed to cut with commonly using
cutting tools.

11. METHOD OF HYDRATION::

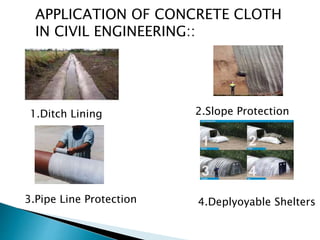

12. APPLICATION OF CONCRETE CLOTH
IN CIVIL ENGINEERING::
1.Ditch Lining 2.Slope Protection
3.Pipe Line Protection 4.Deplyoyable Shelters

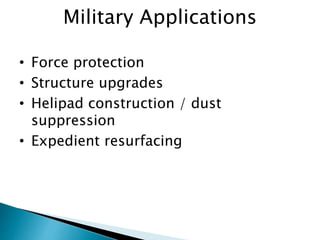

13. Military Applications
• Force protection
• Structure upgrades
• Helipad construction / dust
suppression
• Expedient resurfacing

14. CONSRUCTION OF FORCE PROTECTION
CABIN::

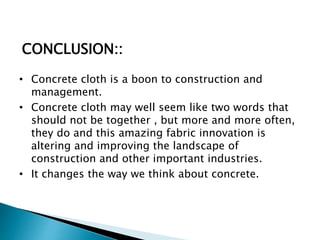

16. • Concrete cloth is a boon to construction and
management.
• Concrete cloth may well seem like two words that
should not be together , but more and more often,
they do and this amazing fabric innovation is
altering and improving the landscape of
construction and other important industries.
• It changes the way we think about concrete.
CONCLUSION::
