- 1. earth-bag construction practical experiencewith natural building Ilonka Marselis

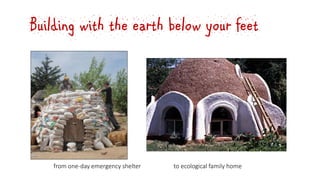

- 3. Building with theearth below your feet from one-day emergency shelter to ecological family home
- 4. Why earth-bag building? -Low-tech, natural building technique - Bullet, flood and earthquake proof - Thermal mass - Local - Low-cost - Easy - No need for wood - Organic shapes, retain spirit of nature - Healthy - Regulates humidity levels

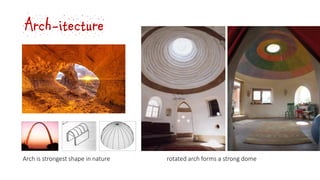

- 5. Arch-itecture Arch is strongestshape in nature rotated arch forms a strong dome

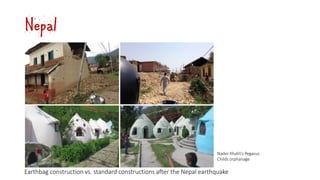

- 6. Nepal Earthbag construction vs.standard constructions after the Nepal earthquake Nader Khalili’s Pegasus Childs orphanage

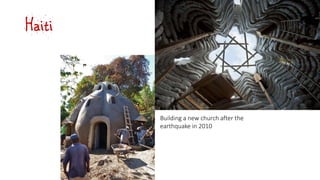

- 7. Haiti Building a newchurch after the earthquake in 2010

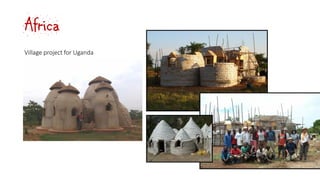

- 8.

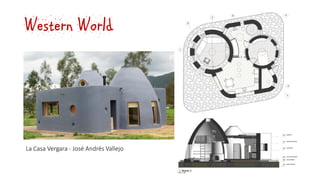

- 9. Western World La CasaVergara - José Andrés Vallejo

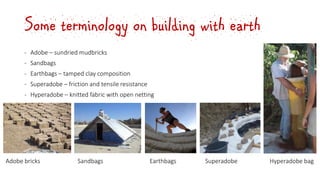

- 10. Some terminology onbuilding with earth ‐ Adobe – sundried mudbricks ‐ Sandbags ‐ Earthbags – tamped clay composition ‐ Superadobe – friction and tensile resistance ‐ Hyperadobe – knitted fabric with open netting Adobe bricks Sandbags Earthbags Superadobe Hyperadobe bag

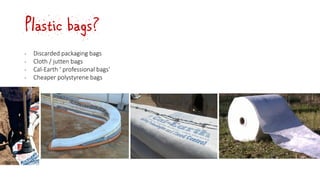

- 11. Plastic bags? ‐ Discardedpackaging bags ‐ Cloth / jutten bags ‐ Cal-Earth ‘ professional bags’ ‐ Cheaper polystyrene bags

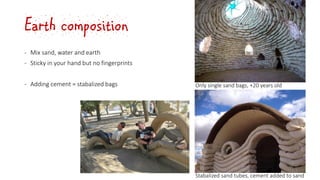

- 12. Earth composition ‐ Mixsand, water and earth ‐ Sticky in your hand but no fingerprints ‐ Adding cement = stabalized bags Only single sand bags, +20 years old Stabalized sand tubes, cement added to sand

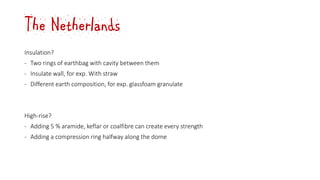

- 13. The Netherlands Insulation? ‐ Tworings of earthbag with cavity between them ‐ Insulate wall, for exp. With straw ‐ Different earth composition, for exp. glassfoam granulate High-rise? ‐ Adding 5 % aramide, keflar or coalfibre can create every strength ‐ Adding a compression ring halfway along the dome
- 14. How to doit yourself?

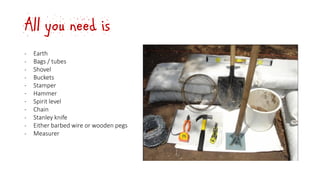

- 15. All you needis ‐ Earth ‐ Bags / tubes ‐ Shovel ‐ Buckets ‐ Stamper ‐ Hammer ‐ Spirit level ‐ Chain ‐ Stanley knife ‐ Either barbed wire or wooden pegs ‐ Measurer

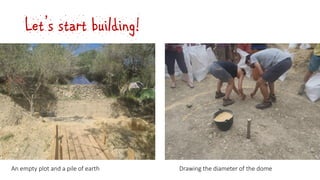

- 16. Let’s start building! Anempty plot and a pile of earth Drawing the diameter of the dome

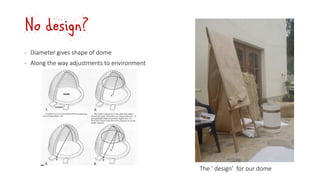

- 17. No design? ‐ Diametergives shape of dome ‐ Along the way adjustments to environment The ‘ design’ for our dome

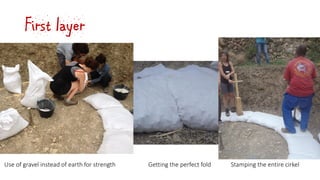

- 18. First layer Use ofgravel instead of earth for strength Getting the perfect fold Stamping the entire cirkel

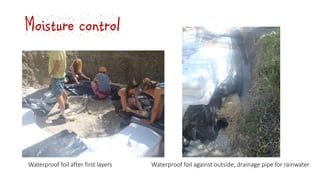

- 19. Moisture control Waterproof foilafter first layers Waterproof foil against outside, drainage pipe for rainwater

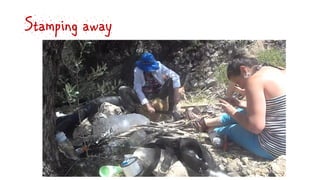

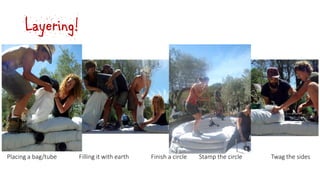

- 20. Layering! Placing a bag/tubeFilling it with earth Finish a circle Stamp the circle Twag the sides

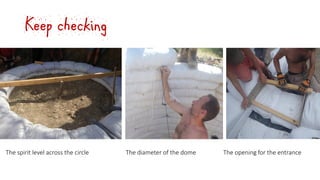

- 21. Keep checking The spiritlevel across the circle The diameter of the dome The opening for the entrance

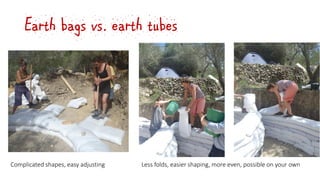

- 22. Earth bags vs.earth tubes Less folds, easier shaping, more even, possible on your ownComplicated shapes, easy adjusting

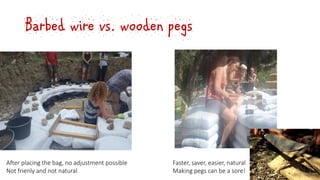

- 23. Barbed wire vs.wooden pegs After placing the bag, no adjustment possible Not frienly and not natural Faster, saver, easier, natural Making pegs can be a sore!
- 24.

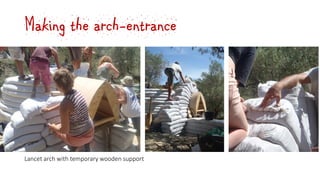

- 25. Making the arch-entrance Lancetarch with temporary wooden support
- 26. Taking out thesupport

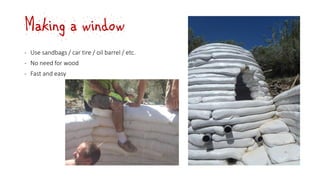

- 27. Making a window ‐Use sandbags / car tire / oil barrel / etc. ‐ No need for wood ‐ Fast and easy
- 28. Airducts using PVCpipes ‐ Fresh air ‐ Light ‐ Cheap, easy, fast ‐ Seasonally adjustable
- 29.

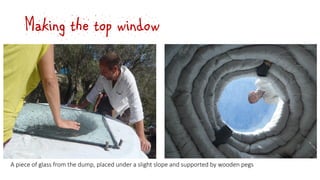

- 30. Making the topwindow A piece of glass from the dump, placed under a slight slope and supported by wooden pegs

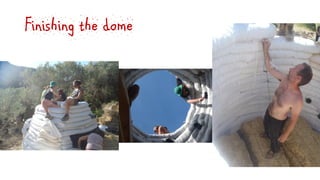

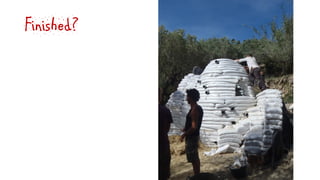

- 31.

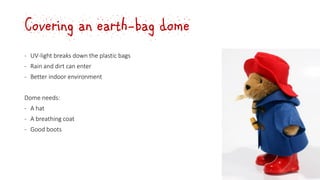

- 32. Covering an earth-bagdome ‐ UV-light breaks down the plastic bags ‐ Rain and dirt can enter ‐ Better indoor environment Dome needs: - A hat - A breathing coat - Good boots

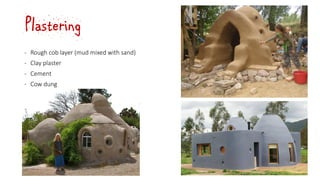

- 33. Plastering ‐ Rough coblayer (mud mixed with sand) ‐ Clay plaster ‐ Cement ‐ Cow dung

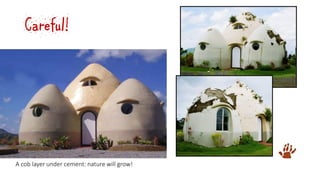

- 34. Careful! A cob layerunder cement: nature will grow!
- 35.

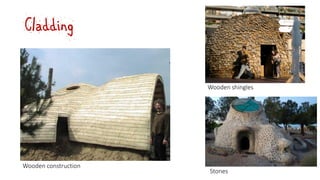

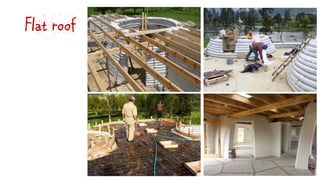

- 36. Roof ‐ In veryrainy climates ‐ Wooden construction ‐ Straw ‐ Cement cloth ‐ Shingles ‐ Grass
- 37.

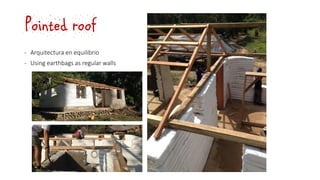

- 38. Pointed roof ‐ Arquitecturaen equilibrio ‐ Using earthbags as regular walls

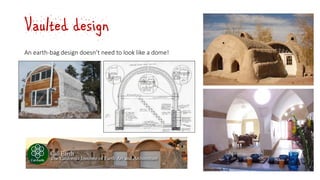

- 39. Vaulted design An earth-bagdesign doesn’t need to look like a dome!

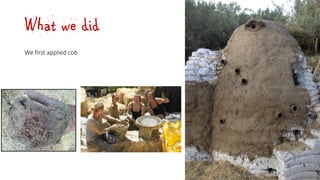

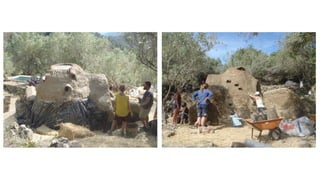

- 40. What we did Wefirst applied cob
- 42.

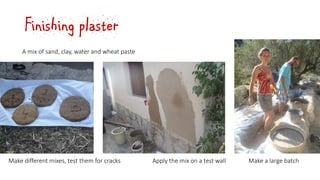

- 43. Finishing plaster A mixof sand, clay, water and wheat paste Make different mixes, test them for cracks Apply the mix on a test wall Make a large batch

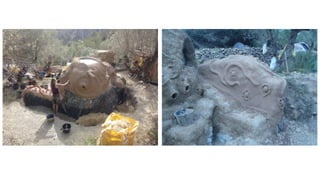

- 45. Natural painting - Paintbased on clay - Mix clay, sand, pigment and wheat paste - Consistancy of quark - Pigments: colored clay, charcoal, dried flowers, spices

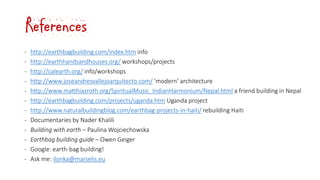

- 47. Earthbag building foreveryone and everywhere
