1. The Computer System Hardware
Apart From Computer Software
Er. Sharad Kafle

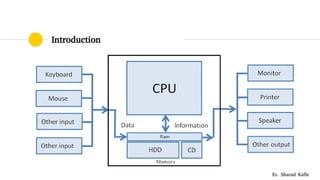

2. Introduction
Er. Sharad Kafle

3. Central Processing Unit
Er. Sharad Kafle

4. Memory Unit
 They are internal storage areas in a computer
 In the form of chips
 Two Categories : RAM and ROM
RAM (Random Access Memory):
 Holds the data as long as electric supply is on. (volatile).
 Two Basic Types
i) Dynamic RAM : needs to be refreshed
ii) Static RAM : less often refreshed, expensive
ROM (Read Only Memory):
 Non-Volatile
 Program stored in ROM is FIRMWARE programed by manufacturer.
 Eg. Program that boots the computers are stored here.
Er. Sharad Kafle

5. Instruction Format
 An Instruction is normally made up of a combination if an operation
code and some way of specifying an operand, most commonly by its
location or address in memory.
Er. Sharad Kafle

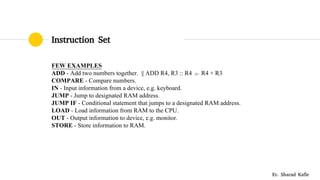

6. Instruction Set
FEW EXAMPLES
ADD - Add two numbers together. || ADD R4, R3 :: R4  R4 + R3
COMPARE - Compare numbers.
IN - Input information from a device, e.g. keyboard.
JUMP - Jump to designated RAM address.
JUMP IF - Conditional statement that jumps to a designated RAM address.
LOAD - Load information from RAM to the CPU.
OUT - Output information to device, e.g. monitor.
STORE - Store information to RAM.
Er. Sharad Kafle

7. Instruction Cycle
 Sometimes called fetch decode cycle.
 It is basic operational process of computer in which a computer retrieves
a program instruction from its memory that determines what actions the
instruction indicates and carries out those action.
 FETCH  DECODE  EXECUTE
Er. Sharad Kafle

8. Instruction Cycle
Er. Sharad Kafle

9. Microprocessor
 Incorporates the functions of a computer’s Central Processing Unit
(CPU) on a single Integrated Circuit (IC).
 Intel, atmel, hp, ARM, NVIDIA,
 Illustration of Example from TextBook.
Er. Sharad Kafle

10. Interconnection : Buses
Er. Sharad Kafle

11. Interconnection : Buses
 BUS is a set of electronic signal pathway that allows information and
signals to travel between components inside or outside of a computer.
 The different components of computer i.e. CPU, I/O and MU are
connected each other by a bus.
 The data, instructions and the signals are carried between the different
components via a bus.
 The command to access the memory or the I/O is carried by a control
bus.
 The address of I/O device or memory is carried by a address bus.
 The data to be transferred is carried by the data bus.
Er. Sharad Kafle

12. Inside a Computer Cabinet
 Modern Computer Consist of three basic section:
 A Processor
 Some Memory
 I/O (Peripheral) Devices
Er. Sharad Kafle

13. Before RISC Vs CISC
Speeding Up
 Memory Mapped I/O
 I/O Processors
 Memory Cache
Er. Sharad Kafle

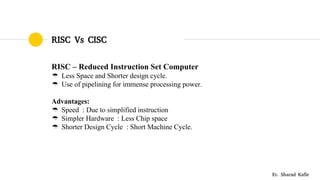

14. RISC Vs CISC
RISC – Reduced Instruction Set Computer
 Less Space and Shorter design cycle.
 Use of pipelining for immense processing power.
Advantages:
 Speed : Due to simplified instruction
 Simpler Hardware : Less Chip space
 Shorter Design Cycle : Short Machine Cycle.
Er. Sharad Kafle

15. RISC Vs CISC
CISC – Complex Instruction Set Computer
 Uses Microcode.
 Build Rich instruction set and Build high-level instruction set.
Features:
 Several special purpose registers
 Few general purpose registers.
 Single instruction to support multiple addressing mode.
Er. Sharad Kafle

16. An Ideal CISC Machine
 An instruction is fetched from the memory
 The instruction is decoded.
 The instruction is executed
 The results are written in the memory.
CISC Processors are designed to execute instruction completely before
beginning the next instruction :: No PIPELINING
Er. Sharad Kafle

17. Instruction Pipelining
Er. Sharad Kafle

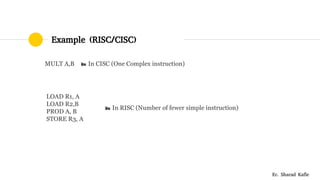

18. Example (RISC/CISC)
LOAD R1, A
LOAD R2,B
PROD A, B
STORE R3, A
MULT A,B  In CISC (One Complex instruction)
 In RISC (Number of fewer simple instruction)
Er. Sharad Kafle
