Basics of data communication and OSI model
Navneet Soni
Asst. Professor
GDRCST, Bhilai

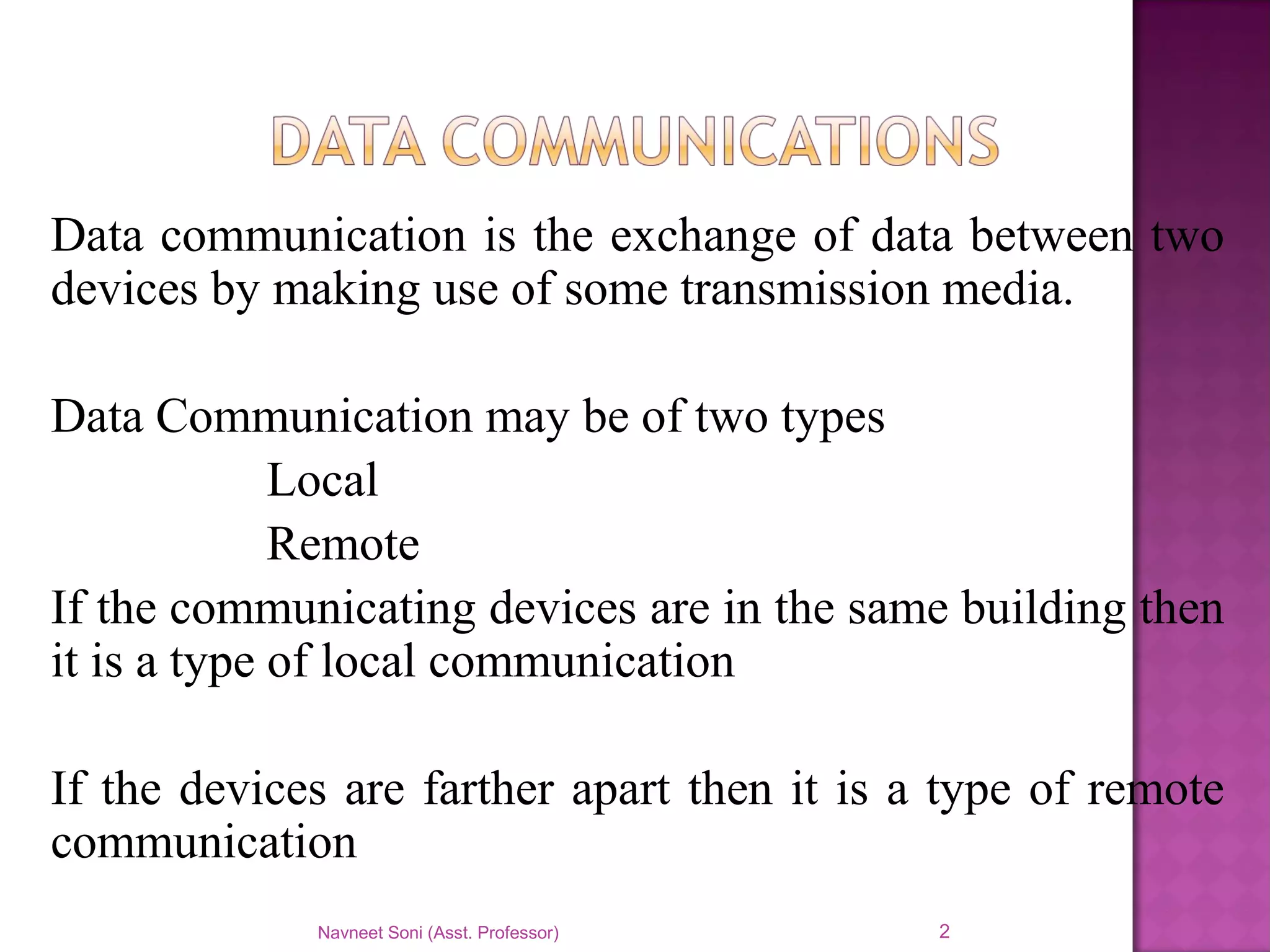

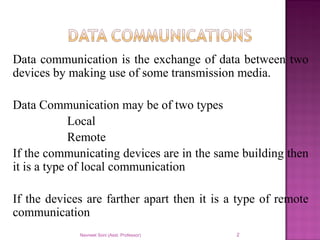

Data communication is the exchange of data between two
devices by making use of some transmission media.
Data Communication may be of two types
Local
Remote
If the communicating devices are in the same building then
it is a type of local communication
If the devices are farther apart then it is a type of remote
communication
Navneet Soni (Asst. Professor) 2
Navneet Soni (Asst. Professor) 3

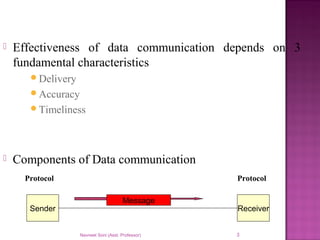

 Effectiveness of data communication depends on 3
fundamental characteristics
Delivery
Accuracy
Timeliness
 Components of Data communication
Protocol Protocol
Sender Receiver
Message
Sender:- Device that sends the message
Receiver:- Device that receive the message
Medium:-It is the physical path by which message travels from
sender to receiver.
Protocol:-It is the exchange of data between two separate entities.
Message:- Information which is to be communicated.
Networks:
A network is a collection of autonomous computer. The computer
which can forcibly start, stop and control another one are not
autonomous. Two computer are said to be interconnected if they are
able to exchange information.
Navneet Soni (Asst. Professor) 4
The communication can be done by copper wire, fiber
optics, microwaves and communication satellite.
Networks uses distributed processing in which task is
divided among multiple computers.
Advantages of distributed processing are
Security
Distributed Database
Faster problem Solving
Security Through Redundancy
Collaborative Processing
Navneet Soni (Asst. Professor) 5

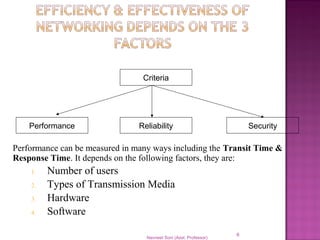

Performance can be measured in many ways including the Transit Time &
Response Time. It depends on the following factors, they are:
1. Number of users
2. Types of Transmission Media
3. Hardware
4. Software
Navneet Soni (Asst. Professor)
6
Criteria
Performance Reliability Security

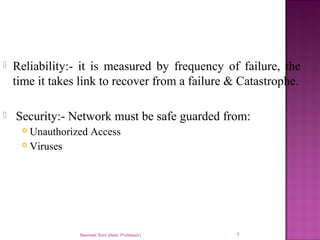

 Reliability:- it is measured by frequency of failure, the
time it takes link to recover from a failure & Catastrophe.
 Security:- Network must be safe guarded from:
 Unauthorized Access
 Viruses
Navneet Soni (Asst. Professor) 7
 Protocol is a set of rules that govern the exchange of data
between two separate entities.
 A protocol defines: What is communicated, How it is
communicated & When it is communicated.
 The Key Element of protocol is:
 Syntax
 Semantics
 Timing
Navneet Soni (Asst. Professor) 8

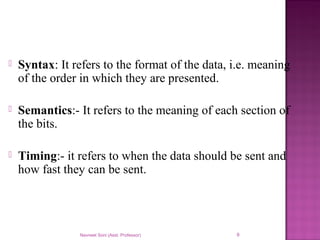

 Syntax: It refers to the format of the data, i.e. meaning
of the order in which they are presented.
 Semantics:- It refers to the meaning of each section of
the bits.
 Timing:- it refers to when the data should be sent and
how fast they can be sent.
Navneet Soni (Asst. Professor) 9

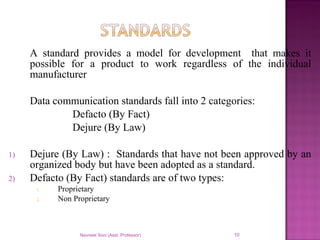

A standard provides a model for development that makes it
possible for a product to work regardless of the individual
manufacturer
Data communication standards fall into 2 categories:
Defacto (By Fact)
Dejure (By Law)
1) Dejure (By Law) : Standards that have not been approved by an
organized body but have been adopted as a standard.
2) Defacto (By Fact) standards are of two types:
1. Proprietary
2. Non Proprietary
Navneet Soni (Asst. Professor) 10

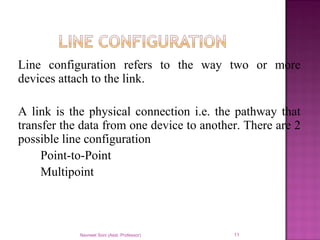

Line configuration refers to the way two or more
devices attach to the link.
A link is the physical connection i.e. the pathway that
transfer the data from one device to another. There are 2
possible line configuration
Point-to-Point
Multipoint
Navneet Soni (Asst. Professor) 11
Navneet Soni (Asst. Professor) 12

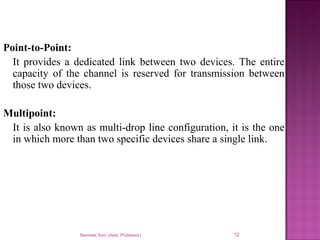

Point-to-Point:
It provides a dedicated link between two devices. The entire
capacity of the channel is reserved for transmission between
those two devices.
Multipoint:
It is also known as multi-drop line configuration, it is the one
in which more than two specific devices share a single link.

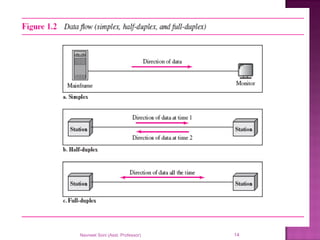

Transmission mode defines the direction of single
flow between two devices. There are 3 types of
transmission mode, they are:
1. Simplex
2. Half-Duplex
3. Full-Duplex
Navneet Soni (Asst. Professor) 13
Navneet Soni (Asst. Professor) 14

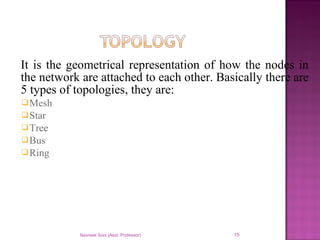

It is the geometrical representation of how the nodes in
the network are attached to each other. Basically there are
5 types of topologies, they are:
Mesh
Star
Tree
Bus
Ring
Navneet Soni (Asst. Professor) 15

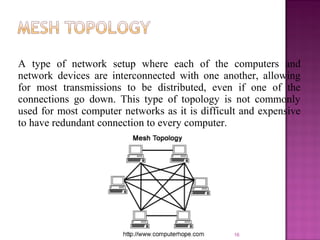

A type of network setup where each of the computers and
network devices are interconnected with one another, allowing
for most transmissions to be distributed, even if one of the
connections go down. This type of topology is not commonly
used for most computer networks as it is difficult and expensive
to have redundant connection to every computer.
16
Navneet Soni (Asst. Professor) 17

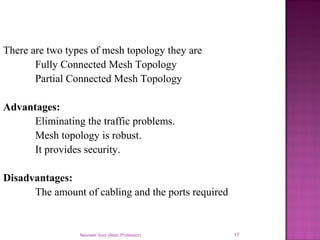

There are two types of mesh topology they are
Fully Connected Mesh Topology
Partial Connected Mesh Topology
Advantages:
Eliminating the traffic problems.
Mesh topology is robust.
It provides security.
Disadvantages:
The amount of cabling and the ports required

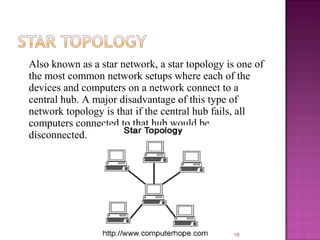

Also known as a star network, a star topology is one of
the most common network setups where each of the
devices and computers on a network connect to a
central hub. A major disadvantage of this type of
network topology is that if the central hub fails, all
computers connected to that hub would be
disconnected.
18

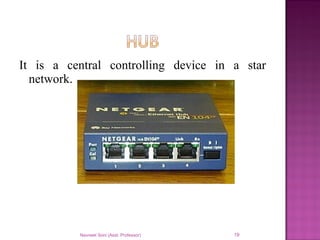

It is a central controlling device in a star
network.
Navneet Soni (Asst. Professor) 19
Navneet Soni (Asst. Professor) 20

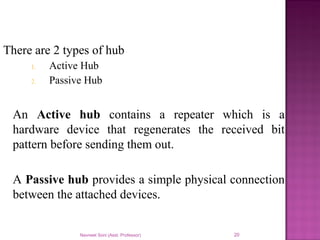

There are 2 types of hub
1. Active Hub
2. Passive Hub
An Active hub contains a repeater which is a
hardware device that regenerates the received bit
pattern before sending them out.
A Passive hub provides a simple physical connection
between the attached devices.
Navneet Soni (Asst. Professor) 21

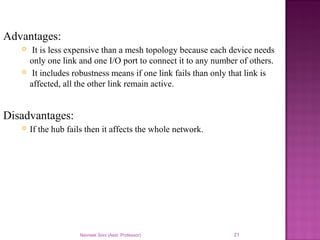

Advantages:
 It is less expensive than a mesh topology because each device needs
only one link and one I/O port to connect it to any number of others.
 It includes robustness means if one link fails than only that link is
affected, all the other link remain active.
Disadvantages:
 If the hub fails then it affects the whole network.
Bus networks use a common backbone to connect all devices. A single
cable, the backbone functions as a shared communication medium that
devices attach or tap into with an interface connector. A device
wanting to communicate with another device on the network sends a
broadcast message onto the wire that all other devices see, but only the
intended recipient actually accepts and processes the message.
Navneet Soni (Asst. Professor) 22

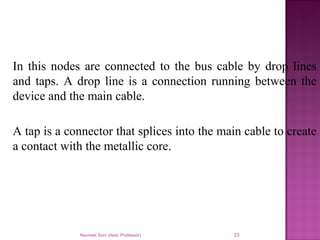

In this nodes are connected to the bus cable by drop lines
and taps. A drop line is a connection running between the
device and the main cable.
A tap is a connector that splices into the main cable to create
a contact with the metallic core.
Navneet Soni (Asst. Professor) 23
Navneet Soni (Asst. Professor) 24

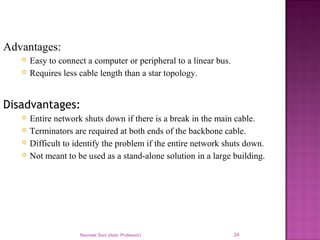

Advantages:
 Easy to connect a computer or peripheral to a linear bus.
 Requires less cable length than a star topology.
Disadvantages:
 Entire network shuts down if there is a break in the main cable.
 Terminators are required at both ends of the backbone cable.
 Difficult to identify the problem if the entire network shuts down.
 Not meant to be used as a stand-alone solution in a large building.

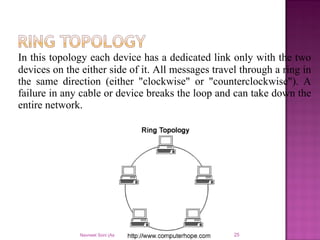

In this topology each device has a dedicated link only with the two
devices on the either side of it. All messages travel through a ring in
the same direction (either "clockwise" or "counterclockwise"). A
failure in any cable or device breaks the loop and can take down the
entire network.
Navneet Soni (Asst. Professor) 25
Navneet Soni (Asst. Professor) 26

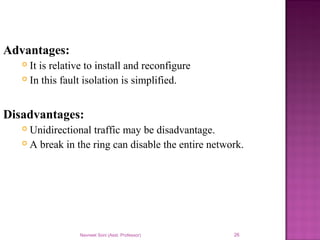

Advantages:
 It is relative to install and reconfigure
 In this fault isolation is simplified.
Disadvantages:
 Unidirectional traffic may be disadvantage.
 A break in the ring can disable the entire network.

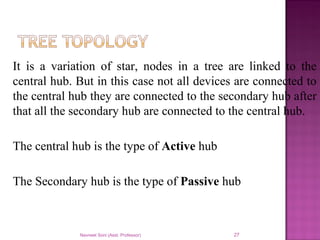

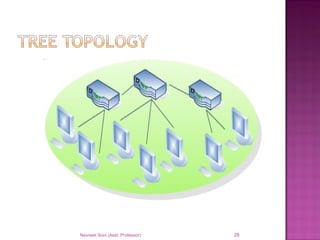

It is a variation of star, nodes in a tree are linked to the
central hub. But in this case not all devices are connected to
the central hub they are connected to the secondary hub after
that all the secondary hub are connected to the central hub.
The central hub is the type of Active hub
The Secondary hub is the type of Passive hub
Navneet Soni (Asst. Professor) 27
Navneet Soni (Asst. Professor) 28

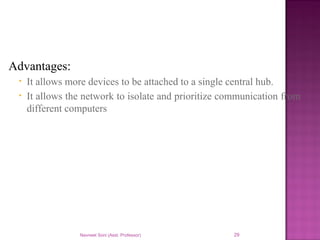

Advantages:
• It allows more devices to be attached to a single central hub.
• It allows the network to isolate and prioritize communication from
different computers
Navneet Soni (Asst. Professor) 29

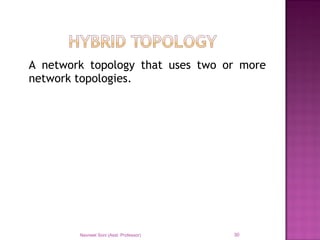

A network topology that uses two or more
network topologies.
Navneet Soni (Asst. Professor) 30

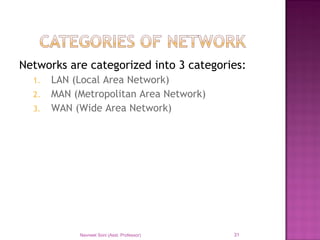

Networks are categorized into 3 categories:
1. LAN (Local Area Network)
2. MAN (Metropolitan Area Network)
3. WAN (Wide Area Network)
Navneet Soni (Asst. Professor) 31

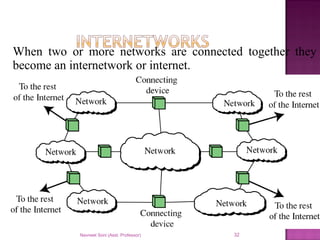

When two or more networks are connected together they
become an internetwork or internet.
Navneet Soni (Asst. Professor) 32

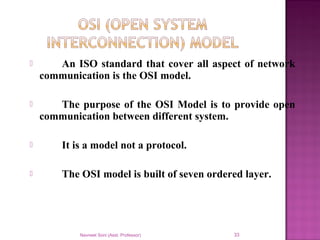

 An ISO standard that cover all aspect of network
communication is the OSI model.
 The purpose of the OSI Model is to provide open
communication between different system.
 It is a model not a protocol.

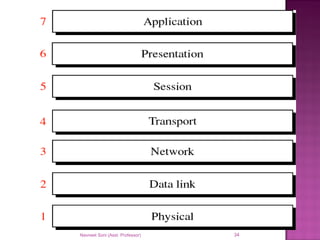

 The OSI model is built of seven ordered layer.
Navneet Soni (Asst. Professor) 33

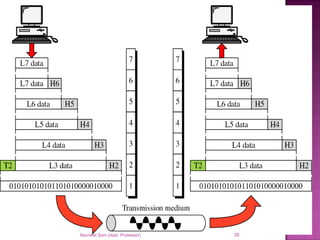

Navneet Soni (Asst. Professor) 34
Navneet Soni (Asst. Professor) 35

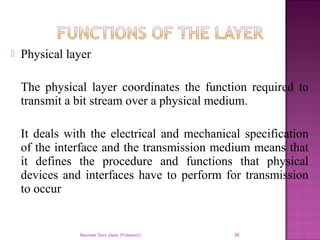

 Physical layer
The physical layer coordinates the function required to
transmit a bit stream over a physical medium.
It deals with the electrical and mechanical specification
of the interface and the transmission medium means that
it defines the procedure and functions that physical
devices and interfaces have to perform for transmission
to occur
Navneet Soni (Asst. Professor) 36

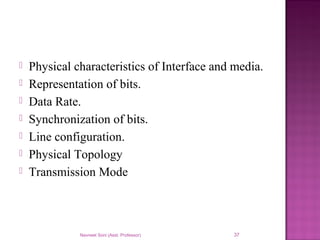

 Physical characteristics of Interface and media.
 Representation of bits.
 Data Rate.
 Synchronization of bits.
 Line configuration.
 Physical Topology
 Transmission Mode
Navneet Soni (Asst. Professor) 37

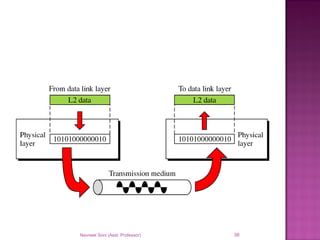

Navneet Soni (Asst. Professor) 38

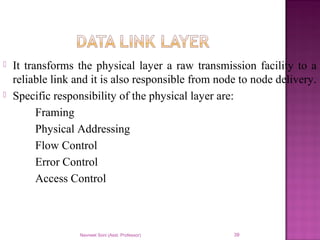

 It transforms the physical layer a raw transmission facility to a
reliable link and it is also responsible from node to node delivery.
 Specific responsibility of the physical layer are:
Framing
Physical Addressing
Flow Control
Error Control
Access Control
Navneet Soni (Asst. Professor) 39
Navneet Soni (Asst. Professor) 40

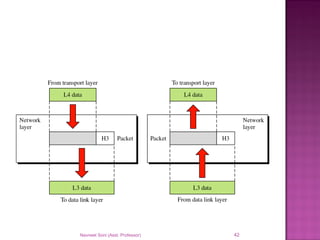

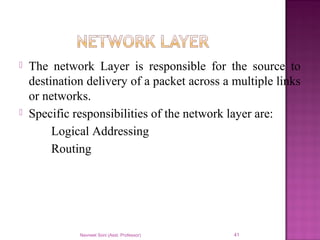

 The network Layer is responsible for the source to
destination delivery of a packet across a multiple links
or networks.
 Specific responsibilities of the network layer are:
Logical Addressing
Routing
Navneet Soni (Asst. Professor) 41
Navneet Soni (Asst. Professor) 42

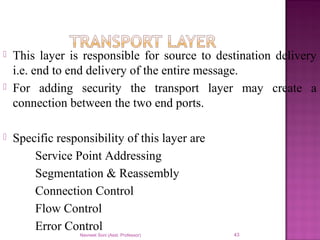

 This layer is responsible for source to destination delivery
i.e. end to end delivery of the entire message.
 For adding security the transport layer may create a
connection between the two end ports.
 Specific responsibility of this layer are
Service Point Addressing
Segmentation & Reassembly
Connection Control
Flow Control
Error Control
Navneet Soni (Asst. Professor) 43

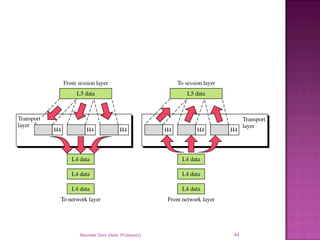

Navneet Soni (Asst. Professor) 44

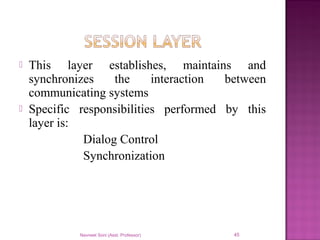

 This layer establishes, maintains and
synchronizes the interaction between
communicating systems
 Specific responsibilities performed by this
layer is:
Dialog Control
Synchronization
Navneet Soni (Asst. Professor) 45

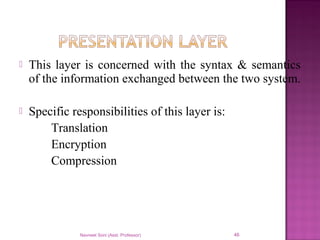

 This layer is concerned with the syntax & semantics
of the information exchanged between the two system.
 Specific responsibilities of this layer is:
Translation
Encryption
Compression
Navneet Soni (Asst. Professor) 46

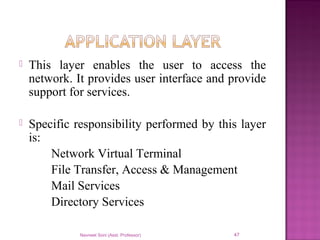

 This layer enables the user to access the
network. It provides user interface and provide
support for services.
 Specific responsibility performed by this layer
is:
Network Virtual Terminal
File Transfer, Access & Management
Mail Services
Directory Services
Navneet Soni (Asst. Professor) 47
Navneet Soni (Asst. Professor) 48

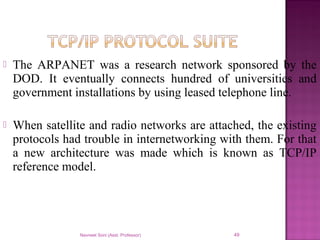

 The ARPANET was a research network sponsored by the
DOD. It eventually connects hundred of universities and
government installations by using leased telephone line.
 When satellite and radio networks are attached, the existing
protocols had trouble in internetworking with them. For that
a new architecture was made which is known as TCP/IP
reference model.
Navneet Soni (Asst. Professor) 49

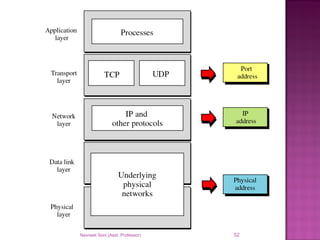

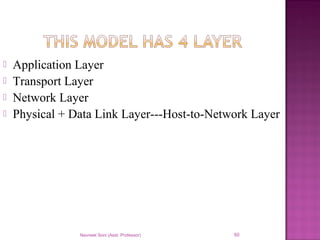

 Application Layer
 Transport Layer
 Network Layer
 Physical + Data Link Layer---Host-to-Network Layer
Navneet Soni (Asst. Professor) 50
Navneet Soni (Asst. Professor) 51
Navneet Soni (Asst. Professor) 52
 This layer contain some higher level
protocol, out of which some of them are:
Telnet (Virtual Terminal)
FTP
SMTP
Navneet Soni (Asst. Professor) 53

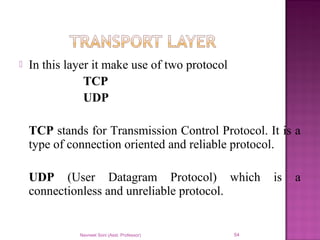

 In this layer it make use of two protocol
TCP
UDP
TCP stands for Transmission Control Protocol. It is a
type of connection oriented and reliable protocol.
UDP (User Datagram Protocol) which is a
connectionless and unreliable protocol.
Navneet Soni (Asst. Professor) 54

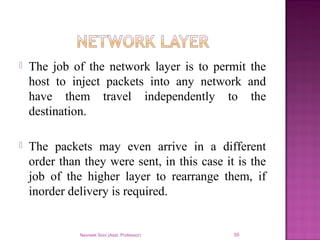

 The job of the network layer is to permit the
host to inject packets into any network and
have them travel independently to the
destination.
 The packets may even arrive in a different
order than they were sent, in this case it is the
job of the higher layer to rearrange them, if
inorder delivery is required.
Navneet Soni (Asst. Professor) 55

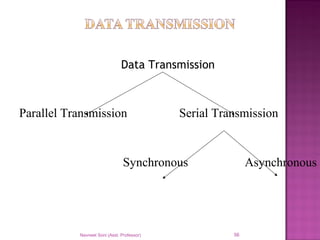

Data Transmission
Parallel Transmission Serial Transmission
Synchronous Asynchronous
Navneet Soni (Asst. Professor) 56

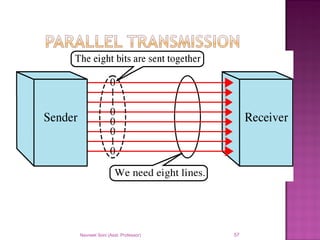

Navneet Soni (Asst. Professor) 57
Navneet Soni (Asst. Professor) 58

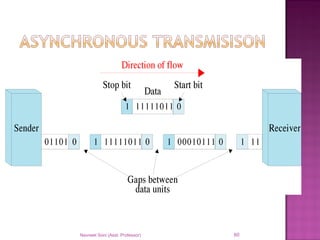

 To alert the receiver that a new group of data is
arriving, two extra bits are added one at the
beginning which is known as start bit and the
other one is at the end which is known as stop
bit . There may be a gap between each byte.
 The start bit is always 0 and the stop bit is
always 1.
 The start bit, stop bit and the gap alert the
receiver to the beginning and end of each byte
and allow it to synchronize with the data
stream
Navneet Soni (Asst. Professor) 59
Navneet Soni (Asst. Professor) 60

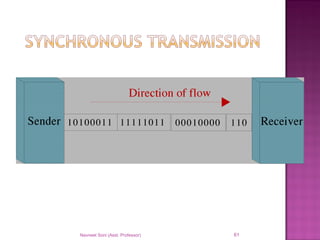

Navneet Soni (Asst. Professor) 61

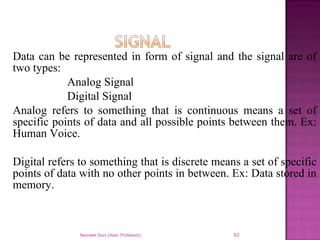

Data can be represented in form of signal and the signal are of
two types:
Analog Signal
Digital Signal
Analog refers to something that is continuous means a set of
specific points of data and all possible points between them. Ex:
Human Voice.
Digital refers to something that is discrete means a set of specific
points of data with no other points in between. Ex: Data stored in
memory.
Navneet Soni (Asst. Professor) 62

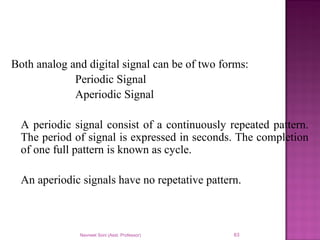

Both analog and digital signal can be of two forms:
Periodic Signal
Aperiodic Signal
A periodic signal consist of a continuously repeated pattern.
The period of signal is expressed in seconds. The completion
of one full pattern is known as cycle.
An aperiodic signals have no repetative pattern.
Navneet Soni (Asst. Professor) 63

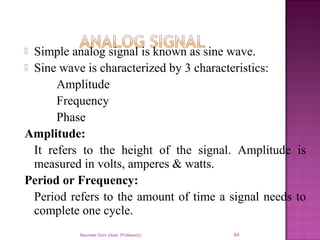

 Simple analog signal is known as sine wave.
 Sine wave is characterized by 3 characteristics:
Amplitude
Frequency
Phase
Amplitude:
It refers to the height of the signal. Amplitude is
measured in volts, amperes & watts.
Period or Frequency:
Period refers to the amount of time a signal needs to
complete one cycle.
Navneet Soni (Asst. Professor) 64

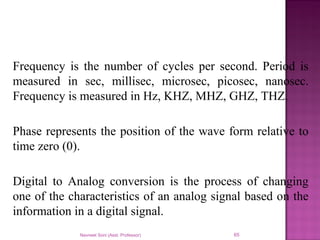

Frequency is the number of cycles per second. Period is
measured in sec, millisec, microsec, picosec, nanosec.
Frequency is measured in Hz, KHZ, MHZ, GHZ, THZ.
Phase represents the position of the wave form relative to
time zero (0).
Digital to Analog conversion is the process of changing
one of the characteristics of an analog signal based on the
information in a digital signal.
Navneet Soni (Asst. Professor) 65

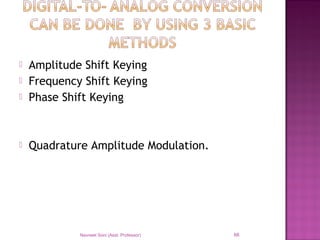

 Amplitude Shift Keying
 Frequency Shift Keying
 Phase Shift Keying
 Quadrature Amplitude Modulation.
Navneet Soni (Asst. Professor) 66

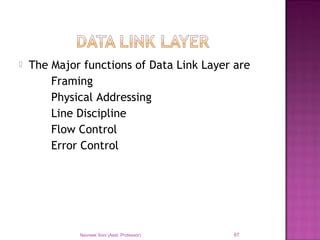

 The Major functions of Data Link Layer are
Framing
Physical Addressing
Line Discipline
Flow Control
Error Control
Navneet Soni (Asst. Professor) 67
Navneet Soni (Asst. Professor) 68

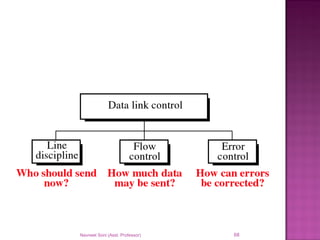

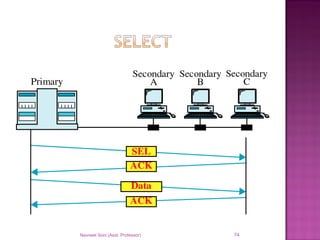

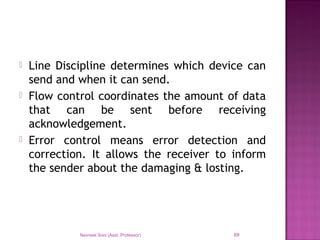

 Line Discipline determines which device can
send and when it can send.

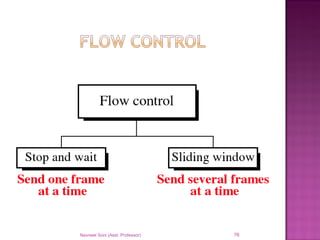

 Flow control coordinates the amount of data
that can be sent before receiving
acknowledgement.
 Error control means error detection and
correction. It allows the receiver to inform
the sender about the damaging & losting.
Navneet Soni (Asst. Professor) 69
Navneet Soni (Asst. Professor) 70

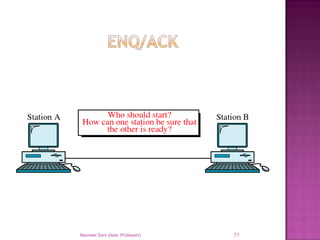

Navneet Soni (Asst. Professor) 71
Navneet Soni (Asst. Professor) 72

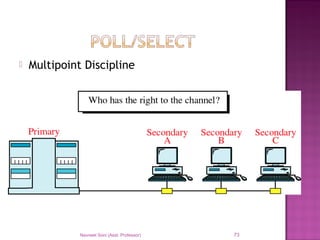

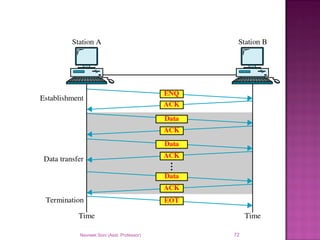

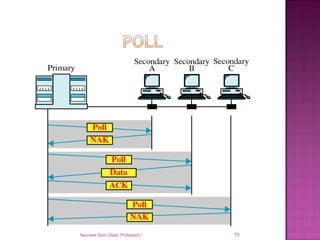

 Multipoint Discipline
Navneet Soni (Asst. Professor) 73
Navneet Soni (Asst. Professor) 74
Navneet Soni (Asst. Professor) 75
Navneet Soni (Asst. Professor) 76
Navneet Soni (Asst. Professor) 77

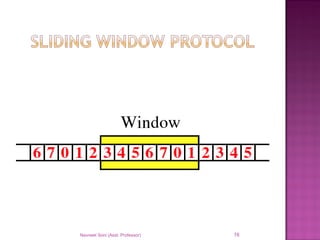

Navneet Soni (Asst. Professor) 78
Navneet Soni (Asst. Professor) 79

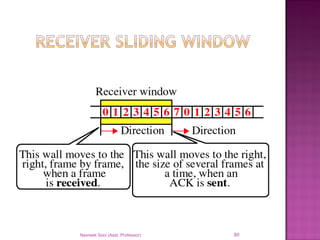

Navneet Soni (Asst. Professor) 80
Navneet Soni (Asst. Professor) 81
 Error control method refers to the methods
of error detection and retransmission. Error
control can be done by making use of two
methods:
Stop-and-wait ARQ
Sliding Window ARQ
 Go-Back-n
 Selective-Reject
Navneet Soni (Asst. Professor) 82

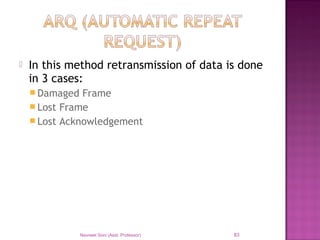

 In this method retransmission of data is done
in 3 cases:
 Damaged Frame
 Lost Frame
 Lost Acknowledgement
Navneet Soni (Asst. Professor) 83

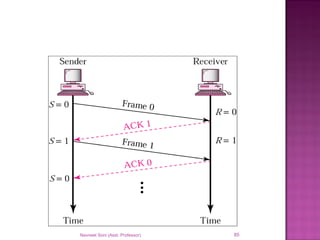

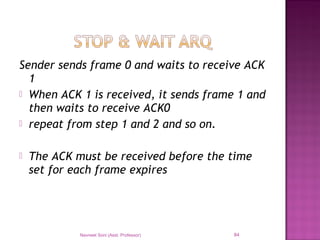

Sender sends frame 0 and waits to receive ACK
1
 When ACK 1 is received, it sends frame 1 and
then waits to receive ACK0
 repeat from step 1 and 2 and so on.
 The ACK must be received before the time
set for each frame expires
Navneet Soni (Asst. Professor) 84
Navneet Soni (Asst. Professor) 85

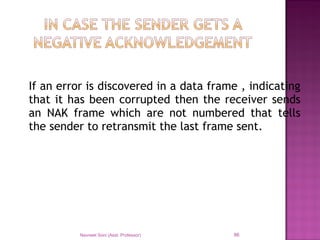

If an error is discovered in a data frame , indicating
that it has been corrupted then the receiver sends
an NAK frame which are not numbered that tells
the sender to retransmit the last frame sent.
Navneet Soni (Asst. Professor) 86

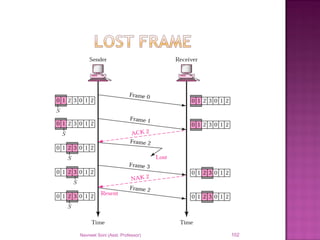

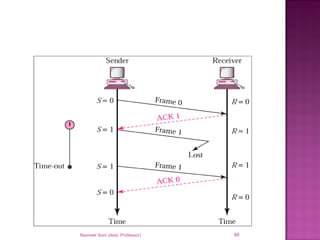

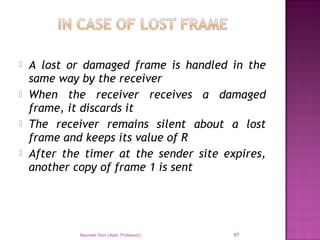

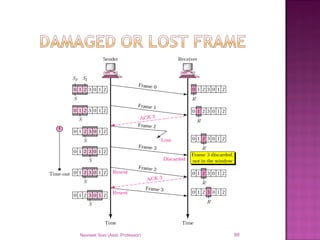

 A lost or damaged frame is handled in the
same way by the receiver
 When the receiver receives a damaged
frame, it discards it
 The receiver remains silent about a lost
frame and keeps its value of R
 After the timer at the sender site expires,
another copy of frame 1 is sent
Navneet Soni (Asst. Professor) 87
Navneet Soni (Asst. Professor) 88

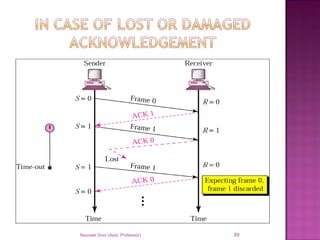

Navneet Soni (Asst. Professor) 89

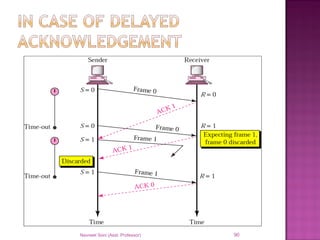

Navneet Soni (Asst. Professor) 90
Navneet Soni (Asst. Professor) 91

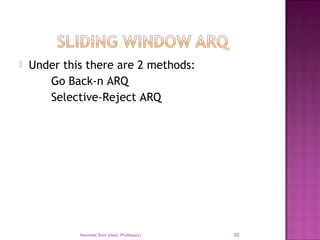

 Under this there are 2 methods:
Go Back-n ARQ
Selective-Reject ARQ
Navneet Soni (Asst. Professor) 92

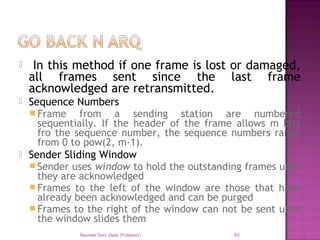

 In this method if one frame is lost or damaged,
all frames sent since the last frame
acknowledged are retransmitted.
 Sequence Numbers
 Frame from a sending station are numbered
sequentially. If the header of the frame allows m bits
fro the sequence number, the sequence numbers range
from 0 to pow(2, m-1).

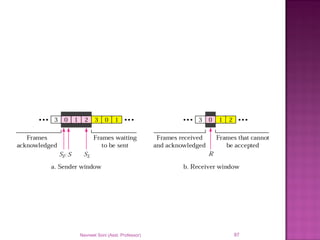

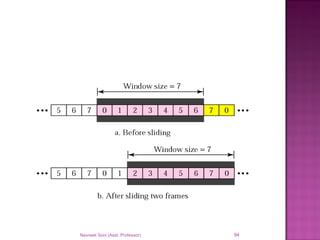

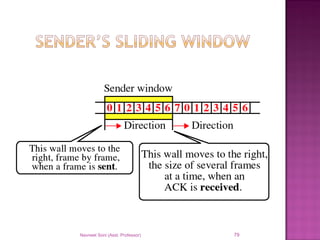

 Sender Sliding Window
 Sender uses window to hold the outstanding frames until
they are acknowledged
 Frames to the left of the window are those that have
already been acknowledged and can be purged
 Frames to the right of the window can not be sent until
the window slides them
Navneet Soni (Asst. Professor) 93
Navneet Soni (Asst. Professor) 94

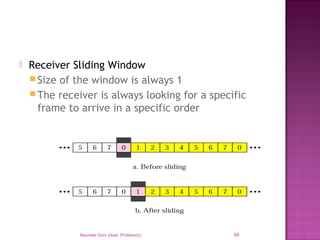

 Receiver Sliding Window
Size of the window is always 1
The receiver is always looking for a specific
frame to arrive in a specific order
Navneet Soni (Asst. Professor) 95

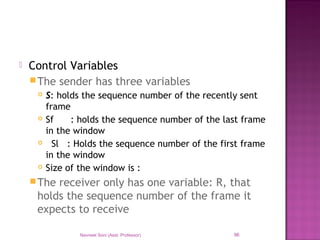

 Control Variables
The sender has three variables
 S: holds the sequence number of the recently sent
frame
 Sf : holds the sequence number of the last frame
in the window
 Sl : Holds the sequence number of the first frame
in the window
 Size of the window is :
The receiver only has one variable: R, that
holds the sequence number of the frame it
expects to receive
Navneet Soni (Asst. Professor) 96
Navneet Soni (Asst. Professor) 97

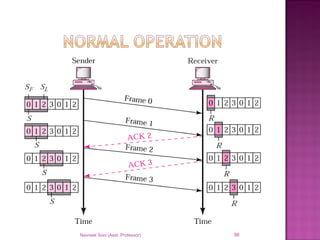

Navneet Soni (Asst. Professor) 98
Navneet Soni (Asst. Professor) 99
Navneet Soni (Asst. Professor) 100

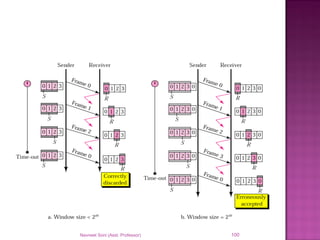

 Only damaged frame is resent
 Sender and receiver windows
 Size of the sender’s window must be one half of
 Size of the receiver’s window must be same as the sender’s
 Negative acknowledgement (NACK) is used to define damaged
frame
Navneet Soni (Asst. Professor) 101
Navneet Soni (Asst. Professor) 102

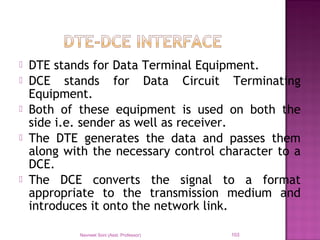

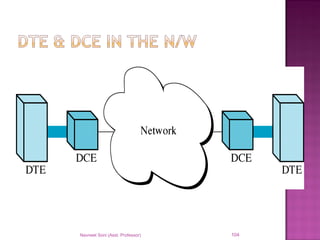

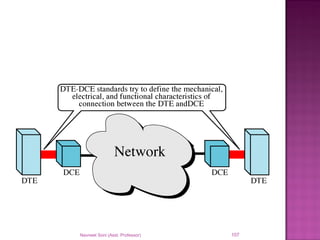

 DTE stands for Data Terminal Equipment.
 DCE stands for Data Circuit Terminating
Equipment.
 Both of these equipment is used on both the
side i.e. sender as well as receiver.
 The DTE generates the data and passes them
along with the necessary control character to a
DCE.
 The DCE converts the signal to a format
appropriate to the transmission medium and
introduces it onto the network link.
Navneet Soni (Asst. Professor) 103
Navneet Soni (Asst. Professor) 104

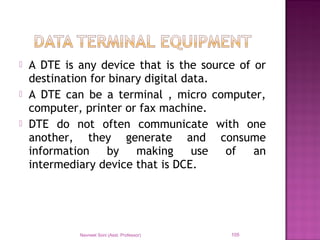

 A DTE is any device that is the source of or
destination for binary digital data.
 A DTE can be a terminal , micro computer,
computer, printer or fax machine.
 DTE do not often communicate with one
another, they generate and consume
information by making use of an
intermediary device that is DCE.
Navneet Soni (Asst. Professor) 105

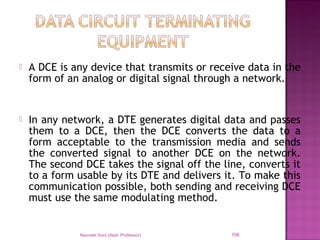

 A DCE is any device that transmits or receive data in the
form of an analog or digital signal through a network.
 In any network, a DTE generates digital data and passes
them to a DCE, then the DCE converts the data to a
form acceptable to the transmission media and sends
the converted signal to another DCE on the network.
The second DCE takes the signal off the line, converts it
to a form usable by its DTE and delivers it. To make this
communication possible, both sending and receiving DCE
must use the same modulating method.
Navneet Soni (Asst. Professor) 106
Navneet Soni (Asst. Professor) 107
Navneet Soni (Asst. Professor) 108

More Related Content

What's hot

Internetworking
InternetworkingInternetworking
Internetworking
Raghu nath

Computer Networks-1 1st unit (10CS55) VTU
Computer Networks-1 1st unit (10CS55) VTUComputer Networks-1 1st unit (10CS55) VTU
Computer Networks-1 1st unit (10CS55) VTU
Siddharaj Junnarkar

Networking Standards And Protocols
Networking Standards And ProtocolsNetworking Standards And Protocols
Networking Standards And Protocols
Steven Cahill


What's hot (20)

Network software
Network softwareNetwork software
Network software

NETWORK COMPONENTS
NETWORK COMPONENTSNETWORK COMPONENTS
NETWORK COMPONENTS

Data Communications and Computer Networks
Data Communications and Computer Networks Data Communications and Computer Networks
Data Communications and Computer Networks

Internetworking
InternetworkingInternetworking
Internetworking

Application Layer
Application Layer Application Layer
Application Layer

OSI Model - Open Systems Interconnection
OSI Model - Open Systems InterconnectionOSI Model - Open Systems Interconnection
OSI Model - Open Systems Interconnection

Data Communication and Networks
Data Communication and NetworksData Communication and Networks
Data Communication and Networks

network hardware
network hardwarenetwork hardware
network hardware

Tcp IP Model
Tcp IP ModelTcp IP Model
Tcp IP Model

Network Topology
Network TopologyNetwork Topology
Network Topology

Dc ch02 : protocol architecture
Dc ch02 : protocol architectureDc ch02 : protocol architecture
Dc ch02 : protocol architecture

1 introduction-to-computer-networking
1 introduction-to-computer-networking1 introduction-to-computer-networking
1 introduction-to-computer-networking

Chapter 3: Data & Signals
Chapter 3: Data & SignalsChapter 3: Data & Signals
Chapter 3: Data & Signals

Computer network switching
Computer network switchingComputer network switching
Computer network switching

Iso layers
Iso layersIso layers
Iso layers

Computer network
Computer networkComputer network
Computer network

Computer Networks-1 1st unit (10CS55) VTU
Computer Networks-1 1st unit (10CS55) VTUComputer Networks-1 1st unit (10CS55) VTU
Computer Networks-1 1st unit (10CS55) VTU

Networking Standards And Protocols
Networking Standards And ProtocolsNetworking Standards And Protocols
Networking Standards And Protocols

Network architecture
Network architectureNetwork architecture
Network architecture

Chapter 4 data link layer
Chapter 4 data link layerChapter 4 data link layer
Chapter 4 data link layer


Viewers also liked

Marketing - Brand Ambassador
Marketing - Brand AmbassadorMarketing - Brand Ambassador
Marketing - Brand Ambassador
ams_5686

Topology presentation
Topology  presentationTopology  presentation
Topology presentation
Jobaida Nahar

Presentation on data communication
Presentation on data communicationPresentation on data communication
Presentation on data communication
Harpreet Dhaliwal

Chapter 1 introduction to marketing present
Chapter 1  introduction to marketing presentChapter 1  introduction to marketing present
Chapter 1 introduction to marketing present
Ain Omar


Viewers also liked (20)

MD Merchem - Bussiness management & Skills
MD Merchem - Bussiness management & SkillsMD Merchem - Bussiness management & Skills
MD Merchem - Bussiness management & Skills

Brand Personality concept
Brand Personality conceptBrand Personality concept
Brand Personality concept

Importance of management
Importance of managementImportance of management
Importance of management

4Ps Marketing Jump 2013
4Ps Marketing Jump 20134Ps Marketing Jump 2013
4Ps Marketing Jump 2013

Marketing introduction
Marketing introductionMarketing introduction
Marketing introduction

International Marketing: international Marketing Introduction
International Marketing: international Marketing Introduction International Marketing: international Marketing Introduction
International Marketing: international Marketing Introduction

Brand personality of Coca Cola
Brand personality of Coca ColaBrand personality of Coca Cola
Brand personality of Coca Cola

Marketing - Brand Ambassador
Marketing - Brand AmbassadorMarketing - Brand Ambassador
Marketing - Brand Ambassador

Network topologies
Network topologiesNetwork topologies
Network topologies

Topology presentation
Topology  presentationTopology  presentation
Topology presentation

Apple's brand personality
Apple's brand personalityApple's brand personality
Apple's brand personality

Apple's Brand and Identity
Apple's Brand and Identity  Apple's Brand and Identity
Apple's Brand and Identity

Presentation on data communication
Presentation on data communicationPresentation on data communication
Presentation on data communication

Network topologies
Network topologiesNetwork topologies
Network topologies

Project Scope Management - PMBOK 5th Edition
Project Scope Management - PMBOK 5th EditionProject Scope Management - PMBOK 5th Edition
Project Scope Management - PMBOK 5th Edition

Chapter 1 introduction to marketing present
Chapter 1  introduction to marketing presentChapter 1  introduction to marketing present
Chapter 1 introduction to marketing present

Personal swot analysis example
Personal swot analysis examplePersonal swot analysis example
Personal swot analysis example

Marketing Research
Marketing ResearchMarketing Research
Marketing Research

Personal swot analysis
Personal swot analysisPersonal swot analysis
Personal swot analysis

Data communication and network Chapter -1
Data communication and network Chapter -1Data communication and network Chapter -1
Data communication and network Chapter -1


Similar to Computer Networks basics and OSI

Week11 - Networking_3
Week11 - Networking_3Week11 - Networking_3
Week11 - Networking_3
ispkosova

Networking hard copy (1)
Networking  hard copy (1)Networking  hard copy (1)
Networking hard copy (1)
Ankita Shetty

Computer Networks basics Unit 1 ppt.pptx
Computer Networks basics Unit 1 ppt.pptxComputer Networks basics Unit 1 ppt.pptx
Computer Networks basics Unit 1 ppt.pptx
sakshamsharma7257


Similar to Computer Networks basics and OSI (20)

Chapter 1.ppt
Chapter 1.pptChapter 1.ppt
Chapter 1.ppt

Data communications Class notes
Data communications  Class notesData communications  Class notes
Data communications Class notes

Computer networks 1
Computer networks 1Computer networks 1
Computer networks 1

CN QNAs.pdf
CN QNAs.pdfCN QNAs.pdf
CN QNAs.pdf

Network Models.pptx
Network  Models.pptxNetwork  Models.pptx
Network Models.pptx

Network Topology
Network TopologyNetwork Topology
Network Topology

Computer Network notes.docx
Computer Network notes.docxComputer Network notes.docx
Computer Network notes.docx

Week11 - Networking_3
Week11 - Networking_3Week11 - Networking_3
Week11 - Networking_3

computer network notes with full details
computer network notes with  full detailscomputer network notes with  full details
computer network notes with full details

NETWORK AND DATABASE CONCEPTS UNIT 1 CHAPTER 2 MRS.SOWMYA JYOTHI
NETWORK AND DATABASE CONCEPTS UNIT 1 CHAPTER 2 MRS.SOWMYA JYOTHINETWORK AND DATABASE CONCEPTS UNIT 1 CHAPTER 2 MRS.SOWMYA JYOTHI
NETWORK AND DATABASE CONCEPTS UNIT 1 CHAPTER 2 MRS.SOWMYA JYOTHI

introduction to Networking
introduction to Networkingintroduction to Networking
introduction to Networking

Computer Networks
Computer NetworksComputer Networks
Computer Networks

Networking hard copy (1)
Networking  hard copy (1)Networking  hard copy (1)
Networking hard copy (1)

ch_01.ppt
ch_01.pptch_01.ppt
ch_01.ppt

Osi(1)
Osi(1)Osi(1)
Osi(1)

Chapter 1 Introduction Data Communication and Networking
Chapter 1 Introduction Data Communication and NetworkingChapter 1 Introduction Data Communication and Networking
Chapter 1 Introduction Data Communication and Networking

Unit 1.pdf
Unit 1.pdfUnit 1.pdf
Unit 1.pdf

presentation_internet.pptx
presentation_internet.pptxpresentation_internet.pptx
presentation_internet.pptx

A Study And Analysis On Computer Network Topology For Data Communication
A Study And Analysis On Computer Network Topology For Data CommunicationA Study And Analysis On Computer Network Topology For Data Communication
A Study And Analysis On Computer Network Topology For Data Communication

Computer Networks basics Unit 1 ppt.pptx
Computer Networks basics Unit 1 ppt.pptxComputer Networks basics Unit 1 ppt.pptx
Computer Networks basics Unit 1 ppt.pptx


More from CS_GDRCST (6)

Programming in c
Programming in cProgramming in c
Programming in c

Java package
Java packageJava package
Java package

Exam tips
Exam tipsExam tips
Exam tips

Ds new
Ds newDs new
Ds new

Computer Organization and Architecture.
Computer Organization and Architecture.Computer Organization and Architecture.
Computer Organization and Architecture.

INTRODUCTION TO DATABASE
INTRODUCTION TO DATABASEINTRODUCTION TO DATABASE
INTRODUCTION TO DATABASE


Recently uploaded

Poster_density_driven_with_fracture_MLMC.pdf
Poster_density_driven_with_fracture_MLMC.pdfPoster_density_driven_with_fracture_MLMC.pdf
Poster_density_driven_with_fracture_MLMC.pdf
Alexander Litvinenko


Recently uploaded (20)

The Ball Poem- John Berryman_20240518_001617_0000.pptx
The Ball Poem- John Berryman_20240518_001617_0000.pptxThe Ball Poem- John Berryman_20240518_001617_0000.pptx
The Ball Poem- John Berryman_20240518_001617_0000.pptx

Poster_density_driven_with_fracture_MLMC.pdf
Poster_density_driven_with_fracture_MLMC.pdfPoster_density_driven_with_fracture_MLMC.pdf
Poster_density_driven_with_fracture_MLMC.pdf

BỘ LUYỆN NGHE TIẾNG ANH 8 GLOBAL SUCCESS CẢ NĂM (GỒM 12 UNITS, MỖI UNIT GỒM 3...
BỘ LUYỆN NGHE TIẾNG ANH 8 GLOBAL SUCCESS CẢ NĂM (GỒM 12 UNITS, MỖI UNIT GỒM 3...BỘ LUYỆN NGHE TIẾNG ANH 8 GLOBAL SUCCESS CẢ NĂM (GỒM 12 UNITS, MỖI UNIT GỒM 3...
BỘ LUYỆN NGHE TIẾNG ANH 8 GLOBAL SUCCESS CẢ NĂM (GỒM 12 UNITS, MỖI UNIT GỒM 3...

Andreas Schleicher presents at the launch of What does child empowerment mean...
Andreas Schleicher presents at the launch of What does child empowerment mean...Andreas Schleicher presents at the launch of What does child empowerment mean...
Andreas Schleicher presents at the launch of What does child empowerment mean...

ĐỀ THAM KHẢO KÌ THI TUYỂN SINH VÀO LỚP 10 MÔN TIẾNG ANH FORM 50 CÂU TRẮC NGHI...
ĐỀ THAM KHẢO KÌ THI TUYỂN SINH VÀO LỚP 10 MÔN TIẾNG ANH FORM 50 CÂU TRẮC NGHI...ĐỀ THAM KHẢO KÌ THI TUYỂN SINH VÀO LỚP 10 MÔN TIẾNG ANH FORM 50 CÂU TRẮC NGHI...
ĐỀ THAM KHẢO KÌ THI TUYỂN SINH VÀO LỚP 10 MÔN TIẾNG ANH FORM 50 CÂU TRẮC NGHI...

How to Manage Closest Location in Odoo 17 Inventory
How to Manage Closest Location in Odoo 17 InventoryHow to Manage Closest Location in Odoo 17 Inventory
How to Manage Closest Location in Odoo 17 Inventory

Features of Video Calls in the Discuss Module in Odoo 17
Features of Video Calls in the Discuss Module in Odoo 17Features of Video Calls in the Discuss Module in Odoo 17
Features of Video Calls in the Discuss Module in Odoo 17

Envelope of Discrepancy in Orthodontics: Enhancing Precision in Treatment
 Envelope of Discrepancy in Orthodontics: Enhancing Precision in Treatment Envelope of Discrepancy in Orthodontics: Enhancing Precision in Treatment
Envelope of Discrepancy in Orthodontics: Enhancing Precision in Treatment

Removal Strategy _ FEFO _ Working with Perishable Products in Odoo 17
Removal Strategy _ FEFO _ Working with Perishable Products in Odoo 17Removal Strategy _ FEFO _ Working with Perishable Products in Odoo 17
Removal Strategy _ FEFO _ Working with Perishable Products in Odoo 17

How To Create Editable Tree View in Odoo 17
How To Create Editable Tree View in Odoo 17How To Create Editable Tree View in Odoo 17
How To Create Editable Tree View in Odoo 17

Đề tieng anh thpt 2024 danh cho cac ban hoc sinh
Đề tieng anh thpt 2024 danh cho cac ban hoc sinhĐề tieng anh thpt 2024 danh cho cac ban hoc sinh
Đề tieng anh thpt 2024 danh cho cac ban hoc sinh

II BIOSENSOR PRINCIPLE APPLICATIONS AND WORKING II
II BIOSENSOR PRINCIPLE APPLICATIONS AND WORKING IIII BIOSENSOR PRINCIPLE APPLICATIONS AND WORKING II
II BIOSENSOR PRINCIPLE APPLICATIONS AND WORKING II

How to Analyse Profit of a Sales Order in Odoo 17
How to Analyse Profit of a Sales Order in Odoo 17How to Analyse Profit of a Sales Order in Odoo 17
How to Analyse Profit of a Sales Order in Odoo 17

24 ĐỀ THAM KHẢO KÌ THI TUYỂN SINH VÀO LỚP 10 MÔN TIẾNG ANH SỞ GIÁO DỤC HẢI DƯ...
24 ĐỀ THAM KHẢO KÌ THI TUYỂN SINH VÀO LỚP 10 MÔN TIẾNG ANH SỞ GIÁO DỤC HẢI DƯ...24 ĐỀ THAM KHẢO KÌ THI TUYỂN SINH VÀO LỚP 10 MÔN TIẾNG ANH SỞ GIÁO DỤC HẢI DƯ...
24 ĐỀ THAM KHẢO KÌ THI TUYỂN SINH VÀO LỚP 10 MÔN TIẾNG ANH SỞ GIÁO DỤC HẢI DƯ...

Championnat de France de Tennis de table/
Championnat de France de Tennis de table/Championnat de France de Tennis de table/
Championnat de France de Tennis de table/

Basic Civil Engineering notes on Transportation Engineering, Modes of Transpo...
Basic Civil Engineering notes on Transportation Engineering, Modes of Transpo...Basic Civil Engineering notes on Transportation Engineering, Modes of Transpo...
Basic Civil Engineering notes on Transportation Engineering, Modes of Transpo...

An Overview of the Odoo 17 Knowledge App
An Overview of the Odoo 17 Knowledge AppAn Overview of the Odoo 17 Knowledge App
An Overview of the Odoo 17 Knowledge App

Benefits and Challenges of OER by Shweta Babel.pptx
Benefits and Challenges of OER by Shweta Babel.pptxBenefits and Challenges of OER by Shweta Babel.pptx
Benefits and Challenges of OER by Shweta Babel.pptx

Capitol Tech Univ Doctoral Presentation -May 2024
Capitol Tech Univ Doctoral Presentation -May 2024Capitol Tech Univ Doctoral Presentation -May 2024
Capitol Tech Univ Doctoral Presentation -May 2024

The Liver & Gallbladder (Anatomy & Physiology).pptx
The Liver &  Gallbladder (Anatomy & Physiology).pptxThe Liver &  Gallbladder (Anatomy & Physiology).pptx
The Liver & Gallbladder (Anatomy & Physiology).pptx


Computer Networks basics and OSI

  • 1. Basics of data communication and OSI model Navneet Soni Asst. Professor GDRCST, Bhilai
  • 2. Data communication is the exchange of data between two devices by making use of some transmission media. Data Communication may be of two types Local Remote If the communicating devices are in the same building then it is a type of local communication If the devices are farther apart then it is a type of remote communication Navneet Soni (Asst. Professor) 2
  • 3. Navneet Soni (Asst. Professor) 3  Effectiveness of data communication depends on 3 fundamental characteristics Delivery Accuracy Timeliness  Components of Data communication Protocol Protocol Sender Receiver Message
  • 4. Sender:- Device that sends the message Receiver:- Device that receive the message Medium:-It is the physical path by which message travels from sender to receiver. Protocol:-It is the exchange of data between two separate entities. Message:- Information which is to be communicated. Networks: A network is a collection of autonomous computer. The computer which can forcibly start, stop and control another one are not autonomous. Two computer are said to be interconnected if they are able to exchange information. Navneet Soni (Asst. Professor) 4
  • 5. The communication can be done by copper wire, fiber optics, microwaves and communication satellite. Networks uses distributed processing in which task is divided among multiple computers. Advantages of distributed processing are Security Distributed Database Faster problem Solving Security Through Redundancy Collaborative Processing Navneet Soni (Asst. Professor) 5
  • 6. Performance can be measured in many ways including the Transit Time & Response Time. It depends on the following factors, they are: 1. Number of users 2. Types of Transmission Media 3. Hardware 4. Software Navneet Soni (Asst. Professor) 6 Criteria Performance Reliability Security
  • 7.  Reliability:- it is measured by frequency of failure, the time it takes link to recover from a failure & Catastrophe.  Security:- Network must be safe guarded from:  Unauthorized Access  Viruses Navneet Soni (Asst. Professor) 7
  • 8.  Protocol is a set of rules that govern the exchange of data between two separate entities.  A protocol defines: What is communicated, How it is communicated & When it is communicated.  The Key Element of protocol is:  Syntax  Semantics  Timing Navneet Soni (Asst. Professor) 8
  • 9.  Syntax: It refers to the format of the data, i.e. meaning of the order in which they are presented.  Semantics:- It refers to the meaning of each section of the bits.  Timing:- it refers to when the data should be sent and how fast they can be sent. Navneet Soni (Asst. Professor) 9
  • 10. A standard provides a model for development that makes it possible for a product to work regardless of the individual manufacturer Data communication standards fall into 2 categories: Defacto (By Fact) Dejure (By Law) 1) Dejure (By Law) : Standards that have not been approved by an organized body but have been adopted as a standard. 2) Defacto (By Fact) standards are of two types: 1. Proprietary 2. Non Proprietary Navneet Soni (Asst. Professor) 10
  • 11. Line configuration refers to the way two or more devices attach to the link. A link is the physical connection i.e. the pathway that transfer the data from one device to another. There are 2 possible line configuration Point-to-Point Multipoint Navneet Soni (Asst. Professor) 11
  • 12. Navneet Soni (Asst. Professor) 12 Point-to-Point: It provides a dedicated link between two devices. The entire capacity of the channel is reserved for transmission between those two devices. Multipoint: It is also known as multi-drop line configuration, it is the one in which more than two specific devices share a single link.
  • 13. Transmission mode defines the direction of single flow between two devices. There are 3 types of transmission mode, they are: 1. Simplex 2. Half-Duplex 3. Full-Duplex Navneet Soni (Asst. Professor) 13
  • 14. Navneet Soni (Asst. Professor) 14
  • 15. It is the geometrical representation of how the nodes in the network are attached to each other. Basically there are 5 types of topologies, they are: Mesh Star Tree Bus Ring Navneet Soni (Asst. Professor) 15
  • 16. A type of network setup where each of the computers and network devices are interconnected with one another, allowing for most transmissions to be distributed, even if one of the connections go down. This type of topology is not commonly used for most computer networks as it is difficult and expensive to have redundant connection to every computer. 16
  • 17. Navneet Soni (Asst. Professor) 17 There are two types of mesh topology they are Fully Connected Mesh Topology Partial Connected Mesh Topology Advantages: Eliminating the traffic problems. Mesh topology is robust. It provides security. Disadvantages: The amount of cabling and the ports required
  • 18. Also known as a star network, a star topology is one of the most common network setups where each of the devices and computers on a network connect to a central hub. A major disadvantage of this type of network topology is that if the central hub fails, all computers connected to that hub would be disconnected. 18
  • 19. It is a central controlling device in a star network. Navneet Soni (Asst. Professor) 19
  • 20. Navneet Soni (Asst. Professor) 20 There are 2 types of hub 1. Active Hub 2. Passive Hub An Active hub contains a repeater which is a hardware device that regenerates the received bit pattern before sending them out. A Passive hub provides a simple physical connection between the attached devices.
  • 21. Navneet Soni (Asst. Professor) 21 Advantages:  It is less expensive than a mesh topology because each device needs only one link and one I/O port to connect it to any number of others.  It includes robustness means if one link fails than only that link is affected, all the other link remain active. Disadvantages:  If the hub fails then it affects the whole network.
  • 22. Bus networks use a common backbone to connect all devices. A single cable, the backbone functions as a shared communication medium that devices attach or tap into with an interface connector. A device wanting to communicate with another device on the network sends a broadcast message onto the wire that all other devices see, but only the intended recipient actually accepts and processes the message. Navneet Soni (Asst. Professor) 22
  • 23. In this nodes are connected to the bus cable by drop lines and taps. A drop line is a connection running between the device and the main cable. A tap is a connector that splices into the main cable to create a contact with the metallic core. Navneet Soni (Asst. Professor) 23
  • 24. Navneet Soni (Asst. Professor) 24 Advantages:  Easy to connect a computer or peripheral to a linear bus.  Requires less cable length than a star topology. Disadvantages:  Entire network shuts down if there is a break in the main cable.  Terminators are required at both ends of the backbone cable.  Difficult to identify the problem if the entire network shuts down.  Not meant to be used as a stand-alone solution in a large building.
  • 25. In this topology each device has a dedicated link only with the two devices on the either side of it. All messages travel through a ring in the same direction (either "clockwise" or "counterclockwise"). A failure in any cable or device breaks the loop and can take down the entire network. Navneet Soni (Asst. Professor) 25
  • 26. Navneet Soni (Asst. Professor) 26 Advantages:  It is relative to install and reconfigure  In this fault isolation is simplified. Disadvantages:  Unidirectional traffic may be disadvantage.  A break in the ring can disable the entire network.
  • 27. It is a variation of star, nodes in a tree are linked to the central hub. But in this case not all devices are connected to the central hub they are connected to the secondary hub after that all the secondary hub are connected to the central hub. The central hub is the type of Active hub The Secondary hub is the type of Passive hub Navneet Soni (Asst. Professor) 27
  • 28. Navneet Soni (Asst. Professor) 28
  • 29. Advantages: • It allows more devices to be attached to a single central hub. • It allows the network to isolate and prioritize communication from different computers Navneet Soni (Asst. Professor) 29
  • 30. A network topology that uses two or more network topologies. Navneet Soni (Asst. Professor) 30
  • 31. Networks are categorized into 3 categories: 1. LAN (Local Area Network) 2. MAN (Metropolitan Area Network) 3. WAN (Wide Area Network) Navneet Soni (Asst. Professor) 31
  • 32. When two or more networks are connected together they become an internetwork or internet. Navneet Soni (Asst. Professor) 32
  • 33.  An ISO standard that cover all aspect of network communication is the OSI model.  The purpose of the OSI Model is to provide open communication between different system.  It is a model not a protocol.  The OSI model is built of seven ordered layer. Navneet Soni (Asst. Professor) 33
  • 34. Navneet Soni (Asst. Professor) 34
  • 35. Navneet Soni (Asst. Professor) 35
  • 36.  Physical layer The physical layer coordinates the function required to transmit a bit stream over a physical medium. It deals with the electrical and mechanical specification of the interface and the transmission medium means that it defines the procedure and functions that physical devices and interfaces have to perform for transmission to occur Navneet Soni (Asst. Professor) 36
  • 37.  Physical characteristics of Interface and media.  Representation of bits.  Data Rate.  Synchronization of bits.  Line configuration.  Physical Topology  Transmission Mode Navneet Soni (Asst. Professor) 37
  • 38. Navneet Soni (Asst. Professor) 38

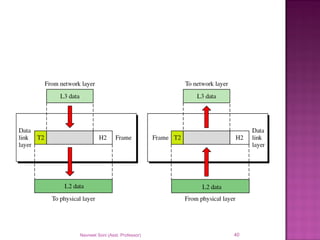

  • 39.  It transforms the physical layer a raw transmission facility to a reliable link and it is also responsible from node to node delivery.  Specific responsibility of the physical layer are: Framing Physical Addressing Flow Control Error Control Access Control Navneet Soni (Asst. Professor) 39
  • 40. Navneet Soni (Asst. Professor) 40
  • 41.  The network Layer is responsible for the source to destination delivery of a packet across a multiple links or networks.  Specific responsibilities of the network layer are: Logical Addressing Routing Navneet Soni (Asst. Professor) 41
  • 42. Navneet Soni (Asst. Professor) 42
  • 43.  This layer is responsible for source to destination delivery i.e. end to end delivery of the entire message.  For adding security the transport layer may create a connection between the two end ports.  Specific responsibility of this layer are Service Point Addressing Segmentation & Reassembly Connection Control Flow Control Error Control Navneet Soni (Asst. Professor) 43
  • 44. Navneet Soni (Asst. Professor) 44
  • 45.  This layer establishes, maintains and synchronizes the interaction between communicating systems  Specific responsibilities performed by this layer is: Dialog Control Synchronization Navneet Soni (Asst. Professor) 45
  • 46.  This layer is concerned with the syntax & semantics of the information exchanged between the two system.  Specific responsibilities of this layer is: Translation Encryption Compression Navneet Soni (Asst. Professor) 46
  • 47.  This layer enables the user to access the network. It provides user interface and provide support for services.  Specific responsibility performed by this layer is: Network Virtual Terminal File Transfer, Access & Management Mail Services Directory Services Navneet Soni (Asst. Professor) 47

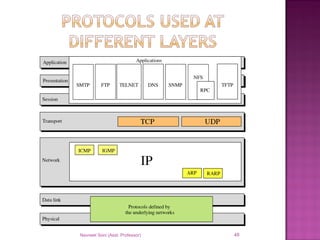

  • 48. Navneet Soni (Asst. Professor) 48
  • 49.  The ARPANET was a research network sponsored by the DOD. It eventually connects hundred of universities and government installations by using leased telephone line.  When satellite and radio networks are attached, the existing protocols had trouble in internetworking with them. For that a new architecture was made which is known as TCP/IP reference model. Navneet Soni (Asst. Professor) 49

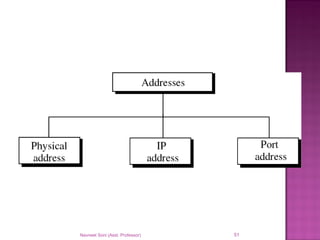

  • 50.  Application Layer  Transport Layer  Network Layer  Physical + Data Link Layer---Host-to-Network Layer Navneet Soni (Asst. Professor) 50
  • 51. Navneet Soni (Asst. Professor) 51
  • 52. Navneet Soni (Asst. Professor) 52
  • 53.  This layer contain some higher level protocol, out of which some of them are: Telnet (Virtual Terminal) FTP SMTP Navneet Soni (Asst. Professor) 53
  • 54.  In this layer it make use of two protocol TCP UDP TCP stands for Transmission Control Protocol. It is a type of connection oriented and reliable protocol. UDP (User Datagram Protocol) which is a connectionless and unreliable protocol. Navneet Soni (Asst. Professor) 54
  • 55.  The job of the network layer is to permit the host to inject packets into any network and have them travel independently to the destination.  The packets may even arrive in a different order than they were sent, in this case it is the job of the higher layer to rearrange them, if inorder delivery is required. Navneet Soni (Asst. Professor) 55
  • 56. Data Transmission Parallel Transmission Serial Transmission Synchronous Asynchronous Navneet Soni (Asst. Professor) 56
  • 57. Navneet Soni (Asst. Professor) 57
  • 58. Navneet Soni (Asst. Professor) 58
  • 59.  To alert the receiver that a new group of data is arriving, two extra bits are added one at the beginning which is known as start bit and the other one is at the end which is known as stop bit . There may be a gap between each byte.  The start bit is always 0 and the stop bit is always 1.  The start bit, stop bit and the gap alert the receiver to the beginning and end of each byte and allow it to synchronize with the data stream Navneet Soni (Asst. Professor) 59
  • 60. Navneet Soni (Asst. Professor) 60
  • 61. Navneet Soni (Asst. Professor) 61
  • 62. Data can be represented in form of signal and the signal are of two types: Analog Signal Digital Signal Analog refers to something that is continuous means a set of specific points of data and all possible points between them. Ex: Human Voice. Digital refers to something that is discrete means a set of specific points of data with no other points in between. Ex: Data stored in memory. Navneet Soni (Asst. Professor) 62
  • 63. Both analog and digital signal can be of two forms: Periodic Signal Aperiodic Signal A periodic signal consist of a continuously repeated pattern. The period of signal is expressed in seconds. The completion of one full pattern is known as cycle. An aperiodic signals have no repetative pattern. Navneet Soni (Asst. Professor) 63
  • 64.  Simple analog signal is known as sine wave.  Sine wave is characterized by 3 characteristics: Amplitude Frequency Phase Amplitude: It refers to the height of the signal. Amplitude is measured in volts, amperes & watts. Period or Frequency: Period refers to the amount of time a signal needs to complete one cycle. Navneet Soni (Asst. Professor) 64
  • 65. Frequency is the number of cycles per second. Period is measured in sec, millisec, microsec, picosec, nanosec. Frequency is measured in Hz, KHZ, MHZ, GHZ, THZ. Phase represents the position of the wave form relative to time zero (0). Digital to Analog conversion is the process of changing one of the characteristics of an analog signal based on the information in a digital signal. Navneet Soni (Asst. Professor) 65
  • 66.  Amplitude Shift Keying  Frequency Shift Keying  Phase Shift Keying  Quadrature Amplitude Modulation. Navneet Soni (Asst. Professor) 66
  • 67.  The Major functions of Data Link Layer are Framing Physical Addressing Line Discipline Flow Control Error Control Navneet Soni (Asst. Professor) 67
  • 68. Navneet Soni (Asst. Professor) 68

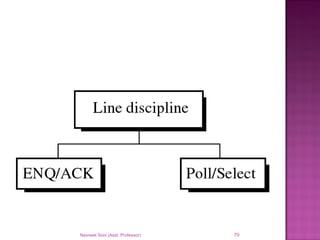

  • 69.  Line Discipline determines which device can send and when it can send.  Flow control coordinates the amount of data that can be sent before receiving acknowledgement.  Error control means error detection and correction. It allows the receiver to inform the sender about the damaging & losting. Navneet Soni (Asst. Professor) 69
  • 70. Navneet Soni (Asst. Professor) 70
  • 71. Navneet Soni (Asst. Professor) 71
  • 72. Navneet Soni (Asst. Professor) 72
  • 73.  Multipoint Discipline Navneet Soni (Asst. Professor) 73
  • 74. Navneet Soni (Asst. Professor) 74
  • 75. Navneet Soni (Asst. Professor) 75
  • 76. Navneet Soni (Asst. Professor) 76
  • 77. Navneet Soni (Asst. Professor) 77
  • 78. Navneet Soni (Asst. Professor) 78
  • 79. Navneet Soni (Asst. Professor) 79
  • 80. Navneet Soni (Asst. Professor) 80
  • 81. Navneet Soni (Asst. Professor) 81
  • 82.  Error control method refers to the methods of error detection and retransmission. Error control can be done by making use of two methods: Stop-and-wait ARQ Sliding Window ARQ  Go-Back-n  Selective-Reject Navneet Soni (Asst. Professor) 82
  • 83.  In this method retransmission of data is done in 3 cases:  Damaged Frame  Lost Frame  Lost Acknowledgement Navneet Soni (Asst. Professor) 83

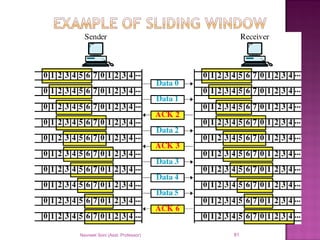

  • 84. Sender sends frame 0 and waits to receive ACK 1  When ACK 1 is received, it sends frame 1 and then waits to receive ACK0  repeat from step 1 and 2 and so on.  The ACK must be received before the time set for each frame expires Navneet Soni (Asst. Professor) 84
  • 85. Navneet Soni (Asst. Professor) 85
  • 86. If an error is discovered in a data frame , indicating that it has been corrupted then the receiver sends an NAK frame which are not numbered that tells the sender to retransmit the last frame sent. Navneet Soni (Asst. Professor) 86
  • 87.  A lost or damaged frame is handled in the same way by the receiver  When the receiver receives a damaged frame, it discards it  The receiver remains silent about a lost frame and keeps its value of R  After the timer at the sender site expires, another copy of frame 1 is sent Navneet Soni (Asst. Professor) 87
  • 88. Navneet Soni (Asst. Professor) 88
  • 89. Navneet Soni (Asst. Professor) 89
  • 90. Navneet Soni (Asst. Professor) 90

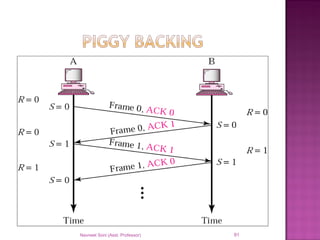

  • 91. Navneet Soni (Asst. Professor) 91
  • 92.  Under this there are 2 methods: Go Back-n ARQ Selective-Reject ARQ Navneet Soni (Asst. Professor) 92
  • 93.  In this method if one frame is lost or damaged, all frames sent since the last frame acknowledged are retransmitted.  Sequence Numbers  Frame from a sending station are numbered sequentially. If the header of the frame allows m bits fro the sequence number, the sequence numbers range from 0 to pow(2, m-1).  Sender Sliding Window  Sender uses window to hold the outstanding frames until they are acknowledged  Frames to the left of the window are those that have already been acknowledged and can be purged  Frames to the right of the window can not be sent until the window slides them Navneet Soni (Asst. Professor) 93
  • 94. Navneet Soni (Asst. Professor) 94
  • 95.  Receiver Sliding Window Size of the window is always 1 The receiver is always looking for a specific frame to arrive in a specific order Navneet Soni (Asst. Professor) 95
  • 96.  Control Variables The sender has three variables  S: holds the sequence number of the recently sent frame  Sf : holds the sequence number of the last frame in the window  Sl : Holds the sequence number of the first frame in the window  Size of the window is : The receiver only has one variable: R, that holds the sequence number of the frame it expects to receive Navneet Soni (Asst. Professor) 96
  • 97. Navneet Soni (Asst. Professor) 97
  • 98. Navneet Soni (Asst. Professor) 98
  • 99. Navneet Soni (Asst. Professor) 99
  • 100. Navneet Soni (Asst. Professor) 100
  • 101.  Only damaged frame is resent  Sender and receiver windows  Size of the sender’s window must be one half of  Size of the receiver’s window must be same as the sender’s  Negative acknowledgement (NACK) is used to define damaged frame Navneet Soni (Asst. Professor) 101
  • 102. Navneet Soni (Asst. Professor) 102
  • 103.  DTE stands for Data Terminal Equipment.  DCE stands for Data Circuit Terminating Equipment.  Both of these equipment is used on both the side i.e. sender as well as receiver.  The DTE generates the data and passes them along with the necessary control character to a DCE.  The DCE converts the signal to a format appropriate to the transmission medium and introduces it onto the network link. Navneet Soni (Asst. Professor) 103
  • 104. Navneet Soni (Asst. Professor) 104
  • 105.  A DTE is any device that is the source of or destination for binary digital data.  A DTE can be a terminal , micro computer, computer, printer or fax machine.  DTE do not often communicate with one another, they generate and consume information by making use of an intermediary device that is DCE. Navneet Soni (Asst. Professor) 105
  • 106.  A DCE is any device that transmits or receive data in the form of an analog or digital signal through a network.  In any network, a DTE generates digital data and passes them to a DCE, then the DCE converts the data to a form acceptable to the transmission media and sends the converted signal to another DCE on the network. The second DCE takes the signal off the line, converts it to a form usable by its DTE and delivers it. To make this communication possible, both sending and receiving DCE must use the same modulating method. Navneet Soni (Asst. Professor) 106
  • 107. Navneet Soni (Asst. Professor) 107
  • 108. Navneet Soni (Asst. Professor) 108
