PPT on Basic of Gateway
•Download as PPTX, PDF•
5 likes•7,993 views

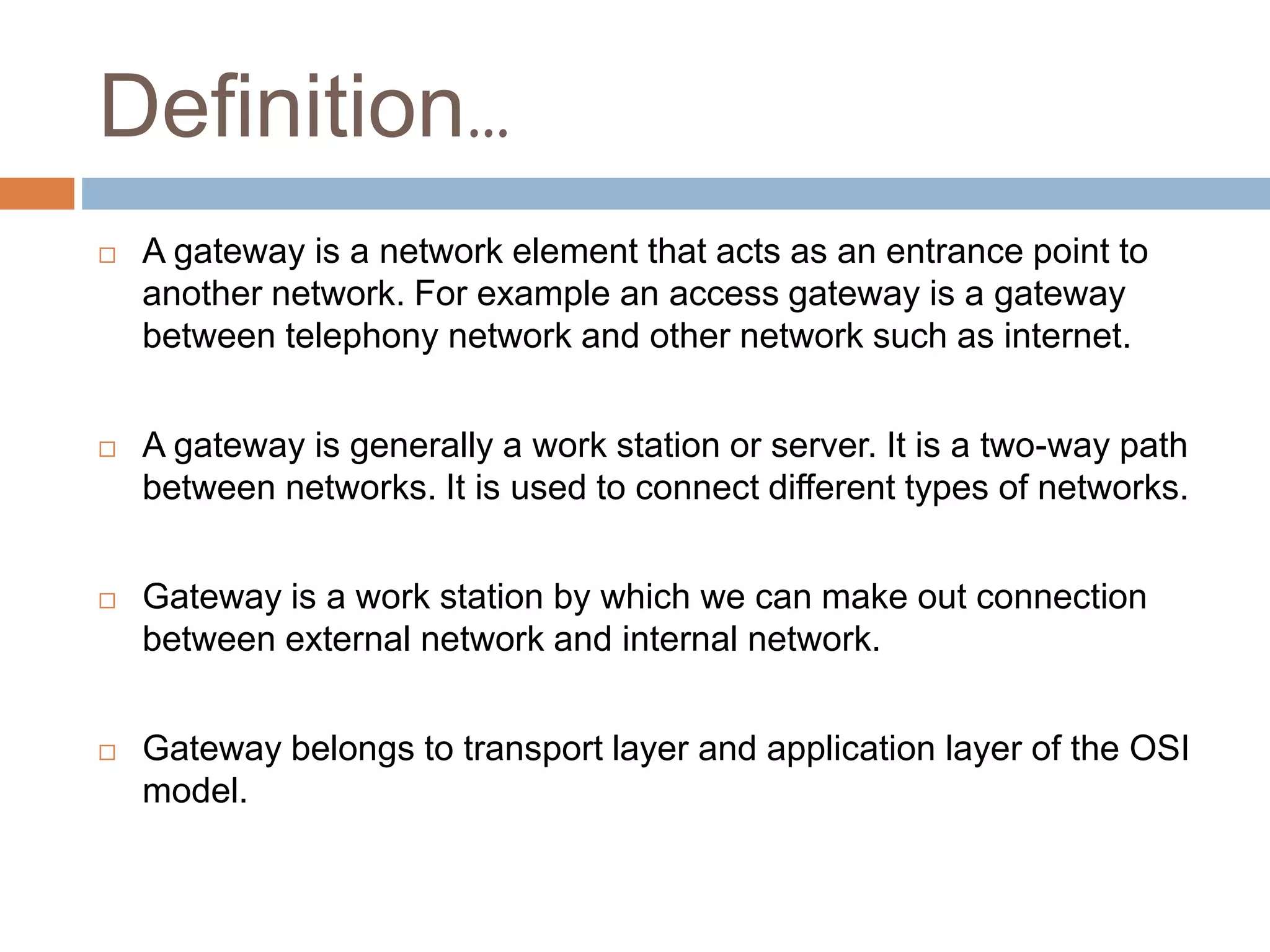

A gateway is a network element that connects two different networks, even if they use different protocols. It allows communication by stripping off the old protocol and assigning a new protocol. There are two main types of gateways: transport gateways connect networks using different transport protocols, while application gateways can translate between application-layer formats. Gateways expand networks but have drawbacks like inability to filter noise, slower transmission due to protocol conversion, and increased cost.
