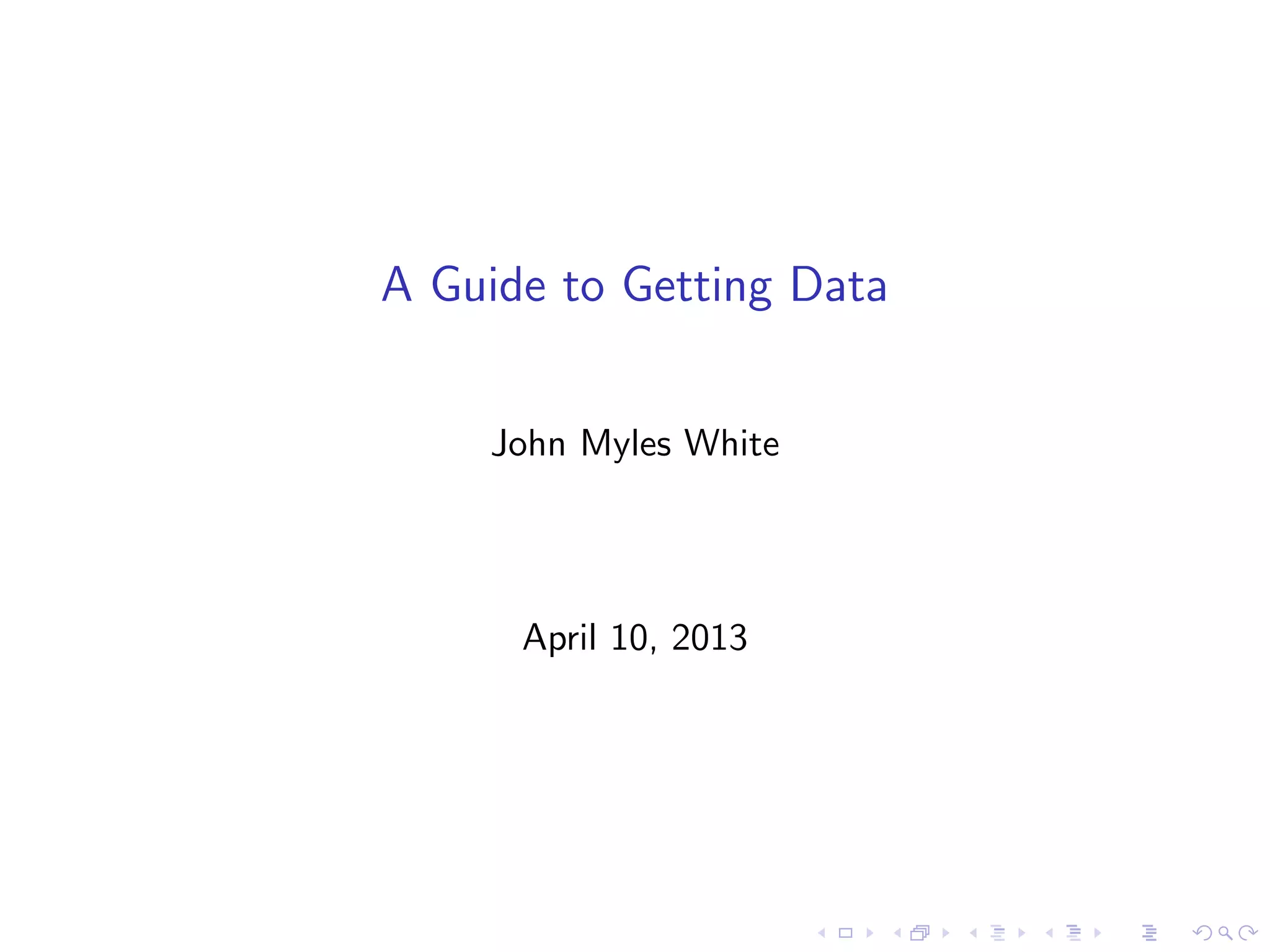

1. A Guide to Getting Data
John Myles White
April 10, 2013

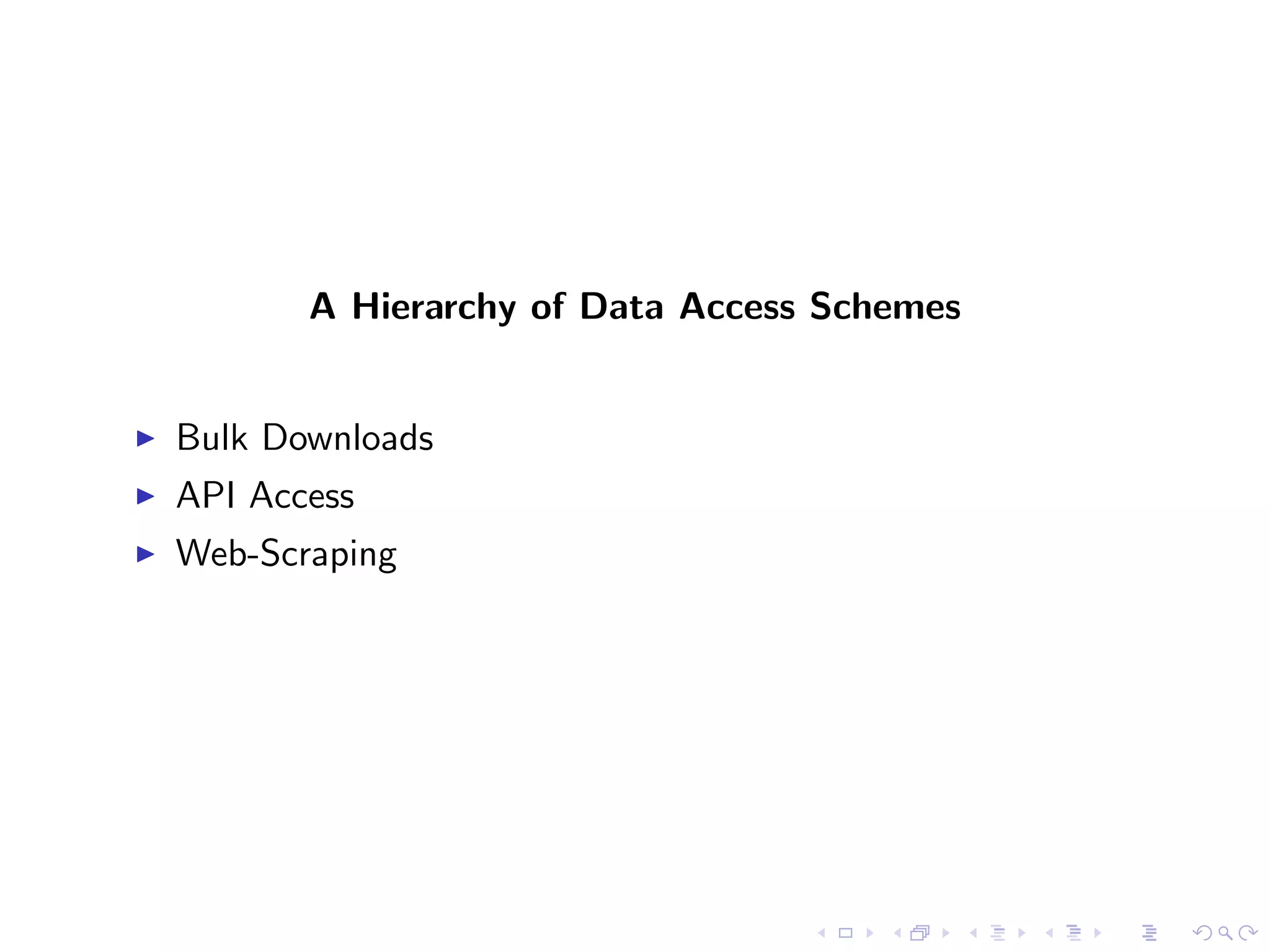

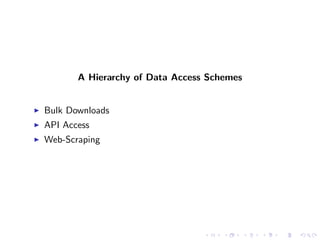

2. A Hierarchy of Data Access Schemes
Bulk Downloads
API Access
Web-Scraping

3. Bulk Downloads

4. Collections of Bulk Downloads
https://delicious.com/jhofman/data
http://bitly.com/bundles/hmason/1

5. Some Available Data Sets
Wikipedia
IMDB
Million Song Database
SNAP (Social Networks)
Sunlight (Congressional Votes)

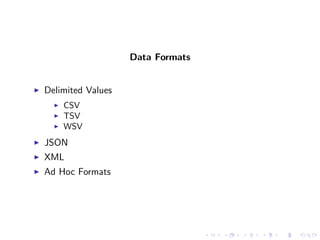

6. Data Formats
Delimited Values
CSV
TSV
WSV
JSON
XML
Ad Hoc Formats

7. JSON
JSON sees the world as hash tables and arrays:
Hash tables: {"a": 1, "b": 2}
Arrays: [1, 2, 3]

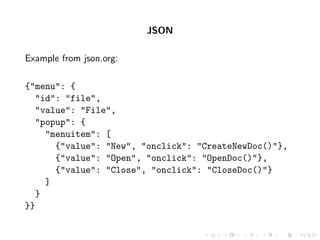

8. JSON
Example from json.org:
{"menu": {
"id": "file",
"value": "File",
"popup": {
"menuitem": [
{"value": "New", "onclick": "CreateNewDoc()"},
{"value": "Open", "onclick": "OpenDoc()"},
{"value": "Close", "onclick": "CloseDoc()"}
]
}
}}

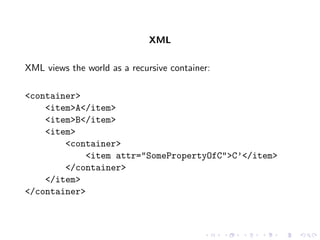

9. XML
XML views the world as a recursive container:
<container>
<item>A</item>
<item>B</item>
<item>
<container>
<item attr="SomePropertyOfC">C’</item>
</container>
</item>
</container>

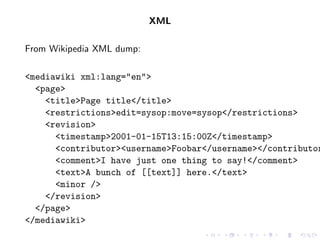

10. XML
From Wikipedia XML dump:
<mediawiki xml:lang="en">
<page>
<title>Page title</title>
<restrictions>edit=sysop:move=sysop</restrictions>
<revision>
<timestamp>2001-01-15T13:15:00Z</timestamp>
<contributor><username>Foobar</username></contributor
<comment>I have just one thing to say!</comment>
<text>A bunch of [[text]] here.</text>
<minor />
</revision>
</page>
</mediawiki>

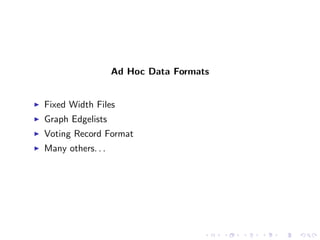

11. Ad Hoc Data Formats
Fixed Width Files
Graph Edgelists
Voting Record Format
Many others. . .

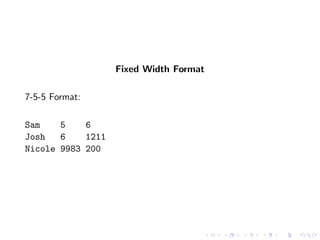

12. Fixed Width Format
7-5-5 Format:
Sam 5 6
Josh 6 1211
Nicole 9983 200

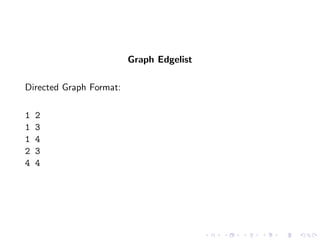

13. Graph Edgelist
Directed Graph Format:
1 2
1 3
1 4
2 3
4 4

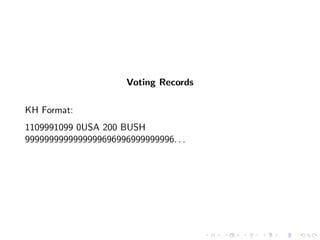

14. Voting Records
KH Format:
1109991099 0USA 200 BUSH
9999999999999999696996999999996. . .

15. Unstructured or Misstructured Data
Which Wikipedia articles link to each other?
Have Wikipedia dump of raw text
Need to parse XML, find links, extract them

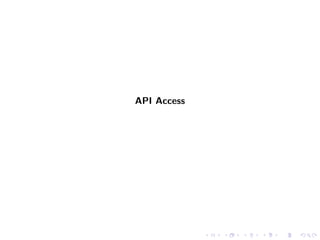

16. API Access

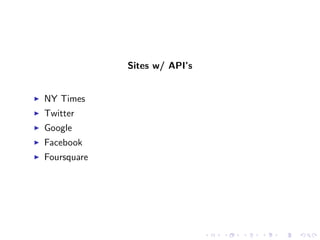

17. Sites w/ API’s
NY Times
Twitter
Google
Facebook
Foursquare

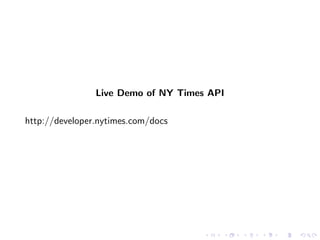

18. Live Demo of NY Times API
http://developer.nytimes.com/docs

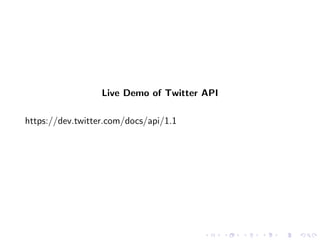

19. Live Demo of Twitter API
https://dev.twitter.com/docs/api/1.1

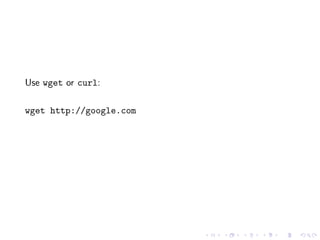

20. Use wget or curl:
wget http://google.com

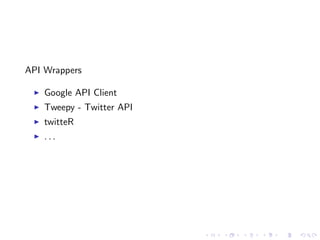

21. API Wrappers
Google API Client
Tweepy - Twitter API
twitteR
...

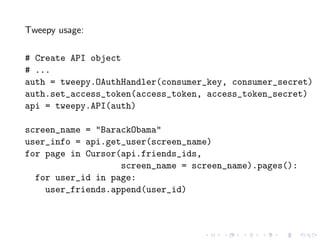

22. Tweepy usage:
# Create API object
# ...
auth = tweepy.OAuthHandler(consumer_key, consumer_secret)
auth.set_access_token(access_token, access_token_secret)
api = tweepy.API(auth)
screen_name = "BarackObama"
user_info = api.get_user(screen_name)
for page in Cursor(api.friends_ids,
screen_name = screen_name).pages():
for user_id in page:
user_friends.append(user_id)

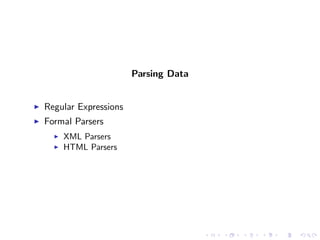

23. Parsing Data
Regular Expressions
Formal Parsers
XML Parsers
HTML Parsers

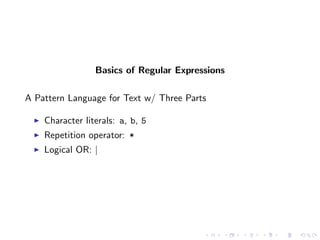

24. Basics of Regular Expressions
A Pattern Language for Text w/ Three Parts
Character literals: a, b, 5
Repetition operator: *
Logical OR: |

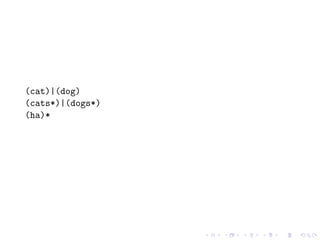

25. (cat)|(dog)
(cats*)|(dogs*)
(ha)*

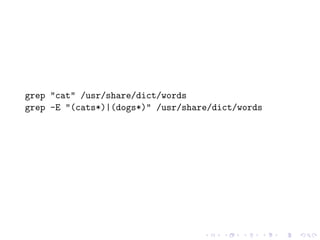

26. grep "cat" /usr/share/dict/words
grep -E "(cats*)|(dogs*)" /usr/share/dict/words

27. Advanced Tools:
Complex Repetition: *, +, ?, {m, n}
Character Classes: [0-9], [a-z]
Special Character Classes: d, w

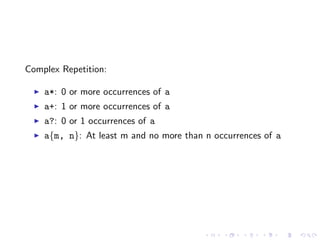

28. Complex Repetition:
a*: 0 or more occurrences of a
a+: 1 or more occurrences of a
a?: 0 or 1 occurrences of a
a{m, n}: At least m and no more than n occurrences of a

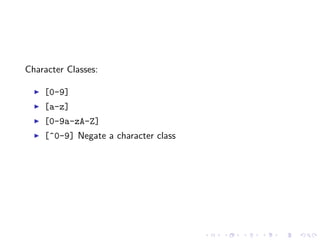

29. Character Classes:
[0-9]
[a-z]
[0-9a-zA-Z]
[^0-9] Negate a character class

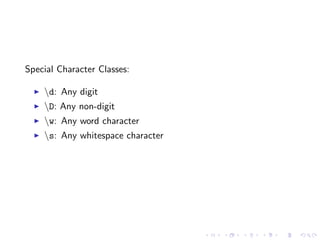

30. Special Character Classes:
d: Any digit
D: Any non-digit
w: Any word character
s: Any whitespace character

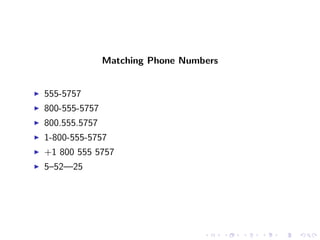

31. Matching Phone Numbers
555-5757
800-555-5757
800.555.5757
1-800-555-5757
+1 800 555 5757
5–52—25

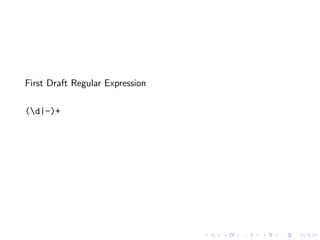

32. First Draft Regular Expression
(d|-)+

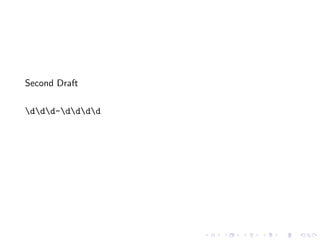

33. Second Draft
ddd-dddd

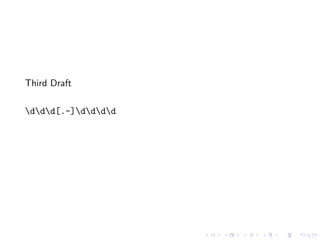

34. Third Draft
ddd[.-]dddd

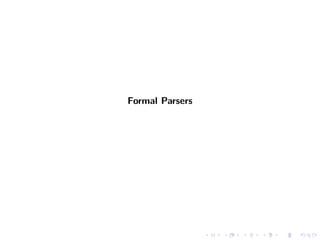

35. Formal Parsers

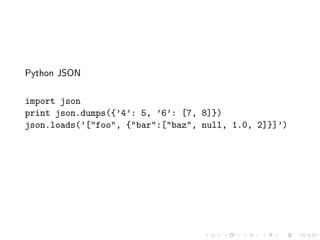

36. Python JSON
import json
print json.dumps({’4’: 5, ’6’: [7, 8]})
json.loads(’["foo", {"bar":["baz", null, 1.0, 2]}]’)

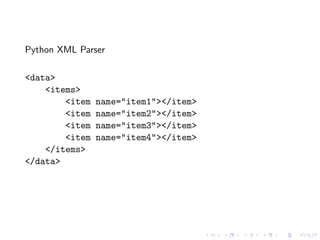

37. Python XML Parser
<data>
<items>
<item name="item1"></item>
<item name="item2"></item>
<item name="item3"></item>
<item name="item4"></item>
</items>
</data>

38. Python XML Parser
from xml.dom import minidom
xmldoc = minidom.parse(’items.xml’)
itemlist = xmldoc.getElementsByTagName(’item’)
print len(itemlist)
print itemlist[0].attributes[’name’].value
for s in itemlist :
print s.attributes[’name’].value

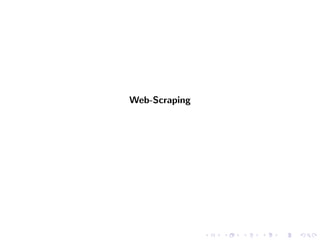

39. Web-Scraping

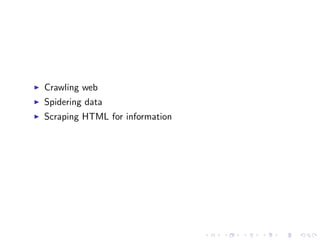

40. Crawling web
Spidering data
Scraping HTML for information

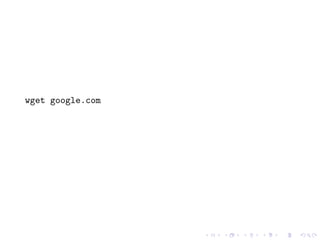

41. wget google.com

42. Developer Console Demo

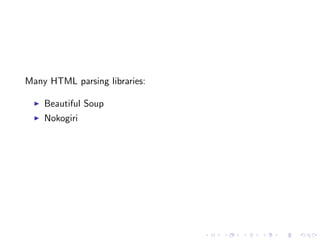

43. Many HTML parsing libraries:
Beautiful Soup
Nokogiri

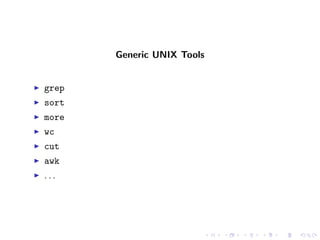

44. Generic UNIX Tools
grep
sort
more
wc
cut
awk
...
