The document discusses ADO.Net Data Services (Astoria) which enables exposing and consuming data as RESTful web services. It provides an overview of creating and hosting data services from various data sources, exploring the services using HTTP and consuming them from various client applications like web and desktop apps. Key concepts covered are entity data model, OData protocol, CRUD operations, querying and various client libraries.

1. ADO.Net Data Services Astoria Enabling your data for Web consumption Igor Moochnick IgorShare Consulting [email_address] Blog: www.igorshare.com/blog

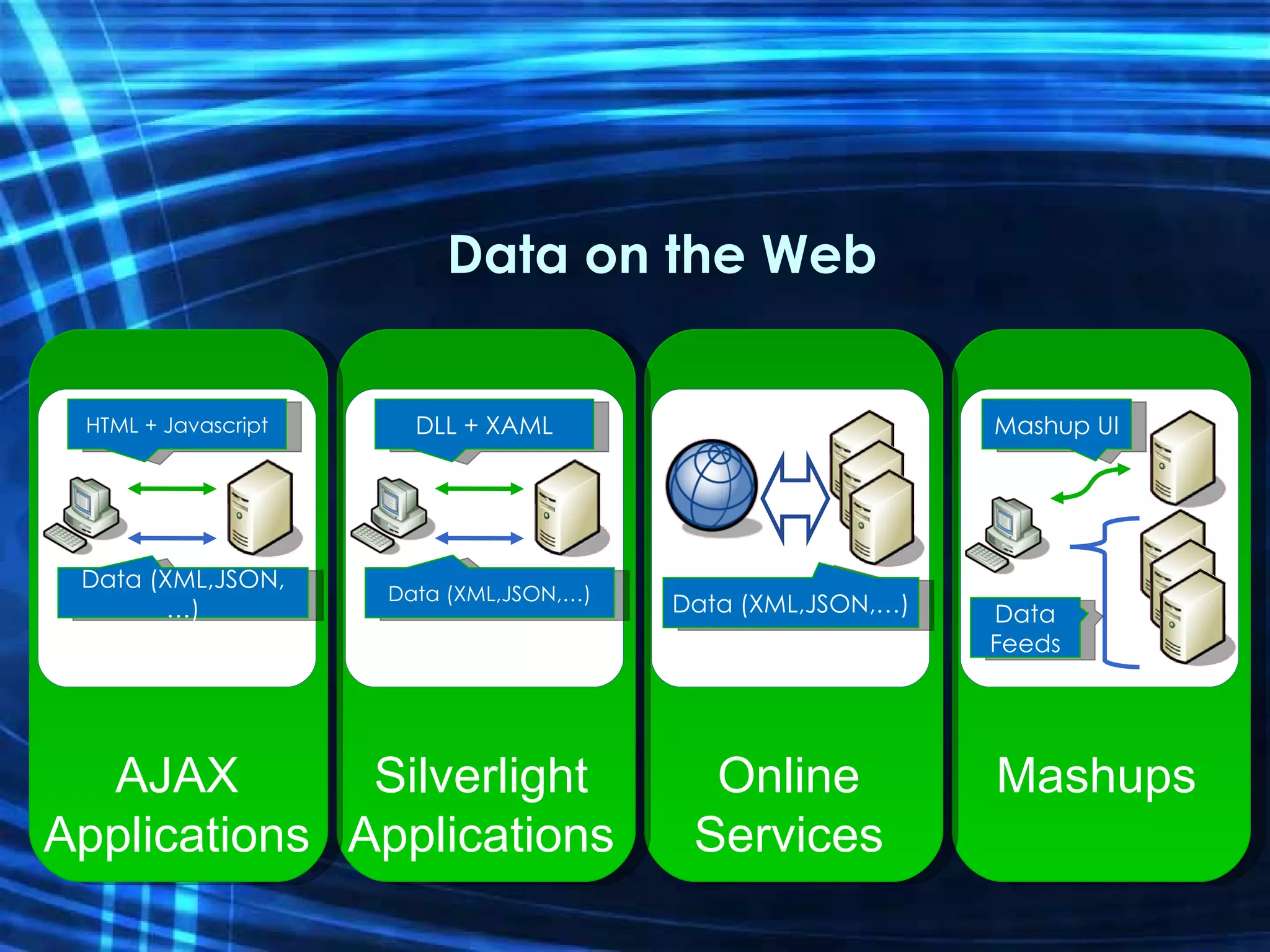

2. Data on the Web HTML + Javascript Data (XML,JSON,…) DLL + XAML Data (XML,JSON,…) Data (XML,JSON,…) Mashup UI Data Feeds AJAX Applications Silverlight Applications Online Services Mashups

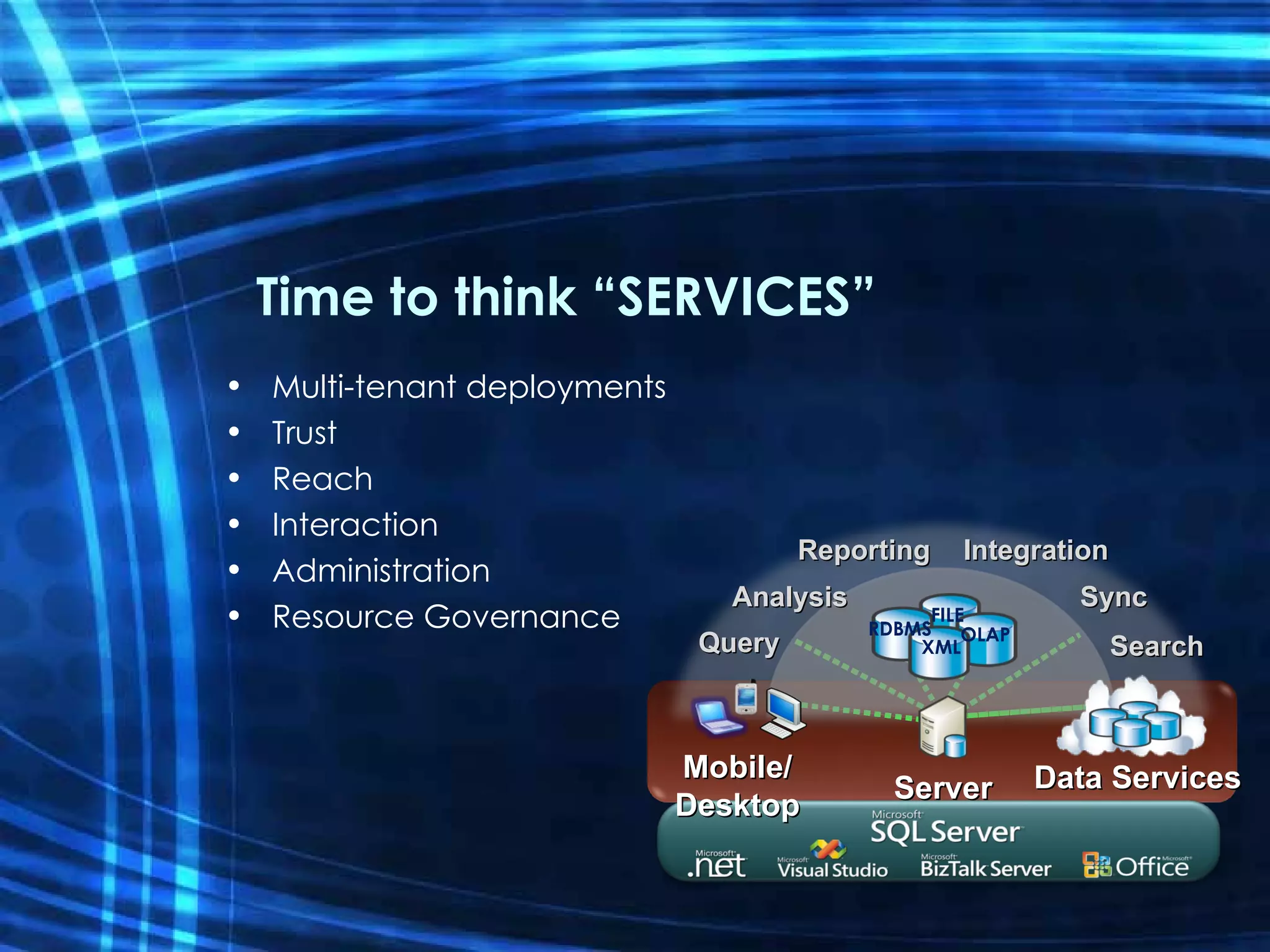

3. Time to think “SERVICES” Multi-tenant deployments Trust Reach Interaction Administration Resource Governance Mobile/ Desktop OLAP FILE XML RDBMS Query Analysis Reporting Integration Sync Search Server Data Services

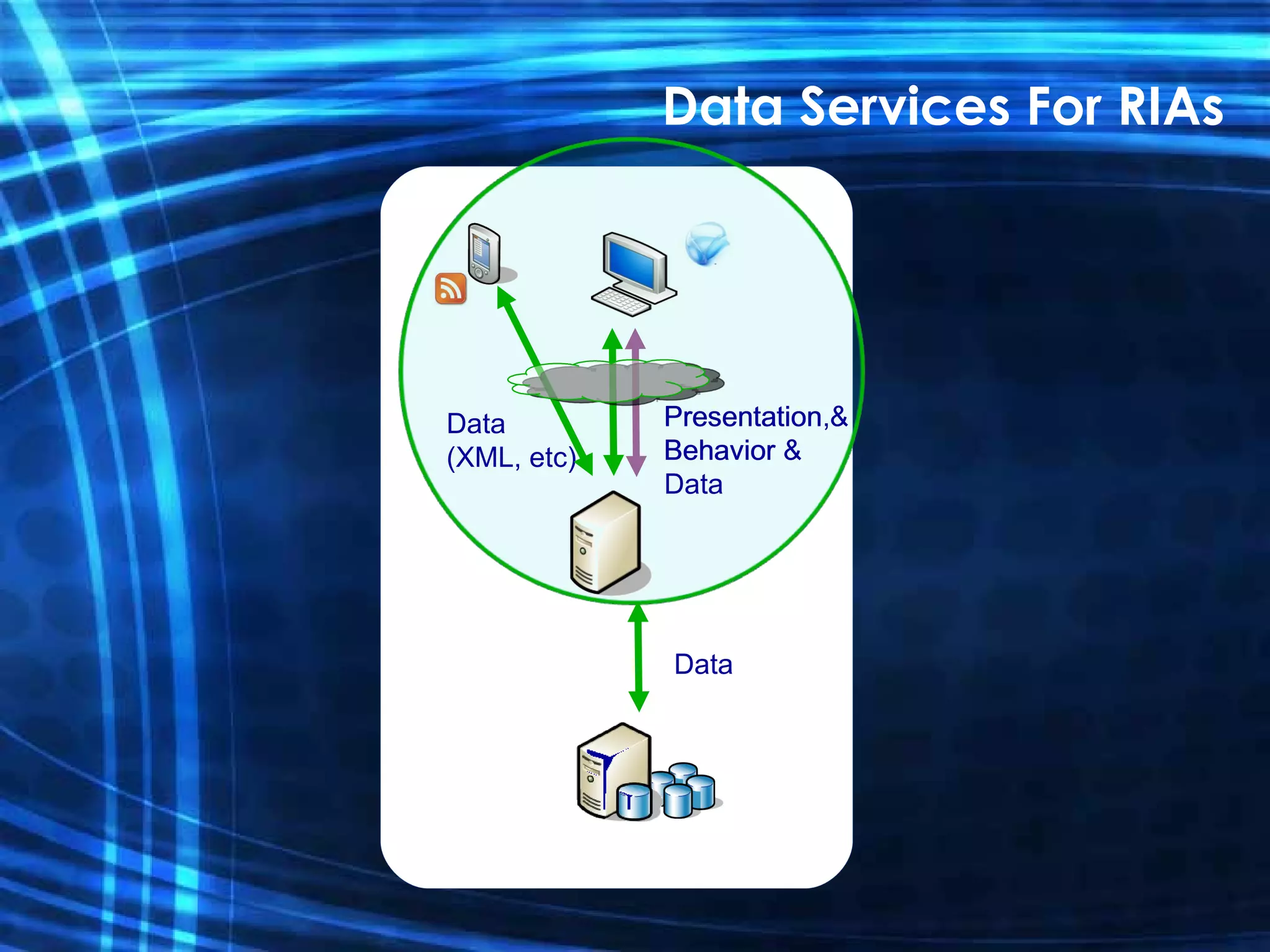

4. Data Services For RIAs Presentation & Behavior Data (XML, etc) Data Presentation, Behavior & Data

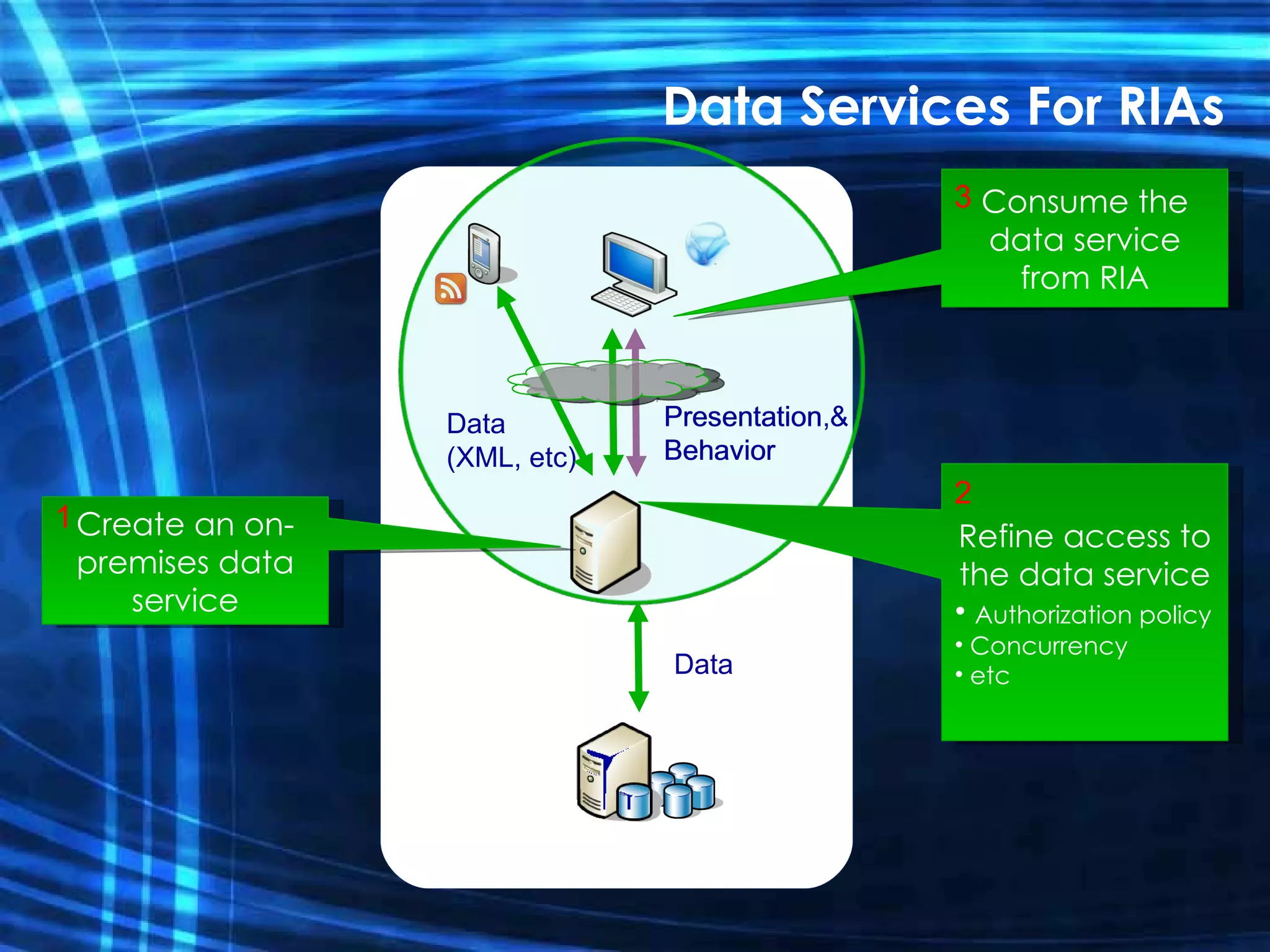

5. Presentation & Behavior Data (XML, etc) Data Presentation, Behavior Data Services For RIAs Create an on- premises data service 1 Consume the data service from RIA 3 Refine access to the data service Authorization policy Concurrency etc 2

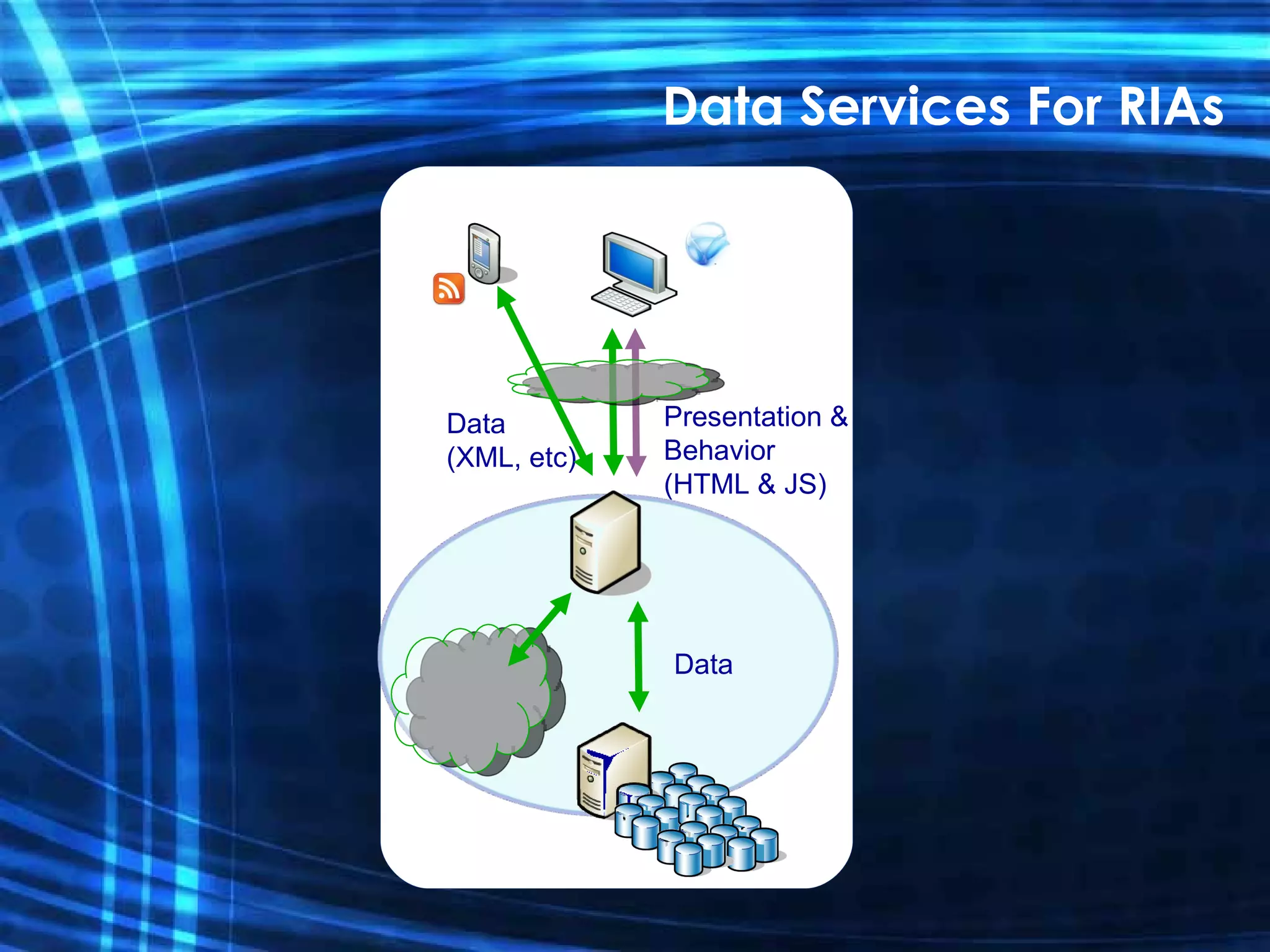

6. Presentation & Behavior (HTML & JS) Data (XML, etc) Data Data Services For RIAs

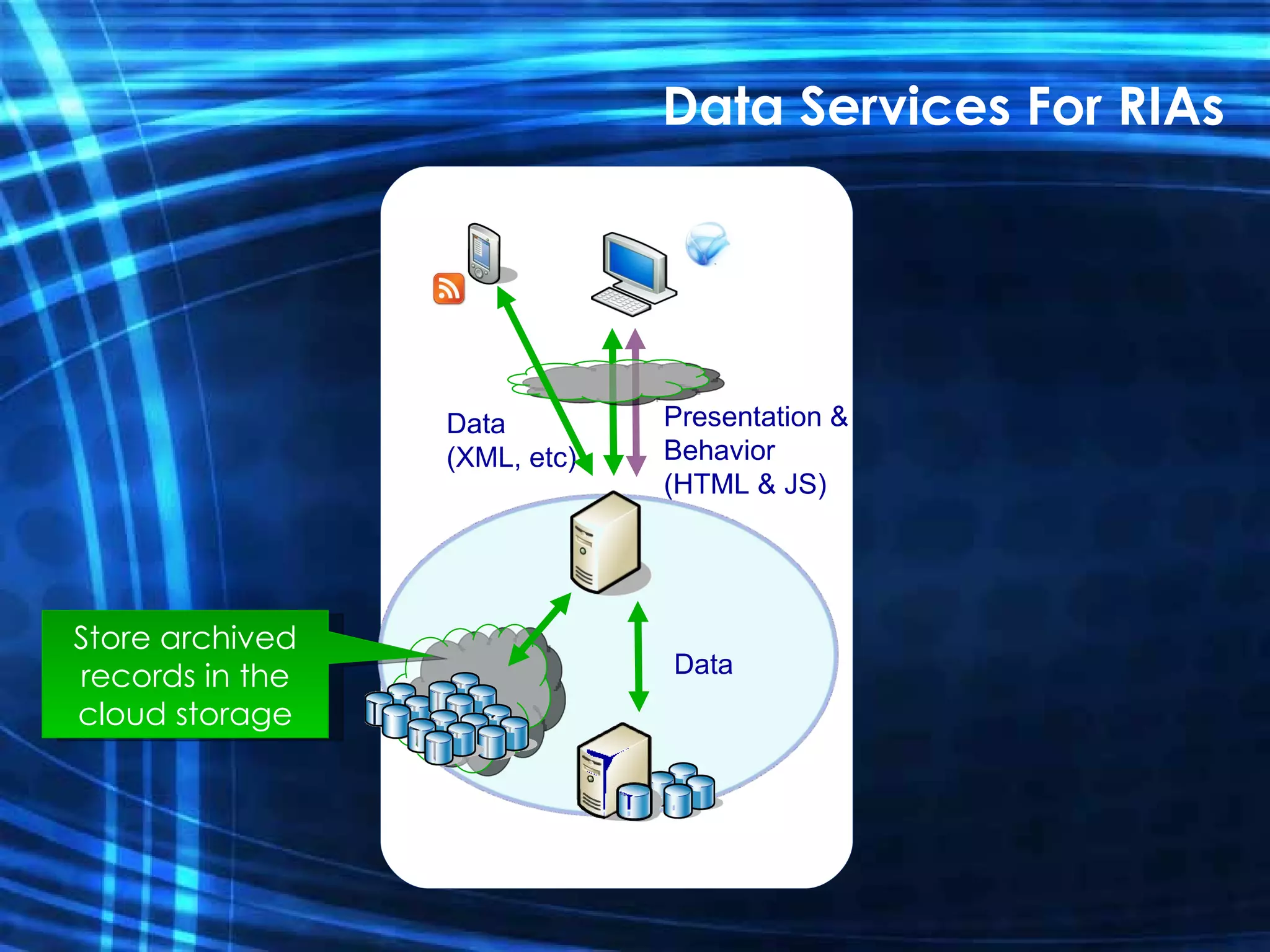

7. Presentation & Behavior (HTML & JS) Data (XML, etc) Data Store archived records in the cloud storage Data Services For RIAs

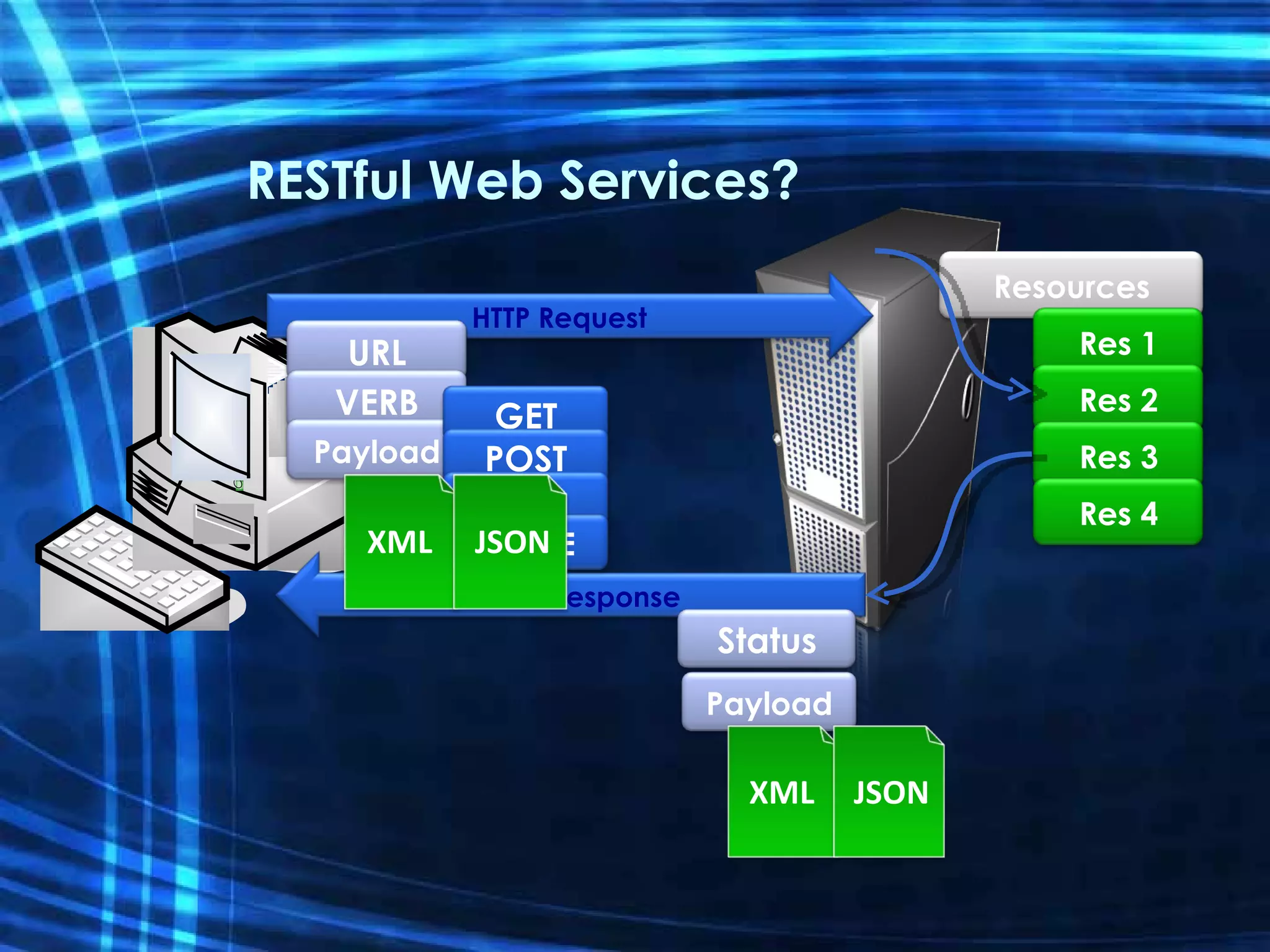

8. RESTful Web Services? Resources Res 1 Res 2 Res 3 Res 4 HTTP Request URL VERB Payload HTTP Response Status GET POST PUT DELETE XML JSON Payload XML JSON

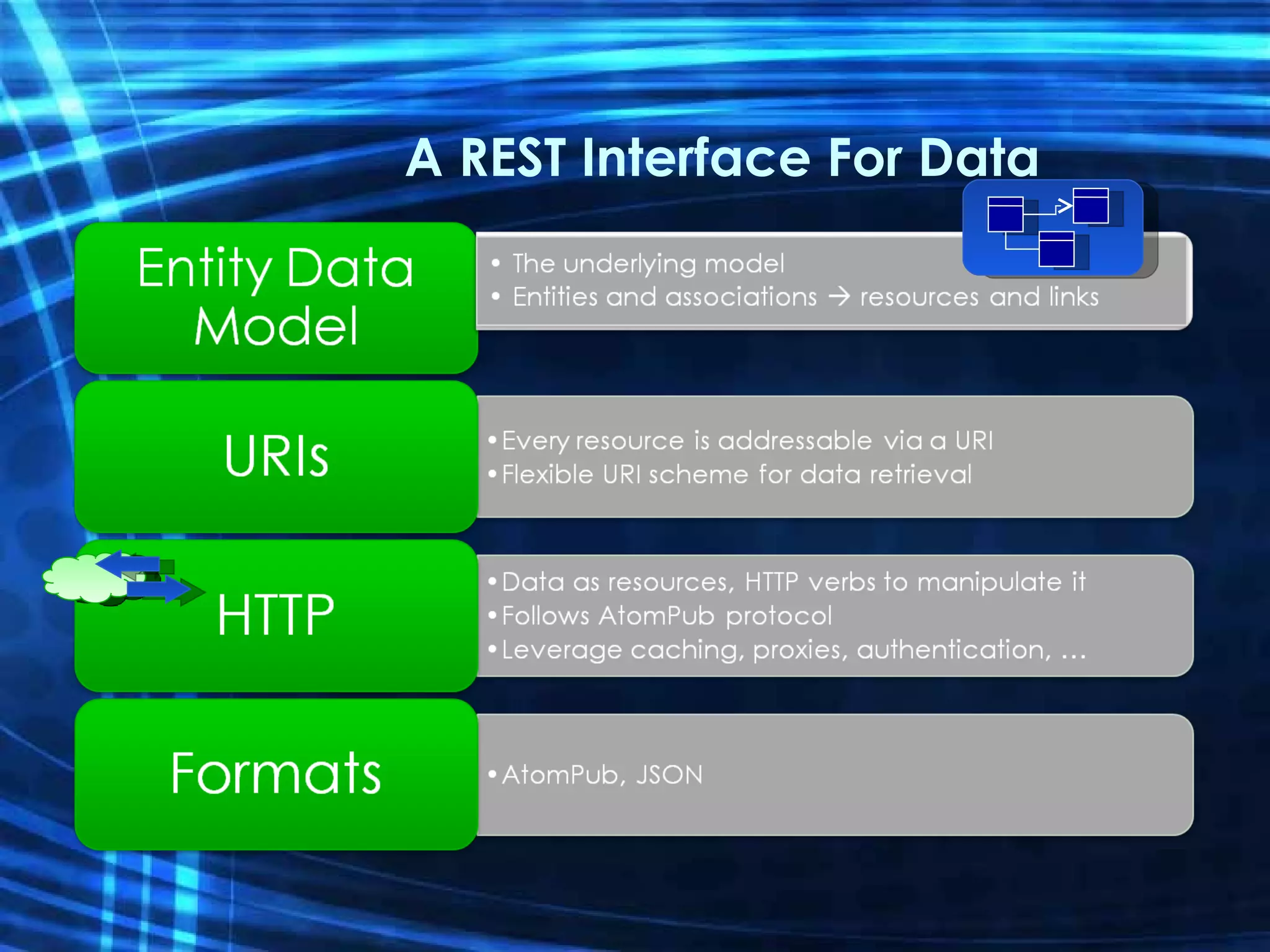

9. A REST Interface For Data

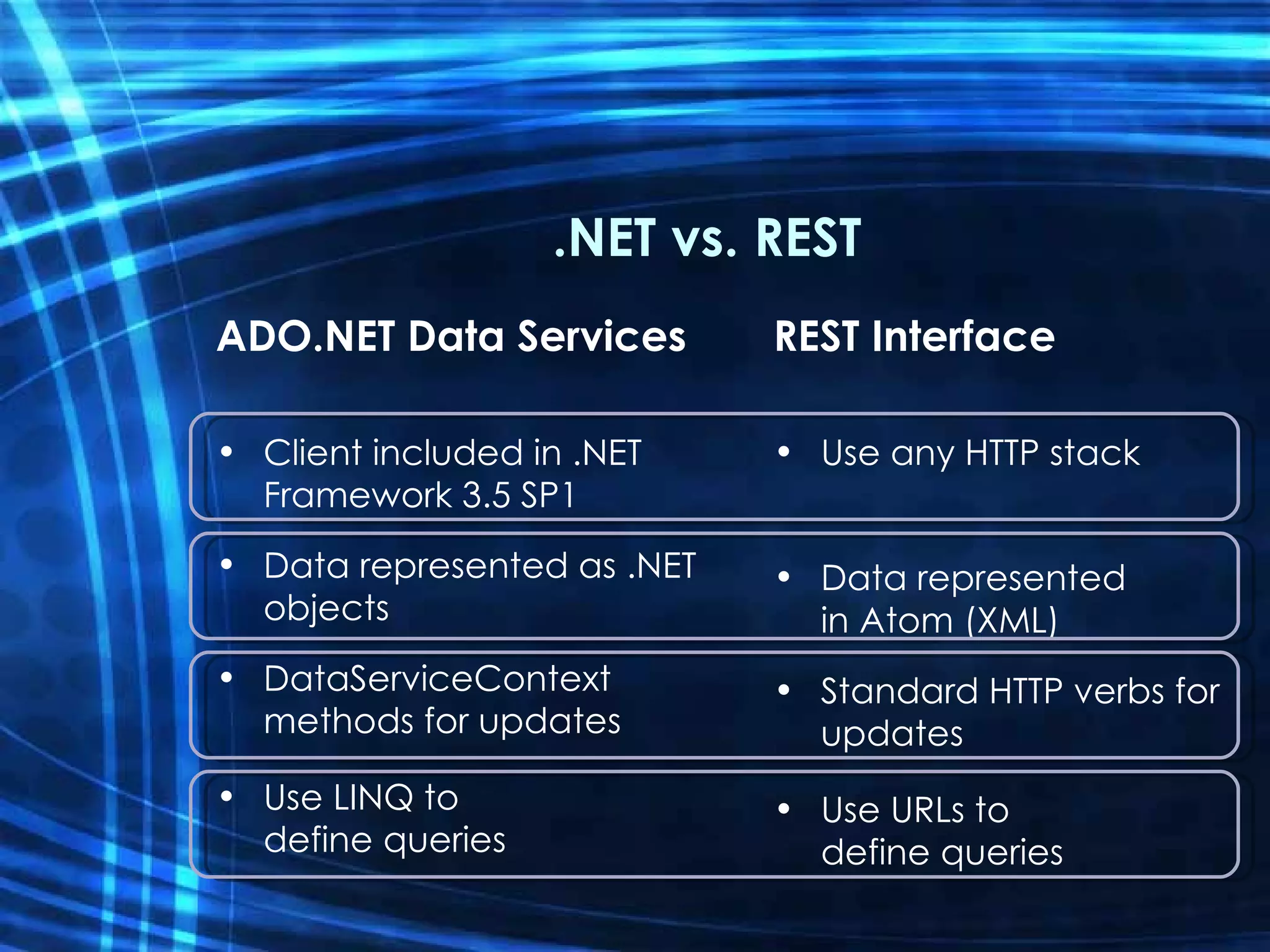

10. .NET vs. REST ADO.NET Data Services Client included in .NET Framework 3.5 SP1 Data represented as .NET objects DataServiceContext methods for updates Use LINQ to define queries REST Interface Use any HTTP stack Data represented in Atom (XML) Standard HTTP verbs for updates Use URLs to define queries

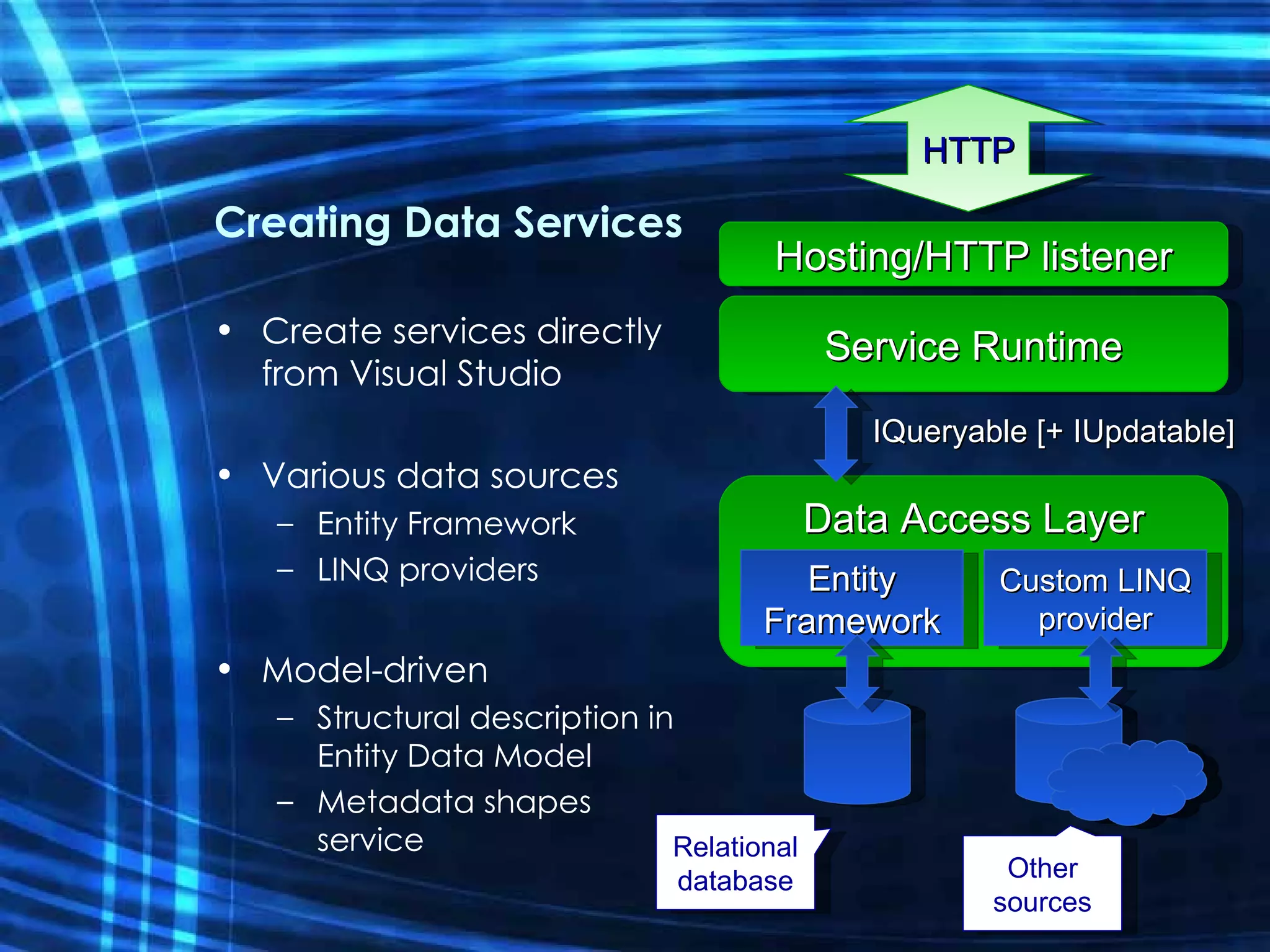

11. Creating Data Services Create services directly from Visual Studio Various data sources Entity Framework LINQ providers Model-driven Structural description in Entity Data Model Metadata shapes service Data Access Layer Entity Framework Custom LINQ provider Relational database Other sources Service Runtime Hosting/HTTP listener HTTP IQueryable [+ IUpdatable]

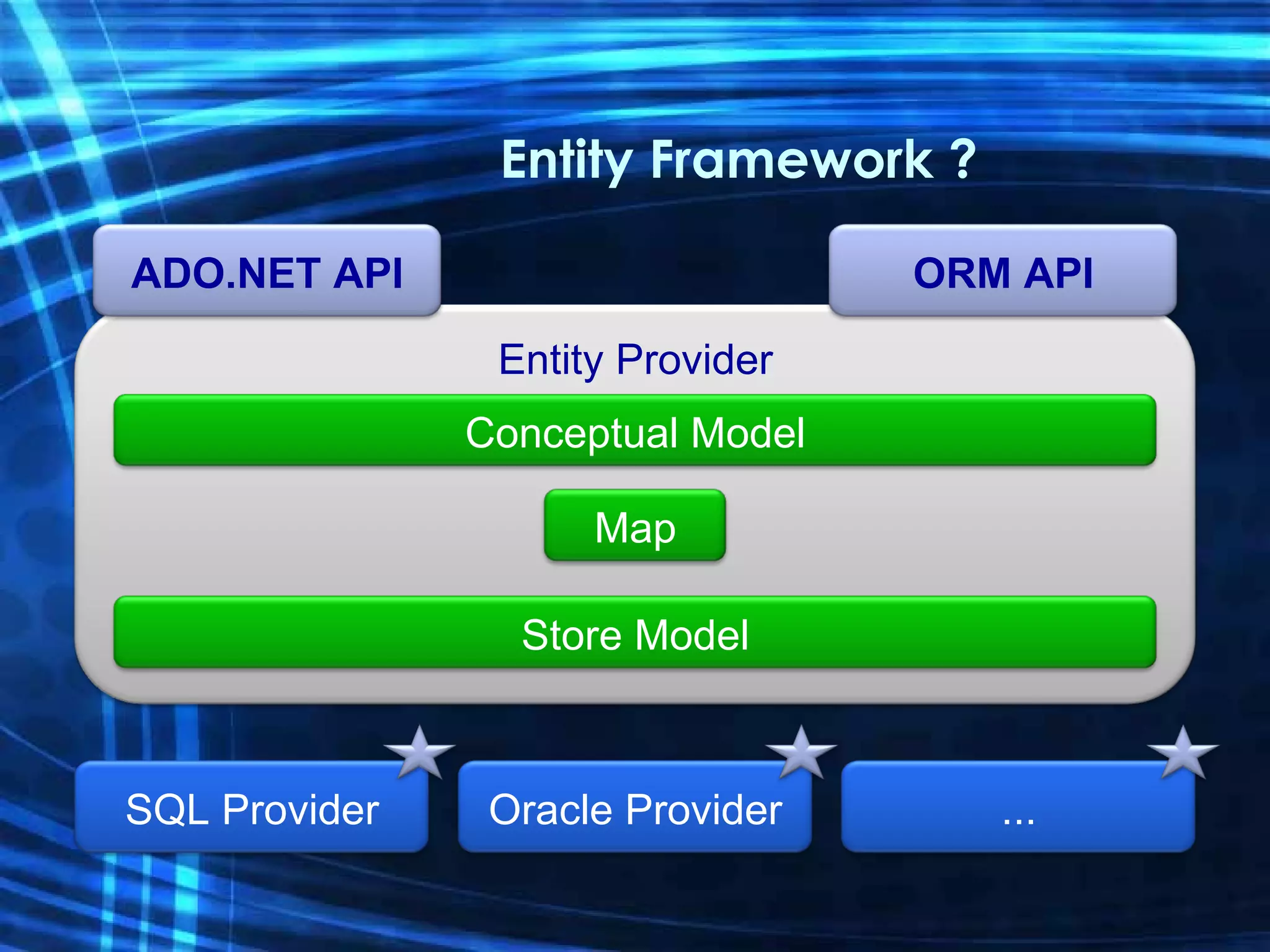

12. Entity Framework ? SQL Provider Oracle Provider ... Entity Provider Conceptual Model Store Model Map ADO.NET API ORM API

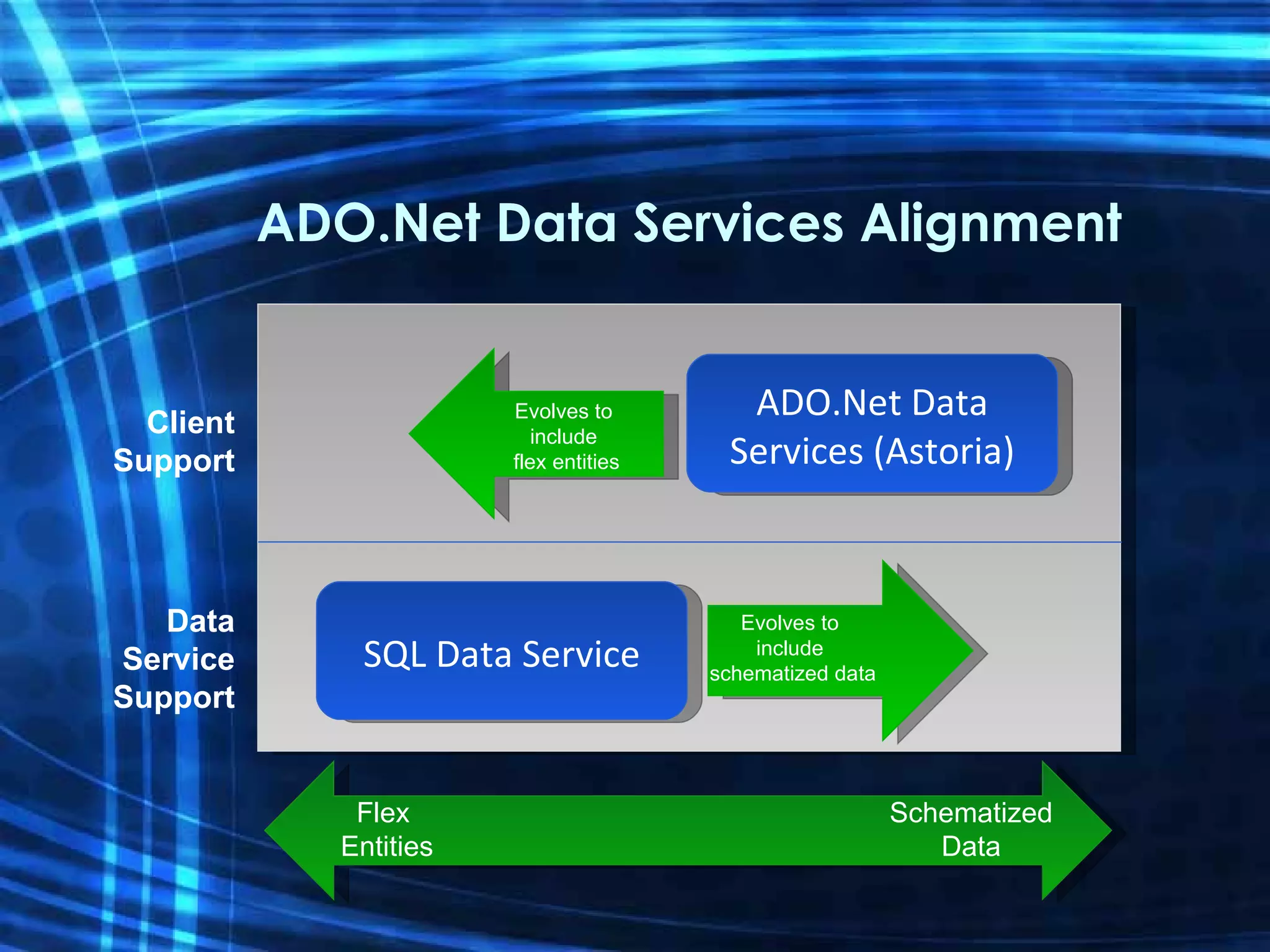

13. ADO.Net Data Services Alignment Data Service Support Client Support ADO.Net Data Services (Astoria) SQL Data Service Evolves to include flex entities Evolves to include schematized data Schematized Data Flex Entities

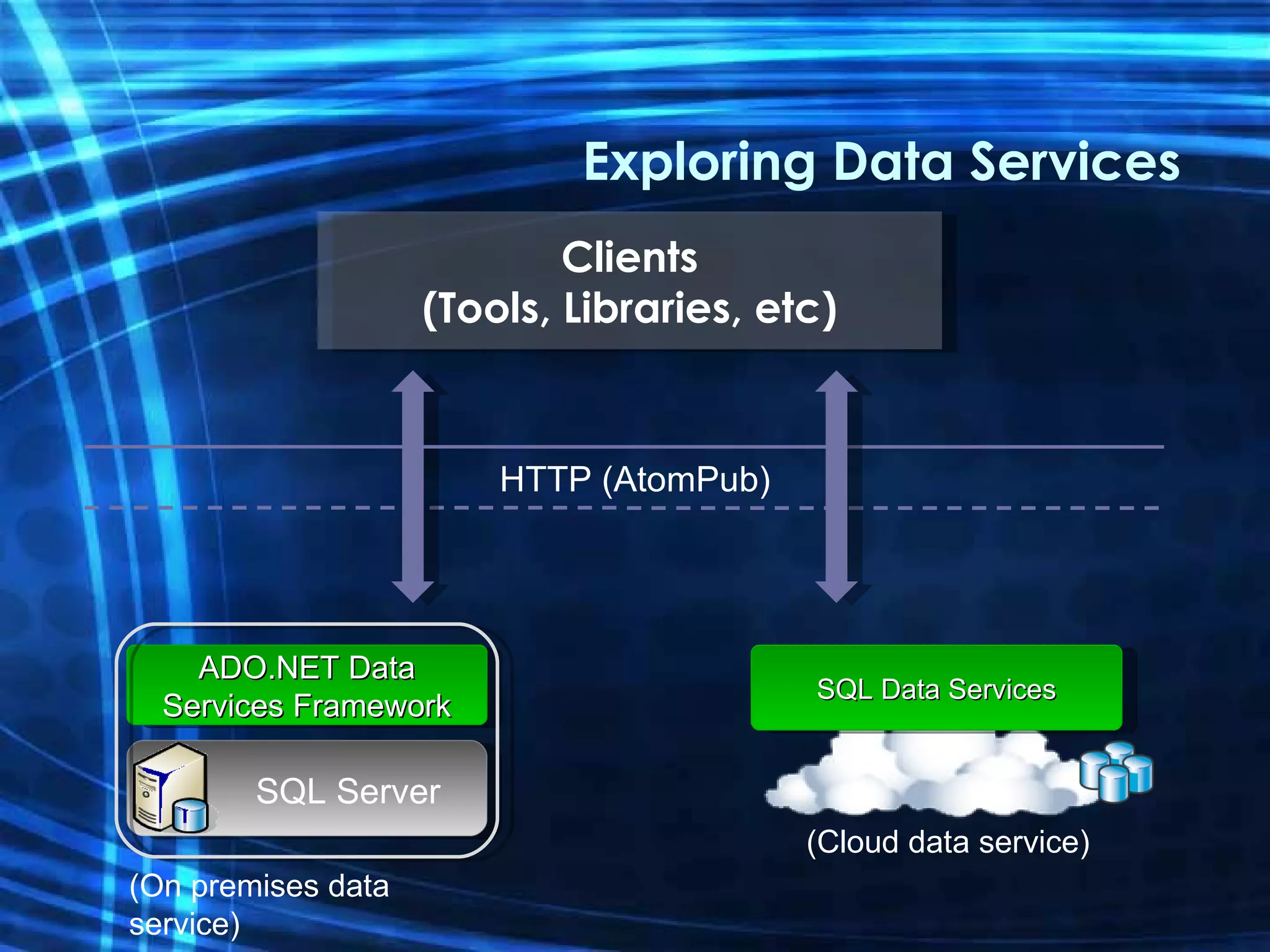

14. Exploring Data Services HTTP (AtomPub) Clients (Tools, Libraries, etc) SQL Data Services ADO.NET Data Services Framework SQL Server (On premises data service) (Cloud data service)

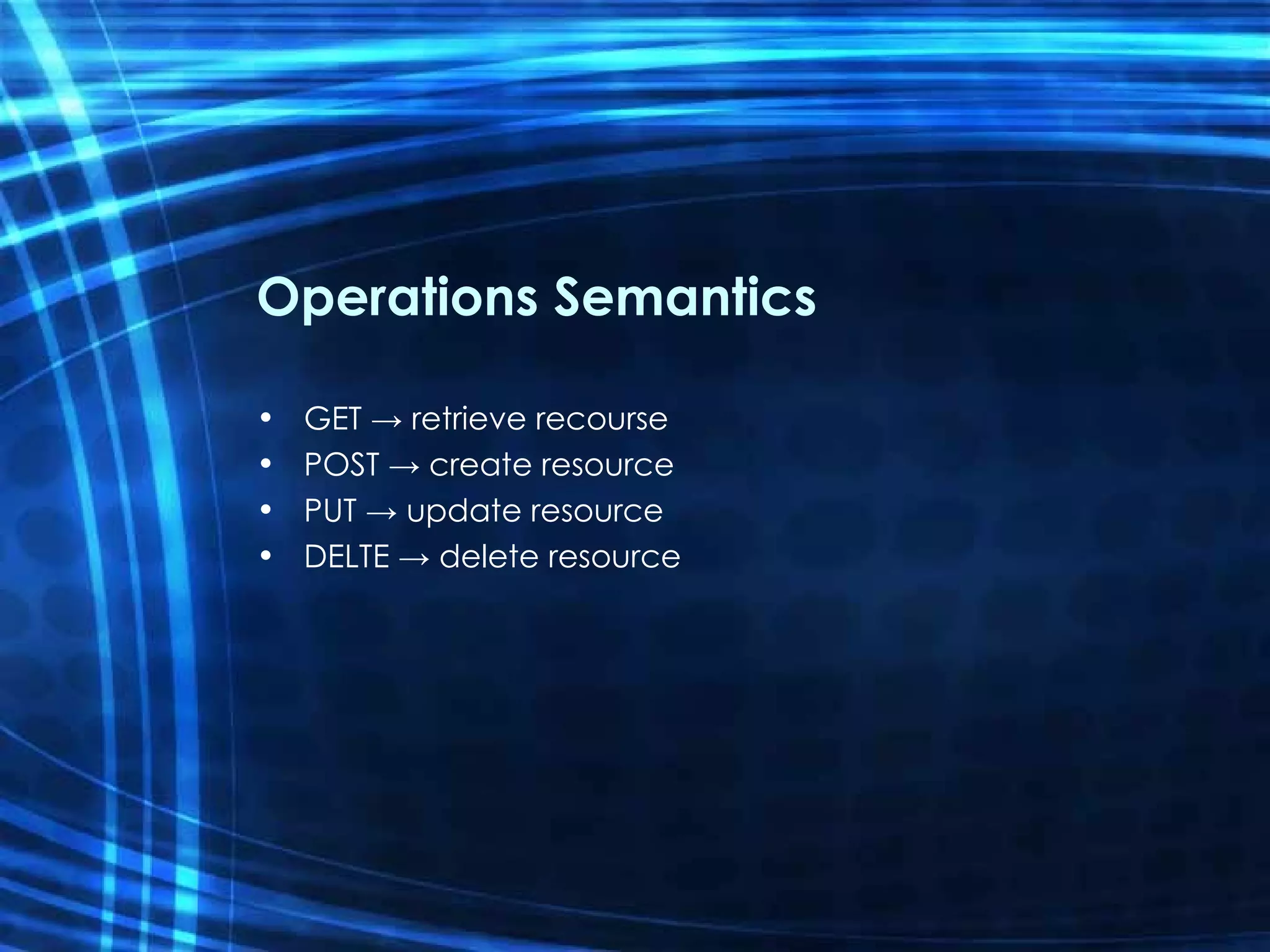

15. Operations Semantics GET -> retrieve recourse POST -> create resource PUT -> update resource DELTE -> delete resource

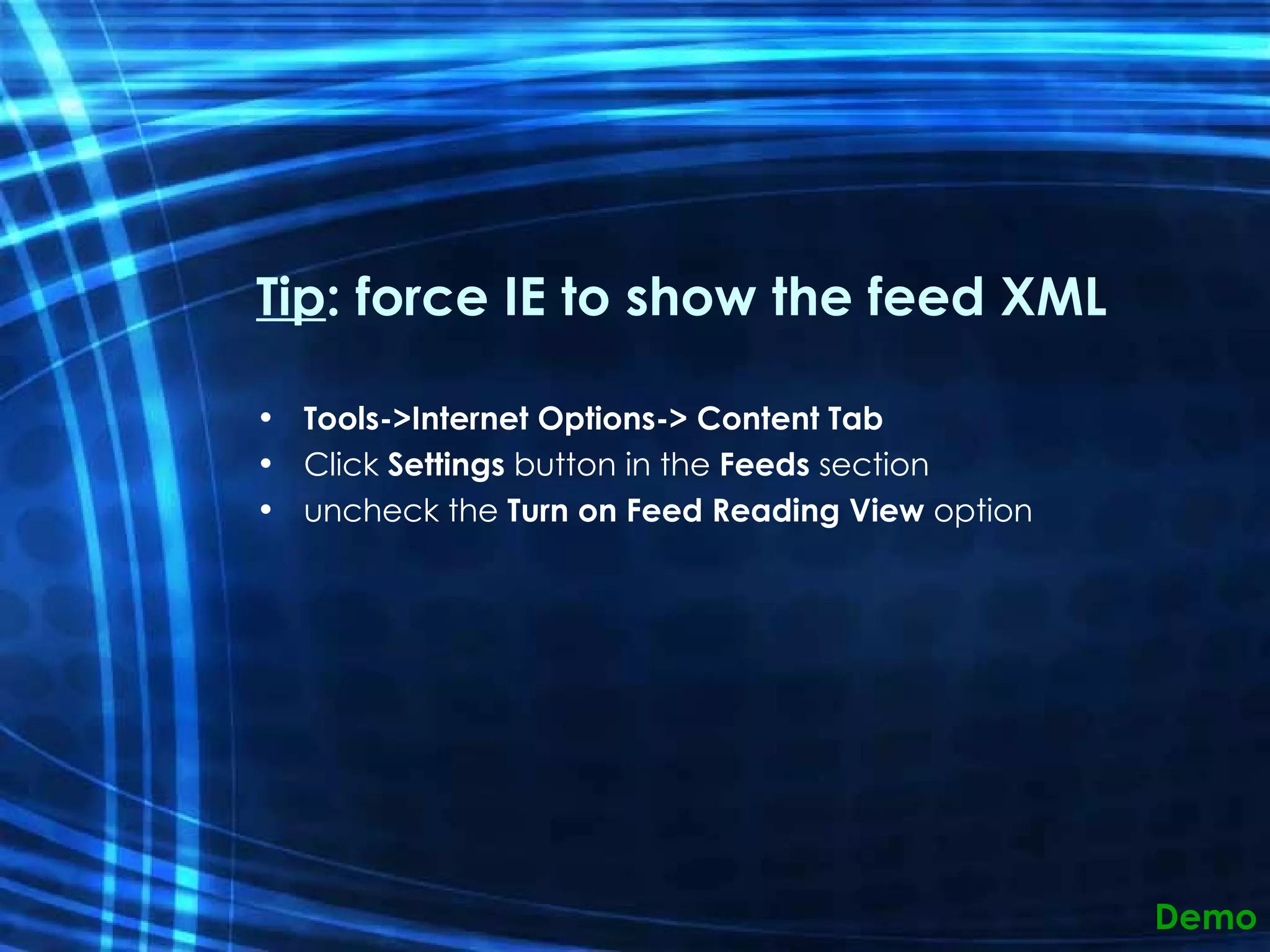

16. Tip : force IE to show the feed XML Tools->Internet Options-> Content Tab Click Settings button in the Feeds section uncheck the Turn on Feed Reading View option Demo

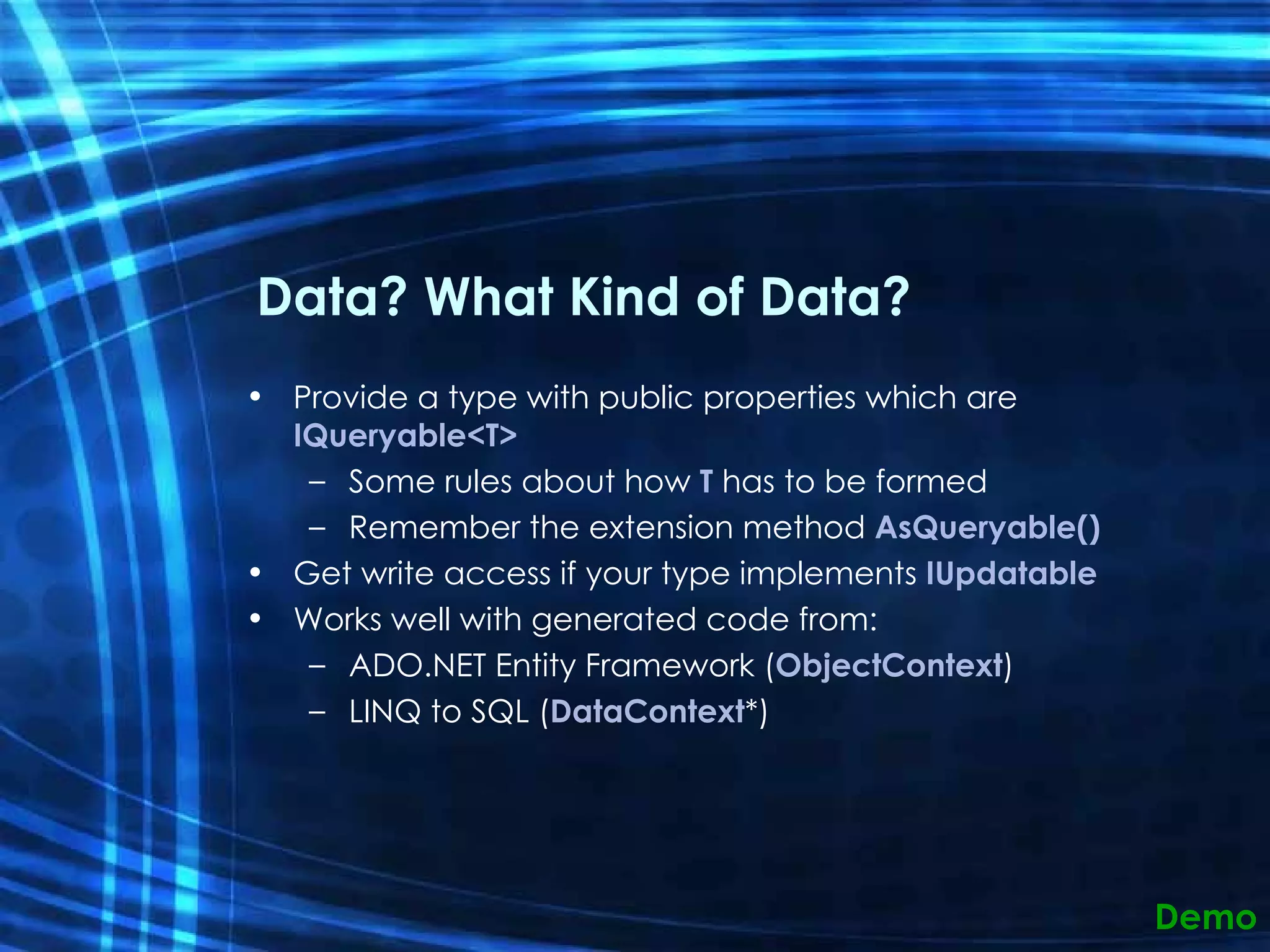

17. Data? What Kind of Data? Provide a type with public properties which are IQueryable<T> Some rules about how T has to be formed Remember the extension method AsQueryable() Get write access if your type implements IUpdatable Works well with generated code from: ADO.NET Entity Framework ( ObjectContext ) LINQ to SQL ( DataContext *) Demo

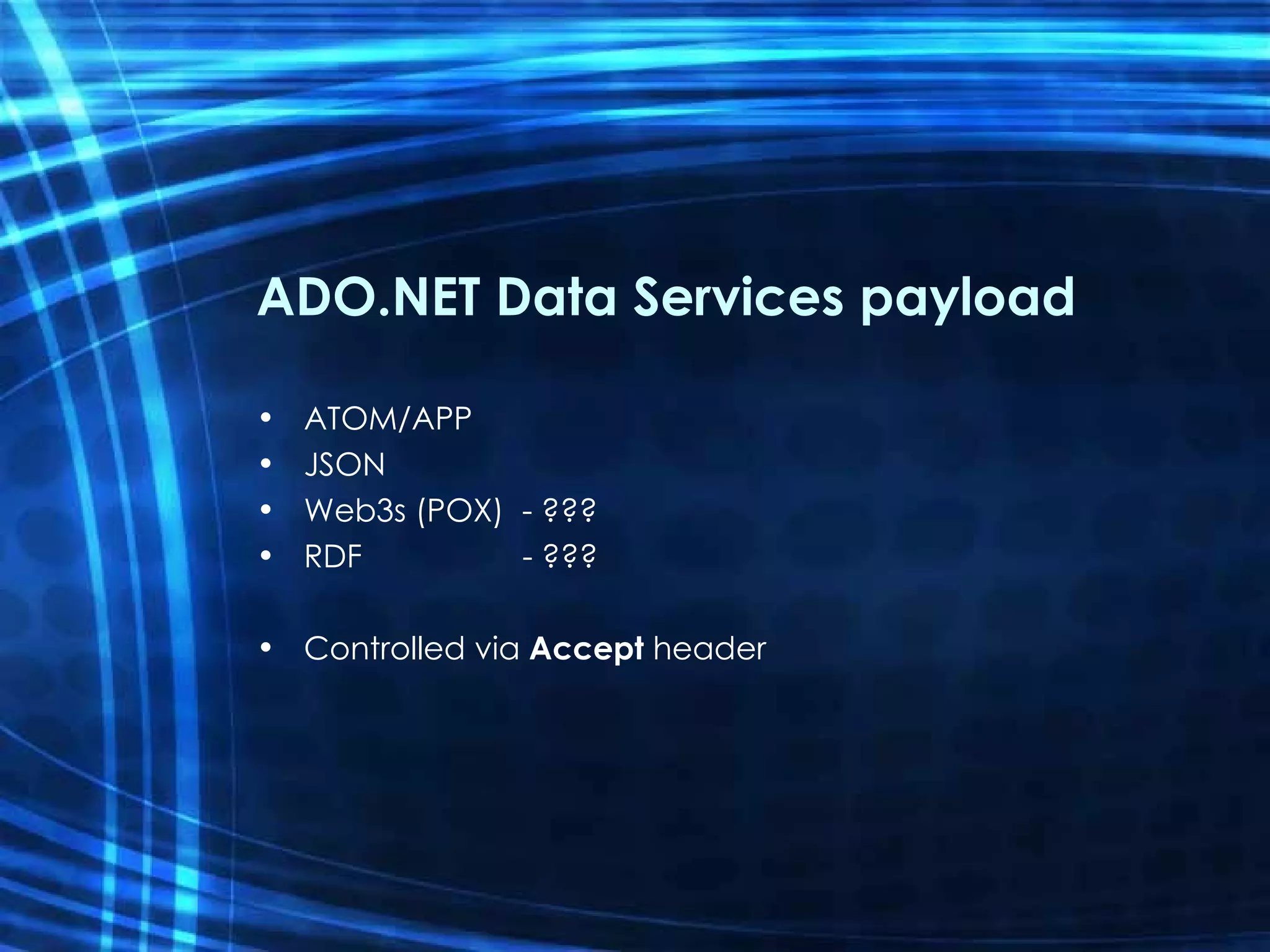

18. ADO.NET Data Services payload ATOM/APP JSON Web3s (POX) - ??? RDF - ??? Controlled via Accept header

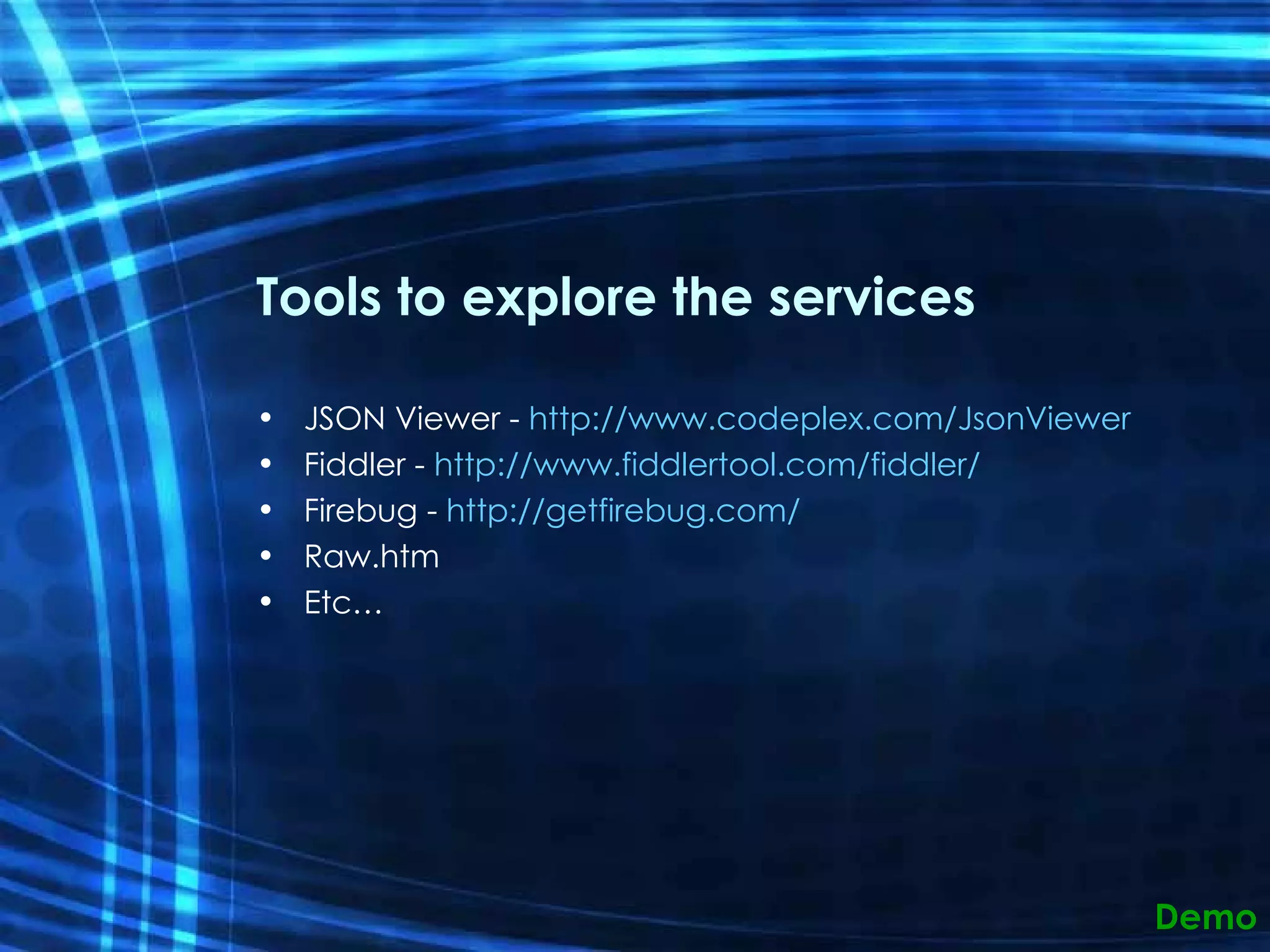

19. Tools to explore the services JSON Viewer - http://www.codeplex.com/JsonViewer Fiddler - http://www.fiddlertool.com/fiddler/ Firebug - http://getfirebug.com/ Raw.htm Etc… Demo

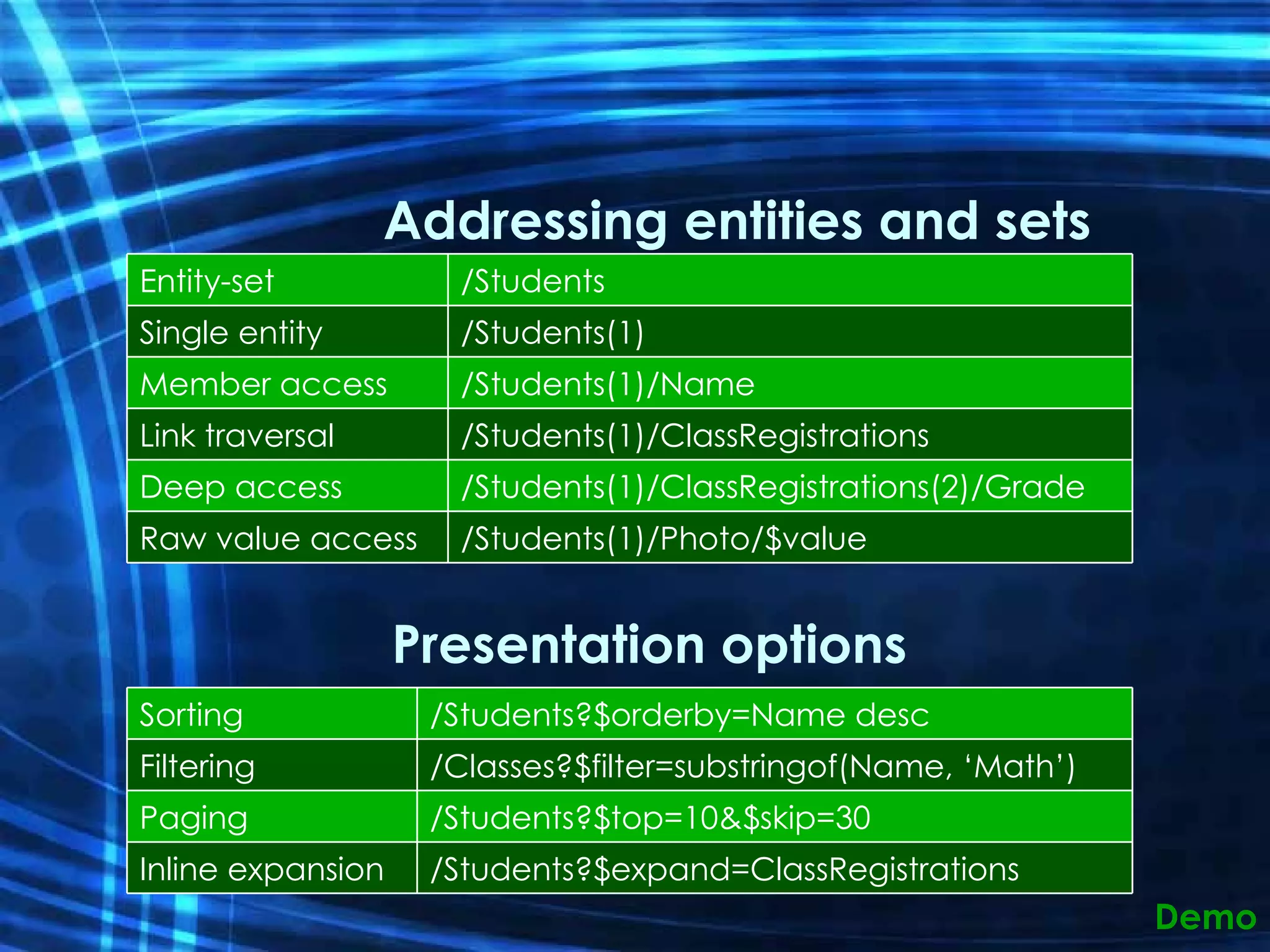

20. URL Conventions Addressing entities and sets Presentation options Demo Entity-set /Students Single entity /Students(1) Member access /Students(1)/Name Link traversal /Students(1)/ClassRegistrations Deep access /Students(1)/ClassRegistrations(2)/Grade Raw value access /Students(1)/Photo/$value Sorting /Students?$orderby=Name desc Filtering /Classes?$filter=substringof(Name, ‘Math’) Paging /Students?$top=10&$skip=30 Inline expansion /Students?$expand=ClassRegistrations

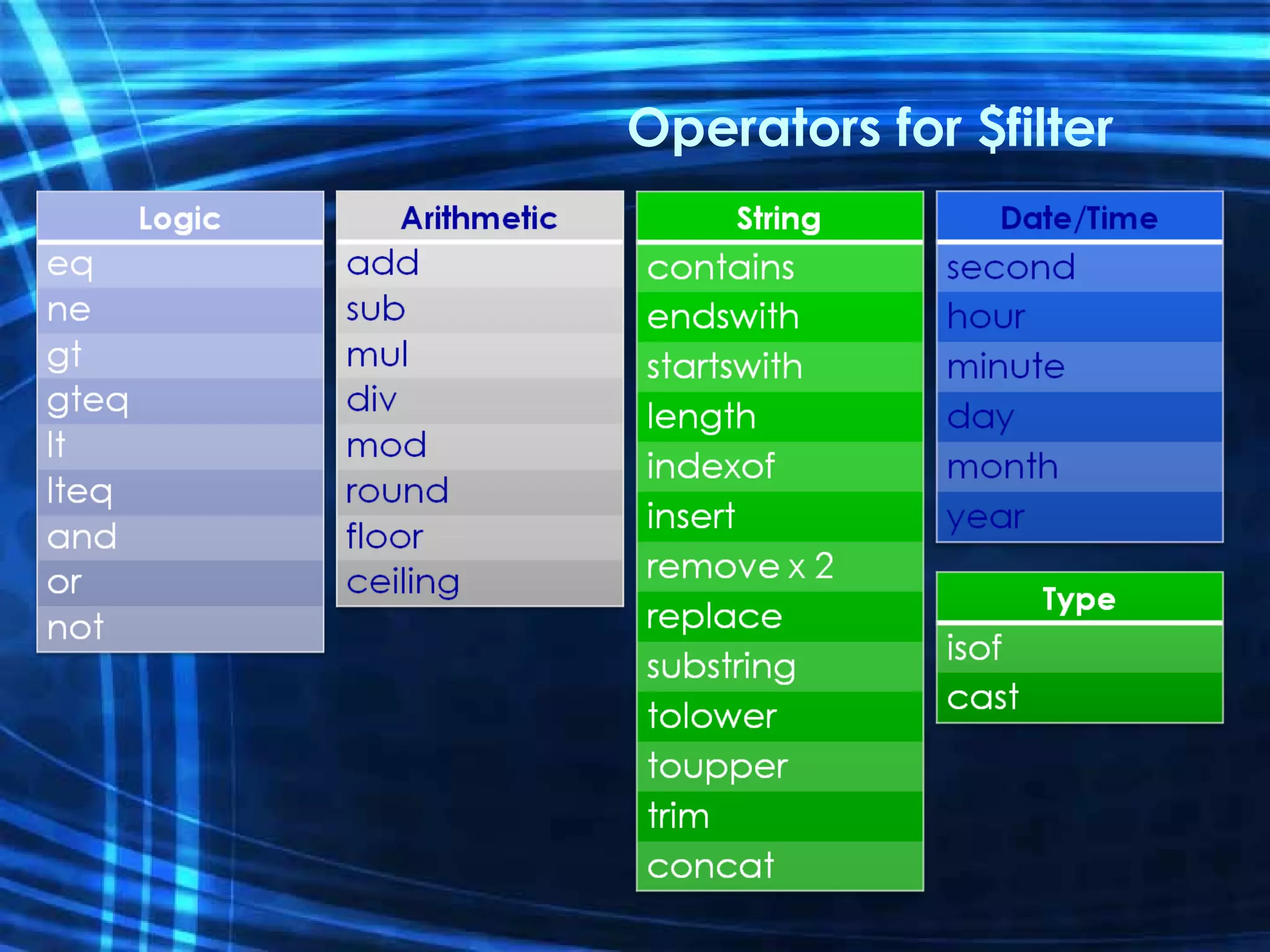

21. Operators for $filter

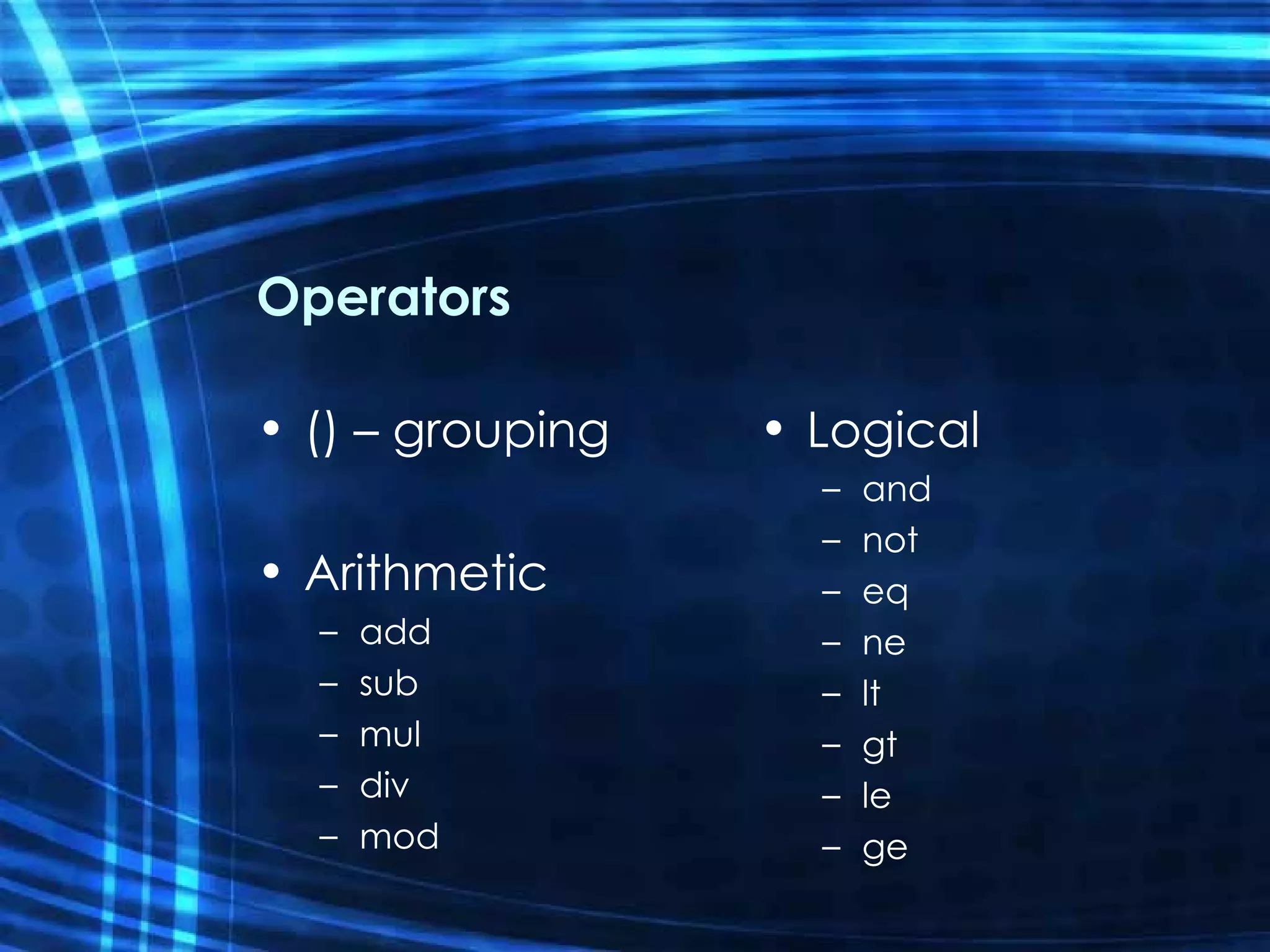

22. Operators () – grouping Arithmetic add sub mul div mod Logical and not eq ne lt gt le ge

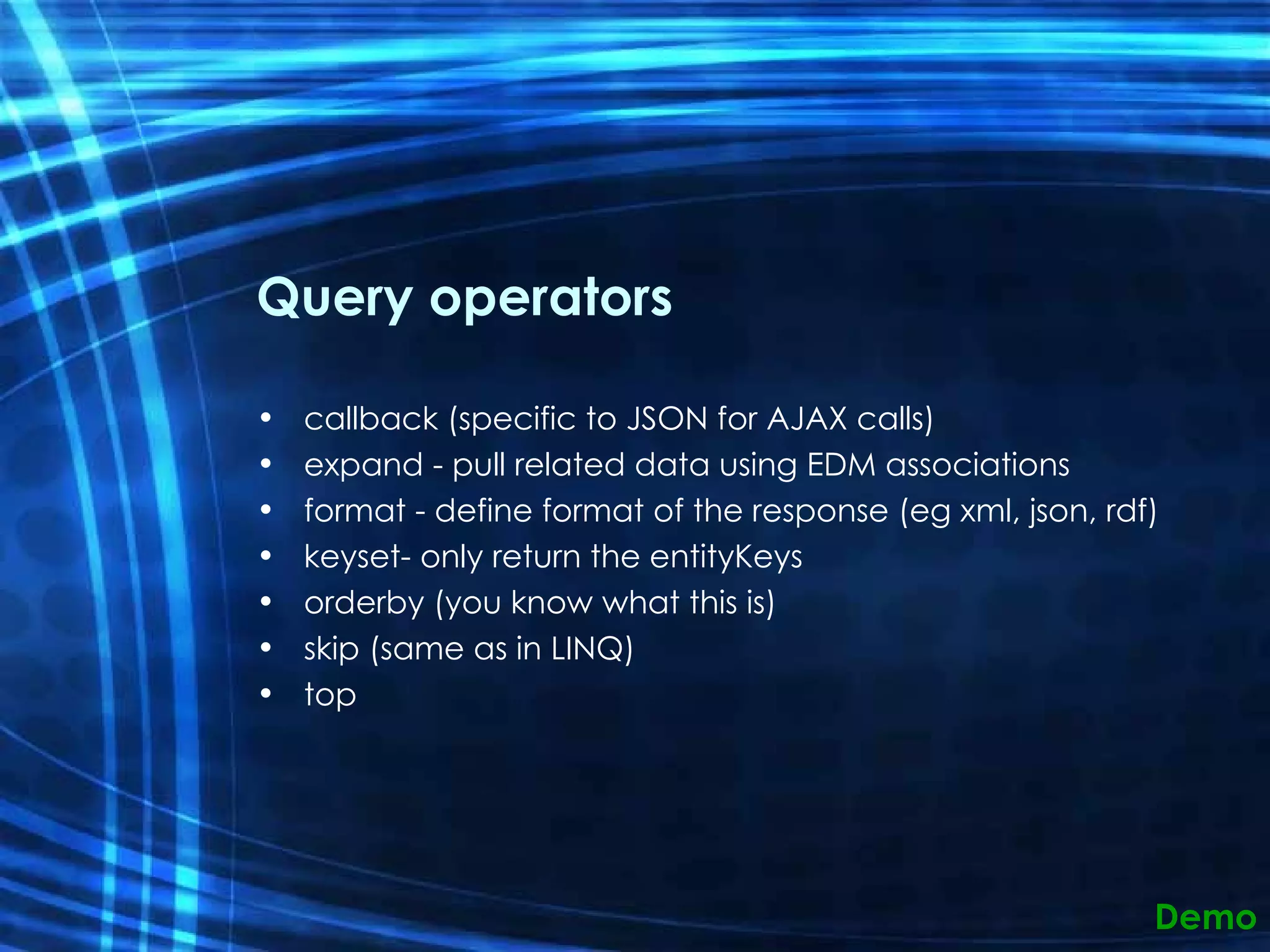

23. Query operators callback (specific to JSON for AJAX calls) expand - pull related data using EDM associations format - define format of the response (eg xml, json, rdf) keyset- only return the entityKeys orderby (you know what this is) skip (same as in LINQ) top Demo

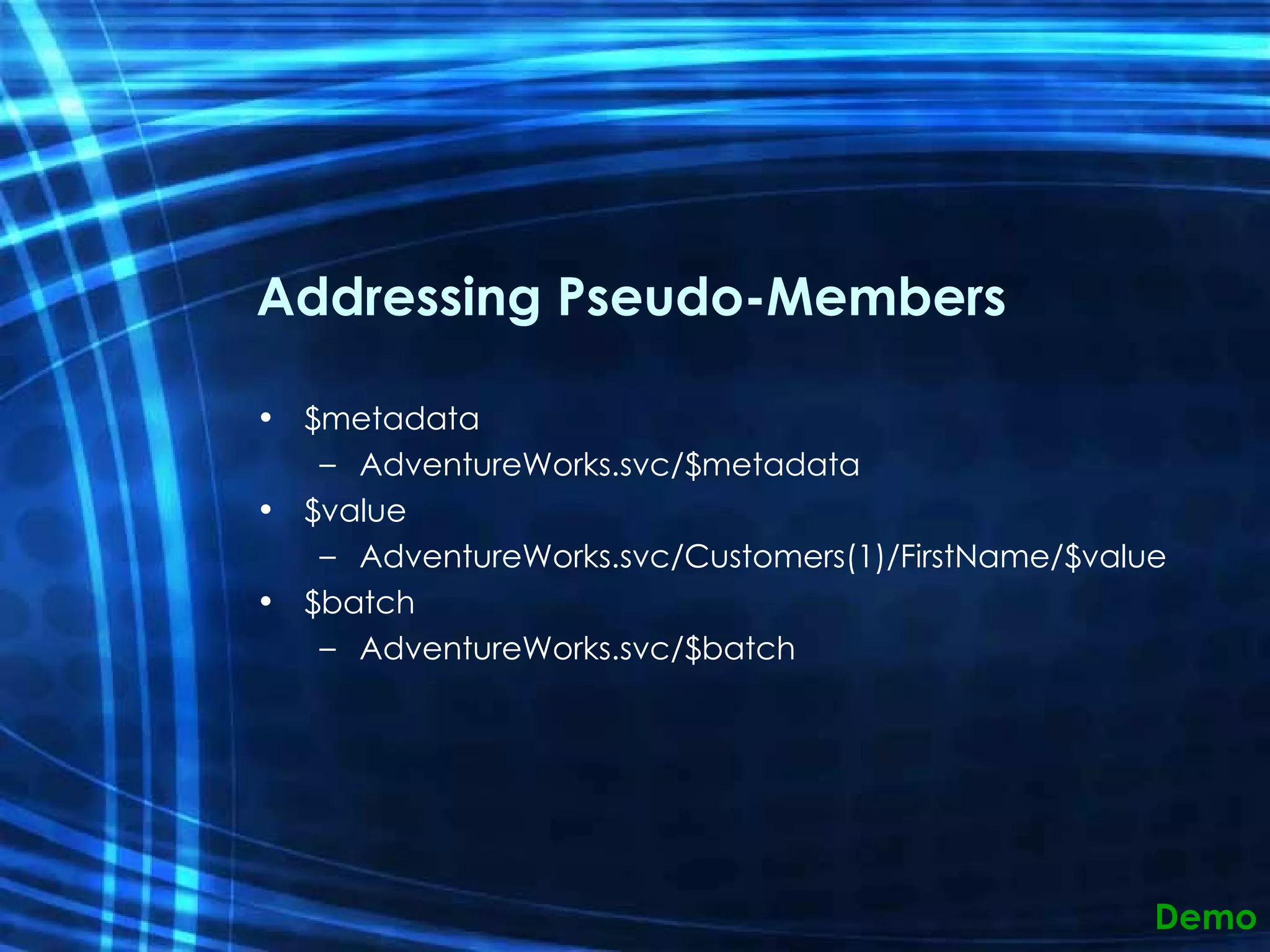

24. Addressing Pseudo-Members $metadata AdventureWorks.svc/$metadata $value AdventureWorks.svc/Customers(1)/FirstName/$value $batch AdventureWorks.svc/$batch Demo

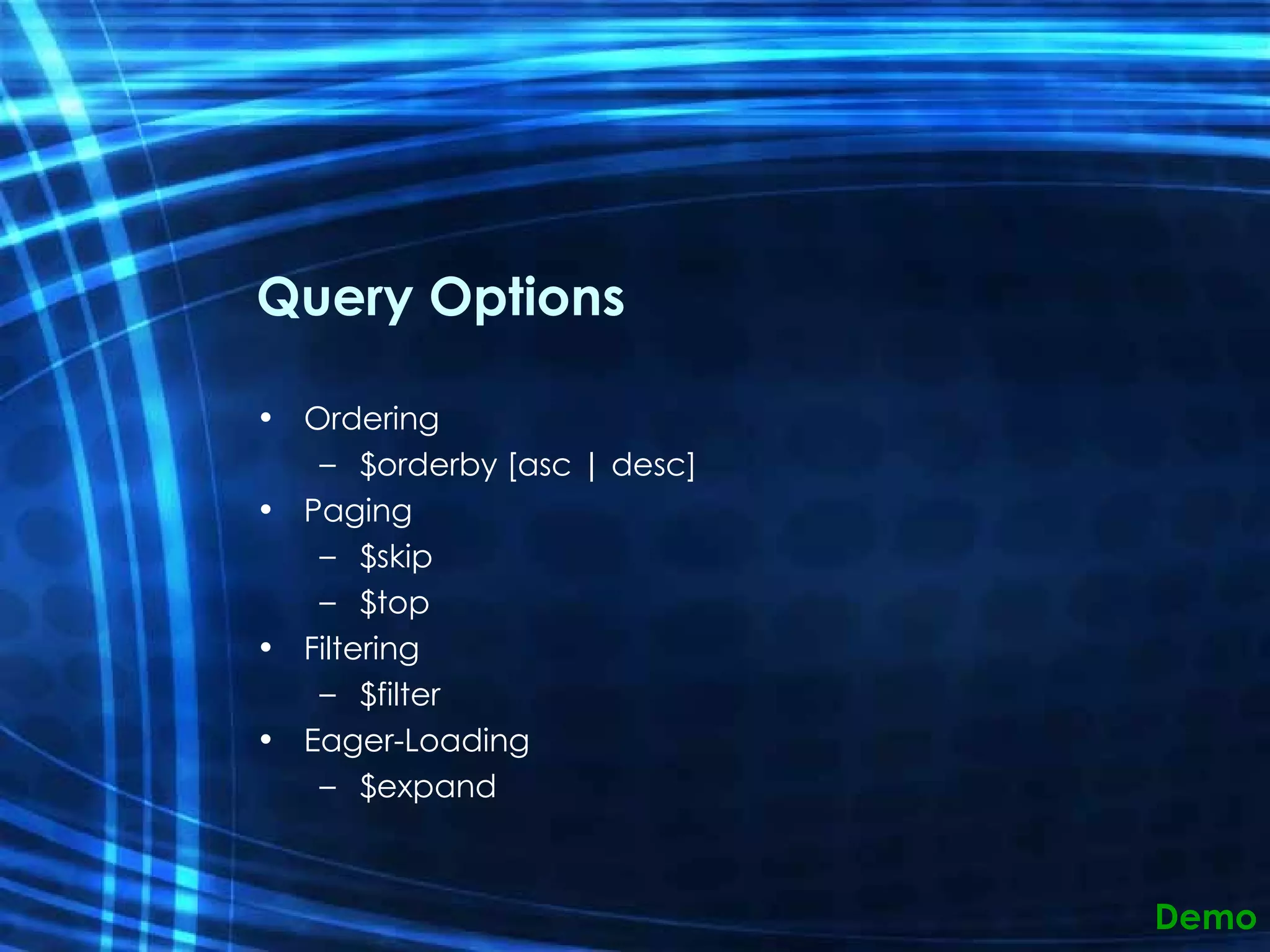

25. Query Options Ordering $orderby [asc | desc] Paging $skip $top Filtering $filter Eager-Loading $expand Demo

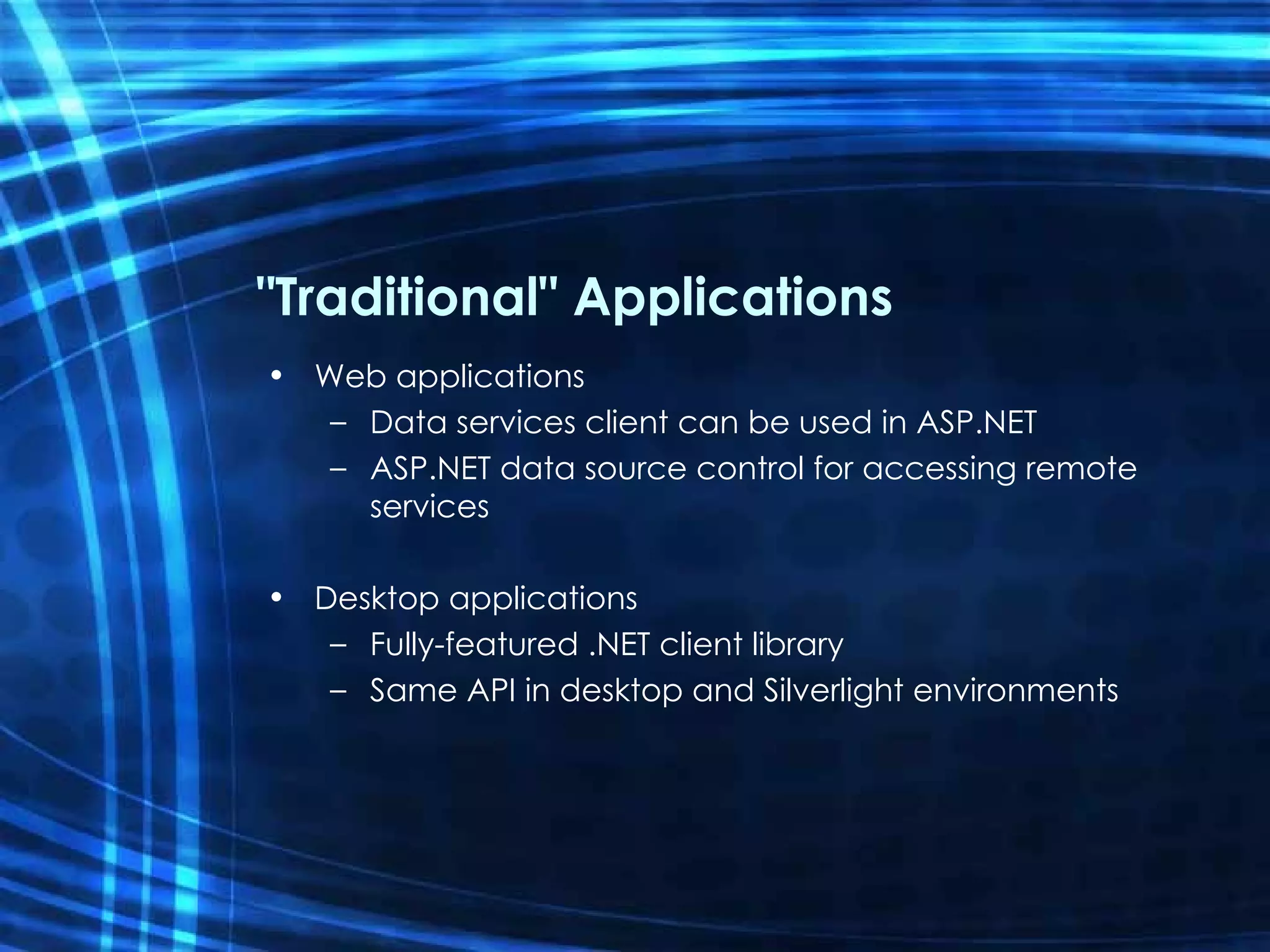

26. &quot;Traditional&quot; Applications Web applications Data services client can be used in ASP.NET ASP.NET data source control for accessing remote services Desktop applications Fully-featured .NET client library Same API in desktop and Silverlight environments

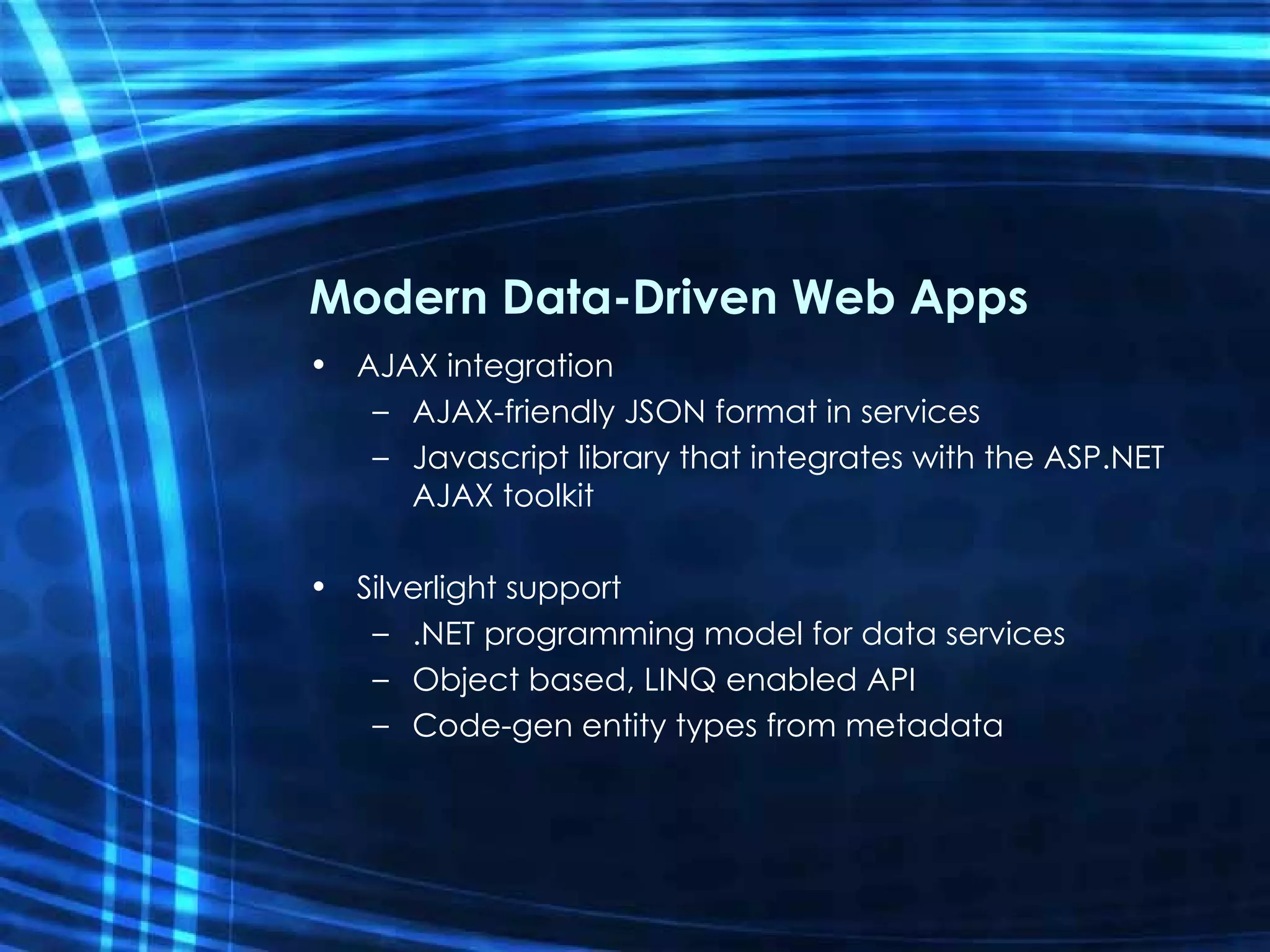

27. Modern Data-Driven Web Apps AJAX integration AJAX-friendly JSON format in services Javascript library that integrates with the ASP.NET AJAX toolkit Silverlight support .NET programming model for data services Object based, LINQ enabled API Code-gen entity types from metadata

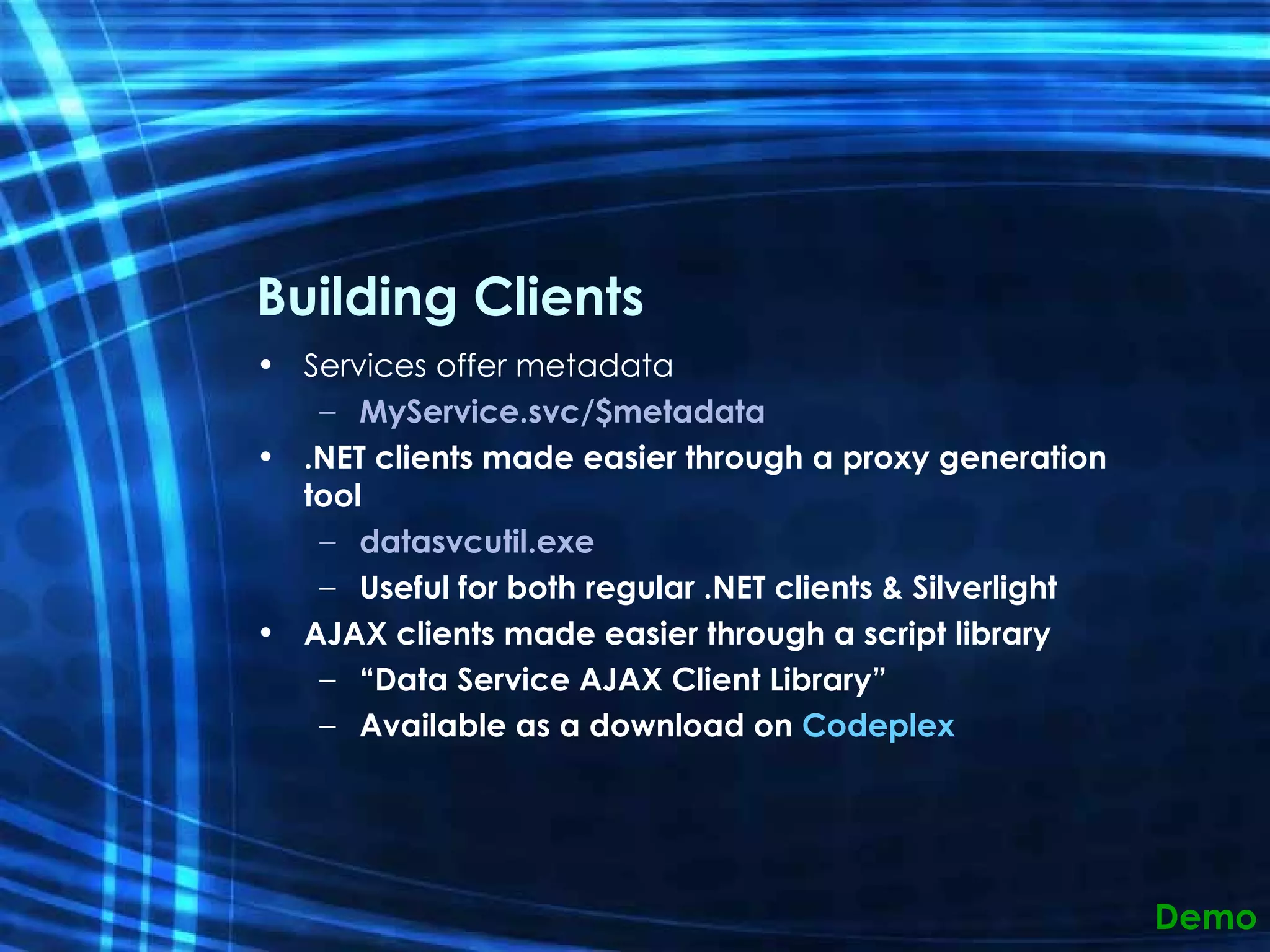

28. Building Clients Services offer metadata MyService.svc/$metadata .NET clients made easier through a proxy generation tool datasvcutil.exe Useful for both regular .NET clients & Silverlight AJAX clients made easier through a script library “ Data Service AJAX Client Library” Available as a download on Codeplex Demo

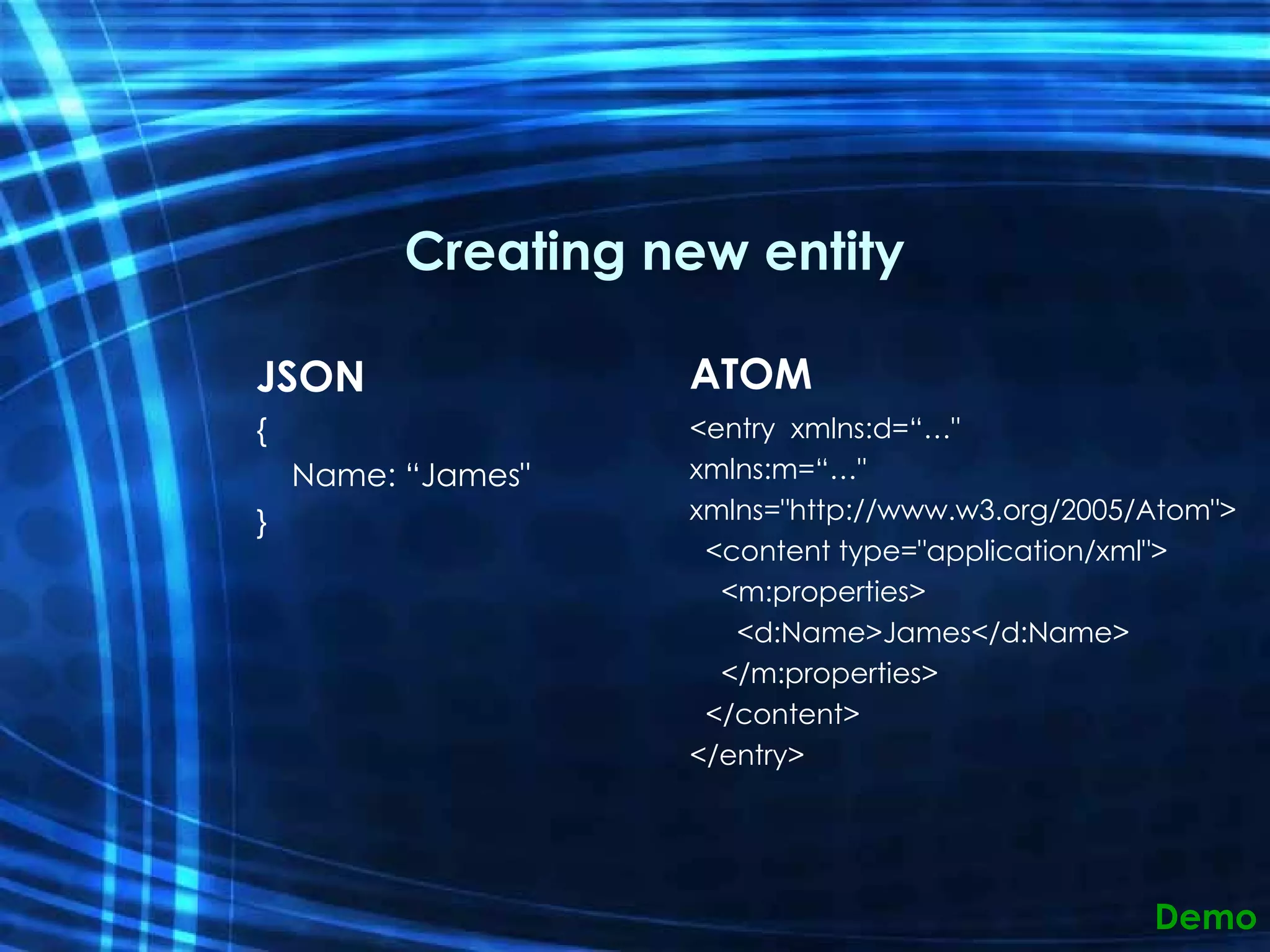

29. Creating new entity JSON { Name: “James&quot; } ATOM <entry xmlns:d=“…&quot; xmlns:m=“…&quot; xmlns=&quot;http://www.w3.org/2005/Atom&quot;> <content type=&quot;application/xml&quot;> <m:properties> <d:Name>James</d:Name> </m:properties> </content> </entry> Demo

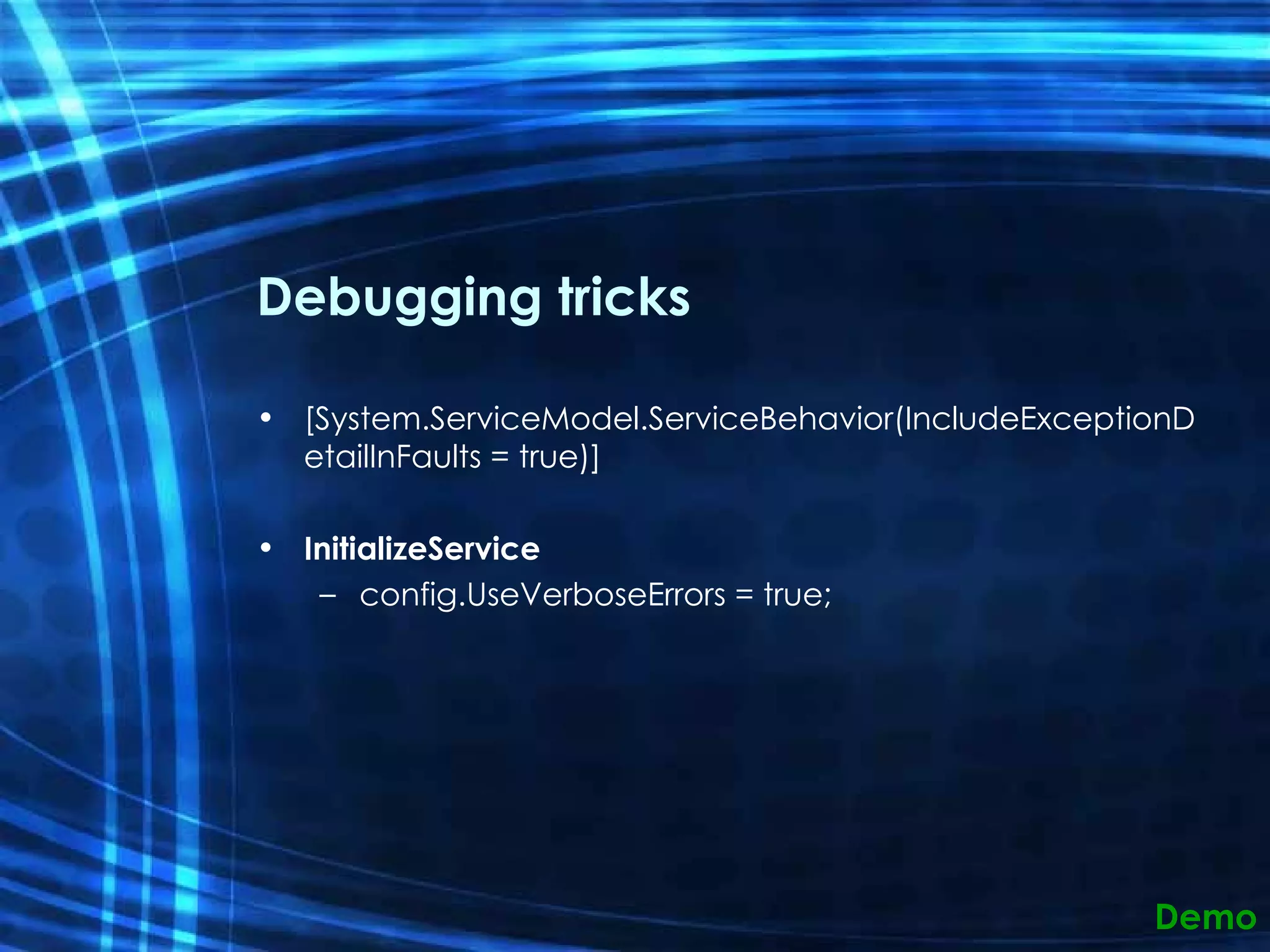

30. Debugging tricks [System.ServiceModel.ServiceBehavior(IncludeExceptionDetailInFaults = true)] InitializeService config.UseVerboseErrors = true; Demo

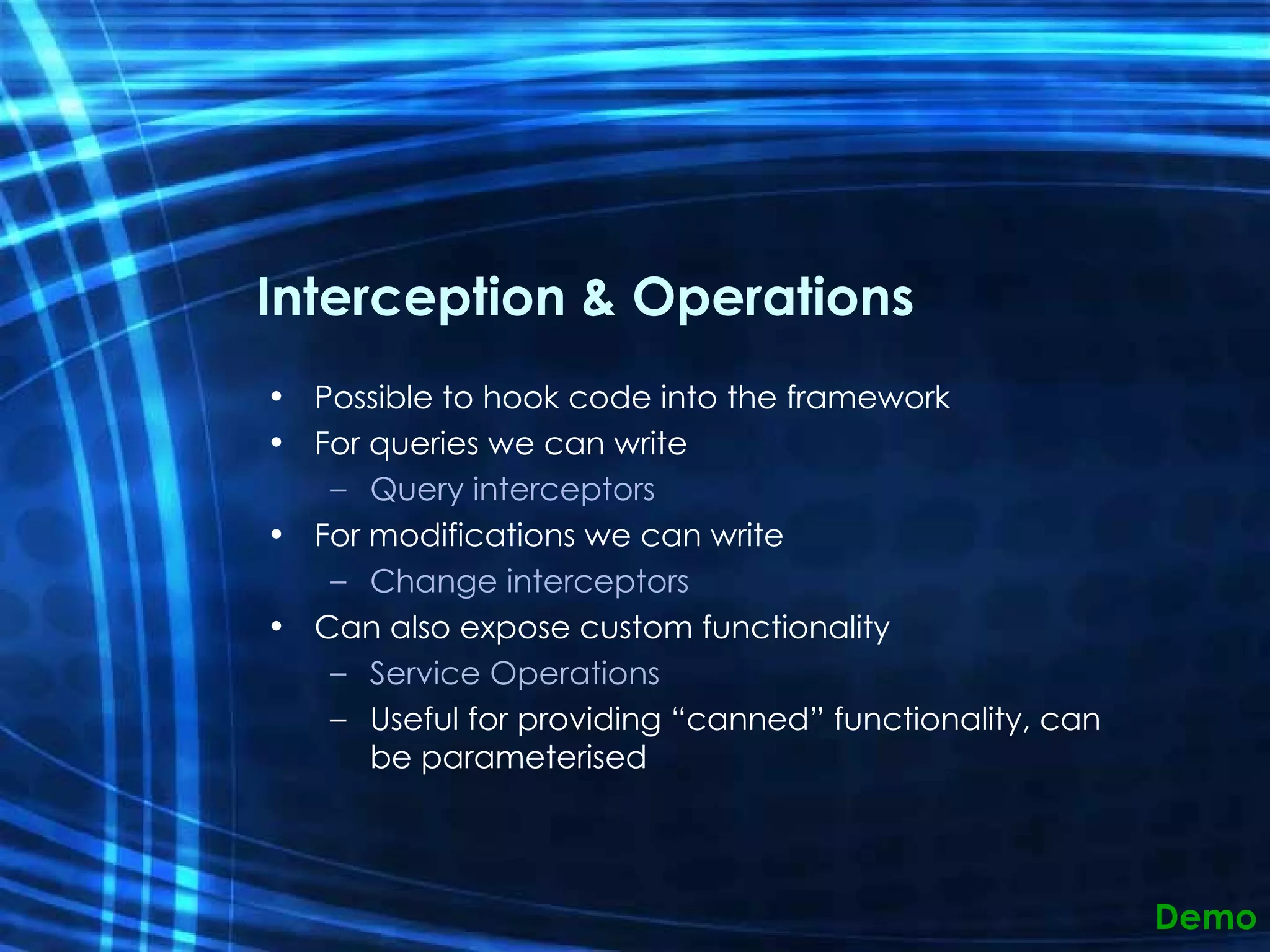

31. Interception & Operations Possible to hook code into the framework For queries we can write Query interceptors For modifications we can write Change interceptors Can also expose custom functionality Service Operations Useful for providing “canned” functionality, can be parameterised Demo

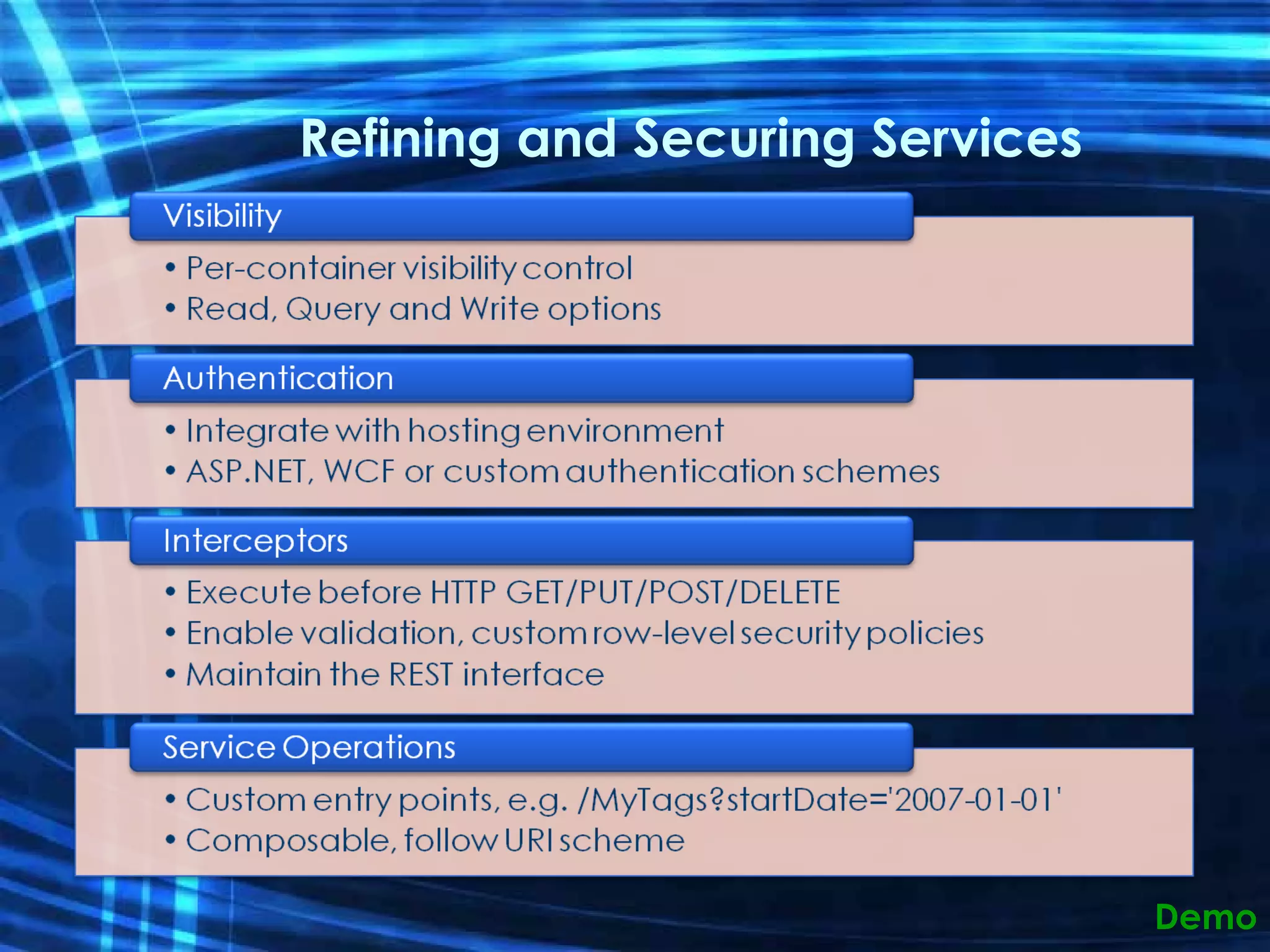

32. Refining and Securing Services Demo

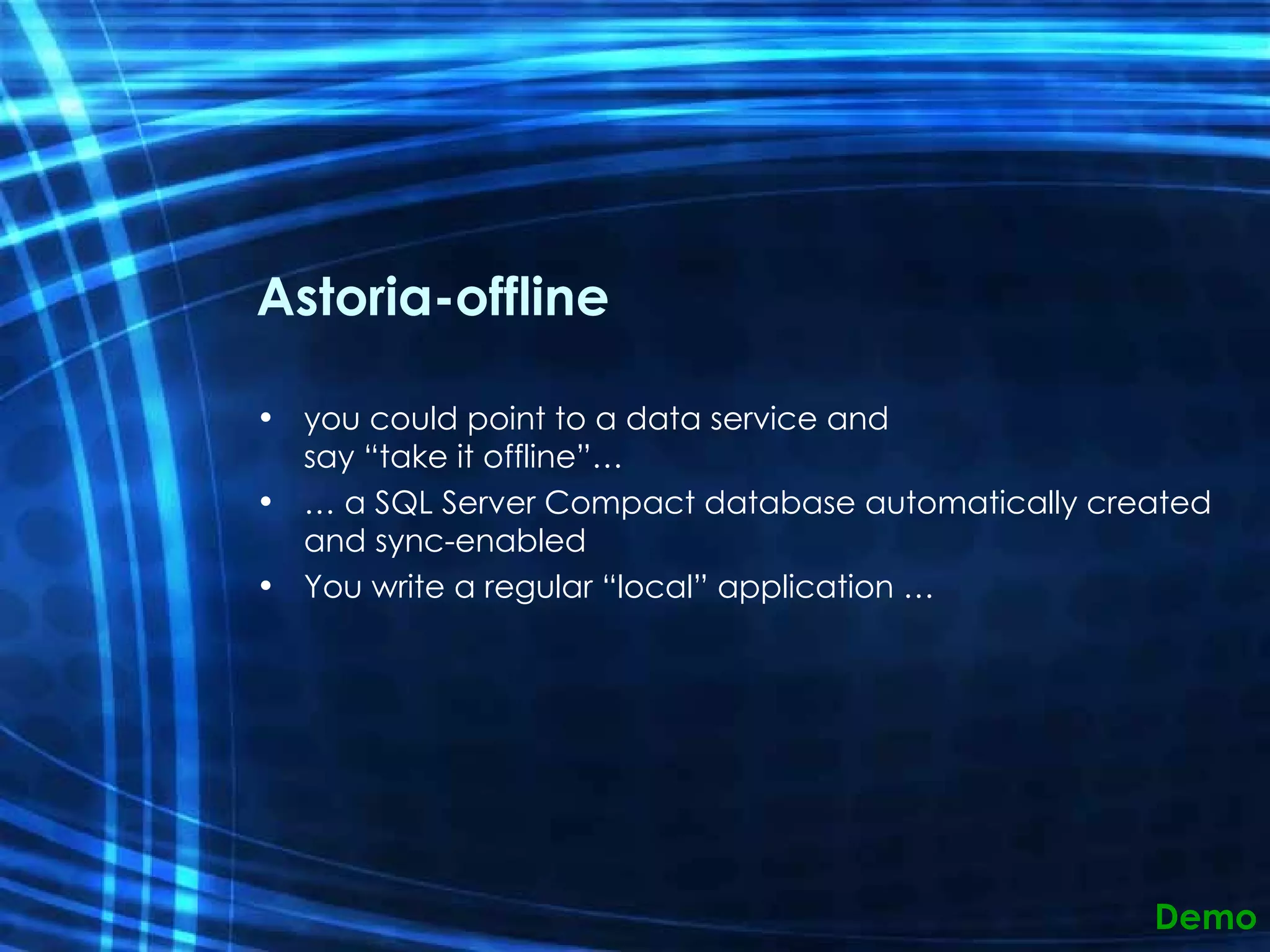

33. Astoria-offline you could point to a data service and say “take it offline”… … a SQL Server Compact database automatically created and sync-enabled You write a regular “local” application … Demo

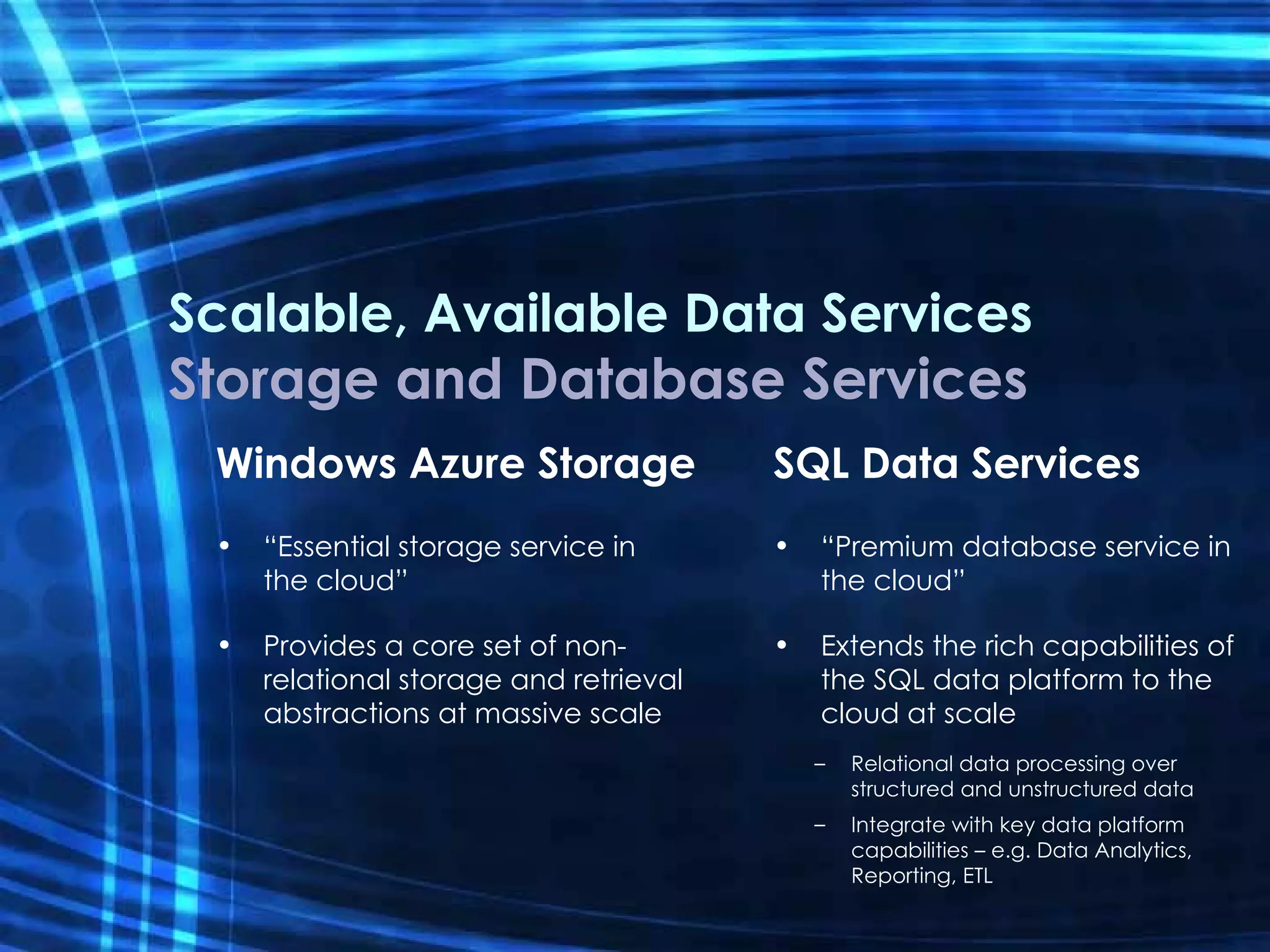

34. Scalable, Available Data Services Storage and Database Services Windows Azure Storage “ Essential storage service in the cloud” Provides a core set of non-relational storage and retrieval abstractions at massive scale SQL Data Services “ Premium database service in the cloud” Extends the rich capabilities of the SQL data platform to the cloud at scale Relational data processing over structured and unstructured data Integrate with key data platform capabilities – e.g. Data Analytics, Reporting, ETL

35. A Look Inside Azure

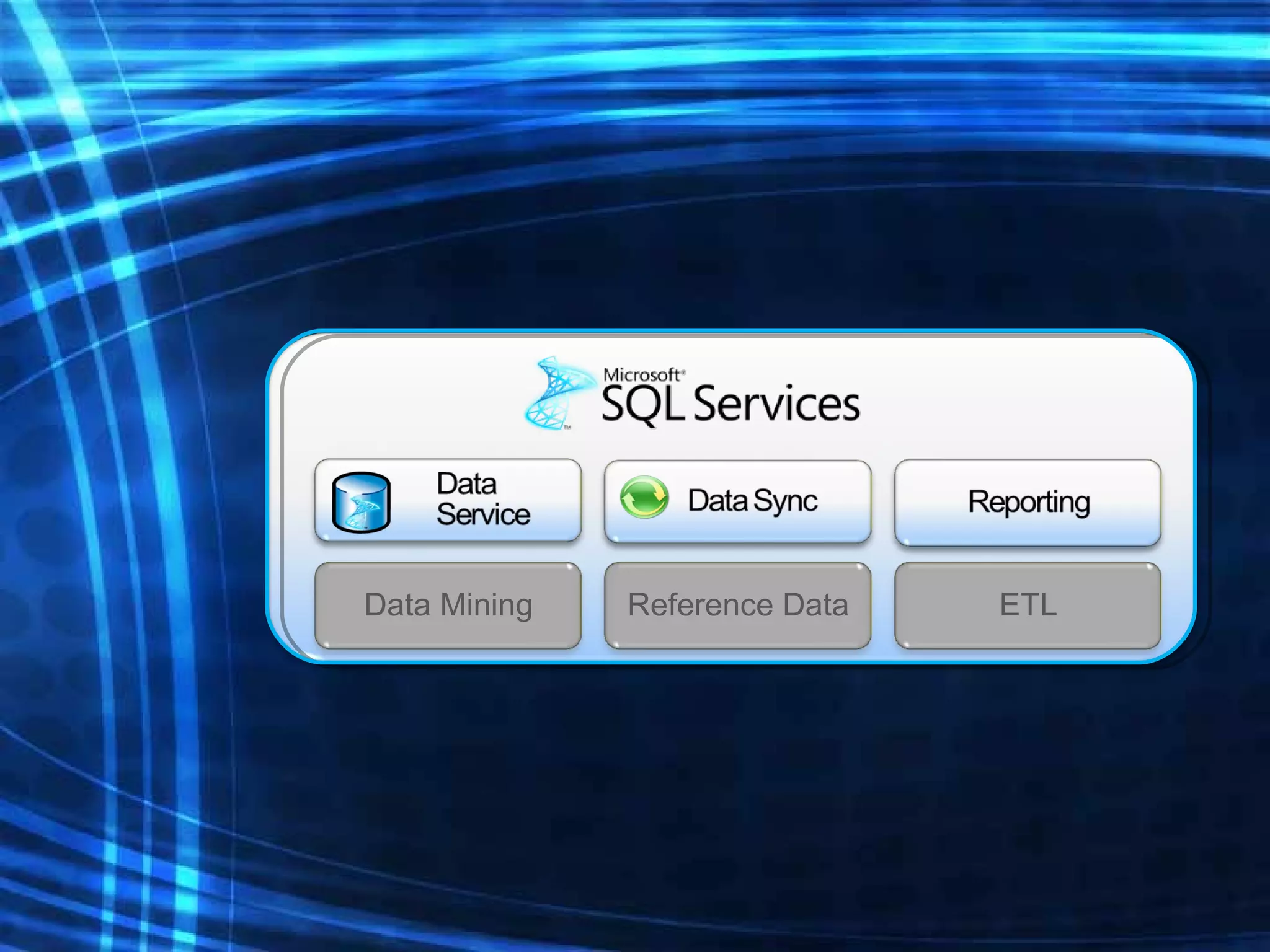

36. Reference Data ETL Data Mining

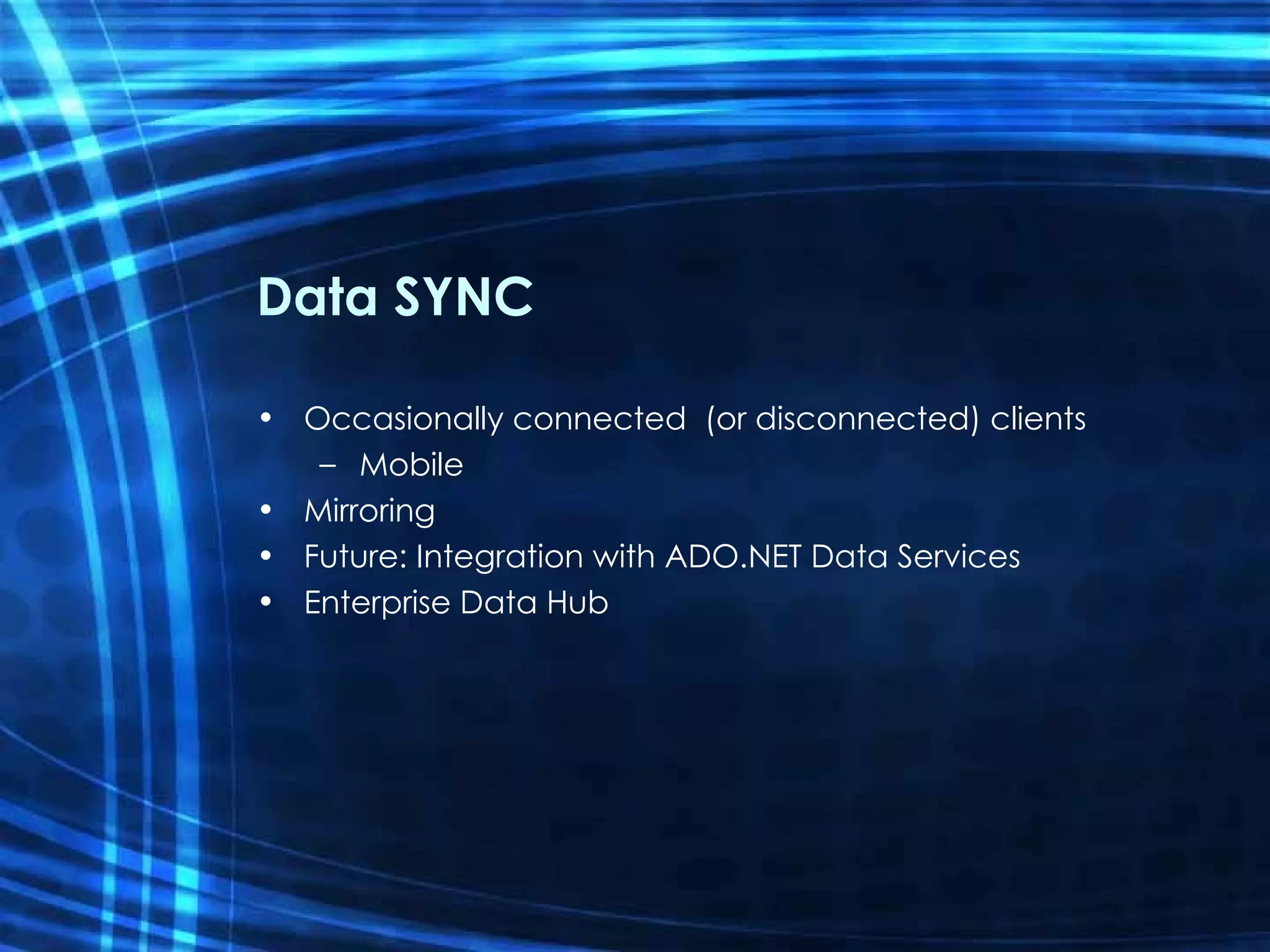

37. Data SYNC Occasionally connected (or disconnected) clients Mobile Mirroring Future: Integration with ADO.NET Data Services Enterprise Data Hub

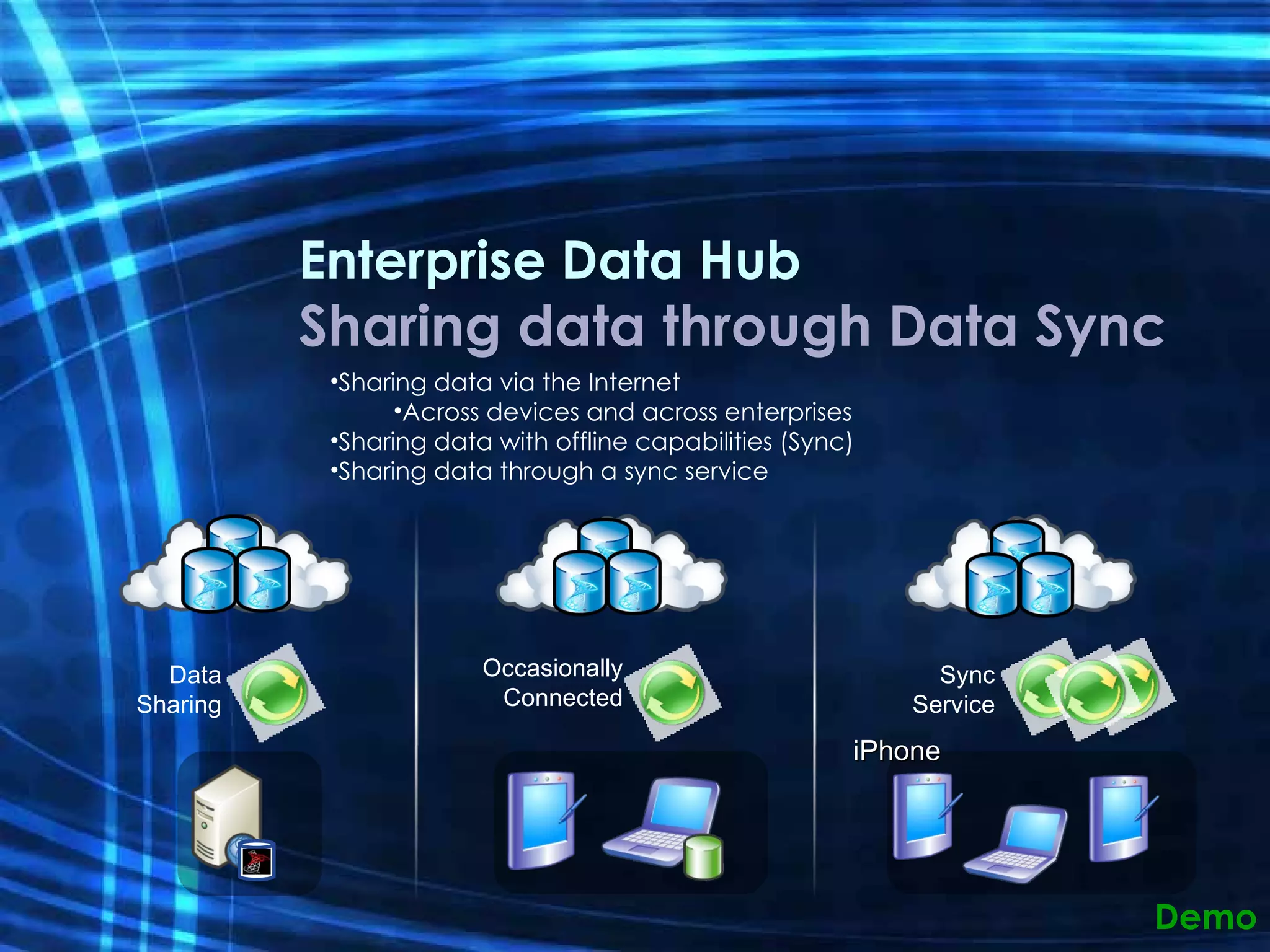

38. Enterprise Data Hub Sharing data through Data Sync Sharing data via the Internet Across devices and across enterprises Sharing data with offline capabilities (Sync) Sharing data through a sync service Demo Sync Service iPhone Occasionally Connected Data Sharing

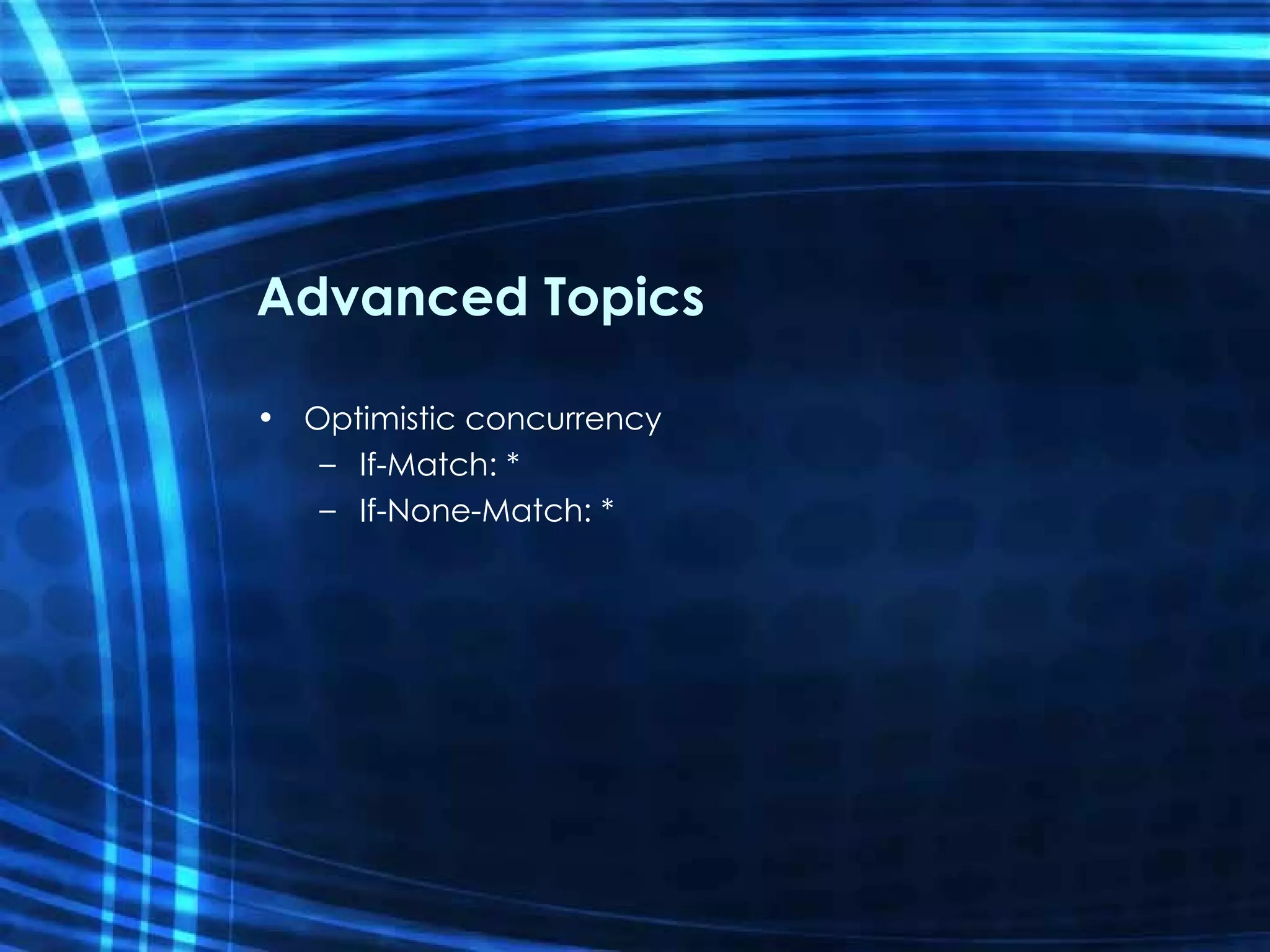

39. Advanced Topics Optimistic concurrency If-Match: * If-None-Match: *

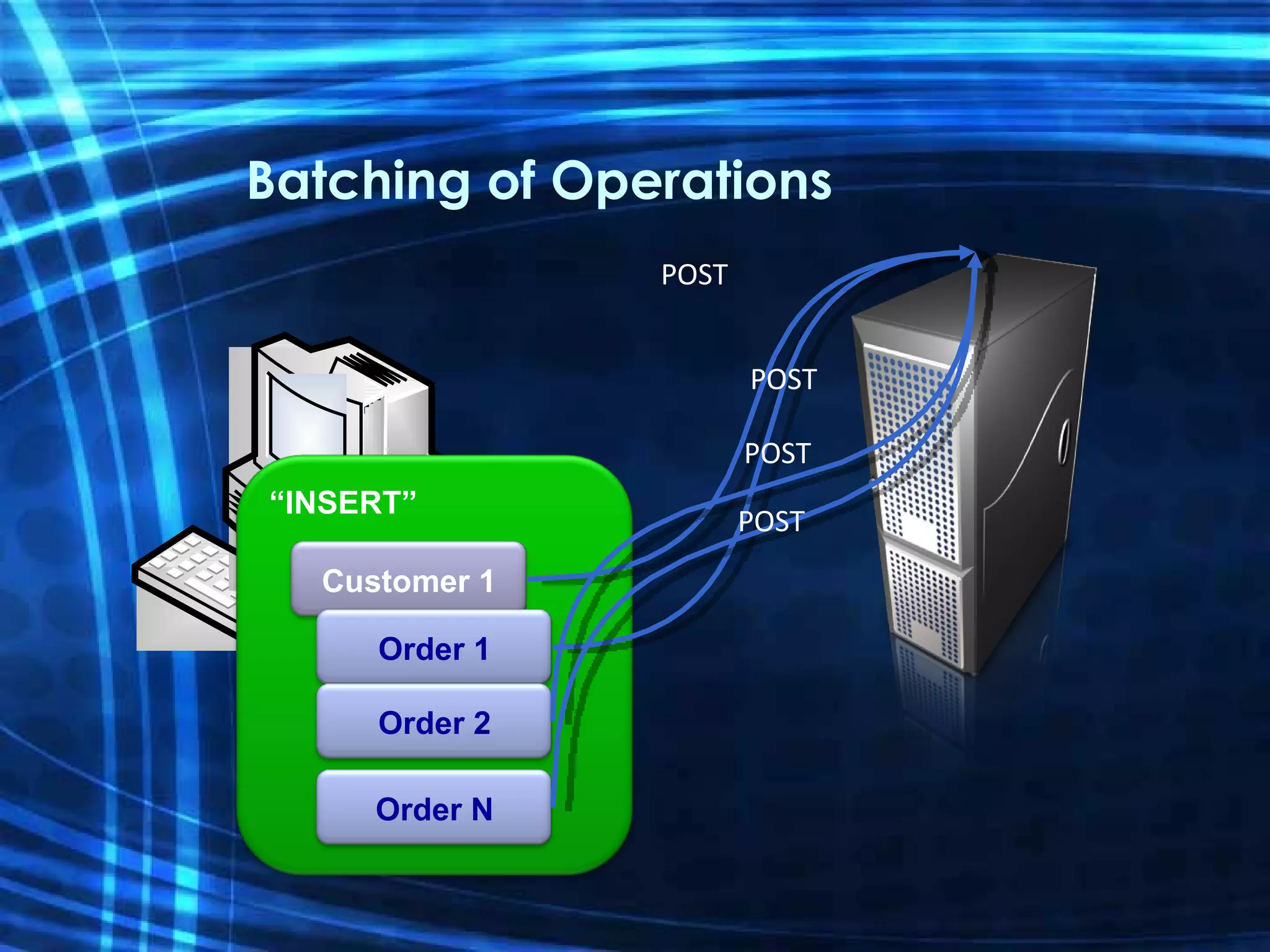

40. Batching of Operations “ INSERT” Customer 1 POST Order 1 POST Order 2 POST Order N POST

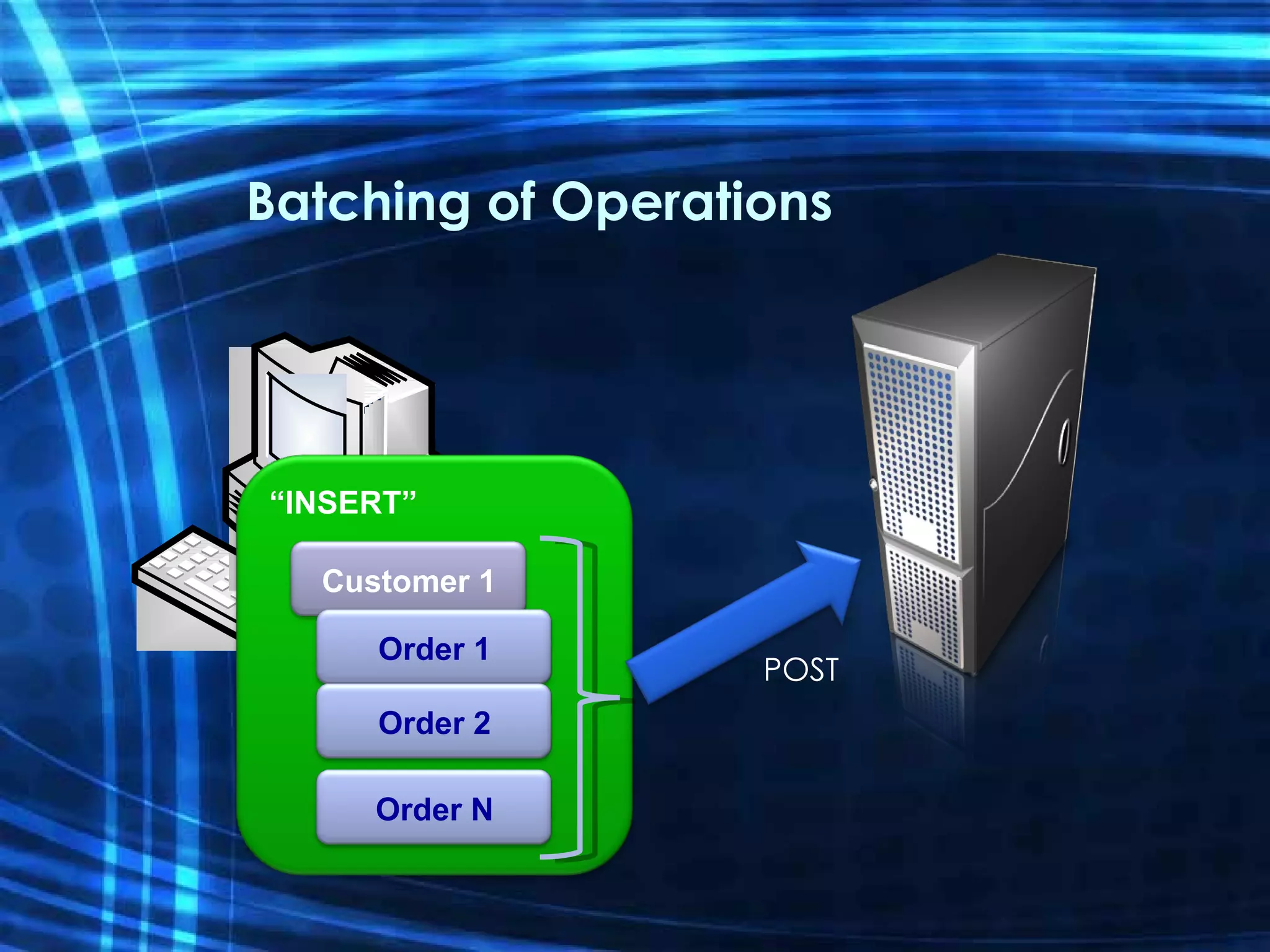

41. Batching of Operations “ INSERT” Customer 1 Order 1 Order 2 Order N POST

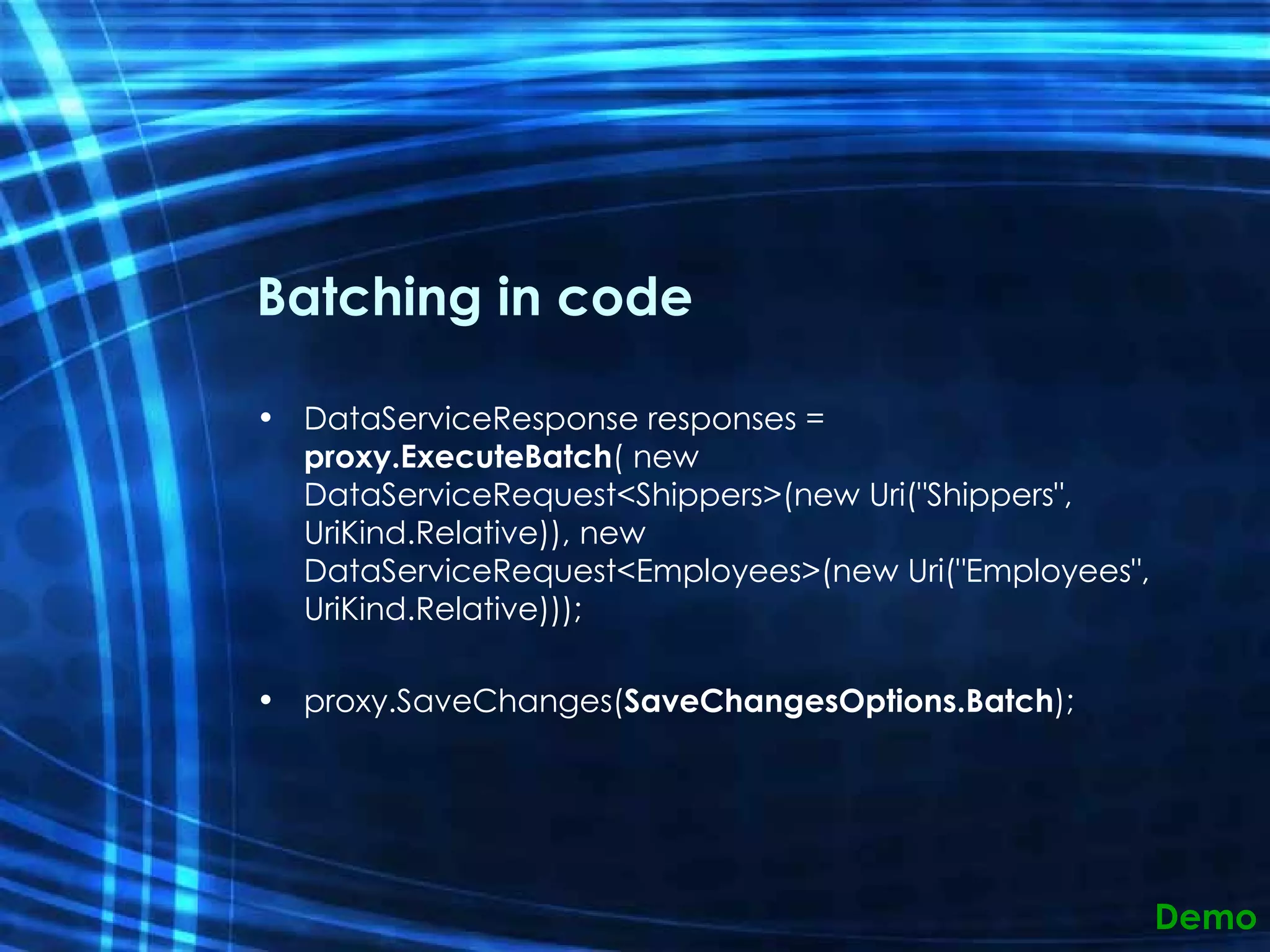

42. Batching in code DataServiceResponse responses = proxy.ExecuteBatch ( new DataServiceRequest<Shippers>(new Uri(&quot;Shippers&quot;, UriKind.Relative)), new DataServiceRequest<Employees>(new Uri(&quot;Employees&quot;, UriKind.Relative))); proxy.SaveChanges( SaveChangesOptions.Batch ); Demo

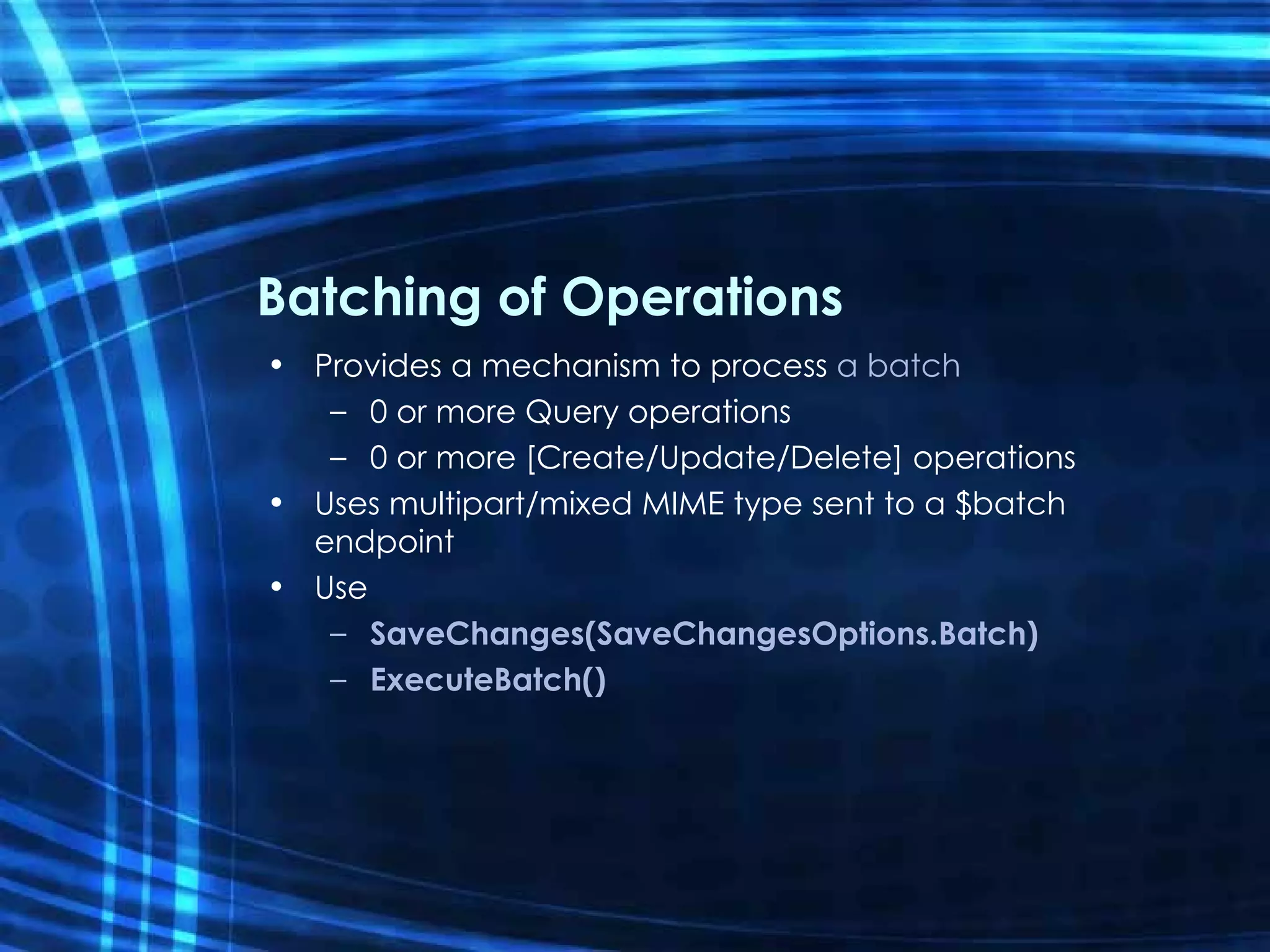

43. Batching of Operations Provides a mechanism to process a batch 0 or more Query operations 0 or more [Create/Update/Delete] operations Uses multipart/mixed MIME type sent to a $batch endpoint Use SaveChanges(SaveChangesOptions.Batch) ExecuteBatch()

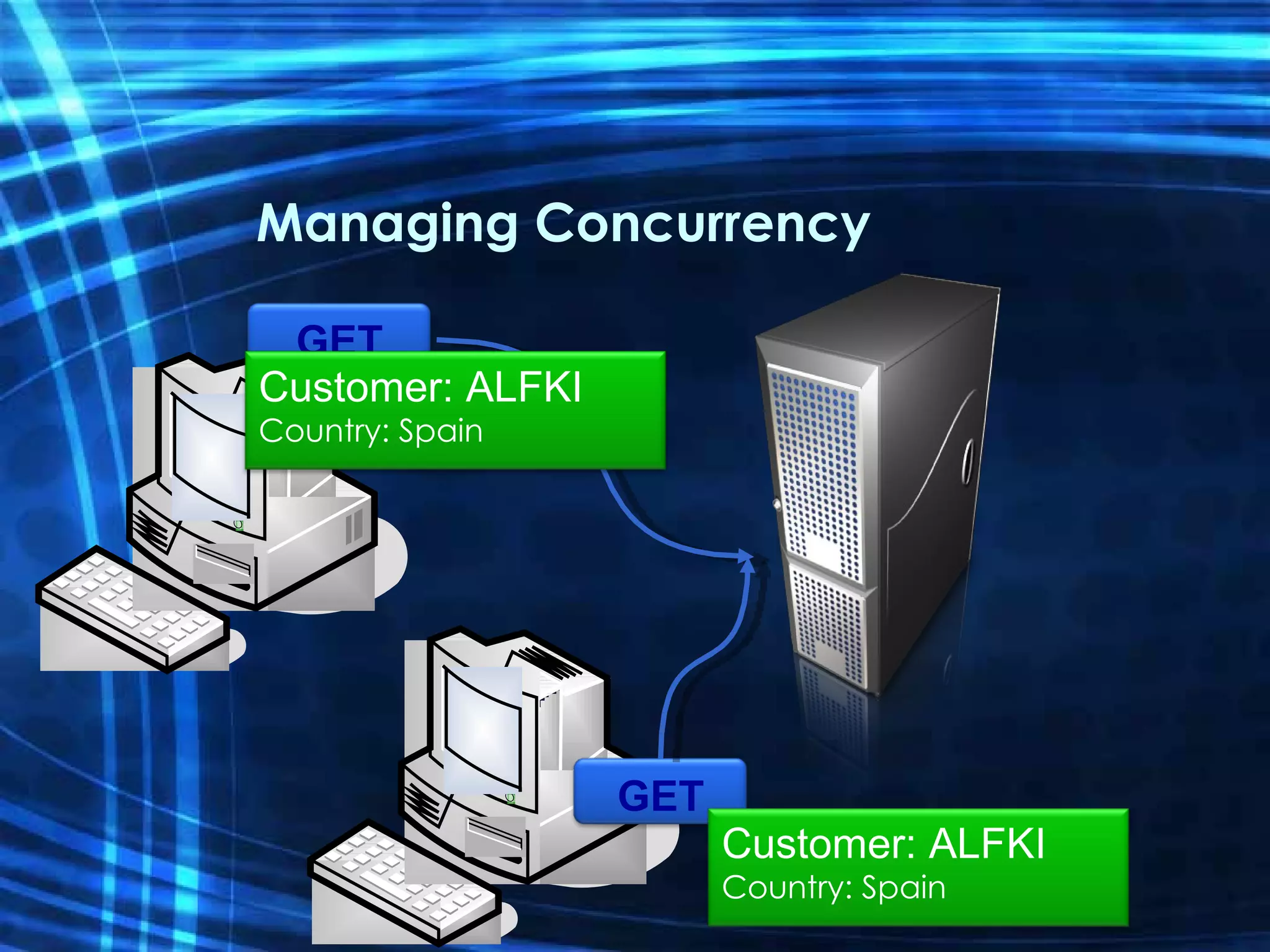

44. Managing Concurrency GET GET Customer: ALFKI Country: Spain Customer: ALFKI Country: Spain

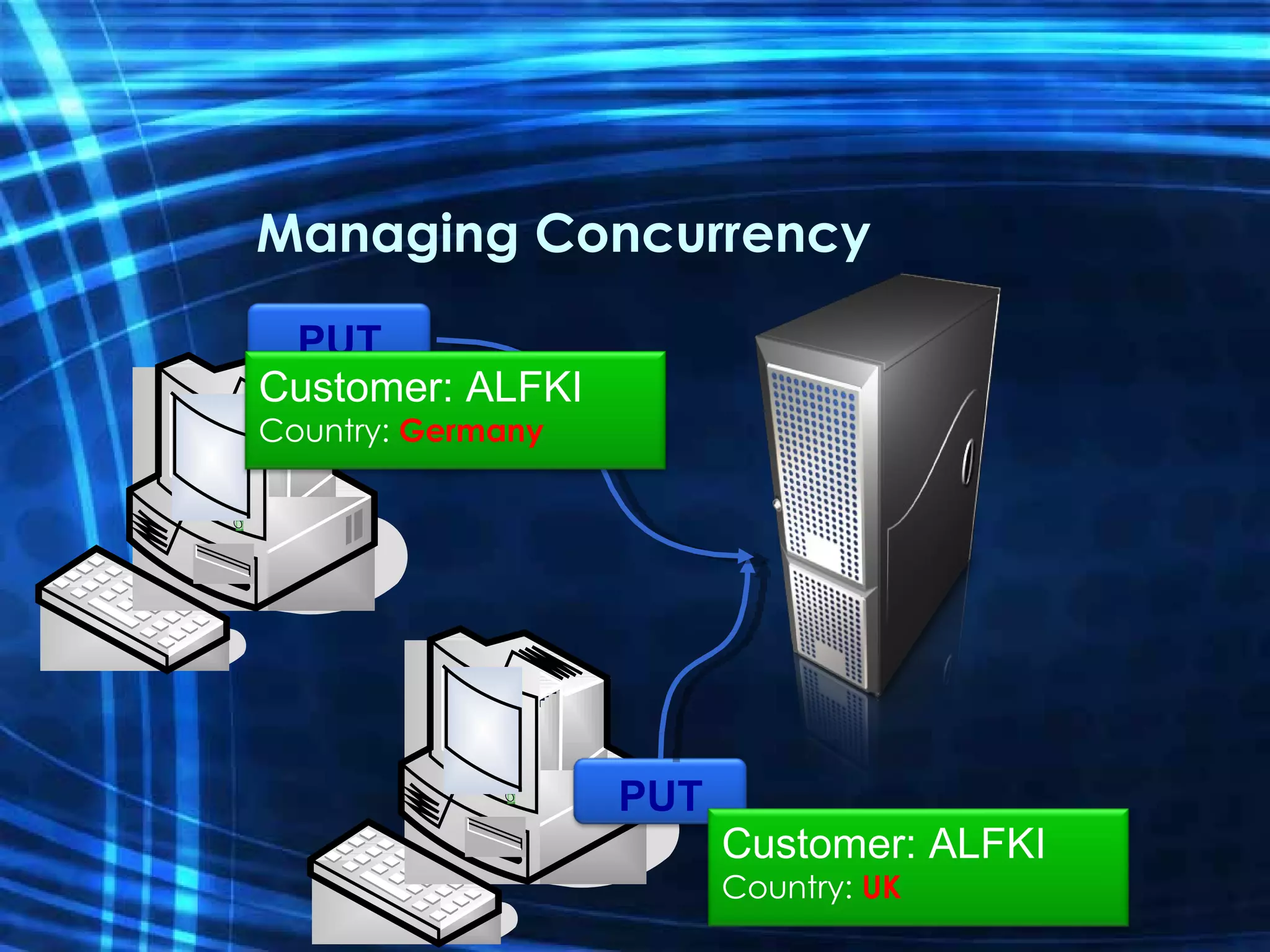

45. Managing Concurrency PUT Customer: ALFKI Country: UK PUT Customer: ALFKI Country: Germany

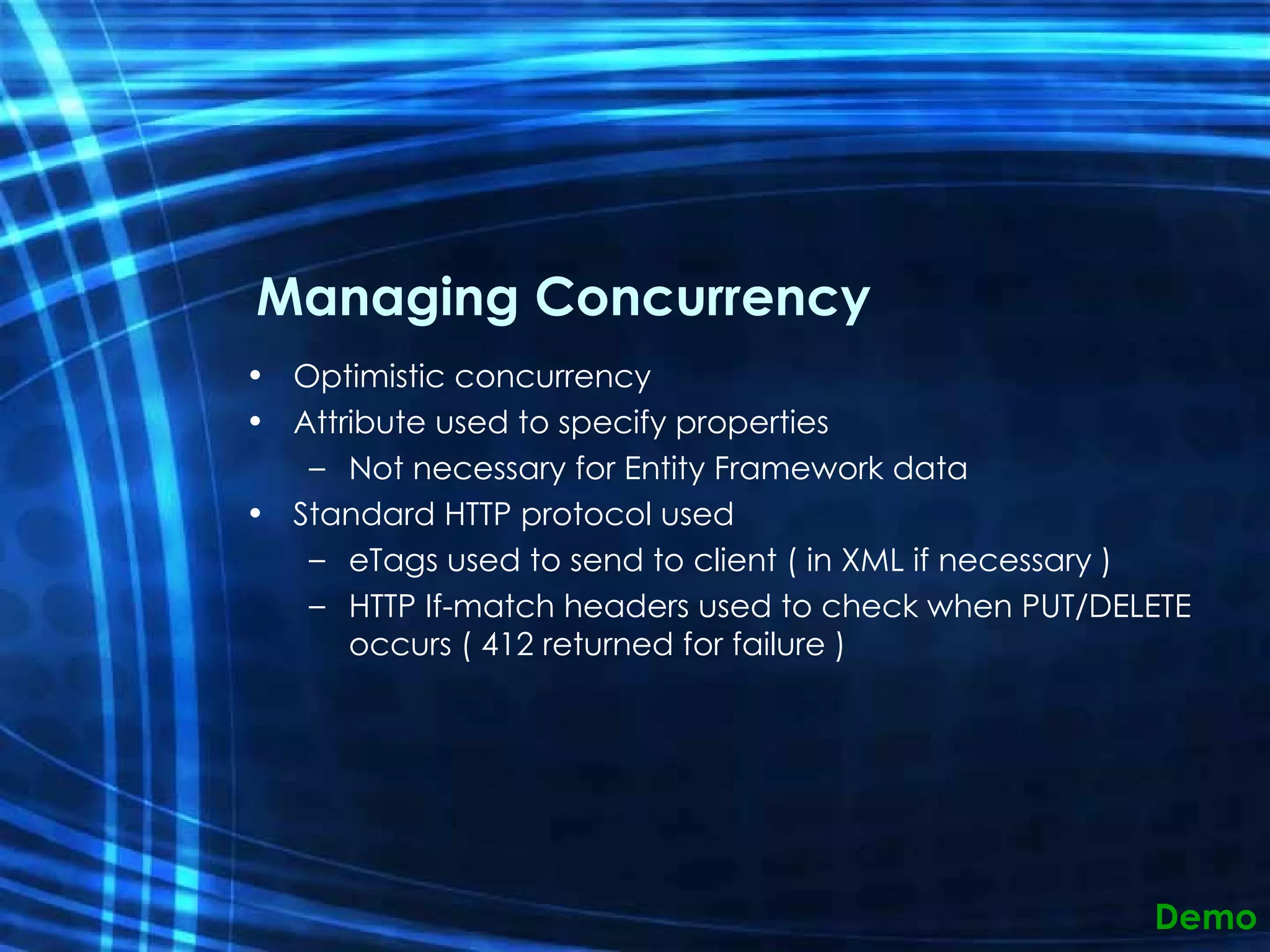

46. Managing Concurrency Optimistic concurrency Attribute used to specify properties Not necessary for Entity Framework data Standard HTTP protocol used eTags used to send to client ( in XML if necessary ) HTTP If-match headers used to check when PUT/DELETE occurs ( 412 returned for failure ) Demo

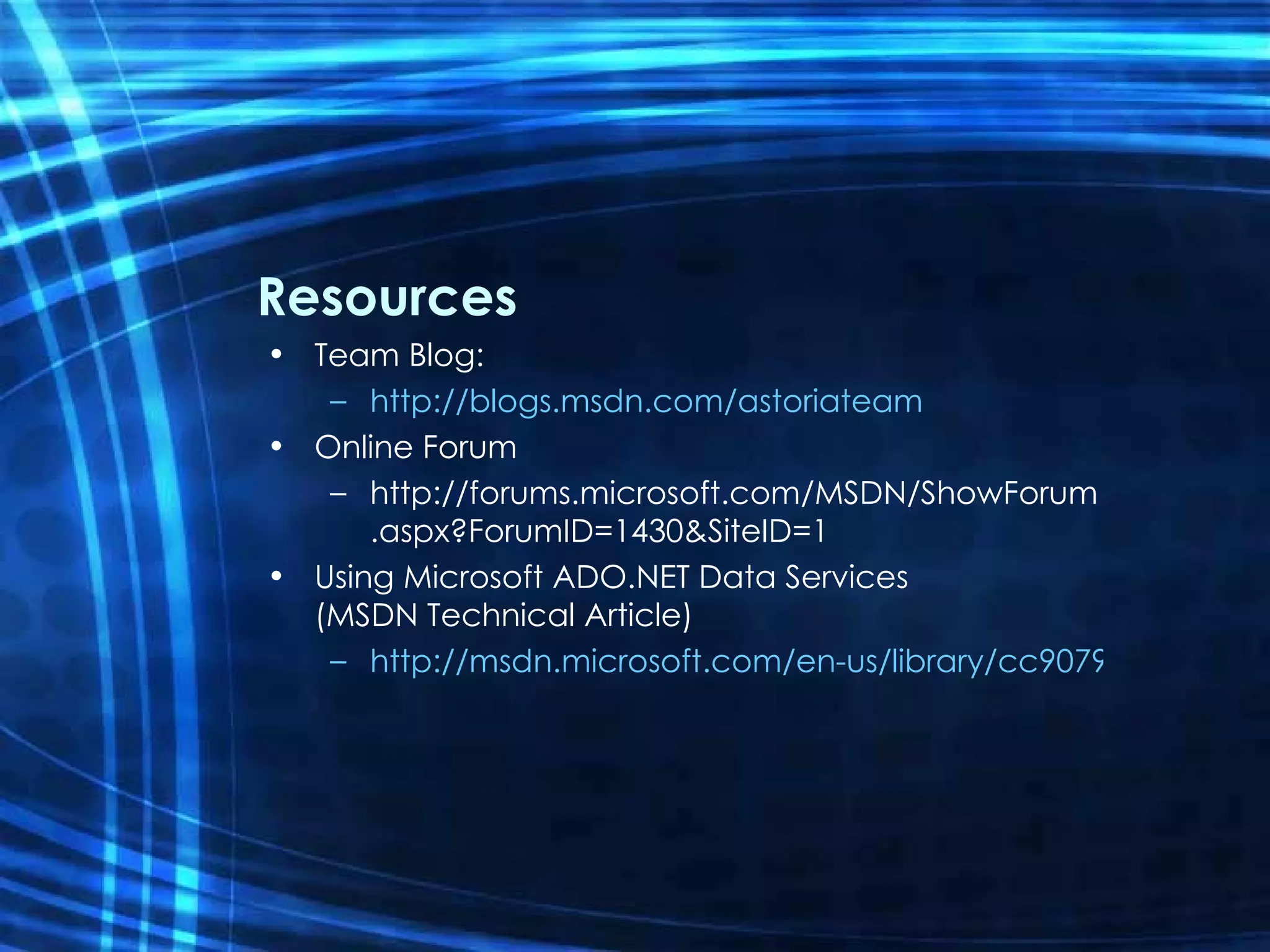

47. Resources Team Blog: http://blogs.msdn.com/astoriateam Online Forum http://forums.microsoft.com/MSDN/ShowForum.aspx?ForumID=1430&SiteID=1 Using Microsoft ADO.NET Data Services (MSDN Technical Article) http://msdn.microsoft.com/en-us/library/cc907912.aspx

48. Q&A

49. Thank you!

50. ADO.Net Data Services Astoria Enabling your data for Web consumption Igor Moochnick IgorShare Consulting [email_address] Blog: www.igorshare.com/blog

52. AZURE TABLES - CODE

53. Insert Entity using .NET Create a new Message and Insert into Table Message message = new Message { PartitionKey = &quot;Channel9&quot; , // ChannelName RowKey = DateTime .UtcNow.ToString(), // PostedDate Text = &quot;Hello PDC&quot; , Rating = 3 }; serviceUri = new Uri ( &quot;http://<account>.table.core.windows.net&quot; ); var context = new DataServiceContext (serviceUri); context.AddObject( &quot;Messages&quot; , message); DataServiceContext response = context.SaveChanges();

54. Create an Atom XML payload and POST it Insert Entity using REST POST http://< Account> .table.core.windows.net/ Messages ... <!– Atom envelope --> < m:properties > < d:PartitionKey > Channel9 </ d:PartitionKey > <!-- ChannelName --> < d:RowKey > Oct-29 </ d:RowKey > <!-- PostedDate --> < d:Text > Hello PDC </ d:Text > < d:Rating > 3 </ d:Rating > </ m:properties >

55. Query Entities serviceUri = new Uri ( &quot;http://<account>.table.core.windows.net&quot; ); DataServiceContext context = new DataServiceContext (serviceUri); var messages = from message in context.CreateQuery< Message >( &quot;Messages&quot; ) where message.Rating == 3 select message; foreach ( Message message in messages) { } GET http:// <serviceUri> /Messages?$filter= Rating eq 3

56. Update a property in an entity Using the .NET API Message message = ( from message in context.CreateQuery< Message >( &quot;Messages&quot; ) where message.PartitionKey == &quot;Channel9&quot; && message.RowKey == &quot;Oct-29&quot; select message).FirstOrDefault(); message.Text = &quot;Hi there&quot; ; context.UpdateObject(message); DataServiceResponse response = context.SaveChanges(); PUT http:// <serviceUri> /Messages(‘Channel9’, ‘ Oct-29’) < m:properties > < d:Text > Hi there </ d:Text > <!-- Other properties are the same --> </ m:properties >

57. Using the .NET API Delete an Entity // Get the Message object for ( &quot;Channel9&quot; , &quot;Oct-29&quot; ) context.DeleteObject(message); DataServiceResponse response = context.SaveChanges(); DELETE http://.../Messages(‘Channel9’, ‘ Oct-29’)

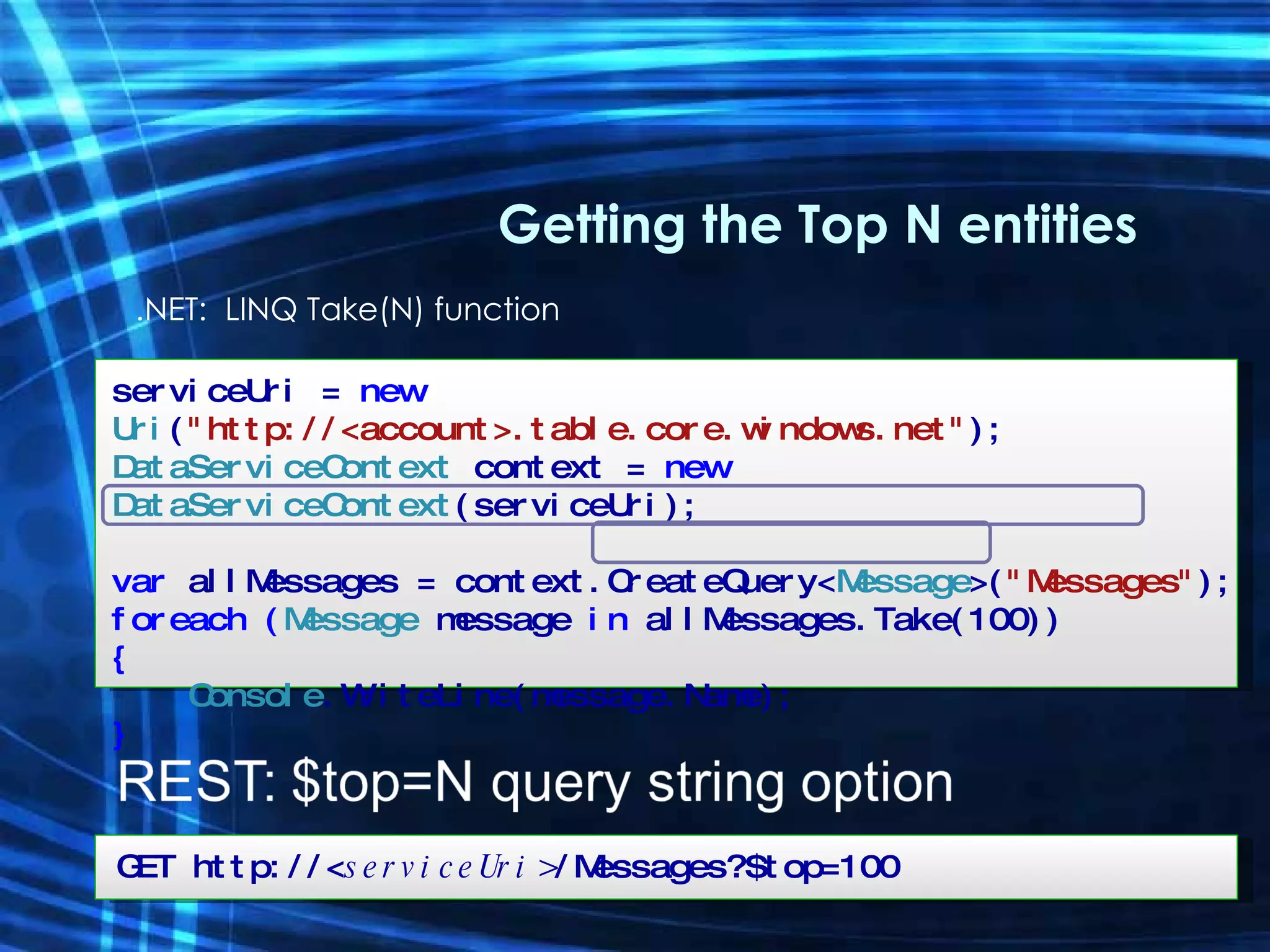

58. .NET: LINQ Take(N) function Getting the Top N entities serviceUri = new Uri ( &quot;http://<account>.table.core.windows.net&quot; ); DataServiceContext context = new DataServiceContext (serviceUri); var allMessages = context.CreateQuery< Message >( &quot;Messages&quot; ); foreach ( Message message in allMessages.Take(100)) { Console .WriteLine(message.Name); } GET http://< serviceUri> /Messages?$top=100
