Linux User Group Bulgaria
                      10th annual meeting


                           Cluster Filesystems




                                             Marian Marinov - mm@yuhu.biz
                                           System Architect - Siteground.com
Stara Zagora 09.Jun.2007

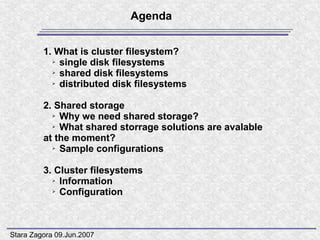

Agenda


         1. What is cluster filesystem?
           ➢ single disk filesystems

           ➢ shared disk filesystems

           ➢ distributed disk filesystems




         2. Shared storage
           ➢ Why we need shared storage?

           ➢ What shared storrage solutions are avalable

         at the moment?
           ➢ Sample configurations




         3. Cluster filesystems
           ➢ Information

           ➢ Configuration




Stara Zagora 09.Jun.2007

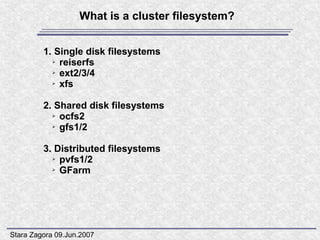

What is a cluster filesystem?


         1. Single disk filesystems
           ➢ reiserfs

           ➢ ext2/3/4

           ➢ xfs




         2. Shared disk filesystems
           ➢ ocfs2

           ➢ gfs1/2




         3. Distributed filesystems
           ➢ pvfs1/2

           ➢ GFarm




Stara Zagora 09.Jun.2007

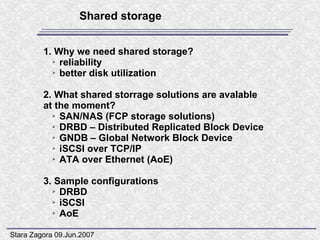

Shared storage


         1. Why we need shared storage?
           ➢ reliability

           ➢ better disk utilization




         2. What shared storrage solutions are avalable
         at the moment?
           ➢ SAN/NAS (FCP storage solutions)

           ➢ DRBD – Distributed Replicated Block Device

           ➢ GNDB – Global Network Block Device

           ➢ iSCSI over TCP/IP

           ➢ ATA over Ethernet (AoE)




         3. Sample configurations
           ➢ DRBD

           ➢ iSCSI

           ➢ AoE




Stara Zagora 09.Jun.2007

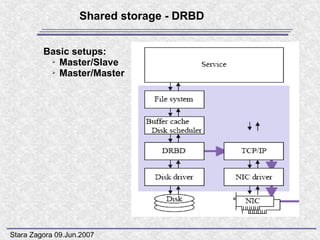

Shared storage - DRBD


         Basic setups:
          ➢ Master/Slave

          ➢ Master/Master




Stara Zagora 09.Jun.2007

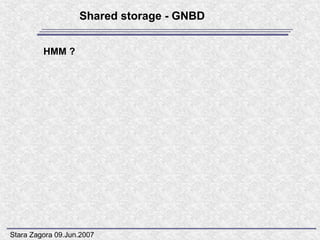

Shared storage - GNBD


         HMM ?




Stara Zagora 09.Jun.2007
Shared storage – iSCSI over TCP/IP




Stara Zagora 09.Jun.2007

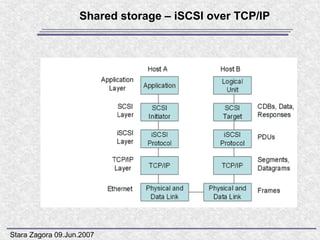

Shared storage – iSCSI over TCP/IP




Stara Zagora 09.Jun.2007

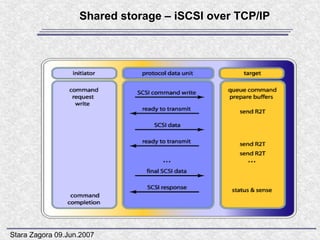

Shared storage – iSCSI over TCP/IP




Stara Zagora 09.Jun.2007

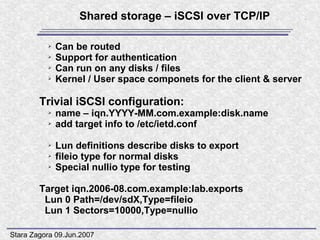

Shared storage – iSCSI over TCP/IP

          ➢   Can be routed
          ➢   Support for authentication
          ➢   Can run on any disks / files
          ➢   Kernel / User space componets for the client & server

        Trivial iSCSI configuration:
          ➢   name – iqn.YYYY-MM.com.example:disk.name
          ➢   add target info to /etc/ietd.conf

          ➢   Lun definitions describe disks to export
          ➢   fileio type for normal disks
          ➢   Special nullio type for testing

        Target iqn.2006-08.com.example:lab.exports
         Lun 0 Path=/dev/sdX,Type=fileio
         Lun 1 Sectors=10000,Type=nullio

Stara Zagora 09.Jun.2007

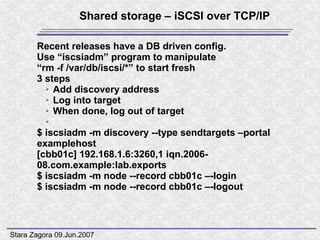

Shared storage – iSCSI over TCP/IP

       Recent releases have a DB driven config.
       Use “iscsiadm” program to manipulate
       “rm -f /var/db/iscsi/*” to start fresh
       3 steps
         ➢ Add discovery address

         ➢ Log into target

         ➢ When done, log out of target

          ➢

       $ iscsiadm -m discovery --type sendtargets –portal
       examplehost
       [cbb01c] 192.168.1.6:3260,1 iqn.2006-
       08.com.example:lab.exports
       $ iscsiadm -m node --record cbb01c –-login
       $ iscsiadm -m node --record cbb01c –-logout



Stara Zagora 09.Jun.2007

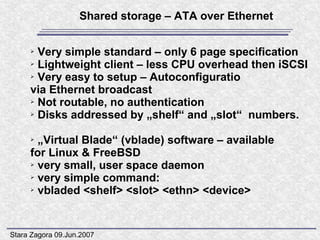

Shared storage – ATA over Ethernet

     ➢ Very simple standard – only 6 page specification
     ➢ Lightweight client – less CPU overhead then iSCSI

     ➢ Very easy to setup – Autoconfiguratio

     via Ethernet broadcast
     ➢ Not routable, no authentication

     ➢ Disks addressed by „shelf“ and „slot“ numbers.



     ➢ „Virtual Blade“ (vblade) software – available
     for Linux & FreeBSD
     ➢ very small, user space daemon

     ➢ very simple command:

     ➢ vbladed <shelf> <slot> <ethn> <device>




Stara Zagora 09.Jun.2007

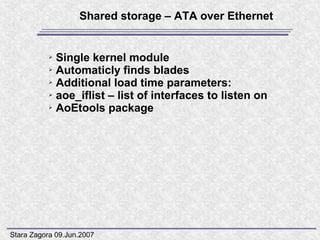

Shared storage – ATA over Ethernet


           ➢ Single kernel module
           ➢ Automaticly finds blades

           ➢ Additional load time parameters:

           ➢ aoe_iflist – list of interfaces to listen on

           ➢ AoEtools package




Stara Zagora 09.Jun.2007

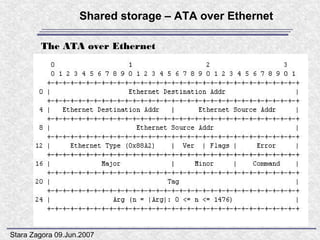

Shared storage – ATA over Ethernet

        The ATA over Ethernet
        header




Stara Zagora 09.Jun.2007

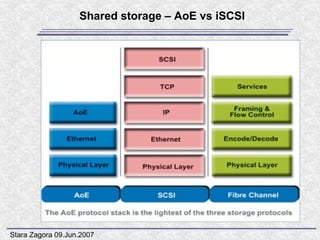

Shared storage – AoE vs iSCSI




Stara Zagora 09.Jun.2007

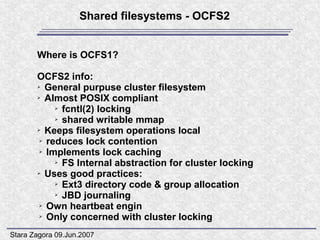

Shared filesystems - OCFS2


       Where is OCFS1?

       OCFS2 info:
       ➢ General purpuse cluster filesystem

       ➢ Almost POSIX compliant

            ➢ fcntl(2) locking

            ➢ shared writable mmap

       ➢ Keeps filesystem operations local

        ➢ reduces lock contention

        ➢ Implements lock caching

            ➢ FS Internal abstraction for cluster locking

       ➢ Uses good practices:

            ➢ Ext3 directory code & group allocation

            ➢ JBD journaling

        ➢ Own heartbeat engin

        ➢ Only concerned with cluster locking



Stara Zagora 09.Jun.2007

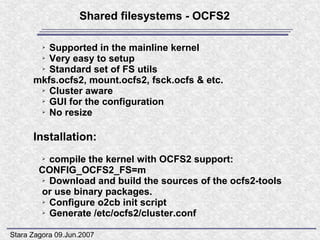

Shared filesystems - OCFS2

         Supported in the mainline kernel
         ➢

       ➢ Very easy to setup

       ➢ Standard set of FS utils

      mkfs.ocfs2, mount.ocfs2, fsck.ocfs & etc.
       ➢ Cluster aware

       ➢ GUI for the configuration

       ➢ No resize




      Installation:
         ➢compile the kernel with OCFS2 support:
        CONFIG_OCFS2_FS=m
        ➢ Download and build the sources of the ocfs2-tools

        or use binary packages.
        ➢ Configure o2cb init script

        ➢ Generate /etc/ocfs2/cluster.conf




Stara Zagora 09.Jun.2007

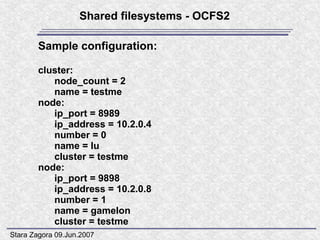

Shared filesystems - OCFS2

        Sample configuration:

        cluster:
           node_count = 2
           name = testme
        node:
           ip_port = 8989
           ip_address = 10.2.0.4
           number = 0
           name = lu
           cluster = testme
        node:
           ip_port = 9898
           ip_address = 10.2.0.8
           number = 1
           name = gamelon
           cluster = testme
Stara Zagora 09.Jun.2007
Shared filesystems - OCFS2

        Sample configuration:

        cluster:
           node_count = 2
           name = testme
        node:
           ip_port = 8989
           ip_address = 10.2.0.4
           number = 0
           name = lu
           cluster = testme
        node:
           ip_port = 9898
           ip_address = 10.2.0.8
           number = 1
           name = gamelon
           cluster = testme
Stara Zagora 09.Jun.2007

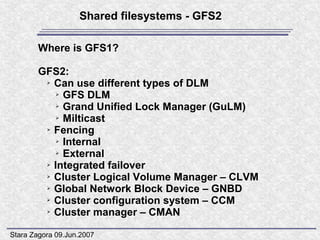

Shared filesystems - GFS2

        Where is GFS1?

        GFS2:
         ➢ Can use different types of DLM

           ➢ GFS DLM

           ➢ Grand Unified Lock Manager (GuLM)

           ➢ Milticast

         ➢ Fencing

           ➢ Internal

           ➢ External

         ➢ Integrated failover

         ➢ Cluster Logical Volume Manager – CLVM

         ➢ Global Network Block Device – GNBD

         ➢ Cluster configuration system – CCM

         ➢ Cluster manager – CMAN




Stara Zagora 09.Jun.2007
Shared filesystems - GFS2




Stara Zagora 09.Jun.2007

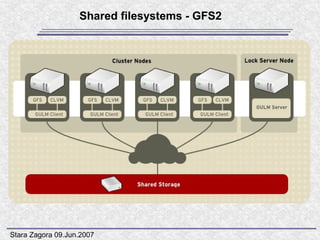

Shared filesystems - GFS2




Stara Zagora 09.Jun.2007

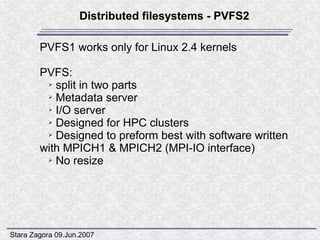

Distributed filesystems - PVFS2

        PVFS1 works only for Linux 2.4 kernels

        PVFS:
         ➢ split in two parts

         ➢ Metadata server

         ➢ I/O server

         ➢ Designed for HPC clusters

         ➢ Designed to preform best with software written

        with MPICH1 & MPICH2 (MPI-IO interface)
         ➢ No resize




Stara Zagora 09.Jun.2007

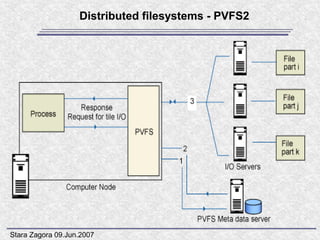

Distributed filesystems - PVFS2




Stara Zagora 09.Jun.2007

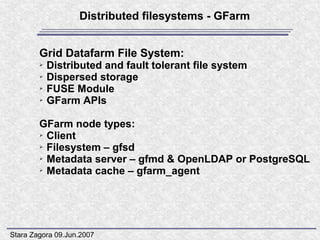

Distributed filesystems - GFarm


        Grid Datafarm File System:
        ➢   Distributed and fault tolerant file system
        ➢   Dispersed storage
        ➢   FUSE Module
        ➢   GFarm APIs

        GFarm node types:
        ➢ Client

        ➢ Filesystem – gfsd

        ➢ Metadata server – gfmd & OpenLDAP or PostgreSQL

        ➢ Metadata cache – gfarm_agent




Stara Zagora 09.Jun.2007

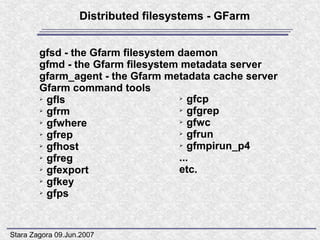

Distributed filesystems - GFarm


        gfsd - the Gfarm filesystem daemon
        gfmd - the Gfarm filesystem metadata server
        gfarm_agent - the Gfarm metadata cache server
        Gfarm command tools
        ➢ gfls                      ➢ gfcp

        ➢ gfrm                      ➢ gfgrep

        ➢ gfwhere                   ➢ gfwc

        ➢ gfrep                     ➢ gfrun

        ➢ gfhost                    ➢ gfmpirun_p4

        ➢ gfreg                     ...
        ➢ gfexport                  etc.
        ➢ gfkey

        ➢ gfps




Stara Zagora 09.Jun.2007

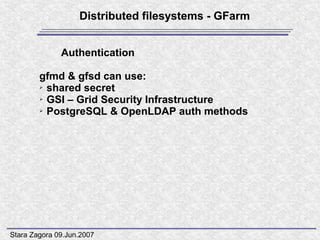

Distributed filesystems - GFarm


              Authentication

        gfmd & gfsd can use:
        ➢ shared secret

        ➢ GSI – Grid Security Infrastructure

        ➢ PostgreSQL & OpenLDAP auth methods




Stara Zagora 09.Jun.2007

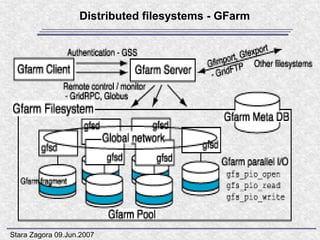

Distributed filesystems - GFarm




Stara Zagora 09.Jun.2007

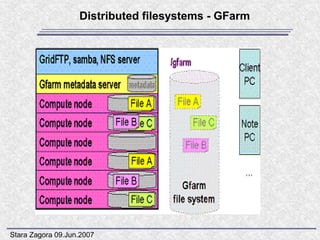

Distributed filesystems - GFarm




Stara Zagora 09.Jun.2007
Distributed filesystems - GFarm


        ? ? ? ? ? ? ?
         ? ? ?? ? ? ?
        ? ? Въпроси ? ?
        ? ? ? ? ? ? ?
         ? ? ? ? ? ?
          ? ? ? ? ? ? ?
Stara Zagora 09.Jun.2007
