1. Understanding and Applying
Cloud Hybrid Search
@jefffried
Jeff Fried
CTO, BA Insight

2. we love hybrid search - it's amazing how fast usage is growing
Jeff Teper @jeffteper

3. Today’s Session

4. Focused on Search and
SharePoint since 2004
Longtime
Search Nerd
• CTO, BA Insight
• Senior PM, Microsoft
• VP, FAST
• SVP, LingoMotors
About Jeff Fried
Passionate About
• Search
• SharePoint
• Search-driven
applications
• Information Strategy
Blog:
BAinsight.com/blog
Technet Column
“A View from the
Crawlspace”
jeff.fried@bainsight.com

5. About BA Insight


– Connectivity
– Applications -
– Classification -
– Analytics


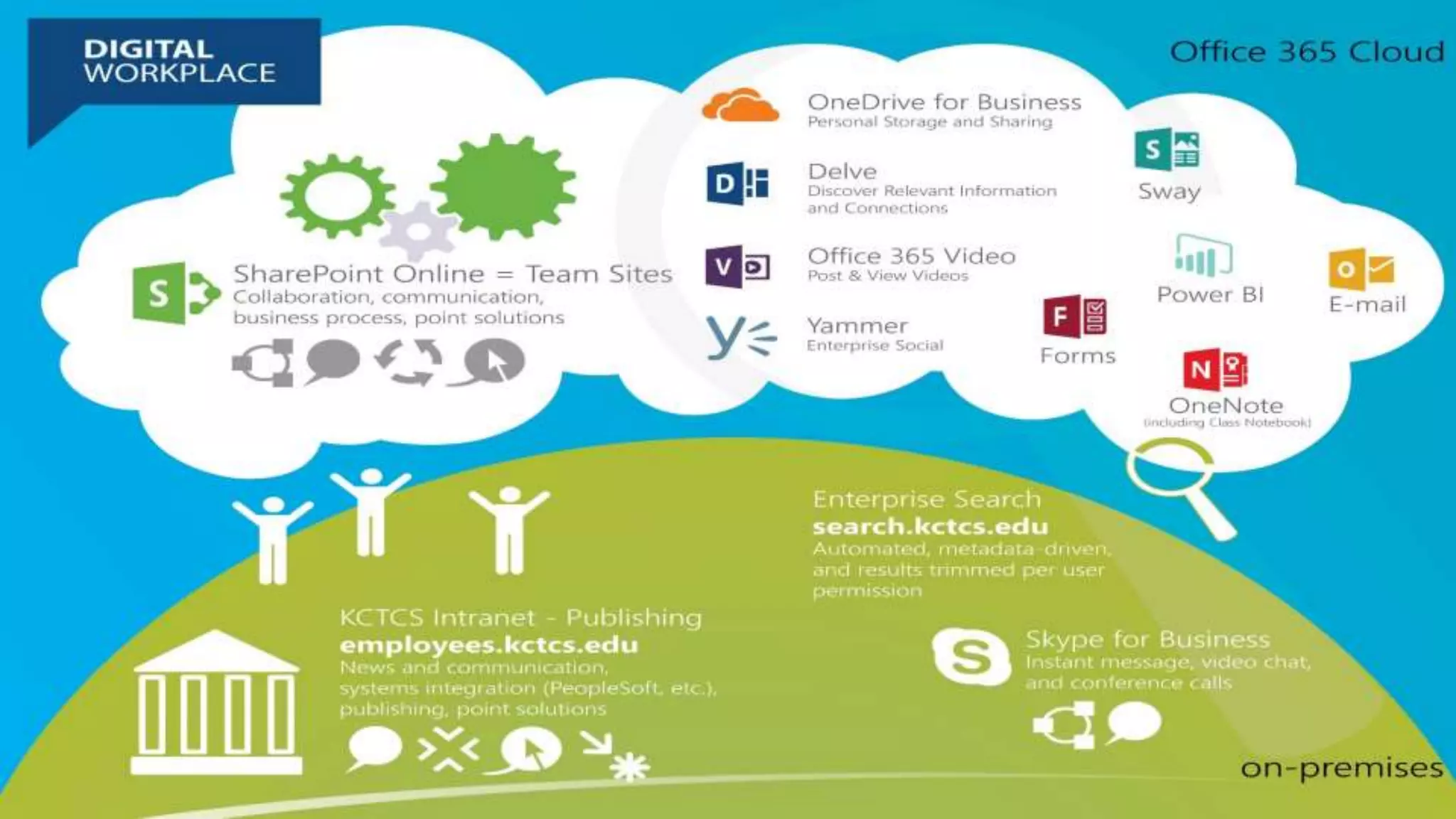

6. 6

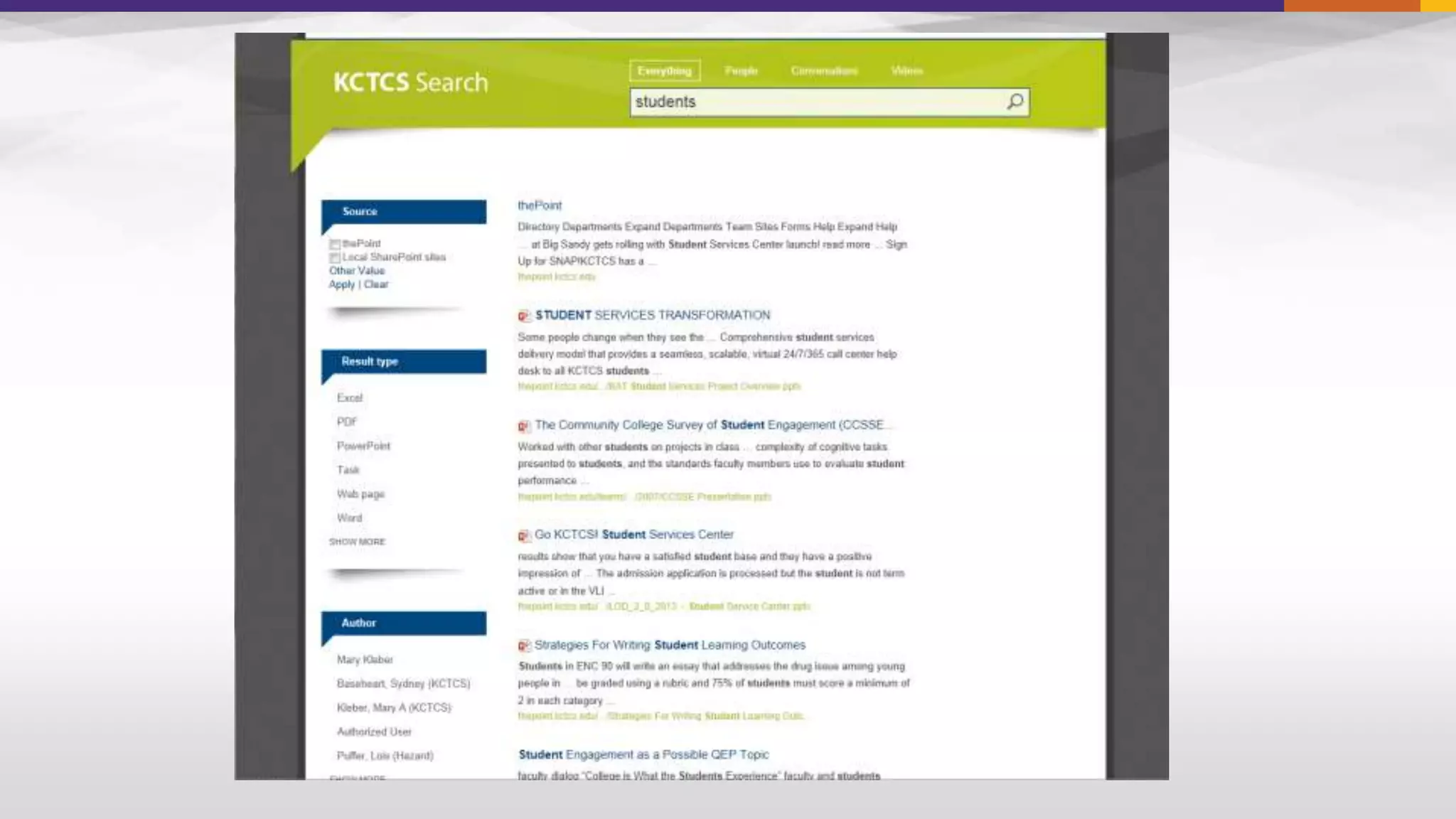

9. Demo
9

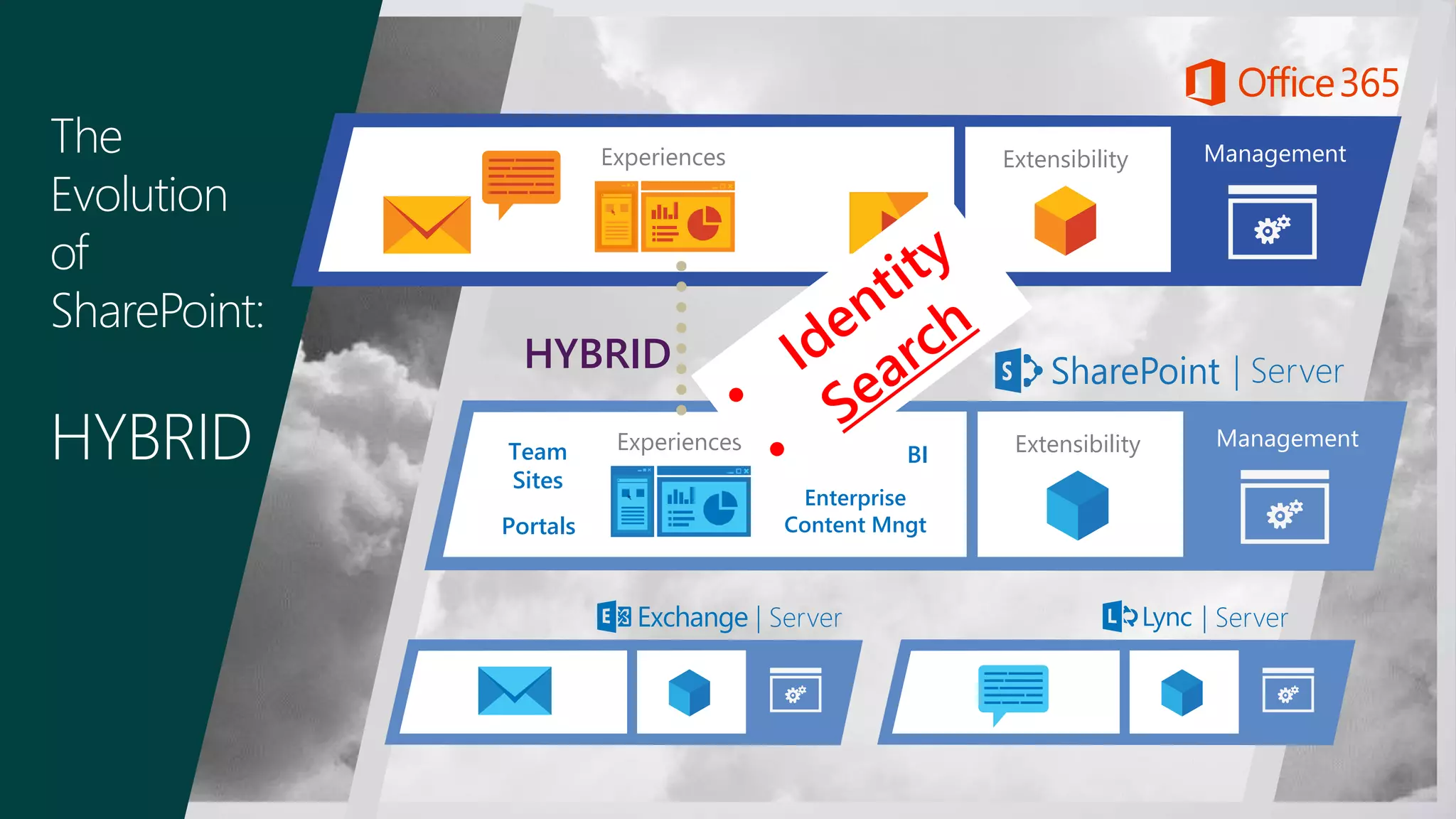

10. The
Evolution
of
SharePoint:
HYBRID ManagementExtensibilityExperiences
| Server
Experiences ManagementExtensibility
| Server | Server
HYBRID
Team
Sites
Portals
Enterprise
Content Mngt
BI

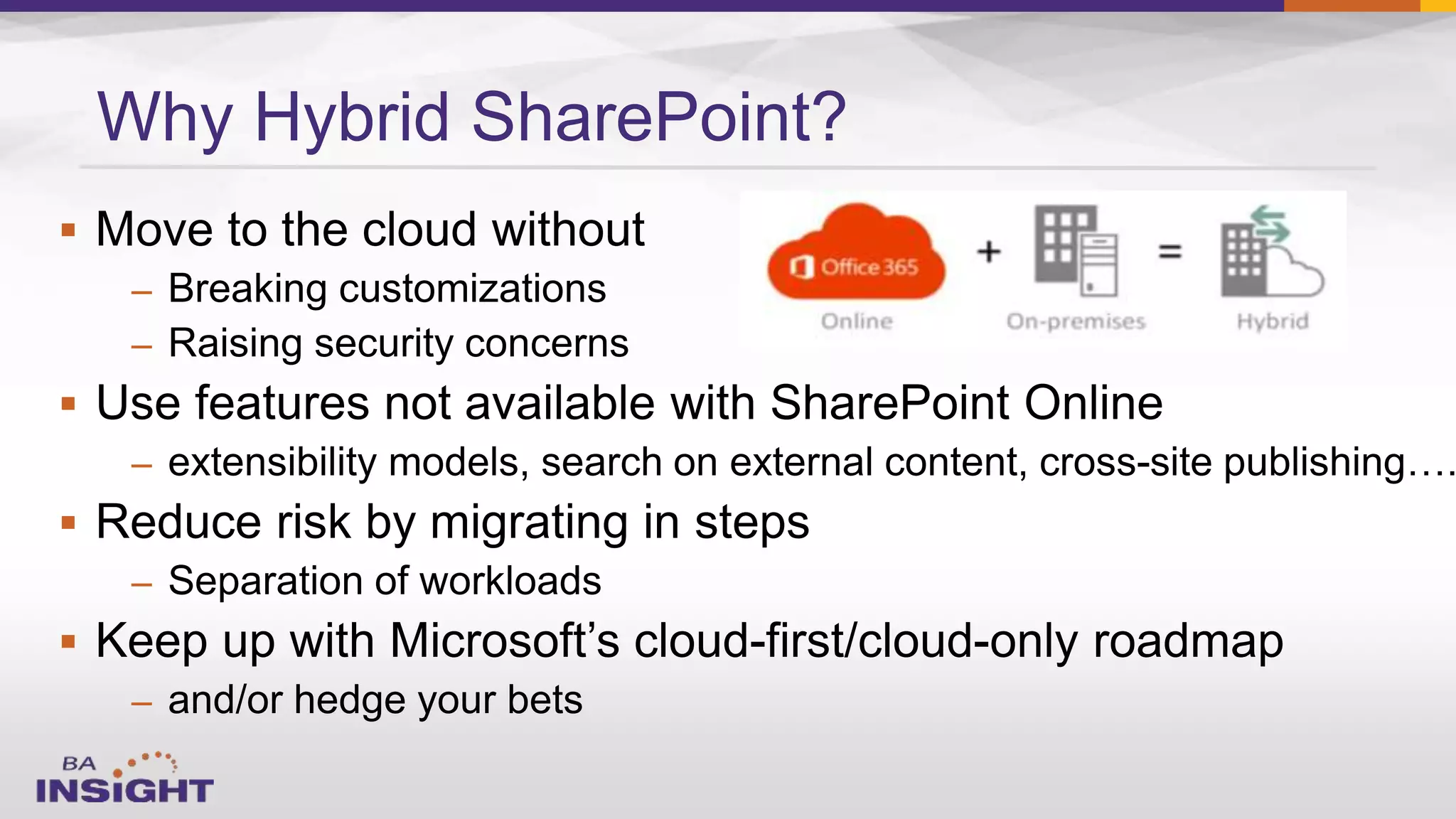

11. 
–
–

–

–

–
Why Hybrid SharePoint?

12. The Future of SharePoint Search, with Expert Jeff Fried
by Christian Buckley. March 23, 2015

13. Today’s Session

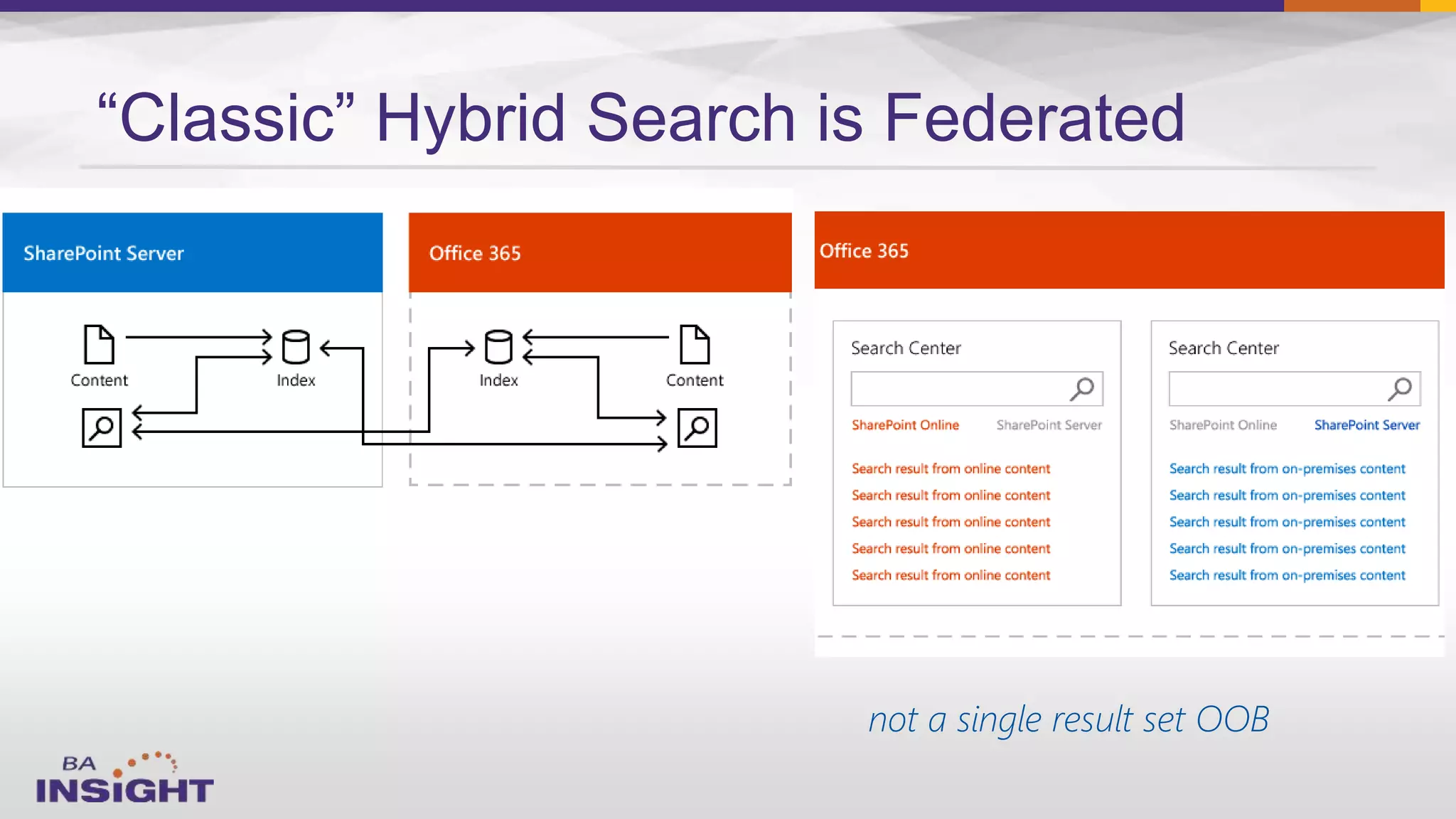

14. “Classic” Hybrid Search is Federated
not a single result set OOB

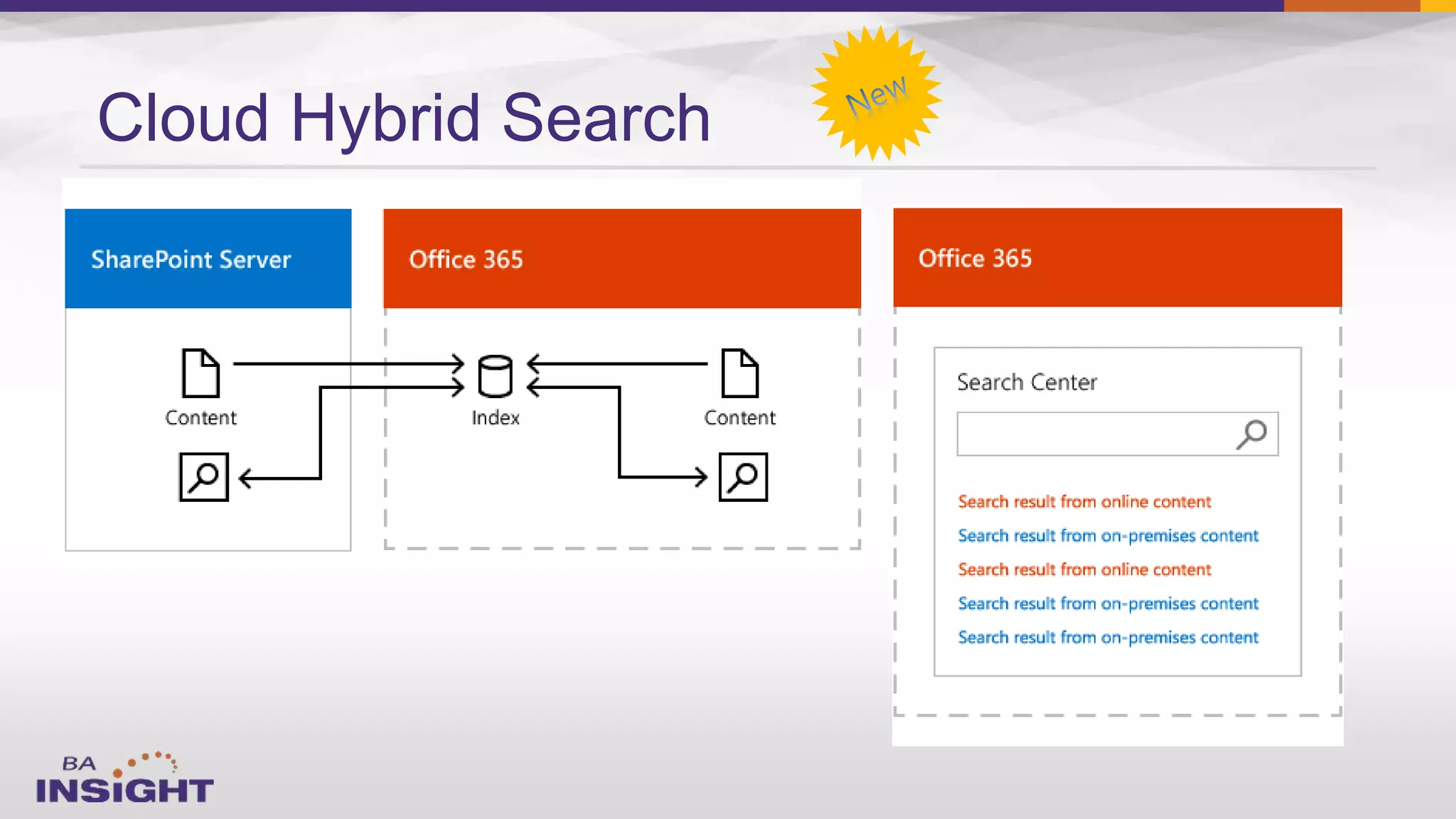

15. Cloud Hybrid Search

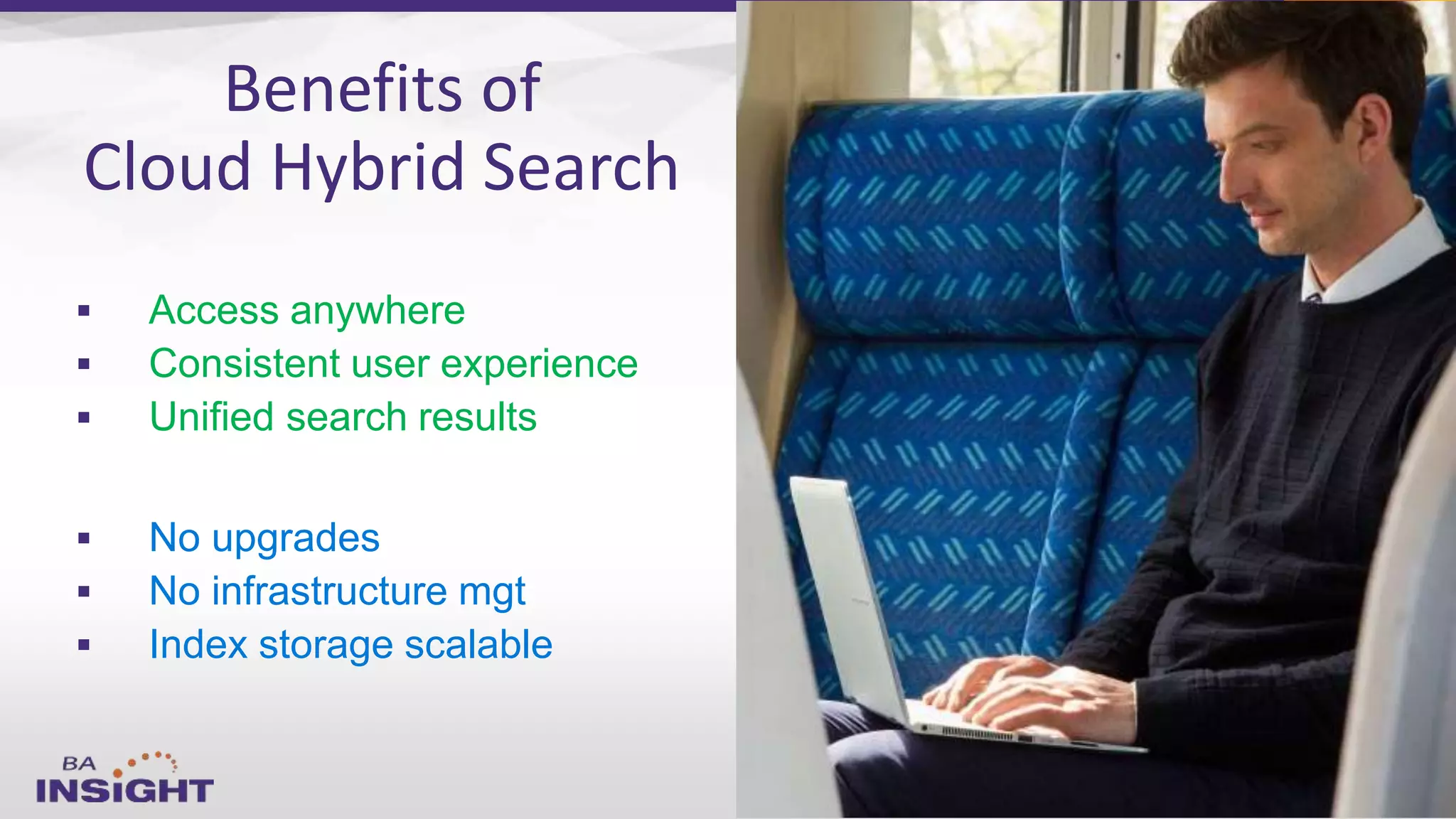

16.  Access anywhere
 Consistent user experience
 Unified search results
 No upgrades
 No infrastructure mgt
 Index storage scalable
Benefits of
Cloud Hybrid Search

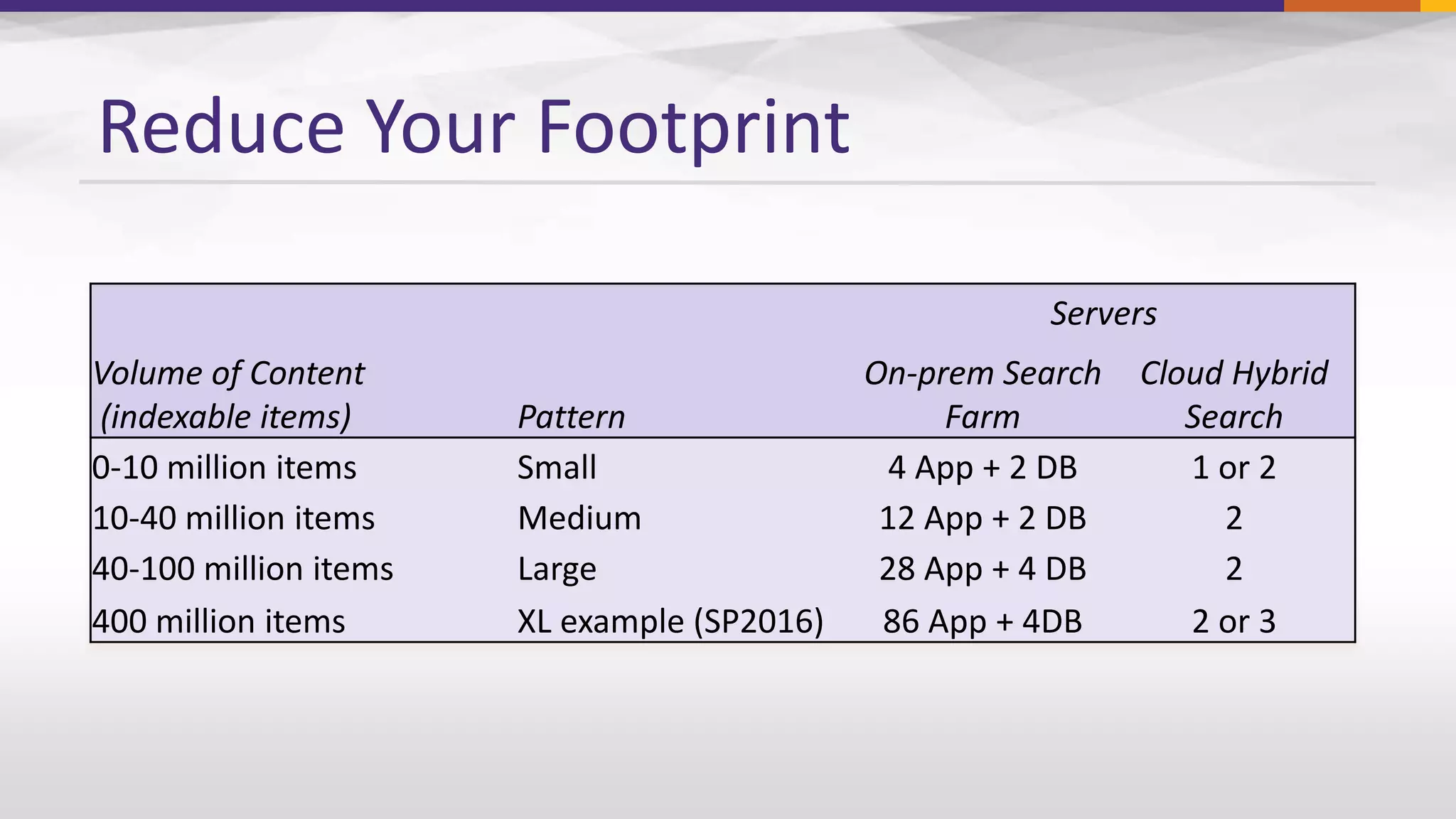

17. Reduce Your Footprint
Servers
Volume of Content
(indexable items) Pattern
On-prem Search
Farm
Cloud Hybrid
Search
0-10 million items Small 4 App + 2 DB 1 or 2
10-40 million items Medium 12 App + 2 DB 2
40-100 million items Large 28 App + 4 DB 2
400 million items XL example (SP2016) 86 App + 4DB 2 or 3

18. SharePoint Server
(On-premises or Hosted)
Office 365
SharePoint Online Content
Onedrive for Business Content
SharePoint Content
Cloud Hybrid Search

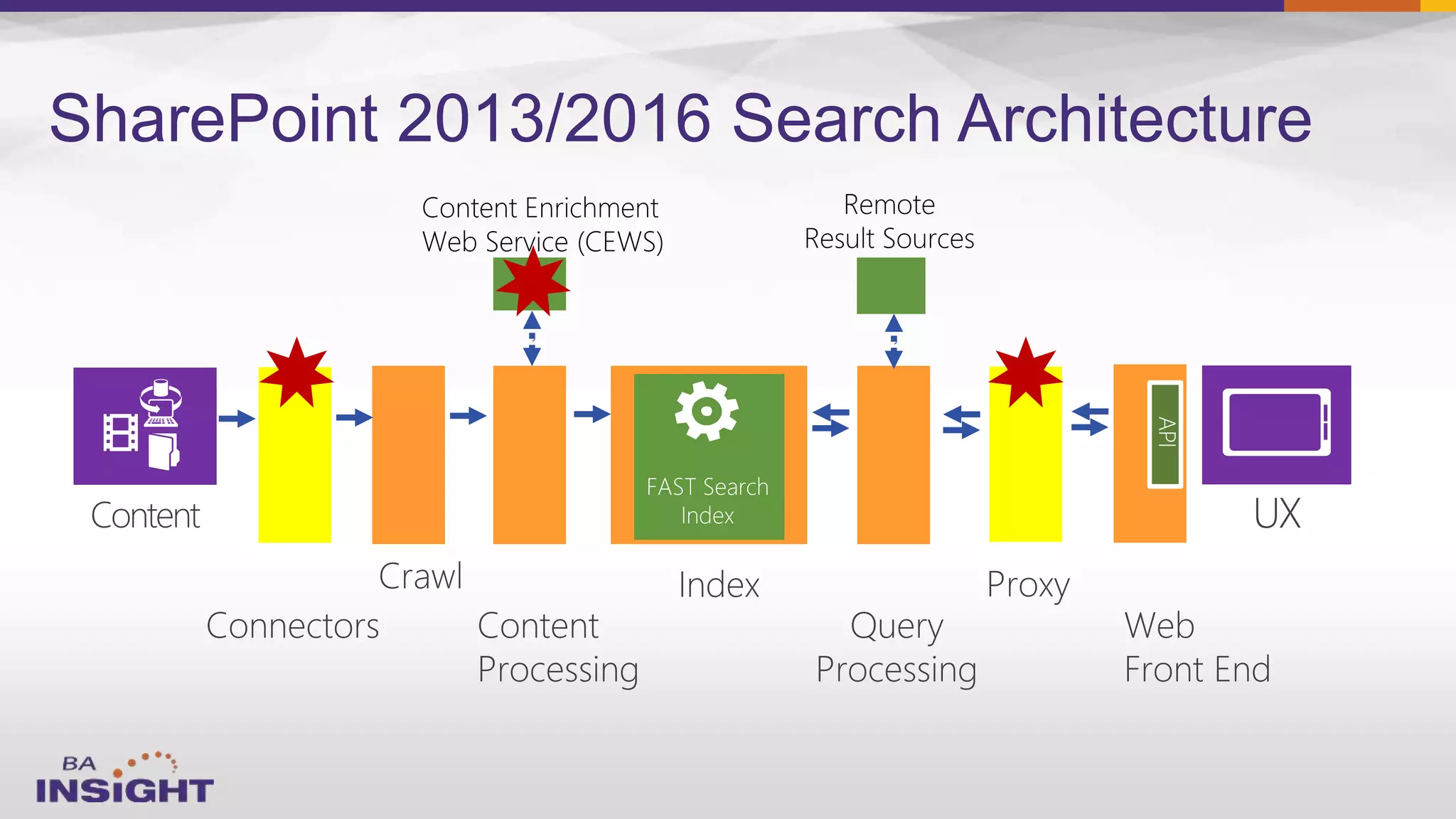

19. SharePoint 2013/2016 Search Architecture
Web Service (CEWS)

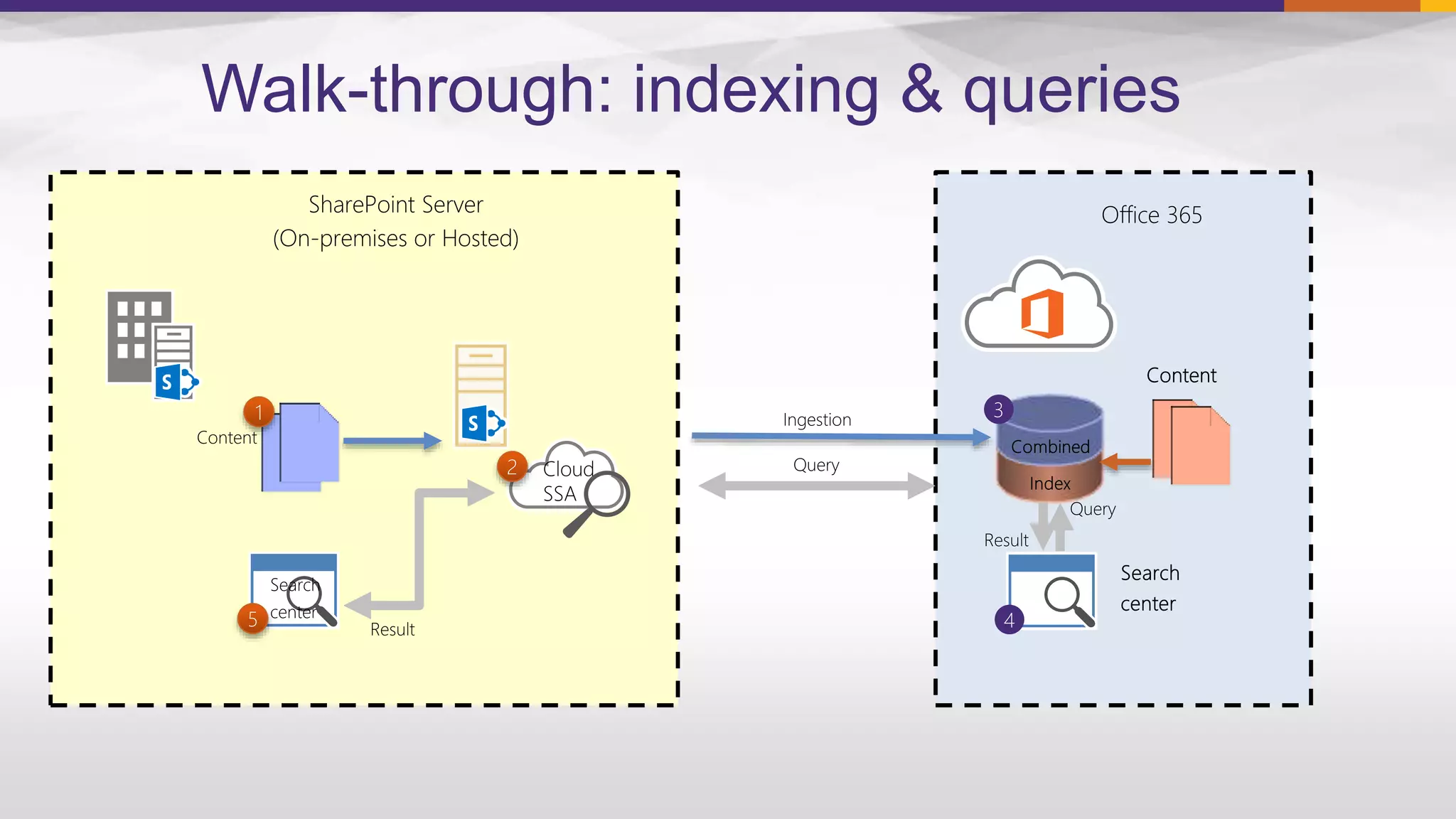

20. Walk-through: indexing & queries
SharePoint Server
(On-premises or Hosted)
Office 365

21. Today’s Session

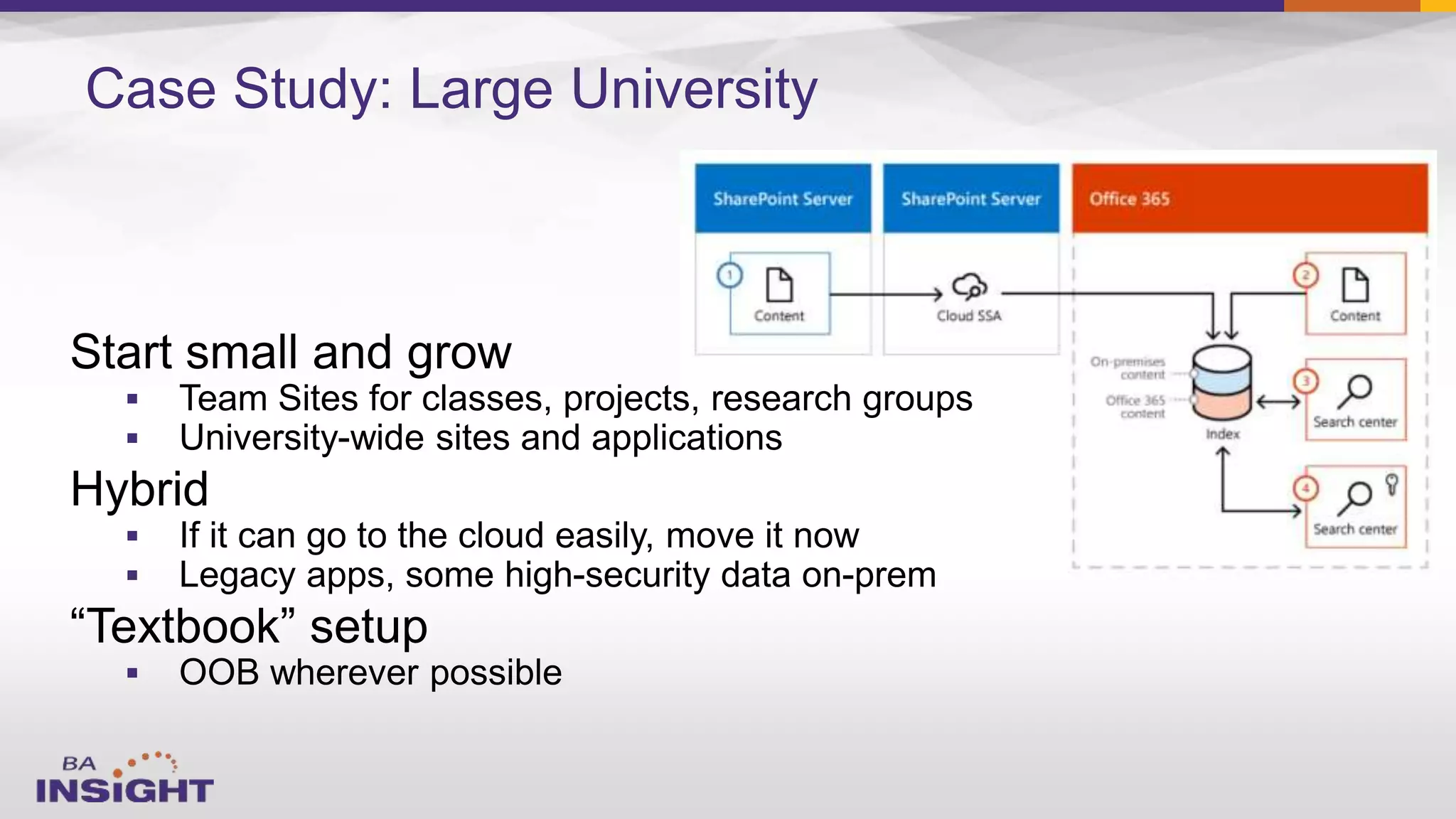

22. Case Study: Large University






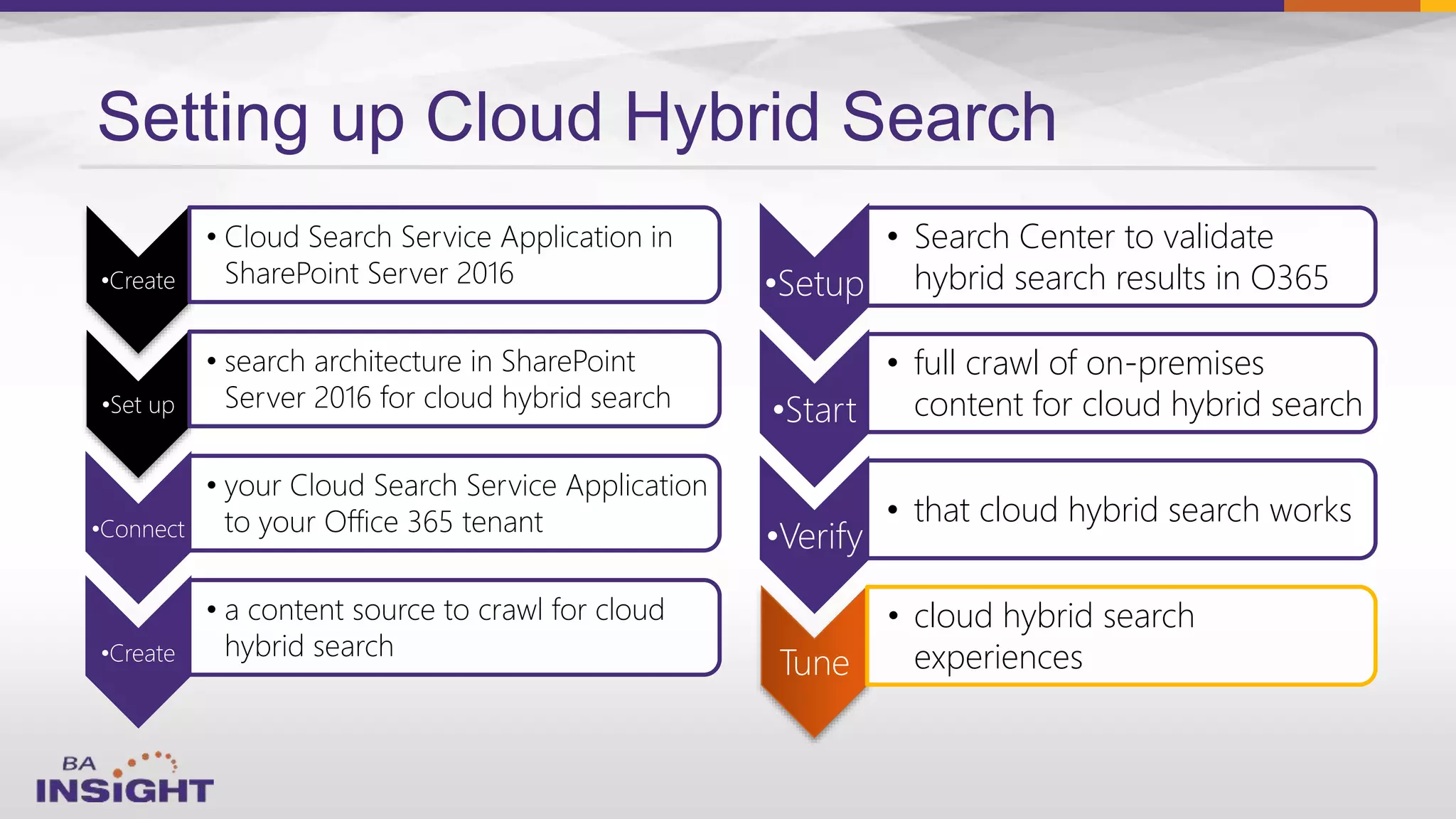

23. Setting up Cloud Hybrid Search
•Create
• Cloud Search Service Application in
SharePoint Server 2016
•Set up
• search architecture in SharePoint
Server 2016 for cloud hybrid search
•Connect
• your Cloud Search Service Application
to your Office 365 tenant
•Create
• a content source to crawl for cloud
hybrid search
•Setup
• Search Center to validate
hybrid search results in O365
•Start
• full crawl of on-premises
content for cloud hybrid search
•Verify
• that cloud hybrid search works
Tune
• cloud hybrid search
experiences

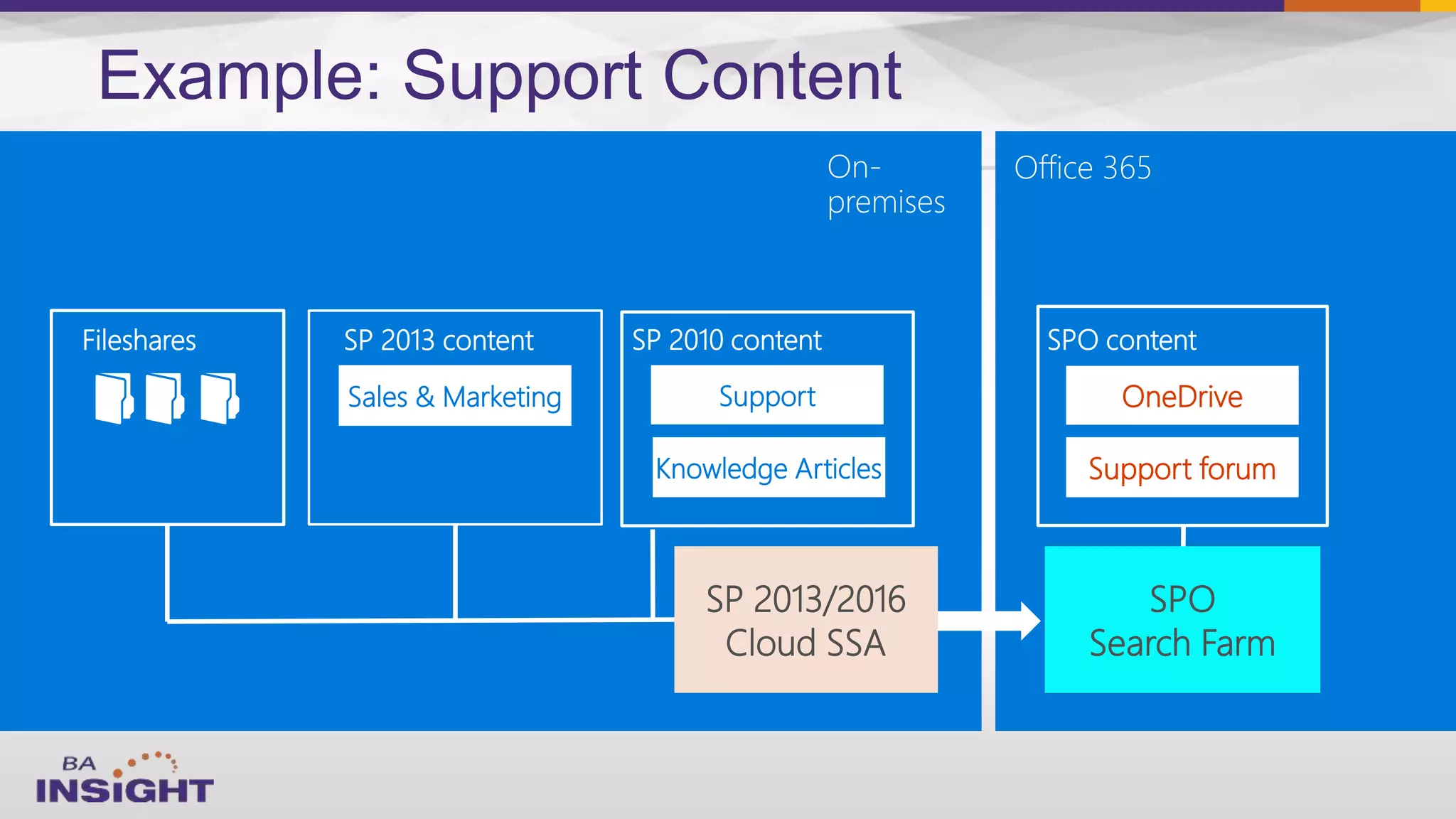

24. SupportSales & Marketing
Knowledge Articles
Fileshares
OneDrive
Support forum
SPO
Search Farm
SP 2013 content SP 2010 content
On-
premises
Office 365
SPO content
SP 2013/2016
Cloud SSA
Example: Support Content

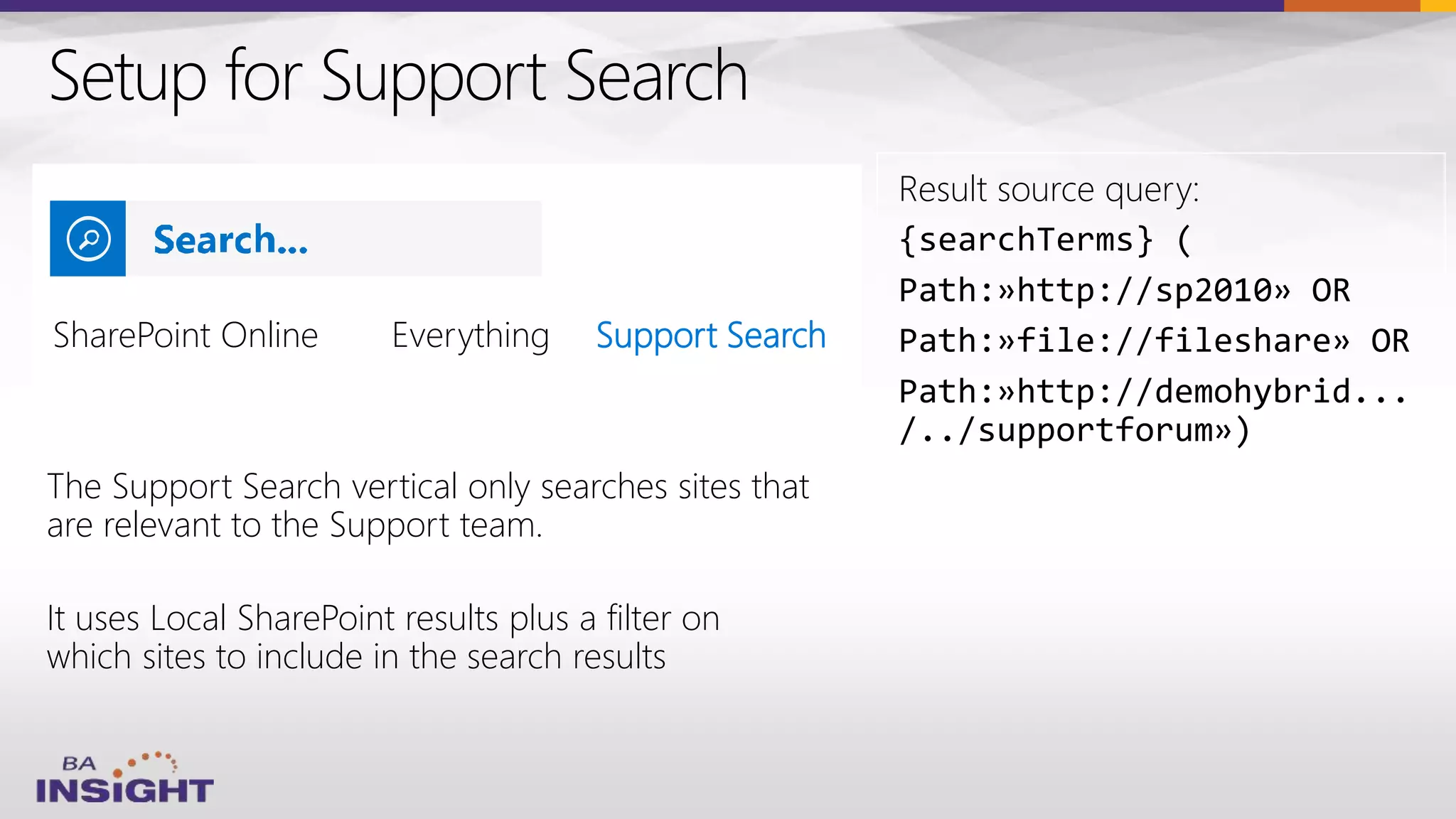

25. Setup for Support Search
The Support Search vertical only searches sites that
are relevant to the Support team.
It uses Local SharePoint results plus a filter on
which sites to include in the search results
Result source query:
{searchTerms} (
Path:»http://sp2010» OR
Path:»file://fileshare» OR
Path:»http://demohybrid...
/../supportforum»)
SharePoint Online Support Search

26. Demo
26

27. Search
Unified search across
SharePoint on-premises
and Office 365 content
and people
SharePoint 2013/2016
Deliverunified search results
from Office 365 and on-
premises in a single search

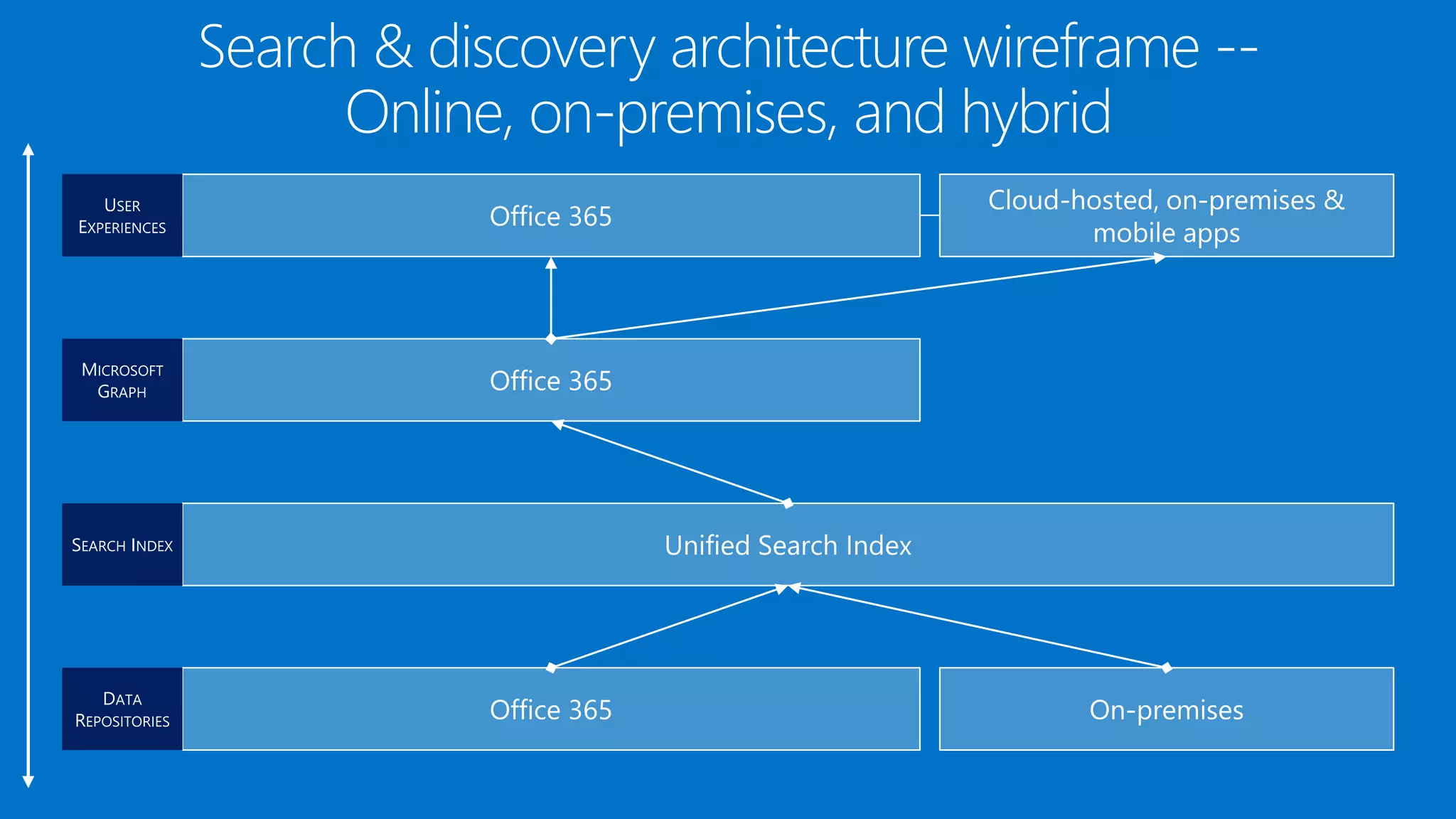

28. Search & discovery architecture wireframe --
Online, on-premises, and hybrid

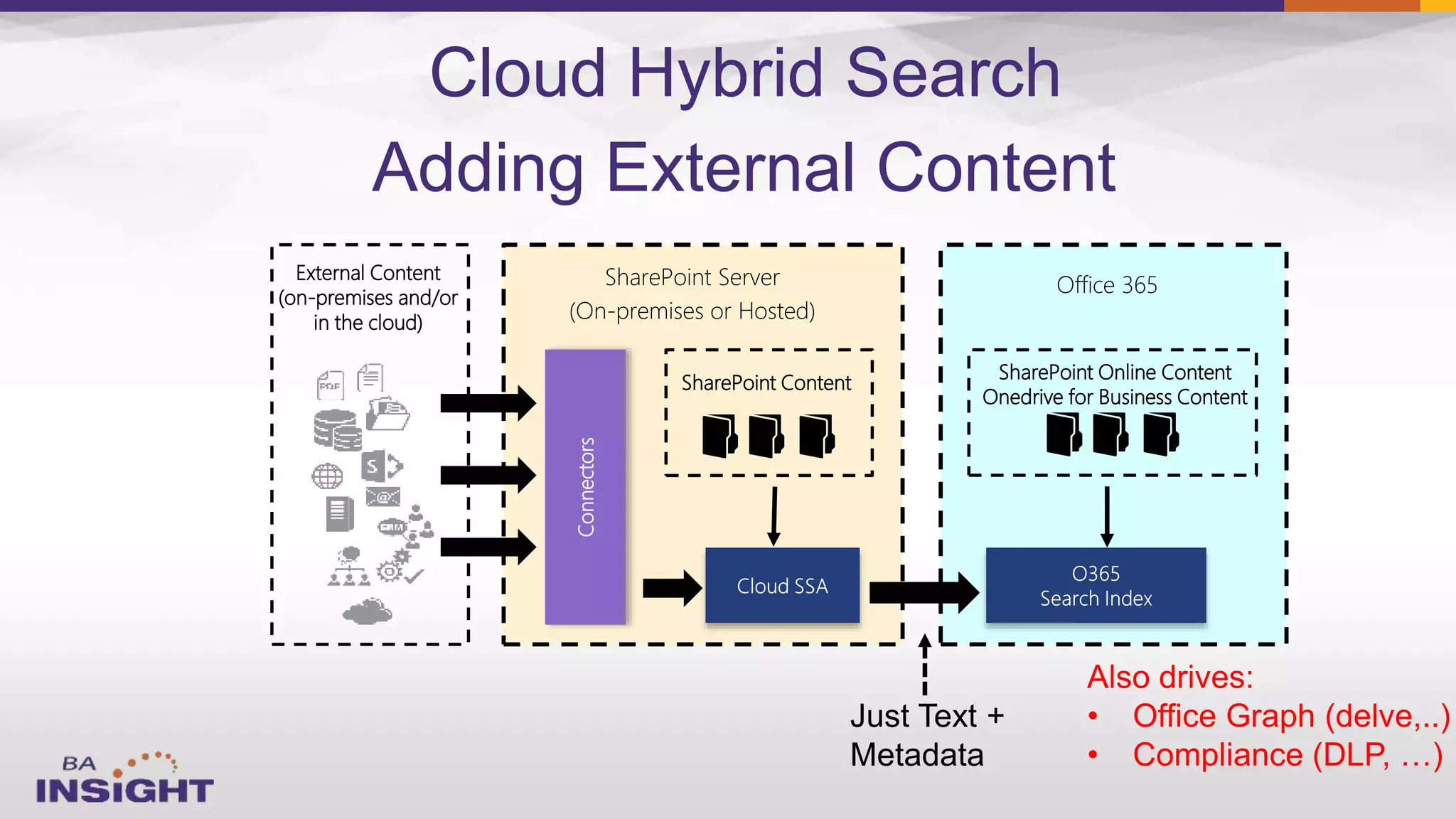

29. External Content
(on-premises and/or
in the cloud)
SharePoint Server
(On-premises or Hosted)
Office 365
SharePoint Online Content
Onedrive for Business Content
Connectors
SharePoint Content
Adding External Content
Cloud Hybrid Search
Also drives:
• Office Graph (delve,..)
• Compliance (DLP, …)

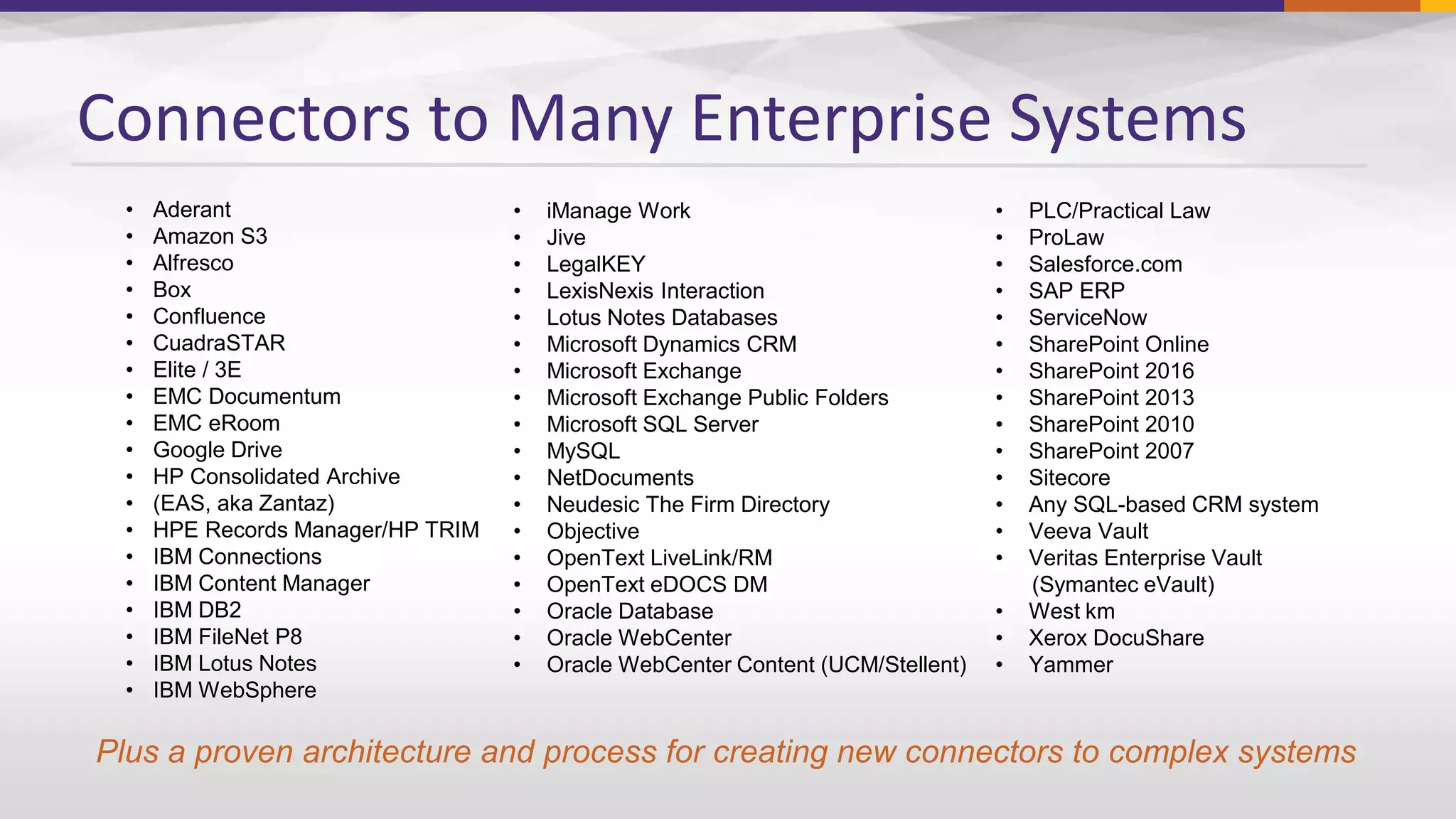

30. Connectors to Many Enterprise Systems
• Aderant
• Amazon S3
• Alfresco
• Box
• Confluence
• CuadraSTAR
• Elite / 3E
• EMC Documentum
• EMC eRoom
• Google Drive
• HP Consolidated Archive
• (EAS, aka Zantaz)
• HPE Records Manager/HP TRIM
• IBM Connections
• IBM Content Manager
• IBM DB2
• IBM FileNet P8
• IBM Lotus Notes
• IBM WebSphere
• iManage Work
• Jive
• LegalKEY
• LexisNexis Interaction
• Lotus Notes Databases
• Microsoft Dynamics CRM
• Microsoft Exchange
• Microsoft Exchange Public Folders
• Microsoft SQL Server
• MySQL
• NetDocuments
• Neudesic The Firm Directory
• Objective
• OpenText LiveLink/RM
• OpenText eDOCS DM
• Oracle Database
• Oracle WebCenter
• Oracle WebCenter Content (UCM/Stellent)
• PLC/Practical Law
• ProLaw
• Salesforce.com
• SAP ERP
• ServiceNow
• SharePoint Online
• SharePoint 2016
• SharePoint 2013
• SharePoint 2010
• SharePoint 2007
• Sitecore
• Any SQL-based CRM system
• Veeva Vault
• Veritas Enterprise Vault
(Symantec eVault)
• West km
• Xerox DocuShare
• Yammer
Plus a proven architecture and process for creating new connectors to complex systems

31. 


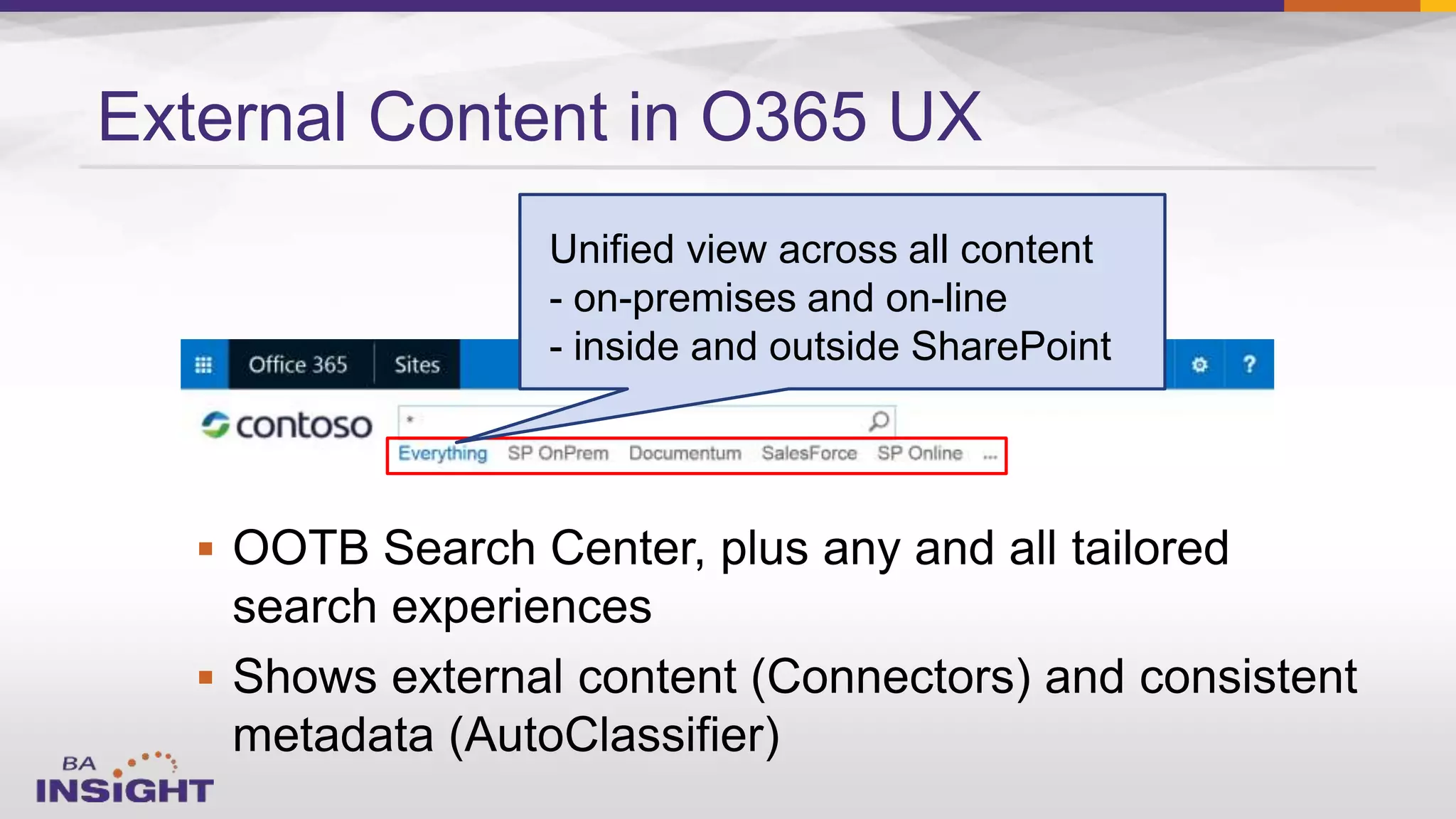

External Content in O365 UX
Unified view across all content
- on-premises and on-line
- inside and outside SharePoint

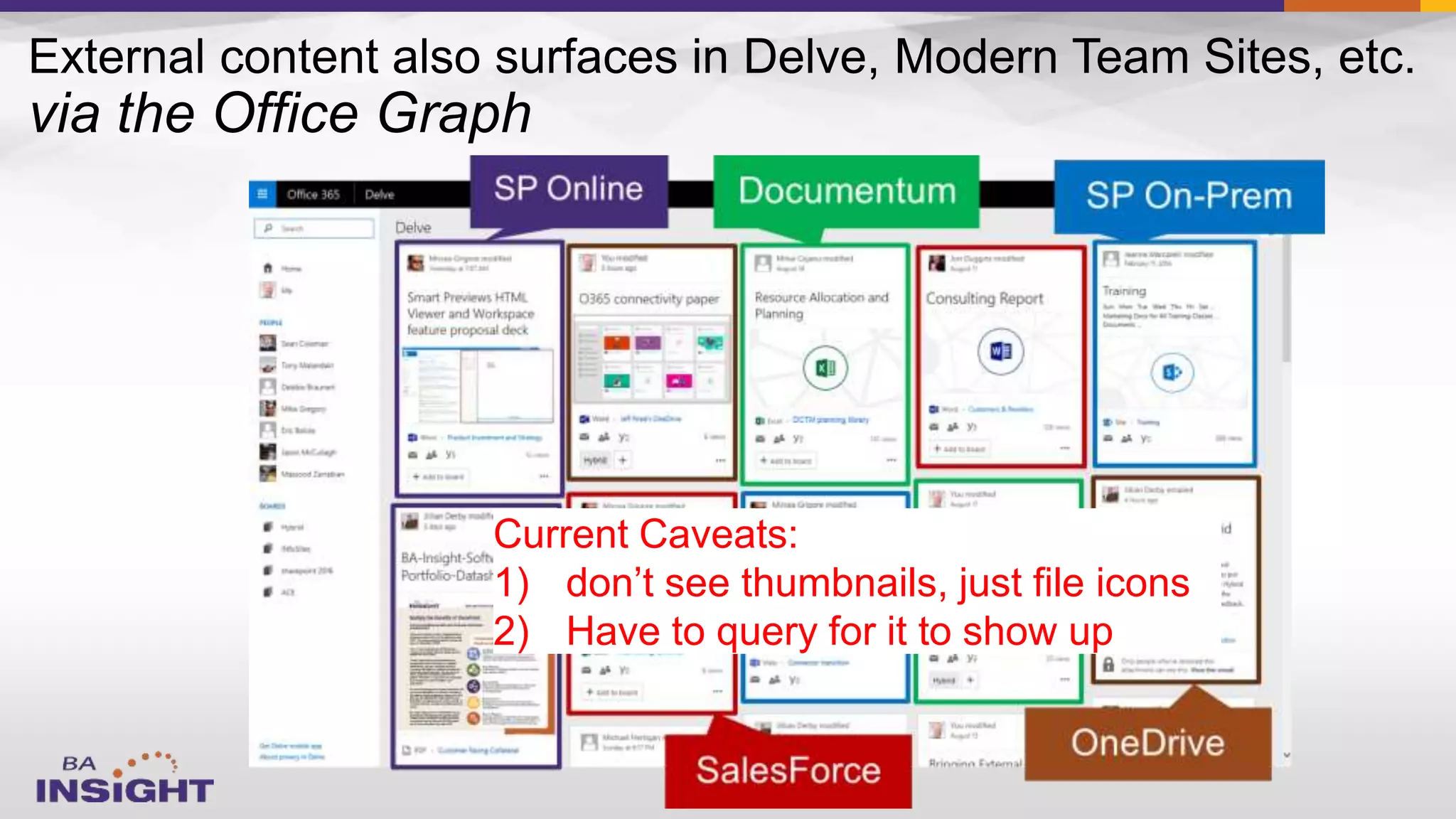

32. Current Caveats:
1) don’t see thumbnails, just file icons
2) Have to query for it to show up

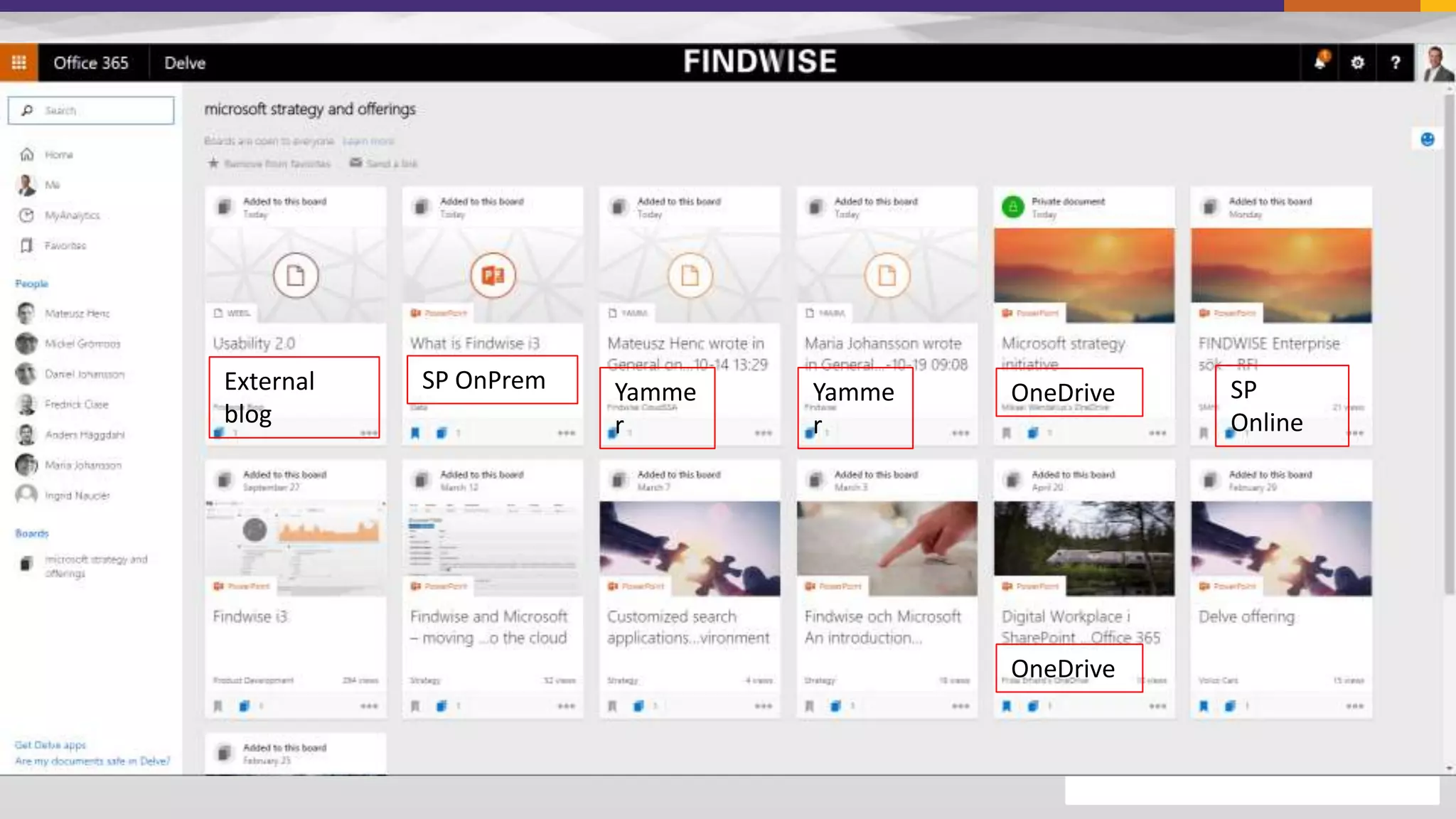

33. External
blog
SP OnPrem Yamme
r
Yamme
r
OneDrive SP
Online
OneDrive

34. 
–
–

–

–
Case Study:
Cloud SSA, external content
Large global company
in materials science

35. Today’s Session

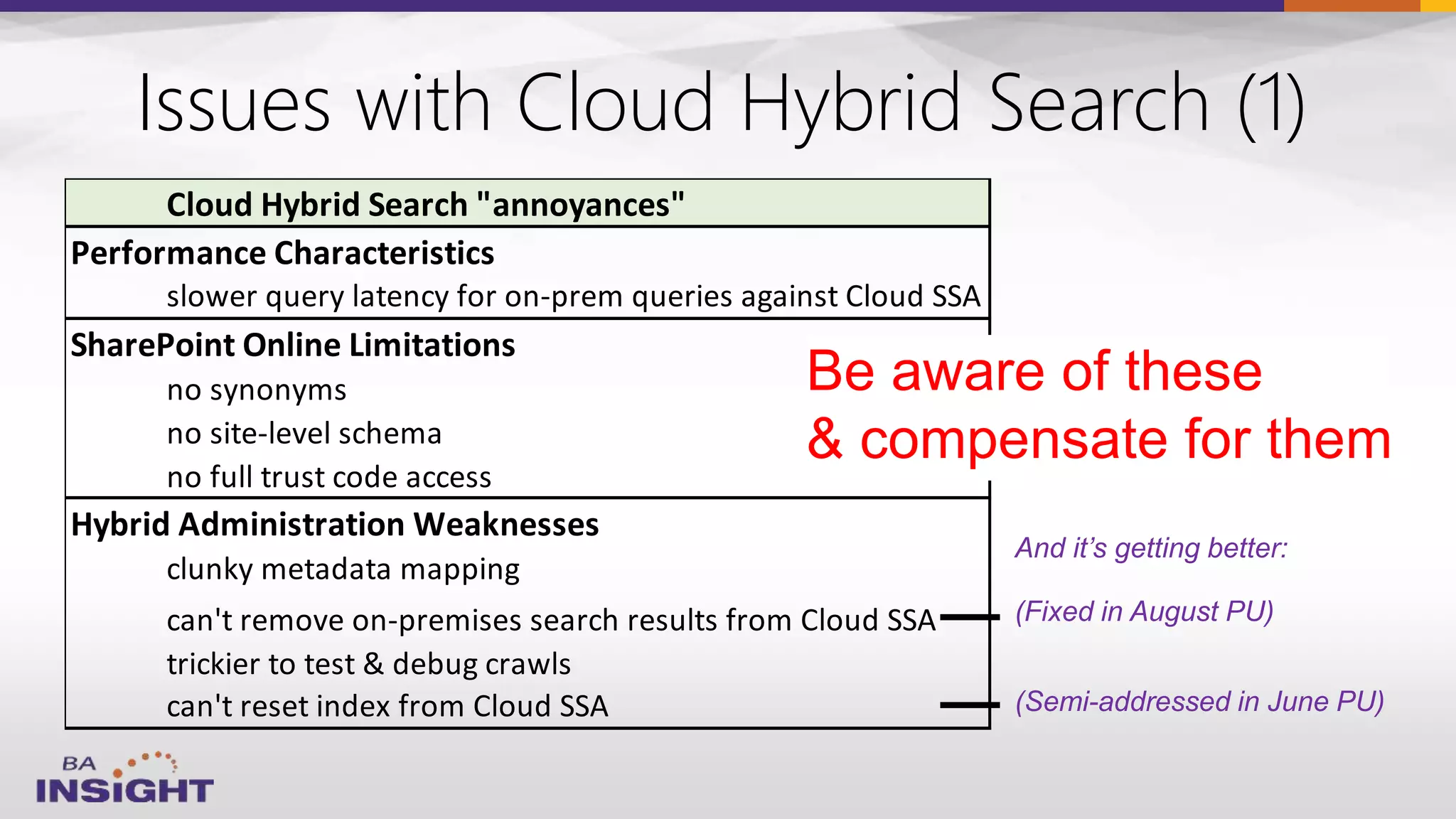

36. Issues with Cloud Hybrid Search (1)
Cloud Hybrid Search "annoyances"
Performance Characteristics
slower query latency for on-prem queries against Cloud SSA
SharePoint Online Limitations
no synonyms
no site-level schema
no full trust code access
Hybrid Administration Weaknesses
clunky metadata mapping
can't remove on-premises search results from Cloud SSA
trickier to test & debug crawls
can't reset index from Cloud SSA
Be aware of these
& compensate for them
(Fixed in August PU)
(Semi-addressed in June PU)

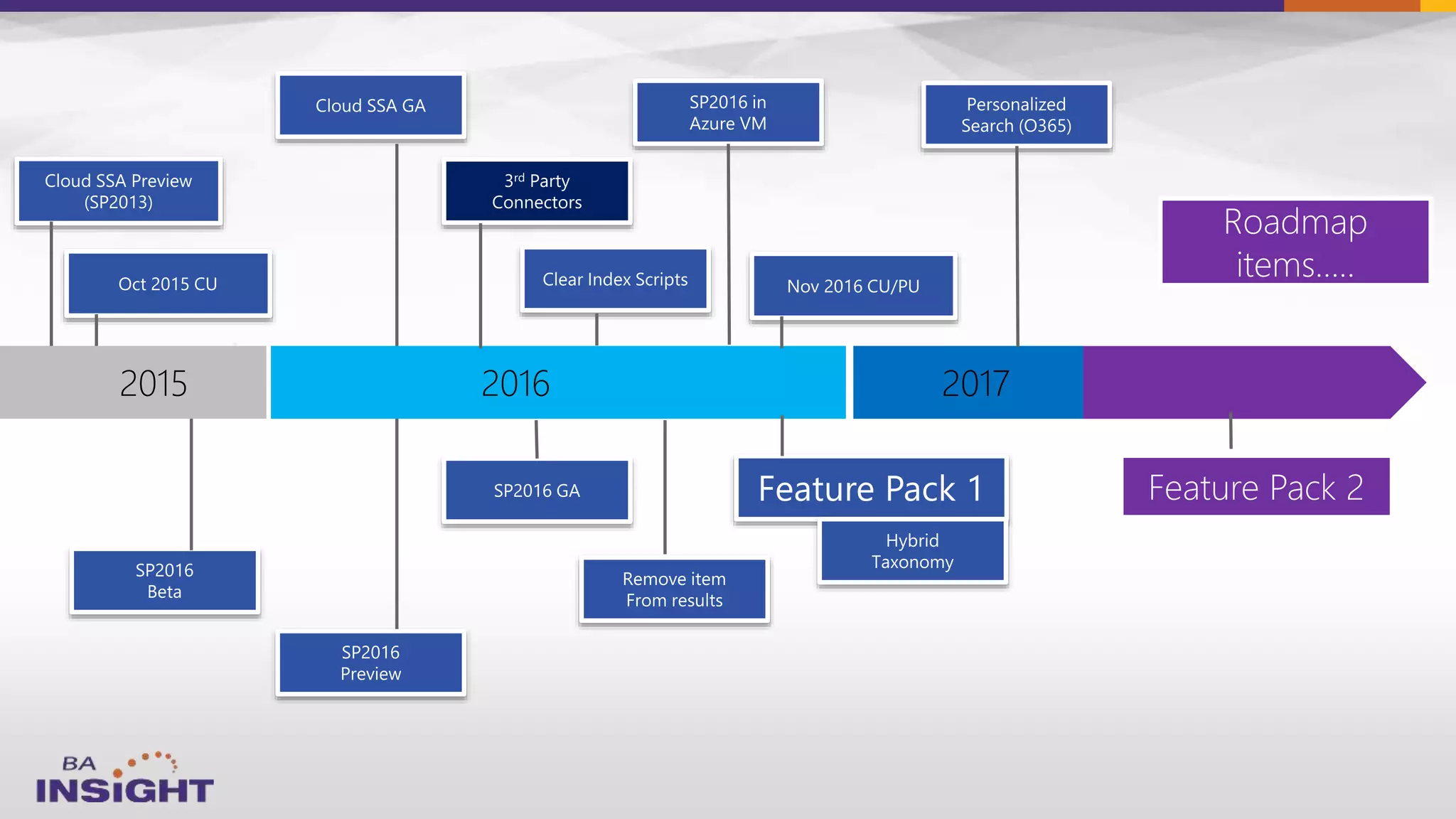

And it’s getting better:

37. 2017

38. 38

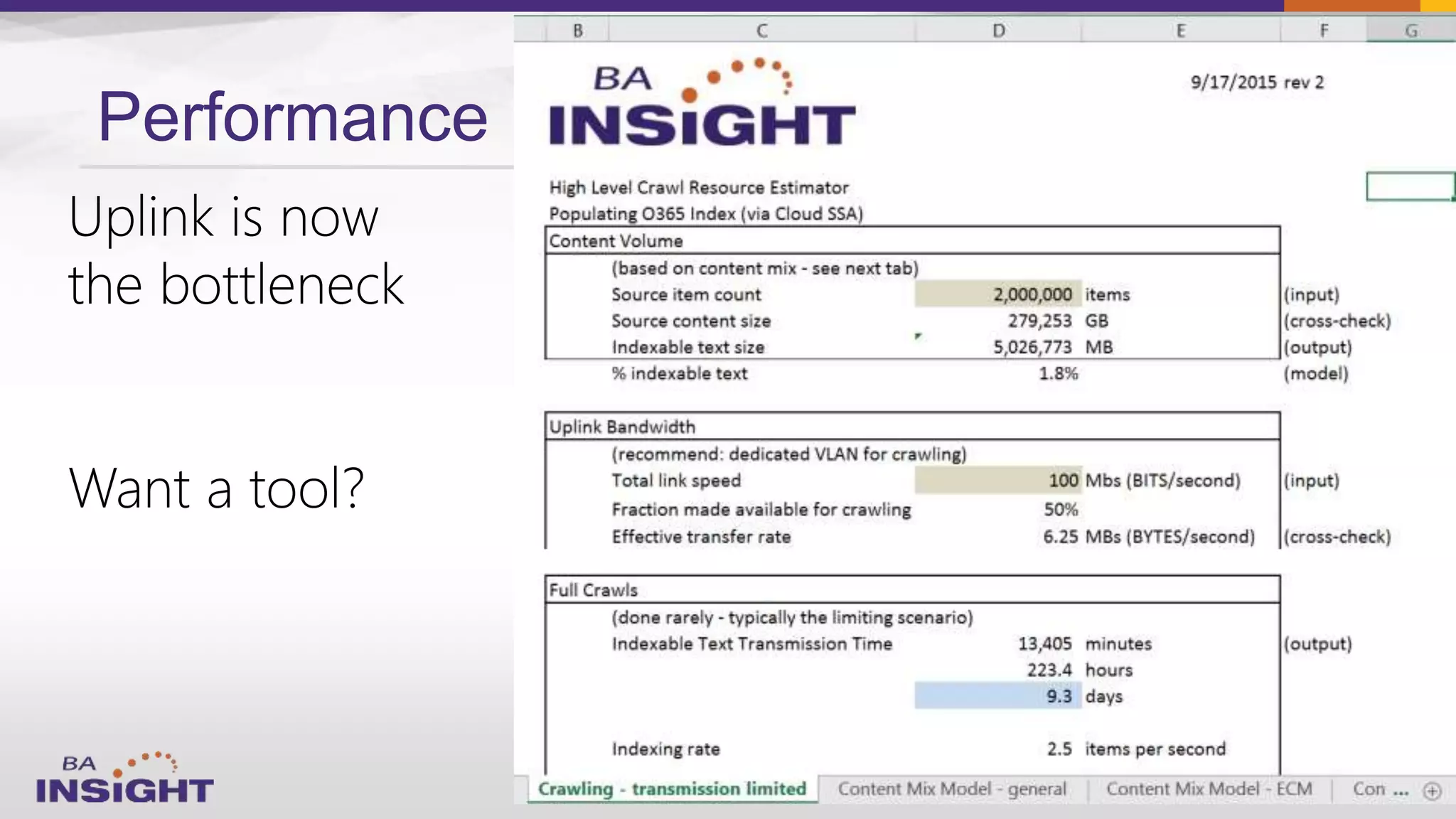

Performance

40. 






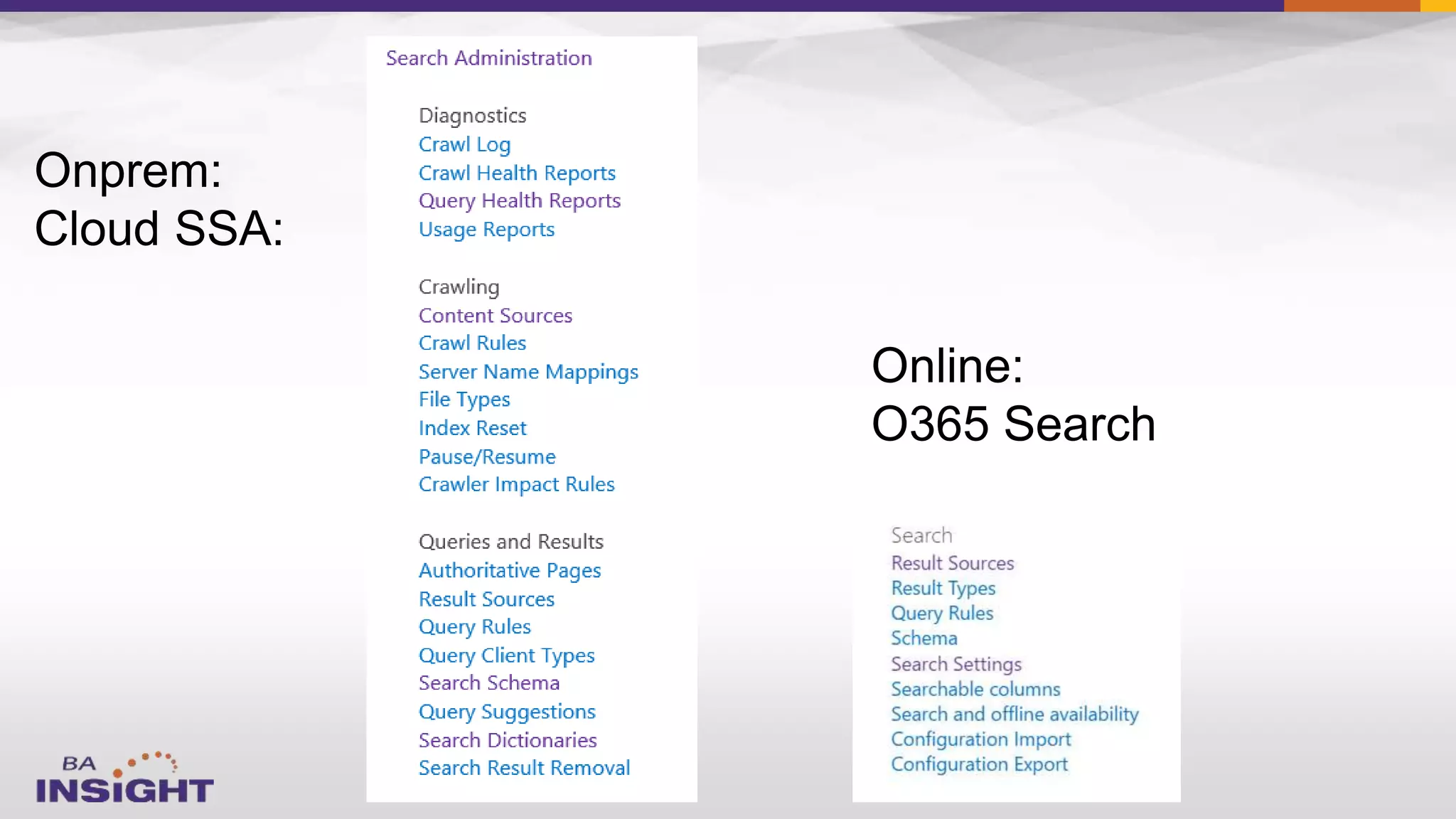

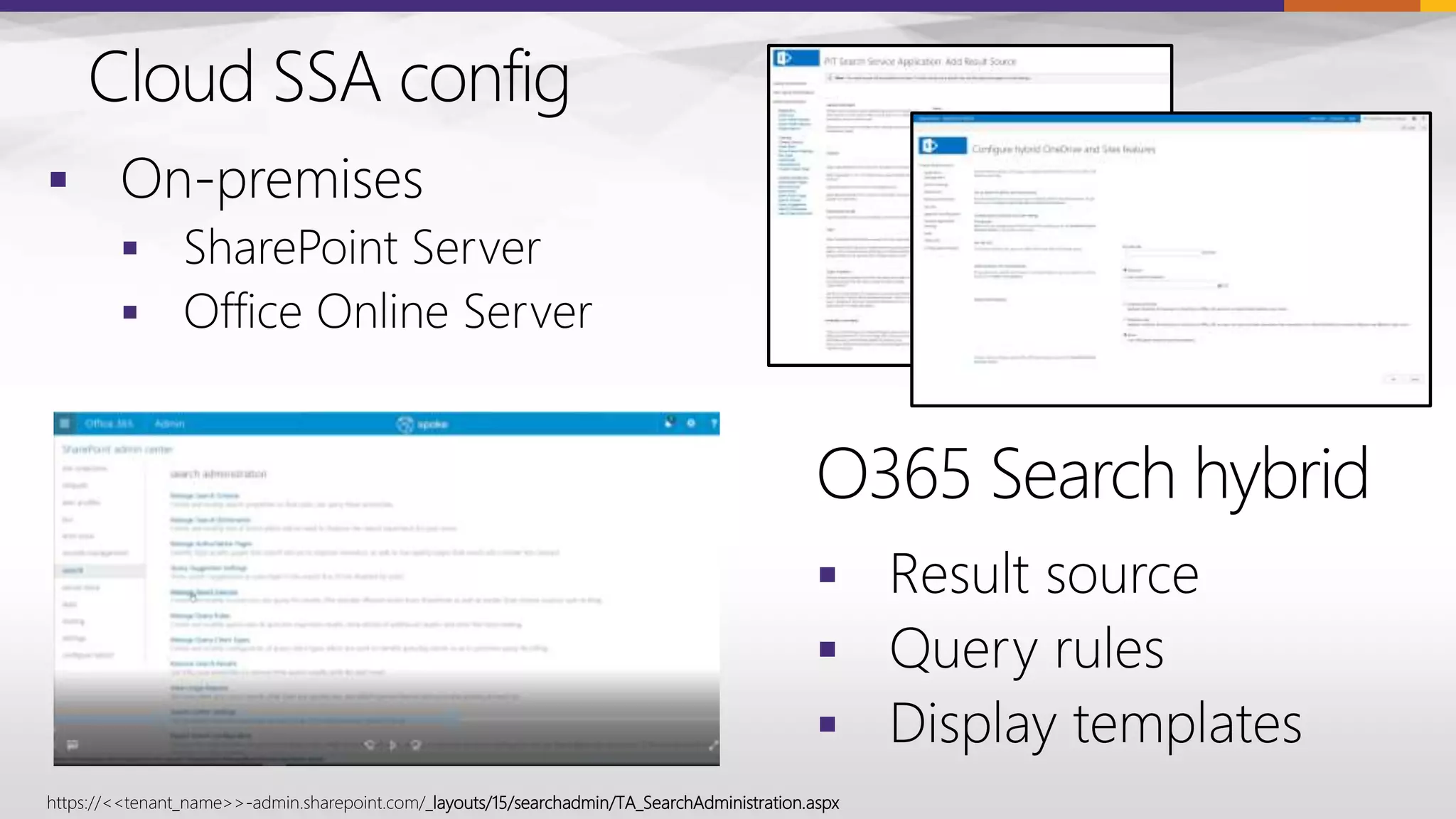

https://<<tenant_name>>-admin.sharepoint.com/_layouts/15/searchadmin/TA_SearchAdministration.aspx

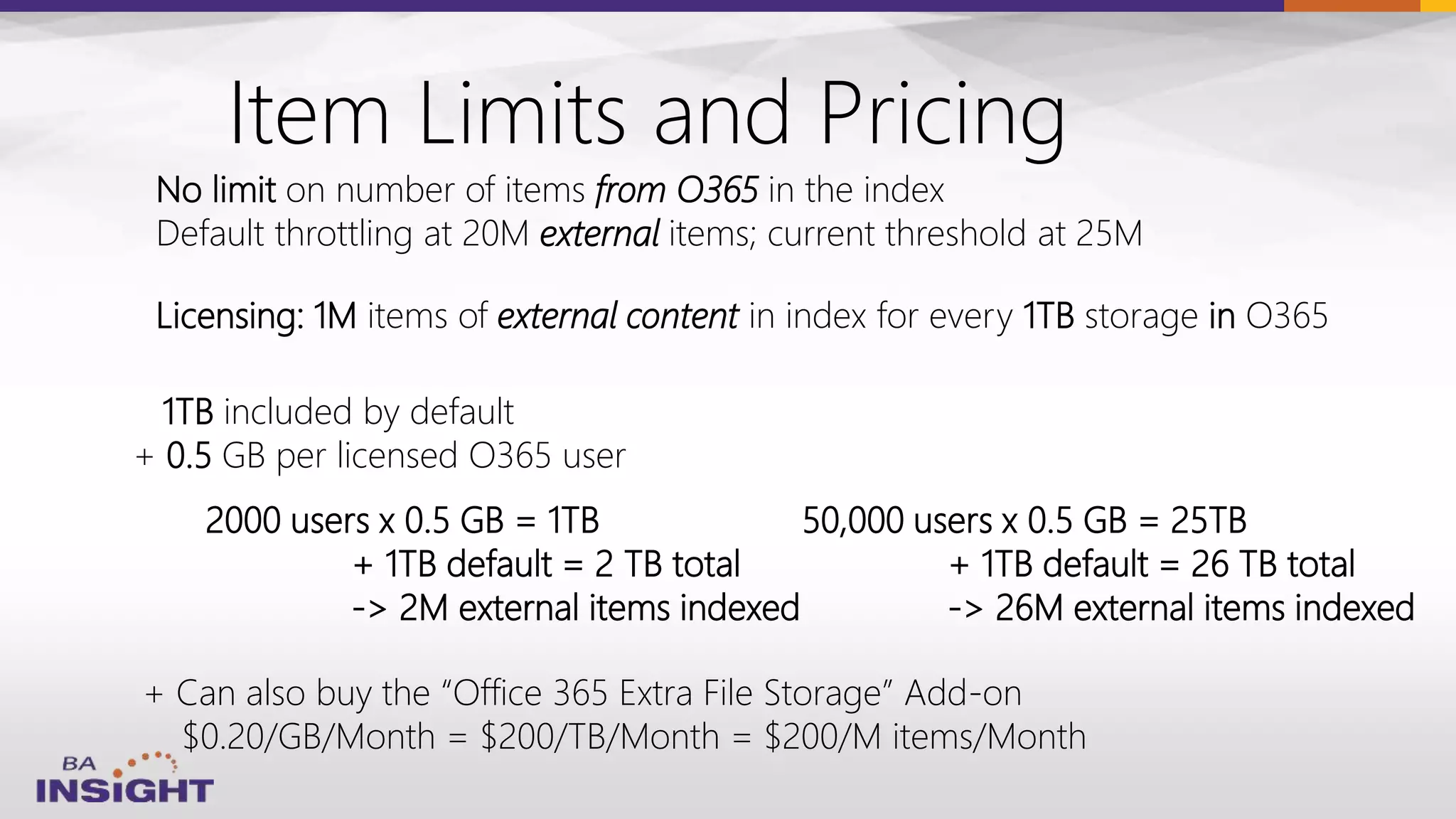

41. Item Limits and Pricing
Licensing: 1M items of external content in index for every 1TB storage in O365
1TB included by default
+ 0.5 GB per licensed O365 user
No limit on number of items from O365 in the index
Default throttling at 20M external items; current threshold at 25M
2000 users x 0.5 GB = 1TB
+ 1TB default = 2 TB total
-> 2M external items indexed
+ Can also buy the “Office 365 Extra File Storage” Add-on
$0.20/GB/Month = $200/TB/Month = $200/M items/Month
50,000 users x 0.5 GB = 25TB
+ 1TB default = 26 TB total
-> 26M external items indexed

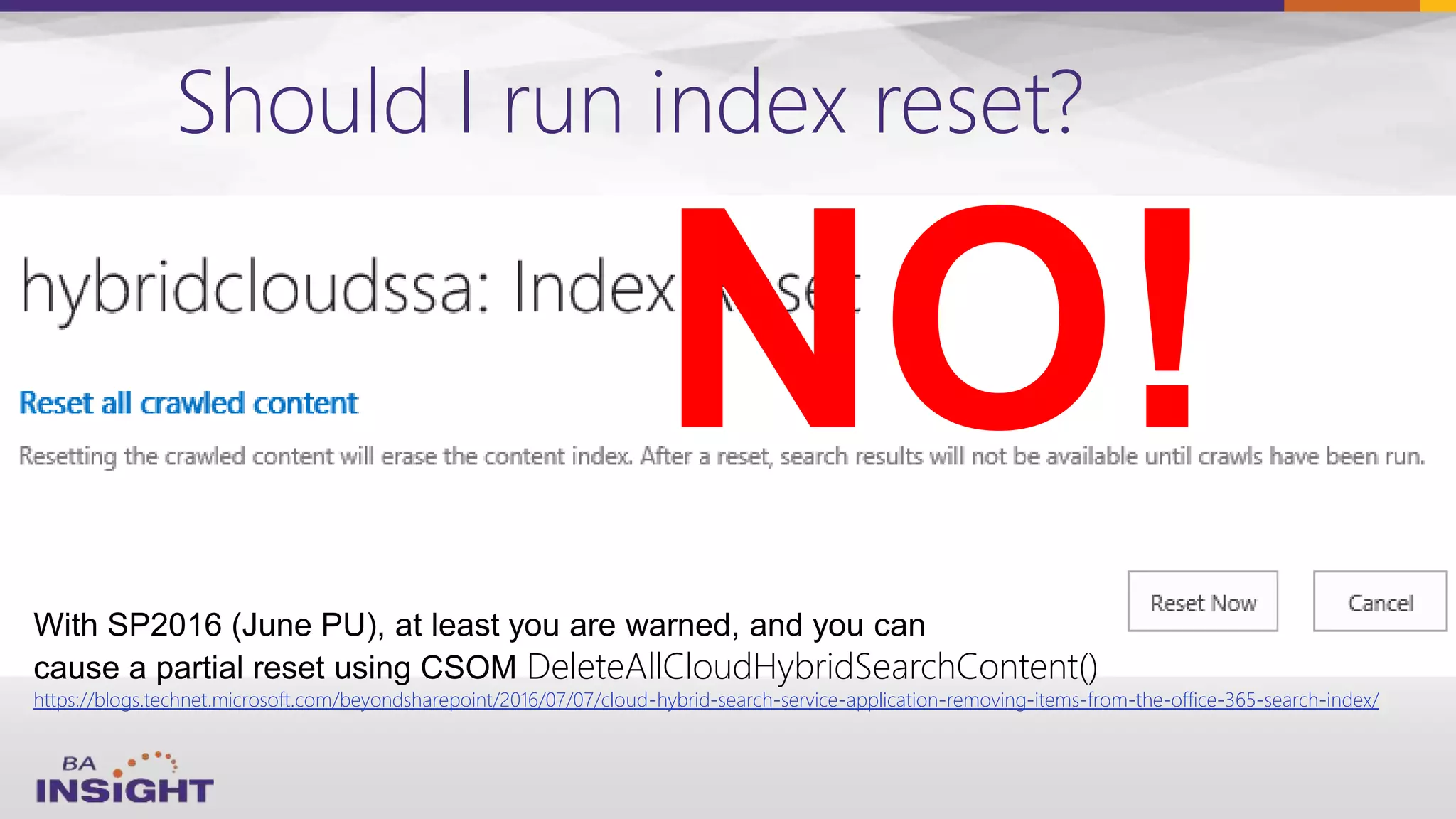

42. Should I run index reset?
NO!
DeleteAllCloudHybridSearchContent()
https://blogs.technet.microsoft.com/beyondsharepoint/2016/07/07/cloud-hybrid-search-service-application-removing-items-from-the-office-365-search-index/

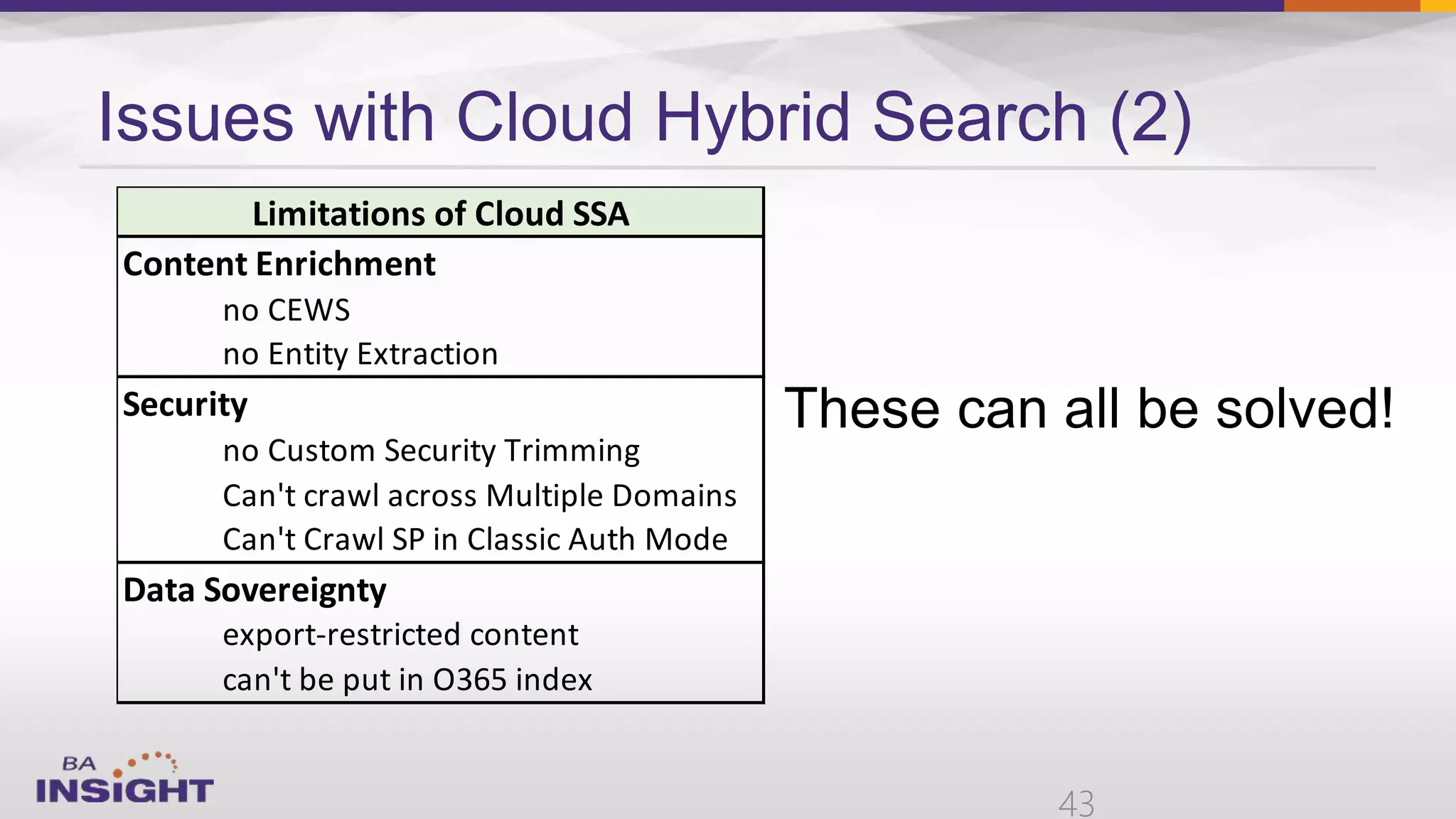

43. Issues with Cloud Hybrid Search (2)
43
Content Enrichment
no CEWS
no Entity Extraction
Security
no Custom Security Trimming
Can't crawl across Multiple Domains
Can't Crawl SP in Classic Auth Mode
Data Sovereignty
export-restricted content
can't be put in O365 index
Limitations of Cloud SSA

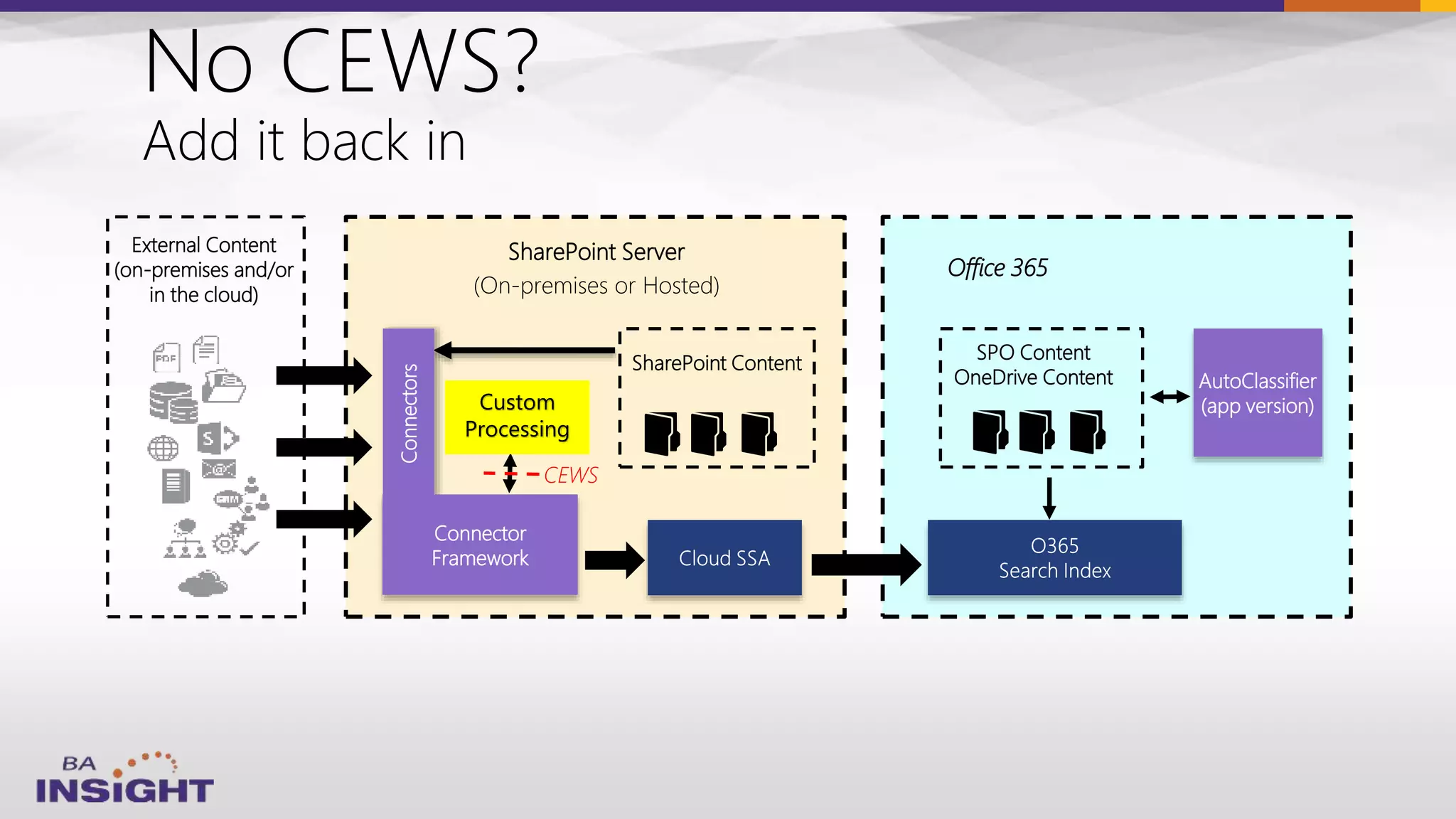

44. External Content
(on-premises and/or
in the cloud)
SharePoint Server
(On-premises or Hosted)
SPO Content
OneDrive Content
Connectors
SharePoint Content
Connector
Framework
Office 365
AutoClassifier
(app version)
CEWS
Custom
Processing

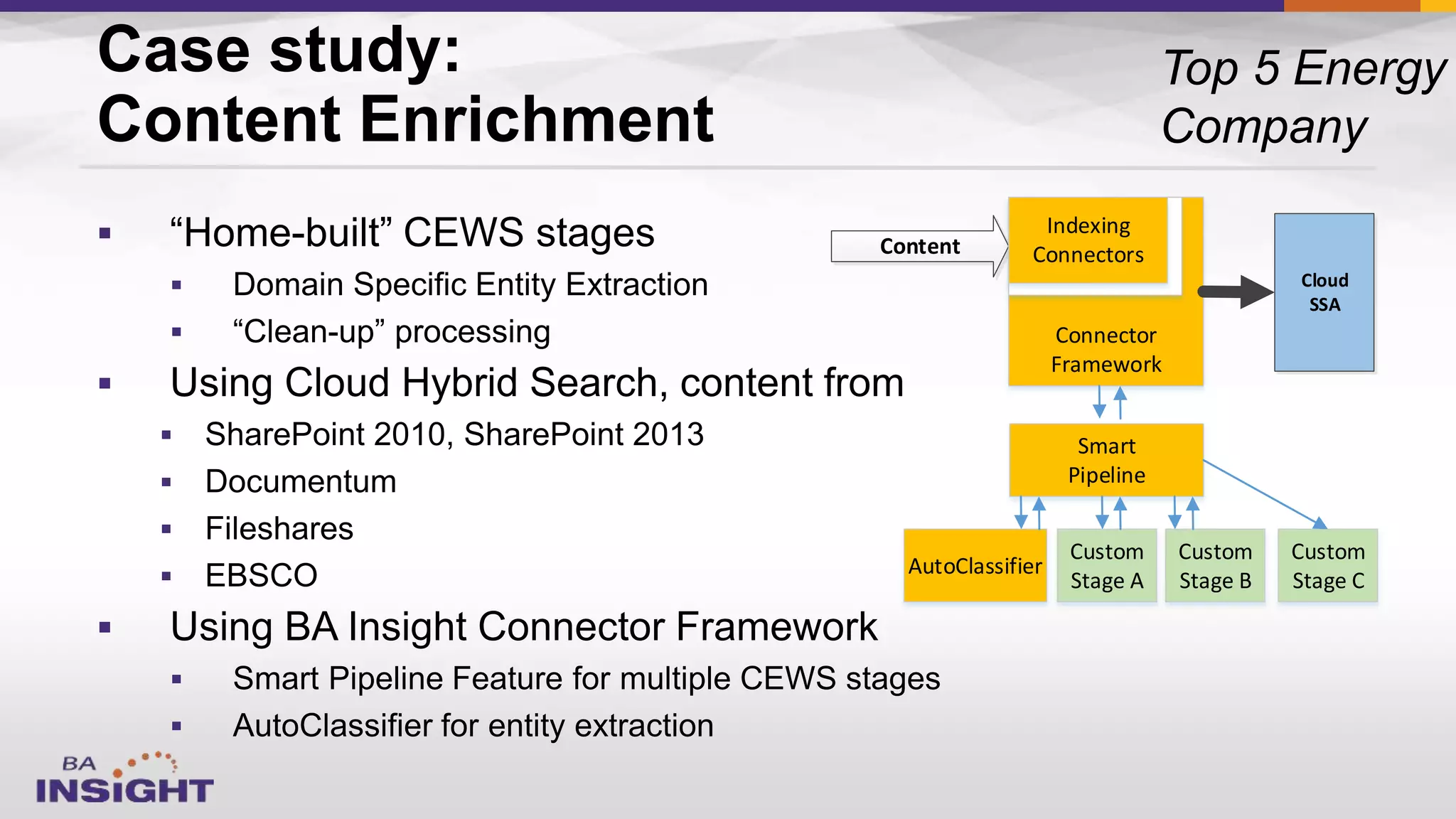

45. Case study:
Content Enrichment











Content
Cloud
SSA
Connector
Framework
Indexing
Connectors
Smart
Pipeline
AutoClassifier
Custom
Stage A
Custom
Stage C
Custom
Stage B

46. Online
On-Prem
Cloud Hybrid Search under the covers
Security = identity sync + ACL mapping
Cloud SSA
Cloud SSA
ParseCrawl
SCS
ACL Map Process
Blob
store
queue

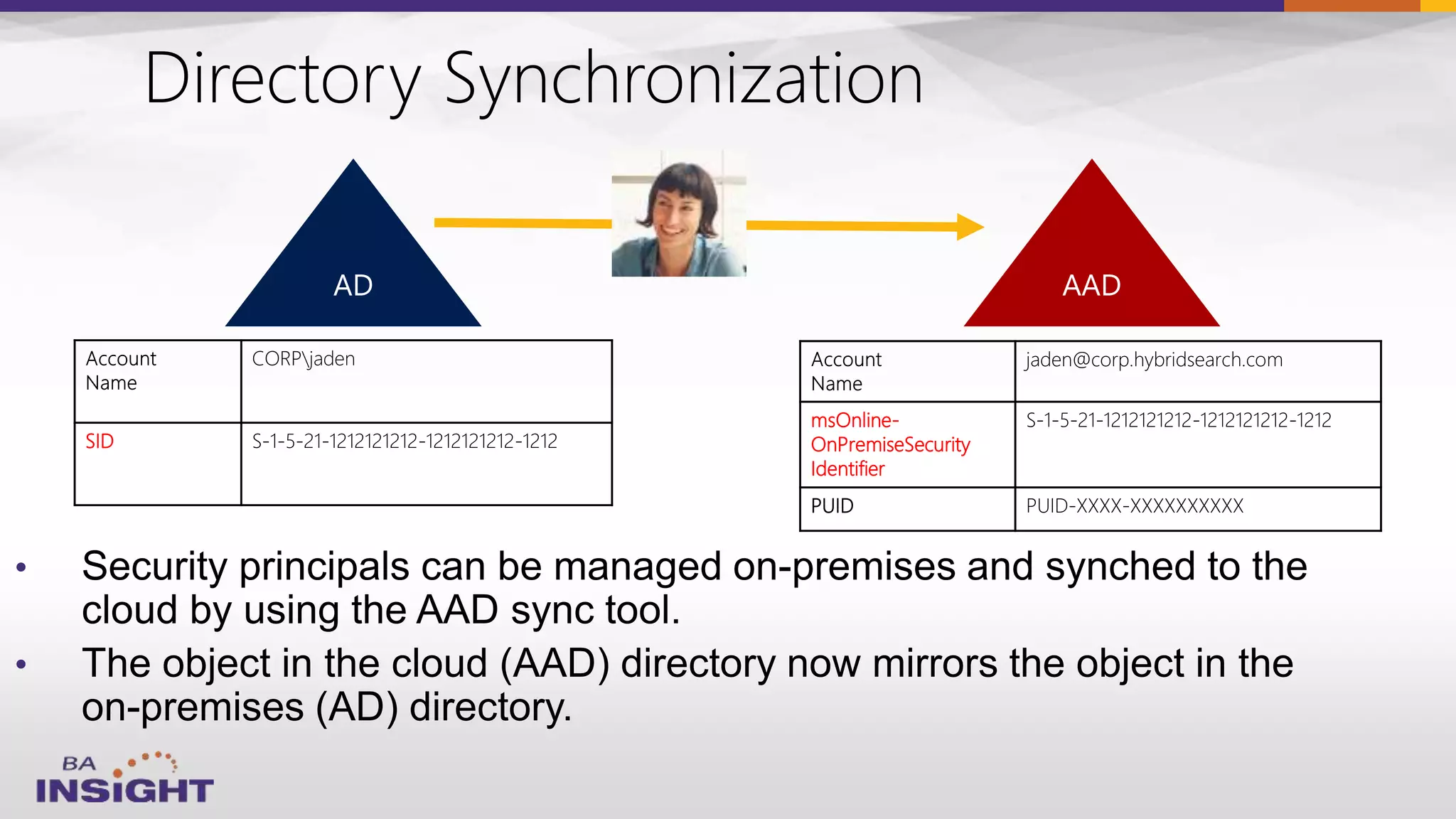

47. •
•
Directory Synchronization
SID S-1-5-21-1212121212-1212121212-1212
jaden@corp.hybridsearch.com
msOnline-
OnPremiseSecurity
Identifier
S-1-5-21-1212121212-1212121212-1212
PUID PUID-XXXX-XXXXXXXXXX

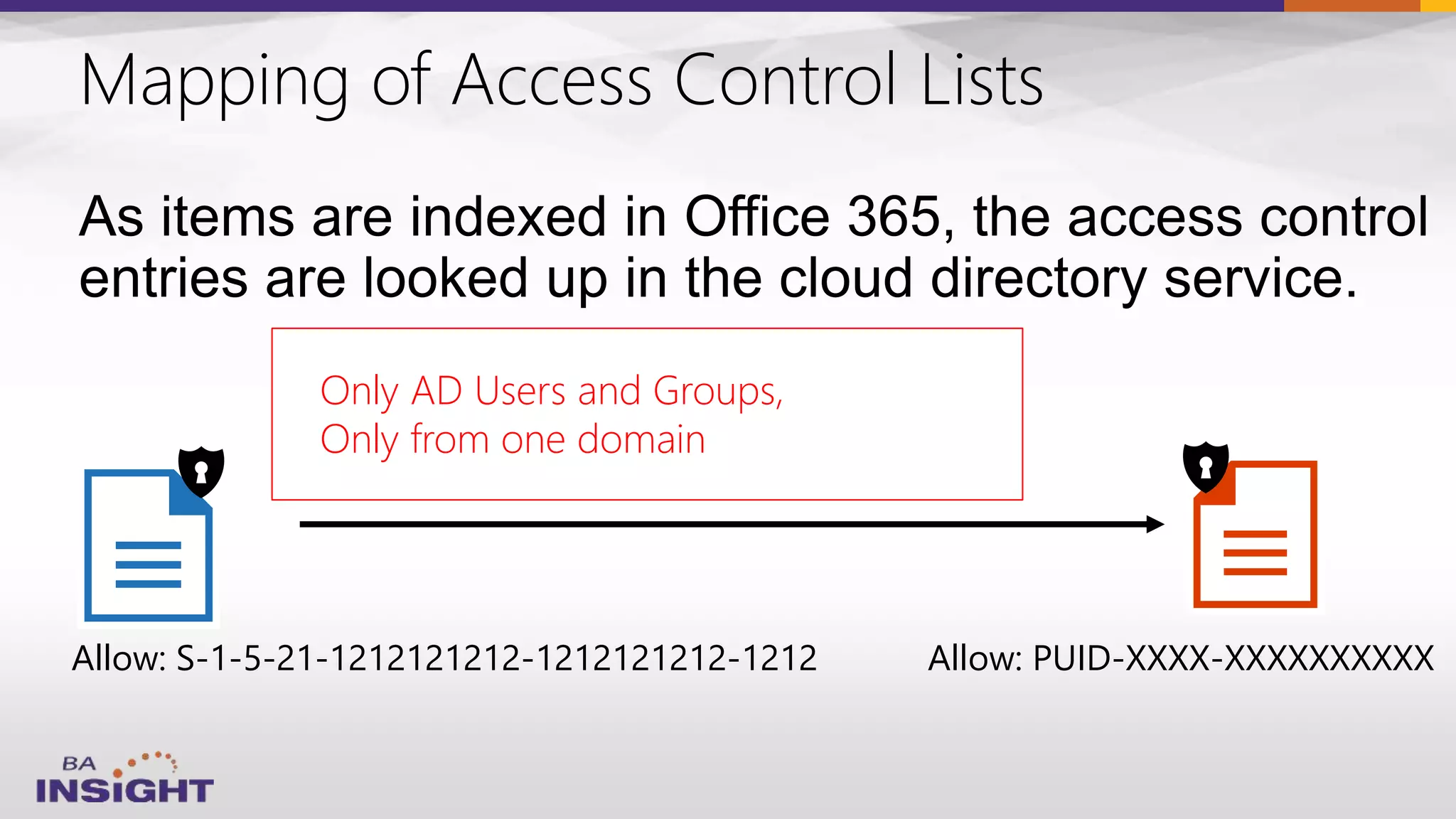

48. Mapping of Access Control Lists
Allow: S-1-5-21-1212121212-1212121212-1212 Allow: PUID-XXXX-XXXXXXXXXX
• User SIDs are mapped to PUIDs
• Group SIDs are mapped to Object IDs
• «Everyone» and «Authenticated users» are mapped to
«Everyone except external users»
Only AD Users and Groups,
Only from one domain

49. 







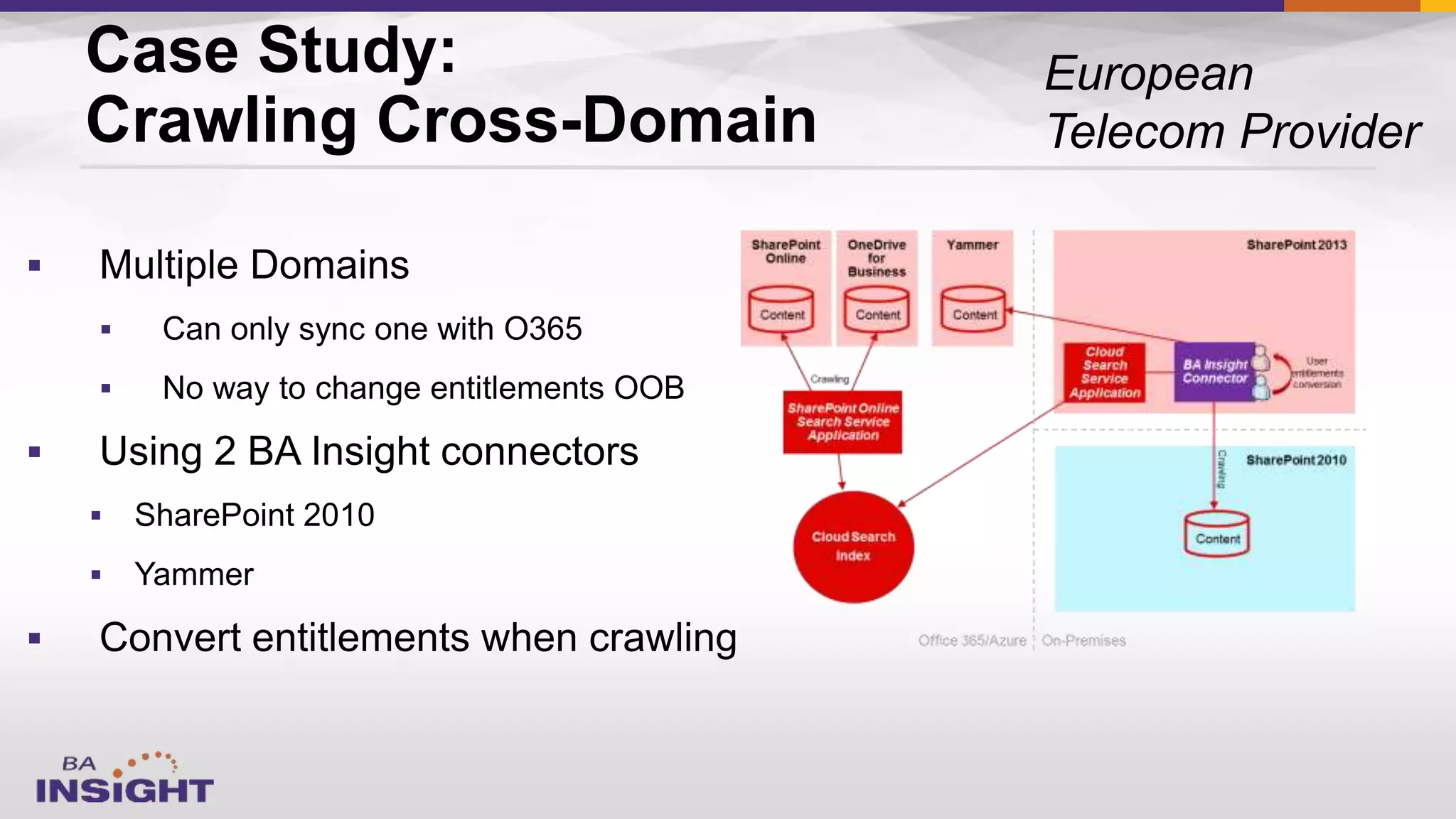

Case Study:
Crawling Cross-Domain

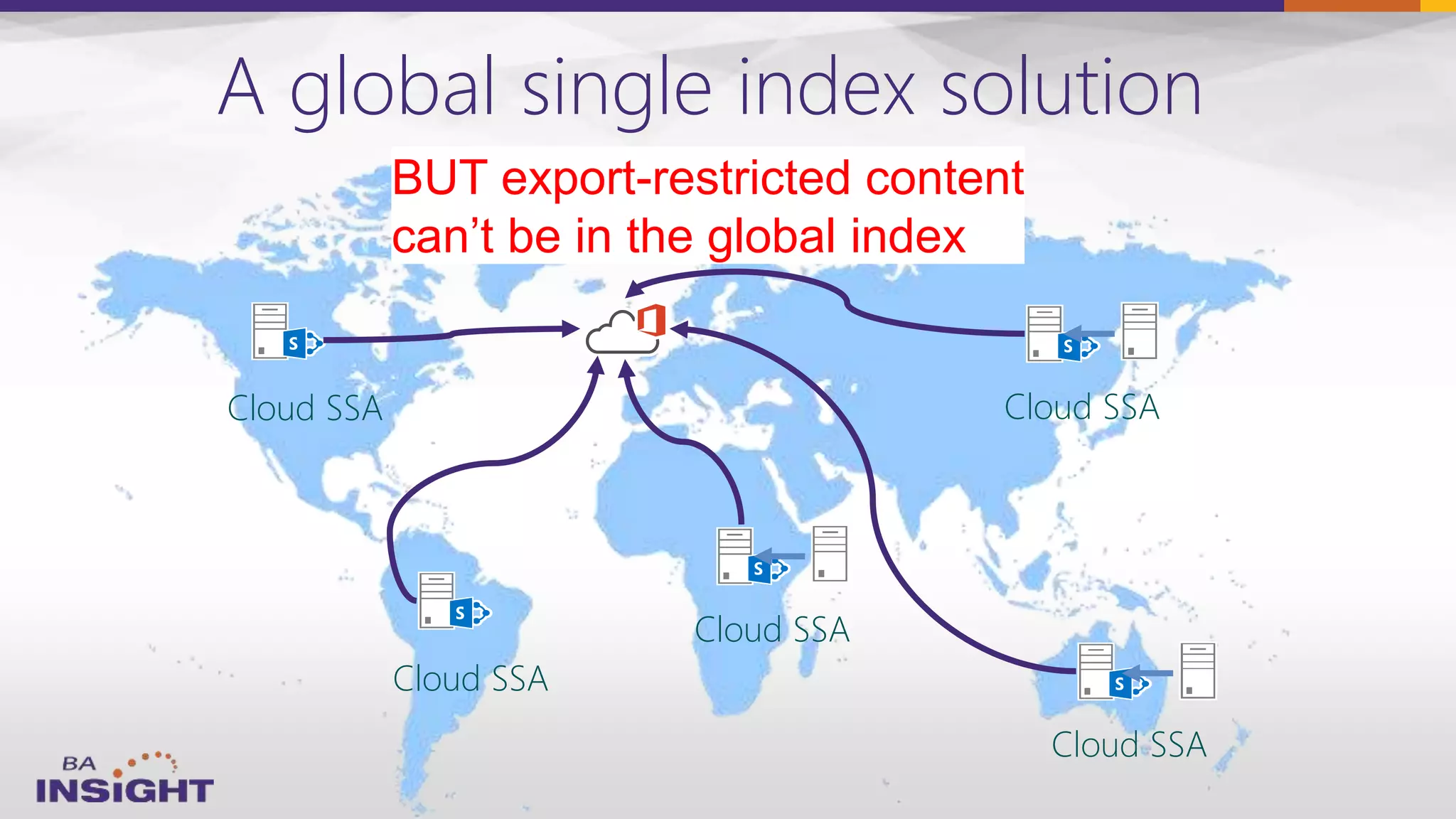

50. A global single index solution
Cloud SSA
Cloud SSA
Cloud SSA
Cloud SSA
Cloud SSA
BUT export-restricted content
can’t be in the global index

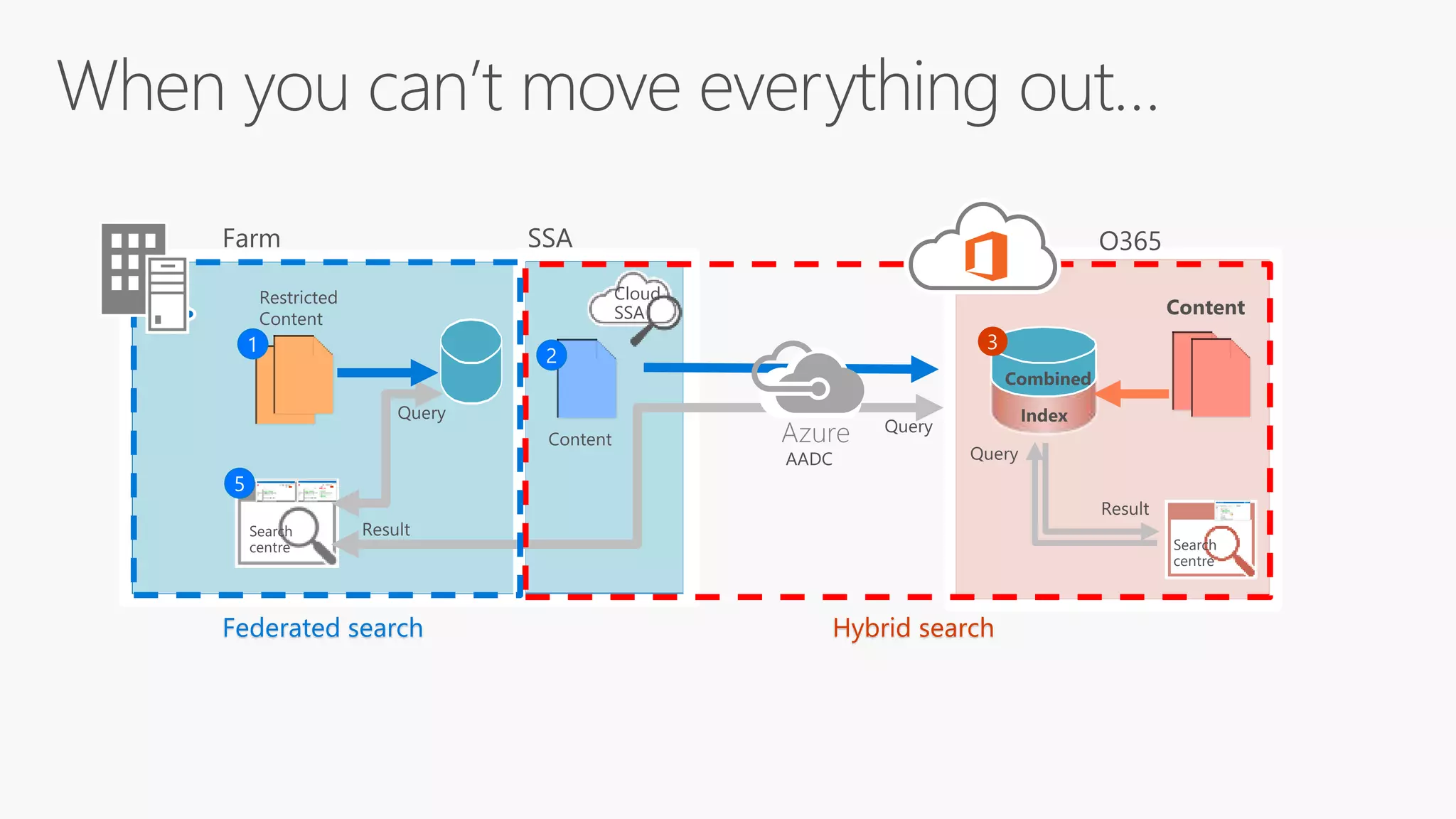

51. Hybrid searchFederated search
Azure

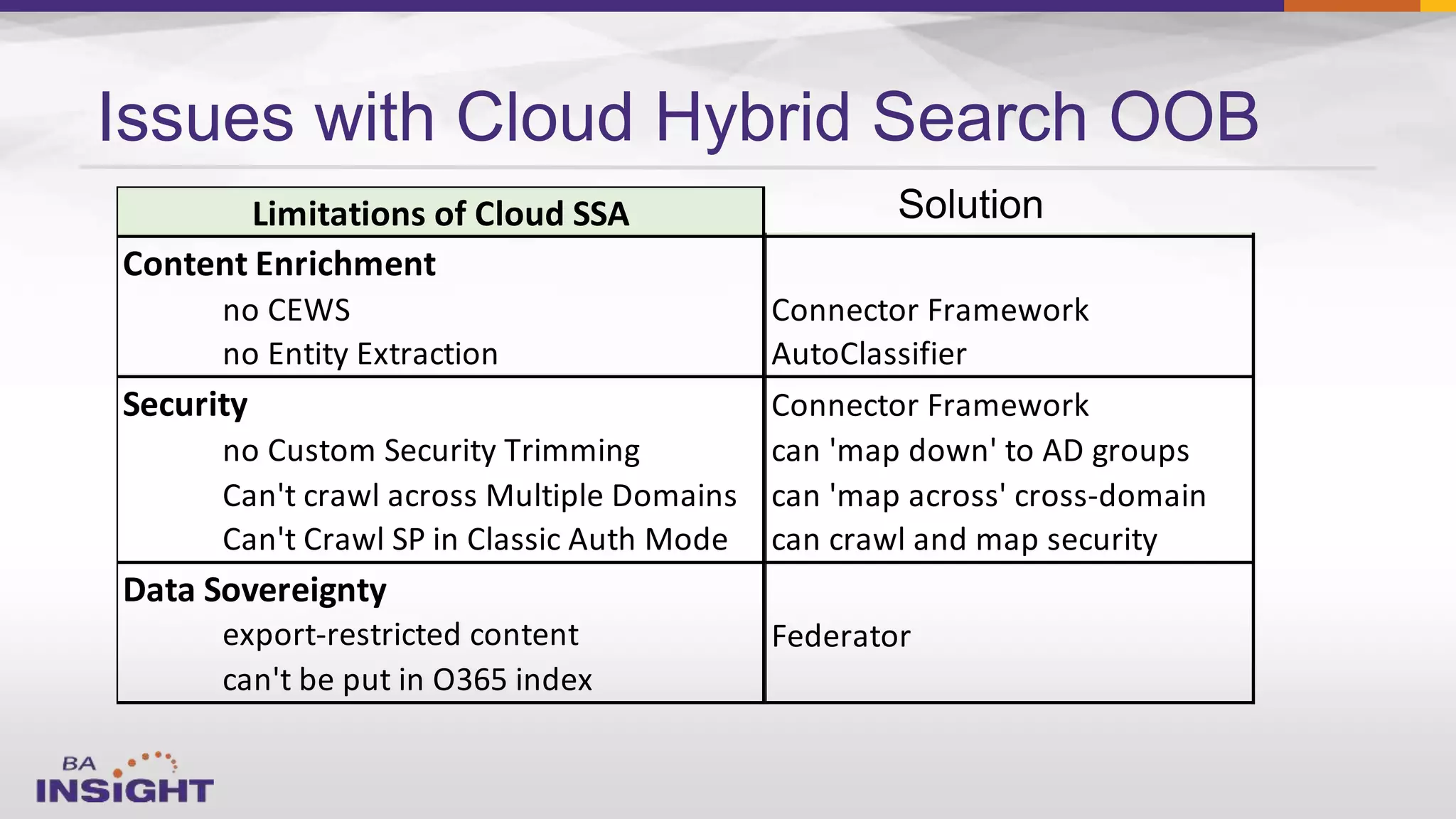

52. Issues with Cloud Hybrid Search OOB
Content Enrichment
no CEWS
no Entity Extraction
Security
no Custom Security Trimming
Can't crawl across Multiple Domains
Can't Crawl SP in Classic Auth Mode
Data Sovereignty
export-restricted content
can't be put in O365 index
Limitations of Cloud SSA BA Insight Solution
Connector Framework
AutoClassifier
Connector Framework
can 'map down' to AD groups
can 'map across' cross-domain
can crawl and map security
Federator

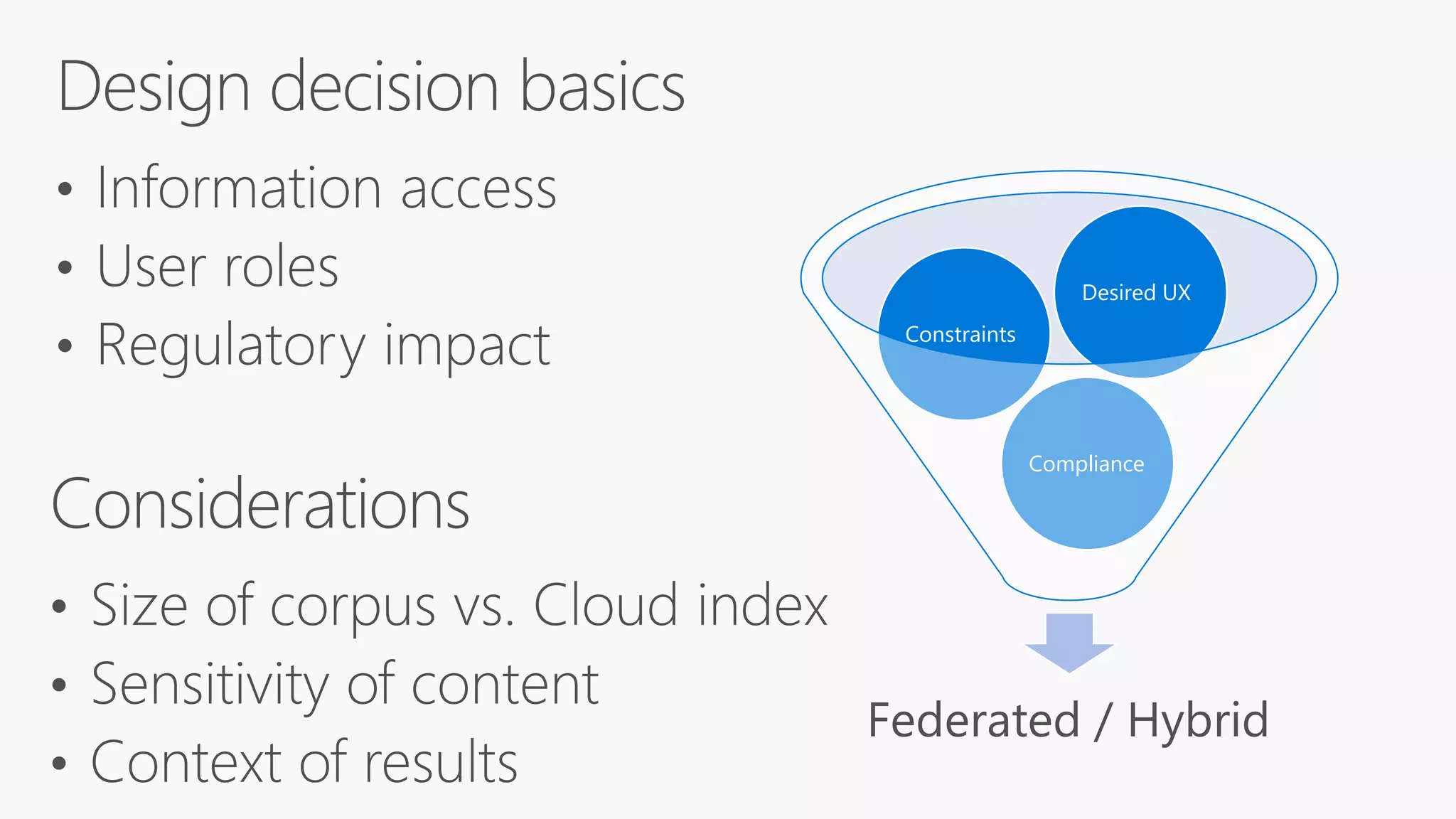

53. Today’s Session

55. Federated / Hybrid
Compliance
Constraints
Desired UX

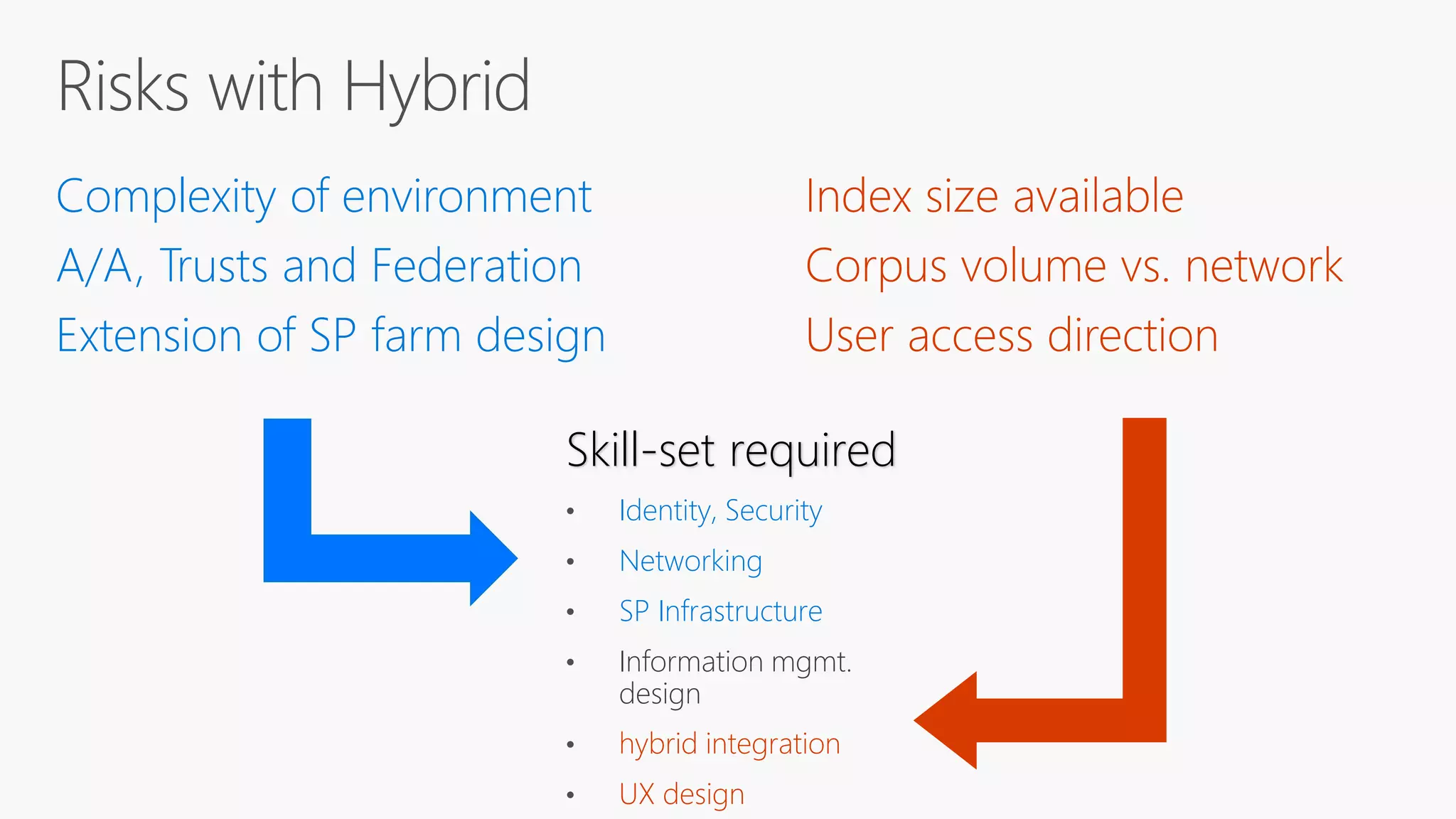

56. Complexity of environment
A/A, Trusts and Federation
Extension of SP farm design
Skill-set required
• Identity, Security
• Networking
• SP Infrastructure
• Information mgmt.
design
•
•

60. Contact:
Jeff.Fried@BAinsight.com
www.BAinsight.com
Questions
