The document covers the setup and configuration of hybrid search in SharePoint, particularly focusing on the differences between federated and cloud hybrid search. It outlines the necessary requirements, steps for implementation, and provides tips for optimal configuration and troubleshooting. Additionally, it discusses the limitations and considerations associated with enabling hybrid features.

1. SharePoint Saturday Netherlands 2017 | @thomasvochten IT Pro • Level 200

3. Thomas Vochten
SharePoint architect. Microsoft MVP.
Speaker. Trainer. Involuntary DBA.
@thomasvochten
https://thomasvochten.com
mail@thomasvochten.com

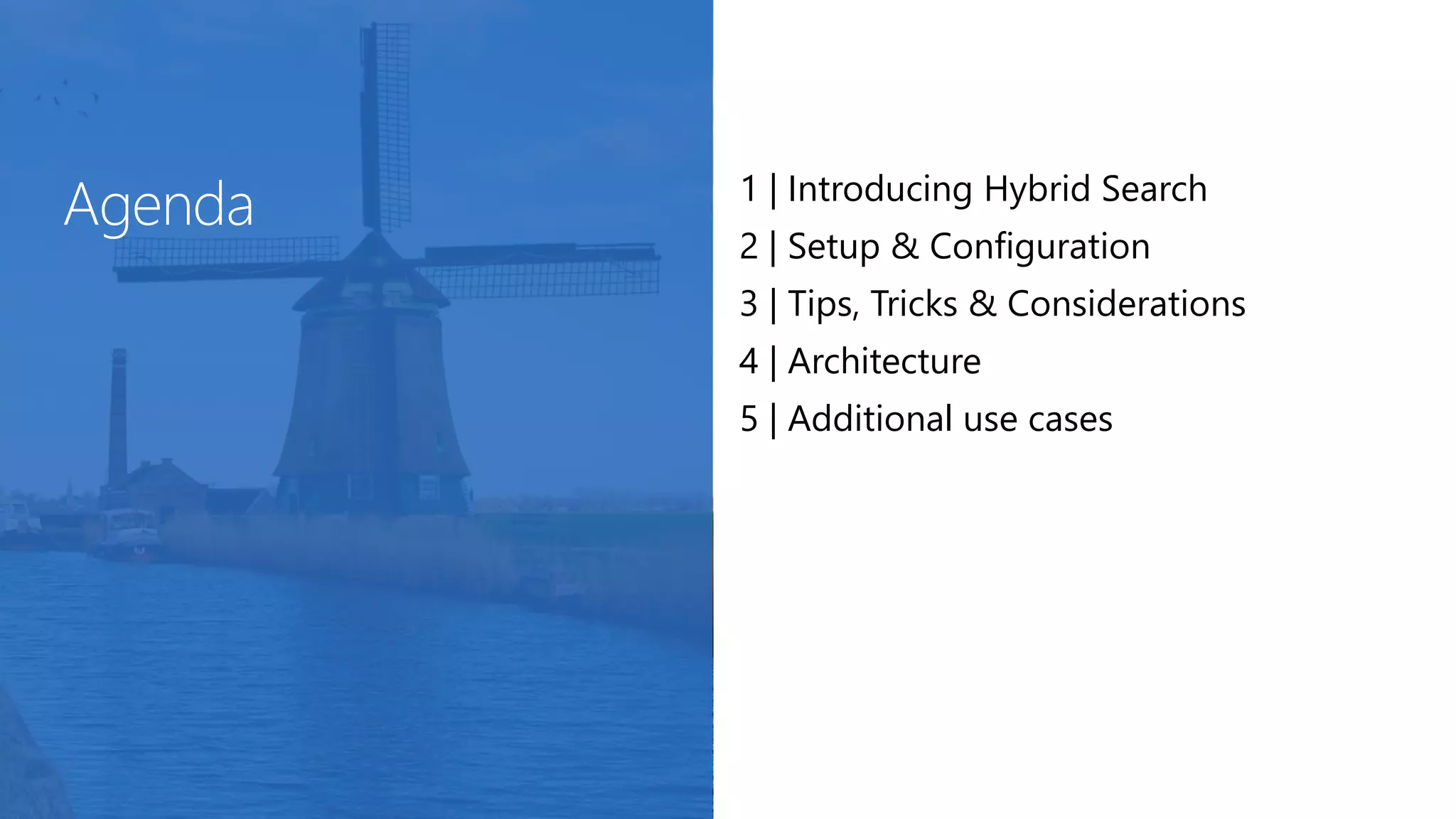

4. 1 | Introducing Hybrid Search
2 | Setup & Configuration
3 | Tips, Tricks & Considerations
4 | Architecture
5 | Additional use cases

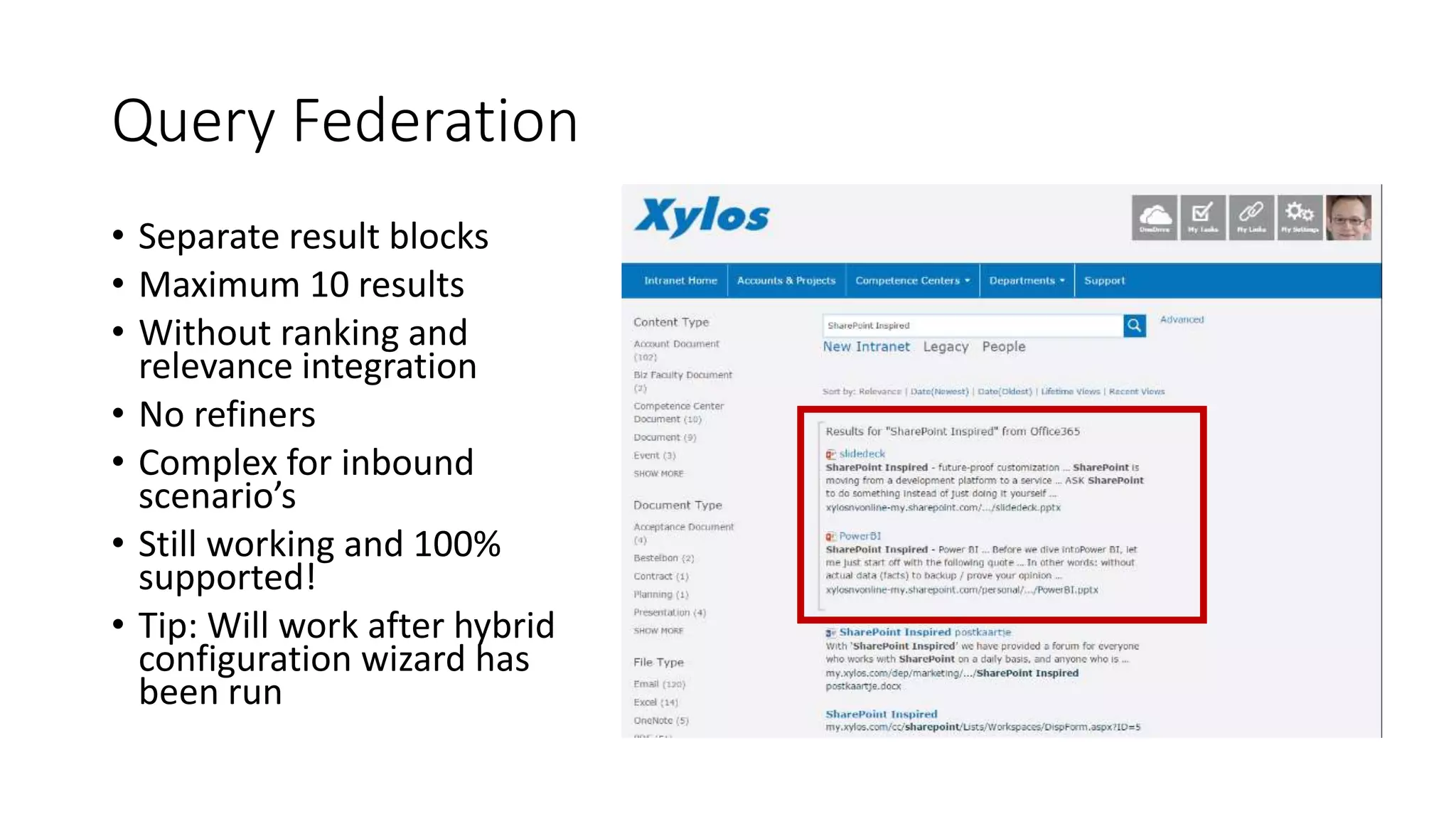

6. Query Federation
• Separate result blocks
• Maximum 10 results
• Without ranking and
relevance integration
• No refiners
• Complex for inbound
scenario’s
• Still working and 100%
supported!
• Tip: Will work after hybrid
configuration wizard has
been run

7. Cloud Hybrid Search
• Single unified index - in the cloud
• Crawling is done on-premises
• True relevance ranking and refiners
• Supports all existing on-premises content sources

8. Query Federation vs Cloud Hybrid Search
Cloud Hybrid SearchFederated Search

9. Search Experience

11. Minimum Requirements for Hybrid
• Decent internet connectivity
• Office 365 Enterprise subscriptions
• SharePoint Server 2013/2016
• Identity Synchronization in place
• SharePoint Admin account for on-premises
• Tenant Admin account for Office 365
• Required service applications
• App Management Service
• Subscription Settings Service
• User Profile Service

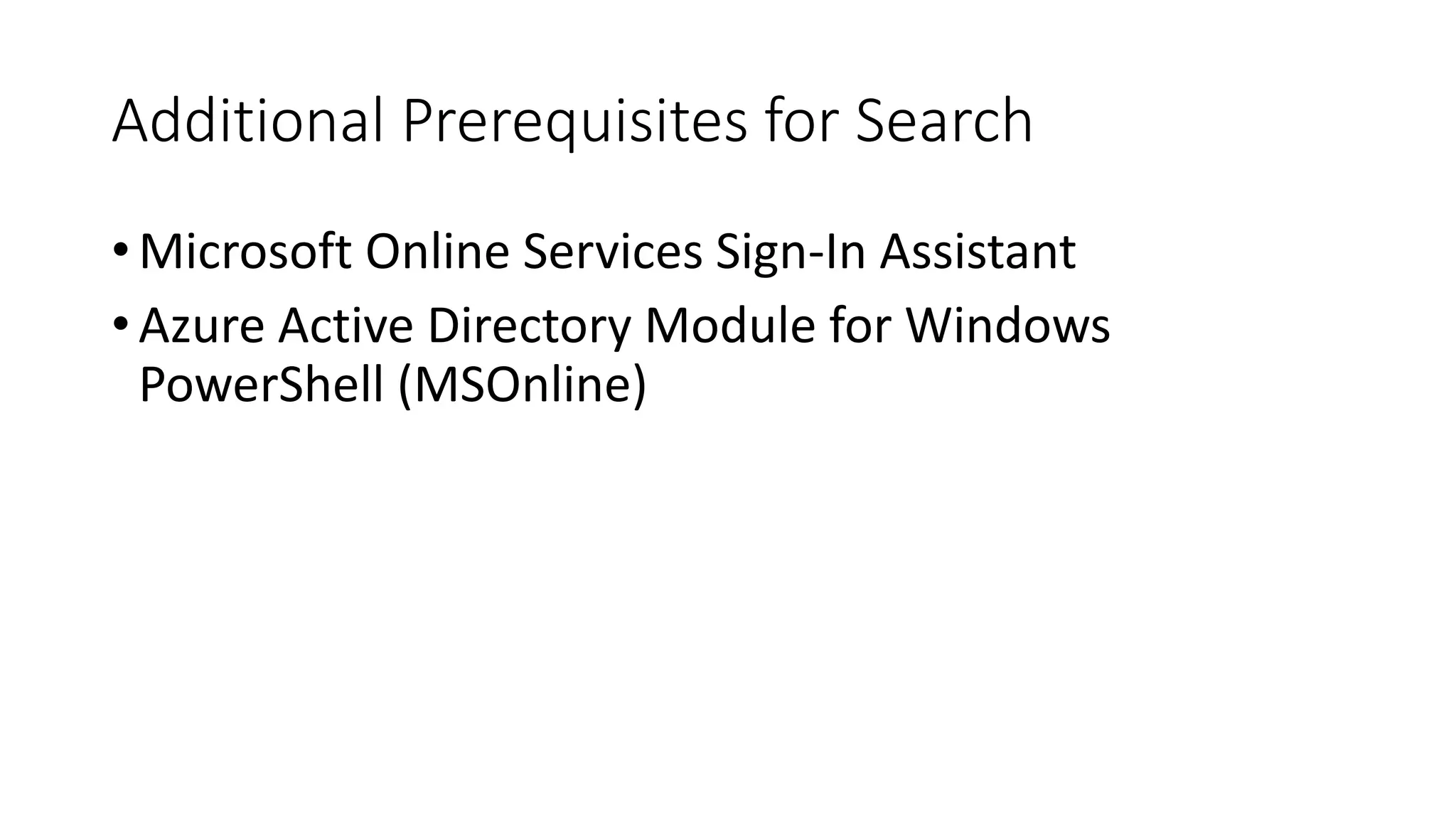

12. Additional Prerequisites for Search
•Microsoft Online Services Sign-In Assistant
•Azure Active Directory Module for Windows
PowerShell (MSOnline)

13. Which version of SharePoint?
Table inspired by work by Nico Martens
SP 2013 SP 2016
Federated hybrid search RTM RTM
Cloud hybrid search 01/2016 CU RTM
Hybrid app launcher 07/2016 CU RTM
Hybrid OneDrive & Profiles 09/2015 CU RTM
Hybrid Sites 07/2016 CU RTM
Hybrid Taxonomy 11/2016 CU FP1 (11/2016 CU)
Hybrid Auditing (preview) N/A FP1 (11/2016 CU)
Hybrid self service site creation 03/2017 CU N/A
Table inspired by TechNet and work by @MartensNico 

14. Setup Approach
• Create a new cloud search service application
• Run the onboarding script
• Start a crawl
• Test your search in online
• Create result source(s) in on-premises
• Test your search in on-premises

15. Get it working
Step 1 - Create a new search service application
Disables the normal ContentPlugin

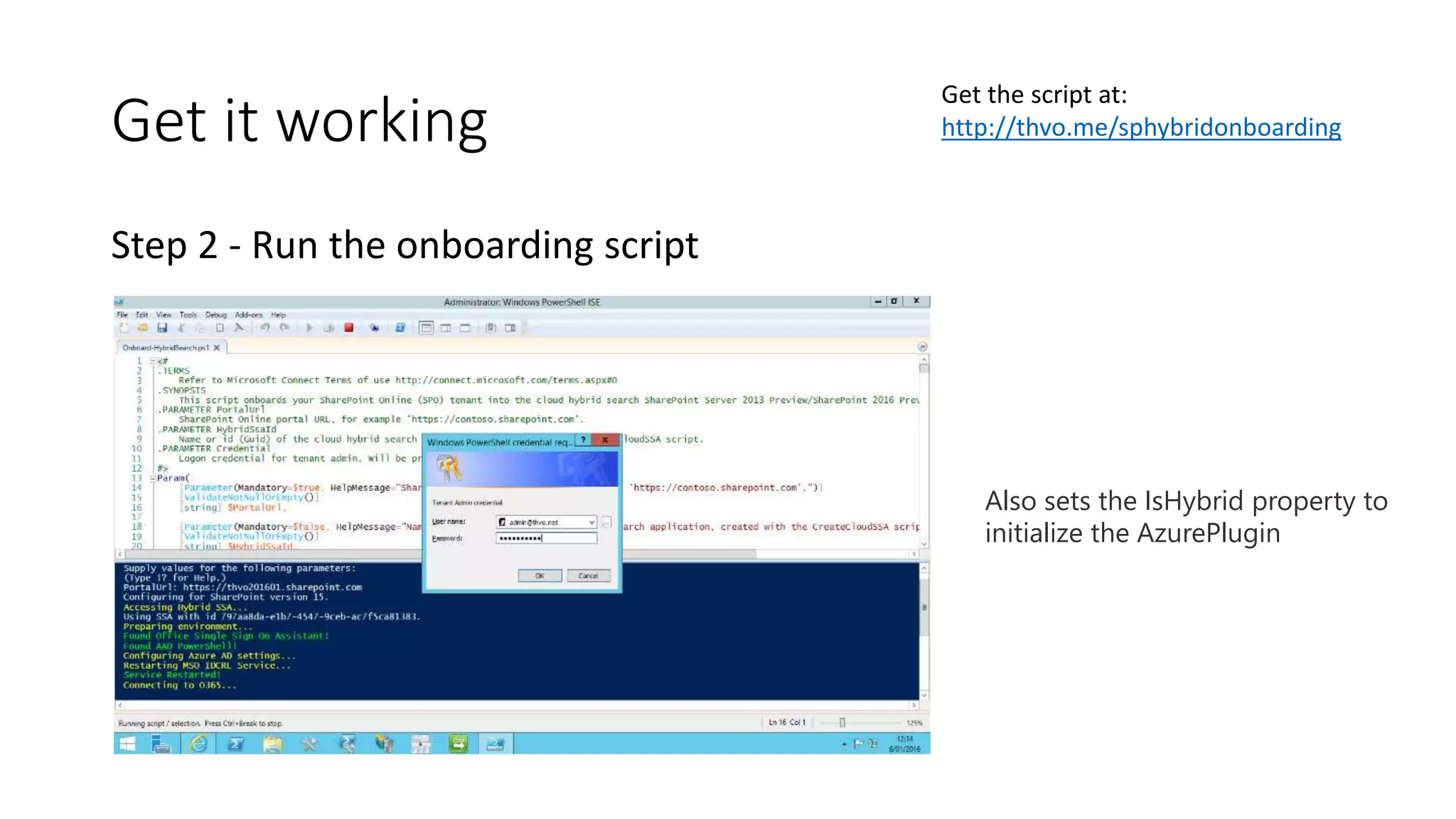

16. Get it working
Step 2 - Run the onboarding script
Also sets the IsHybrid property to
initialize the AzurePlugin
Get the script at:
http://thvo.me/sphybridonboarding

17. Get it working
Step 3 - Start a crawl

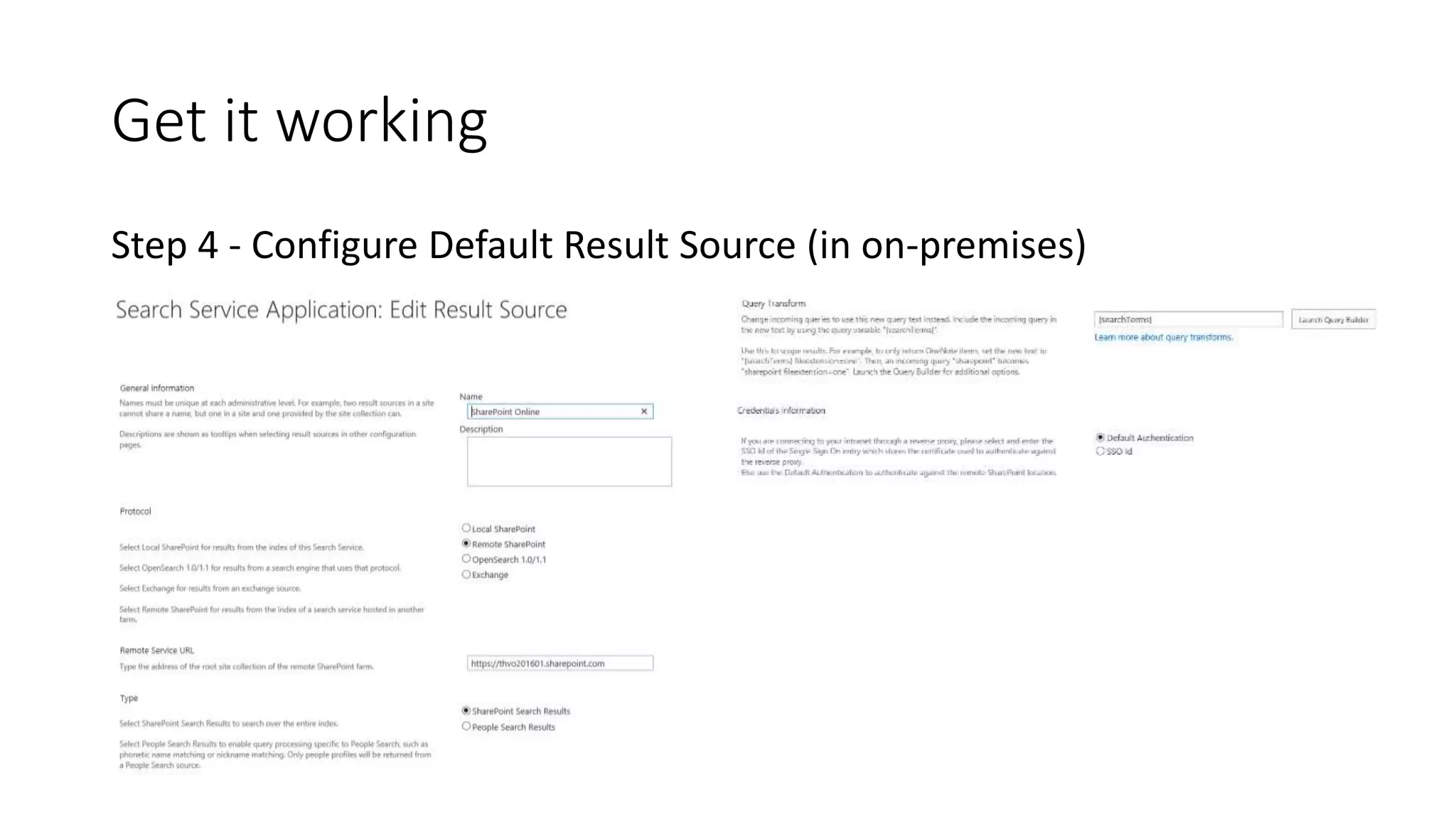

18. Get it working
Step 4 - Configure Default Result Source (in on-premises)

19. Get it working

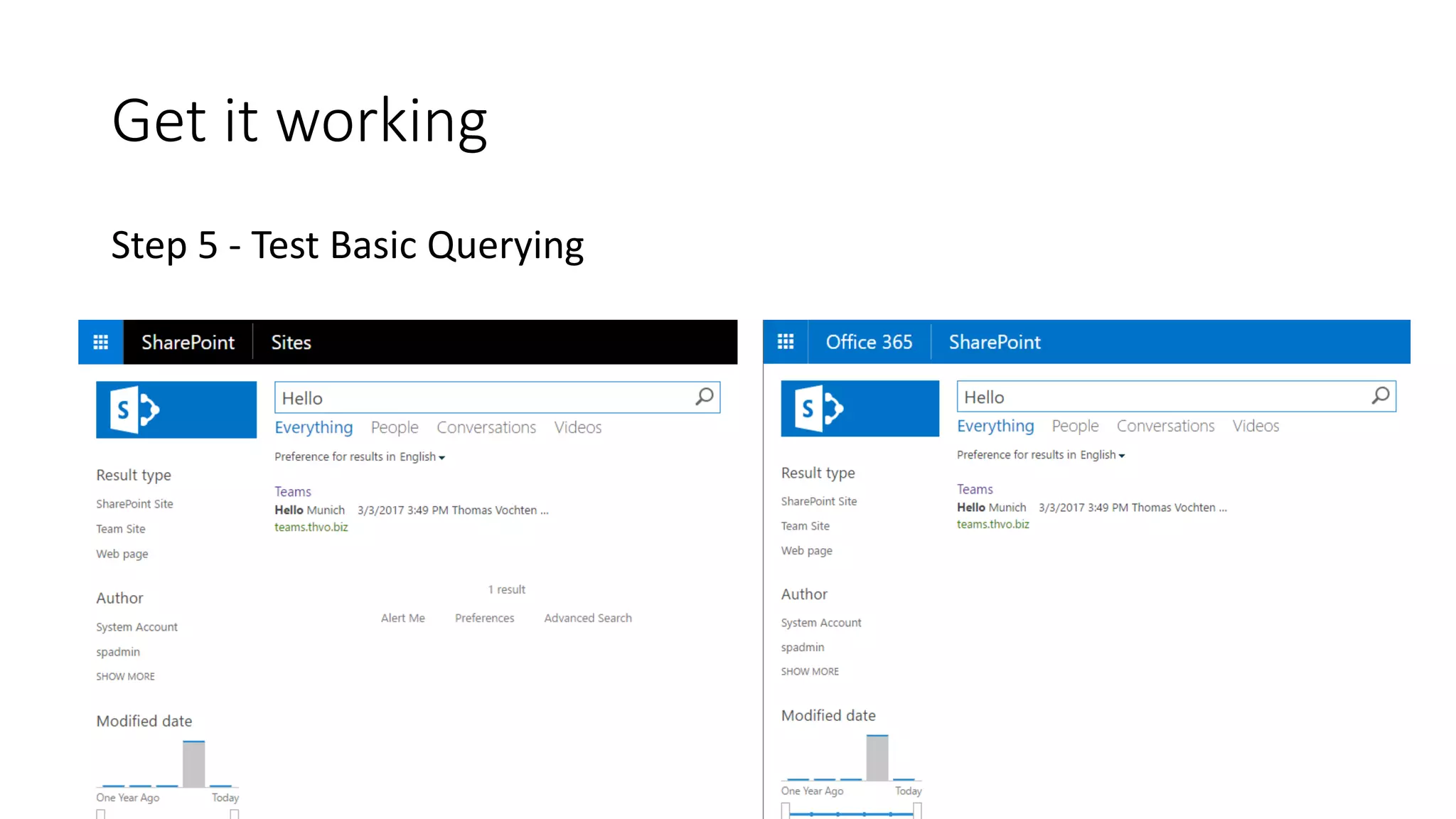

20. Get it working
Step 5 - Test Basic Querying

21. Trust Creation

22. Trust Creation
On-Premises cmdlets:
Get-SPTrustedSecurityTokenIssuer
Get-SPTrustedRootAuthority
Azure cmdlets:
Get-MsolServicePrincipal

23. Impact on Topology and Sizing
Index component is still there, but not used anymore

24. Demo Environment
Machine Purpose
DC01 Domain Controller &
Identity Synchronization
SQL01 SQL Server 2016 for SharePoint databases
SP01 SharePoint Server 2016 environment (standalone)
OOS01 Office Online Server 2016
CL01 Windows 10 client with Office 365 ProPlus
All servers are running Windows Server 2016 Datacenter
Latest updates dd May 2016

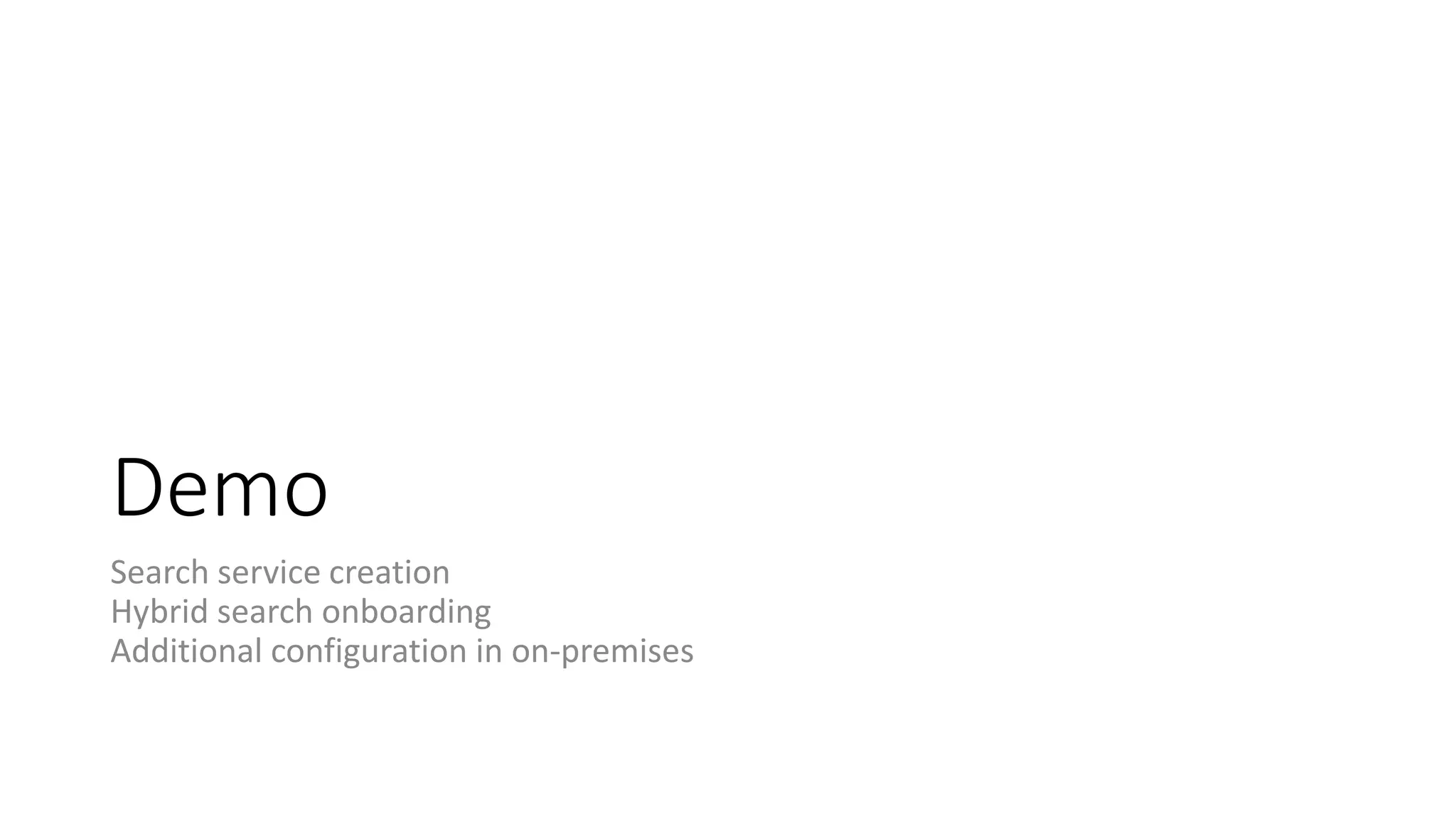

25. Demo
Search service creation
Hybrid search onboarding
Additional configuration in on-premises

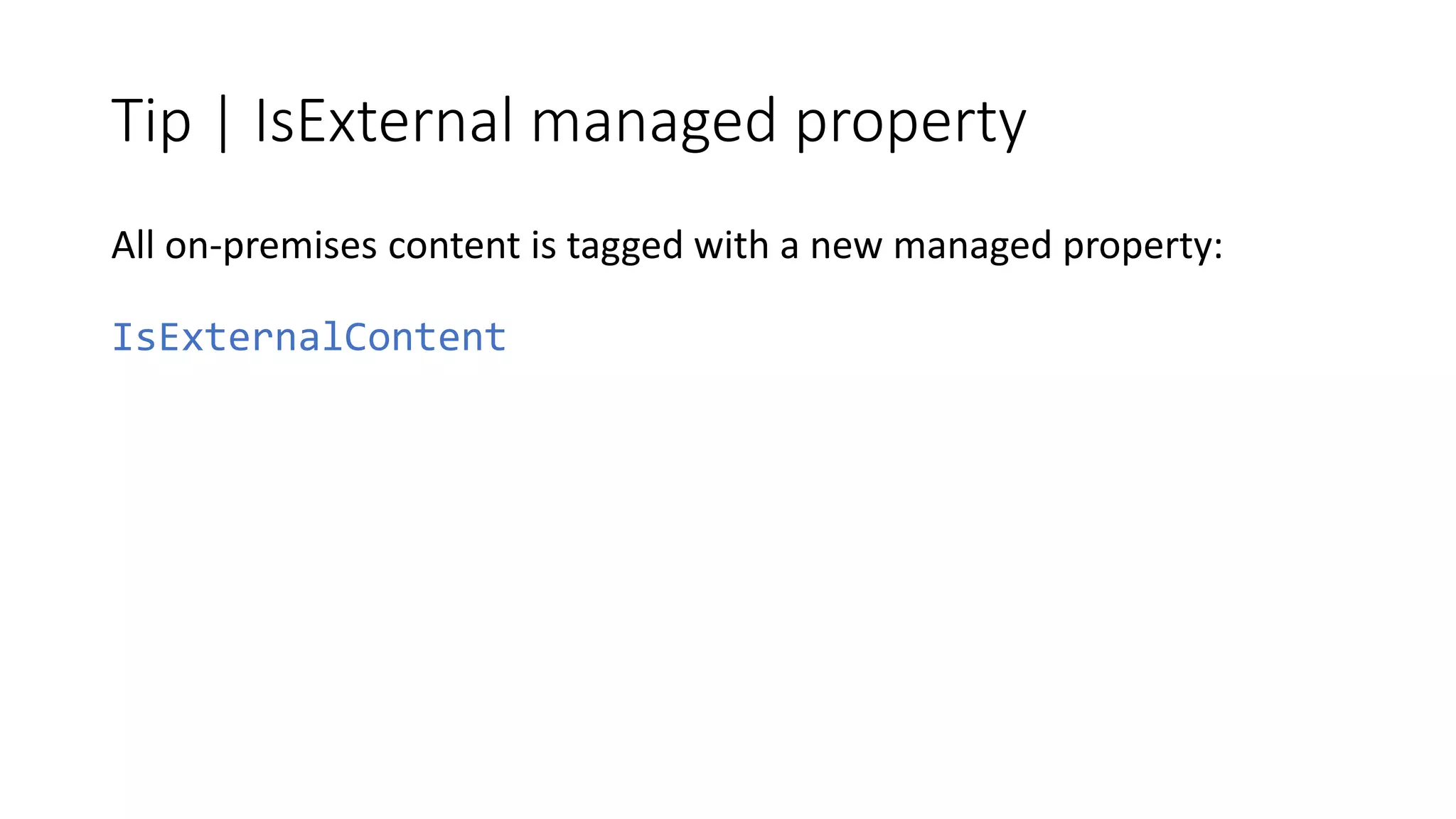

27. Tip | IsExternal managed property
All on-premises content is tagged with a new managed property:
IsExternalContent

28. Tip | Result sources & search verticals
{searchTerms} (IsExternalContent:1)
{searchTerms} ((IsExternalContent:1) AND Path:"file://archive")

29. Tip | People Search
Decide which user store you want to query:
• On-Premises
{?{searchTerms} ContentClass=urn:content-class:SPSPeople
IsExternalcontent:1}
• SharePoint Online
{?{searchTerms} ContentClass=urn:content-class:SPSPeople
IsExternalcontent:0}

30. Tip | People Search
SPO profile pictures don’t render on-premises by default
Workaround:
$wa = Get-SPWebapplication “Your Webapp”
$wa.CrossDomainPhotosEnabled = $true
$wa.Update()

31. Tip | Use a Display Template in SPO
Highlight on-premises content with a special icon
http://thvo.me/displaytemplatehybrid
Developed by Elio Struyf

32. Demo
People Search
Additional content sources
Display Templates

33. Tip | Document search previews
Reverse proxy is required
SPO will reach out to the internet-exposed endpoint to show previews

34. Tip | Index Reset
• Clear the content source
• Perform a full crawl
• Index will be emptied
Or… use a script!
http://thvo.me/clearhybridsearch

35. Tip | Logging
Boost your logging levels in case of problems with the Azure Plugin
SharePoint Server Search
Crawler:Azure Plugin

36. Tip | Crawl performance
$ssa = Get-SPEnterpriseSearchServiceApplication
$ssa.SetProperty("EnableNoGetStatusFlight",1)
$ssa.Update()
Suspend-SPEnterpriseSearchServiceApplication $ssa
Restart all search services…
Resume-SPEnterpriseSearchServiceApplication $ssa
Slow upload?
Getting throttled by Azure?

37. Limitations
• Limited customization options
No entity extraction
No content enrichment (announced)
No custom security trimming
No custom ifilters
No real Delve integration
…
• No internet, no search (be aware of proxy servers)
• Central administration integration
• No dashboard of your online index search health

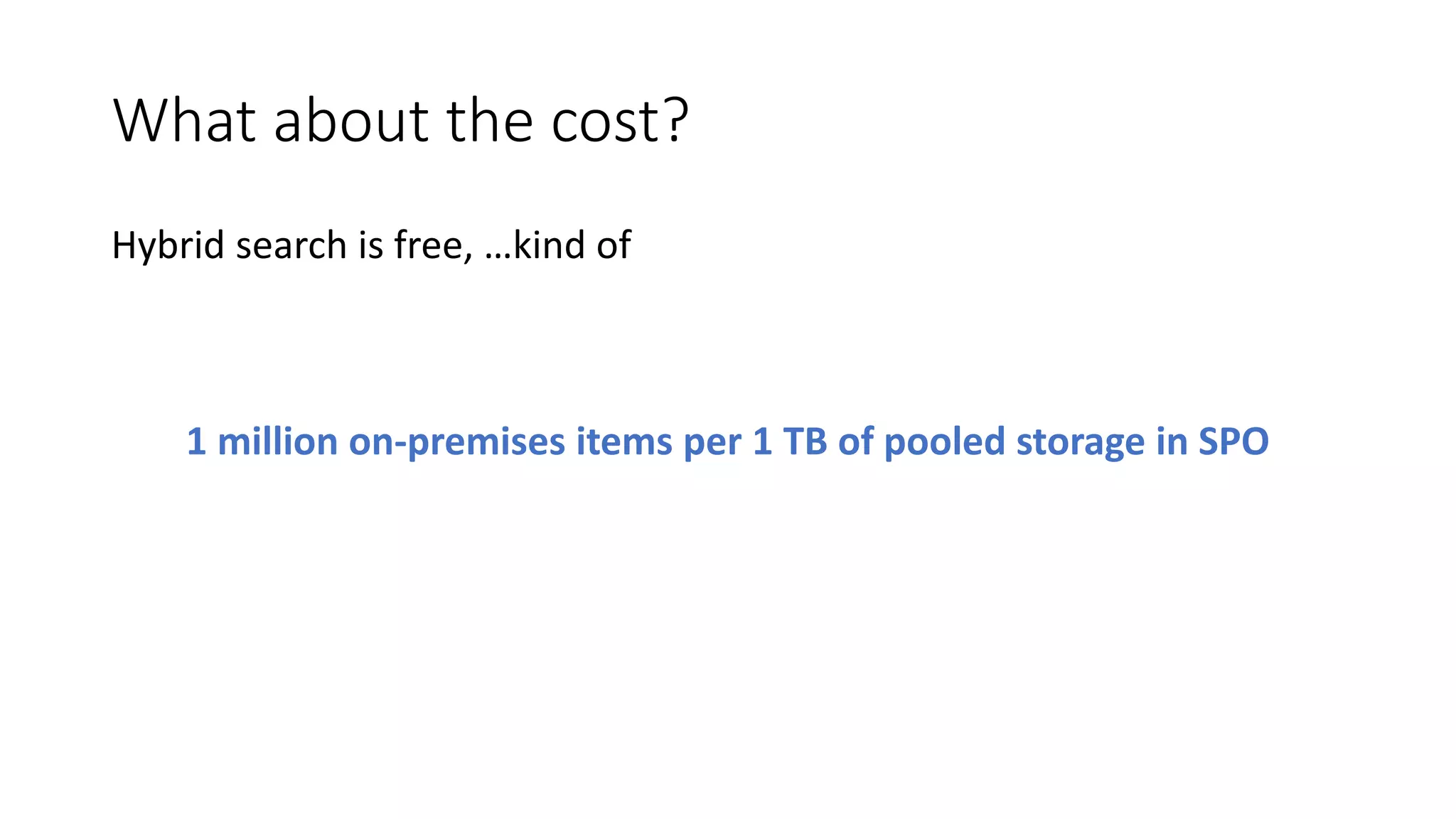

38. What about the cost?
Hybrid search is free, …kind of
1 million on-premises items per 1 TB of pooled storage in SPO

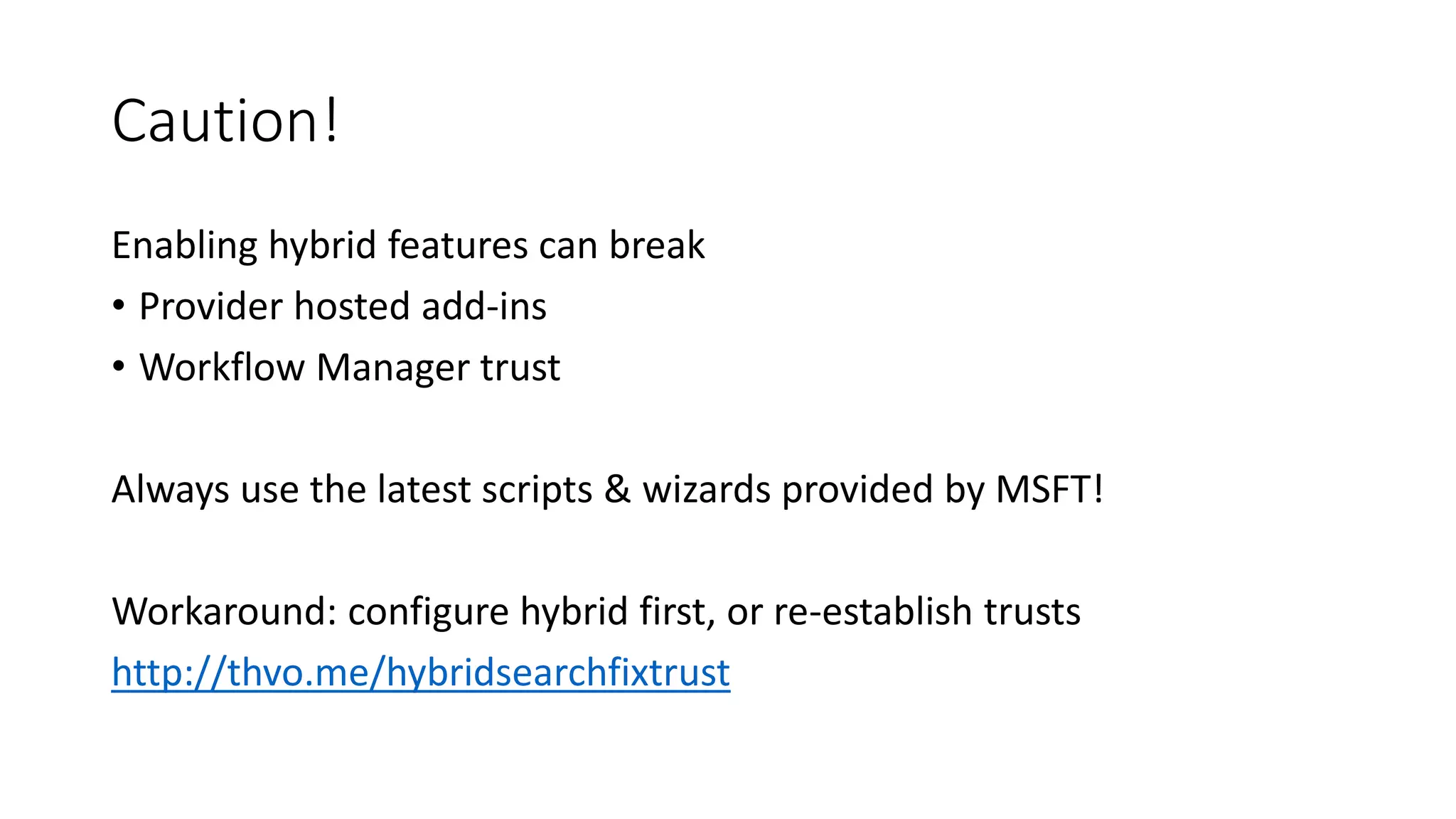

39. Caution!
Enabling hybrid features can break
• Provider hosted add-ins
• Workflow Manager trust
Always use the latest scripts & wizards provided by MSFT!
Workaround: configure hybrid first, or re-establish trusts
http://thvo.me/hybridsearchfixtrust

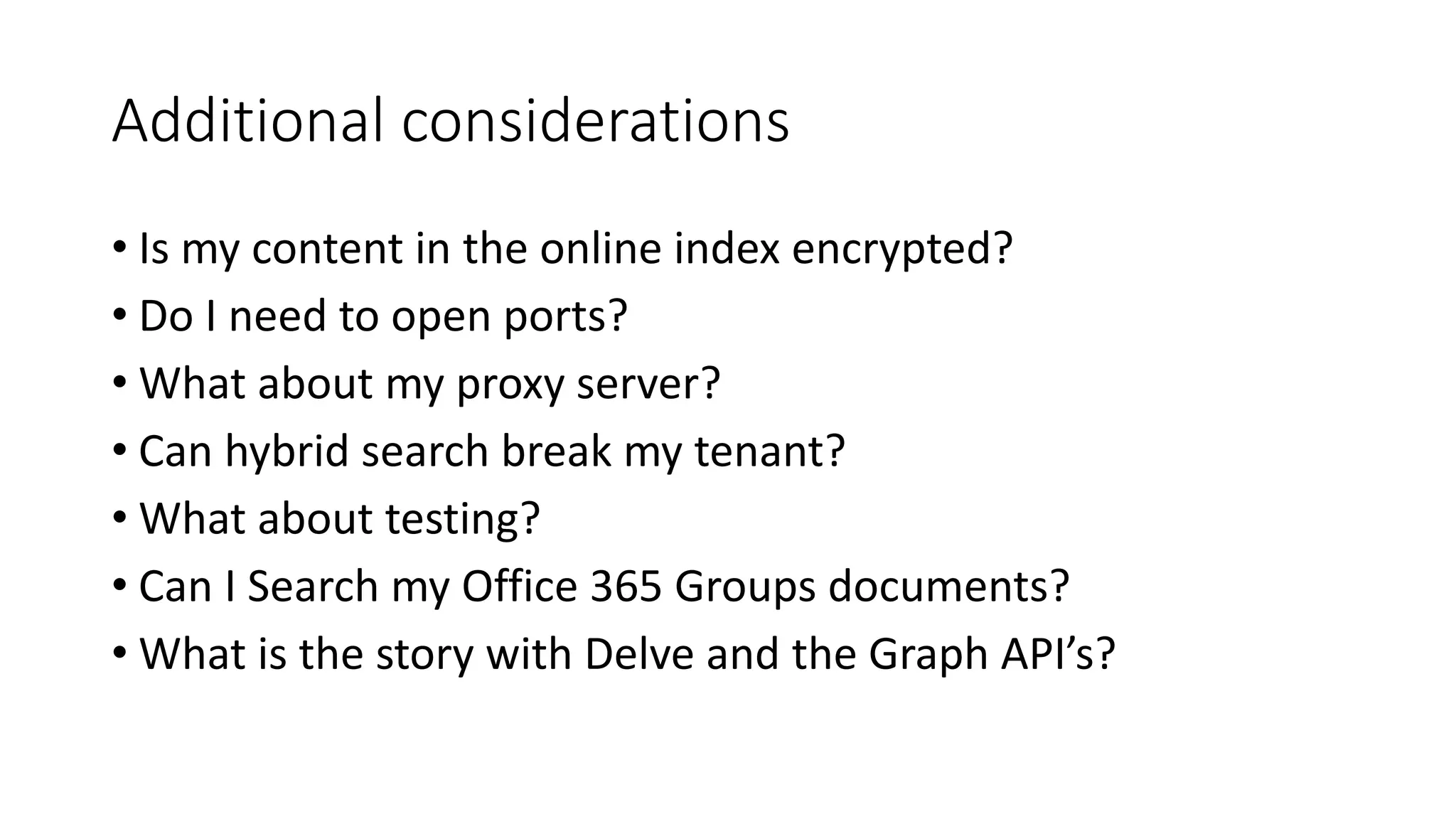

40. Additional considerations
• Is my content in the online index encrypted?
• Do I need to open ports?
• What about my proxy server?
• Can hybrid search break my tenant?
• What about testing?
• Can I Search my Office 365 Groups documents?
• What is the story with Delve and the Graph API’s?

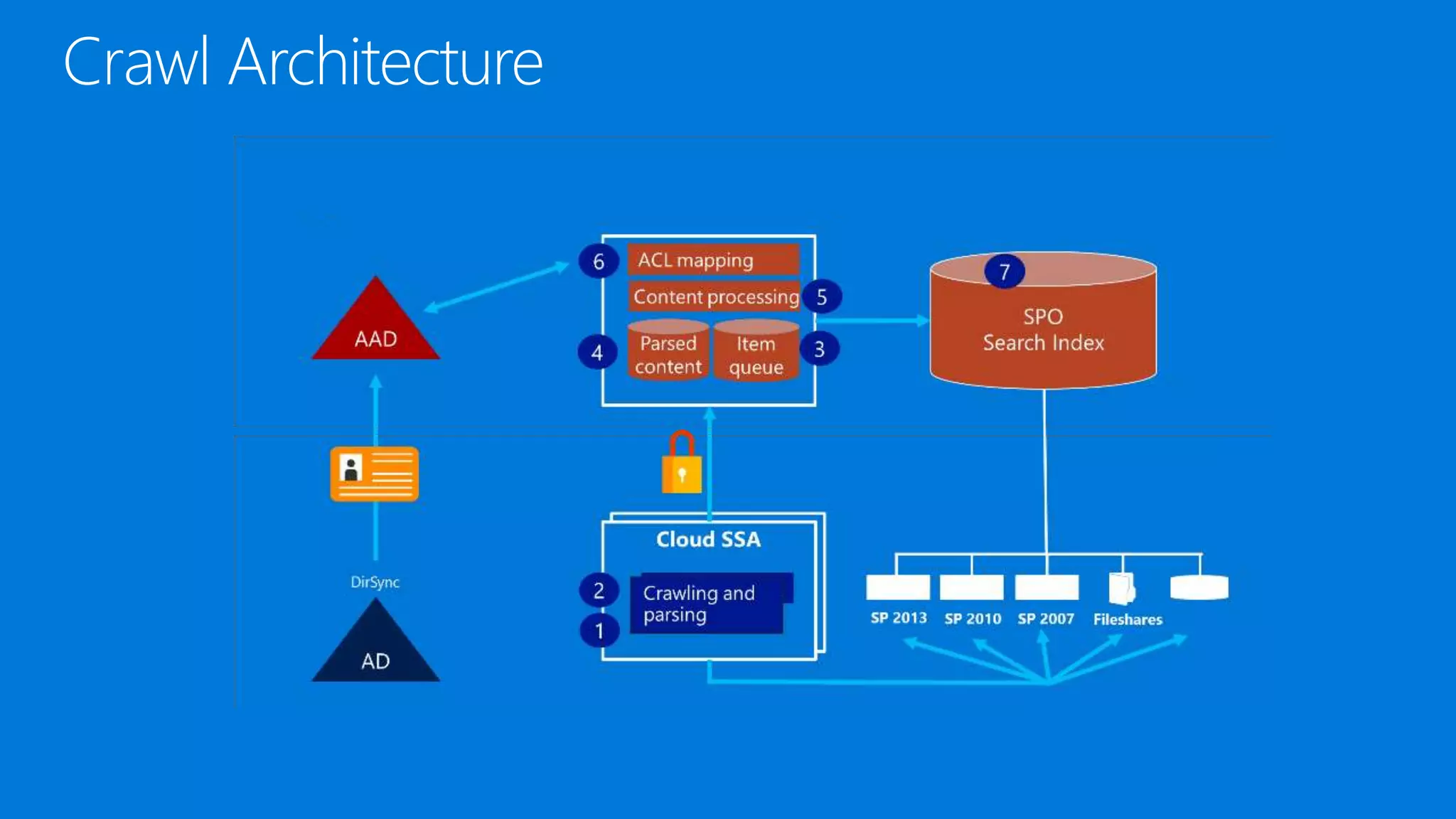

42. Crawl Architecture

43. Search Connector Service
• Man in the middle, hosted in Azure
• Trust creation on-premises and the SCS
• SCS routes data to the search index in the tenant
• Flexibility for refeeding in case of DR or design changes
• Holds ACL, keywords, metadata, tenant info, analytics

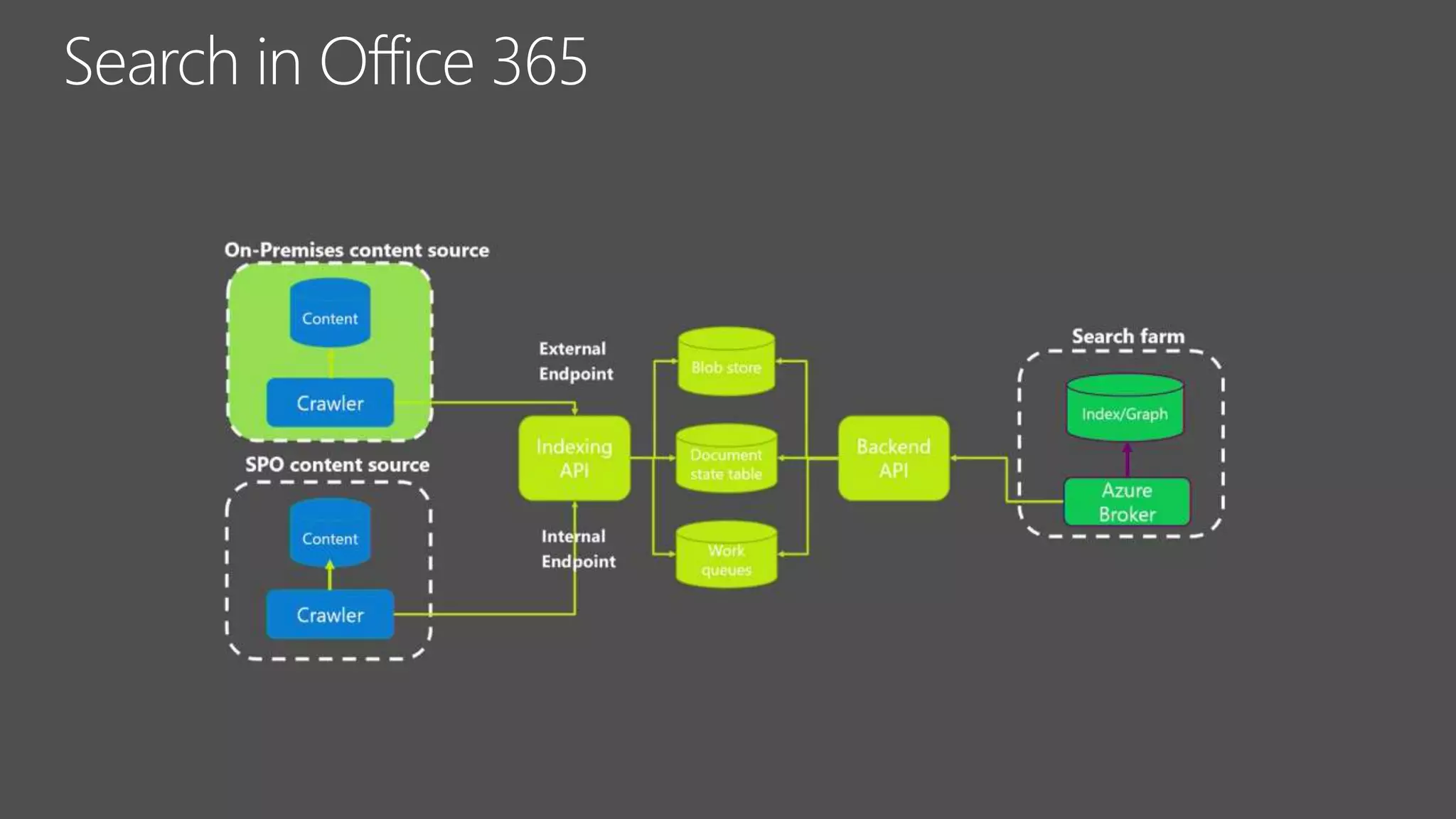

44. Search in Office 365

45. Query Architecture

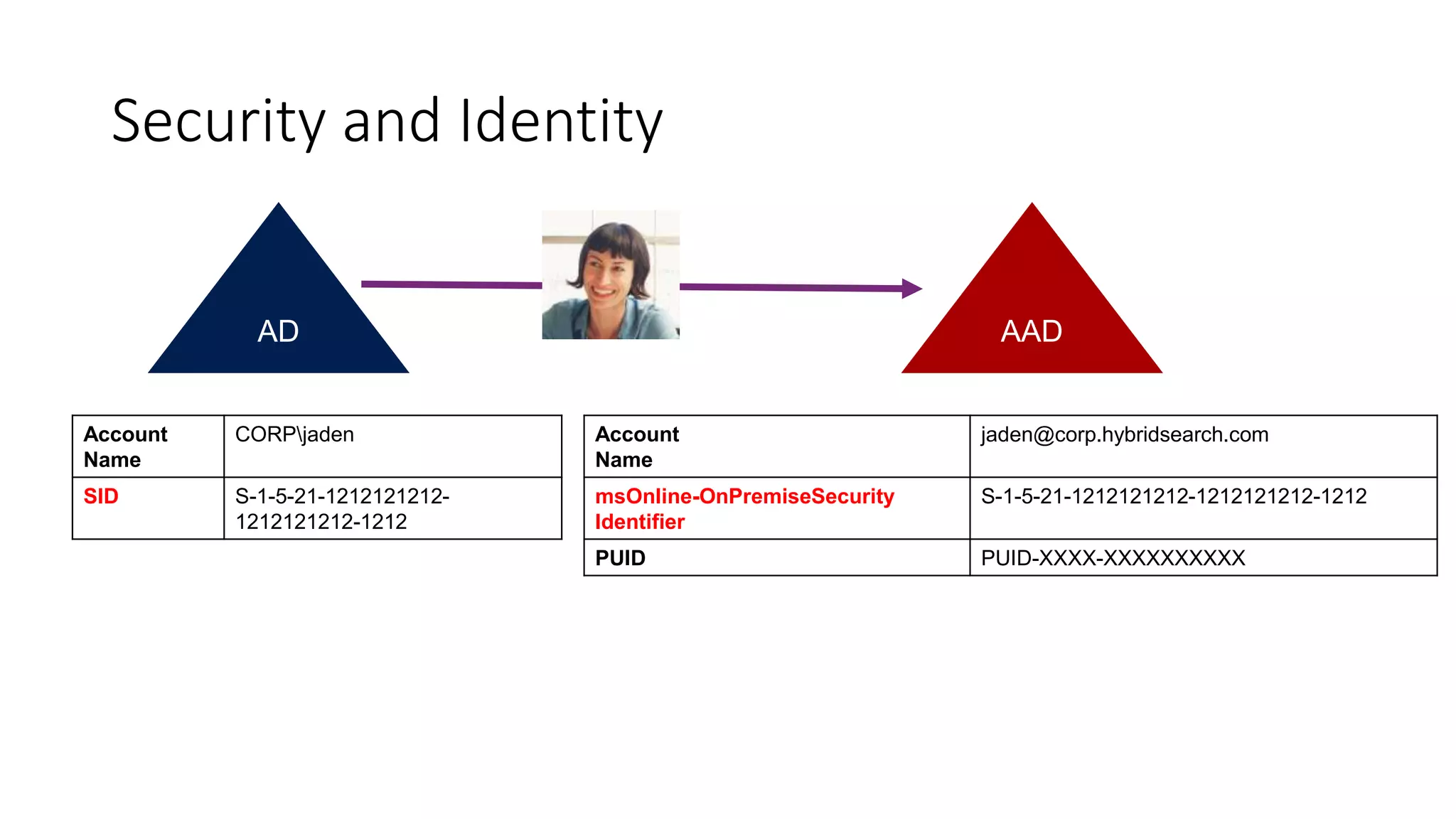

47. Security and Identity
SID S-1-5-21-1212121212-
1212121212-1212
jaden@corp.hybridsearch.com
msOnline-OnPremiseSecurity
Identifier
S-1-5-21-1212121212-1212121212-1212
PUID PUID-XXXX-XXXXXXXXXX

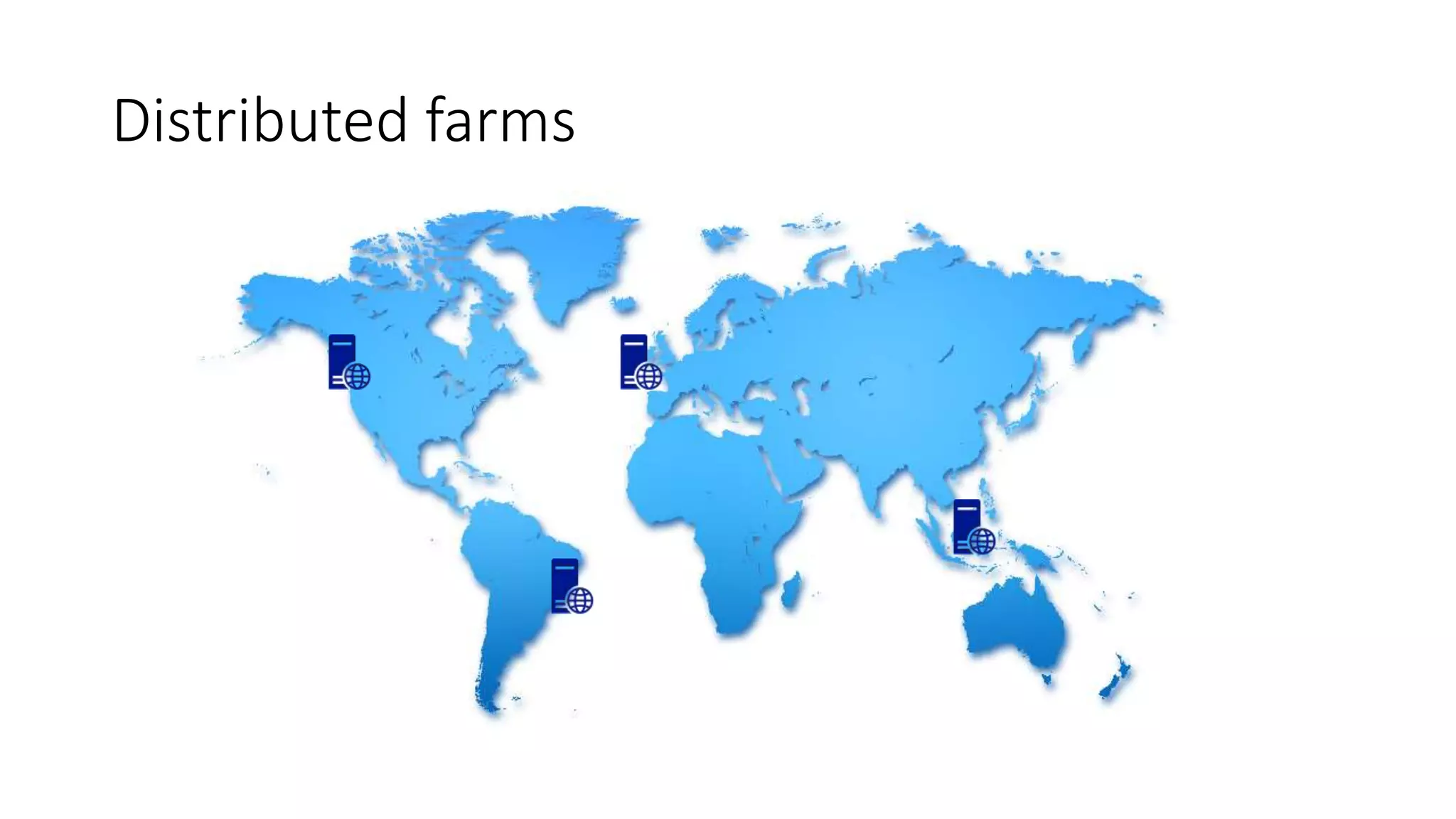

49. Distributed farms

50. Distributed farms connected to single tenant
Unified index: SharePoint Online & On-Premises
Office 365 Tenant
Amsterdam
SharePoint Farm
San Francisco
SharePoint Farm
Jakarta
SharePoint Farm
….
SharePoint Farm

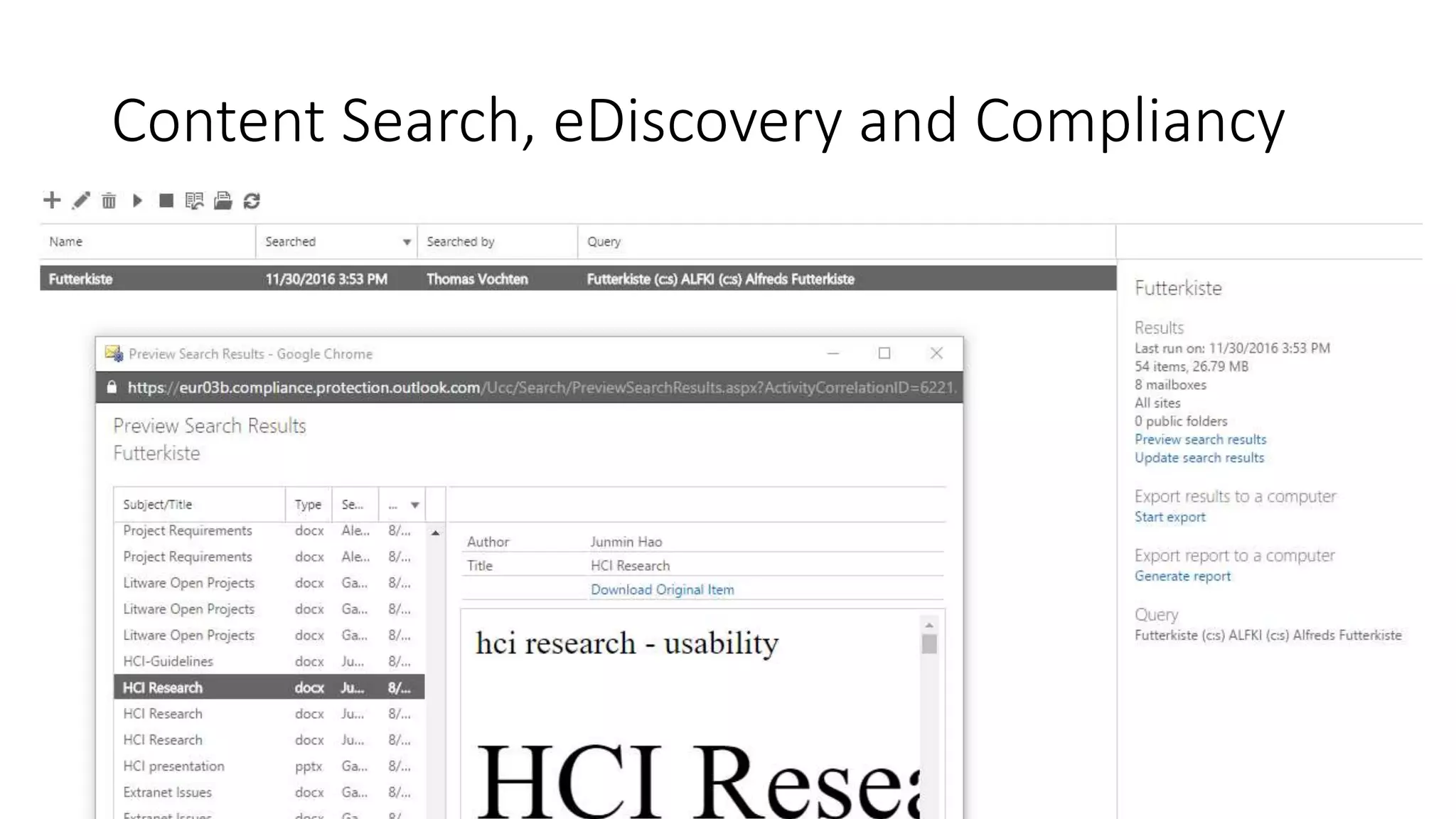

51. Content Search, eDiscovery and Compliancy

52. Hybrid Search - Takeaways
• Unified search index in SharePoint Online
• Crawl in on-premises, index lives in the cloud
• Identity synchronization needed for security trimming
• Creation of a new search service application is mandatory
• Be aware of your dependencies (e.g. add-ins, workflow mgr)
• It’s free, but be aware of limitations
• No internet connection, no search
• SharePoint 2013 & 2016 only

53. Bonus | eBook
Fundamental resource if you’re thinking about implementing hybrid
http://thvo.me/hybridebook

54. Thank you!
@thomasvochten
