1. Clock divider by 3
C Ashok Reddy

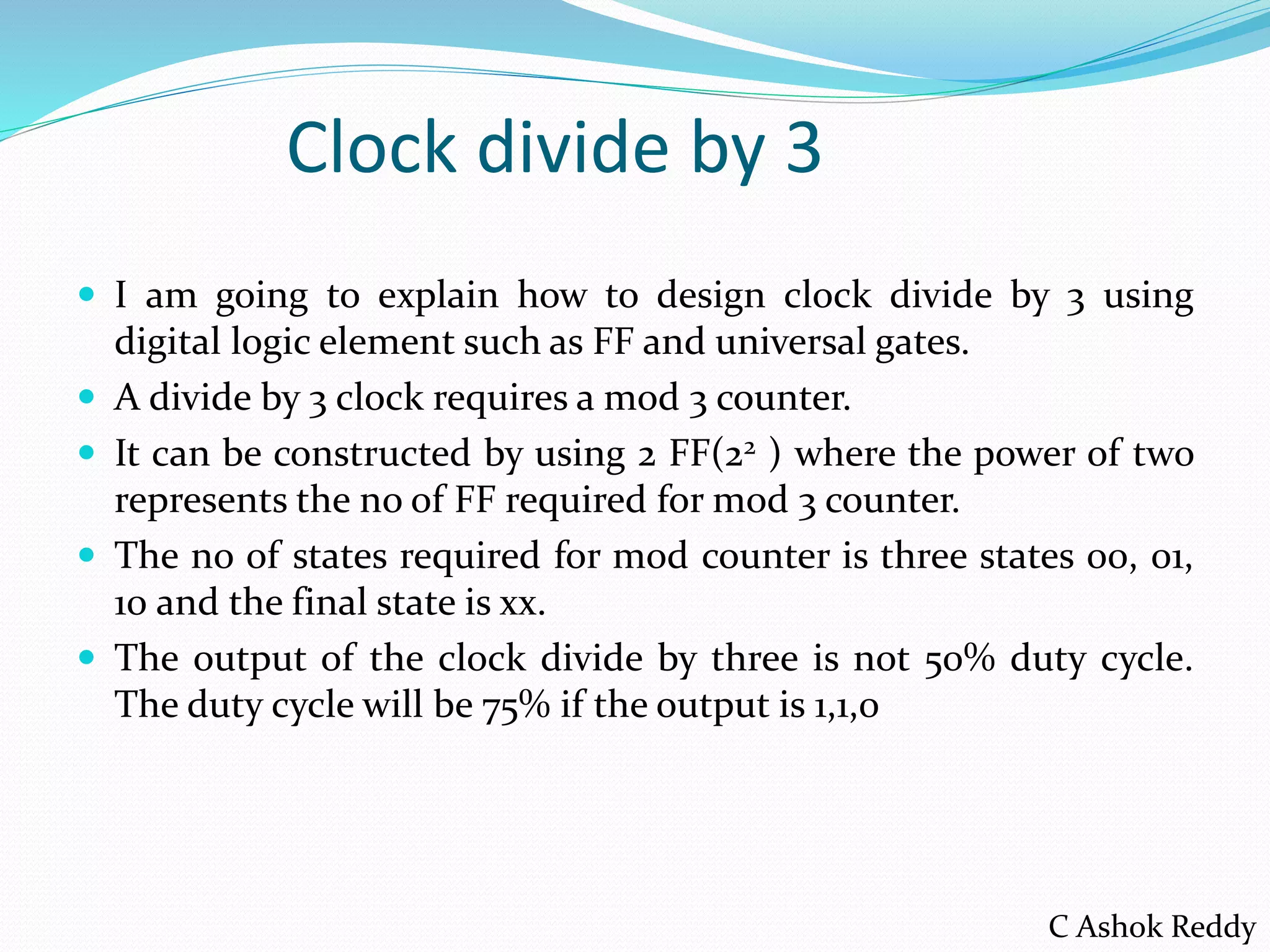

2. Clock divide by 3
 I am going to explain how to design clock divide by 3 using
digital logic element such as FF and universal gates.
 A divide by 3 clock requires a mod 3 counter.
 It can be constructed by using 2 FF(22 ) where the power of two
represents the no of FF required for mod 3 counter.
 The no of states required for mod counter is three states 00, 01,
10 and the final state is xx.
 The output of the clock divide by three is not 50% duty cycle.
The duty cycle will be 75% if the output is 1,1,0
C Ashok Reddy

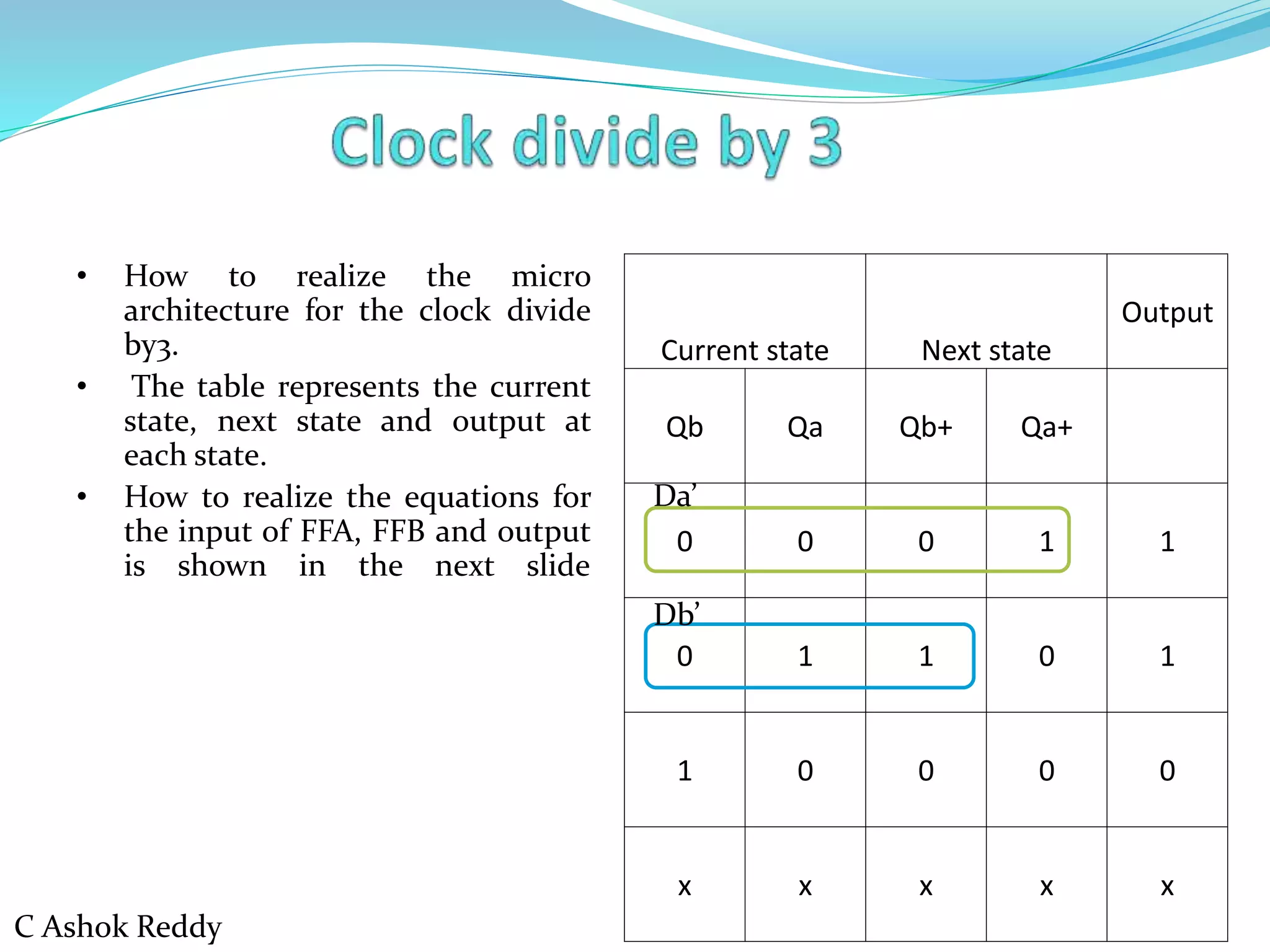

3. Current state Next state
Output
Qb Qa Qb+ Qa+
0 0 0 1 1
0 1 1 0 1
1 0 0 0 0
x x x x x
• How to realize the micro
architecture for the clock divide
by3.
• The table represents the current
state, next state and output at
each state.
• How to realize the equations for
the input of FFA, FFB and output
is shown in the next slide
Da’
Db’
C Ashok Reddy

4. 1 0
0 x
Qa
Qb 0 1
0
1
Da=Qa’Qb’
0 0
1 x
Qa
Qb 0 1
0
1
Db=Qa
1 0
1 x
Qa
Qb 0 1
0
1
Out=Qa+Qb’

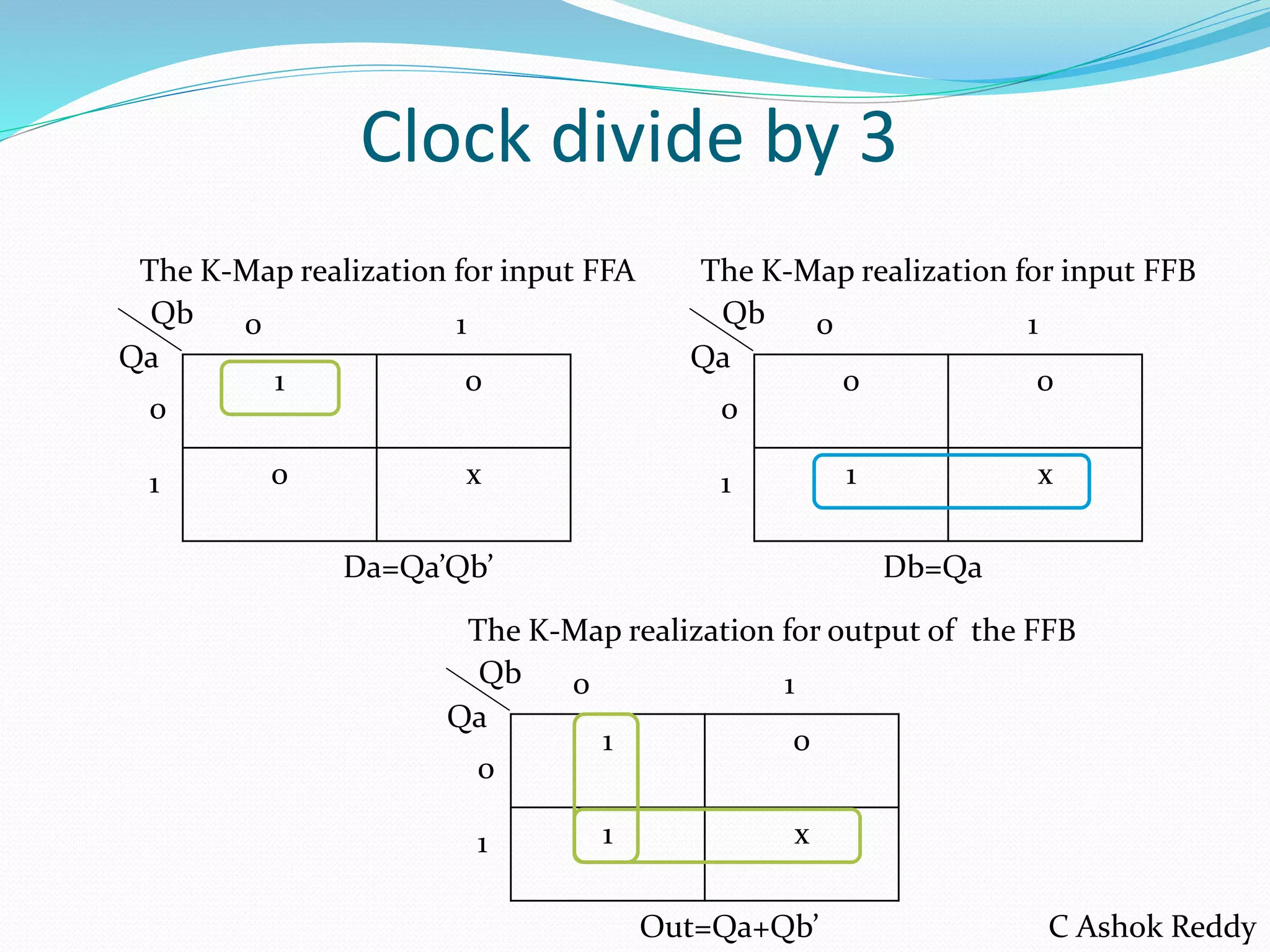

The K-Map realization for input FFA The K-Map realization for input FFB
The K-Map realization for output of the FFB
Clock divide by 3
C Ashok Reddy

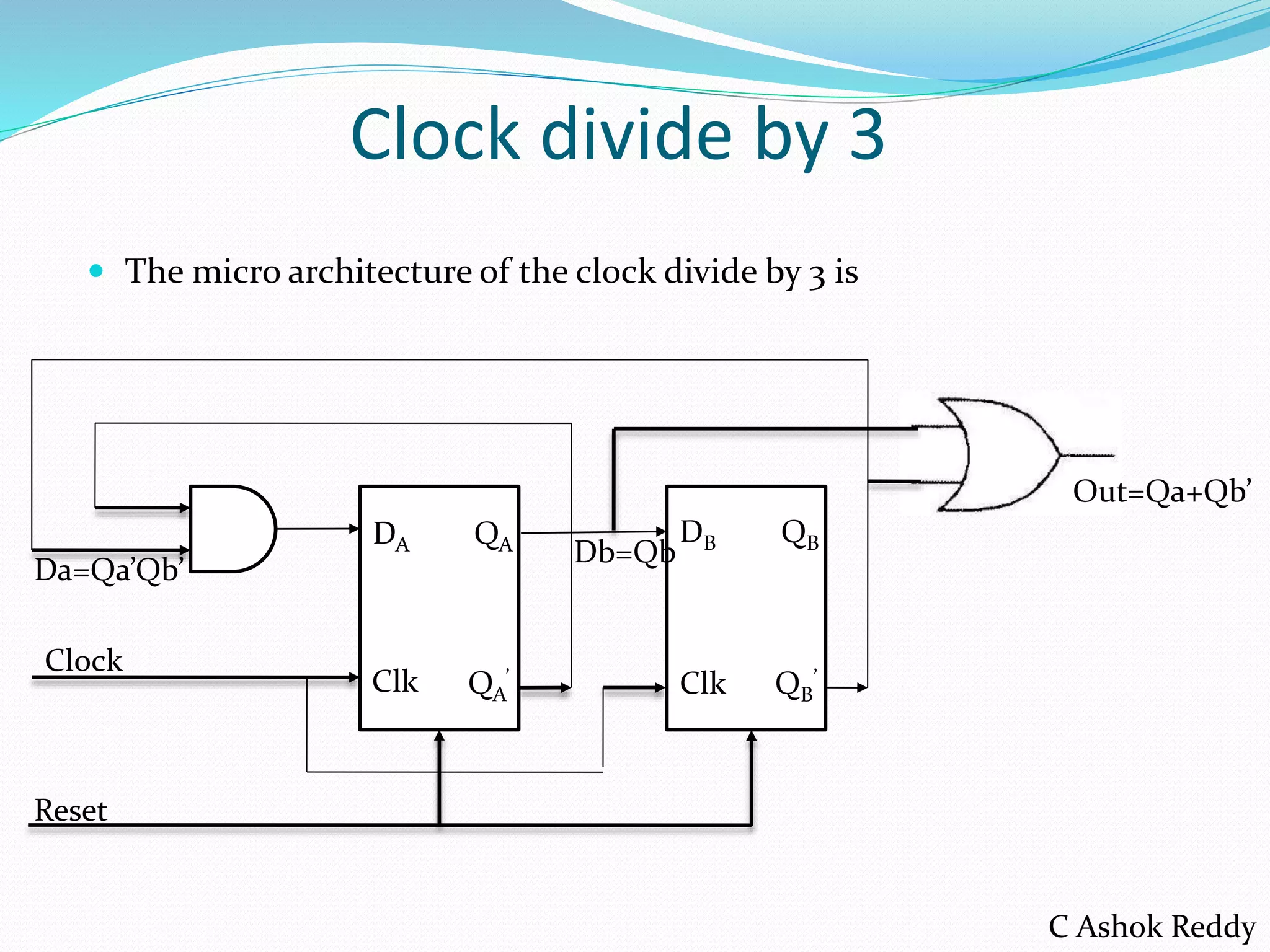

5.  The micro architecture of the clock divide by 3 is
Clock divide by 3
DA QA
QA
’
DB QB
QB
’Clk Clk
Da=Qa’Qb’
Db=Qb
Out=Qa+Qb’
Reset
Clock
C Ashok Reddy

6. Input : Clock and reset
Output : clk_out
Clock divide by 3

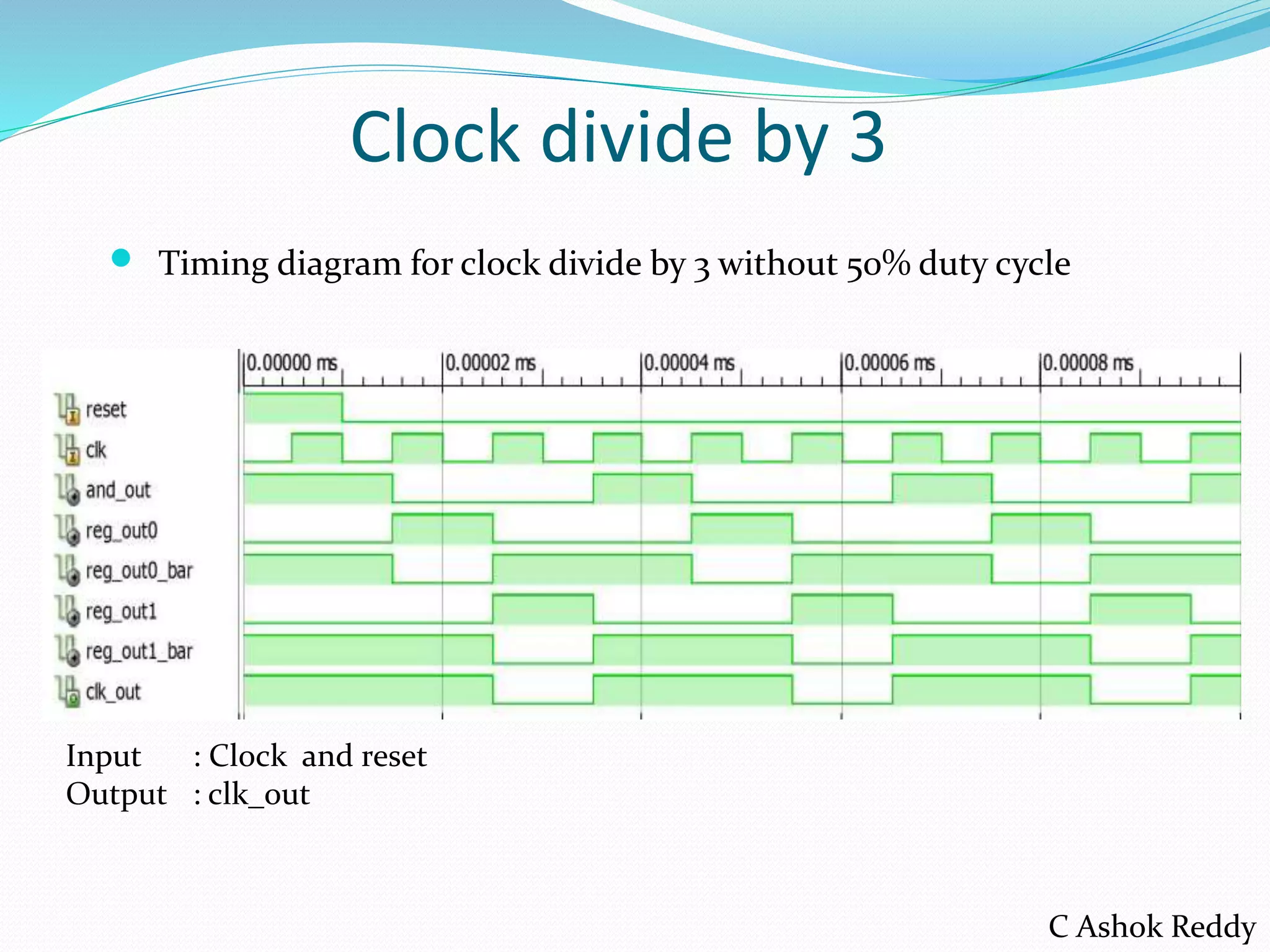

 Timing diagram for clock divide by 3 without 50% duty cycle
C Ashok Reddy

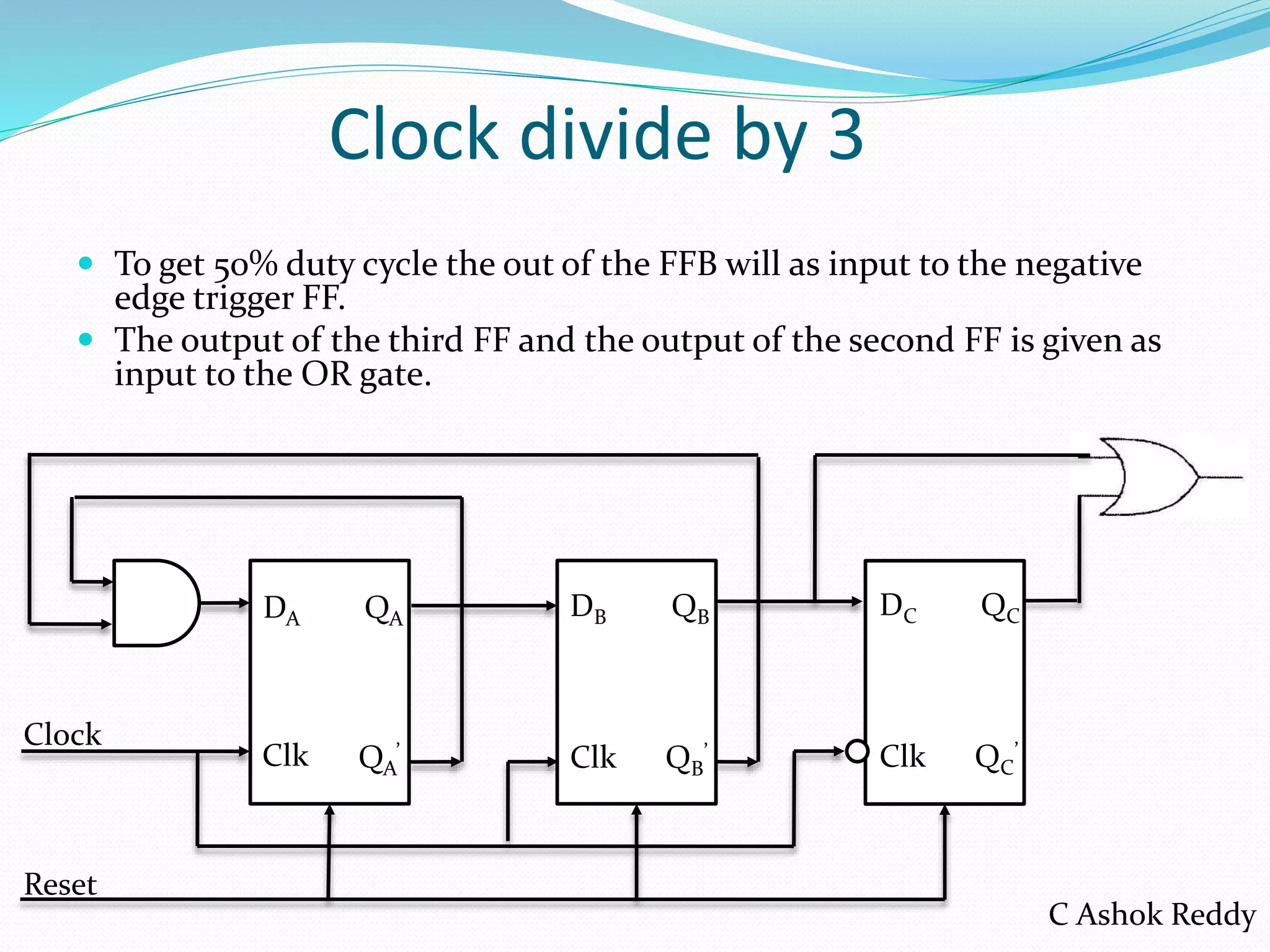

7.  To get 50% duty cycle the out of the FFB will as input to the negative
edge trigger FF.
 The output of the third FF and the output of the second FF is given as
input to the OR gate.
Clock divide by 3
DA QA
QA
’
DB QB
QB
’Clk Clk
DC QC
QC
’Clk
Reset
Clock
C Ashok Reddy

8. Input : Clock and reset
Output : clk_out
Clock divide by 3

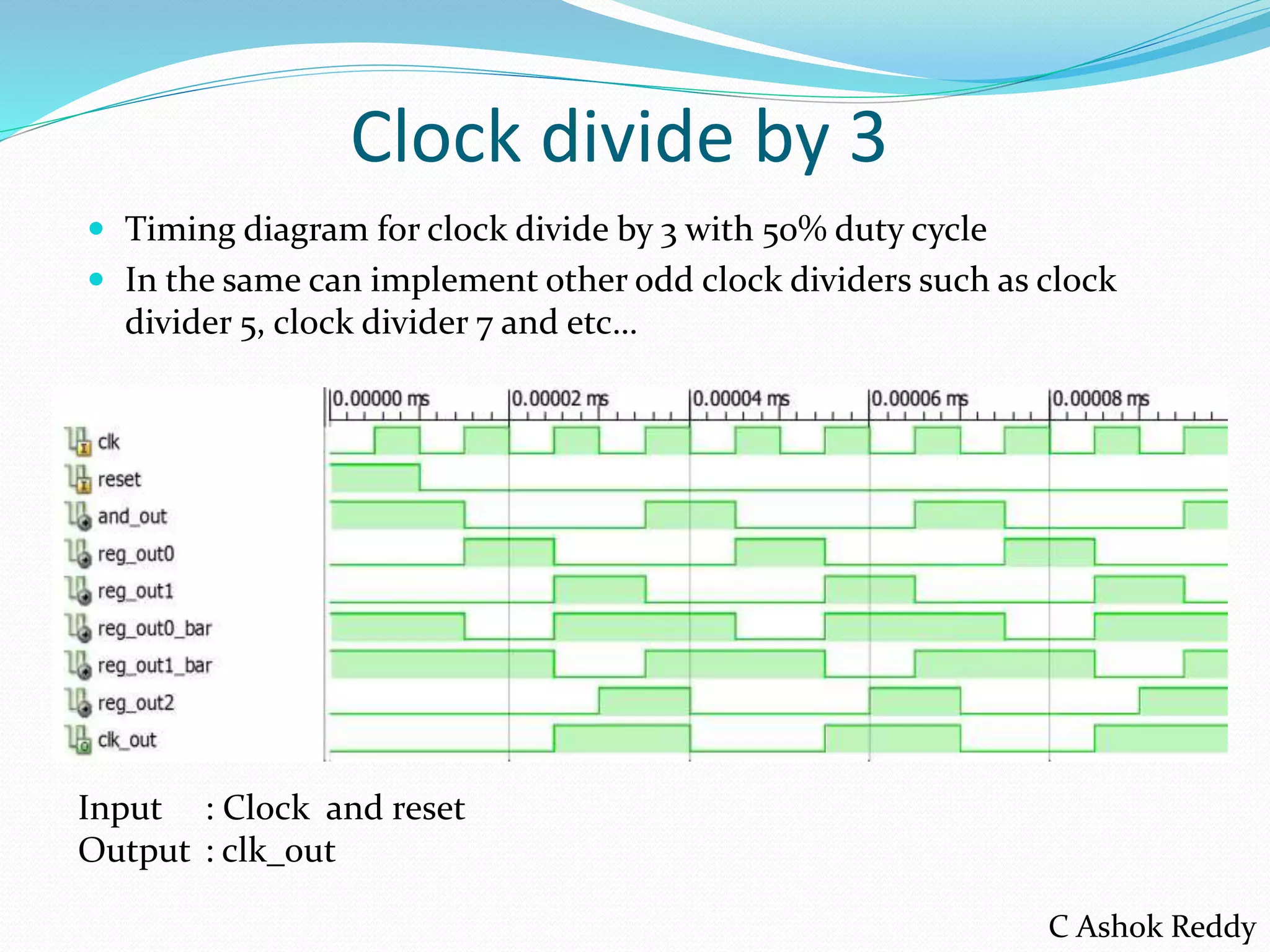

 Timing diagram for clock divide by 3 with 50% duty cycle
 In the same can implement other odd clock dividers such as clock
divider 5, clock divider 7 and etc…
C Ashok Reddy
