This document classifies and identifies various hand tools used in construction. It divides the tools into three categories: measuring tools, marking and lining tools, and testing tools. The measuring tools section identifies common tools like the push-pull rule, ruler, meter stick, try square, and caliper. The marking and lining tools section lists the pencil, marking gauge, chalk line, divider, and compass. The final section on testing tools mentions the try square, steel square, spirit level, and plumb bob.

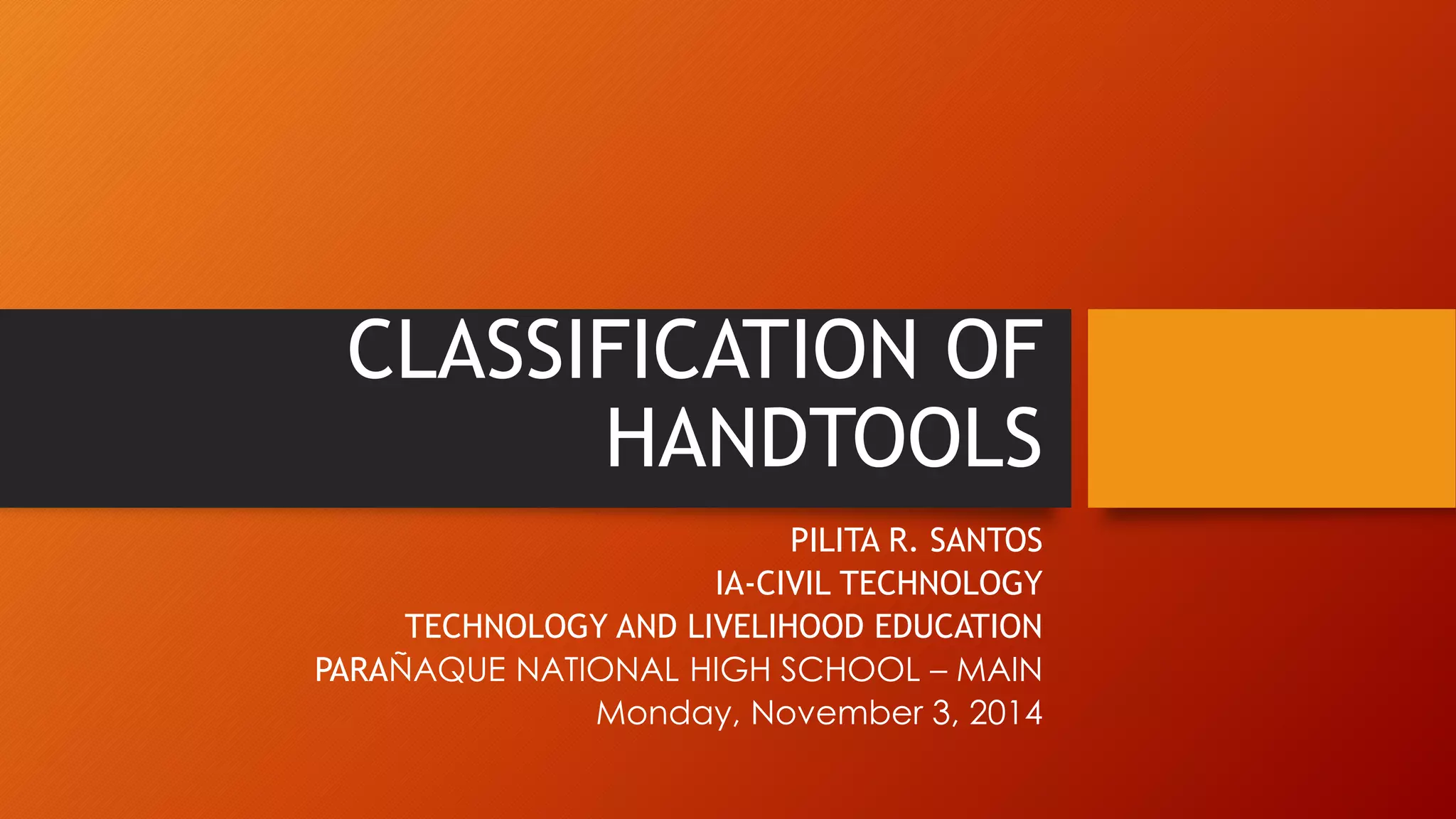

1. CLASSIFICATION OF HANDTOOLS
PILITA R. SANTOS
IA-CIVIL TECHNOLOGY
TECHNOLOGY AND LIVELIHOOD EDUCATION
PARAÑAQUE NATIONAL HIGH SCHOOL –MAIN
Monday, November 3, 2014

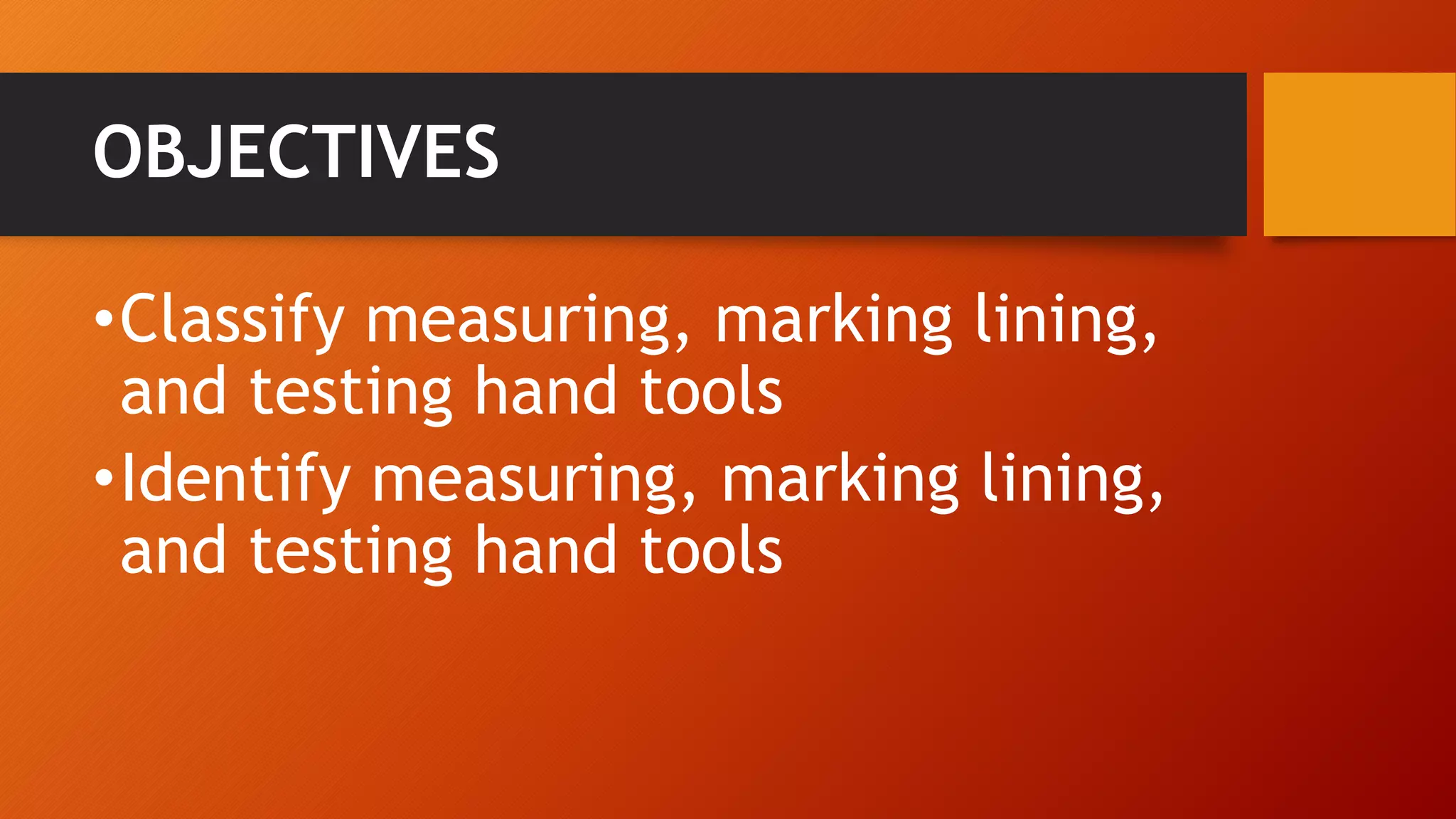

2. OBJECTIVES
•Classify measuring, marking lining, and testing hand tools
•Identify measuring, marking lining, and testing hand tools

3. HAND TOOLS –Part 1
•Measuring Tools
•Marking Lining Tools
•Testing Tools

4. MEASURING TOOLS
•Push-Pull Rule
•Ruler
•Meter Stick
•Try Square
•Caliper

5. Push-Pull Rule
•flexible tape that slides into a material case and it is used to measure irregular and regular shapes.

6. Ruler
•used for measuring short pieces of stock.

7. Try Square
•Used for checking flatness and squareness

8. Caliper
•used for measuring diameter.

9. MARKING LINING TOOLS
•Pencil
•Marking Gauge
•Chalk Line
•Divider
•Compass

10. Pencil
•used to layout or mark cutting lines.

11. Marking Gauge
•wood or metal tool consisting of a beam, head and a point used to mark a line parallel to the grain of the wood.

12. Chalk Line
•used to establish a straight line on a surface.
www.toolstop.co.uk

13. Divider
•tool with two metal legs used to lay-out an arc circle or step off division on a line.

14. Compass
•used to scribe arcs and circles.

15. TESTING TOOLS
•Try Square
•Steel Square
•Spirit Level
•Plumb bob

16. Try Square
•tool used in squaring, measuring and testing the squarenessof a piece of wood.

17. Steel Square
•framing square used to mark out the work for squaring and checking of angles and is used in the construction of roof framing and large furniture.
www.craftsmanspace.com

18. Spirit Level
•tool used for testing vertical and horizontal surfaces.
shop.adjustplus.biz

19. Plumb bob
•tool used to test the vertical alignment only. professional-power-tool-guide.com
