The document discusses IP addressing and subnetting. It begins with an overview of basic IP addressing concepts like dotted decimal notation, network masks, prefixes, and how to determine the network and host portions of an IP address. It then covers techniques for working with IP addresses and prefixes, including how to calculate the number of hosts in a subnet. The goal is to make these IP addressing concepts easier to understand and work with.

2. IP Addressing
RST-2002 © 2003, Cisco Systems, Inc. All rights reserved. 2

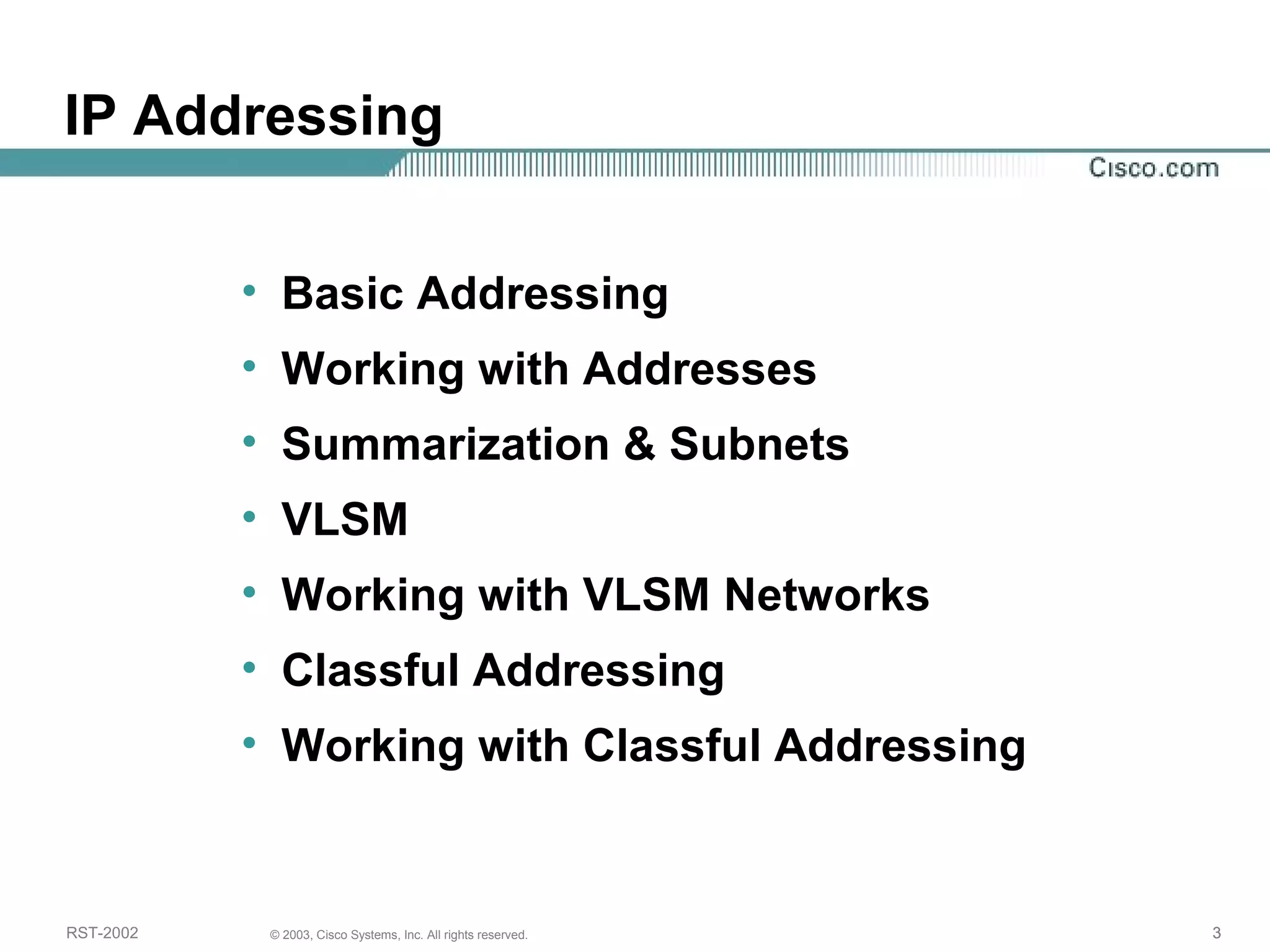

3. IP Addressing
• Basic Addressing
• Working with Addresses
• Summarization & Subnets
• VLSM
• Working with VLSM Networks
• Classful Addressing
• Working with Classful Addressing
RST-2002 © 2003, Cisco Systems, Inc. All rights reserved. 3

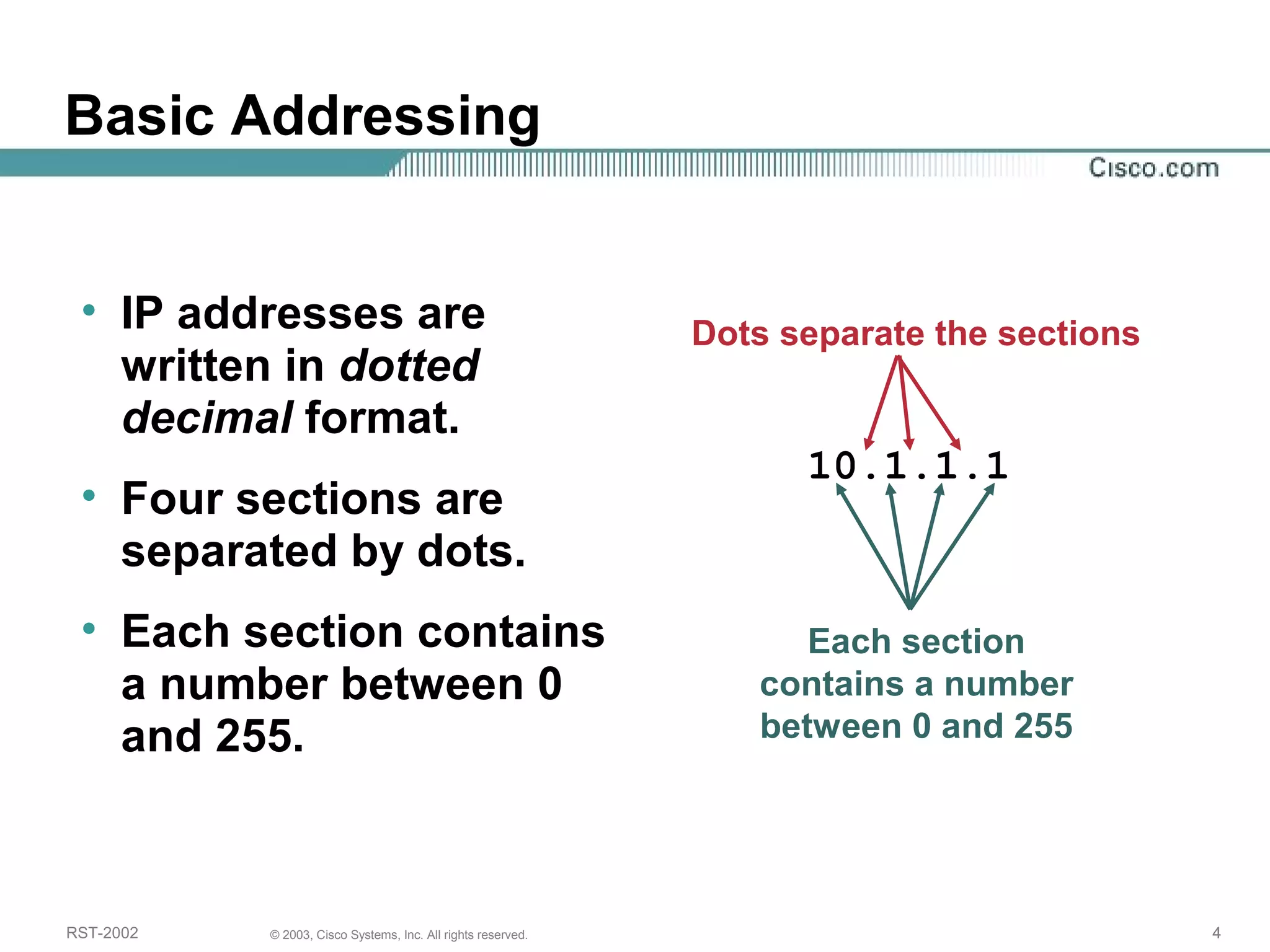

4. Basic Addressing
Dots separate the sections
10.1.1.1
• IP addresses are
written in dotted
decimal format.
• Four sections are
separated by dots.
• Each section contains
a number between 0
and 255.
Each section
contains a number
between 0 and 255
RST-2002 © 2003, Cisco Systems, Inc. All rights reserved. 4

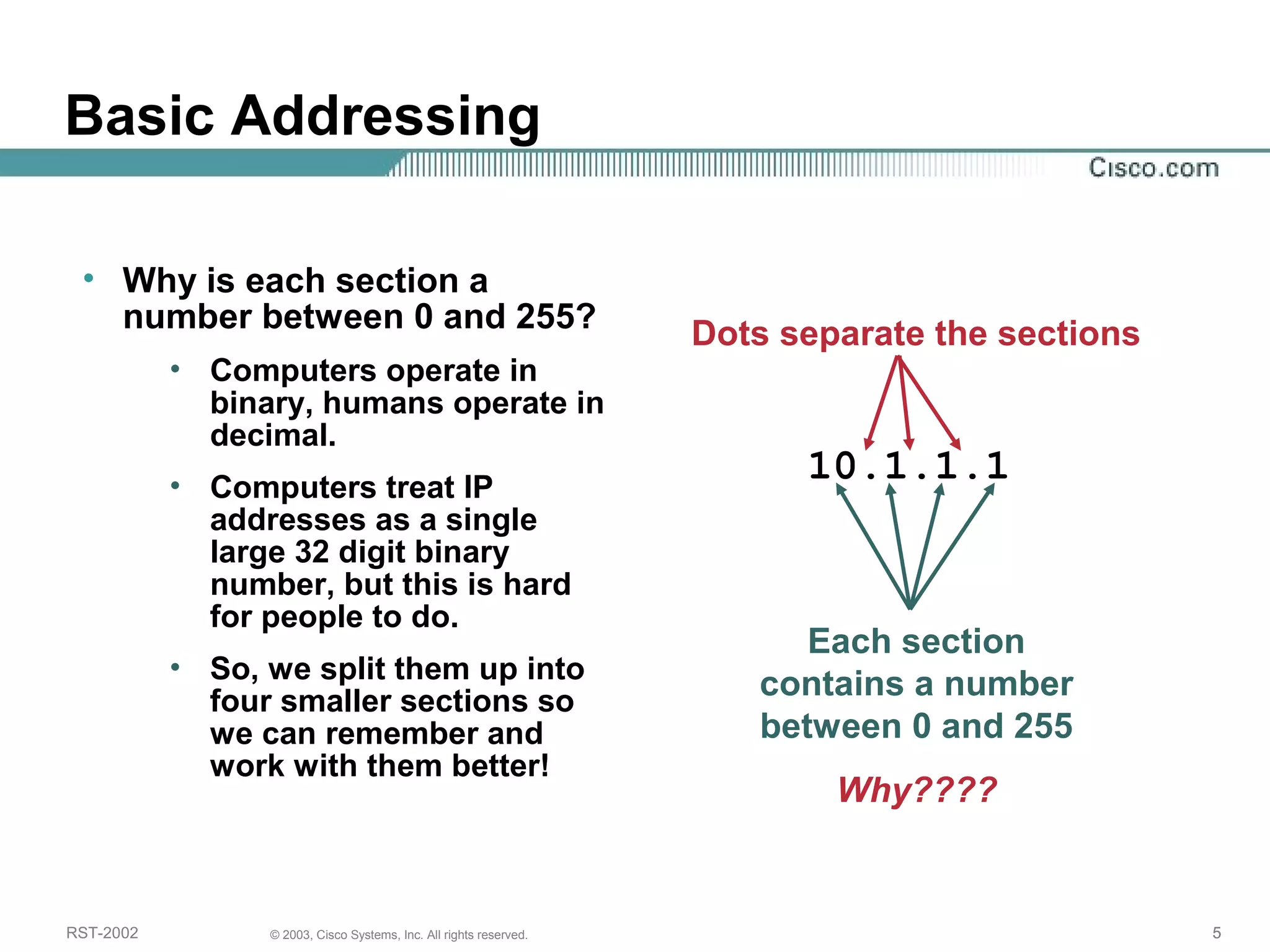

5. Basic Addressing
Dots separate the sections
10.1.1.1
• Why is each section a
number between 0 and 255?
• Computers operate in
binary, humans operate in
decimal.
• Computers treat IP
addresses as a single
large 32 digit binary
number, but this is hard
for people to do.
• So, we split them up into
four smaller sections so
we can remember and
work with them better!
Each section
contains a number
between 0 and 255
Why????
RST-2002 © 2003, Cisco Systems, Inc. All rights reserved. 5

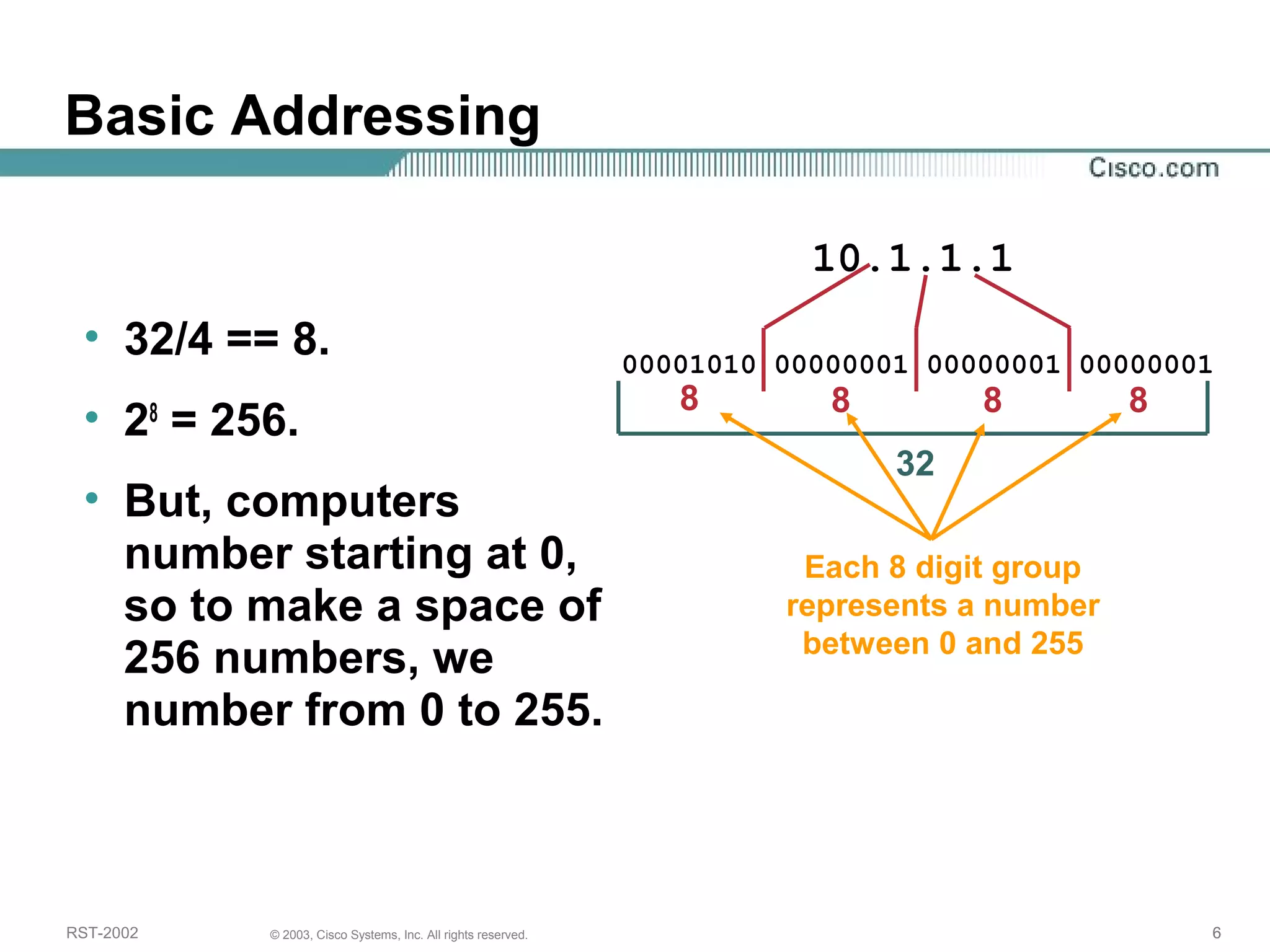

6. Basic Addressing
10.1.1.1
• 32/4 == 8.
• 28 = 256.
• But, computers
number starting at 0,
so to make a space of
256 numbers, we
number from 0 to 255.
00001010 00000001 00000001 00000001
8 8 8 8
32
Each 8 digit group
represents a number
between 0 and 255
RST-2002 © 2003, Cisco Systems, Inc. All rights reserved. 6

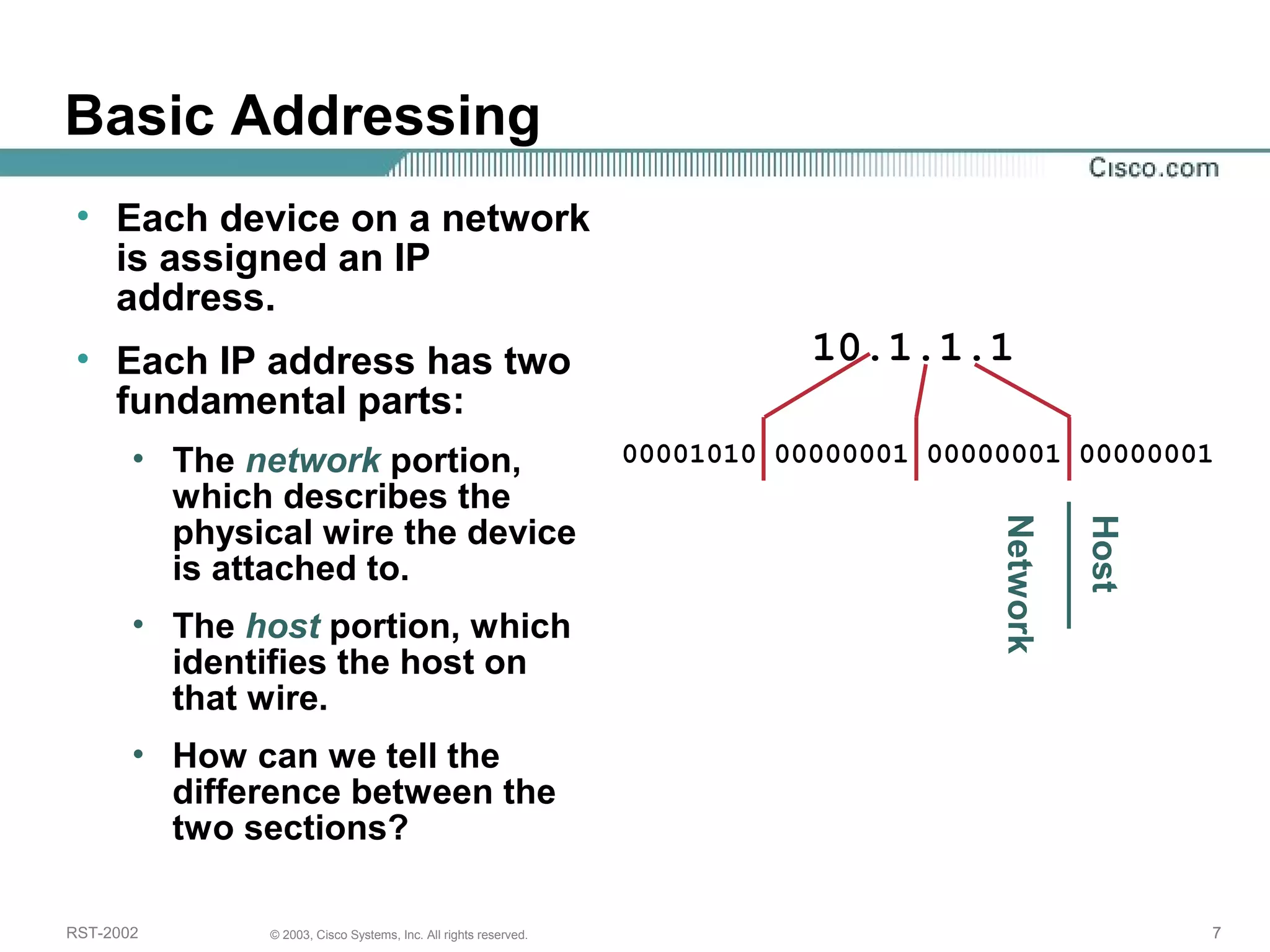

7. Basic Addressing
10.1.1.1
• Each device on a network
is assigned an IP
address.
• Each IP address has two
fundamental parts:
• The network portion,
which describes the
physical wire the device
is attached to.
• The host portion, which
identifies the host on
that wire.
• How can we tell the
difference between the
two sections?
00001010 00000001 00000001 00000001
Network
Host
RST-2002 © 2003, Cisco Systems, Inc. All rights reserved. 7

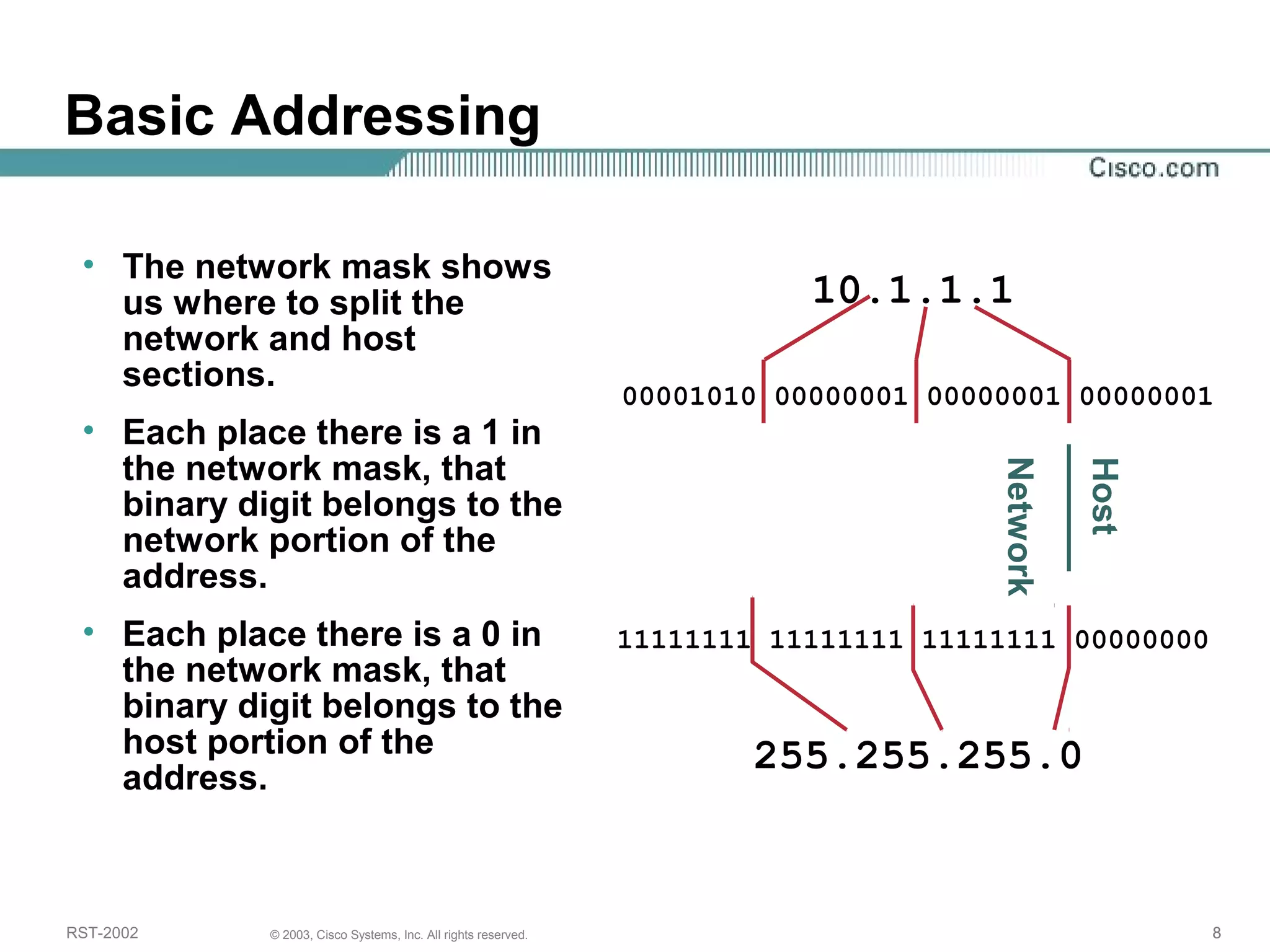

8. Basic Addressing
10.1.1.1
• The network mask shows
us where to split the
network and host
sections.
• Each place there is a 1 in
the network mask, that
binary digit belongs to the
network portion of the
address.
• Each place there is a 0 in
the network mask, that
binary digit belongs to the
host portion of the
address.
00001010 00000001 00000001 00000001
Network
Host
11111111 11111111 11111111 00000000
255.255.255.0
RST-2002 © 2003, Cisco Systems, Inc. All rights reserved. 8

9. Basic Addressing
• An alternative set of 10.1.1.1
terminology is:
• The network portion of
the address is called the
prefix.
• The host portion of the
address is called the host.
• The network mask is
expressed as a prefix
length, which is a count
of the number of 1’s in the
subnet mask.
00001010 00000001 00000001 00000001
Prefix
Host
11111111 11111111 11111111 00000000
8 + 8 + 8 = 24
10.1.1.1/24
RST-2002 © 2003, Cisco Systems, Inc. All rights reserved. 9

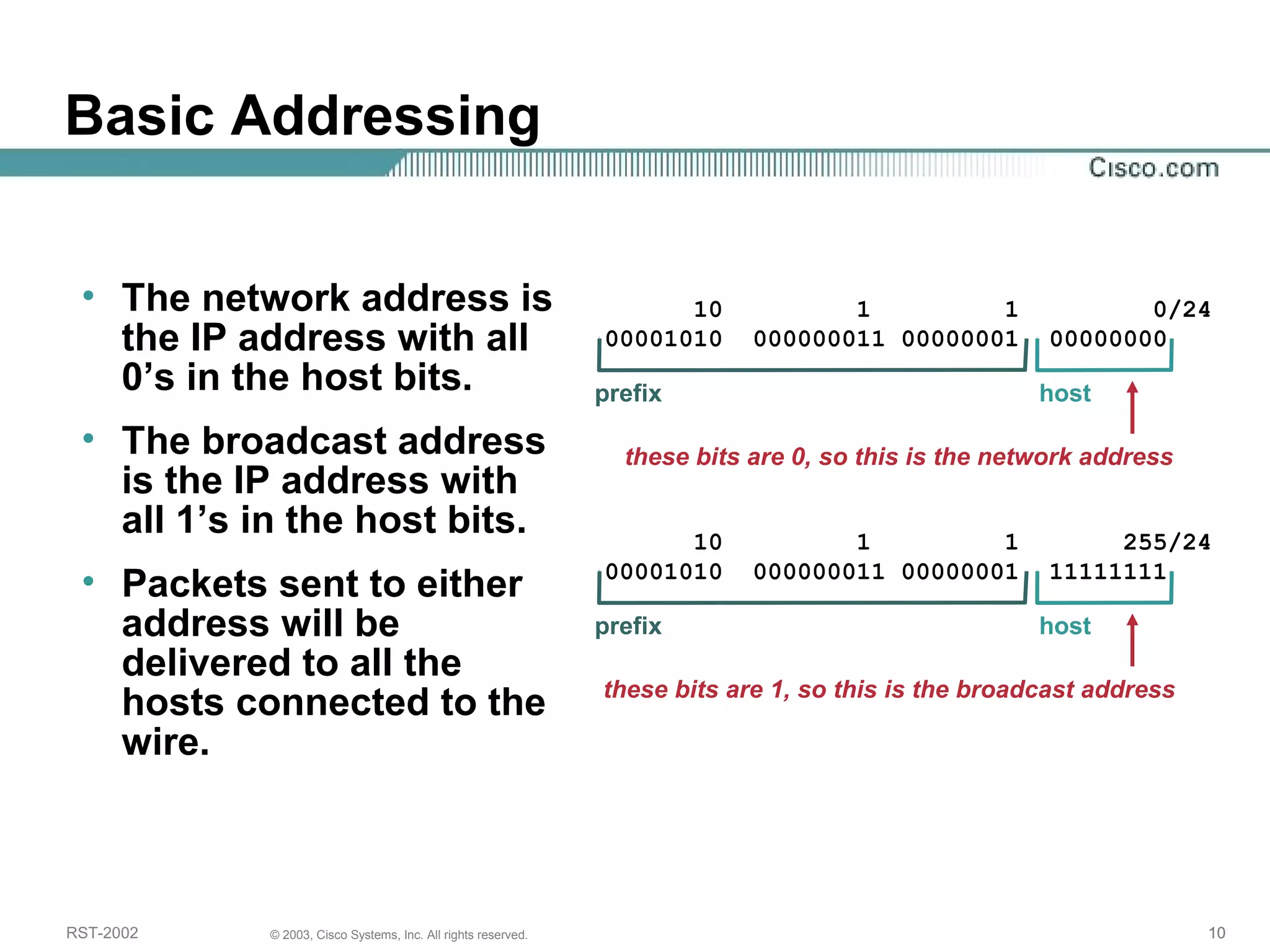

10. Basic Addressing
• The network address is
the IP address with all
0’s in the host bits.
• The broadcast address
is the IP address with
all 1’s in the host bits.
• Packets sent to either
address will be
delivered to all the
hosts connected to the
wire.
10 1 1 0/24
00001010 000000011 00000001 00000000
prefix host
these bits are 0, so this is the network address
10 1 1 255/24
00001010 000000011 00000001 11111111
prefix host
these bits are 1, so this is the broadcast address
RST-2002 © 2003, Cisco Systems, Inc. All rights reserved. 10

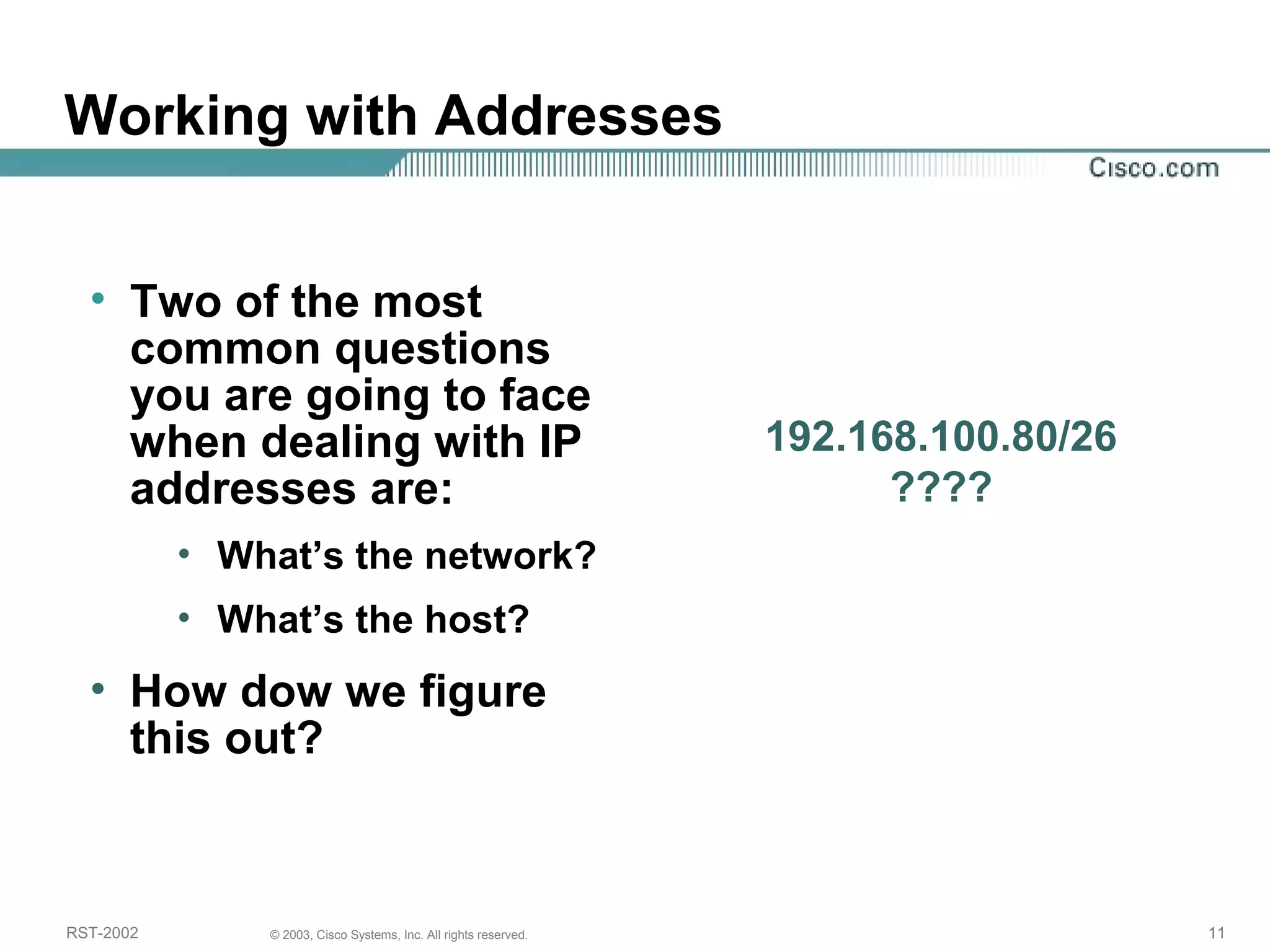

11. Working with Addresses
• Two of the most
common questions
you are going to face
when dealing with IP
addresses are:
• What’s the network?
• What’s the host?
• How dow we figure
this out?
192.168.100.80/26
????
RST-2002 © 2003, Cisco Systems, Inc. All rights reserved. 11

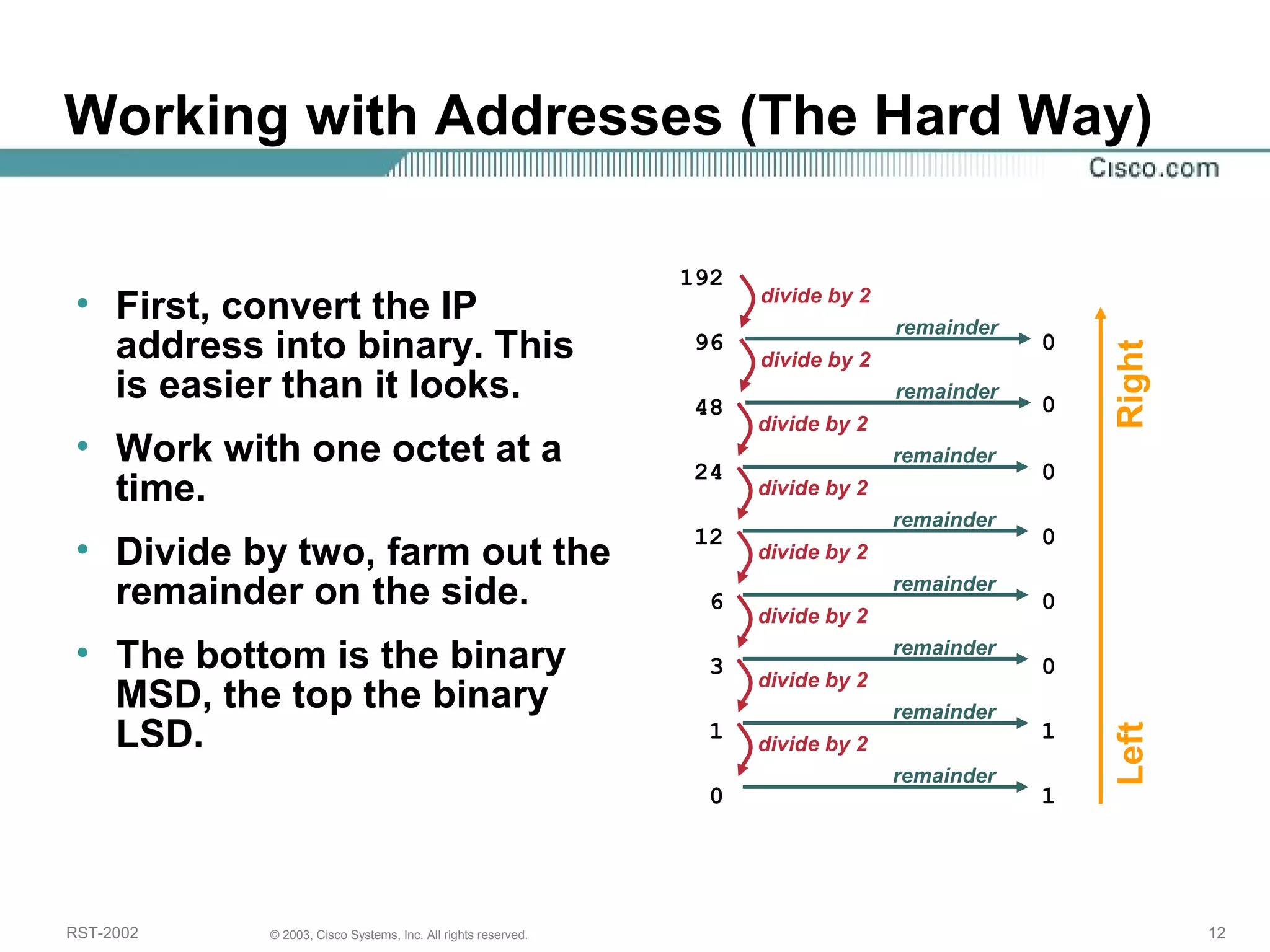

12. Working with Addresses (The Hard Way)
• First, convert the IP
address into binary. This
is easier than it looks.
• Work with one octet at a
time.
• Divide by two, farm out the
remainder on the side.
• The bottom is the binary
MSD, the top the binary
LSD.
192
divide by 2
remainder
96 0
divide by 2
remainder
48 0
divide by 2
remainder
24 0
divide by 2
remainder
12 0
divide by 2
remainder
6 0
divide by 2
remainder
3 0
divide by 2
remainder
1 1
divide by 2
remainder
0 1
Left Right
RST-2002 © 2003, Cisco Systems, Inc. All rights reserved. 12

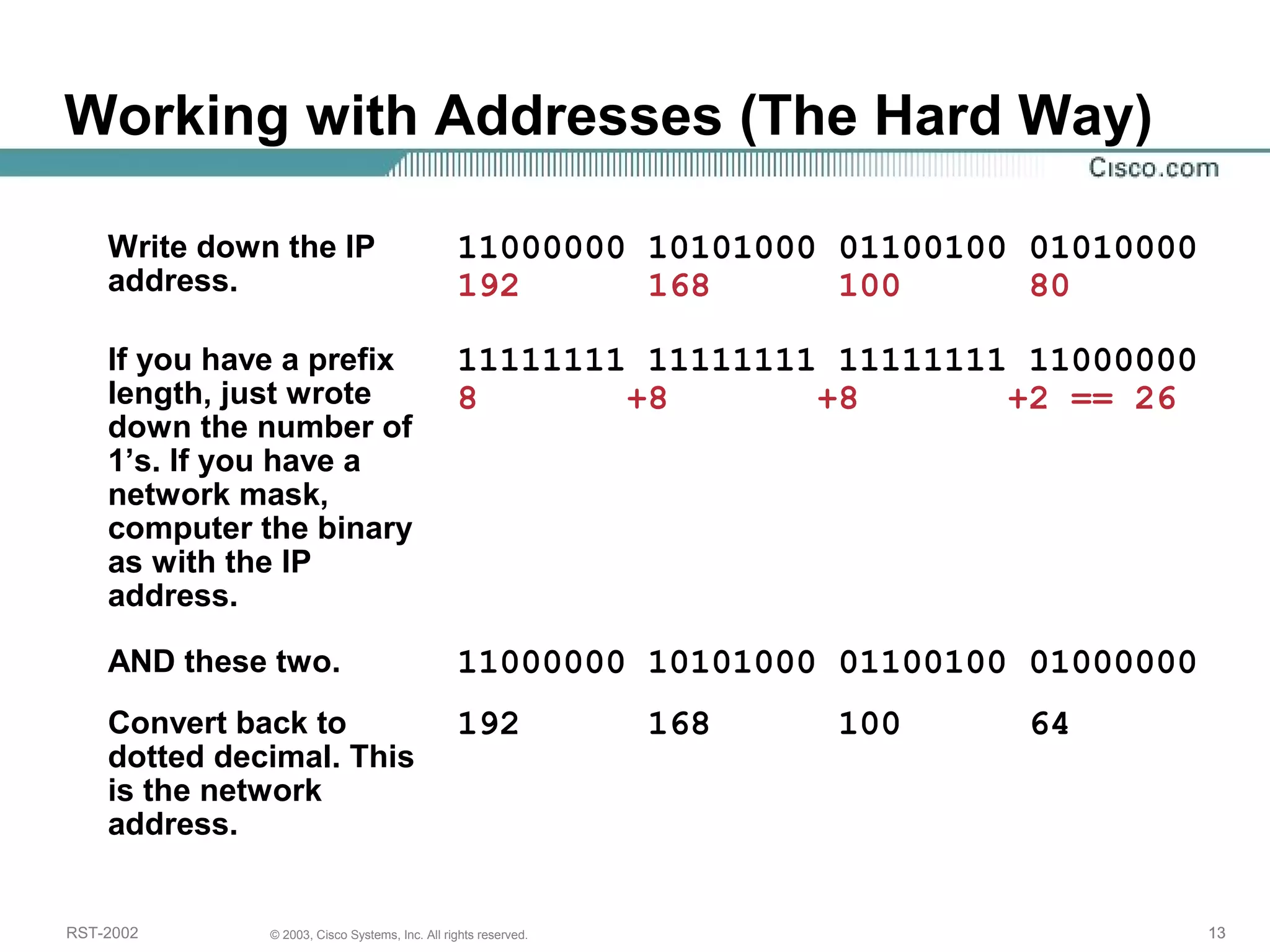

13. Working with Addresses (The Hard Way)
Write down the IP
address.
11000000 10101000 01100100 01010000
192 168 100 80
If you have a prefix
length, just wrote
down the number of
1’s. If you have a
network mask,
computer the binary
as with the IP
address.
11111111 11111111 11111111 11000000
8 +8 +8 +2 == 26
AND these two. 11000000 10101000 01100100 01000000
Convert back to
192 168 100 64
dotted decimal. This
is the network
address.
RST-2002 © 2003, Cisco Systems, Inc. All rights reserved. 13

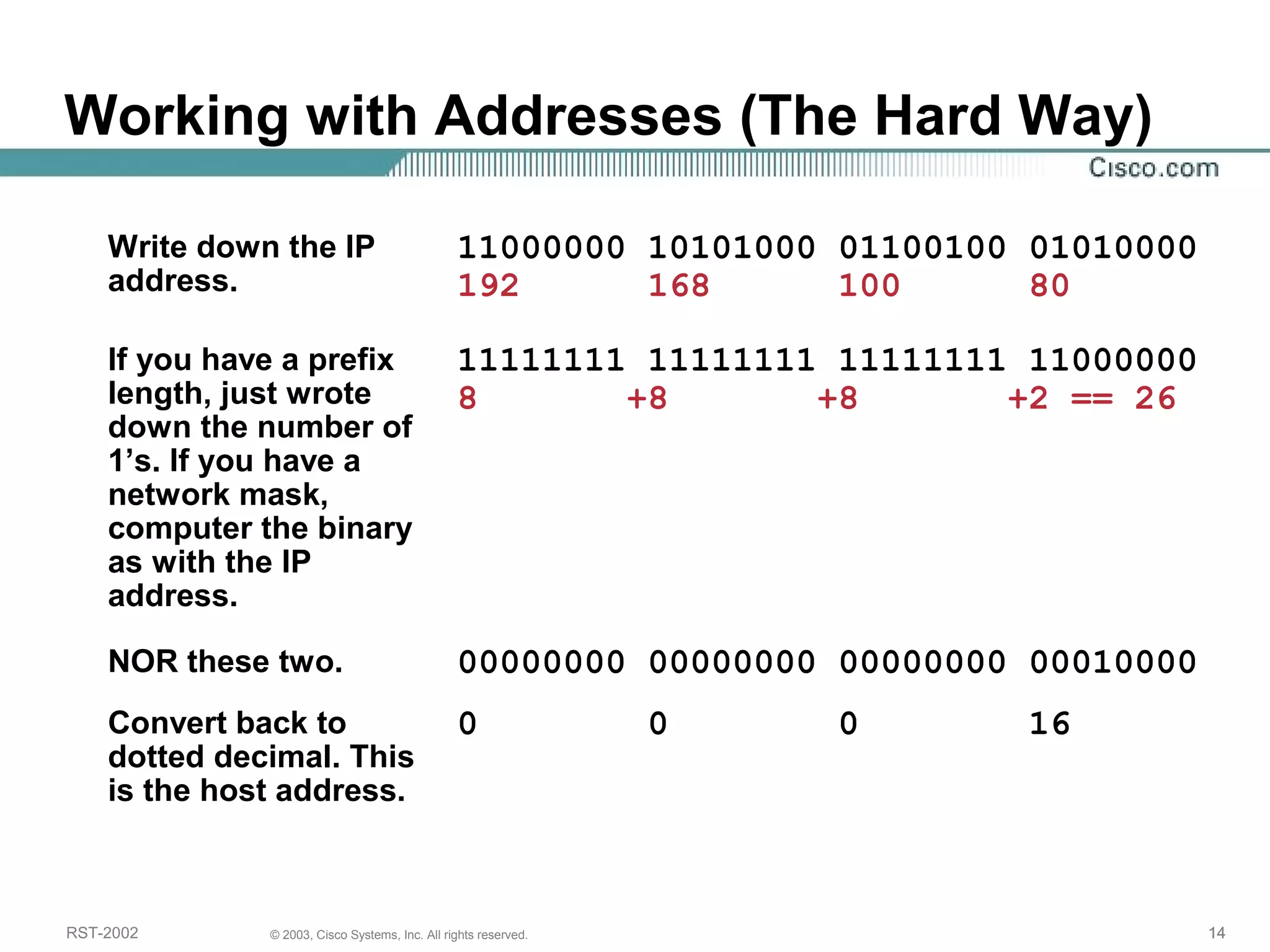

14. Working with Addresses (The Hard Way)
Write down the IP
address.
11000000 10101000 01100100 01010000
192 168 100 80
If you have a prefix
length, just wrote
down the number of
1’s. If you have a
network mask,
computer the binary
as with the IP
address.
11111111 11111111 11111111 11000000
8 +8 +8 +2 == 26
NOR these two. 00000000 00000000 00000000 00010000
Convert back to
0 0 0 16
dotted decimal. This
is the host address.
RST-2002 © 2003, Cisco Systems, Inc. All rights reserved. 14

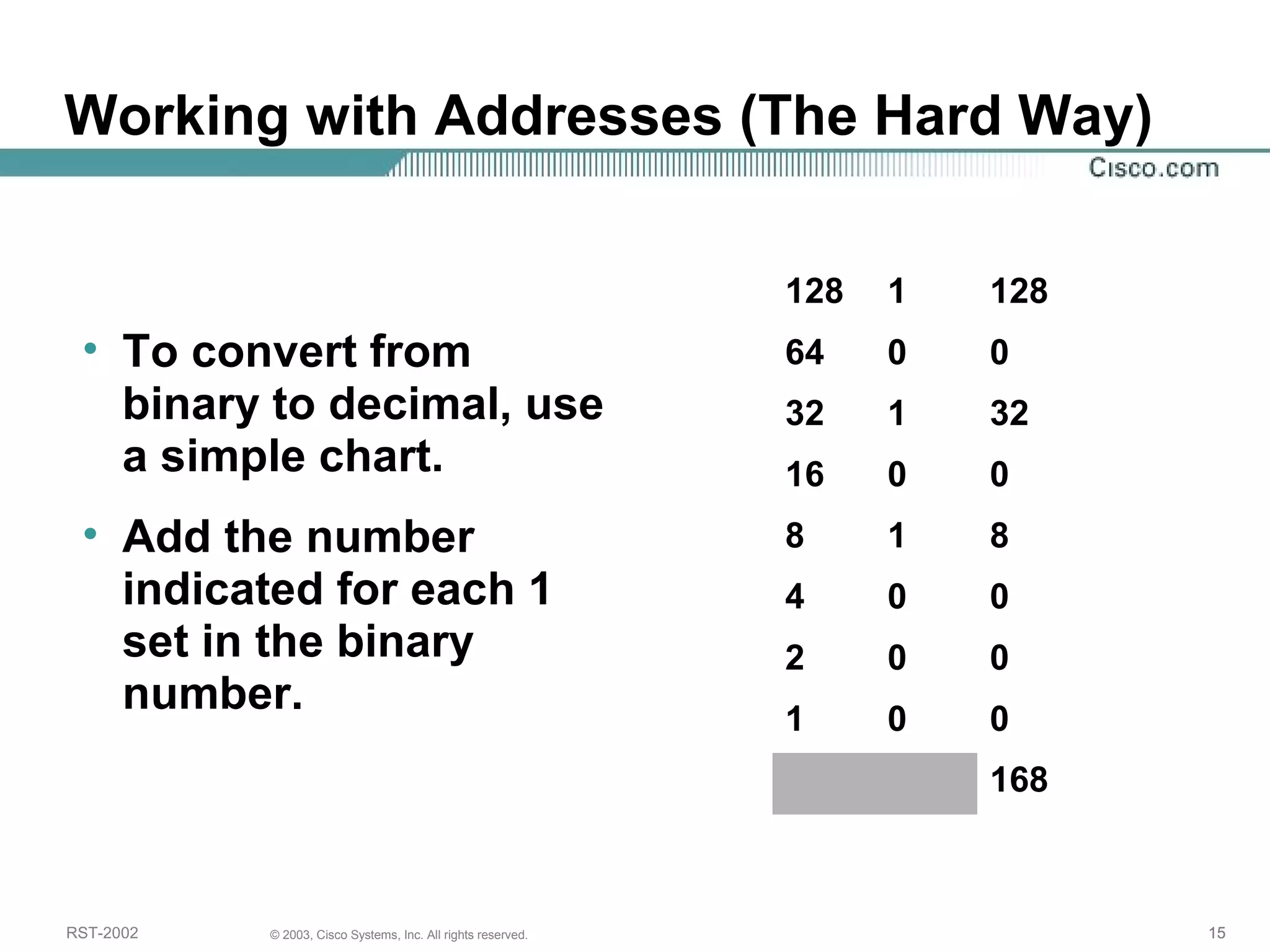

15. Working with Addresses (The Hard Way)
• To convert from
binary to decimal, use
a simple chart.
• Add the number
indicated for each 1
set in the binary
number.
128 1 128
64 0 0
32 1 32
16 0 0
8 1 8
4 0 0
2 0 0
1 0 0
168
RST-2002 © 2003, Cisco Systems, Inc. All rights reserved. 15

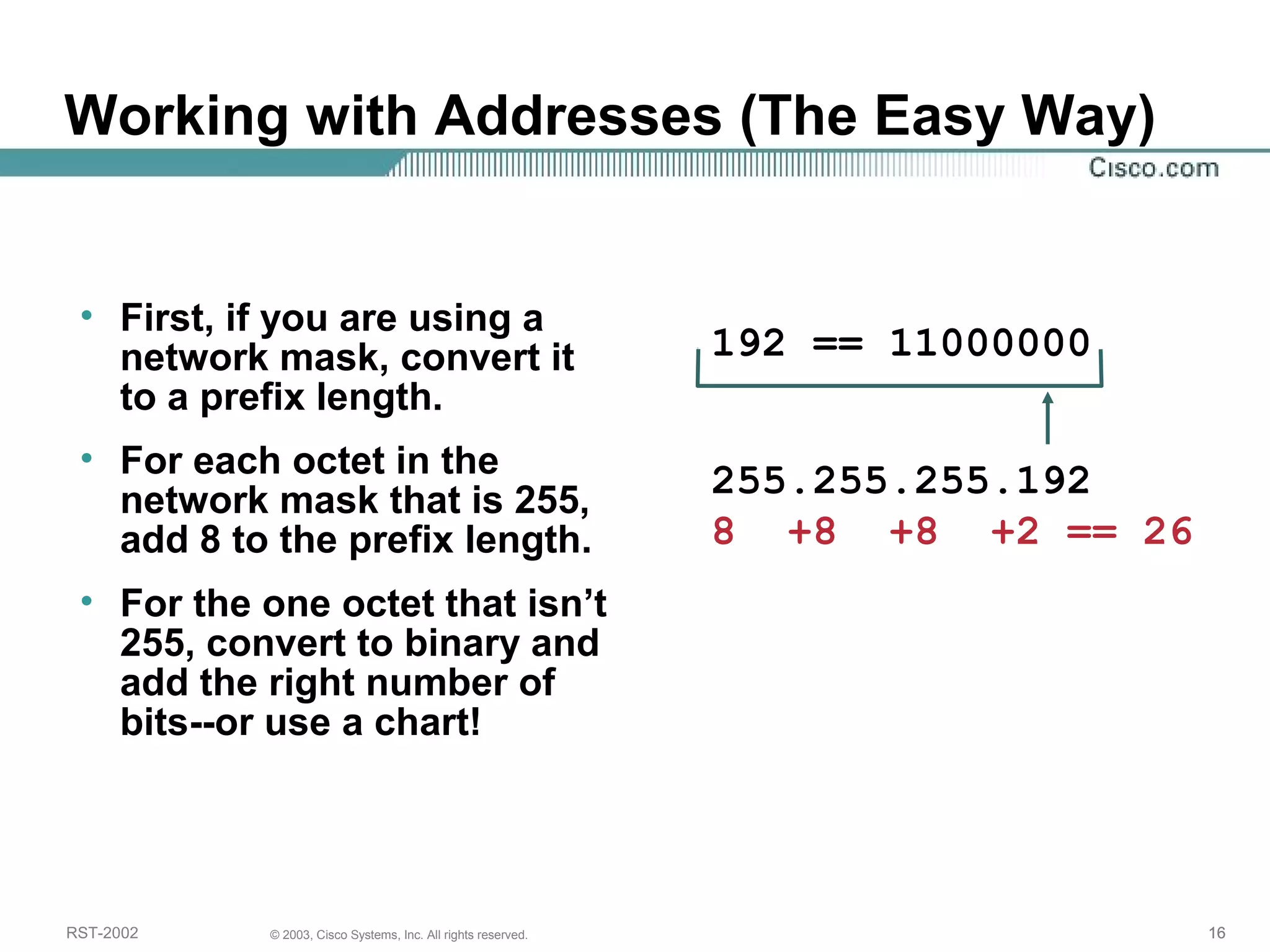

16. Working with Addresses (The Easy Way)
• First, if you are using a
network mask, convert it
to a prefix length.
• For each octet in the
network mask that is 255,
add 8 to the prefix length.
• For the one octet that isn’t
255, convert to binary and
add the right number of
bits--or use a chart!
192 == 11000000
255.255.255.192
8 +8 +8 +2 == 26
RST-2002 © 2003, Cisco Systems, Inc. All rights reserved. 16

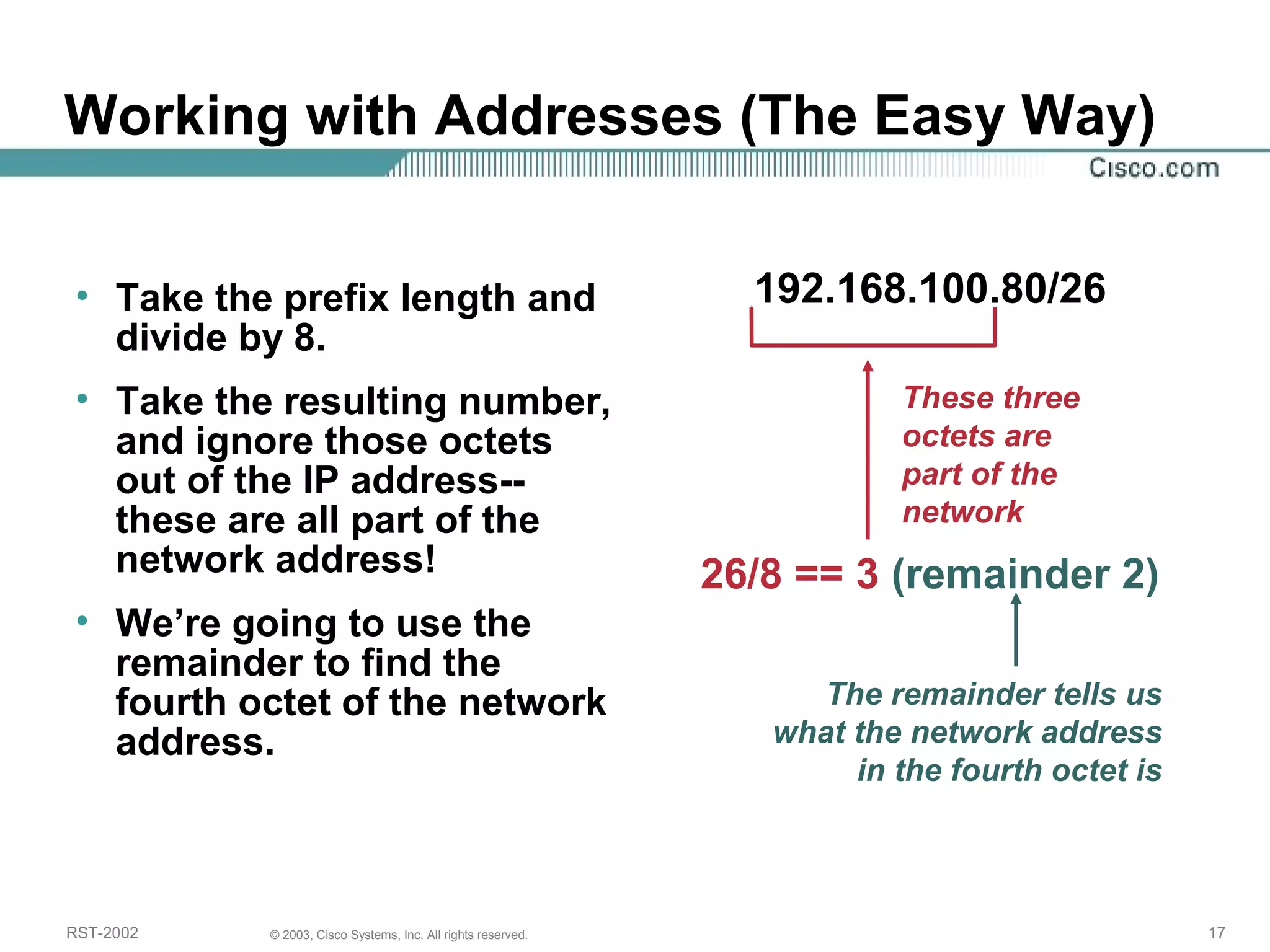

17. Working with Addresses (The Easy Way)
• Take the prefix length and
divide by 8.
• Take the resulting number,
and ignore those octets
out of the IP address--
these are all part of the
network address!
• We’re going to use the
remainder to find the
fourth octet of the network
address.
192.168.100.80/26
These three
octets are
part of the
network
26/8 == 3 (remainder 2)
The remainder tells us
what the network address
in the fourth octet is
RST-2002 © 2003, Cisco Systems, Inc. All rights reserved. 17

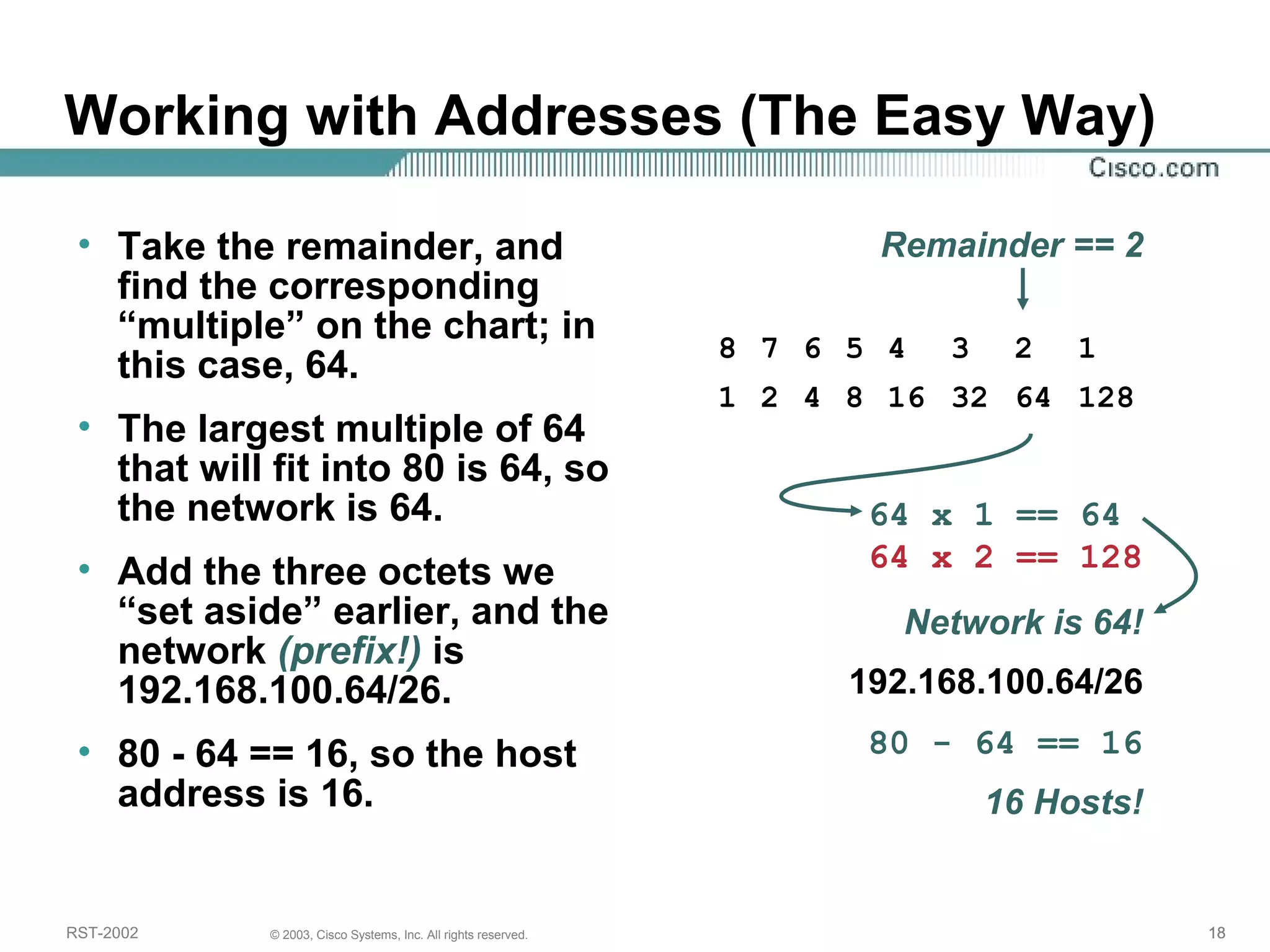

18. Working with Addresses (The Easy Way)
• Take the remainder, and
find the corresponding
“multiple” on the chart; in
this case, 64.
• The largest multiple of 64
that will fit into 80 is 64, so
the network is 64.
• Add the three octets we
“set aside” earlier, and the
network (prefix!) is
192.168.100.64/26.
• 80 - 64 == 16, so the host
address is 16.
Remainder == 2
8 7 6 5 4 3 2 1
1 2 4 8 16 32 64 128
64 x 1 == 64
64 x 2 == 128
Network is 64!
192.168.100.64/26
80 - 64 == 16
16 Hosts!
RST-2002 © 2003, Cisco Systems, Inc. All rights reserved. 18

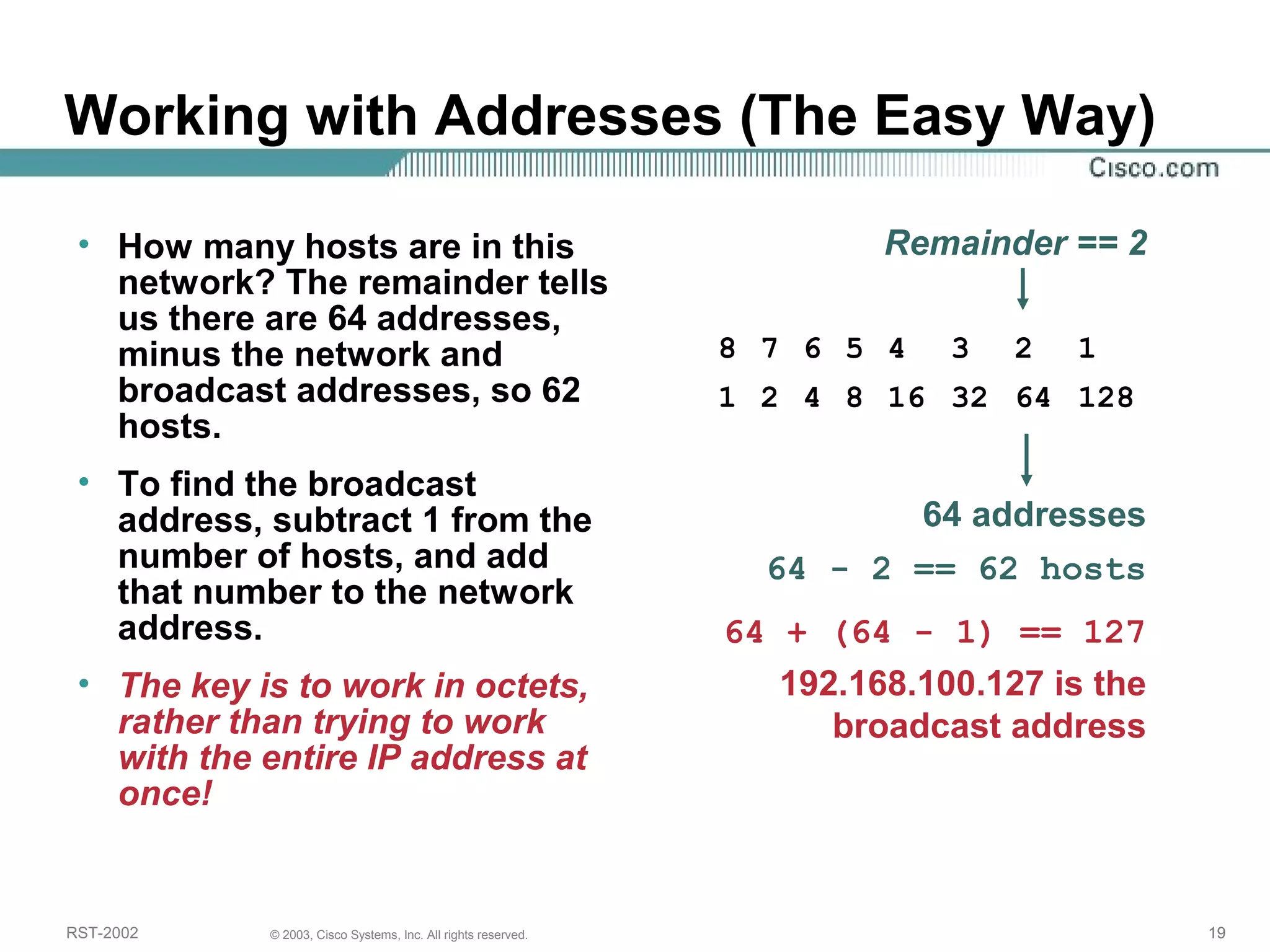

19. Working with Addresses (The Easy Way)
• How many hosts are in this
network? The remainder tells
us there are 64 addresses,
minus the network and
broadcast addresses, so 62
hosts.
• To find the broadcast
address, subtract 1 from the
number of hosts, and add
that number to the network
address.
• The key is to work in octets,
rather than trying to work
with the entire IP address at
once!
Remainder == 2
8 7 6 5 4 3 2 1
1 2 4 8 16 32 64 128
64 addresses
64 - 2 == 62 hosts
64 + (64 - 1) == 127
192.168.100.127 is the
broadcast address
RST-2002 © 2003, Cisco Systems, Inc. All rights reserved. 19

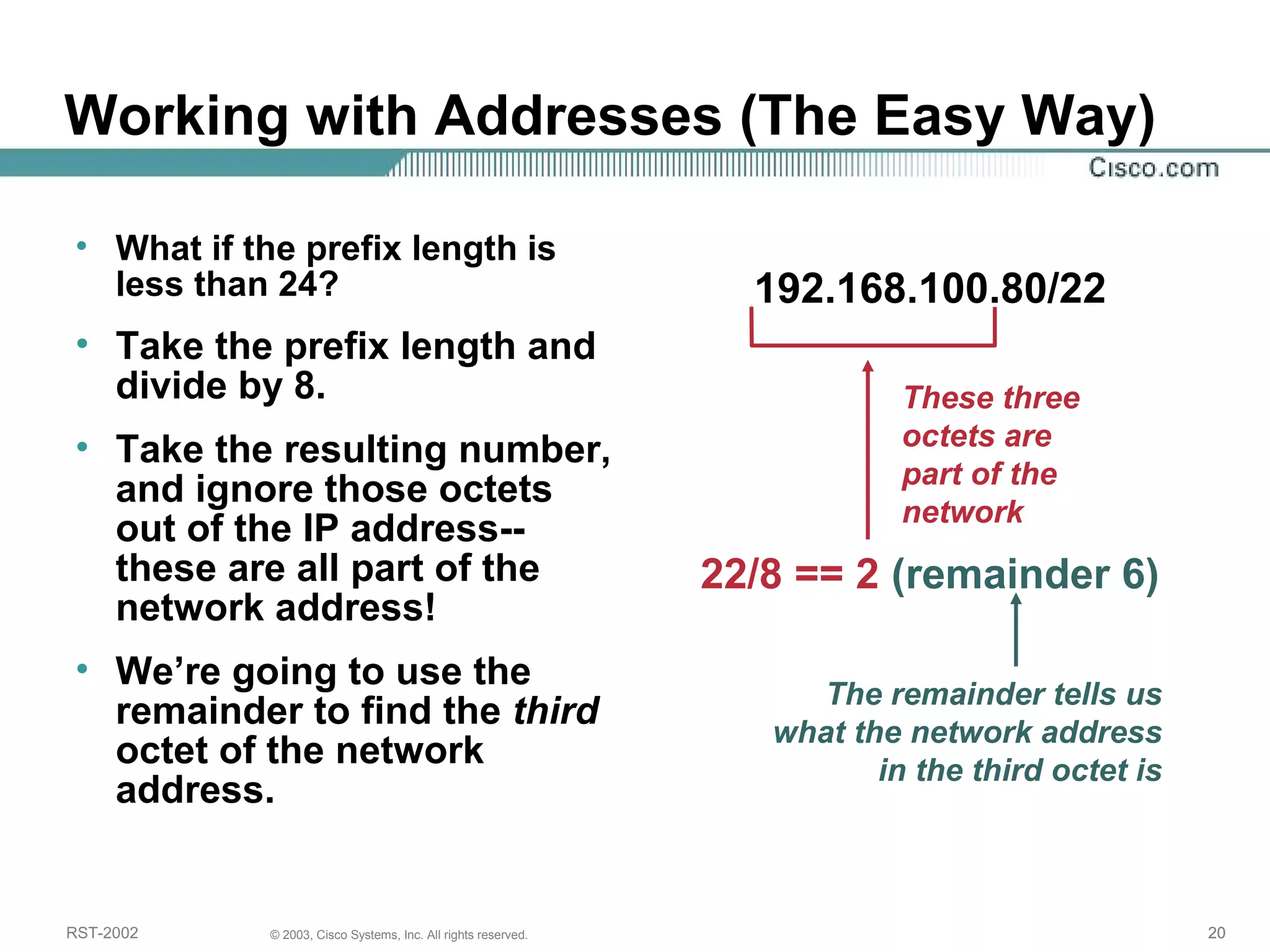

20. Working with Addresses (The Easy Way)
• What if the prefix length is
less than 24?
• Take the prefix length and
divide by 8.
• Take the resulting number,
and ignore those octets
out of the IP address--
these are all part of the
network address!
• We’re going to use the
remainder to find the third
octet of the network
address.
192.168.100.80/22
These three
octets are
part of the
network
22/8 == 2 (remainder 6)
The remainder tells us
what the network address
in the third octet is
RST-2002 © 2003, Cisco Systems, Inc. All rights reserved. 20

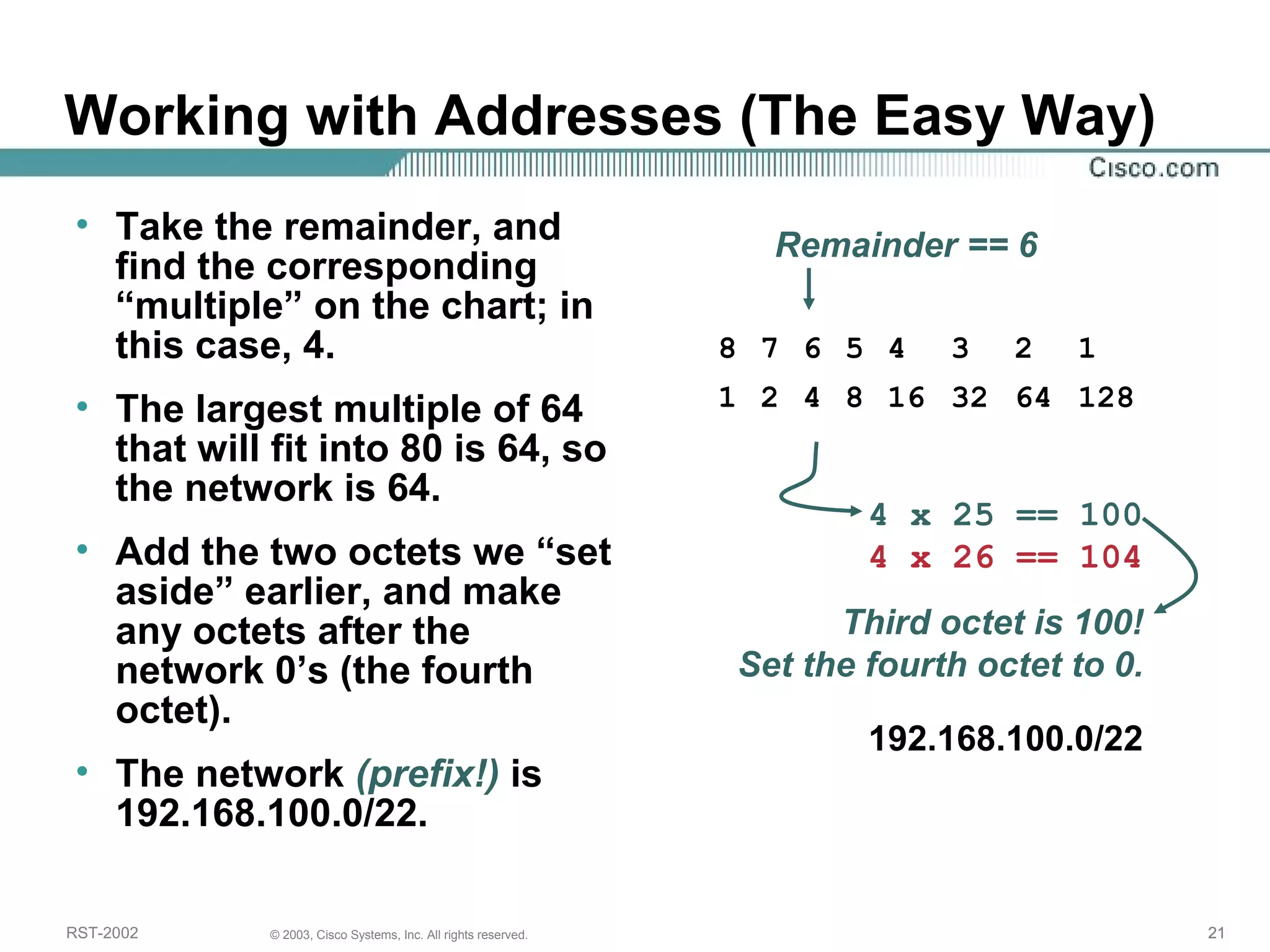

21. Working with Addresses (The Easy Way)
• Take the remainder, and
find the corresponding
Remainder == 6
“multiple” on the chart; in
this case, 4.
8 7 6 5 4 3 2 1
• The largest multiple of 64
1 2 4 8 16 32 64 128
that will fit into 80 is 64, so
the network is 64.
4 x 25 == 100
• Add the two octets we “set
4 x 26 == 104
aside” earlier, and make
any octets after the
Third octet is 100!
network 0’s (the fourth
Set the fourth octet to 0.
octet).
192.168.100.0/22
• The network (prefix!) is
192.168.100.0/22.
RST-2002 © 2003, Cisco Systems, Inc. All rights reserved. 21

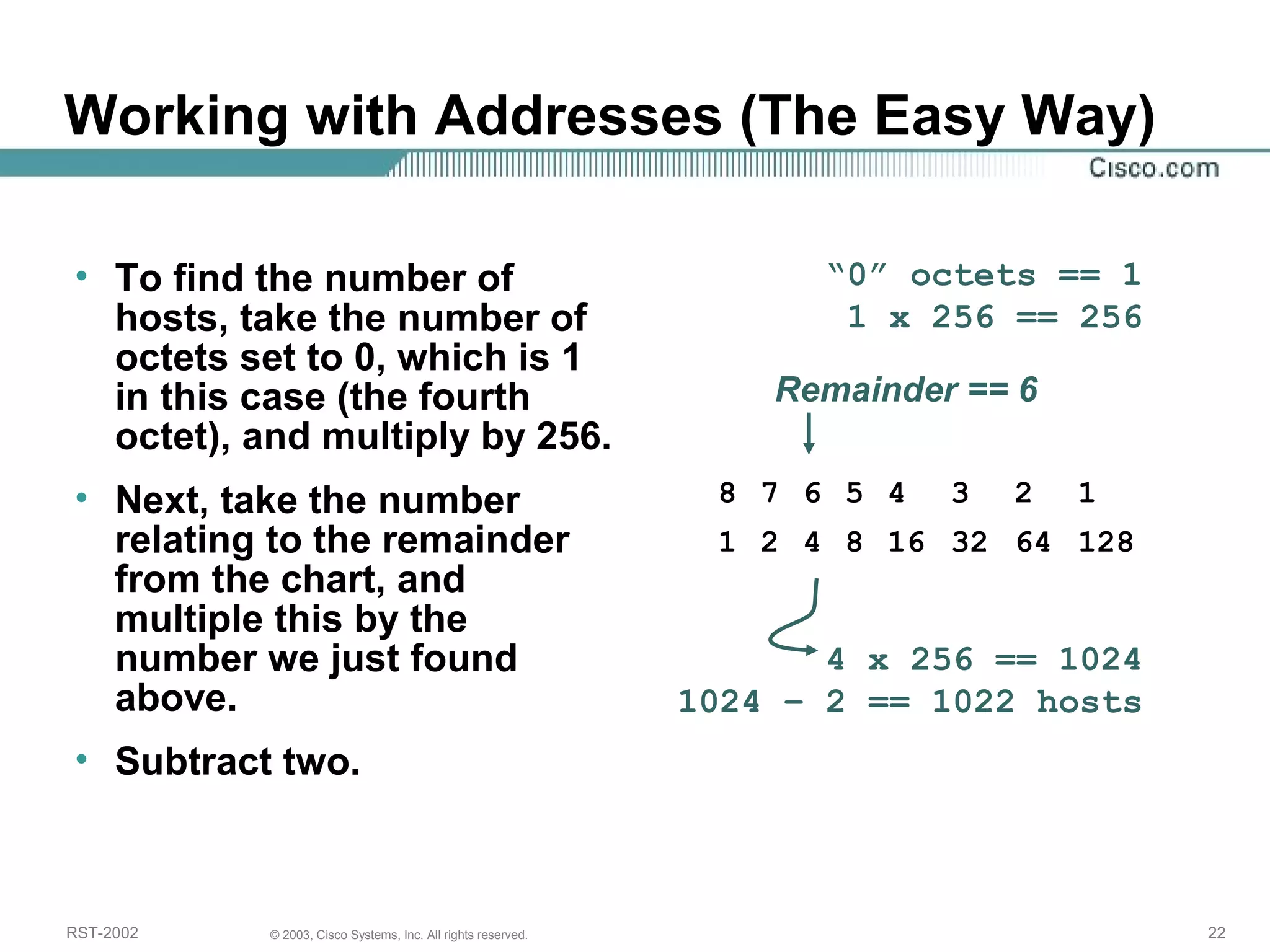

22. Working with Addresses (The Easy Way)
• To find the number of
hosts, take the number of
octets set to 0, which is 1
in this case (the fourth
octet), and multiply by 256.
• Next, take the number
relating to the remainder
from the chart, and
multiple this by the
number we just found
above.
• Subtract two.
“0” octets == 1
1 x 256 == 256
Remainder == 6
8 7 6 5 4 3 2 1
1 2 4 8 16 32 64 128
4 x 256 == 1024
1024 – 2 == 1022 hosts
RST-2002 © 2003, Cisco Systems, Inc. All rights reserved. 22

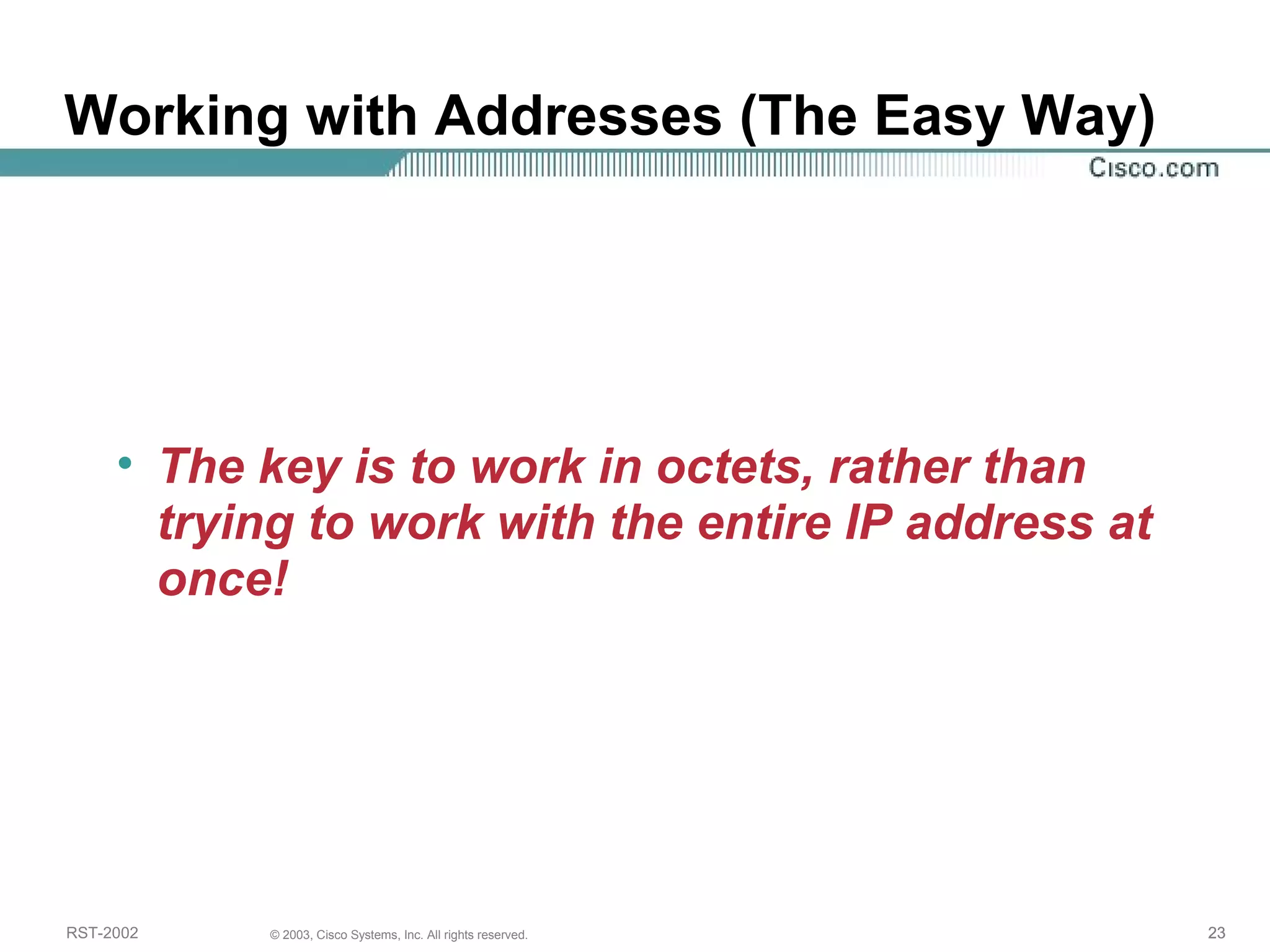

23. Working with Addresses (The Easy Way)
• The key is to work in octets, rather than
trying to work with the entire IP address at
once!
RST-2002 © 2003, Cisco Systems, Inc. All rights reserved. 23

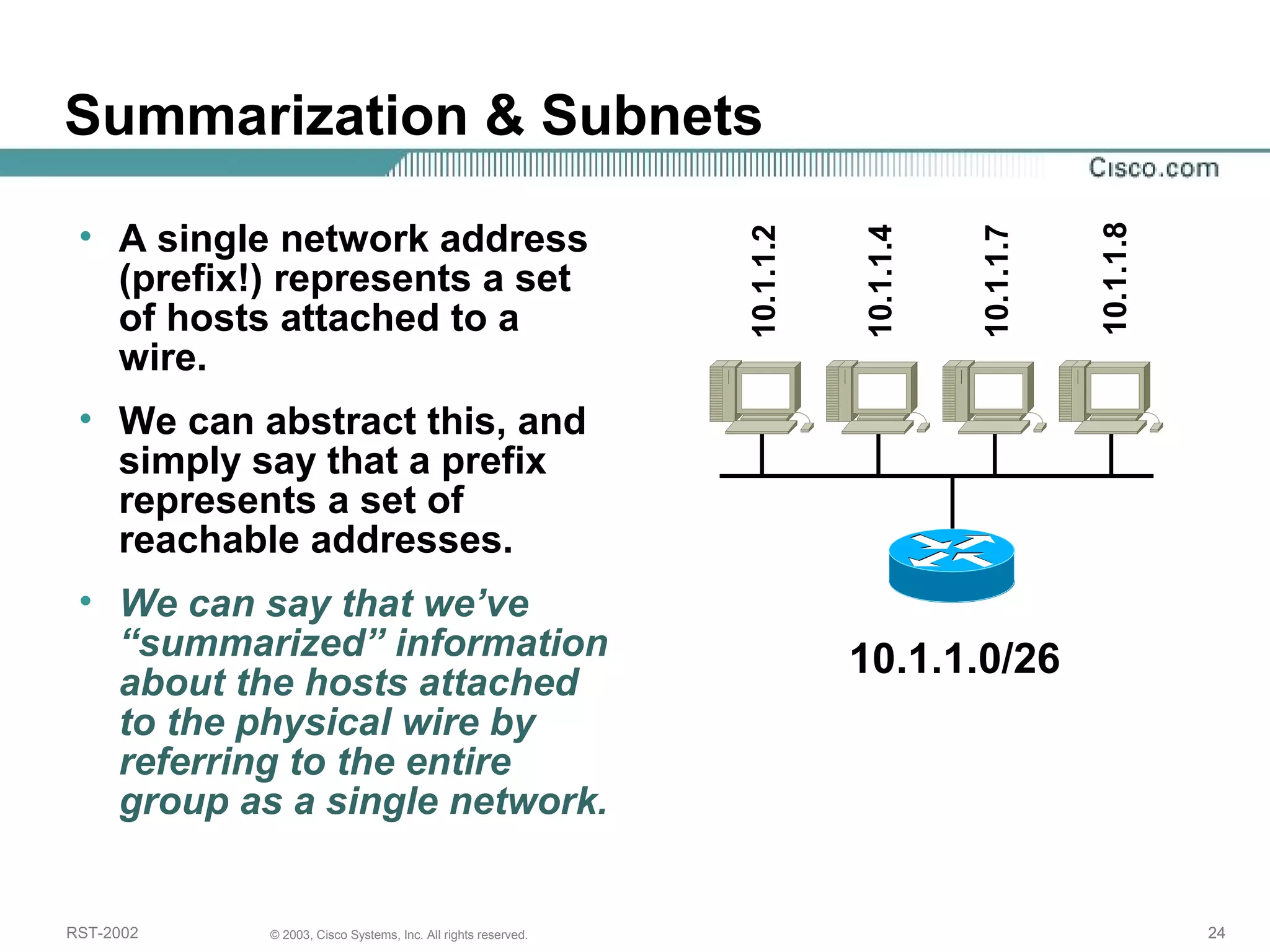

24. Summarization & Subnets
• A single network address
(prefix!) represents a set
of hosts attached to a
wire.
• We can abstract this, and
simply say that a prefix
represents a set of
reachable addresses.
• We can say that we’ve
“summarized” information
about the hosts attached
to the physical wire by
referring to the entire
group as a single network.
10.1.1.2
10.1.1.4
10.1.1.7
10.1.1.8
10.1.1.0/26
RST-2002 © 2003, Cisco Systems, Inc. All rights reserved. 24

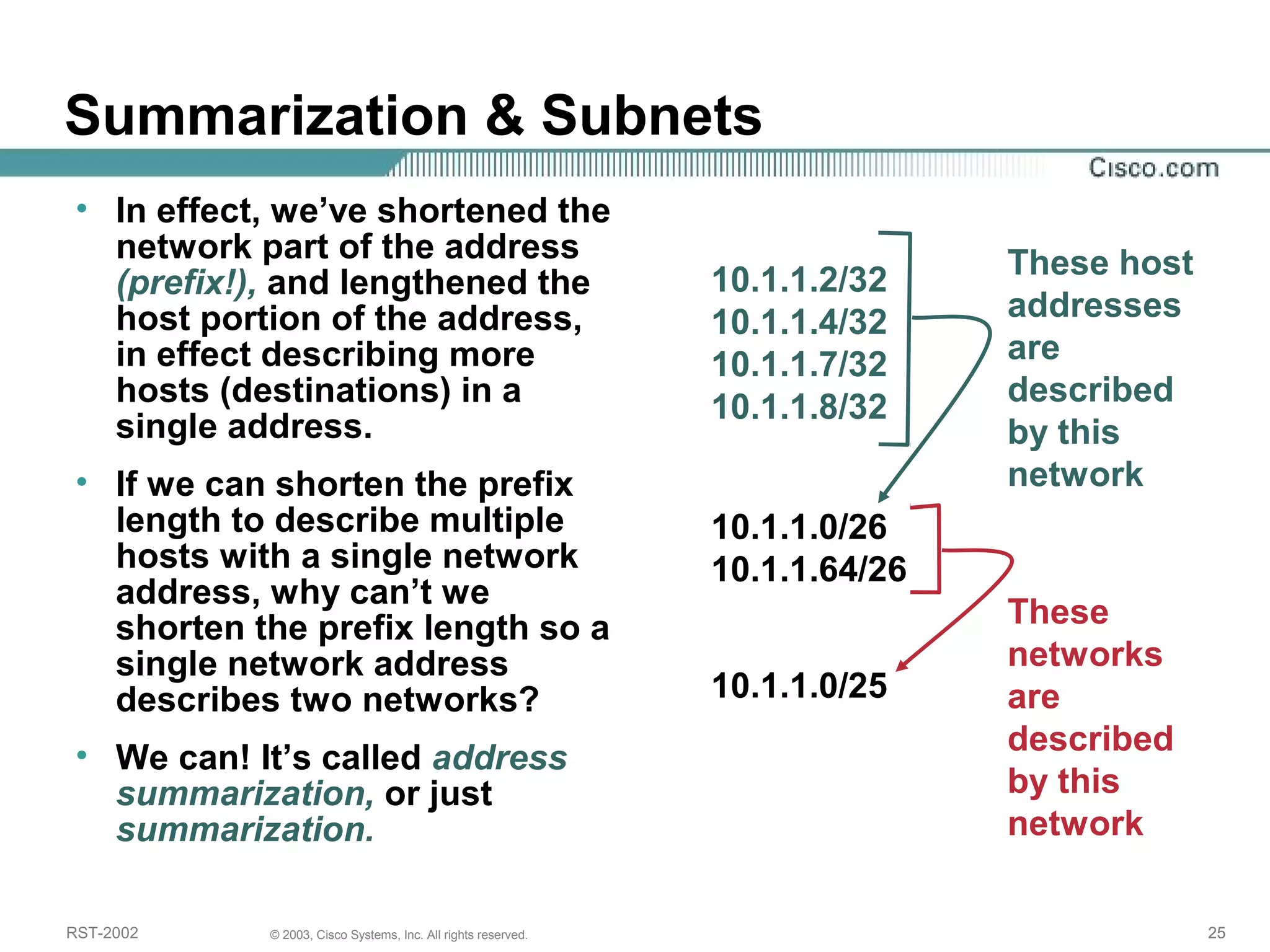

25. Summarization & Subnets
• In effect, we’ve shortened the
network part of the address
(prefix!), and lengthened the
host portion of the address,
in effect describing more
hosts (destinations) in a
single address.
• If we can shorten the prefix
length to describe multiple
hosts with a single network
address, why can’t we
shorten the prefix length so a
single network address
describes two networks?
• We can! It’s called address
summarization, or just
summarization.
10.1.1.2/32
10.1.1.4/32
10.1.1.7/32
10.1.1.8/32
10.1.1.0/26
10.1.1.64/26
These host
addresses
are
described
by this
network
10.1.1.0/25
These
networks
are
described
by this
network
RST-2002 © 2003, Cisco Systems, Inc. All rights reserved. 25

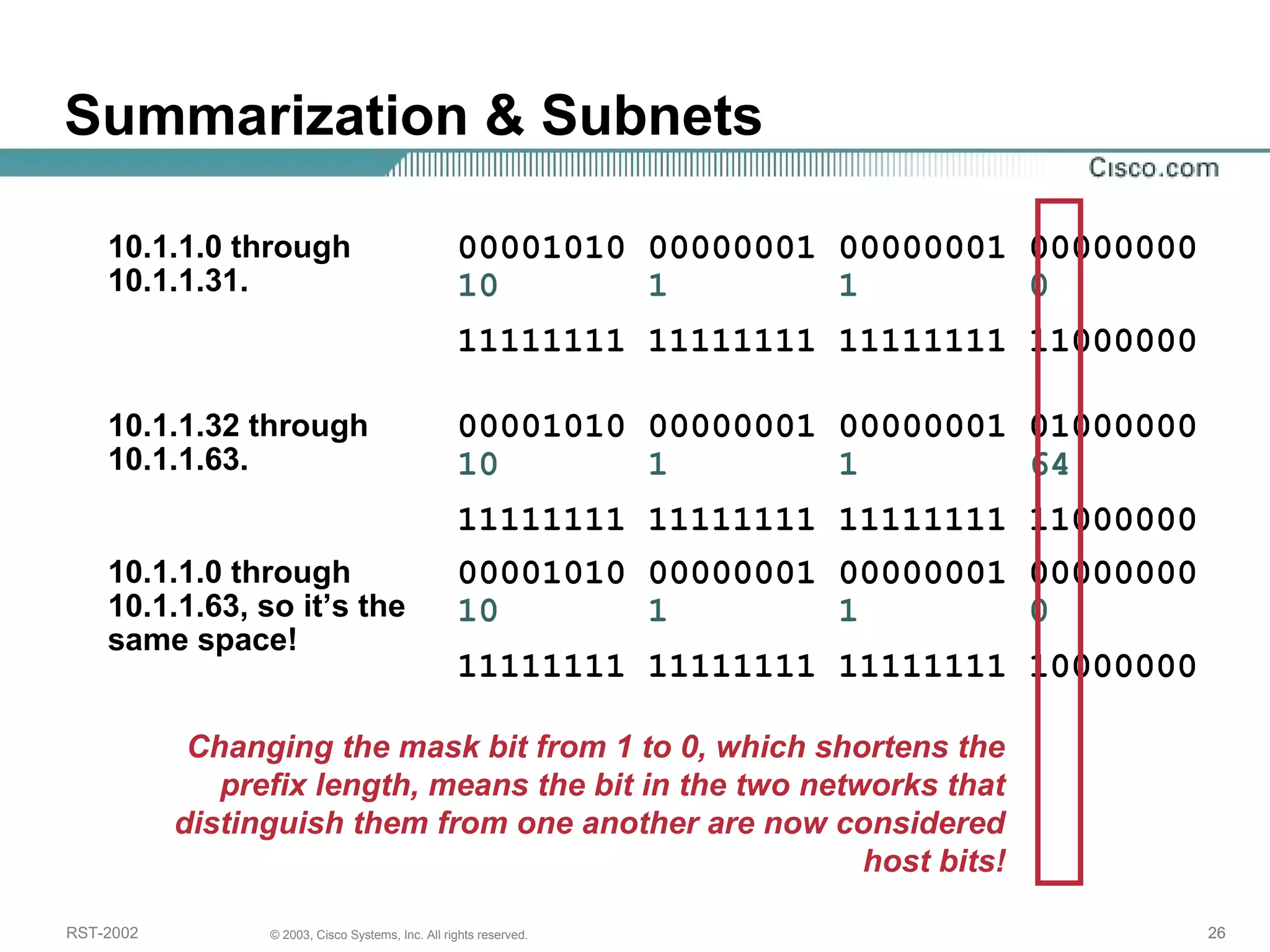

26. Summarization & Subnets
10.1.1.0 through
10.1.1.31.
00001010 00000001 00000001 00000000
10 1 1 0
11111111 11111111 11111111 11000000
10.1.1.32 through
10.1.1.63.
00001010 00000001 00000001 01000000
10 1 1 64
11111111 11111111 11111111 11000000
10.1.1.0 through
10.1.1.63, so it’s the
same space!
00001010 00000001 00000001 00000000
10 1 1 0
11111111 11111111 11111111 10000000
Changing the mask bit from 1 to 0, which shortens the
prefix length, means the bit in the two networks that
distinguish them from one another are now considered
host bits!
RST-2002 © 2003, Cisco Systems, Inc. All rights reserved. 26

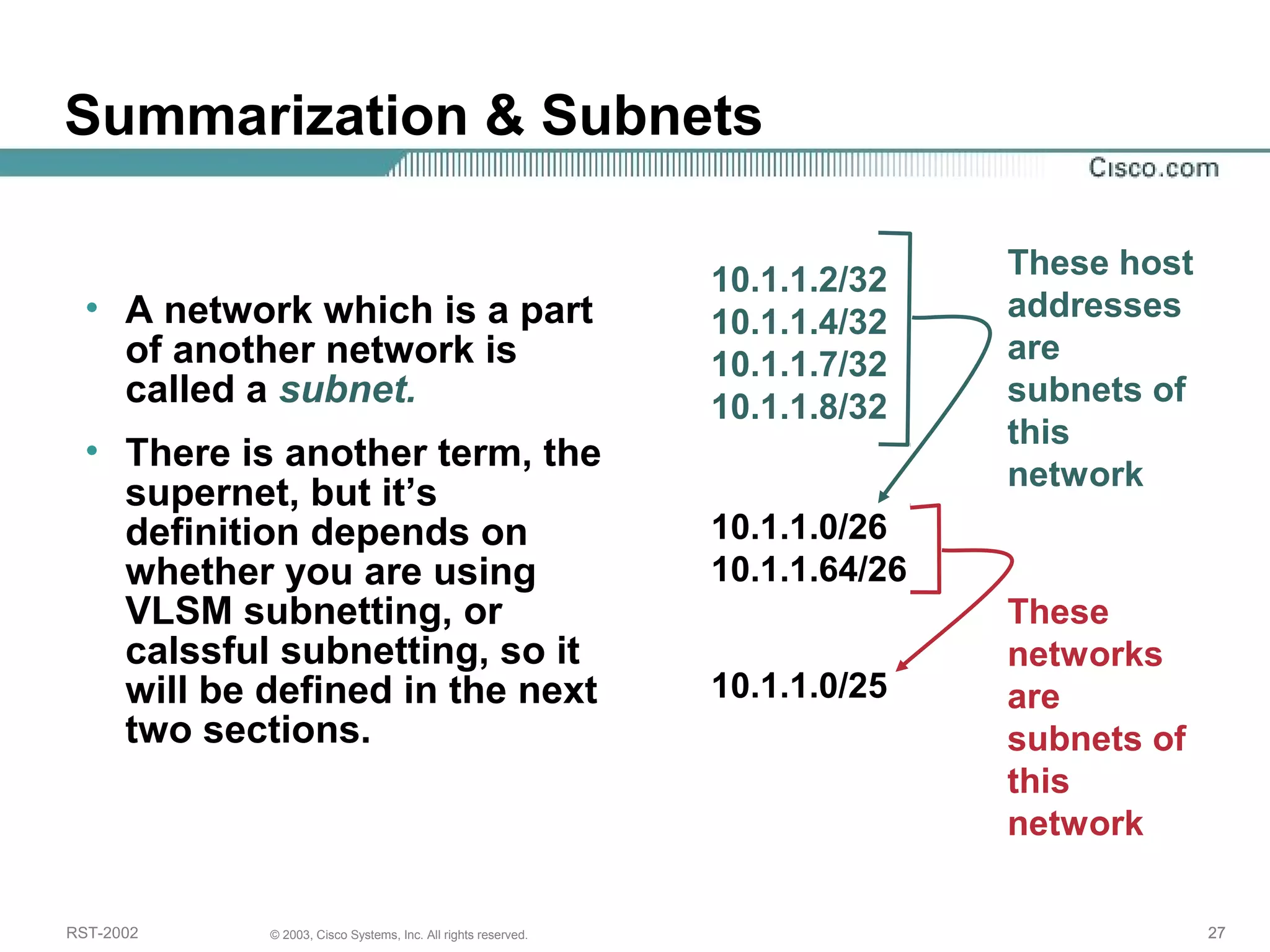

27. Summarization & Subnets
• A network which is a part
of another network is
called a subnet.
• There is another term, the
supernet, but it’s
definition depends on
whether you are using
VLSM subnetting, or
calssful subnetting, so it
will be defined in the next
two sections.
10.1.1.2/32
10.1.1.4/32
10.1.1.7/32
10.1.1.8/32
10.1.1.0/26
10.1.1.64/26
These host
addresses
are
subnets of
this
network
10.1.1.0/25
These
networks
are
subnets of
this
network
RST-2002 © 2003, Cisco Systems, Inc. All rights reserved. 27

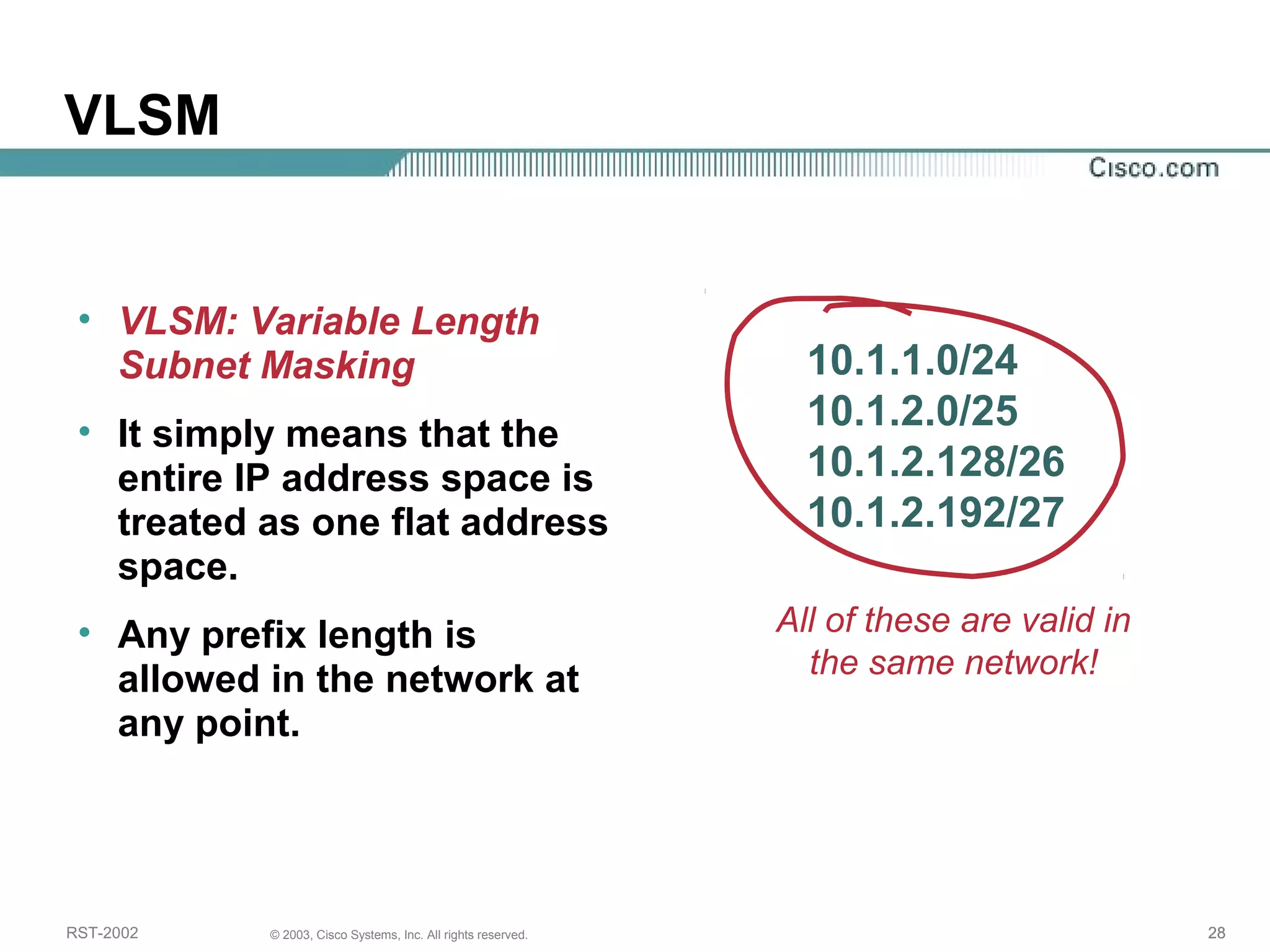

28. VLSM
• VLSM: Variable Length
Subnet Masking
• It simply means that the
entire IP address space is
treated as one flat address
space.
• Any prefix length is
allowed in the network at
any point.
10.1.1.0/24
10.1.2.0/25
10.1.2.128/26
10.1.2.192/27
All of these are valid in
the same network!
RST-2002 © 2003, Cisco Systems, Inc. All rights reserved. 28

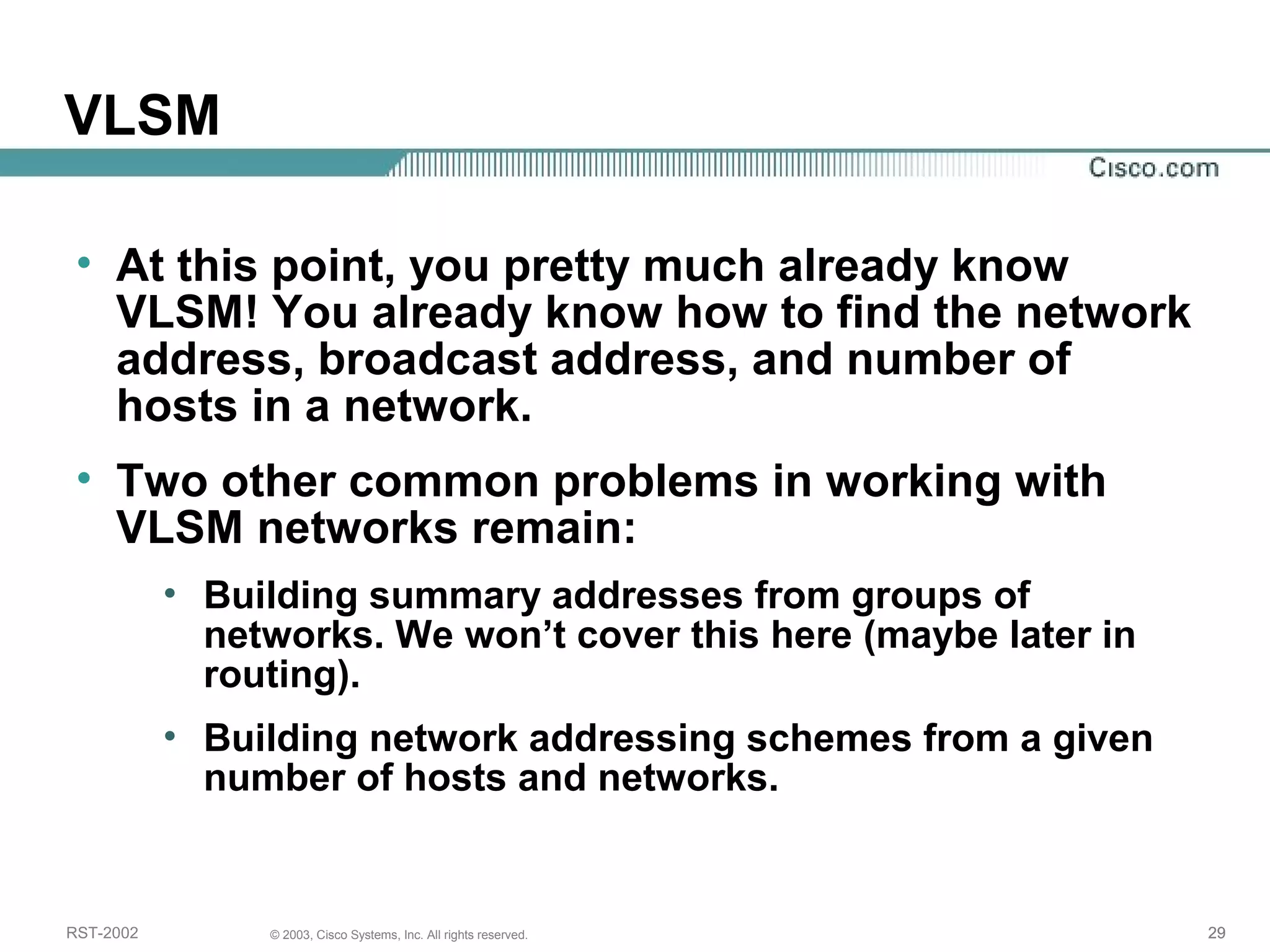

29. VLSM
• At this point, you pretty much already know
VLSM! You already know how to find the network
address, broadcast address, and number of
hosts in a network.
• Two other common problems in working with
VLSM networks remain:
• Building summary addresses from groups of
networks. We won’t cover this here (maybe later in
routing).
• Building network addressing schemes from a given
number of hosts and networks.
RST-2002 © 2003, Cisco Systems, Inc. All rights reserved. 29

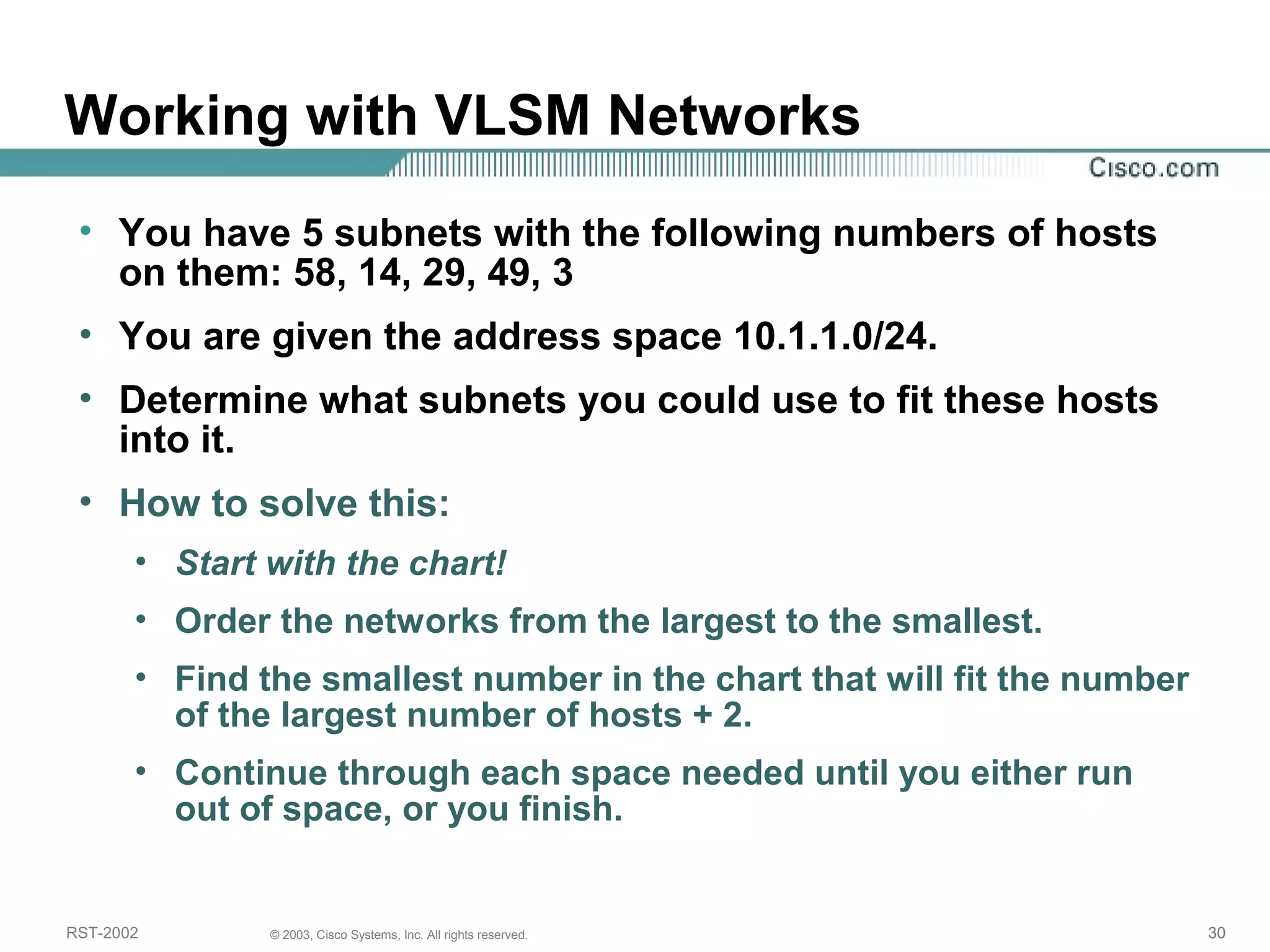

30. Working with VLSM Networks
• You have 5 subnets with the following numbers of hosts
on them: 58, 14, 29, 49, 3
• You are given the address space 10.1.1.0/24.
• Determine what subnets you could use to fit these hosts
into it.
• How to solve this:
• Start with the chart!
• Order the networks from the largest to the smallest.
• Find the smallest number in the chart that will fit the number
of the largest number of hosts + 2.
• Continue through each space needed until you either run
out of space, or you finish.
RST-2002 © 2003, Cisco Systems, Inc. All rights reserved. 30

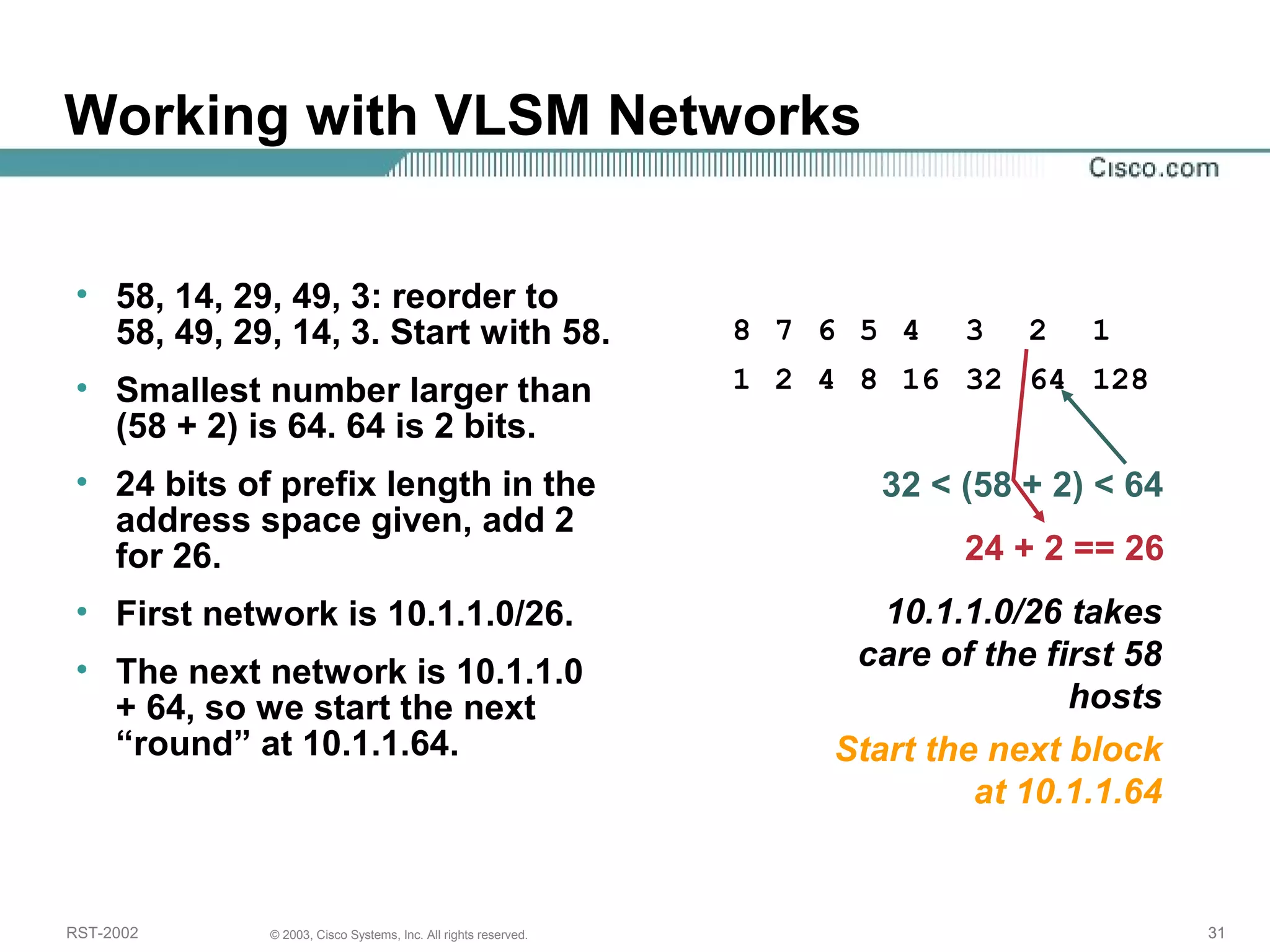

31. Working with VLSM Networks
• 58, 14, 29, 49, 3: reorder to
58, 49, 29, 14, 3. Start with 58.
• Smallest number larger than
(58 + 2) is 64. 64 is 2 bits.
• 24 bits of prefix length in the
address space given, add 2
for 26.
• First network is 10.1.1.0/26.
• The next network is 10.1.1.0
+ 64, so we start the next
“round” at 10.1.1.64.
8 7 6 5 4 3 2 1
1 2 4 8 16 32 64 128
32 < (58 + 2) < 64
24 + 2 == 26
10.1.1.0/26 takes
care of the first 58
hosts
Start the next block
at 10.1.1.64
RST-2002 © 2003, Cisco Systems, Inc. All rights reserved. 31

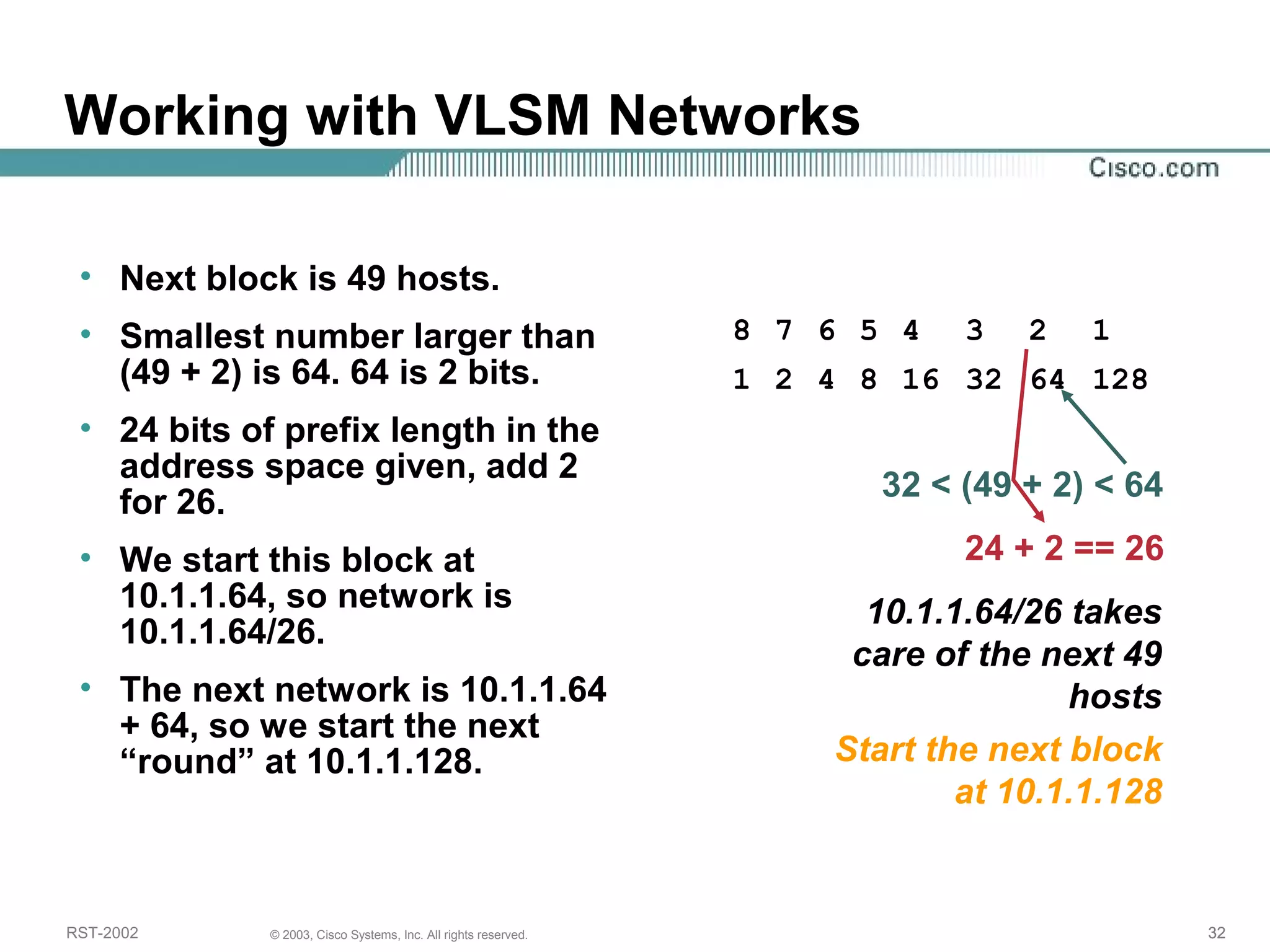

32. Working with VLSM Networks
• Next block is 49 hosts.
• Smallest number larger than
(49 + 2) is 64. 64 is 2 bits.
• 24 bits of prefix length in the
address space given, add 2
for 26.
• We start this block at
10.1.1.64, so network is
10.1.1.64/26.
• The next network is 10.1.1.64
+ 64, so we start the next
“round” at 10.1.1.128.
8 7 6 5 4 3 2 1
1 2 4 8 16 32 64 128
32 < (49 + 2) < 64
24 + 2 == 26
10.1.1.64/26 takes
care of the next 49
hosts
Start the next block
at 10.1.1.128
RST-2002 © 2003, Cisco Systems, Inc. All rights reserved. 32

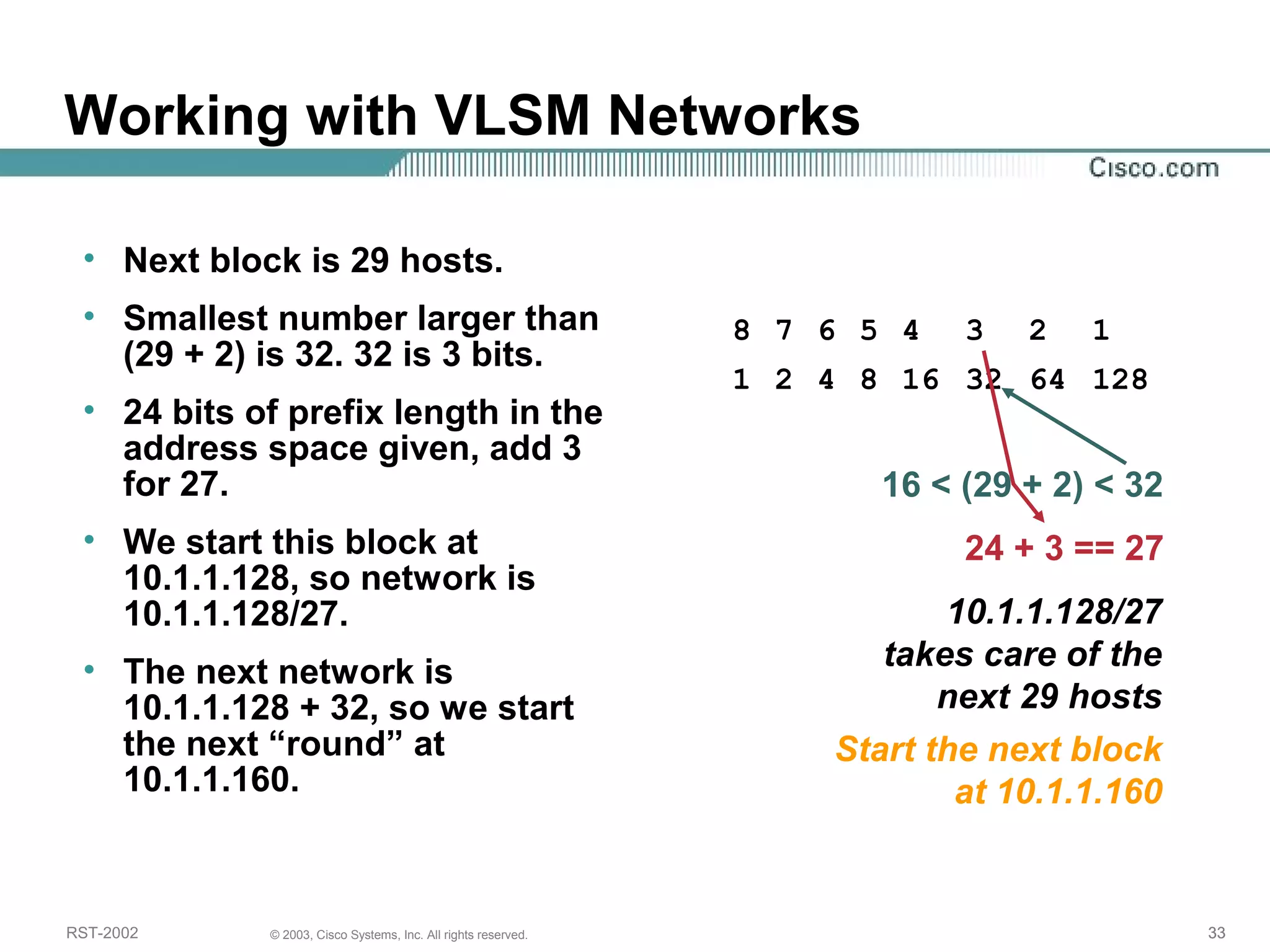

33. Working with VLSM Networks
• Next block is 29 hosts.
• Smallest number larger than
(29 + 2) is 32. 32 is 3 bits.
• 24 bits of prefix length in the
address space given, add 3
for 27.
• We start this block at
10.1.1.128, so network is
10.1.1.128/27.
• The next network is
10.1.1.128 + 32, so we start
the next “round” at
10.1.1.160.
8 7 6 5 4 3 2 1
1 2 4 8 16 32 64 128
16 < (29 + 2) < 32
24 + 3 == 27
10.1.1.128/27
takes care of the
next 29 hosts
Start the next block
at 10.1.1.160
RST-2002 © 2003, Cisco Systems, Inc. All rights reserved. 33

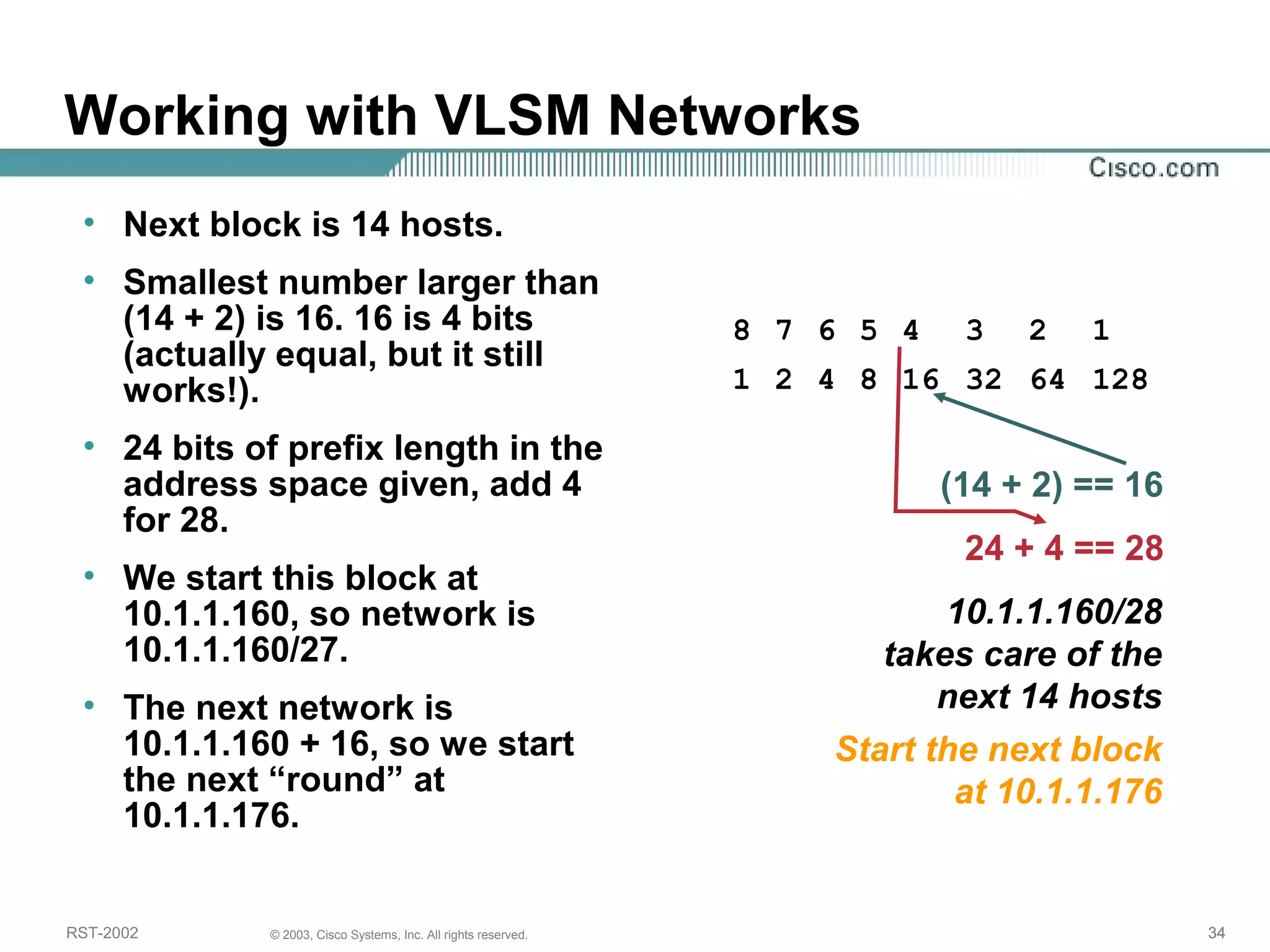

34. Working with VLSM Networks
• Next block is 14 hosts.
• Smallest number larger than
(14 + 2) is 16. 16 is 4 bits
(actually equal, but it still
works!).
• 24 bits of prefix length in the
address space given, add 4
for 28.
• We start this block at
10.1.1.160, so network is
10.1.1.160/27.
• The next network is
10.1.1.160 + 16, so we start
the next “round” at
10.1.1.176.
8 7 6 5 4 3 2 1
1 2 4 8 16 32 64 128
(14 + 2) == 16
24 + 4 == 28
10.1.1.160/28
takes care of the
next 14 hosts
Start the next block
at 10.1.1.176
RST-2002 © 2003, Cisco Systems, Inc. All rights reserved. 34

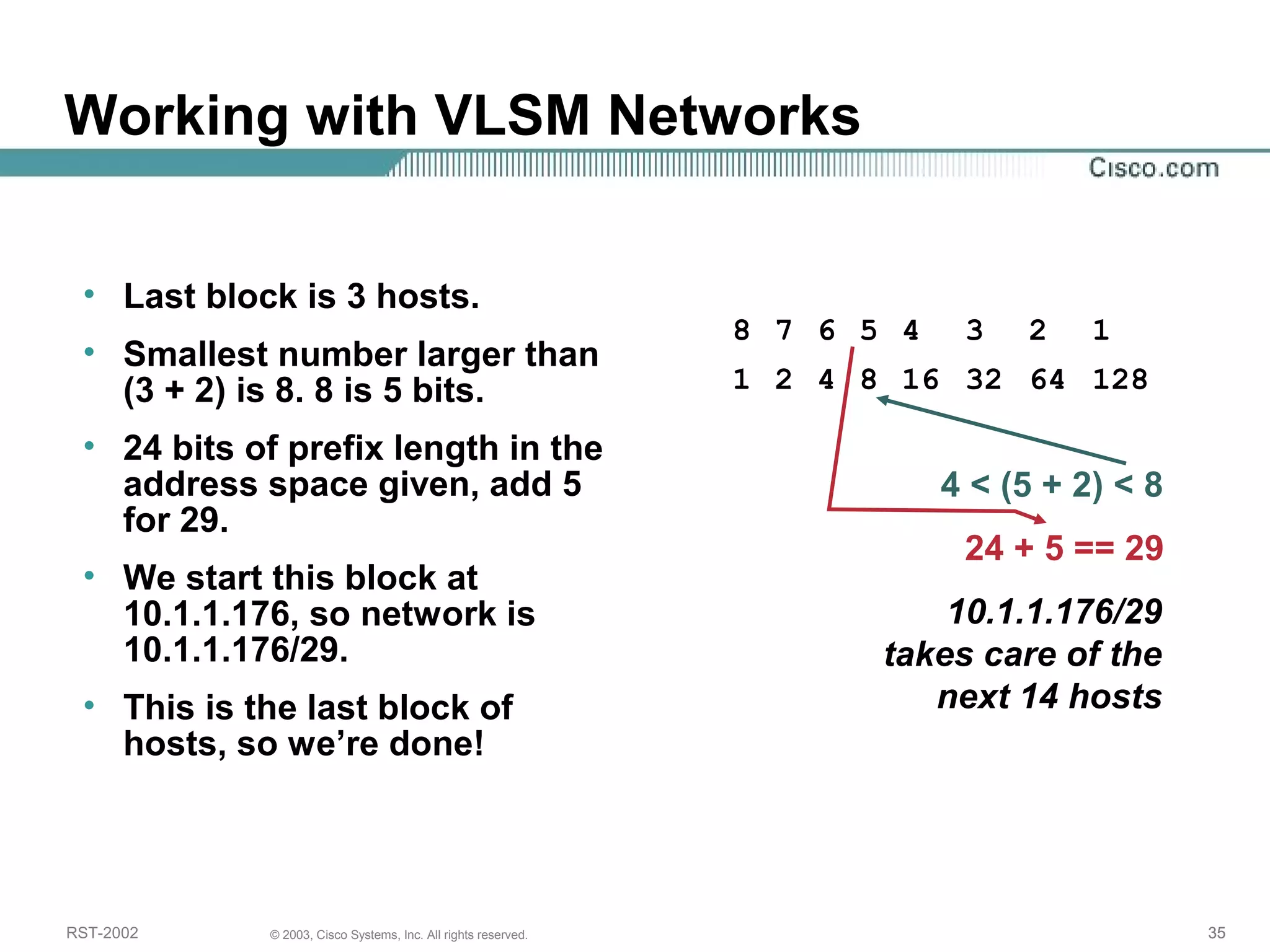

35. Working with VLSM Networks
• Last block is 3 hosts.
• Smallest number larger than
(3 + 2) is 8. 8 is 5 bits.
• 24 bits of prefix length in the
address space given, add 5
for 29.
• We start this block at
10.1.1.176, so network is
10.1.1.176/29.
• This is the last block of
hosts, so we’re done!
8 7 6 5 4 3 2 1
1 2 4 8 16 32 64 128
4 < (5 + 2) < 8
24 + 5 == 29
10.1.1.176/29
takes care of the
next 14 hosts
RST-2002 © 2003, Cisco Systems, Inc. All rights reserved. 35

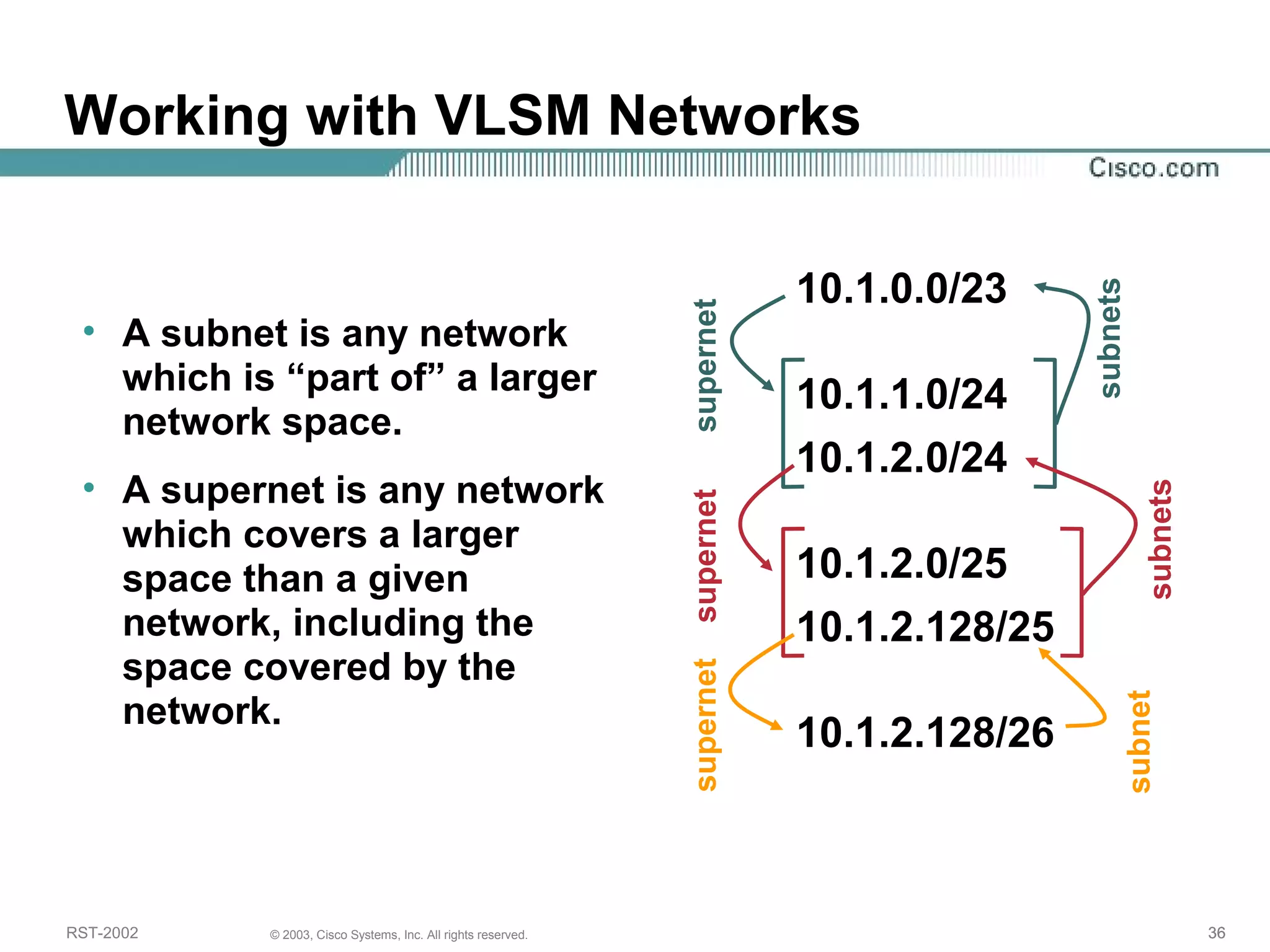

36. Working with VLSM Networks
• A subnet is any network
which is “part of” a larger
network space.
• A supernet is any network
which covers a larger
space than a given
network, including the
space covered by the
network.
10.1.0.0/23
10.1.1.0/24
10.1.2.0/24
10.1.2.0/25
10.1.2.128/25
10.1.2.128/26
subnets
subnet subnets
supernet supernet supernet
RST-2002 © 2003, Cisco Systems, Inc. All rights reserved. 36

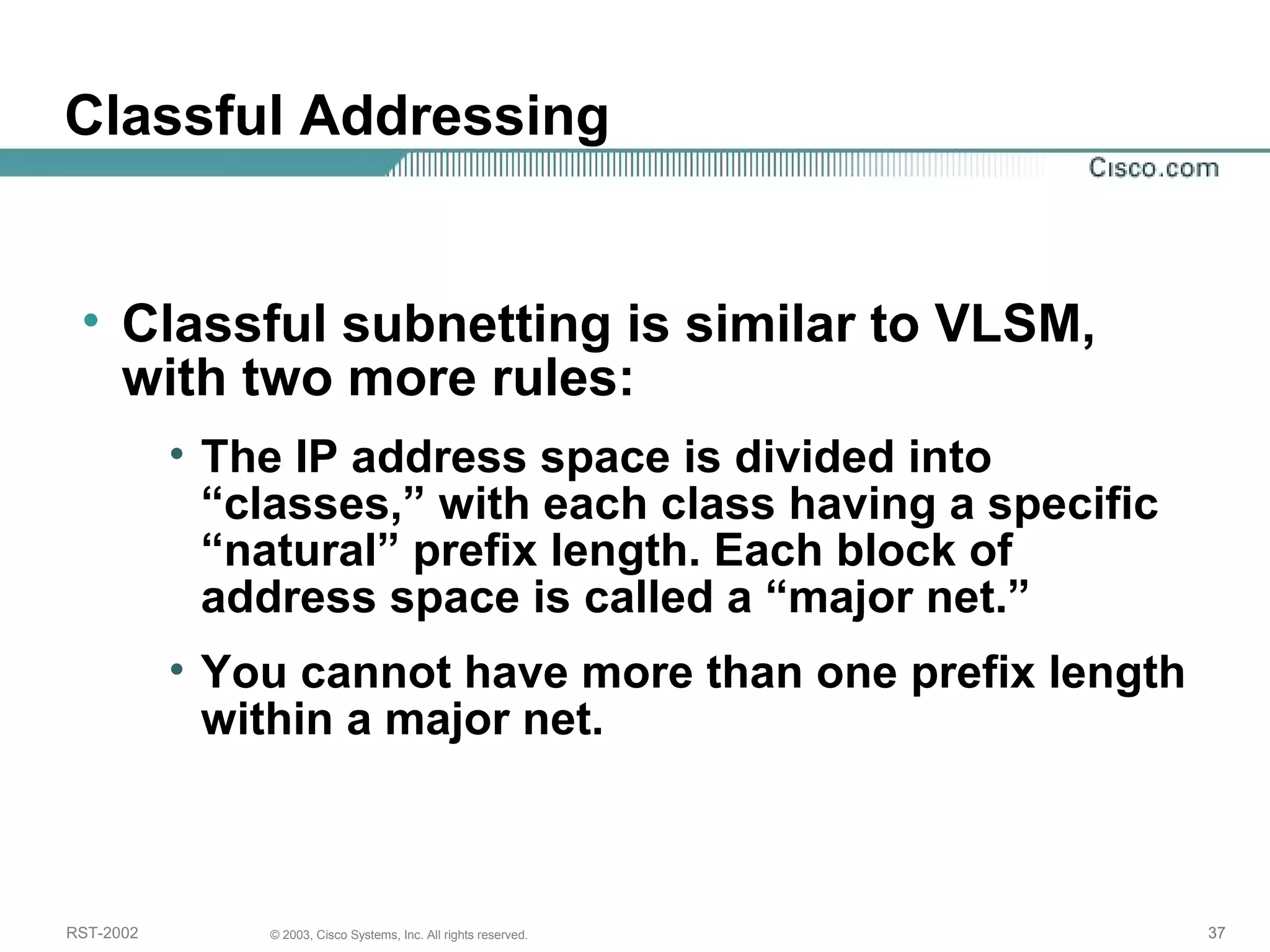

37. Classful Addressing
• Classful subnetting is similar to VLSM,
with two more rules:
• The IP address space is divided into
“classes,” with each class having a specific
“natural” prefix length. Each block of
address space is called a “major net.”
• You cannot have more than one prefix length
within a major net.
RST-2002 © 2003, Cisco Systems, Inc. All rights reserved. 37

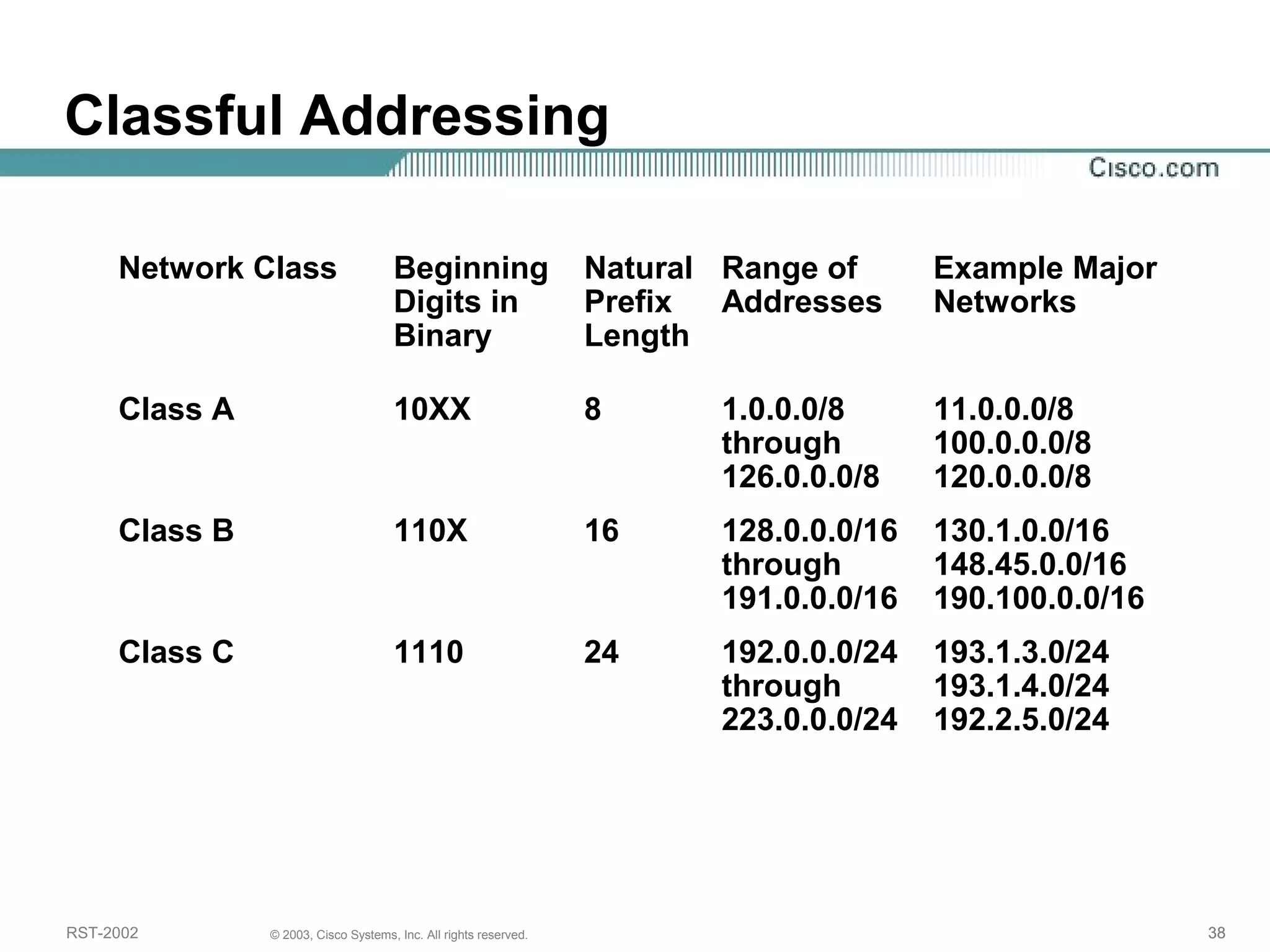

38. Classful Addressing
Network Class Beginning
Digits in
Binary
Natural
Prefix
Length
Range of
Addresses
Example Major
Networks
Class A 10XX 8 1.0.0.0/8
through
126.0.0.0/8
11.0.0.0/8
100.0.0.0/8
120.0.0.0/8
Class B 110X 16 128.0.0.0/16
through
191.0.0.0/16
130.1.0.0/16
148.45.0.0/16
190.100.0.0/16
Class C 1110 24 192.0.0.0/24
through
223.0.0.0/24
193.1.3.0/24
193.1.4.0/24
192.2.5.0/24
RST-2002 © 2003, Cisco Systems, Inc. All rights reserved. 38

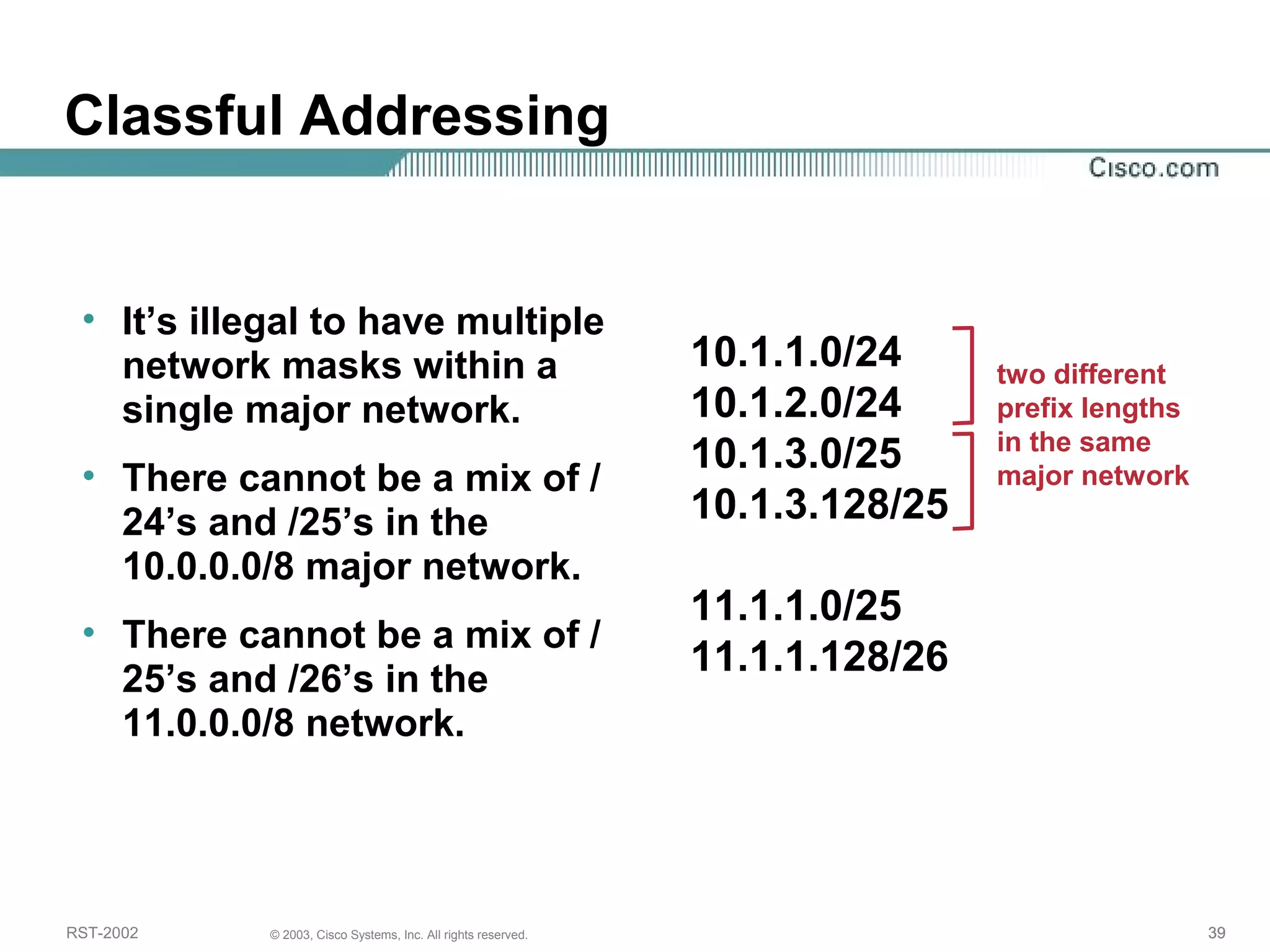

39. Classful Addressing
• It’s illegal to have multiple
network masks within a
single major network.
• There cannot be a mix of /
24’s and /25’s in the
10.0.0.0/8 major network.
• There cannot be a mix of /
25’s and /26’s in the
11.0.0.0/8 network.
10.1.1.0/24
10.1.2.0/24
10.1.3.0/25
10.1.3.128/25
11.1.1.0/25
11.1.1.128/26
two different
prefix lengths
in the same
major network
RST-2002 © 2003, Cisco Systems, Inc. All rights reserved. 39

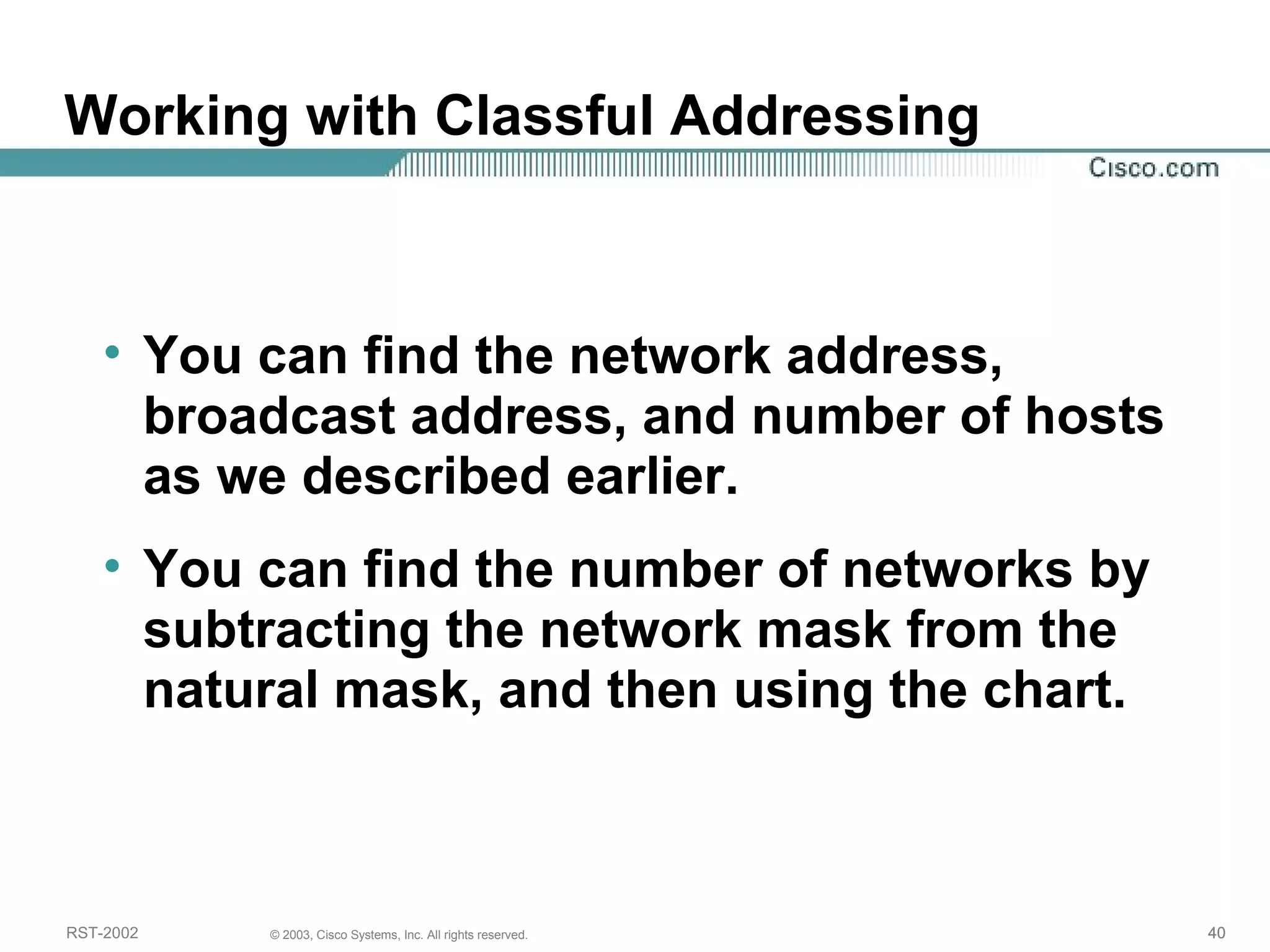

40. Working with Classful Addressing
• You can find the network address,
broadcast address, and number of hosts
as we described earlier.
• You can find the number of networks by
subtracting the network mask from the
natural mask, and then using the chart.
RST-2002 © 2003, Cisco Systems, Inc. All rights reserved. 40

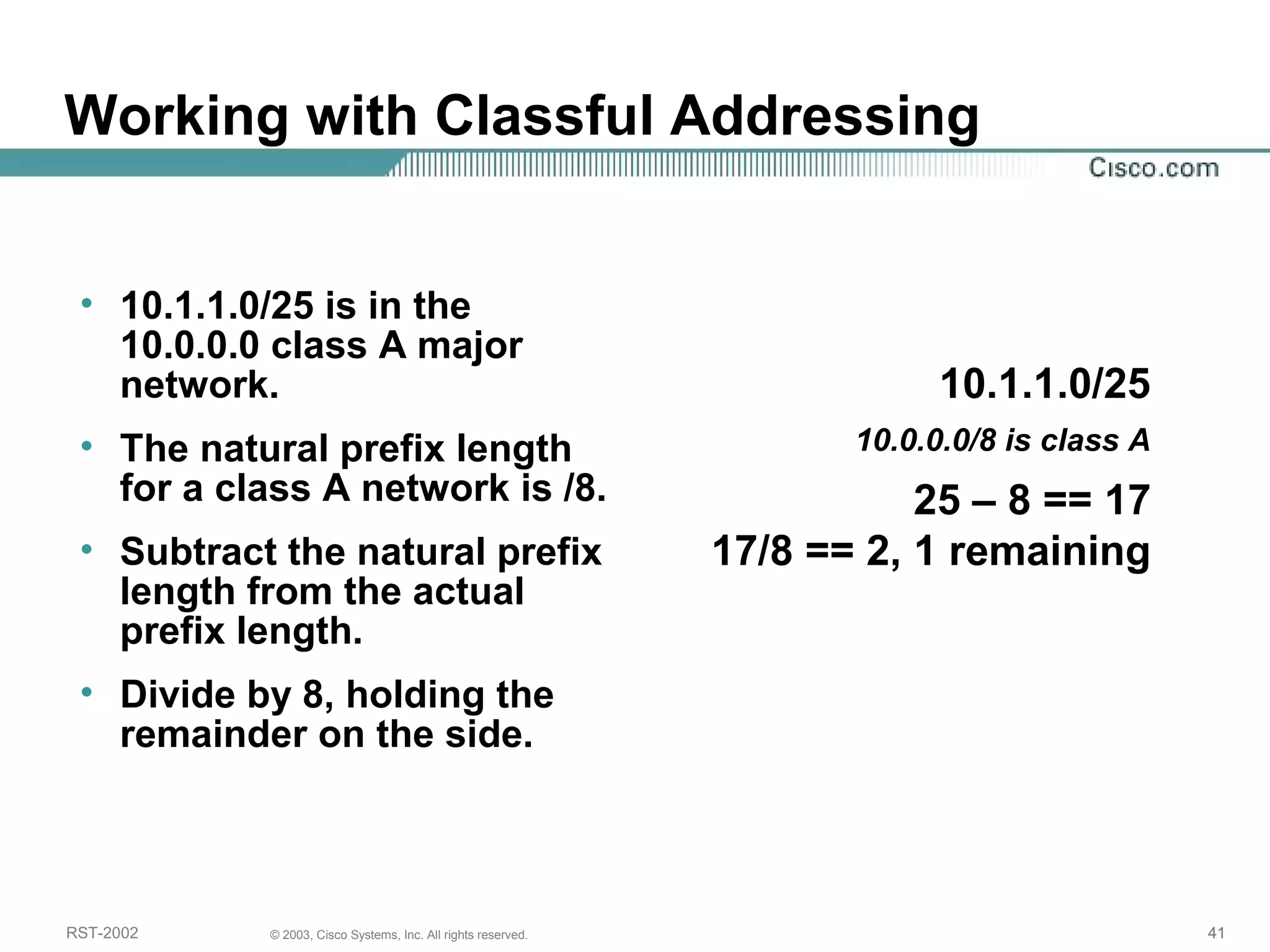

41. Working with Classful Addressing
• 10.1.1.0/25 is in the
10.0.0.0 class A major
network.
• The natural prefix length
for a class A network is /8.
• Subtract the natural prefix
length from the actual
prefix length.
• Divide by 8, holding the
remainder on the side.
10.1.1.0/25
10.0.0.0/8 is class A
25 – 8 == 17
17/8 == 2, 1 remaining
RST-2002 © 2003, Cisco Systems, Inc. All rights reserved. 41

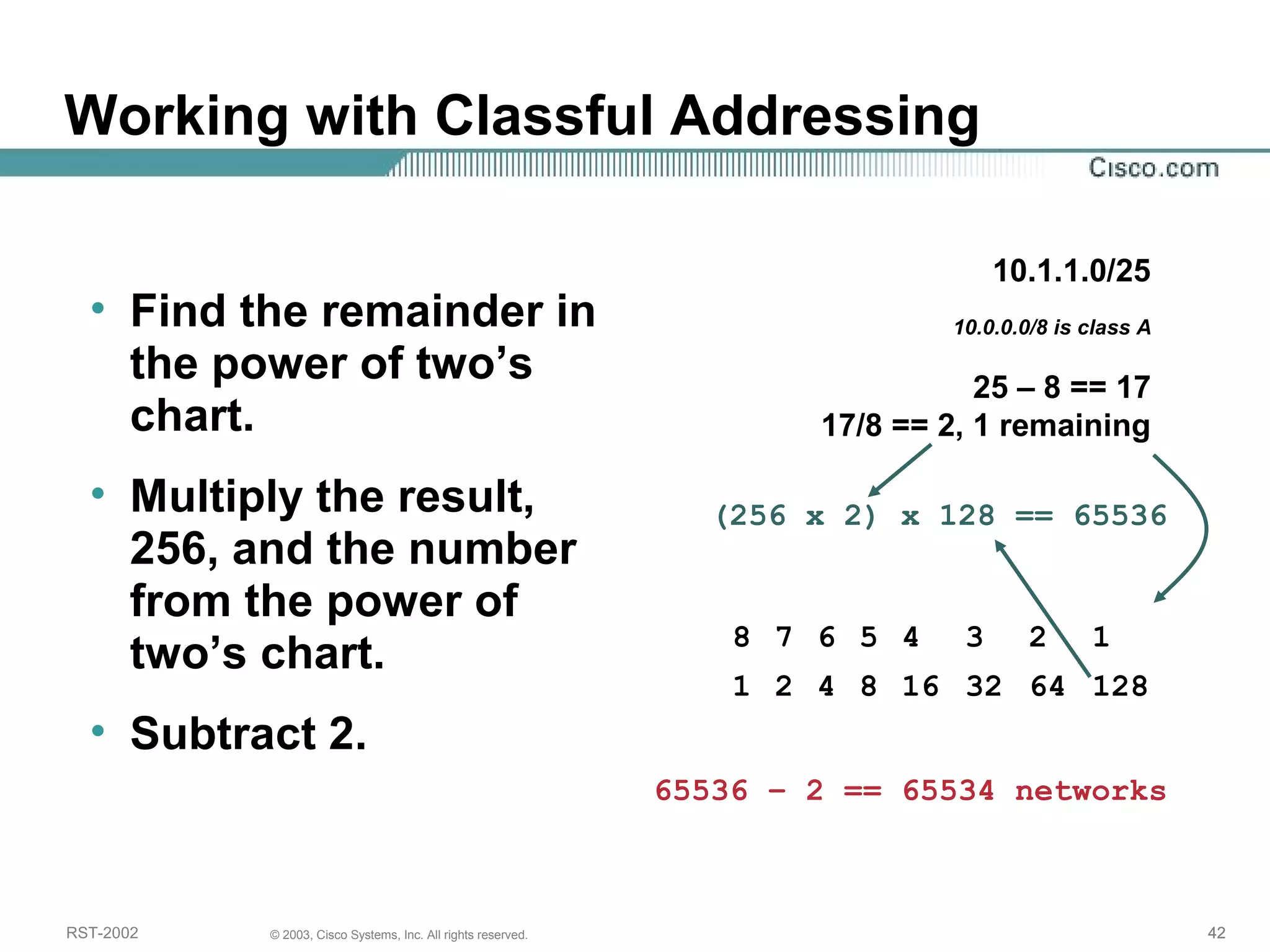

42. Working with Classful Addressing
• Find the remainder in
the power of two’s
chart.
• Multiply the result,
256, and the number
from the power of
two’s chart.
• Subtract 2.
10.1.1.0/25
10.0.0.0/8 is class A
25 – 8 == 17
17/8 == 2, 1 remaining
(256 x 2) x 128 == 65536
8 7 6 5 4 3 2 1
1 2 4 8 16 32 64 128
65536 – 2 == 65534 networks
RST-2002 © 2003, Cisco Systems, Inc. All rights reserved. 42

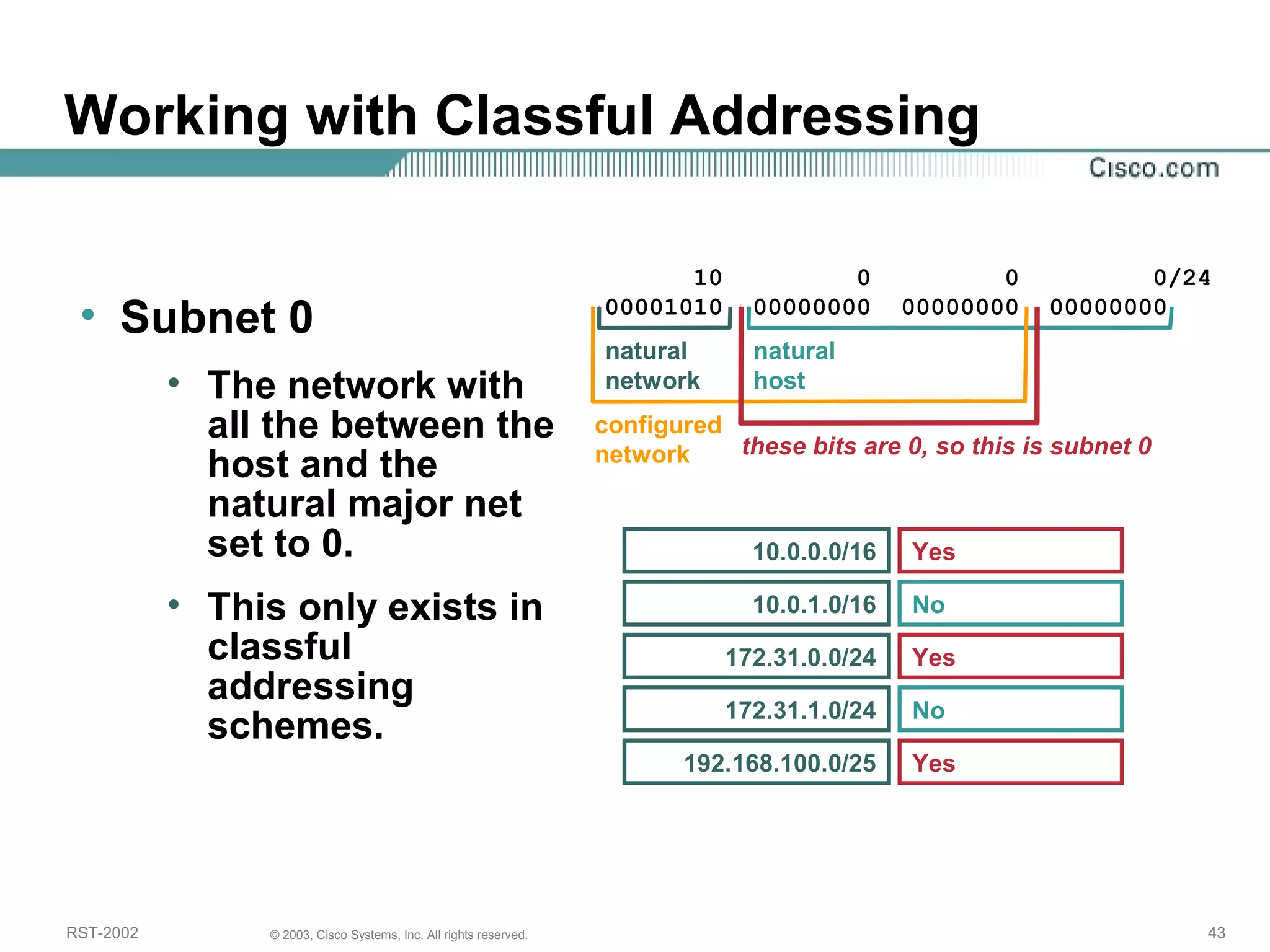

43. Working with Classful Addressing
• Subnet 0
• The network with
all the between the
host and the
natural major net
set to 0.
• This only exists in
classful
addressing
schemes.
10 0 0 0/24
00001010 00000000 00000000 00000000
natural
natural
network
host
configured
network these bits are 0, so this is subnet 0
10.0.0.0/16
10.0.1.0/16
172.31.0.0/24
172.31.1.0/24
192.168.100.0/25
Yes
No
Yes
No
Yes
RST-2002 © 2003, Cisco Systems, Inc. All rights reserved. 43

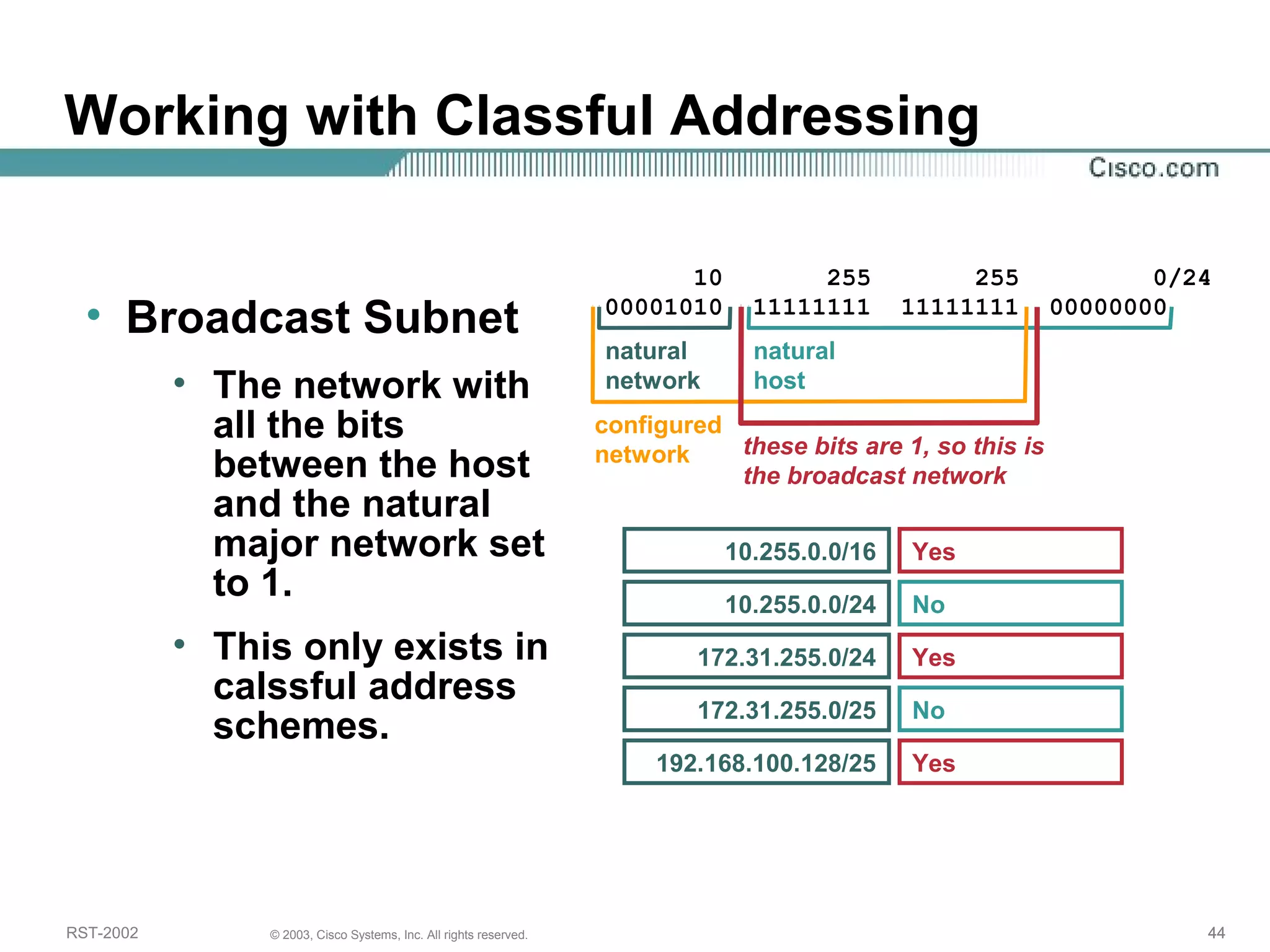

44. Working with Classful Addressing
• Broadcast Subnet
• The network with
all the bits
between the host
and the natural
major network set
to 1.
• This only exists in
calssful address
schemes.
10 255 255 0/24
00001010 11111111 11111111 00000000
natural
natural
network
host
configured
network these bits are 1, so this is
the broadcast network
10.255.0.0/16
10.255.0.0/24
172.31.255.0/24
172.31.255.0/25
192.168.100.128/25
Yes
No
Yes
No
Yes
RST-2002 © 2003, Cisco Systems, Inc. All rights reserved. 44

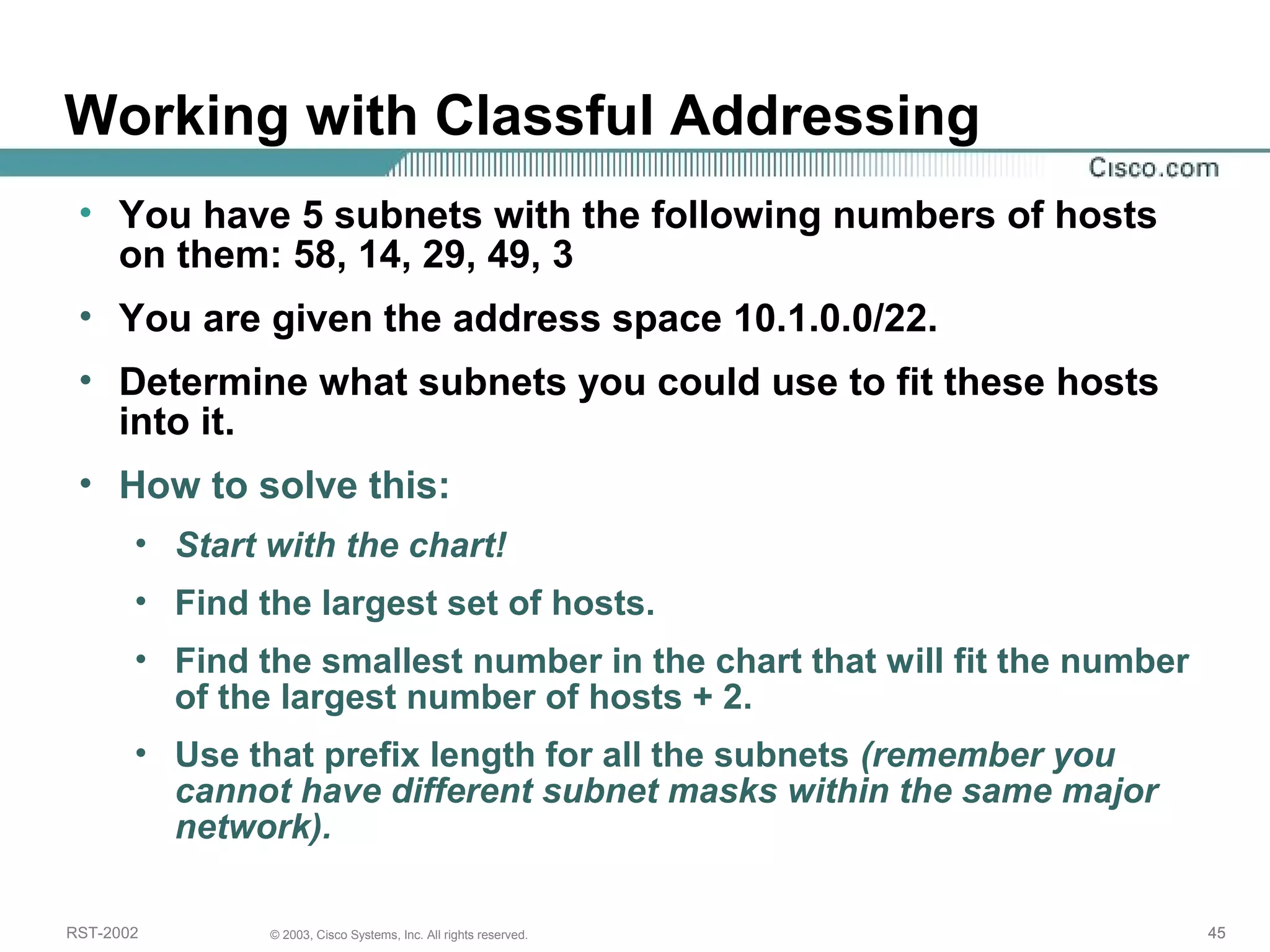

45. Working with Classful Addressing
• You have 5 subnets with the following numbers of hosts
on them: 58, 14, 29, 49, 3
• You are given the address space 10.1.0.0/22.
• Determine what subnets you could use to fit these hosts
into it.
• How to solve this:
• Start with the chart!
• Find the largest set of hosts.
• Find the smallest number in the chart that will fit the number
of the largest number of hosts + 2.
• Use that prefix length for all the subnets (remember you
cannot have different subnet masks within the same major
network).
RST-2002 © 2003, Cisco Systems, Inc. All rights reserved. 45

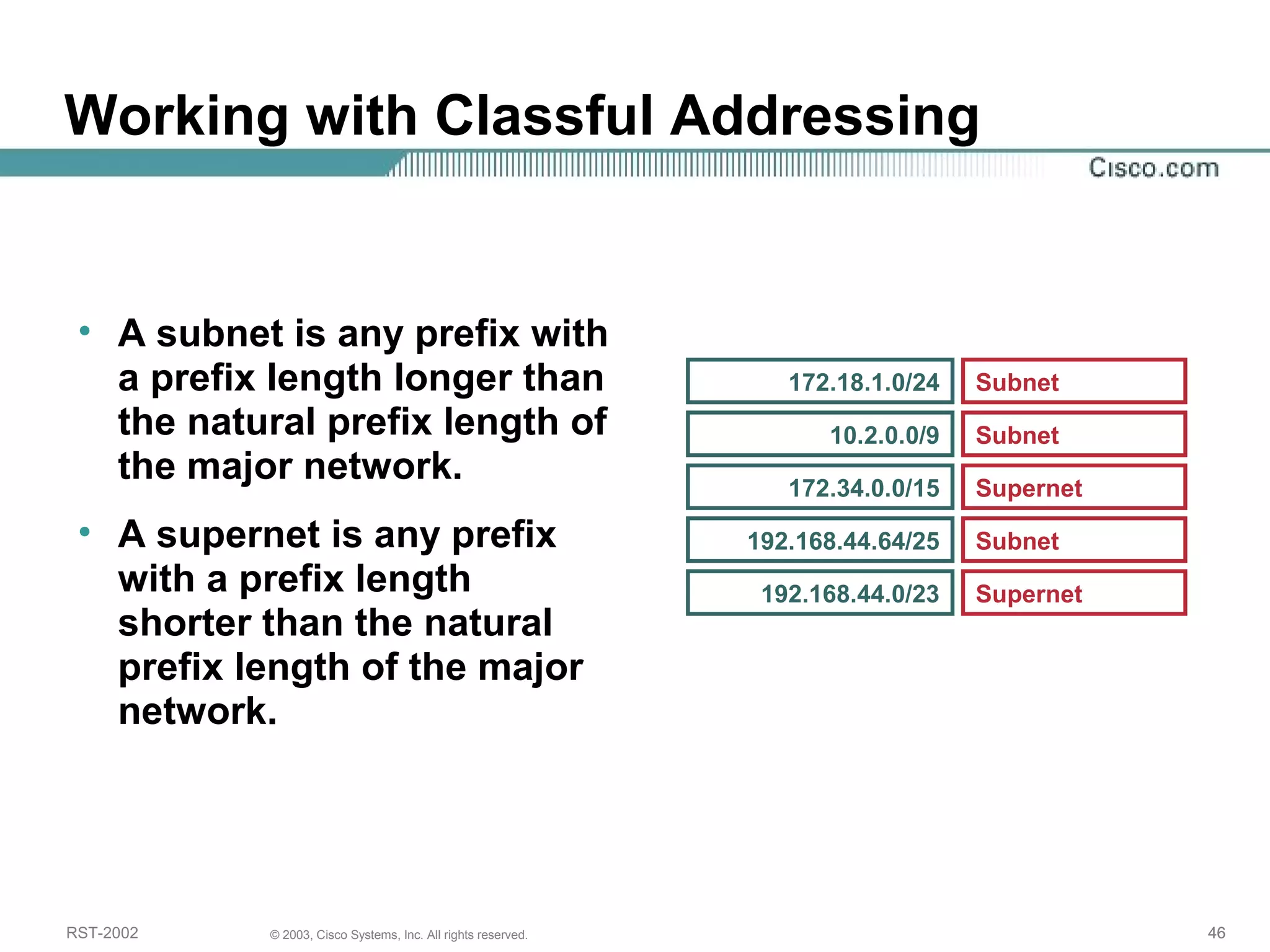

46. Working with Classful Addressing
• A subnet is any prefix with
a prefix length longer than
the natural prefix length of
the major network.
• A supernet is any prefix
with a prefix length
shorter than the natural
prefix length of the major
network.
172.18.1.0/24 Subnet
10.2.0.0/9 Subnet
172.34.0.0/15 Supernet
192.168.44.64/25 Subnet
192.168.44.0/23 Supernet
RST-2002 © 2003, Cisco Systems, Inc. All rights reserved. 46

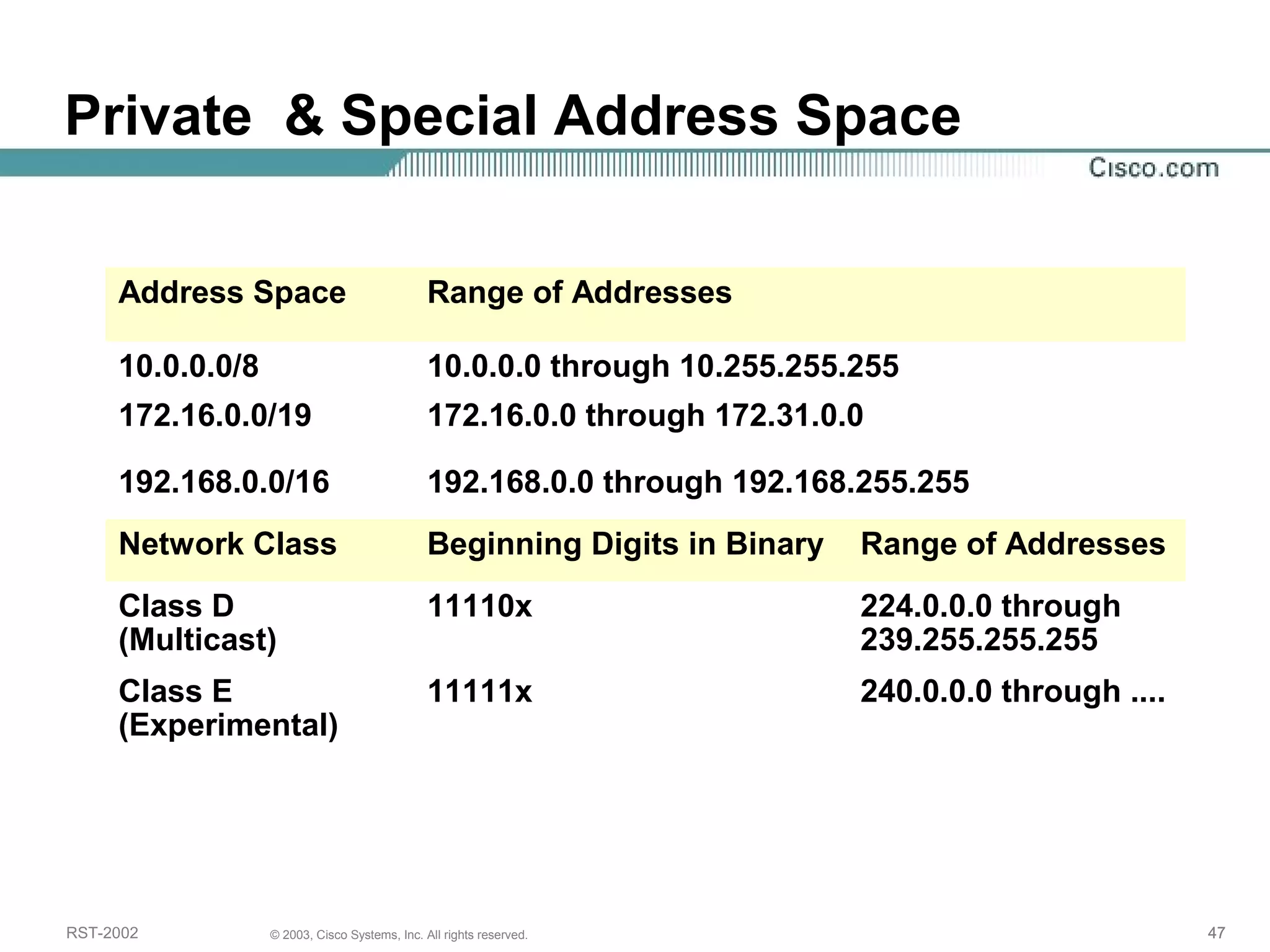

47. Private & Special Address Space
Address Space Range of Addresses
10.0.0.0/8 10.0.0.0 through 10.255.255.255
172.16.0.0/19 172.16.0.0 through 172.31.0.0
192.168.0.0/16 192.168.0.0 through 192.168.255.255
Network Class Beginning Digits in Binary Range of Addresses
Class D
11110x 224.0.0.0 through
(Multicast)
239.255.255.255
Class E
(Experimental)
11111x 240.0.0.0 through ....
RST-2002 © 2003, Cisco Systems, Inc. All rights reserved. 47

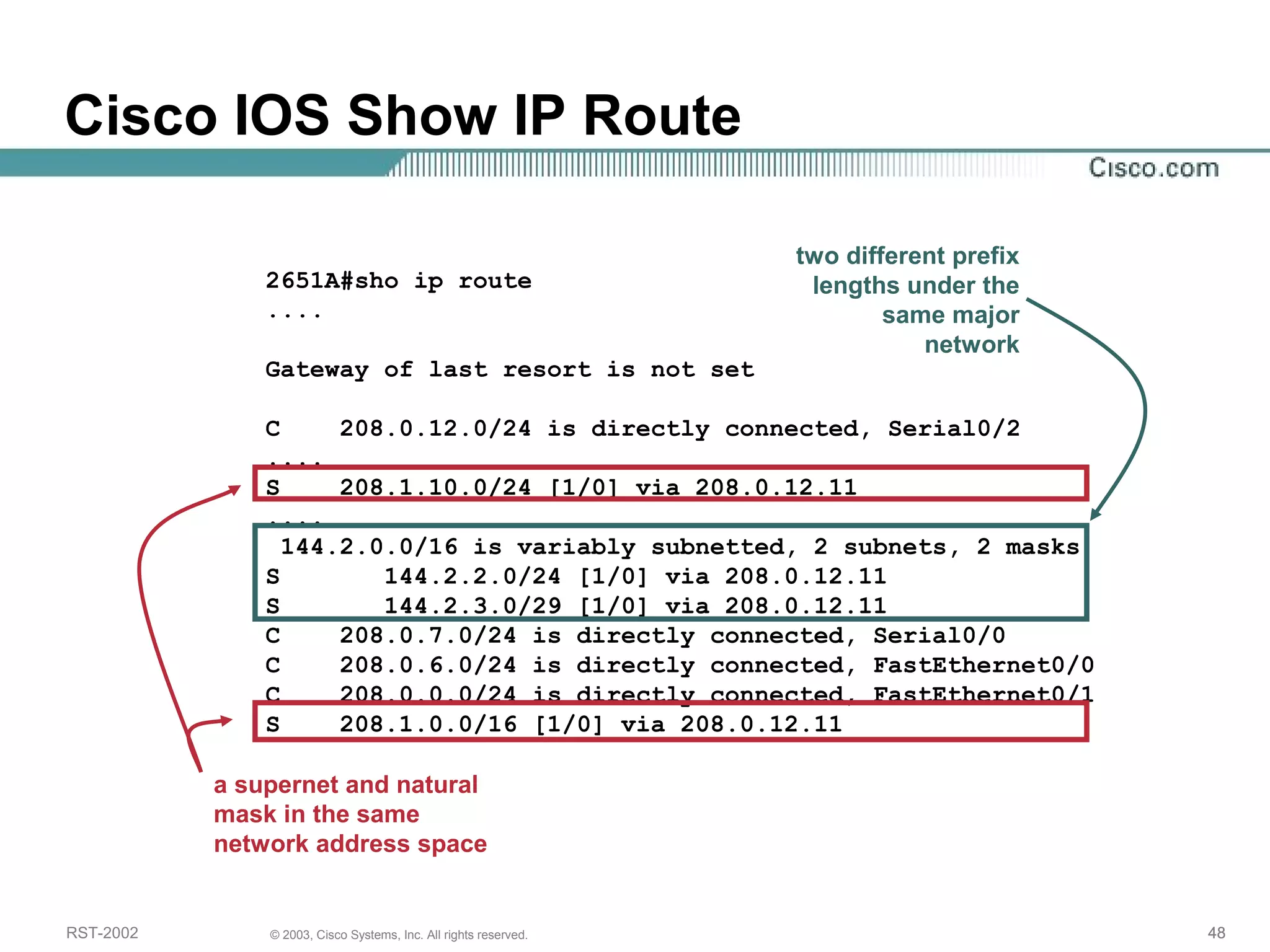

48. Cisco IOS Show IP Route
2651A#sho ip route
....
Gateway of last resort is not set
two different prefix
lengths under the
same major
network
C 208.0.12.0/24 is directly connected, Serial0/2
....
S 208.1.10.0/24 [1/0] via 208.0.12.11
....
144.2.0.0/16 is variably subnetted, 2 subnets, 2 masks
S 144.2.2.0/24 [1/0] via 208.0.12.11
S 144.2.3.0/29 [1/0] via 208.0.12.11
C 208.0.7.0/24 is directly connected, Serial0/0
C 208.0.6.0/24 is directly connected, FastEthernet0/0
C 208.0.0.0/24 is directly connected, FastEthernet0/1
S 208.1.0.0/16 [1/0] via 208.0.12.11
a supernet and natural
mask in the same
network address space
RST-2002 © 2003, Cisco Systems, Inc. All rights reserved. 48
