Work, Energy and Power

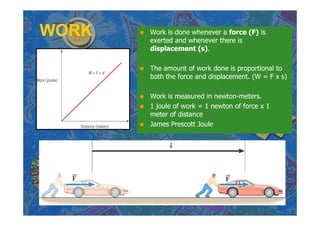

WORK   Work is done whenever a force (F) is
       exerted and whenever there is
       displacement (s).
                     (s).

       The amount of work done is proportional to
       both the force and displacement. (W = F x s)

       Work is measured in newton-meters.
                            newton-
       1 joule of work = 1 newton of force x 1
       meter of distance
       James Prescott Joule
Units of Work

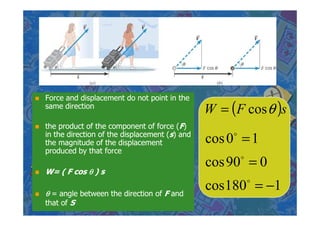

Force and displacement do not point in the
same direction
                                               W = (F cos θ )s
the product of the component of force (F)
in the direction of the displacement (s) and
the magnitude of the displacement              cos 0 = 1
                                                    o

produced by that force
                                               cos 90 = 0
                                                        o
W= ( F cos θ ) s

θ = angle between the direction of F and
                                               cos180 = −1  o

that of S

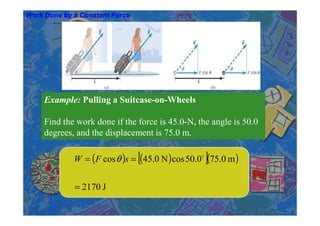

Work Done by a Constant Force




     Example: Pulling a Suitcase-on-Wheels

     Find the work done if the force is 45.0-N, the angle is 50.0
     degrees, and the displacement is 75.0 m.

                                [                 ]
             W = (F cos θ )s = (45.0 N ) cos 50.0o (75.0 m )


             = 2170 J

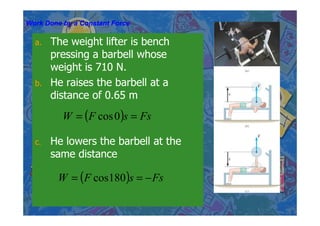

Work Done by a Constant Force

  a.   The weight lifter is bench
       pressing a barbell whose
       weight is 710 N.
  b.   He raises the barbell at a
       distance of 0.65 m
          W = (F cos 0)s = Fs

  c.   He lowers the barbell at the
       same distance

        W = (F cos180)s = − Fs
WORK

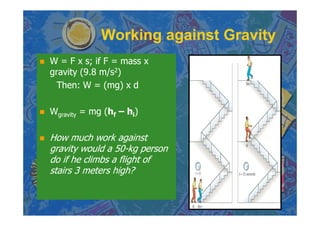

Working against Gravity
W = F x s; if F = mass x
gravity (9.8 m/s2)
  Then: W = (mg) x d

Wgravity = mg (hf – hi)
              (h

How much work against
gravity would a 50-kg person
                 50-
do if he climbs a flight of
stairs 3 meters high?

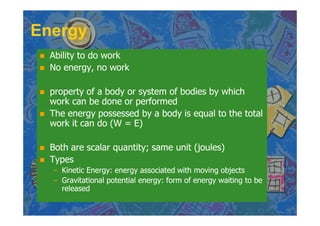

Energy
  Ability to do work
  No energy, no work

  property of a body or system of bodies by which
  work can be done or performed
  The energy possessed by a body is equal to the total
  work it can do (W = E)

  Both are scalar quantity; same unit (joules)
  Types
  – Kinetic Energy: energy associated with moving objects
  – Gravitational potential energy: form of energy waiting to be
    released
Energy
Energy




                1019 Joules




  1027 Joules

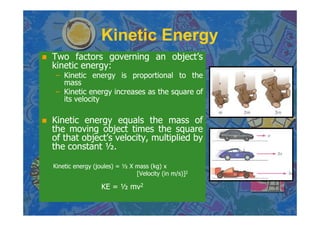

Kinetic Energy
Two factors governing an object’s
kinetic energy:
        energy:
– Kinetic energy is proportional to the
  mass
– Kinetic energy increases as the square of
  its velocity

Kinetic energy equals the mass of
the moving object times the square
of that object’s velocity, multiplied by
the constant ½.

Kinetic energy (joules) = ½ X mass (kg) x
                              [Velocity (in m/s)]2

                 KE = ½ mv2

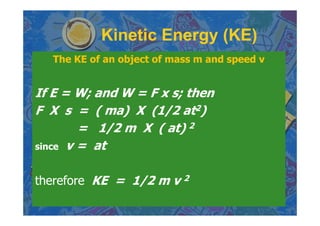

Kinetic Energy (KE)
  The KE of an object of mass m and speed v


If E = W; and W = F x s; then
F X s = ( ma) X (1/2 at2)
        = 1/2 m X ( at) 2
since v = at


therefore KE = 1/2 m v 2
Sample Problem
Find the KE of a body with a mass of 10
kg and a speed of 10 m/s
                              500 joules
How much energy is required to
accelerate a 1000-kg car from rest to
             1000-
30 m/sec, assuming no friction.
                      friction.
                             4.5 x 105 joules

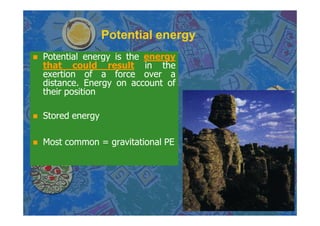

Potential energy
Potential energy is the energy
that could result in the
exertion of a force over a
distance.
distance. Energy on account of
their position

Stored energy

Most common = gravitational PE
Gravitational Potential Energy
The gravitational potential energy PE is the
energy that an object of mass (m) has by
virtue of its position relative to the surface of
the earth.

The gravitational potential energy of an object
equals its weight (the force of gravity
exerted on the object) times its height above
the ground (the object has been lifted
above the surface of the earth).

   Potential Energy (joules) =
        mass (kg) x g (m/s2) x height (m)

  PE = mgh

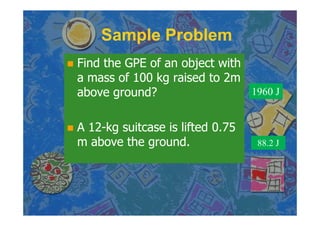

Sample Problem
Find the GPE of an object with
a mass of 100 kg raised to 2m
above ground?                  1960 J


A 12-kg suitcase is lifted 0.75
  12-
m above the ground.               88.2 J

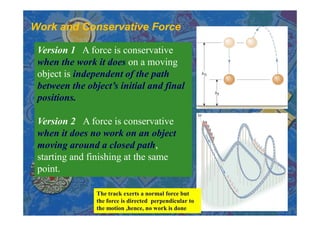

Work and Conservative Force

 Version 1 A force is conservative
 when the work it does on a moving
 object is independent of the path
 between the object’s initial and final
 positions.

 Version 2 A force is conservative
 when it does no work on an object
 moving around a closed path,
 starting and finishing at the same
 point.

                The track exerts a normal force but
                the force is directed perpendicular to
                the motion ,hence, no work is done

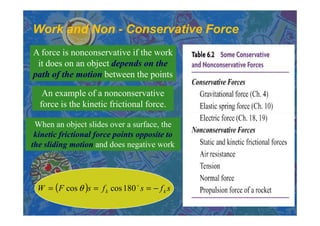

Work and Non - Conservative Force
A force is nonconservative if the work
 it does on an object depends on the
path of the motion between the points

   An example of a nonconservative
  force is the kinetic frictional force.

 When an object slides over a surface, the
 kinetic frictional force points opposite to
the sliding motion and does negative work




 W = (F cos θ )s = f k cos 180 o s = − f k s

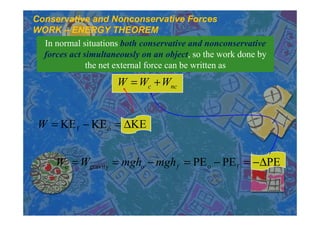

Conservative and Nonconservative Forces
WORK – ENERGY THEOREM
  In normal situations both conservative and nonconservative
  forces act simultaneously on an object, so the work done by
              the net external force can be written as
                      W = Wc + Wnc


 W = KE f − KE o = ∆KE


      Wc = Wgravity = mgho − mgh f = PE o − PE f = −∆PE

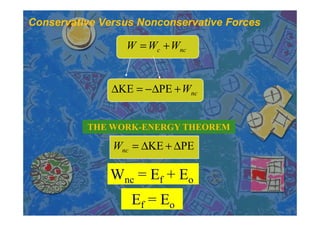

Conservative Versus Nonconservative Forces

                 W = Wc + Wnc


               ∆KE = − ∆PE + Wnc


          THE WORK-ENERGY THEOREM

               Wnc = ∆KE + ∆PE

              Wnc = Ef + Eo
                  Ef = Eo

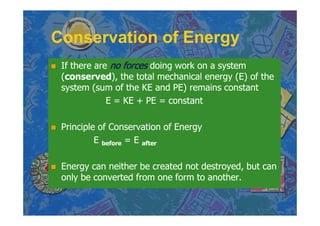

Conservation of Energy
 If there are no forces doing work on a system
 (conserved), the total mechanical energy (E) of the
  conserved),                               (E)
 system (sum of the KE and PE) remains constant
             E = KE + PE = constant

 Principle of Conservation of Energy
          E before = E after

 Energy can neither be created not destroyed, but can
 only be converted from one form to another.

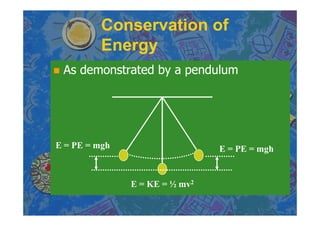

Conservation of
          Energy
 As demonstrated by a pendulum




E = PE = mgh                    E = PE = mgh


               E = KE = ½ mv2

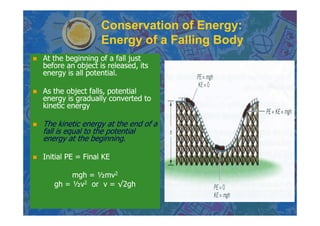

Conservation of Energy:
                  Energy of a Falling Body
At the beginning of a fall just
before an object is released, its
energy is all potential.

As the object falls, potential
energy is gradually converted to
kinetic energy

The kinetic energy at the end of a
fall is equal to the potential
energy at the beginning.

Initial PE = Final KE

        mgh = ½mv2
   gh = ½v2 or v = √2gh
Chapter 6 Work And Energy

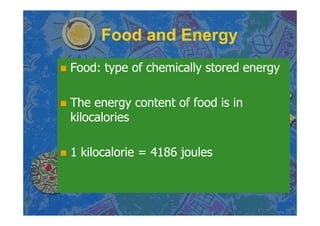

Food and Energy
Food: type of chemically stored energy

The energy content of food is in
kilocalories

1 kilocalorie = 4186 joules

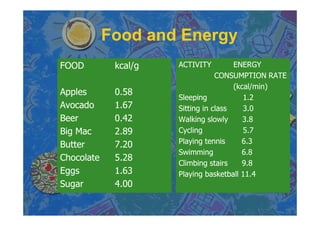

Food and Energy
FOOD         kcal/g   ACTIVITY         ENERGY
                                  CONSUMPTION RATE
                                       (kcal/min)
Apples       0.58
                      Sleeping            1.2
Avocado      1.67     Sitting in class    3.0
Beer         0.42     Walking slowly      3.8
Big Mac      2.89     Cycling             5.7
Butter       7.20     Playing tennis     6.3
                      Swimming           6.8
Chocolate    5.28
                      Climbing stairs     9.8
Eggs         1.63     Playing basketball 11.4
Sugar        4.00

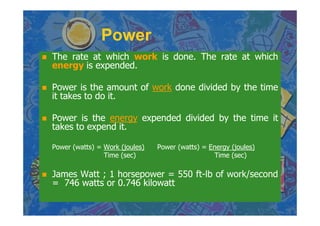

Power
The rate at which work is done. The rate at which
                          done.
energy is expended.
          expended.

Power is the amount of work done divided by the time
it takes to do it.
               it.

Power is the energy expended divided by the time it
takes to expend it.
                it.

Power (watts) = Work (joules)   Power (watts) = Energy (joules)
                Time (sec)                       Time (sec)

James Watt ; 1 horsepower = 550 ft-lb of work/second
= 746 watts or 0.746 kilowatt
Sample Problem
Calculate the amount of power generated by
a 60-kg person climbing a 2 m high flight of
  60-
stairs in 7 sec.
            sec.
   P = W /t ; since W = mgh ,Then P = mgh
                                      t
        = (60 kg) ( 9.8 m/s2) ( 2 m )
                       7s
        = 1176 J
             7s
        = 168 W

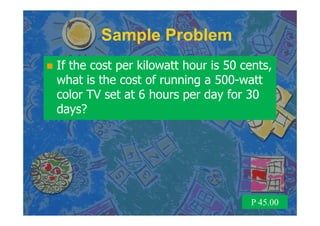

Sample Problem
If the cost per kilowatt hour is 50 cents,
what is the cost of running a 500-watt
                               500-
color TV set at 6 hours per day for 30
days?




                                     P 45.00

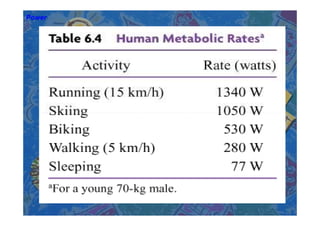

Power
The rate of conversion of food
energy to some other form is
called metabolic rate.

The total energy conversion
rate of a person at rest is called
basal metabolic rate

BMR of an individual is related
to thyroid activity

The BMR is directly related to
the mass of the person.

Energy consumption is directly
proportional to oxygen
consumption
Chapter 6 Work And Energy
