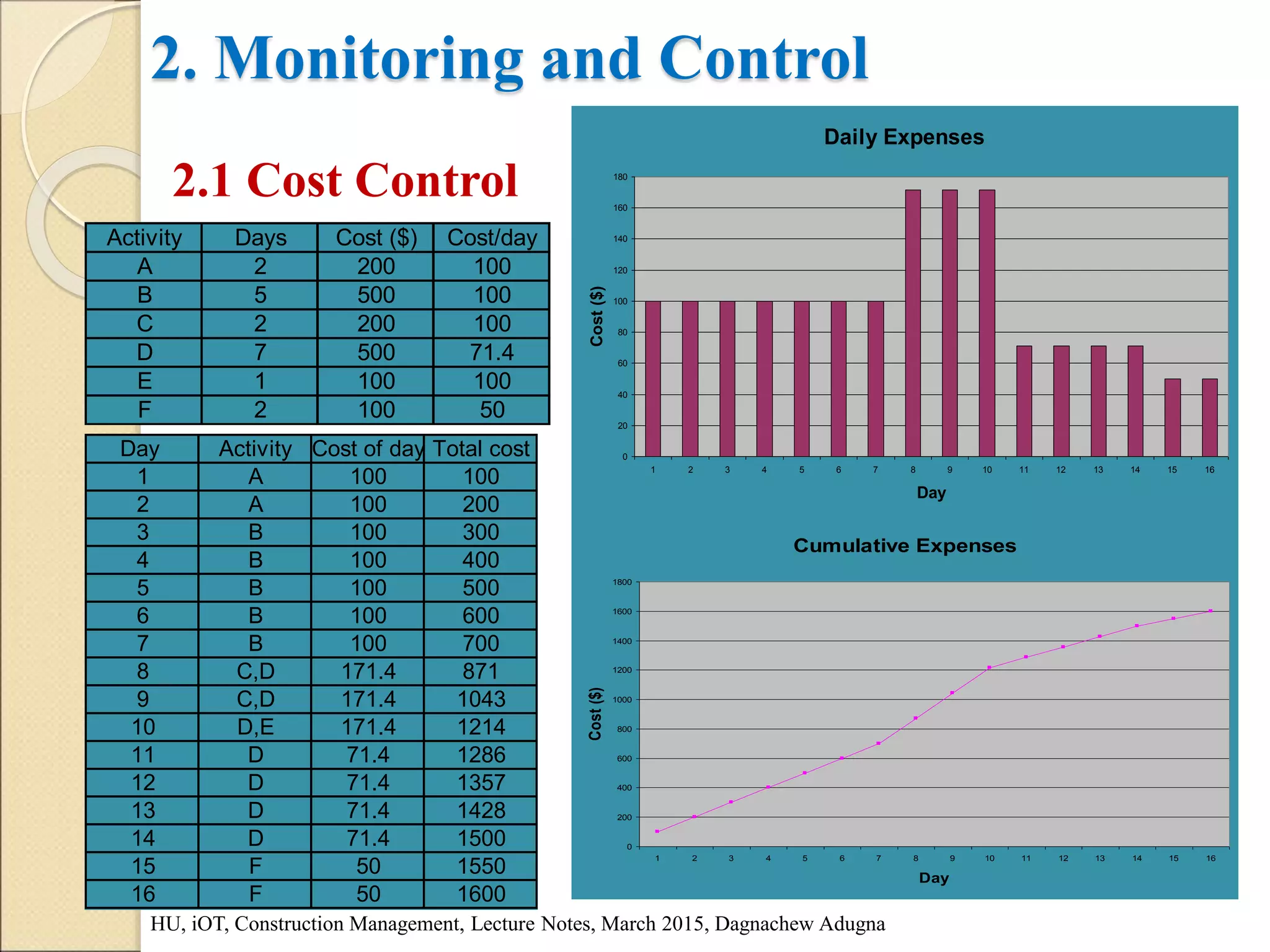

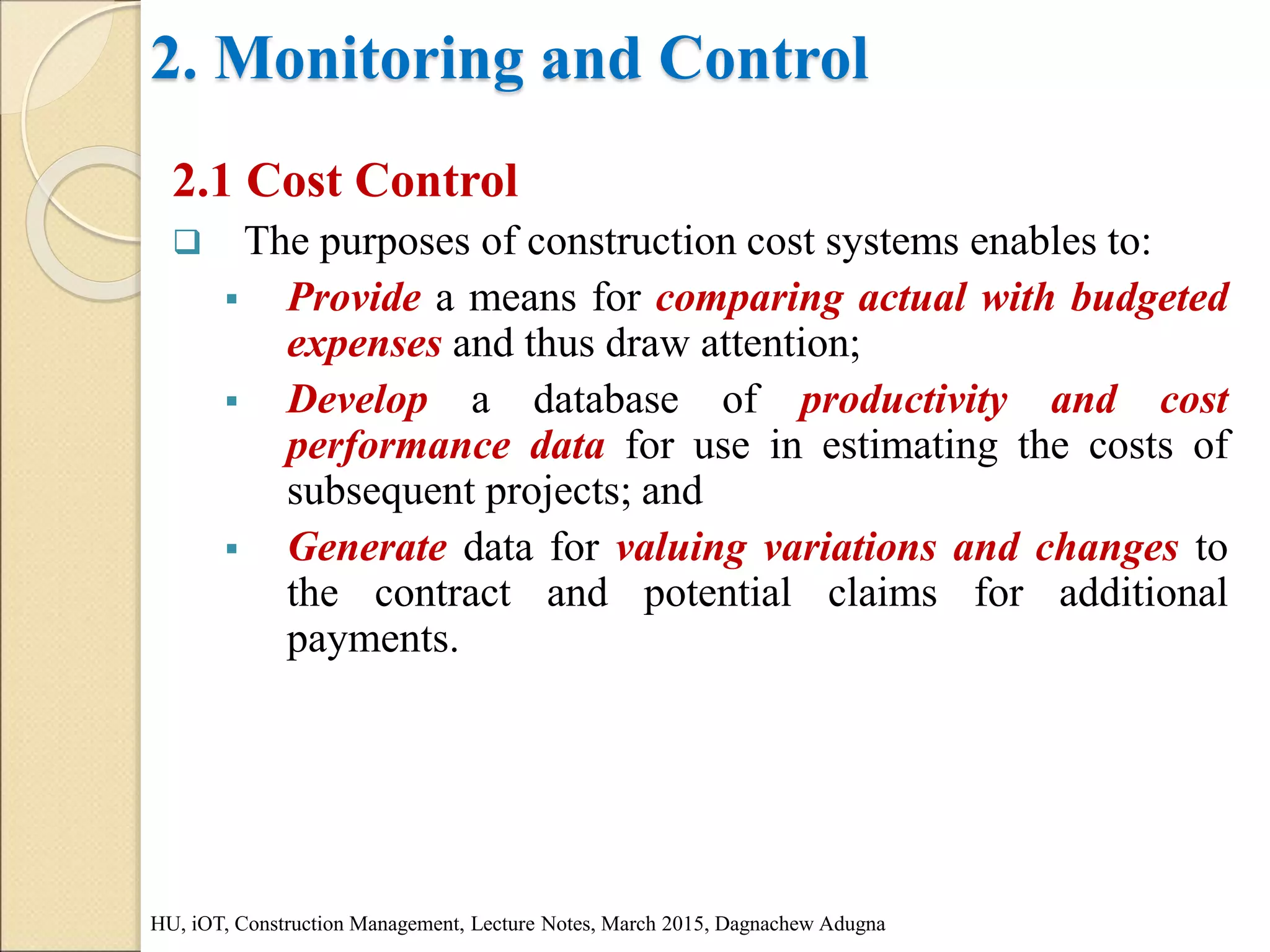

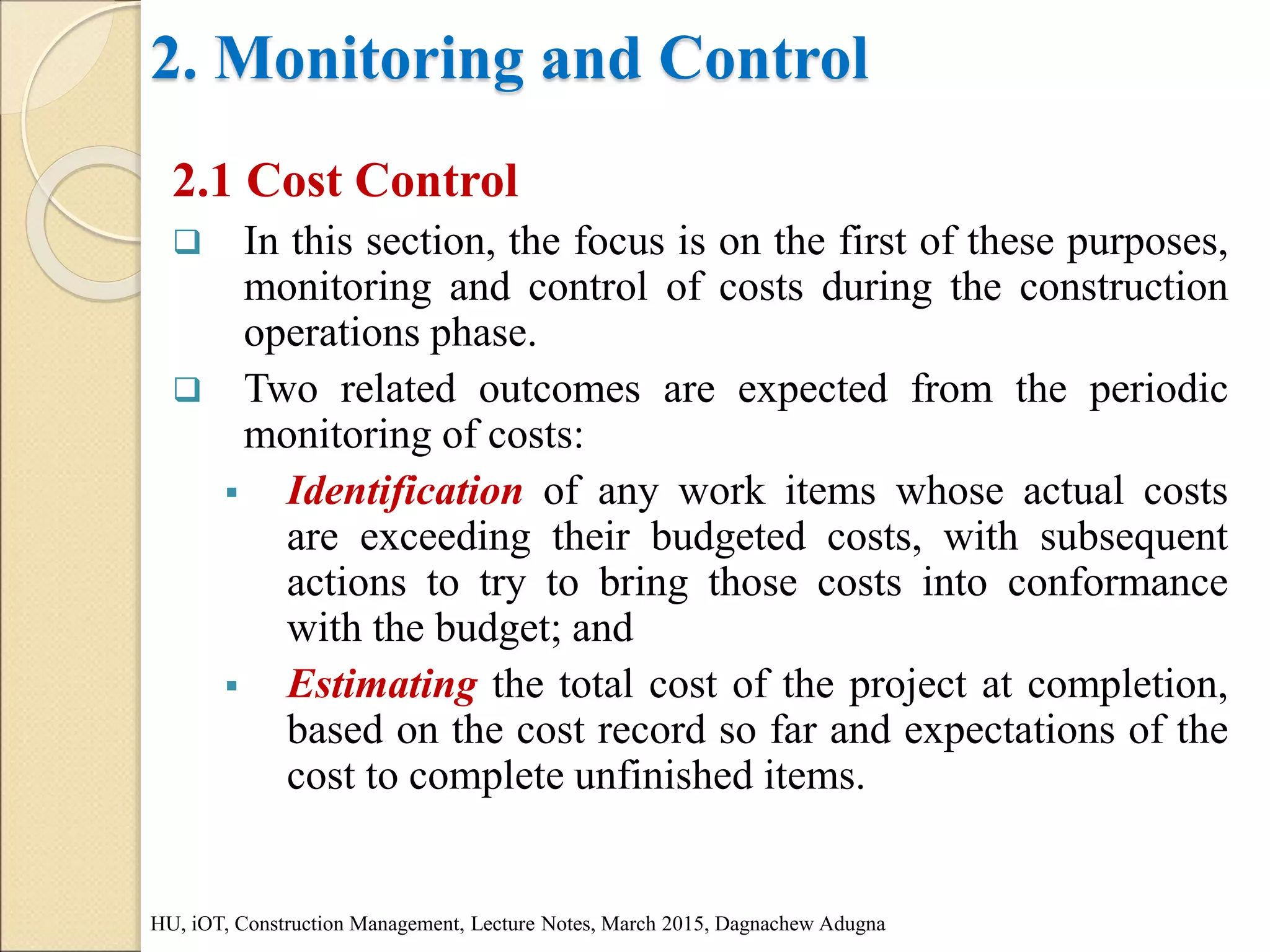

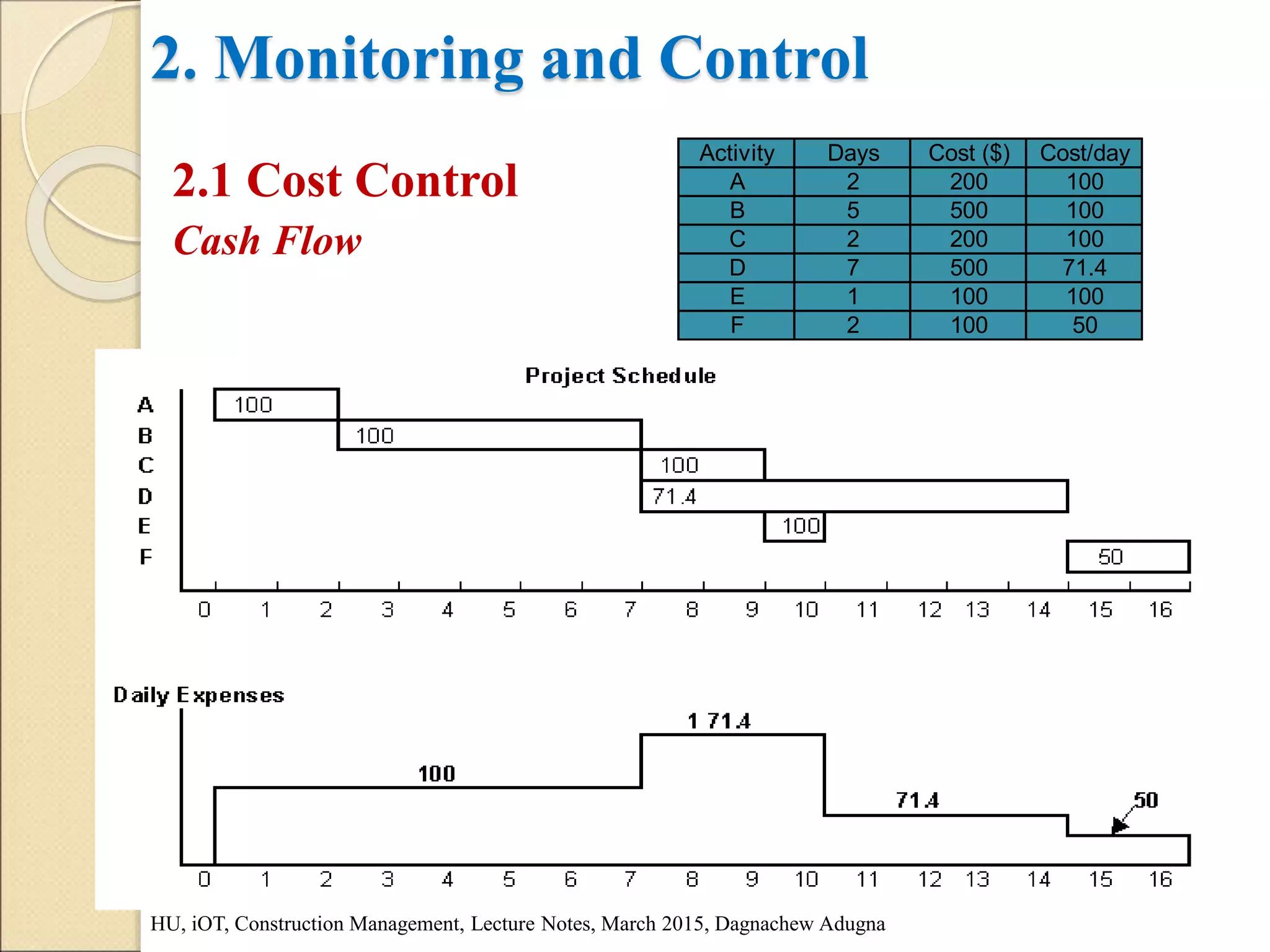

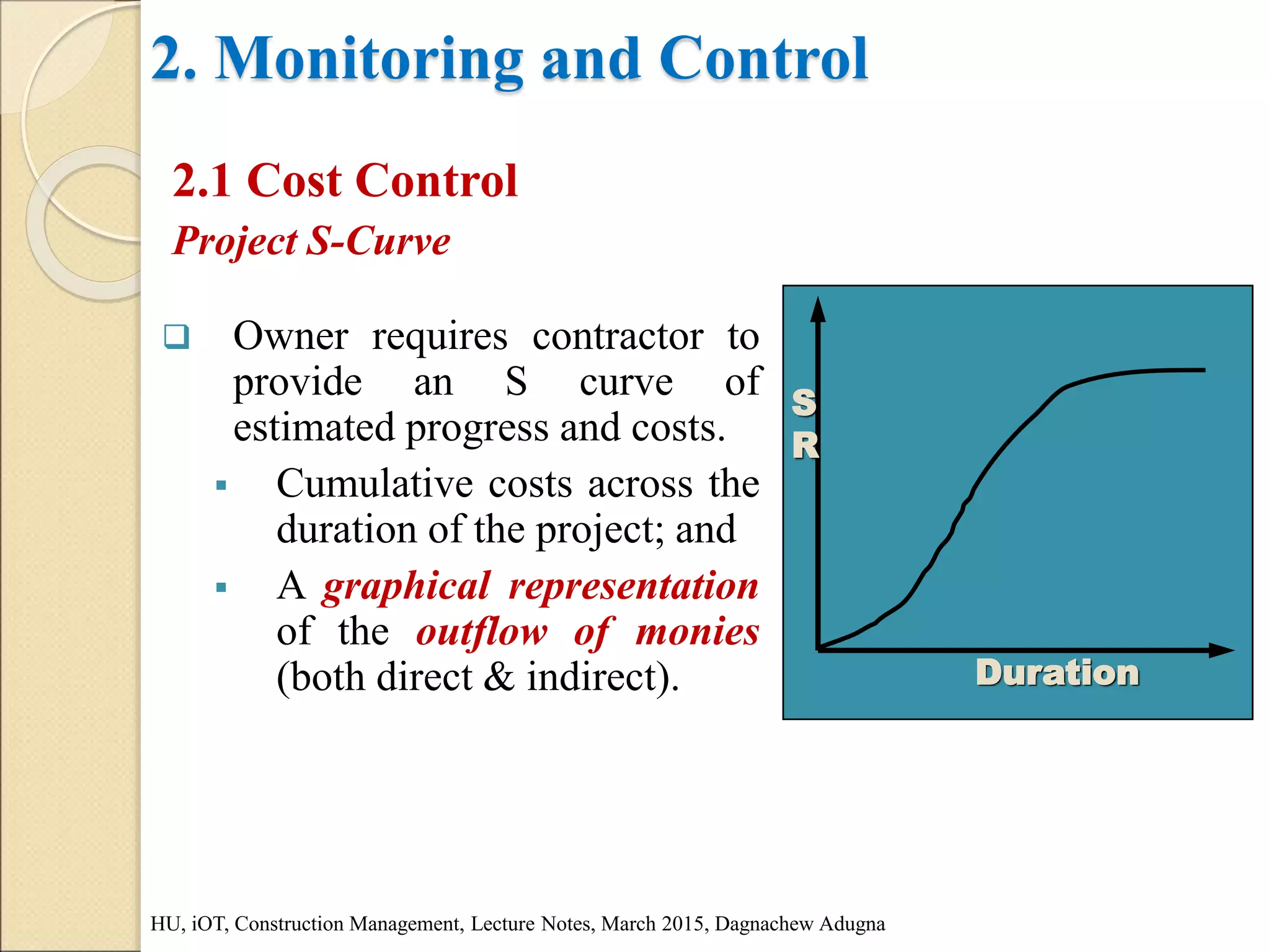

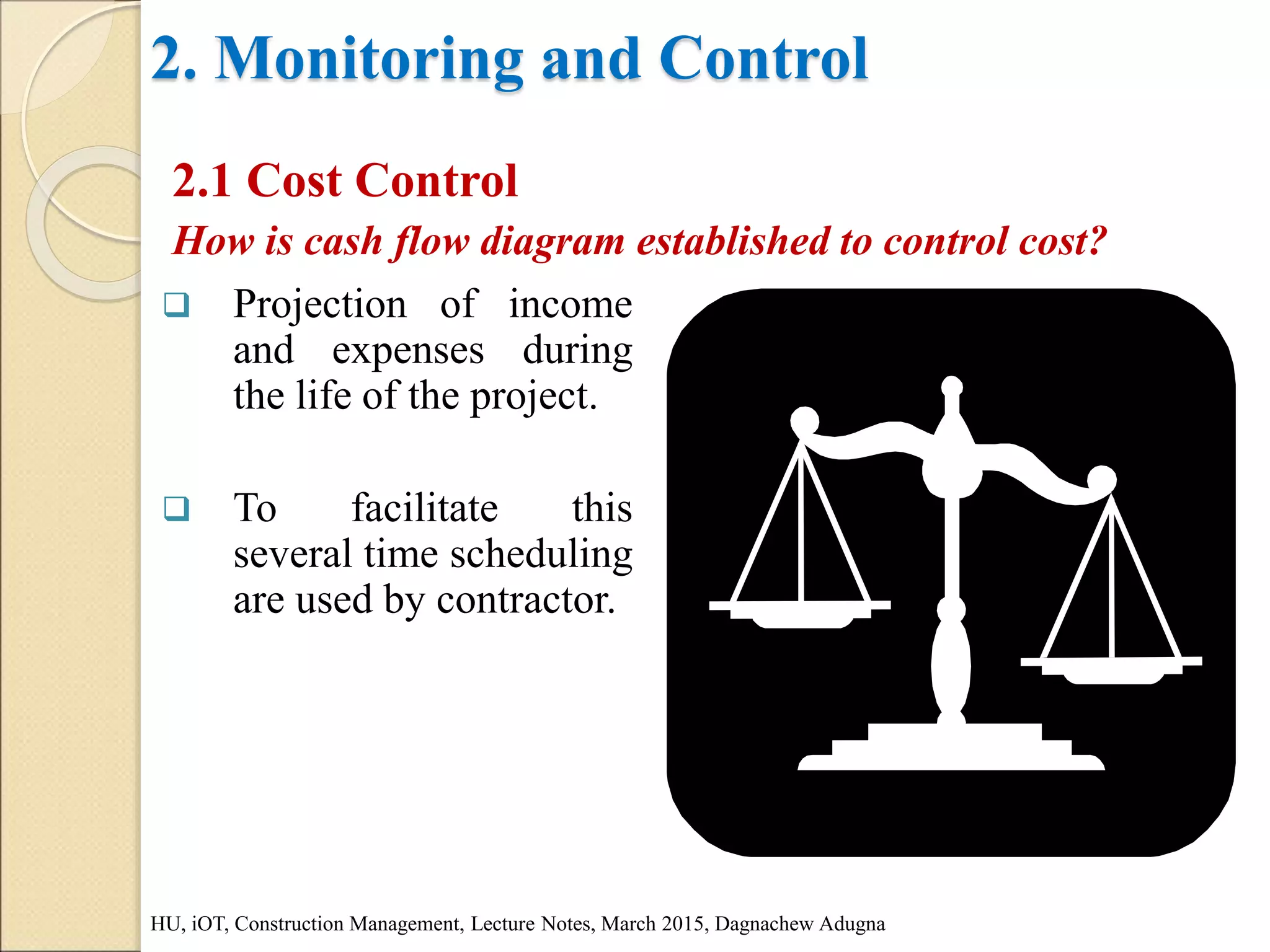

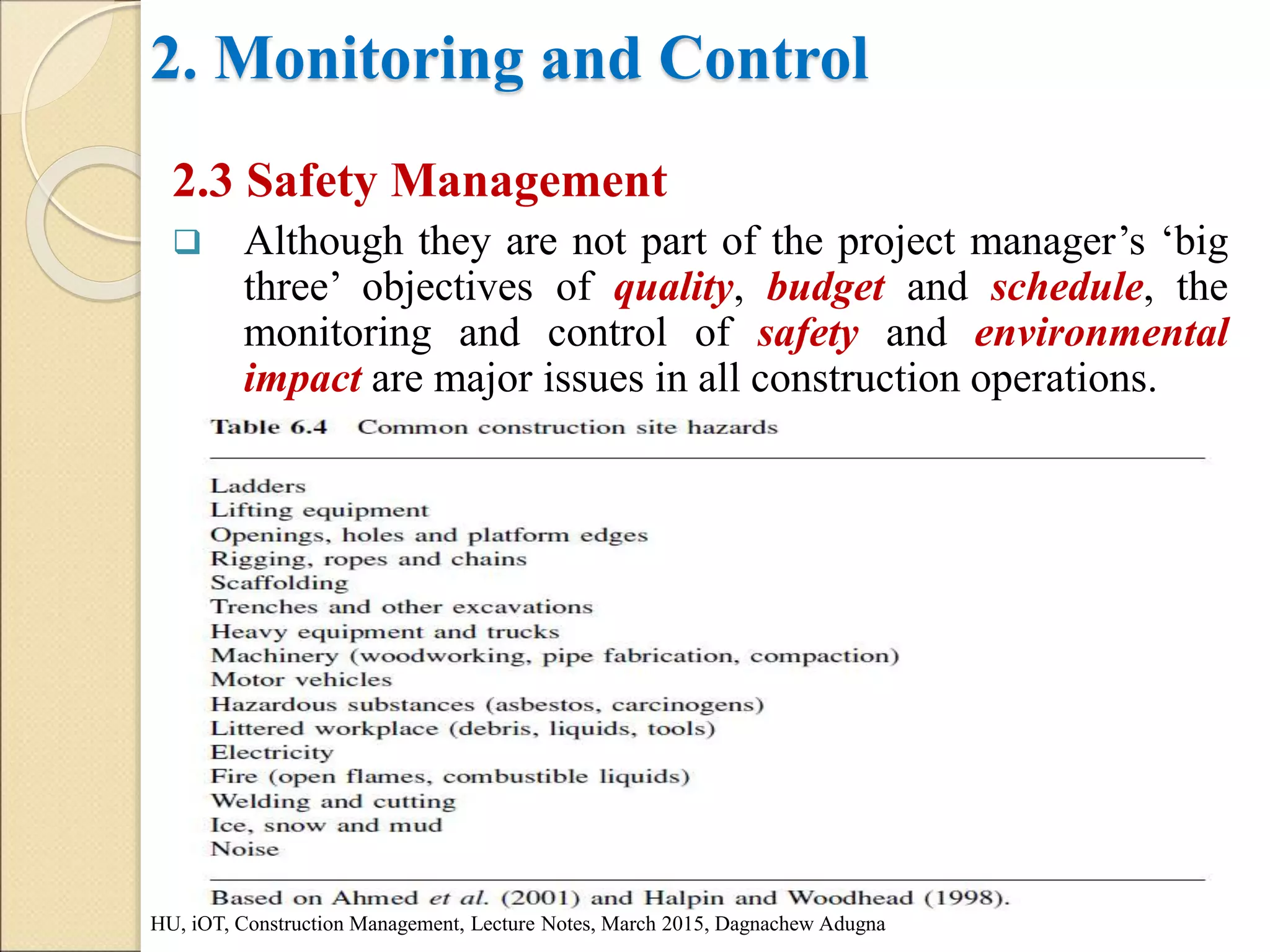

2) Monitoring and control techniques including cost control using cash flow diagrams, quality management, safety management, and environmental management.

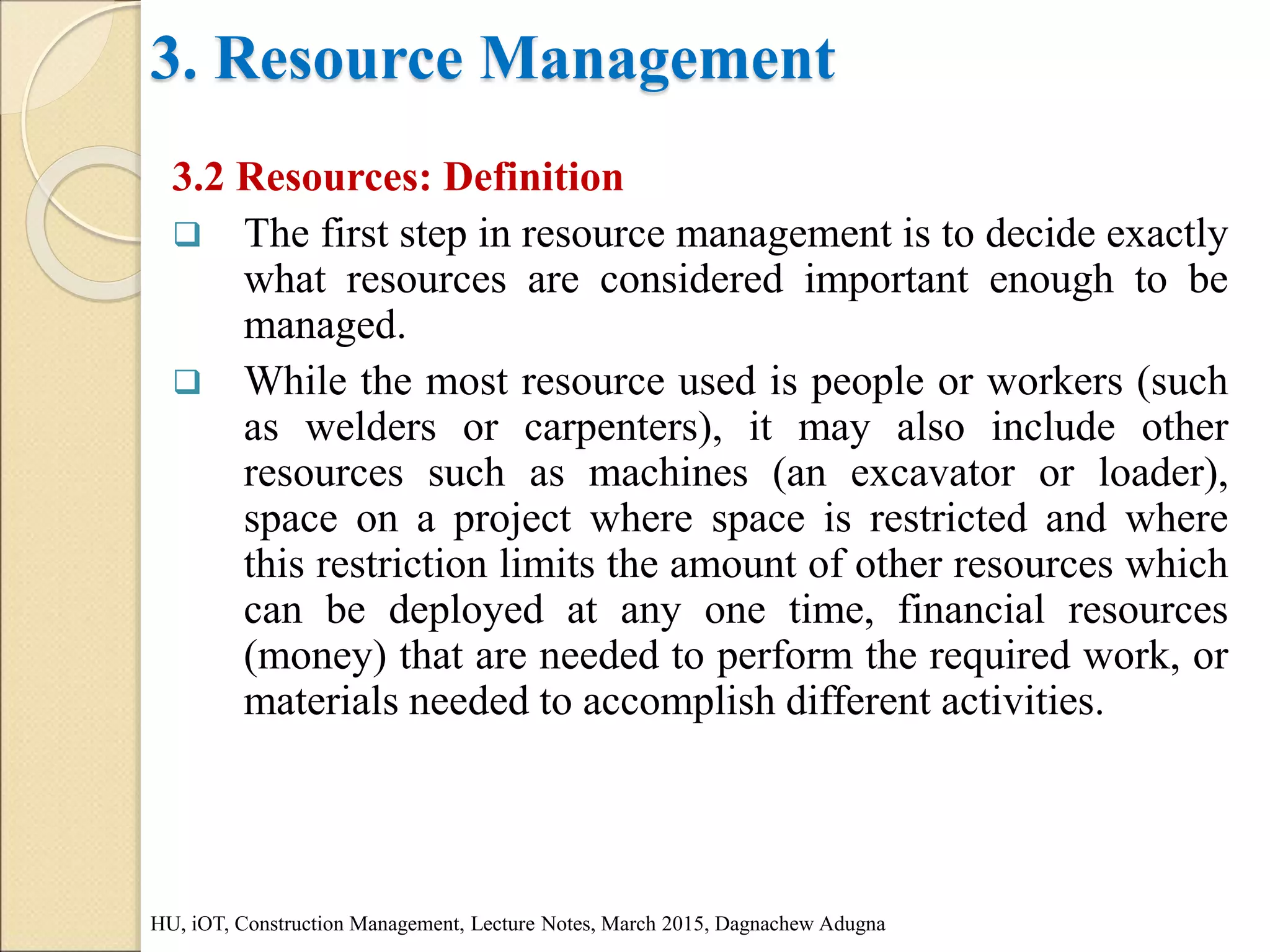

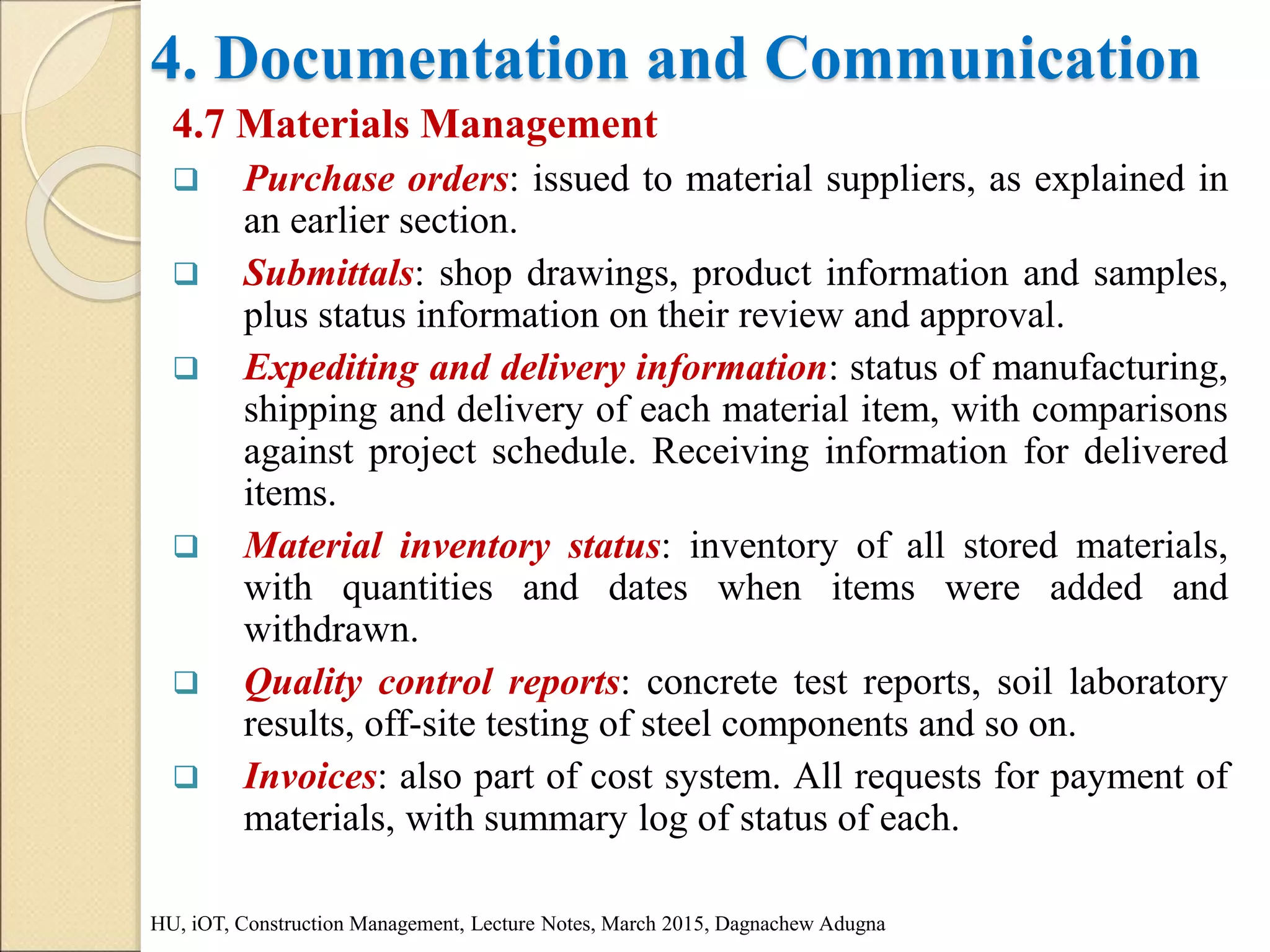

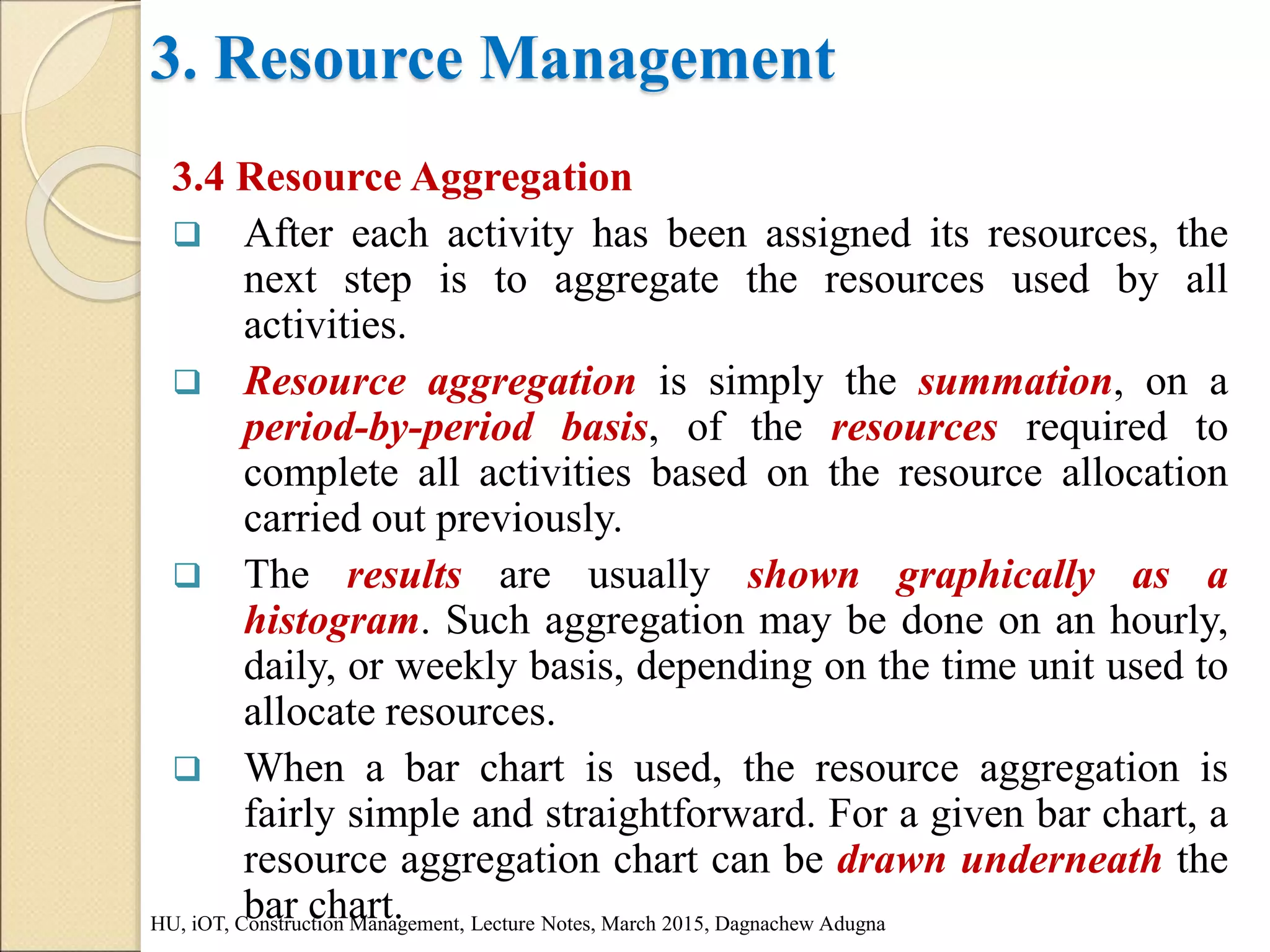

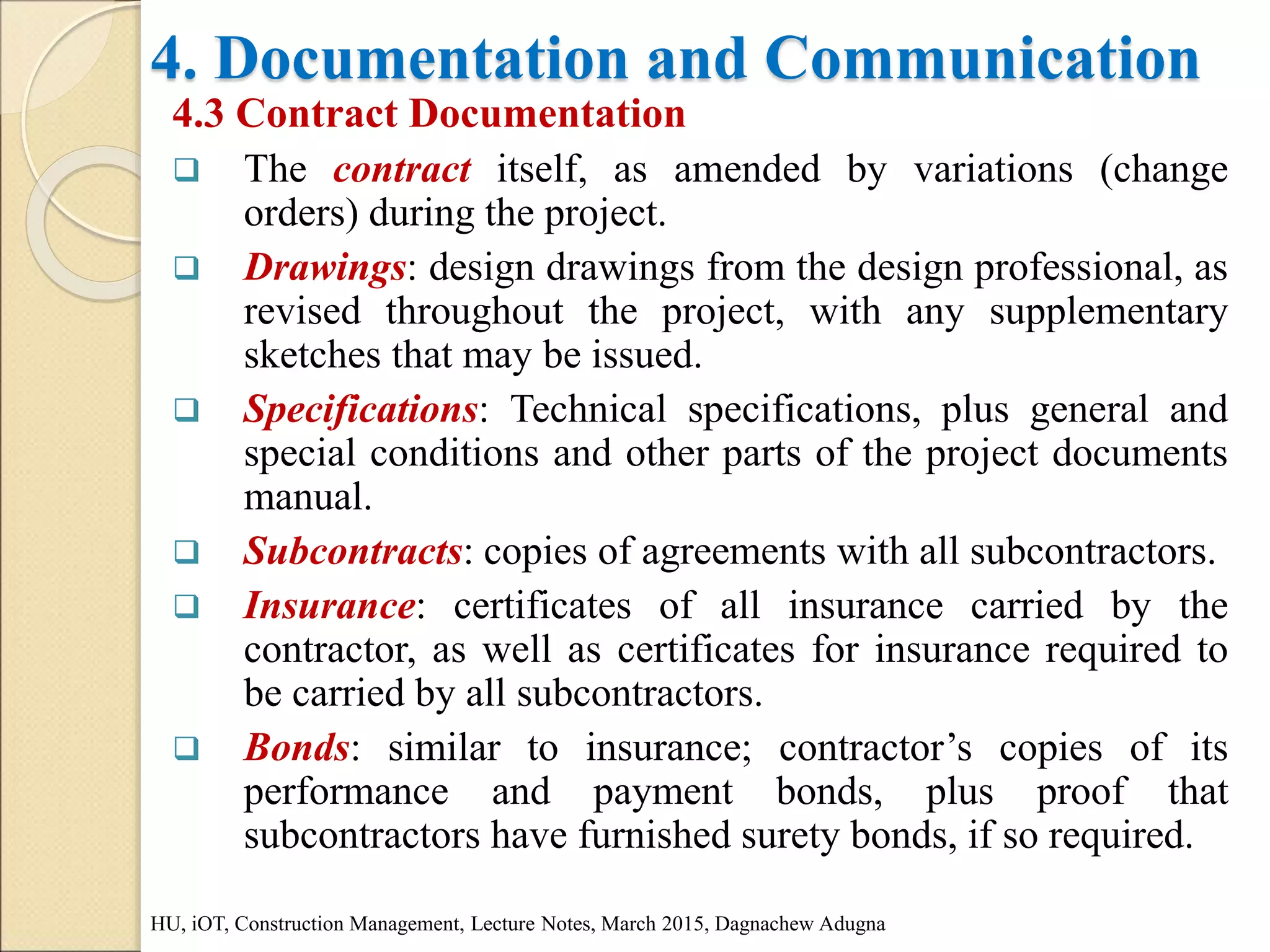

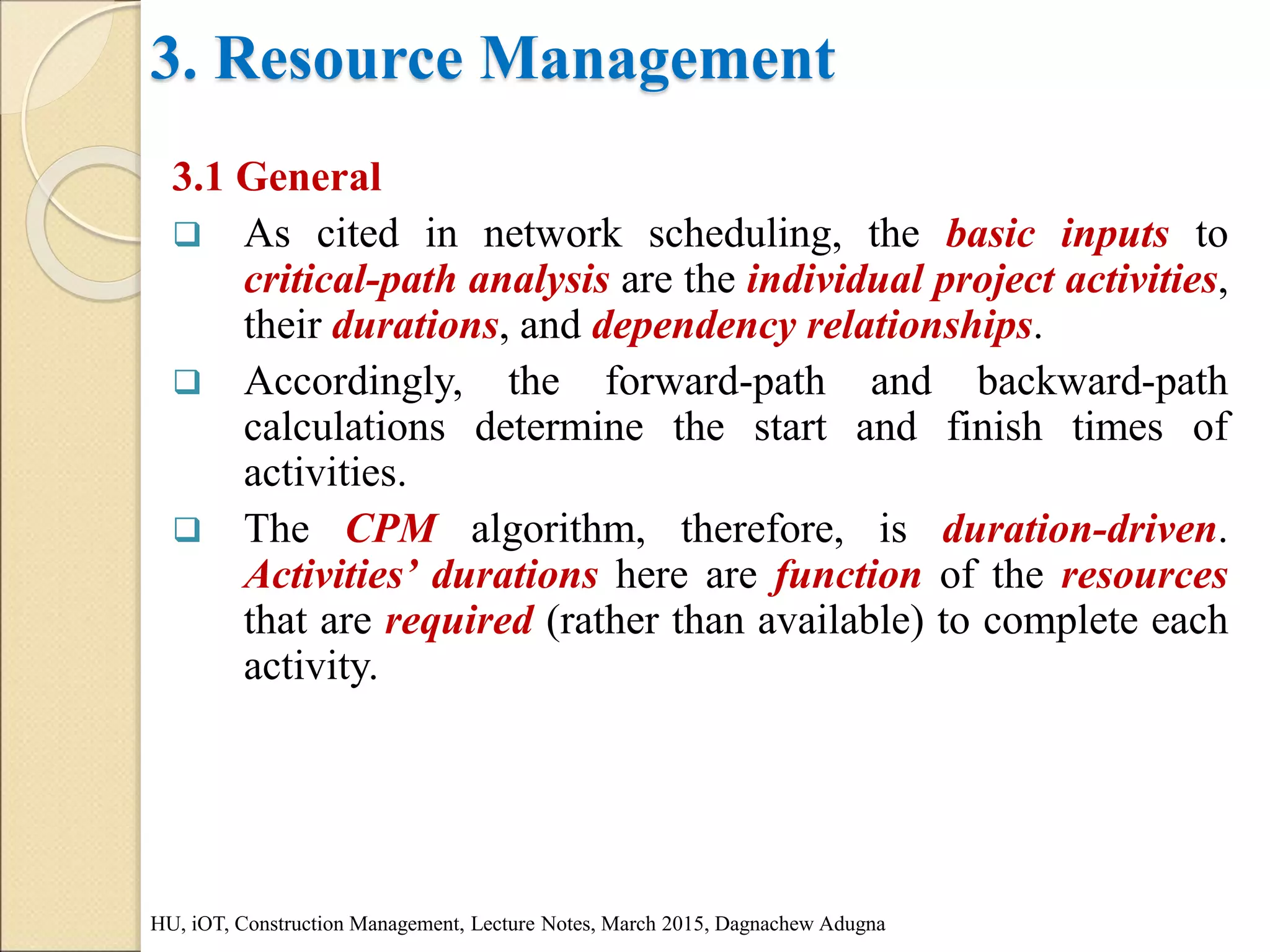

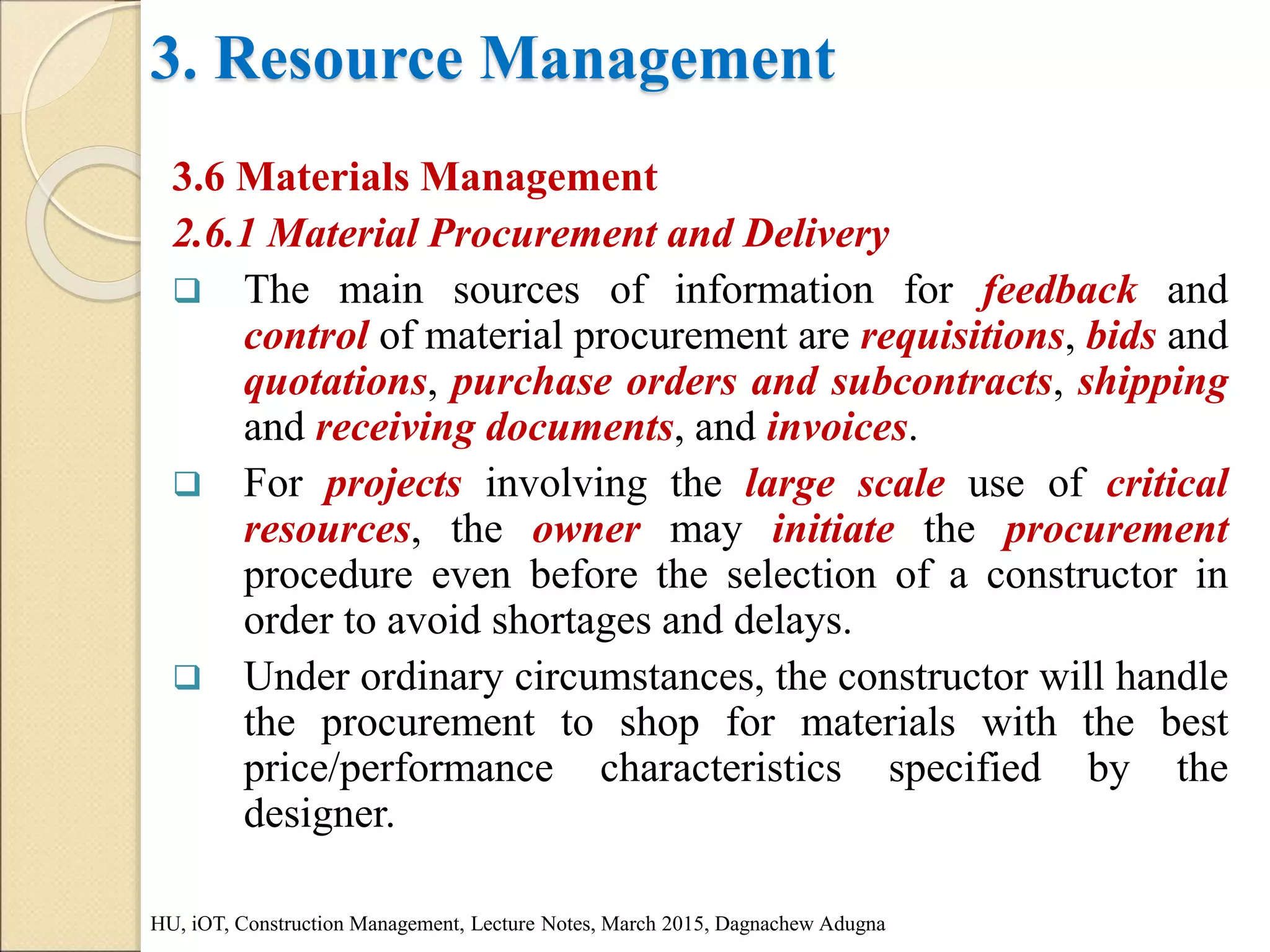

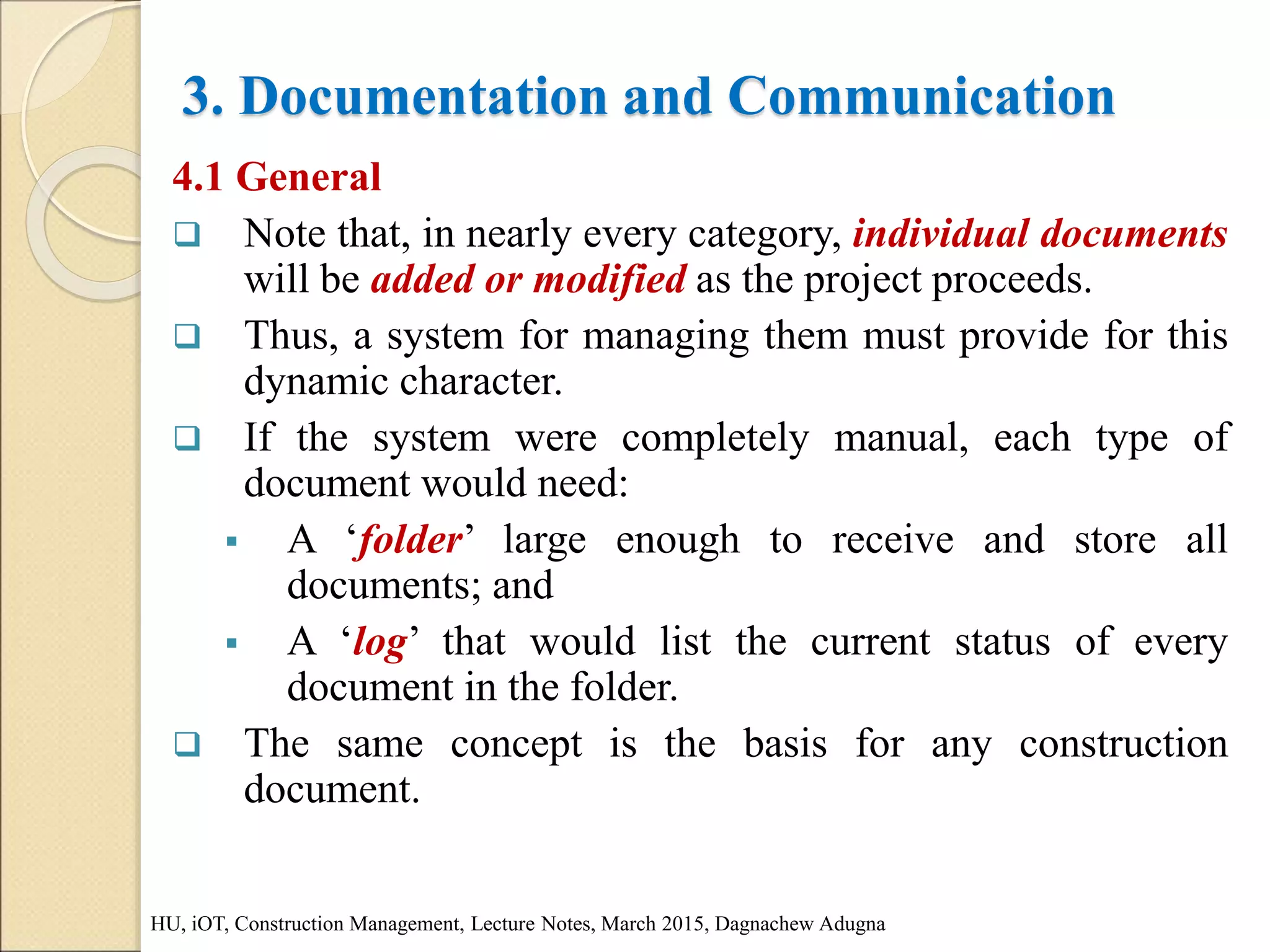

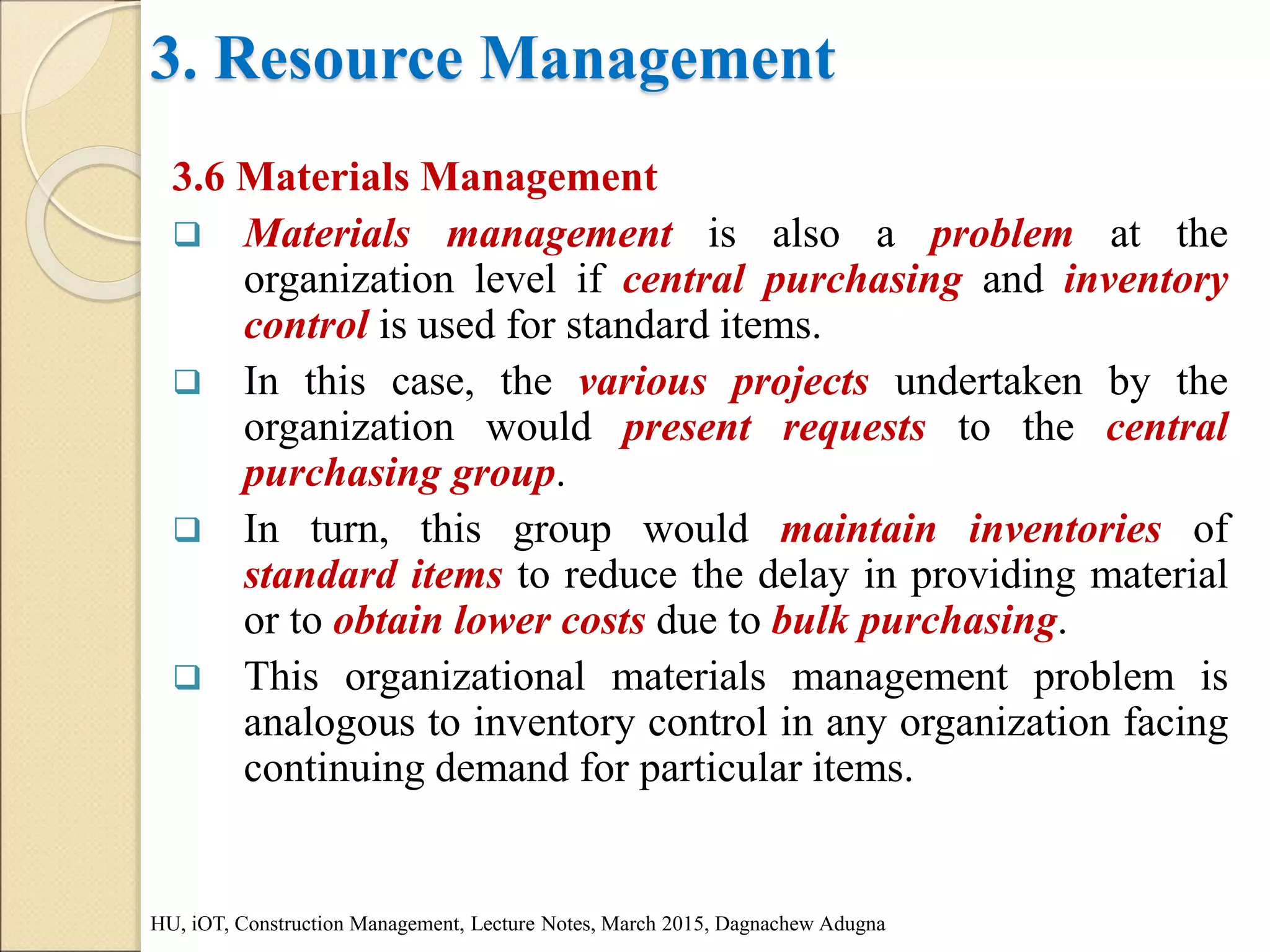

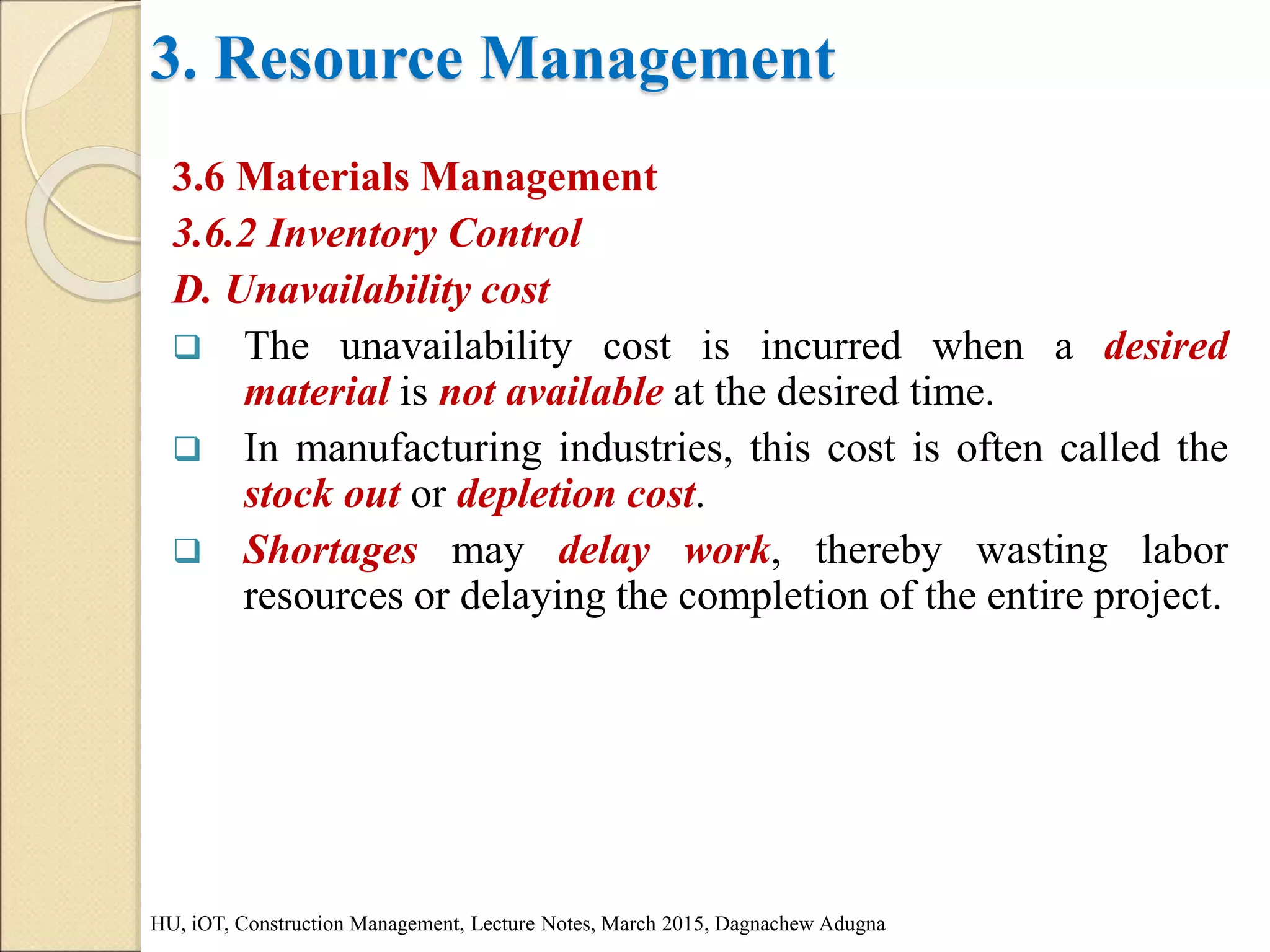

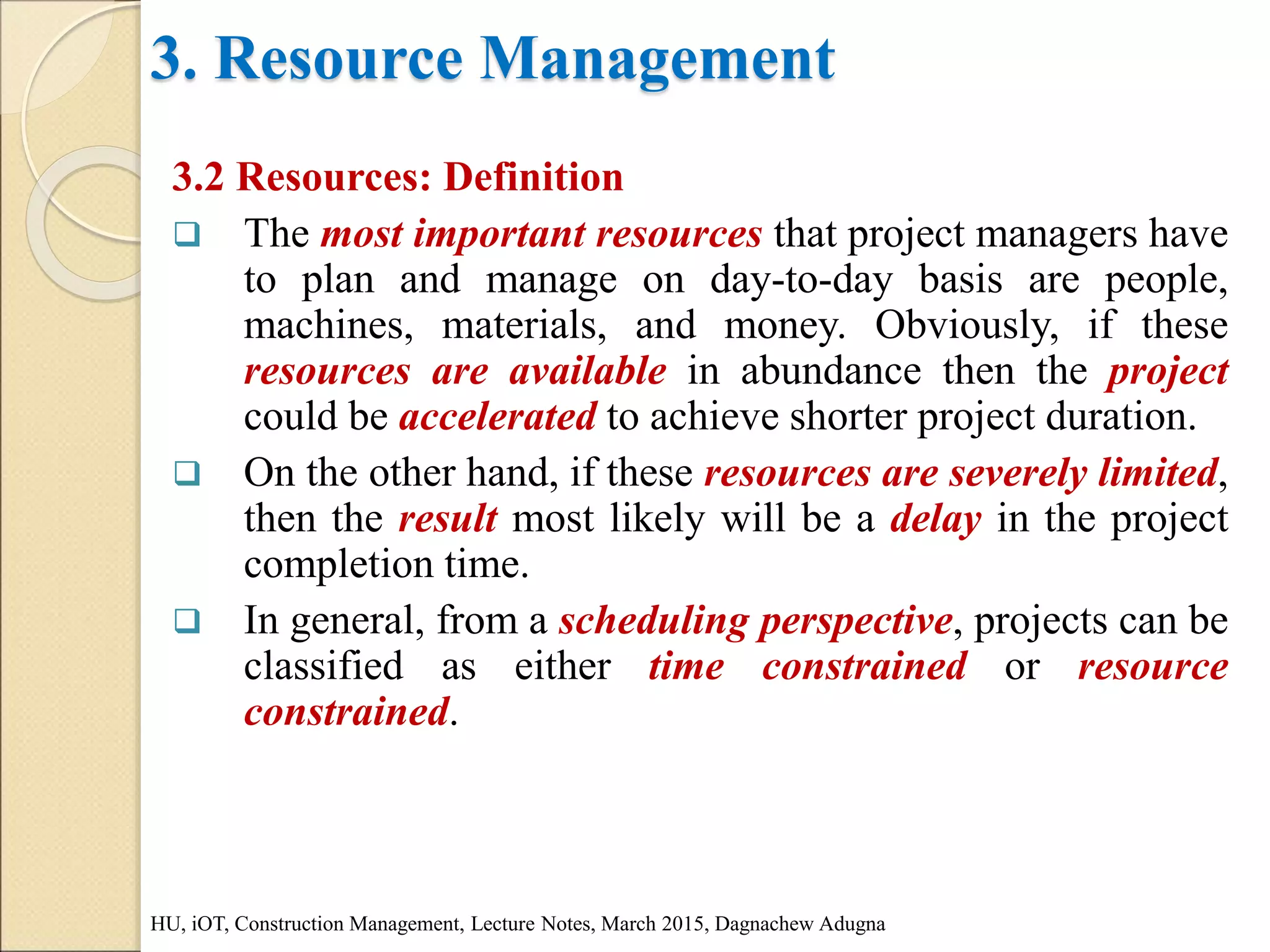

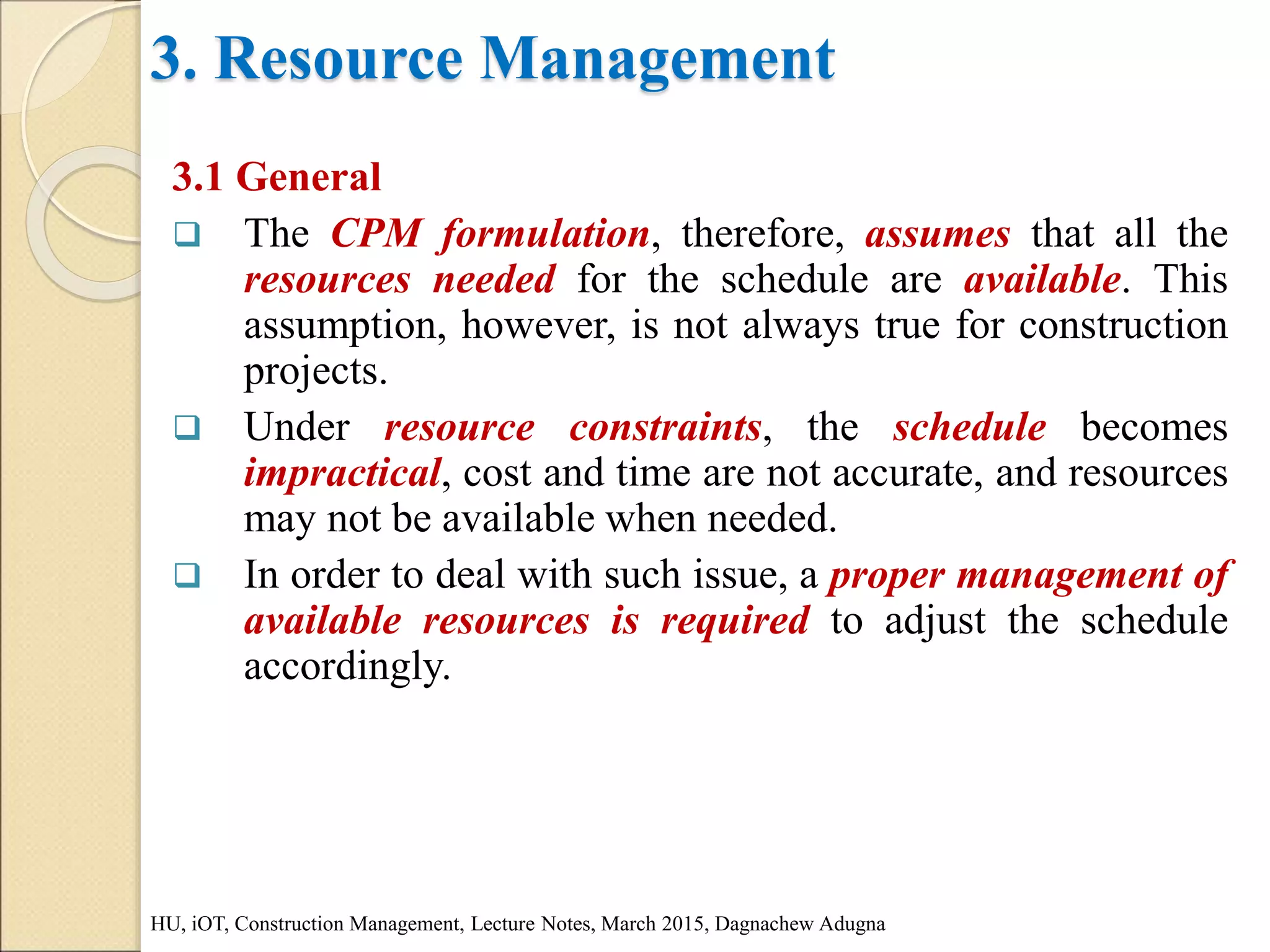

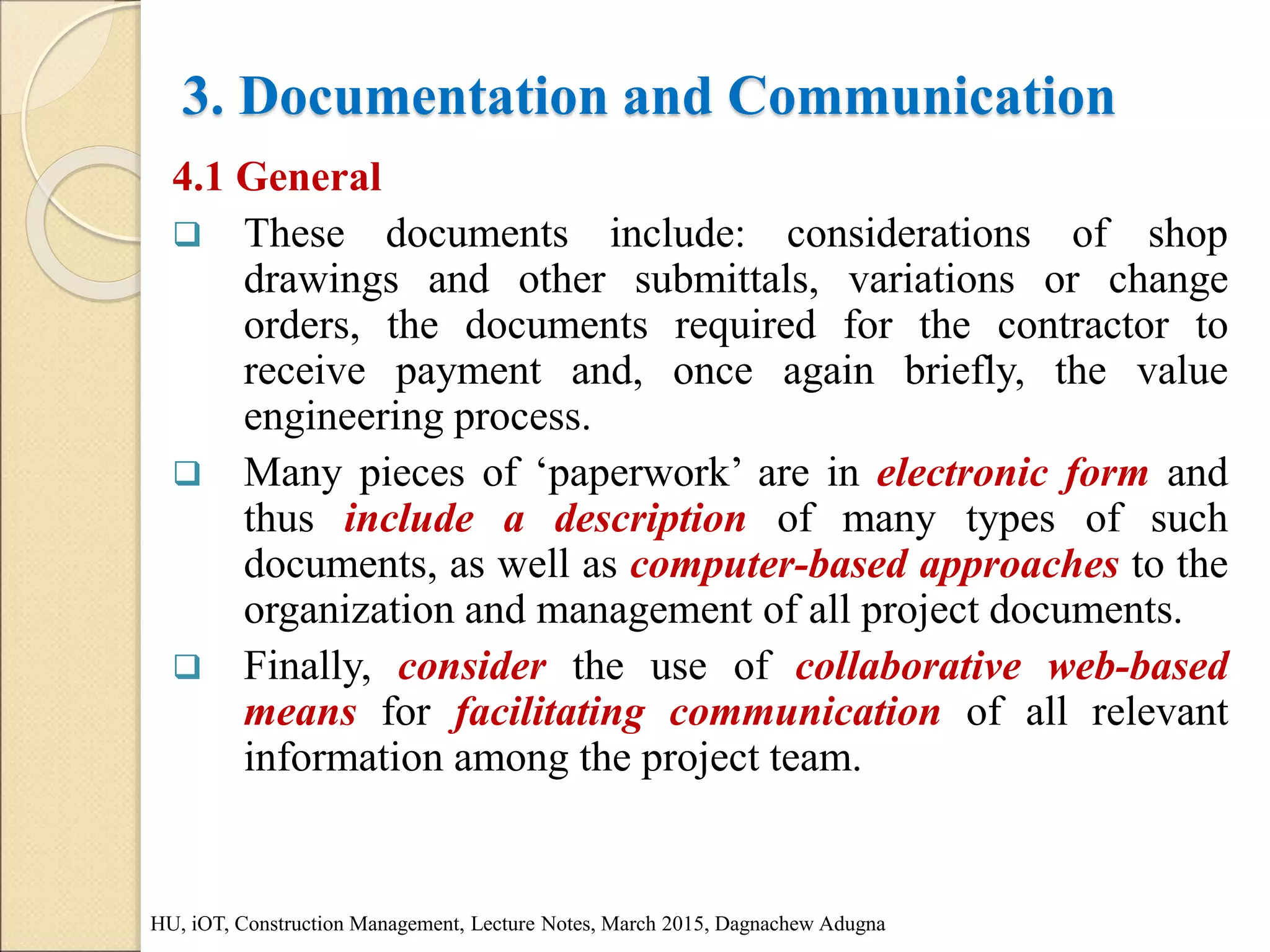

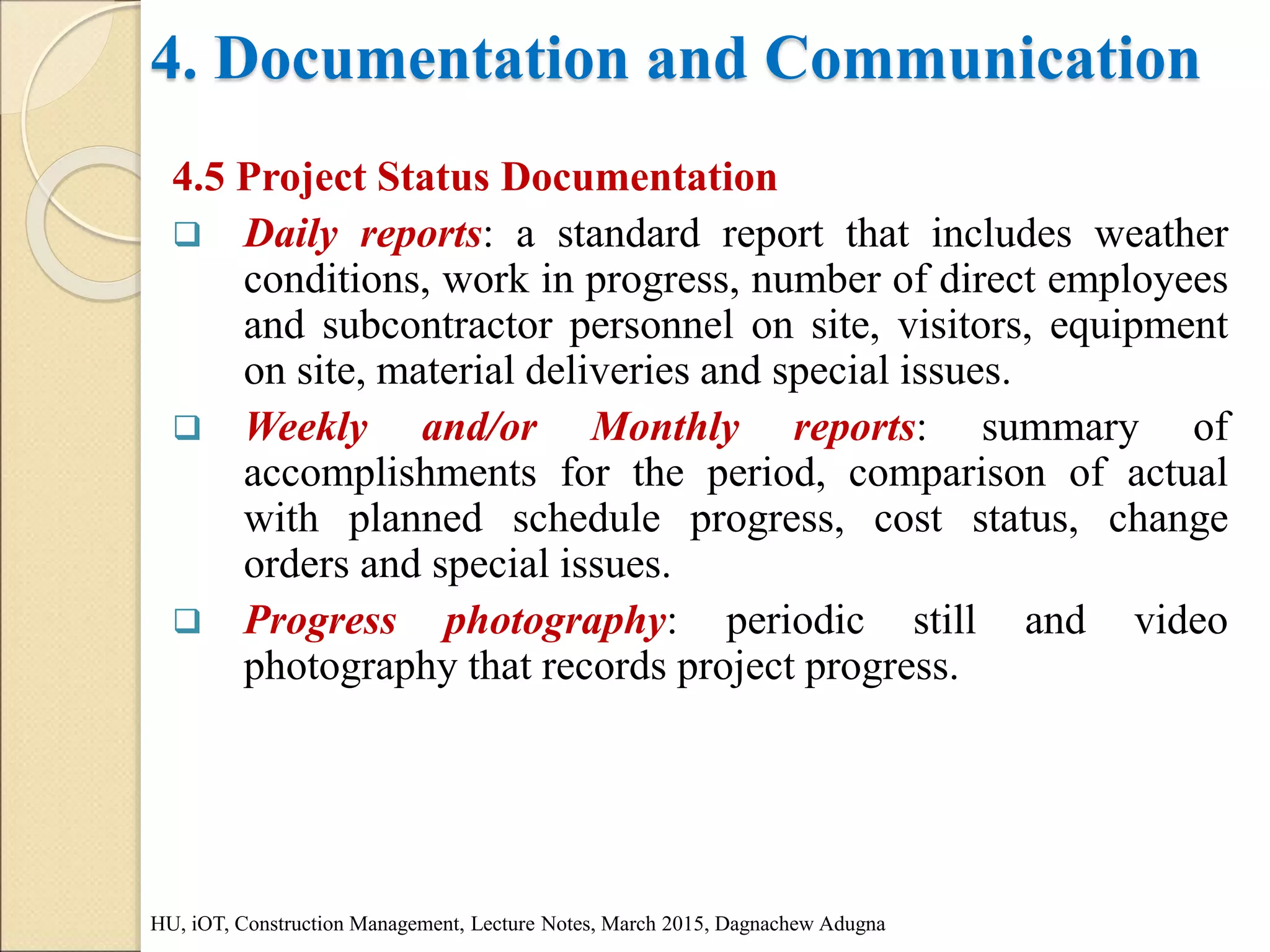

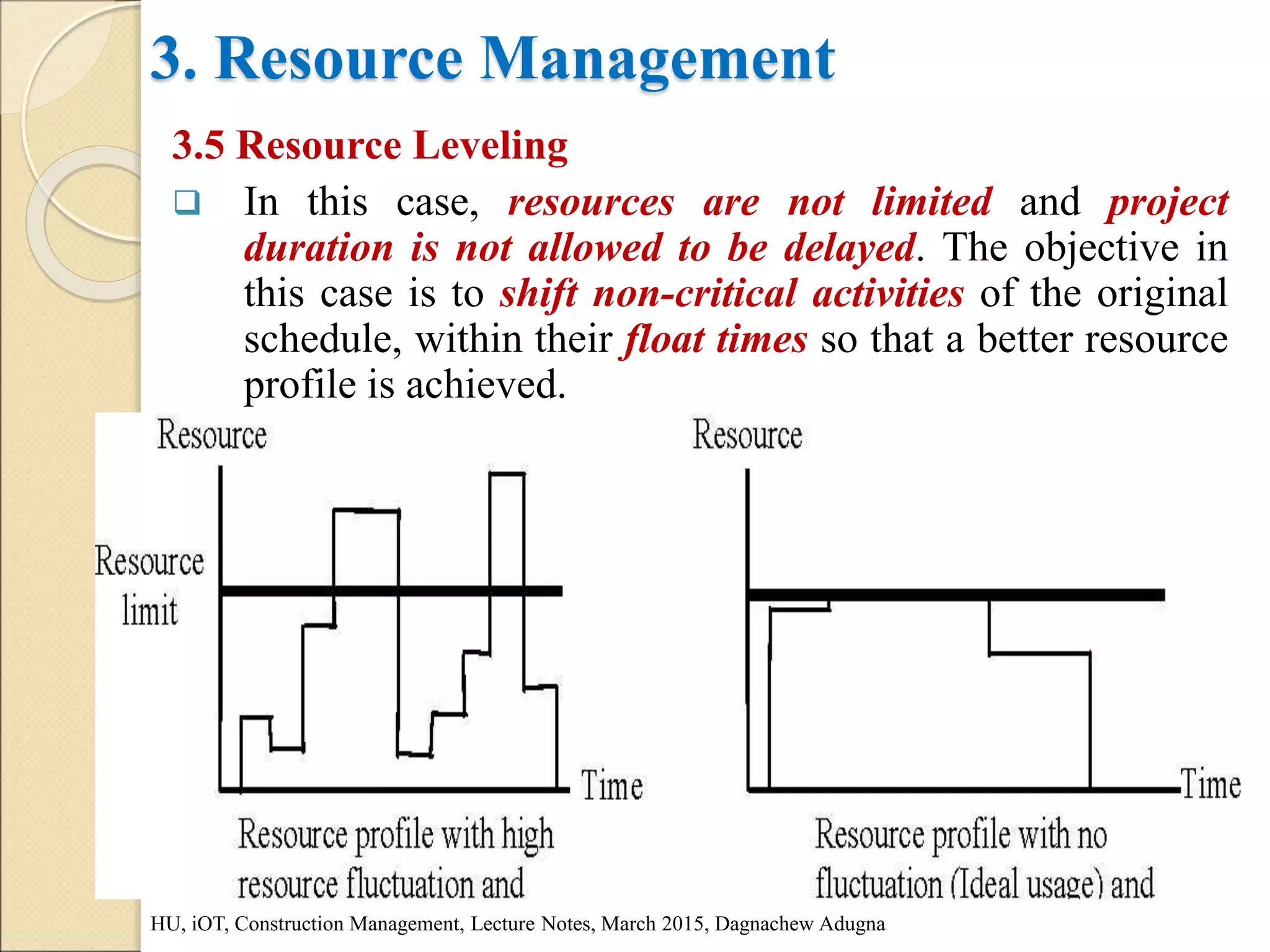

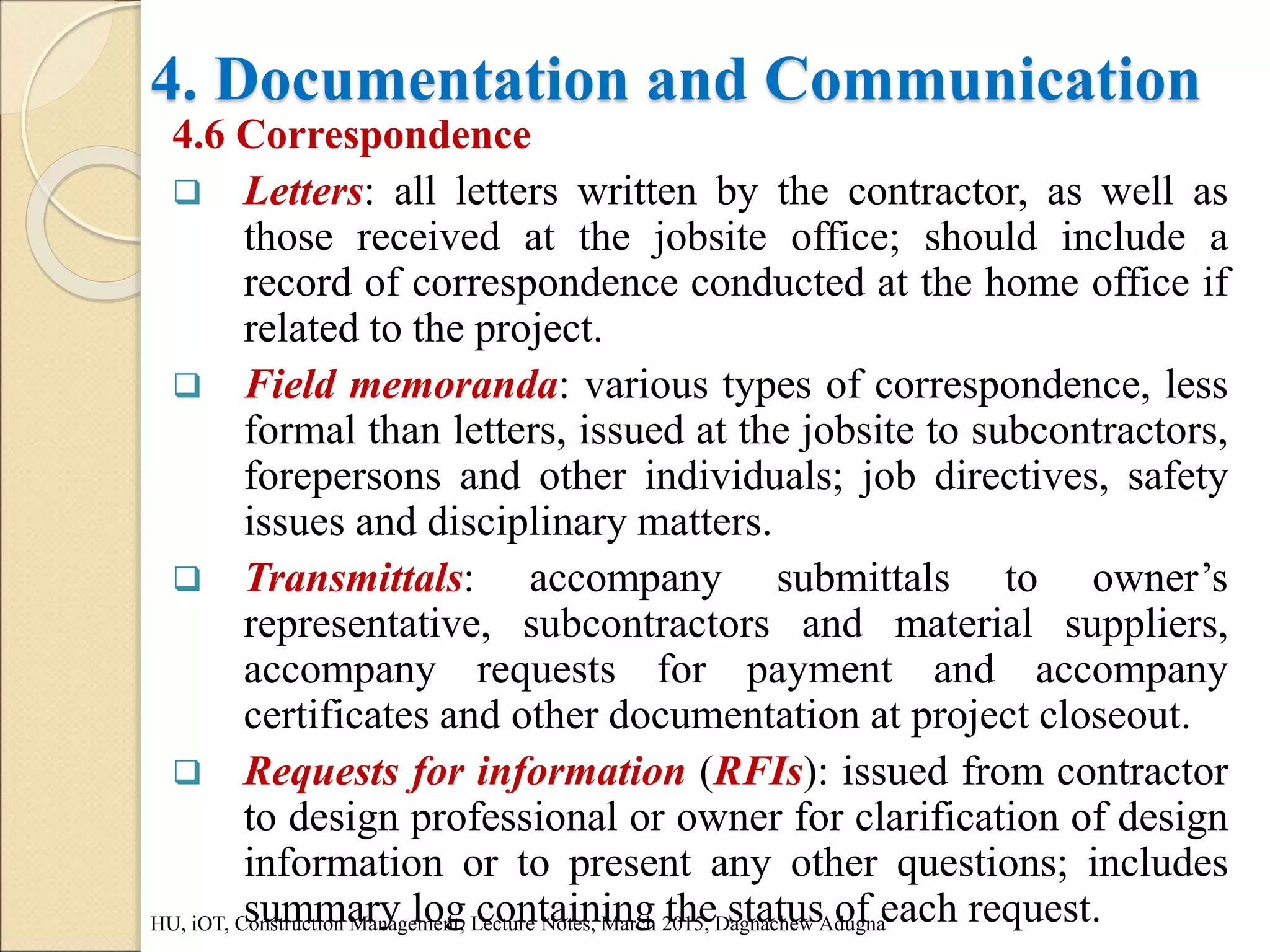

3) Resource management and documentation/communication are also briefly mentioned but not described.
Construction Project Management is an important subject to learn in Civil Engineering.
Significance • As construction involves various activities starting from the design and planning to project completion and quality check, there is a exorbitant need for Management of construction. • Construction Industry plays a crucial role in the economy and development of a nation.
4. Objectives To complete the project in specified time and with allocated budget. To Plan and schedule the work and distribute between various departments. Deployment of personnel in Different tasks. To achieve High quality workmanship. Creating an organisation that works as a team. Using the limited available resources and producing maximum output. Providing safe and satisfactory working conditions for all personnel and workers.
5. Functions: Planning & Scheduling Organizing Staffing Directing Controlling & Co-ordinating
6. Stages of construction Briefing Designing Tendering Construction Commissioning
7. 1) Briefing Stage • This stage consists of framework required for the construction work to take a shape from the ideology of client and feasibility of Project which involves architects, engineers and project manager.
Objectives Developing Alternatives Feasible Solution ? Evaluation of Alternatives Report & Recommendation Technical and non technical Investigations
8. 2) Designing or planning Stage Prepare construction schedule Prepare final cost estimate Prepare Working Drawings and specificati ons Prepare scheme and detailed designs Soil investigations, Topographic investigation, material supply and market surveys etc Carry out Technical Investigations Final adoption of the most suitable summary Finalize Project Summary
Construction Project Management is an important subject to learn in Civil Engineering.
Significance • As construction involves various activities starting from the design and planning to project completion and quality check, there is a exorbitant need for Management of construction. • Construction Industry plays a crucial role in the economy and development of a nation.
4. Objectives To complete the project in specified time and with allocated budget. To Plan and schedule the work and distribute between various departments. Deployment of personnel in Different tasks. To achieve High quality workmanship. Creating an organisation that works as a team. Using the limited available resources and producing maximum output. Providing safe and satisfactory working conditions for all personnel and workers.
5. Functions: Planning & Scheduling Organizing Staffing Directing Controlling & Co-ordinating
6. Stages of construction Briefing Designing Tendering Construction Commissioning
7. 1) Briefing Stage • This stage consists of framework required for the construction work to take a shape from the ideology of client and feasibility of Project which involves architects, engineers and project manager.
Objectives Developing Alternatives Feasible Solution ? Evaluation of Alternatives Report & Recommendation Technical and non technical Investigations
8. 2) Designing or planning Stage Prepare construction schedule Prepare final cost estimate Prepare Working Drawings and specificati ons Prepare scheme and detailed designs Soil investigations, Topographic investigation, material supply and market surveys etc Carry out Technical Investigations Final adoption of the most suitable summary Finalize Project Summary
Primavera p6 18.8 planning and scheduling guide r3Matiwos Tsegaye
This manual is developed to assist construction professional in understanding the basic principles of planning and to guide them how planning is developed using the recent edition Primavera Professional P6 18.8.
Rate analysis and costing - Estimation, Costing and Valuation EngineeringShanmugasundaram N
Standard Data – Observed Data – Schedule of rates – Market rates – Standard Data for Man Hours and Machineries for common civil works – Rate Analysis for all Building works, canals, and Roads– Cost Estimates
Construction Delay Analysis, SimplifiedMichael Pink
Learn how to perform a delay analysis in the construction industry. Capture and study your impacts to determine why a project was late. Use this proven method to ensure that you get paid for delays caused by others.
CONSTRUCTION PROJECT PLANING
WHAT IS CONSTRUCTION PLANNING
5 STEPS TO THE PERFECT CONSTRUCTION PLANNING PROCESS
PRE TENDER PLANNING
PRE CONTRACT PLANNING
ROLE OF CLIENT
ROLE OF CONTRACTOR
PROCESS OF DEVELOPMENT OF PLANS
PLANNING A PROJECT
INTRODUCTION TO SCHEDULING
WORK BREAKDOWN STRUCTURE
BAR CHARTS (GANTT CHARTS)
NETWORK TECHNIQUES
ACTIVITY-ON-ARROW NETWORK
DUMMY ACTIVITIES
DANGLING ACTIVITY
CYCLE IN NETWORK
PRECEDENCE NETWORKS
TIME ESTIMATES
MILESTONES IN PROJECT
TIME ANALYSIS
CRITICAL PATH, SLACK AND FLOAT
NETWORK ANALYSIS AND BAR CHART
WHAT IS NETWORK
PERT / CPM Techniques
TERMS USED IN A NETWORK
RULES OF NETWORK CONSTRUCTION
NETWORK SYMBOLS
On 23 May 2012, McLachlan Lister's Anamaria Popescu made a presentation on "Extensions of Time - Avoiding the Traps or Taking Advantage of Them" in conjunction with well-known Australian law firm Holding Redlich
CONTRACTS, CONTAINING INFORMATION REGARDING NEGOTIATED CONTRACTS WITH ITS TYPES AND INCLUDING PICTURES RELATED WITH TOPICS, COST PLUS PERCENTAGE RATE CONTRACT, MERITS OF THE CONTRACT, DEMERITS OF CONTRACTS, DESCRIPTION ABOUT TTYPES OF NEGOTIATED CONTRACTS, TOPIC IS LINKED WITH CONSTRUCTION AND PLANNING MANAGAGMENT
Construction Managemnt
CONSTRUCTION MANAGERS / LEADERS
CONSTRUCTION MANAGEMENT PROCESS GROUPS
PROJECT MANAGEMENT KNOWLEDGE AREAS
PROJECT MANAGEMENT TRIANGLE
Primavera p6 18.8 planning and scheduling guide r3Matiwos Tsegaye
This manual is developed to assist construction professional in understanding the basic principles of planning and to guide them how planning is developed using the recent edition Primavera Professional P6 18.8.
Rate analysis and costing - Estimation, Costing and Valuation EngineeringShanmugasundaram N
Standard Data – Observed Data – Schedule of rates – Market rates – Standard Data for Man Hours and Machineries for common civil works – Rate Analysis for all Building works, canals, and Roads– Cost Estimates
Construction Delay Analysis, SimplifiedMichael Pink
Learn how to perform a delay analysis in the construction industry. Capture and study your impacts to determine why a project was late. Use this proven method to ensure that you get paid for delays caused by others.
CONSTRUCTION PROJECT PLANING
WHAT IS CONSTRUCTION PLANNING
5 STEPS TO THE PERFECT CONSTRUCTION PLANNING PROCESS
PRE TENDER PLANNING
PRE CONTRACT PLANNING
ROLE OF CLIENT
ROLE OF CONTRACTOR
PROCESS OF DEVELOPMENT OF PLANS
PLANNING A PROJECT
INTRODUCTION TO SCHEDULING
WORK BREAKDOWN STRUCTURE
BAR CHARTS (GANTT CHARTS)
NETWORK TECHNIQUES
ACTIVITY-ON-ARROW NETWORK
DUMMY ACTIVITIES
DANGLING ACTIVITY
CYCLE IN NETWORK
PRECEDENCE NETWORKS
TIME ESTIMATES
MILESTONES IN PROJECT
TIME ANALYSIS
CRITICAL PATH, SLACK AND FLOAT
NETWORK ANALYSIS AND BAR CHART
WHAT IS NETWORK
PERT / CPM Techniques
TERMS USED IN A NETWORK
RULES OF NETWORK CONSTRUCTION
NETWORK SYMBOLS
On 23 May 2012, McLachlan Lister's Anamaria Popescu made a presentation on "Extensions of Time - Avoiding the Traps or Taking Advantage of Them" in conjunction with well-known Australian law firm Holding Redlich
CONTRACTS, CONTAINING INFORMATION REGARDING NEGOTIATED CONTRACTS WITH ITS TYPES AND INCLUDING PICTURES RELATED WITH TOPICS, COST PLUS PERCENTAGE RATE CONTRACT, MERITS OF THE CONTRACT, DEMERITS OF CONTRACTS, DESCRIPTION ABOUT TTYPES OF NEGOTIATED CONTRACTS, TOPIC IS LINKED WITH CONSTRUCTION AND PLANNING MANAGAGMENT
Construction Managemnt
CONSTRUCTION MANAGERS / LEADERS
CONSTRUCTION MANAGEMENT PROCESS GROUPS
PROJECT MANAGEMENT KNOWLEDGE AREAS
PROJECT MANAGEMENT TRIANGLE
Assessment of Project Monitoring and Control Techniques in Ondo State Agency ...Dr. Amarjeet Singh
Monitoring and control is an essential process in
construction project management and delivery. It is
therefore imperative for construction companies to employ
the usage of the most effective monitoring and control
techniques available to meet project objectives. This study
examined project management techniques employed by
Ondo State Agency for Road Maintenance and
Construction, a construction company in Ondo State,
Nigeria.The research design that was used for this study is
the survey method where copies of a well-structured
questionnaire were distributed to elicit appropriate
information from respondents. The results showed
thatthere is a relationship existing between the type of
project monitoring and control technique used by a
construction company and project delivery/success and that
the use of Program Evaluation and Review Technique
(PERT) for time/schedule control and Earned Value
Management (EVM) (alongside other monitoring and
control techniques) for cost control as used by the company
are very effective in meeting set project objectives.Based on
the findings, a number of recommendations were made.
Among these are, that monitoring and control units should
be established withinconstruction companies and welltrained workers/professionals should be put in charge of
handling these units and the techniques and tools used
therein.
INFORMATION SYTEMS 3
Part-3: Mr. and Mrs. Rodgers House (House construction)
BUDGET AND RISK MANAGEMENT
1.0.
Overall Project Budget
A technique called Earned Value Management (EVM) compares project performance to the project baseline (Xu et al., 2018). All project managers pursuing Project Management Professional (PMP) certification learn and memorize the earned value calculations. Their application in real life is patchy, though. According to Insight, EVM is among the "critical few" best areas of practice for keeping track of a project's progress from both a schedule and cost standpoint (Vasyunina, 2017). The binary way of thinking about projects is widespread:
· On time versus late
· Over budget versus under budget.
On the project cost, both performance evaluation elements have a significant impact (Chang et al., 2022). If our costs are lower yet we are running late, EVM provides excellent facts of the matter.
Determining Earned Value
Computing EV involves:
· The sum of the up-to-date project budget, known as the planned value (PV)
· Current costs are identical to Actual Cost (AC).
· The project budget is multiplied by the proportion of execution to determine earned value (EV).
Now that we have these numbers, we can start making some computations of:
Schedule Performance Index (SPI) = EV/PV
SPI contrasts actual and anticipated progress. Whenever the SPI value had been than 1.0, fewer tasks were completed than expected. SPI > 1.0 denotes the completion of more work than anticipated.
Determining the CPI:
CPI= AC÷EV
The CPI evaluates the worth of finished work in relation to its true cost. Its score of 1.0 denotes high costs than anticipated. A CPI of greater than one shows that costs remained lower than expected.
For the SPI and CPI, >1 is favorable while 1 is unfavorable.
Remember that;
Subtracting instead of dividing allows you to rapidly determine the difference between the project budget and the timeline. Schedule variance (SV) equals EV-PV, whereas cost variance = EV-AC. You can easily execute the subtraction operation in your head, and in this case, >0 is favorable to 0 in this situation.
Except in the case of SPI or CPI, deviation is reliant on the project's scope. Therefore, we cannot compare it across construction project or across time effectively, as the budget might have changed.
Calculating the Project EAC:
CPI = EAC ÷ Overall Budget
EAC represents the prediction aggregate cost.
In summary:
· Project is halfway to its completion,
· PV = $55,000
· AC= $45,000
The calculations are as follows:
EV=100,000 ×1/2
=$50,000
SV =EV-PV
Where EV=50,000 and PV=55,000
Therefore, SP= 50,000-55,000
=-$5000
In this case, the value of SP is -$5,000, which is unfavorable for our project because it is less than 0.
SPI = EV/PV
Thus;
SP1=50,000 ÷55,000
= $0.91
However, the SPI value is less than.
Overview of the fundamental roles in Hydropower generation and the components involved in wider Electrical Engineering.
This paper presents the design and construction of hydroelectric dams from the hydrologist’s survey of the valley before construction, all aspects and involved disciplines, fluid dynamics, structural engineering, generation and mains frequency regulation to the very transmission of power through the network in the United Kingdom.
Author: Robbie Edward Sayers
Collaborators and co editors: Charlie Sims and Connor Healey.
(C) 2024 Robbie E. Sayers
Industrial Training at Shahjalal Fertilizer Company Limited (SFCL)MdTanvirMahtab2
This presentation is about the working procedure of Shahjalal Fertilizer Company Limited (SFCL). A Govt. owned Company of Bangladesh Chemical Industries Corporation under Ministry of Industries.
Immunizing Image Classifiers Against Localized Adversary Attacksgerogepatton
This paper addresses the vulnerability of deep learning models, particularly convolutional neural networks
(CNN)s, to adversarial attacks and presents a proactive training technique designed to counter them. We
introduce a novel volumization algorithm, which transforms 2D images into 3D volumetric representations.
When combined with 3D convolution and deep curriculum learning optimization (CLO), itsignificantly improves
the immunity of models against localized universal attacks by up to 40%. We evaluate our proposed approach
using contemporary CNN architectures and the modified Canadian Institute for Advanced Research (CIFAR-10
and CIFAR-100) and ImageNet Large Scale Visual Recognition Challenge (ILSVRC12) datasets, showcasing
accuracy improvements over previous techniques. The results indicate that the combination of the volumetric
input and curriculum learning holds significant promise for mitigating adversarial attacks without necessitating
adversary training.
Water scarcity is the lack of fresh water resources to meet the standard water demand. There are two type of water scarcity. One is physical. The other is economic water scarcity.
Cosmetic shop management system project report.pdfKamal Acharya
Buying new cosmetic products is difficult. It can even be scary for those who have sensitive skin and are prone to skin trouble. The information needed to alleviate this problem is on the back of each product, but it's thought to interpret those ingredient lists unless you have a background in chemistry.
Instead of buying and hoping for the best, we can use data science to help us predict which products may be good fits for us. It includes various function programs to do the above mentioned tasks.
Data file handling has been effectively used in the program.
The automated cosmetic shop management system should deal with the automation of general workflow and administration process of the shop. The main processes of the system focus on customer's request where the system is able to search the most appropriate products and deliver it to the customers. It should help the employees to quickly identify the list of cosmetic product that have reached the minimum quantity and also keep a track of expired date for each cosmetic product. It should help the employees to find the rack number in which the product is placed.It is also Faster and more efficient way.
Hierarchical Digital Twin of a Naval Power SystemKerry Sado
A hierarchical digital twin of a Naval DC power system has been developed and experimentally verified. Similar to other state-of-the-art digital twins, this technology creates a digital replica of the physical system executed in real-time or faster, which can modify hardware controls. However, its advantage stems from distributing computational efforts by utilizing a hierarchical structure composed of lower-level digital twin blocks and a higher-level system digital twin. Each digital twin block is associated with a physical subsystem of the hardware and communicates with a singular system digital twin, which creates a system-level response. By extracting information from each level of the hierarchy, power system controls of the hardware were reconfigured autonomously. This hierarchical digital twin development offers several advantages over other digital twins, particularly in the field of naval power systems. The hierarchical structure allows for greater computational efficiency and scalability while the ability to autonomously reconfigure hardware controls offers increased flexibility and responsiveness. The hierarchical decomposition and models utilized were well aligned with the physical twin, as indicated by the maximum deviations between the developed digital twin hierarchy and the hardware.
Explore the innovative world of trenchless pipe repair with our comprehensive guide, "The Benefits and Techniques of Trenchless Pipe Repair." This document delves into the modern methods of repairing underground pipes without the need for extensive excavation, highlighting the numerous advantages and the latest techniques used in the industry.
Learn about the cost savings, reduced environmental impact, and minimal disruption associated with trenchless technology. Discover detailed explanations of popular techniques such as pipe bursting, cured-in-place pipe (CIPP) lining, and directional drilling. Understand how these methods can be applied to various types of infrastructure, from residential plumbing to large-scale municipal systems.
Ideal for homeowners, contractors, engineers, and anyone interested in modern plumbing solutions, this guide provides valuable insights into why trenchless pipe repair is becoming the preferred choice for pipe rehabilitation. Stay informed about the latest advancements and best practices in the field.
NO1 Uk best vashikaran specialist in delhi vashikaran baba near me online vas...Amil Baba Dawood bangali
Contact with Dawood Bhai Just call on +92322-6382012 and we'll help you. We'll solve all your problems within 12 to 24 hours and with 101% guarantee and with astrology systematic. If you want to take any personal or professional advice then also you can call us on +92322-6382012 , ONLINE LOVE PROBLEM & Other all types of Daily Life Problem's.Then CALL or WHATSAPP us on +92322-6382012 and Get all these problems solutions here by Amil Baba DAWOOD BANGALI
#vashikaranspecialist #astrologer #palmistry #amliyaat #taweez #manpasandshadi #horoscope #spiritual #lovelife #lovespell #marriagespell#aamilbabainpakistan #amilbabainkarachi #powerfullblackmagicspell #kalajadumantarspecialist #realamilbaba #AmilbabainPakistan #astrologerincanada #astrologerindubai #lovespellsmaster #kalajaduspecialist #lovespellsthatwork #aamilbabainlahore#blackmagicformarriage #aamilbaba #kalajadu #kalailam #taweez #wazifaexpert #jadumantar #vashikaranspecialist #astrologer #palmistry #amliyaat #taweez #manpasandshadi #horoscope #spiritual #lovelife #lovespell #marriagespell#aamilbabainpakistan #amilbabainkarachi #powerfullblackmagicspell #kalajadumantarspecialist #realamilbaba #AmilbabainPakistan #astrologerincanada #astrologerindubai #lovespellsmaster #kalajaduspecialist #lovespellsthatwork #aamilbabainlahore #blackmagicforlove #blackmagicformarriage #aamilbaba #kalajadu #kalailam #taweez #wazifaexpert #jadumantar #vashikaranspecialist #astrologer #palmistry #amliyaat #taweez #manpasandshadi #horoscope #spiritual #lovelife #lovespell #marriagespell#aamilbabainpakistan #amilbabainkarachi #powerfullblackmagicspell #kalajadumantarspecialist #realamilbaba #AmilbabainPakistan #astrologerincanada #astrologerindubai #lovespellsmaster #kalajaduspecialist #lovespellsthatwork #aamilbabainlahore #Amilbabainuk #amilbabainspain #amilbabaindubai #Amilbabainnorway #amilbabainkrachi #amilbabainlahore #amilbabaingujranwalan #amilbabainislamabad
Planning Of Procurement o different goods and services
Chapter 4 Construction Project Management. Lec 4.ppt
1. COTM 5204: CONSTRUCTION MANAGEMENT
Chapter 4
Construction Project Management
Lecture 4
Dagnachew Adugna
March 2015
School of Civil and Environmental
Engineering

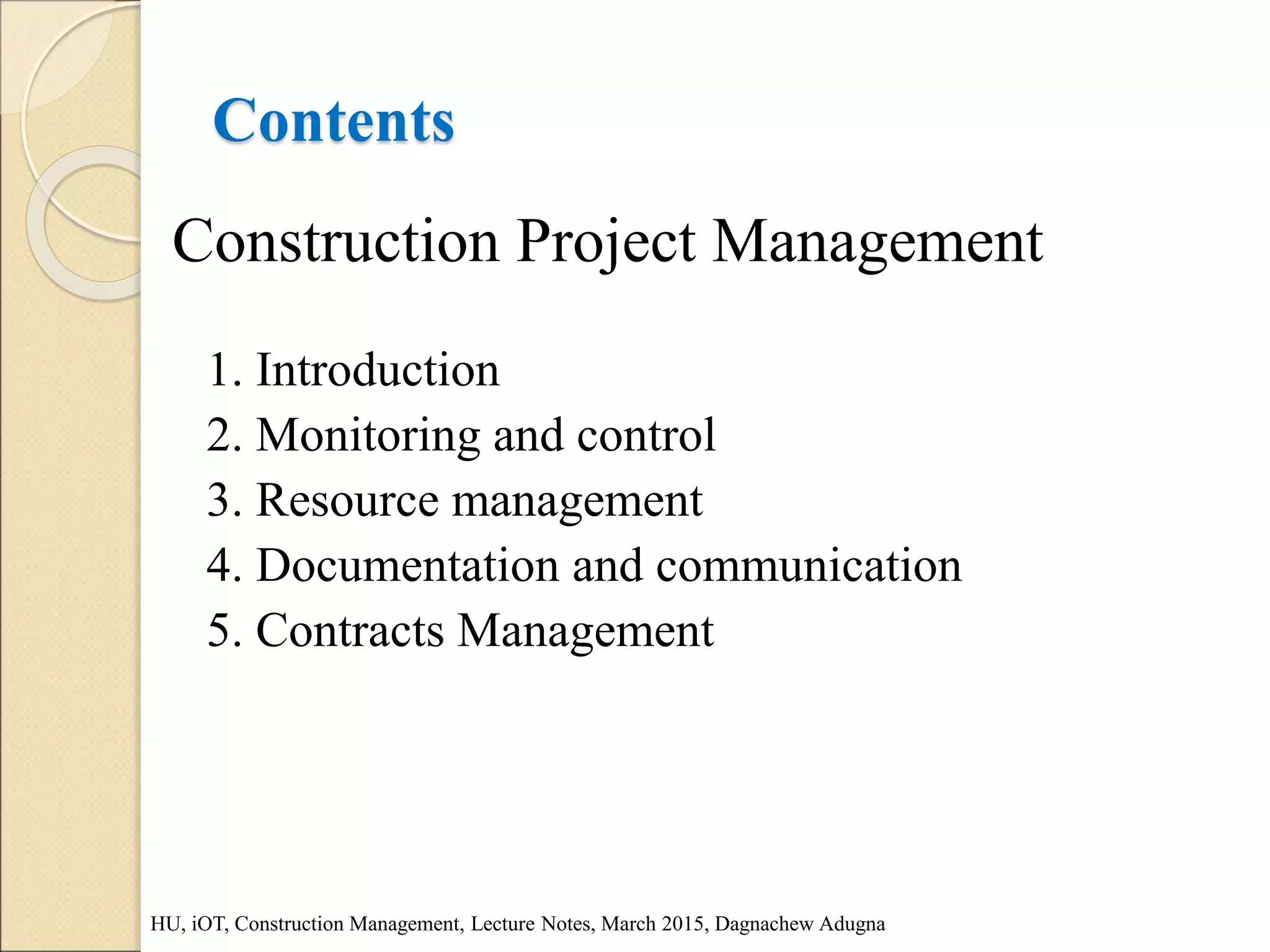

2. Contents
Construction Project Management
1. Introduction

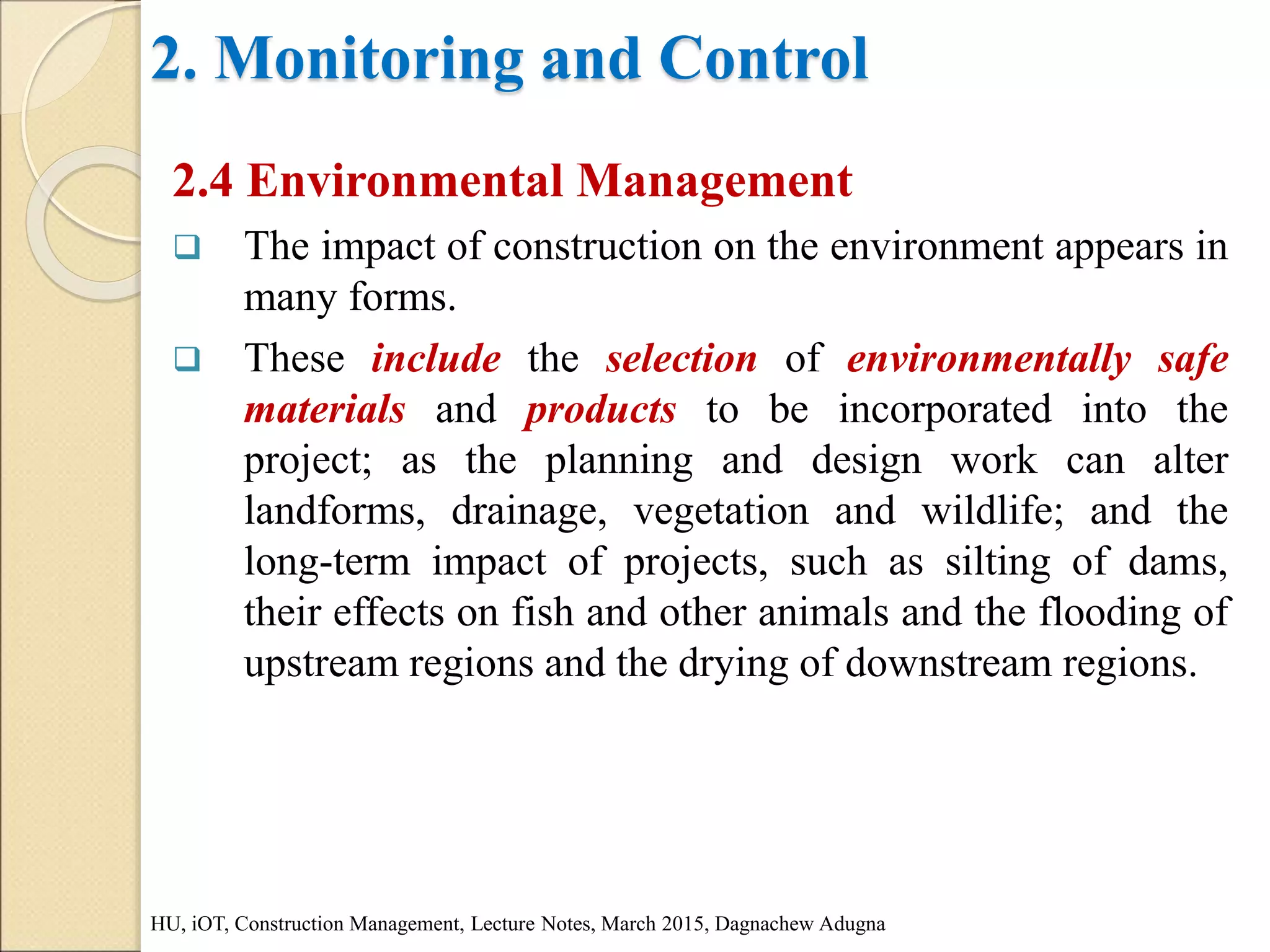

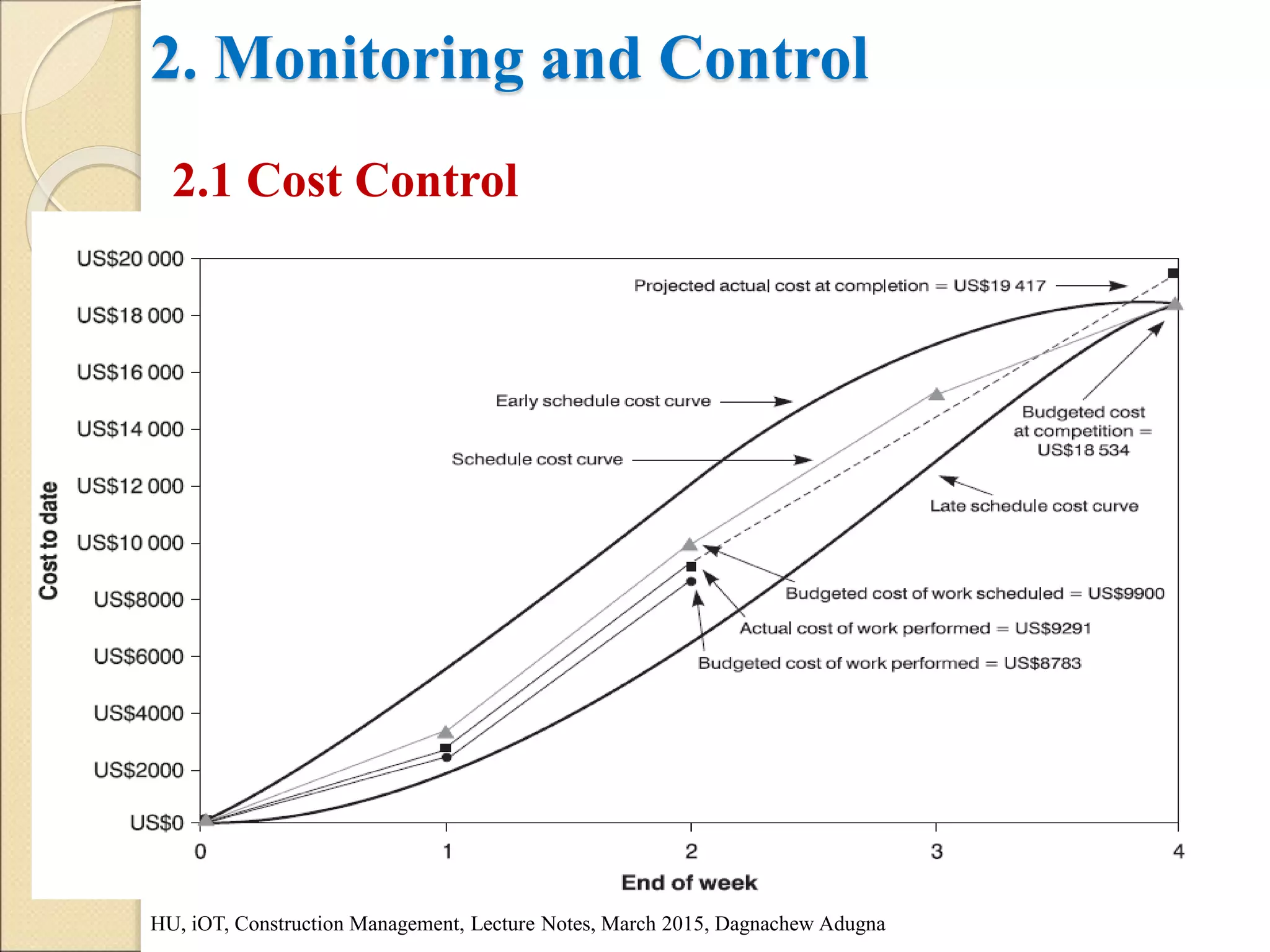

2. Monitoring and control

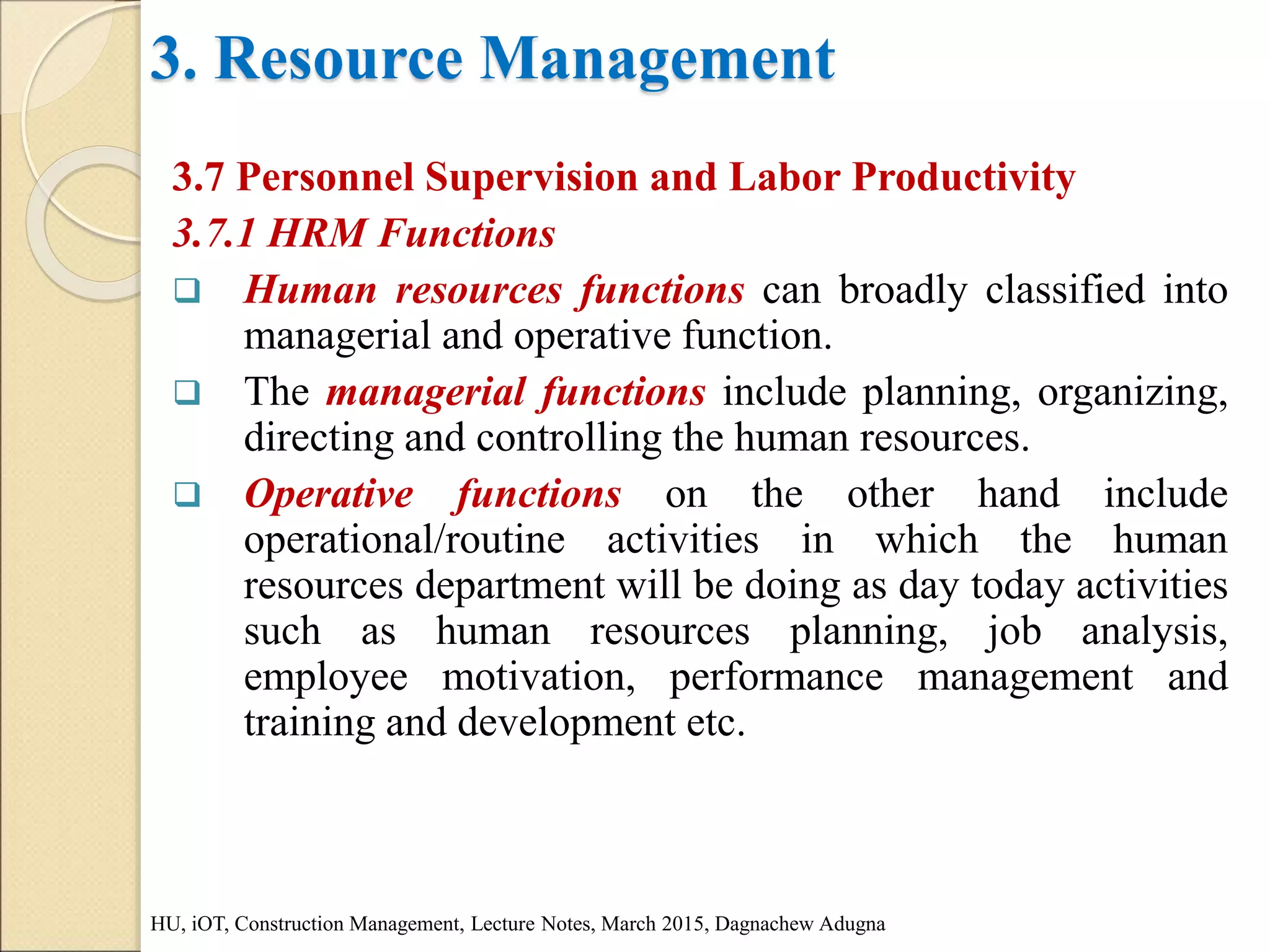

3. Resource management

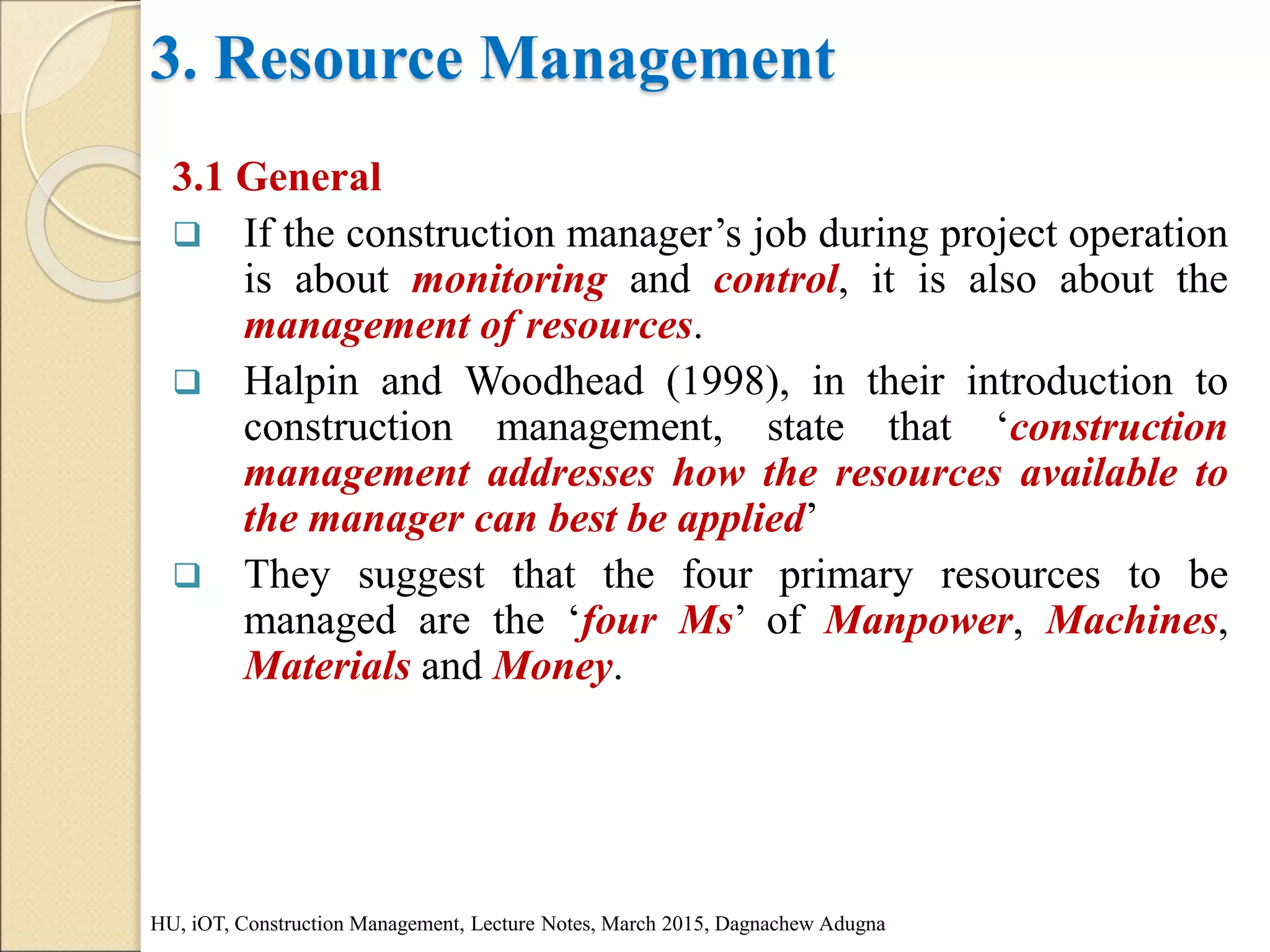

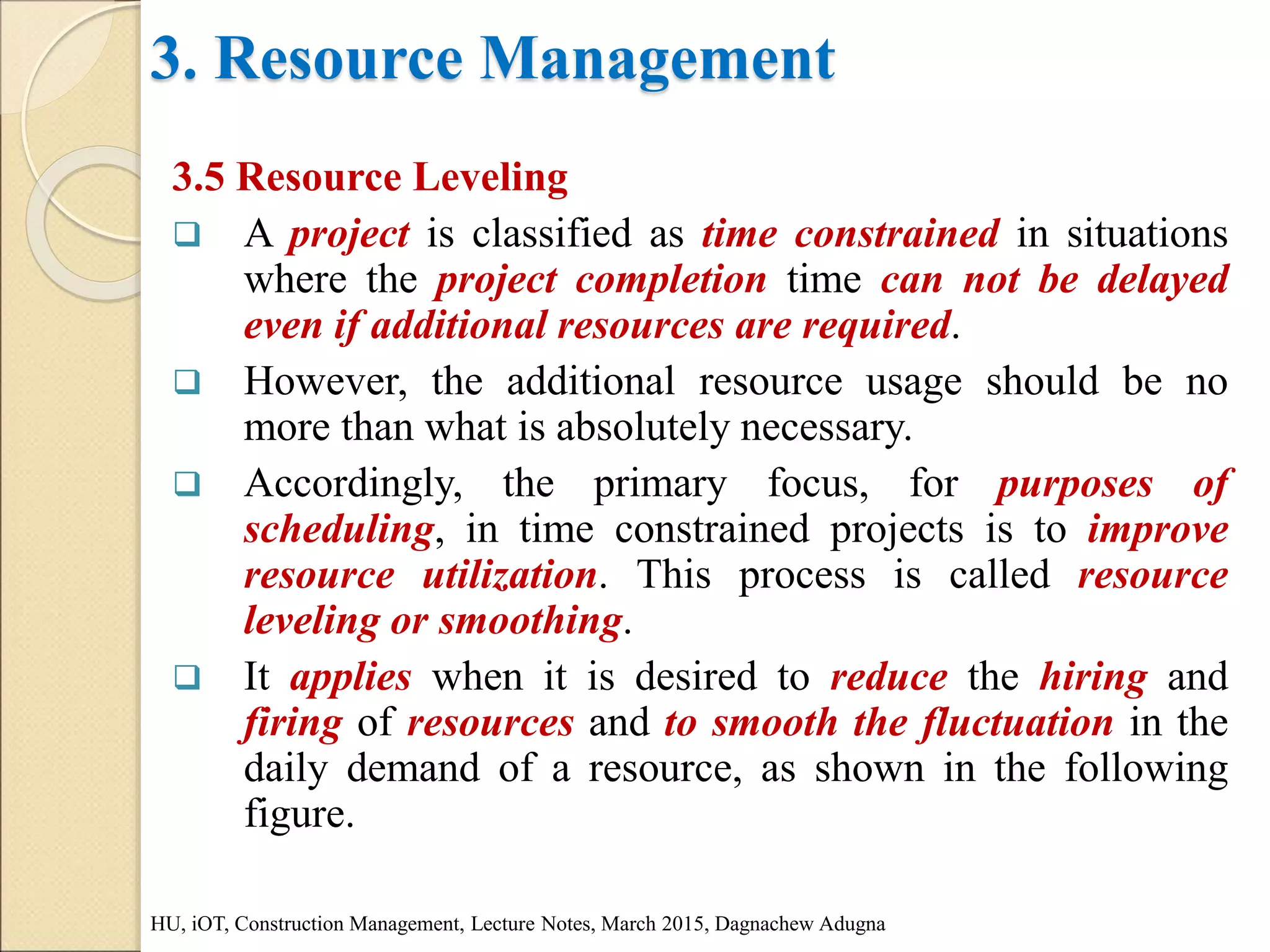

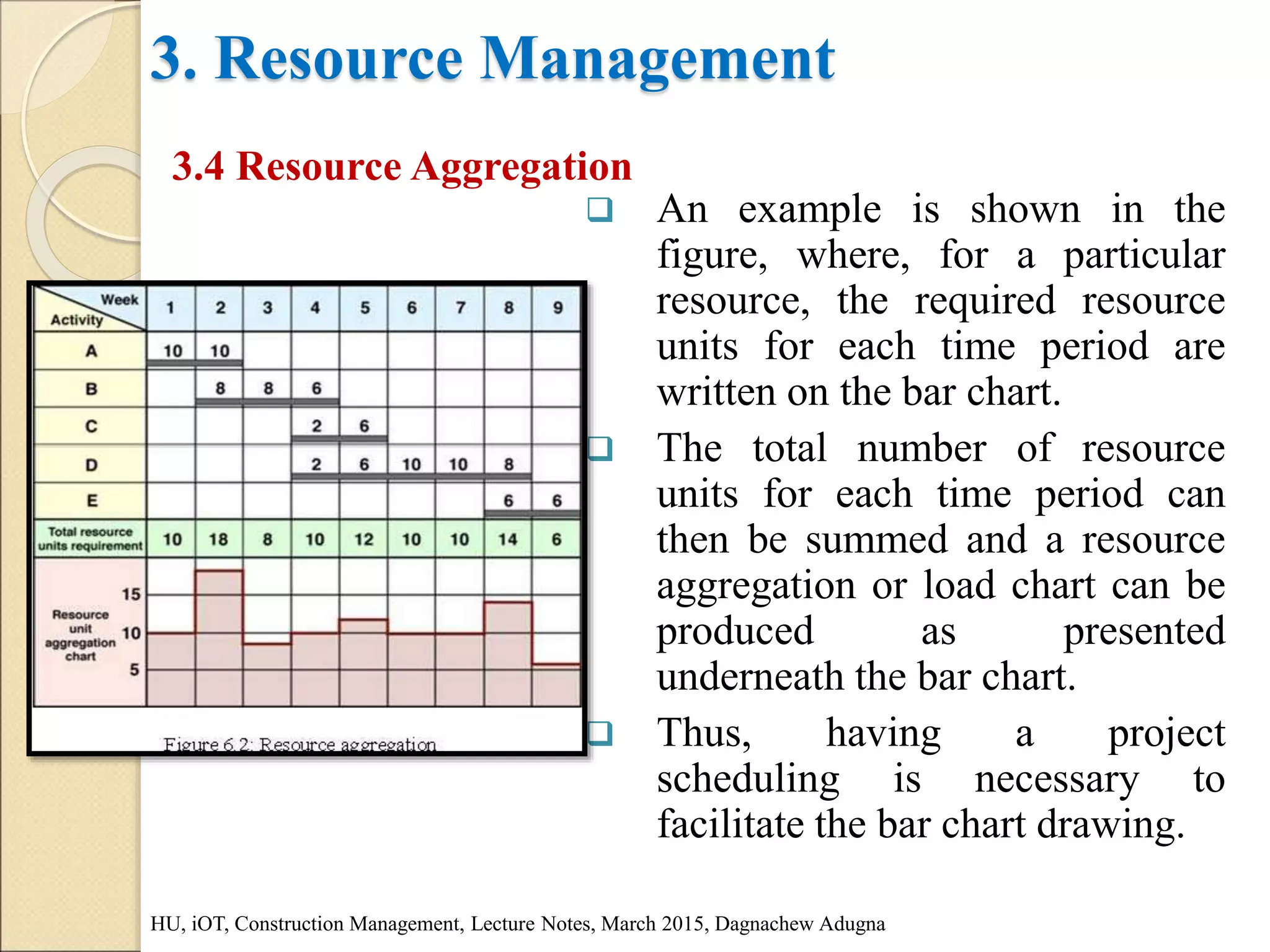

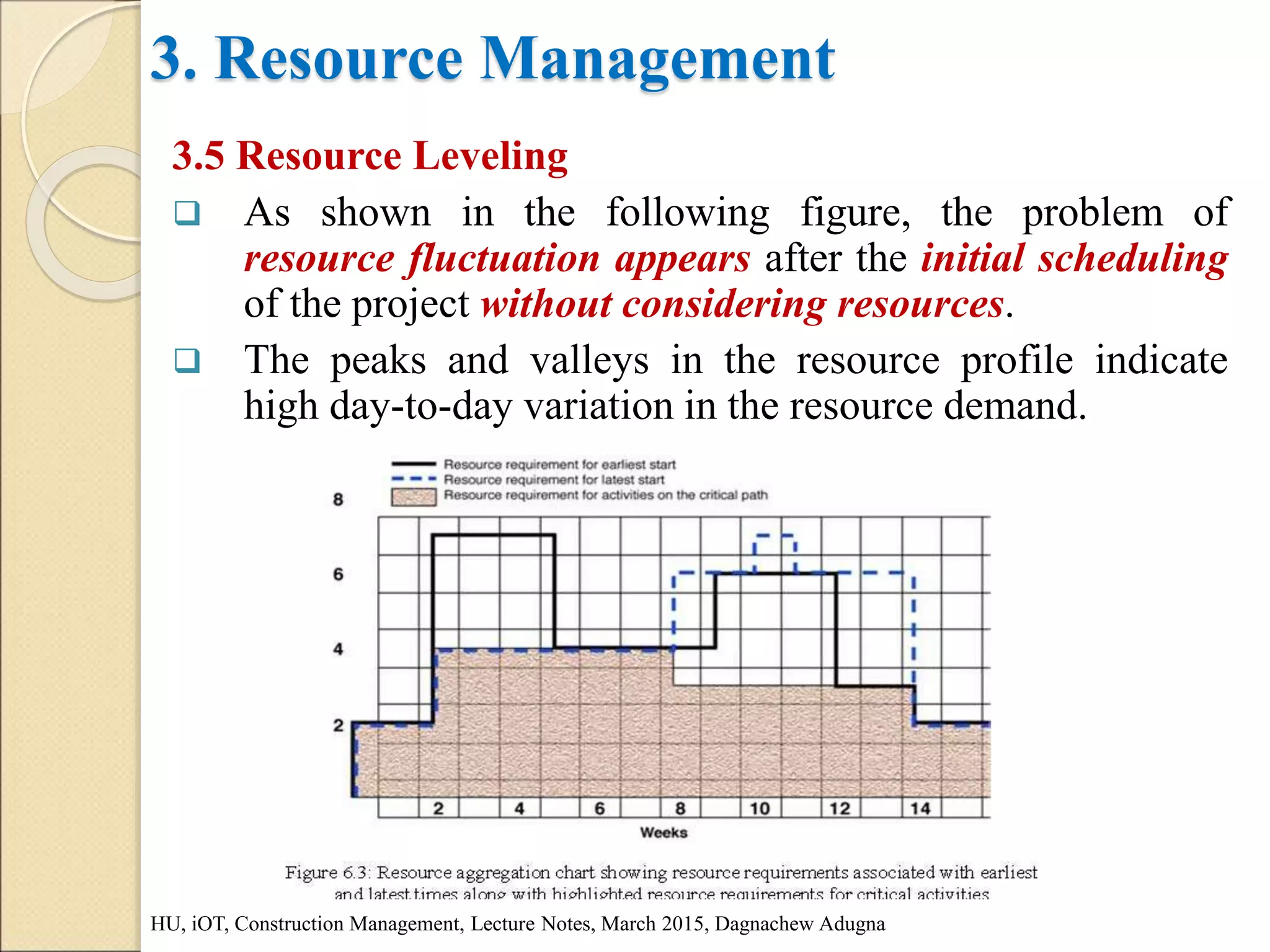

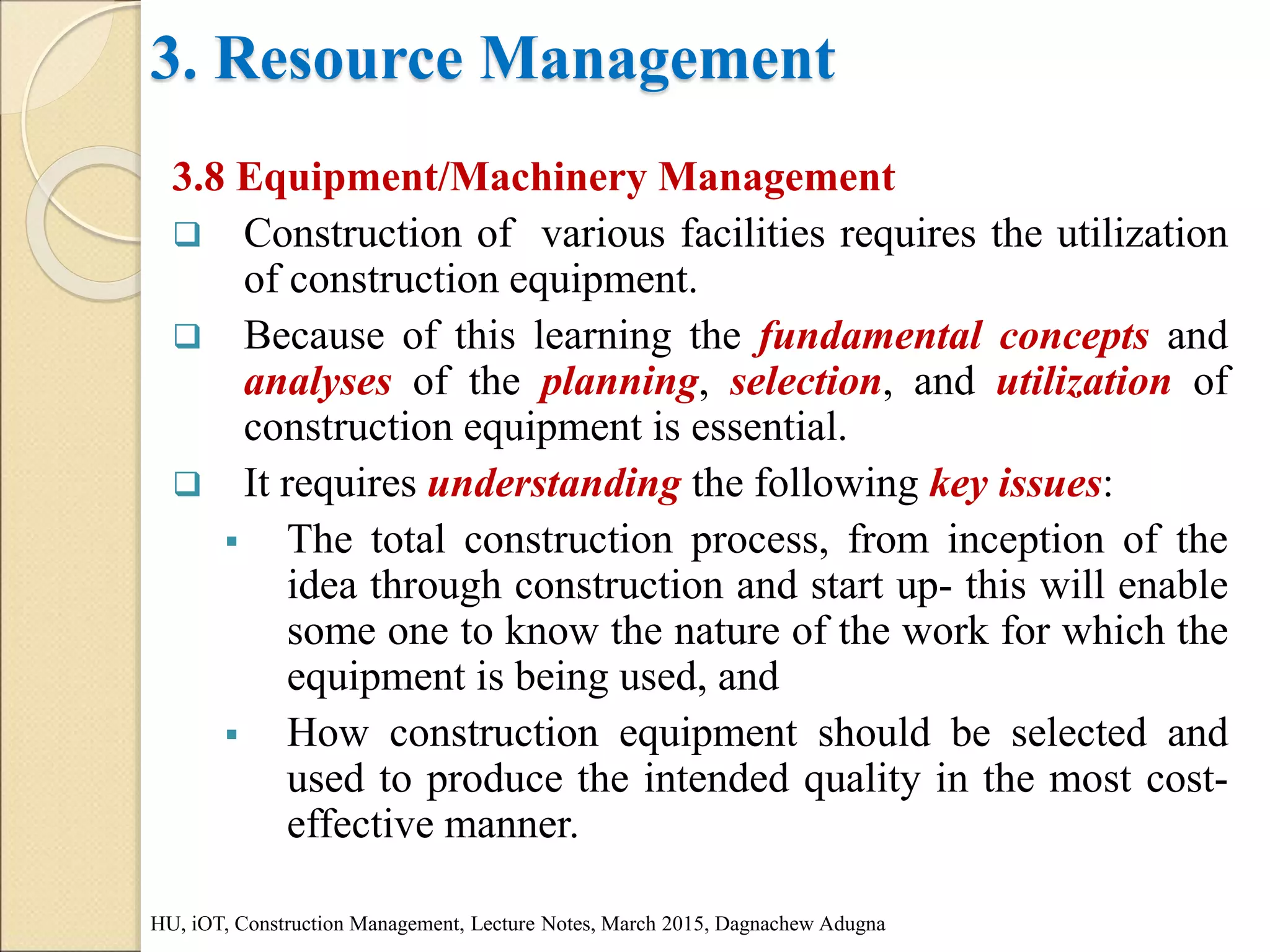

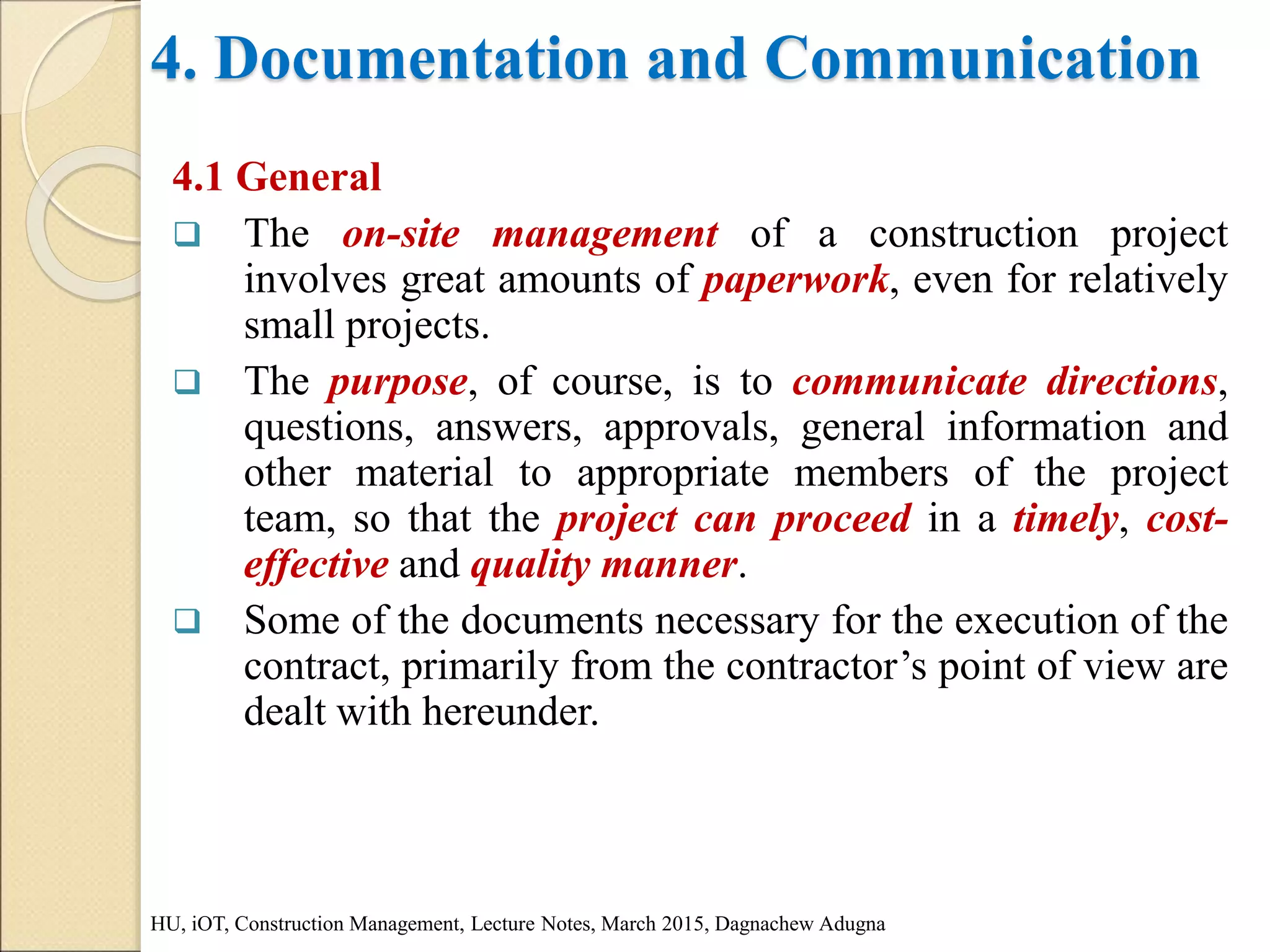

4. Documentation and communication
5. Contracts Management
HU, iOT, Construction Management, Lecture Notes, March 2015, Dagnachew Adugna
3. 1. Introduction
1.1 Mobilization
Mobilization encompass activities that take place
between the award of the construction contract and the
beginning of construction work in the field.
Some of this work may have begun prior to, and in
anticipation of, the award, and much of it will continue
into the days and weeks during which fieldwork is
beginning.
The contractor may be required to make a number of
arrangements for various kinds of ‘paper work’ as part of
the pre-construction mobilization.
Because these requirements vary from project to project
and especially from country to country.
HU, iOT, Construction Management, Lecture Notes, March 2015, Dagnachew Adugna
4. 1. Introduction

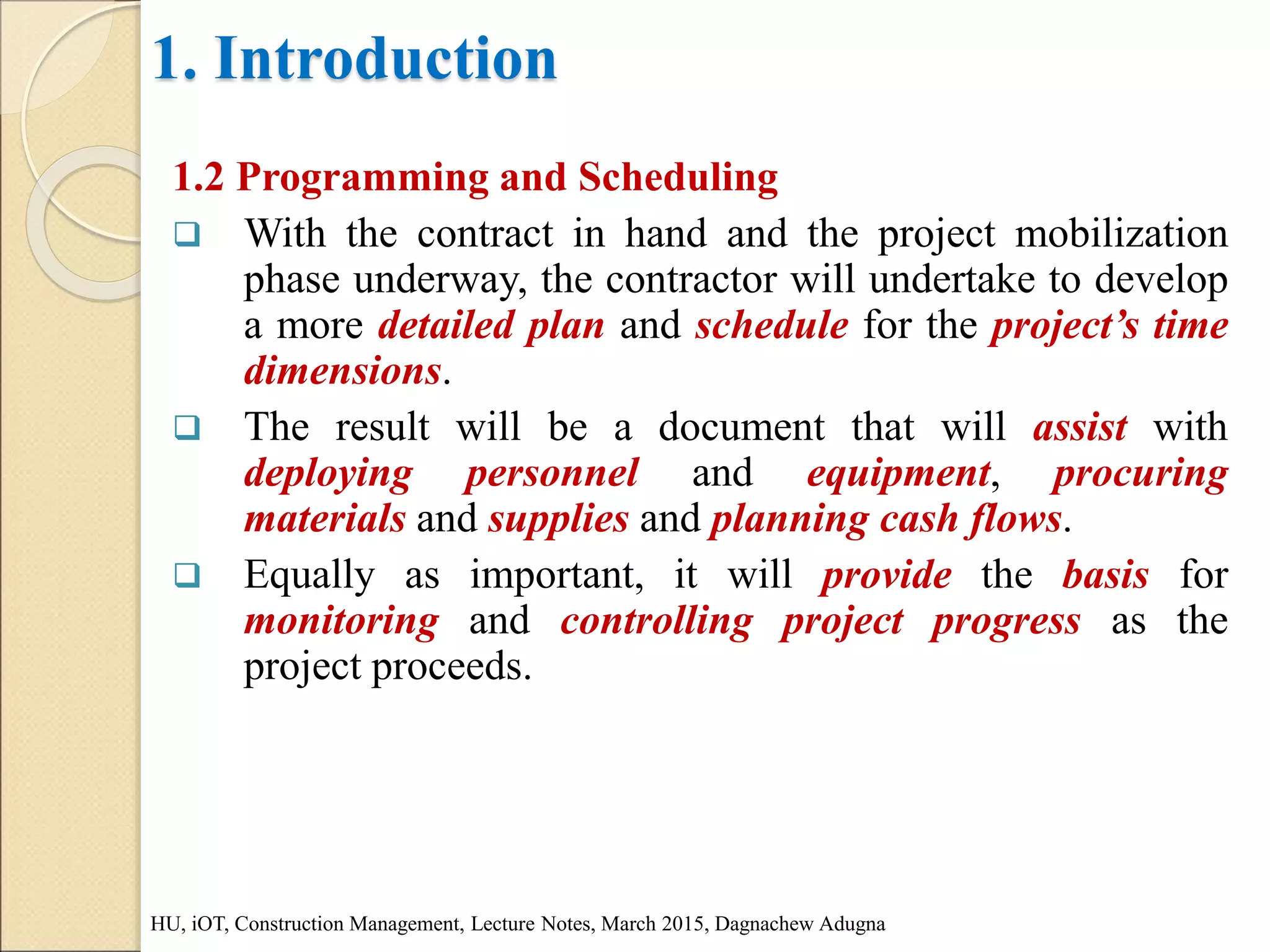

1.2 Programming and Scheduling
With the contract in hand and the project mobilization
phase underway, the contractor will undertake to develop
a more detailed plan and schedule for the project’s time
dimensions.
The result will be a document that will assist with
deploying personnel and equipment, procuring
materials and supplies and planning cash flows.
Equally as important, it will provide the basis for
monitoring and controlling project progress as the
project proceeds.
HU, iOT, Construction Management, Lecture Notes, March 2015, Dagnachew Adugna
5. 1. Introduction

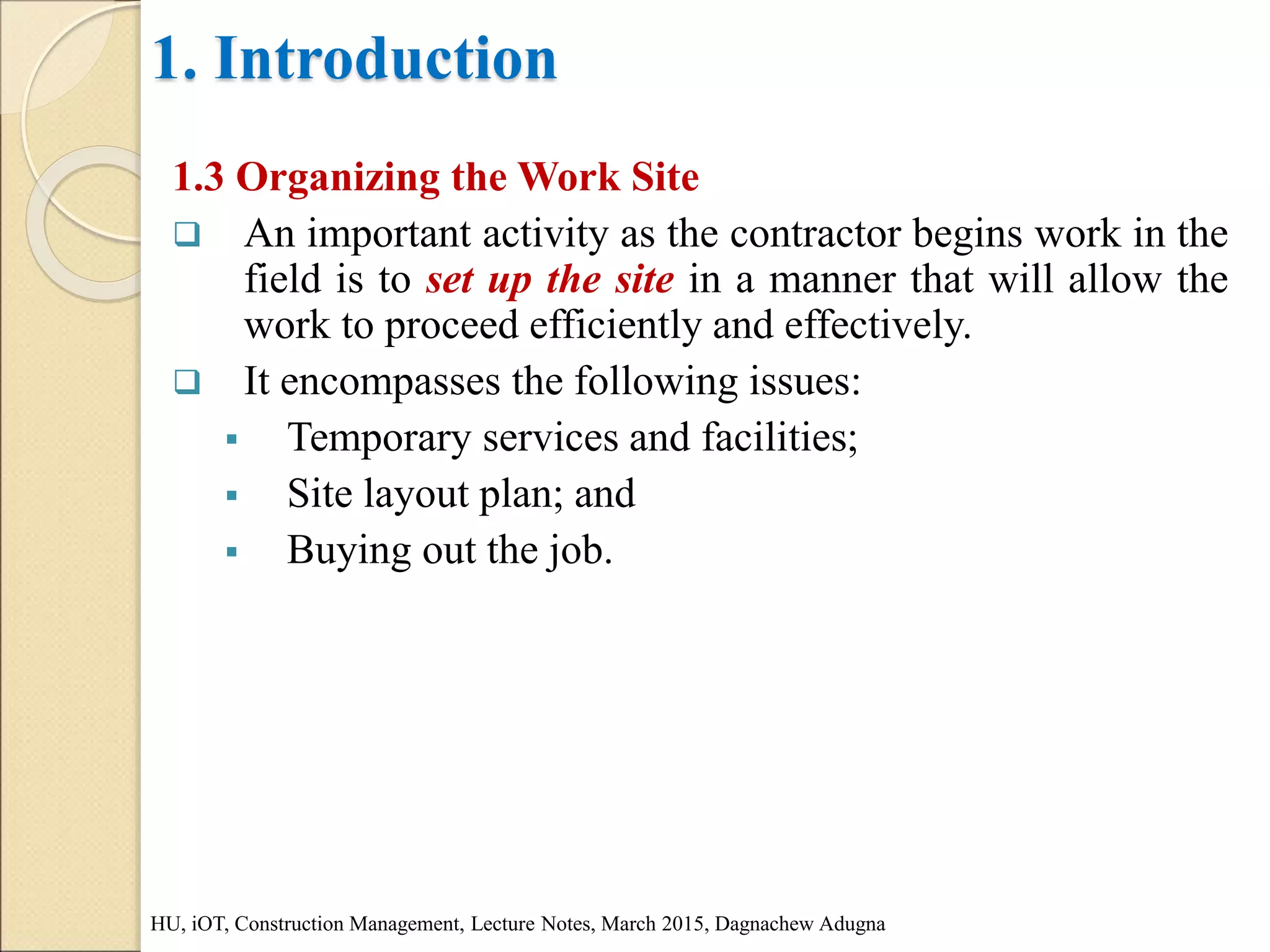

1.3 Organizing the Work Site
An important activity as the contractor begins work in the
field is to set up the site in a manner that will allow the
work to proceed efficiently and effectively.
It encompasses the following issues:
Temporary services and facilities;
Site layout plan; and
Buying out the job.
HU, iOT, Construction Management, Lecture Notes, March 2015, Dagnachew Adugna
6. 1. Introduction
1.3 Organizing the Work Site
1.3.1 Temporary Services and Facilities
The following are among the various temporary services
and facilities that will likely be needed.
Offices,
Workshops and indoor storage,
Temporary housing and food service,
Temporary utilities,
Sanitary facilities,
Medical and first aid facilities,
Access and delivery,
Storage/lay down areas, and
Quarries and borrow areas.
HU, iOT, Construction Management, Lecture Notes, March 2015, Dagnachew Adugna
7. 1. Introduction
1.3 Organizing the Work Site
1.3.2 Site Layout Plan
All of the worksite organization considerations discussed
above will converge in a plan that will be described in
writing and shown on a drawing or series of drawings.
The jobsite layout plan includes the following: jobsite
space allocation, jobsite access, material handling, worker
transportation, temporary facilities, jobsite security etc.
Helpful references for establishing the plan include the
construction documents, the program, technical data on
lifting and conveyance equipment, local codes, safety
standards, size and weights of the large anticipated lifting
loads and information from subcontractors and their
storage needs.
HU, iOT, Construction Management, Lecture Notes, March 2015, Dagnachew Adugna

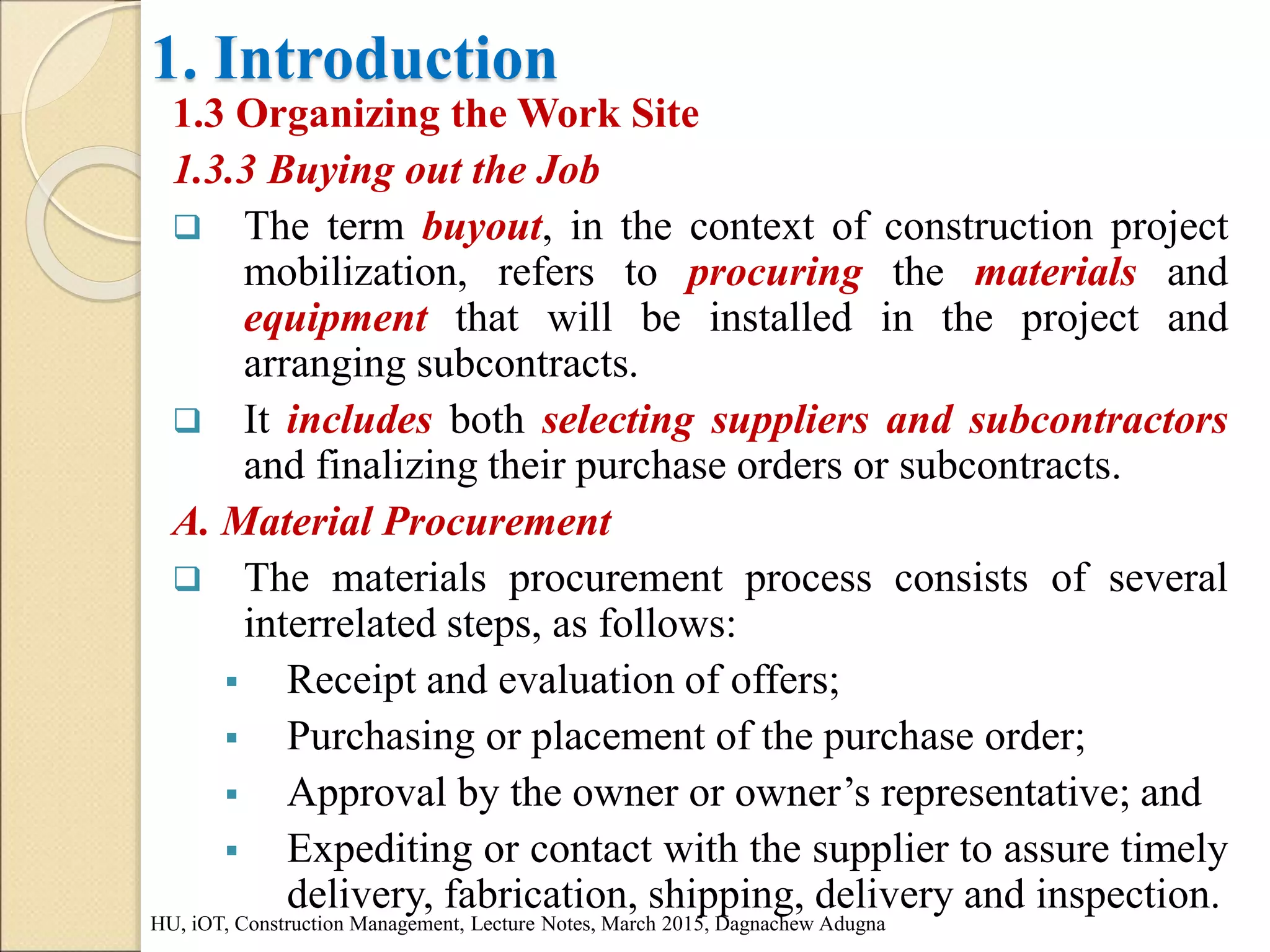

8. 1. Introduction
1.3 Organizing the Work Site
1.3.3 Buying out the Job
The term buyout, in the context of construction project
mobilization, refers to procuring the materials and
equipment that will be installed in the project and
arranging subcontracts.
It includes both selecting suppliers and subcontractors
and finalizing their purchase orders or subcontracts.
A. Material Procurement
The materials procurement process consists of several
interrelated steps, as follows:
Receipt and evaluation of offers;
Purchasing or placement of the purchase order;
Approval by the owner or owner’s representative; and
Expediting or contact with the supplier to assure timely
delivery, fabrication, shipping, delivery and inspection.
HU, iOT, Construction Management, Lecture Notes, March 2015, Dagnachew Adugna
9. 1. Introduction
1.3 Organizing the Work Site
1.3.3 Buying out the Job

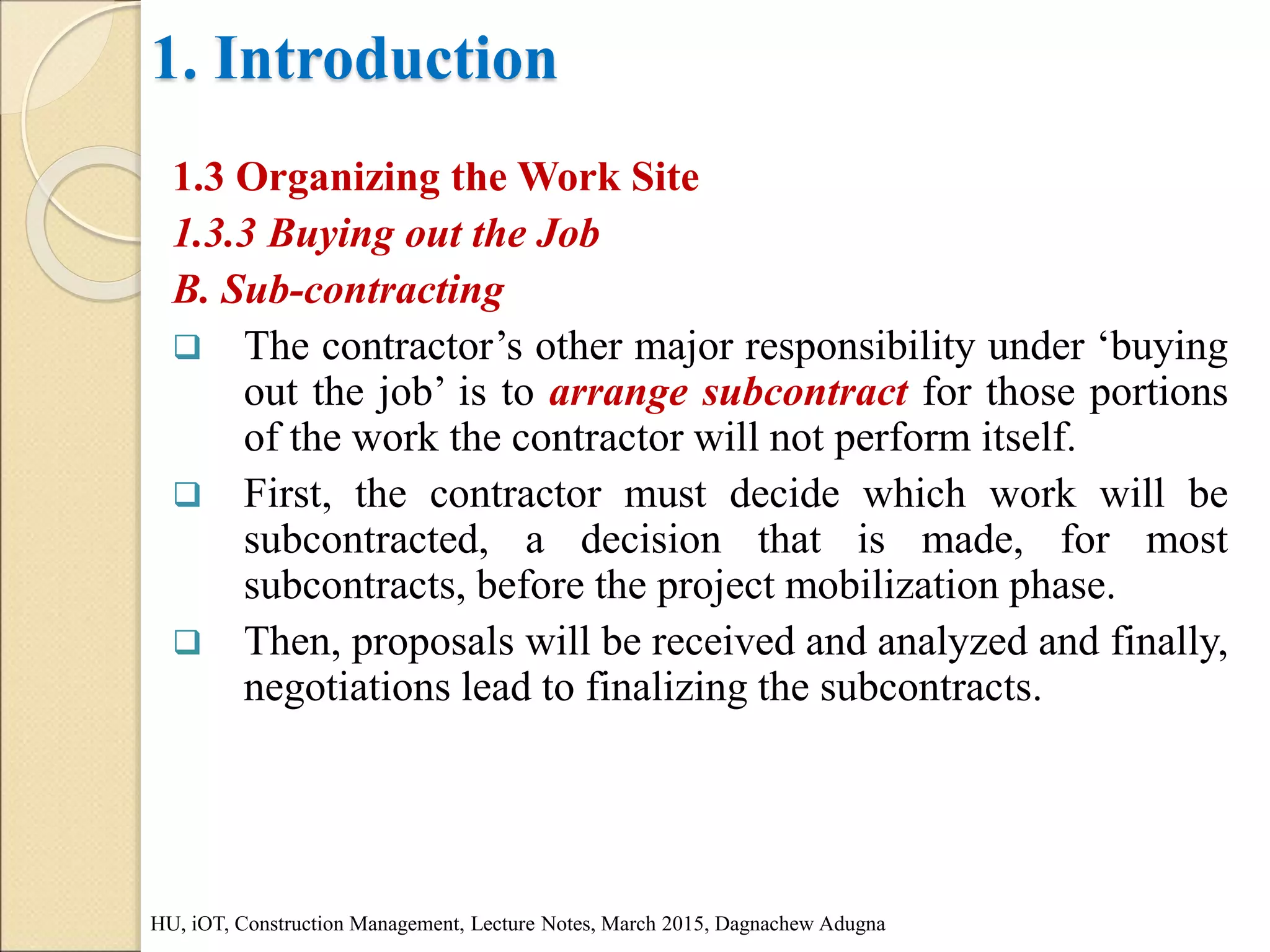

B. Sub-contracting
The contractor’s other major responsibility under ‘buying
out the job’ is to arrange subcontract for those portions
of the work the contractor will not perform itself.
First, the contractor must decide which work will be
subcontracted, a decision that is made, for most
subcontracts, before the project mobilization phase.
Then, proposals will be received and analyzed and finally,
negotiations lead to finalizing the subcontracts.
HU, iOT, Construction Management, Lecture Notes, March 2015, Dagnachew Adugna
10. 1. Introduction

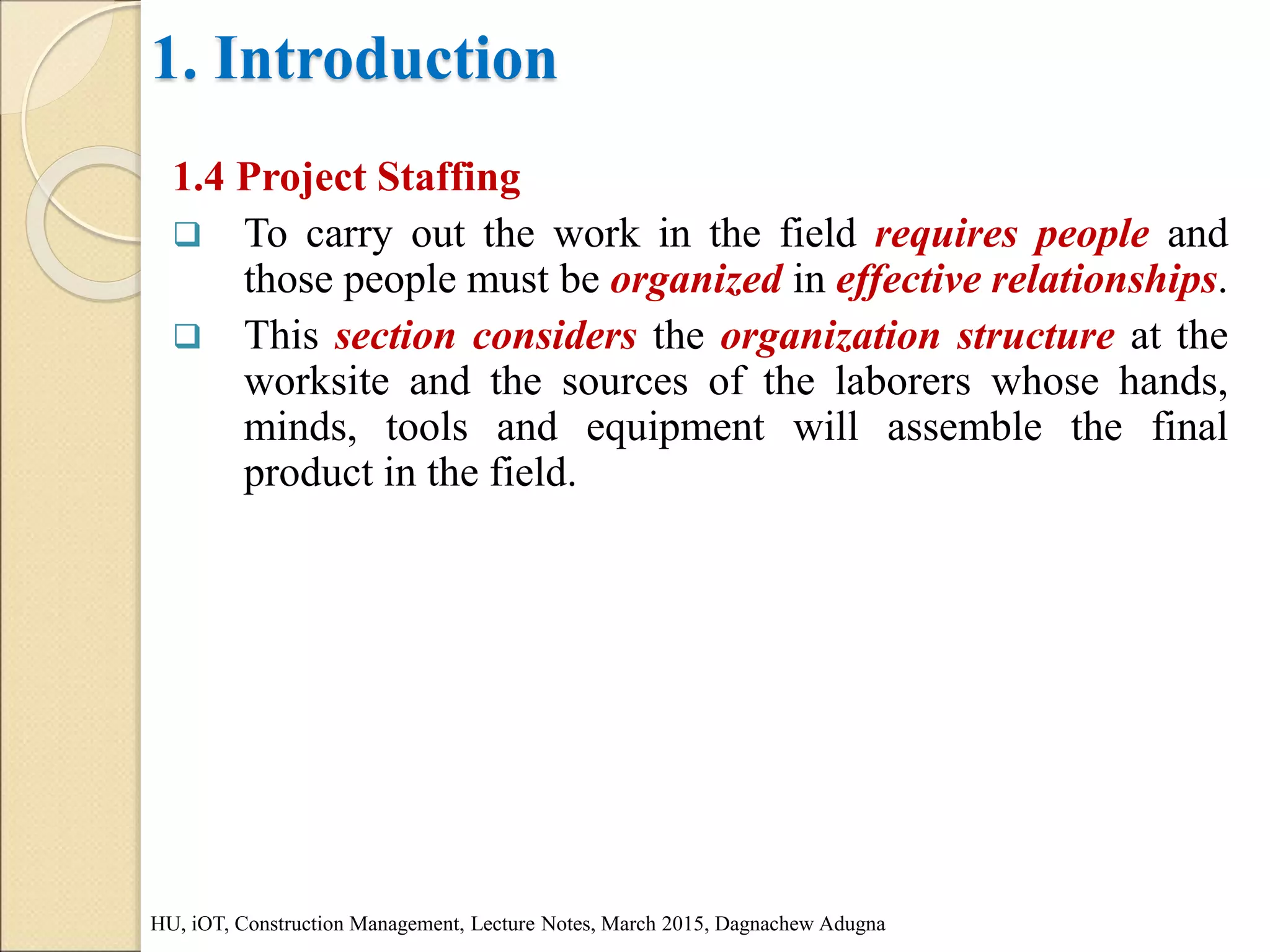

1.4 Project Staffing
To carry out the work in the field requires people and
those people must be organized in effective relationships.
This section considers the organization structure at the
worksite and the sources of the laborers whose hands,
minds, tools and equipment will assemble the final
product in the field.
HU, iOT, Construction Management, Lecture Notes, March 2015, Dagnachew Adugna
11. 2. Monitoring and Control
2.1 Cost Control
The purposes of construction cost systems enables to:
Provide a means for comparing actual with budgeted
expenses and thus draw attention;
Develop a database of productivity and cost
performance data for use in estimating the costs of
subsequent projects; and
Generate data for valuing variations and changes to
the contract and potential claims for additional
payments.
HU, iOT, Construction Management, Lecture Notes, March 2015, Dagnachew Adugna
12. 2. Monitoring and Control
2.1 Cost Control
In this section, the focus is on the first of these purposes,
monitoring and control of costs during the construction
operations phase.
Two related outcomes are expected from the periodic
monitoring of costs:
Identification of any work items whose actual costs
are exceeding their budgeted costs, with subsequent
actions to try to bring those costs into conformance
with the budget; and
Estimating the total cost of the project at completion,
based on the cost record so far and expectations of the
cost to complete unfinished items.
HU, iOT, Construction Management, Lecture Notes, March 2015, Dagnachew Adugna
13. 2. Monitoring and Control
2.1 Cost Control
How is cash flow diagram established to control cost?
HU, iOT, Construction Management, Lecture Notes, March 2015, Dagnachew Adugna
Projection of income
and expenses during
the life of the project.
To facilitate this
several time scheduling
are used by contractor.
14. 2. Monitoring and Control
2.1 Cost Control
Project S-Curve
HU, iOT, Construction Management, Lecture Notes, March 2015, Dagnachew Adugna
Owner requires contractor to
provide an S curve of
estimated progress and costs.
Cumulative costs across the
duration of the project; and
A graphical representation
of the outflow of monies
(both direct & indirect). Duration
S
R
15. 2. Monitoring and Control
2.1 Cost Control
Cash Flow
HU, iOT, Construction Management, Lecture Notes, March 2015, Dagnachew Adugna
Activity Days Cost ($) Cost/day
A 2 200 100
B 5 500 100
C 2 200 100
D 7 500 71.4
E 1 100 100
F 2 100 50
16. 2. Monitoring and Control
2.1 Cost Control
Cash Flow
HU, iOT, Construction Management, Lecture Notes, March 2015, Dagnachew Adugna
Activity Days Cost ($) Cost/day
A 2 200 100
B 5 500 100
C 2 200 100
D 7 500 71.4
E 1 100 100
F 2 100 50
Day Activity Cost of day Total cost
1 A 100 100
2 A 100 200
3 B 100 300
4 B 100 400
5 B 100 500
6 B 100 600
7 B 100 700
8 C,D 171.4 871
9 C,D 171.4 1043
10 D,E 171.4 1214
11 D 71.4 1286
12 D 71.4 1357
13 D 71.4 1428
14 D 71.4 1500
15 F 50 1550
16 F 50 1600
Daily Expenses
0
20
40
60
80
100
120
140
160
180
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16
Day
Cost
($)
Cumulative Expenses
0
200
400
600
800
1000
1200
1400
1600
1800
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16
Day
Cost
($)
17. 2. Monitoring and Control
2.1 Cost Control
HU, iOT, Construction Management, Lecture Notes, March 2015, Dagnachew Adugna
18. 2. Monitoring and Control
2.1 Cost Control
HU, iOT, Construction Management, Lecture Notes, March 2015, Dagnachew Adugna

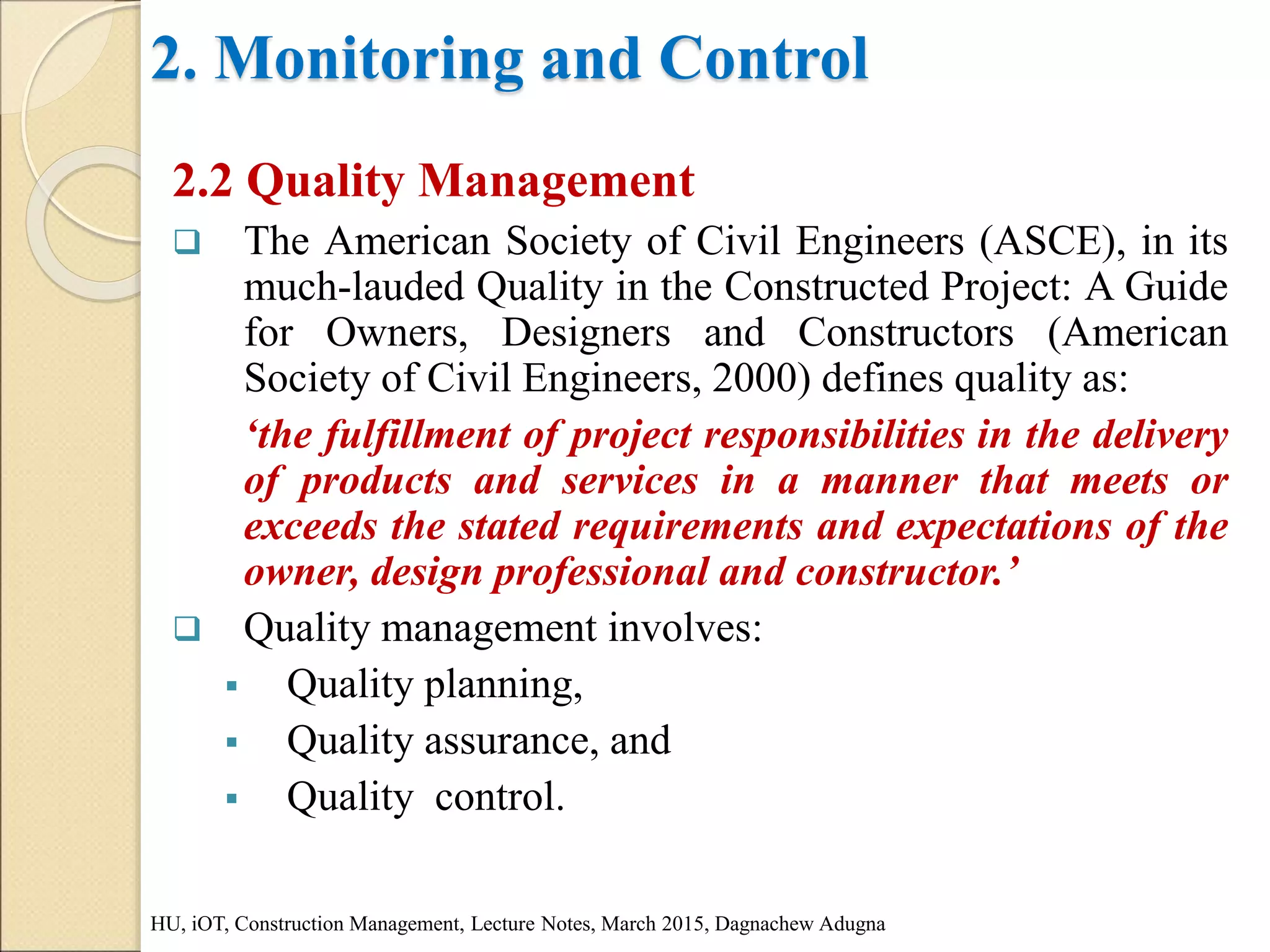

19. 2. Monitoring and Control
2.2 Quality Management
The American Society of Civil Engineers (ASCE), in its
much-lauded Quality in the Constructed Project: A Guide
for Owners, Designers and Constructors (American
Society of Civil Engineers, 2000) defines quality as:
‘the fulfillment of project responsibilities in the delivery
of products and services in a manner that meets or
exceeds the stated requirements and expectations of the
owner, design professional and constructor.’
Quality management involves:
Quality planning,
Quality assurance, and
Quality control.
HU, iOT, Construction Management, Lecture Notes, March 2015, Dagnachew Adugna
20. 2. Monitoring and Control
2.3 Safety Management
Although they are not part of the project manager’s ‘big
three’ objectives of quality, budget and schedule, the
monitoring and control of safety and environmental
impact are major issues in all construction operations.
HU, iOT, Construction Management, Lecture Notes, March 2015, Dagnachew Adugna
21. 2. Monitoring and Control
2.4 Environmental Management
The impact of construction on the environment appears in
many forms.
These include the selection of environmentally safe
materials and products to be incorporated into the
project; as the planning and design work can alter
landforms, drainage, vegetation and wildlife; and the
long-term impact of projects, such as silting of dams,
their effects on fish and other animals and the flooding of
upstream regions and the drying of downstream regions.
HU, iOT, Construction Management, Lecture Notes, March 2015, Dagnachew Adugna

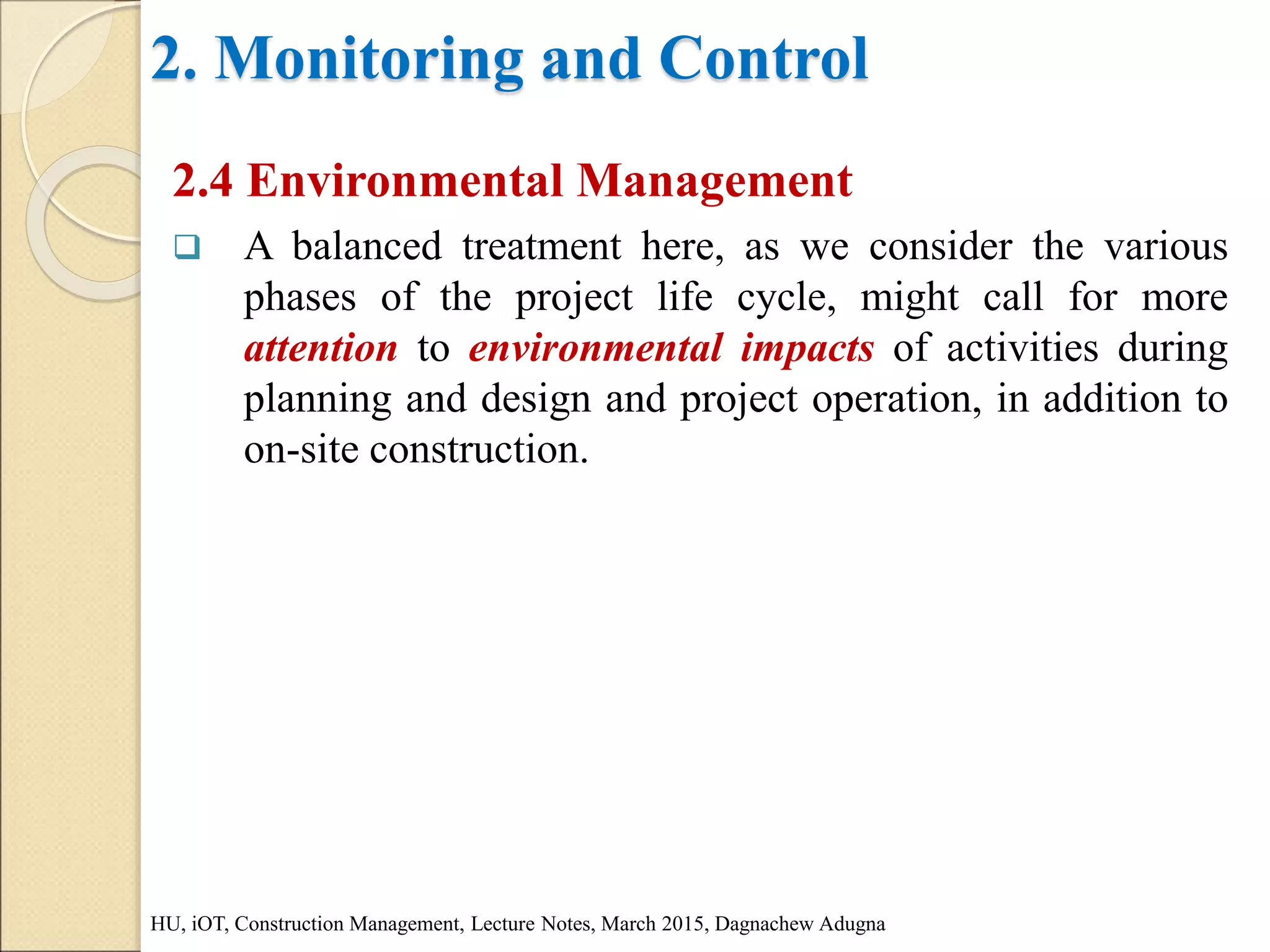

22. 2. Monitoring and Control
2.4 Environmental Management
A balanced treatment here, as we consider the various
phases of the project life cycle, might call for more
attention to environmental impacts of activities during
planning and design and project operation, in addition to
on-site construction.
HU, iOT, Construction Management, Lecture Notes, March 2015, Dagnachew Adugna
23. 3. Resource Management
3.1 General
If the construction manager’s job during project operation
is about monitoring and control, it is also about the
management of resources.
Halpin and Woodhead (1998), in their introduction to
construction management, state that ‘construction
management addresses how the resources available to
the manager can best be applied’
They suggest that the four primary resources to be
managed are the ‘four Ms’ of Manpower, Machines,
Materials and Money.
HU, iOT, Construction Management, Lecture Notes, March 2015, Dagnachew Adugna
24. 3. Resource Management
3.1 General
As cited in network scheduling, the basic inputs to
critical-path analysis are the individual project activities,
their durations, and dependency relationships.
Accordingly, the forward-path and backward-path
calculations determine the start and finish times of
activities.
The CPM algorithm, therefore, is duration-driven.
Activities’ durations here are function of the resources
that are required (rather than available) to complete each
activity.
HU, iOT, Construction Management, Lecture Notes, March 2015, Dagnachew Adugna
25. 3. Resource Management
3.1 General
The CPM formulation, therefore, assumes that all the
resources needed for the schedule are available. This
assumption, however, is not always true for construction
projects.
Under resource constraints, the schedule becomes
impractical, cost and time are not accurate, and resources
may not be available when needed.
In order to deal with such issue, a proper management of
available resources is required to adjust the schedule
accordingly.
HU, iOT, Construction Management, Lecture Notes, March 2015, Dagnachew Adugna
26. 3. Resource Management
3.2 Resources: Definition
The first step in resource management is to decide exactly
what resources are considered important enough to be
managed.
While the most resource used is people or workers (such
as welders or carpenters), it may also include other
resources such as machines (an excavator or loader),
space on a project where space is restricted and where
this restriction limits the amount of other resources which
can be deployed at any one time, financial resources
(money) that are needed to perform the required work, or
materials needed to accomplish different activities.
HU, iOT, Construction Management, Lecture Notes, March 2015, Dagnachew Adugna
27. 3. Resource Management
3.2 Resources: Definition
The most important resources that project managers have
to plan and manage on day-to-day basis are people,
machines, materials, and money. Obviously, if these
resources are available in abundance then the project
could be accelerated to achieve shorter project duration.
On the other hand, if these resources are severely limited,
then the result most likely will be a delay in the project
completion time.
In general, from a scheduling perspective, projects can be
classified as either time constrained or resource
constrained.
HU, iOT, Construction Management, Lecture Notes, March 2015, Dagnachew Adugna
28. 3. Resource Management

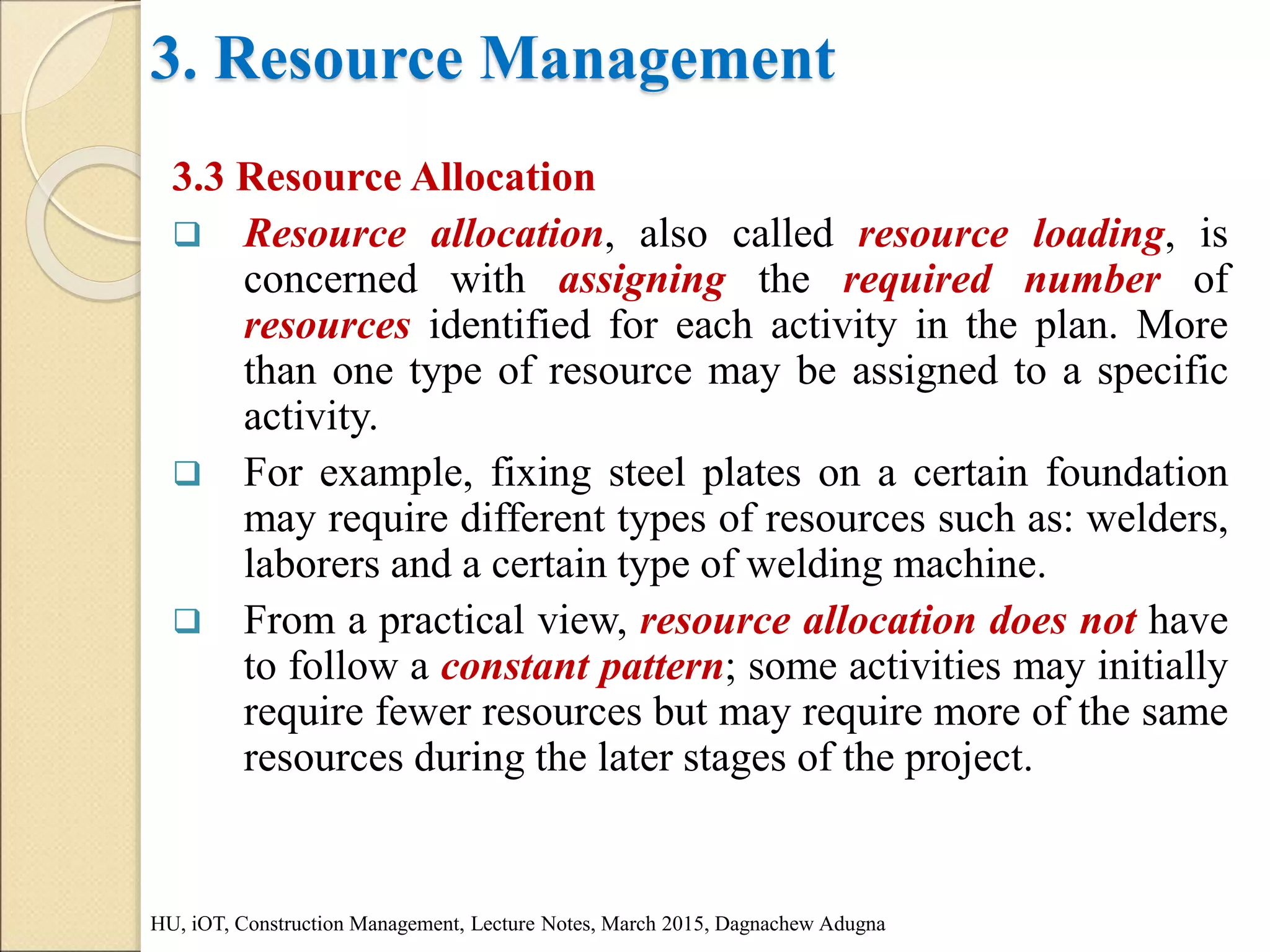

3.3 Resource Allocation
Resource allocation, also called resource loading, is
concerned with assigning the required number of
resources identified for each activity in the plan. More
than one type of resource may be assigned to a specific
activity.
For example, fixing steel plates on a certain foundation
may require different types of resources such as: welders,
laborers and a certain type of welding machine.
From a practical view, resource allocation does not have
to follow a constant pattern; some activities may initially
require fewer resources but may require more of the same
resources during the later stages of the project.
HU, iOT, Construction Management, Lecture Notes, March 2015, Dagnachew Adugna
29. 3. Resource Management
3.4 Resource Aggregation
After each activity has been assigned its resources, the
next step is to aggregate the resources used by all
activities.
Resource aggregation is simply the summation, on a
period-by-period basis, of the resources required to
complete all activities based on the resource allocation
carried out previously.
The results are usually shown graphically as a
histogram. Such aggregation may be done on an hourly,
daily, or weekly basis, depending on the time unit used to
allocate resources.
When a bar chart is used, the resource aggregation is
fairly simple and straightforward. For a given bar chart, a
resource aggregation chart can be drawn underneath the
bar chart.
HU, iOT, Construction Management, Lecture Notes, March 2015, Dagnachew Adugna
30. 3. Resource Management
3.4 Resource Aggregation
HU, iOT, Construction Management, Lecture Notes, March 2015, Dagnachew Adugna
An example is shown in the
figure, where, for a particular
resource, the required resource
units for each time period are
written on the bar chart.
The total number of resource
units for each time period can
then be summed and a resource
aggregation or load chart can be
produced as presented
underneath the bar chart.
Thus, having a project
scheduling is necessary to
facilitate the bar chart drawing.
31. 3. Resource Management
3.5 Resource Leveling
A project is classified as time constrained in situations
where the project completion time can not be delayed
even if additional resources are required.
However, the additional resource usage should be no
more than what is absolutely necessary.
Accordingly, the primary focus, for purposes of
scheduling, in time constrained projects is to improve
resource utilization. This process is called resource
leveling or smoothing.
It applies when it is desired to reduce the hiring and
firing of resources and to smooth the fluctuation in the
daily demand of a resource, as shown in the following
figure.
HU, iOT, Construction Management, Lecture Notes, March 2015, Dagnachew Adugna
32. 3. Resource Management
3.5 Resource Leveling
In this case, resources are not limited and project
duration is not allowed to be delayed. The objective in
this case is to shift non-critical activities of the original
schedule, within their float times so that a better resource
profile is achieved.
HU, iOT, Construction Management, Lecture Notes, March 2015, Dagnachew Adugna
33. 3. Resource Management
3.5 Resource Leveling
As shown in the following figure, the problem of
resource fluctuation appears after the initial scheduling
of the project without considering resources.
The peaks and valleys in the resource profile indicate
high day-to-day variation in the resource demand.
HU, iOT, Construction Management, Lecture Notes, March 2015, Dagnachew Adugna
34. 3. Resource Management
3.5 Resource Leveling

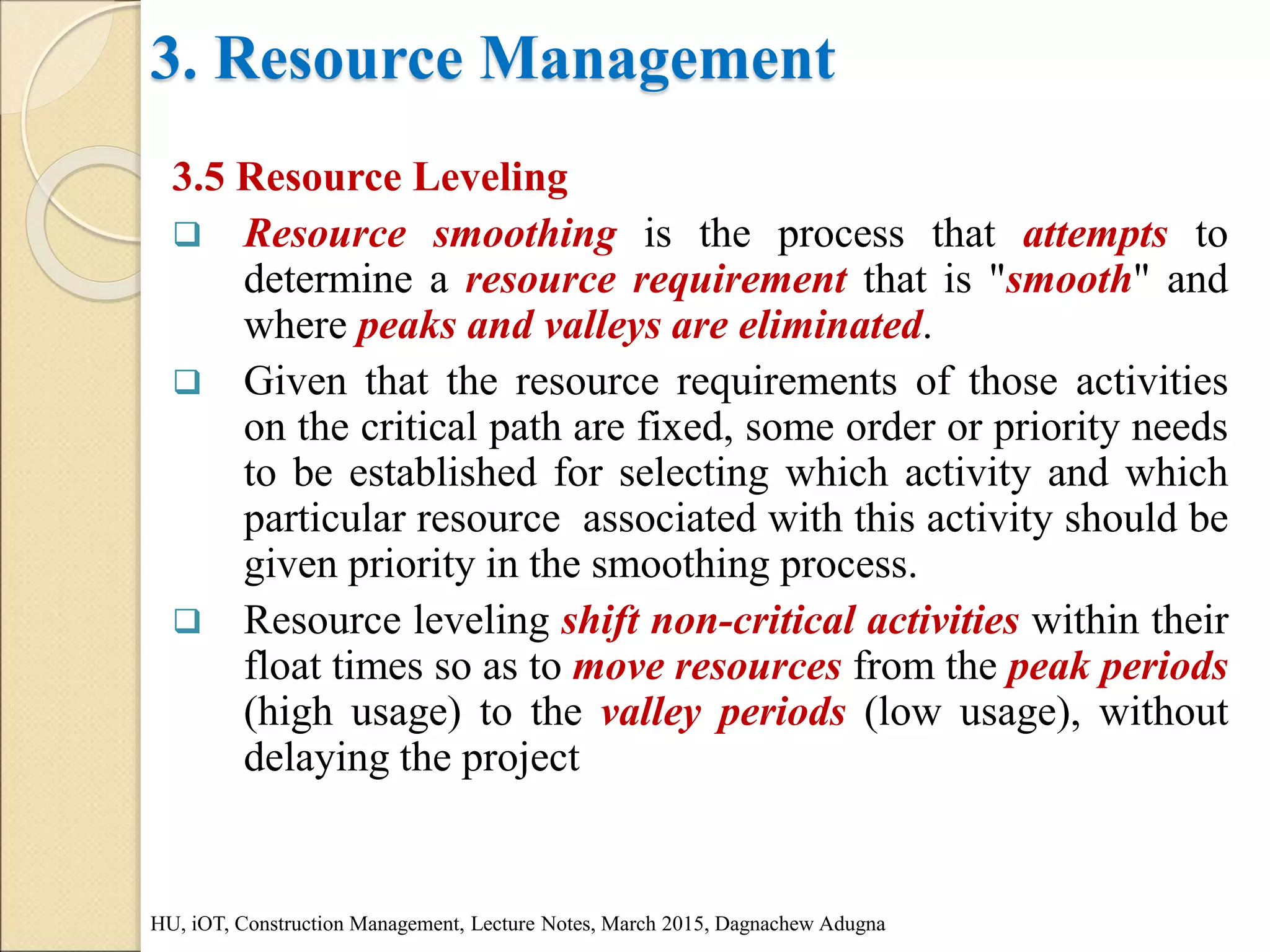

Resource smoothing is the process that attempts to
determine a resource requirement that is "smooth" and
where peaks and valleys are eliminated.
Given that the resource requirements of those activities
on the critical path are fixed, some order or priority needs
to be established for selecting which activity and which
particular resource associated with this activity should be
given priority in the smoothing process.
Resource leveling shift non-critical activities within their
float times so as to move resources from the peak periods
(high usage) to the valley periods (low usage), without
delaying the project
HU, iOT, Construction Management, Lecture Notes, March 2015, Dagnachew Adugna
35. 3. Resource Management
3.6 Materials Management
Materials management is an important element in project
planning and control.
Materials represent a major expense in construction, so
minimizing procurement or purchase costs presents
important opportunities for reducing costs.
First, if materials are purchased early, capital may be tied
up and interest charges incurred on the excess inventory
of materials. Even worse, materials may deteriorate
during storage or be stolen unless special care is taken.
Second, delays and extra expenses may be incurred if
materials required for particular activities are not
available.
HU, iOT, Construction Management, Lecture Notes, March 2015, Dagnachew Adugna
36. 3. Resource Management
3.6 Materials Management

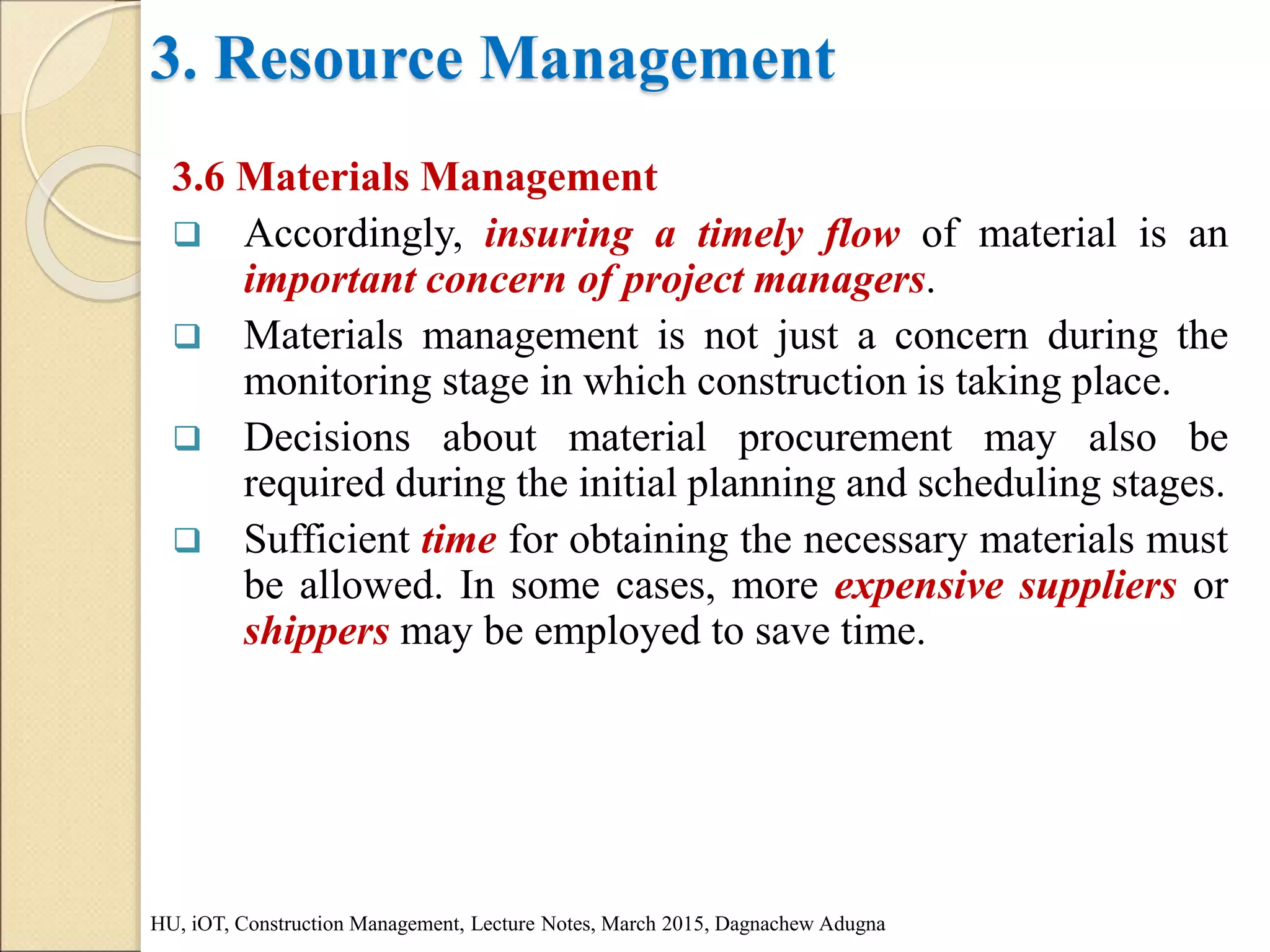

Accordingly, insuring a timely flow of material is an
important concern of project managers.
Materials management is not just a concern during the
monitoring stage in which construction is taking place.
Decisions about material procurement may also be
required during the initial planning and scheduling stages.
Sufficient time for obtaining the necessary materials must
be allowed. In some cases, more expensive suppliers or
shippers may be employed to save time.
HU, iOT, Construction Management, Lecture Notes, March 2015, Dagnachew Adugna
37. 3. Resource Management
3.6 Materials Management
Materials management is also a problem at the
organization level if central purchasing and inventory
control is used for standard items.
In this case, the various projects undertaken by the
organization would present requests to the central
purchasing group.
In turn, this group would maintain inventories of
standard items to reduce the delay in providing material
or to obtain lower costs due to bulk purchasing.
This organizational materials management problem is
analogous to inventory control in any organization facing
continuing demand for particular items.
HU, iOT, Construction Management, Lecture Notes, March 2015, Dagnachew Adugna
38. 3. Resource Management
3.6 Materials Management
2.6.1 Material Procurement and Delivery
The main sources of information for feedback and
control of material procurement are requisitions, bids and
quotations, purchase orders and subcontracts, shipping
and receiving documents, and invoices.
For projects involving the large scale use of critical
resources, the owner may initiate the procurement
procedure even before the selection of a constructor in
order to avoid shortages and delays.
Under ordinary circumstances, the constructor will handle
the procurement to shop for materials with the best
price/performance characteristics specified by the
designer.
HU, iOT, Construction Management, Lecture Notes, March 2015, Dagnachew Adugna
39. 3. Resource Management
3.6 Materials Management
2.6.1 Material Procurement and Delivery
Some overlapping and re-handling in the procurement
process is unavoidable, but it should be minimized to
insure timely delivery of the materials in good condition.
The materials for delivery to and from a construction site
may be broadly classified as:
Bulk materials,
Standard off-the-shelf materials, and
Fabricated members or units.
HU, iOT, Construction Management, Lecture Notes, March 2015, Dagnachew Adugna
40. 3. Resource Management
3.6 Materials Management
3.6.1 Material Procurement and Delivery

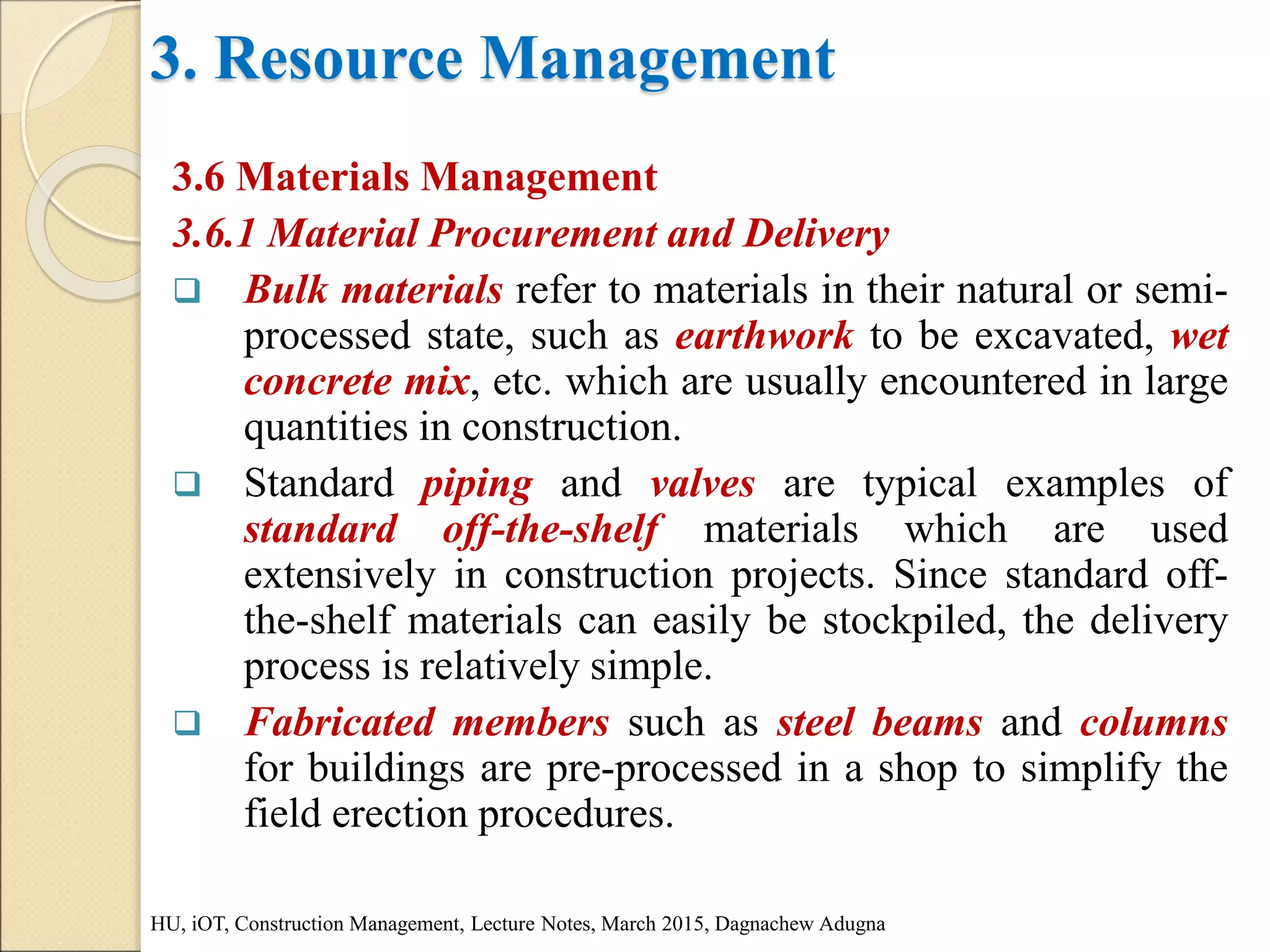

Bulk materials refer to materials in their natural or semi-
processed state, such as earthwork to be excavated, wet
concrete mix, etc. which are usually encountered in large
quantities in construction.
Standard piping and valves are typical examples of
standard off-the-shelf materials which are used
extensively in construction projects. Since standard off-
the-shelf materials can easily be stockpiled, the delivery
process is relatively simple.
Fabricated members such as steel beams and columns
for buildings are pre-processed in a shop to simplify the
field erection procedures.
HU, iOT, Construction Management, Lecture Notes, March 2015, Dagnachew Adugna
41. 3. Resource Management
3.6 Materials Management
3.6.2 Inventory Control

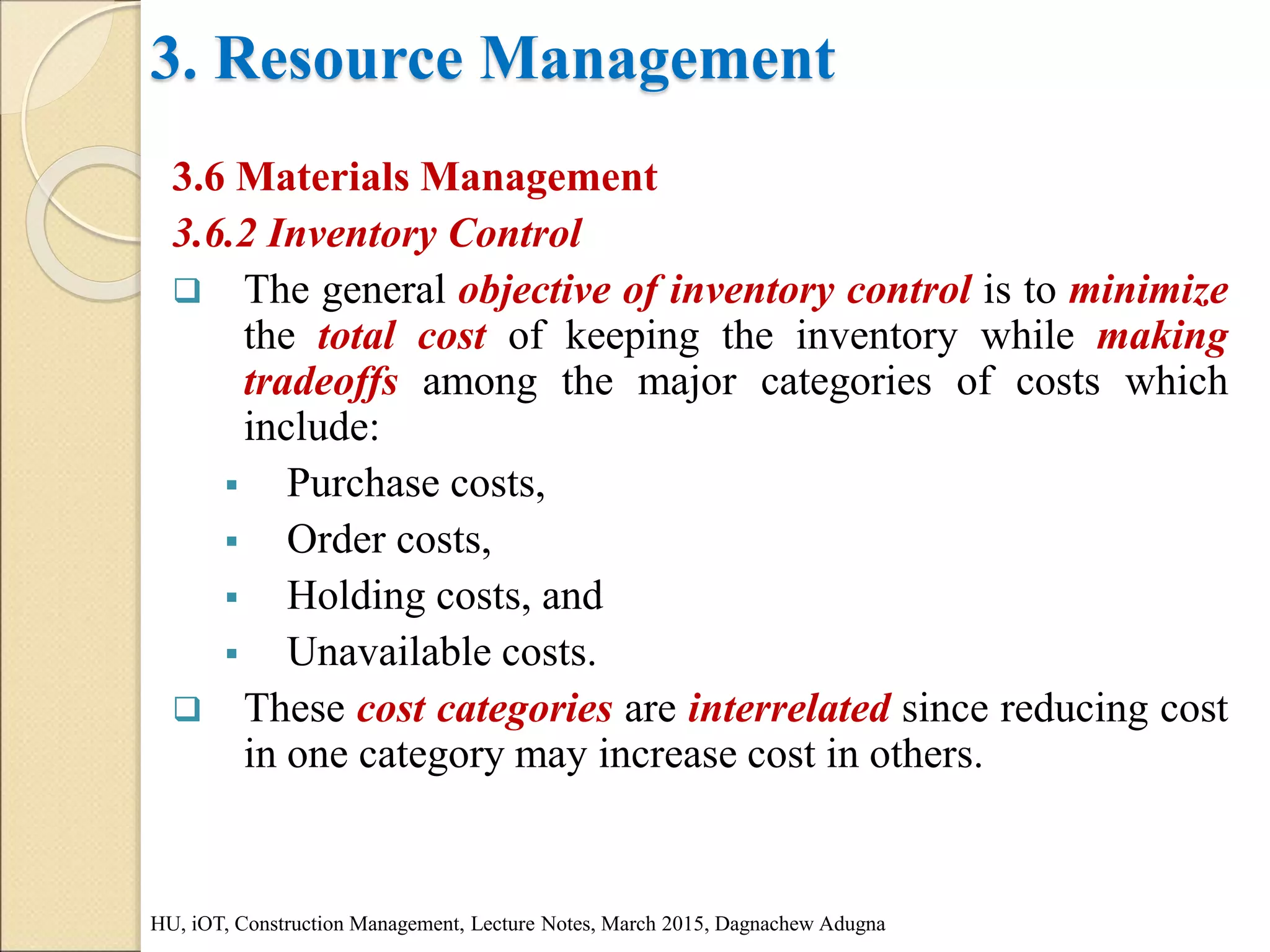

The general objective of inventory control is to minimize
the total cost of keeping the inventory while making
tradeoffs among the major categories of costs which
include:
Purchase costs,
Order costs,
Holding costs, and
Unavailable costs.
These cost categories are interrelated since reducing cost
in one category may increase cost in others.
HU, iOT, Construction Management, Lecture Notes, March 2015, Dagnachew Adugna
42. 3. Resource Management
3.6 Materials Management
3.6.2 Inventory Control

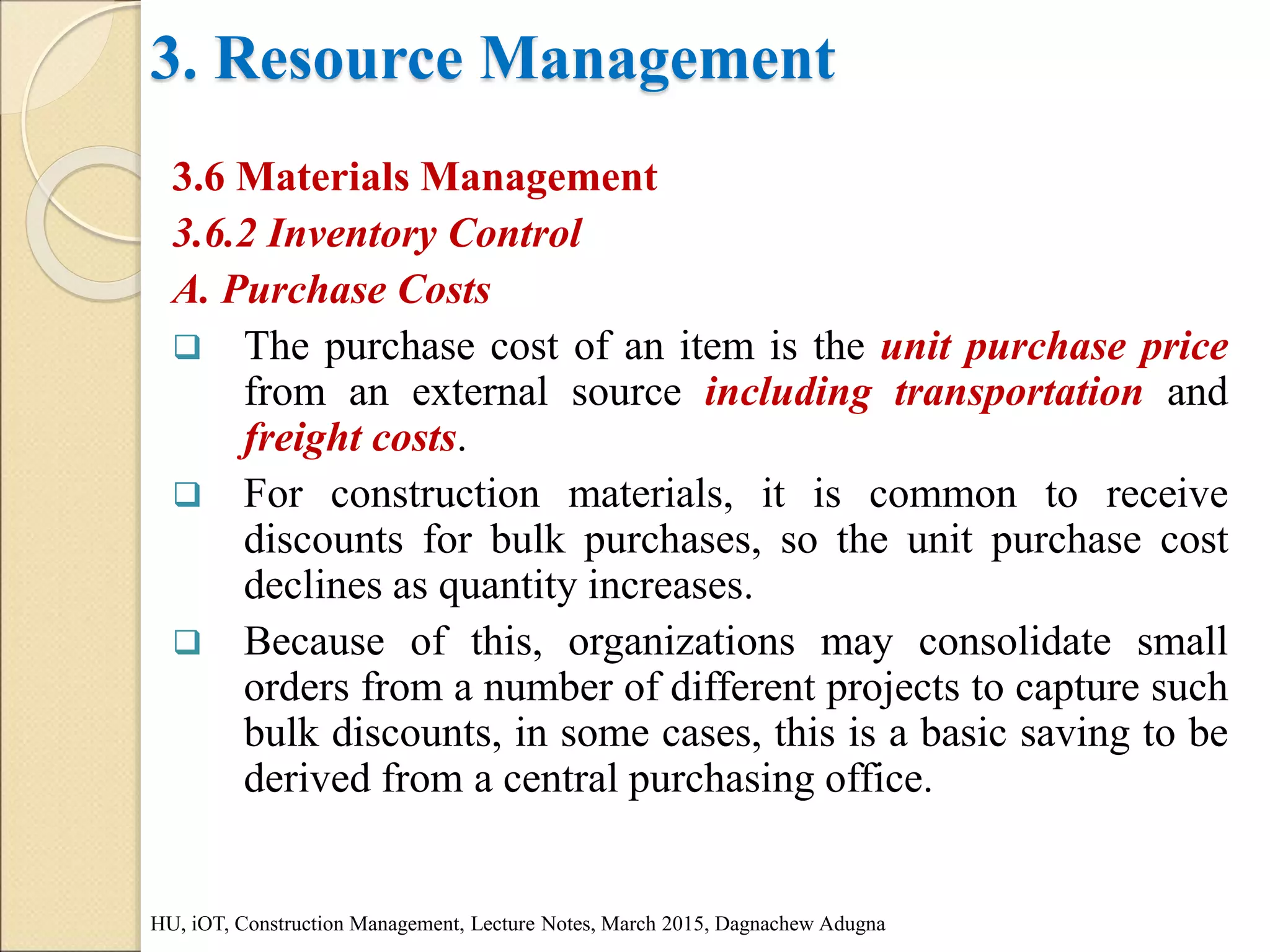

A. Purchase Costs
The purchase cost of an item is the unit purchase price
from an external source including transportation and
freight costs.
For construction materials, it is common to receive
discounts for bulk purchases, so the unit purchase cost
declines as quantity increases.
Because of this, organizations may consolidate small
orders from a number of different projects to capture such
bulk discounts, in some cases, this is a basic saving to be
derived from a central purchasing office.
HU, iOT, Construction Management, Lecture Notes, March 2015, Dagnachew Adugna
43. 3. Resource Management
3.6 Materials Management
3.6.2 Inventory Control

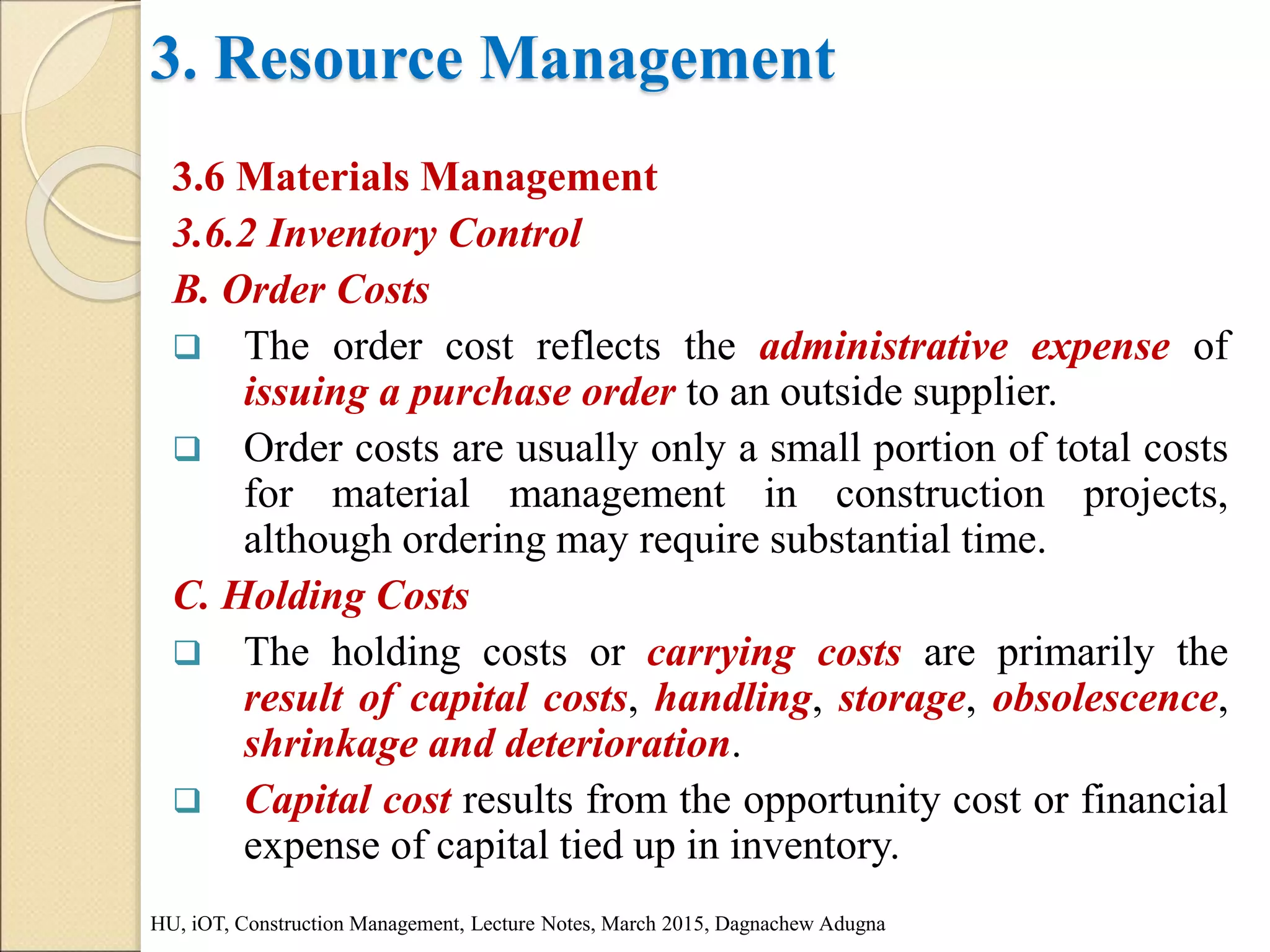

B. Order Costs
The order cost reflects the administrative expense of
issuing a purchase order to an outside supplier.
Order costs are usually only a small portion of total costs
for material management in construction projects,
although ordering may require substantial time.
C. Holding Costs
The holding costs or carrying costs are primarily the
result of capital costs, handling, storage, obsolescence,
shrinkage and deterioration.
Capital cost results from the opportunity cost or financial
expense of capital tied up in inventory.
HU, iOT, Construction Management, Lecture Notes, March 2015, Dagnachew Adugna
44. 3. Resource Management
3.6 Materials Management
3.6.2 Inventory Control
C. Holding Costs
Handling and storage represent the movement and
protection charges incurred for materials.
Storage costs also include the disruption caused to other
project activities by large inventories of materials that get
in the way.
Obsolescence is the risk that an item will lose value
because of changes in specifications.
Shrinkage is the decrease in inventory over time due to
theft or loss.
Deterioration reflects a change in material quality due to
age or environmental degradation.
HU, iOT, Construction Management, Lecture Notes, March 2015, Dagnachew Adugna
45. 3. Resource Management
3.6 Materials Management
3.6.2 Inventory Control
D. Unavailability cost
The unavailability cost is incurred when a desired
material is not available at the desired time.
In manufacturing industries, this cost is often called the
stock out or depletion cost.
Shortages may delay work, thereby wasting labor
resources or delaying the completion of the entire project.
HU, iOT, Construction Management, Lecture Notes, March 2015, Dagnachew Adugna
46. 3. Resource Management
3.6 Materials Management
3.6.3 Cost Tradeoff in Material Management
To illustrate the type of trade-offs encountered in
materials management, suppose that a particular item is to
be ordered for a project. The amount of time required for
processing the order and shipping the item is uncertain.
Consequently, the project manager must decide how
much lead time to provide in ordering the item.
Ordering early and thereby providing a long lead time
will increase the chance that the item is available when
needed but it increases the cost of inventory and chance
of spoilage on site.
HU, iOT, Construction Management, Lecture Notes, March 2015, Dagnachew Adugna
47. 3. Resource Management
3.7 Personnel Supervision and Labor Productivity
Other important knowledge the construction manager
must know about on-site personnel management
includes the methods by which craftspeople are hired
and maintained.
A qualified workforce is essential to successful
construction management.
To achieve this it is vital to understand and practice the
human resources function both at organization and
project level.
HU, iOT, Construction Management, Lecture Notes, March 2015, Dagnachew Adugna
48. 3. Resource Management
3.7 Personnel Supervision and Labor Productivity
3.7.1 HRM Functions
Human resources functions can broadly classified into
managerial and operative function.
The managerial functions include planning, organizing,
directing and controlling the human resources.
Operative functions on the other hand include
operational/routine activities in which the human
resources department will be doing as day today activities
such as human resources planning, job analysis,
employee motivation, performance management and
training and development etc.
HU, iOT, Construction Management, Lecture Notes, March 2015, Dagnachew Adugna

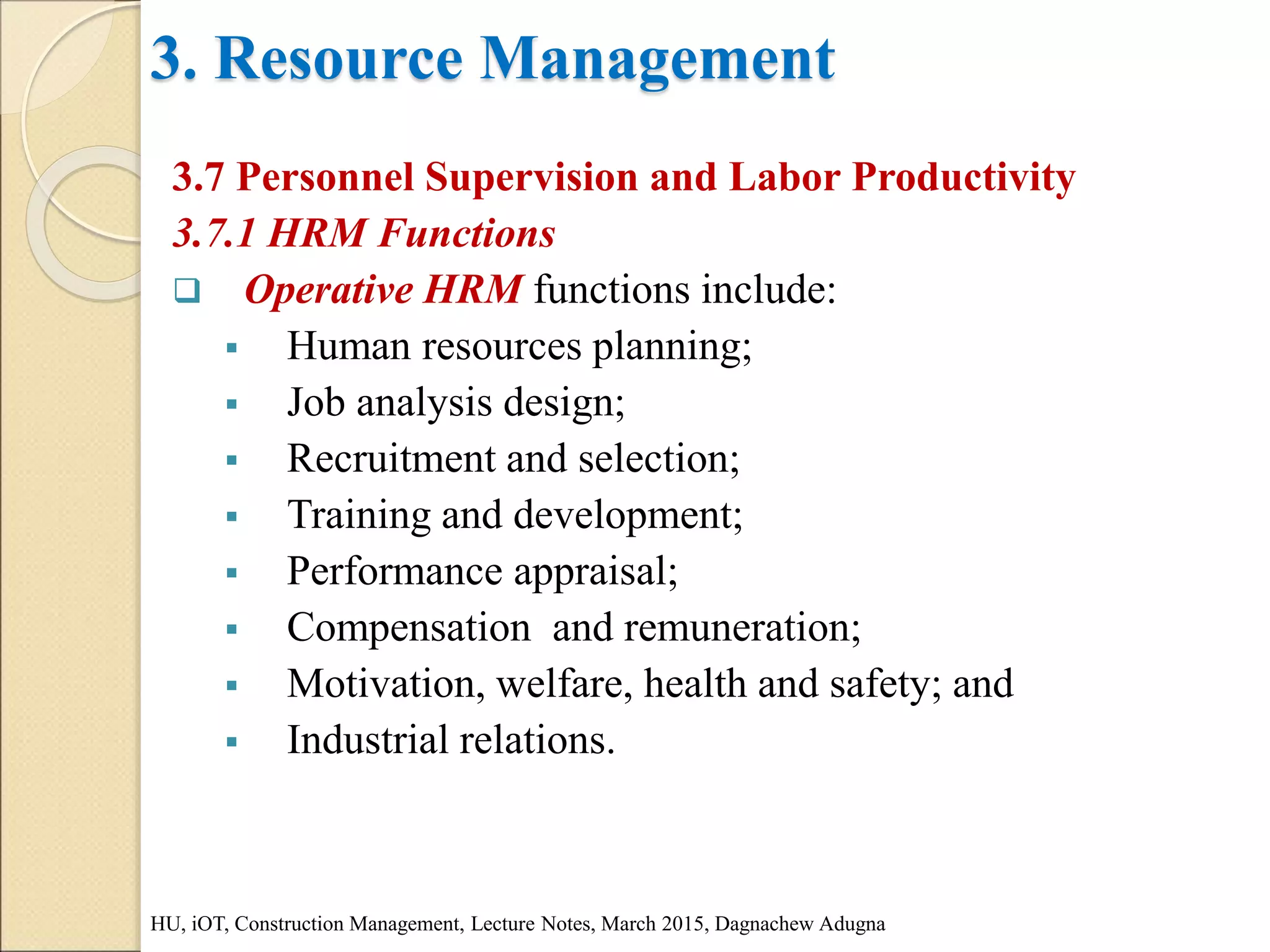

49. 3. Resource Management
3.7 Personnel Supervision and Labor Productivity
3.7.1 HRM Functions
Operative HRM functions include:
Human resources planning;
Job analysis design;
Recruitment and selection;
Training and development;
Performance appraisal;
Compensation and remuneration;
Motivation, welfare, health and safety; and
Industrial relations.
HU, iOT, Construction Management, Lecture Notes, March 2015, Dagnachew Adugna
50. 3. Resource Management
3.8 Equipment/Machinery Management
Construction of various facilities requires the utilization
of construction equipment.
Because of this learning the fundamental concepts and
analyses of the planning, selection, and utilization of
construction equipment is essential.
It requires understanding the following key issues:
The total construction process, from inception of the
idea through construction and start up- this will enable
some one to know the nature of the work for which the
equipment is being used, and
How construction equipment should be selected and
used to produce the intended quality in the most cost-
effective manner.
HU, iOT, Construction Management, Lecture Notes, March 2015, Dagnachew Adugna

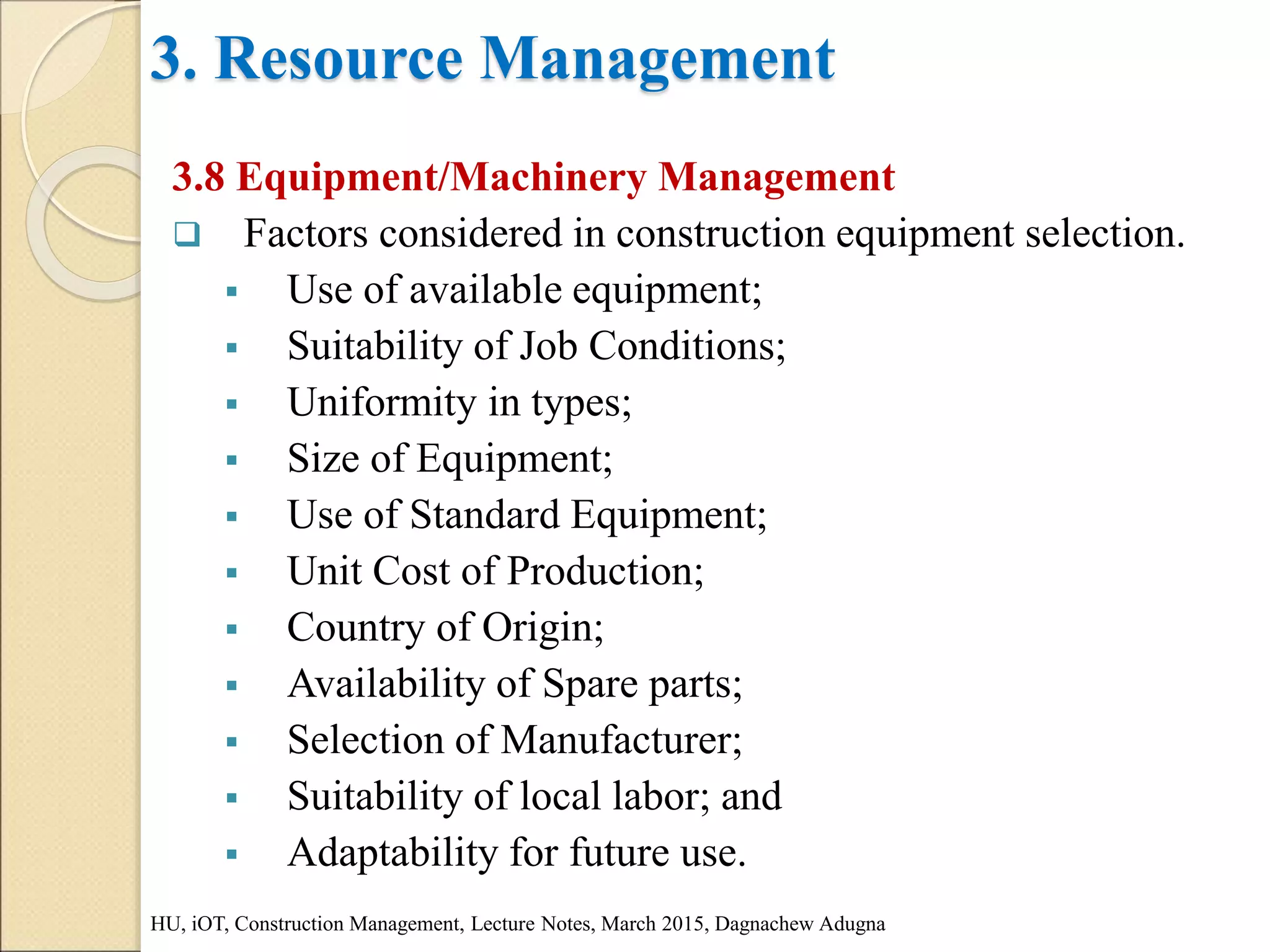

51. 3. Resource Management
3.8 Equipment/Machinery Management
Factors considered in construction equipment selection.
Use of available equipment;
Suitability of Job Conditions;
Uniformity in types;
Size of Equipment;
Use of Standard Equipment;
Unit Cost of Production;
Country of Origin;
Availability of Spare parts;
Selection of Manufacturer;
Suitability of local labor; and
Adaptability for future use.
HU, iOT, Construction Management, Lecture Notes, March 2015, Dagnachew Adugna
52. 4. Documentation and Communication
4.1 General
The on-site management of a construction project
involves great amounts of paperwork, even for relatively
small projects.
The purpose, of course, is to communicate directions,
questions, answers, approvals, general information and
other material to appropriate members of the project
team, so that the project can proceed in a timely, cost-
effective and quality manner.
Some of the documents necessary for the execution of the
contract, primarily from the contractor’s point of view are
dealt with hereunder.
HU, iOT, Construction Management, Lecture Notes, March 2015, Dagnachew Adugna
53. 3. Documentation and Communication
4.1 General
These documents include: considerations of shop
drawings and other submittals, variations or change
orders, the documents required for the contractor to
receive payment and, once again briefly, the value
engineering process.
Many pieces of ‘paperwork’ are in electronic form and
thus include a description of many types of such
documents, as well as computer-based approaches to the
organization and management of all project documents.
Finally, consider the use of collaborative web-based
means for facilitating communication of all relevant
information among the project team.
HU, iOT, Construction Management, Lecture Notes, March 2015, Dagnachew Adugna
54. 3. Documentation and Communication
4.1 General
Note that, in nearly every category, individual documents
will be added or modified as the project proceeds.
Thus, a system for managing them must provide for this
dynamic character.
If the system were completely manual, each type of
document would need:
A ‘folder’ large enough to receive and store all
documents; and
A ‘log’ that would list the current status of every
document in the folder.
The same concept is the basis for any construction
document.
HU, iOT, Construction Management, Lecture Notes, March 2015, Dagnachew Adugna
55. 4. Documentation and Communication
4.1 General
In any case, the following sample classification can be
used:
General documents;
Contract documentation;
Communication records;
Project status documentation;
Correspondence;
Material management; and
Financial management.
HU, iOT, Construction Management, Lecture Notes, March 2015, Dagnachew Adugna

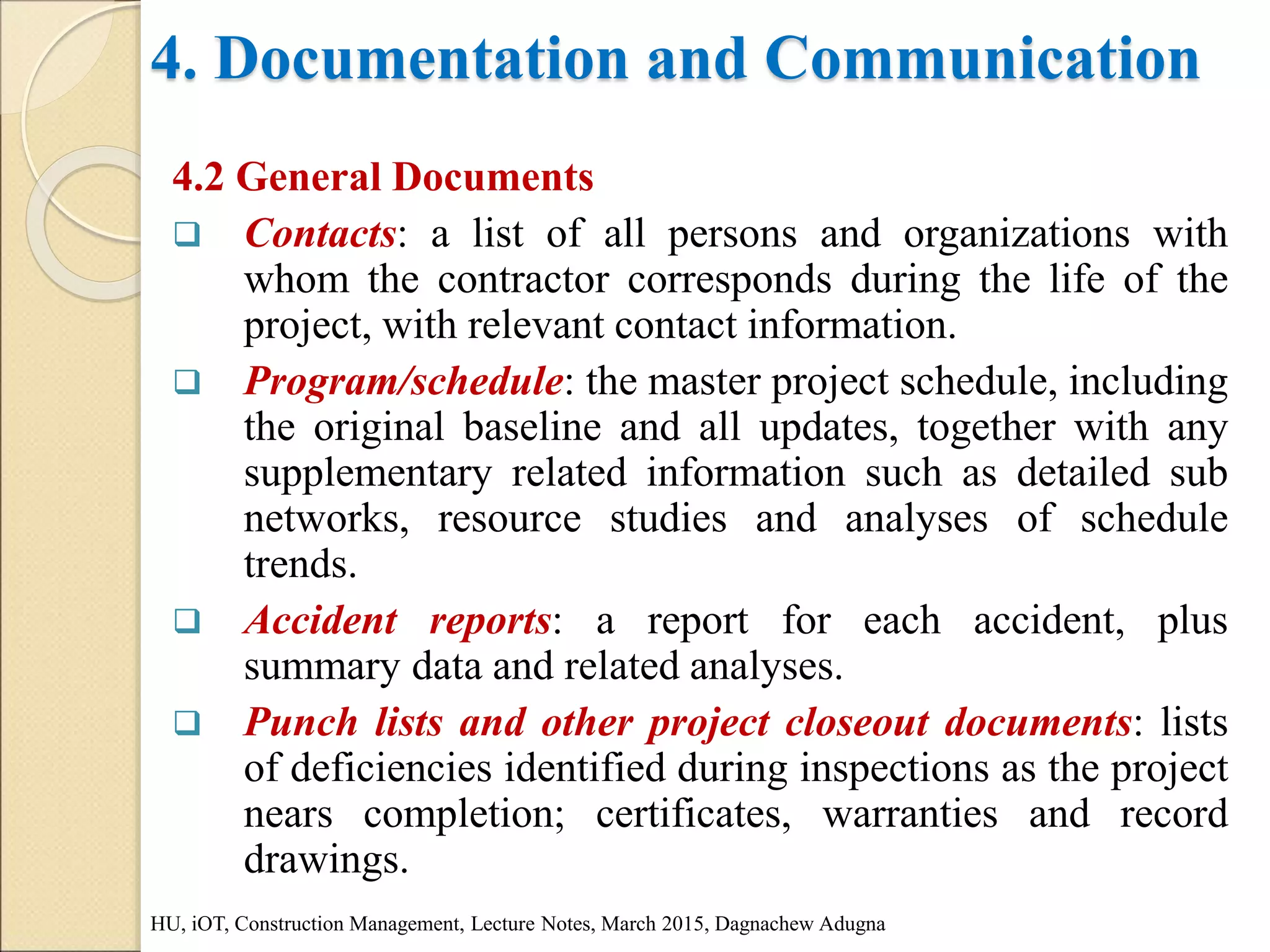

56. 4. Documentation and Communication
4.2 General Documents
Contacts: a list of all persons and organizations with
whom the contractor corresponds during the life of the
project, with relevant contact information.
Program/schedule: the master project schedule, including
the original baseline and all updates, together with any
supplementary related information such as detailed sub
networks, resource studies and analyses of schedule
trends.
Accident reports: a report for each accident, plus
summary data and related analyses.
Punch lists and other project closeout documents: lists
of deficiencies identified during inspections as the project
nears completion; certificates, warranties and record
drawings.
HU, iOT, Construction Management, Lecture Notes, March 2015, Dagnachew Adugna
57. 4. Documentation and Communication
4.3 Contract Documentation
The contract itself, as amended by variations (change
orders) during the project.
Drawings: design drawings from the design professional, as
revised throughout the project, with any supplementary
sketches that may be issued.
Specifications: Technical specifications, plus general and
special conditions and other parts of the project documents
manual.
Subcontracts: copies of agreements with all subcontractors.
Insurance: certificates of all insurance carried by the
contractor, as well as certificates for insurance required to
be carried by all subcontractors.
Bonds: similar to insurance; contractor’s copies of its
performance and payment bonds, plus proof that
subcontractors have furnished surety bonds, if so required.
HU, iOT, Construction Management, Lecture Notes, March 2015, Dagnachew Adugna
58. 4. Documentation and Communication
4.4 Communication Records
Meeting minutes: records of all meetings held at the
jobsite or elsewhere if pertaining to the project; regularly
scheduled general and safety meetings; other special
meetings of any kind.
Telephone records: brief records of all telephone calls
placed or received at the jobsite.
Conversation records: often simply a memorandum to
the file to record an understanding resulting from a
conversation that was less formal than a meeting.
HU, iOT, Construction Management, Lecture Notes, March 2015, Dagnachew Adugna
59. 4. Documentation and Communication
4.5 Project Status Documentation
Daily reports: a standard report that includes weather
conditions, work in progress, number of direct employees
and subcontractor personnel on site, visitors, equipment
on site, material deliveries and special issues.
Weekly and/or Monthly reports: summary of
accomplishments for the period, comparison of actual
with planned schedule progress, cost status, change
orders and special issues.
Progress photography: periodic still and video
photography that records project progress.
HU, iOT, Construction Management, Lecture Notes, March 2015, Dagnachew Adugna
60. 4. Documentation and Communication
4.6 Correspondence
Letters: all letters written by the contractor, as well as
those received at the jobsite office; should include a
record of correspondence conducted at the home office if
related to the project.
Field memoranda: various types of correspondence, less
formal than letters, issued at the jobsite to subcontractors,
forepersons and other individuals; job directives, safety
issues and disciplinary matters.
Transmittals: accompany submittals to owner’s
representative, subcontractors and material suppliers,
accompany requests for payment and accompany
certificates and other documentation at project closeout.
Requests for information (RFIs): issued from contractor
to design professional or owner for clarification of design
information or to present any other questions; includes
summary log containing the status of each request.
HU, iOT, Construction Management, Lecture Notes, March 2015, Dagnachew Adugna
61. 4. Documentation and Communication
4.7 Materials Management
Purchase orders: issued to material suppliers, as explained in
an earlier section.
Submittals: shop drawings, product information and samples,
plus status information on their review and approval.
Expediting and delivery information: status of manufacturing,
shipping and delivery of each material item, with comparisons
against project schedule. Receiving information for delivered
items.
Material inventory status: inventory of all stored materials,
with quantities and dates when items were added and
withdrawn.
Quality control reports: concrete test reports, soil laboratory
results, off-site testing of steel components and so on.
Invoices: also part of cost system. All requests for payment of
materials, with summary log of status of each.
HU, iOT, Construction Management, Lecture Notes, March 2015, Dagnachew Adugna

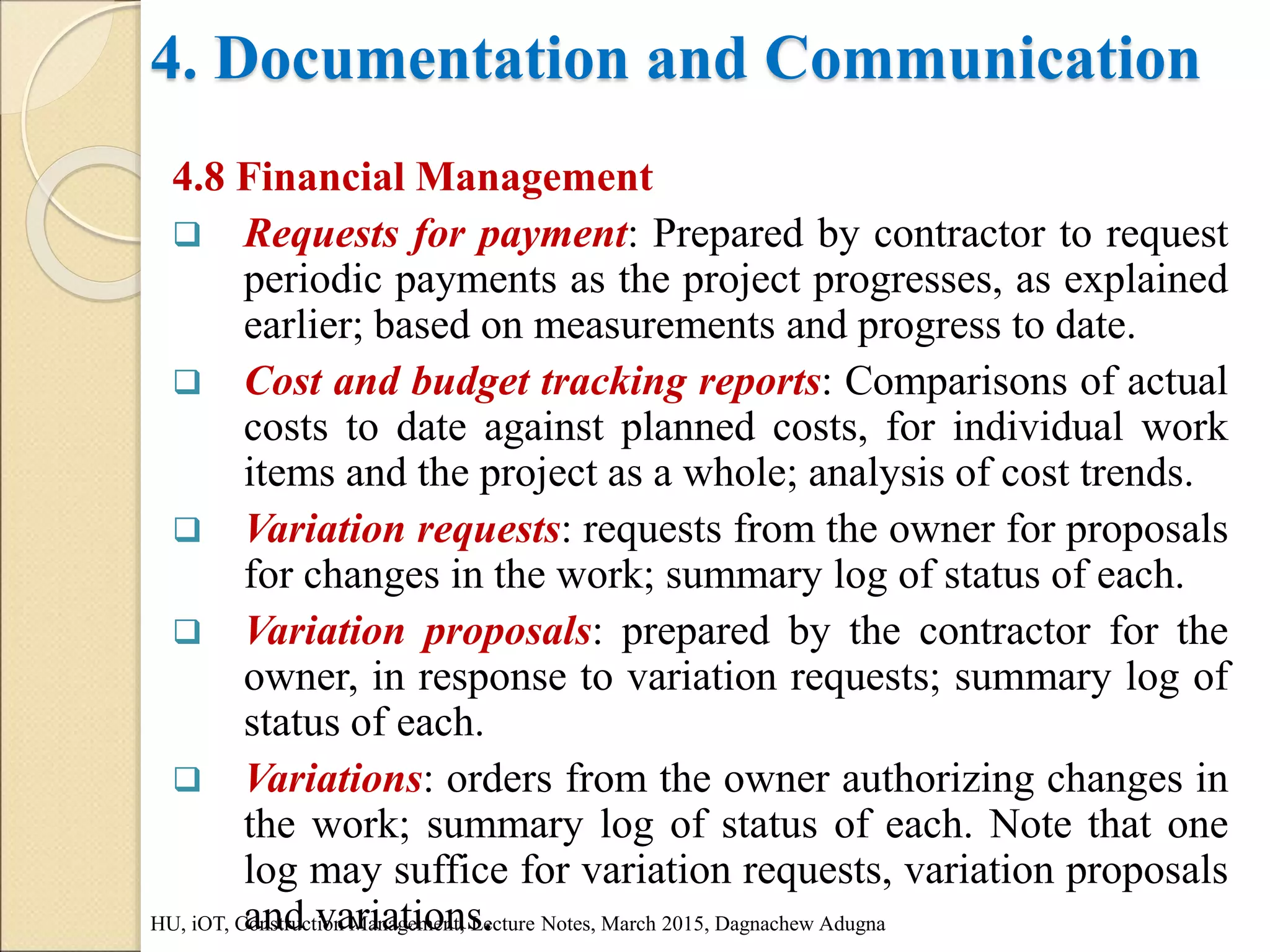

62. 4. Documentation and Communication
4.8 Financial Management
Requests for payment: Prepared by contractor to request
periodic payments as the project progresses, as explained
earlier; based on measurements and progress to date.
Cost and budget tracking reports: Comparisons of actual
costs to date against planned costs, for individual work
items and the project as a whole; analysis of cost trends.
Variation requests: requests from the owner for proposals
for changes in the work; summary log of status of each.
Variation proposals: prepared by the contractor for the
owner, in response to variation requests; summary log of
status of each.
Variations: orders from the owner authorizing changes in
the work; summary log of status of each. Note that one
log may suffice for variation requests, variation proposals
and variations.
HU, iOT, Construction Management, Lecture Notes, March 2015, Dagnachew Adugna
63. THANK YOU!
HU, iOT, Construction Management, Lecture Notes, March 2015, Dagnachew Adugna
