2. DEFINITION OF CIM BY THE COMPUTER AND
AUTOMATION SYSTEMS ASSOCIATION OF THE
SOCIETY OF MANUFACTURING ENGINEERS
(CASA/SME):
“CIM is the integration of the total manufacturing
enterprise through the use of integrated systems and
data communications coupled with new managerial
philosophies that improve organizational and
personnel efficiency.”
2
3. What is CIM?
CIM is the integration of all enterprise
operations and activities around a common
corporate data repository.
It is the use of integrated systems and data
communications coupled with new managerial
philosophies.
3
4. What is CIM?
CIM is not a product that can be purchased and
installed.
It is a way of thinking and solving problems.
4
5. CIM OBJECTIVES
Simplify production processes, product designs, and factory
organization as a vital foundation to automation and
integration
Automate production processes and the business functions
that support them with computers, machines, and robots
Integrate all production and support processes using
computer networks, cross-functional business software, and
other information technologies
5
6. POTANTIAL BENEFITS OF CIM
Improved customer service
Improved quality
Shorter time to market with new products
Shorter flow time
Shorter vendor lead time
Reduced inventory levels
Improved schedule performance
Greater flexibility and responsiveness
Improved competitiveness
Lower total cost
Shorter customer lead time
Increase in manufacturing productivity
Decrease in work-in process inventory
6
8. CIM SYSTEMS
Computer-aided manufacturing (CAM) - automate the
production process
Manufacturing execution systems (MES) – performance
monitoring information systems for factory floor operations
Process Control – control ongoing physical processes
Machine Control – controls the actions of machines
8
9. The Role of Computer in Manufacturing
The computer has had a substantial impact on
almost all activities of a factory.
Often, the introduction of the computer
changed the organizational structure of a
department and made necessary adoption of new
management structures.
9
10. The Role of Computer in Manufacturing
The operation of a CIM system gives the user
substantial benefits:
Reduction of design costs by 15-30%;
Reduction of the in-shop time of a part by 30-60%;
Increase of productivity by 40-70%;
Better product quality, reduction of scrap 20-50%.
10
12. AGILE MANUFACTURING
Agility is the ability to grow and succeed in an
environment of constant and unpredictable changes.
In recent years, the manufacturing paradigm has
been changing from mass production to agile
manufacturing.
12
13. AGILE MANUFACTURING
Globalization of markets has put tremendous
pressure on manufacturing enterprises to be
competitive.
To cope with competitive pressures, a new paradigm
in manufacturing known as AGILE
MANUFACTURING is emerging.
13
14. AGILE MANUFACTURING
The objective of agile manufacturing is to enable
manufacturing enterprises to be competitive by
dynamically reconfiguring software, equipment and
organization structures.
14
15. AGILE MANUFACTURING
The reasons of this trend change are:
The strength of global competition is
increasing;
Mass markets are fragmenting to niche
markets;
Customers expect low volume, high quality;
Short product life-cycles, development
15
16. CHARACTERISTICS OF AGILE
MANUFACTURING:
Greater product customization
Rapid introduction of new or modified
product
Advanced interenterpise networking
technology
Upgradable products
Increased emphasis on knowledgeable,
highly trained workers
Interactive customer relationship
16
17. CHARACTERISTICS OF AGILE
MANUFACTURING:
Dynamic reconfiguration of production processes
Greater use of flexible production technologies
Rapid prototyping
An open systems information environment
Innovative and flexible management structures
Product pricing based on value to the customer
Commitment to the bening operations and product
designs
17
18. Communication Networks
A communication network is the backbone of an
enterprise integration. Networks help to unify a
company by linking together all the computerized
devices irrespective of their physical location.
Through networks the whole enterprise can be
integrated, including suppliers and customers.
18
19. Communication Networks
For example, sales and marketing can send customer
requirements for new products to design engineering.
A CAD generated bill of materials can then be
transferred to “material requirements planning(MRP)”
systems.
Product design information can be transmitted to
manufacturing for use in process planning.
19
20. Types of Communication
Networks
There 2 main types of communication
networks:
1) Telecommunication Networks;
2) Computer communication Networks.
20
21. Types of Communication
Networks
Telecommunication network is mainly used for
voice communication.
Computer communication network is a system of
interconnected computers and other devices
capable exchanging information.
21
22. HIGHLIGHTS IN THE HISTORY
OF TELECOMMUNICATIONS
1844 Morse sends the first public telegraph message
1876 Telephone patent issued to Alexander Graham
Bell
1877 First telephone in private home
1881 First long-distance line, from Boston, MA, to
Providence,RI
1890 Undersea telephone cable, England to France
1915 First transcontinental telephones call in U.S.
1929 Coaxial cable invented; Herbert Hoover becomes
the first President with a phone on his desk.
22

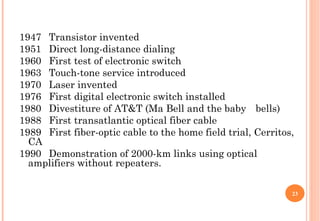

23. 1947 Transistor invented
1951 Direct long-distance dialing
1960 First test of electronic switch
1963 Touch-tone service introduced
1970 Laser invented
1976 First digital electronic switch installed
1980 Divestiture of AT&T (Ma Bell and the baby bells)
1988 First transatlantic optical fiber cable
1989 First fiber-optic cable to the home field trial, Cerritos,
CA
1990 Demonstration of 2000-km links using optical
amplifiers without repeaters.
23
24. NETWORKS: 1980S-DECENTRALIZED -
ISOLATED
Interaction is between a user and a system!
No interaction between users and systems
24
25. BEFORE THE INTERNET
Isolated users/computers/networks
No common protocol (language)
IBM
Digital
? SNA
DECNET
25
27. Types of Communication Networks
Network Architectures & Protocols
A communication network consists of a number components
such as hardware, software and media.
A network architecture describes the components, the
functions performed, and the interfaces between the
components of a network.
It encompasses hardware, software, standards, data link
controls, topologies and protocols.
27
28. COMPUTER NETWORKS
Computer network
connects two or more
autonomous
computers.
The computers can be
geographically located
anywhere.
28
29. APPLICATIONS OF
NETWORKS
Resource Sharing
Hardware (computing resources, disks, printers)
Software (application software)
Information Sharing
Easy accessibility from anywhere (files, databases)
Search Capability (WWW)
Communication
Email, Message broadcast
Remote computing
Distributed processing (GRID Computing)
29
30. Types of Communication Networks
Network Architectures & Protocols
It defines the functions of, and interactions between, three
types of components.
Network hardware components
Communication software modules
Application programs that use the networks
30
31. Types of Communication
Networks
Network Architectures & Protocols
PROTOCOL:
Protocols in network architecture define the set of rules of
information exchange between two devices(peers).
Protocols specify the message format and the rules for
interpreting and reacting to messages.
31
32. Types of Communication
Networks
Computer Network Reference Model
The OSI (Open Systems Interconnection) Reference
Model is an architecture that enables different
vendors’ systems, such as DECNET, SNA, TCP/IP
and SINEC, to communicate by using a common set
of protocols.
32
33. Types of Communication
Networks
The reference model is based on:
The communication functions are divided into layers;
The services to be provided by each layer are specified;
Layer N+1, above layer N, uses the services of the latter to
implement its functions;
Communication between the layer N and the participating
terminals is specified by the ISO protocols.
33
36. LAYERING: PHYSICAL
COMMUNICATION
ODTÜ data
application
transport
network
link Türk Telekom
physical
network
application link
transport physical
network
link
physical data
application application
transport transport
network network İTÜ
link link
physical physical
36
37. TYPES OF COMPUTER NETWORKS
Local Area Networks (LANs)
Used to interconnect computers (wired or
wireless) within the same building or
organisation.
A LAN typically operates at speeds ranging
from 10 Mbps to 10 Giga bps, connecting several
hundred devices over a distance of up to 5 to 10
km
37
40. USED TO INTERCONNECT LANS WITHIN A
METROPOLITAN AREA. A TYPICAL MAN OPERATES AT A
SPEED OF SEVERAL GİGABİT PER SECOND (MOSTLY
WİRED BUT NEW WİRELESS TECHNOLOGİES ARE
BECOMİNG POPULAR, E.G. WİMAX) .
40

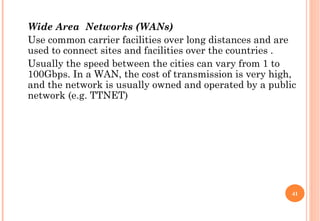

41. Wide Area Networks (WANs)
Use common carrier facilities over long distances and are
used to connect sites and facilities over the countries .
Usually the speed between the cities can vary from 1 to
100Gbps. In a WAN, the cost of transmission is very high,
and the network is usually owned and operated by a public
network (e.g. TTNET)
41

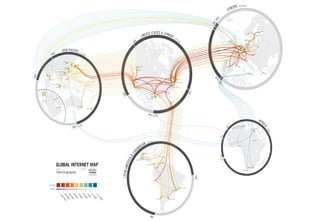

43. Global Area Networks (GAN)
these are networks connections between countries
around the globe. A GAN’s speed ranges from
1.5Mbps to 100Gbps and its reach is several thousands
of kilometres.
43
46. COMMUNICATION HIERARCHY
enterprise level
Globally link various plants/sites and interconnect
corporations through electronic data interchange
plant level
Connect departments inside plant
cell level
Connect cells inside departments
equipment/device level
connect individual devices such as computers, robots and
NC machines
46
47. MANUFACTURING
Parallel with increasing needs for faster
communications the needs of large data storage capacity
and fast computers is increasing also.
Now typical manufacturing environment, called also as
CAD/CAM/CAE environment is composed of fast
computers, centralized data storage units, CNC
controlled machine centers, robots etc., all connected on
the same network.
On this networks either TCP/IP or specially designed
manufacturing protocols like, MAP or TOP, are used.
47
48. MANUFACTURING
MAP
An initiative by General Motors of The United
States has resulted in the selection of a set of
protocols, all based on ISO standards, to
achieve open system interconnection within
an automated manufacturing plant.
The resulting protocols are knows as
manufacturing automation protocols (MAPs).
48
50. MANUFACTURING
TOP
In a similar way, an initiative by the Boeing
Corporation (USA) has resulted in the selection
of a set of ISO standards to achieve open system
interconnection in a technical and office
environment.
The selected protocols are known as technical
and office protocols (TOPs).
50
