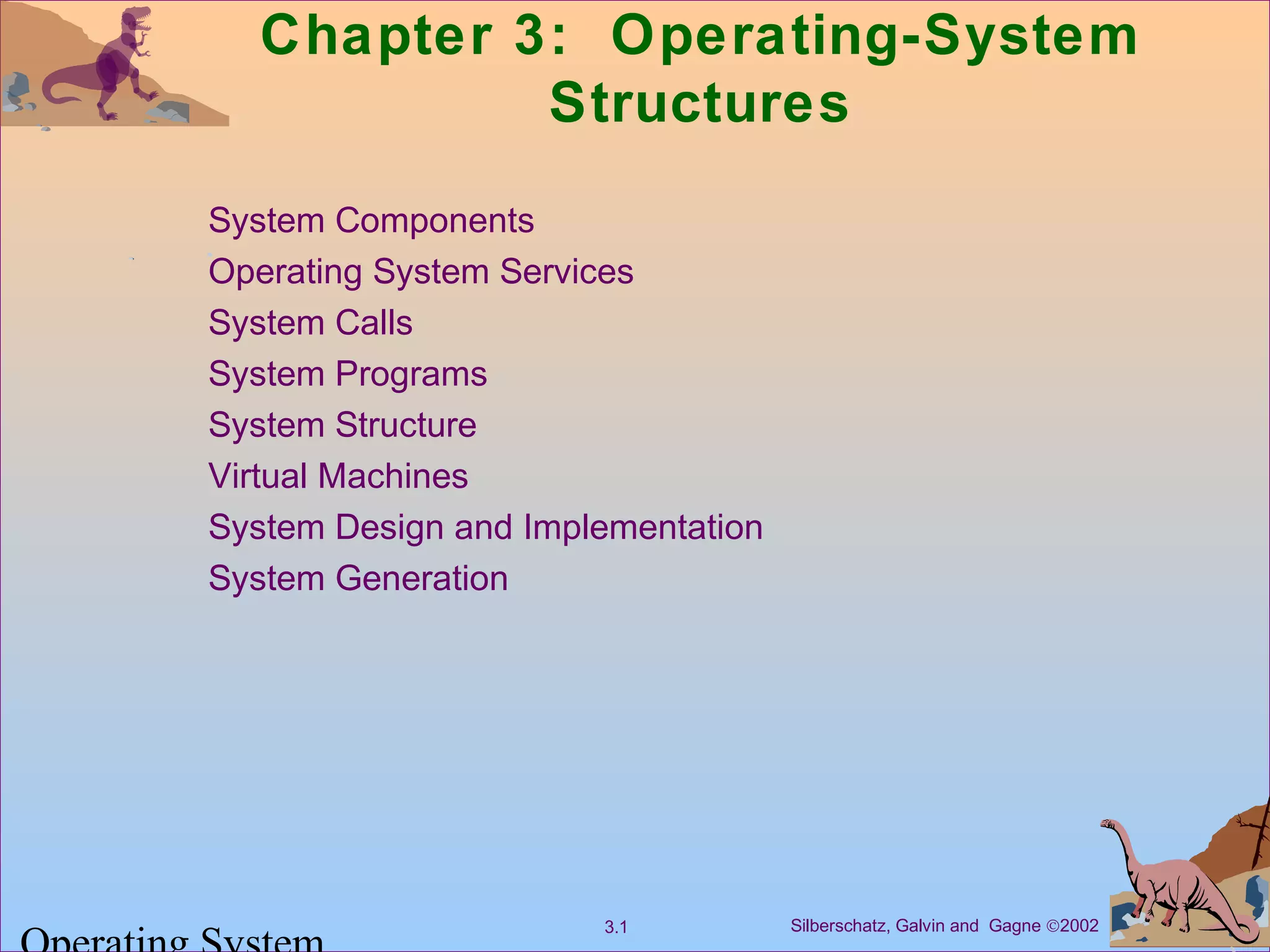

Chapter 3: Operating-System
Structures
System Components
Operating System Services
System Calls
System Programs
System Structure
Virtual Machines
System Design and Implementation
System Generation
Silberschatz, Galvin and Gagne ©20023.2

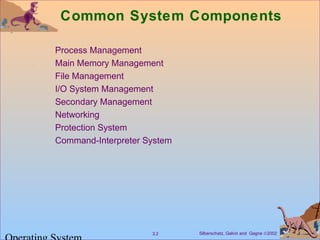

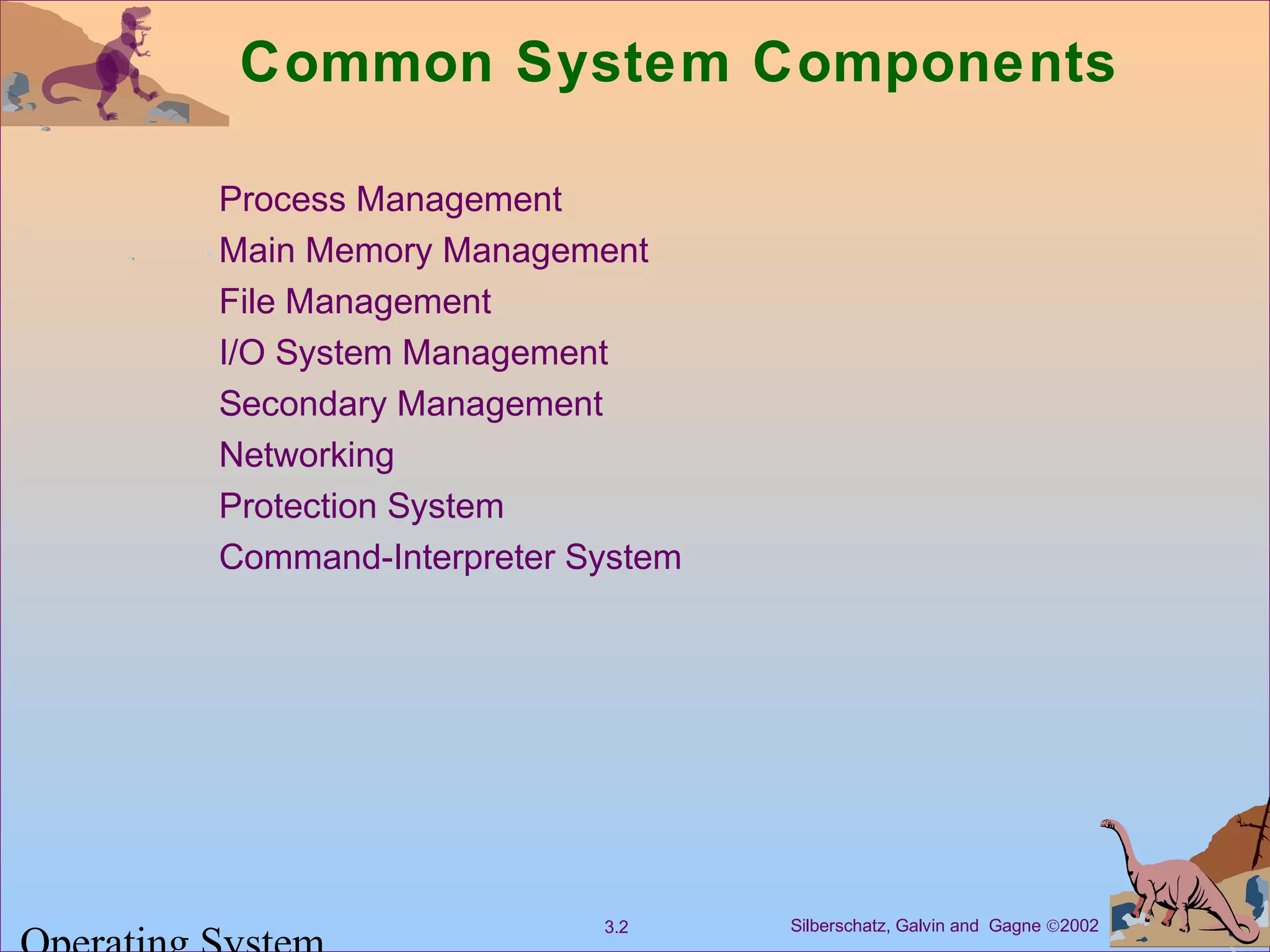

Common System Components
Process Management
Main Memory Management
File Management
I/O System Management
Secondary Management
Networking
Protection System
Command-Interpreter System
Silberschatz, Galvin and Gagne ©20023.3
Process Management
A process is a program in execution. A process needs
certain resources, including CPU time, memory, files, and
I/O devices, to accomplish its task.
The operating system is responsible for the following
activities in connection with process management.
Process creation and deletion.
process suspension and resumption.
Provision of mechanisms for:
process synchronization
process communication
Silberschatz, Galvin and Gagne ©20023.4

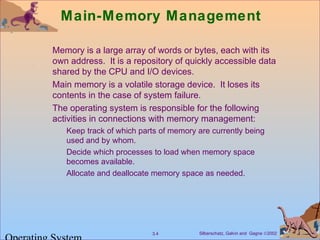

Main-Memory Management
Memory is a large array of words or bytes, each with its
own address. It is a repository of quickly accessible data
shared by the CPU and I/O devices.
Main memory is a volatile storage device. It loses its
contents in the case of system failure.
The operating system is responsible for the following
activities in connections with memory management:
Keep track of which parts of memory are currently being
used and by whom.
Decide which processes to load when memory space
becomes available.
Allocate and deallocate memory space as needed.
Silberschatz, Galvin and Gagne ©20023.5
File Management
A file is a collection of related information defined by its
creator. Commonly, files represent programs (both
source and object forms) and data.
The operating system is responsible for the following
activities in connections with file management:
File creation and deletion.
Directory creation and deletion.
Support of primitives for manipulating files and directories.
Mapping files onto secondary storage.
File backup on stable (nonvolatile) storage media.
Silberschatz, Galvin and Gagne ©20023.6
I/O System Management
The I/O system consists of:
A buffer-caching system
A general device-driver interface
Drivers for specific hardware devices
Silberschatz, Galvin and Gagne ©20023.7
Secondary-Storage Management
Since main memory (primary storage) is volatile and too
small to accommodate all data and programs
permanently, the computer system must provide
secondary storage to back up main memory.
Most modern computer systems use disks as the
principle on-line storage medium, for both programs and
data.
The operating system is responsible for the following
activities in connection with disk management:
Free space management
Storage allocation
Disk scheduling
Silberschatz, Galvin and Gagne ©20023.8
Networking (Distributed Systems)
A distributed system is a collection processors that do not
share memory or a clock. Each processor has its own
local memory.
The processors in the system are connected through a
communication network.
Communication takes place using a protocol.
A distributed system provides user access to various
system resources.
Access to a shared resource allows:
Computation speed-up
Increased data availability
Enhanced reliability
Silberschatz, Galvin and Gagne ©20023.9

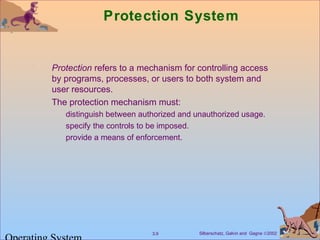

Protection System
Protection refers to a mechanism for controlling access
by programs, processes, or users to both system and
user resources.
The protection mechanism must:
distinguish between authorized and unauthorized usage.
specify the controls to be imposed.
provide a means of enforcement.
Silberschatz, Galvin and Gagne ©20023.10

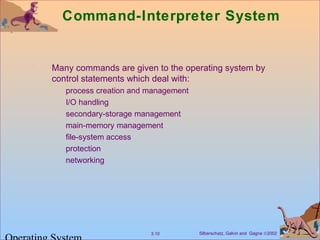

Command-Interpreter System
Many commands are given to the operating system by
control statements which deal with:
process creation and management
I/O handling
secondary-storage management
main-memory management
file-system access
protection
networking
Silberschatz, Galvin and Gagne ©20023.11
Command-Interpreter System
(Cont.)
The program that reads and interprets control statements
is called variously:
command-line interpreter
shell (in UNIX)
Its function is to get and execute the next command
statement.
Silberschatz, Galvin and Gagne ©20023.12
Operating System Services
Program execution – system capability to load a program into
memory and to run it.
I/O operations – since user programs cannot execute I/O
operations directly, the operating system must provide some
means to perform I/O.
File-system manipulation – program capability to read, write,
create, and delete files.
Communications – exchange of information between processes
executing either on the same computer or on different systems
tied together by a network. Implemented via shared memory or
message passing.
Error detection – ensure correct computing by detecting errors
in the CPU and memory hardware, in I/O devices, or in user
programs.
Silberschatz, Galvin and Gagne ©20023.13

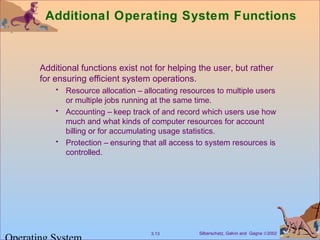

Additional Operating System Functions
Additional functions exist not for helping the user, but rather
for ensuring efficient system operations.
• Resource allocation – allocating resources to multiple users
or multiple jobs running at the same time.
• Accounting – keep track of and record which users use how
much and what kinds of computer resources for account
billing or for accumulating usage statistics.
• Protection – ensuring that all access to system resources is
controlled.
Silberschatz, Galvin and Gagne ©20023.14
System Calls
System calls provide the interface between a running
program and the operating system.
Generally available as assembly-language instructions.
Languages defined to replace assembly language for
systems programming allow system calls to be made
directly (e.g., C, C++)
Three general methods are used to pass parameters
between a running program and the operating system.
Pass parameters in registers.
Store the parameters in a table in memory, and the table
address is passed as a parameter in a register.
Push (store) the parameters onto the stack by the program,
and pop off the stack by operating system.
Silberschatz, Galvin and Gagne ©20023.15
Passing of Parameters As A
Table
Silberschatz, Galvin and Gagne ©20023.16
Types of System Calls
Process control
File management
Device management
Information maintenance
Communications
Silberschatz, Galvin and Gagne ©20023.17

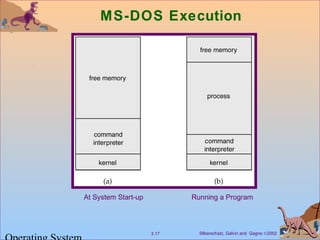

MS-DOS Execution
At System Start-up Running a Program
Silberschatz, Galvin and Gagne ©20023.18

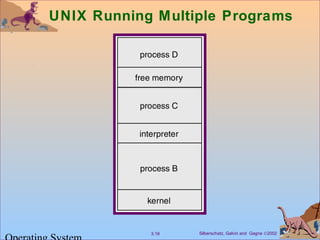

UNIX Running Multiple Programs
Silberschatz, Galvin and Gagne ©20023.19
Communication Models
Msg Passing Shared Memory
Communication may take place using either message
passing or shared memory.
Silberschatz, Galvin and Gagne ©20023.20

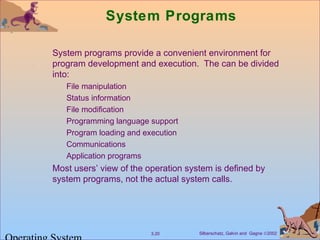

System Programs
System programs provide a convenient environment for
program development and execution. The can be divided
into:
File manipulation
Status information
File modification
Programming language support
Program loading and execution
Communications
Application programs
Most users’ view of the operation system is defined by
system programs, not the actual system calls.
Silberschatz, Galvin and Gagne ©20023.21

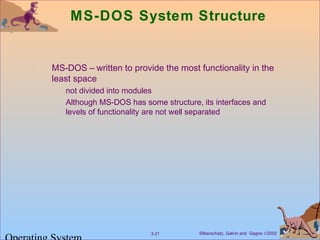

MS-DOS System Structure
MS-DOS – written to provide the most functionality in the
least space
not divided into modules
Although MS-DOS has some structure, its interfaces and
levels of functionality are not well separated
Silberschatz, Galvin and Gagne ©20023.22
MS-DOS Layer Structure
Silberschatz, Galvin and Gagne ©20023.23

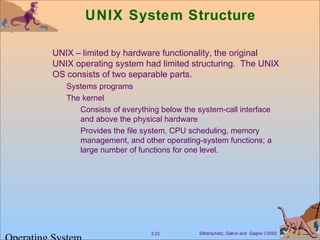

UNIX System Structure
UNIX – limited by hardware functionality, the original
UNIX operating system had limited structuring. The UNIX
OS consists of two separable parts.
Systems programs
The kernel
Consists of everything below the system-call interface
and above the physical hardware
Provides the file system, CPU scheduling, memory
management, and other operating-system functions; a
large number of functions for one level.
Silberschatz, Galvin and Gagne ©20023.24

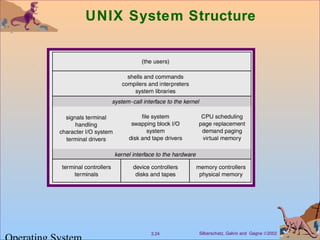

UNIX System Structure
Silberschatz, Galvin and Gagne ©20023.25

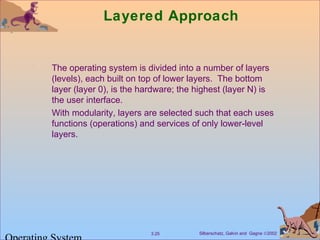

Layered Approach
The operating system is divided into a number of layers
(levels), each built on top of lower layers. The bottom
layer (layer 0), is the hardware; the highest (layer N) is
the user interface.
With modularity, layers are selected such that each uses
functions (operations) and services of only lower-level
layers.
Silberschatz, Galvin and Gagne ©20023.26

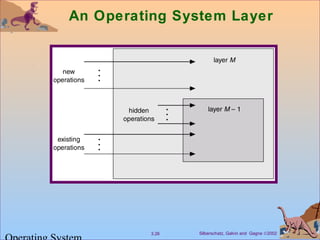

An Operating System Layer
Silberschatz, Galvin and Gagne ©20023.27

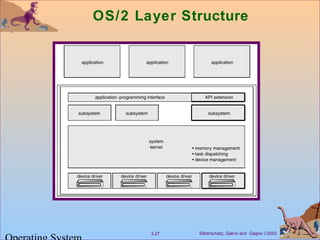

OS/2 Layer Structure
Silberschatz, Galvin and Gagne ©20023.28

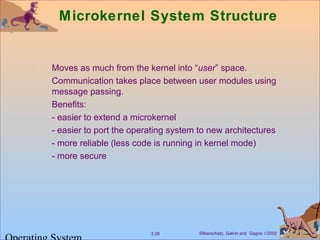

Microkernel System Structure
Moves as much from the kernel into “user” space.
Communication takes place between user modules using
message passing.
Benefits:
- easier to extend a microkernel
- easier to port the operating system to new architectures
- more reliable (less code is running in kernel mode)
- more secure
Silberschatz, Galvin and Gagne ©20023.29

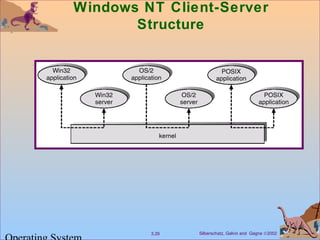

Windows NT Client-Server
Structure
Silberschatz, Galvin and Gagne ©20023.30

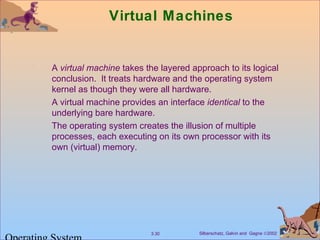

Virtual Machines
A virtual machine takes the layered approach to its logical
conclusion. It treats hardware and the operating system
kernel as though they were all hardware.
A virtual machine provides an interface identical to the
underlying bare hardware.
The operating system creates the illusion of multiple
processes, each executing on its own processor with its
own (virtual) memory.
Silberschatz, Galvin and Gagne ©20023.31

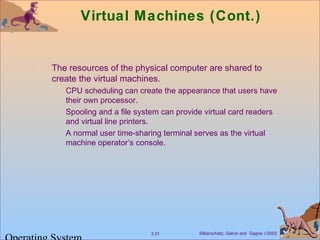

Virtual Machines (Cont.)
The resources of the physical computer are shared to
create the virtual machines.
CPU scheduling can create the appearance that users have
their own processor.
Spooling and a file system can provide virtual card readers
and virtual line printers.
A normal user time-sharing terminal serves as the virtual
machine operator’s console.
Silberschatz, Galvin and Gagne ©20023.32

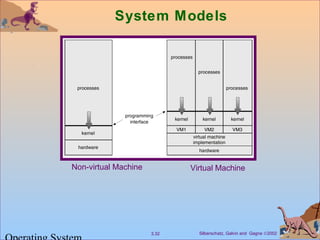

System Models
Non-virtual Machine Virtual Machine
Silberschatz, Galvin and Gagne ©20023.33

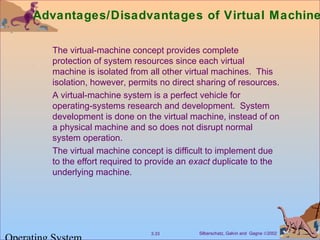

Advantages/Disadvantages of Virtual Machine
The virtual-machine concept provides complete
protection of system resources since each virtual
machine is isolated from all other virtual machines. This
isolation, however, permits no direct sharing of resources.
A virtual-machine system is a perfect vehicle for
operating-systems research and development. System
development is done on the virtual machine, instead of on
a physical machine and so does not disrupt normal
system operation.
The virtual machine concept is difficult to implement due
to the effort required to provide an exact duplicate to the
underlying machine.
Silberschatz, Galvin and Gagne ©20023.34

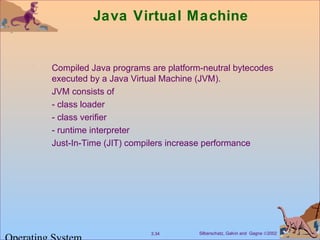

Java Virtual Machine
Compiled Java programs are platform-neutral bytecodes
executed by a Java Virtual Machine (JVM).
JVM consists of
- class loader
- class verifier
- runtime interpreter
Just-In-Time (JIT) compilers increase performance
Silberschatz, Galvin and Gagne ©20023.35

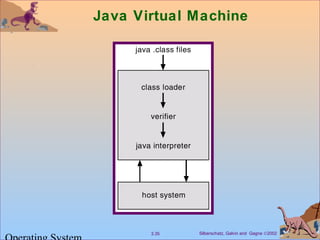

Java Virtual Machine
Silberschatz, Galvin and Gagne ©20023.36

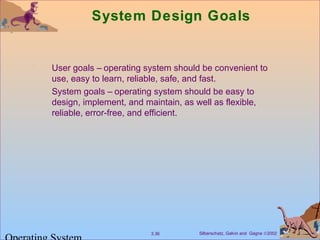

System Design Goals
User goals – operating system should be convenient to
use, easy to learn, reliable, safe, and fast.
System goals – operating system should be easy to
design, implement, and maintain, as well as flexible,
reliable, error-free, and efficient.
Silberschatz, Galvin and Gagne ©20023.37

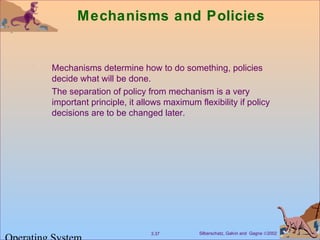

Mechanisms and Policies
Mechanisms determine how to do something, policies
decide what will be done.
The separation of policy from mechanism is a very
important principle, it allows maximum flexibility if policy
decisions are to be changed later.
Silberschatz, Galvin and Gagne ©20023.38

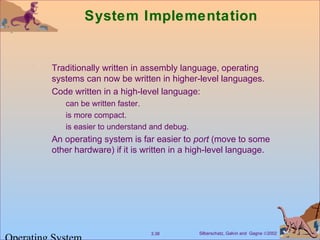

System Implementation
Traditionally written in assembly language, operating
systems can now be written in higher-level languages.
Code written in a high-level language:
can be written faster.
is more compact.
is easier to understand and debug.
An operating system is far easier to port (move to some
other hardware) if it is written in a high-level language.
Silberschatz, Galvin and Gagne ©20023.39

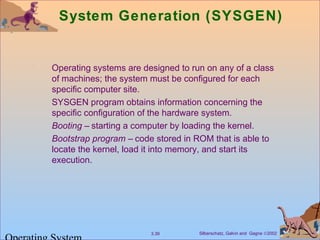

System Generation (SYSGEN)
Operating systems are designed to run on any of a class
of machines; the system must be configured for each
specific computer site.
SYSGEN program obtains information concerning the
specific configuration of the hardware system.
Booting – starting a computer by loading the kernel.
Bootstrap program – code stored in ROM that is able to
locate the kernel, load it into memory, and start its
execution.

More Related Content

What's hot

Introduction to System Calls
Introduction to System CallsIntroduction to System Calls
Introduction to System CallsVandana Salve

Chapter 7 software reliability
Chapter 7 software reliabilityChapter 7 software reliability
Chapter 7 software reliabilitydespicable me

Operating system architecture
Operating system architectureOperating system architecture
Operating system architectureSabin dumre

Kernel. Operating System
Kernel. Operating SystemKernel. Operating System
Kernel. Operating Systempratikkadam78

Operating system deign and implementation
Operating system deign and implementationOperating system deign and implementation
Operating system deign and implementationsangrampatil81

Software configuration management
Software configuration managementSoftware configuration management
Software configuration managementfizamustanser

1.1 The nature of software.ppt
1.1 The nature of software.ppt1.1 The nature of software.ppt
1.1 The nature of software.pptJAYAPRIYAR7

Process management in os
Process management in osProcess management in os
Process management in osMiong Lazaro

Programming Fundamentals lecture 2
Programming Fundamentals lecture 2Programming Fundamentals lecture 2
Programming Fundamentals lecture 2REHAN IJAZ

Operating Systems
Operating SystemsOperating Systems
Operating Systemsvampugani

Operating systems system structures
Operating systems   system structuresOperating systems   system structures
Operating systems system structuresMukesh Chinta

Types of Operating System-converted.pdf
Types of Operating System-converted.pdfTypes of Operating System-converted.pdf
Types of Operating System-converted.pdfOmid695066


What's hot (20)

System call
System callSystem call
System call

Introduction to System Calls
Introduction to System CallsIntroduction to System Calls
Introduction to System Calls

Chapter 7 software reliability
Chapter 7 software reliabilityChapter 7 software reliability
Chapter 7 software reliability

System programming
System programmingSystem programming
System programming

Operating system architecture
Operating system architectureOperating system architecture
Operating system architecture

Kernel. Operating System
Kernel. Operating SystemKernel. Operating System
Kernel. Operating System

Operating system deign and implementation
Operating system deign and implementationOperating system deign and implementation
Operating system deign and implementation

Software configuration management
Software configuration managementSoftware configuration management
Software configuration management

1.1 The nature of software.ppt
1.1 The nature of software.ppt1.1 The nature of software.ppt
1.1 The nature of software.ppt

System Administration
System AdministrationSystem Administration
System Administration

System software
System softwareSystem software
System software

Process management in os
Process management in osProcess management in os
Process management in os

Linux file system
Linux file systemLinux file system
Linux file system

Boot process
Boot processBoot process
Boot process

Operating System PPT
Operating System PPTOperating System PPT
Operating System PPT

Programming Fundamentals lecture 2
Programming Fundamentals lecture 2Programming Fundamentals lecture 2
Programming Fundamentals lecture 2

Operating Systems
Operating SystemsOperating Systems
Operating Systems

Operating systems system structures
Operating systems   system structuresOperating systems   system structures
Operating systems system structures

System calls
System callsSystem calls
System calls

Types of Operating System-converted.pdf
Types of Operating System-converted.pdfTypes of Operating System-converted.pdf
Types of Operating System-converted.pdf


Viewers also liked

Os structure
Os structureOs structure
Os structureMohd Arif

Chapter 2 - Operating System Structures
Chapter 2 - Operating System StructuresChapter 2 - Operating System Structures
Chapter 2 - Operating System StructuresWayne Jones Jnr

Operating system overview concepts ppt
Operating system overview concepts pptOperating system overview concepts ppt
Operating system overview concepts pptRajendraPrasad Alladi

Chapter 1: Introduction to Operating System
Chapter 1: Introduction to Operating SystemChapter 1: Introduction to Operating System
Chapter 1: Introduction to Operating SystemShafaan Khaliq Bhatti

Functions Of Operating System
Functions Of Operating SystemFunctions Of Operating System
Functions Of Operating SystemDr.Suresh Isave

Operating system and its function
Operating system and its functionOperating system and its function
Operating system and its functionNikhi Jain

Slides For Operating System Concepts By Silberschatz Galvin And Gagne
Slides For Operating System Concepts By Silberschatz Galvin And GagneSlides For Operating System Concepts By Silberschatz Galvin And Gagne
Slides For Operating System Concepts By Silberschatz Galvin And Gagnesarankumar4445

Chapter 2.3
Chapter 2.3Chapter 2.3
Chapter 2.3sotlsoc

Operating System..!
Operating System..!Operating System..!
Operating System..!benremoz

4 various operating systems
4 various operating systems4 various operating systems
4 various operating systemsmyrajendra

Galvin-operating System(Ch7)
Galvin-operating System(Ch7)Galvin-operating System(Ch7)
Galvin-operating System(Ch7)dsuyal1

Galvin-operating System(Ch3)
Galvin-operating System(Ch3)Galvin-operating System(Ch3)
Galvin-operating System(Ch3)dsuyal1

Galvin-operating System(Ch9)
Galvin-operating System(Ch9)Galvin-operating System(Ch9)
Galvin-operating System(Ch9)dsuyal1

Ch1: Operating System- Introduction
Ch1: Operating System- IntroductionCh1: Operating System- Introduction
Ch1: Operating System- IntroductionAhmar Hashmi


Viewers also liked (20)

Os structure
Os structureOs structure
Os structure

Chapter 2 - Operating System Structures
Chapter 2 - Operating System StructuresChapter 2 - Operating System Structures
Chapter 2 - Operating System Structures

Operating system overview concepts ppt
Operating system overview concepts pptOperating system overview concepts ppt
Operating system overview concepts ppt

Chapter 1: Introduction to Operating System
Chapter 1: Introduction to Operating SystemChapter 1: Introduction to Operating System
Chapter 1: Introduction to Operating System

Functions Of Operating System
Functions Of Operating SystemFunctions Of Operating System
Functions Of Operating System

Operating system and its function
Operating system and its functionOperating system and its function
Operating system and its function

Types of operating system
Types of operating systemTypes of operating system
Types of operating system

Slides For Operating System Concepts By Silberschatz Galvin And Gagne
Slides For Operating System Concepts By Silberschatz Galvin And GagneSlides For Operating System Concepts By Silberschatz Galvin And Gagne
Slides For Operating System Concepts By Silberschatz Galvin And Gagne

CPU Scheduling Algorithms
CPU Scheduling AlgorithmsCPU Scheduling Algorithms
CPU Scheduling Algorithms

Presentation on operating system
 Presentation on operating system Presentation on operating system
Presentation on operating system

Chapter 2.3
Chapter 2.3Chapter 2.3
Chapter 2.3

Operating System..!
Operating System..!Operating System..!
Operating System..!

Virtual memory
Virtual memoryVirtual memory
Virtual memory

4 various operating systems
4 various operating systems4 various operating systems
4 various operating systems

Galvin-operating System(Ch7)
Galvin-operating System(Ch7)Galvin-operating System(Ch7)
Galvin-operating System(Ch7)

Galvin-operating System(Ch3)
Galvin-operating System(Ch3)Galvin-operating System(Ch3)
Galvin-operating System(Ch3)

Galvin-operating System(Ch9)
Galvin-operating System(Ch9)Galvin-operating System(Ch9)
Galvin-operating System(Ch9)

Ch1: Operating System- Introduction
Ch1: Operating System- IntroductionCh1: Operating System- Introduction
Ch1: Operating System- Introduction

Input and output devices
Input and output devicesInput and output devices
Input and output devices

Operating System Concepts
Operating System ConceptsOperating System Concepts
Operating System Concepts


Similar to Ch3: Operating System Structure (20)

Ch1
Ch1Ch1
Ch1

2 os structure
2 os structure2 os structure
2 os structure

ch2.ppt
ch2.pptch2.ppt
ch2.ppt

Ch3 OS
Ch3 OSCh3 OS
Ch3 OS

OSCh3
OSCh3OSCh3
OSCh3

OS_Ch3
OS_Ch3OS_Ch3
OS_Ch3

Unit 1 ppt
Unit 1 pptUnit 1 ppt
Unit 1 ppt

Operating System - Unit I - Operating System Structures
Operating System - Unit I - Operating System StructuresOperating System - Unit I - Operating System Structures
Operating System - Unit I - Operating System Structures

ch1.ppt
ch1.pptch1.ppt
ch1.ppt

Chapter 2 Operating System Structures.ppt
Chapter 2 Operating System Structures.pptChapter 2 Operating System Structures.ppt
Chapter 2 Operating System Structures.ppt

Ch3
Ch3Ch3
Ch3

ch2- os.pptx
ch2- os.pptxch2- os.pptx
ch2- os.pptx

MODULE 2.ppt
MODULE 2.pptMODULE 2.ppt
MODULE 2.ppt

ch2.ppt
ch2.pptch2.ppt
ch2.ppt

ch2.ppt
ch2.pptch2.ppt
ch2.ppt

ch2.ppt
ch2.pptch2.ppt
ch2.ppt

Operating-System Structures
Operating-System StructuresOperating-System Structures
Operating-System Structures

ch2.ppt
ch2.pptch2.ppt
ch2.ppt

ch2.ppt
ch2.pptch2.ppt
ch2.ppt

ch2.ppt
ch2.pptch2.ppt
ch2.ppt


More from Ahmar Hashmi

32 Security in_Internet_IP_SEC_SSL/TLS_PGN_VPN_and_Firewalls
32 Security in_Internet_IP_SEC_SSL/TLS_PGN_VPN_and_Firewalls32 Security in_Internet_IP_SEC_SSL/TLS_PGN_VPN_and_Firewalls
32 Security in_Internet_IP_SEC_SSL/TLS_PGN_VPN_and_FirewallsAhmar Hashmi

31 Network Security
31 Network Security31 Network Security
31 Network SecurityAhmar Hashmi

28 Network Management_SNMP
28 Network Management_SNMP28 Network Management_SNMP
28 Network Management_SNMPAhmar Hashmi

26 Remote Logging_Electronic_Mail_and_File_Transfer
26 Remote Logging_Electronic_Mail_and_File_Transfer26 Remote Logging_Electronic_Mail_and_File_Transfer
26 Remote Logging_Electronic_Mail_and_File_TransferAhmar Hashmi

24 Congestion Control_and_Quality_of_Service
24 Congestion Control_and_Quality_of_Service24 Congestion Control_and_Quality_of_Service
24 Congestion Control_and_Quality_of_ServiceAhmar Hashmi

23 Process to_Process_Delivery_UDP_TCP_and_SCTP
23 Process to_Process_Delivery_UDP_TCP_and_SCTP23 Process to_Process_Delivery_UDP_TCP_and_SCTP
23 Process to_Process_Delivery_UDP_TCP_and_SCTPAhmar Hashmi

22 Network Layer_Delivery_forwarding_and_Routing
22 Network Layer_Delivery_forwarding_and_Routing22 Network Layer_Delivery_forwarding_and_Routing
22 Network Layer_Delivery_forwarding_and_RoutingAhmar Hashmi

21 Network Layer_Address_Mapping_Error_Reporting_and_Multicasting
21 Network Layer_Address_Mapping_Error_Reporting_and_Multicasting21 Network Layer_Address_Mapping_Error_Reporting_and_Multicasting
21 Network Layer_Address_Mapping_Error_Reporting_and_MulticastingAhmar Hashmi

20 Network Layer_Internet_Protocol
20 Network Layer_Internet_Protocol20 Network Layer_Internet_Protocol
20 Network Layer_Internet_ProtocolAhmar Hashmi

19 Network Layer_Logical_Addressing
19 Network Layer_Logical_Addressing19 Network Layer_Logical_Addressing
19 Network Layer_Logical_AddressingAhmar Hashmi

18 Virtual Circuit_Networks_Frame_Relay_and_ATM
18 Virtual Circuit_Networks_Frame_Relay_and_ATM18 Virtual Circuit_Networks_Frame_Relay_and_ATM
18 Virtual Circuit_Networks_Frame_Relay_and_ATMAhmar Hashmi

16 Wireless WANs_Cellular_Telephone_and_Satellite_Networks
16 Wireless WANs_Cellular_Telephone_and_Satellite_Networks16 Wireless WANs_Cellular_Telephone_and_Satellite_Networks
16 Wireless WANs_Cellular_Telephone_and_Satellite_NetworksAhmar Hashmi

15 Connecting LANs_Backbone_Networks_and_Virtual_LAN
15 Connecting LANs_Backbone_Networks_and_Virtual_LAN15 Connecting LANs_Backbone_Networks_and_Virtual_LAN
15 Connecting LANs_Backbone_Networks_and_Virtual_LANAhmar Hashmi

13 Wired Lans_Ethernet
13 Wired Lans_Ethernet13 Wired Lans_Ethernet
13 Wired Lans_EthernetAhmar Hashmi


More from Ahmar Hashmi (20)

32 Security in_Internet_IP_SEC_SSL/TLS_PGN_VPN_and_Firewalls
32 Security in_Internet_IP_SEC_SSL/TLS_PGN_VPN_and_Firewalls32 Security in_Internet_IP_SEC_SSL/TLS_PGN_VPN_and_Firewalls
32 Security in_Internet_IP_SEC_SSL/TLS_PGN_VPN_and_Firewalls

31 Network Security
31 Network Security31 Network Security
31 Network Security

30 Cryptography
30 Cryptography30 Cryptography
30 Cryptography

29 Multimedia
29 Multimedia29 Multimedia
29 Multimedia

28 Network Management_SNMP
28 Network Management_SNMP28 Network Management_SNMP
28 Network Management_SNMP

27 WWW and_HTTP
27 WWW and_HTTP27 WWW and_HTTP
27 WWW and_HTTP

26 Remote Logging_Electronic_Mail_and_File_Transfer
26 Remote Logging_Electronic_Mail_and_File_Transfer26 Remote Logging_Electronic_Mail_and_File_Transfer
26 Remote Logging_Electronic_Mail_and_File_Transfer

25 DNS
25 DNS25 DNS
25 DNS

24 Congestion Control_and_Quality_of_Service
24 Congestion Control_and_Quality_of_Service24 Congestion Control_and_Quality_of_Service
24 Congestion Control_and_Quality_of_Service

23 Process to_Process_Delivery_UDP_TCP_and_SCTP
23 Process to_Process_Delivery_UDP_TCP_and_SCTP23 Process to_Process_Delivery_UDP_TCP_and_SCTP
23 Process to_Process_Delivery_UDP_TCP_and_SCTP

22 Network Layer_Delivery_forwarding_and_Routing
22 Network Layer_Delivery_forwarding_and_Routing22 Network Layer_Delivery_forwarding_and_Routing
22 Network Layer_Delivery_forwarding_and_Routing

21 Network Layer_Address_Mapping_Error_Reporting_and_Multicasting
21 Network Layer_Address_Mapping_Error_Reporting_and_Multicasting21 Network Layer_Address_Mapping_Error_Reporting_and_Multicasting
21 Network Layer_Address_Mapping_Error_Reporting_and_Multicasting

20 Network Layer_Internet_Protocol
20 Network Layer_Internet_Protocol20 Network Layer_Internet_Protocol
20 Network Layer_Internet_Protocol

19 Network Layer_Logical_Addressing
19 Network Layer_Logical_Addressing19 Network Layer_Logical_Addressing
19 Network Layer_Logical_Addressing

18 Virtual Circuit_Networks_Frame_Relay_and_ATM
18 Virtual Circuit_Networks_Frame_Relay_and_ATM18 Virtual Circuit_Networks_Frame_Relay_and_ATM
18 Virtual Circuit_Networks_Frame_Relay_and_ATM

17 SONET/SDH
17 SONET/SDH17 SONET/SDH
17 SONET/SDH

16 Wireless WANs_Cellular_Telephone_and_Satellite_Networks
16 Wireless WANs_Cellular_Telephone_and_Satellite_Networks16 Wireless WANs_Cellular_Telephone_and_Satellite_Networks
16 Wireless WANs_Cellular_Telephone_and_Satellite_Networks

15 Connecting LANs_Backbone_Networks_and_Virtual_LAN
15 Connecting LANs_Backbone_Networks_and_Virtual_LAN15 Connecting LANs_Backbone_Networks_and_Virtual_LAN
15 Connecting LANs_Backbone_Networks_and_Virtual_LAN

14 Wireless LAN
14 Wireless LAN14 Wireless LAN
14 Wireless LAN

13 Wired Lans_Ethernet
13 Wired Lans_Ethernet13 Wired Lans_Ethernet
13 Wired Lans_Ethernet


Recently uploaded

Proudly South Africa powerpoint Thorisha.pptx
Proudly South Africa powerpoint Thorisha.pptxProudly South Africa powerpoint Thorisha.pptx
Proudly South Africa powerpoint Thorisha.pptxthorishapillay1

Capitol Tech U Doctoral Presentation - April 2024.pptx
Capitol Tech U Doctoral Presentation - April 2024.pptxCapitol Tech U Doctoral Presentation - April 2024.pptx
Capitol Tech U Doctoral Presentation - April 2024.pptxCapitolTechU

DATA STRUCTURE AND ALGORITHM for beginners
DATA STRUCTURE AND ALGORITHM for beginnersDATA STRUCTURE AND ALGORITHM for beginners
DATA STRUCTURE AND ALGORITHM for beginnersSabitha Banu

Roles & Responsibilities in Pharmacovigilance
Roles & Responsibilities in PharmacovigilanceRoles & Responsibilities in Pharmacovigilance
Roles & Responsibilities in PharmacovigilanceSamikshaHamane

Enzyme, Pharmaceutical Aids, Miscellaneous Last Part of Chapter no 5th.pdf
Enzyme, Pharmaceutical Aids, Miscellaneous Last Part of Chapter no 5th.pdfEnzyme, Pharmaceutical Aids, Miscellaneous Last Part of Chapter no 5th.pdf
Enzyme, Pharmaceutical Aids, Miscellaneous Last Part of Chapter no 5th.pdfSumit Tiwari

EPANDING THE CONTENT OF AN OUTLINE using notes.pptx
EPANDING THE CONTENT OF AN OUTLINE using notes.pptxEPANDING THE CONTENT OF AN OUTLINE using notes.pptx
EPANDING THE CONTENT OF AN OUTLINE using notes.pptxRaymartEstabillo3

MARGINALIZATION (Different learners in Marginalized Group
MARGINALIZATION (Different learners in Marginalized GroupMARGINALIZATION (Different learners in Marginalized Group
MARGINALIZATION (Different learners in Marginalized GroupJonathanParaisoCruz

Types of Journalistic Writing Grade 8.pptx
Types of Journalistic Writing Grade 8.pptxTypes of Journalistic Writing Grade 8.pptx
Types of Journalistic Writing Grade 8.pptxEyham Joco

भारत-रोम व्यापार.pptx, Indo-Roman Trade,
भारत-रोम व्यापार.pptx, Indo-Roman Trade,भारत-रोम व्यापार.pptx, Indo-Roman Trade,
भारत-रोम व्यापार.pptx, Indo-Roman Trade,Virag Sontakke

“Oh GOSH! Reflecting on Hackteria's Collaborative Practices in a Global Do-It...
“Oh GOSH! Reflecting on Hackteria's Collaborative Practices in a Global Do-It...“Oh GOSH! Reflecting on Hackteria's Collaborative Practices in a Global Do-It...
“Oh GOSH! Reflecting on Hackteria's Collaborative Practices in a Global Do-It...Marc Dusseiller Dusjagr

Painted Grey Ware.pptx, PGW Culture of India
Painted Grey Ware.pptx, PGW Culture of IndiaPainted Grey Ware.pptx, PGW Culture of India
Painted Grey Ware.pptx, PGW Culture of IndiaVirag Sontakke

Alper Gobel In Media Res Media Component
Alper Gobel In Media Res Media ComponentAlper Gobel In Media Res Media Component
Alper Gobel In Media Res Media ComponentInMediaRes1

Introduction to AI in Higher Education_draft.pptx
Introduction to AI in Higher Education_draft.pptxIntroduction to AI in Higher Education_draft.pptx
Introduction to AI in Higher Education_draft.pptxpboyjonauth

KSHARA STURA .pptx---KSHARA KARMA THERAPY (CAUSTIC THERAPY)————IMP.OF KSHARA ...
KSHARA STURA .pptx---KSHARA KARMA THERAPY (CAUSTIC THERAPY)————IMP.OF KSHARA ...KSHARA STURA .pptx---KSHARA KARMA THERAPY (CAUSTIC THERAPY)————IMP.OF KSHARA ...
KSHARA STURA .pptx---KSHARA KARMA THERAPY (CAUSTIC THERAPY)————IMP.OF KSHARA ...M56BOOKSTORE PRODUCT/SERVICE

internship ppt on smartinternz platform as salesforce developer
internship ppt on smartinternz platform as salesforce developerinternship ppt on smartinternz platform as salesforce developer
internship ppt on smartinternz platform as salesforce developerunnathinaik

How to Make a Pirate ship Primary Education.pptx
How to Make a Pirate ship Primary Education.pptxHow to Make a Pirate ship Primary Education.pptx
How to Make a Pirate ship Primary Education.pptxmanuelaromero2013

Employee wellbeing at the workplace.pptx
Employee wellbeing at the workplace.pptxEmployee wellbeing at the workplace.pptx
Employee wellbeing at the workplace.pptxNirmalaLoungPoorunde1

Computed Fields and api Depends in the Odoo 17
Computed Fields and api Depends in the Odoo 17Computed Fields and api Depends in the Odoo 17
Computed Fields and api Depends in the Odoo 17Celine George

18-04-UA_REPORT_MEDIALITERAСY_INDEX-DM_23-1-final-eng.pdf
18-04-UA_REPORT_MEDIALITERAСY_INDEX-DM_23-1-final-eng.pdf18-04-UA_REPORT_MEDIALITERAСY_INDEX-DM_23-1-final-eng.pdf
18-04-UA_REPORT_MEDIALITERAСY_INDEX-DM_23-1-final-eng.pdfssuser54595a


Recently uploaded (20)

Proudly South Africa powerpoint Thorisha.pptx
Proudly South Africa powerpoint Thorisha.pptxProudly South Africa powerpoint Thorisha.pptx
Proudly South Africa powerpoint Thorisha.pptx

Capitol Tech U Doctoral Presentation - April 2024.pptx
Capitol Tech U Doctoral Presentation - April 2024.pptxCapitol Tech U Doctoral Presentation - April 2024.pptx
Capitol Tech U Doctoral Presentation - April 2024.pptx

DATA STRUCTURE AND ALGORITHM for beginners
DATA STRUCTURE AND ALGORITHM for beginnersDATA STRUCTURE AND ALGORITHM for beginners
DATA STRUCTURE AND ALGORITHM for beginners

Roles & Responsibilities in Pharmacovigilance
Roles & Responsibilities in PharmacovigilanceRoles & Responsibilities in Pharmacovigilance
Roles & Responsibilities in Pharmacovigilance

Enzyme, Pharmaceutical Aids, Miscellaneous Last Part of Chapter no 5th.pdf
Enzyme, Pharmaceutical Aids, Miscellaneous Last Part of Chapter no 5th.pdfEnzyme, Pharmaceutical Aids, Miscellaneous Last Part of Chapter no 5th.pdf
Enzyme, Pharmaceutical Aids, Miscellaneous Last Part of Chapter no 5th.pdf

EPANDING THE CONTENT OF AN OUTLINE using notes.pptx
EPANDING THE CONTENT OF AN OUTLINE using notes.pptxEPANDING THE CONTENT OF AN OUTLINE using notes.pptx
EPANDING THE CONTENT OF AN OUTLINE using notes.pptx

MARGINALIZATION (Different learners in Marginalized Group
MARGINALIZATION (Different learners in Marginalized GroupMARGINALIZATION (Different learners in Marginalized Group
MARGINALIZATION (Different learners in Marginalized Group

Types of Journalistic Writing Grade 8.pptx
Types of Journalistic Writing Grade 8.pptxTypes of Journalistic Writing Grade 8.pptx
Types of Journalistic Writing Grade 8.pptx

भारत-रोम व्यापार.pptx, Indo-Roman Trade,
भारत-रोम व्यापार.pptx, Indo-Roman Trade,भारत-रोम व्यापार.pptx, Indo-Roman Trade,
भारत-रोम व्यापार.pptx, Indo-Roman Trade,

“Oh GOSH! Reflecting on Hackteria's Collaborative Practices in a Global Do-It...
“Oh GOSH! Reflecting on Hackteria's Collaborative Practices in a Global Do-It...“Oh GOSH! Reflecting on Hackteria's Collaborative Practices in a Global Do-It...
“Oh GOSH! Reflecting on Hackteria's Collaborative Practices in a Global Do-It...

Painted Grey Ware.pptx, PGW Culture of India
Painted Grey Ware.pptx, PGW Culture of IndiaPainted Grey Ware.pptx, PGW Culture of India
Painted Grey Ware.pptx, PGW Culture of India

Alper Gobel In Media Res Media Component
Alper Gobel In Media Res Media ComponentAlper Gobel In Media Res Media Component
Alper Gobel In Media Res Media Component

Introduction to AI in Higher Education_draft.pptx
Introduction to AI in Higher Education_draft.pptxIntroduction to AI in Higher Education_draft.pptx
Introduction to AI in Higher Education_draft.pptx

KSHARA STURA .pptx---KSHARA KARMA THERAPY (CAUSTIC THERAPY)————IMP.OF KSHARA ...
KSHARA STURA .pptx---KSHARA KARMA THERAPY (CAUSTIC THERAPY)————IMP.OF KSHARA ...KSHARA STURA .pptx---KSHARA KARMA THERAPY (CAUSTIC THERAPY)————IMP.OF KSHARA ...
KSHARA STURA .pptx---KSHARA KARMA THERAPY (CAUSTIC THERAPY)————IMP.OF KSHARA ...

internship ppt on smartinternz platform as salesforce developer
internship ppt on smartinternz platform as salesforce developerinternship ppt on smartinternz platform as salesforce developer
internship ppt on smartinternz platform as salesforce developer

How to Make a Pirate ship Primary Education.pptx
How to Make a Pirate ship Primary Education.pptxHow to Make a Pirate ship Primary Education.pptx
How to Make a Pirate ship Primary Education.pptx

OS-operating systems- ch04 (Threads) ...
OS-operating systems- ch04 (Threads) ...OS-operating systems- ch04 (Threads) ...
OS-operating systems- ch04 (Threads) ...

Employee wellbeing at the workplace.pptx
Employee wellbeing at the workplace.pptxEmployee wellbeing at the workplace.pptx
Employee wellbeing at the workplace.pptx

Computed Fields and api Depends in the Odoo 17
Computed Fields and api Depends in the Odoo 17Computed Fields and api Depends in the Odoo 17
Computed Fields and api Depends in the Odoo 17

18-04-UA_REPORT_MEDIALITERAСY_INDEX-DM_23-1-final-eng.pdf
18-04-UA_REPORT_MEDIALITERAСY_INDEX-DM_23-1-final-eng.pdf18-04-UA_REPORT_MEDIALITERAСY_INDEX-DM_23-1-final-eng.pdf
18-04-UA_REPORT_MEDIALITERAСY_INDEX-DM_23-1-final-eng.pdf


Ch3: Operating System Structure

  • 1. Silberschatz, Galvin and Gagne ©20023.1 Chapter 3: Operating-System Structures System Components Operating System Services System Calls System Programs System Structure Virtual Machines System Design and Implementation System Generation
  • 2. Silberschatz, Galvin and Gagne ©20023.2 Common System Components Process Management Main Memory Management File Management I/O System Management Secondary Management Networking Protection System Command-Interpreter System
  • 3. Silberschatz, Galvin and Gagne ©20023.3 Process Management A process is a program in execution. A process needs certain resources, including CPU time, memory, files, and I/O devices, to accomplish its task. The operating system is responsible for the following activities in connection with process management. Process creation and deletion. process suspension and resumption. Provision of mechanisms for: process synchronization process communication
  • 4. Silberschatz, Galvin and Gagne ©20023.4 Main-Memory Management Memory is a large array of words or bytes, each with its own address. It is a repository of quickly accessible data shared by the CPU and I/O devices. Main memory is a volatile storage device. It loses its contents in the case of system failure. The operating system is responsible for the following activities in connections with memory management: Keep track of which parts of memory are currently being used and by whom. Decide which processes to load when memory space becomes available. Allocate and deallocate memory space as needed.
  • 5. Silberschatz, Galvin and Gagne ©20023.5 File Management A file is a collection of related information defined by its creator. Commonly, files represent programs (both source and object forms) and data. The operating system is responsible for the following activities in connections with file management: File creation and deletion. Directory creation and deletion. Support of primitives for manipulating files and directories. Mapping files onto secondary storage. File backup on stable (nonvolatile) storage media.
  • 6. Silberschatz, Galvin and Gagne ©20023.6 I/O System Management The I/O system consists of: A buffer-caching system A general device-driver interface Drivers for specific hardware devices
  • 7. Silberschatz, Galvin and Gagne ©20023.7 Secondary-Storage Management Since main memory (primary storage) is volatile and too small to accommodate all data and programs permanently, the computer system must provide secondary storage to back up main memory. Most modern computer systems use disks as the principle on-line storage medium, for both programs and data. The operating system is responsible for the following activities in connection with disk management: Free space management Storage allocation Disk scheduling
  • 8. Silberschatz, Galvin and Gagne ©20023.8 Networking (Distributed Systems) A distributed system is a collection processors that do not share memory or a clock. Each processor has its own local memory. The processors in the system are connected through a communication network. Communication takes place using a protocol. A distributed system provides user access to various system resources. Access to a shared resource allows: Computation speed-up Increased data availability Enhanced reliability
  • 9. Silberschatz, Galvin and Gagne ©20023.9 Protection System Protection refers to a mechanism for controlling access by programs, processes, or users to both system and user resources. The protection mechanism must: distinguish between authorized and unauthorized usage. specify the controls to be imposed. provide a means of enforcement.
  • 10. Silberschatz, Galvin and Gagne ©20023.10 Command-Interpreter System Many commands are given to the operating system by control statements which deal with: process creation and management I/O handling secondary-storage management main-memory management file-system access protection networking
  • 11. Silberschatz, Galvin and Gagne ©20023.11 Command-Interpreter System (Cont.) The program that reads and interprets control statements is called variously: command-line interpreter shell (in UNIX) Its function is to get and execute the next command statement.
  • 12. Silberschatz, Galvin and Gagne ©20023.12 Operating System Services Program execution – system capability to load a program into memory and to run it. I/O operations – since user programs cannot execute I/O operations directly, the operating system must provide some means to perform I/O. File-system manipulation – program capability to read, write, create, and delete files. Communications – exchange of information between processes executing either on the same computer or on different systems tied together by a network. Implemented via shared memory or message passing. Error detection – ensure correct computing by detecting errors in the CPU and memory hardware, in I/O devices, or in user programs.
  • 13. Silberschatz, Galvin and Gagne ©20023.13 Additional Operating System Functions Additional functions exist not for helping the user, but rather for ensuring efficient system operations. • Resource allocation – allocating resources to multiple users or multiple jobs running at the same time. • Accounting – keep track of and record which users use how much and what kinds of computer resources for account billing or for accumulating usage statistics. • Protection – ensuring that all access to system resources is controlled.
  • 14. Silberschatz, Galvin and Gagne ©20023.14 System Calls System calls provide the interface between a running program and the operating system. Generally available as assembly-language instructions. Languages defined to replace assembly language for systems programming allow system calls to be made directly (e.g., C, C++) Three general methods are used to pass parameters between a running program and the operating system. Pass parameters in registers. Store the parameters in a table in memory, and the table address is passed as a parameter in a register. Push (store) the parameters onto the stack by the program, and pop off the stack by operating system.
  • 15. Silberschatz, Galvin and Gagne ©20023.15 Passing of Parameters As A Table
  • 16. Silberschatz, Galvin and Gagne ©20023.16 Types of System Calls Process control File management Device management Information maintenance Communications
  • 17. Silberschatz, Galvin and Gagne ©20023.17 MS-DOS Execution At System Start-up Running a Program
  • 18. Silberschatz, Galvin and Gagne ©20023.18 UNIX Running Multiple Programs
  • 19. Silberschatz, Galvin and Gagne ©20023.19 Communication Models Msg Passing Shared Memory Communication may take place using either message passing or shared memory.
  • 20. Silberschatz, Galvin and Gagne ©20023.20 System Programs System programs provide a convenient environment for program development and execution. The can be divided into: File manipulation Status information File modification Programming language support Program loading and execution Communications Application programs Most users’ view of the operation system is defined by system programs, not the actual system calls.
  • 21. Silberschatz, Galvin and Gagne ©20023.21 MS-DOS System Structure MS-DOS – written to provide the most functionality in the least space not divided into modules Although MS-DOS has some structure, its interfaces and levels of functionality are not well separated
  • 22. Silberschatz, Galvin and Gagne ©20023.22 MS-DOS Layer Structure
  • 23. Silberschatz, Galvin and Gagne ©20023.23 UNIX System Structure UNIX – limited by hardware functionality, the original UNIX operating system had limited structuring. The UNIX OS consists of two separable parts. Systems programs The kernel Consists of everything below the system-call interface and above the physical hardware Provides the file system, CPU scheduling, memory management, and other operating-system functions; a large number of functions for one level.
  • 24. Silberschatz, Galvin and Gagne ©20023.24 UNIX System Structure
  • 25. Silberschatz, Galvin and Gagne ©20023.25 Layered Approach The operating system is divided into a number of layers (levels), each built on top of lower layers. The bottom layer (layer 0), is the hardware; the highest (layer N) is the user interface. With modularity, layers are selected such that each uses functions (operations) and services of only lower-level layers.
  • 26. Silberschatz, Galvin and Gagne ©20023.26 An Operating System Layer
  • 27. Silberschatz, Galvin and Gagne ©20023.27 OS/2 Layer Structure
  • 28. Silberschatz, Galvin and Gagne ©20023.28 Microkernel System Structure Moves as much from the kernel into “user” space. Communication takes place between user modules using message passing. Benefits: - easier to extend a microkernel - easier to port the operating system to new architectures - more reliable (less code is running in kernel mode) - more secure
  • 29. Silberschatz, Galvin and Gagne ©20023.29 Windows NT Client-Server Structure
  • 30. Silberschatz, Galvin and Gagne ©20023.30 Virtual Machines A virtual machine takes the layered approach to its logical conclusion. It treats hardware and the operating system kernel as though they were all hardware. A virtual machine provides an interface identical to the underlying bare hardware. The operating system creates the illusion of multiple processes, each executing on its own processor with its own (virtual) memory.
  • 31. Silberschatz, Galvin and Gagne ©20023.31 Virtual Machines (Cont.) The resources of the physical computer are shared to create the virtual machines. CPU scheduling can create the appearance that users have their own processor. Spooling and a file system can provide virtual card readers and virtual line printers. A normal user time-sharing terminal serves as the virtual machine operator’s console.
  • 32. Silberschatz, Galvin and Gagne ©20023.32 System Models Non-virtual Machine Virtual Machine
  • 33. Silberschatz, Galvin and Gagne ©20023.33 Advantages/Disadvantages of Virtual Machine The virtual-machine concept provides complete protection of system resources since each virtual machine is isolated from all other virtual machines. This isolation, however, permits no direct sharing of resources. A virtual-machine system is a perfect vehicle for operating-systems research and development. System development is done on the virtual machine, instead of on a physical machine and so does not disrupt normal system operation. The virtual machine concept is difficult to implement due to the effort required to provide an exact duplicate to the underlying machine.
  • 34. Silberschatz, Galvin and Gagne ©20023.34 Java Virtual Machine Compiled Java programs are platform-neutral bytecodes executed by a Java Virtual Machine (JVM). JVM consists of - class loader - class verifier - runtime interpreter Just-In-Time (JIT) compilers increase performance
  • 35. Silberschatz, Galvin and Gagne ©20023.35 Java Virtual Machine
  • 36. Silberschatz, Galvin and Gagne ©20023.36 System Design Goals User goals – operating system should be convenient to use, easy to learn, reliable, safe, and fast. System goals – operating system should be easy to design, implement, and maintain, as well as flexible, reliable, error-free, and efficient.
  • 37. Silberschatz, Galvin and Gagne ©20023.37 Mechanisms and Policies Mechanisms determine how to do something, policies decide what will be done. The separation of policy from mechanism is a very important principle, it allows maximum flexibility if policy decisions are to be changed later.
  • 38. Silberschatz, Galvin and Gagne ©20023.38 System Implementation Traditionally written in assembly language, operating systems can now be written in higher-level languages. Code written in a high-level language: can be written faster. is more compact. is easier to understand and debug. An operating system is far easier to port (move to some other hardware) if it is written in a high-level language.
  • 39. Silberschatz, Galvin and Gagne ©20023.39 System Generation (SYSGEN) Operating systems are designed to run on any of a class of machines; the system must be configured for each specific computer site. SYSGEN program obtains information concerning the specific configuration of the hardware system. Booting – starting a computer by loading the kernel. Bootstrap program – code stored in ROM that is able to locate the kernel, load it into memory, and start its execution.
