Cern Cloud Architecture - February, 2016
CERN uses OpenStack to manage its high performance computing infrastructure for particle physics experiments like the Large Hadron Collider. The CERN cloud has over 5,500 compute nodes, 2800 images totaling 44 TB, and 2000 volumes using 800 TB of allocated storage. It supports over 17,000 VMs running across 33 compute cells. CERN faces challenges in scaling to 200,000 cores by summer 2016, live migrating 5000 VMs, upgrading nodes, and migrating to Neutron for networking.
More Related Content
Similar to Cern Cloud Architecture - February, 2016
Cern Cloud Architecture - February, 2016
- 2. CERN Cloud Architecture OpsMidcycle - High Performance Computing with OpenStack - Manchester, 2016 Belmiro Moreira belmiro.moreira@cern.ch @belmiromoreira
- 3.

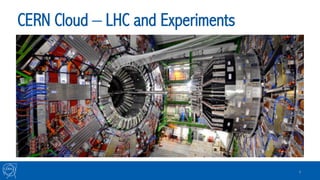

- 4. CERN Cloud –LHC and Experiments 4 CMS detector https://www.google.com/maps/streetview/#cern
- 5. CERN Cloud –AMS 5

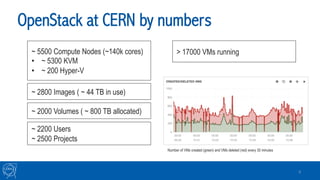

- 6. OpenStack at CERNby numbers 6 ~ 5500 Compute Nodes (~140k cores) • ~ 5300 KVM • ~ 200 Hyper-V ~ 2800 Images ( ~ 44 TB in use) ~ 2000 Volumes ( ~ 800 TB allocated) ~ 2200 Users ~ 2500 Projects > 17000 VMs running Number of VMs created (green) and VMs deleted (red) every 30 minutes

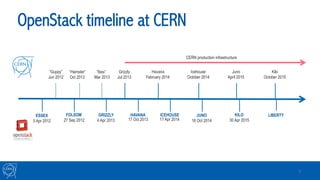

- 7. OpenStack timeline atCERN 7 ESSEX 5 Apr 2012 FOLSOM 27 Sep 2012 GRIZZLY 4 Apr 2013 HAVANA 17 Oct 2013 ICEHOUSE 17 Apr 2014 JUNO 16 Oct 2014 Havana February 2014 Icehouse October 2014 KILO 30 Apr 2015 “Hamster” Oct 2013 “Guppy” Jun 2012 “Ibex” Mar 2013 Grizzly Jul 2013 Juno April 2015 LIBERTY Kilo October 2015 CERN production infrastructure

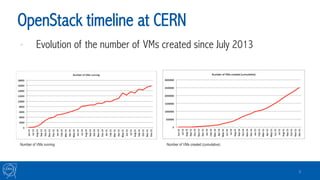

- 8. • Evolution ofthe number of VMs created since July 2013 OpenStack timeline at CERN 8 Number of VMs running Number of VMs created (cumulative)
- 9. Infrastructure Overview • Oneregion, two data centres, 33 Cells • HA architecture only on Top Cell • Children Cells control plane are usually VMs running in the shared infrastructure • Using nova-network with custom CERN driver / Neutron in one cell • 2 Hypervisor types (KVM, HyperV) • Scientific Linux CERN 6; CERN Centos 7; Windows Server 2012 R2 • 2 Ceph instances • Keystone integrated with CERN account/lifecycle system • Nova; Keystone; Glance; Cinder; Heat; Horizon, Ceilometer; Rally; Magnum; Neutron • Deployment using OpenStack puppet modules and RDO 9

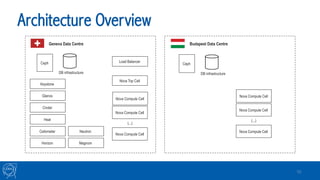

- 10. Architecture Overview 10 Nova ComputeCell Nova Top Cell Nova Compute Cell Nova Compute Cell Load BalancerCeph Glance Cinder Heat Ceilometer Horizon Keystone DB infrastructure (...) Geneva Data Centre Budapest Data Centre Ceph DB infrastructure Nova Compute Cell Nova Compute Cell Nova Compute Cell (...) Neutron Magnum

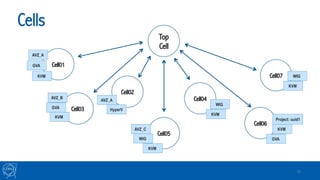

- 11.

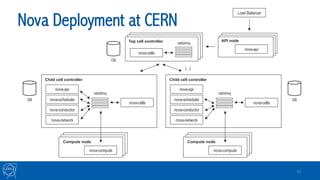

- 12. Nova Deployment atCERN 12 nova-cells rabbitmqTop cell controller API node nova-api rabbitmq nova-cells nova-api nova-scheduler nova-conductor nova-network Child cell controller Compute node nova-compute rabbitmq nova-cells nova-api nova-scheduler nova-conductor nova-network Child cell controller Compute node nova-compute DB (...) Load Balancer DB DB

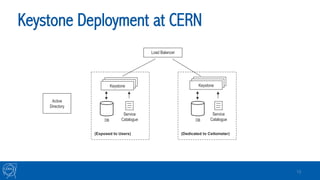

- 13. Keystone Deployment atCERN 13 Load Balancer DB Service CatalogueDB Keystone Service Catalogue (Exposed to Users) (Dedicated to Ceilometer) Keystone Active Directory

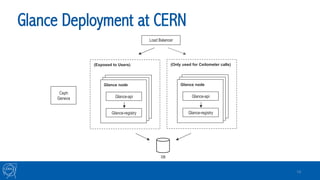

- 14. Glance Deployment atCERN 14 Load Balancer DB Glance-api Glance-registry Glance node (Exposed to Users) Glance-api Glance-registry Glance node (Only used for Ceilometer calls) Ceph Geneva

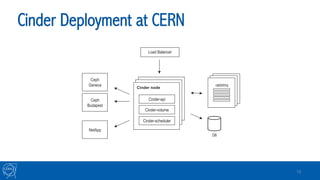

- 15. Cinder Deployment atCERN 15 Load Balancer DB Cinder-api Cinder-volume Cinder node Cinder-scheduler rabbitmq Ceph Geneva Ceph Budapest NetApp

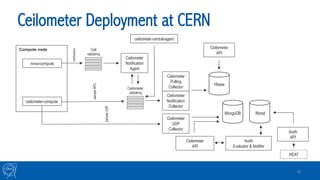

- 16. Ceilometer Deployment atCERN 16 nova-compute ceilometer-compute Hbase Ceilometer Notification Agent Ceilometer Pulling Collector Ceilometer Notification Collector Ceilometer UDP Collector MysqlMongoDB Ceilometer API Cell rabbitmq notifications Ceilometer rabbitmq Ceilometer API sampleRPC sampleUDP Aodh Evaluator & Notifier HEAT ceilometer-central-agent Compute node Aodh API

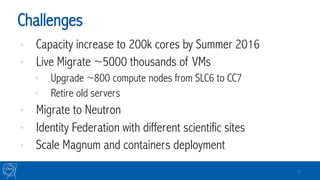

- 17. Challenges • Capacity increaseto 200k cores by Summer 2016 • Live Migrate ~5000 thousands of VMs • Upgrade ~800 compute nodes from SLC6 to CC7 • Retire old servers • Migrate to Neutron • Identity Federation with different scientific sites • Scale Magnum and containers deployment 17
- 18.
