Integrating Bare-metal Provisioning into CERN's Private Cloud

The document discusses integrating bare-metal provisioning using Ironic into CERN's private cloud service. Key points include: - CERN uses OpenStack to manage over 1300 physical servers across two data centers to support research activities including the Large Hadron Collider. - Integrating Ironic allows provisioning physical servers alongside virtual machines through the OpenStack API for use cases like databases, HPC clusters, and network equipment. - Implementation details covered include integrating Ironic with Nova cells, networking, configuration management, and hardware management plugins to support CERN's heterogeneous hardware. - Ongoing work and challenges discussed include conductor affinity, location-aware scheduling, and upgrades between OpenStack releases.

Embed presentation

Downloaded 26 times

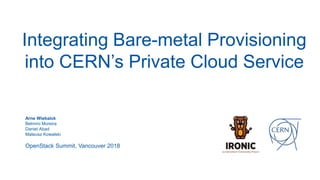

Integrating Bare-metal Provisioning into CERN’s Private Cloud Service Arne Wiebalck Belmiro Moreira Daniel Abad Mateusz Kowalski OpenStack Summit, Vancouver 2018

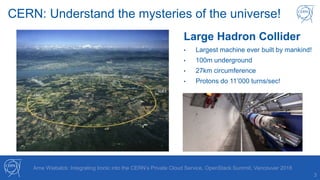

CERN: Understand the mysteries of the universe! 3 Large Hadron Collider • Largest machine ever built by mankind! • 100m underground • 27km circumference • Protons do 11’000 turns/sec! Arne Wiebalck: Integrating Ironic into the CERN’s Private Cloud Service, OpenStack Summit, Vancouver 2018

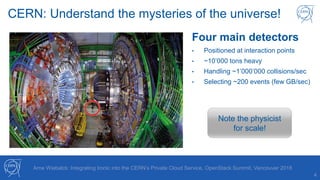

CERN: Understand the mysteries of the universe! 4 Four main detectors • Positioned at interaction points • ~10’000 tons heavy • Handling ~1’000’000 collisions/sec • Selecting ~200 events (few GB/sec) Note the physicist for scale! Arne Wiebalck: Integrating Ironic into the CERN’s Private Cloud Service, OpenStack Summit, Vancouver 2018

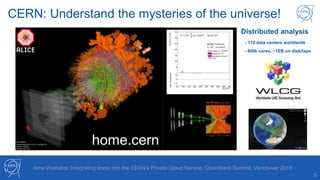

CERN: Understand the mysteries of the universe! 5 home.cern Distributed analysis - 170 data centers worldwide - 800k cores, ~1EB on disk/tape Arne Wiebalck: Integrating Ironic into the CERN’s Private Cloud Service, OpenStack Summit, Vancouver 2018

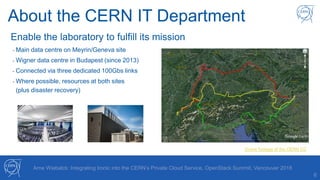

About the CERN IT Department 6 Enable the laboratory to fulfill its mission - Main data centre on Meyrin/Geneva site - Wigner data centre in Budapest (since 2013) - Connected via three dedicated 100Gbs links - Where possible, resources at both sites (plus disaster recovery) Drone footage of the CERN CC Arne Wiebalck: Integrating Ironic into the CERN’s Private Cloud Service, OpenStack Summit, Vancouver 2018
7 Arne Wiebalck: Integrating Ironic into the CERN’s Private Cloud Service, OpenStack Summit, Vancouver 2018 The Agile Infrastructure Project 2012, a turning point for CERN IT: - LHC Computing and data requirements were increasing … Moore’s law would help, but not enough - EU funded projects for fabric management tool chain ended - Staff not to grow with the managed resources - LS1 (2013) ahead, next window only in 2019! - Other deployments have surpassed CERN‘s Three core areas: - Centralized Monitoring - Config’ management - IaaS based on OpenStack “All servers shall be virtual!” 0 20 40 60 80 100 120 140 160 Run 1 Run 2 Run 3 Run 4 GRID ATLAS CMS LHCb ALICE we are here what we can afford

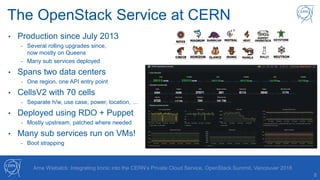

The OpenStack Service at CERN 8 • Production since July 2013 - Several rolling upgrades since, now mostly on Queens - Many sub services deployed • Spans two data centers - One region, one API entry point • CellsV2 with 70 cells - Separate h/w, use case, power, location, … • Deployed using RDO + Puppet - Mostly upstream, patched where needed • Many sub services run on VMs! - Boot strapping Arne Wiebalck: Integrating Ironic into the CERN’s Private Cloud Service, OpenStack Summit, Vancouver 2018

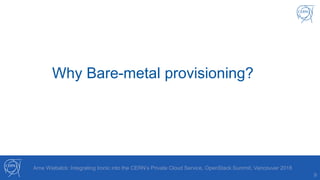

9 Arne Wiebalck: Integrating Ironic into the CERN’s Private Cloud Service, OpenStack Summit, Vancouver 2018 Why Bare-metal provisioning?
10 Arne Wiebalck: Integrating Ironic into the CERN’s Private Cloud Service, OpenStack Summit, Vancouver 2018 Why Bare-Metal Provisioning? (1) • VMs not sensible/suitable for all of our use cases - Storage and database nodes, HPC clusters, boot strapping, critical network equipment or specialised network setups, precise/repeatable benchmarking for s/w frameworks, … • Complete our service offerings - Physical nodes (in addition to VMs and containers) - OpenStack UI as the single pane of glass • Simplify hardware provisioning workflows - For users: openstack server create/delete - For procurement & h/w provisioning teams: initial on-boarding, server re-assignments

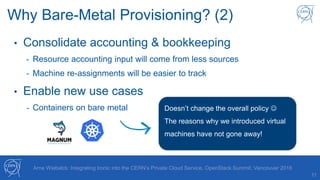

11 Arne Wiebalck: Integrating Ironic into the CERN’s Private Cloud Service, OpenStack Summit, Vancouver 2018 Why Bare-Metal Provisioning? (2) • Consolidate accounting & bookkeeping - Resource accounting input will come from less sources - Machine re-assignments will be easier to track • Enable new use cases - Containers on bare metal Doesn’t change the overall policy  The reasons why we introduced virtual machines have not gone away!

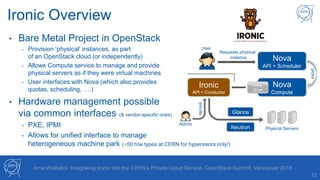

12 Arne Wiebalck: Integrating Ironic into the CERN’s Private Cloud Service, OpenStack Summit, Vancouver 2018 Ironic Overview • Bare Metal Project in OpenStack - Provision ‘physical’ instances, as part of an OpenStack cloud (or independently) - Allows Compute service to manage and provide physical servers as if they were virtual machines - User interfaces with Nova (which also provides quotas, scheduling, ….) • Hardware management possible via common interfaces (& vendor-specific ones) - PXE, IPMI - Allows for unified interface to manage heterogeneous machine park (~50 h/w types at CERN for hypervisors only!) Nova API + Scheduler Requests physical instance Ironic API + Conductor Nova Compute picks Ironic Driver Physical Servers User enrolls Admin Glance Neutron

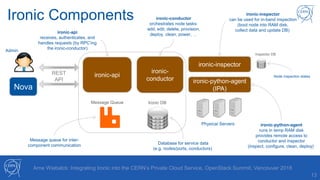

13 Arne Wiebalck: Integrating Ironic into the CERN’s Private Cloud Service, OpenStack Summit, Vancouver 2018 Ironic Components Ironic DB Inspector DB ironic-api Message Queue Nova ironic- conductor ironic-inspector Admin Physical Servers ironic-python-agent (IPA) REST API ironic-python-agent runs in temp RAM disk provides remote access to conductor and inspector (inspect, configure, clean, deploy) ironic-inspector can be used for in-band inspection (boot node into RAM disk, collect data and update DB)ironic-api receives, authenticates, and handles requests (by RPC’ing the ironic-conductor) ironic-conductor orchestrates node tasks: add, edit, delete, provision, deploy, clean, power, … Database for service data (e.g. nodes/ports, conductors) Message queue for inter- component communication Node inspection states

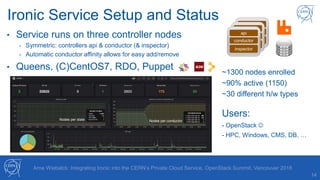

14 Arne Wiebalck: Integrating Ironic into the CERN’s Private Cloud Service, OpenStack Summit, Vancouver 2018 Ironic Service Setup and Status • Service runs on three controller nodes - Symmetric: controllers api & conductor (& inspector) - Automatic conductor affinity allows for easy add/remove • Queens, (C)CentOS7, RDO, Puppet inspector conductor api inspector conductor api inspector conductor api ~1300 nodes enrolled ~90% active (1150) ~30 different h/w types Users: - OpenStack  - HPC, Windows, CMS, DB, … Nodes per state Nodes per conductor
15 Arne Wiebalck: Integrating Ironic into the CERN’s Private Cloud Service, OpenStack Summit, Vancouver 2018 Integration with Nova CellsV1 • We’re a heavy user of cells - Introduced for scalability reasons - Also: resource management, location, user and h/w separation, AVZs, … • We carry some nova patches - Project-to-cell mapping via project metadata • We introduced a bare-metal cell - All projects with physical flavors are mapped - No mixing of VMs and BMs in the same project Nova Top Cell API Nova Top Cell Scheduler Nova Cell Scheduler Nova Compute Project Mapping Bare-Metal Cell Bare-Metal Cell

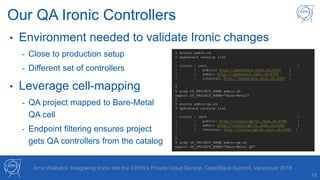

16 Arne Wiebalck: Integrating Ironic into the CERN’s Private Cloud Service, OpenStack Summit, Vancouver 2018 Our QA Ironic Controllers • Environment needed to validate Ironic changes - Close to production setup - Different set of controllers • Leverage cell-mapping - QA project mapped to Bare-Metal QA cell - Endpoint filtering ensures project gets QA controllers from the catalog $ source admin.sh $ openstack catalog list … | ironic | cern | | | public: http://openstack.cern.ch:6385 | | | admin: http://openstack.cern.ch:6385 | | | internal: http://openstack.cern.ch:6385 | … $ $ grep OS_PROJECT_NAME admin.sh export OS_PROJECT_NAME=”Bare-Metal" $ $ source admin-qa.sh $ openstack catalog list … | ironic | cern | | | public: http://ironic-qa-01.cern.ch:6385 | | | admin: http://ironic-qa-01.cern.ch:6385 | | | internal: http://ironic-qa-01.cern.ch:6385 | … $ $ grep OS_PROJECT_NAME admin-qa.sh export OS_PROJECT_NAME=”Bare-Metal QA"

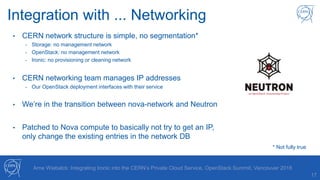

17 Arne Wiebalck: Integrating Ironic into the CERN’s Private Cloud Service, OpenStack Summit, Vancouver 2018 Integration with ... Networking • CERN network structure is simple, no segmentation* - Storage: no management network - OpenStack: no management network - Ironic: no provisioning or cleaning network • CERN networking team manages IP addresses - Our OpenStack deployment interfaces with their service • We’re in the transition between nova-network and Neutron • Patched to Nova compute to basically not try to get an IP, only change the existing entries in the network DB * Not fully true

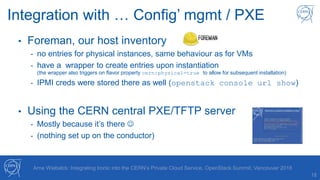

18 Arne Wiebalck: Integrating Ironic into the CERN’s Private Cloud Service, OpenStack Summit, Vancouver 2018 Integration with … Config’ mgmt / PXE • Foreman, our host inventory - no entries for physical instances, same behaviour as for VMs - have a wrapper to create entries upon instantiation (the wrapper also triggers on flavor property cern:physical=true to allow for subsequent installation) - IPMI creds were stored there as well (openstack console url show) • Using the CERN central PXE/TFTP server - Mostly because it’s there  - (nothing set up on the conductor)

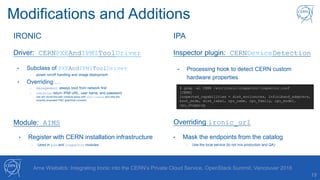

19 Arne Wiebalck: Integrating Ironic into the CERN’s Private Cloud Service, OpenStack Summit, Vancouver 2018 Modifications and Additions • Subclass of PXEAndIPMIToolDriver - power on/off handling and image deployment • Overriding … - management: always boot from network first - console: return IPMI URL, user name, and password (we will revisit the web condole setup with shellinabox and also the recently proposed VNC graphical console) Driver: CERNPXEAndIPMIToolDriver Module: AIMS • Register with CERN installation infrastructure - Used in pxe and inspector modules • Processing hook to detect CERN custom hardware properties Inspector plugin: CERNDeviceDetection $ grep –a1 CERN /etc/ironic-inspector/inspector.conf [CERN] inspected_capabilities = disk_enclosures, infiniband_adapters, boot_mode, disk_label, cpu_name, cpu_family, cpu_model, cpu_stepping Overriding ironic_url • Mask the endpoints from the catalog - Use the local service (to not mix production and QA) IRONIC IPA

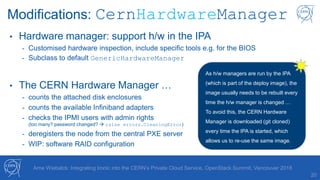

20 Arne Wiebalck: Integrating Ironic into the CERN’s Private Cloud Service, OpenStack Summit, Vancouver 2018 Modifications: CernHardwareManager • Hardware manager: support h/w in the IPA - Customised hardware inspection, include specific tools e.g. for the BIOS - Subclass to default GenericHardwareManager • The CERN Hardware Manager … - counts the attached disk enclosures - counts the available Infiniband adapters - checks the IPMI users with admin rights (too many? password changed?  raise errors.CleaningError) - deregisters the node from the central PXE server - WIP: software RAID configuration As h/w managers are run by the IPA (which is part of the deploy image), the image usually needs to be rebuilt every time the h/w manager is changed … To avoid this, the CERN Hardware Manager is downloaded (git cloned) every time the IPA is started, which allows us to re-use the same image.
21 Arne Wiebalck: Integrating Ironic into the CERN’s Private Cloud Service, OpenStack Summit, Vancouver 2018 Some issues challenges …

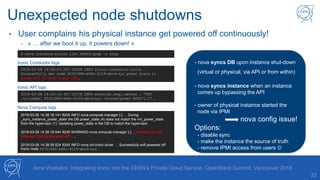

Unexpected node shutdowns 22 • User complains his physical instance get powered off continuously! - « … after we boot it up, it powers down! » Arne Wiebalck: Integrating Ironic into the CERN’s Private Cloud Service, OpenStack Summit, Vancouver 2018 $ nova instance-action list $UUID|grep –c stop 2018-03-08 14:38:57.593 23408 INFO ironic.conductor.utils … Successfully set node 953f1886-e68c-4129-abcd-xyz power state to power off by soft power off. Ironic Conductor logs 2018-03-08 14:38:18.407 23376 INFO eventlet.wsgi.server … "PUT /v1/nodes/ 953f1886-e68c-4129-abcd-xyz /states/power HTTP/1.1" … Ironic API logs 2018-03-08 14:38:16.141 8245 INFO nova.compute.manager [-] … During _sync_instance_power_state the DB power_state (4) does not match the vm_power_state from the hypervisor (1). Updating power_state in the DB to match the hypervisor. 2018-03-08 14:38:16.944 8245 WARNING nova.compute.manager [-] … Instance is not stopped. Calling the stop API. … 2018-03-08 14:38:58.524 8245 INFO nova.virt.ironic.driver … Successfully soft powered off Ironic node 953f1886-e68c-4129-abcd-xyz. Nova Compute logs - nova syncs DB upon instance shut-down (virtual or physical, via API or from within) - nova syncs instance when an instance comes up bypassing the API - owner of physical instance started the node via IPMI nova config issue! Options: - disable sync - make the instance the source of truth - remove IPMI access from users 

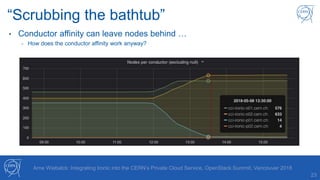

“Scrubbing the bathtub” 23 • Conductor affinity can leave nodes behind … - How does the conductor affinity work anyway? Arne Wiebalck: Integrating Ironic into the CERN’s Private Cloud Service, OpenStack Summit, Vancouver 2018

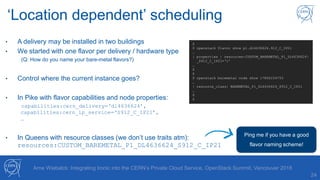

‘Location dependent’ scheduling 24 • A delivery may be installed in two buildings • We started with one flavor per delivery / hardware type (Q: How do you name your bare-metal flavors?) • Control where the current instance goes? • In Pike with flavor capabilities and node properties: capabilities:cern_delivery=‘dl4636624’, capabilities:cern_ip_service=‘S912_C_IP21’, … • In Queens with resource classes (we don’t use traits atm): resources:CUSTOM_BAREMETAL_P1_DL4636624_S912_C_IP21 Arne Wiebalck: Integrating Ironic into the CERN’s Private Cloud Service, OpenStack Summit, Vancouver 2018 $ $ openstack flavor show p1.dl4636624.912_C_IP21 … | properties | resources:CUSTOM_BAREMETAL_P1_DL4636624 _S912_C_IP21=‘1’ … $ $ $ openstack baremetal node show i7865234753 … | resource_class| BAREMETAL_P1_DL4636624_S912_C_IP21 … $ $ Ping me if you have a good flavor naming scheme!

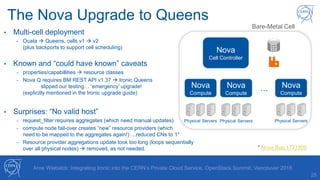

The Nova Upgrade to Queens 25 Arne Wiebalck: Integrating Ironic into the CERN’s Private Cloud Service, OpenStack Summit, Vancouver 2018 • Multi-cell deployment - Ocata  Queens, cells v1  v2 (plus backports to support cell scheduling) • Known and “could have known” caveats - properties/capabillities  resource classes - Nova Q requires BM REST API v1.37  Ironic Queens slipped our testing… ‘emergency’ upgrade! (explicitly mentioned in the Ironic upgrade guide) • Surprises: “No valid host” - request_filter requires aggregates (which need manual updates) - compute node fail-over creates “new” resource providers (which need to be mapped to the aggregates again!) …reduced CNs to 1* - Resource provider aggregations update took too long (loops sequentially over all physical nodes)  removed, as not needed. Physical Servers Nova Cell Controller Nova Compute Physical Servers Nova Compute Physical Servers Nova Compute … Bare-Metal Cell * Nova Bug 1771806

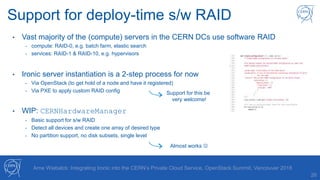

26 Arne Wiebalck: Integrating Ironic into the CERN’s Private Cloud Service, OpenStack Summit, Vancouver 2018 Support for deploy-time s/w RAID • Vast majority of the (compute) servers in the CERN DCs use software RAID - compute: RAID-0, e.g. batch farm, elastic search - services: RAID-1 & RAID-10, e.g. hypervisors • Ironic server instantiation is a 2-step process for now - Via OpenStack (to get hold of a node and have it registered) - Via PXE to apply custom RAID config • WIP: CERNHardwareManager - Basic support for s/w RAID - Detect all devices and create one array of desired type - No partition support, no disk subsets, single level Support for this be very welcome! Almost works 

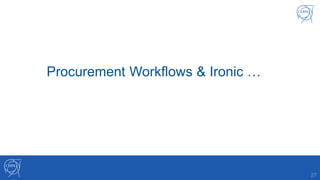

27 Procurement Workflows & Ironic …

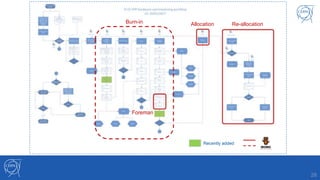

28 Re-allocationAllocation Foreman Recently added Burn-in

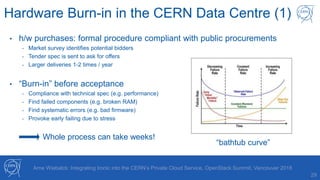

29 Arne Wiebalck: Integrating Ironic into the CERN’s Private Cloud Service, OpenStack Summit, Vancouver 2018 • h/w purchases: formal procedure compliant with public procurements - Market survey identifies potential bidders - Tender spec is sent to ask for offers - Larger deliveries 1-2 times / year • “Burn-in” before acceptance - Compliance with technical spec (e.g. performance) - Find failed components (e.g. broken RAM) - Find systematic errors (e.g. bad firmware) - Provoke early failing due to stress Whole process can take weeks! Hardware Burn-in in the CERN Data Centre (1) “bathtub curve”

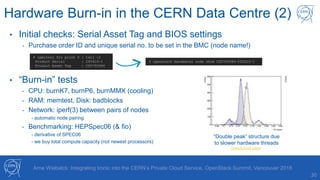

30 Arne Wiebalck: Integrating Ironic into the CERN’s Private Cloud Service, OpenStack Summit, Vancouver 2018 Hardware Burn-in in the CERN Data Centre (2) • Initial checks: Serial Asset Tag and BIOS settings - Purchase order ID and unique serial no. to be set in the BMC (node name!) • “Burn-in” tests - CPU: burnK7, burnP6, burnMMX (cooling) - RAM: memtest, Disk: badblocks - Network: iperf(3) between pairs of nodes - automatic node pairing - Benchmarking: HEPSpec06 (& fio) - derivative of SPEC06 - we buy total compute capacity (not newest processors) $ ipmitool fru print 0 | tail -2 Product Serial : 245410-1 Product Asset Tag : CD5792984 $ openstack baremetal node show CD5792984-245410-1 “Double peak” structure due to slower hardware threads OpenAccess paper

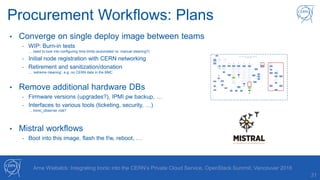

31 Arne Wiebalck: Integrating Ironic into the CERN’s Private Cloud Service, OpenStack Summit, Vancouver 2018 Procurement Workflows: Plans • Converge on single deploy image between teams - WIP: Burn-in tests … need to look into configuring time limits (automated vs. manual cleaning?) - Initial node registration with CERN networking - Retirement and sanitization/donation … ‘extreme cleaning’, e.g. no CERN data in the BMC • Remove additional hardware DBs - Firmware versions (upgrades?), IPMI pw backup, … - Interfaces to various tools (ticketing, security, …) … ironic_observer role? • Mistral workflows - Boot into this image, flash the f/w, reboot, …
32 One more thing …

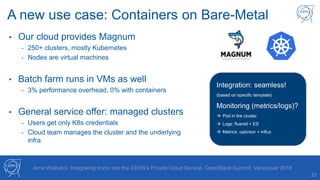

33 Arne Wiebalck: Integrating Ironic into the CERN’s Private Cloud Service, OpenStack Summit, Vancouver 2018 A new use case: Containers on Bare-Metal • Our cloud provides Magnum - 250+ clusters, mostly Kubernetes - Nodes are virtual machines • Batch farm runs in VMs as well - 3% performance overhead, 0% with containers • General service offer: managed clusters - Users get only K8s credentials - Cloud team manages the cluster and the underlying infra Integration: seamless! (based on specific template) Monitoring (metrics/logs)?  Pod in the cluster  Logs: fluentd + ES  Metrics: cadvisor + influx
34 Arne Wiebalck: Integrating Ironic into the CERN’s Private Cloud Service, OpenStack Summit, Vancouver 2018 Summary and Outlook • Ironic moved to Production in the CERN cloud! - Minor modifications, no major issues - 1’300 nodes enrolled, >1’000 instances! - All physical hardware is handed out via Ironic now • Existing workflows and new use cases - First steps done, much more to come! • About to start: Enrollment of the remaining servers* *Only 10’000 servers left to do 
Integrating Bare-metal Provisioning into CERN's Private Cloud

More Related Content

PPTX
Operational War Stories from 5 Years of Running OpenStack in Production
byArne Wiebalck

PDF
Tips Tricks and Tactics with Cells and Scaling OpenStack - May, 2015
byBelmiro Moreira

PDF
Cern Cloud Architecture - February, 2016
byBelmiro Moreira

PDF
Multi-Cell OpenStack: How to Evolve Your Cloud to Scale - November, 2014
byBelmiro Moreira

PPTX
Moving to Nova Cells without Destroying the World
byMike Dorman

PDF
Deep Dive Into the CERN Cloud Infrastructure - November, 2013
byBelmiro Moreira

PDF
10 Years of OpenStack at CERN - From 0 to 300k cores
byBelmiro Moreira

PDF
Unveiling CERN Cloud Architecture - October, 2015
byBelmiro Moreira

Operational War Stories from 5 Years of Running OpenStack in Production
byArne Wiebalck

Tips Tricks and Tactics with Cells and Scaling OpenStack - May, 2015
byBelmiro Moreira

Cern Cloud Architecture - February, 2016
byBelmiro Moreira

Multi-Cell OpenStack: How to Evolve Your Cloud to Scale - November, 2014
byBelmiro Moreira

Moving to Nova Cells without Destroying the World
byMike Dorman

Deep Dive Into the CERN Cloud Infrastructure - November, 2013
byBelmiro Moreira

10 Years of OpenStack at CERN - From 0 to 300k cores
byBelmiro Moreira

Unveiling CERN Cloud Architecture - October, 2015
byBelmiro Moreira


What's hot

PPTX
The OpenStack Cloud at CERN
byArne Wiebalck

PDF
CERN OpenStack Cloud Control Plane - From VMs to K8s
byBelmiro Moreira

PPTX
The OpenStack Cloud at CERN - OpenStack Nordic
byTim Bell

PPTX
CERN User Story
byTim Bell

PPTX
20170926 cern cloud v4
byTim Bell

PDF
Future Science on Future OpenStack
byBelmiro Moreira

PPTX
Manila on CephFS at CERN (OpenStack Summit Boston, 11 May 2017)
byArne Wiebalck

PPTX
20161025 OpenStack at CERN Barcelona
byTim Bell

PDF
CPU Optimizations in the CERN Cloud - February 2016
byBelmiro Moreira

PPTX
20150924 rda federation_v1
byTim Bell

PDF
Moving from CellsV1 to CellsV2 at CERN
byBelmiro Moreira

PPTX
Learning to Scale OpenStack
byRainya Mosher

PPTX
OpenStack QA Tooling & How to use it for Production Cloud Testing | Ghanshyam...
byVietnam Open Infrastructure User Group

PDF
Autoscaling OpenStack Natively with Heat, Ceilometer and LBaaS
byShixiong Shang

PDF
Containers on Baremetal and Preemptible VMs at CERN and SKA
byBelmiro Moreira

PPTX
(R)Evolution in the CERN IT Department: A 5 year perspective on the Agile Inf...
byArne Wiebalck

PDF
Evolution of Openstack Networking at CERN
byBelmiro Moreira

PDF
OpenStack @ CERN, by Tim Bell
byAmrita Prasad

PDF
TripleO
byKiran Murari

PDF
Meetup 23 - 01 - The things I wish I would have known before doing OpenStack ...
byVietnam Open Infrastructure User Group

The OpenStack Cloud at CERN
byArne Wiebalck

CERN OpenStack Cloud Control Plane - From VMs to K8s
byBelmiro Moreira

The OpenStack Cloud at CERN - OpenStack Nordic
byTim Bell

CERN User Story
byTim Bell

20170926 cern cloud v4
byTim Bell

Future Science on Future OpenStack
byBelmiro Moreira

Manila on CephFS at CERN (OpenStack Summit Boston, 11 May 2017)
byArne Wiebalck

20161025 OpenStack at CERN Barcelona
byTim Bell

CPU Optimizations in the CERN Cloud - February 2016
byBelmiro Moreira

20150924 rda federation_v1
byTim Bell

Moving from CellsV1 to CellsV2 at CERN
byBelmiro Moreira

Learning to Scale OpenStack
byRainya Mosher

OpenStack QA Tooling & How to use it for Production Cloud Testing | Ghanshyam...
byVietnam Open Infrastructure User Group

Autoscaling OpenStack Natively with Heat, Ceilometer and LBaaS
byShixiong Shang

Containers on Baremetal and Preemptible VMs at CERN and SKA
byBelmiro Moreira

(R)Evolution in the CERN IT Department: A 5 year perspective on the Agile Inf...
byArne Wiebalck

Evolution of Openstack Networking at CERN
byBelmiro Moreira

OpenStack @ CERN, by Tim Bell
byAmrita Prasad

TripleO
byKiran Murari

Meetup 23 - 01 - The things I wish I would have known before doing OpenStack ...
byVietnam Open Infrastructure User Group


Similar to Integrating Bare-metal Provisioning into CERN's Private Cloud

PPTX
OpenStack at CERN : A 5 year perspective
byTim Bell

PDF
From hire to retire! server life cycle management with ironic at cern - open ...
byArne Wiebalck

PDF
Openstack For Beginners
bycpallares

PPT
Euro ht condor_alahiff
byvandersantiago

PDF
Frontiers of Science and Clouds - Tim Bell - Openstack Day Israel 2016
byCloud Native Day Tel Aviv

PPTX
20181219 ucc open stack 5 years v3
byTim Bell

PPTX
20181219 ucc open stack 5 years v3
byTim Bell

PPTX
20140509 cern open_stack_linuxtag_v3
byTim Bell

PDF
CERN Data Centre Evolution
byGavin McCance

PPTX
Hybrid Cloud for CERN
byHelix Nebula The Science Cloud

PDF
A One-Stop Solution for Puppet and OpenStack
byPuppet

PPTX
Power of OpenStack & Hadoop
byTuan Yang

PDF
What is OpenStack and the added value of IBM solutions
bySasha Lazarevic

PDF
At the Crossroads of HPC and Cloud Computing with Openstack
byRyan Aydelott

PPT
Openstack presentation
bySankalp Jain

PPTX
Sanger, upcoming Openstack for Bio-informaticians
byPeter Clapham

PPTX
Flexible compute
byPeter Clapham

PPTX
Openstack
byBhavna Mor

PPTX
OpenStack 101
byAll Things Open

PPTX
OpenStack 101 - All Things Open 2015
byMark Voelker

OpenStack at CERN : A 5 year perspective
byTim Bell

From hire to retire! server life cycle management with ironic at cern - open ...
byArne Wiebalck

Openstack For Beginners
bycpallares

Euro ht condor_alahiff
byvandersantiago

Frontiers of Science and Clouds - Tim Bell - Openstack Day Israel 2016
byCloud Native Day Tel Aviv

20181219 ucc open stack 5 years v3
byTim Bell

20181219 ucc open stack 5 years v3
byTim Bell

20140509 cern open_stack_linuxtag_v3
byTim Bell

CERN Data Centre Evolution
byGavin McCance

Hybrid Cloud for CERN
byHelix Nebula The Science Cloud

A One-Stop Solution for Puppet and OpenStack
byPuppet

Power of OpenStack & Hadoop
byTuan Yang

What is OpenStack and the added value of IBM solutions
bySasha Lazarevic

At the Crossroads of HPC and Cloud Computing with Openstack
byRyan Aydelott

Openstack presentation
bySankalp Jain

Sanger, upcoming Openstack for Bio-informaticians
byPeter Clapham

Flexible compute
byPeter Clapham

Openstack
byBhavna Mor

OpenStack 101
byAll Things Open

OpenStack 101 - All Things Open 2015
byMark Voelker


Recently uploaded

PPTX
apidays Paris 2025 | Building Agentic Workflows
byapidays

PDF
AI in the Real World: From University to Industry
byDarvan Shvan

PDF
GenerationAI_Paris_2025_Architecting_Intelligence.pdf
byapidays

PDF
Explaining specific examples of purpose-specific BOM
byakipii ogaoga

PDF
apidays Paris 2025 | Zero Trust By Design
byapidays

PDF
GDG Cloud Southlake #49: Pradeep R Kumar: Implications of Agentic AI for Iden...
byJames Anderson

PDF
Transcript: Escape from the Forbidden Zone: Smuggling green and inclusive tec...
byBookNet Canada

PDF
Towards a Vibrant AI Hardware Accelerator Ecosystem, invited talk at the 4th ...
byMichiaki Tatsubori

PPTX
Introducing VisualSim 2610 The Next Leap in System Level Modeling
byDeepak Shankar

PDF
apidays New York 2025 | AI in Application Security
byapidays

PDF
Constraint Collapse and Fidelity Decay in Scaled Language Models
bySemantic Fidelity Lab | A. Jacobs

PPTX
Celonis Optimizing your future with process
bydevjeremyappleyard

PDF
Logical Optimal Actions – Towards Knowledge-based Reinforcement Learning with...
byMichiaki Tatsubori

PDF
shayk.online - Anonymous chat with Sinatra and WebSockets
byEleanor McHugh

PPTX
CTO Strategy OS 2026: The Tech, AI & Cloud Playbook Boards Want
byridwansassman

PDF
Agent to agent service discovery using HashiCorp Consul and Vault
byBram Vogelaar

PDF
UiPath Automation Developer Associate Training Series 2026 - Session 3
byDianaGray10

PDF
UiPath Automation Developer Associate Training Series 2025 - Session 4
byDianaGray10

PDF
Chapter 5 Security Mechanisms iin computer security.pdf
byGetnet Tigabie Askale -(GM)

PDF
final~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~.pdf
byomarbishtawi04

apidays Paris 2025 | Building Agentic Workflows
byapidays

AI in the Real World: From University to Industry
byDarvan Shvan

GenerationAI_Paris_2025_Architecting_Intelligence.pdf
byapidays

Explaining specific examples of purpose-specific BOM
byakipii ogaoga

apidays Paris 2025 | Zero Trust By Design
byapidays

GDG Cloud Southlake #49: Pradeep R Kumar: Implications of Agentic AI for Iden...
byJames Anderson

Transcript: Escape from the Forbidden Zone: Smuggling green and inclusive tec...
byBookNet Canada

Towards a Vibrant AI Hardware Accelerator Ecosystem, invited talk at the 4th ...
byMichiaki Tatsubori

Introducing VisualSim 2610 The Next Leap in System Level Modeling
byDeepak Shankar

apidays New York 2025 | AI in Application Security
byapidays

Constraint Collapse and Fidelity Decay in Scaled Language Models
bySemantic Fidelity Lab | A. Jacobs

Celonis Optimizing your future with process
bydevjeremyappleyard

Logical Optimal Actions – Towards Knowledge-based Reinforcement Learning with...
byMichiaki Tatsubori

shayk.online - Anonymous chat with Sinatra and WebSockets
byEleanor McHugh

CTO Strategy OS 2026: The Tech, AI & Cloud Playbook Boards Want
byridwansassman

Agent to agent service discovery using HashiCorp Consul and Vault
byBram Vogelaar

UiPath Automation Developer Associate Training Series 2026 - Session 3
byDianaGray10

UiPath Automation Developer Associate Training Series 2025 - Session 4
byDianaGray10

Chapter 5 Security Mechanisms iin computer security.pdf
byGetnet Tigabie Askale -(GM)

final~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~.pdf
byomarbishtawi04


Integrating Bare-metal Provisioning into CERN's Private Cloud

  • 2.
    Integrating Bare-metal Provisioning intoCERN’s Private Cloud Service Arne Wiebalck Belmiro Moreira Daniel Abad Mateusz Kowalski OpenStack Summit, Vancouver 2018
  • 3.
    CERN: Understand themysteries of the universe! 3 Large Hadron Collider • Largest machine ever built by mankind! • 100m underground • 27km circumference • Protons do 11’000 turns/sec! Arne Wiebalck: Integrating Ironic into the CERN’s Private Cloud Service, OpenStack Summit, Vancouver 2018
  • 4.
    CERN: Understand themysteries of the universe! 4 Four main detectors • Positioned at interaction points • ~10’000 tons heavy • Handling ~1’000’000 collisions/sec • Selecting ~200 events (few GB/sec) Note the physicist for scale! Arne Wiebalck: Integrating Ironic into the CERN’s Private Cloud Service, OpenStack Summit, Vancouver 2018
  • 5.
    CERN: Understand themysteries of the universe! 5 home.cern Distributed analysis - 170 data centers worldwide - 800k cores, ~1EB on disk/tape Arne Wiebalck: Integrating Ironic into the CERN’s Private Cloud Service, OpenStack Summit, Vancouver 2018
  • 6.
    About the CERNIT Department 6 Enable the laboratory to fulfill its mission - Main data centre on Meyrin/Geneva site - Wigner data centre in Budapest (since 2013) - Connected via three dedicated 100Gbs links - Where possible, resources at both sites (plus disaster recovery) Drone footage of the CERN CC Arne Wiebalck: Integrating Ironic into the CERN’s Private Cloud Service, OpenStack Summit, Vancouver 2018
  • 7.
    7 Arne Wiebalck: IntegratingIronic into the CERN’s Private Cloud Service, OpenStack Summit, Vancouver 2018 The Agile Infrastructure Project 2012, a turning point for CERN IT: - LHC Computing and data requirements were increasing … Moore’s law would help, but not enough - EU funded projects for fabric management tool chain ended - Staff not to grow with the managed resources - LS1 (2013) ahead, next window only in 2019! - Other deployments have surpassed CERN‘s Three core areas: - Centralized Monitoring - Config’ management - IaaS based on OpenStack “All servers shall be virtual!” 0 20 40 60 80 100 120 140 160 Run 1 Run 2 Run 3 Run 4 GRID ATLAS CMS LHCb ALICE we are here what we can afford
  • 8.
    The OpenStack Serviceat CERN 8 • Production since July 2013 - Several rolling upgrades since, now mostly on Queens - Many sub services deployed • Spans two data centers - One region, one API entry point • CellsV2 with 70 cells - Separate h/w, use case, power, location, … • Deployed using RDO + Puppet - Mostly upstream, patched where needed • Many sub services run on VMs! - Boot strapping Arne Wiebalck: Integrating Ironic into the CERN’s Private Cloud Service, OpenStack Summit, Vancouver 2018
  • 9.
    9 Arne Wiebalck: IntegratingIronic into the CERN’s Private Cloud Service, OpenStack Summit, Vancouver 2018 Why Bare-metal provisioning?
  • 10.
    10 Arne Wiebalck: IntegratingIronic into the CERN’s Private Cloud Service, OpenStack Summit, Vancouver 2018 Why Bare-Metal Provisioning? (1) • VMs not sensible/suitable for all of our use cases - Storage and database nodes, HPC clusters, boot strapping, critical network equipment or specialised network setups, precise/repeatable benchmarking for s/w frameworks, … • Complete our service offerings - Physical nodes (in addition to VMs and containers) - OpenStack UI as the single pane of glass • Simplify hardware provisioning workflows - For users: openstack server create/delete - For procurement & h/w provisioning teams: initial on-boarding, server re-assignments
  • 11.
    11 Arne Wiebalck: IntegratingIronic into the CERN’s Private Cloud Service, OpenStack Summit, Vancouver 2018 Why Bare-Metal Provisioning? (2) • Consolidate accounting & bookkeeping - Resource accounting input will come from less sources - Machine re-assignments will be easier to track • Enable new use cases - Containers on bare metal Doesn’t change the overall policy  The reasons why we introduced virtual machines have not gone away!
  • 12.
    12 Arne Wiebalck: IntegratingIronic into the CERN’s Private Cloud Service, OpenStack Summit, Vancouver 2018 Ironic Overview • Bare Metal Project in OpenStack - Provision ‘physical’ instances, as part of an OpenStack cloud (or independently) - Allows Compute service to manage and provide physical servers as if they were virtual machines - User interfaces with Nova (which also provides quotas, scheduling, ….) • Hardware management possible via common interfaces (& vendor-specific ones) - PXE, IPMI - Allows for unified interface to manage heterogeneous machine park (~50 h/w types at CERN for hypervisors only!) Nova API + Scheduler Requests physical instance Ironic API + Conductor Nova Compute picks Ironic Driver Physical Servers User enrolls Admin Glance Neutron
  • 13.
    13 Arne Wiebalck: IntegratingIronic into the CERN’s Private Cloud Service, OpenStack Summit, Vancouver 2018 Ironic Components Ironic DB Inspector DB ironic-api Message Queue Nova ironic- conductor ironic-inspector Admin Physical Servers ironic-python-agent (IPA) REST API ironic-python-agent runs in temp RAM disk provides remote access to conductor and inspector (inspect, configure, clean, deploy) ironic-inspector can be used for in-band inspection (boot node into RAM disk, collect data and update DB)ironic-api receives, authenticates, and handles requests (by RPC’ing the ironic-conductor) ironic-conductor orchestrates node tasks: add, edit, delete, provision, deploy, clean, power, … Database for service data (e.g. nodes/ports, conductors) Message queue for inter- component communication Node inspection states
  • 14.
    14 Arne Wiebalck: IntegratingIronic into the CERN’s Private Cloud Service, OpenStack Summit, Vancouver 2018 Ironic Service Setup and Status • Service runs on three controller nodes - Symmetric: controllers api & conductor (& inspector) - Automatic conductor affinity allows for easy add/remove • Queens, (C)CentOS7, RDO, Puppet inspector conductor api inspector conductor api inspector conductor api ~1300 nodes enrolled ~90% active (1150) ~30 different h/w types Users: - OpenStack  - HPC, Windows, CMS, DB, … Nodes per state Nodes per conductor
  • 15.
    15 Arne Wiebalck: IntegratingIronic into the CERN’s Private Cloud Service, OpenStack Summit, Vancouver 2018 Integration with Nova CellsV1 • We’re a heavy user of cells - Introduced for scalability reasons - Also: resource management, location, user and h/w separation, AVZs, … • We carry some nova patches - Project-to-cell mapping via project metadata • We introduced a bare-metal cell - All projects with physical flavors are mapped - No mixing of VMs and BMs in the same project Nova Top Cell API Nova Top Cell Scheduler Nova Cell Scheduler Nova Compute Project Mapping Bare-Metal Cell Bare-Metal Cell
  • 16.
    16 Arne Wiebalck: IntegratingIronic into the CERN’s Private Cloud Service, OpenStack Summit, Vancouver 2018 Our QA Ironic Controllers • Environment needed to validate Ironic changes - Close to production setup - Different set of controllers • Leverage cell-mapping - QA project mapped to Bare-Metal QA cell - Endpoint filtering ensures project gets QA controllers from the catalog $ source admin.sh $ openstack catalog list … | ironic | cern | | | public: http://openstack.cern.ch:6385 | | | admin: http://openstack.cern.ch:6385 | | | internal: http://openstack.cern.ch:6385 | … $ $ grep OS_PROJECT_NAME admin.sh export OS_PROJECT_NAME=”Bare-Metal" $ $ source admin-qa.sh $ openstack catalog list … | ironic | cern | | | public: http://ironic-qa-01.cern.ch:6385 | | | admin: http://ironic-qa-01.cern.ch:6385 | | | internal: http://ironic-qa-01.cern.ch:6385 | … $ $ grep OS_PROJECT_NAME admin-qa.sh export OS_PROJECT_NAME=”Bare-Metal QA"
  • 17.
    17 Arne Wiebalck: IntegratingIronic into the CERN’s Private Cloud Service, OpenStack Summit, Vancouver 2018 Integration with ... Networking • CERN network structure is simple, no segmentation* - Storage: no management network - OpenStack: no management network - Ironic: no provisioning or cleaning network • CERN networking team manages IP addresses - Our OpenStack deployment interfaces with their service • We’re in the transition between nova-network and Neutron • Patched to Nova compute to basically not try to get an IP, only change the existing entries in the network DB * Not fully true
  • 18.
    18 Arne Wiebalck: IntegratingIronic into the CERN’s Private Cloud Service, OpenStack Summit, Vancouver 2018 Integration with … Config’ mgmt / PXE • Foreman, our host inventory - no entries for physical instances, same behaviour as for VMs - have a wrapper to create entries upon instantiation (the wrapper also triggers on flavor property cern:physical=true to allow for subsequent installation) - IPMI creds were stored there as well (openstack console url show) • Using the CERN central PXE/TFTP server - Mostly because it’s there  - (nothing set up on the conductor)
  • 19.
    19 Arne Wiebalck: IntegratingIronic into the CERN’s Private Cloud Service, OpenStack Summit, Vancouver 2018 Modifications and Additions • Subclass of PXEAndIPMIToolDriver - power on/off handling and image deployment • Overriding … - management: always boot from network first - console: return IPMI URL, user name, and password (we will revisit the web condole setup with shellinabox and also the recently proposed VNC graphical console) Driver: CERNPXEAndIPMIToolDriver Module: AIMS • Register with CERN installation infrastructure - Used in pxe and inspector modules • Processing hook to detect CERN custom hardware properties Inspector plugin: CERNDeviceDetection $ grep –a1 CERN /etc/ironic-inspector/inspector.conf [CERN] inspected_capabilities = disk_enclosures, infiniband_adapters, boot_mode, disk_label, cpu_name, cpu_family, cpu_model, cpu_stepping Overriding ironic_url • Mask the endpoints from the catalog - Use the local service (to not mix production and QA) IRONIC IPA
  • 20.
    20 Arne Wiebalck: IntegratingIronic into the CERN’s Private Cloud Service, OpenStack Summit, Vancouver 2018 Modifications: CernHardwareManager • Hardware manager: support h/w in the IPA - Customised hardware inspection, include specific tools e.g. for the BIOS - Subclass to default GenericHardwareManager • The CERN Hardware Manager … - counts the attached disk enclosures - counts the available Infiniband adapters - checks the IPMI users with admin rights (too many? password changed?  raise errors.CleaningError) - deregisters the node from the central PXE server - WIP: software RAID configuration As h/w managers are run by the IPA (which is part of the deploy image), the image usually needs to be rebuilt every time the h/w manager is changed … To avoid this, the CERN Hardware Manager is downloaded (git cloned) every time the IPA is started, which allows us to re-use the same image.
  • 21.
    21 Arne Wiebalck: IntegratingIronic into the CERN’s Private Cloud Service, OpenStack Summit, Vancouver 2018 Some issues challenges …
  • 22.
    Unexpected node shutdowns 22 •User complains his physical instance get powered off continuously! - « … after we boot it up, it powers down! » Arne Wiebalck: Integrating Ironic into the CERN’s Private Cloud Service, OpenStack Summit, Vancouver 2018 $ nova instance-action list $UUID|grep –c stop 2018-03-08 14:38:57.593 23408 INFO ironic.conductor.utils … Successfully set node 953f1886-e68c-4129-abcd-xyz power state to power off by soft power off. Ironic Conductor logs 2018-03-08 14:38:18.407 23376 INFO eventlet.wsgi.server … "PUT /v1/nodes/ 953f1886-e68c-4129-abcd-xyz /states/power HTTP/1.1" … Ironic API logs 2018-03-08 14:38:16.141 8245 INFO nova.compute.manager [-] … During _sync_instance_power_state the DB power_state (4) does not match the vm_power_state from the hypervisor (1). Updating power_state in the DB to match the hypervisor. 2018-03-08 14:38:16.944 8245 WARNING nova.compute.manager [-] … Instance is not stopped. Calling the stop API. … 2018-03-08 14:38:58.524 8245 INFO nova.virt.ironic.driver … Successfully soft powered off Ironic node 953f1886-e68c-4129-abcd-xyz. Nova Compute logs - nova syncs DB upon instance shut-down (virtual or physical, via API or from within) - nova syncs instance when an instance comes up bypassing the API - owner of physical instance started the node via IPMI nova config issue! Options: - disable sync - make the instance the source of truth - remove IPMI access from users 
  • 23.
    “Scrubbing the bathtub” 23 •Conductor affinity can leave nodes behind … - How does the conductor affinity work anyway? Arne Wiebalck: Integrating Ironic into the CERN’s Private Cloud Service, OpenStack Summit, Vancouver 2018
  • 24.
    ‘Location dependent’ scheduling 24 •A delivery may be installed in two buildings • We started with one flavor per delivery / hardware type (Q: How do you name your bare-metal flavors?) • Control where the current instance goes? • In Pike with flavor capabilities and node properties: capabilities:cern_delivery=‘dl4636624’, capabilities:cern_ip_service=‘S912_C_IP21’, … • In Queens with resource classes (we don’t use traits atm): resources:CUSTOM_BAREMETAL_P1_DL4636624_S912_C_IP21 Arne Wiebalck: Integrating Ironic into the CERN’s Private Cloud Service, OpenStack Summit, Vancouver 2018 $ $ openstack flavor show p1.dl4636624.912_C_IP21 … | properties | resources:CUSTOM_BAREMETAL_P1_DL4636624 _S912_C_IP21=‘1’ … $ $ $ openstack baremetal node show i7865234753 … | resource_class| BAREMETAL_P1_DL4636624_S912_C_IP21 … $ $ Ping me if you have a good flavor naming scheme!
  • 25.
    The Nova Upgradeto Queens 25 Arne Wiebalck: Integrating Ironic into the CERN’s Private Cloud Service, OpenStack Summit, Vancouver 2018 • Multi-cell deployment - Ocata  Queens, cells v1  v2 (plus backports to support cell scheduling) • Known and “could have known” caveats - properties/capabillities  resource classes - Nova Q requires BM REST API v1.37  Ironic Queens slipped our testing… ‘emergency’ upgrade! (explicitly mentioned in the Ironic upgrade guide) • Surprises: “No valid host” - request_filter requires aggregates (which need manual updates) - compute node fail-over creates “new” resource providers (which need to be mapped to the aggregates again!) …reduced CNs to 1* - Resource provider aggregations update took too long (loops sequentially over all physical nodes)  removed, as not needed. Physical Servers Nova Cell Controller Nova Compute Physical Servers Nova Compute Physical Servers Nova Compute … Bare-Metal Cell * Nova Bug 1771806
  • 26.
    26 Arne Wiebalck: IntegratingIronic into the CERN’s Private Cloud Service, OpenStack Summit, Vancouver 2018 Support for deploy-time s/w RAID • Vast majority of the (compute) servers in the CERN DCs use software RAID - compute: RAID-0, e.g. batch farm, elastic search - services: RAID-1 & RAID-10, e.g. hypervisors • Ironic server instantiation is a 2-step process for now - Via OpenStack (to get hold of a node and have it registered) - Via PXE to apply custom RAID config • WIP: CERNHardwareManager - Basic support for s/w RAID - Detect all devices and create one array of desired type - No partition support, no disk subsets, single level Support for this be very welcome! Almost works 
  • 27.
  • 28.
  • 29.
    29 Arne Wiebalck: IntegratingIronic into the CERN’s Private Cloud Service, OpenStack Summit, Vancouver 2018 • h/w purchases: formal procedure compliant with public procurements - Market survey identifies potential bidders - Tender spec is sent to ask for offers - Larger deliveries 1-2 times / year • “Burn-in” before acceptance - Compliance with technical spec (e.g. performance) - Find failed components (e.g. broken RAM) - Find systematic errors (e.g. bad firmware) - Provoke early failing due to stress Whole process can take weeks! Hardware Burn-in in the CERN Data Centre (1) “bathtub curve”
  • 30.
    30 Arne Wiebalck: IntegratingIronic into the CERN’s Private Cloud Service, OpenStack Summit, Vancouver 2018 Hardware Burn-in in the CERN Data Centre (2) • Initial checks: Serial Asset Tag and BIOS settings - Purchase order ID and unique serial no. to be set in the BMC (node name!) • “Burn-in” tests - CPU: burnK7, burnP6, burnMMX (cooling) - RAM: memtest, Disk: badblocks - Network: iperf(3) between pairs of nodes - automatic node pairing - Benchmarking: HEPSpec06 (& fio) - derivative of SPEC06 - we buy total compute capacity (not newest processors) $ ipmitool fru print 0 | tail -2 Product Serial : 245410-1 Product Asset Tag : CD5792984 $ openstack baremetal node show CD5792984-245410-1 “Double peak” structure due to slower hardware threads OpenAccess paper
  • 31.
    31 Arne Wiebalck: IntegratingIronic into the CERN’s Private Cloud Service, OpenStack Summit, Vancouver 2018 Procurement Workflows: Plans • Converge on single deploy image between teams - WIP: Burn-in tests … need to look into configuring time limits (automated vs. manual cleaning?) - Initial node registration with CERN networking - Retirement and sanitization/donation … ‘extreme cleaning’, e.g. no CERN data in the BMC • Remove additional hardware DBs - Firmware versions (upgrades?), IPMI pw backup, … - Interfaces to various tools (ticketing, security, …) … ironic_observer role? • Mistral workflows - Boot into this image, flash the f/w, reboot, …
  • 32.
  • 33.
    33 Arne Wiebalck: IntegratingIronic into the CERN’s Private Cloud Service, OpenStack Summit, Vancouver 2018 A new use case: Containers on Bare-Metal • Our cloud provides Magnum - 250+ clusters, mostly Kubernetes - Nodes are virtual machines • Batch farm runs in VMs as well - 3% performance overhead, 0% with containers • General service offer: managed clusters - Users get only K8s credentials - Cloud team manages the cluster and the underlying infra Integration: seamless! (based on specific template) Monitoring (metrics/logs)?  Pod in the cluster  Logs: fluentd + ES  Metrics: cadvisor + influx
  • 34.
    34 Arne Wiebalck: IntegratingIronic into the CERN’s Private Cloud Service, OpenStack Summit, Vancouver 2018 Summary and Outlook • Ironic moved to Production in the CERN cloud! - Minor modifications, no major issues - 1’300 nodes enrolled, >1’000 instances! - All physical hardware is handed out via Ironic now • Existing workflows and new use cases - First steps done, much more to come! • About to start: Enrollment of the remaining servers* *Only 10’000 servers left to do 
