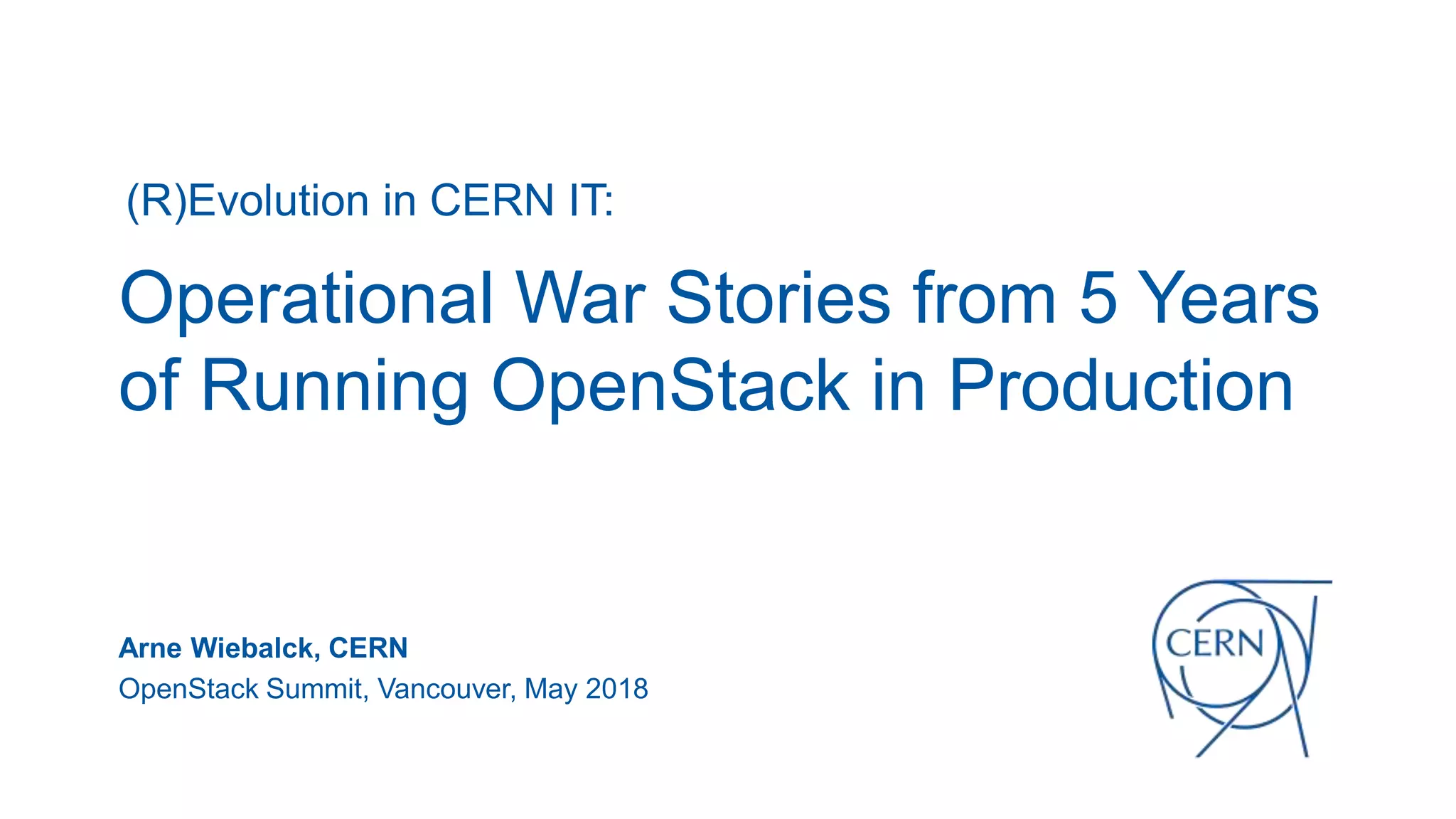

1. Operational War Stories from 5 Years
of Running OpenStack in Production
Arne Wiebalck, CERN
OpenStack Summit, Vancouver, May 2018
(R)Evolution in CERN IT:

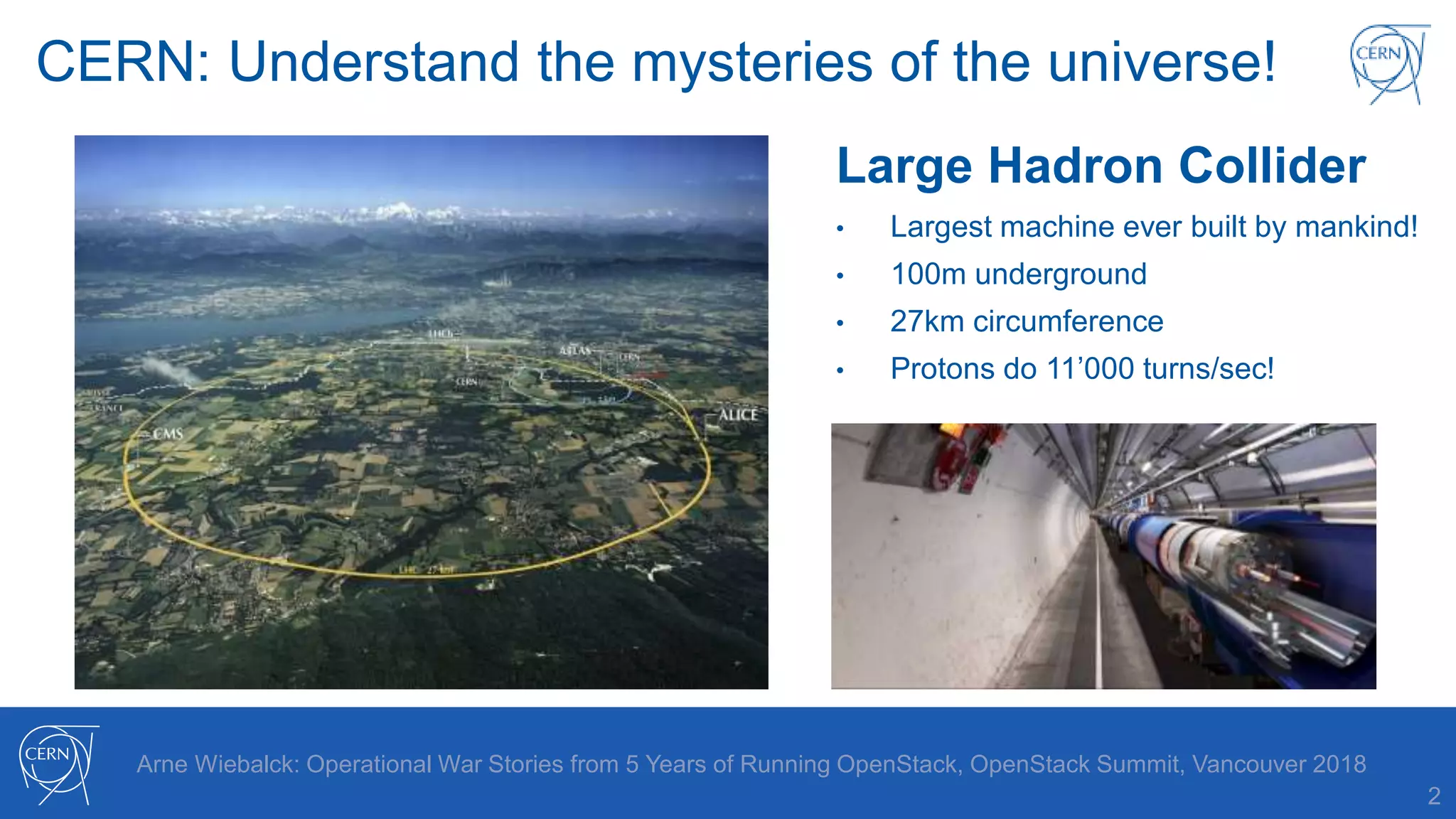

2. CERN: Understand the mysteries of the universe!
Arne Wiebalck: Operational War Stories from 5 Years of Running OpenStack, OpenStack Summit, Vancouver 2018
2
Large Hadron Collider
• Largest machine ever built by mankind!
• 100m underground
• 27km circumference
• Protons do 11’000 turns/sec!

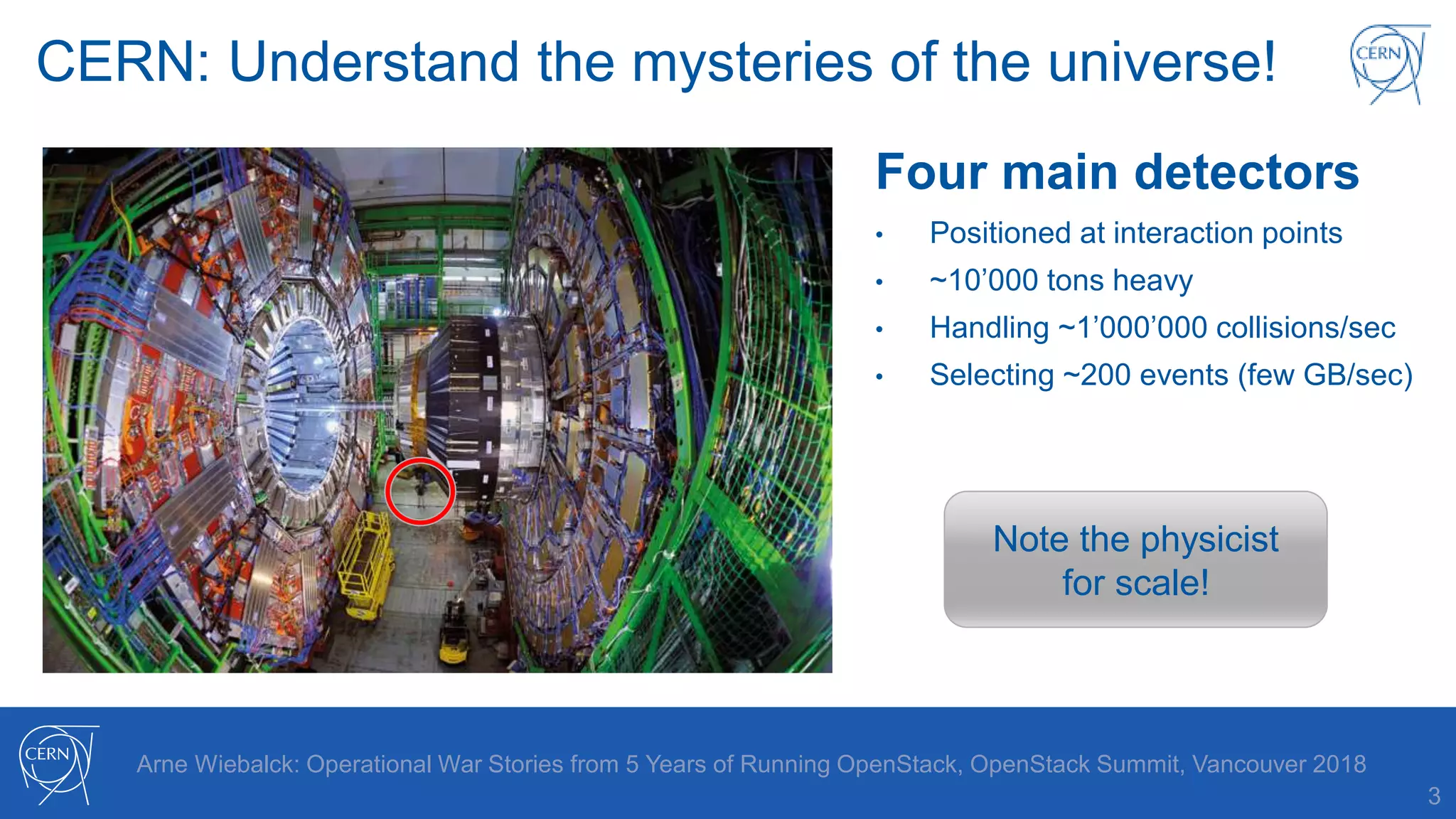

3. CERN: Understand the mysteries of the universe!
Arne Wiebalck: Operational War Stories from 5 Years of Running OpenStack, OpenStack Summit, Vancouver 2018
3
Four main detectors
• Positioned at interaction points
• ~10’000 tons heavy
• Handling ~1’000’000 collisions/sec
• Selecting ~200 events (few GB/sec)
Note the physicist
for scale!

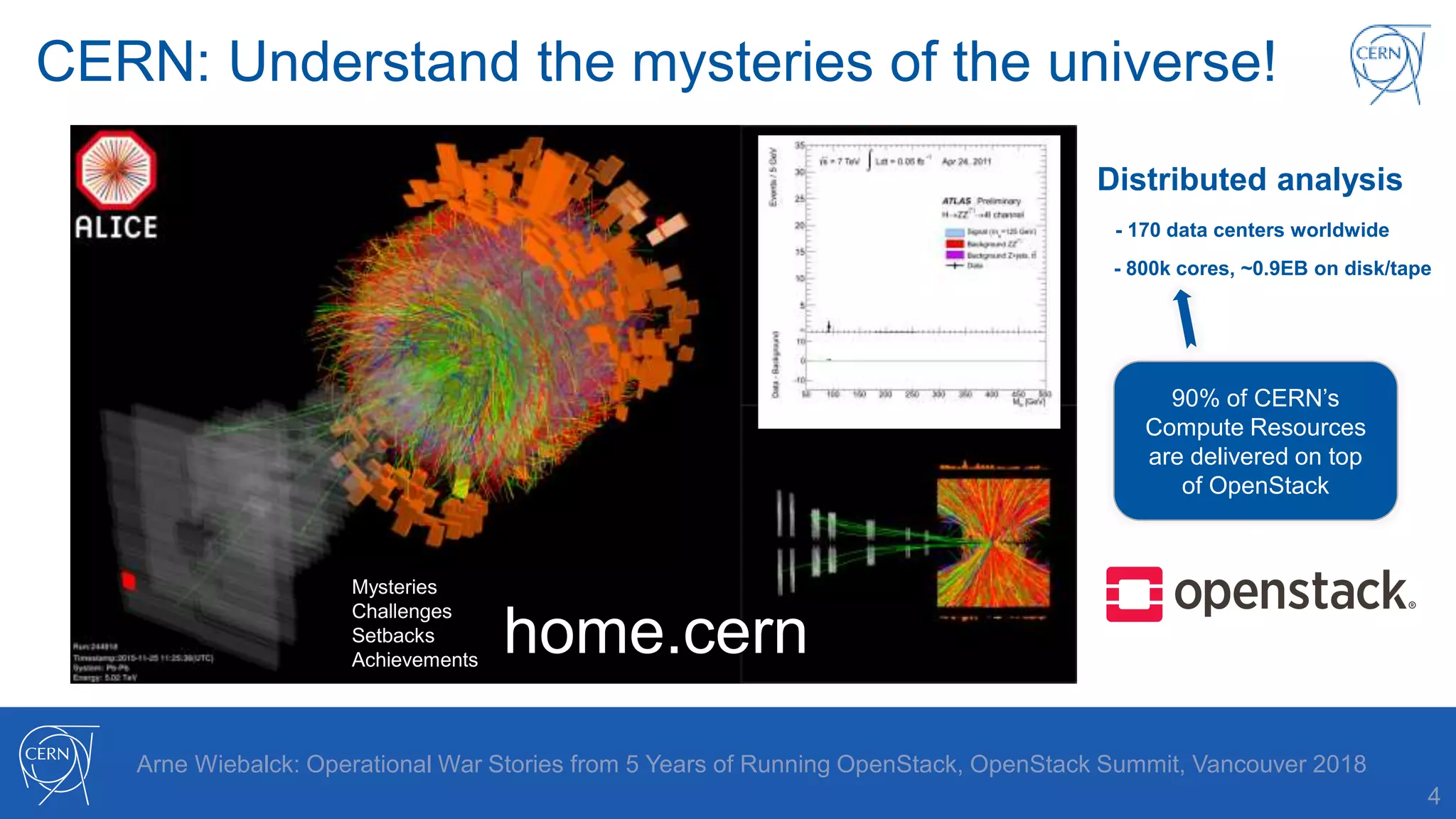

4. CERN: Understand the mysteries of the universe!
Arne Wiebalck: Operational War Stories from 5 Years of Running OpenStack, OpenStack Summit, Vancouver 2018
4
home.cern
Mysteries
Challenges
Setbacks
Achievements
Distributed analysis
- 170 data centers worldwide
- 800k cores, ~0.9EB on disk/tape
90% of CERN’s
Compute Resources
are delivered on top
of OpenStack

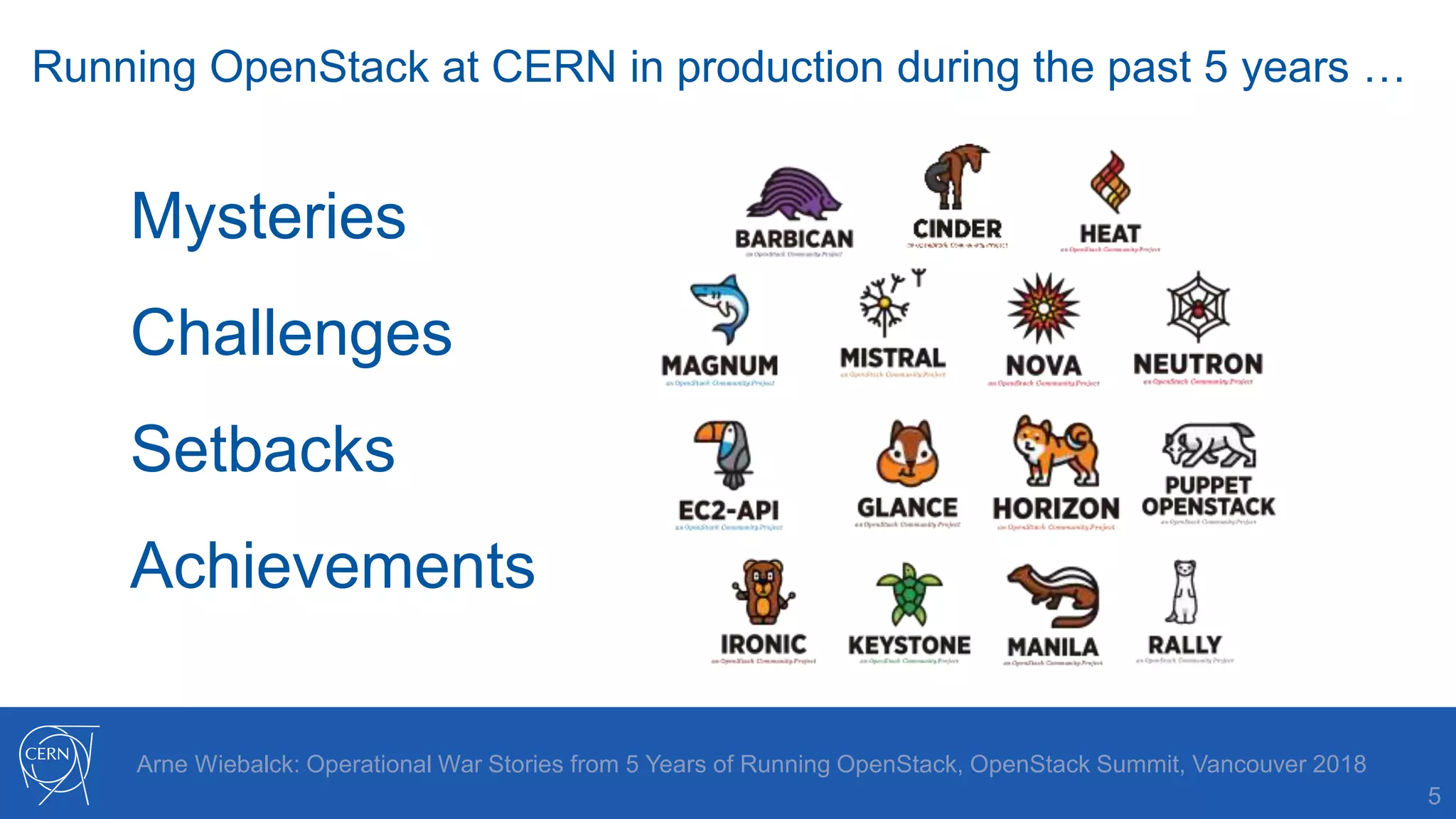

5. 5
Arne Wiebalck: Operational War Stories from 5 Years of Running OpenStack, OpenStack Summit, Vancouver 2018
Running OpenStack at CERN in production during the past 5 years …
Mysteries
Challenges
Setbacks
Achievements

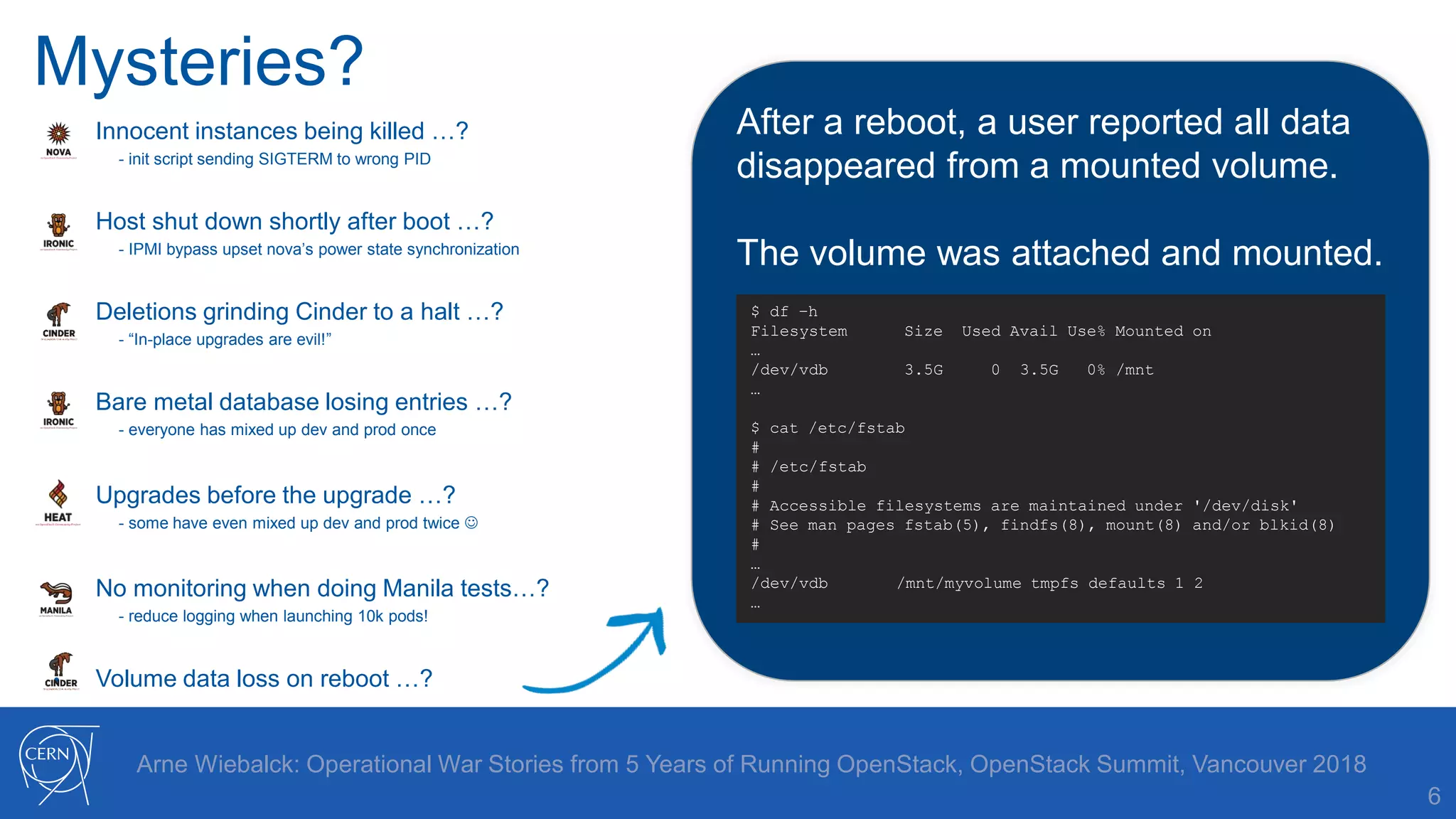

6. Mysteries?
6
Arne Wiebalck: Operational War Stories from 5 Years of Running OpenStack, OpenStack Summit, Vancouver 2018
• Innocent instances being killed …?
- init script sending SIGTERM to wrong PID
• Host shut down shortly after boot …?
- IPMI bypass upset nova’s power state synchronization
• Deletions grinding Cinder to a halt …?
- “In-place upgrades are evil!”
• Bare metal database losing entries …?
- everyone has mixed up dev and prod once
• Upgrades before the upgrade …?
- some have even mixed up dev and prod twice 
• No monitoring when doing Manila tests…?
- reduce logging when launching 10k pods!
• Volume data loss on reboot …?
After a reboot, a user reported all data
disappeared from a mounted volume.
The volume was attached and mounted.
$ df –h
Filesystem Size Used Avail Use% Mounted on
…
/dev/vdb 3.5G 0 3.5G 0% /mnt
…
$ cat /etc/fstab
#
# /etc/fstab
#
# Accessible filesystems are maintained under '/dev/disk'
# See man pages fstab(5), findfs(8), mount(8) and/or blkid(8)
#
…
/dev/vdb /mnt/myvolume tmpfs defaults 1 2
…

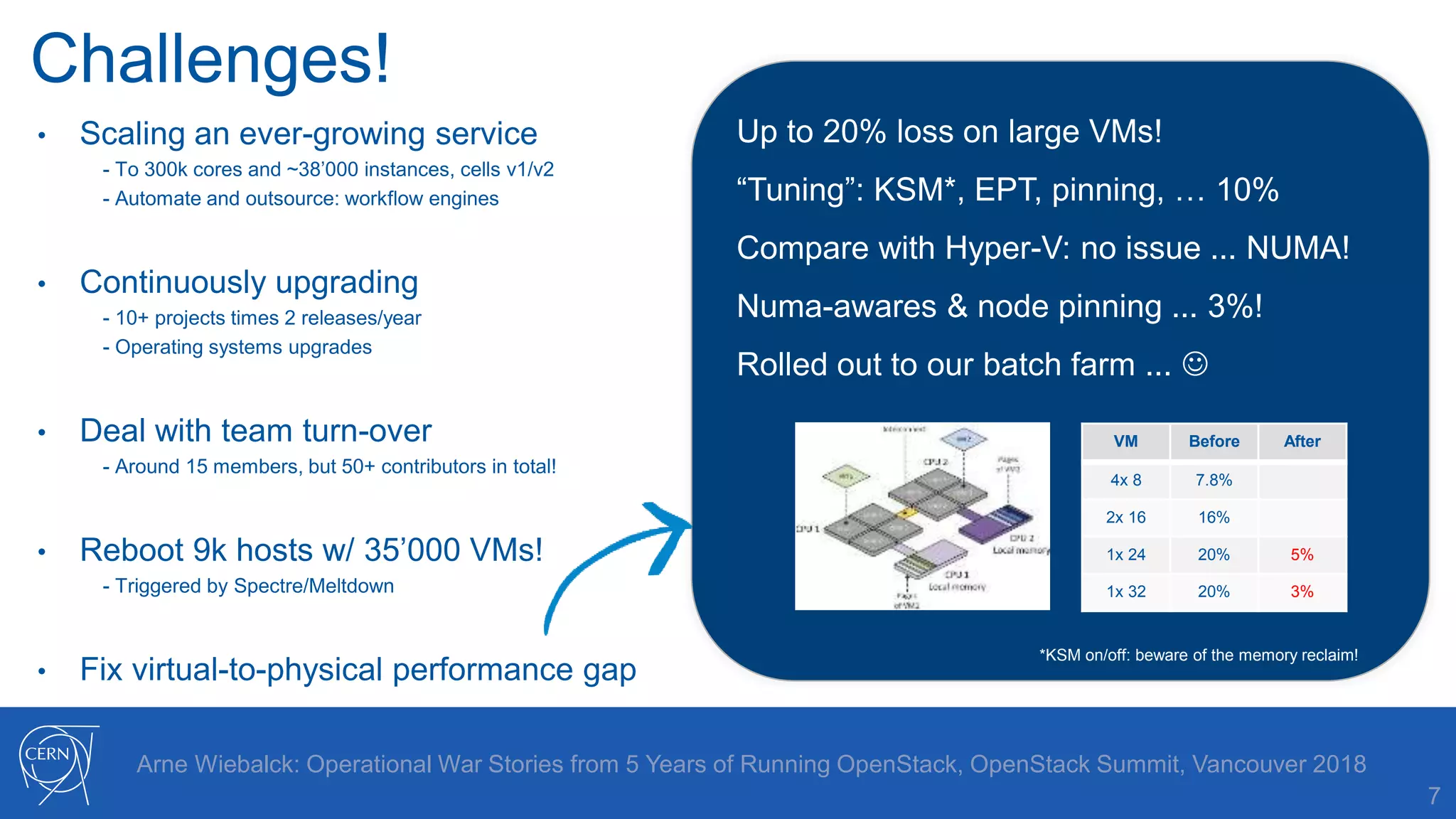

7. Challenges!
7
Arne Wiebalck: Operational War Stories from 5 Years of Running OpenStack, OpenStack Summit, Vancouver 2018
• Scaling an ever-growing service
- To 300k cores and ~38’000 instances, cells v1/v2
- Automate and outsource: workflow engines
• Continuously upgrading
- 10+ projects times 2 releases/year
- Operating systems upgrades
• Deal with team turn-over
- Around 15 members, but 50+ contributors in total!
• Reboot 9k hosts w/ 35’000 VMs!
- Triggered by Spectre/Meltdown
• Fix virtual-to-physical performance gap
Up to 20% loss on large VMs!
“Tuning”: KSM*, EPT, pinning, … 10%
Compare with Hyper-V: no issue ... NUMA!
Numa-awares & node pinning ... 3%!
Rolled out to our batch farm ... 
*KSM on/off: beware of the memory reclaim!
VM Before After
4x 8 7.8%
2x 16 16%
1x 24 20% 5%
1x 32 20% 3%

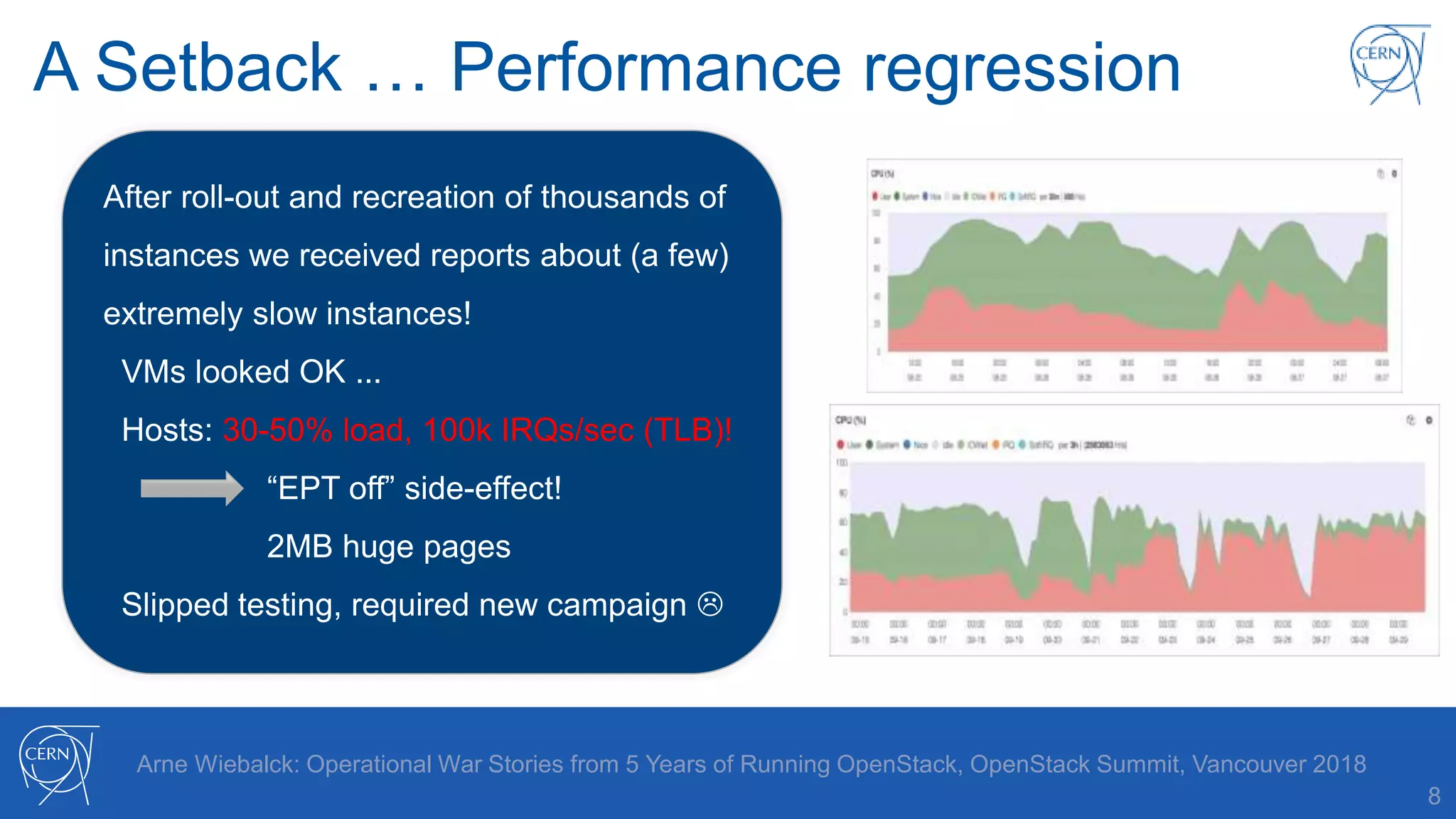

8. A Setback … Performance regression
8
Arne Wiebalck: Operational War Stories from 5 Years of Running OpenStack, OpenStack Summit, Vancouver 2018
After roll-out and recreation of thousands of
instances we received reports about (a few)
extremely slow instances!
VMs looked OK ...
Hosts: 30-50% load, 100k IRQs/sec (TLB)!
“EPT off” side-effect!
2MB huge pages
Slipped testing, required new campaign 

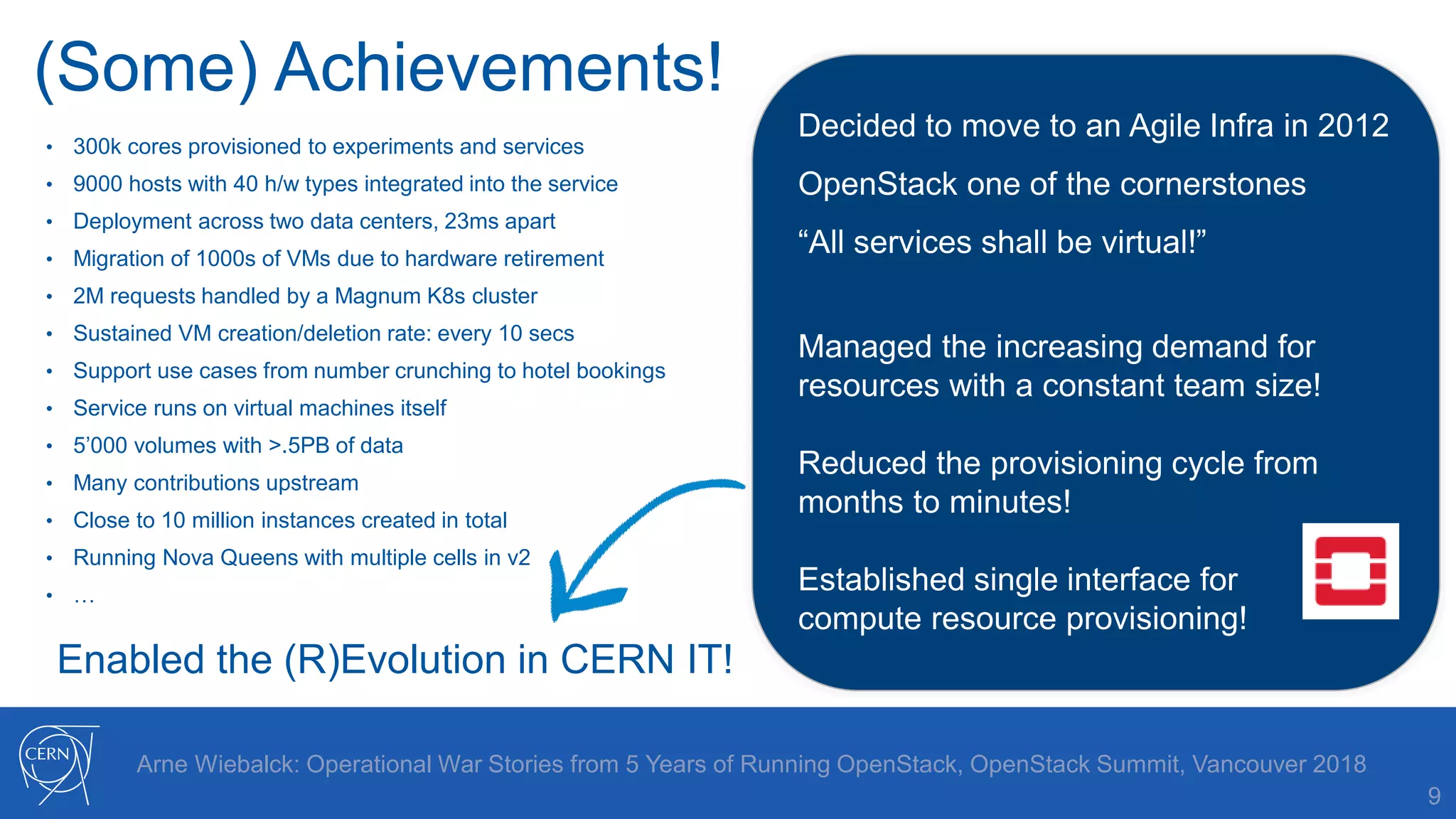

9. (Some) Achievements!
9
Arne Wiebalck: Operational War Stories from 5 Years of Running OpenStack, OpenStack Summit, Vancouver 2018
• 300k cores provisioned to experiments and services
• 9000 hosts with 40 h/w types integrated into the service
• Deployment across two data centers, 23ms apart
• Migration of 1000s of VMs due to hardware retirement
• 2M requests handled by a Magnum K8s cluster
• Sustained VM creation/deletion rate: every 10 secs
• Support use cases from number crunching to hotel bookings
• Service runs on virtual machines itself
• 5’000 volumes with >.5PB of data
• Many contributions upstream
• Close to 10 million instances created in total
• Running Nova Queens with multiple cells in v2
• …
Decided to move to an Agile Infra in 2012
OpenStack one of the cornerstones
“All services shall be virtual!”
Managed the increasing demand for
resources with a constant team size!
Reduced the provisioning cycle from
months to minutes!
Established single interface for
compute resource provisioning!
Enabled the (R)Evolution in CERN IT!
