Uploaded byTim Bell
20150924 rda federation_v1
This document discusses OpenStack cloud computing at CERN. It notes that CERN has 4 OpenStack clouds with over 120,000 cores total, and is migrating to the Kilo release of OpenStack. It then describes OpenStack components like Keystone for authentication, Glance for images, Nova for compute, and Cinder for block storage. The document outlines how OpenStack supports federated identity through options like Active Directory, OpenID Connect, and SAML. It provides examples of how federation could allow access to external clouds and shares experiences in deploying federated OpenStack.
More Related Content
Similar to 20150924 rda federation_v1
20150924 rda federation_v1
- 2.

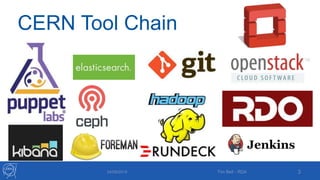

- 3. CERN Tool Chain 24/09/2015Tim Bell - RDA 3

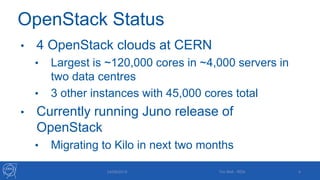

- 4. OpenStack Status • 4OpenStack clouds at CERN • Largest is ~120,000 cores in ~4,000 servers in two data centres • 3 other instances with 45,000 cores total • Currently running Juno release of OpenStack • Migrating to Kilo in next two months 24/09/2015 4Tim Bell - RDA

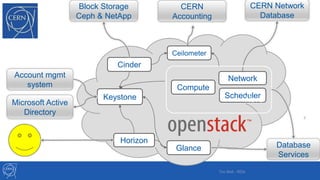

- 5. 24/09/2015 5 Microsoft Active Directory Database Services CERNNetwork Database Account mgmt system Horizon Keystone Glance Network Compute Scheduler Cinder Nova Block Storage Ceph & NetApp CERN Accounting Ceilometer Tim Bell - RDA

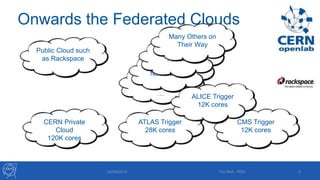

- 6. IN2P3 INFN … Onwards the FederatedClouds Public Cloud such as Rackspace CERN Private Cloud 120K cores ATLAS Trigger 28K cores CMS Trigger 12K cores Brookhaven National Labs NecTAR Australia Many Others on Their Way 24/09/2015 Tim Bell - RDA 6 ALICE Trigger 12K cores

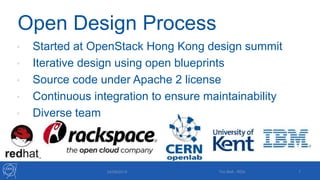

- 7. Open Design Process 24/09/2015Tim Bell - RDA 7 • Started at OpenStack Hong Kong design summit • Iterative design using open blueprints • Source code under Apache 2 license • Continuous integration to ensure maintainability • Diverse team

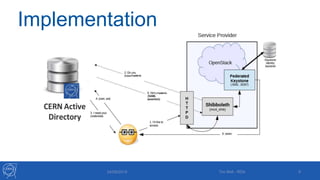

- 8.

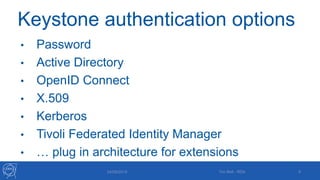

- 9. Keystone authentication options •Password • Active Directory • OpenID Connect • X.509 • Kerberos • Tivoli Federated Identity Manager • … plug in architecture for extensions 24/09/2015 Tim Bell - RDA 9

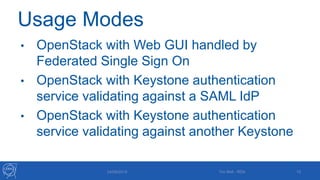

- 10. Usage Modes • OpenStackwith Web GUI handled by Federated Single Sign On • OpenStack with Keystone authentication service validating against a SAML IdP • OpenStack with Keystone authentication service validating against another Keystone 24/09/2015 Tim Bell - RDA 10

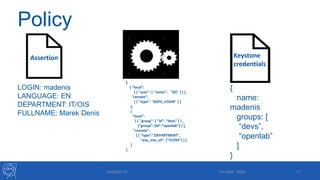

- 11. Policy 24/09/2015 Tim Bell- RDA 11 LOGIN: madenis LANGUAGE: EN DEPARTMENT: IT/OIS FULLNAME: Marek Denis Assertion Keystone credentials { name: madenis groups: [ “devs”, “openlab” ] } [ { "local": [ { "user": { "name": "{0}" } } ], "remote": [ { "type": "ADFS_LOGIN" } ] }, { "local": [ { "group": { "id": “devs" } } , {“group”: {ïd”:”openlab”} } ], "remote": [ { "type":"DEPARTMENT", "any_one_of": ["IT/OIS"] } ] } ]
- 12. OpenStack Identity Federationin 2015 24/09/2015 Tim Bell - RDA 12

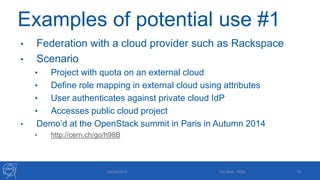

- 13. Examples of potentialuse #1 • Federation with a cloud provider such as Rackspace • Scenario • Project with quota on an external cloud • Define role mapping in external cloud using attributes • User authenticates against private cloud IdP • Accesses public cloud project • Demo’d at the OpenStack summit in Paris in Autumn 2014 • http://cern.ch/go/h98B 24/09/2015 Tim Bell - RDA 13

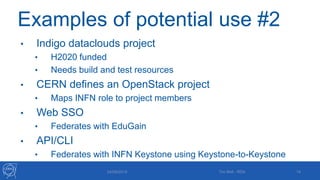

- 14. Examples of potentialuse #2 • Indigo dataclouds project • H2020 funded • Needs build and test resources • CERN defines an OpenStack project • Maps INFN role to project members • Web SSO • Federates with EduGain • API/CLI • Federates with INFN Keystone using Keystone-to-Keystone 24/09/2015 Tim Bell - RDA 14

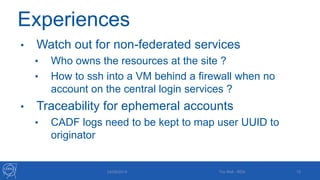

- 15. Experiences • Watch outfor non-federated services • Who owns the resources at the site ? • How to ssh into a VM behind a firewall when no account on the central login services ? • Traceability for ephemeral accounts • CADF logs need to be kept to map user UUID to originator 24/09/2015 Tim Bell - RDA 15

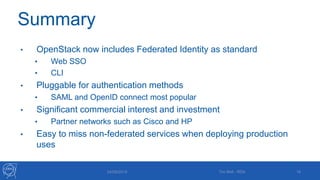

- 16. Summary • OpenStack nowincludes Federated Identity as standard • Web SSO • CLI • Pluggable for authentication methods • SAML and OpenID connect most popular • Significant commercial interest and investment • Partner networks such as Cisco and HP • Easy to miss non-federated services when deploying production uses 24/09/2015 16Tim Bell - RDA

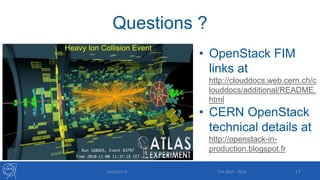

- 17. Questions ? 24/09/2015 17 •OpenStack FIM links at http://clouddocs.web.cern.ch/c louddocs/additional/README. html • CERN OpenStack technical details at http://openstack-in- production.blogspot.fr Tim Bell - RDA
- 18.

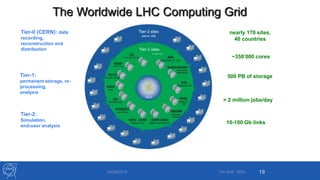

- 19. The Worldwide LHCComputing Grid Tier-1: permanent storage, re- processing, analysis Tier-0 (CERN): data recording, reconstruction and distribution Tier-2: Simulation, end-user analysis > 2 million jobs/day ~350’000 cores 500 PB of storage nearly 170 sites, 40 countries 10-100 Gb links 1924/09/2015 Tim Bell - RDA
- 20.
Editor's Notes
- #5 Already 4 independent clouds – federation is now being studied Rackspace inside CERN openlab Cells is a key technology to scale
- #6 Account Management Automation CERN legacy network database No Neutron yet
- #7 The trigger farms are those servers nearest the accelerator which are not needed while the accelerator is shut down till 2015 Public clouds are interesting for burst load (such as coming up to a conference) or when price drops such as spot market Private clouds allow universities and other research labs to collaborate in processing the LHC data
