CERN is an international scientific research organization located in Geneva, Switzerland with 20 member states. It was founded in 1954 and operates the largest particle physics laboratory in the world. CERN is transitioning its computing infrastructure to an OpenStack-based cloud model to meet increasing demands from its 11,000 users within a fixed budget. This will allow CERN to simplify management of its distributed resources and take advantage of open source cloud technologies and communities.

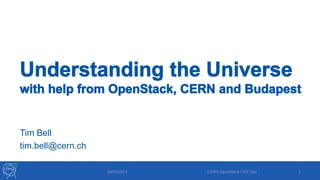

2. Tim Bell
tim.bell@cern.ch
29/05/2013 CERN OpenStack CEE Day 2

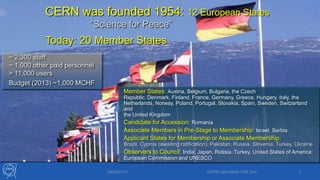

3. 29/05/2013 CERN OpenStack CEE Day 3
CERN was founded 1954: 12 European States
“Science for Peace”
Today: 20 Member States
Member States: Austria, Belgium, Bulgaria, the Czech
Republic, Denmark, Finland, France, Germany, Greece, Hungary, Italy, the
Netherlands, Norway, Poland, Portugal, Slovakia, Spain, Sweden, Switzerland
and
the United Kingdom
Candidate for Accession: Romania
Associate Members in Pre-Stage to Membership: Israel, Serbia
Applicant States for Membership or Associate Membership:
Brazil, Cyprus (awaiting ratification), Pakistan, Russia, Slovenia, Turkey, Ukraine
Observers to Council: India, Japan, Russia, Turkey, United States of America;
European Commission and UNESCO
~ 2,300 staff
~ 1,000 other paid personnel
> 11,000 users
Budget (2013) ~1,000 MCHF

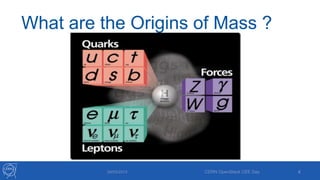

4. What are the Origins of Mass ?
29/05/2013 CERN OpenStack CEE Day 4

5. Matter/Anti Matter Symmetric?
29/05/2013 CERN OpenStack CEE Day 5

6. Where is 95% of the Universe?
29/05/2013 CERN OpenStack CEE Day 6

7. 29/05/2013 CERN OpenStack CEE Day 7

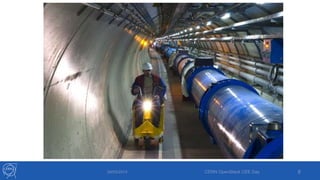

8. 29/05/2013 CERN OpenStack CEE Day 8

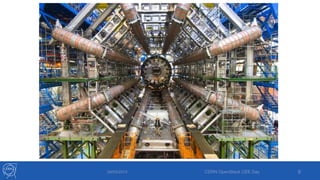

9. 29/05/2013 CERN OpenStack CEE Day 9

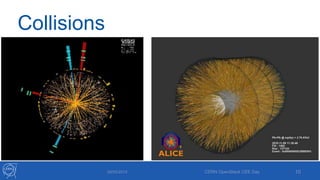

10. Collisions
29/05/2013 CERN OpenStack CEE Day 10

11. 29/05/2013 CERN OpenStack CEE Day 11
July 4, 2012

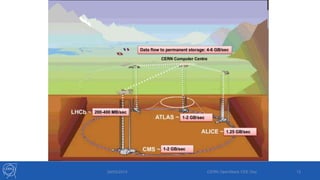

12. 29/05/2013 CERN OpenStack CEE Day 12

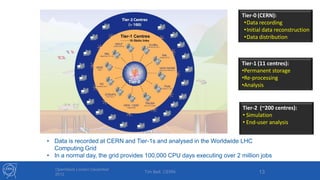

13. OpenStack London December
2012
Tim Bell, CERN 13
Tier-1 (11 centres):
•Permanent storage
•Re-processing
•Analysis
Tier-0 (CERN):
•Data recording
•Initial data reconstruction
•Data distribution
Tier-2 (~200 centres):
• Simulation
• End-user analysis
• Data is recorded at CERN and Tier-1s and analysed in the Worldwide LHC
Computing Grid
• In a normal day, the grid provides 100,000 CPU days executing over 2 million jobs

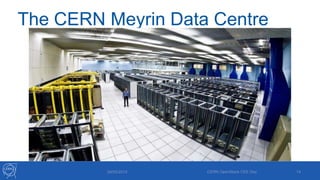

14. The CERN Meyrin Data Centre
29/05/2013 CERN OpenStack CEE Day 14

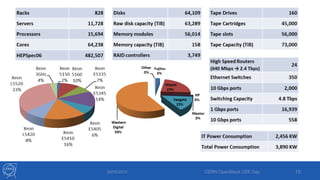

15. 29/05/2013 CERN OpenStack CEE Day 15

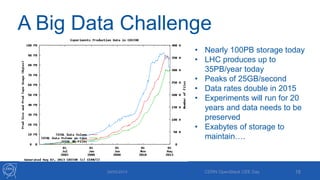

16. A Big Data Challenge
29/05/2013 CERN OpenStack CEE Day 16
• Nearly 100PB storage today
• LHC produces up to
35PB/year today
• Peaks of 25GB/second
• Data rates double in 2015
• Experiments will run for 20
years and data needs to be
preserved
• Exabytes of storage to
maintain….

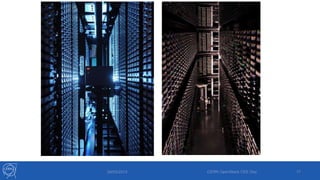

17. 29/05/2013 CERN OpenStack CEE Day 17

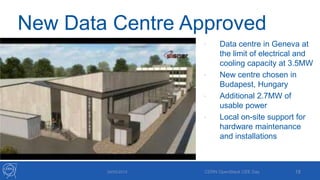

18. New Data Centre Approved
29/05/2013 CERN OpenStack CEE Day 18
• Data centre in Geneva at
the limit of electrical and
cooling capacity at 3.5MW
• New centre chosen in
Budapest, Hungary
• Additional 2.7MW of
usable power
• Local on-site support for
hardware maintenance
and installations

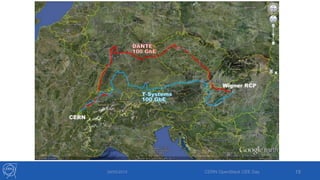

19. 29/05/2013 CERN OpenStack CEE Day 19

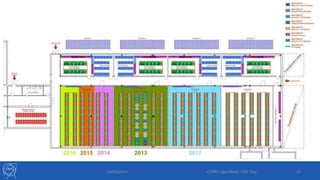

20. 29/05/2013 CERN OpenStack CEE Day 20

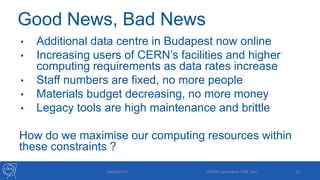

21. Good News, Bad News
• Additional data centre in Budapest now online
• Increasing users of CERN’s facilities and higher
computing requirements as data rates increase
• Staff numbers are fixed, no more people
• Materials budget decreasing, no more money
• Legacy tools are high maintenance and brittle
How do we maximise our computing resources within
these constraints ?
29/05/2013 CERN OpenStack CEE Day 21

22. Approach
29/05/2013 CERN OpenStack CEE Day 22
• Remodel IT services on Cloud layered models
• IaaS, PaaS, SaaS
• Move to commonly used open source tools
• Focus on strong communities and momentum
• Implement clouds at scale
• Aim for 90% infrastructure virtualised
• Exploit ecosystem solutions rather than writing from
scratch

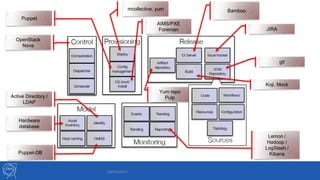

23. 29/05/2013
Bamboo
Koji, Mock
AIMS/PXE
Foreman
Yum repo
Pulp
Puppet-DB
mcollective, yum
JIRA
Lemon /
Hadoop /
LogStash /
Kibana
git
OpenStack
Nova
Hardware
database
Puppet
Active Directory /
LDAP

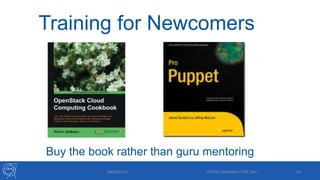

24. Training for Newcomers
29/05/2013 CERN OpenStack CEE Day 24
Buy the book rather than guru mentoring

25. Job Opportunities
29/05/2013 CERN OpenStack CEE Day 25

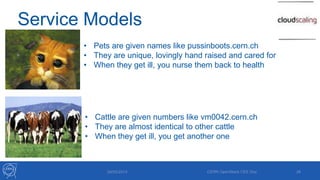

26. Service Models
29/05/2013 CERN OpenStack CEE Day 26
• Pets are given names like pussinboots.cern.ch
• They are unique, lovingly hand raised and cared for
• When they get ill, you nurse them back to health
• Cattle are given numbers like vm0042.cern.ch
• They are almost identical to other cattle
• When they get ill, you get another one

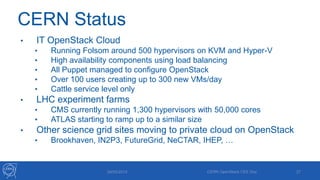

27. CERN Status
• IT OpenStack Cloud
• Running Folsom around 500 hypervisors on KVM and Hyper-V
• High availability components using load balancing
• All Puppet managed to configure OpenStack
• Over 100 users creating up to 300 new VMs/day
• Cattle service level only
• LHC experiment farms
• CMS currently running 1,300 hypervisors with 50,000 cores
• ATLAS starting to ramp up to a similar size
• Other science grid sites moving to private cloud on OpenStack
• Brookhaven, IN2P3, FutureGrid, NeCTAR, IHEP, …
29/05/2013 CERN OpenStack CEE Day 27

28. 29/05/2013 CERN OpenStack CEE Day 28

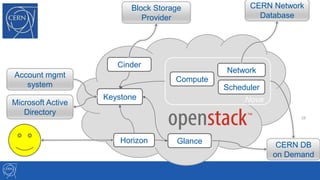

Microsoft Active
Directory
CERN DB
on Demand
CERN Network
Database
Account mgmt
system
Horizon
Keystone
Network
Compute
Glance
Scheduler
Cinder
Nova
Block Storage
Provider

29. 29/05/2013 CERN OpenStack CEE Day 29

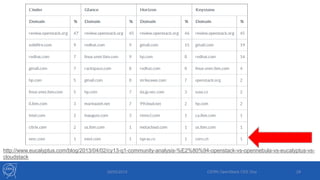

http://www.eucalyptus.com/blog/2013/04/02/cy13-q1-community-analysis-%E2%80%94-openstack-vs-opennebula-vs-eucalyptus-vs-
cloudstack

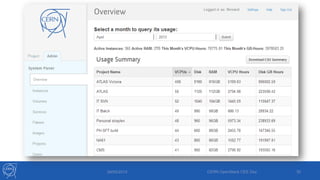

30. 29/05/2013 CERN OpenStack CEE Day 30

31. Preproduction Service
29/05/2013 CERN OpenStack CEE Day 31

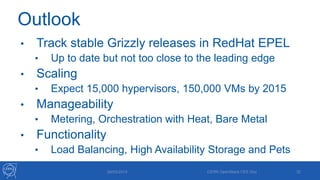

32. Outlook
• Track stable Grizzly releases in RedHat EPEL
• Up to date but not too close to the leading edge
• Scaling
• Expect 15,000 hypervisors, 150,000 VMs by 2015
• Manageability
• Metering, Orchestration with Heat, Bare Metal
• Functionality
• Load Balancing, High Availability Storage and Pets
29/05/2013 CERN OpenStack CEE Day 32

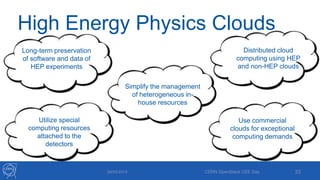

33. High Energy Physics Clouds
29/05/2013 CERN OpenStack CEE Day 33
Long-term preservation
of software and data of
HEP experiments
Utilize special
computing resources
attached to the
detectors
Simplify the management
of heterogeneous in-
house resources
Use commercial
clouds for exceptional
computing demands
Distributed cloud
computing using HEP
and non-HEP clouds

34. What have we learnt?
• Automate everything from the beginning
• Stackforge community projects are a great help
• Distributions and appliances make getting started much easier
• Constant rate of change requires a different approach
• Focus on core technologies and keep up to date
• Track new projects but don’t adopt too early unless strategic
• Many of our users are cloud aware
• Culture changes for legacy application coding and IT services
• Communities are major motivators
• Staff approach needs to change to adapt rather than re-invent
29/05/2013 CERN OpenStack CEE Day 34

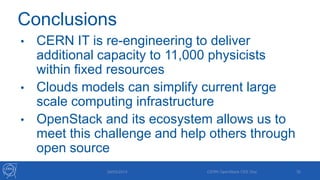

35. Conclusions
• CERN IT is re-engineering to deliver
additional capacity to 11,000 physicists
within fixed resources
• Clouds models can simplify current large
scale computing infrastructure
• OpenStack and its ecosystem allows us to
meet this challenge and help others through
open source
29/05/2013 CERN OpenStack CEE Day 35

36. Questions ?
29/05/2013 CERN OpenStack CEE Day 36

37. Linux Security Incident
29/05/2013 CERN OpenStack CEE Day 37
New operational procedures being developed with cloud flexibility
