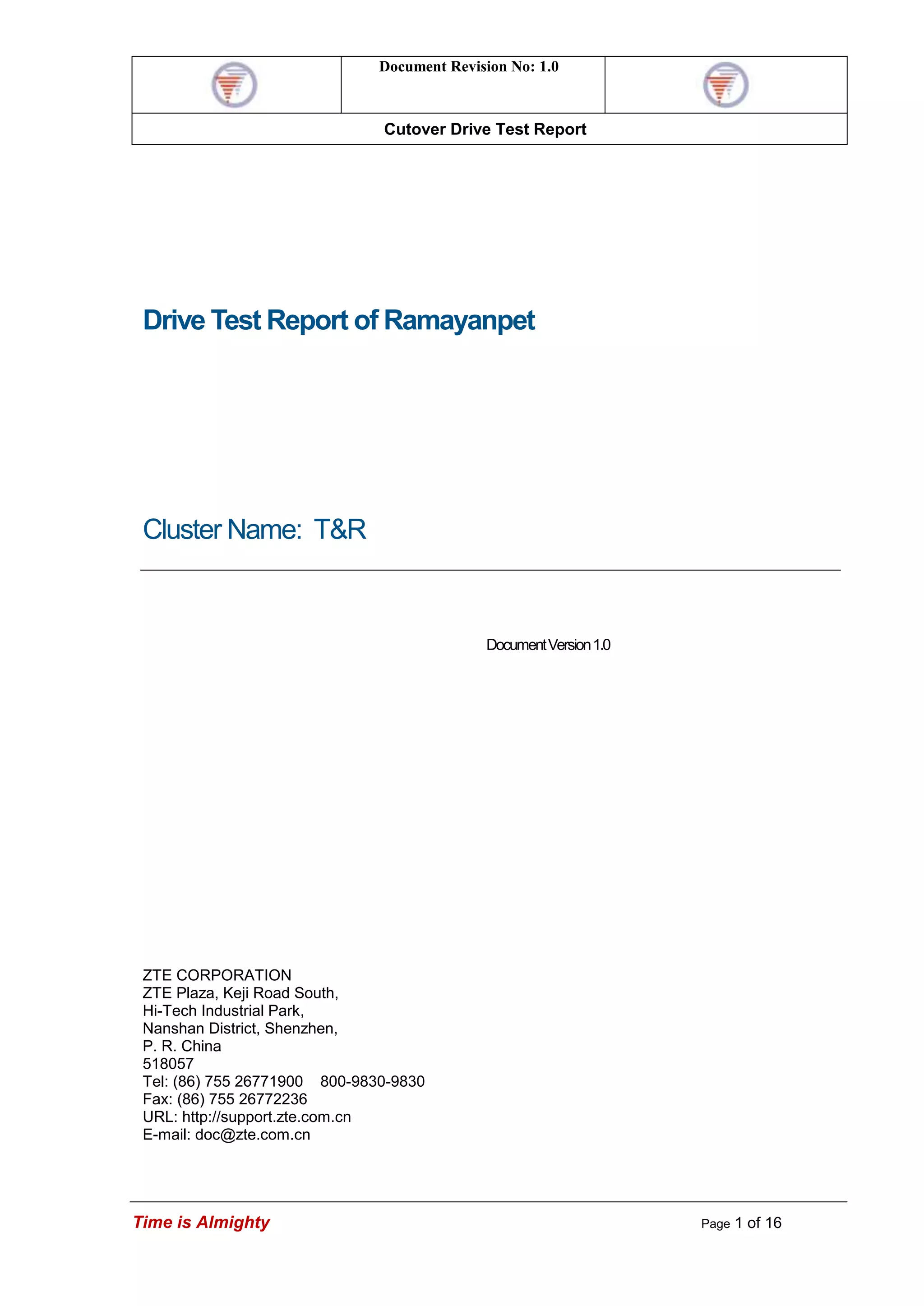

Drive Test Report of Ramayanpet
Cluster Name: T&R
DocumentVersion1.0
ZTE CORPORATION
ZTE Plaza, Keji Road South,
Hi-Tech Industrial Park,
Nanshan District, Shenzhen,
P. R. China
518057
Tel: (86) 755 26771900 800-9830-9830
Fax: (86) 755 26772236
URL: http://support.zte.com.cn
E-mail: doc@zte.com.cn

2. Document Revision No: 1.0
Cutover Drive Test Report
Time is Almighty Page 2 of 16

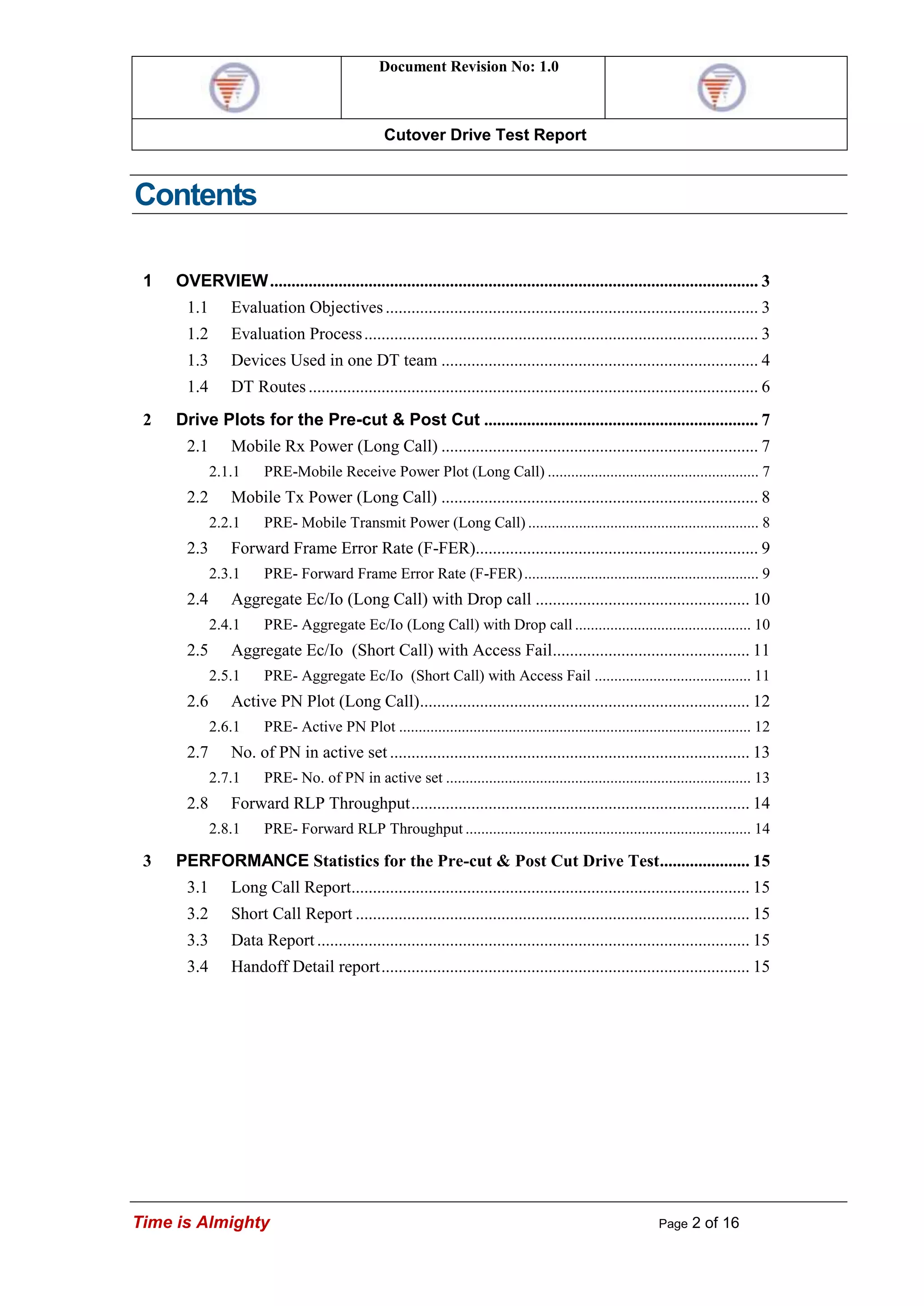

Contents
1 OVERVIEW.................................................................................................................. 3
1.1 Evaluation Objectives....................................................................................... 3
1.2 Evaluation Process............................................................................................ 3
1.3 Devices Used in one DT team .......................................................................... 4
1.4 DT Routes......................................................................................................... 6
2 Drive Plots for the Pre-cut & Post Cut ................................................................ 7
2.1 Mobile Rx Power (Long Call) .......................................................................... 7
2.1.1 PRE-Mobile Receive Power Plot (Long Call) ...................................................... 7
2.2 Mobile Tx Power (Long Call) .......................................................................... 8
2.2.1 PRE- Mobile Transmit Power (Long Call) ........................................................... 8
2.3 Forward Frame Error Rate (F-FER).................................................................. 9
2.3.1 PRE- Forward Frame Error Rate (F-FER)............................................................ 9
2.4 Aggregate Ec/Io (Long Call) with Drop call .................................................. 10
2.4.1 PRE- Aggregate Ec/Io (Long Call) with Drop call ............................................. 10
2.5 Aggregate Ec/Io (Short Call) with Access Fail.............................................. 11
2.5.1 PRE- Aggregate Ec/Io (Short Call) with Access Fail ........................................ 11
2.6 Active PN Plot (Long Call)............................................................................. 12
2.6.1 PRE- Active PN Plot .......................................................................................... 12
2.7 No. of PN in active set .................................................................................... 13
2.7.1 PRE- No. of PN in active set .............................................................................. 13
2.8 Forward RLP Throughput............................................................................... 14
2.8.1 PRE- Forward RLP Throughput ......................................................................... 14
3 PERFORMANCE Statistics for the Pre-cut & Post Cut Drive Test..................... 15
3.1 Long Call Report............................................................................................. 15
3.2 Short Call Report ............................................................................................ 15
3.3 Data Report ..................................................................................................... 15
3.4 Handoff Detail report...................................................................................... 15

3. Document Revision No: 1.0
Cutover Drive Test Report
Time is Almighty Page 3 of 16
1 OVERVIEW

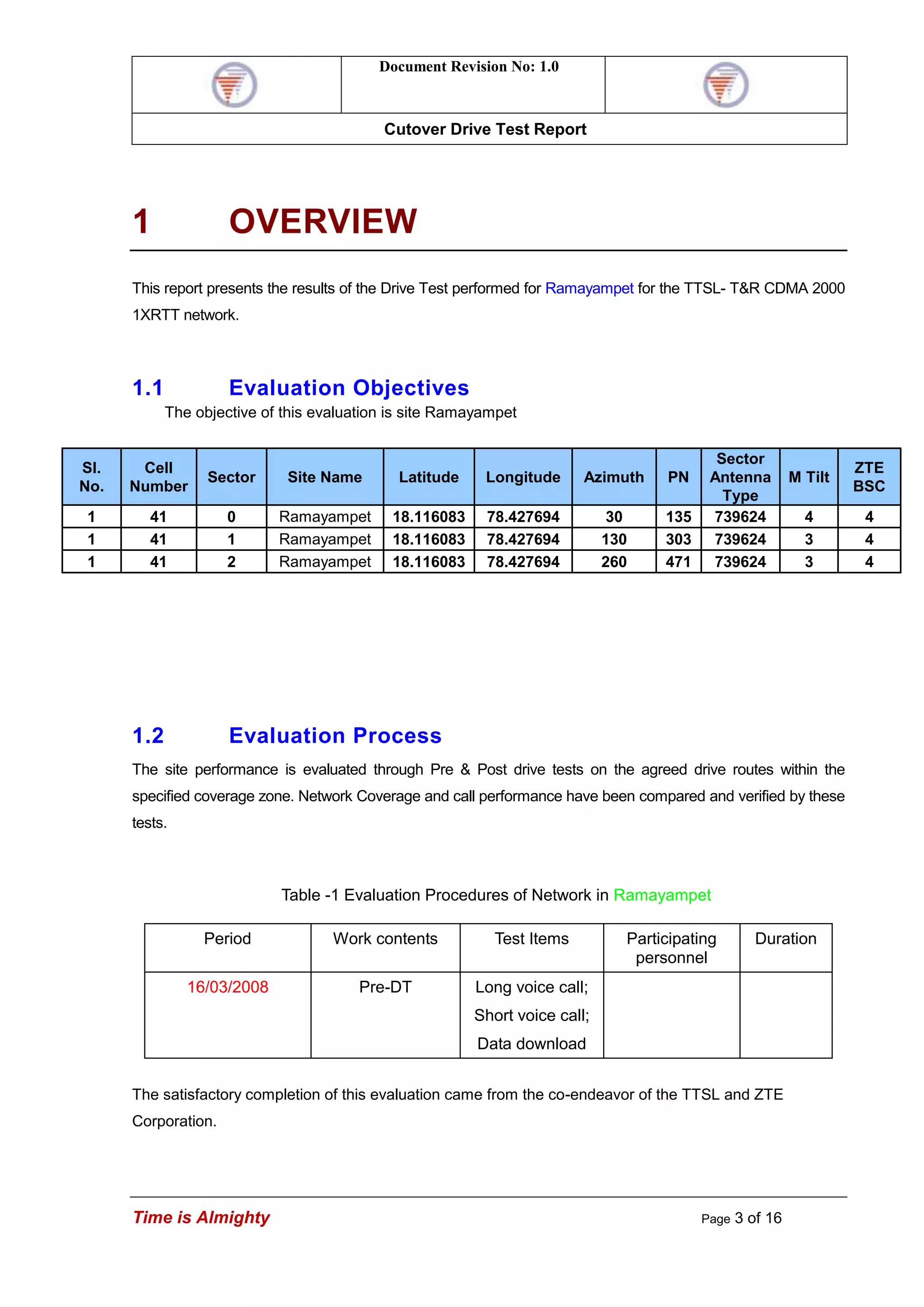

This report presents the results of the Drive Test performed for Ramayampet for the TTSL- T&R CDMA 2000
1XRTT network.
1.1 Evaluation Objectives
The objective of this evaluation is site Ramayampet
Sl.
No.
Cell
Number
Sector Site Name Latitude Longitude Azimuth PN
Sector
Antenna
Type
M Tilt
ZTE
BSC
1 41 0 Ramayampet 18.116083 78.427694 30 135 739624 4 4
1 41 1 Ramayampet 18.116083 78.427694 130 303 739624 3 4
1 41 2 Ramayampet 18.116083 78.427694 260 471 739624 3 4
1.2 Evaluation Process
The site performance is evaluated through Pre & Post drive tests on the agreed drive routes within the
specified coverage zone. Network Coverage and call performance have been compared and verified by these
tests.
Table -1 Evaluation Procedures of Network in Ramayampet
Period Work contents Test Items Participating
personnel
Duration
16/03/2008 Pre-DT Long voice call;
Short voice call;
Data download
The satisfactory completion of this evaluation came from the co-endeavor of the TTSL and ZTE
Corporation.

4. Document Revision No: 1.0
Cutover Drive Test Report
Time is Almighty Page 4 of 16
1.3 Devices Used in one DT team

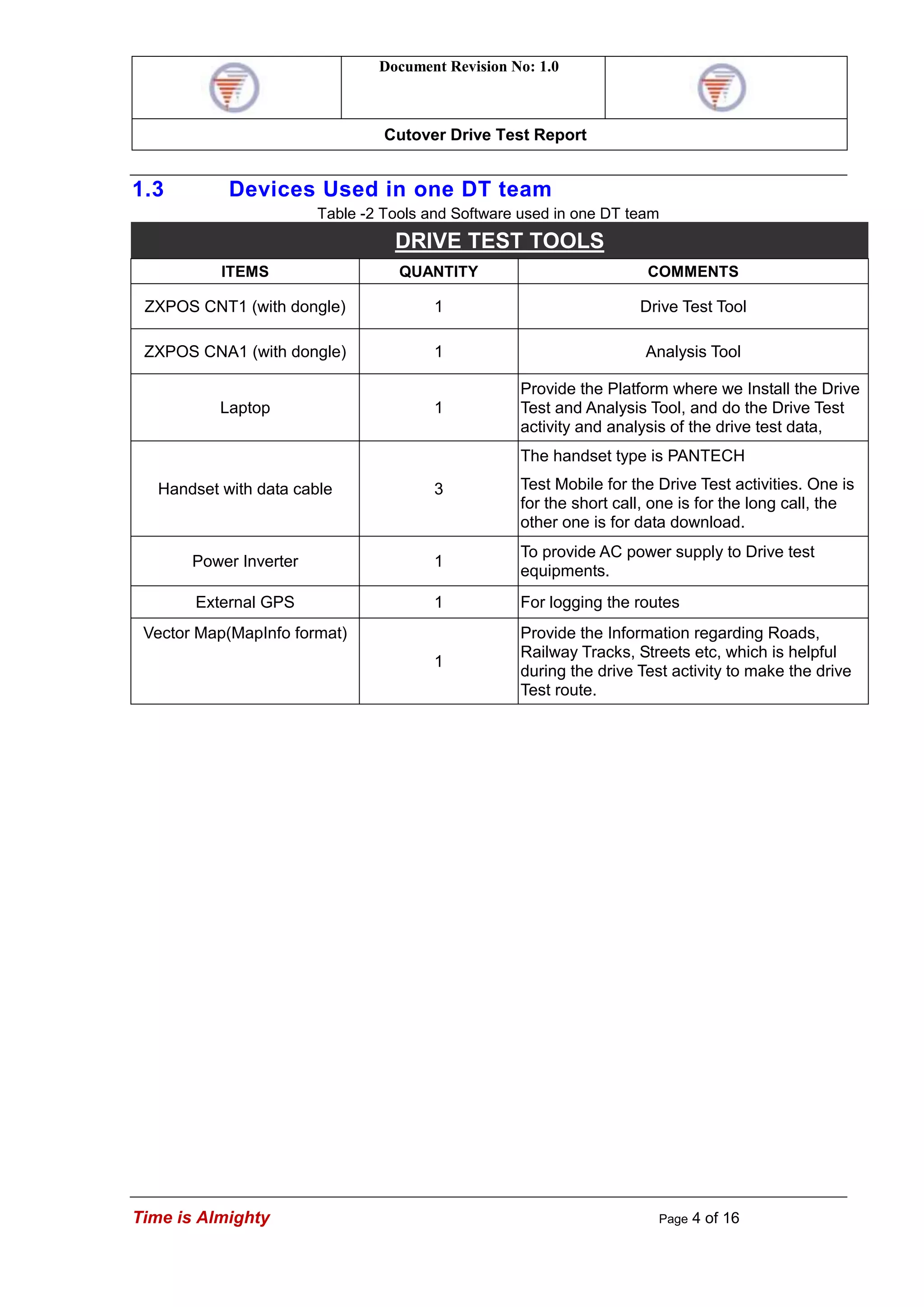

Table -2 Tools and Software used in one DT team
DRIVE TEST TOOLS
ITEMS QUANTITY COMMENTS
ZXPOS CNT1 (with dongle) 1 Drive Test Tool
ZXPOS CNA1 (with dongle) 1 Analysis Tool
Laptop 1
Provide the Platform where we Install the Drive
Test and Analysis Tool, and do the Drive Test
activity and analysis of the drive test data,
Handset with data cable 3
The handset type is PANTECH
Test Mobile for the Drive Test activities. One is
for the short call, one is for the long call, the
other one is for data download.
Power Inverter 1
To provide AC power supply to Drive test
equipments.
External GPS 1 For logging the routes
Vector Map(MapInfo format)
1
Provide the Information regarding Roads,
Railway Tracks, Streets etc, which is helpful
during the drive Test activity to make the drive
Test route.

5. Document Revision No: 1.0
Cutover Drive Test Report
Time is Almighty Page 5 of 16

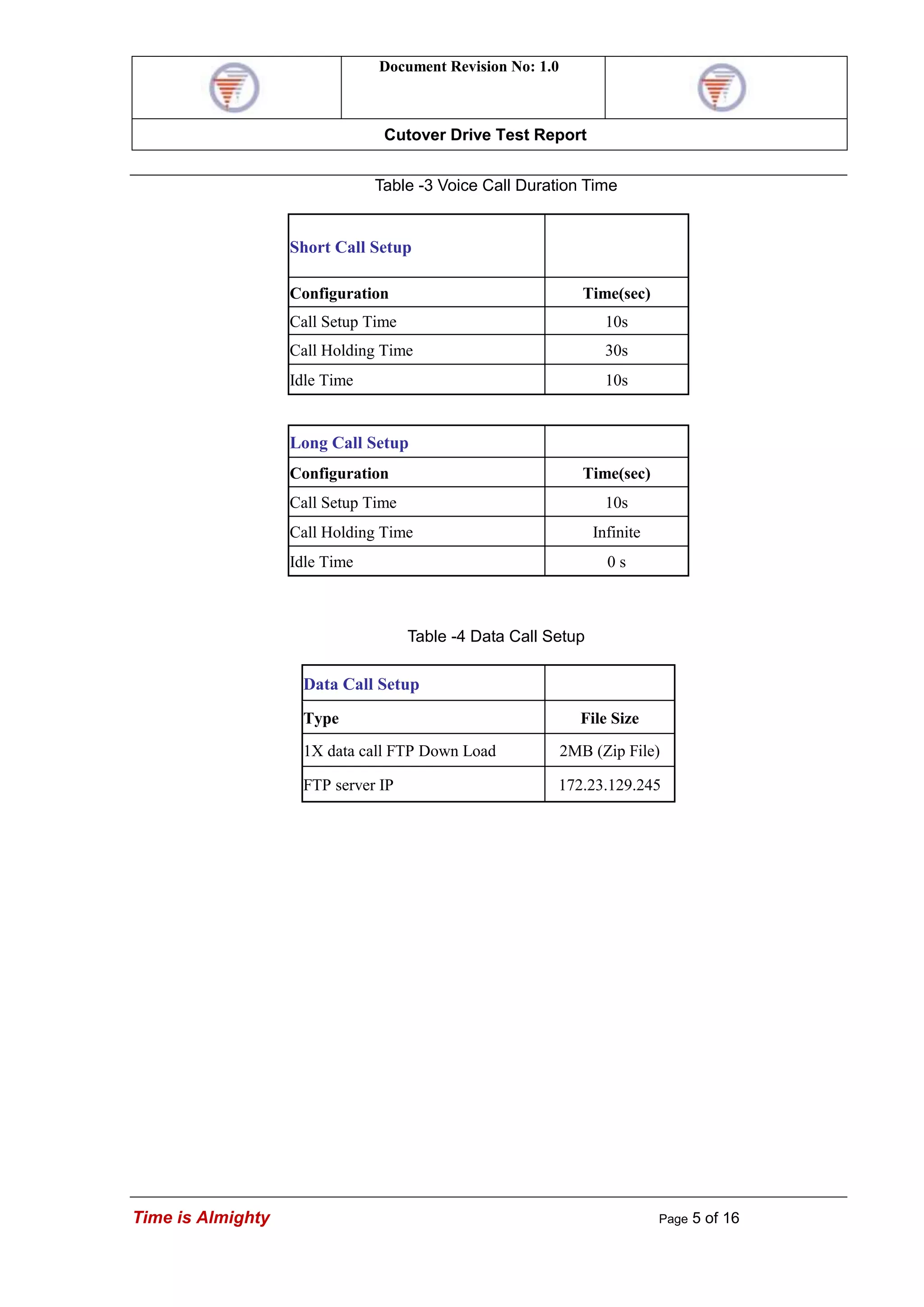

Table -3 Voice Call Duration Time
Table -4 Data Call Setup
Data Call Setup
Type File Size
1X data call FTP Down Load 2MB (Zip File)
FTP server IP 172.23.129.245
Short Call Setup
Configuration Time(sec)
Call Setup Time 10s
Call Holding Time 30s
Idle Time 10s
Long Call Setup
Configuration Time(sec)
Call Setup Time 10s
Call Holding Time Infinite
Idle Time 0 s

6. Document Revision No: 1.0
Cutover Drive Test Report
Time is Almighty Page 6 of 16

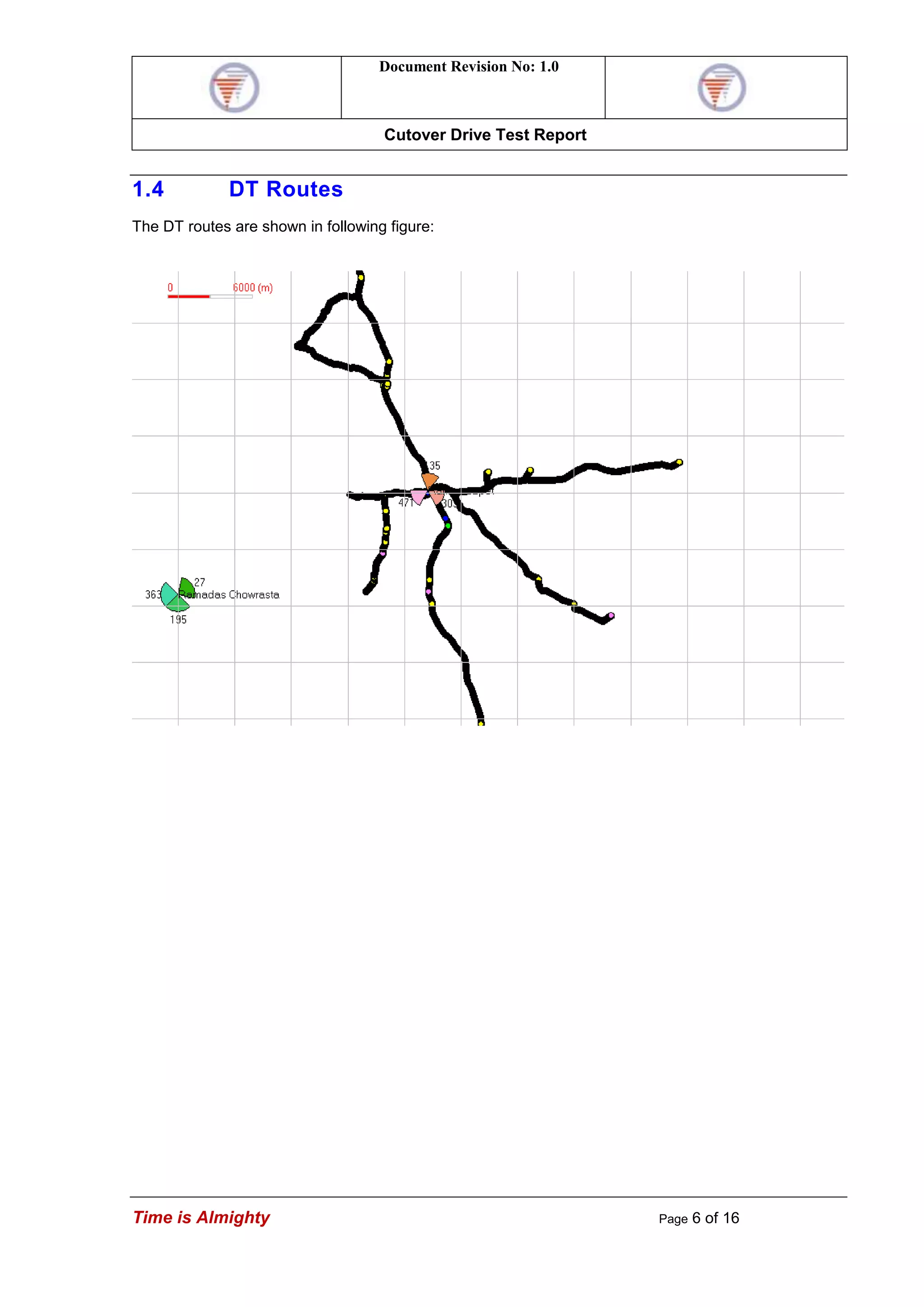

1.4 DT Routes
The DT routes are shown in following figure:

7. Document Revision No: 1.0
Cutover Drive Test Report
Time is Almighty Page 7 of 16
2 DRIVE PLOTS FOR THE PRE-CUT & POST
CUT

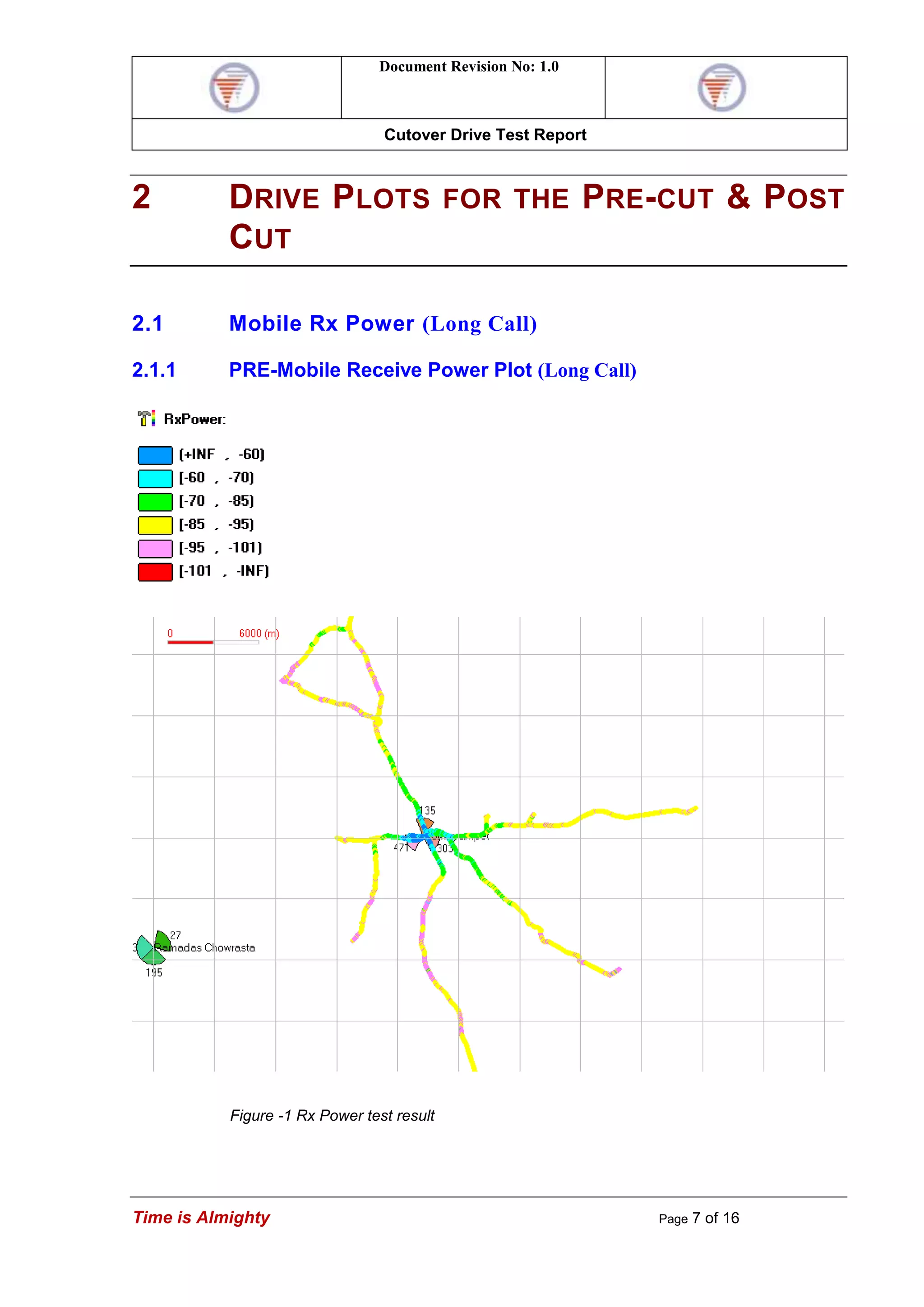

2.1 Mobile Rx Power (Long Call)
2.1.1 PRE-Mobile Receive Power Plot (Long Call)
Figure -1 Rx Power test result

8. Document Revision No: 1.0
Cutover Drive Test Report
Time is Almighty Page 8 of 16
2.2 Mobile Tx Power (Long Call)

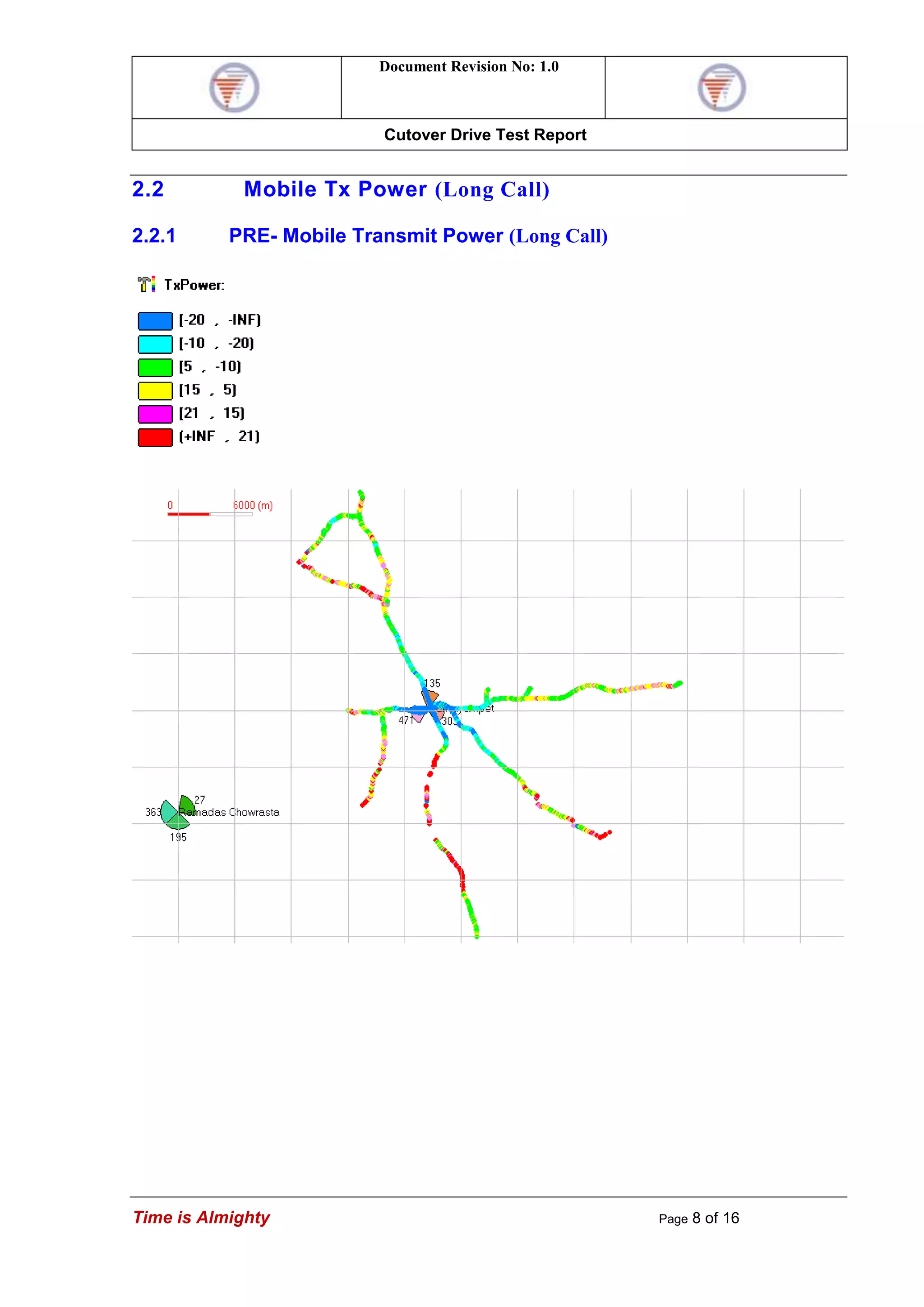

2.2.1 PRE- Mobile Transmit Power (Long Call)

9. Document Revision No: 1.0
Cutover Drive Test Report
Time is Almighty Page 9 of 16

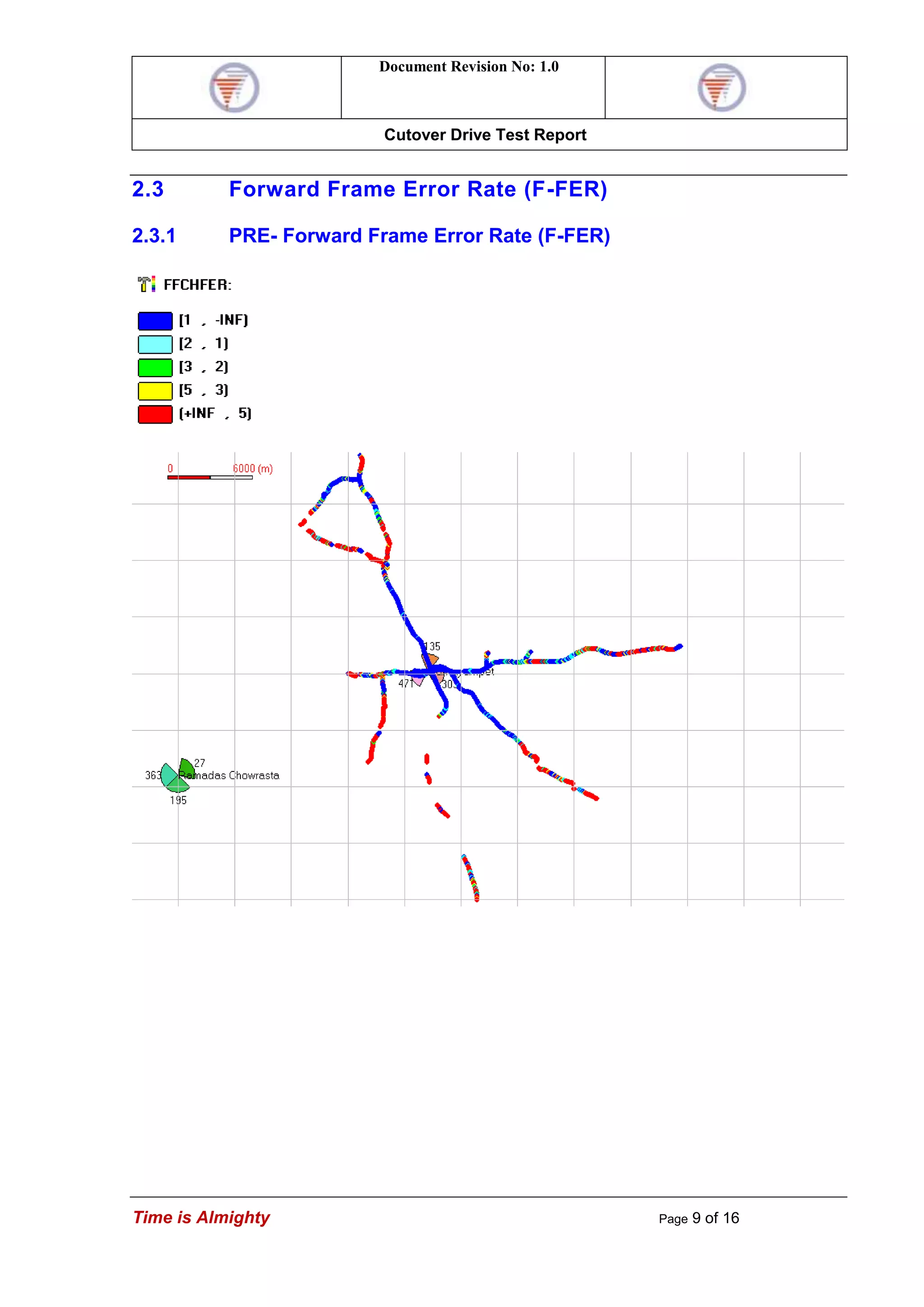

2.3 Forward Frame Error Rate (F-FER)
2.3.1 PRE- Forward Frame Error Rate (F-FER)

10. Document Revision No: 1.0
Cutover Drive Test Report
Time is Almighty Page 10 of 16

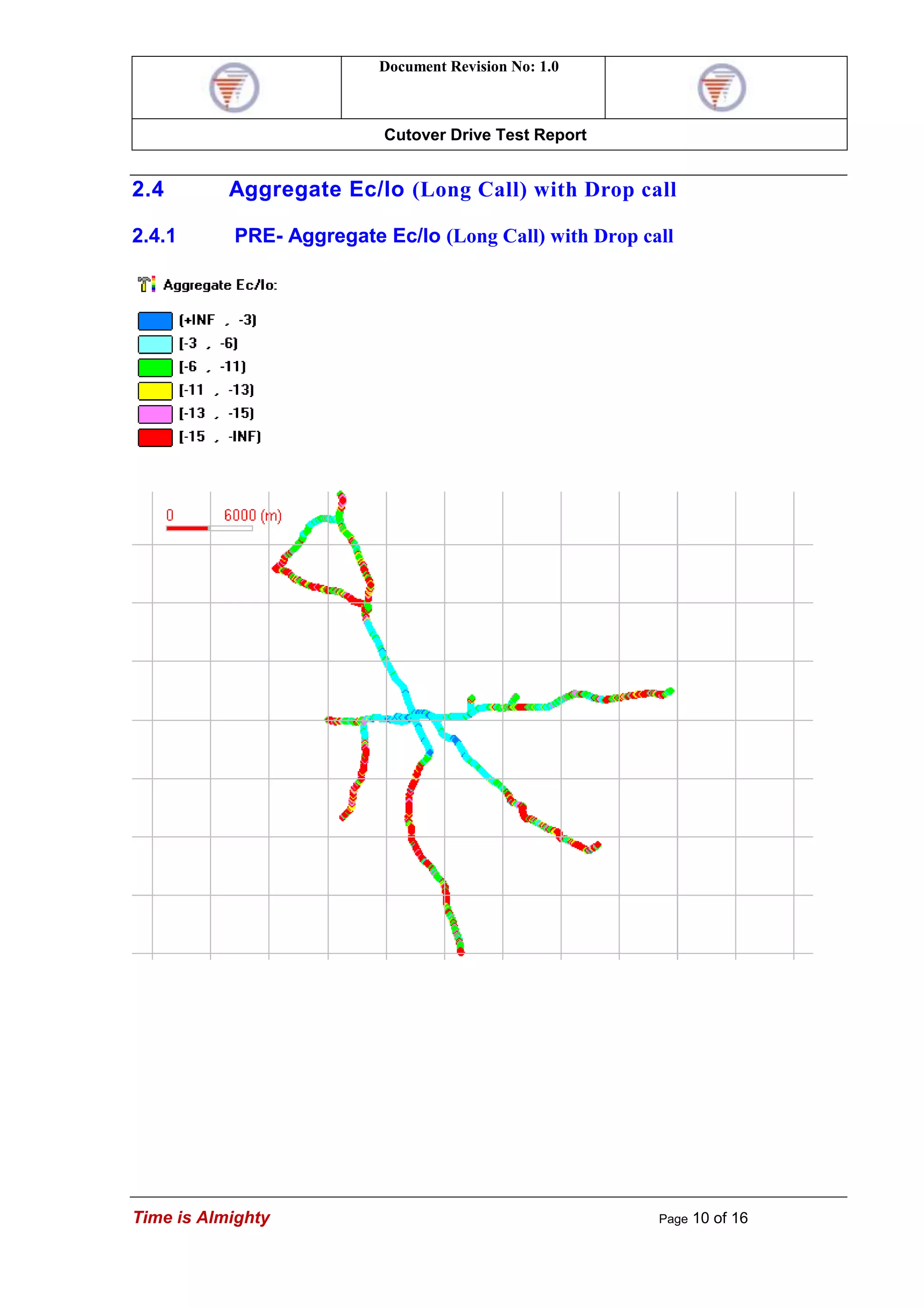

2.4 Aggregate Ec/Io (Long Call) with Drop call
2.4.1 PRE- Aggregate Ec/Io (Long Call) with Drop call

11. Document Revision No: 1.0
Cutover Drive Test Report
Time is Almighty Page 11 of 16

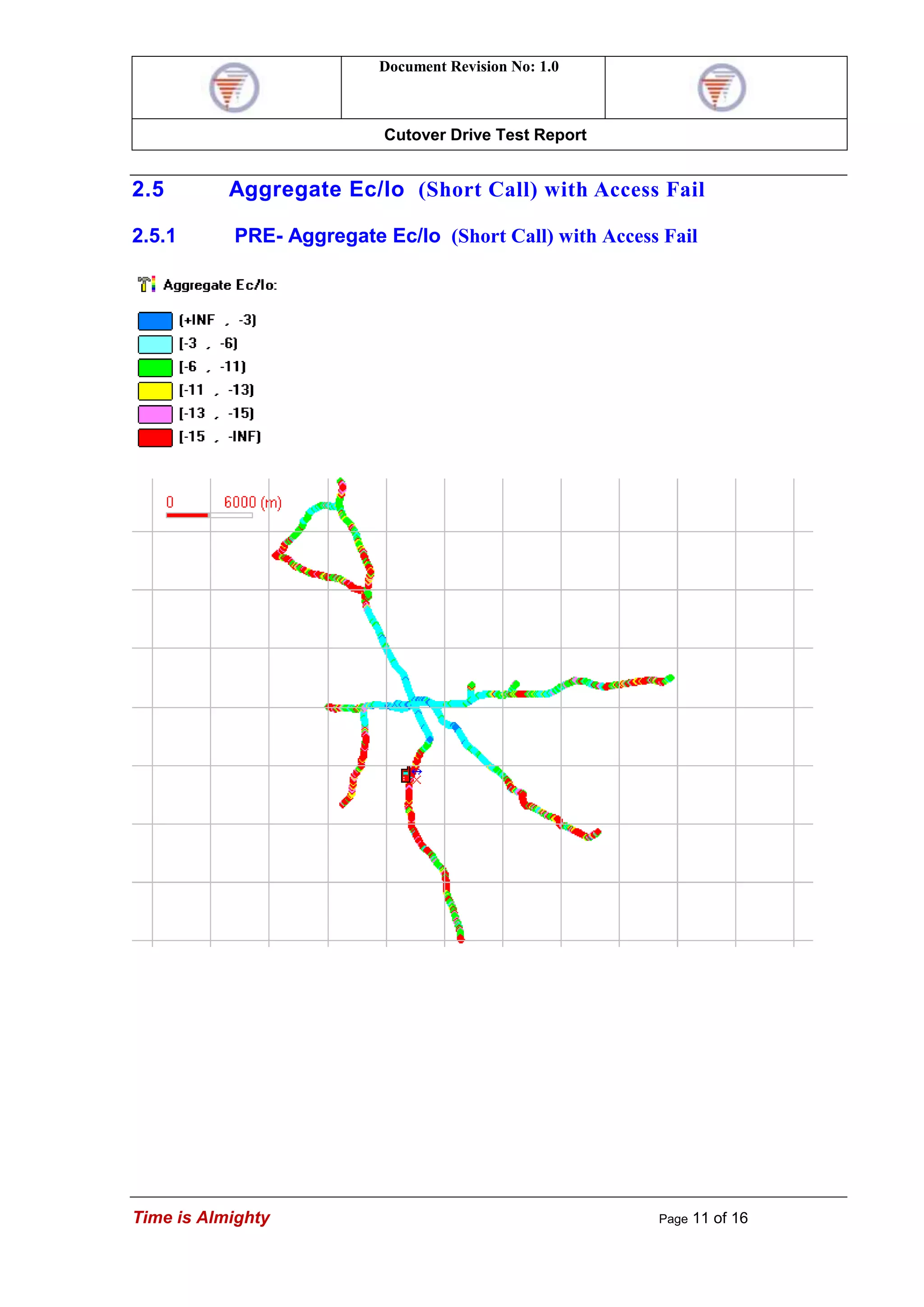

2.5 Aggregate Ec/Io (Short Call) with Access Fail
2.5.1 PRE- Aggregate Ec/Io (Short Call) with Access Fail

12. Document Revision No: 1.0
Cutover Drive Test Report
Time is Almighty Page 12 of 16
2.6 Active PN Plot (Long Call)

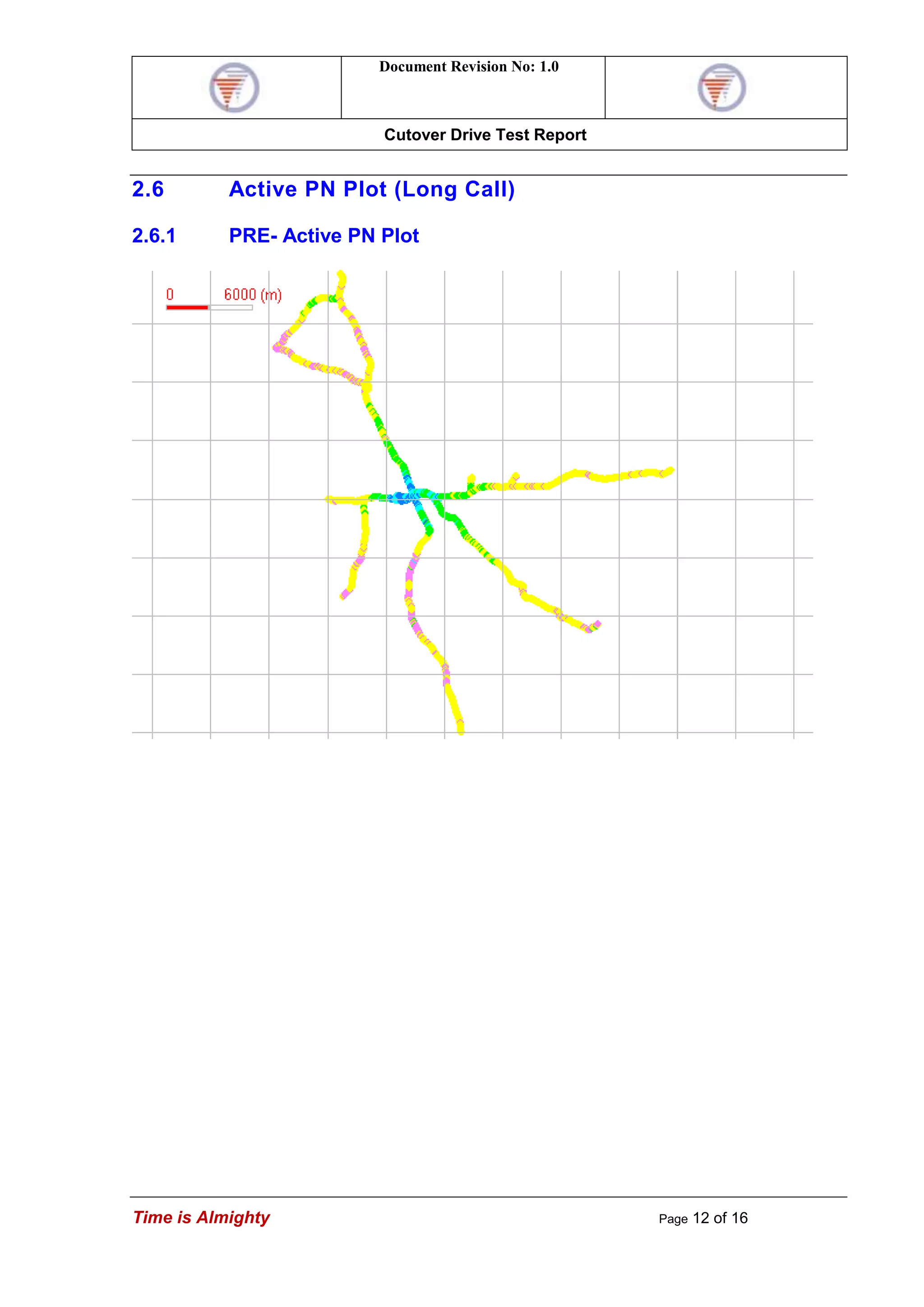

2.6.1 PRE- Active PN Plot

13. Document Revision No: 1.0
Cutover Drive Test Report
Time is Almighty Page 13 of 16
2.7 No. of PN in active set

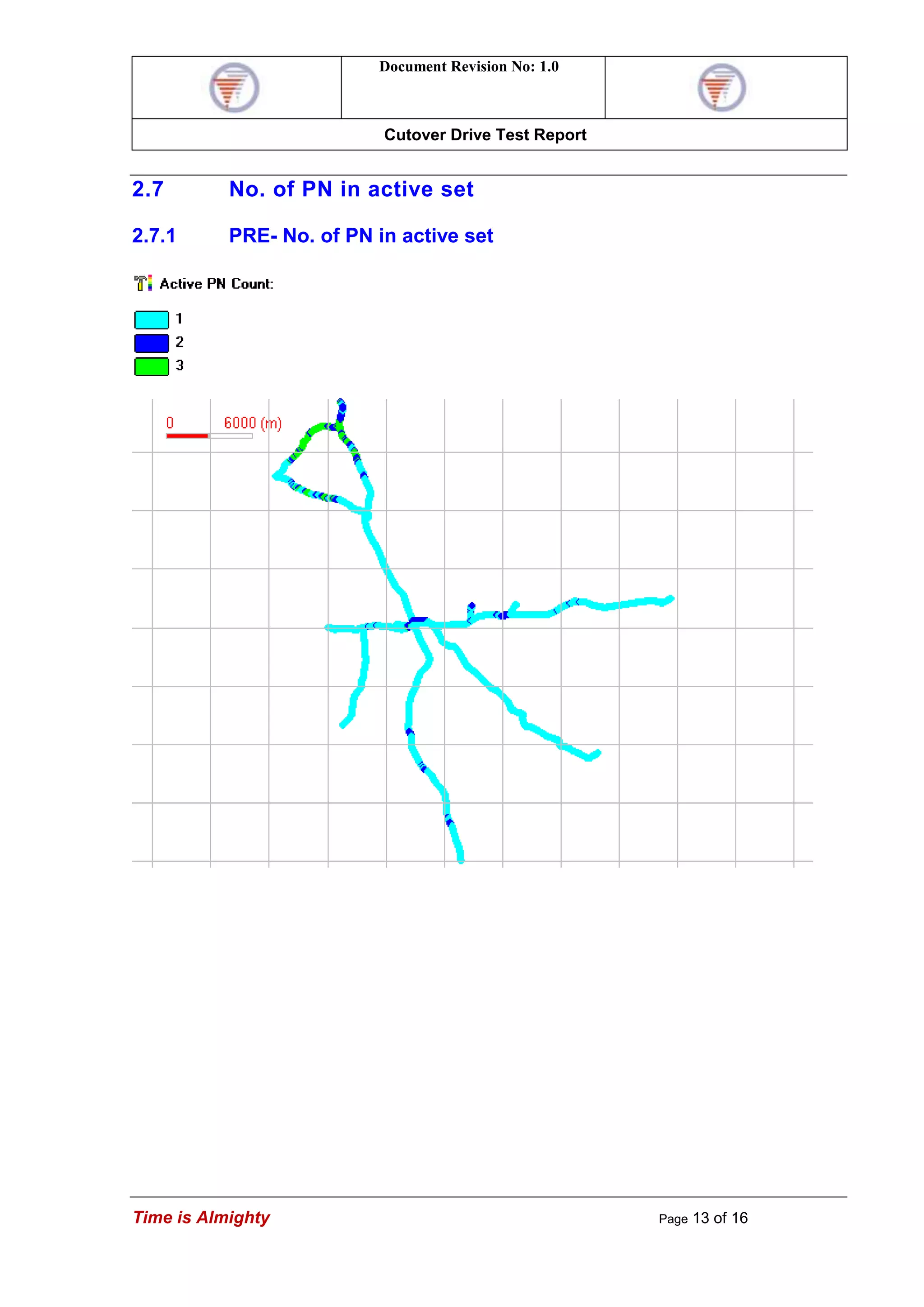

2.7.1 PRE- No. of PN in active set

14. Document Revision No: 1.0
Cutover Drive Test Report
Time is Almighty Page 14 of 16
2.8 Forward RLP Throughput

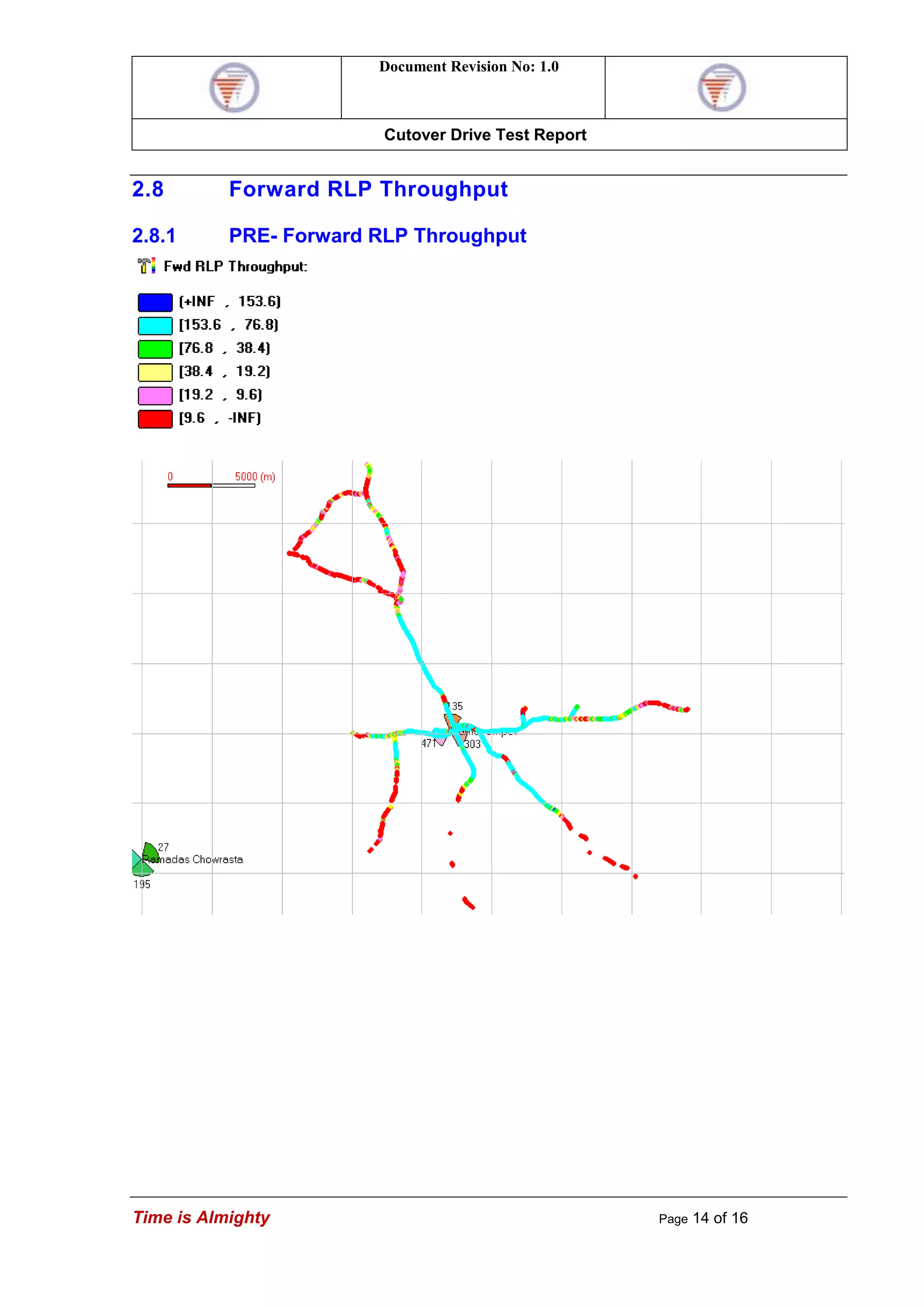

2.8.1 PRE- Forward RLP Throughput

15. Document Revision No: 1.0
Cutover Drive Test Report
Time is Almighty Page 15 of 16

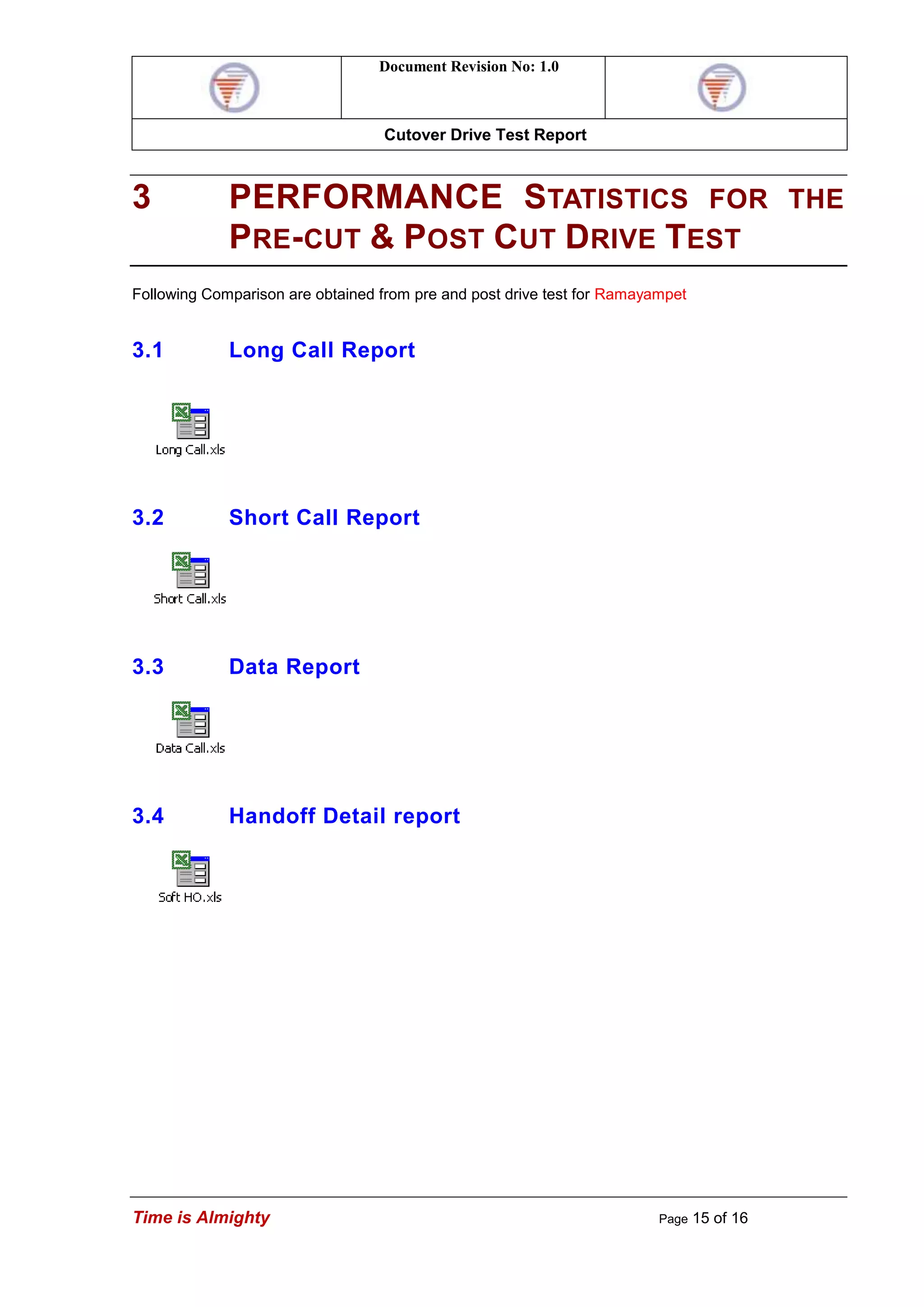

3 PERFORMANCE STATISTICS FOR THE
PRE-CUT & POST CUT DRIVE TEST
Following Comparison are obtained from pre and post drive test for Ramayampet
3.1 Long Call Report
3.2 Short Call Report
3.3 Data Report
3.4 Handoff Detail report

16. Document Revision No: 1.0
Cutover Drive Test Report
Time is Almighty Page 16 of 16

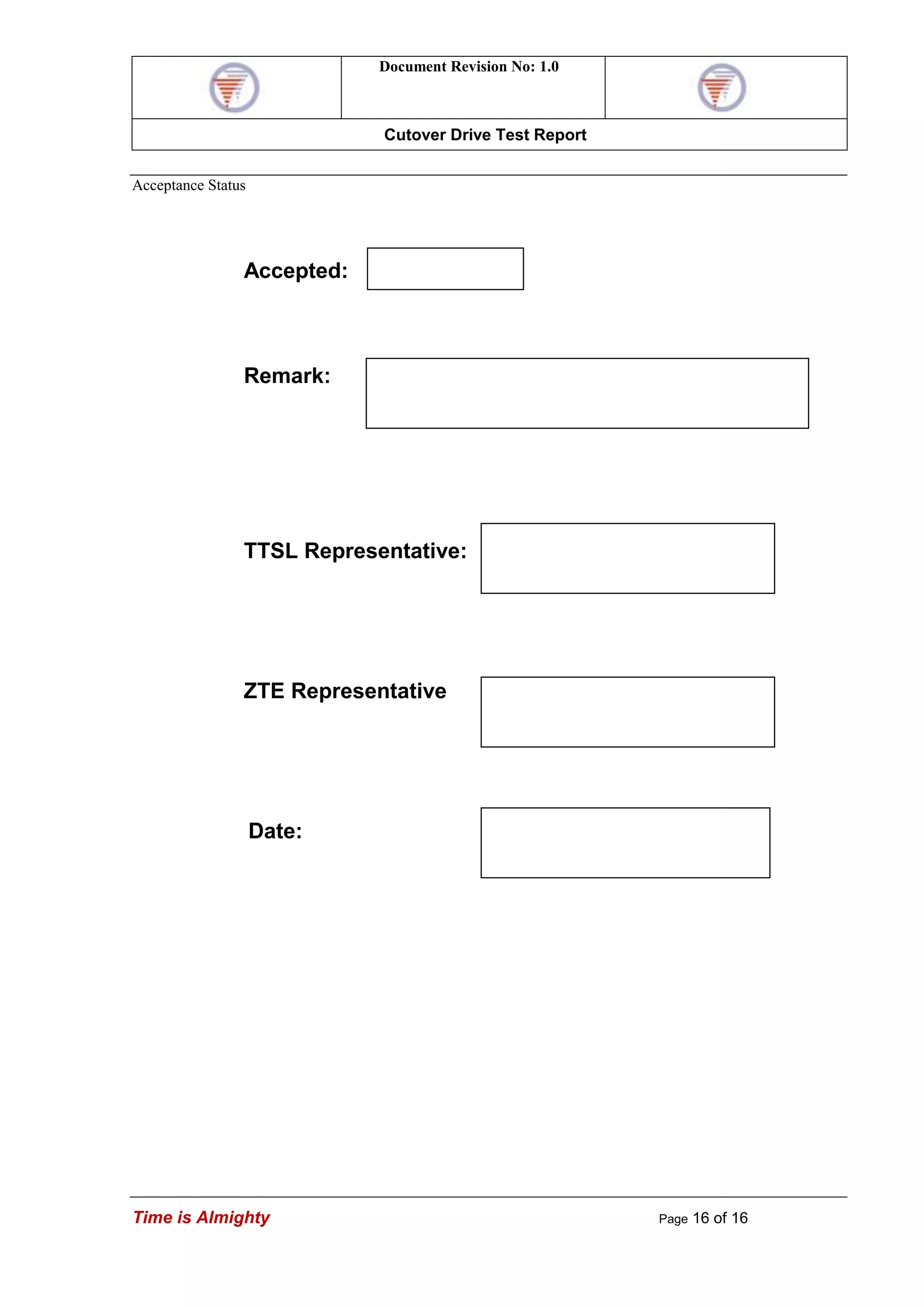

Acceptance Status
