Page | 1
Changing switch hostname
Configuring passwords
Cisco Commands List
Switch(config)#hostname SW1
SW1(config)#enable secret cisco MD5 hash.
SW1(config)#enable password notcisco Clear text.
Securing console port
SW1(config)#line con 0
SW1(config-line)#password cisco
SW1(config-line)#login
Securing terminal lines
SW1(config)#line vty 0 4
SW1(config-line)#password cisco
SW1(config-line)#login
Encrypting passwords
SW1(config)#service password-encryption
Configuring banners
SW1(config)#banner motd $
-=-=-=-=-=-=-=-=-=-=-=-=-=-=-=-=-
UNAUTHORIZED ACCESS IS PROHIBITED
-=-=-=-=-=-=-=-=-=-=-=-=-=-=-=-=-
$
Giving the switch an IP address
SW1(config)#interface vlan 1
SW1(config-if)#ip address 172.16.1.11 255.255.255.0 (or dhcp)
SW1(config-if)#shutdown
Setting the default gateway
SW1(config)#ip default-gateway 172.16.1.1
Saving configuration
SW1#copy running-config startup-config
Destination filename [startup-config]?
Building configuration…
[OK]
Press enter to
confirm file
name.
SW1#wr
Building configuration…
[OK]
Short for write
memory.
Working environment
(name lookup, history, exec-timeout and logging behavior)
SW1(config)#no ip domain-lookup
SW1(config)#line vty 0 4
SW1(config-line)#history size 15
SW1(config-line)# exec-timeout 10 30
SW1(config-line)#logging synchronous
Also valid for
line con 0.
Configuring switch to use SSH
• Configure DNS domain name:
SW1(config)#ip domain-name example.com
• Configure a username and password:
SW1(config)#username admin password cisco
• Generate encryption keys:
SW1(config)#crypto key generate rsa
How many bits in the modulus [512]: 1024
• Define SSH version to use:
SW1(config)#ip ssh version 2
• Enable vty lines to use SSH:
SW1(config)#line vty 0 4
SW1(config-line)#login local
SW1(config-line)#transport input telnet ssh
The size of the
key modulus in
the range of
360 to 2048.
You can set vty
lines to use
only telnet or
only ssh or
both as in the
example.
CCNA v6
Cisco Commands List

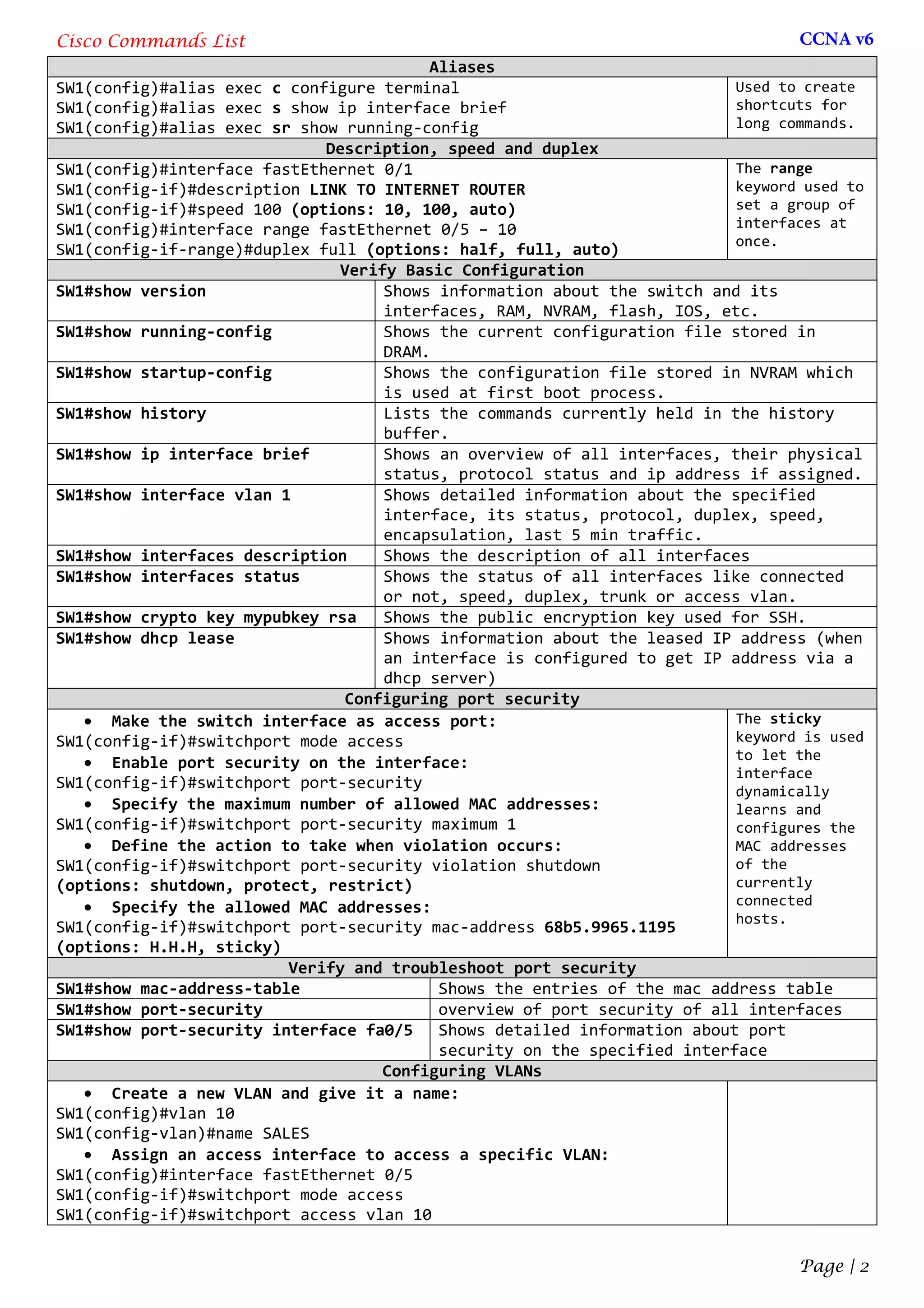

Page | 2
Aliases
SW1(config)#alias exec c configure terminal
SW1(config)#alias exec s show ip interface brief
SW1(config)#alias exec sr show running-config
Used to create
shortcuts for
long commands.
Description, speed and duplex
SW1(config)#interface fastEthernet 0/1
SW1(config-if)#description LINK TO INTERNET ROUTER
SW1(config-if)#speed 100 (options: 10, 100, auto)
SW1(config)#interface range fastEthernet 0/5 – 10
SW1(config-if-range)#duplex full (options: half, full, auto)
The range
keyword used to
set a group of
interfaces at
once.
Verify Basic Configuration
SW1#show version Shows information about the switch and its
interfaces, RAM, NVRAM, flash, IOS, etc.
SW1#show running-config Shows the current configuration file stored in
DRAM.
SW1#show startup-config Shows the configuration file stored in NVRAM which
is used at first boot process.
SW1#show history Lists the commands currently held in the history
buffer.
SW1#show ip interface brief Shows an overview of all interfaces, their physical
status, protocol status and ip address if assigned.
SW1#show interface vlan 1 Shows detailed information about the specified
interface, its status, protocol, duplex, speed,
encapsulation, last 5 min traffic.
SW1#show interfaces description Shows the description of all interfaces
SW1#show interfaces status Shows the status of all interfaces like connected
or not, speed, duplex, trunk or access vlan.
SW1#show crypto key mypubkey rsa Shows the public encryption key used for SSH.
SW1#show dhcp lease Shows information about the leased IP address (when
an interface is configured to get IP address via a
dhcp server)
Configuring port security
• Make the switch interface as access port:
SW1(config-if)#switchport mode access
• Enable port security on the interface:
SW1(config-if)#switchport port-security
• Specify the maximum number of allowed MAC addresses:
SW1(config-if)#switchport port-security maximum 1
• Define the action to take when violation occurs:
SW1(config-if)#switchport port-security violation shutdown
(options: shutdown, protect, restrict)
• Specify the allowed MAC addresses:
SW1(config-if)#switchport port-security mac-address 68b5.9965.1195
(options: H.H.H, sticky)
The sticky
keyword is used
to let the
interface
dynamically
learns and
configures the
MAC addresses
of the
currently
connected
hosts.
Verify and troubleshoot port security
SW1#show mac-address-table Shows the entries of the mac address table
SW1#show port-security overview of port security of all interfaces
SW1#show port-security interface fa0/5 Shows detailed information about port
security on the specified interface
Configuring VLANs
• Create a new VLAN and give it a name:
SW1(config)#vlan 10
SW1(config-vlan)#name SALES
• Assign an access interface to access a specific VLAN:
SW1(config)#interface fastEthernet 0/5
SW1(config-if)#switchport mode access
SW1(config-if)#switchport access vlan 10
CCNA v6
Cisco Commands List
Page | 3
Configuring an auxiliary VLAN for cisco IP phones
SW1(config)#interface fastEthernet 0/5
SW1(config-if)#switchport access vlan 10
SW1(config-if)#switchport voice vlan 12
accessing vlan
10 (data) and
12 (VoIP)
Configuring Trunks
SW1(config)#interface fastEthernet 0/1
SW1(config-if)#switchport mode trunk
(options: access, trunk, dynamic auto, dynamic desirable)
SW1(config-if)#switchport trunk allowed vlan add 10
(options: add, remove, all, except)
Securing VLANS and Trunking
• Administratively disable unused interfaces:
SW1(config-if)#shutdown
• Prevent trunking by disabling auto negotiation on the interface:
SW1(config-if)#nonegotiate (or hardcode the port as an access port)
SW1(config-if)#switchport mode access
• Assign the port to an unused VLAN:
SW1(config-if)#switchport access vlan 222
Configuring VTP
• Configure VTP mode:
SW1(config)#vtp mode server (options: server, client, transparent)
• Configure VTP domain name:
SW1(config)#vtp domain EXAMPLE (case-sensitive)
• Configure VTP password: (optional)
SW1(config)#vtp password cisco (case-sensitive)
• Configure VTP pruning: (optional)
SW1(config)#vtp pruning (only works on VTP servers)
• Enable VTP version 2: (optional)
SW1(config)#vtp version 2
• Bring up trunks between the switches
The transparent
VTP mode is
used when an
engineer wants
to deactivate
VTP on a
particular
switch
Verify and troubleshoot VLANS and VTP
SW1#show interfaces if switchport Lists information about administrative
setting and operation status of interface
SW1#show interfaces trunk Lists all the trunk ports on a switch
including the trunk allowed VLANS
SW1#show vlan {brief| id| name| summary} Lists information about the VLANs
SW1#show vtp status Lists VTP configuration (mode, domain
name, version, etc) and revision number
SW1#show vtp password Shows the VTP password
STP optimization
• Hard coding the root bridge (changing bridge priority):
SW1(config)#spanning-tree vlan 1 root primary
SW1(config)#spanning-tree vlan 1 root secondary
SW1(config)#spanning-tree [vlan 1] priority 8192
• Changing the STP mode:
SW1(config)#spanning-tree mode rapid-pvst
(options: mst, pvst, rapid-pvst)
• Enabling portfast and BPDU guard on an interface:
SW1(config-if)#spanning-tree portfast
SW1(config-if)#spanning-tree bpduguard enable
• Changing port cost:
SW1(config-if)#spanning-tree [vlan 1] cost 25
• Bundling interfaces into an etherchannel:
SW1(config-if)#channel-group 1 mode on
(options: auto, desirable, on)
Priority must
be a multiply
of 4096
Portfast and
BPDU guard are
enabled only on
interfaces
connected to
end user hosts
CCNA v6
Cisco Commands List
Page | 4
STP verification and troubleshooting
SW1#show spanning-tree Shows detailed info about STP state
SW1#show spanning-tree interface fa0/2 Shows STP info only on a specific port
SW1#show spanning-tree vlan 1 Shows STP info only for a specific VLAN
SW1#show spanning-tree [vlan1] root Shows info about the root switch
SW1#show spanning-tree [vlan1] bridge Shows info about the local switch
SW1#show etherchannel 1 Show the state of the etherchannels
SW1#debug spanning-tree events Provides informational messages about the
changes in the STP topology
Enabling or disabling CDP
• Enabling CDP globally on a switch:
SW1(config)#cdp run
• Disabling CDP on a given interface:
SW1(config-if)#no cdp enable
Using CDP for network verification and troubleshooting
SW1#show cdp Shows global information about CDP itself
SW1#show cdp interface fa0/2 Shows information about CDP on a specific
interface
SW1#show cdp neighbors Shows information about the directly
connected cisco devices including
interfaces names capabilities
SW1#show cdp neighbors detail Shows detailed information about the
neighboring cisco devices including device
address and version of IOS they run
SW1#show cdp entry * Same as show cdp neighbor detail
SW1#show cdp entry SW2 Shows detailed information about the
specified entry only
CCNA v6
Cisco Commands List
Page | 5
Router basic configuration
Router(config)#hostname R1
R1(config)#enable secret cisco
R1(config)#line con 0
R1(config-line)#password cisco
R1(config-line)#login
R1(config-line)#logging synchronous
R1(config-line)#exec-timeout 30 0
R1(config-line)#exit
R1(config)#line vty 0 4
R1(config-line)#password cisco
R1(config-line)#login
R1(config-line)#logging synchronous
R1(config-line)#exec-timeout 30 0
R1(config-line)#exit
R1(config)#line aux 0
R1(config-line)#password cisco
R1(config-line)#login
R1(config-line)#logging synchronous
R1(config-line)#exec-timeout 30 0
R1(config-line)#exit
R1(config)#banner motd $
-=-=-=-=-=-=-=-=-=-=-=-=-=-=-=-=-
UNAUTHORIZED ACCESS IS PROHIBITED
-=-=-=-=-=-=-=-=-=-=-=-=-=-=-=-=-
$
R1(config)#alias exec c configure terminal
R1(config)#alias exec s show ip interface brief
R1(config)#alias exec sr show running-config
R1(config)#no ip domain-lookup
R1(config)#service password-encryption
R1(config)#ip domain-name example.com
R1(config)#username admin password cisco
R1(config)#crypto key generate rsa
How many bits in the modulus [512]: 1024
R1(config)#ip ssh version 2
R1(config)#line vty 0 4
R1(config-line)#login local
R1(config-line)#transport input telnet ssh
This section
includes IOS
commands that
are absolutely
identical on
both routers
and switches,
except the part
of line aux 0
which is
configured only
on router
because
switches do not
have an
auxiliary port.
Configuring router interfaces
R1(config)#interface fastEthernet 0/0
R1(config-if)#description LINK_TO_LOCAL_LAN_THROUGH_SW1
R1(config-if)#ip address 172.16.1.1 255.255.255.0
R1(config-if)#no shutdown
R1(config-if)#exit
R1(config)#interface serial 0/1/0
R1(config-if)#description WAN_CONNECTION_TO_R2
R1(config-if)#ip address 10.1.1.1 255.255.255.252
R1(config-if)#clock rate 128000
R1(config-if)#no shutdown
Clock rate is
set only on the
DCE side,
typically the
ISP side. On
your router
which is DTE
you don't need
to set
clocking.
Configuring Router-On-Stick for vlan routing
R1(config)#interface fastEthernet 0/0
R1(config-if)#no shutdown
R1(config)# interface fastEthernet 0/0.10
R1(config-subif)# encapsulation dot1q 10
R1(config-subif)#ip address 192.168.10.1 255.255.255.0
R1(config-subif)# interface fastEthernet 0/0.20
R1(config-subif)# encapsulation dot1q 20
R1(config-subif)#ip address 192.168.20.1 255.255.255.0
CCNA v6
Cisco Commands
Page | 6
Static routes
R1(config)#ip route 10.1.2.0 255.255.255.0 10.1.128.1 Using next hop
R1(config)#ip route 10.1.2.0 255.255.255.0 Serial 0/0
*Note: Exit interface can be used in point-to-point serial links.
Using exit
interface
Default Route
R1(config)#ip route 0.0.0.0 0.0.0.0 199.1.1.1
RIPv2 Configuration
R1(config)#router rip
R1(config-router)#version 2
R1(config-router)#network 10.0.0.0 (written as an original class A)
R1(config-router)#no autosummary
R1(config-router)#passive-interface serial 0/0
RIPv2 Verification
R1#show ip protocols Shows information about the running
routing protocol process
R1#show ip route Shows the entire routing table
R1#show ip route rip Shows routes learned via RIP only
R1#show ip route 10.1.1.1 Shows detailed information about the route
to the specified destination network
OSPF Configuration
• Enter OSPF router configuration mode:
R1(config)#router ospf 10 (process ID)
• Configure one or more network commands to identify which
interfaces will run OSPF:
R1(config-router)#network 10.0.0.0 0.255.255.255 area 0
R1(config-router)#network 172.16.8.0 0.0.7.255 area 0
R1(config-router)#network 192.168.1.254 0.0.0.0 area 1
• Configure router ID either by: (Optional)
o Using router-id ospf subcommand:
R1(config-router)#router-id 1.1.1.1
o Configuring an IP address on a loopback interface:
R1(config)#interface loopback 0
R1(config-if)#ip address 1.1.1.1 255.255.255.255
• Change Hello and Dead intervals per interface: (Optional)
R1(config-if)#ip ospf hello-interval 2
R1(config-if)#ip ospf dead-interval 6
• Impact routing choices by tuning interface cost using one of the
following ways: (Optional)
o Changing interface cost:
R1(config-if)#ip ospf cost 55
o Changing interface bandwidth:
R1(config-if)#bandwidth 128 (Kbps)
o Changing the reference bandwidth that used by OSPF to
calculate the cost:
R1(config-router)#auto-cost reference-bandwidth 1000 (Mbps)
• Disabling OSPF on a certain interface: (Optional)
R1(config-router)#passive-interface serial 0/0
• Configuring OSPF authentication: (Optional)
o Type 0 authentication (none):
R1(config-if)#ip ospf authentication null
o Type 1 authentication (clear text):
R1(config-if)#ip ospf authentication
R1(config-if)#ip ospf authentication-key cisco
o Type 2 authentication (md5):
R1(config-if)#ip ospf authentication message-digest
R1(config-if)#ip ospf message-digest-key 1 md5 cisco
• Configure maximum equal-cost paths: (Optional)
R1(config-router)#maximum paths 6
Cisco Commands
Page | 7
OSPF verification
R1#show ip protocols Shows information about the running
routing protocol process
R1#show ip route Shows the entire routing table
R1#show ip route ospf Shows routes learned via OSPF only
R1#show ip ospf neighbors Shows all neighboring routers along with
their respective adjacency state
R1#show ip ospf database Shows all the information contained in the
LSDB
R1#show ip ospf interfaces serial 0/0 Shows detailed information about OSPF
running on a specific interface
EIGRP Configuration
• Enter EIGRP configuration mode and define AS number:
R1(config)#router eigrp 121 (AS number)
• Configure one or more network commands to enable EIGRP on the
specified interfaces:
R1(config-router)#network 10.0.0.0
R1(config-router)#network 172.16.0.0 0.0.3.255
R1(config-router)#network 192.168.1.1 0.0.0.0
R1(config-router)#network 0.0.0.0 255.255.255.255
• Disable auto summarization: (Optional)
R1(config-router)#no autosummary
• Disable EIGRP on a specific interface: (Optional)
R1(config-router)#passive-interface serial 0/0
• Configure load balancing parameters: (Optional)
R1(config-router)#maximum-paths 6
R1(config-router)#variance 4
• Change interface Hello and Hold timers: (Optional)
R1(config-if)#ip hello-interval eigrp 121 3
R1(config-if)#ip hold-time eigrp 121 10
• Impacting metric calculations by tuning BW and delay of the
interface: (Optional)
R1(config-if)#bandwidth 265 (kbps)
R1(config-if)#delay 120 (tens of microseconds)
EIGRP Authentication
• Create an authentication key chain as follows:
o Create a key chain and give it a name:
R1(config)#key chain MY_KEYS
o Create one or more keys giving them numbers:
R1(config-keychain)#key 1
o Define the key value:
R1(config-keychain-key)#key-string 1stKEY
o Define the life time of the keys (optional):
R1(config-keychain-key)#send-lifetime [start time] [end time]
R1(config-keychain-key)#accept-lifetime [start time] [end time]
• Enable md5 authentication mode for EIGRP on the interface:
R1(config-if)#ip authentication mode eigrp 121 md5
• Refer to the correct key chain to be used on the interface:
R1(config-if)#ip authentication key-chain eigrp 121 MY_KEYS
The key-string
value and the
mode must be
the same on
both routers.
Lifetime
options of the
keys requires
the clock of
the routers to
be set
correctly,
better use NTP,
or it can cause
problems
EIGRP Verification
R1#show ip route eigrp Shows routes learned via EIGRP only
R1#show ip eigrp neighbors Shows EIGRP neighbors and status
R1#show ip eigrp topology Shows EIGRP topology table, including
successor and feasible successor
R1#show ip eigrp interfaces Shows interfaces that run EIGRP
R1#show ip eigrp traffic Lists statistics on numbers of EIGRP
messages sent and received by the router
Cisco Commands
Page | 8
Access Control Lists (ACLs)
Standard ACL
• Plane the location (router and interface) and direction (in or
out) on that interface:
o Standard ACL should be placed as close as possible to the
destination of the packet.
o Identify the source IP addresses of packets as they go in
the direction that the ACL is examining.
• Use a remark to describe the ACL: (Optional):
R1(config)#access-list 1 remark ACL TO DENY ACCESS FROM SALES VLAN
• Create the ACL, keeping the following in mind:
o ACL uses first-match logic.
o There is an implicit deny any at the end of the ACL.
R1(config)#access-list 2 deny 192.168.1.77
R1(config)#access-list 2 deny 192.168.1.64 0.0.0.31
R1(config)#access-list 2 permit 10.1.0.0 0.0.255.255
R1(config)#access-list 2 deny 10.0.0.0 0.255.255.255
R1(config)#access-list 2 permit any
• Enable the ACL on the chosen router interface in the correct
direction (in or out):
R1(config-if)#ip access-group 2 out
Standard ACL
number ranges:
1 – 99 and
1300 – 1999.
• Using standard ACL to limit telnet and SSH access to a router:
o Create the ACL that defines the permitted telnet clients:
R1(config)#access-list 99 remark ALLOWED TELNET CLIENTS
R1(config)#access-list 99 permit 192.168.1.128 0.0.0.15
o apply the ACL inbound the vty lines
R1(config)#line vty 0 4
R1(config-line)#access-class 99 in
Extended ACL
• Note:
o Extended ACL should be placed as close as possible to the
source of the packet.
o Extended ACL matches packets based on source & des. IP
addresses, protocol, source & des. Port numbers and other
criteria as well.
R1(config)#access-list 101 remark MY_ACCESS_LIST
R1(config)#access-list 101 deny ip host 10.1.1.1 host 10.2.2.2
R1(config)#access-list 101 deny tcp 10.1.1.0 0.0.0.255 any eq 23
R1(config)#access-list 101 deny icmp 10.1.1.1 0.0.0.0 any
R1(config)#access-list 101 deny tcp host 10.1.1.0 host 10.0.0.1 eq 80
R1(config)#access-list 101 deny udp host 10.1.1.7 eq 53 any
R1(config)#access-list 101 permit ip any any
R1(config)#interface fastEthernet 0/0
R1(config-if)#ip access-group 101 in
Extended ACL
number ranges:
100 – 199 and
2000 – 2699.
Named ACL
• Note:
o Named ACLs use names to identify ACLs rather than numbers,
and commands that permit or deny traffic are written in a
sub mode called named ACL mode (nacl).
o Named ACL enables the editing of the ACL (deleting or
inserting statements) by sequencing statements of the ACL.
• Named standard ACL:
R1(config)#ip access-list standard MY_STANDARD_ACL
R1(config-std-nacl)#permit 10.1.1.0 0.0.0.255
R1(config-std-nacl)#deny 10.2.2.2
R1(config-std-nacl)#permit any
R1(config)#interface fastEthernet 0/1
R1(config-if)#ip access-group MY_STANDARD_ACL out
Cisco Commands
Page | 9
• Named extended ACL:
R1(config)#ip access-list extended MY_EXTENDED_ACL
R1(config-ext-nacl)#deny icmp 10.1.1.1 0.0.0.0 any
R1(config-ext-nacl)#deny tcp host 10.1.1.0 host 10.0.0.1 eq 80
R1(config-ext-nacl)# permit ip any any
R1(config)#interface fastEthernet 0/1
R1(config-if)#ip access-group MY_EXTENDED_ACL in
• Editing ACL using sequence numbers:
R1(config)#ip access-list extended MY_EXTENDED_ACL
R1(config-ext-nacl)#no 20 (deletes the statement of sequence number 20)
R1(config)#ip access-list standard 99
R1(config-std-nacl)#5 deny 1.1.1.1 (inserts a statement with sequence 5)
You can edit
numbered ACLs
using the
configuration
style of the
named ACLs in
as shown in the
last example.
Verifying ACLs
R1#show access-lists Shows all ACLs configured on a router with
counters at the end of each statement
R1#show ip access-list Same as the previous command
R1#show ip access-list 101 Shows only the specified ACL
R1#show ip interface f0/0 Includes a reference to the ACLs enabled
on that interface either in or out.
DHCP Server
• Define a DHCP pool and give it a name:
R1(config)#ip dhcp pool MY_POOL
• Define network and mask to use in this pool and the default
gateway:
R1(dhcp-config)#network 192.168.1.0 255.255.255.0
R1(dhcp-config)#default-router 192.168.1.1
• Define one or more DNS server (OPTIONAL):
R1(dhcp-config)#dns-server 213.131.65.20 8.8.8.8
• Confine the lease time (OPTIONAL):
R1(dhcp-config)lease 2 (days)
• Define one or more scopes of excluded (reserved) addresses
(OPTIONAL):
R1(config)#ip dhcp excluded-address 192.168.1.1 192.168.1.100
R1(config)#ip dhcp excluded-address 192.168.1.200 192.168.1.254
DHCP Verification and Troubleshooting
R1#show ip dhcp pool POOL_1 shows the status of the specified pool and
the leased addresses from that pool
R1#show ip dhcp binding Shows all the leased ip addresses from all
configured DHCP pools
R1#show ip dhcp conflict Shows any conflicts that occurred
Cisco Commands
Page | 10
PPP Configuration
R1(config)#interface serial 0/0
R1(config-if)#encapsulation ppp
PPP Authentication
CHAP
• Configure the hostname:
R1(config)#hostname ALPHA
• Configure the name of the other end router and the shared
password:
ALPHA(config)#username BETA password XYZ
• Enable CHAP authentication on the interface:
ALPHA(config)#interface serial 0/0
ALPHA(config-if)#ppp authentication chap
The password
used is shared
password, that
means it must
be the same on
both routers
PAP
• Configure the hostname:
R1(config)#hostname ALPHA
• Configure the name of the other end router and the shared
password:
ALPHA(config)#username BETA password XYZ
• Enable PAP authentication on the interface and define the
username and password to be sent by PAP:
ALPHA(config)#interface serial 0/0
ALPHA(config-if)#ppp authentication pap
ALPHA(config-if)#ppp pap sent-username ALPHA password XYZ
PPP Verification and troubleshoot
R1#show interface s0/0 Shows the encapsulation type and the
control protocols of PPP
R1#show run Useful for viewing the configuration of
usernames and passwords used to
authenticate ppp
R1#debug ppp authentication Displays the authentication process of ppp
in real time
Frame Relay
Multipoint (one subnet)
• Give the interface an ip address and enable Frame Relay
encapsulation:
R1(config)#interface serial 0/0
R1(config-if)#ip address 1.1.1.1 255.255.255.0
R1(config-if)#encapsulation frame-relay (ietf)
• Configure LMI signaling type: (Optional as discussed with ISP)
R1(config-if)#frame-relay lmi-type ansi
(options: ansi, cisco, q933a)
• Configure Frame Relay mapping:
R1(config-if)# frame-relay map ip 1.1.1.2 102 broadcast (ietf)
R1(config-if)# frame-relay map ip 1.1.1.3 103 broadcast
DLCI = 103
DLCI = 201
DLCI = 102
DLCI = 301
Cisco Commands
Page | 11
R2(config)#interface serial 0/0
R2(config-if)#ip address 1.1.1.2 255.255.255.0
R2(config-if)#encapsulation frame-relay
R2(config-if)# frame-relay map ip 1.1.1.1 201 broadcast
R2(config-if)# frame-relay map ip 1.1.1.3 201 broadcast
R3(config)#interface serial 0/0
R3(config-if)#ip address 1.1.1.3 255.255.255.0
R3(config-if)#encapsulation frame-relay
R3(config-if)# frame-relay map ip 1.1.1.1 301 broadcast
R3(config-if)# frame-relay map ip 1.1.1.2 301 broadcast
Point-to-point (different subnets; one subnet per subinterface)
• Enable Frame Relay encapsulation:
R1(config)#interface serial 0/0
R1(config-if)#encapsulation frame-relay
• Give an ip address to a subinterface and configure its DLCI:
R1(config)#interface serial 0/0.102 point-to-point
R1(config-subif)#ip address 1.1.1.1 255.255.255.0
R1(config-subif)#frame-relay interface-dlci 102
R1(config)#interface serial 0/0.103 point-to-point
R1(config-subif)#ip address 2.2.2.1 255.255.255.0
R1(config-subif)#frame-relay interface-dlci 103
R2(config)#interface serial 0/0
R2(config-if)#encapsulation frame-relay
R2(config)#interface serial 0/0.201 point-to-point
R2(config-subif)#ip address 1.1.1.2 255.255.255.0
R2(config-subif)#frame-relay interface-dlci 201
R3(config)#interface serial 0/0
R3(config-if)#encapsulation frame-relay
R3(config)#interface serial 0/0.301 point-to-point
R3(config-subif)#ip address 2.2.2.2 255.255.255.0
R3(config-subif)#frame-relay interface-dlci 301
Frame Relay Verification and troubleshoot
R1#show interfaces serial 0/0 Shows the encapsulation type
R1#show frame-relay PVC Lists PVC status information
R1#show frame-relay map Lists DLCI to IP mapping
R1#show frame-relay lmi Lists LMI status information
R1#debug frame-relay lmi Displays the content of LMI messages
R1#debug frame-relay events Lists messages about certain Frame Relay
events, including Inverse ARP messaeges
Network Address Translation (NAT)
Static NAT
• Define the outside and inside interfaces:
R1(config)#interface serial 0/0
R1(config-if)#ip nat outside
R1(config)#interface FastEthernet 1/1
R1(config-if)#ip nat inside
• Configure static NAT statement:
R1(config)#ip nat inside source static 192.168.1.10 200.1.1.1
Dynamic NAT
• Define the outside and inside interfaces:
• Create an ACL that determines the IP addresses that are allowed
to be translated:
R1(config)#access-list 3 permit 192.168.1.0 0.0.0.255
• Create a pool of public IP addresses:
R1(config)#ip nat pool PUB 200.1.1.1 200.1.1.6 netmask 255.255.255.248
• Configure NAT statement:
R1(config)#ip nat inside source list 3 pool PUB

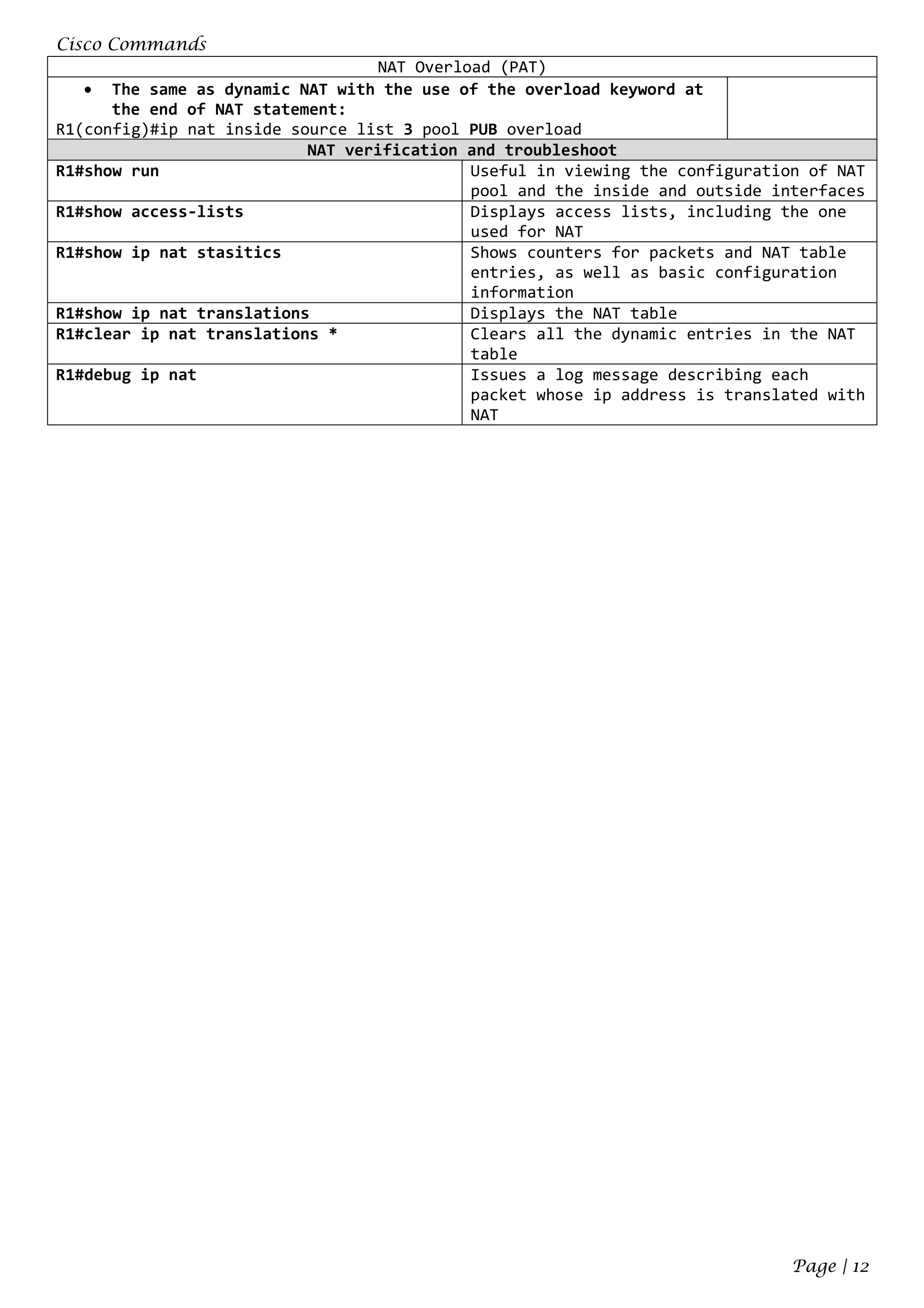

Cisco Commands
Page | 12
NAT Overload (PAT)
• The same as dynamic NAT with the use of the overload keyword at
the end of NAT statement:
R1(config)#ip nat inside source list 3 pool PUB overload
NAT verification and troubleshoot
R1#show run Useful in viewing the configuration of NAT
pool and the inside and outside interfaces
R1#show access-lists Displays access lists, including the one
used for NAT
R1#show ip nat stasitics Shows counters for packets and NAT table
entries, as well as basic configuration
information
R1#show ip nat translations Displays the NAT table
R1#clear ip nat translations * Clears all the dynamic entries in the NAT
table
R1#debug ip nat Issues a log message describing each
packet whose ip address is translated with
NAT

More Related Content

What's hot

Cisco Commands
Cisco CommandsCisco Commands
Cisco Commands
Fredrick Hall

EtherChannel
EtherChannelEtherChannel
EtherChannel
Thomas Moegli

Ccnp presentation [Day 1-3] Class
Ccnp presentation [Day 1-3] ClassCcnp presentation [Day 1-3] Class
Ccnp presentation [Day 1-3] Class
SagarR24

Cours etherchannel
Cours etherchannelCours etherchannel
Cours etherchannel
EL AMRI El Hassan

Cisco switch commands cheat sheet
Cisco switch commands cheat sheetCisco switch commands cheat sheet
Cisco switch commands cheat sheet
3Anetwork com

Le protocole stp
Le protocole stpLe protocole stp
Le protocole stp
EL AMRI El Hassan

CCNP ROUTE V7 CH1
CCNP ROUTE V7 CH1CCNP ROUTE V7 CH1
CCNP ROUTE V7 CH1
Chaing Ravuth

How to create and delete vlan on cisco catalyst switch
How to create and delete vlan on cisco catalyst switchHow to create and delete vlan on cisco catalyst switch
How to create and delete vlan on cisco catalyst switch
IT Tech

cisco ccna cheat_sheet
cisco ccna cheat_sheetcisco ccna cheat_sheet
cisco ccna cheat_sheet
Guntaka Reddy

CCNA - Routing & Switching Commands
CCNA - Routing & Switching CommandsCCNA - Routing & Switching Commands
CCNA - Routing & Switching Commands
Eng. Emad Al-Atoum

Alphorm.com Formation CCNP ENCOR 350-401 (3of8) : Sans Fil
Alphorm.com Formation CCNP ENCOR 350-401 (3of8) : Sans FilAlphorm.com Formation CCNP ENCOR 350-401 (3of8) : Sans Fil
Alphorm.com Formation CCNP ENCOR 350-401 (3of8) : Sans Fil
Alphorm

CCNA-LAB-GUIDE-V3_LAST-ADDITION (4).pdf
CCNA-LAB-GUIDE-V3_LAST-ADDITION (4).pdfCCNA-LAB-GUIDE-V3_LAST-ADDITION (4).pdf
CCNA-LAB-GUIDE-V3_LAST-ADDITION (4).pdf
poojaswami31

Spanning Tree Protocol Cheat Sheet
Spanning Tree Protocol Cheat SheetSpanning Tree Protocol Cheat Sheet
Spanning Tree Protocol Cheat Sheet
Prasanna Shanmugasundaram

OpenvSwitch Deep Dive
OpenvSwitch Deep DiveOpenvSwitch Deep Dive
OpenvSwitch Deep Dive
rajdeep

IOS Cisco - Cheat sheets
IOS Cisco - Cheat sheetsIOS Cisco - Cheat sheets
IOS Cisco - Cheat sheets
Alejandro Marin

6.5.1.3 packet tracer layer 2 vlan security instructor
6.5.1.3 packet tracer   layer 2 vlan security instructor6.5.1.3 packet tracer   layer 2 vlan security instructor
6.5.1.3 packet tracer layer 2 vlan security instructor
Salem Trabelsi

Router commands
Router commandsRouter commands
Router commands
Laura Lahbib

Cisco CCNA- DHCP Server
Cisco CCNA-  DHCP ServerCisco CCNA-  DHCP Server
Cisco CCNA- DHCP Server
Hamed Moghaddam

Cisco CCNA- How to Configure Multi-Layer Switch
Cisco CCNA- How to Configure Multi-Layer SwitchCisco CCNA- How to Configure Multi-Layer Switch
Cisco CCNA- How to Configure Multi-Layer Switch
Hamed Moghaddam


What's hot (20)

Cisco Commands
Cisco CommandsCisco Commands
Cisco Commands

EtherChannel
EtherChannelEtherChannel
EtherChannel

Ccnp presentation [Day 1-3] Class
Ccnp presentation [Day 1-3] ClassCcnp presentation [Day 1-3] Class
Ccnp presentation [Day 1-3] Class

Cours etherchannel
Cours etherchannelCours etherchannel
Cours etherchannel

Cisco switch commands cheat sheet
Cisco switch commands cheat sheetCisco switch commands cheat sheet
Cisco switch commands cheat sheet

Le protocole stp
Le protocole stpLe protocole stp
Le protocole stp

CCNP ROUTE V7 CH1
CCNP ROUTE V7 CH1CCNP ROUTE V7 CH1
CCNP ROUTE V7 CH1

How to create and delete vlan on cisco catalyst switch
How to create and delete vlan on cisco catalyst switchHow to create and delete vlan on cisco catalyst switch
How to create and delete vlan on cisco catalyst switch

Tuto pfsense
Tuto pfsenseTuto pfsense
Tuto pfsense

cisco ccna cheat_sheet
cisco ccna cheat_sheetcisco ccna cheat_sheet
cisco ccna cheat_sheet

CCNA - Routing & Switching Commands
CCNA - Routing & Switching CommandsCCNA - Routing & Switching Commands
CCNA - Routing & Switching Commands

Alphorm.com Formation CCNP ENCOR 350-401 (3of8) : Sans Fil
Alphorm.com Formation CCNP ENCOR 350-401 (3of8) : Sans FilAlphorm.com Formation CCNP ENCOR 350-401 (3of8) : Sans Fil
Alphorm.com Formation CCNP ENCOR 350-401 (3of8) : Sans Fil

CCNA-LAB-GUIDE-V3_LAST-ADDITION (4).pdf
CCNA-LAB-GUIDE-V3_LAST-ADDITION (4).pdfCCNA-LAB-GUIDE-V3_LAST-ADDITION (4).pdf
CCNA-LAB-GUIDE-V3_LAST-ADDITION (4).pdf

Spanning Tree Protocol Cheat Sheet
Spanning Tree Protocol Cheat SheetSpanning Tree Protocol Cheat Sheet
Spanning Tree Protocol Cheat Sheet

OpenvSwitch Deep Dive
OpenvSwitch Deep DiveOpenvSwitch Deep Dive
OpenvSwitch Deep Dive

IOS Cisco - Cheat sheets
IOS Cisco - Cheat sheetsIOS Cisco - Cheat sheets
IOS Cisco - Cheat sheets

6.5.1.3 packet tracer layer 2 vlan security instructor
6.5.1.3 packet tracer   layer 2 vlan security instructor6.5.1.3 packet tracer   layer 2 vlan security instructor
6.5.1.3 packet tracer layer 2 vlan security instructor

Router commands
Router commandsRouter commands
Router commands

Cisco CCNA- DHCP Server
Cisco CCNA-  DHCP ServerCisco CCNA-  DHCP Server
Cisco CCNA- DHCP Server

Cisco CCNA- How to Configure Multi-Layer Switch
Cisco CCNA- How to Configure Multi-Layer SwitchCisco CCNA- How to Configure Multi-Layer Switch
Cisco CCNA- How to Configure Multi-Layer Switch


Similar to CCNA R&S 2 3 4 All Commands

labffbhhhhjjjjjjjjj bnbbnv material.pptx
labffbhhhhjjjjjjjjj bnbbnv material.pptxlabffbhhhhjjjjjjjjj bnbbnv material.pptx
labffbhhhhjjjjjjjjj bnbbnv material.pptx
BinyamBekeleMoges

Lab 6.4.1 InterVLAN routing
Lab 6.4.1 InterVLAN routingLab 6.4.1 InterVLAN routing
Lab 6.4.1 InterVLAN routing
Muhd Mu'izuddin

Cisco CCNA CCNP VACL Configuration
Cisco CCNA CCNP VACL ConfigurationCisco CCNA CCNP VACL Configuration
Cisco CCNA CCNP VACL Configuration
Hamed Moghaddam

lab 2 (1)bbbbhbbbvvvvvvccccbbvvvccc.pptx
lab 2 (1)bbbbhbbbvvvvvvccccbbvvvccc.pptxlab 2 (1)bbbbhbbbvvvvvvccccbbvvvccc.pptx
lab 2 (1)bbbbhbbbvvvvvvccccbbvvvccc.pptx
BinyamBekeleMoges

Topic 5 nx os management-ver 0.2
Topic 5 nx os management-ver 0.2Topic 5 nx os management-ver 0.2
Topic 5 nx os management-ver 0.2
Krunal Shah

SPAN, RSPAN and ERSPAN
SPAN, RSPAN and ERSPANSPAN, RSPAN and ERSPAN
SPAN, RSPAN and ERSPAN
NetProtocol Xpert

CCN3Switching_lab_5_5_2
CCN3Switching_lab_5_5_2CCN3Switching_lab_5_5_2
CCN3Switching_lab_5_5_2
alan moreno

Lab6.4.1
Lab6.4.1Lab6.4.1
Ccna 4 final lab switchi
Ccna 4 final lab switchiCcna 4 final lab switchi
Ccna 4 final lab switchi
Leandro Uglar

Vlan lab
Vlan labVlan lab
Vlan lab
tmim8

Vlan
VlanVlan
Ciso commands
Ciso commandsCiso commands
Ciso commands
MAFANTIRI SELLO

Basic cisco commands_by_marcus_nielson_2
Basic cisco commands_by_marcus_nielson_2Basic cisco commands_by_marcus_nielson_2
Basic cisco commands_by_marcus_nielson_2
MAFANTIRI SELLO

Ciso commands
Ciso commandsCiso commands
Ciso commands
MAFANTIRI SELLO

Ccna lab manual 640 802
Ccna lab manual 640 802Ccna lab manual 640 802
Ccna lab manual 640 802
manikkan

Packet Tracer da Cisco (Configuração Básica) Professor Fernando Maviuco - 202...
Packet Tracer da Cisco (Configuração Básica) Professor Fernando Maviuco - 202...Packet Tracer da Cisco (Configuração Básica) Professor Fernando Maviuco - 202...
Packet Tracer da Cisco (Configuração Básica) Professor Fernando Maviuco - 202...
Editora

Cisco lab, guide to configure interface stp attributes
Cisco lab, guide to configure interface stp attributesCisco lab, guide to configure interface stp attributes
Cisco lab, guide to configure interface stp attributes
IT Tech

How to configure cisco 6500 vss
How to configure cisco 6500 vssHow to configure cisco 6500 vss
How to configure cisco 6500 vss
IT Tech

Ncat ccna cheat sheet
Ncat ccna cheat sheetNcat ccna cheat sheet
Ncat ccna cheat sheet
EZREIG OMAR

Comandos routing switching
Comandos routing switchingComandos routing switching
Comandos routing switching
1 2d


Similar to CCNA R&S 2 3 4 All Commands (20)

labffbhhhhjjjjjjjjj bnbbnv material.pptx
labffbhhhhjjjjjjjjj bnbbnv material.pptxlabffbhhhhjjjjjjjjj bnbbnv material.pptx
labffbhhhhjjjjjjjjj bnbbnv material.pptx

Lab 6.4.1 InterVLAN routing
Lab 6.4.1 InterVLAN routingLab 6.4.1 InterVLAN routing
Lab 6.4.1 InterVLAN routing

Cisco CCNA CCNP VACL Configuration
Cisco CCNA CCNP VACL ConfigurationCisco CCNA CCNP VACL Configuration
Cisco CCNA CCNP VACL Configuration

lab 2 (1)bbbbhbbbvvvvvvccccbbvvvccc.pptx
lab 2 (1)bbbbhbbbvvvvvvccccbbvvvccc.pptxlab 2 (1)bbbbhbbbvvvvvvccccbbvvvccc.pptx
lab 2 (1)bbbbhbbbvvvvvvccccbbvvvccc.pptx

Topic 5 nx os management-ver 0.2
Topic 5 nx os management-ver 0.2Topic 5 nx os management-ver 0.2
Topic 5 nx os management-ver 0.2

SPAN, RSPAN and ERSPAN
SPAN, RSPAN and ERSPANSPAN, RSPAN and ERSPAN
SPAN, RSPAN and ERSPAN

CCN3Switching_lab_5_5_2
CCN3Switching_lab_5_5_2CCN3Switching_lab_5_5_2
CCN3Switching_lab_5_5_2

Lab6.4.1
Lab6.4.1Lab6.4.1
Lab6.4.1

Ccna 4 final lab switchi
Ccna 4 final lab switchiCcna 4 final lab switchi
Ccna 4 final lab switchi

Vlan lab
Vlan labVlan lab
Vlan lab

Vlan
VlanVlan
Vlan

Ciso commands
Ciso commandsCiso commands
Ciso commands

Basic cisco commands_by_marcus_nielson_2
Basic cisco commands_by_marcus_nielson_2Basic cisco commands_by_marcus_nielson_2
Basic cisco commands_by_marcus_nielson_2

Ciso commands
Ciso commandsCiso commands
Ciso commands

Ccna lab manual 640 802
Ccna lab manual 640 802Ccna lab manual 640 802
Ccna lab manual 640 802

Packet Tracer da Cisco (Configuração Básica) Professor Fernando Maviuco - 202...
Packet Tracer da Cisco (Configuração Básica) Professor Fernando Maviuco - 202...Packet Tracer da Cisco (Configuração Básica) Professor Fernando Maviuco - 202...
Packet Tracer da Cisco (Configuração Básica) Professor Fernando Maviuco - 202...

Cisco lab, guide to configure interface stp attributes
Cisco lab, guide to configure interface stp attributesCisco lab, guide to configure interface stp attributes
Cisco lab, guide to configure interface stp attributes

How to configure cisco 6500 vss
How to configure cisco 6500 vssHow to configure cisco 6500 vss
How to configure cisco 6500 vss

Ncat ccna cheat sheet
Ncat ccna cheat sheetNcat ccna cheat sheet
Ncat ccna cheat sheet

Comandos routing switching
Comandos routing switchingComandos routing switching
Comandos routing switching


Recently uploaded

REASIGNACION 2024 UGEL CHUPACA 2024 UGEL CHUPACA.pdf
REASIGNACION 2024 UGEL CHUPACA 2024 UGEL CHUPACA.pdfREASIGNACION 2024 UGEL CHUPACA 2024 UGEL CHUPACA.pdf
REASIGNACION 2024 UGEL CHUPACA 2024 UGEL CHUPACA.pdf
giancarloi8888

Contiguity Of Various Message Forms - Rupam Chandra.pptx
Contiguity Of Various Message Forms - Rupam Chandra.pptxContiguity Of Various Message Forms - Rupam Chandra.pptx
Contiguity Of Various Message Forms - Rupam Chandra.pptx
Kalna College

Electric Fetus - Record Store Scavenger Hunt
Electric Fetus - Record Store Scavenger HuntElectric Fetus - Record Store Scavenger Hunt
Electric Fetus - Record Store Scavenger Hunt
RamseyBerglund

Accounting for Restricted Grants When and How To Record Properly
Accounting for Restricted Grants  When and How To Record ProperlyAccounting for Restricted Grants  When and How To Record Properly
Accounting for Restricted Grants When and How To Record Properly
TechSoup

Temple of Asclepius in Thrace. Excavation results
Temple of Asclepius in Thrace. Excavation resultsTemple of Asclepius in Thrace. Excavation results
Temple of Asclepius in Thrace. Excavation results
Krassimira Luka

220711130088 Sumi Basak Virtual University EPC 3.pptx
220711130088 Sumi Basak Virtual University EPC 3.pptx220711130088 Sumi Basak Virtual University EPC 3.pptx
220711130088 Sumi Basak Virtual University EPC 3.pptx
Kalna College

Skimbleshanks-The-Railway-Cat by T S Eliot
Skimbleshanks-The-Railway-Cat by T S EliotSkimbleshanks-The-Railway-Cat by T S Eliot
Skimbleshanks-The-Railway-Cat by T S Eliot
nitinpv4ai

مصحف القراءات العشر أعد أحرف الخلاف سمير بسيوني.pdf
مصحف القراءات العشر   أعد أحرف الخلاف سمير بسيوني.pdfمصحف القراءات العشر   أعد أحرف الخلاف سمير بسيوني.pdf
مصحف القراءات العشر أعد أحرف الخلاف سمير بسيوني.pdf
سمير بسيوني

How to Fix [Errno 98] address already in use
How to Fix [Errno 98] address already in useHow to Fix [Errno 98] address already in use
How to Fix [Errno 98] address already in use
Celine George

SWOT analysis in the project Keeping the Memory @live.pptx
SWOT analysis in the project Keeping the Memory @live.pptxSWOT analysis in the project Keeping the Memory @live.pptx
SWOT analysis in the project Keeping the Memory @live.pptx
zuzanka

Geography as a Discipline Chapter 1 __ Class 11 Geography NCERT _ Class Notes...
Geography as a Discipline Chapter 1 __ Class 11 Geography NCERT _ Class Notes...Geography as a Discipline Chapter 1 __ Class 11 Geography NCERT _ Class Notes...
Geography as a Discipline Chapter 1 __ Class 11 Geography NCERT _ Class Notes...
ImMuslim

KHUSWANT SINGH.pptx ALL YOU NEED TO KNOW ABOUT KHUSHWANT SINGH
KHUSWANT SINGH.pptx ALL YOU NEED TO KNOW ABOUT KHUSHWANT SINGHKHUSWANT SINGH.pptx ALL YOU NEED TO KNOW ABOUT KHUSHWANT SINGH
KHUSWANT SINGH.pptx ALL YOU NEED TO KNOW ABOUT KHUSHWANT SINGH
shreyassri1208

Standardized tool for Intelligence test.
Standardized tool for Intelligence test.Standardized tool for Intelligence test.
Standardized tool for Intelligence test.
deepaannamalai16

Data Structure using C by Dr. K Adisesha .ppsx
Data Structure using C by Dr. K Adisesha .ppsxData Structure using C by Dr. K Adisesha .ppsx
Data Structure using C by Dr. K Adisesha .ppsx
Prof. Dr. K. Adisesha

Philippine Edukasyong Pantahanan at Pangkabuhayan (EPP) Curriculum
Philippine Edukasyong Pantahanan at Pangkabuhayan (EPP) CurriculumPhilippine Edukasyong Pantahanan at Pangkabuhayan (EPP) Curriculum
Philippine Edukasyong Pantahanan at Pangkabuhayan (EPP) Curriculum
MJDuyan

BPSC-105 important questions for june term end exam
BPSC-105 important questions for june term end examBPSC-105 important questions for june term end exam
BPSC-105 important questions for june term end exam
sonukumargpnirsadhan

220711130083 SUBHASHREE RAKSHIT Internet resources for social science
220711130083 SUBHASHREE RAKSHIT  Internet resources for social science220711130083 SUBHASHREE RAKSHIT  Internet resources for social science
220711130083 SUBHASHREE RAKSHIT Internet resources for social science
Kalna College

NIPER 2024 MEMORY BASED QUESTIONS.ANSWERS TO NIPER 2024 QUESTIONS.NIPER JEE 2...
NIPER 2024 MEMORY BASED QUESTIONS.ANSWERS TO NIPER 2024 QUESTIONS.NIPER JEE 2...NIPER 2024 MEMORY BASED QUESTIONS.ANSWERS TO NIPER 2024 QUESTIONS.NIPER JEE 2...
NIPER 2024 MEMORY BASED QUESTIONS.ANSWERS TO NIPER 2024 QUESTIONS.NIPER JEE 2...
Payaamvohra1

Wound healing PPT
Wound healing PPTWound healing PPT
Wound healing PPT
Jyoti Chand

spot a liar (Haiqa 146).pptx Technical writhing and presentation skills
spot a liar (Haiqa 146).pptx Technical writhing and presentation skillsspot a liar (Haiqa 146).pptx Technical writhing and presentation skills
spot a liar (Haiqa 146).pptx Technical writhing and presentation skills
haiqairshad


Recently uploaded (20)

REASIGNACION 2024 UGEL CHUPACA 2024 UGEL CHUPACA.pdf
REASIGNACION 2024 UGEL CHUPACA 2024 UGEL CHUPACA.pdfREASIGNACION 2024 UGEL CHUPACA 2024 UGEL CHUPACA.pdf
REASIGNACION 2024 UGEL CHUPACA 2024 UGEL CHUPACA.pdf

Contiguity Of Various Message Forms - Rupam Chandra.pptx
Contiguity Of Various Message Forms - Rupam Chandra.pptxContiguity Of Various Message Forms - Rupam Chandra.pptx
Contiguity Of Various Message Forms - Rupam Chandra.pptx

Electric Fetus - Record Store Scavenger Hunt
Electric Fetus - Record Store Scavenger HuntElectric Fetus - Record Store Scavenger Hunt
Electric Fetus - Record Store Scavenger Hunt

Accounting for Restricted Grants When and How To Record Properly
Accounting for Restricted Grants  When and How To Record ProperlyAccounting for Restricted Grants  When and How To Record Properly
Accounting for Restricted Grants When and How To Record Properly

Temple of Asclepius in Thrace. Excavation results
Temple of Asclepius in Thrace. Excavation resultsTemple of Asclepius in Thrace. Excavation results
Temple of Asclepius in Thrace. Excavation results

220711130088 Sumi Basak Virtual University EPC 3.pptx
220711130088 Sumi Basak Virtual University EPC 3.pptx220711130088 Sumi Basak Virtual University EPC 3.pptx
220711130088 Sumi Basak Virtual University EPC 3.pptx

Skimbleshanks-The-Railway-Cat by T S Eliot
Skimbleshanks-The-Railway-Cat by T S EliotSkimbleshanks-The-Railway-Cat by T S Eliot
Skimbleshanks-The-Railway-Cat by T S Eliot

مصحف القراءات العشر أعد أحرف الخلاف سمير بسيوني.pdf
مصحف القراءات العشر   أعد أحرف الخلاف سمير بسيوني.pdfمصحف القراءات العشر   أعد أحرف الخلاف سمير بسيوني.pdf
مصحف القراءات العشر أعد أحرف الخلاف سمير بسيوني.pdf

How to Fix [Errno 98] address already in use
How to Fix [Errno 98] address already in useHow to Fix [Errno 98] address already in use
How to Fix [Errno 98] address already in use

SWOT analysis in the project Keeping the Memory @live.pptx
SWOT analysis in the project Keeping the Memory @live.pptxSWOT analysis in the project Keeping the Memory @live.pptx
SWOT analysis in the project Keeping the Memory @live.pptx

Geography as a Discipline Chapter 1 __ Class 11 Geography NCERT _ Class Notes...
Geography as a Discipline Chapter 1 __ Class 11 Geography NCERT _ Class Notes...Geography as a Discipline Chapter 1 __ Class 11 Geography NCERT _ Class Notes...
Geography as a Discipline Chapter 1 __ Class 11 Geography NCERT _ Class Notes...

KHUSWANT SINGH.pptx ALL YOU NEED TO KNOW ABOUT KHUSHWANT SINGH
KHUSWANT SINGH.pptx ALL YOU NEED TO KNOW ABOUT KHUSHWANT SINGHKHUSWANT SINGH.pptx ALL YOU NEED TO KNOW ABOUT KHUSHWANT SINGH
KHUSWANT SINGH.pptx ALL YOU NEED TO KNOW ABOUT KHUSHWANT SINGH

Standardized tool for Intelligence test.
Standardized tool for Intelligence test.Standardized tool for Intelligence test.
Standardized tool for Intelligence test.

Data Structure using C by Dr. K Adisesha .ppsx
Data Structure using C by Dr. K Adisesha .ppsxData Structure using C by Dr. K Adisesha .ppsx
Data Structure using C by Dr. K Adisesha .ppsx

Philippine Edukasyong Pantahanan at Pangkabuhayan (EPP) Curriculum
Philippine Edukasyong Pantahanan at Pangkabuhayan (EPP) CurriculumPhilippine Edukasyong Pantahanan at Pangkabuhayan (EPP) Curriculum
Philippine Edukasyong Pantahanan at Pangkabuhayan (EPP) Curriculum

BPSC-105 important questions for june term end exam
BPSC-105 important questions for june term end examBPSC-105 important questions for june term end exam
BPSC-105 important questions for june term end exam

220711130083 SUBHASHREE RAKSHIT Internet resources for social science
220711130083 SUBHASHREE RAKSHIT  Internet resources for social science220711130083 SUBHASHREE RAKSHIT  Internet resources for social science
220711130083 SUBHASHREE RAKSHIT Internet resources for social science

NIPER 2024 MEMORY BASED QUESTIONS.ANSWERS TO NIPER 2024 QUESTIONS.NIPER JEE 2...
NIPER 2024 MEMORY BASED QUESTIONS.ANSWERS TO NIPER 2024 QUESTIONS.NIPER JEE 2...NIPER 2024 MEMORY BASED QUESTIONS.ANSWERS TO NIPER 2024 QUESTIONS.NIPER JEE 2...
NIPER 2024 MEMORY BASED QUESTIONS.ANSWERS TO NIPER 2024 QUESTIONS.NIPER JEE 2...

Wound healing PPT
Wound healing PPTWound healing PPT
Wound healing PPT

spot a liar (Haiqa 146).pptx Technical writhing and presentation skills
spot a liar (Haiqa 146).pptx Technical writhing and presentation skillsspot a liar (Haiqa 146).pptx Technical writhing and presentation skills
spot a liar (Haiqa 146).pptx Technical writhing and presentation skills


CCNA R&S 2 3 4 All Commands

  • 1. Page | 1 Changing switch hostname Configuring passwords Cisco Commands List Switch(config)#hostname SW1 SW1(config)#enable secret cisco MD5 hash. SW1(config)#enable password notcisco Clear text. Securing console port SW1(config)#line con 0 SW1(config-line)#password cisco SW1(config-line)#login Securing terminal lines SW1(config)#line vty 0 4 SW1(config-line)#password cisco SW1(config-line)#login Encrypting passwords SW1(config)#service password-encryption Configuring banners SW1(config)#banner motd $ -=-=-=-=-=-=-=-=-=-=-=-=-=-=-=-=- UNAUTHORIZED ACCESS IS PROHIBITED -=-=-=-=-=-=-=-=-=-=-=-=-=-=-=-=- $ Giving the switch an IP address SW1(config)#interface vlan 1 SW1(config-if)#ip address 172.16.1.11 255.255.255.0 (or dhcp) SW1(config-if)#shutdown Setting the default gateway SW1(config)#ip default-gateway 172.16.1.1 Saving configuration SW1#copy running-config startup-config Destination filename [startup-config]? Building configuration… [OK] Press enter to confirm file name. SW1#wr Building configuration… [OK] Short for write memory. Working environment (name lookup, history, exec-timeout and logging behavior) SW1(config)#no ip domain-lookup SW1(config)#line vty 0 4 SW1(config-line)#history size 15 SW1(config-line)# exec-timeout 10 30 SW1(config-line)#logging synchronous Also valid for line con 0. Configuring switch to use SSH • Configure DNS domain name: SW1(config)#ip domain-name example.com • Configure a username and password: SW1(config)#username admin password cisco • Generate encryption keys: SW1(config)#crypto key generate rsa How many bits in the modulus [512]: 1024 • Define SSH version to use: SW1(config)#ip ssh version 2 • Enable vty lines to use SSH: SW1(config)#line vty 0 4 SW1(config-line)#login local SW1(config-line)#transport input telnet ssh The size of the key modulus in the range of 360 to 2048. You can set vty lines to use only telnet or only ssh or both as in the example. CCNA v6
  • 2. Cisco Commands List Page | 2 Aliases SW1(config)#alias exec c configure terminal SW1(config)#alias exec s show ip interface brief SW1(config)#alias exec sr show running-config Used to create shortcuts for long commands. Description, speed and duplex SW1(config)#interface fastEthernet 0/1 SW1(config-if)#description LINK TO INTERNET ROUTER SW1(config-if)#speed 100 (options: 10, 100, auto) SW1(config)#interface range fastEthernet 0/5 – 10 SW1(config-if-range)#duplex full (options: half, full, auto) The range keyword used to set a group of interfaces at once. Verify Basic Configuration SW1#show version Shows information about the switch and its interfaces, RAM, NVRAM, flash, IOS, etc. SW1#show running-config Shows the current configuration file stored in DRAM. SW1#show startup-config Shows the configuration file stored in NVRAM which is used at first boot process. SW1#show history Lists the commands currently held in the history buffer. SW1#show ip interface brief Shows an overview of all interfaces, their physical status, protocol status and ip address if assigned. SW1#show interface vlan 1 Shows detailed information about the specified interface, its status, protocol, duplex, speed, encapsulation, last 5 min traffic. SW1#show interfaces description Shows the description of all interfaces SW1#show interfaces status Shows the status of all interfaces like connected or not, speed, duplex, trunk or access vlan. SW1#show crypto key mypubkey rsa Shows the public encryption key used for SSH. SW1#show dhcp lease Shows information about the leased IP address (when an interface is configured to get IP address via a dhcp server) Configuring port security • Make the switch interface as access port: SW1(config-if)#switchport mode access • Enable port security on the interface: SW1(config-if)#switchport port-security • Specify the maximum number of allowed MAC addresses: SW1(config-if)#switchport port-security maximum 1 • Define the action to take when violation occurs: SW1(config-if)#switchport port-security violation shutdown (options: shutdown, protect, restrict) • Specify the allowed MAC addresses: SW1(config-if)#switchport port-security mac-address 68b5.9965.1195 (options: H.H.H, sticky) The sticky keyword is used to let the interface dynamically learns and configures the MAC addresses of the currently connected hosts. Verify and troubleshoot port security SW1#show mac-address-table Shows the entries of the mac address table SW1#show port-security overview of port security of all interfaces SW1#show port-security interface fa0/5 Shows detailed information about port security on the specified interface Configuring VLANs • Create a new VLAN and give it a name: SW1(config)#vlan 10 SW1(config-vlan)#name SALES • Assign an access interface to access a specific VLAN: SW1(config)#interface fastEthernet 0/5 SW1(config-if)#switchport mode access SW1(config-if)#switchport access vlan 10 CCNA v6
  • 3. Cisco Commands List Page | 3 Configuring an auxiliary VLAN for cisco IP phones SW1(config)#interface fastEthernet 0/5 SW1(config-if)#switchport access vlan 10 SW1(config-if)#switchport voice vlan 12 accessing vlan 10 (data) and 12 (VoIP) Configuring Trunks SW1(config)#interface fastEthernet 0/1 SW1(config-if)#switchport mode trunk (options: access, trunk, dynamic auto, dynamic desirable) SW1(config-if)#switchport trunk allowed vlan add 10 (options: add, remove, all, except) Securing VLANS and Trunking • Administratively disable unused interfaces: SW1(config-if)#shutdown • Prevent trunking by disabling auto negotiation on the interface: SW1(config-if)#nonegotiate (or hardcode the port as an access port) SW1(config-if)#switchport mode access • Assign the port to an unused VLAN: SW1(config-if)#switchport access vlan 222 Configuring VTP • Configure VTP mode: SW1(config)#vtp mode server (options: server, client, transparent) • Configure VTP domain name: SW1(config)#vtp domain EXAMPLE (case-sensitive) • Configure VTP password: (optional) SW1(config)#vtp password cisco (case-sensitive) • Configure VTP pruning: (optional) SW1(config)#vtp pruning (only works on VTP servers) • Enable VTP version 2: (optional) SW1(config)#vtp version 2 • Bring up trunks between the switches The transparent VTP mode is used when an engineer wants to deactivate VTP on a particular switch Verify and troubleshoot VLANS and VTP SW1#show interfaces if switchport Lists information about administrative setting and operation status of interface SW1#show interfaces trunk Lists all the trunk ports on a switch including the trunk allowed VLANS SW1#show vlan {brief| id| name| summary} Lists information about the VLANs SW1#show vtp status Lists VTP configuration (mode, domain name, version, etc) and revision number SW1#show vtp password Shows the VTP password STP optimization • Hard coding the root bridge (changing bridge priority): SW1(config)#spanning-tree vlan 1 root primary SW1(config)#spanning-tree vlan 1 root secondary SW1(config)#spanning-tree [vlan 1] priority 8192 • Changing the STP mode: SW1(config)#spanning-tree mode rapid-pvst (options: mst, pvst, rapid-pvst) • Enabling portfast and BPDU guard on an interface: SW1(config-if)#spanning-tree portfast SW1(config-if)#spanning-tree bpduguard enable • Changing port cost: SW1(config-if)#spanning-tree [vlan 1] cost 25 • Bundling interfaces into an etherchannel: SW1(config-if)#channel-group 1 mode on (options: auto, desirable, on) Priority must be a multiply of 4096 Portfast and BPDU guard are enabled only on interfaces connected to end user hosts CCNA v6
  • 4. Cisco Commands List Page | 4 STP verification and troubleshooting SW1#show spanning-tree Shows detailed info about STP state SW1#show spanning-tree interface fa0/2 Shows STP info only on a specific port SW1#show spanning-tree vlan 1 Shows STP info only for a specific VLAN SW1#show spanning-tree [vlan1] root Shows info about the root switch SW1#show spanning-tree [vlan1] bridge Shows info about the local switch SW1#show etherchannel 1 Show the state of the etherchannels SW1#debug spanning-tree events Provides informational messages about the changes in the STP topology Enabling or disabling CDP • Enabling CDP globally on a switch: SW1(config)#cdp run • Disabling CDP on a given interface: SW1(config-if)#no cdp enable Using CDP for network verification and troubleshooting SW1#show cdp Shows global information about CDP itself SW1#show cdp interface fa0/2 Shows information about CDP on a specific interface SW1#show cdp neighbors Shows information about the directly connected cisco devices including interfaces names capabilities SW1#show cdp neighbors detail Shows detailed information about the neighboring cisco devices including device address and version of IOS they run SW1#show cdp entry * Same as show cdp neighbor detail SW1#show cdp entry SW2 Shows detailed information about the specified entry only CCNA v6
  • 5. Cisco Commands List Page | 5 Router basic configuration Router(config)#hostname R1 R1(config)#enable secret cisco R1(config)#line con 0 R1(config-line)#password cisco R1(config-line)#login R1(config-line)#logging synchronous R1(config-line)#exec-timeout 30 0 R1(config-line)#exit R1(config)#line vty 0 4 R1(config-line)#password cisco R1(config-line)#login R1(config-line)#logging synchronous R1(config-line)#exec-timeout 30 0 R1(config-line)#exit R1(config)#line aux 0 R1(config-line)#password cisco R1(config-line)#login R1(config-line)#logging synchronous R1(config-line)#exec-timeout 30 0 R1(config-line)#exit R1(config)#banner motd $ -=-=-=-=-=-=-=-=-=-=-=-=-=-=-=-=- UNAUTHORIZED ACCESS IS PROHIBITED -=-=-=-=-=-=-=-=-=-=-=-=-=-=-=-=- $ R1(config)#alias exec c configure terminal R1(config)#alias exec s show ip interface brief R1(config)#alias exec sr show running-config R1(config)#no ip domain-lookup R1(config)#service password-encryption R1(config)#ip domain-name example.com R1(config)#username admin password cisco R1(config)#crypto key generate rsa How many bits in the modulus [512]: 1024 R1(config)#ip ssh version 2 R1(config)#line vty 0 4 R1(config-line)#login local R1(config-line)#transport input telnet ssh This section includes IOS commands that are absolutely identical on both routers and switches, except the part of line aux 0 which is configured only on router because switches do not have an auxiliary port. Configuring router interfaces R1(config)#interface fastEthernet 0/0 R1(config-if)#description LINK_TO_LOCAL_LAN_THROUGH_SW1 R1(config-if)#ip address 172.16.1.1 255.255.255.0 R1(config-if)#no shutdown R1(config-if)#exit R1(config)#interface serial 0/1/0 R1(config-if)#description WAN_CONNECTION_TO_R2 R1(config-if)#ip address 10.1.1.1 255.255.255.252 R1(config-if)#clock rate 128000 R1(config-if)#no shutdown Clock rate is set only on the DCE side, typically the ISP side. On your router which is DTE you don't need to set clocking. Configuring Router-On-Stick for vlan routing R1(config)#interface fastEthernet 0/0 R1(config-if)#no shutdown R1(config)# interface fastEthernet 0/0.10 R1(config-subif)# encapsulation dot1q 10 R1(config-subif)#ip address 192.168.10.1 255.255.255.0 R1(config-subif)# interface fastEthernet 0/0.20 R1(config-subif)# encapsulation dot1q 20 R1(config-subif)#ip address 192.168.20.1 255.255.255.0 CCNA v6
  • 6. Cisco Commands Page | 6 Static routes R1(config)#ip route 10.1.2.0 255.255.255.0 10.1.128.1 Using next hop R1(config)#ip route 10.1.2.0 255.255.255.0 Serial 0/0 *Note: Exit interface can be used in point-to-point serial links. Using exit interface Default Route R1(config)#ip route 0.0.0.0 0.0.0.0 199.1.1.1 RIPv2 Configuration R1(config)#router rip R1(config-router)#version 2 R1(config-router)#network 10.0.0.0 (written as an original class A) R1(config-router)#no autosummary R1(config-router)#passive-interface serial 0/0 RIPv2 Verification R1#show ip protocols Shows information about the running routing protocol process R1#show ip route Shows the entire routing table R1#show ip route rip Shows routes learned via RIP only R1#show ip route 10.1.1.1 Shows detailed information about the route to the specified destination network OSPF Configuration • Enter OSPF router configuration mode: R1(config)#router ospf 10 (process ID) • Configure one or more network commands to identify which interfaces will run OSPF: R1(config-router)#network 10.0.0.0 0.255.255.255 area 0 R1(config-router)#network 172.16.8.0 0.0.7.255 area 0 R1(config-router)#network 192.168.1.254 0.0.0.0 area 1 • Configure router ID either by: (Optional) o Using router-id ospf subcommand: R1(config-router)#router-id 1.1.1.1 o Configuring an IP address on a loopback interface: R1(config)#interface loopback 0 R1(config-if)#ip address 1.1.1.1 255.255.255.255 • Change Hello and Dead intervals per interface: (Optional) R1(config-if)#ip ospf hello-interval 2 R1(config-if)#ip ospf dead-interval 6 • Impact routing choices by tuning interface cost using one of the following ways: (Optional) o Changing interface cost: R1(config-if)#ip ospf cost 55 o Changing interface bandwidth: R1(config-if)#bandwidth 128 (Kbps) o Changing the reference bandwidth that used by OSPF to calculate the cost: R1(config-router)#auto-cost reference-bandwidth 1000 (Mbps) • Disabling OSPF on a certain interface: (Optional) R1(config-router)#passive-interface serial 0/0 • Configuring OSPF authentication: (Optional) o Type 0 authentication (none): R1(config-if)#ip ospf authentication null o Type 1 authentication (clear text): R1(config-if)#ip ospf authentication R1(config-if)#ip ospf authentication-key cisco o Type 2 authentication (md5): R1(config-if)#ip ospf authentication message-digest R1(config-if)#ip ospf message-digest-key 1 md5 cisco • Configure maximum equal-cost paths: (Optional) R1(config-router)#maximum paths 6
  • 7. Cisco Commands Page | 7 OSPF verification R1#show ip protocols Shows information about the running routing protocol process R1#show ip route Shows the entire routing table R1#show ip route ospf Shows routes learned via OSPF only R1#show ip ospf neighbors Shows all neighboring routers along with their respective adjacency state R1#show ip ospf database Shows all the information contained in the LSDB R1#show ip ospf interfaces serial 0/0 Shows detailed information about OSPF running on a specific interface EIGRP Configuration • Enter EIGRP configuration mode and define AS number: R1(config)#router eigrp 121 (AS number) • Configure one or more network commands to enable EIGRP on the specified interfaces: R1(config-router)#network 10.0.0.0 R1(config-router)#network 172.16.0.0 0.0.3.255 R1(config-router)#network 192.168.1.1 0.0.0.0 R1(config-router)#network 0.0.0.0 255.255.255.255 • Disable auto summarization: (Optional) R1(config-router)#no autosummary • Disable EIGRP on a specific interface: (Optional) R1(config-router)#passive-interface serial 0/0 • Configure load balancing parameters: (Optional) R1(config-router)#maximum-paths 6 R1(config-router)#variance 4 • Change interface Hello and Hold timers: (Optional) R1(config-if)#ip hello-interval eigrp 121 3 R1(config-if)#ip hold-time eigrp 121 10 • Impacting metric calculations by tuning BW and delay of the interface: (Optional) R1(config-if)#bandwidth 265 (kbps) R1(config-if)#delay 120 (tens of microseconds) EIGRP Authentication • Create an authentication key chain as follows: o Create a key chain and give it a name: R1(config)#key chain MY_KEYS o Create one or more keys giving them numbers: R1(config-keychain)#key 1 o Define the key value: R1(config-keychain-key)#key-string 1stKEY o Define the life time of the keys (optional): R1(config-keychain-key)#send-lifetime [start time] [end time] R1(config-keychain-key)#accept-lifetime [start time] [end time] • Enable md5 authentication mode for EIGRP on the interface: R1(config-if)#ip authentication mode eigrp 121 md5 • Refer to the correct key chain to be used on the interface: R1(config-if)#ip authentication key-chain eigrp 121 MY_KEYS The key-string value and the mode must be the same on both routers. Lifetime options of the keys requires the clock of the routers to be set correctly, better use NTP, or it can cause problems EIGRP Verification R1#show ip route eigrp Shows routes learned via EIGRP only R1#show ip eigrp neighbors Shows EIGRP neighbors and status R1#show ip eigrp topology Shows EIGRP topology table, including successor and feasible successor R1#show ip eigrp interfaces Shows interfaces that run EIGRP R1#show ip eigrp traffic Lists statistics on numbers of EIGRP messages sent and received by the router
  • 8. Cisco Commands Page | 8 Access Control Lists (ACLs) Standard ACL • Plane the location (router and interface) and direction (in or out) on that interface: o Standard ACL should be placed as close as possible to the destination of the packet. o Identify the source IP addresses of packets as they go in the direction that the ACL is examining. • Use a remark to describe the ACL: (Optional): R1(config)#access-list 1 remark ACL TO DENY ACCESS FROM SALES VLAN • Create the ACL, keeping the following in mind: o ACL uses first-match logic. o There is an implicit deny any at the end of the ACL. R1(config)#access-list 2 deny 192.168.1.77 R1(config)#access-list 2 deny 192.168.1.64 0.0.0.31 R1(config)#access-list 2 permit 10.1.0.0 0.0.255.255 R1(config)#access-list 2 deny 10.0.0.0 0.255.255.255 R1(config)#access-list 2 permit any • Enable the ACL on the chosen router interface in the correct direction (in or out): R1(config-if)#ip access-group 2 out Standard ACL number ranges: 1 – 99 and 1300 – 1999. • Using standard ACL to limit telnet and SSH access to a router: o Create the ACL that defines the permitted telnet clients: R1(config)#access-list 99 remark ALLOWED TELNET CLIENTS R1(config)#access-list 99 permit 192.168.1.128 0.0.0.15 o apply the ACL inbound the vty lines R1(config)#line vty 0 4 R1(config-line)#access-class 99 in Extended ACL • Note: o Extended ACL should be placed as close as possible to the source of the packet. o Extended ACL matches packets based on source & des. IP addresses, protocol, source & des. Port numbers and other criteria as well. R1(config)#access-list 101 remark MY_ACCESS_LIST R1(config)#access-list 101 deny ip host 10.1.1.1 host 10.2.2.2 R1(config)#access-list 101 deny tcp 10.1.1.0 0.0.0.255 any eq 23 R1(config)#access-list 101 deny icmp 10.1.1.1 0.0.0.0 any R1(config)#access-list 101 deny tcp host 10.1.1.0 host 10.0.0.1 eq 80 R1(config)#access-list 101 deny udp host 10.1.1.7 eq 53 any R1(config)#access-list 101 permit ip any any R1(config)#interface fastEthernet 0/0 R1(config-if)#ip access-group 101 in Extended ACL number ranges: 100 – 199 and 2000 – 2699. Named ACL • Note: o Named ACLs use names to identify ACLs rather than numbers, and commands that permit or deny traffic are written in a sub mode called named ACL mode (nacl). o Named ACL enables the editing of the ACL (deleting or inserting statements) by sequencing statements of the ACL. • Named standard ACL: R1(config)#ip access-list standard MY_STANDARD_ACL R1(config-std-nacl)#permit 10.1.1.0 0.0.0.255 R1(config-std-nacl)#deny 10.2.2.2 R1(config-std-nacl)#permit any R1(config)#interface fastEthernet 0/1 R1(config-if)#ip access-group MY_STANDARD_ACL out
  • 9. Cisco Commands Page | 9 • Named extended ACL: R1(config)#ip access-list extended MY_EXTENDED_ACL R1(config-ext-nacl)#deny icmp 10.1.1.1 0.0.0.0 any R1(config-ext-nacl)#deny tcp host 10.1.1.0 host 10.0.0.1 eq 80 R1(config-ext-nacl)# permit ip any any R1(config)#interface fastEthernet 0/1 R1(config-if)#ip access-group MY_EXTENDED_ACL in • Editing ACL using sequence numbers: R1(config)#ip access-list extended MY_EXTENDED_ACL R1(config-ext-nacl)#no 20 (deletes the statement of sequence number 20) R1(config)#ip access-list standard 99 R1(config-std-nacl)#5 deny 1.1.1.1 (inserts a statement with sequence 5) You can edit numbered ACLs using the configuration style of the named ACLs in as shown in the last example. Verifying ACLs R1#show access-lists Shows all ACLs configured on a router with counters at the end of each statement R1#show ip access-list Same as the previous command R1#show ip access-list 101 Shows only the specified ACL R1#show ip interface f0/0 Includes a reference to the ACLs enabled on that interface either in or out. DHCP Server • Define a DHCP pool and give it a name: R1(config)#ip dhcp pool MY_POOL • Define network and mask to use in this pool and the default gateway: R1(dhcp-config)#network 192.168.1.0 255.255.255.0 R1(dhcp-config)#default-router 192.168.1.1 • Define one or more DNS server (OPTIONAL): R1(dhcp-config)#dns-server 213.131.65.20 8.8.8.8 • Confine the lease time (OPTIONAL): R1(dhcp-config)lease 2 (days) • Define one or more scopes of excluded (reserved) addresses (OPTIONAL): R1(config)#ip dhcp excluded-address 192.168.1.1 192.168.1.100 R1(config)#ip dhcp excluded-address 192.168.1.200 192.168.1.254 DHCP Verification and Troubleshooting R1#show ip dhcp pool POOL_1 shows the status of the specified pool and the leased addresses from that pool R1#show ip dhcp binding Shows all the leased ip addresses from all configured DHCP pools R1#show ip dhcp conflict Shows any conflicts that occurred
  • 10. Cisco Commands Page | 10 PPP Configuration R1(config)#interface serial 0/0 R1(config-if)#encapsulation ppp PPP Authentication CHAP • Configure the hostname: R1(config)#hostname ALPHA • Configure the name of the other end router and the shared password: ALPHA(config)#username BETA password XYZ • Enable CHAP authentication on the interface: ALPHA(config)#interface serial 0/0 ALPHA(config-if)#ppp authentication chap The password used is shared password, that means it must be the same on both routers PAP • Configure the hostname: R1(config)#hostname ALPHA • Configure the name of the other end router and the shared password: ALPHA(config)#username BETA password XYZ • Enable PAP authentication on the interface and define the username and password to be sent by PAP: ALPHA(config)#interface serial 0/0 ALPHA(config-if)#ppp authentication pap ALPHA(config-if)#ppp pap sent-username ALPHA password XYZ PPP Verification and troubleshoot R1#show interface s0/0 Shows the encapsulation type and the control protocols of PPP R1#show run Useful for viewing the configuration of usernames and passwords used to authenticate ppp R1#debug ppp authentication Displays the authentication process of ppp in real time Frame Relay Multipoint (one subnet) • Give the interface an ip address and enable Frame Relay encapsulation: R1(config)#interface serial 0/0 R1(config-if)#ip address 1.1.1.1 255.255.255.0 R1(config-if)#encapsulation frame-relay (ietf) • Configure LMI signaling type: (Optional as discussed with ISP) R1(config-if)#frame-relay lmi-type ansi (options: ansi, cisco, q933a) • Configure Frame Relay mapping: R1(config-if)# frame-relay map ip 1.1.1.2 102 broadcast (ietf) R1(config-if)# frame-relay map ip 1.1.1.3 103 broadcast DLCI = 103 DLCI = 201 DLCI = 102 DLCI = 301
  • 11. Cisco Commands Page | 11 R2(config)#interface serial 0/0 R2(config-if)#ip address 1.1.1.2 255.255.255.0 R2(config-if)#encapsulation frame-relay R2(config-if)# frame-relay map ip 1.1.1.1 201 broadcast R2(config-if)# frame-relay map ip 1.1.1.3 201 broadcast R3(config)#interface serial 0/0 R3(config-if)#ip address 1.1.1.3 255.255.255.0 R3(config-if)#encapsulation frame-relay R3(config-if)# frame-relay map ip 1.1.1.1 301 broadcast R3(config-if)# frame-relay map ip 1.1.1.2 301 broadcast Point-to-point (different subnets; one subnet per subinterface) • Enable Frame Relay encapsulation: R1(config)#interface serial 0/0 R1(config-if)#encapsulation frame-relay • Give an ip address to a subinterface and configure its DLCI: R1(config)#interface serial 0/0.102 point-to-point R1(config-subif)#ip address 1.1.1.1 255.255.255.0 R1(config-subif)#frame-relay interface-dlci 102 R1(config)#interface serial 0/0.103 point-to-point R1(config-subif)#ip address 2.2.2.1 255.255.255.0 R1(config-subif)#frame-relay interface-dlci 103 R2(config)#interface serial 0/0 R2(config-if)#encapsulation frame-relay R2(config)#interface serial 0/0.201 point-to-point R2(config-subif)#ip address 1.1.1.2 255.255.255.0 R2(config-subif)#frame-relay interface-dlci 201 R3(config)#interface serial 0/0 R3(config-if)#encapsulation frame-relay R3(config)#interface serial 0/0.301 point-to-point R3(config-subif)#ip address 2.2.2.2 255.255.255.0 R3(config-subif)#frame-relay interface-dlci 301 Frame Relay Verification and troubleshoot R1#show interfaces serial 0/0 Shows the encapsulation type R1#show frame-relay PVC Lists PVC status information R1#show frame-relay map Lists DLCI to IP mapping R1#show frame-relay lmi Lists LMI status information R1#debug frame-relay lmi Displays the content of LMI messages R1#debug frame-relay events Lists messages about certain Frame Relay events, including Inverse ARP messaeges Network Address Translation (NAT) Static NAT • Define the outside and inside interfaces: R1(config)#interface serial 0/0 R1(config-if)#ip nat outside R1(config)#interface FastEthernet 1/1 R1(config-if)#ip nat inside • Configure static NAT statement: R1(config)#ip nat inside source static 192.168.1.10 200.1.1.1 Dynamic NAT • Define the outside and inside interfaces: • Create an ACL that determines the IP addresses that are allowed to be translated: R1(config)#access-list 3 permit 192.168.1.0 0.0.0.255 • Create a pool of public IP addresses: R1(config)#ip nat pool PUB 200.1.1.1 200.1.1.6 netmask 255.255.255.248 • Configure NAT statement: R1(config)#ip nat inside source list 3 pool PUB
  • 12. Cisco Commands Page | 12 NAT Overload (PAT) • The same as dynamic NAT with the use of the overload keyword at the end of NAT statement: R1(config)#ip nat inside source list 3 pool PUB overload NAT verification and troubleshoot R1#show run Useful in viewing the configuration of NAT pool and the inside and outside interfaces R1#show access-lists Displays access lists, including the one used for NAT R1#show ip nat stasitics Shows counters for packets and NAT table entries, as well as basic configuration information R1#show ip nat translations Displays the NAT table R1#clear ip nat translations * Clears all the dynamic entries in the NAT table R1#debug ip nat Issues a log message describing each packet whose ip address is translated with NAT
