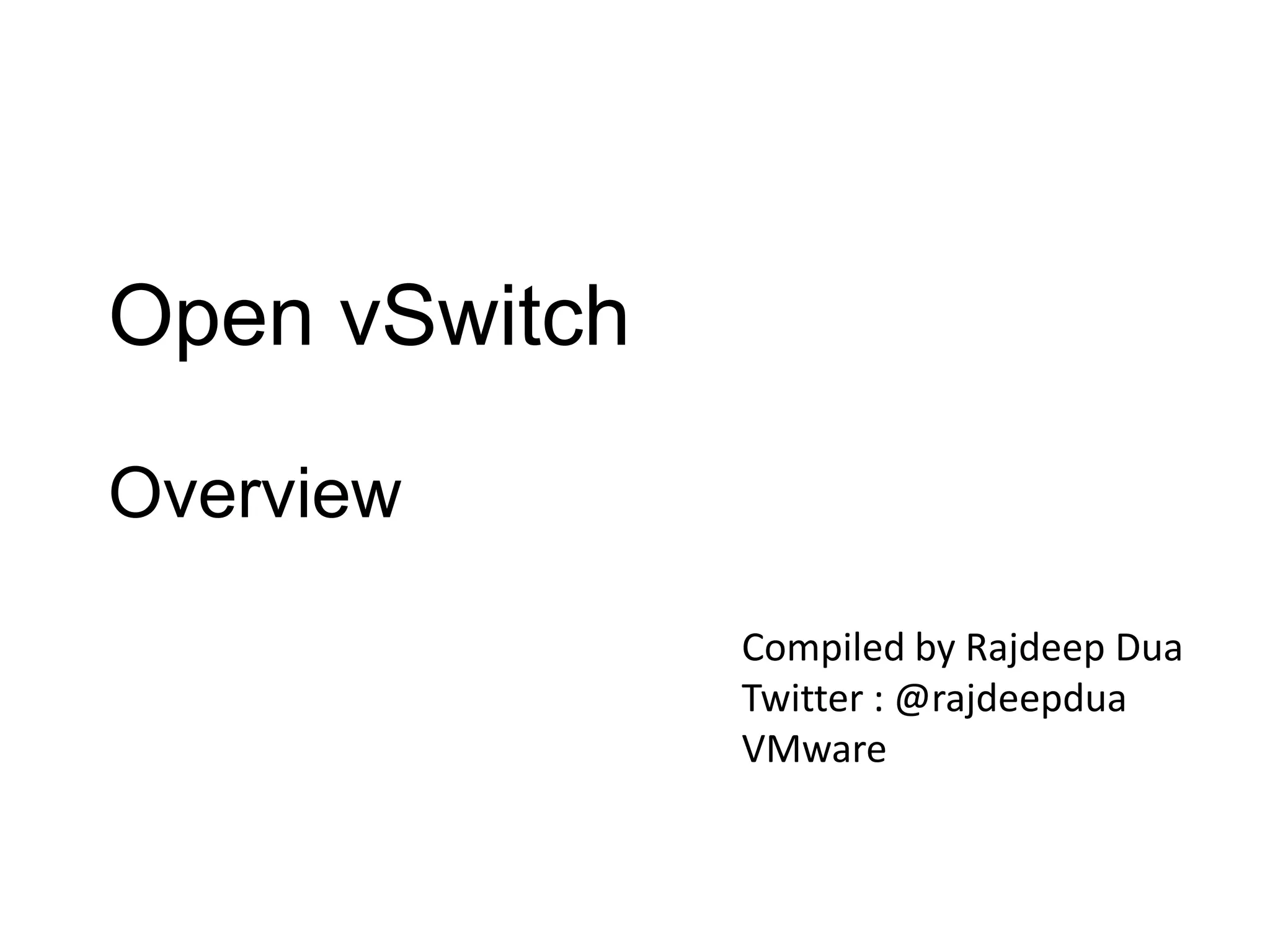

Open vSwitch
Overview
Compiled by Rajdeep Dua
Twitter : @rajdeepdua
VMware

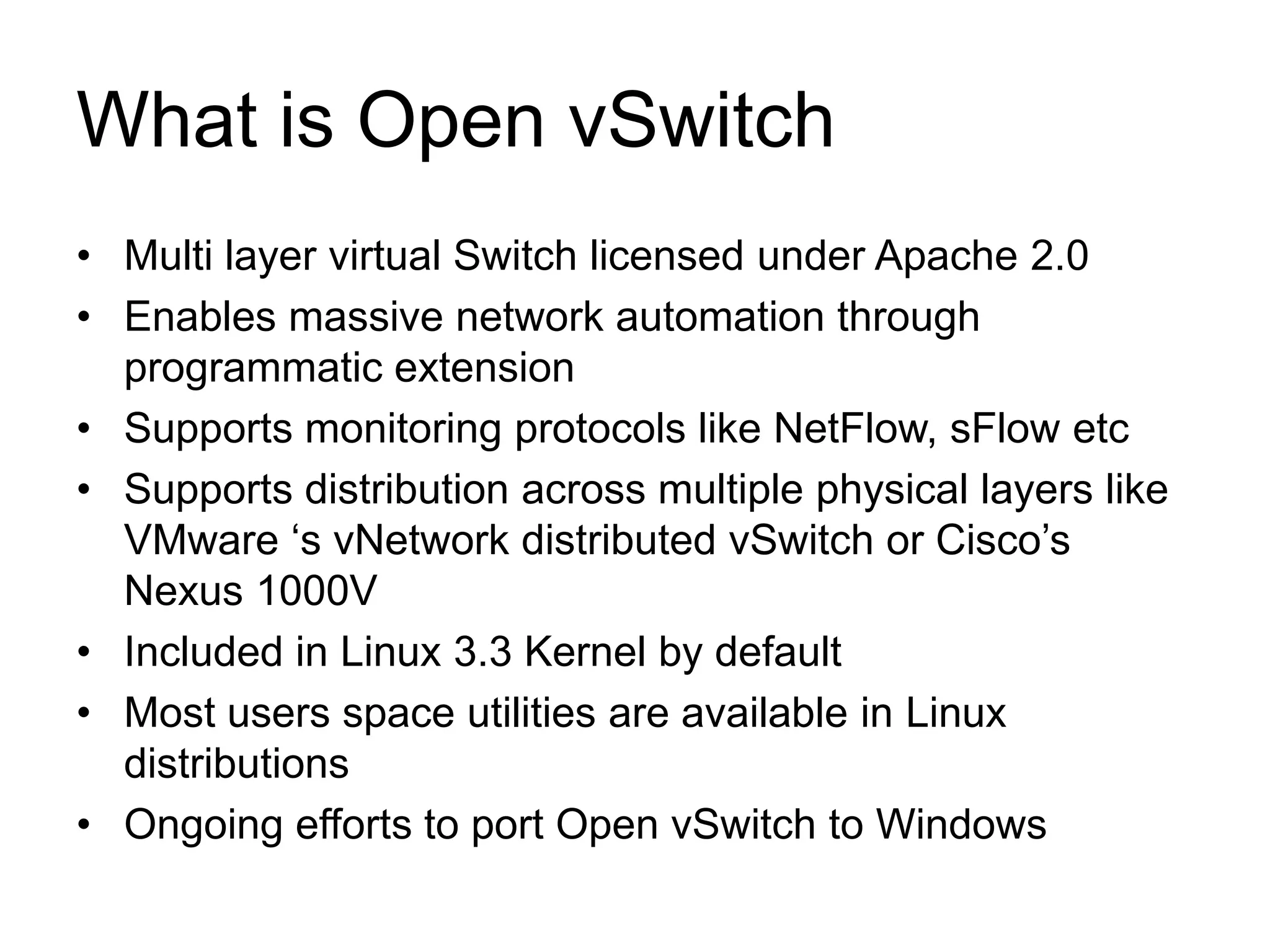

What is Open vSwitch
• Multi layer virtual Switch licensed under Apache 2.0
• Enables massive network automation through
programmatic extension
• Supports monitoring protocols like NetFlow, sFlow etc
• Supports distribution across multiple physical layers like
VMware ‘s vNetwork distributed vSwitch or Cisco’s
Nexus 1000V
• Included in Linux 3.3 Kernel by default
• Most users space utilities are available in Linux
distributions
• Ongoing efforts to port Open vSwitch to Windows
Features
• Visibility into inter-VM communication via
NetFlow, sFlow® etc
• Supports LACP - Link Aggregation Control
Protocol
• Supports VLAN
• Provides fine-grained QoS control
• Support for HFSC qdisc : QoS across traffic
Aggregate connections
• Per VM interface traffic policing
Supported Platforms
• Default Switch in
– Xen
– KVM

• Supported in ESXi
• Integrated in
– OpenStack, OpenNebula and vSphere

• Supports
– Ubuntu, Fedora, Debian and also FreeBSD
– Currently porting to Windows?
Why Open VSwitch
• Traffic between VMs and outside world
– In Linux Hypervisors, it is through a bridge

• Why then Open vSwitch?
– Multi-server virtualization deployments
– Dynamic end points
– Logical abstractions
– Integration or offloading with special purpose
hardware
Design Considerations
•
•
•
•
•

The mobility of state
Responding to network dynamics
Maintenance of Logical tags
Hardware Integration
Goals
– Keep in-kernel code as small as possible
– Re-use existing sub-systems
Mobility of State
• Network state associated with a network entity, which is a virtual
machine
– Should be easily identifiable
– Migrate between different hosts

• State
–
–
–
–
–

Soft state (Entry in L2 learning table)
L3 forwarding state
ACLs
QoS policy
Monitoring the configuration (Netflow, IPFIX, sFlow)

• Open vSwitch is backed by
– Real Data Model, allows development of structured automation systems
– Migrate SPAN Rules, ACLs, Qos and live state reconstruction
– Fast moving and slow network state between instances
Responding to Network
Dynamics
• Virtual environments are characterized by high-rates of
change
– VMs coming and going
– changes to the logical network environments

• Open vSwitch supports
– Simple accounting and visibility support such as NetFlow, IPFIX
and sFlow
– A Network database OVSDB supports remote triggers
– Supports OpenFlow as a method of exporting remote access
control to traffic
Maintenance of Logic tags
• Distributed Virtual Switches often maintain logical tags
for a network context by appending and manipulating
tags in the network packets
– Used for uniquely identifying a VM
– Efficiently and correctly manage these tags

• Open vSwitch supports
– Multiple methods of specifying and maintaining tagging rules
– Tagging rules are stored in an optimized form so they don't have
to be coupled with a heavyweight network device
– Supports GRE, STT and VXLAN
Hardware integration
• Virtualized hosting environments can be managed using the same

mechanism for automated network control
• Datapath in hardware instead of kernel
• Ongoing efforts to port Open vSwitch to hardware chipsets.
Centralized Control
• One OpenFlow connection per datapath
– Exports idealized view of switch’s datapath
•
•
•
•

Lookup based on L2-L4
Fill wildcarding and priorities
Actions: forward, drop, modify, and queue
Missed flows go to central controller

• One Management channel per system
– Switch-level configuration
– Resources
– Counters
Open vSwitch Data Structures
OpenvSwitch Internals
OpenvSwitch Daemon
ovs-vswitchd implements the switch
talks to the kernel via the netlink protocol
ovs-ofctl, ovs-dpctl
ovs-ofctl – Management Utility for Open Flow
ovs-dpctl – Open vSwitch datapath management utility
ovs-ofctl
• Command Line for Managing the Open
Flow related tasks
show SWITCH
show OpenFlow information
dump-ports SWITCH [PORT] print port statistics
dump-flows SWITCH
print all flow entries
queue-stats SWITCH [PORT [QUEUE]] dump queue stats
add-flow SWITCH FLOW
add flow described by FLOW
add-flows SWITCH FILE
add flows from FILE
mod-flows SWITCH FLOW
modify actions of matching FLOWs

SWITCH 
PORT 
FLOW 
ovs-dpctl
• Open vSwitch datapath management
utility
usage: ovs-dpctl [OPTIONS] COMMAND [ARG...]
add-dp DP [IFACE...] add new datapath DP(with IFACEs)
del-dp DP
delete local datapath DP
add-if DP IFACE...
add each IFACE as a port on DP
set-if DP IFACE...
reconfigure each IFACE within DP
del-if DP IFACE...
delete each IFACE from DP
dump-dps
display names of all datapaths
show
show basic info on all datapaths
show DP...
show basic info on each DP
dump-flows DP
display flows in DP
del-flows DP
delete all flows from DP
OpenvSwitch: ovs-vswitchd
ovs-vswitchd saves and changes the
switch configuration into
a database and talks to ovsdb-server,
which manages ovsdb
OpenvSwitch : ovs-vsctl
ovs-vsctl manages the switch
through interaction with ovsdb-server
ovs-vsctl
– Bridge commands
: Manage the bridge
– Port commands
: Manage the Port
– Interface commands : Manages the
Interfaces
– Controller commands : Get controller details
– Manager commands : get manager
– SSL commands
: Configure SSL
– Switch commands
: Reset the Switch
– Database commands : Get table details of
ovsdb
OpenvSwitch Internals
ovs-dpctl - Monitor and Administer Switch, works with any OpenFlow
Switch
ovs-appctl – Utility for managing logging levels
ovs-vsctl manages the switch through ovsdb-server
ovs-dbclient – manipulate database entries directly without ovsdbserver
ovsdb-client
ovsdb-client: Open vSwitch database JSON-RPC client
usage: ovsdb-client [OPTIONS] COMMAND [ARG...]
Valid commands are:
list-dbs [SERVER]
list databases available on SERVER
get-schema [SERVER] [DATABASE]
retrieve schema for DATABASE from SERVER
get-schema-version [SERVER] [DATABASE]
retrieve schema for DATABASE from SERVER and report only its
version number on stdout
list-tables [SERVER] [DATABASE]
list tables for DATABASE on SERVER
OpenvSwitch Internals
ovsdb-server - Monitor and Administer Switch, works
with any OpenFlow Switch
ovsdb-tool – command line tool to manage database
ovsdb - persists the data across reboots; configures
ovs-vswitchd
OpenvSwitch Internals
Kernel module – Designed to be fast and simple;
Handles switching and tunneling
Knows nothing about openflow, if flow found, actions
are executed otherwise passed
to the user space;
Implements tunnels and caches flows
Forwarding Components
• ovs-vswitchd (Slow Path)
– Forwarding logic (learning, mirroring, VLANs
and bonding)
– Remote configuration and visibility

• openvswitch_mod.ko (Fast Path)
– Packet lookup, modification, and forwarding
– Tunnel encapsulation/decapsulation
Forwarding Flows
• The first packet in the flow is sent to the controller
• The controller programs the data path's actions for
a flow
– Usually one, but may be a list
– Action include:
• Forward to port port or ports, mirror
• Encapsulate and forward to controller
• Drop

• Returns the packet to the data path
• Subsequent packets are handled by the data path
OpenvSwitch Internals
OpenvSwitch Internals
OpenvSwitch Internals
Example
• Mininet – Run a Simple Topology with One
Open vSwitch, 3 hosts
• Pox Controller
ovs-vsctl
Used to Manage bridges, ports,
Interfaces
• List Bridges for a Switch
• List Ports associated with s1

$ sudo ovs-vsctl list-br
s1
$ sudo ovs-vsctl list-ports s1
s1-eth1
s1-eth2
s1-eth3
ovs-vsctl
Manage bridges, ports,
Interfaces
• List of Interfaces for a
Switch
• Each port has a single
Interface in this case

$ sudo ovs-vsctl list-ifaces s1
s1-eth1
s1-eth2
s1-eth3
ovs-dpctl
Shows the data path

$ ovs-dpctl show
system@s1:
lookups: hit:0 missed:33 lost:0
flows: 0
port 0: s1 (internal)
port 1: s1-eth1
port 2: s1-eth2
port 3: s1-eth3
ovs-ofctl
Overall Openflow Management

$ sudo ovs-ofctl dump-flows s1
NXST_FLOW reply (xid=0x4):
cookie=0x0, duration=2.507s, table=0, n_packets=1, n_bytes=98,
idle_timeout=10,hard_timeout=30,priority=65535,icmp,in_port=2,vlan_tci=0x0000,dl_src=00:00:00:00:00:02,d
l_dst=00:00:00:00:00:01,nw_src=10.0.0.2,nw_dst=10.0.0.1,nw_tos=0,icmp_type=8,icmp_code=0
actions=output:1
cookie=0x0, duration=2.492s, table=0, n_packets=1, n_bytes=98,
idle_timeout=10,hard_timeout=30,priority=65535,icmp,in_port=3,vlan_tci=0x0000,dl_src=00:00:00:00:00:03,d
l_dst=00:00:00:00:00:01,nw_src=10.0.0.3,nw_dst=10.0.0.1,nw_tos=0,icmp_type=8,icmp_code=0
actions=output:1
cookie=0x0, duration=2.496s, table=0, n_packets=1, n_bytes=98,
idle_timeout=10,hard_timeout=30,priority=65535,icmp,in_port=3,vlan_tci=0x0000,dl_src=00:00:00:00:00:03,d
l_dst=00:00:00:00:00:02,nw_src=10.0.0.3,nw_dst=10.0.0.2,nw_tos=0,icmp_type=0,icmp_code=0
actions=output:2
….
ovsdb-client
JSON RPC client for ovsdb
$ sudo ovsdb-client list-dbs
Open_vSwitch
$ sudo ovsdb-client list-tables
Table
-----------Capability
SSL
Bridge
Controller
NetFlow
Port
Mirror
Queue
QoS
Interface
Open_vSwitch
sFlow
Manager
OVS in OpenStack
•
•
•
•

Use Case
One Private Subnet
One VM
Single Node Installation
Network Topology
OpenvSwitch Deep Dive
Summary
• OVS is an open source software switch
implementing Open Flow
• Is supported in most of the hypervisors
• Runs in the Kernel and User space of
Linux
Features
• NIC bonding
– with source-MAC load balancing (L2)
– Active backup
– L4 hashing – to achieve Load Balancing using TCP/UDP layers

• OpenFlow protocol support (including many extensions
for virtualization)
• IPv6 support
• Multiple tunneling protocols
–
–
–
–

GRE
VXLAN
IPsec
GRE and VXLAN over Ipsec
Features
• Remote configuration protocol with C and Python
bindings
• Kernel and user-space forwarding engine options
– Kernel space forwarding if there is a flow entry
– Else goes to User space in the switch and eventually to
controller

• Multi-table forwarding pipeline with flow-caching engine
– Standard requirement of OpenFlow 1.3

• Forwarding layer abstraction to ease porting to new
software and hardware platforms

More Related Content

What's hot

Meetup 23 - 02 - OVN - The future of networking in OpenStack
Meetup 23 - 02 - OVN - The future of networking in OpenStackMeetup 23 - 02 - OVN - The future of networking in OpenStack
Meetup 23 - 02 - OVN - The future of networking in OpenStack
Vietnam Open Infrastructure User Group

LinuxCon 2015 Linux Kernel Networking Walkthrough
LinuxCon 2015 Linux Kernel Networking WalkthroughLinuxCon 2015 Linux Kernel Networking Walkthrough
LinuxCon 2015 Linux Kernel Networking Walkthrough
Thomas Graf

[OpenStack 스터디] OpenStack With Contrail
[OpenStack 스터디] OpenStack With Contrail[OpenStack 스터디] OpenStack With Contrail
[OpenStack 스터디] OpenStack With Contrail
OpenStack Korea Community

OVN 設定サンプル | OVN config example 2015/12/27
OVN 設定サンプル | OVN config example 2015/12/27OVN 設定サンプル | OVN config example 2015/12/27
OVN 設定サンプル | OVN config example 2015/12/27
Kentaro Ebisawa

Virtualized network with openvswitch
Virtualized network with openvswitchVirtualized network with openvswitch
Virtualized network with openvswitch
Sim Janghoon

Nicolas Vazquez - Open vSwitch with DPDK on CloudStack
Nicolas Vazquez - Open vSwitch with DPDK on CloudStackNicolas Vazquez - Open vSwitch with DPDK on CloudStack
Nicolas Vazquez - Open vSwitch with DPDK on CloudStack
ShapeBlue

Demystifying EVPN in the data center: Part 1 in 2 episode series
Demystifying EVPN in the data center: Part 1 in 2 episode seriesDemystifying EVPN in the data center: Part 1 in 2 episode series
Demystifying EVPN in the data center: Part 1 in 2 episode series
Cumulus Networks

L3HA-VRRP-20141201
L3HA-VRRP-20141201L3HA-VRRP-20141201
L3HA-VRRP-20141201
Manabu Ori

Vxlan deep dive session rev0.5 final
Vxlan deep dive session rev0.5   finalVxlan deep dive session rev0.5   final
Vxlan deep dive session rev0.5 final
KwonSun Bae

How VXLAN works on Linux
How VXLAN works on LinuxHow VXLAN works on Linux
How VXLAN works on Linux
Etsuji Nakai

Pushing Packets - How do the ML2 Mechanism Drivers Stack Up
Pushing Packets - How do the ML2 Mechanism Drivers Stack UpPushing Packets - How do the ML2 Mechanism Drivers Stack Up
Pushing Packets - How do the ML2 Mechanism Drivers Stack Up
James Denton

NFVアプリケーションをOpenStack上で動かす為に - OpenStack最新情報セミナー 2017年7月
NFVアプリケーションをOpenStack上で動かす為に - OpenStack最新情報セミナー 2017年7月NFVアプリケーションをOpenStack上で動かす為に - OpenStack最新情報セミナー 2017年7月
NFVアプリケーションをOpenStack上で動かす為に - OpenStack最新情報セミナー 2017年7月
VirtualTech Japan Inc.

Open vSwitchソースコードの全体像
Open vSwitchソースコードの全体像 Open vSwitchソースコードの全体像
Open vSwitchソースコードの全体像
Sho Shimizu

OpenStack Neutron's Distributed Virtual Router
OpenStack Neutron's Distributed Virtual RouterOpenStack Neutron's Distributed Virtual Router
OpenStack Neutron's Distributed Virtual Router
carlbaldwin

Linux Network Stack
Linux Network StackLinux Network Stack
Linux Network Stack
Adrien Mahieux

Interconnecting Neutron and Network Operators' BGP VPNs
Interconnecting Neutron and Network Operators' BGP VPNsInterconnecting Neutron and Network Operators' BGP VPNs
Interconnecting Neutron and Network Operators' BGP VPNs
Thomas Morin

Ovs dpdk hwoffload way to full offload
Ovs dpdk hwoffload way to full offloadOvs dpdk hwoffload way to full offload
Ovs dpdk hwoffload way to full offload
Kevin Traynor

DPDK in Containers Hands-on Lab
DPDK in Containers Hands-on LabDPDK in Containers Hands-on Lab
DPDK in Containers Hands-on Lab
Michelle Holley

EBPF and Linux Networking
EBPF and Linux NetworkingEBPF and Linux Networking
EBPF and Linux Networking
PLUMgrid

Dpdk applications
Dpdk applicationsDpdk applications
Dpdk applications
Vipin Varghese


What's hot (20)

Meetup 23 - 02 - OVN - The future of networking in OpenStack
Meetup 23 - 02 - OVN - The future of networking in OpenStackMeetup 23 - 02 - OVN - The future of networking in OpenStack
Meetup 23 - 02 - OVN - The future of networking in OpenStack

LinuxCon 2015 Linux Kernel Networking Walkthrough
LinuxCon 2015 Linux Kernel Networking WalkthroughLinuxCon 2015 Linux Kernel Networking Walkthrough
LinuxCon 2015 Linux Kernel Networking Walkthrough

[OpenStack 스터디] OpenStack With Contrail
[OpenStack 스터디] OpenStack With Contrail[OpenStack 스터디] OpenStack With Contrail
[OpenStack 스터디] OpenStack With Contrail

OVN 設定サンプル | OVN config example 2015/12/27
OVN 設定サンプル | OVN config example 2015/12/27OVN 設定サンプル | OVN config example 2015/12/27
OVN 設定サンプル | OVN config example 2015/12/27

Virtualized network with openvswitch
Virtualized network with openvswitchVirtualized network with openvswitch
Virtualized network with openvswitch

Nicolas Vazquez - Open vSwitch with DPDK on CloudStack
Nicolas Vazquez - Open vSwitch with DPDK on CloudStackNicolas Vazquez - Open vSwitch with DPDK on CloudStack
Nicolas Vazquez - Open vSwitch with DPDK on CloudStack

Demystifying EVPN in the data center: Part 1 in 2 episode series
Demystifying EVPN in the data center: Part 1 in 2 episode seriesDemystifying EVPN in the data center: Part 1 in 2 episode series
Demystifying EVPN in the data center: Part 1 in 2 episode series

L3HA-VRRP-20141201
L3HA-VRRP-20141201L3HA-VRRP-20141201
L3HA-VRRP-20141201

Vxlan deep dive session rev0.5 final
Vxlan deep dive session rev0.5   finalVxlan deep dive session rev0.5   final
Vxlan deep dive session rev0.5 final

How VXLAN works on Linux
How VXLAN works on LinuxHow VXLAN works on Linux
How VXLAN works on Linux

Pushing Packets - How do the ML2 Mechanism Drivers Stack Up
Pushing Packets - How do the ML2 Mechanism Drivers Stack UpPushing Packets - How do the ML2 Mechanism Drivers Stack Up
Pushing Packets - How do the ML2 Mechanism Drivers Stack Up

NFVアプリケーションをOpenStack上で動かす為に - OpenStack最新情報セミナー 2017年7月
NFVアプリケーションをOpenStack上で動かす為に - OpenStack最新情報セミナー 2017年7月NFVアプリケーションをOpenStack上で動かす為に - OpenStack最新情報セミナー 2017年7月
NFVアプリケーションをOpenStack上で動かす為に - OpenStack最新情報セミナー 2017年7月

Open vSwitchソースコードの全体像
Open vSwitchソースコードの全体像 Open vSwitchソースコードの全体像
Open vSwitchソースコードの全体像

OpenStack Neutron's Distributed Virtual Router
OpenStack Neutron's Distributed Virtual RouterOpenStack Neutron's Distributed Virtual Router
OpenStack Neutron's Distributed Virtual Router

Linux Network Stack
Linux Network StackLinux Network Stack
Linux Network Stack

Interconnecting Neutron and Network Operators' BGP VPNs
Interconnecting Neutron and Network Operators' BGP VPNsInterconnecting Neutron and Network Operators' BGP VPNs
Interconnecting Neutron and Network Operators' BGP VPNs

Ovs dpdk hwoffload way to full offload
Ovs dpdk hwoffload way to full offloadOvs dpdk hwoffload way to full offload
Ovs dpdk hwoffload way to full offload

DPDK in Containers Hands-on Lab
DPDK in Containers Hands-on LabDPDK in Containers Hands-on Lab
DPDK in Containers Hands-on Lab

EBPF and Linux Networking
EBPF and Linux NetworkingEBPF and Linux Networking
EBPF and Linux Networking

Dpdk applications
Dpdk applicationsDpdk applications
Dpdk applications


Similar to OpenvSwitch Deep Dive

2015 FOSDEM - OVS Stateful Services
2015 FOSDEM - OVS Stateful Services2015 FOSDEM - OVS Stateful Services
2015 FOSDEM - OVS Stateful Services
Thomas Graf

Open VSwitch .. Use it for your day to day needs
Open VSwitch .. Use it for your day to day needsOpen VSwitch .. Use it for your day to day needs
Open VSwitch .. Use it for your day to day needs
rranjithrajaram

Open v switch20150410b
Open v switch20150410bOpen v switch20150410b
Open v switch20150410b
Richard Kuo

Ovn vancouver
Ovn vancouverOvn vancouver
Ovn vancouver
Mason Mei

Demystifying openvswitch
Demystifying openvswitchDemystifying openvswitch
Demystifying openvswitch
Prasad Mukhedkar

10 sdn-vir-6up
10 sdn-vir-6up10 sdn-vir-6up
10 sdn-vir-6up
Sachin Siddappa

FlowER Erlang Openflow Controller
FlowER Erlang Openflow ControllerFlowER Erlang Openflow Controller
FlowER Erlang Openflow Controller
Holger Winkelmann

OVS-LinuxCon 2013.pdf
OVS-LinuxCon 2013.pdfOVS-LinuxCon 2013.pdf
OVS-LinuxCon 2013.pdf
DanielHanganu2

lect4_SDNbasic_openflow.pptx
lect4_SDNbasic_openflow.pptxlect4_SDNbasic_openflow.pptx
lect4_SDNbasic_openflow.pptx
JesicaDcruz1

Sdnds tw-meetup-2
Sdnds tw-meetup-2Sdnds tw-meetup-2
Sdnds tw-meetup-2
Fei Ji Siao

WUG #009 - OpenVNet 0.7 presentation
WUG #009 - OpenVNet 0.7 presentationWUG #009 - OpenVNet 0.7 presentation
WUG #009 - OpenVNet 0.7 presentation
Axsh Co. LTD

OpenFlow Tutorial
OpenFlow TutorialOpenFlow Tutorial
OpenFlow Tutorial
Ja-seop Kwak

Design and Performance Characteristics of Tap-as-a-Service
Design and Performance Characteristics of Tap-as-a-ServiceDesign and Performance Characteristics of Tap-as-a-Service
Design and Performance Characteristics of Tap-as-a-Service
soichi shigeta

Osdc2014 openstack networking yves_fauser
Osdc2014 openstack networking yves_fauserOsdc2014 openstack networking yves_fauser
Osdc2014 openstack networking yves_fauser
yfauser

OSDC 2014: Yves Fauser - OpenStack Networking (Neutron) - Overview of network...
OSDC 2014: Yves Fauser - OpenStack Networking (Neutron) - Overview of network...OSDC 2014: Yves Fauser - OpenStack Networking (Neutron) - Overview of network...
OSDC 2014: Yves Fauser - OpenStack Networking (Neutron) - Overview of network...
NETWAYS

Introduction to OpenNetwork and SDN
Introduction to OpenNetwork and SDNIntroduction to OpenNetwork and SDN
Introduction to OpenNetwork and SDN
HungWei Chiu

Open stack networking_101_part-2_tech_deep_dive
Open stack networking_101_part-2_tech_deep_diveOpen stack networking_101_part-2_tech_deep_dive
Open stack networking_101_part-2_tech_deep_dive
yfauser

Open Flow Protocol
Open Flow ProtocolOpen Flow Protocol
Open Flow Protocol
Vishal S M B

OpenFlow tutorial
OpenFlow tutorialOpenFlow tutorial
OpenFlow tutorial
openflow

OpenStack Networking
OpenStack NetworkingOpenStack Networking
OpenStack Networking
Ilya Shakhat


Similar to OpenvSwitch Deep Dive (20)

2015 FOSDEM - OVS Stateful Services
2015 FOSDEM - OVS Stateful Services2015 FOSDEM - OVS Stateful Services
2015 FOSDEM - OVS Stateful Services

Open VSwitch .. Use it for your day to day needs
Open VSwitch .. Use it for your day to day needsOpen VSwitch .. Use it for your day to day needs
Open VSwitch .. Use it for your day to day needs

Open v switch20150410b
Open v switch20150410bOpen v switch20150410b
Open v switch20150410b

Ovn vancouver
Ovn vancouverOvn vancouver
Ovn vancouver

Demystifying openvswitch
Demystifying openvswitchDemystifying openvswitch
Demystifying openvswitch

10 sdn-vir-6up
10 sdn-vir-6up10 sdn-vir-6up
10 sdn-vir-6up

FlowER Erlang Openflow Controller
FlowER Erlang Openflow ControllerFlowER Erlang Openflow Controller
FlowER Erlang Openflow Controller

OVS-LinuxCon 2013.pdf
OVS-LinuxCon 2013.pdfOVS-LinuxCon 2013.pdf
OVS-LinuxCon 2013.pdf

lect4_SDNbasic_openflow.pptx
lect4_SDNbasic_openflow.pptxlect4_SDNbasic_openflow.pptx
lect4_SDNbasic_openflow.pptx

Sdnds tw-meetup-2
Sdnds tw-meetup-2Sdnds tw-meetup-2
Sdnds tw-meetup-2

WUG #009 - OpenVNet 0.7 presentation
WUG #009 - OpenVNet 0.7 presentationWUG #009 - OpenVNet 0.7 presentation
WUG #009 - OpenVNet 0.7 presentation

OpenFlow Tutorial
OpenFlow TutorialOpenFlow Tutorial
OpenFlow Tutorial

Design and Performance Characteristics of Tap-as-a-Service
Design and Performance Characteristics of Tap-as-a-ServiceDesign and Performance Characteristics of Tap-as-a-Service
Design and Performance Characteristics of Tap-as-a-Service

Osdc2014 openstack networking yves_fauser
Osdc2014 openstack networking yves_fauserOsdc2014 openstack networking yves_fauser
Osdc2014 openstack networking yves_fauser

OSDC 2014: Yves Fauser - OpenStack Networking (Neutron) - Overview of network...
OSDC 2014: Yves Fauser - OpenStack Networking (Neutron) - Overview of network...OSDC 2014: Yves Fauser - OpenStack Networking (Neutron) - Overview of network...
OSDC 2014: Yves Fauser - OpenStack Networking (Neutron) - Overview of network...

Introduction to OpenNetwork and SDN
Introduction to OpenNetwork and SDNIntroduction to OpenNetwork and SDN
Introduction to OpenNetwork and SDN

Open stack networking_101_part-2_tech_deep_dive
Open stack networking_101_part-2_tech_deep_diveOpen stack networking_101_part-2_tech_deep_dive
Open stack networking_101_part-2_tech_deep_dive

Open Flow Protocol
Open Flow ProtocolOpen Flow Protocol
Open Flow Protocol

OpenFlow tutorial
OpenFlow tutorialOpenFlow tutorial
OpenFlow tutorial

OpenStack Networking
OpenStack NetworkingOpenStack Networking
OpenStack Networking


More from rajdeep

Aura Framework Overview
Aura Framework OverviewAura Framework Overview
Aura Framework Overview
rajdeep

Docker 1.5
Docker 1.5Docker 1.5
Docker 1.5
rajdeep

Docker Swarm Introduction
Docker Swarm IntroductionDocker Swarm Introduction
Docker Swarm Introduction
rajdeep

Introduction to Kubernetes
Introduction to KubernetesIntroduction to Kubernetes
Introduction to Kubernetes
rajdeep

Docker Architecture (v1.3)
Docker Architecture (v1.3)Docker Architecture (v1.3)
Docker Architecture (v1.3)
rajdeep

Openstack Overview
Openstack OverviewOpenstack Overview
Openstack Overview
rajdeep

virtualization-vs-containerization-paas
virtualization-vs-containerization-paasvirtualization-vs-containerization-paas
virtualization-vs-containerization-paas
rajdeep

VMware Hybrid Cloud Service - Overview
VMware Hybrid Cloud Service - OverviewVMware Hybrid Cloud Service - Overview
VMware Hybrid Cloud Service - Overview
rajdeep

Cloudfoundry Overview
Cloudfoundry OverviewCloudfoundry Overview
Cloudfoundry Overview
rajdeep

Openstack meetup-pune-aug22-overview
Openstack meetup-pune-aug22-overviewOpenstack meetup-pune-aug22-overview
Openstack meetup-pune-aug22-overview
rajdeep

Deploy Cloud Foundry using bosh_bootstrap
Deploy Cloud Foundry using bosh_bootstrapDeploy Cloud Foundry using bosh_bootstrap
Deploy Cloud Foundry using bosh_bootstrap
rajdeep

Managing Activity Backstack
Managing Activity BackstackManaging Activity Backstack
Managing Activity Backstack
rajdeep

Cloud Foundry Architecture and Overview
Cloud Foundry Architecture and OverviewCloud Foundry Architecture and Overview
Cloud Foundry Architecture and Overview
rajdeep

Cloud Foundry Open Tour India 2012 , Keynote
Cloud Foundry Open Tour India 2012 , KeynoteCloud Foundry Open Tour India 2012 , Keynote
Cloud Foundry Open Tour India 2012 , Keynote
rajdeep

Play Support in Cloud Foundry
Play Support in Cloud FoundryPlay Support in Cloud Foundry
Play Support in Cloud Foundry
rajdeep

Google cloud platform
Google cloud platformGoogle cloud platform
Google cloud platform
rajdeep

Introduction to Google App Engine
Introduction to Google App EngineIntroduction to Google App Engine
Introduction to Google App Engine
rajdeep


More from rajdeep (17)

Aura Framework Overview
Aura Framework OverviewAura Framework Overview
Aura Framework Overview

Docker 1.5
Docker 1.5Docker 1.5
Docker 1.5

Docker Swarm Introduction
Docker Swarm IntroductionDocker Swarm Introduction
Docker Swarm Introduction

Introduction to Kubernetes
Introduction to KubernetesIntroduction to Kubernetes
Introduction to Kubernetes

Docker Architecture (v1.3)
Docker Architecture (v1.3)Docker Architecture (v1.3)
Docker Architecture (v1.3)

Openstack Overview
Openstack OverviewOpenstack Overview
Openstack Overview

virtualization-vs-containerization-paas
virtualization-vs-containerization-paasvirtualization-vs-containerization-paas
virtualization-vs-containerization-paas

VMware Hybrid Cloud Service - Overview
VMware Hybrid Cloud Service - OverviewVMware Hybrid Cloud Service - Overview
VMware Hybrid Cloud Service - Overview

Cloudfoundry Overview
Cloudfoundry OverviewCloudfoundry Overview
Cloudfoundry Overview

Openstack meetup-pune-aug22-overview
Openstack meetup-pune-aug22-overviewOpenstack meetup-pune-aug22-overview
Openstack meetup-pune-aug22-overview

Deploy Cloud Foundry using bosh_bootstrap
Deploy Cloud Foundry using bosh_bootstrapDeploy Cloud Foundry using bosh_bootstrap
Deploy Cloud Foundry using bosh_bootstrap

Managing Activity Backstack
Managing Activity BackstackManaging Activity Backstack
Managing Activity Backstack

Cloud Foundry Architecture and Overview
Cloud Foundry Architecture and OverviewCloud Foundry Architecture and Overview
Cloud Foundry Architecture and Overview

Cloud Foundry Open Tour India 2012 , Keynote
Cloud Foundry Open Tour India 2012 , KeynoteCloud Foundry Open Tour India 2012 , Keynote
Cloud Foundry Open Tour India 2012 , Keynote

Play Support in Cloud Foundry
Play Support in Cloud FoundryPlay Support in Cloud Foundry
Play Support in Cloud Foundry

Google cloud platform
Google cloud platformGoogle cloud platform
Google cloud platform

Introduction to Google App Engine
Introduction to Google App EngineIntroduction to Google App Engine
Introduction to Google App Engine


Recently uploaded

Litestack talk at Brighton 2024 (Unleashing the power of SQLite for Ruby apps)
Litestack talk at Brighton 2024 (Unleashing the power of SQLite for Ruby apps)Litestack talk at Brighton 2024 (Unleashing the power of SQLite for Ruby apps)
Litestack talk at Brighton 2024 (Unleashing the power of SQLite for Ruby apps)
Muhammad Ali

Implementations of Fused Deposition Modeling in real world
Implementations of Fused Deposition Modeling  in real worldImplementations of Fused Deposition Modeling  in real world
Implementations of Fused Deposition Modeling in real world
Emerging Tech

Three New Criminal Laws in India 1 July 2024
Three New Criminal Laws in India 1 July 2024Three New Criminal Laws in India 1 July 2024
Three New Criminal Laws in India 1 July 2024
aakash malhotra

The Role of Technology in Payroll Statutory Compliance (1).pdf
The Role of Technology in Payroll Statutory Compliance (1).pdfThe Role of Technology in Payroll Statutory Compliance (1).pdf
The Role of Technology in Payroll Statutory Compliance (1).pdf
paysquare consultancy

Password Rotation in 2024 is still Relevant
Password Rotation in 2024 is still RelevantPassword Rotation in 2024 is still Relevant
Password Rotation in 2024 is still Relevant
Bert Blevins

Amul milk launches in US: Key details of its new products ...
Amul milk launches in US: Key details of its new products ...Amul milk launches in US: Key details of its new products ...
Amul milk launches in US: Key details of its new products ...
chetankumar9855

WhatsApp Image 2024-03-27 at 08.19.52_bfd93109.pdf
WhatsApp Image 2024-03-27 at 08.19.52_bfd93109.pdfWhatsApp Image 2024-03-27 at 08.19.52_bfd93109.pdf
WhatsApp Image 2024-03-27 at 08.19.52_bfd93109.pdf
ArgaBisma

Salesforce AI & Einstein Copilot Workshop
Salesforce AI & Einstein Copilot WorkshopSalesforce AI & Einstein Copilot Workshop
Salesforce AI & Einstein Copilot Workshop
CEPTES Software Inc

Active Inference is a veryyyyyyyyyyyyyyyyyyyyyyyy
Active Inference is a veryyyyyyyyyyyyyyyyyyyyyyyyActive Inference is a veryyyyyyyyyyyyyyyyyyyyyyyy
Active Inference is a veryyyyyyyyyyyyyyyyyyyyyyyy
RaminGhanbari2

論文紹介:A Systematic Survey of Prompt Engineering on Vision-Language Foundation ...
論文紹介:A Systematic Survey of Prompt Engineering on Vision-Language Foundation ...論文紹介:A Systematic Survey of Prompt Engineering on Vision-Language Foundation ...
論文紹介:A Systematic Survey of Prompt Engineering on Vision-Language Foundation ...
Toru Tamaki

Calgary MuleSoft Meetup APM and IDP .pptx
Calgary MuleSoft Meetup APM and IDP .pptxCalgary MuleSoft Meetup APM and IDP .pptx
Calgary MuleSoft Meetup APM and IDP .pptx
ishalveerrandhawa1

TrustArc Webinar - 2024 Data Privacy Trends: A Mid-Year Check-In
TrustArc Webinar - 2024 Data Privacy Trends: A Mid-Year Check-InTrustArc Webinar - 2024 Data Privacy Trends: A Mid-Year Check-In
TrustArc Webinar - 2024 Data Privacy Trends: A Mid-Year Check-In
TrustArc

7 Most Powerful Solar Storms in the History of Earth.pdf
7 Most Powerful Solar Storms in the History of Earth.pdf7 Most Powerful Solar Storms in the History of Earth.pdf
7 Most Powerful Solar Storms in the History of Earth.pdf
Enterprise Wired

Understanding Insider Security Threats: Types, Examples, Effects, and Mitigat...
Understanding Insider Security Threats: Types, Examples, Effects, and Mitigat...Understanding Insider Security Threats: Types, Examples, Effects, and Mitigat...
Understanding Insider Security Threats: Types, Examples, Effects, and Mitigat...
Bert Blevins

How to Build a Profitable IoT Product.pptx
How to Build a Profitable IoT Product.pptxHow to Build a Profitable IoT Product.pptx
How to Build a Profitable IoT Product.pptx
Adam Dunkels

IPLOOK Remote-Sensing Satellite Solution
IPLOOK Remote-Sensing Satellite SolutionIPLOOK Remote-Sensing Satellite Solution
IPLOOK Remote-Sensing Satellite Solution
IPLOOK Networks

Comparison Table of DiskWarrior Alternatives.pdf
Comparison Table of DiskWarrior Alternatives.pdfComparison Table of DiskWarrior Alternatives.pdf
Comparison Table of DiskWarrior Alternatives.pdf
Andrey Yasko

Tirana Tech Meetup - Agentic RAG with Milvus, Llama3 and Ollama
Tirana Tech Meetup - Agentic RAG with Milvus, Llama3 and OllamaTirana Tech Meetup - Agentic RAG with Milvus, Llama3 and Ollama
Tirana Tech Meetup - Agentic RAG with Milvus, Llama3 and Ollama
Zilliz

BEGINNER’S GUIDE TO AI AGENTS (1).pptx...
BEGINNER’S GUIDE TO AI AGENTS (1).pptx...BEGINNER’S GUIDE TO AI AGENTS (1).pptx...
BEGINNER’S GUIDE TO AI AGENTS (1).pptx...
WriteMe

Gen-AI in Telcos: Strategies, Challenges & Impact | Torry Harris Integration ...
Gen-AI in Telcos: Strategies, Challenges & Impact | Torry Harris Integration ...Gen-AI in Telcos: Strategies, Challenges & Impact | Torry Harris Integration ...
Gen-AI in Telcos: Strategies, Challenges & Impact | Torry Harris Integration ...
Torry Harris


Recently uploaded (20)

Litestack talk at Brighton 2024 (Unleashing the power of SQLite for Ruby apps)
Litestack talk at Brighton 2024 (Unleashing the power of SQLite for Ruby apps)Litestack talk at Brighton 2024 (Unleashing the power of SQLite for Ruby apps)
Litestack talk at Brighton 2024 (Unleashing the power of SQLite for Ruby apps)

Implementations of Fused Deposition Modeling in real world
Implementations of Fused Deposition Modeling  in real worldImplementations of Fused Deposition Modeling  in real world
Implementations of Fused Deposition Modeling in real world

Three New Criminal Laws in India 1 July 2024
Three New Criminal Laws in India 1 July 2024Three New Criminal Laws in India 1 July 2024
Three New Criminal Laws in India 1 July 2024

The Role of Technology in Payroll Statutory Compliance (1).pdf
The Role of Technology in Payroll Statutory Compliance (1).pdfThe Role of Technology in Payroll Statutory Compliance (1).pdf
The Role of Technology in Payroll Statutory Compliance (1).pdf

Password Rotation in 2024 is still Relevant
Password Rotation in 2024 is still RelevantPassword Rotation in 2024 is still Relevant
Password Rotation in 2024 is still Relevant

Amul milk launches in US: Key details of its new products ...
Amul milk launches in US: Key details of its new products ...Amul milk launches in US: Key details of its new products ...
Amul milk launches in US: Key details of its new products ...

WhatsApp Image 2024-03-27 at 08.19.52_bfd93109.pdf
WhatsApp Image 2024-03-27 at 08.19.52_bfd93109.pdfWhatsApp Image 2024-03-27 at 08.19.52_bfd93109.pdf
WhatsApp Image 2024-03-27 at 08.19.52_bfd93109.pdf

Salesforce AI & Einstein Copilot Workshop
Salesforce AI & Einstein Copilot WorkshopSalesforce AI & Einstein Copilot Workshop
Salesforce AI & Einstein Copilot Workshop

Active Inference is a veryyyyyyyyyyyyyyyyyyyyyyyy
Active Inference is a veryyyyyyyyyyyyyyyyyyyyyyyyActive Inference is a veryyyyyyyyyyyyyyyyyyyyyyyy
Active Inference is a veryyyyyyyyyyyyyyyyyyyyyyyy

論文紹介:A Systematic Survey of Prompt Engineering on Vision-Language Foundation ...
論文紹介:A Systematic Survey of Prompt Engineering on Vision-Language Foundation ...論文紹介:A Systematic Survey of Prompt Engineering on Vision-Language Foundation ...
論文紹介:A Systematic Survey of Prompt Engineering on Vision-Language Foundation ...

Calgary MuleSoft Meetup APM and IDP .pptx
Calgary MuleSoft Meetup APM and IDP .pptxCalgary MuleSoft Meetup APM and IDP .pptx
Calgary MuleSoft Meetup APM and IDP .pptx

TrustArc Webinar - 2024 Data Privacy Trends: A Mid-Year Check-In
TrustArc Webinar - 2024 Data Privacy Trends: A Mid-Year Check-InTrustArc Webinar - 2024 Data Privacy Trends: A Mid-Year Check-In
TrustArc Webinar - 2024 Data Privacy Trends: A Mid-Year Check-In

7 Most Powerful Solar Storms in the History of Earth.pdf
7 Most Powerful Solar Storms in the History of Earth.pdf7 Most Powerful Solar Storms in the History of Earth.pdf
7 Most Powerful Solar Storms in the History of Earth.pdf

Understanding Insider Security Threats: Types, Examples, Effects, and Mitigat...
Understanding Insider Security Threats: Types, Examples, Effects, and Mitigat...Understanding Insider Security Threats: Types, Examples, Effects, and Mitigat...
Understanding Insider Security Threats: Types, Examples, Effects, and Mitigat...

How to Build a Profitable IoT Product.pptx
How to Build a Profitable IoT Product.pptxHow to Build a Profitable IoT Product.pptx
How to Build a Profitable IoT Product.pptx

IPLOOK Remote-Sensing Satellite Solution
IPLOOK Remote-Sensing Satellite SolutionIPLOOK Remote-Sensing Satellite Solution
IPLOOK Remote-Sensing Satellite Solution

Comparison Table of DiskWarrior Alternatives.pdf
Comparison Table of DiskWarrior Alternatives.pdfComparison Table of DiskWarrior Alternatives.pdf
Comparison Table of DiskWarrior Alternatives.pdf

Tirana Tech Meetup - Agentic RAG with Milvus, Llama3 and Ollama
Tirana Tech Meetup - Agentic RAG with Milvus, Llama3 and OllamaTirana Tech Meetup - Agentic RAG with Milvus, Llama3 and Ollama
Tirana Tech Meetup - Agentic RAG with Milvus, Llama3 and Ollama

BEGINNER’S GUIDE TO AI AGENTS (1).pptx...
BEGINNER’S GUIDE TO AI AGENTS (1).pptx...BEGINNER’S GUIDE TO AI AGENTS (1).pptx...
BEGINNER’S GUIDE TO AI AGENTS (1).pptx...

Gen-AI in Telcos: Strategies, Challenges & Impact | Torry Harris Integration ...
Gen-AI in Telcos: Strategies, Challenges & Impact | Torry Harris Integration ...Gen-AI in Telcos: Strategies, Challenges & Impact | Torry Harris Integration ...
Gen-AI in Telcos: Strategies, Challenges & Impact | Torry Harris Integration ...


OpenvSwitch Deep Dive

  • 1. Open vSwitch Overview Compiled by Rajdeep Dua Twitter : @rajdeepdua VMware
  • 2. What is Open vSwitch • Multi layer virtual Switch licensed under Apache 2.0 • Enables massive network automation through programmatic extension • Supports monitoring protocols like NetFlow, sFlow etc • Supports distribution across multiple physical layers like VMware ‘s vNetwork distributed vSwitch or Cisco’s Nexus 1000V • Included in Linux 3.3 Kernel by default • Most users space utilities are available in Linux distributions • Ongoing efforts to port Open vSwitch to Windows
  • 3. Features • Visibility into inter-VM communication via NetFlow, sFlow® etc • Supports LACP - Link Aggregation Control Protocol • Supports VLAN • Provides fine-grained QoS control • Support for HFSC qdisc : QoS across traffic Aggregate connections • Per VM interface traffic policing
  • 4. Supported Platforms • Default Switch in – Xen – KVM • Supported in ESXi • Integrated in – OpenStack, OpenNebula and vSphere • Supports – Ubuntu, Fedora, Debian and also FreeBSD – Currently porting to Windows?
  • 5. Why Open VSwitch • Traffic between VMs and outside world – In Linux Hypervisors, it is through a bridge • Why then Open vSwitch? – Multi-server virtualization deployments – Dynamic end points – Logical abstractions – Integration or offloading with special purpose hardware
  • 6. Design Considerations • • • • • The mobility of state Responding to network dynamics Maintenance of Logical tags Hardware Integration Goals – Keep in-kernel code as small as possible – Re-use existing sub-systems
  • 7. Mobility of State • Network state associated with a network entity, which is a virtual machine – Should be easily identifiable – Migrate between different hosts • State – – – – – Soft state (Entry in L2 learning table) L3 forwarding state ACLs QoS policy Monitoring the configuration (Netflow, IPFIX, sFlow) • Open vSwitch is backed by – Real Data Model, allows development of structured automation systems – Migrate SPAN Rules, ACLs, Qos and live state reconstruction – Fast moving and slow network state between instances
  • 8. Responding to Network Dynamics • Virtual environments are characterized by high-rates of change – VMs coming and going – changes to the logical network environments • Open vSwitch supports – Simple accounting and visibility support such as NetFlow, IPFIX and sFlow – A Network database OVSDB supports remote triggers – Supports OpenFlow as a method of exporting remote access control to traffic
  • 9. Maintenance of Logic tags • Distributed Virtual Switches often maintain logical tags for a network context by appending and manipulating tags in the network packets – Used for uniquely identifying a VM – Efficiently and correctly manage these tags • Open vSwitch supports – Multiple methods of specifying and maintaining tagging rules – Tagging rules are stored in an optimized form so they don't have to be coupled with a heavyweight network device – Supports GRE, STT and VXLAN
  • 10. Hardware integration • Virtualized hosting environments can be managed using the same mechanism for automated network control • Datapath in hardware instead of kernel • Ongoing efforts to port Open vSwitch to hardware chipsets.
  • 11. Centralized Control • One OpenFlow connection per datapath – Exports idealized view of switch’s datapath • • • • Lookup based on L2-L4 Fill wildcarding and priorities Actions: forward, drop, modify, and queue Missed flows go to central controller • One Management channel per system – Switch-level configuration – Resources – Counters
  • 12. Open vSwitch Data Structures
  • 14. OpenvSwitch Daemon ovs-vswitchd implements the switch talks to the kernel via the netlink protocol
  • 15. ovs-ofctl, ovs-dpctl ovs-ofctl – Management Utility for Open Flow ovs-dpctl – Open vSwitch datapath management utility
  • 16. ovs-ofctl • Command Line for Managing the Open Flow related tasks show SWITCH show OpenFlow information dump-ports SWITCH [PORT] print port statistics dump-flows SWITCH print all flow entries queue-stats SWITCH [PORT [QUEUE]] dump queue stats add-flow SWITCH FLOW add flow described by FLOW add-flows SWITCH FILE add flows from FILE mod-flows SWITCH FLOW modify actions of matching FLOWs SWITCH  PORT  FLOW 
  • 17. ovs-dpctl • Open vSwitch datapath management utility usage: ovs-dpctl [OPTIONS] COMMAND [ARG...] add-dp DP [IFACE...] add new datapath DP(with IFACEs) del-dp DP delete local datapath DP add-if DP IFACE... add each IFACE as a port on DP set-if DP IFACE... reconfigure each IFACE within DP del-if DP IFACE... delete each IFACE from DP dump-dps display names of all datapaths show show basic info on all datapaths show DP... show basic info on each DP dump-flows DP display flows in DP del-flows DP delete all flows from DP
  • 18. OpenvSwitch: ovs-vswitchd ovs-vswitchd saves and changes the switch configuration into a database and talks to ovsdb-server, which manages ovsdb
  • 19. OpenvSwitch : ovs-vsctl ovs-vsctl manages the switch through interaction with ovsdb-server
  • 20. ovs-vsctl – Bridge commands : Manage the bridge – Port commands : Manage the Port – Interface commands : Manages the Interfaces – Controller commands : Get controller details – Manager commands : get manager – SSL commands : Configure SSL – Switch commands : Reset the Switch – Database commands : Get table details of ovsdb
  • 21. OpenvSwitch Internals ovs-dpctl - Monitor and Administer Switch, works with any OpenFlow Switch ovs-appctl – Utility for managing logging levels ovs-vsctl manages the switch through ovsdb-server ovs-dbclient – manipulate database entries directly without ovsdbserver
  • 22. ovsdb-client ovsdb-client: Open vSwitch database JSON-RPC client usage: ovsdb-client [OPTIONS] COMMAND [ARG...] Valid commands are: list-dbs [SERVER] list databases available on SERVER get-schema [SERVER] [DATABASE] retrieve schema for DATABASE from SERVER get-schema-version [SERVER] [DATABASE] retrieve schema for DATABASE from SERVER and report only its version number on stdout list-tables [SERVER] [DATABASE] list tables for DATABASE on SERVER
  • 23. OpenvSwitch Internals ovsdb-server - Monitor and Administer Switch, works with any OpenFlow Switch ovsdb-tool – command line tool to manage database ovsdb - persists the data across reboots; configures ovs-vswitchd
  • 24. OpenvSwitch Internals Kernel module – Designed to be fast and simple; Handles switching and tunneling Knows nothing about openflow, if flow found, actions are executed otherwise passed to the user space; Implements tunnels and caches flows
  • 25. Forwarding Components • ovs-vswitchd (Slow Path) – Forwarding logic (learning, mirroring, VLANs and bonding) – Remote configuration and visibility • openvswitch_mod.ko (Fast Path) – Packet lookup, modification, and forwarding – Tunnel encapsulation/decapsulation
  • 26. Forwarding Flows • The first packet in the flow is sent to the controller • The controller programs the data path's actions for a flow – Usually one, but may be a list – Action include: • Forward to port port or ports, mirror • Encapsulate and forward to controller • Drop • Returns the packet to the data path • Subsequent packets are handled by the data path
  • 30. Example • Mininet – Run a Simple Topology with One Open vSwitch, 3 hosts • Pox Controller
  • 31. ovs-vsctl Used to Manage bridges, ports, Interfaces • List Bridges for a Switch • List Ports associated with s1 $ sudo ovs-vsctl list-br s1 $ sudo ovs-vsctl list-ports s1 s1-eth1 s1-eth2 s1-eth3
  • 32. ovs-vsctl Manage bridges, ports, Interfaces • List of Interfaces for a Switch • Each port has a single Interface in this case $ sudo ovs-vsctl list-ifaces s1 s1-eth1 s1-eth2 s1-eth3
  • 33. ovs-dpctl Shows the data path $ ovs-dpctl show system@s1: lookups: hit:0 missed:33 lost:0 flows: 0 port 0: s1 (internal) port 1: s1-eth1 port 2: s1-eth2 port 3: s1-eth3
  • 34. ovs-ofctl Overall Openflow Management $ sudo ovs-ofctl dump-flows s1 NXST_FLOW reply (xid=0x4): cookie=0x0, duration=2.507s, table=0, n_packets=1, n_bytes=98, idle_timeout=10,hard_timeout=30,priority=65535,icmp,in_port=2,vlan_tci=0x0000,dl_src=00:00:00:00:00:02,d l_dst=00:00:00:00:00:01,nw_src=10.0.0.2,nw_dst=10.0.0.1,nw_tos=0,icmp_type=8,icmp_code=0 actions=output:1 cookie=0x0, duration=2.492s, table=0, n_packets=1, n_bytes=98, idle_timeout=10,hard_timeout=30,priority=65535,icmp,in_port=3,vlan_tci=0x0000,dl_src=00:00:00:00:00:03,d l_dst=00:00:00:00:00:01,nw_src=10.0.0.3,nw_dst=10.0.0.1,nw_tos=0,icmp_type=8,icmp_code=0 actions=output:1 cookie=0x0, duration=2.496s, table=0, n_packets=1, n_bytes=98, idle_timeout=10,hard_timeout=30,priority=65535,icmp,in_port=3,vlan_tci=0x0000,dl_src=00:00:00:00:00:03,d l_dst=00:00:00:00:00:02,nw_src=10.0.0.3,nw_dst=10.0.0.2,nw_tos=0,icmp_type=0,icmp_code=0 actions=output:2 ….
  • 35. ovsdb-client JSON RPC client for ovsdb $ sudo ovsdb-client list-dbs Open_vSwitch $ sudo ovsdb-client list-tables Table -----------Capability SSL Bridge Controller NetFlow Port Mirror Queue QoS Interface Open_vSwitch sFlow Manager
  • 36. OVS in OpenStack • • • • Use Case One Private Subnet One VM Single Node Installation
  • 39. Summary • OVS is an open source software switch implementing Open Flow • Is supported in most of the hypervisors • Runs in the Kernel and User space of Linux
  • 40. Features • NIC bonding – with source-MAC load balancing (L2) – Active backup – L4 hashing – to achieve Load Balancing using TCP/UDP layers • OpenFlow protocol support (including many extensions for virtualization) • IPv6 support • Multiple tunneling protocols – – – – GRE VXLAN IPsec GRE and VXLAN over Ipsec
  • 41. Features • Remote configuration protocol with C and Python bindings • Kernel and user-space forwarding engine options – Kernel space forwarding if there is a flow entry – Else goes to User space in the switch and eventually to controller • Multi-table forwarding pipeline with flow-caching engine – Standard requirement of OpenFlow 1.3 • Forwarding layer abstraction to ease porting to new software and hardware platforms

Editor's Notes

  1. NetFlow is a network protocol developed by Enterasys Networks (formerly Cabletron) and Cisco Systems for collecting IP traffic information. Switch port Analyzer (SPAN) is an efficient, high performance traffic monitoring system. It duplicated network traffic to one or more monitor interfaces as it transverse the switch. SPAN is used for troubleshooting connectivity issues and calculating network utilization and performance, among many others. There are three types of SPANs supported on Cisco products, which are illustrated in below diagram.Remote SPAN (RSPAN): An extension of SPAN called remote SPAN or RSPAN. RSPAN allows you to monitor traffic from source ports distributed over multiple switches,Supports SPAN, RSPAN, CLI, LACP, 802.1 tagsCLILACP: Link aggregation is a computer networking term to describe various methods of combining (aggregating) multiple network connections in parallel to increase throughput beyond what a single connection could sustain, and to provide redundancy in case one of the links fails.802.1 tags
  2. STP (IEEE 802.1D-1998)Provides fine-grained QoS control : Dely in ms , No of bits per secLink aggregation is a computer networking term to describe various methods of combining (aggregating) multiple network connections in parallel to increase throughput beyond what a single connection could sustain, and to provide redundancy in case one of the links fails.Further umbrella terms used to describe the method include port trunking,[1]link bundling,[2] Ethernet/network/NIC bonding,[1] or NIC teaming. These umbrella terms not only encompass vendor-independent standards such as Link Aggregation Control Protocol (LACP) for Ethernet defined in IEEE 802.1ax or the previous IEEE 802.3ad, but also various proprietary solutions.
  3. Core component of the system Communicates with outside world uisngopenFlowCommunicates with ovsdb-server using the management protocolCommunicates with the kernel module Supports multiple independent pathsPacket classifier supports efficient lookup with wildcards and explodes these wild card rulesImplements mirroring, bonding, and VLANS through modifications of the same flow table exposed through openFlowChecks datapath flow counters to handle flow expiration and stat requests
  4. Core component of the systemCommunicates with outside world using OpenFlowCommunicates with ovsdb-server using the management protocolCommunicates with the kernel module Supports multiple independent pathsPacket classifier supports efficient lookup with wildcards and explodes these wild card rulesImplements mirroring, bonding, and VLANS through modifications of the same flow table exposed through OpenFlowChecks data-path flow counters to handle flow expiration and stat requests
  5. Active- backup : Only one slave in the bond is active. A different slave becomes active if, and only if, the active slave fails
  6. Forwarding layer abstraction to ease porting to new software and hardware platforms
