This document summarizes basic commands for Cisco switches in both IOS and CLI formats. It covers commands for configuration, interfaces, VLANs, trunking, VTP, and Spanning Tree Protocol. The document provides the equivalent commands for basic settings and functions across both formats to assist users in operating Cisco switches in either command line interface.

1. Sumario de Comandos
Comandos Básicos
Comandos Básico del IOS Comandos Básico CLI
Switch(config)#hostname hostname Switch> (enable) set system name name-string
Switch> (enable) set prompt name (for different
prompt)
The switch in-band management, management vlan
Switch(config)#interface vlan 1 Switch> (enable) set interface sc0 up
Switch(config-if)#ip address ip-address Switch> (enable) set interface sc0 ip-address
netmask netmask broad
Switch(config-if)#ip default-gateway Switch> (enable) set interface sc0 vlan
ipaddress (default = 1)
Switch> (enable) set ip route default gateway-
address
Ends and Exits
Switch(config-if)#end
Switch#
Switch(config-if)#exit
Switch(config)#
Switch(vlan)#end
Switch#
Session Timeout
Switch(config-line)#exec-timeout Switch> (enable) set logout minutes
minutes
Salvar configuración
Switch#copy running-config startup- {Config saved automatically}
config
Switch> (enable) write net (upload)
Switch#copy running-config tftp
Switch> (enable) configure net download)
Switch#copy tftp running-config
Switch> (enable) copy config [flash |file-id |
tftp]
Switch> (enable) copy flash [flash |file-id |
config]
Comando Show Visualización Configuración
Switch#show running-config Switch> (enable) show config [all]
Switch#show ip interface Switch> (enable) show port mod/num
Switch> (enable) show interface
Switch> (enable) show module

2. Comandos Básicos
Comandos Básico del IOS Comandos Básico CLI
Borrar configuración
Switch#erase startup-config Do Both of these:
1900 Switches: Switch> (enable) clear config all
1900-SW#(config)#delete nvram Switch> (enable) clear vtp
1900-SW#(config)#delete vtp
1900-Switch#show ip
Passwords
Set EXEC level password Set privileged level password
Switch(config)#enable password level 1 Switch> (enable) set enablepass
password
vty and con passwords
Set privileged level password
Switch> (enable) set password
Switch(config)#enable password level 15
password
vty and con passwords
Switch(config)#line vty vty-first vty-
last
Switch(config-line)#password password
Switch(config)#line con 0
Switch(config-line)#password password
Comandos de Interfaces
Switch(config)#interface fastethernet 0 Switch> (enable) set port enable mod/num (enable
Switch(config-if)#description a port or a range of ports)
description-string Switch> (enable) set port name mod/num
Switch(config-if)#speed [10 | 100 | description
auto] (Ether only) Switch> (enable) set port speed mod/num [10 |
Switch(config-if)#duplex [auto | full | 100 | auto]
half] (Ether only) Switch> (enable) set port duplex mod/num [auto
| full | half]
Comandos Show
(auto sets speed and duplex)
Switch#show ip
Comandos Show
Switch> (enable) show interface
Switch> (enable) show port name mod/num
CDP
Switch(config-if)#cdp enable Switch> (enable) set cdp {enable|disable}
mod/port
Comandos Show
Comandos Show
Switch#show cdp inteface type mod/num
Switch> (enable) show cdp neighbors [mod/port]
Switch#show cdp neighbors type mod/num [vlan |duplex |capabilities | detail]
[detail]

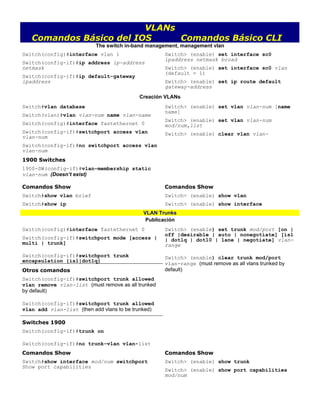

3. VLANs
Comandos Básico del IOS Comandos Básico CLI
The switch in-band management, management vlan
Switch(config)#interface vlan 1 Switch> (enable) set interface sc0
ipaddress netmask broad
Switch(config-if)#ip address ip-address
netmask Switch> (enable) set interface sc0 vlan
(default = 1)
Switch(config-if)#ip default-gateway
ipaddress Switch> (enable) set ip route default
gateway-address
Creación VLANs
Switch#vlan database Switch> (enable) set vlan vlan-num [name
name]
Switch(vlan)#vlan vlan-num name vlan-name
Switch> (enable) set vlan vlan-num
Switch(config)#interface fastethernet 0 mod/num,list
Switch(config-if)#switchport access vlan Switch> (enable) clear vlan vlan-
vlan-num
Switch(config-if)#no switchport access vlan
vlan-num
1900 Switches
1900-SW(config-if)#vlan-membership static
vlan-num (Doesn’t exist)
Comandos Show Comandos Show
Switch#show vlan brief Switch> (enable) show vlan
Switch#show ip Switch> (enable) show interface
VLAN Trunks
Publicación
Switch(config)#interface fastethernet 0 Switch> (enable) set trunk mod/port [on |
off |desirable | auto | nonegotiate] [isl
Switch(config-if)#switchport mode [access | | dot1q | dot10 | lane | negotiate] vlan-
multi | trunk] range
Switch(config-if)#switchport trunk Switch> (enable) clear trunk mod/port
encapsulation {isl|dot1q}
vlan-range (must remove as all vlans trunked by
Otros comandos default)
Switch(config-if)#switchport trunk allowed
vlan remove vlan-list (must remove as all trunked
by default)
Switch(config-if)#switchport trunk allowed
vlan add vlan-list (then add vlans to be trunked)
Switches 1900
Switch(config-if)#trunk on
Switch(config-if)#no trunk-vlan vlan-list
Comandos Show Comandos Show
Switch#show interface mod/num switchport Switch> (enable) show trunk
Show port capabilities
Switch> (enable) show port capabilities
mod/num

4. VLANs
Comandos Básico del IOS Comandos Básico CLI
VTP (VLAN Trunking Protocol)
Habilitación de VTP
Switch#vlan database Switch> (enable) set vtp [domain
domainname][mode {server | client |
Switch(vlan)#vtp domain domain-name transparent}] [password password]
Switch(vlan)#vtp {server | client |
transparent} Switch> (enable) set vtp v2 enable (version
Switch(vlan)#vtp password password
Switch(vlan)#vtp v2-mode (version2)
VTP Pruning
Switch(vlan)#vtp pruning Switch> (enable) set vtp pruning enable
Switch> (enable) set vtp pruneeligible
Switch(config-if)#switchport trunk pruning vlan-range
vlan remove vlan-list (remove vlans from pruning)
Switch> (enable) clear vtp pruning
vlanrange
Comandos Show Comandos Show
Switch#show vtp Switch> (enable) show vtp domain
Switch#show vtp status Switch> (enable) show vtp statistics
Switch#show vtp counters Switch> (enable) show vlan
Spanning Tree Protocol
Comandos Básico del IOS Comandos Básico CLI
Habilitación de Spanning Tree (Habilitado por Omisión)
Switch(config)#spantree vlan-list Switch> (enable) set spantree enable [all |
mod/num]
(Enabled by default)
Otros comandos de configuración
Bridge Priority Bridge Priority
Switch(config)#spanning-tree [vlan Switch> (enable) set spantree priority
vlanlist] priority prty priority vlan (Lower wins, Priority default = 32,768)
Port Cost Port Cost
Switch> (enable) set spantree portcost
Switch(config-if)#spanning-tree [vlan vlan-list] mod/num cost (Lower wins)
cost cost
Switch> (enable) set spantree portvlancost
mod/num [cost cost] [vlanlist]

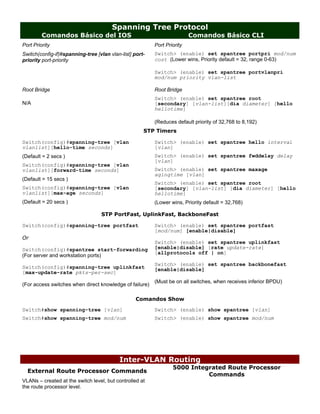

5. Spanning Tree Protocol
Comandos Básico del IOS Comandos Básico CLI
Port Priority Port Priority
Switch(config-if)#spanning-tree [vlan vlan-list] port- Switch> (enable) set spantree portpri mod/num
priority port-priority cost (Lower wins, Priority default = 32, range 0-63)
Switch> (enable) set spantree portvlanpri
mod/num priority vlan-list
Root Bridge Root Bridge
Switch> (enable) set spantree root
N/A [secondary] [vlan-list][dia diameter] [hello
hellotime]
(Reduces default priority of 32,768 to 8,192)
STP Timers
Switch(config)#spanning-tree [vlan Switch> (enable) set spantree hello interval
vlanlist][hello-time seconds] [vlan]
(Default = 2 secs ) Switch> (enable) set spantree fwddelay delay
[vlan]
Switch(config)#spanning-tree [vlan
vlanlist][forward-time seconds] Switch> (enable) set spantree maxage
agingtime [vlan]
(Default = 15 secs )
Switch> (enable) set spantree root
Switch(config)#spanning-tree [vlan [secondary] [vlan-list] [dia diameter] [hello
vlanlist][max-age seconds] hellotime]
(Default = 20 secs ) (Lower wins, Priority default = 32,768)
STP PortFast, UplinkFast, BackboneFast
Switch(config)#spanning-tree portfast Switch> (enable) set spantree portfast
[mod/num] [enable|disable]
Or
Switch> (enable) set spantree uplinkfast
Switch(config)#spantree start-forwarding [enable|disable] [rate update-rate]
[allprotocols off | on]
(For server and workstation ports)
Switch> (enable) set spantree backbonefast
Switch(config)#spanning-tree uplinkfast [enable|disable]
[max-update-rate pkts-per-sec]
(Must be on all switches, when receives inferior BPDU)
(For access switches when direct knowledge of failure)
Comandos Show
Switch#show spanning-tree [vlan] Switch> (enable) show spantree [vlan]
Switch#show spanning-tree mod/num Switch> (enable) show spantree mod/num
Inter-VLAN Routing
5000 Integrated Route Processor
External Route Processor Commands
Commands
VLANs – created at the switch level, but controlled at
the route processor level.

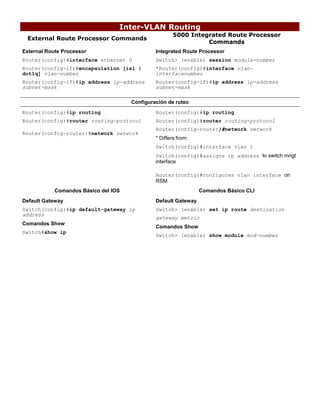

6. Inter-VLAN Routing
5000 Integrated Route Processor
External Route Processor Commands
Commands
External Route Processor Integrated Route Processor
Router(config)#interface ethernet 0 Switch> (enable) session module-number
Router(config-if)#encapsulation [isl | *Router(config)#interface vlan-
dot1q] vlan-number interfacenumber
Router(config-if)#ip address ip-address Router(config-if)#ip address ip-address
subnet-mask subnet-mask
Configuración de ruteo
Router(config)#ip routing Router(config)#ip routing
Router(config)#router routing-protocol Router(config)#router routing-protocol
Router(config-router)#network network
Router(config-router)#network network
* Differs from:
Switch(config)#interface vlan 1
Switch(config)#assigns ip address to switch mngt
interface
Router(config)#configures vlan interface on
RSM
Comandos Básico del IOS Comandos Básico CLI
Default Gateway Default Gateway
Switch(config)#ip default-gateway ip Switch> (enable) set ip route destination
address
gateway metric
Comandos Show
Comandos Show
Switch#show ip
Switch> (enable) show module mod-number
