Ccnp presentation [Day 1-3] Class

CCNP
ENTERPRISE
ENCOR &
ENARSI -
2020
TRAINER: SAGAR
Sagar || www.NetworkJourney.com || Youtube.com/c/NetworkJourney || Whatsapp: https://wa.me/919739521088 16/04/20 1
www.youtube.com/c/NetworkJourney

ABOUT TRAINER: SAGAR
• Working as Network & Security Level III Engineer for MNC
• Total Work Experience 10+ Years
• Expertise in:
• Routing & Switching
• Security
• Datacenter
• Network Automation
• Active on social media and have YouTube channel with
close to 100 free videos.
• Corporate Trainer
16/04/20
SAGAR || WWW.NETWORKJOURNEY.COM || YOUTUBE.COM/C/NETWORKJOURNEY || WHATSAPP:
HTTPS://WA.ME/919739521088 2

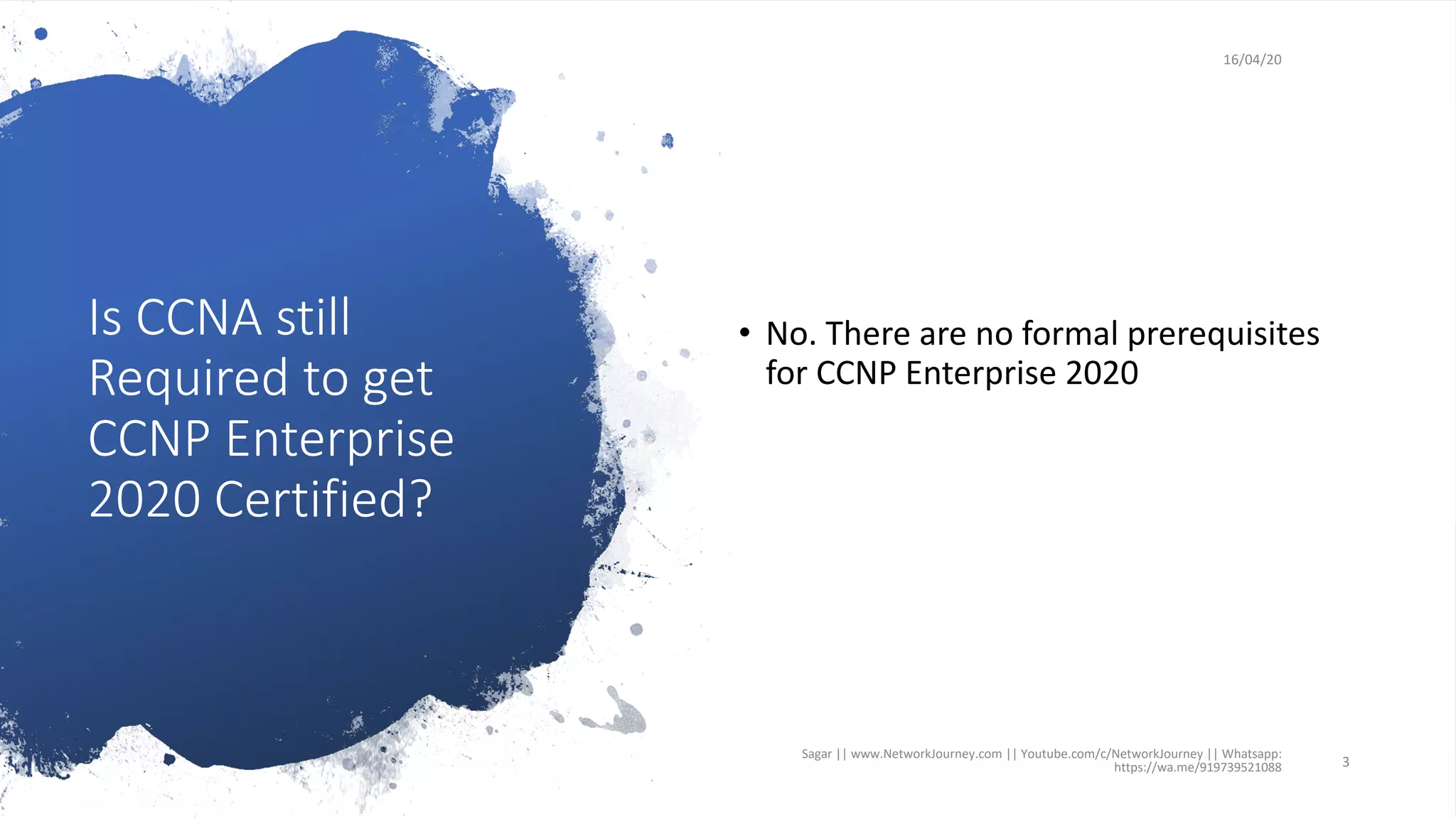

Is CCNA still
Required to get
CCNP Enterprise
2020 Certified?
16/04/20
• No. There are no formal prerequisites
for CCNP Enterprise 2020
Sagar || www.NetworkJourney.com || Youtube.com/c/NetworkJourney || Whatsapp:
https://wa.me/919739521088 3

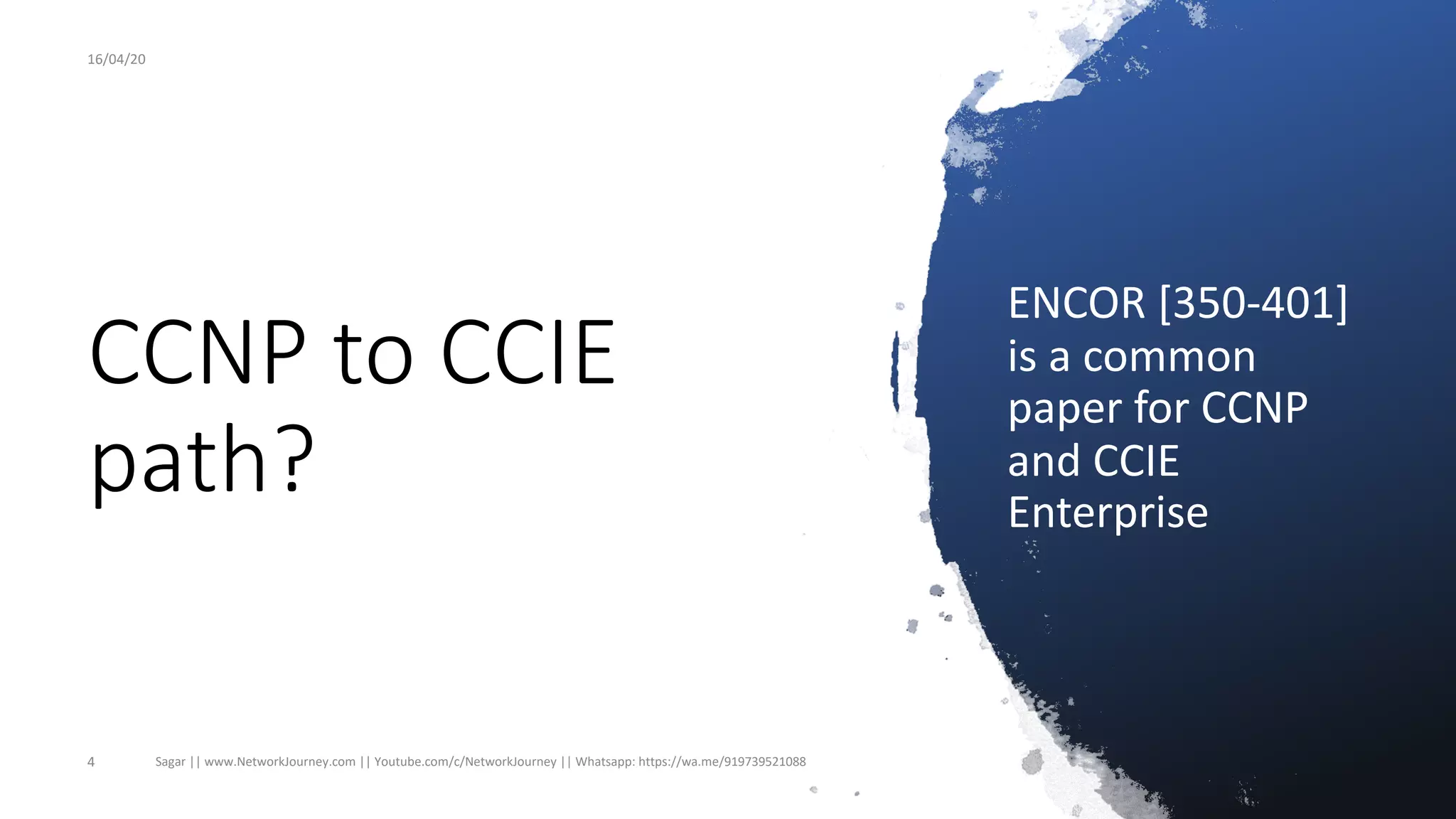

CCNP to CCIE
path?
ENCOR [350-401]
is a common
paper for CCNP
and CCIE
Enterprise
16/04/20
Sagar || www.NetworkJourney.com || Youtube.com/c/NetworkJourney || Whatsapp: https://wa.me/9197395210884

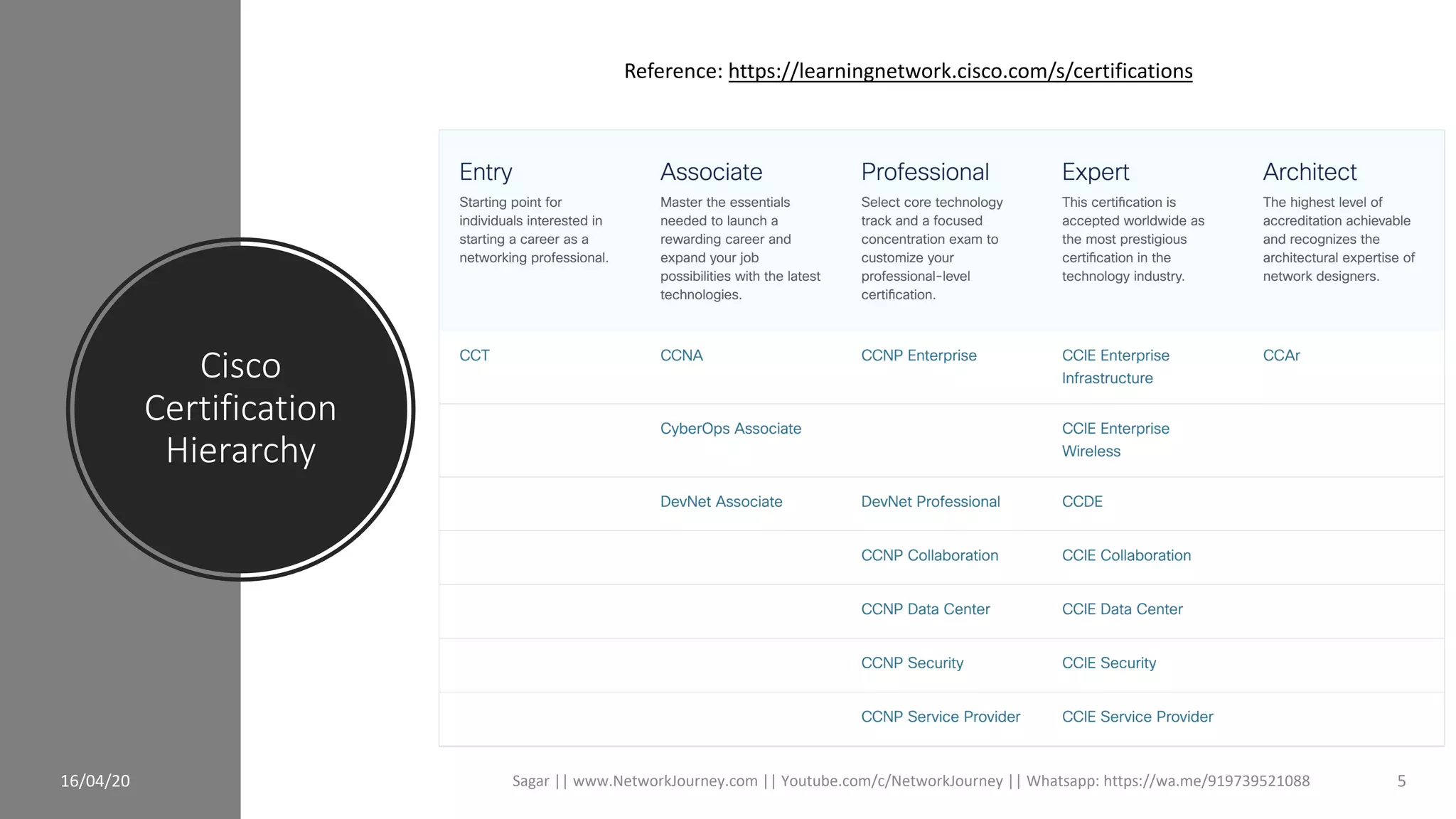

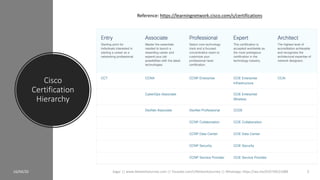

Cisco
Certification
Hierarchy
16/04/20 Sagar || www.NetworkJourney.com || Youtube.com/c/NetworkJourney || Whatsapp: https://wa.me/919739521088 5
Reference: https://learningnetwork.cisco.com/s/certifications

CCNP SYLLABUS DISCUSSION
16/04/20
Sagar || www.NetworkJourney.com || Youtube.com/c/NetworkJourney
|| Whatsapp: https://wa.me/919739521088 6

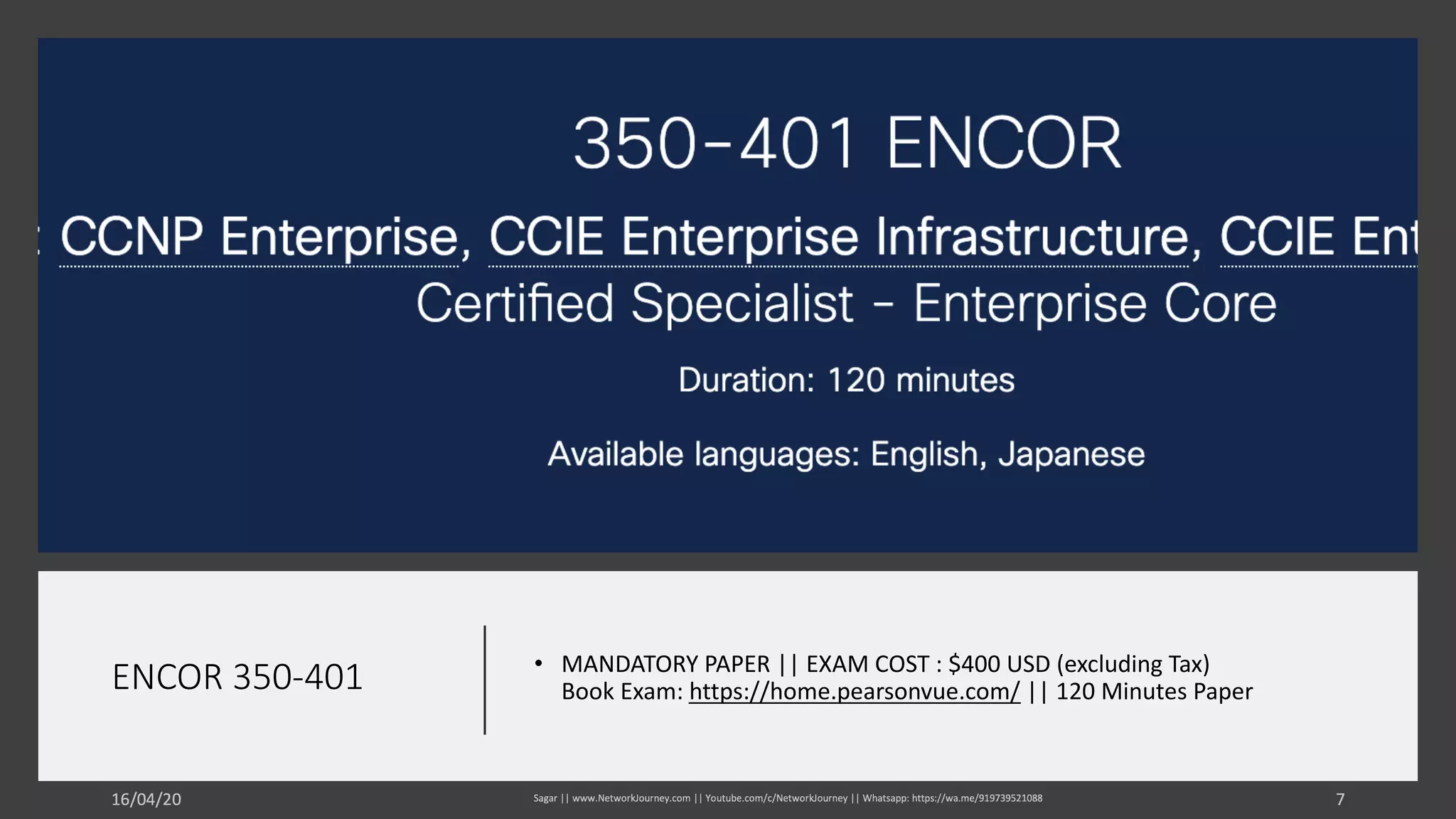

ENCOR 350-401 • MANDATORY PAPER || EXAM COST : $400 USD (excluding Tax)
Book Exam: https://home.pearsonvue.com/ || 120 Minutes Paper

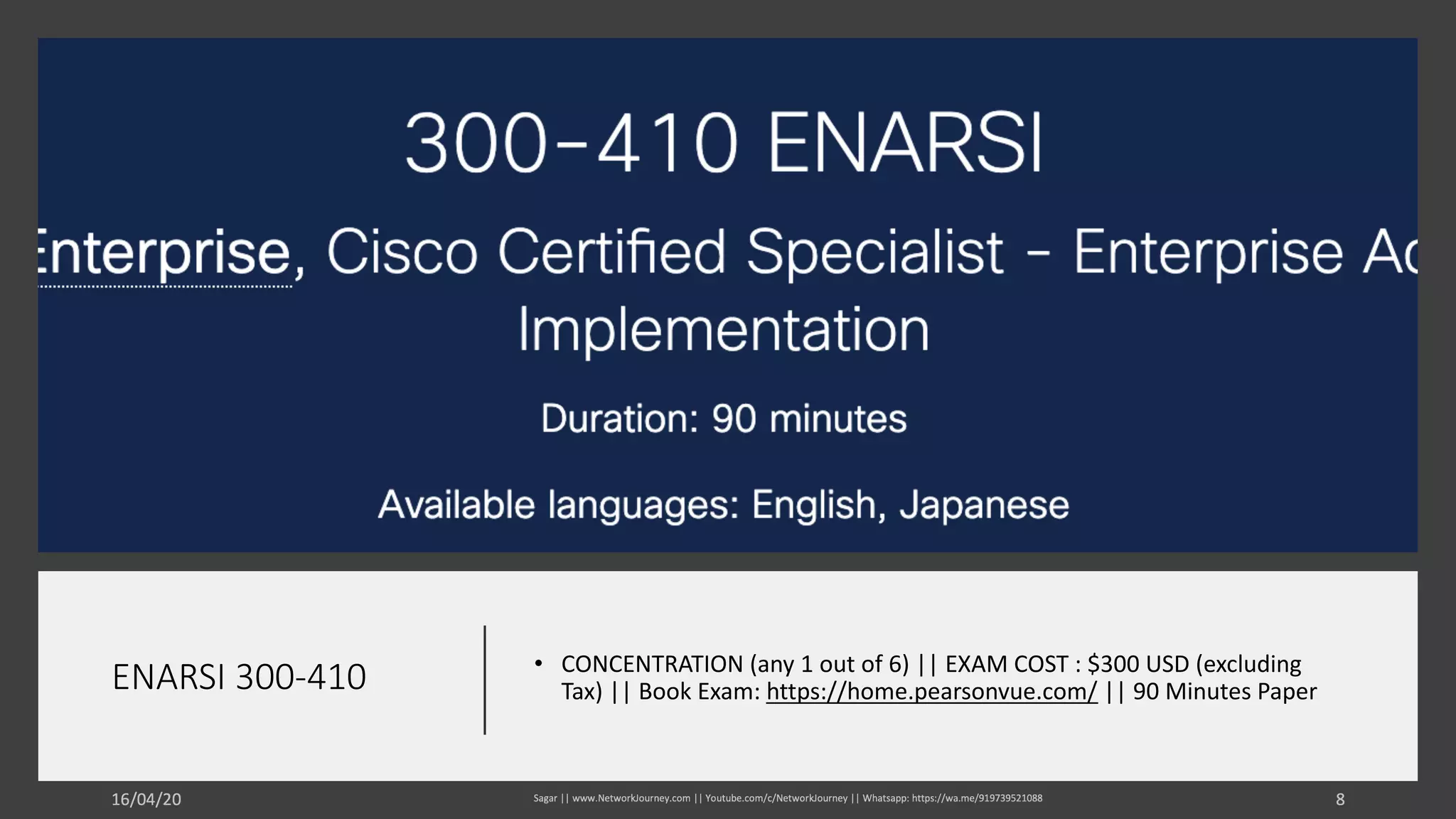

ENARSI 300-410 • CONCENTRATION (any 1 out of 6) || EXAM COST : $300 USD (excluding
Tax) || Book Exam: https://home.pearsonvue.com/ || 90 Minutes Paper

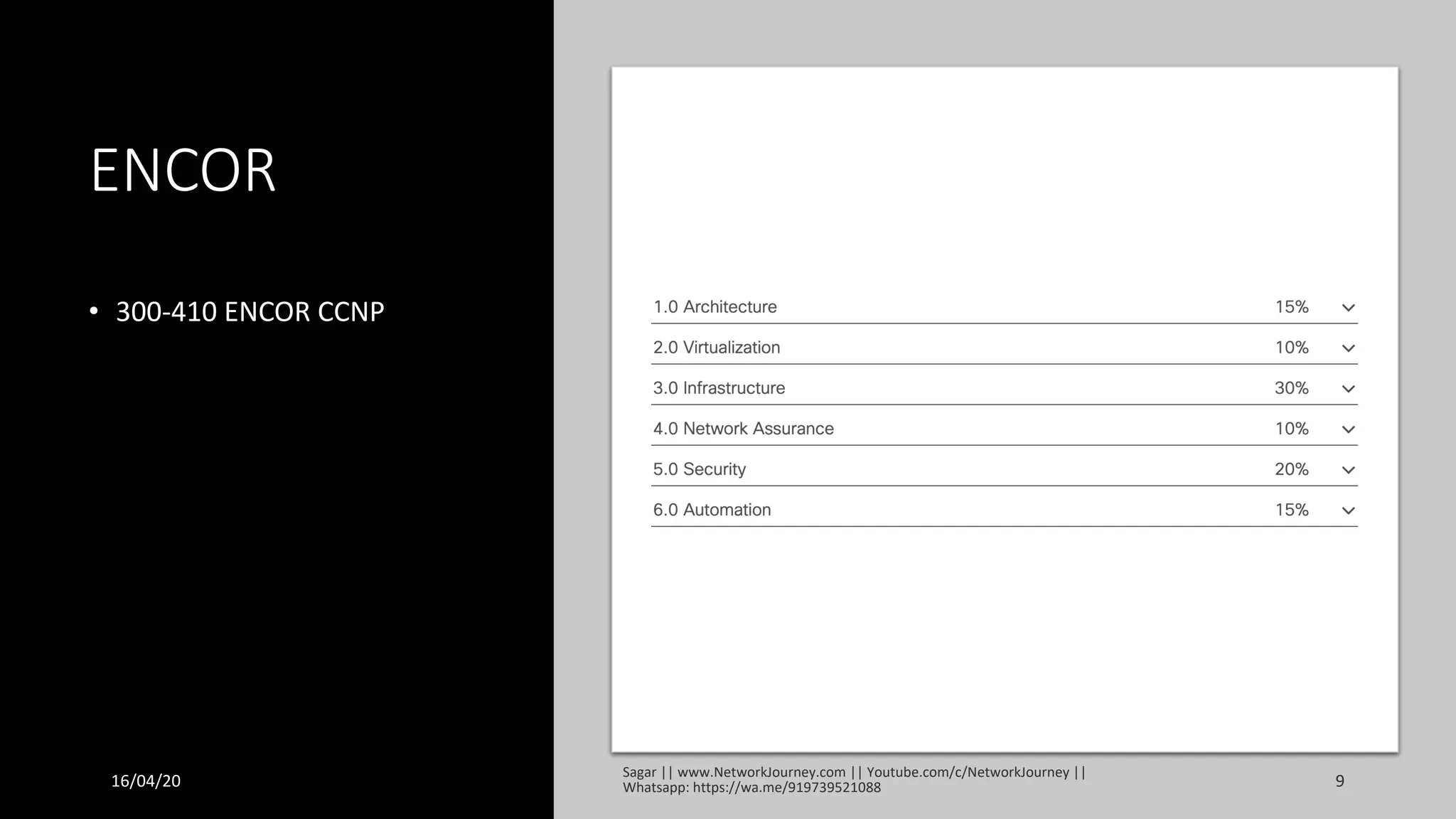

ENCOR
• 300-410 ENCOR CCNP
16/04/20
Sagar || www.NetworkJourney.com || Youtube.com/c/NetworkJourney ||
Whatsapp: https://wa.me/919739521088 9

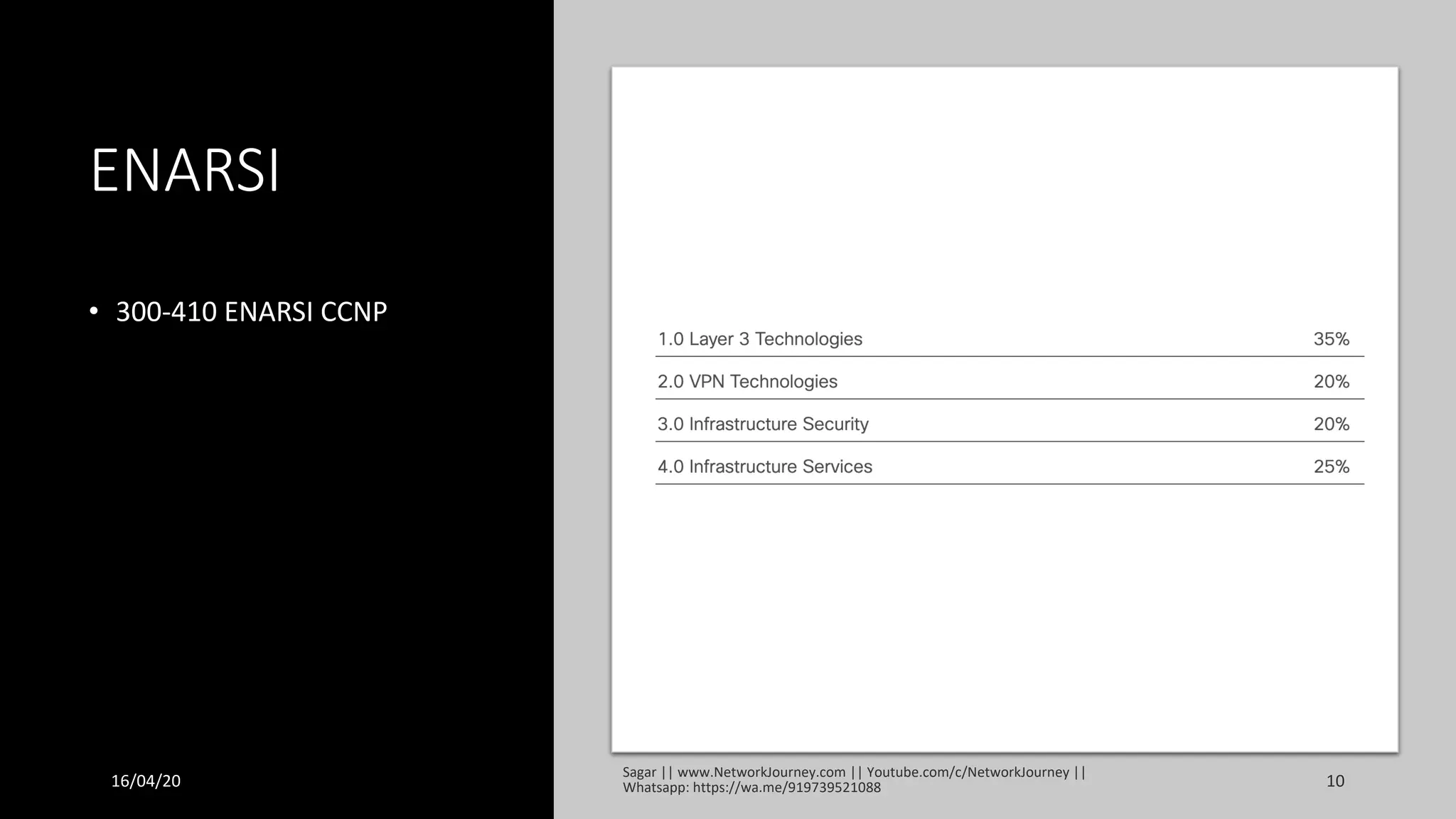

ENARSI
• 300-410 ENARSI CCNP
16/04/20
Sagar || www.NetworkJourney.com || Youtube.com/c/NetworkJourney ||
Whatsapp: https://wa.me/919739521088 10

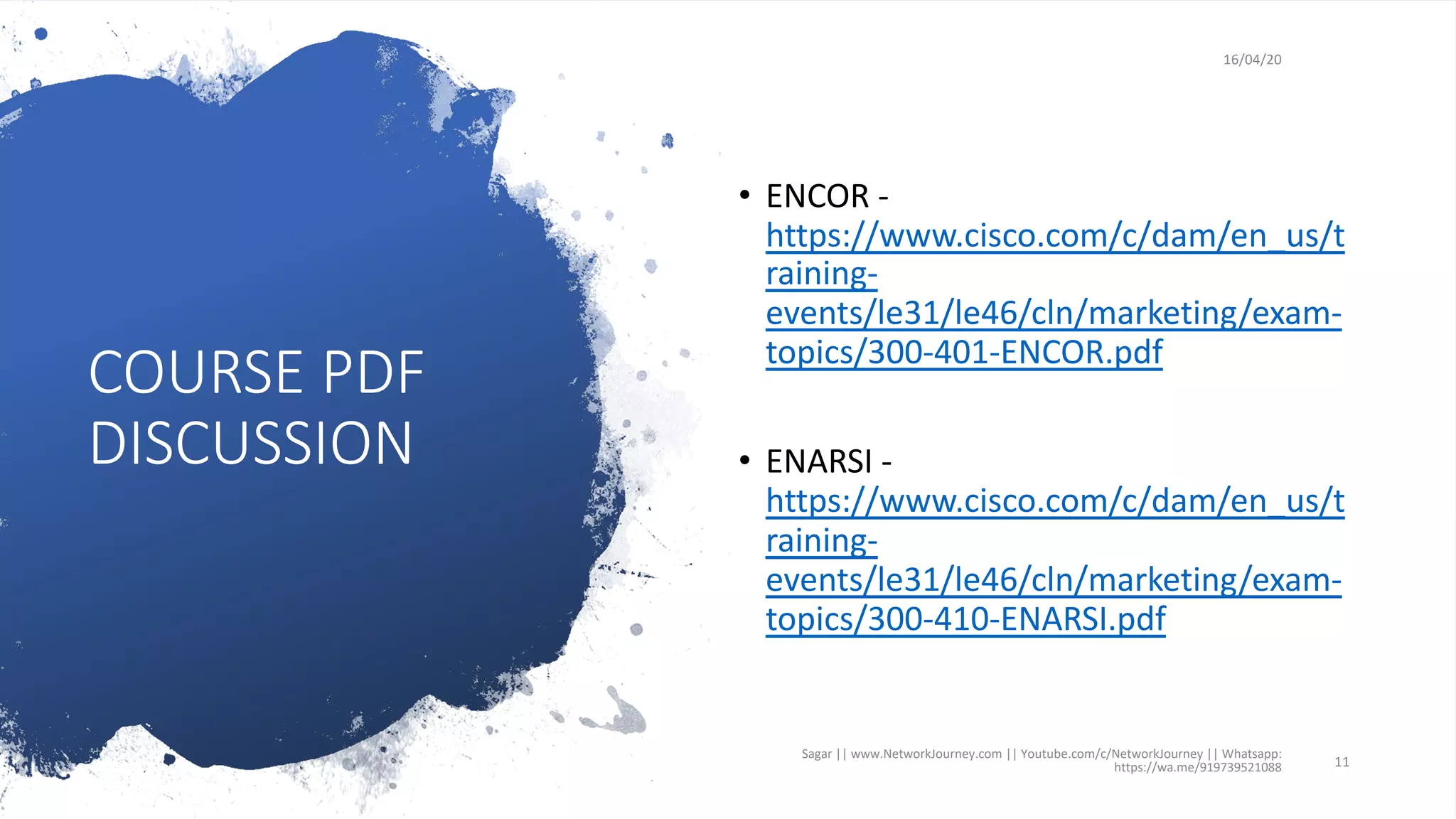

COURSE PDF
DISCUSSION
16/04/20
• ENCOR -
https://www.cisco.com/c/dam/en_us/t
raining-
events/le31/le46/cln/marketing/exam-
topics/300-401-ENCOR.pdf
• ENARSI -
https://www.cisco.com/c/dam/en_us/t
raining-
events/le31/le46/cln/marketing/exam-
topics/300-410-ENARSI.pdf
https://wa.me/919739521088 11

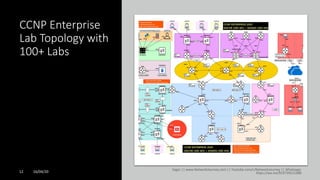

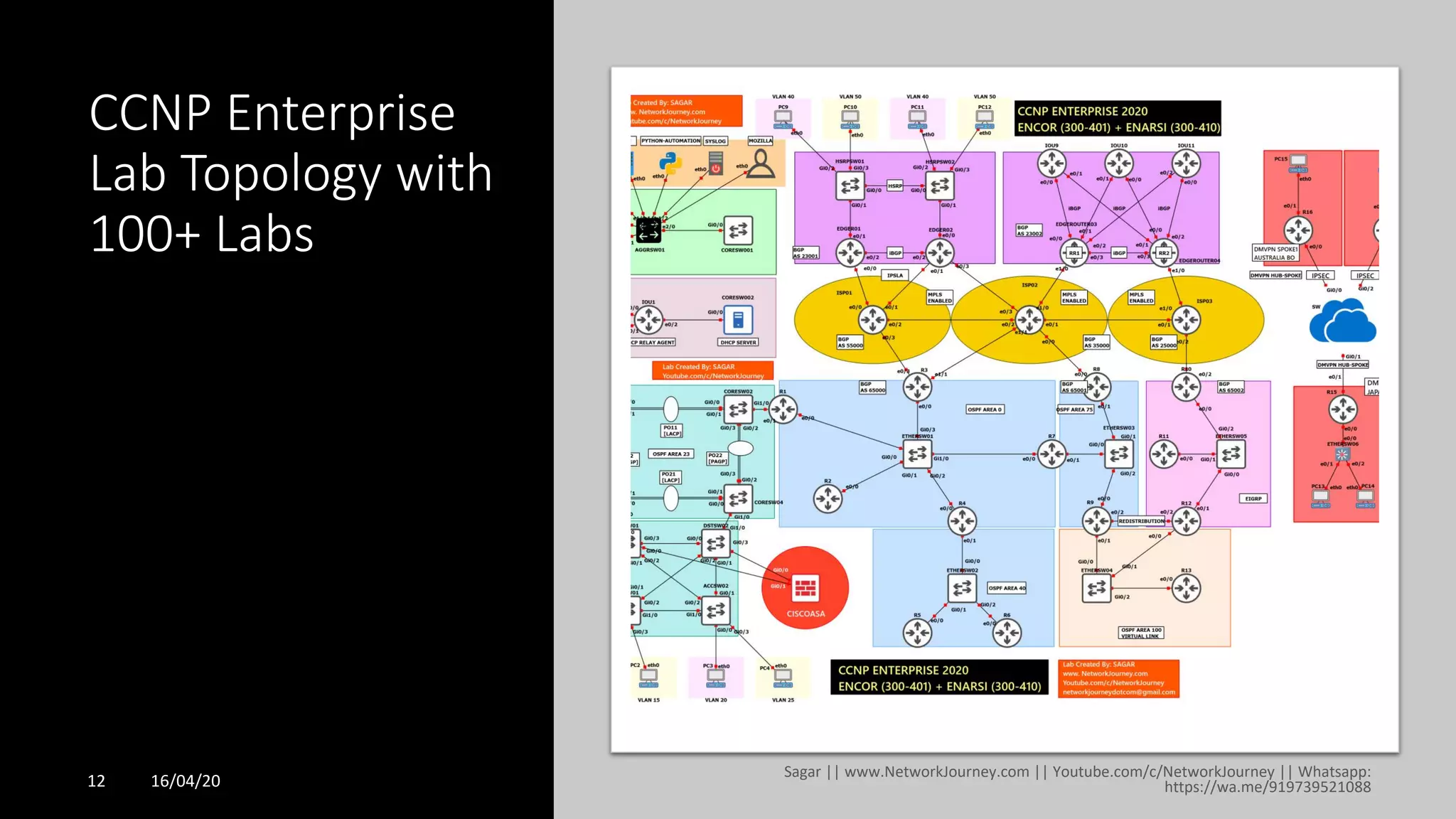

CCNP Enterprise
Lab Topology with
100+ Labs
12 16/04/20
https://wa.me/919739521088

Q&A
Author: Sagar
www.networkjourney.com
Youtube.com/c/NetworkJourney
16/04/20
Sagar || www.NetworkJourney.com ||
Youtube.com/c/NetworkJourney || Whatsapp:
https://wa.me/919739521088
Whatsapp:
https://wa.me/919739521088

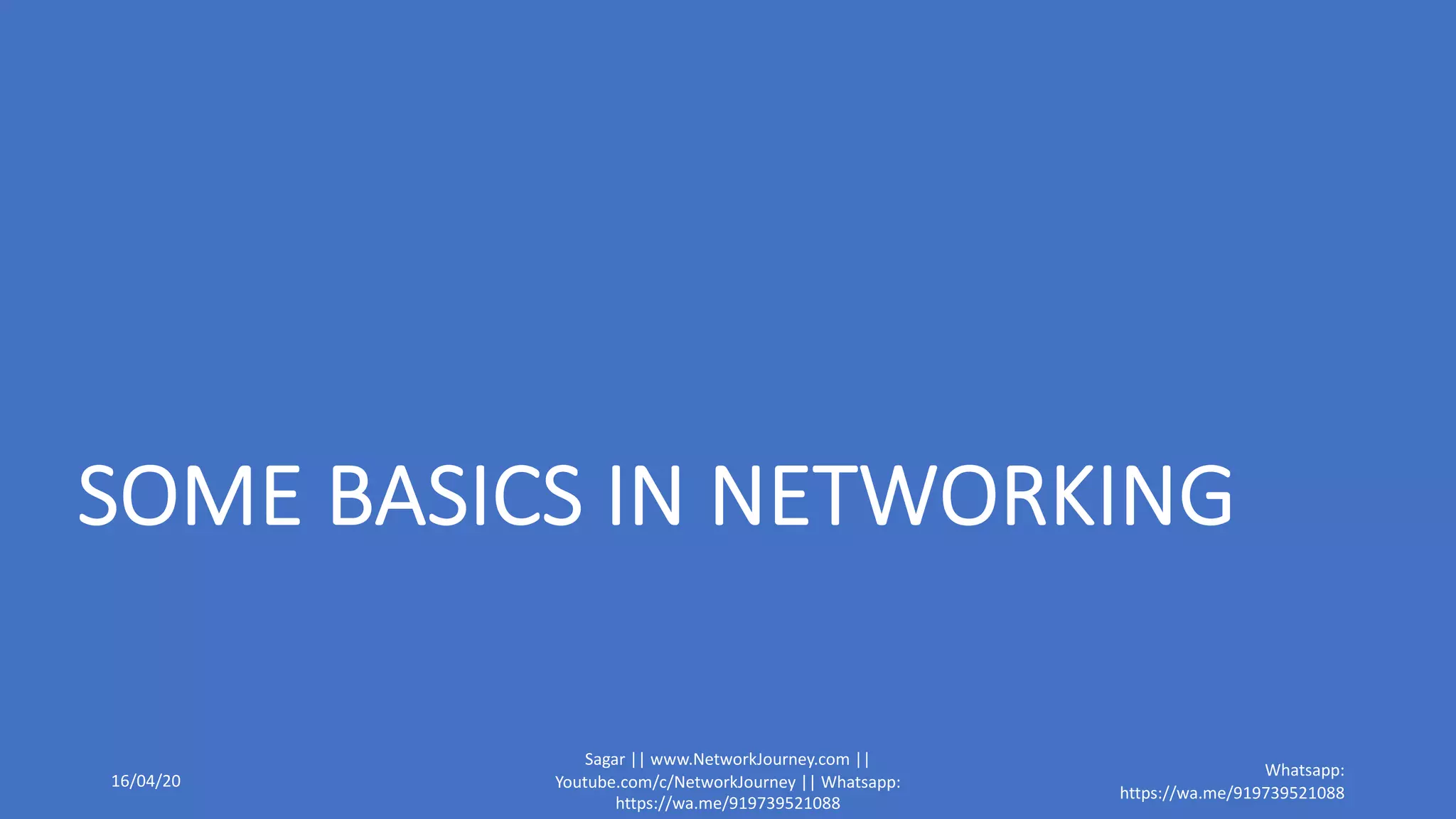

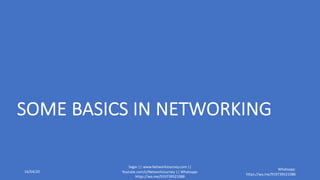

SOME BASICS IN NETWORKING
16/04/20
https://wa.me/919739521088
Whatsapp:
https://wa.me/919739521088

16/04/20
https://wa.me/919739521088
Whatsapp:
https://wa.me/919739521088

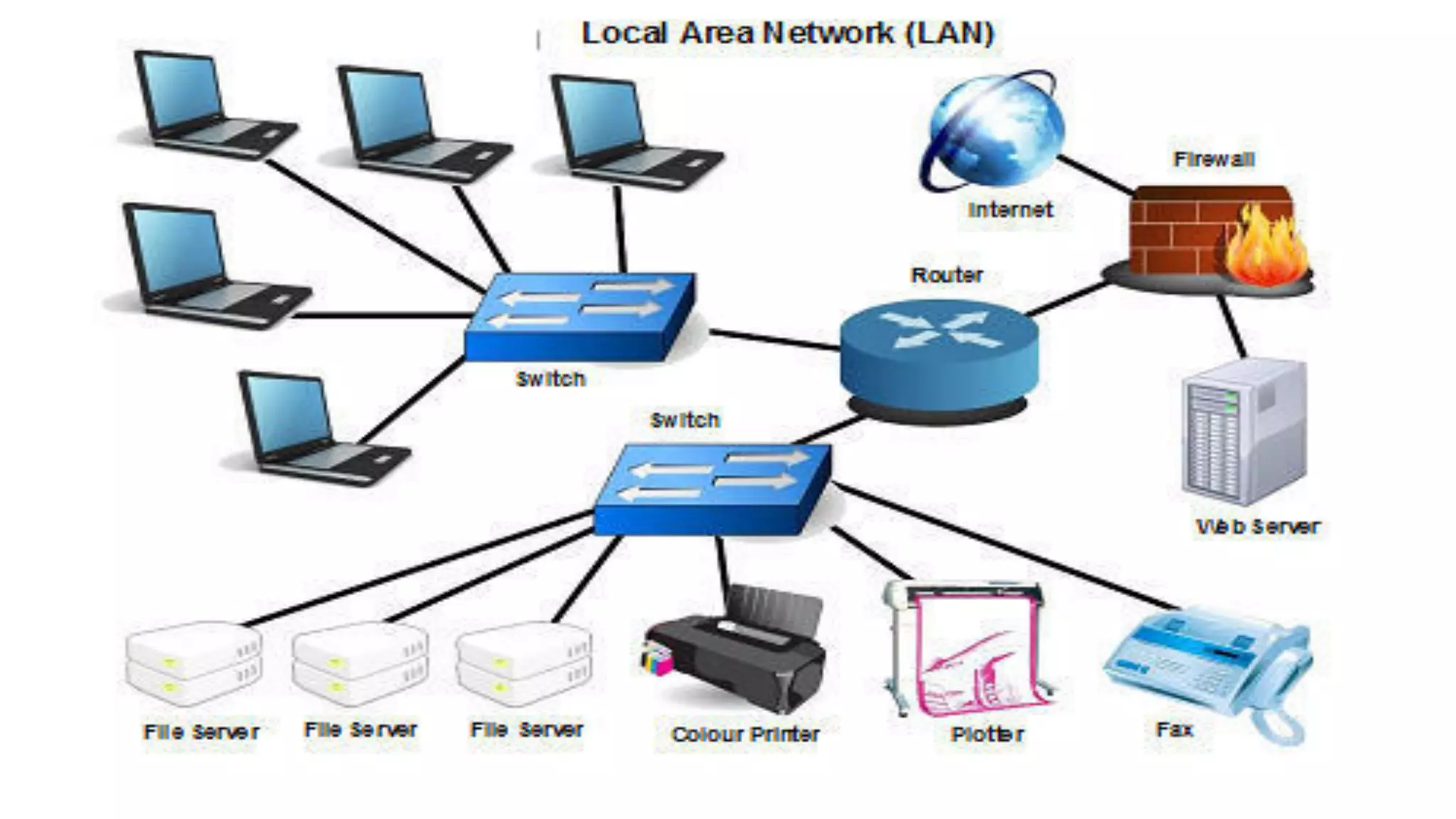

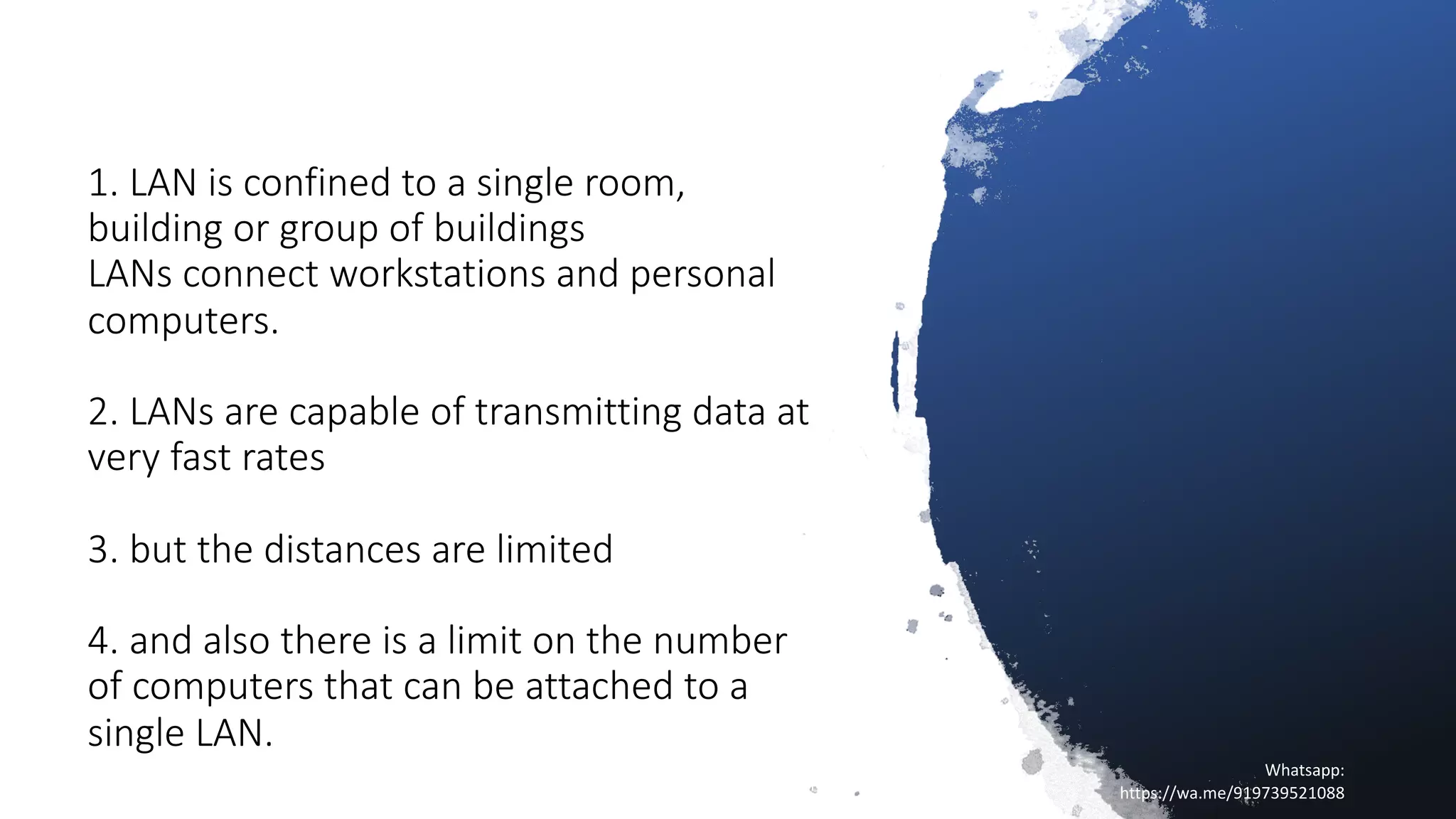

1. LAN is confined to a single room,
building or group of buildings
LANs connect workstations and personal
computers.
2. LANs are capable of transmitting data at
very fast rates
3. but the distances are limited
4. and also there is a limit on the number
of computers that can be attached to a
single LAN.
16/04/20
https://wa.me/919739521088
Whatsapp:
https://wa.me/919739521088

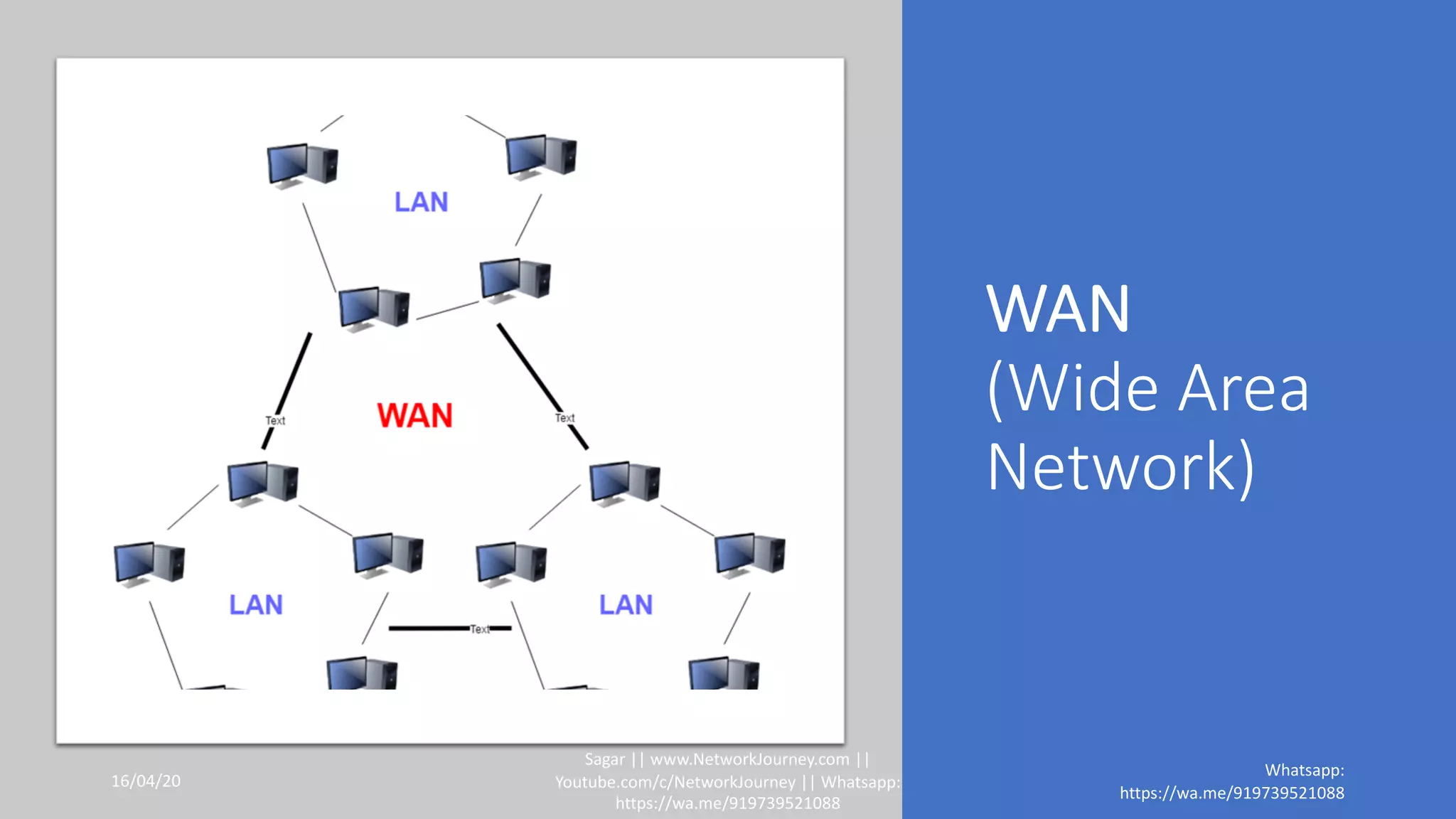

WAN
(Wide Area
Network)
16/04/20
https://wa.me/919739521088
Whatsapp:
https://wa.me/919739521088

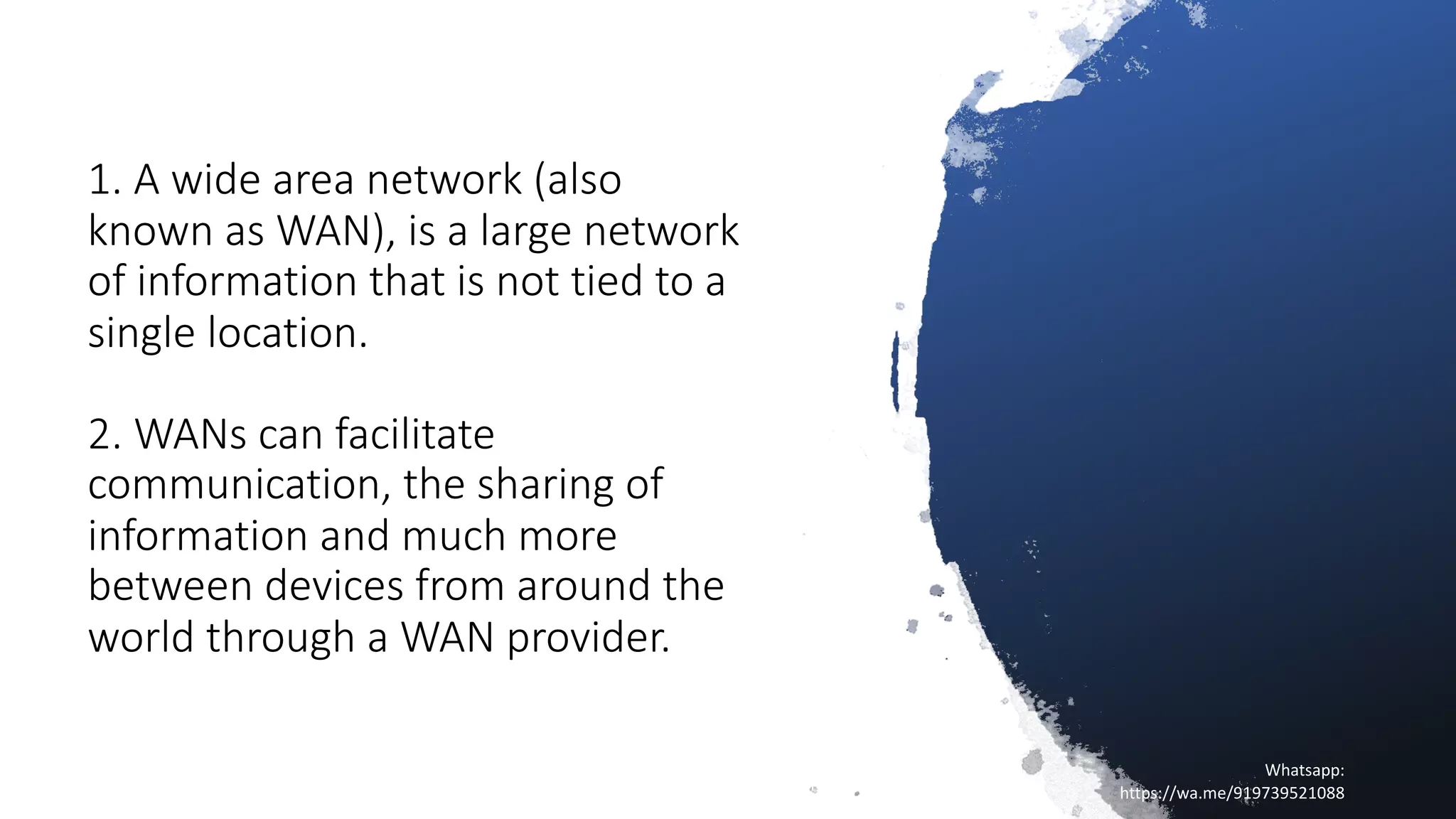

1. A wide area network (also
known as WAN), is a large network
of information that is not tied to a
single location.
2. WANs can facilitate
communication, the sharing of
information and much more
between devices from around the
world through a WAN provider.
16/04/20
https://wa.me/919739521088
Whatsapp:
https://wa.me/919739521088

HOW ARE WE ALL
CONNECTED
GLOBALLY?
16/04/20
https://wa.me/919739521088
Whatsapp:
https://wa.me/919739521088

www.submarinecablemap.com
16/04/20
https://wa.me/919739521088
Whatsapp:
https://wa.me/919739521088

CONNECTION MEDIUMS
16/04/20
https://wa.me/919739521088
Whatsapp:
https://wa.me/919739521088

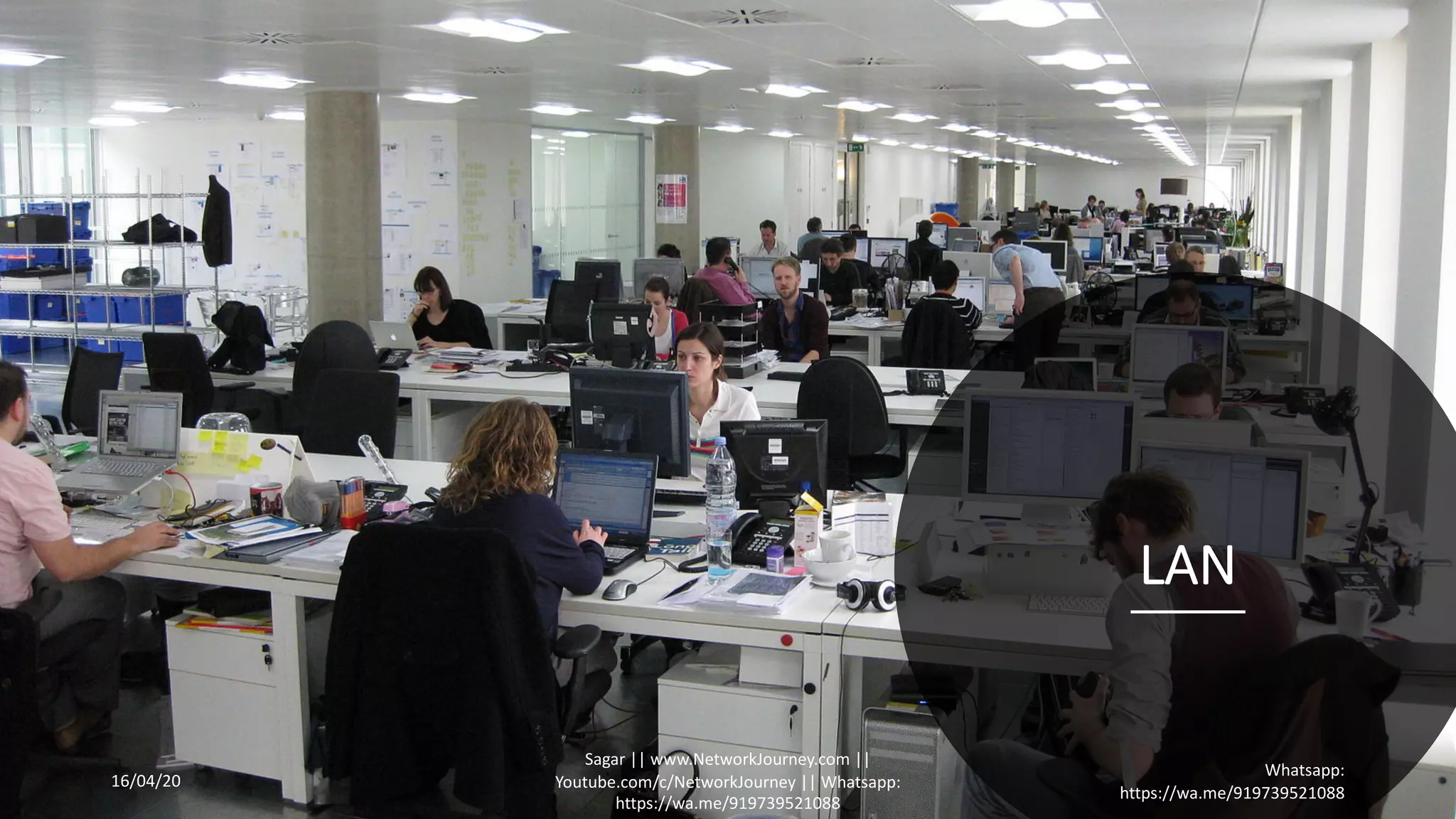

LAN
16/04/20
https://wa.me/919739521088
Whatsapp:
https://wa.me/919739521088

WAN
16/04/20
https://wa.me/919739521088
Whatsapp:
https://wa.me/919739521088

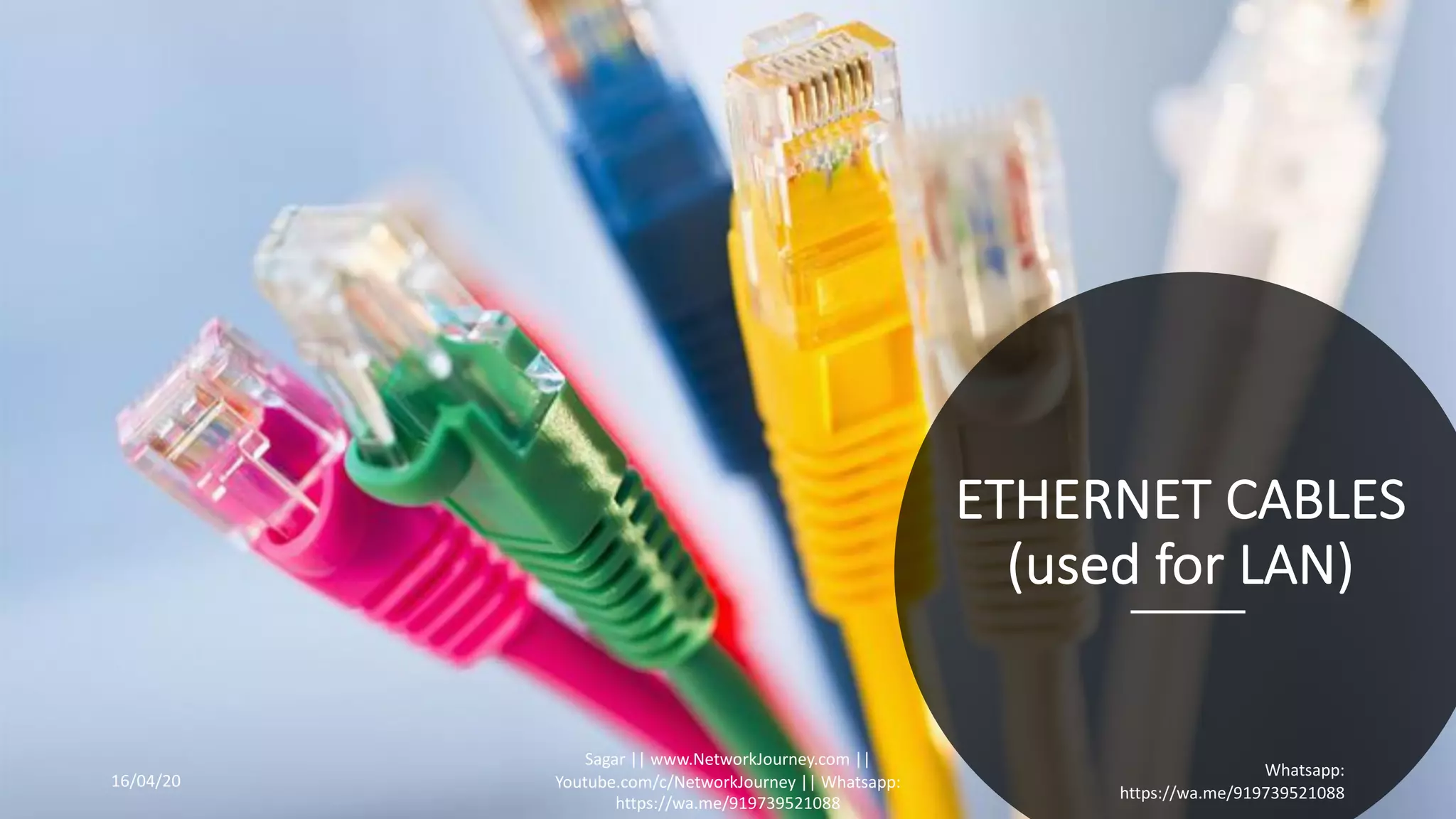

ETHERNET CABLES
(used for LAN)
16/04/20
https://wa.me/919739521088
Whatsapp:
https://wa.me/919739521088

OPTICAL CABLES
(used in WAN)
16/04/20
https://wa.me/919739521088
Whatsapp:
https://wa.me/919739521088

NETWORK COMPONENTS
16/04/20
https://wa.me/919739521088
Whatsapp:
https://wa.me/919739521088

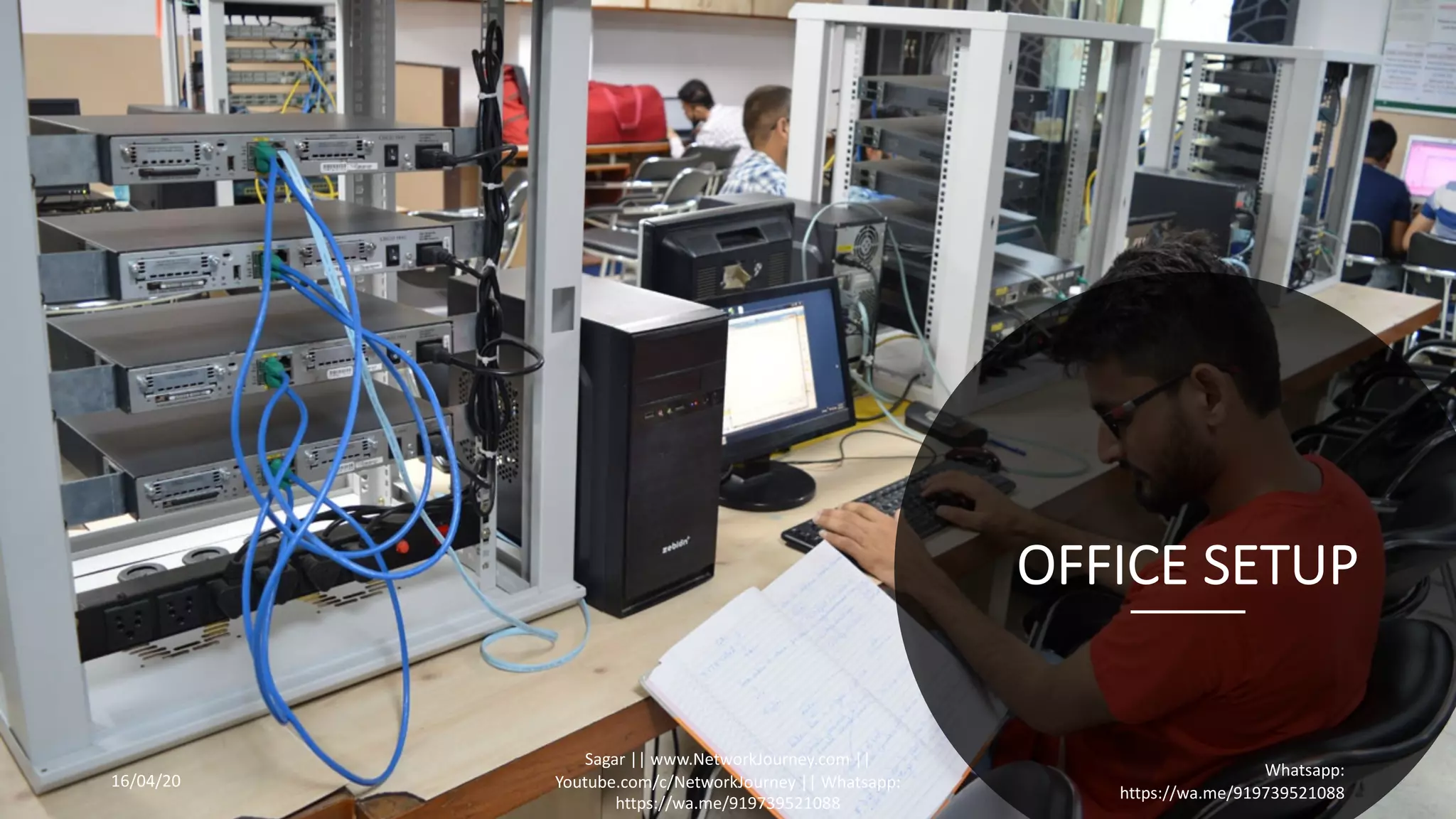

OFFICE SETUP
16/04/20
https://wa.me/919739521088
Whatsapp:
https://wa.me/919739521088

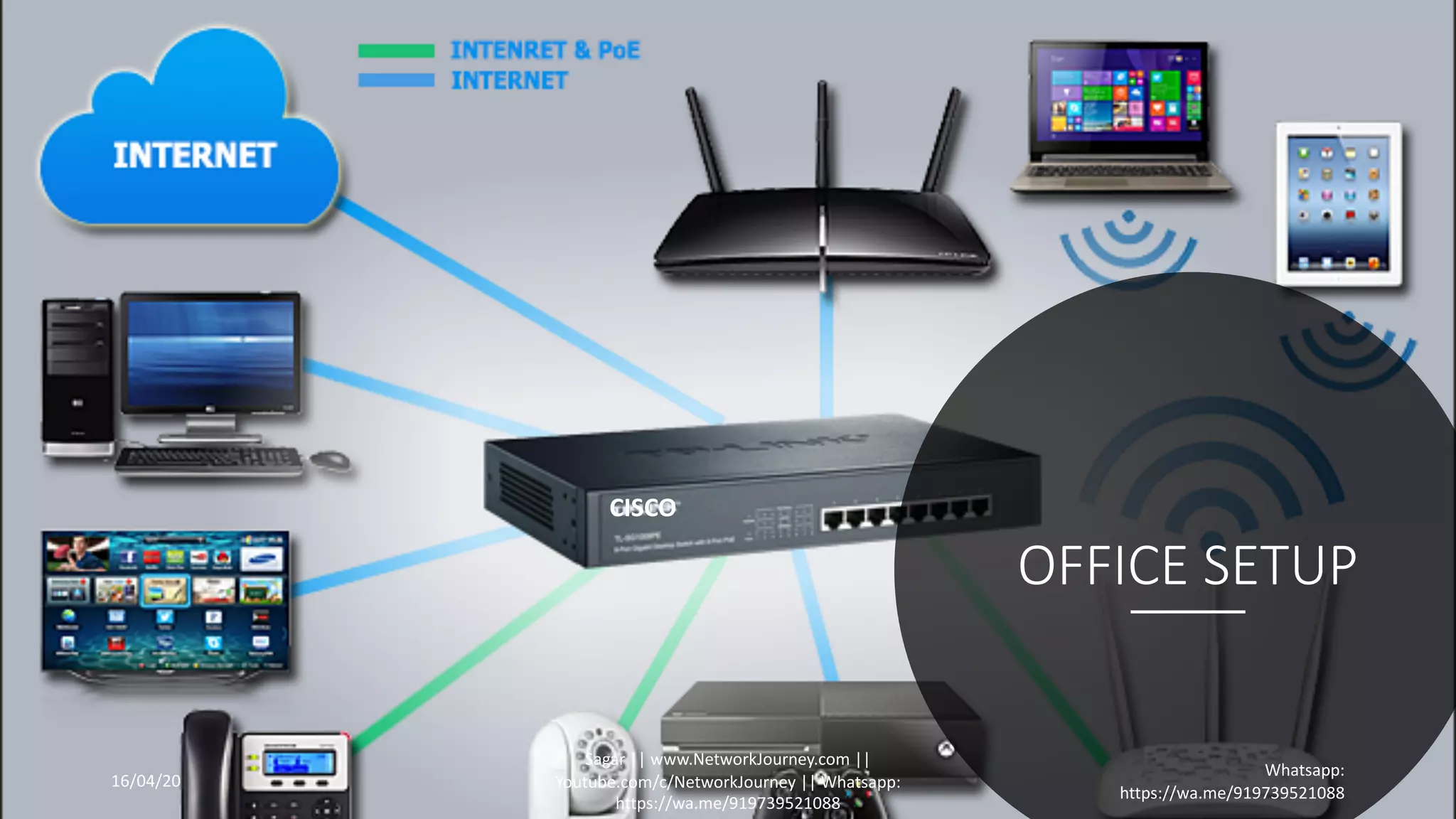

OFFICE SETUP
CISCO
16/04/20
https://wa.me/919739521088
Whatsapp:
https://wa.me/919739521088

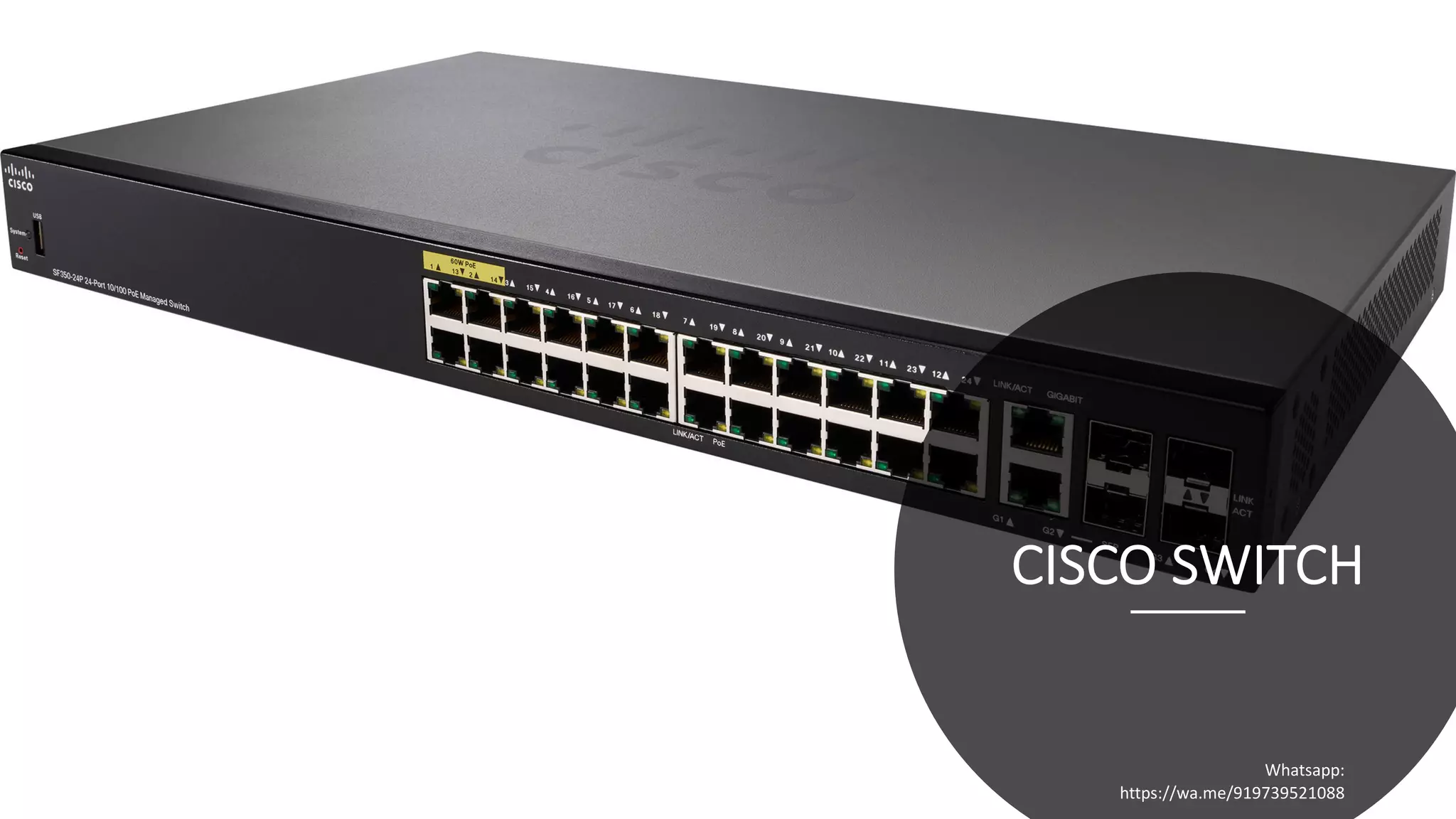

CISCO SWITCH
16/04/20
https://wa.me/919739521088
Whatsapp:
https://wa.me/919739521088

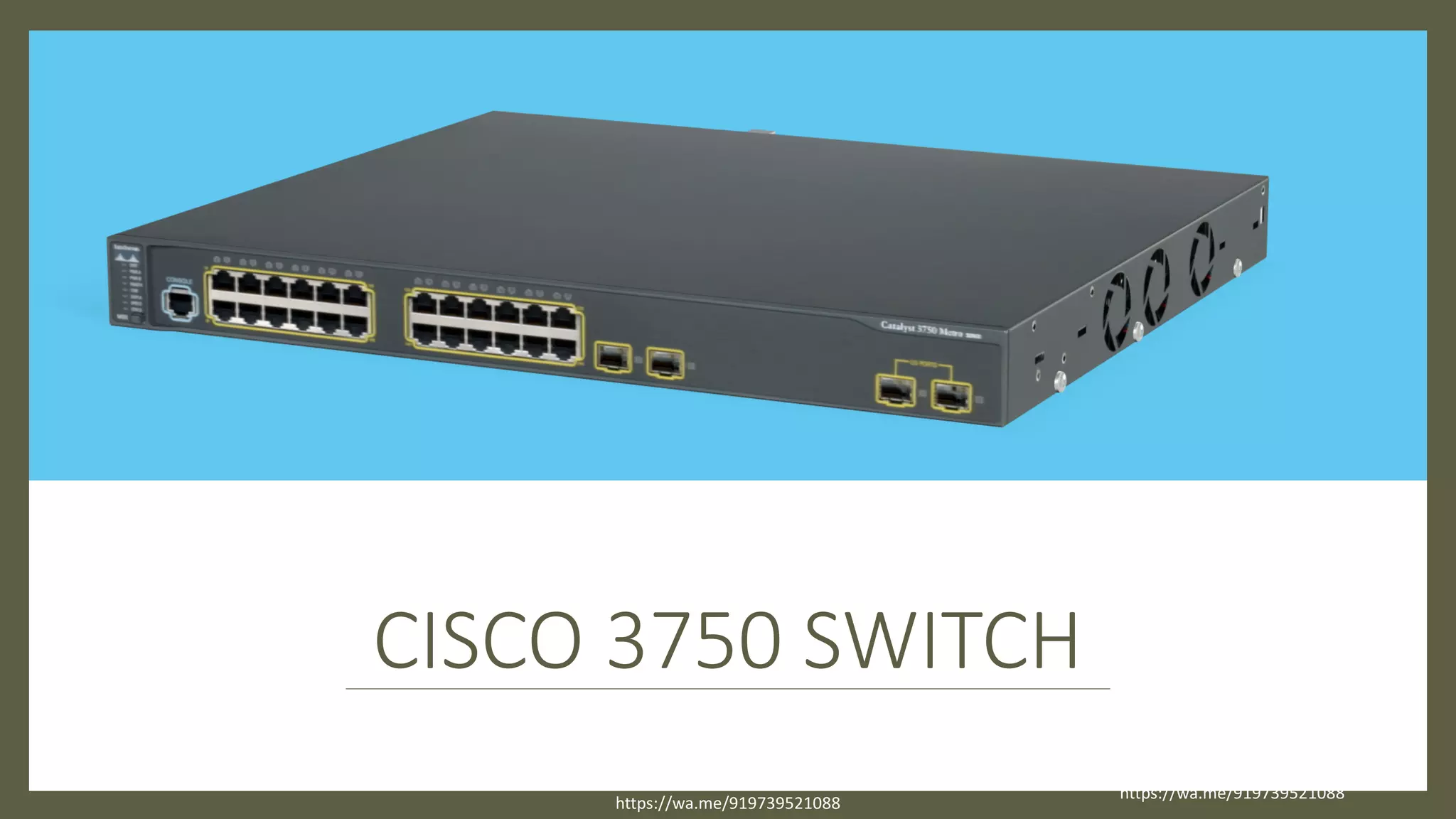

CISCO 3750 SWITCH
16/04/20
https://wa.me/919739521088
Whatsapp:
https://wa.me/919739521088

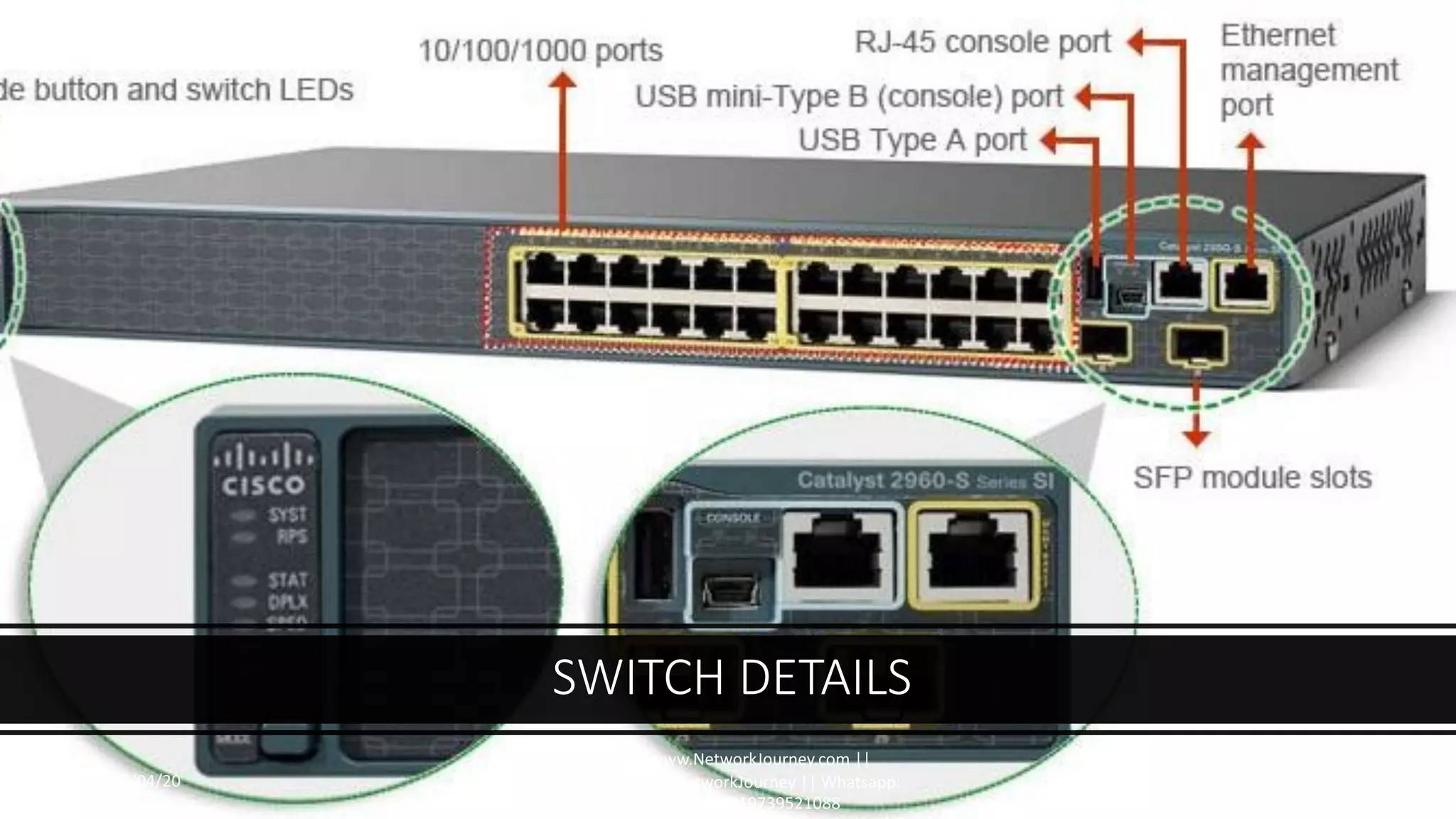

SWITCH DETAILS
16/04/20
https://wa.me/919739521088
Whatsapp:
https://wa.me/919739521088

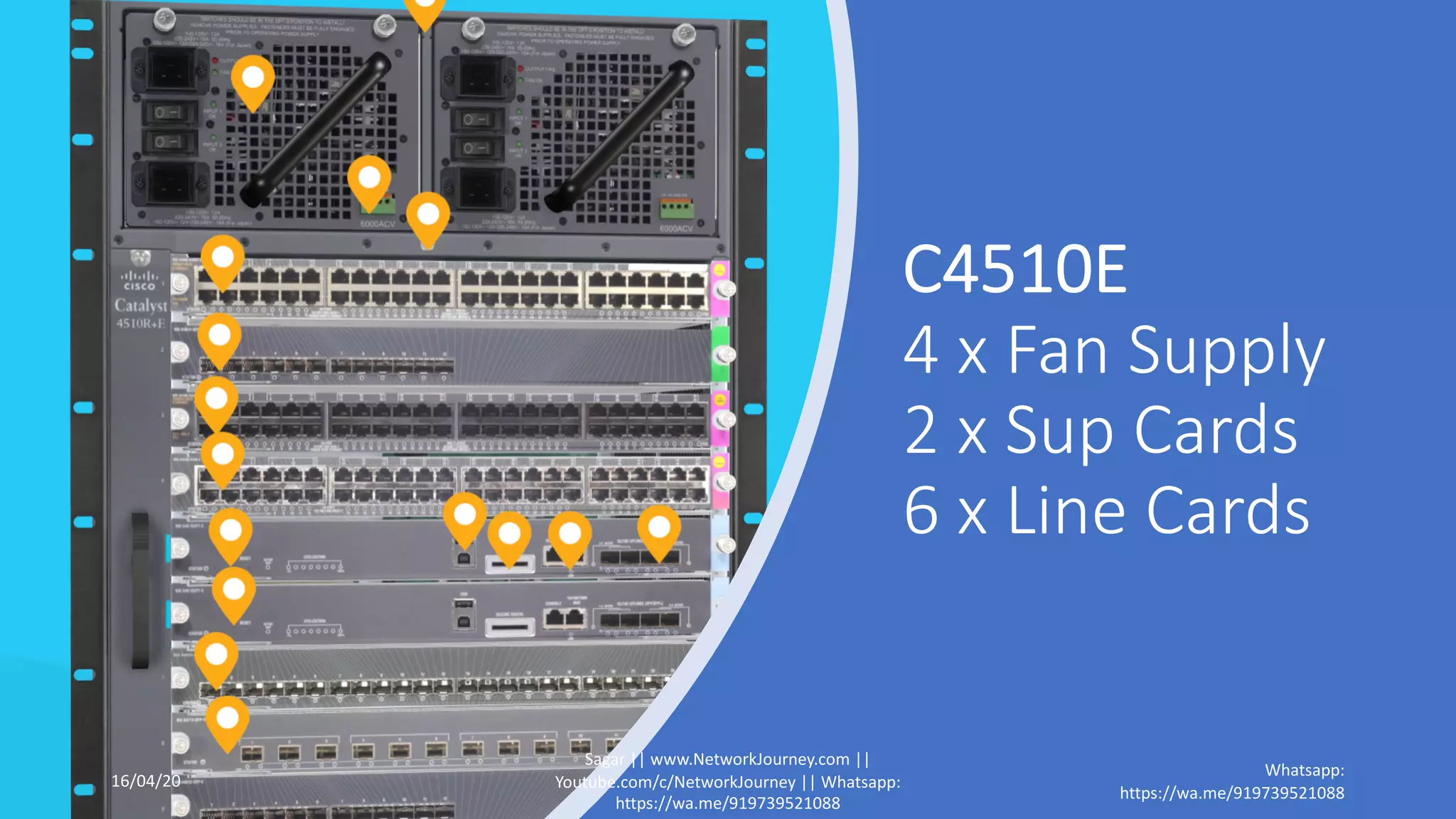

C4510E
4 x Fan Supply
2 x Sup Cards
6 x Line Cards
16/04/20
https://wa.me/919739521088
Whatsapp:
https://wa.me/919739521088

THREE PLANES
1. CONTROL PLANES
2. MANAGEMENT PLANES
3. DATA PLANES
16/04/20
https://wa.me/919739521088
Whatsapp:
https://wa.me/919739521088

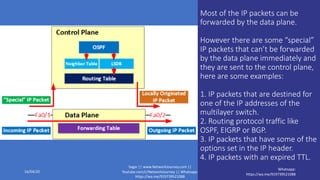

Most of the IP packets can be
forwarded by the data plane.
However there are some “special”
IP packets that can’t be forwarded
by the data plane immediately and
they are sent to the control plane,
here are some examples:
1. IP packets that are destined for
one of the IP addresses of the
multilayer switch.
2. Routing protocol traffic like
OSPF, EIGRP or BGP.
3. IP packets that have some of the
options set in the IP header.
4. IP packets with an expired TTL.
16/04/20
https://wa.me/919739521088
Whatsapp:
https://wa.me/919739521088

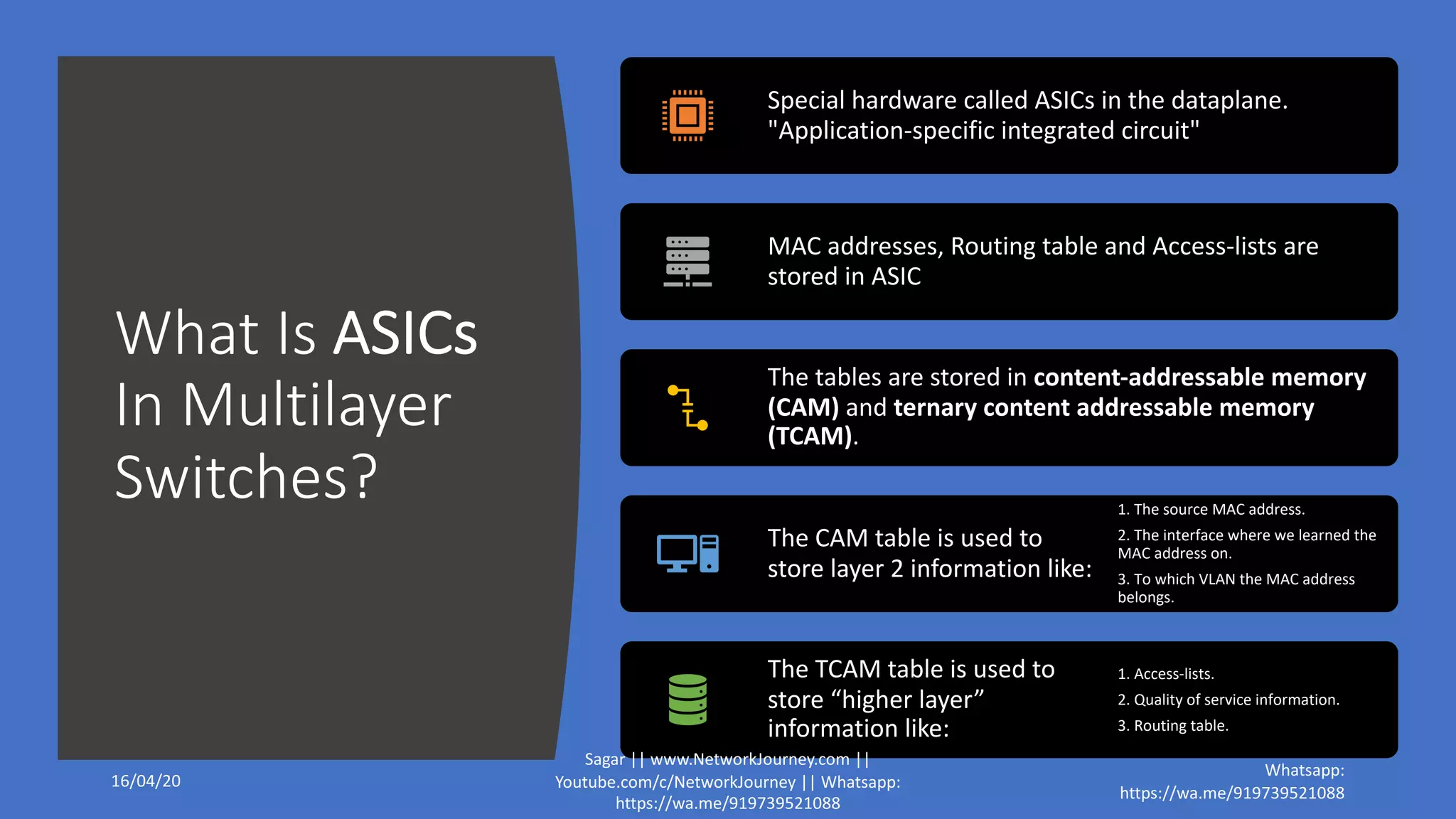

What Is ASICs
In Multilayer
Switches?
Special hardware called ASICs in the dataplane.
"Application-specific integrated circuit"
MAC addresses, Routing table and Access-lists are
stored in ASIC
The tables are stored in content-addressable memory
(CAM) and ternary content addressable memory
(TCAM).
The CAM table is used to
store layer 2 information like:
1. The source MAC address.
2. The interface where we learned the
MAC address on.
3. To which VLAN the MAC address
belongs.
The TCAM table is used to
store “higher layer”
information like:
1. Access-lists.
2. Quality of service information.
3. Routing table.
16/04/20
https://wa.me/919739521088
Whatsapp:
https://wa.me/919739521088

TYPES OF SWITCH:
16/04/20
https://wa.me/919739521088
Whatsapp:
https://wa.me/919739521088

CATALYST
SWITCH
IOS
16/04/20
https://wa.me/919739521088
Whatsapp:
https://wa.me/919739521088

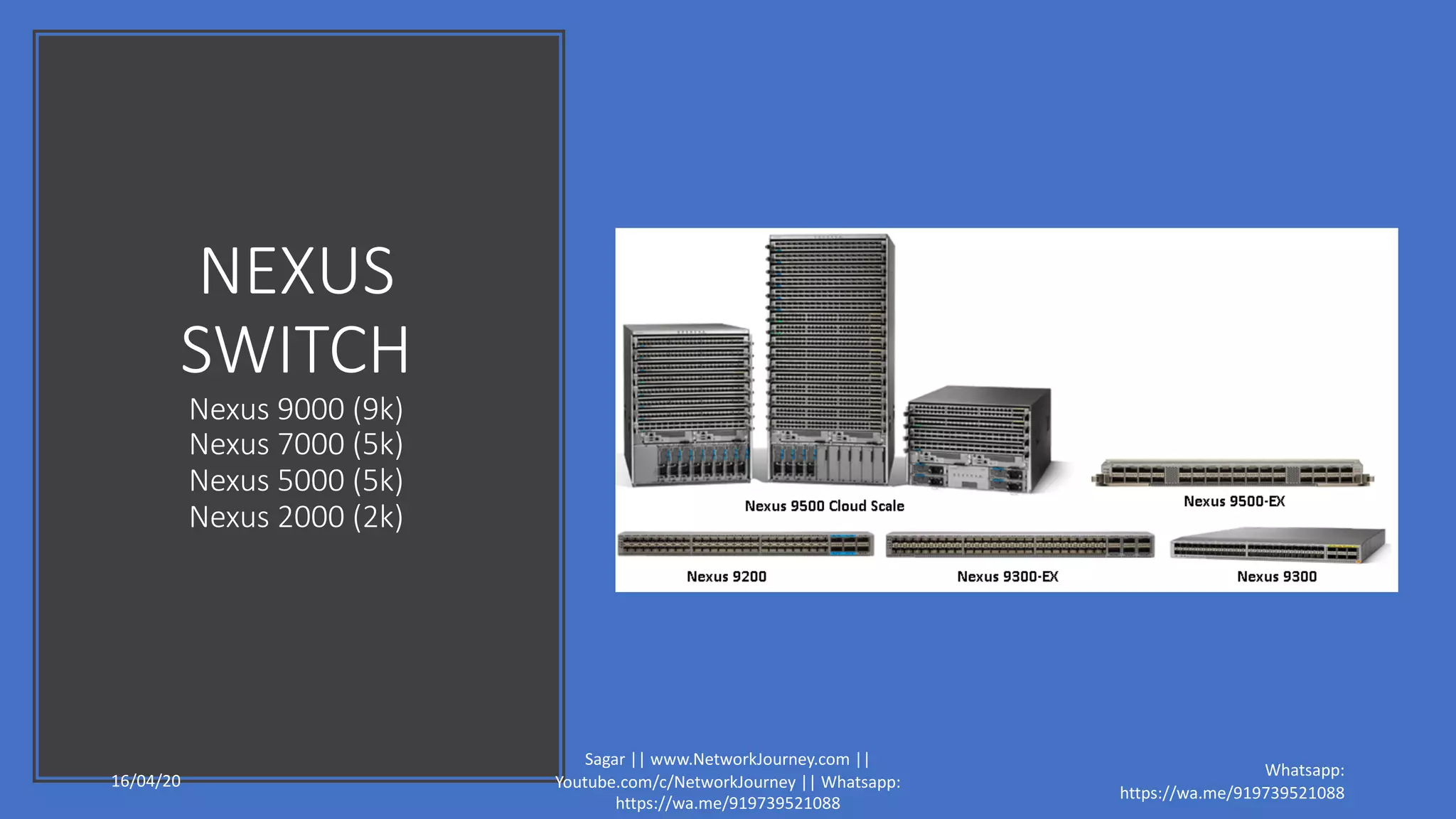

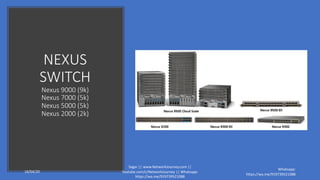

NEXUS
SWITCH
Nexus 9000 (9k)
Nexus 7000 (5k)
Nexus 5000 (5k)
Nexus 2000 (2k)
16/04/20
https://wa.me/919739521088
Whatsapp:
https://wa.me/919739521088

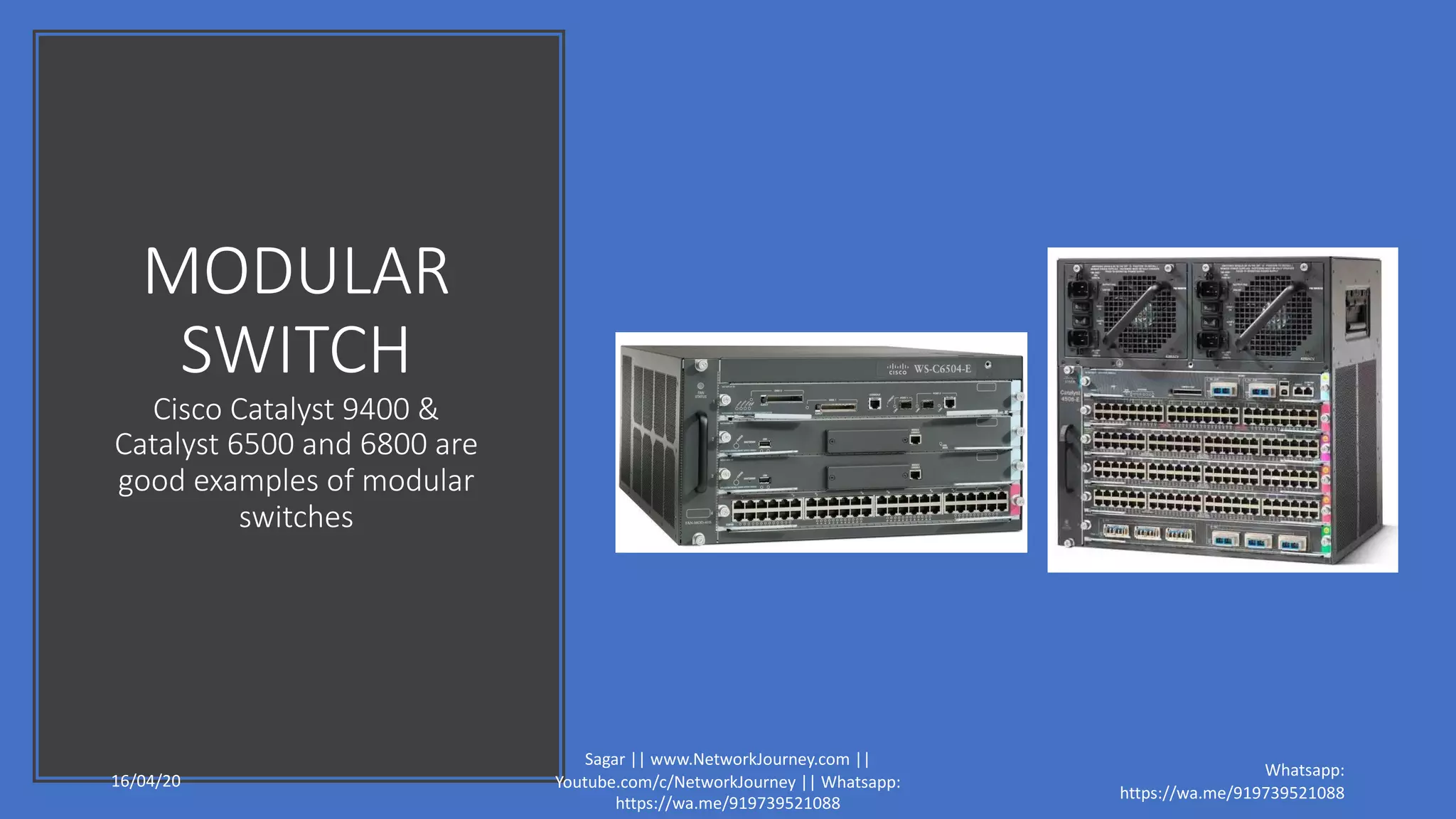

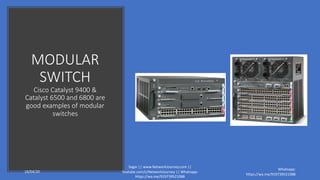

MODULAR
SWITCH
Cisco Catalyst 9400 &
Catalyst 6500 and 6800 are
good examples of modular
switches
16/04/20
https://wa.me/919739521088
Whatsapp:
https://wa.me/919739521088

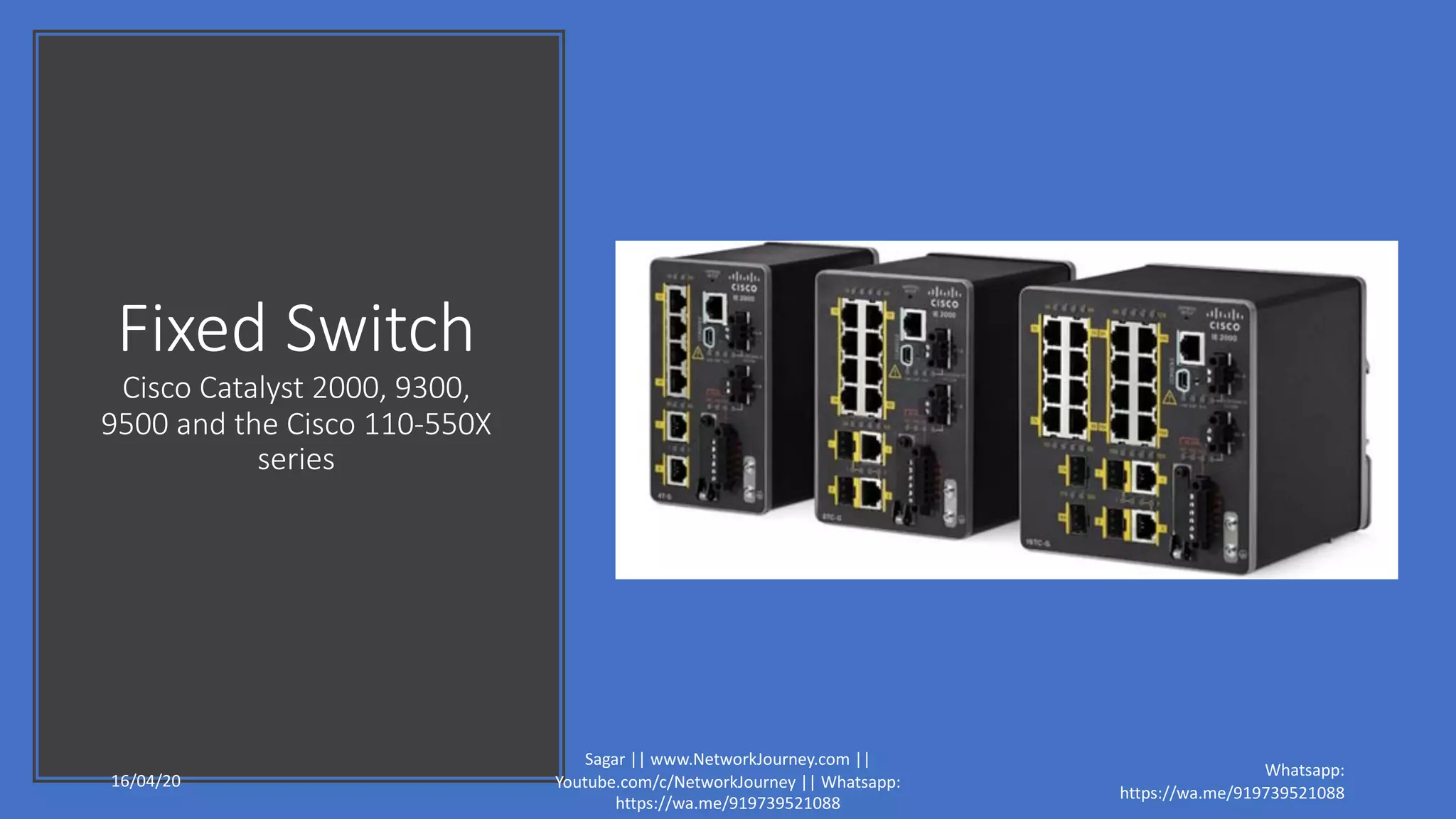

Fixed Switch
Cisco Catalyst 2000, 9300,
9500 and the Cisco 110-550X
series
16/04/20
https://wa.me/919739521088
Whatsapp:
https://wa.me/919739521088

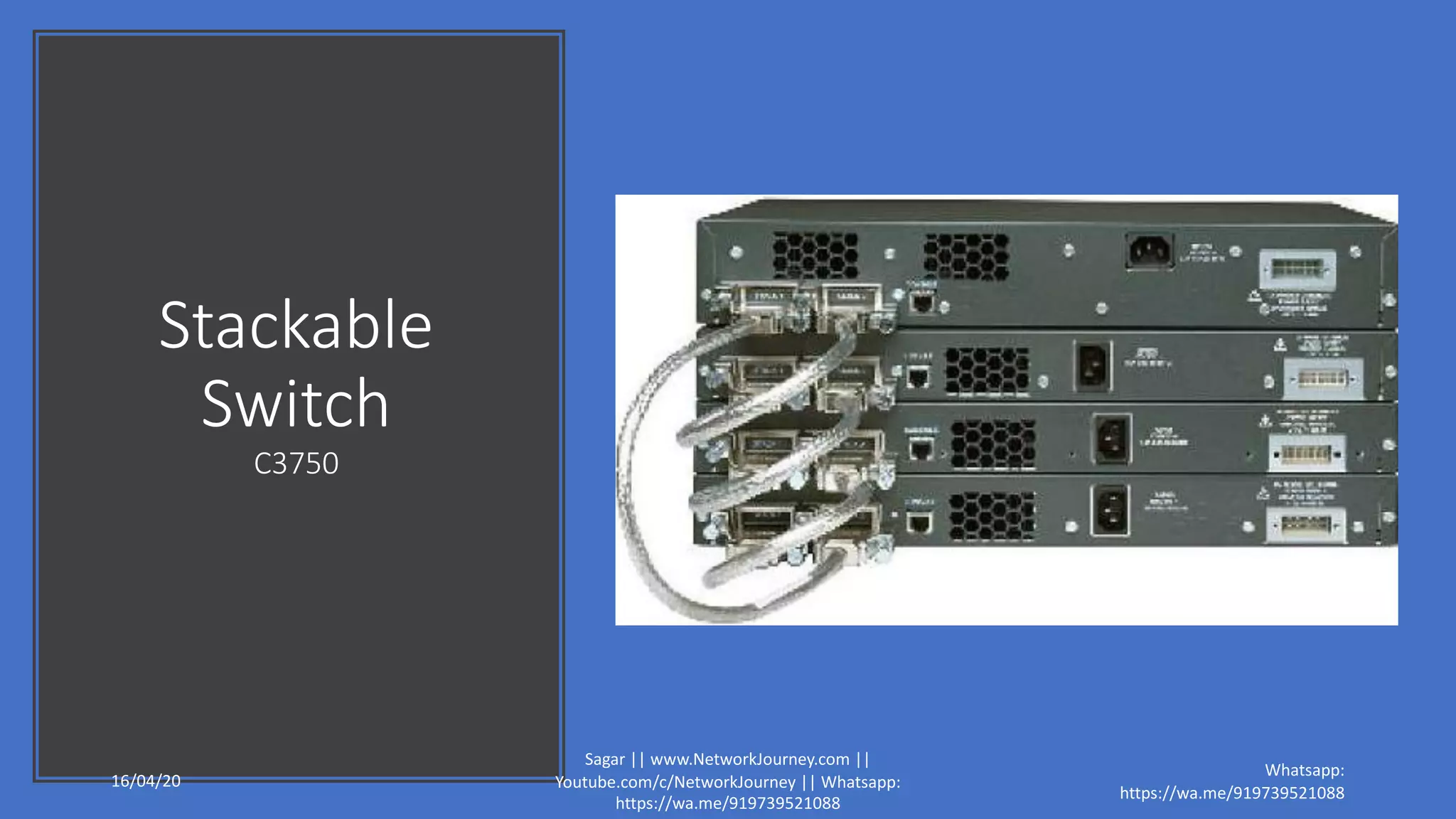

Stackable
Switch
C3750
16/04/20
https://wa.me/919739521088
Whatsapp:
https://wa.me/919739521088

CISCO ROUTER
16/04/20
https://wa.me/919739521088
Whatsapp:
https://wa.me/919739521088

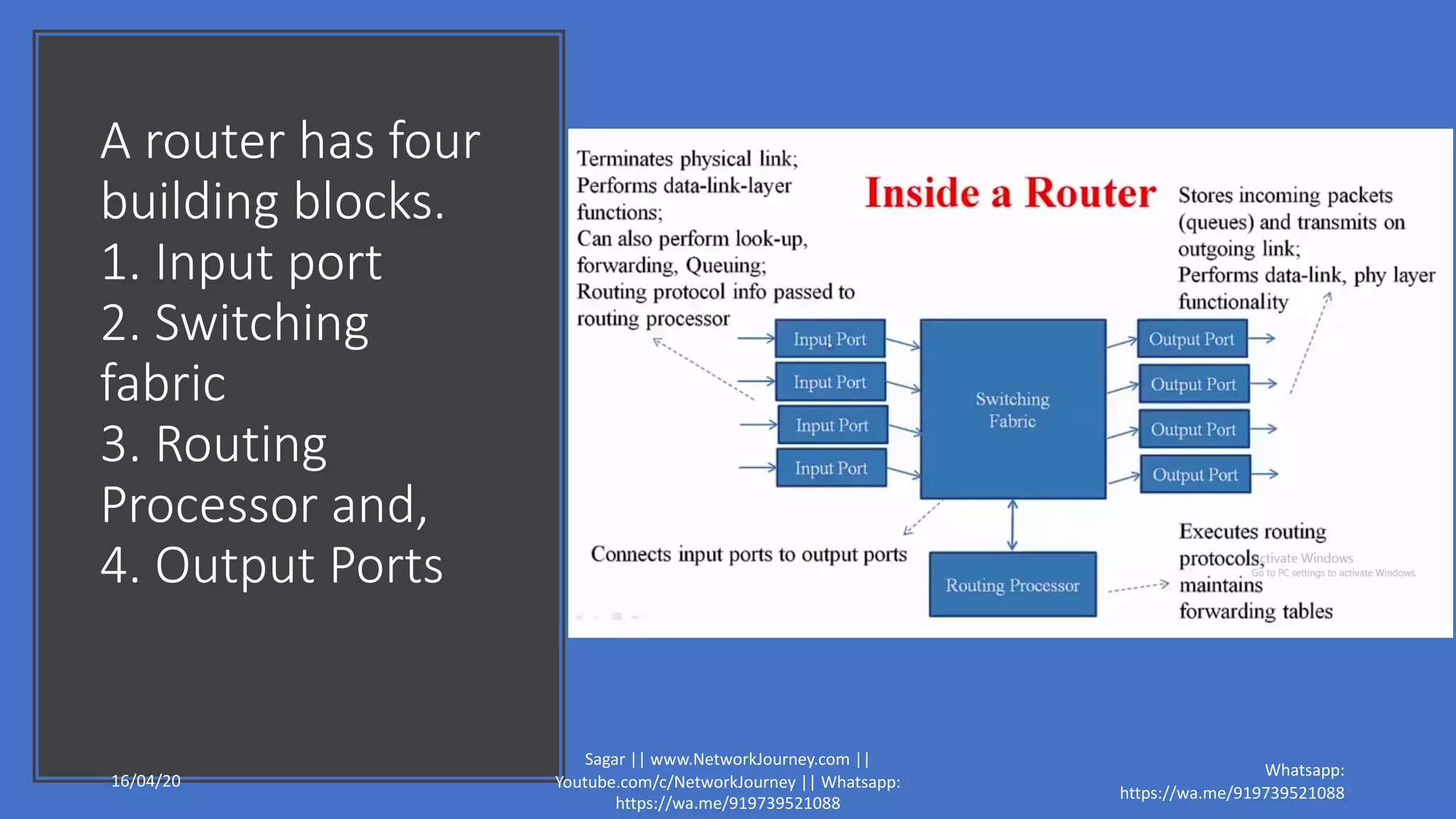

A router has four
building blocks.
1. Input port
2. Switching
fabric
3. Routing
Processor and,
4. Output Ports
16/04/20
https://wa.me/919739521088
Whatsapp:
https://wa.me/919739521088

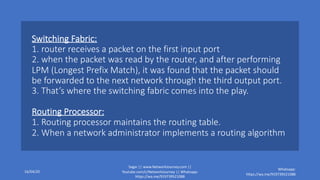

Switching Fabric:
1. router receives a packet on the first input port
2. when the packet was read by the router, and after performing
LPM (Longest Prefix Match), it was found that the packet should
be forwarded to the next network through the third output port.
3. That’s where the switching fabric comes into the play.
Routing Processor:
1. Routing processor maintains the routing table.
2. When a network administrator implements a routing algorithm
16/04/20
https://wa.me/919739521088
Whatsapp:
https://wa.me/919739521088

3 Ways Routing Is Decided???
1. Longest Prefix Match
2. Administrative Distance
3. Cost Metric
16/04/20
https://wa.me/919739521088
Whatsapp:
https://wa.me/919739521088

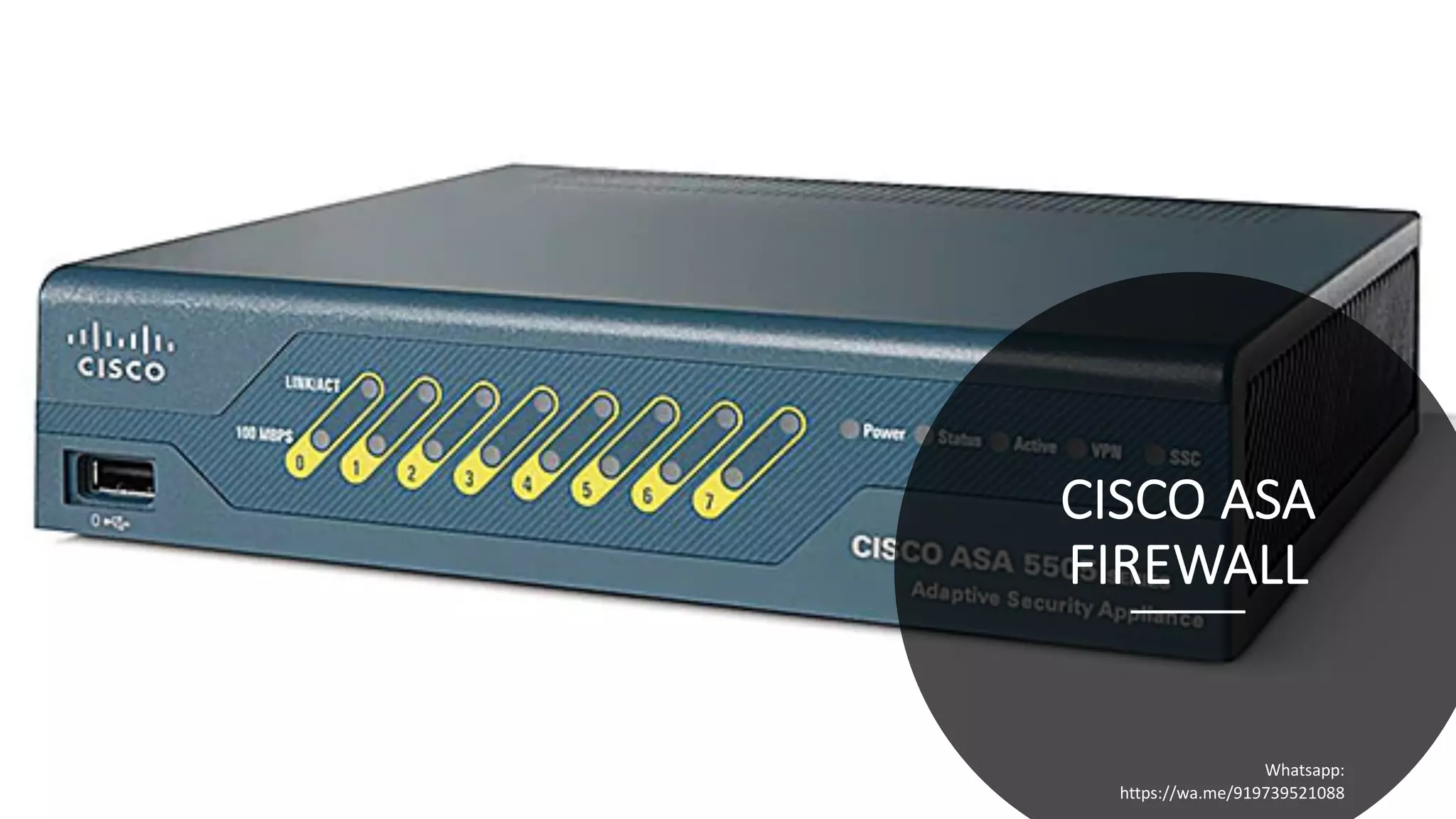

CISCO ASA
FIREWALL
16/04/20
https://wa.me/919739521088
Whatsapp:
https://wa.me/919739521088

Packet Flow
in ASA
Firewall
16/04/20
https://wa.me/919739521088
Whatsapp:
https://wa.me/919739521088

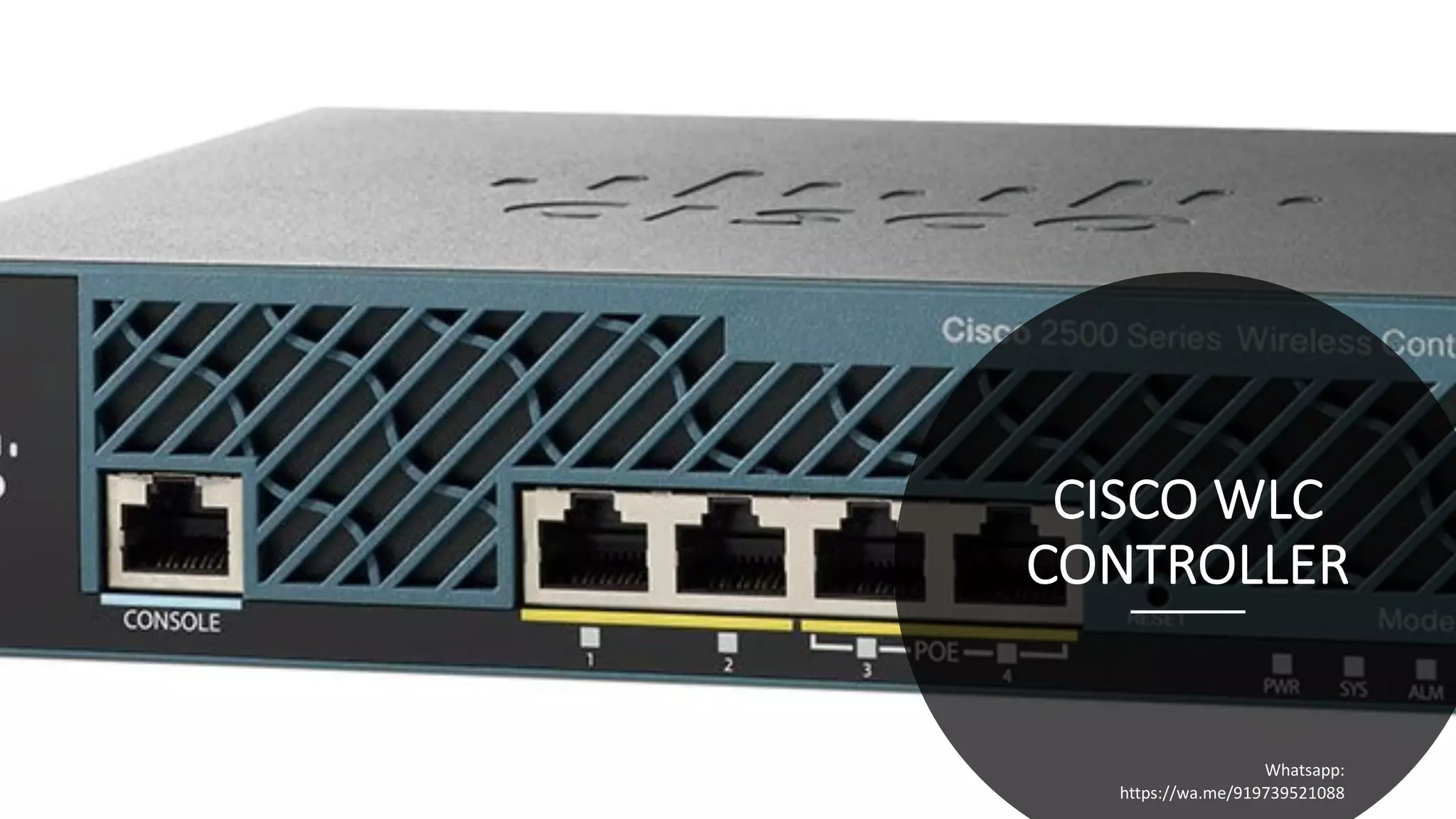

CISCO WLC
CONTROLLER
16/04/20
https://wa.me/919739521088
Whatsapp:
https://wa.me/919739521088

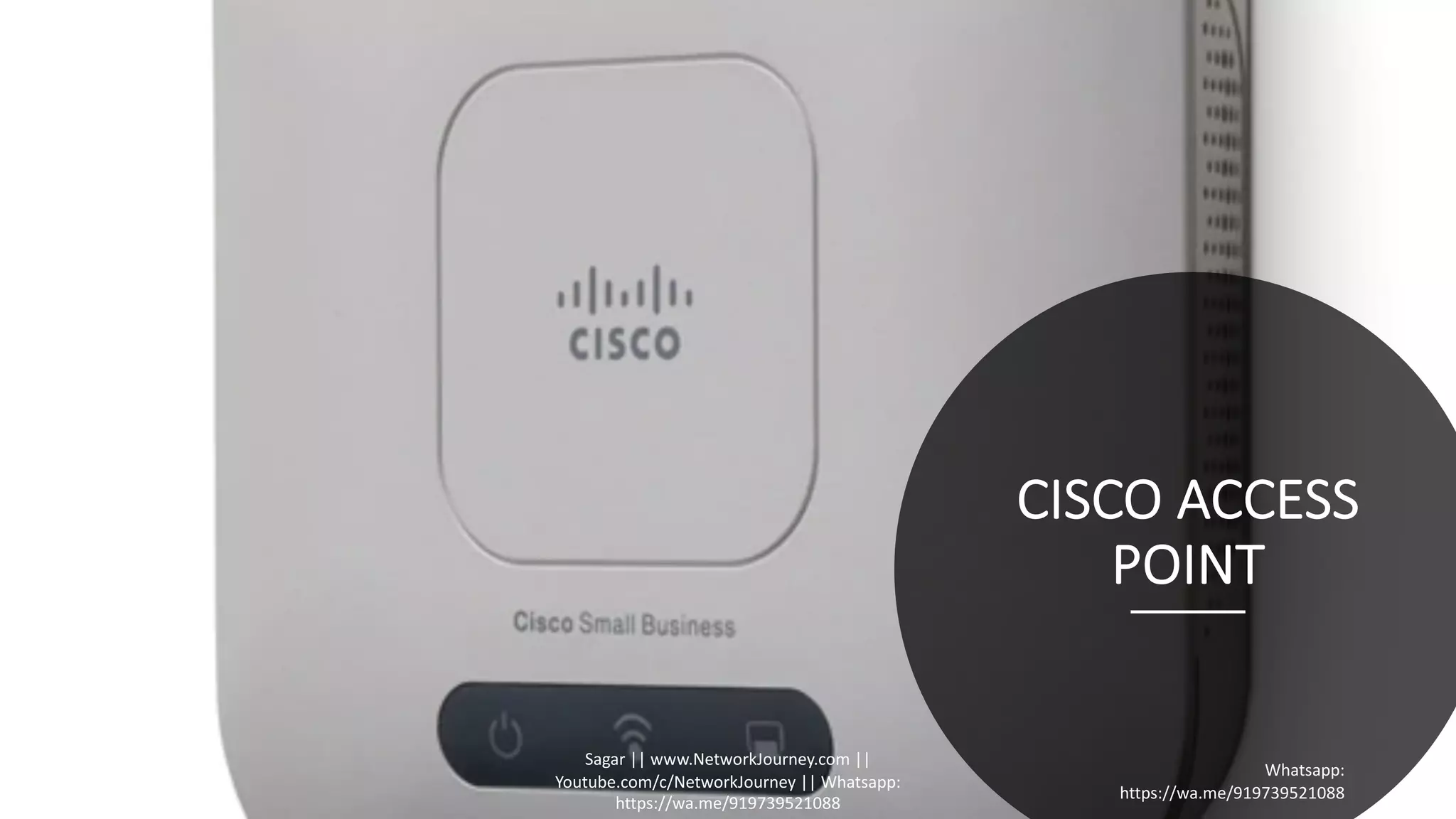

CISCO ACCESS
POINT
16/04/20
https://wa.me/919739521088
Whatsapp:
https://wa.me/919739521088

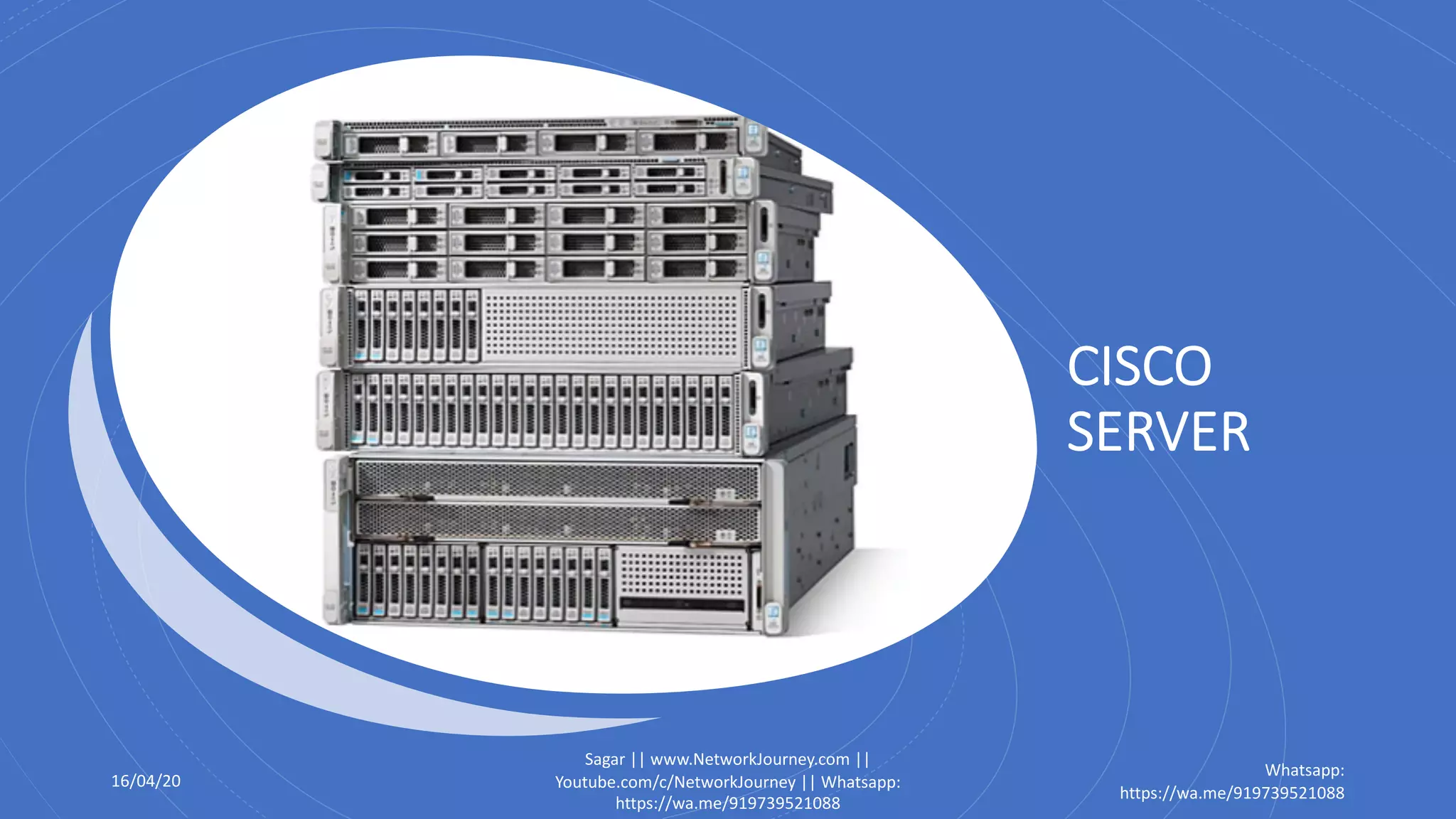

CISCO
SERVER
16/04/20
https://wa.me/919739521088
Whatsapp:
https://wa.me/919739521088

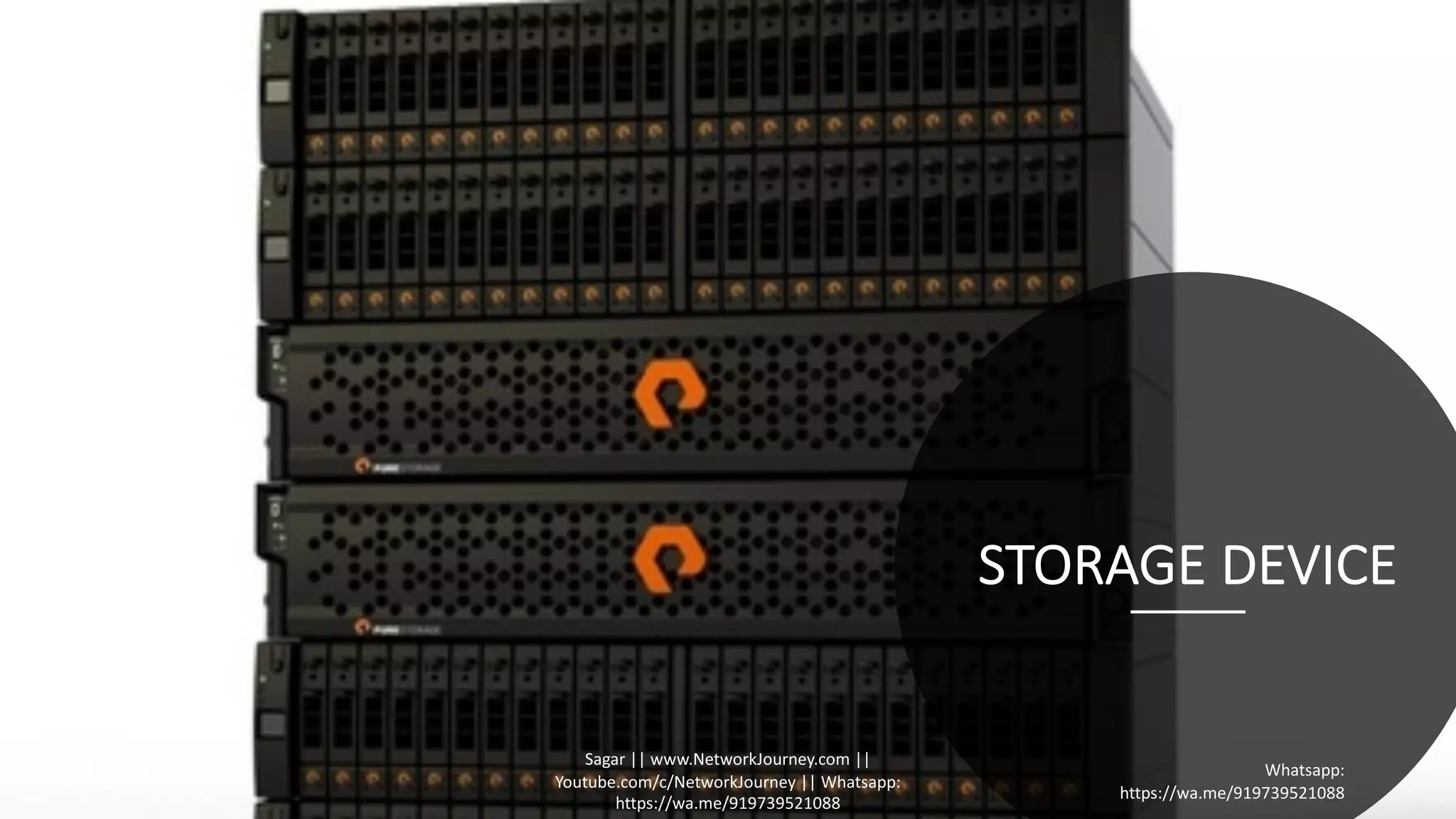

STORAGE DEVICE
16/04/20
https://wa.me/919739521088
Whatsapp:
https://wa.me/919739521088

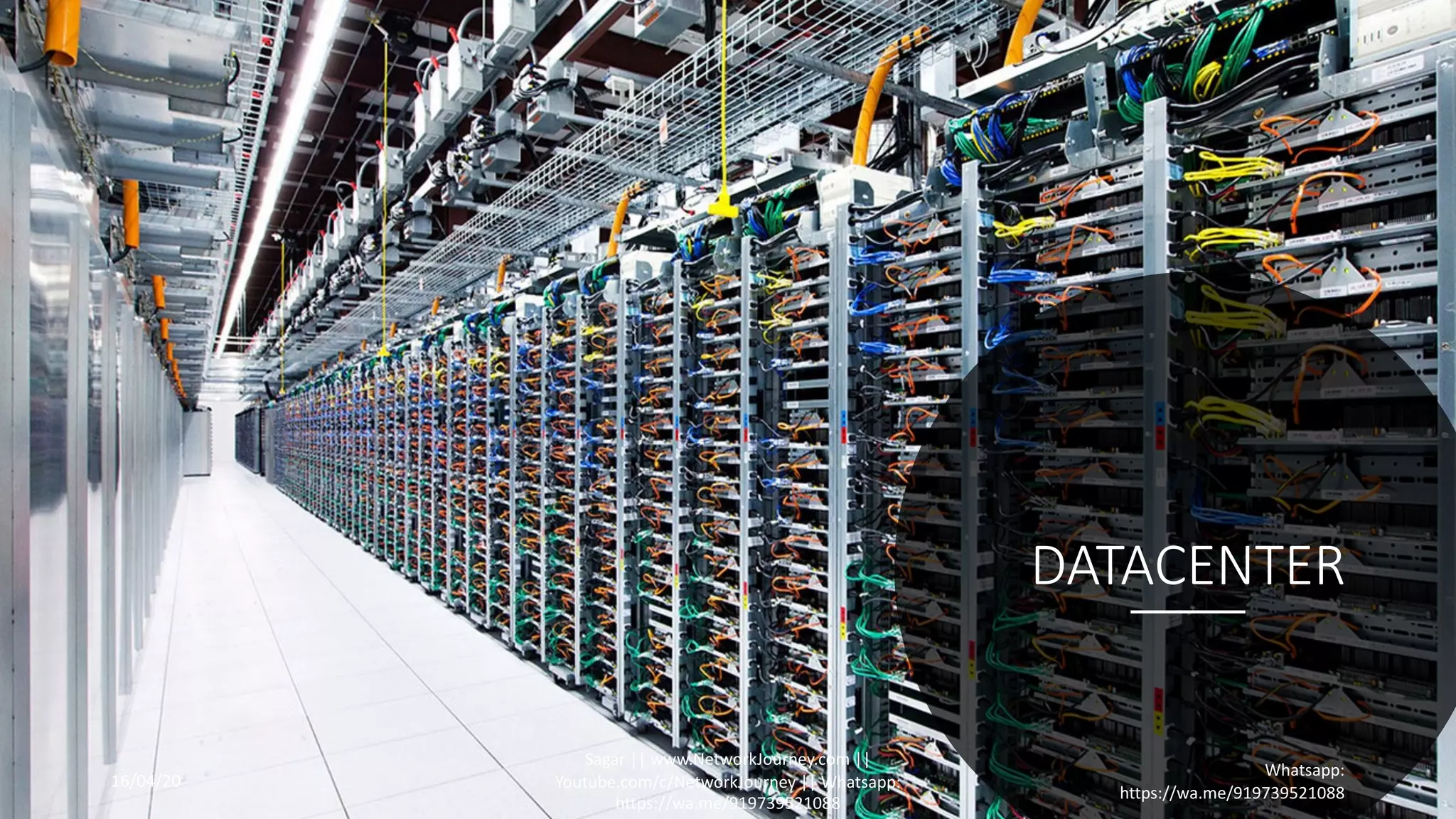

DATACENTER
16/04/20
https://wa.me/919739521088
Whatsapp:
https://wa.me/919739521088

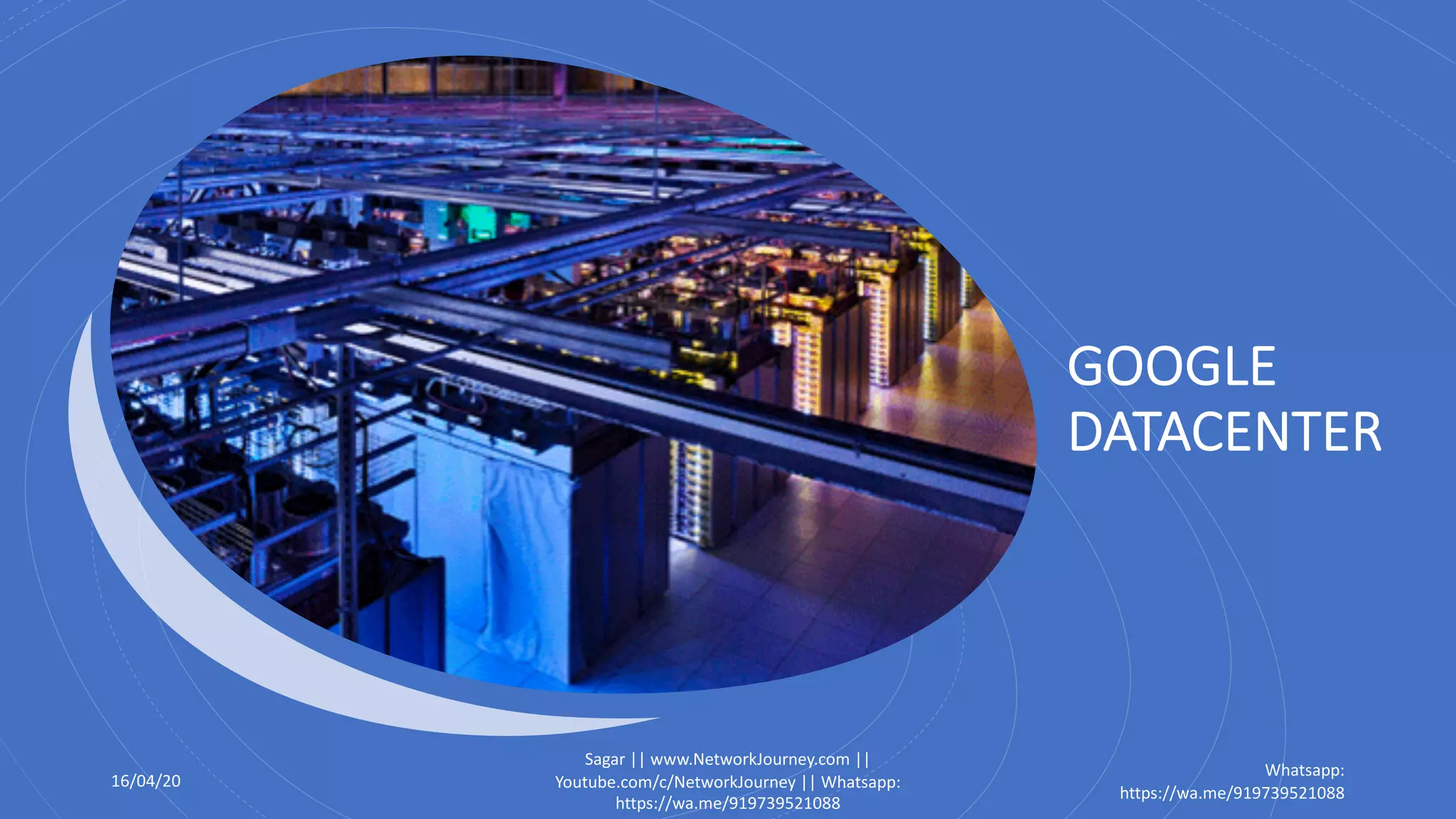

GOOGLE
DATACENTER
16/04/20
https://wa.me/919739521088
Whatsapp:
https://wa.me/919739521088

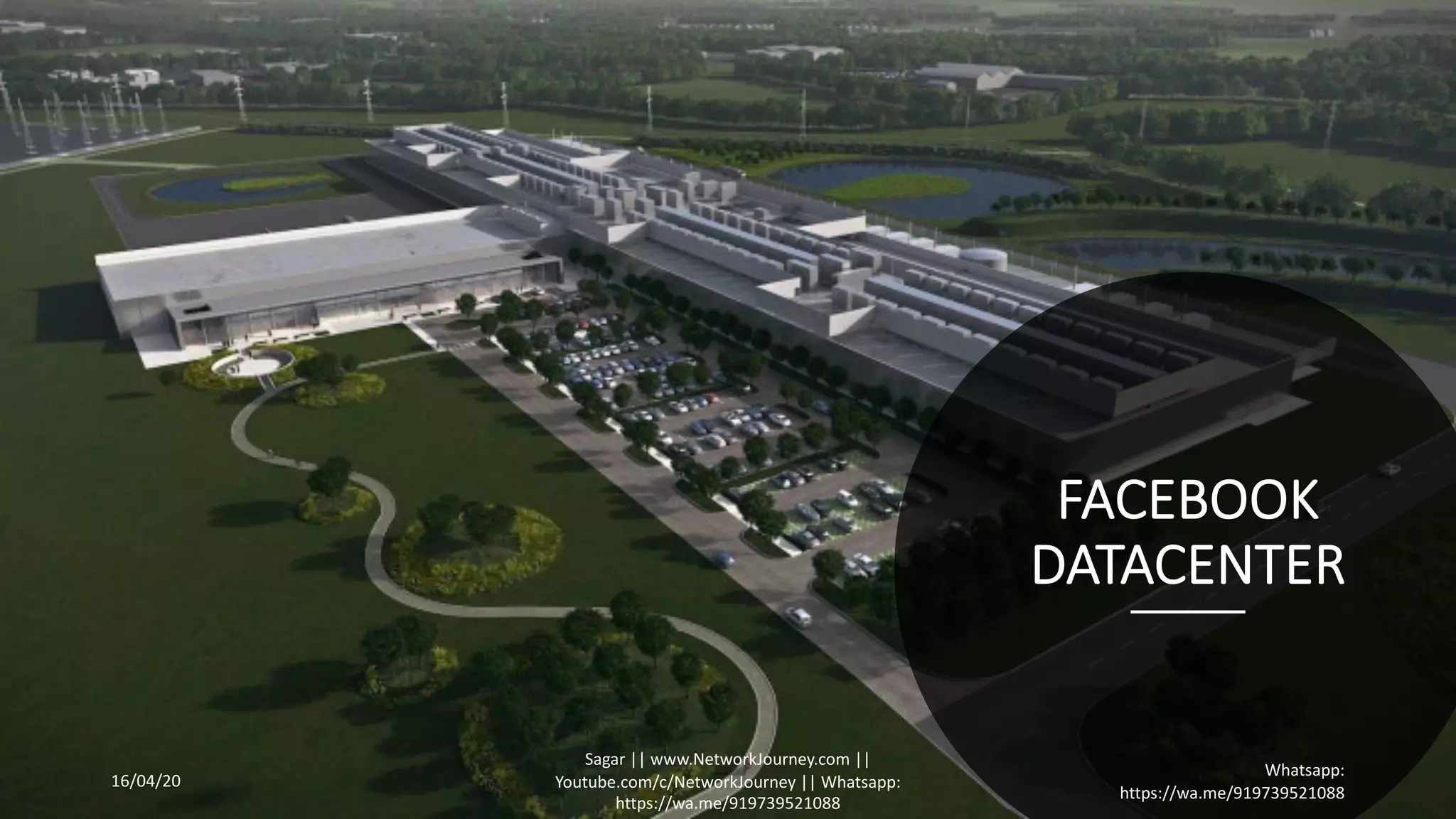

FACEBOOK
DATACENTER
16/04/20
https://wa.me/919739521088
Whatsapp:
https://wa.me/919739521088

Q&A
16/04/20
https://wa.me/919739521088
Whatsapp:
https://wa.me/919739521088
