1. BIOREACTORBIOREACTOR
BY,
HANU PRATAP

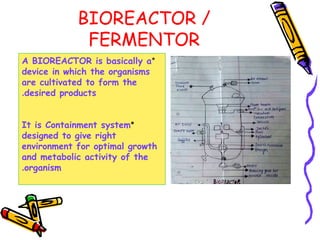

2. BIOREACTOR /
FERMENTOR
*A BIOREACTOR is basically a
device in which the organisms
are cultivated to form the
desired products.
*It is Containment system
designed to give right
environment for optimal growth
and metabolic activity of the
organism.

3. BIOREACTOR
COMPONENTS:-
• Vesicle = made up of glass stainless
steel and durable plastic.
• Sparger = introduce the air into
fermentor.
• Agitator = mix the contained in
homogenous form.
• Baffle = made up of stainless steel
and help to mix the culture.
• Probes = monitor the lecture probes
found in different location in vessel.
• Cooling Jacket = maintain the
constant temp. in the reaction.
• Ports = needed to acid the media it
is also act the water channel.

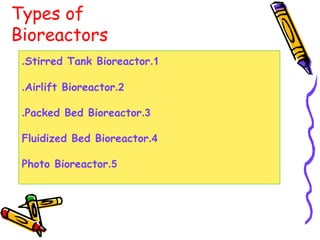

4. 1.Stirred Tank Bioreactor.
2.Airlift Bioreactor.
3.Packed Bed Bioreactor.
4.Fluidized Bed Bioreactor
5.Photo Bioreactor
Types of
Bioreactors

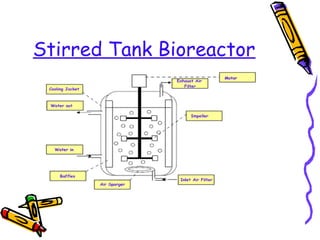

5. Stirred Tank Bioreactor

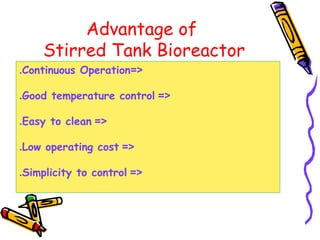

6. Advantage of
Stirred Tank Bioreactor
=<Continuous Operation.
=<Good temperature control.
=<Easy to clean.
=<Low operating cost.
=<Simplicity to control.

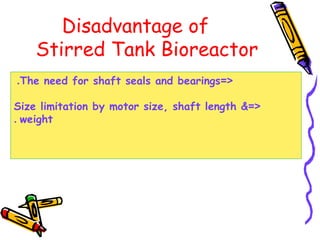

7. Disadvantage of
Stirred Tank Bioreactor
=<The need for shaft seals and bearings.
=<Size limitation by motor size, shaft length &
weight.

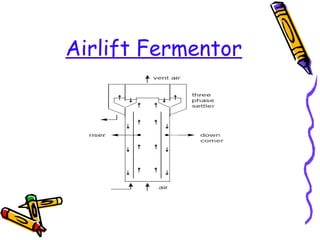

8. Airlift Fermentor

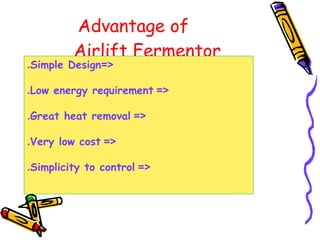

9. Advantage of
Airlift Fermentor
=<Simple Design.
=<Low energy requirement.
=<Great heat removal.
=<Very low cost.
=<Simplicity to control.

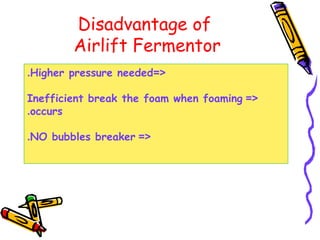

10. Disadvantage of
Airlift Fermentor
=<Higher pressure needed.
=<Inefficient break the foam when foaming
occurs.
=<NO bubbles breaker.

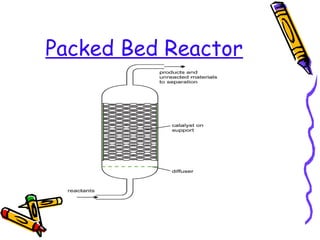

11. Packed Bed Reactor

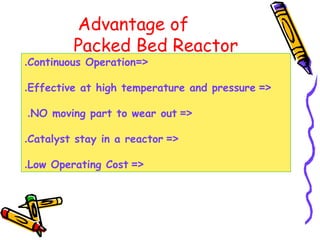

12. Advantage of
Packed Bed Reactor
=<Continuous Operation.
=<Effective at high temperature and pressure.
=<NO moving part to wear out.
=<Catalyst stay in a reactor.
=<Low Operating Cost.

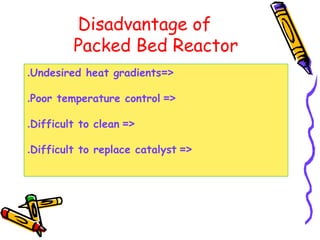

13. Disadvantage of
Packed Bed Reactor
=<Undesired heat gradients.
=<Poor temperature control.
=<Difficult to clean.
=<Difficult to replace catalyst.

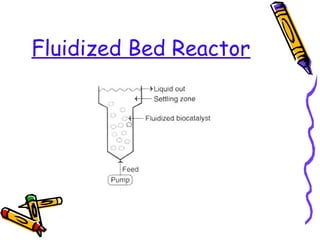

14. Fluidized Bed Reactor

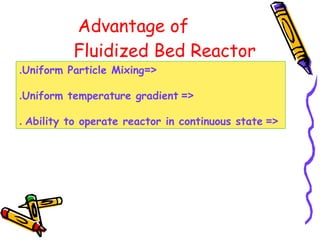

15. Advantage of
Fluidized Bed Reactor
=<Uniform Particle Mixing.
=<Uniform temperature gradient.
=<Ability to operate reactor in continuous state.

16. Disadvantage of
Fluidized Bed Reactor
=<Increased Reactor Vessel Size.
=<Lack of Current Understanding.
=<Erosion of Internal Components.

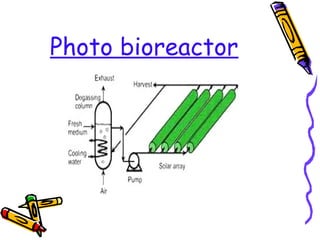

17. Photo bioreactor

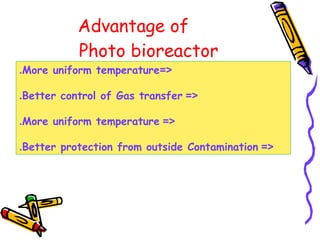

18. Advantage of
Photo bioreactor
=<More uniform temperature.
=<Better control of Gas transfer.
=<More uniform temperature.
=<Better protection from outside Contamination.

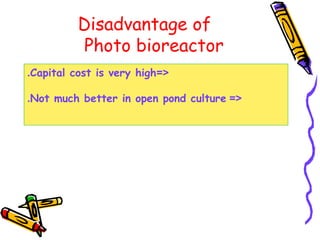

19. Disadvantage of
Photo bioreactor
=<Capital cost is very high.
=<Not much better in open pond culture.
