biometry MTH 201

Table of Contents
Preface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . iv
0.1 Preface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . v
0.1.1 Course Objective . . . . . . . . . . . . . . . . . . . . . . . . . v
0.1.2 Course Description . . . . . . . . . . . . . . . . . . . . . . . . v
0.1.3 Pre-requisite . . . . . . . . . . . . . . . . . . . . . . . . . . . v
0.1.4 Course requirement . . . . . . . . . . . . . . . . . . . . . . . v
0.1.5 Computing . . . . . . . . . . . . . . . . . . . . . . . . . . . . v
0.1.6 References . . . . . . . . . . . . . . . . . . . . . . . . . . . . . v
1 Terminologies in Experimental Designs 1
1.1 Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
1.1.1 Definitions . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1

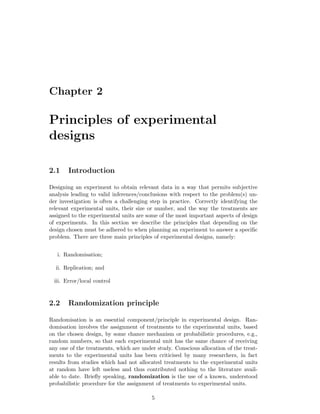

2 Principles of experimental designs 5
2.1 Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

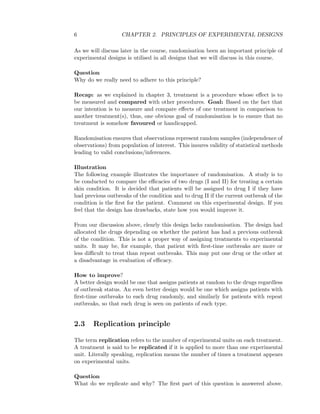

2.2 Randomization principle . . . . . . . . . . . . . . . . . . . . . . . . . 5
2.3 Replication principle . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

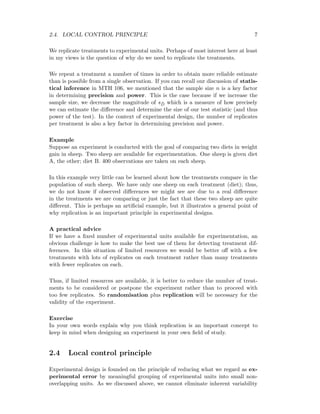

2.4 Local control principle . . . . . . . . . . . . . . . . . . . . . . . . . . 7

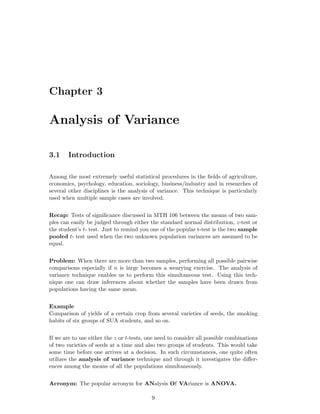

3 Analysis of Variance 9
3.1 Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
3.2 Assumptions in the analysis of variance . . . . . . . . . . . . . . . . 10

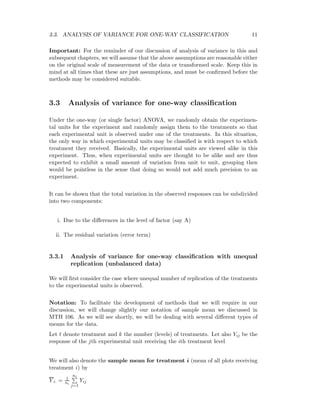

3.3 Analysis of variance for one-way classification . . . . . . . . . . . . . 11
3.3.1 Analysis of variance for one-way classification with unequal
replication (unbalanced data) . . . . . . . . . . . . . . . . . . 11

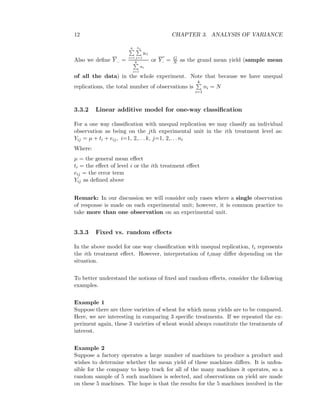

3.3.2 Linear additive model for one-way classification . . . . . . . . 12

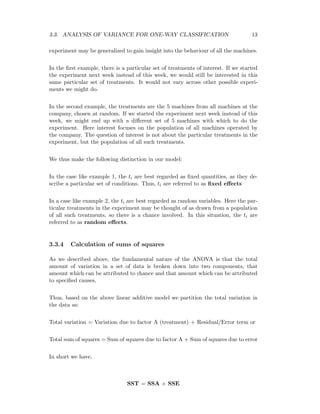

3.3.3 Fixed vs. random effects . . . . . . . . . . . . . . . . . . . . . 12
i

ii TABLE OF CONTENTS
3.3.4 Calculation of sums of squares . . . . . . . . . . . . . . . . . 13

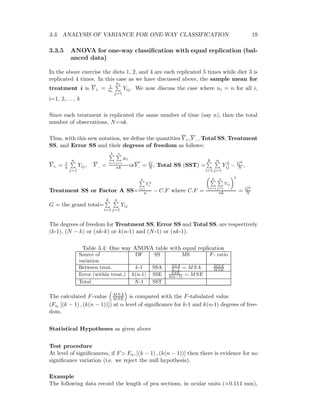

3.3.5 ANOVA for one-way classification with equal replication (bal-
anced data) . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

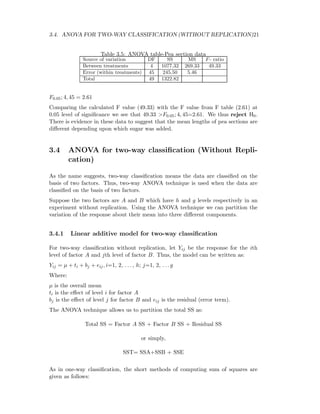

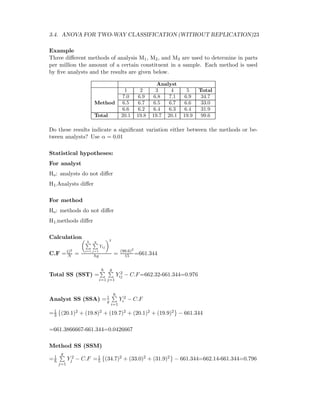

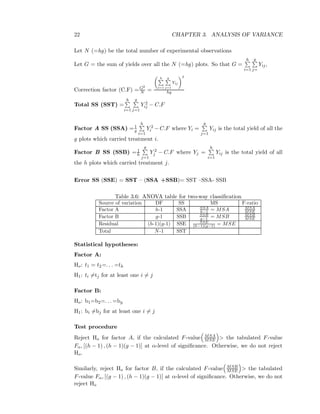

3.4 ANOVA for two-way classification (Without Replication) . . . . . . 21
3.4.1 Linear additive model for two-way classification . . . . . . . . 21

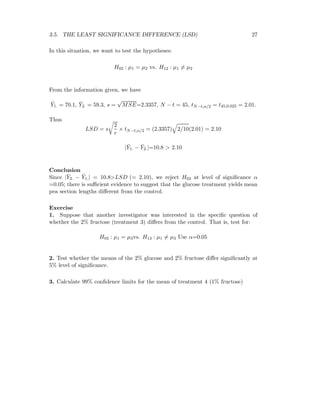

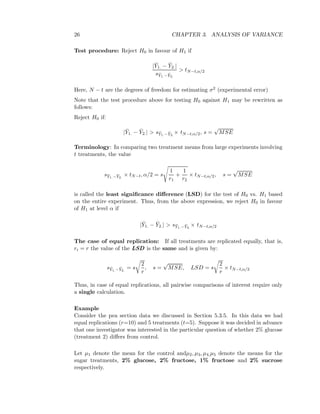

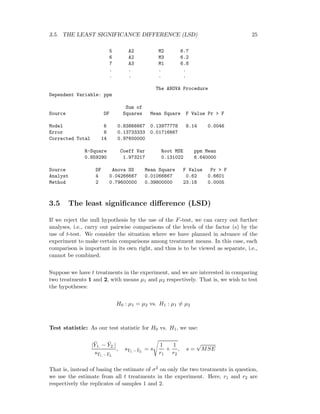

3.5 The least significance difference (LSD) . . . . . . . . . . . . . . . . . 25

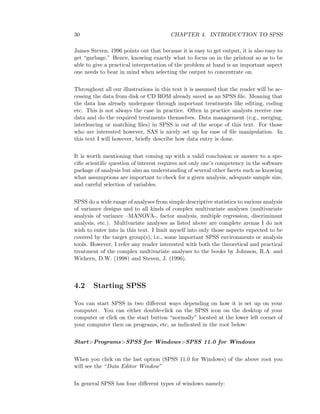

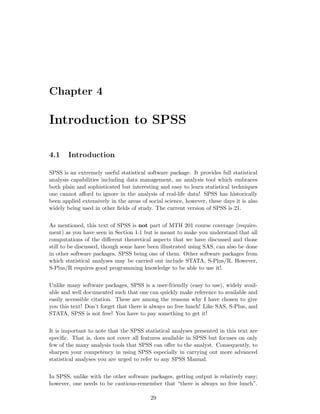

4 Introduction to SPSS 29
4.1 Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

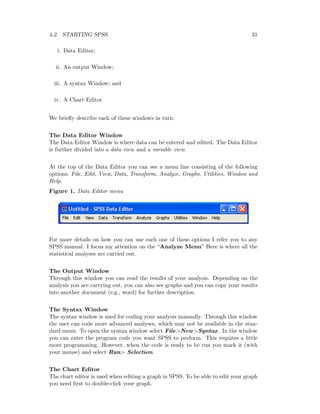

4.2 Starting SPSS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

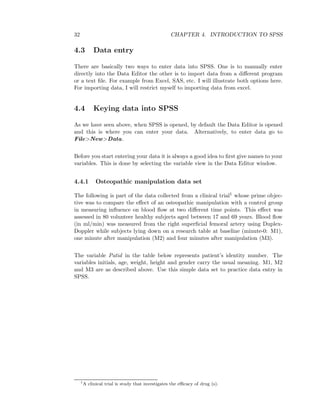

4.3 Data entry . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
4.4 Keying data into SPSS . . . . . . . . . . . . . . . . . . . . . . . . . . 32

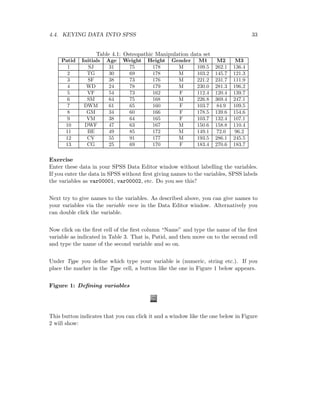

4.4.1 Osteopathic manipulation data set . . . . . . . . . . . . . . . 32
4.5 Opening an existing dataset . . . . . . . . . . . . . . . . . . . . . . . 34
4.6 Importing data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
4.7 Exporting data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35

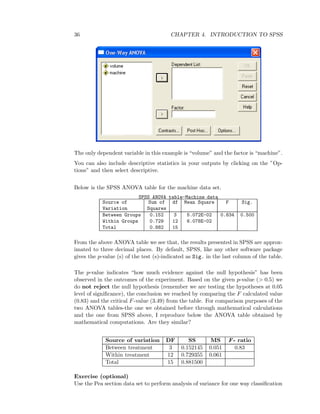

4.8 ANOVA for one-way classification in SPSS . . . . . . . . . . . . . . . 35

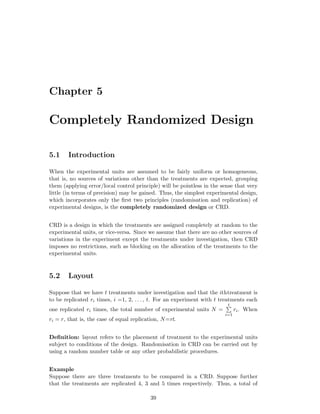

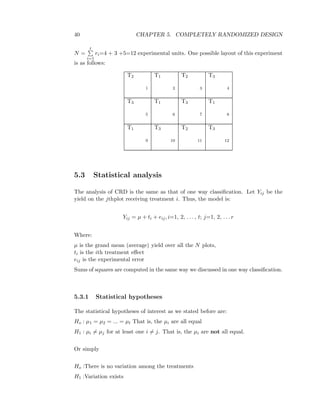

5 Completely Randomized Design 39
5.1 Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
5.2 Layout . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
5.3 Statistical analysis . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40
5.3.1 Statistical hypotheses . . . . . . . . . . . . . . . . . . . . . . 40
5.3.2 Test procedure . . . . . . . . . . . . . . . . . . . . . . . . . . 41

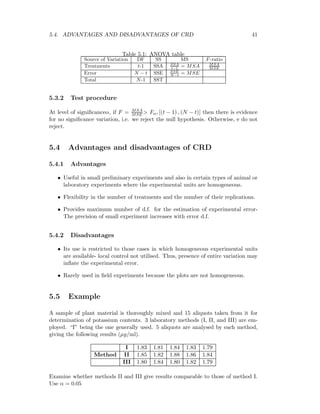

5.4 Advantages and disadvantages of CRD . . . . . . . . . . . . . . . . . 41
5.4.1 Advantages . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41
5.4.2 Disadvantages . . . . . . . . . . . . . . . . . . . . . . . . . . . 41
5.5 Example . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41

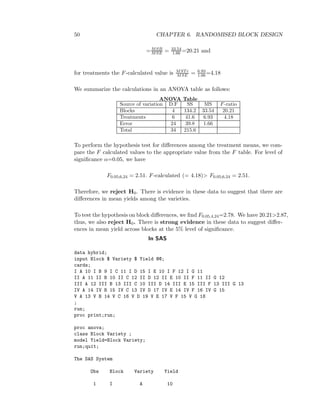

6 Randomised Block Design 45
6.1 Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45

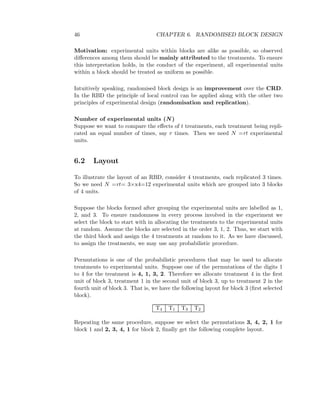

6.2 Layout . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46
6.3.1 Statistical hypotheses . . . . . . . . . . . . . . . . . . . . . . 47
6.3.2 Test procedure . . . . . . . . . . . . . . . . . . . . . . . . . . 47

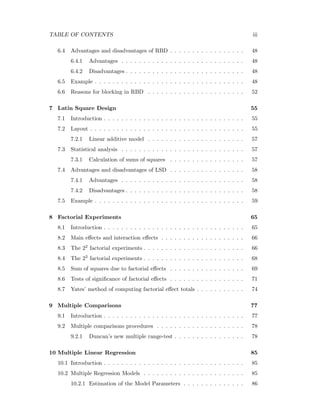

TABLE OF CONTENTS iii

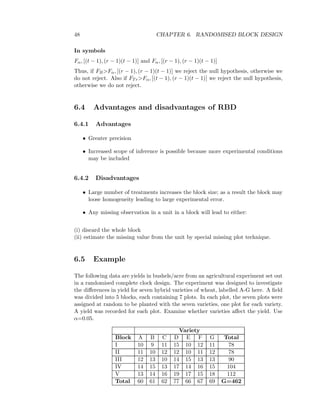

6.4 Advantages and disadvantages of RBD . . . . . . . . . . . . . . . . . 48
6.4.1 Advantages . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48
6.4.2 Disadvantages . . . . . . . . . . . . . . . . . . . . . . . . . . . 48
6.5 Example . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48

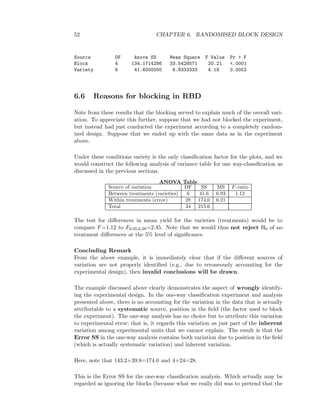

6.6 Reasons for blocking in RBD . . . . . . . . . . . . . . . . . . . . . . 52

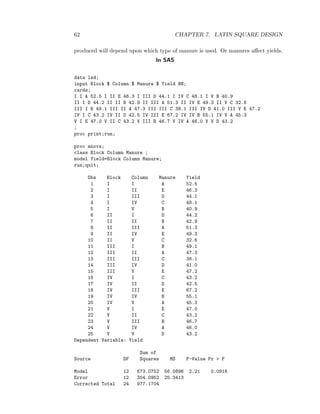

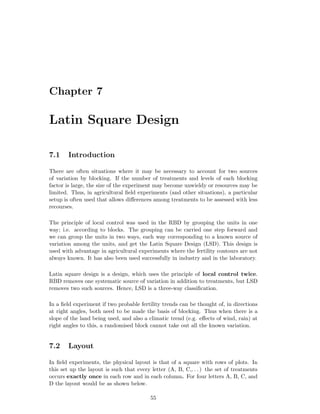

7 Latin Square Design 55
7.1 Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55

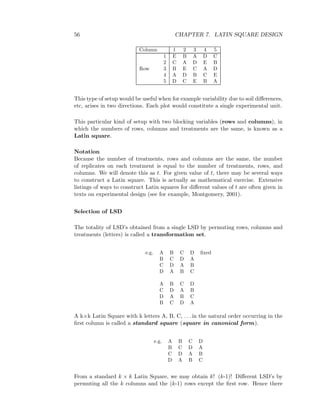

7.2 Layout . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55

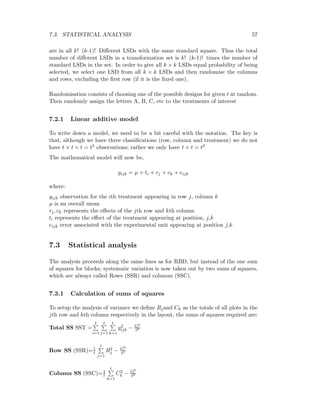

7.2.1 Linear additive model . . . . . . . . . . . . . . . . . . . . . . 57
7.3.1 Calculation of sums of squares . . . . . . . . . . . . . . . . . 57

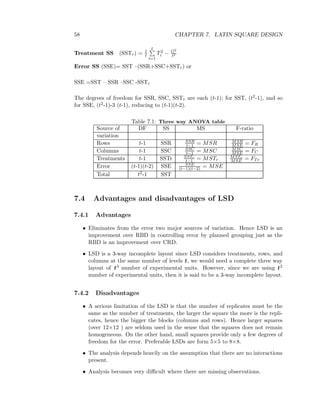

7.4 Advantages and disadvantages of LSD . . . . . . . . . . . . . . . . . 58
7.4.1 Advantages . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58
7.4.2 Disadvantages . . . . . . . . . . . . . . . . . . . . . . . . . . . 58

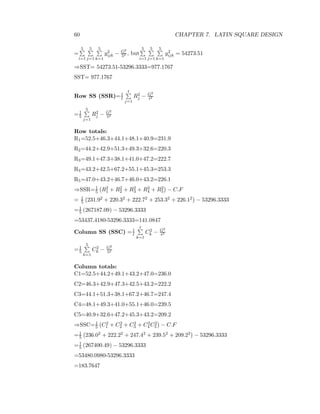

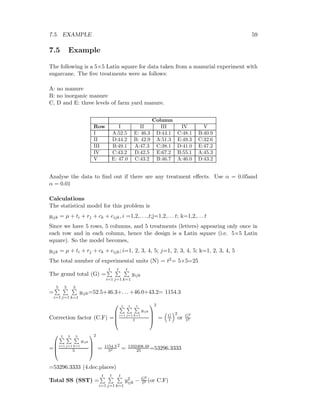

7.5 Example . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59

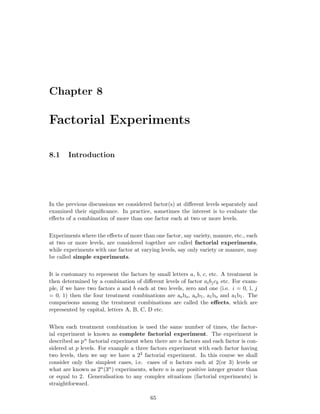

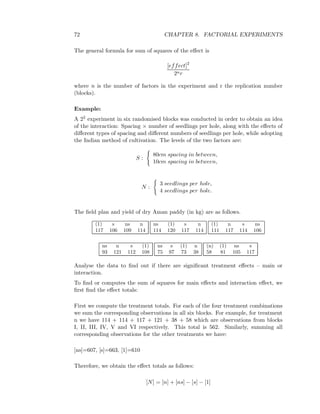

8 Factorial Experiments 65
8.1 Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65

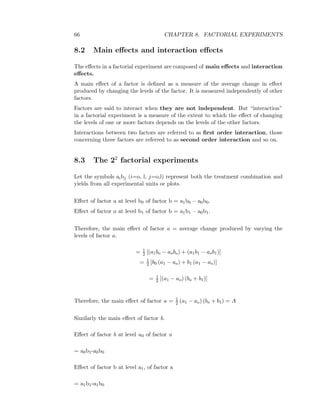

8.2 Main effects and interaction effects . . . . . . . . . . . . . . . . . . . 66

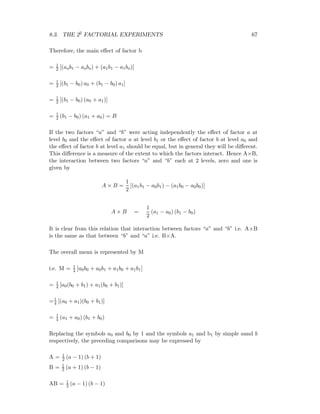

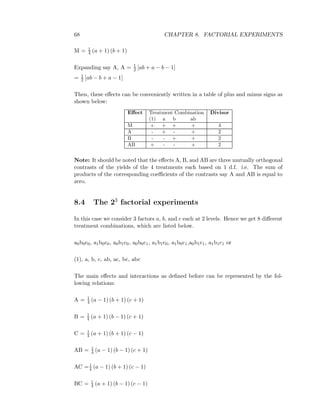

8.3 The 22 factorial experiments . . . . . . . . . . . . . . . . . . . . . . . 66
8.4 The 23 factorial experiments . . . . . . . . . . . . . . . . . . . . . . . 68

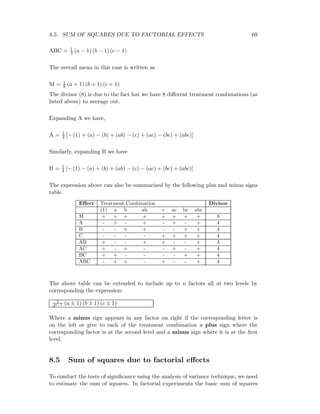

8.5 Sum of squares due to factorial effects . . . . . . . . . . . . . . . . . 69

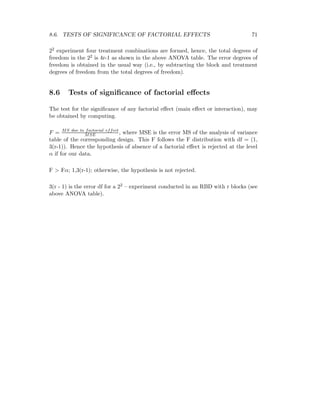

8.6 Tests of significance of factorial effects . . . . . . . . . . . . . . . . . 71
8.7 Yates’ method of computing factorial effect totals . . . . . . . . . . . 74

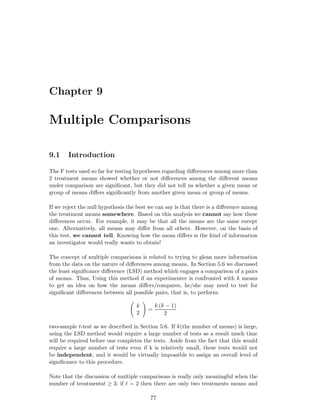

9 Multiple Comparisons 77
9.1 Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 77

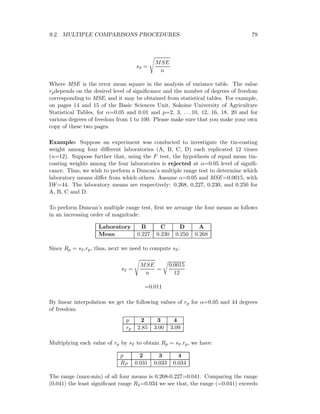

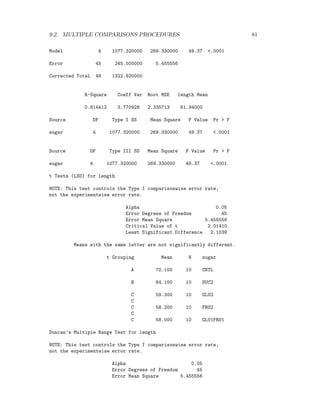

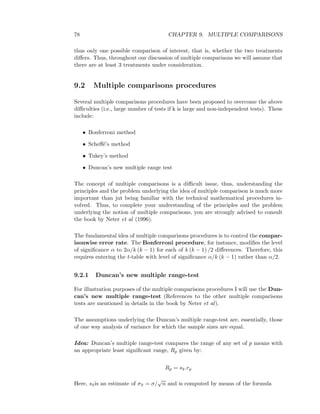

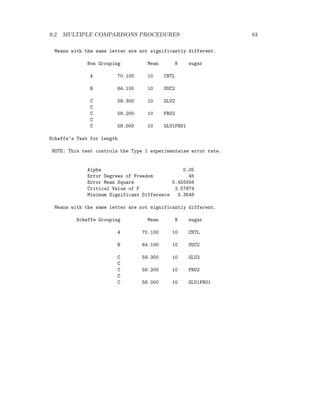

9.2 Multiple comparisons procedures . . . . . . . . . . . . . . . . . . . . 78
9.2.1 Duncan’s new multiple range-test . . . . . . . . . . . . . . . . 78

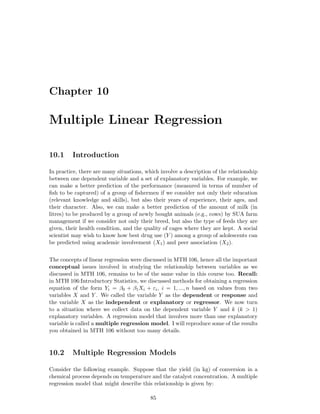

10 Multiple Linear Regression 85
10.1 Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 85

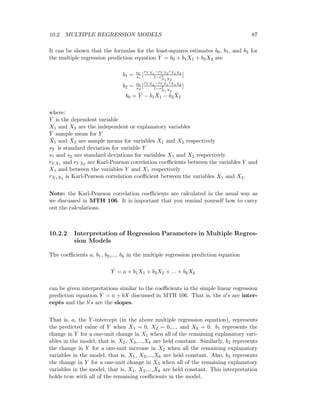

10.2 Multiple Regression Models . . . . . . . . . . . . . . . . . . . . . . . 85
10.2.1 Estimation of the Model Parameters . . . . . . . . . . . . . . 86

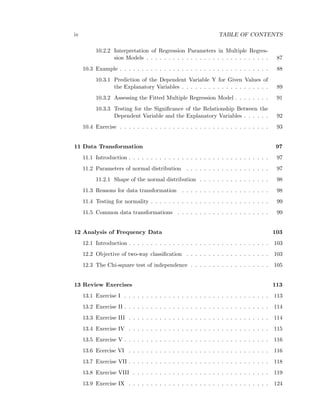

iv TABLE OF CONTENTS
10.2.2 Interpretation of Regression Parameters in Multiple Regres-
sion Models . . . . . . . . . . . . . . . . . . . . . . . . . . . . 87

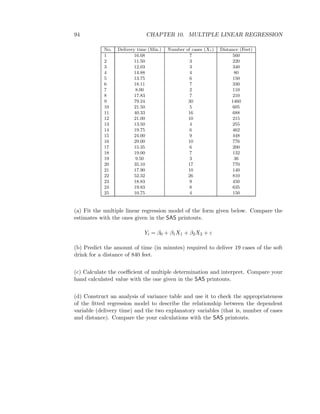

10.3 Example . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 88
10.3.1 Prediction of the Dependent Variable Y for Given Values of
the Explanatory Variables . . . . . . . . . . . . . . . . . . . . 89
10.3.2 Assessing the Fitted Multiple Regression Model . . . . . . . . 91

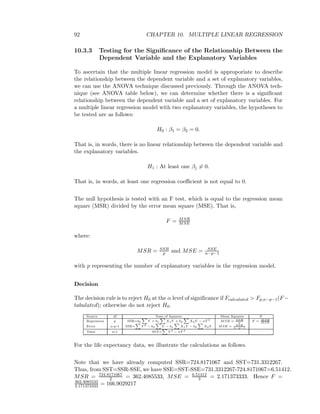

10.3.3 Testing for the Signiﬁcance of the Relationship Between the
Dependent Variable and the Explanatory Variables . . . . . . 92

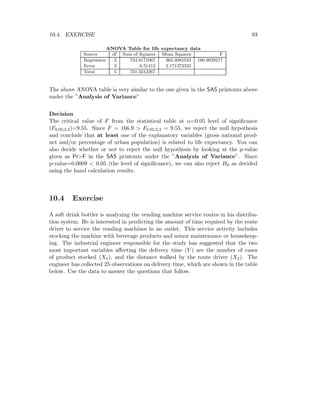

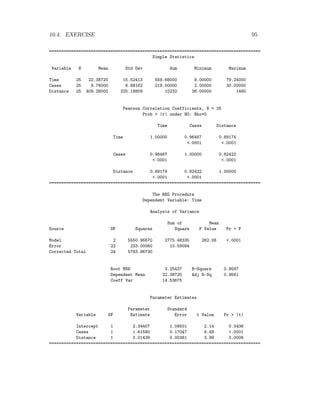

10.4 Exercise . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 93

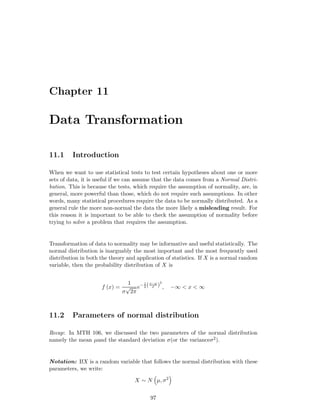

11 Data Transformation 97
11.1 Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 97
11.2 Parameters of normal distribution . . . . . . . . . . . . . . . . . . . 97

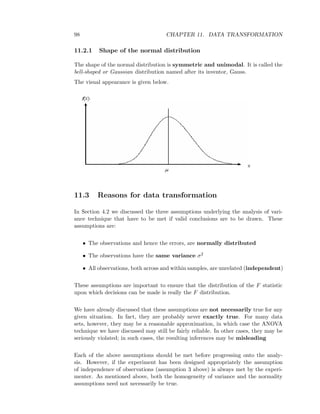

11.2.1 Shape of the normal distribution . . . . . . . . . . . . . . . . 98
11.3 Reasons for data transformation . . . . . . . . . . . . . . . . . . . . 98

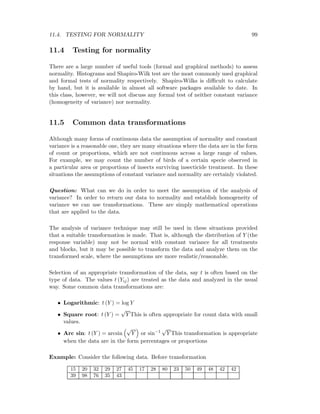

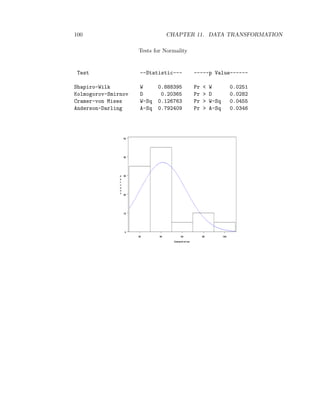

11.4 Testing for normality . . . . . . . . . . . . . . . . . . . . . . . . . . . 99

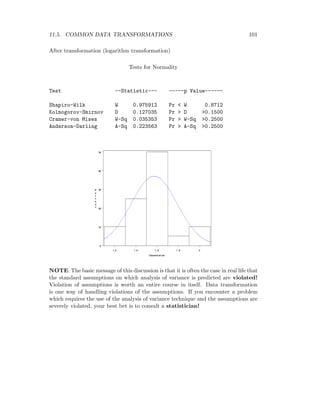

11.5 Common data transformations . . . . . . . . . . . . . . . . . . . . . 99

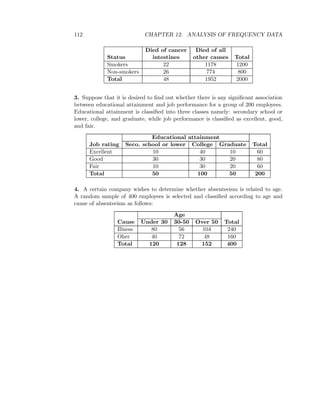

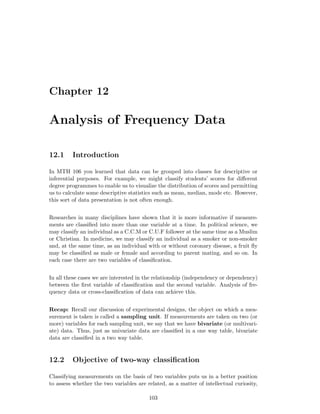

12 Analysis of Frequency Data 103
12.1 Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 103
12.2 Objective of two-way classiﬁcation . . . . . . . . . . . . . . . . . . . 103

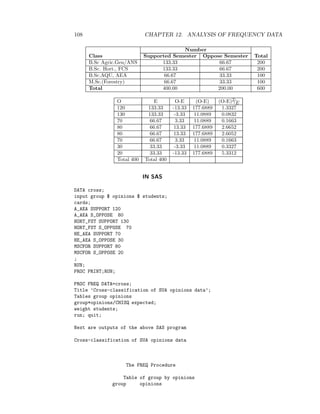

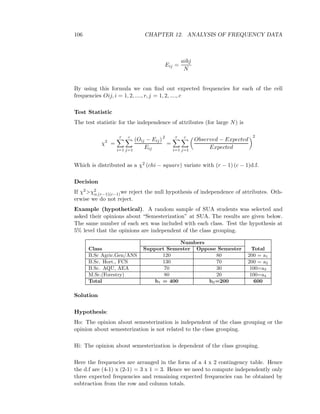

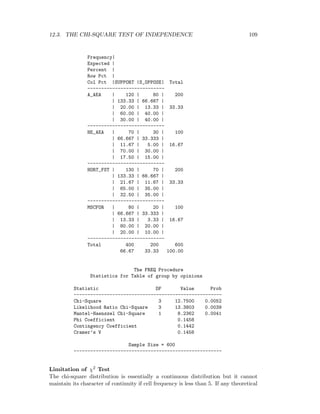

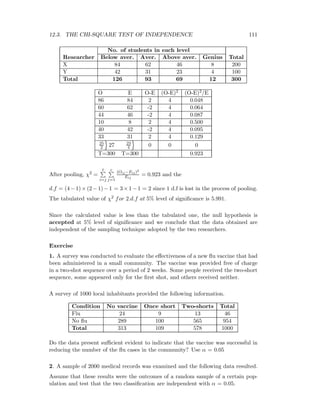

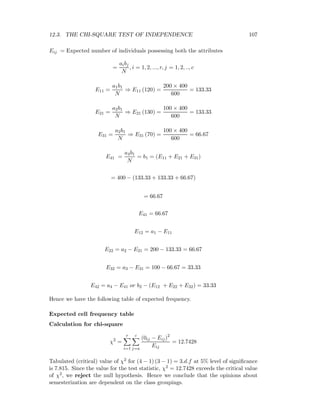

12.3 The Chi-square test of independence . . . . . . . . . . . . . . . . . . 105

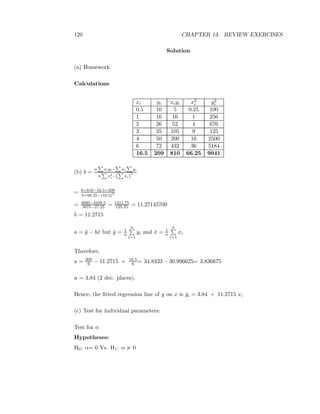

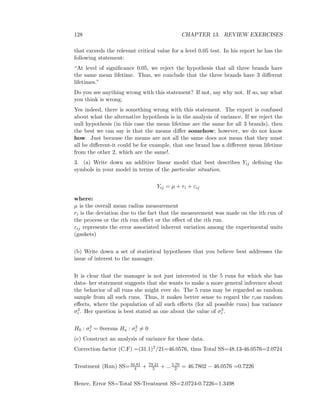

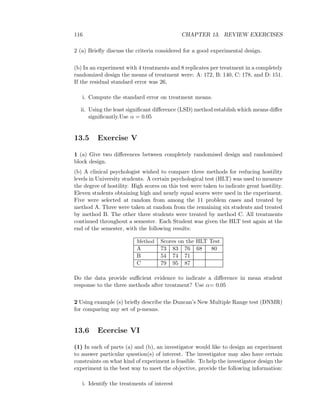

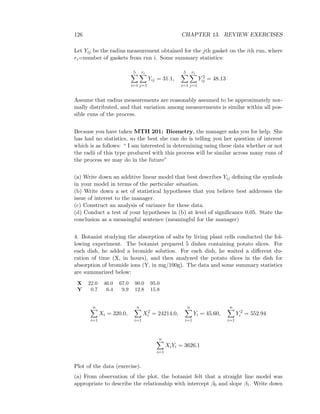

13 Review Exercises 113

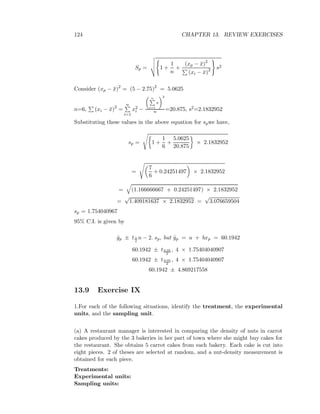

13.1 Exercise I . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 113
13.2 Exercise II . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 114
13.3 Exercise III . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 114
13.4 Exercise IV . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 115
13.5 Exercise V . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 116

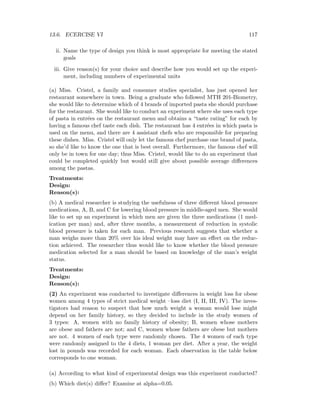

13.6 Ecercise VI . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 116

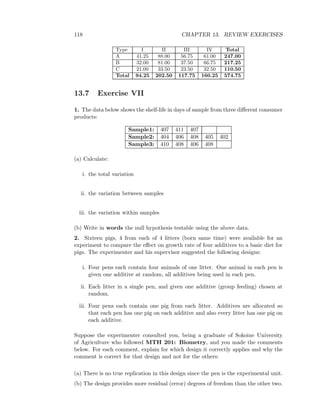

13.7 Exercise VII . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 118

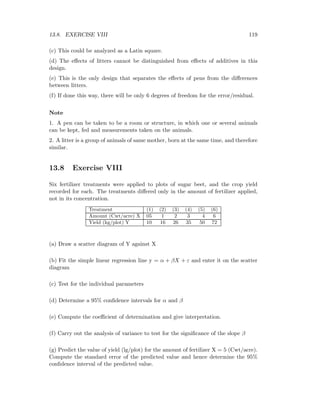

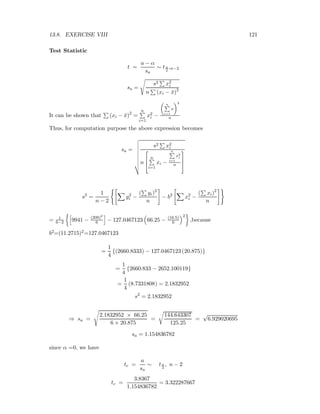

13.8 Exercise VIII . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 119

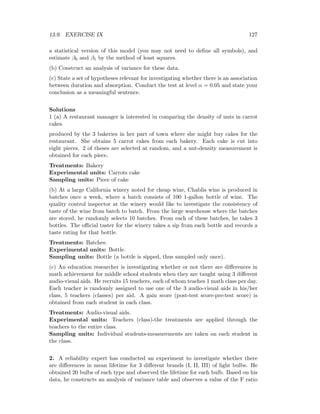

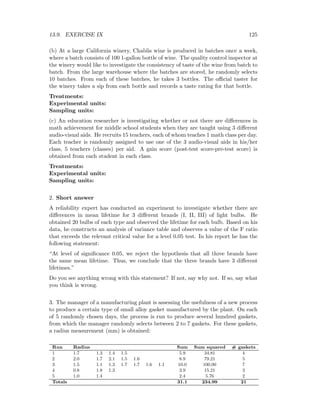

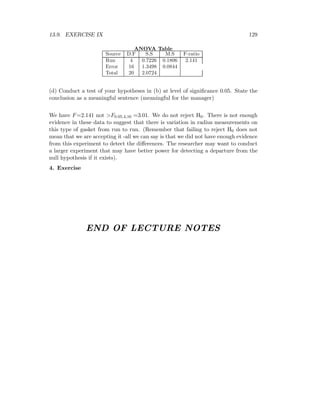

13.9 Exercise IX . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 124

0.1. PREFACE v

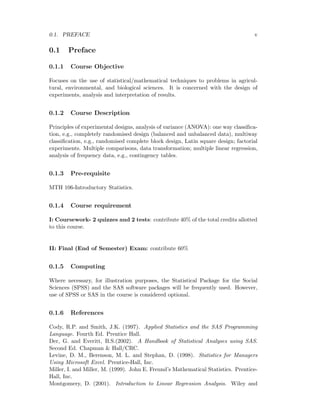

0.1 Preface
0.1.1 Course Objective
Focuses on the use of statistical/mathematical techniques to problems in agricul-
tural, environmental, and biological sciences. It is concerned with the design of
experiments, analysis and interpretation of results.
0.1.2 Course Description
Principles of experimental designs, analysis of variance (ANOVA): one way classiﬁca-
tion, e.g., completely randomised design (balanced and unbalanced data), multiway
classiﬁcation, e.g., randomised complete block design, Latin square design; factorial
experiments. Multiple comparisons, data transformation; multiple linear regression,
analysis of frequency data, e.g., contingency tables.
0.1.3 Pre-requisite
MTH 106-Introductory Statistics.
0.1.4 Course requirement
I: Coursework- 2 quizzes and 2 tests: contribute 40% of the total credits allotted
to this course.
II: Final (End of Semester) Exam: contribute 60%
0.1.5 Computing
Where necessary, for illustration purposes, the Statistical Package for the Social
Sciences (SPSS) and the SAS software packages will be frequently used. However,
use of SPSS or SAS in the course is considered optional.
0.1.6 References
Cody, R.P. and Smith, J.K. (1997). Applied Statistics and the SAS Programming
Language. Fourth Ed. Prentice Hall.
Der, G. and Everitt, B.S.(2002). A Handbook of Statistical Analyses using SAS.
Second Ed. Chapman & Hall/CRC.
Levine, D. M., Berenson, M. L. and Stephan, D. (1998). Statistics for Managers
Using Microsoft Excel. Prentice-Hall, Inc.
Miller, I. and Miller, M. (1999). John E. Freund’s Mathematical Statistics. Prentice-
Hall, Inc.
Montgomery, D. (2001). Introduction to Linear Regression Analysis. Wiley and

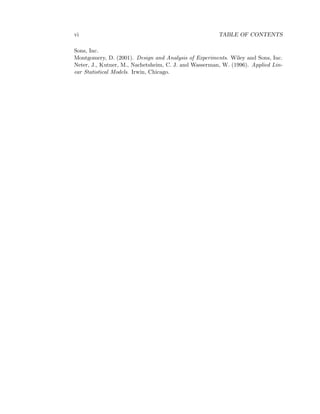

vi TABLE OF CONTENTS
Sons, Inc.
Montgomery, D. (2001). Design and Analysis of Experiments. Wiley and Sons, Inc.
Neter, J., Kutner, M., Nachetsheim, C. J. and Wasserman, W. (1996). Applied Lin-
ear Statistical Models. Irwin, Chicago.

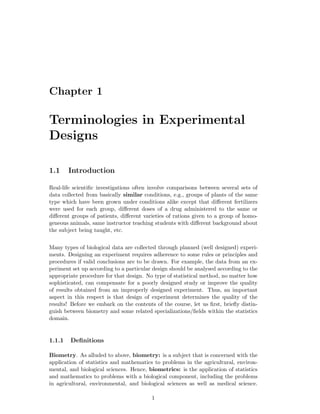

Chapter 1
Terminologies in Experimental
Designs
1.1 Introduction
Real-life scientific investigations often involve comparisons between several sets of
data collected from basically similar conditions, e.g., groups of plants of the same
type which have been grown under conditions alike except that different fertilizers
were used for each group, different doses of a drug administered to the same or
different groups of patients, different varieties of rations given to a group of homo-
geneous animals, same instructor teaching students with different background about
the subject being taught, etc.
Many types of biological data are collected through planned (well designed) experi-
ments. Designing an experiment requires adherence to some rules or principles and
procedures if valid conclusions are to be drawn. For example, the data from an ex-
periment set up according to a particular design should be analysed according to the
appropriate procedure for that design. No type of statistical method, no matter how
sophisticated, can compensate for a poorly designed study or improve the quality
of results obtained from an improperly designed experiment. Thus, an important
aspect in this respect is that design of experiment determines the quality of the
results! Before we embark on the contents of the course, let us first, briefly distin-
guish between biometry and some related specializations/fields within the statistics
domain.
1.1.1 Definitions
Biometry. As alluded to above, biometry: is a subject that is concerned with the
application of statistics and mathematics to problems in the agricultural, environ-
mental, and biological sciences. Hence, biometrics: is the application of statistics
and mathematics to problems with a biological component, including the problems
in agricultural, environmental, and biological sciences as well as medical science.
1

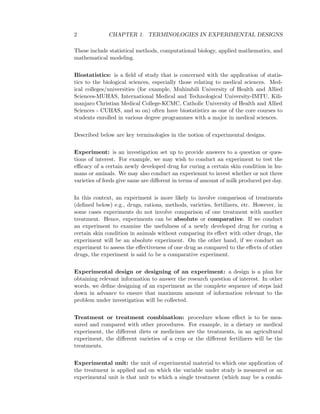

2 CHAPTER 1. TERMINOLOGIES IN EXPERIMENTAL DESIGNS
These include statistical methods, computational biology, applied mathematics, and
mathematical modeling.
Biostatistics: is a field of study that is concerned with the application of statis-
tics to the biological sciences, especially those relating to medical sciences. Med-
ical colleges/universities (for example, Muhimbili University of Health and Allied
Sciences-MUHAS, International Medical and Technological University-IMTU, Kili-
manjaro Christian Medical College-KCMC, Catholic University of Health and Allied
Sciences - CUHAS, and so on) often have biostatistics as one of the core courses to
students enrolled in various degree programmes with a major in medical sciences.
Described below are key terminologies in the notion of experimental designs.
Experiment: is an investigation set up to provide answers to a question or ques-
tions of interest. For example, we may wish to conduct an experiment to test the
efficacy of a certain newly developed drug for curing a certain skin condition in hu-
mans or aminals. We may also conduct an experiemnt to invest whether or not three
varieties of feeds give same are different in terms of amount of milk produced per day.
In this context, an experiment is more likely to involve comparison of treatments
(defined below) e.g., drugs, rations, methods, varieties, fertilizers, etc. However, in
some cases experiments do not involve comparison of one treatment with another
treatment. Hence, experiments can be absolute or comparative. If we conduct
an experiment to examine the usefulness of a newly developed drug for curing a
certain skin condition in animals without comparing its effect with other drugs, the
experiment will be an absolute experiment. On the other hand, if we conduct an
experiment to assess the effectiveness of one drug as compared to the effects of other
drugs, the experiment is said to be a comparative experiment.
Experimental design or designing of an experiment: a design is a plan for
obtaining relevant information to answer the research question of interest. In other
words, we define designing of an experiment as the complete sequence of steps laid
down in advance to ensure that maximum amount of information relevant to the
problem under investigation will be collected.
Treatment or treatment combination: procedure whose effect is to be mea-
sured and compared with other procedures. For example, in a dietary or medical
experiment, the different diets or medicines are the treatments, in an agricultural
experiment, the different varieties of a crop or the different fertilizers will be the
treatments.
Experimental unit: the unit of experimental material to which one application of
the treatment is applied and on which the variable under study is measured or an
experimental unit is that unit to which a single treatment (which may be a combi-

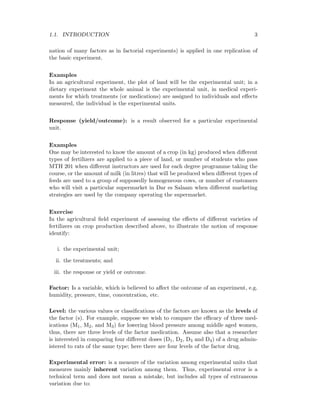

1.1. INTRODUCTION 3
nation of many factors as in factorial experiments) is applied in one replication of
the basic experiment.
Examples
In an agricultural experiment, the plot of land will be the experimental unit; in a
dietary experiment the whole animal is the experimental unit, in medical experi-
ments for which treatments (or medications) are assigned to individuals and effects
measured, the individual is the experimental units.
Response (yield/outcome): is a result observed for a particular experimental
unit.
Examples
One may be interested to know the amount of a crop (in kg) produced when different
types of fertilizers are applied to a piece of land, or number of students who pass
MTH 201 when different instructors are used for each degree programme taking the
course, or the amount of milk (in litres) that will be produced when different types of
feeds are used to a group of supposedly homogeneous cows, or number of customers
who will visit a particular supermarket in Dar es Salaam when different marketing
strategies are used by the company operating the supermarket.
Exercise
In the agricultural field experiment of assessing the effects of different varieties of
fertilizers on crop production described above, to illustrate the notion of response
identify:
i. the experimental unit;
ii. the treatments; and
iii. the response or yield or outcome.
Factor: Is a variable, which is believed to affect the outcome of an experiment, e.g.
humidity, pressure, time, concentration, etc.
Level: the various values or classifications of the factors are known as the levels of
the factor (s). For example, suppose we wish to compare the efficacy of three med-
ications (M1, M2, and M3) for lowering blood pressure among middle aged women,
thus, there are three levels of the factor medication. Assume also that a researcher
is interested in comparing four different doses (D1, D2, D3 and D4) of a drug admin-
istered to rats of the same type; here there are four levels of the factor drug.
Experimental error: is a measure of the variation among experimental units that
measures mainly inherent variation among them. Thus, experimental error is a
technical term and does not mean a mistake, but includes all types of extraneous
variation due to:

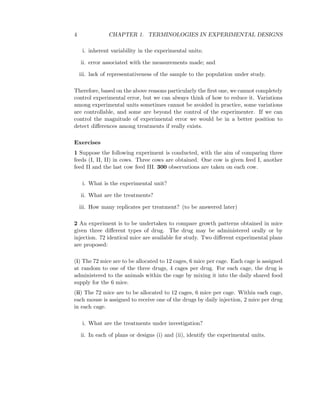

4 CHAPTER 1. TERMINOLOGIES IN EXPERIMENTAL DESIGNS
i. inherent variability in the experimental units;
ii. error associated with the measurements made; and
iii. lack of representativeness of the sample to the population under study.
Therefore, based on the above reasons particularly the first one, we cannot completely
control experimental error, but we can always think of how to reduce it. Variations
among experimental units sometimes cannot be avoided in practice, some variations
are controllable, and some are beyond the control of the experimenter. If we can
control the magnitude of experimental error we would be in a better position to
detect differences among treatments if really exists.
Exercises
1 Suppose the following experiment is conducted, with the aim of comparing three
feeds (I, II, II) in cows. Three cows are obtained. One cow is given feed I, another
feed II and the last cow feed III. 300 observations are taken on each cow.
i. What is the experimental unit?
ii. What are the treatments?
iii. How many replicates per treatment? (to be answered later)
2 An experiment is to be undertaken to compare growth patterns obtained in mice
given three different types of drug. The drug may be administered orally or by
injection. 72 identical mice are available for study. Two different experimental plans
are proposed:
(i) The 72 mice are to be allocated to 12 cages, 6 mice per cage. Each cage is assigned
at random to one of the three drugs, 4 cages per drug. For each cage, the drug is
administered to the animals within the cage by mixing it into the daily shared food
supply for the 6 mice.
(ii) The 72 mice are to be allocated to 12 cages, 6 mice per cage. Within each cage,
each mouse is assigned to receive one of the drugs by daily injection, 2 mice per drug
in each cage.
i. What are the treatments under investigation?
ii. In each of plans or designs (i) and (ii), identify the experimental units.

Chapter 2
Principles of experimental
designs
2.1 Introduction
Designing an experiment to obtain relevant data in a way that permits subjective
analysis leading to valid inferences/conclusions with respect to the problem(s) un-
der investigation is often a challenging step in practice. Correctly identifying the
relevant experimental units, their size or number, and the way the treatments are
assigned to the experimental units are some of the most important aspects of design
of experiments. In this section we describe the principles that depending on the
design chosen must be adhered to when planning an experiment to answer a speciﬁc
problem. There are three main principles of experimental designs, namely:
i. Randomisation;
ii. Replication; and
iii. Error/local control
2.2 Randomization principle
Randomisation is an essential component/principle in experimental design. Ran-
domisation involves the assignment of treatments to the experimental units, based
on the chosen design, by some chance mechanism or probabilistic procedures, e.g.,
random numbers, so that each experimental unit has the same chance of receiving
any one of the treatments, which are under study. Conscious allocation of the treat-
ments to the experimental units has been criticised by many researchers, in fact
results from studies which had not allocated treatments to the experimental units
at random have left useless and thus contributed nothing to the literature avail-
able to date. Brieﬂy speaking, randomization is the use of a known, understood
probabilistic procedure for the assignment of treatments to experimental units.
5

6 CHAPTER 2. PRINCIPLES OF EXPERIMENTAL DESIGNS
As we will discuss later in the course, randomisation been an important principle of
experimental designs is utilised in all designs that we will discuss in this course.
Question
Why do we really need to adhere to this principle?
Recap: as we explained in chapter 3, treatment is a procedure whose effect is to
be measured and compared with other procedures. Goal: Based on the fact that
our intention is to measure and compare effects of one treatment in comparison to
another treatment(s), thus, one obvious goal of randomisation is to ensure that no
treatment is somehow favoured or handicapped.
Randomisation ensures that observations represent random samples (independence of
observations) from population of interest. This insures validity of statistical methods
leading to valid conclusions/inferences.
Illustration
The following example illustrates the importance of randomisation. A study is to
be conducted to compare the efficacies of two drugs (I and II) for treating a certain
skin condition. It is decided that patients will be assigned to drug I if they have
had previous outbreaks of the condition and to drug II if the current outbreak of the
condition is the first for the patient. Comment on this experimental design. If you
feel that the design has drawbacks, state how you would improve it.
From our discussion above, clearly this design lacks randomisation. The design had
allocated the drugs depending on whether the patient has had a previous outbreak
of the condition. This is not a proper way of assigning treatments to experimental
units. It may be, for example, that patient with first-time outbreaks are more or
less difficult to treat than repeat outbreaks. This may put one drug or the other at
a disadvantage in evaluation of efficacy.
How to improve?
A better design would be one that assigns patients at random to the drugs regardless
of outbreak status. An even better design would be one which assigns patients with
first-time outbreaks to each drug randomly, and similarly for patients with repeat
outbreaks, so that each drug is seen on patients of each type.
2.3 Replication principle
The term replication refers to the number of experimental units on each treatment.
A treatment is said to be replicated if it is applied to more than one experimental
unit. Literally speaking, replication means the number of times a treatment appears
on experimental units.
Question
What do we replicate and why? The first part of this question is answered above.

2.4. LOCAL CONTROL PRINCIPLE 7
We replicate treatments to experimental units. Perhaps of most interest here at least
in my views is the question of why do we need to replicate the treatments.
We repeat a treatment a number of times in order to obtain more reliable estimate
than is possible from a single observation. If you can recall our discussion of statis-
tical inference in MTH 106, we mentioned that the sample size n is a key factor
in determining precision and power. This is the case because if we increase the
sample size, we decrease the magnitude of s ¯D which is a measure of how precisely
we can estimate the difference and determine the size of our test statistic (and thus
power of the test). In the context of experimental design, the number of replicates
per treatment is also a key factor in determining precision and power.
Example
Suppose an experiment is conducted with the goal of comparing two diets in weight
gain in sheep. Two sheep are available for experimentation. One sheep is given diet
A, the other; diet B. 400 observations are taken on each sheep.
In this example very little can be learned about how the treatments compare in the
population of such sheep. We have only one sheep on each treatment (diet); thus,
we do not know if observed differences we might see are due to a real difference
in the treatments we are comparing or just the fact that these two sheep are quite
different. This is perhaps an artificial example, but it illustrates a general point of
why replication is an important principle in experimental designs.
A practical advice
If we have a fixed number of experimental units available for experimentation, an
obvious challenge is how to make the best use of them for detecting treatment dif-
ferences. In this situation of limited resources we would be better off with a few
treatments with lots of replicates on each treatment rather than many treatments
with fewer replicates on each.
Thus, if limited resources are available, it is better to reduce the number of treat-
ments to be considered or postpone the experiment rather than to proceed with
too few replicates. So randomisation plus replication will be necessary for the
validity of the experiment.
Exercise
In your own words explain why you think replication is an important concept to
keep in mind when designing an experiment in your own field of study.
2.4 Local control principle
Experimental design is founded on the principle of reducing what we regard as ex-
perimental error by meaningful grouping of experimental units into small non-
overlapping units. As we discussed above, we cannot eliminate inherent variability

8 CHAPTER 2. PRINCIPLES OF EXPERIMENTAL DESIGNS
completely but if we try to be careful enough about what we consider to be inherent
variability we should be in a position to separate systematic variation among exper-
imental units from inherent variation and hence arrive at the stated goal (s) of the
experiment.
Local control are techniques for reducing the error variance. One such measure is to
make experimental units homogeneous, i.e. to form units into several homogeneous
groups called blocks. This is done particularly in situations where the experimen-
tal units are assumed to be non-homogeneous. Thus, to reduce the magnitude of
experimental error one needs to group the experimental units.
It should be understood that in order to detect treatment differences if they really,
we must strive to control the effects of experimental error, so that any variation we
observe can be attributed mainly to the effects of the treatments we are comparing
rather than to differences among the experimental units to which the treatment are
applied.
Summary: From what we have discussed so far, it is clear that a good experimental
design attempts to:
i. ensure sufficient replication of treatments to experimental units; and
ii. reduce the effects of experimental error by meaningful grouping of experimental
units –application of local/error control.

Chapter 3
Analysis of Variance
3.1 Introduction
Among the most extremely useful statistical procedures in the fields of agriculture,
economics, psychology, education, sociology, business/industry and in researches of
several other disciplines is the analysis of variance. This technique is particularly
used when multiple sample cases are involved.
Recap: Tests of significance discussed in MTH 106 between the means of two sam-
ples can easily be judged through either the standard normal distribution, z-test or
the student’s t- test. Just to remind you one of the popular t-test is the two sample
pooled t- test used when the two unknown population variances are assumed to be
equal.
Problem: When there are more than two samples, performing all possible pairwise
comparisons especially if n is large becomes a wearying exercise. The analysis of
variance technique enables us to perform this simultaneous test. Using this tech-
nique one can draw inferences about whether the samples have been drawn from
populations having the same mean.
Example
Comparison of yields of a certain crop from several varieties of seeds, the smoking
habits of six groups of SUA students, and so on.
If we are to use either the z or t-tests, one need to consider all possible combinations
of two varieties of seeds at a time and also two groups of students. This would take
some time before one arrives at a decision. In such circumstances, one quite often
utilizes the analysis of variance technique and through it investigates the differ-
ences among the means of all the populations simultaneously.
Acronym: The popular acronym for ANalysis Of VAriance is ANOVA.
9

10 CHAPTER 3. ANALYSIS OF VARIANCE

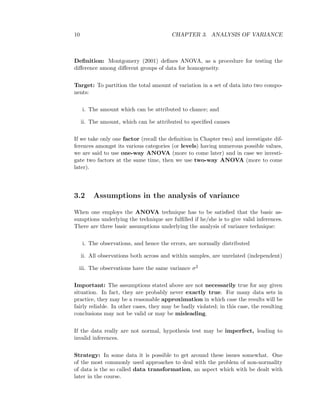

Definition: Montgomery (2001) defines ANOVA, as a procedure for testing the
difference among different groups of data for homogeneity.
Target: To partition the total amount of variation in a set of data into two compo-
nents:
i. The amount which can be attributed to chance; and
ii. The amount, which can be attributed to specified causes
If we take only one factor (recall the definition in Chapter two) and investigate dif-
ferences amongst its various categories (or levels) having numerous possible values,
we are said to use one-way ANOVA (more to come later) and in case we investi-
gate two factors at the same time, then we use two-way ANOVA (more to come
later).
3.2 Assumptions in the analysis of variance
When one employs the ANOVA technique has to be satisfied that the basic as-
sumptions underlying the technique are fulfilled if he/she is to give valid inferences.
There are three basic assumptions underlying the analysis of variance technique:
i. The observations, and hence the errors, are normally distributed
ii. All observations both across and within samples, are unrelated (independent)
iii. The observations have the same variance σ2
Important: The assumptions stated above are not necessarily true for any given
situation. In fact, they are probably never exactly true. For many data sets in
practice, they may be a reasonable approximation in which case the results will be
fairly reliable. In other cases, they may be badly violated; in this case, the resulting
conclusions may not be valid or may be misleading.
If the data really are not normal, hypothesis test may be imperfect, leading to
invalid inferences.
Strategy: In some data it is possible to get around these issues somewhat. One
of the most commonly used approaches to deal with the problem of non-normality
of data is the so called data transformation, an aspect which with be dealt with
later in the course.

3.3. ANALYSIS OF VARIANCE FOR ONE-WAY CLASSIFICATION 11
Important: For the reminder of our discussion of analysis of variance in this and
subsequent chapters, we will assume that the above assumptions are reasonable either
on the original scale of measurement of the data or transformed scale. Keep this in
mind at all times that these are just assumptions, and must be confirmed before the
methods may be considered suitable.
3.3 Analysis of variance for one-way classification
Under the one-way (or single factor) ANOVA, we randomly obtain the experimen-
tal units for the experiment and randomly assign them to the treatments so that
each experimental unit is observed under one of the treatments. In this situation,
the only way in which experimental units may be classified is with respect to which
treatment they received. Basically, the experimental units are viewed alike in this
experiment. Thus, when experimental units are thought to be alike and are thus
expected to exhibit a small amount of variation from unit to unit, grouping then
would be pointless in the sense that doing so would not add much precision to an
experiment.
It can be shown that the total variation in the observed responses can be subdivided
into two components:
i. Due to the differences in the level of factor (say A)
ii. The residual variation (error term)
3.3.1 Analysis of variance for one-way classification with unequal
replication (unbalanced data)
We will first consider the case where unequal number of replication of the treatments
to the experimental units is observed.
Notation: To facilitate the development of methods that we will require in our
discussion, we will change slightly our notation of sample mean we discussed in
MTH 106. As we will see shortly, we will be dealing with several different types of
means for the data.
Let t denote treatment and k the number (levels) of treatments. Let also Yij be the
response of the jth experimental unit receiving the ith treatment level
We will also denote the sample mean for treatment i (mean of all plots receiving
treatment i) by
Y i. = 1
ni
ni
j=1
Yij

Also we define Y .. =
k
i=1
ni
j=1
yij
k
i=1
ni
or Y.. = G
N as the grand mean yield (sample mean
of all the data) in the whole experiment. Note that because we have unequal
replications, the total number of observations is
k
i=1
ni = N
3.3.2 Linear additive model for one-way classification
For a one way classification with unequal replication we may classify an individual
observation as being on the jth experimental unit in the ith treatment level as:
Yij = µ + ti + eij, i=1, 2,. . . k, j=1, 2,. . . ni
Where:
µ = the general mean effect
ti = the effect of level i or the ith treatment effect
eij = the error term
Yij as defined above
Remark: In our discussion we will consider only cases where a single observation
of response is made on each experimental unit; however, it is common practice to
take more than one observation on an experimental unit.
3.3.3 Fixed vs. random effects
In the above model for one way classification with unequal replication, ti represents
the ith treatment effect. However, interpretation of timay differ depending on the
situation.
To better understand the notions of fixed and random effects, consider the following
examples.
Example 1
Suppose there are three varieties of wheat for which mean yields are to be compared.
Here, we are interesting in comparing 3 specific treatments. If we repeated the ex-
periment again, these 3 varieties of wheat would always constitute the treatments of
interest.
Example 2
Suppose a factory operates a large number of machines to produce a product and
wishes to determine whether the mean yield of these machines differs. It is unfea-
sible for the company to keep track for all of the many machines it operates, so a
random sample of 5 such machines is selected, and observations on yield are made
on these 5 machines. The hope is that the results for the 5 machines involved in the

experiment may be generalized to gain insight into the behaviour of all the machines.
In the first example, there is a particular set of treatments of interest. If we started
the experiment next week instead of this week, we would still be interested in this
same particular set of treatments. It would not vary across other possible experi-
ments we might do.
In the second example, the treatments are the 5 machines from all machines at the
company, chosen at random. If we started the experiment next week instead of this
week, we might end up with a different set of 5 machines with which to do the
experiment. Here interest focuses on the population of all machines operated by
the company. The question of interest is not about the particular treatments in the
experiment, but the population of all such treatments.
We thus make the following distinction in our model:
In the case like example 1, the ti are best regarded as fixed quantities, as they de-
scribe a particular set of conditions. Thus, ti are referred to as fixed effects
In a case like example 2, the ti are best regarded as random variables. Here the par-
ticular treatments in the experiment may be thought of as drawn from a population
of all such treatments, so there is a chance involved. In this situation, the ti are
referred to as random effects.
3.3.4 Calculation of sums of squares
As we described above, the fundamental nature of the ANOVA is that the total
amount of variation in a set of data is broken down into two components, that
amount which can be attributed to chance and that amount which can be attributed
to specified causes.
Thus, based on the above linear additive model we partition the total variation in
the data as:
Total variation = Variation due to factor A (treatment) + Residual/Error term or
Total sum of squares = Sum of squares due to factor A + Sum of squares due to error
In short we have,
SST = SSA + SSE

Algebraic facts show that the total sum of squares (SST) can be partitioned as:
k
i=1
ni
j=1
Yij − Y..
2
=
k
i=1
ni Y i. − Y..
2
+
k
i=1
ni
j=
Yij − Y i.
2
Y i.and Y .. as defined in Section 3.3.1
Thus, SST=
k
i=1
ni
j=1
Yij − Y..
2
, SSA=
k
i=1
ni
¯Yi. − ¯Y..
2
and SSE=
k
i=1
ni
j=1
Yij − ¯Yi.
2
For calculation we express the SSs as follows:
Define C.F=Correction factor =
k
i=1
ni
j=1
Yij
2
k
i=1
ni
= G2
N Here, G is the grand total=
k
i=1
ni
j=1
Yij and N as defined in Section 2.3.1
It can be shown that:
SST=
k
i=1
ni
j=
Y 2
ij −
k
i=1
ni
j=1
Yij
2
k
i=1
ni
or
k
i=1
ni
j=
Y 2
ij − G2
N or
k
i=1
ni
j=
Y 2
ij − C.F
Treatment SS or Factor A SS=
k
i=1
Y 2
i
ni
− C.F
Where: Yi =
ni
j=1
Yijis the total yield of all the njplots which carried treatment i
Error SS (SSE) =SST-SSA
Since we have k levels of factor (A) or treatment then SSA will have k-1 independent
comparisons possible (degrees of freedom). Similarly SST will have N-1 independent
comparisons (degrees of freedom), and SSE will have (N-1)-(k-1) =N−k independent
comparisons (degrees of freedom).
We summarize the computations in a table known as the ANOVA table.
The calculated F-value MSA
MSE is compared with the F-tabulated value
(Fα, [(k − 1) , (N − k)]) at α level of significance for k-1 and N −k degrees of freedom.

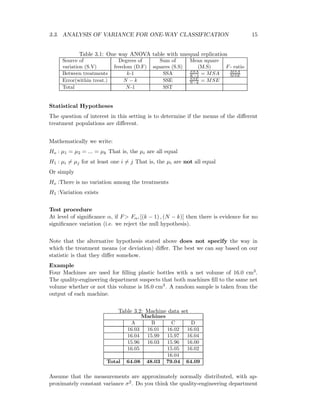

Table 3.1: One way ANOVA table with unequal replication
Source of Degrees of Sum of Mean square
variation (S.V) freedom (D.F) squares (S.S) (M.S) F- ratio
Between treatments k-1 SSA SSA
K−1 = MSA MSA
MSE
Error(within treat.) N − k SSE SSE
N−k = MSE
Total N-1 SST
Statistical Hypotheses
The question of interest in this setting is to determine if the means of the different
treatment populations are different.
Mathematically we write:
Ho : µ1 = µ2 = ... = µk That is, the µi are all equal
H1 : µi = µj for at least one i = j That is, the µi are not all equal
Or simply
Ho :There is no variation among the treatments
H1 :Variation exists
Test procedure
At level of significance α, if F> Fα, [(k − 1) , (N − k)] then there is evidence for no
significance variation (i.e. we reject the null hypothesis).
Note that the alternative hypothesis stated above does not specify the way in
which the treatment means (or deviation) differ. The best we can say based on our
statistic is that they differ somehow.
Example
Four Machines are used for filling plastic bottles with a net volume of 16.0 cm3.
The quality-engineering department suspects that both machines fill to the same net
volume whether or not this volume is 16.0 cm3. A random sample is taken from the
output of each machine.
Table 3.2: Machine data set
Machines
A B C D
16.03 16.01 16.02 16.03
16.04 15.99 15.97 16.04
15.96 16.03 15.96 16.00
16.05 15.05 16.02
16.04
Total 64.08 48.03 79.04 64.09
Assume that the measurements are approximately normally distributed, with ap-
proximately constant variance σ2. Do you think the quality-engineering department

is correct? Use α = 0.05

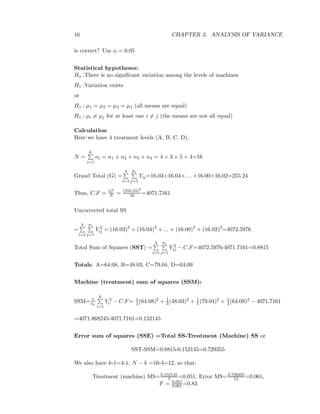

Statistical hypotheses:
Ho :There is no signiﬁcant variation among the levels of machines
or
Ho : µ1 = µ2 = µ3 = µ4 (all means are equal)
H1 : µi = µj for at least one i = j (the means are not all equal)
Calculation
Here we have 4 treatment levels (A, B, C, D).
N =
k
i=1
ni = n1 + n2 + n3 + n4 = 4 + 3 + 5 + 4=16
Grand Total (G) =
4
i=1
ni
j=1
Yij=16.03+16.04+. . . +16.00+16.02=255.24
Thus, C.F = G2
N = (255.24)2
16 =4071.7161
Uncorrected total SS
=
4
i=1
ni
j=1
Y 2
ij = (16.03)2
+ (16.04)2
+ ... + (16.00)2
+ (16.02)2
=4072.5976
Total Sum of Squares (SST) =
4
i=1
ni
j=1
Y 2
ij − C.F=4072.5976-4071.7161=0.8815
Totals: A=64.08, B=48.03, C=79.04, D=64.09
Machine (treatment) sum of squares (SSM):
SSM= 1
ni
k
i=1
Y 2
i − C.F= 1
4(64.08)2 + 1
3(48.03)2 + 1
5(79.04)2 + 1
4(64.09)2 − 4071.7161
=4071.868245-4071.7161=0.152145
Error sum of squares (SSE) =Total SS-Treatment (Machine) SS or
SST-SSM=0.8815-0.152145=0.729355
We also have k-1=4-1, N − k =16-4=12, so that:
Treatment (machine) MS=0.152145
5 =0.051, Error MS=0.729355
12 =0.061,
F = 0.051
0.061 =0.83

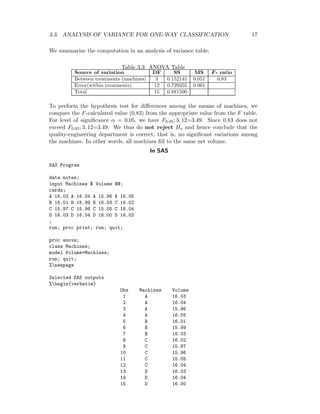

We summarize the computation in an analysis of variance table:
Table 3.3: ANOVA Table
Source of variation DF SS MS F- ratio
Between treatments (machines) 3 0.152145 0.051 0.83
Error(within treatments) 12 0.729355 0.061
Total 15 0.881500
To perform the hypothesis test for differences among the means of machines, we
compare the F-calculated value (0.83) from the appropriate value from the F table.
For level of significance α = 0.05, we have F0.05; 3, 12=3.49. Since 0.83 does not
exceed F0.05; 3, 12=3.49. We thus do not reject Ho and hence conclude that the
quality-engineering department is correct, that is, no significant variations among
the machines. In other words, all machines fill to the same net volume.
In SAS
SAS Program
data notes;
input Machines $ Volume @@;
cards;
A 16.03 A 16.04 A 15.96 A 16.05
B 16.01 B 15.99 B 16.03 C 16.02
C 15.97 C 15.96 C 15.05 C 16.04
D 16.03 D 16.04 D 16.00 D 16.02
;
run; proc print; run; quit;
proc anova;
class Machines;
model Volume=Machines;
run; quit;
%newpage
Selected SAS outputs
%begin{verbatim}
Obs Machines Volume
1 A 16.03
2 A 16.04
3 A 15.96
4 A 16.05
5 B 16.01
6 B 15.99
7 B 16.03
8 C 16.02
9 C 15.97
10 C 15.96
11 C 15.05
12 C 16.04
13 D 16.03
14 D 16.04
15 D 16.00

16 D 16.02
The ANOVA Procedure
Dependent Variable: Volume
Sum of
Source DF Squares Mean Square F Value Pr > F
Model 3 0.15214500 0.05071500 0.83 0.5004
Error 12 0.72935500 0.06077958
Corrected Total 15 0.88150000
R-Square Coeff Var Root MSE Volume Mean
0.172598 1.545433 0.246535 15.95250
Source DF Anova SS Mean Square F Value Pr > F
Machines 3 0.15214500 0.05071500 0.83 0.5004
Exercise
The following data comes from an experiment conducted to investigate the effect
of 4 diets on weight gain in pigs. 19 pigs were randomly selected and assigned at
random to one of the 4 diet regimes. The data are the body weights of the pigs, in
pounds, after having been raised on the diets.
Diet 1 Diet 2 Diet 3 Diet 4
133.8 151.2 225.8 193.4
125.3 149.0 224.6 185.3
143.1 162.7 220.4 182.8
128.9 145.8 212.3 188.5
135.7 153.5 198.6
Assume that the measurements are approximately normally distributed, with con-
stant variance: Is there any evidence in these data to suggest that the mean weights
are different under the different diets? Use α = 0.05. Compare your ANOVA table
with the one below from SAS.
The ANOVA Procedure
Dependent Variable: BWeight
Sum of
Model 3 20461.40576 6820.46859 164.38 <.0001
Error 15 622.39950 41.49330
R-Square Coeff Var Root MSE BWeight Mean
0.970480 3.753460 6.441529 171.6158
Diets 3 20461.40576 6820.46859 164.38 <.0001

3.3.5 ANOVA for one-way classification with equal replication (bal-
anced data)
In the above exercise the diets 1, 2, and 4 are each replicated 5 times while diet 3 is
replicated 4 times. In this case as we have discussed above, the sample mean for
treatment i is Y i. = 1
ni
ni
j=1
Yij. We now discuss the case where ni = n for all i,
i=1, 2,. . . , k
Since each treatment is replicated the same number of time (say n), then the total
number of observations, N=nk.
Thus, with this new notation, we define the quantities Y i.,Y .., Total SS, Treatment
SS, and Error SS and their degrees of freedom as follows:
Y i. = 1
n
n
j=1
Yij, Y .. =
k
i=1
n
j=1
yij
nk orY.. = G
N , Total SS (SST) =
k
i=1
n
j=1
Y 2
ij − G2
N ,
Treatment SS or Factor A SS=
k
i=1
Y 2
i
n − C.F where C.F =
k
i=1
n
j=1
Yij
2
nk = G2
N
G = the grand total=
k
i=1
n
j=1
Yij
The degrees of freedom for Treatment SS, Error SS and Total SS, are respectively
(k-1), (N − k) or (nk-k) or k(n-1) and (N-1) or (nk-1).
Table 3.4: One way ANOVA table with equal replication
Source of DF SS MS F- ratio
variation
Between treat. k-1 SSA SSA
k−1 = MSA MSA
MSE
Error (within treat.) k(n-1) SSE SSE
k(n−1) = MSE
Total N-1 SST
The calculated F-value MSA
MSE is compared with the F-tabulated value
(Fα, [(k − 1) , (k(n − 1))]) at α level of significance for k-1 and k(n-1) degrees of free-
dom.
Statistical Hypotheses as given above
Test procedure
At level of significanceα, if F> Fα, [(k − 1) , (k(n − 1))] then there is evidence for no
significance variation (i.e. we reject the null hypothesis).
Example

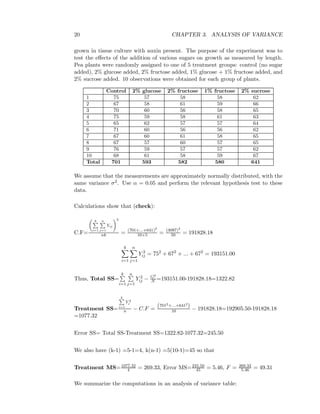

The following data record the length of pea sections, in ocular units (×0.114 mm),

grown in tissue culture with auxin present. The purpose of the experiment was to
test the eﬀects of the addition of various sugars on growth as measured by length.
Pea plants were randomly assigned to one of 5 treatment groups: control (no sugar
added), 2% glucose added, 2% fructose added, 1% glucose + 1% fructose added, and
2% sucrose added. 10 observations were obtained for each group of plants.
Control 2% glucose 2% fructose 1% fructose 2% sucrose
1 75 57 58 58 62
2 67 58 61 59 66
3 70 60 56 58 65
4 75 59 58 61 63
5 65 62 57 57 64
6 71 60 56 56 62
7 67 60 61 58 65
8 67 57 60 57 65
9 76 59 57 57 62
10 68 61 58 59 67
Total 701 593 582 580 641
We assume that the measurements are approximately normally distributed, with the
same variance σ2. Use α = 0.05 and perform the relevant hypothesis test to these
data.
Calculations show that (check):
C.F=
k
i=1
n
j=1
Yij
2
nk = (701+...+641)2
10×5 = (3097)2
50 = 191828.18
k
i=1
n
j=1
Y 2
ij = 752
+ 672
+ ... + 672
= 193151.00
Thus, Total SS=
k
i=1
n
j=1
Y 2
ij − G2
N =193151.00-191828.18=1322.82
Treatment SS=
k
i=1
Y 2
i
n − C.F =
(7012+...+6412
)
10 − 191828.18=192905.50-191828.18
=1077.32
Error SS= Total SS-Treatment SS=1322.82-1077.32=245.50
We also have (k-1) =5-1=4, k(n-1) =5(10-1)=45 so that
Treatment MS=1077.32
4 = 269.33, Error MS=245.50
45 = 5.46, F = 269.33
5.46 = 49.31
We summarize the computations in an analysis of variance table:

3.4. ANOVA FOR TWO-WAY CLASSIFICATION (WITHOUT REPLICATION)21
Table 3.5: ANOVA table-Pea section data
Between treatments 4 1077.32 269.33 49.33
Error (within treatments) 45 245.50 5.46
Total 49 1322.82
F0.05; 4, 45 = 2.61
Comparing the calculated F value (49.33) with the F value from F table (2.61) at
0.05 level of significance we see that 49.33 >F0.05; 4, 45=2.61. We thus reject H0.
There is evidence in these data to suggest that the mean lengths of pea sections are
different depending upon which sugar was added.
3.4 ANOVA for two-way classification (Without Repli-
cation)
As the name suggests, two-way classification means the data are classified on the
basis of two factors. Thus, two-way ANOVA technique is used when the data are
classified on the basis of two factors.
Suppose the two factors are A and B which have h and g levels respectively in an
experiment without replication. Using the ANOVA technique we can partition the
variation of the response about their mean into three different components.
3.4.1 Linear additive model for two-way classification
For two-way classification without replication, let Yij be the response for the ith
level of factor A and jth level of factor B. Thus, the model can be written as:
Yij = µ + ti + bj + eij, i=1, 2, . . . , h; j=1, 2, . . . g
Where:
µ is the overall mean
ti is the effect of level i for factor A
bj is the effect of level j for factor B and eij is the residual (error term).
The ANOVA technique allows us to partition the total SS as:
Total SS = Factor A SS + Factor B SS + Residual SS
or simply,
SST= SSA+SSB + SSE
As in one-way classification, the short methods of computing sum of squares are
given as follows:

Let N (=hg) be the total number of experimental observations
Let G = the sum of yields over all the N (=hg) plots. So that G =
h
i=1
g
j=
Yij,
Correction factor (C.F) =G2
N =
h
i=1
g
j=1
Yij
2
hg
Total SS (SST) =
h
i=1
g
j=1
Y 2
ij − C.F
Factor A SS (SSA) =1
g
h
i=1
Y 2
i − C.F where Yi =
g
j=1
Yij is the total yield of all the
g plots which carried treatment i.
Factor B SS (SSB) =1
h
g
j=1
Y 2
j − C.F where Yj =
h
i=1
Yij is the total yield of all
the h plots which carried treatment j.
Error SS (SSE) = SST – (SSA +SSB)= SST –SSA- SSB
Table 3.6: ANOVA table for two-way classification
Source of variation DF SS MS F-ratio
Factor A h-1 SSA SSA
h−1 = MSA MSA
MSE
Factor B g-1 SSB SSB
g−1 = MSB MSB
MSE
Residual (h-1)(g-1) SSE SSE
(h−1)(g−1) = MSE
Total N-1 SST
Factor A:
Ho: t1 = t2=. . . =th
H1: ti =tj for at least one i = j
Factor B:
Ho: b1=b2=. . . =bg
H1: bi =bj for at least one i = j
Test procedure
Reject Ho for factor A, if the calculated F-value MSA
MSE > the tabulated F-value
Fα, [(h − 1) , (h − 1)(g − 1)] at α-level of significance. Otherwise, we do not reject
Ho.
Similarly, reject Ho for factor B, if the calculated F-value MSB
MSE > the tabulated
F-value Fα, [(g − 1) , (h − 1)(g − 1)] at α-level of significance. Otherwise, we do not
reject Ho

3.4. ANOVA FOR TWO-WAY CLASSIFICATION (WITHOUT REPLICATION)23
Example
Three different methods of analysis M1, M2, and M3 are used to determine in parts
per million the amount of a certain constituent in a sample. Each method is used
by five analysts and the results are given below.
Analyst
1 2 3 4 5 Total
7.0 6.9 6.8 7.1 6.9 34.7
Method 6.5 6.7 6.5 6.7 6.6 33.0
6.6 6.2 6.4 6.3 6.4 31.9
Total 20.1 19.8 19.7 20.1 19.9 99.6
Do these results indicate a significant variation either between the methods or be-
tween analysts? Use α = 0.01
For analyst
Ho: analysts do not differ
H1:Analysts differ
For method
Ho: methods do not differ
H1:methods differ
Calculation
C.F =G2
N =
h
i=1
g
j=1
Yij
2
hg = (99.6)2
15 =661.344
Total SS (SST) =
h
i=1
g
j=1
Y 2
ij − C.F=662.32-661.344=0.976
Analyst SS (SSA) =1
g
h
i=1
Y 2
i − C.F
=1
3 (20.1)2 + (19.8)2 + (19.7)2 + (20.1)2 + (19.9)2 − 661.344
=661.3866667-661.344=0.0426667
Method SS (SSM)
=1
h
g
j=1
Y 2
j − C.F =1
5 (34.7)2 + (33.0)2 + (31.9)2 − 661.344=662.14-661.344=0.796

Error SS (SSE):
= SST –SSA- SSM=0.976-0.0426667-0.796=0.1373333
Table 3.7: ANOVA table
Analyst 4 0.04267 0.01067 0.620
Method 2 0.79600 0.39800 23.18
Error 8 0.13733 0.01717
Total 14 0.9760
Comparing the F calculated values, (0.62) and (23.18) for analyst and method with
the critical F values, (7.01) and (8.65) respectively, we do not reject the null hy-
pothesis for analyst while for method the null hypothesis is rejected. Hence, we
conclude that there is not enough evidence in these data to suspect that the analysts
differ. On the other hand, the data indicates significant differences in methods at
the 1% level of significance.
In SAS
SAS Program
data twoway;
input Analyst $ Method $ ppm @@;
cards;
A1 M1 7.0
A1 M2 6.5
A1 M3 6.6
A2 M1 6.9
A2 M2 6.7
A2 M3 6.2
A3 M1 6.8
A3 M2 6.5
A3 M3 6.4
A4 M1 7.1
A4 M2 6.7
A4 M3 6.3
A5 M1 6.9
A5 M2 6.6
A5 M3 6.4
;
run; proc print;run;quit;
proc anova;
class Analyst Method;
model ppm=Analyst Method;
run;quit;
The SAS System
Obs Analyst Method ppm
1 A1 M1 7.0
2 A1 M2 6.5
3 A1 M3 6.6
4 A2 M1 6.9

3.5. THE LEAST SIGNIFICANCE DIFFERENCE (LSD) 25
5 A2 M2 6.7
6 A2 M3 6.2
7 A3 M1 6.8
. . . .
. . . .
The ANOVA Procedure
Dependent Variable: ppm
Sum of
Model 6 0.83866667 0.13977778 8.14 0.0046
Error 8 0.13733333 0.01716667
R-Square Coeff Var Root MSE ppm Mean
0.859290 1.973217 0.131022 6.640000
Analyst 4 0.04266667 0.01066667 0.62 0.6601
Method 2 0.79600000 0.39800000 23.18 0.0005
3.5 The least signiﬁcance diﬀerence (LSD)
If we reject the null hypothesis by the use of the F-test, we can carry out further
analyses, i.e., carry out pairwise comparisons of the levels of the factor (s) by the
use of t-test. We consider the situation where we have planned in advance of the
experiment to make certain comparisons among treatment means. In this case, each
comparison is important in its own right, and thus is to be viewed as separate, i.e.,
cannot be combined.
Suppose we have t treatments in the experiment, and we are interested in comparing
two treatments 1 and 2, with means µ1 and µ2 respectively. That is, we wish to test
the hypotheses:
H0 : µ1 = µ2 vs. H1 : µ1 = µ2
Test statistic: As our test statistic for H0 vs. H1, we use:
| ¯Y1. − ¯Y2.|
s¯Y1.− ¯Y2.
, s¯Y1.− ¯Y2.
= s
1
r1
+
1
r2
, s =
√
MSE
That is, instead of basing the estimate of σ2 on only the two treatments in question,
we use the estimate from all t treatments in the experiment. Here, r1 and r2 are
respectively the replicates of samples 1 and 2.

Test procedure: Reject H0 in favour of H1 if
| ¯Y1. − ¯Y2.|
s¯Y1.− ¯Y2.
> tN−t,α/2
Here, N − t are the degrees of freedom for estimating σ2 (experimental error)
Note that the test procedure above for testing H0 against H1 may be rewritten as
follows:
Reject H0 if:
| ¯Y1. − ¯Y2.| > s¯Y1.− ¯Y2.
× tN−t,α/2, s =
√
MSE
Terminology: In comparing two treatment means from large experiments involving
t treatments, the value
s¯Y1.− ¯Y2.
× tN−t, α/2 = s
1
r1
+
1
r2
× tN−t,α/2, s =
√
MSE
is called the least significance difference (LSD) for the test of H0 vs. H1 based
on the entire experiment. Thus, from the above expression, we reject H0 in favour
of H1 at level α if
| ¯Y1. − ¯Y2.| > s¯Y1.− ¯Y2.
× tN−t,α/2
The case of equal replication: If all treatments are replicated equally, that is,
ri = r the value of the LSD is the same and is given by:
s¯Y1.− ¯Y2.
= s
2
r
, s =
√
MSE, LSD = s
2
r
× tN−t,α/2
Thus, in case of equal replications, all pairwise comparisons of interest require only
a single calculation.
Example
Consider the pea section data we discussed in Section 5.3.5. In this data we had
equal replications (r=10) and 5 treatments (t=5). Suppose it was decided in advance
that one investigator was interested in the particular question of whether 2% glucose
(treatment 2) differs from control.
Let µ1 denote the mean for the control andµ2, µ3, µ4,µ5 denote the means for the
sugar treatments, 2% glucose, 2% fructose, 1% fructose and 2% sucrose
respectively.

3.5. THE LEAST SIGNIFICANCE DIFFERENCE (LSD) 27
In this situation, we want to test the hypotheses:
H02 : µ1 = µ2 vs. H12 : µ1 = µ2
From the information given, we have
¯Y1. = 70.1, ¯Y2. = 59.3, s =
√
MSE=2.3357, N − t = 45, tN−t,α/2 = t45,0.025 = 2.01.
Thus
LSD = s
2
r
× tN−t,α/2 = (2.3357) 2/10(2.01) = 2.10
| ¯Y1. − ¯Y2.|=10.8 > 2.10
Conclusion
Since | ¯Y2. − ¯Y1.| = 10.8>LSD (= 2.10), we reject H02 at level of significance α
=0.05; there is sufficient evidence to suggest that the glucose treatment yields mean
pea section lengths different from the control.
Exercise
1. Suppose that another investigator was interested in the specific question of
whether the 2% fructose (treatment 3) differs from the control. That is, test for:
H03 : µ1 = µ3vs. H13 : µ1 = µ3 Use α=0.05
2. Test whether the means of the 2% glucose and 2% fructose differ significantly at
5% level of significance.
3. Calculate 99% confidence limits for the mean of treatment 4 (1% fructose)

Chapter 4
Introduction to SPSS
4.1 Introduction
SPSS is an extremely useful statistical software package. It provides full statistical
analysis capabilities including data management, an analysis tool which embraces
both plain and sophisticated but interesting and easy to learn statistical techniques
one cannot afford to ignore in the analysis of real-life data! SPSS has historically
been applied extensively in the areas of social science, however, these days it is also
widely being used in other fields of study. The current version of SPSS is 21.
As mentioned, this text of SPSS is not part of MTH 201 course coverage (require-
ment) as you have seen in Section 1.1 but is meant to make you understand that all
computations of the different theoretical aspects that we have discussed and those
still to be discussed, though some have been illustrated using SAS, can also be done
in other software packages, SPSS being one of them. Other software packages from
which statistical analyses may be carried out include STATA, S-Plus/R. However,
S-Plus/R requires good programming knowledge to be able to use it!.
Unlike many software packages, SPSS is a user-friendly (easy to use), widely avail-
able and well documented such that one can quickly make reference to available and
easily accessible citation. These are among the reasons why I have chosen to give
you this text! Don’t forget that there is always no free lunch! Like SAS, S-Plus, and
STATA, SPSS is not free! You have to pay something to get it!
It is important to note that the SPSS statistical analyses presented in this text are
specific. That is, does not cover all features available in SPSS but focuses on only
few of the many analysis tools that SPSS can offer to the analyst. Consequently, to
sharpen your competency in using SPSS especially in carrying out more advanced
statistical analyses you are urged to refer to any SPSS Manual.
In SPSS, unlike with the other software packages, getting output is relatively easy;
however, one needs to be cautious-remember that “there is always no free lunch”.
29

30 CHAPTER 4. INTRODUCTION TO SPSS
James Steven, 1996 points out that because it is easy to get output, it is also easy to
get “garbage.” Hence, knowing exactly what to focus on in the printout so as to be
able to give a practical interpretation of the problem at hand is an important aspect
one needs to bear in mind when selecting the output to concentrate on.
Throughout all our illustrations in this text it is assumed that the reader will be ac-
cessing the data from disk or CD ROM already saved as an SPSS file. Meaning that
the data has already undergone through important treatments like editing, coding
etc. This is not always the case in practice. Often in practice analysts receive raw
data and do the required treatments themselves. Data management (e.g., merging,
interleaving or matching files) in SPSS is out of the scope of this text. For those
who are interested however, SAS is nicely set up for ease of file manipulation. In
this text I will however, briefly describe how data entry is done.
It is worth mentioning that coming up with a valid conclusion or answer to a spe-
cific scientific question of interest requires not only one’s competency in the software
package of analysis but also an understanding of several other facets such as knowing
what assumptions are important to check for a given analysis, adequate sample size,
and careful selection of variables.
SPSS do a wide range of analyses from simple descriptive statistics to various analysis
of variance designs and to all kinds of complex multivariate analyses (multivariate
analysis of variance –MANOVA-, factor analysis, multiple regression, discriminant
analysis, etc.). Multivariate analyses as listed above are complete arenas I do not
wish to enter into in this text. I limit myself into only those aspects expected to be
covered by the target group(s), i.e., some important SPSS environments or analysis
tools. However, I refer any reader interested with both the theoretical and practical
treatment of the complex multivariate analyses to the books by Johnson, R.A. and
Wichern, D.W. (1998) and Steven, J. (1996).
4.2 Starting SPSS
You can start SPSS in two different ways depending on how it is set up on your
computer. You can either double-click on the SPSS icon on the desktop of your
computer or click on the start button “normally” located at the lower left corner of
your computer then on programs, etc, as indicated in the root below:
Start>Programs>SPSS for Windows>SPSS 11.0 for Windows
When you click on the last option (SPSS 11.0 for Windows) of the above root you
will see the “Data Editor Window”
In general SPSS has four different types of windows namely:

4.2. STARTING SPSS 31
i. Data Editor;
ii. An output Window;
iii. A syntax Window; and
iv. A Chart Editor
We brieﬂy describe each of these windows in turn.
The Data Editor Window
The Data Editor Window is where data can be entered and edited. The Data Editor
is further divided into a data view and a variable view.
At the top of the Data Editor you can see a menu line consisting of the following
options: File, Edit, View, Data, Transform, Analyze, Graphs, Utilities, Window and
Help.
Figure 1. Data Editor menu
For more details on how you can use each one of these options I refer you to any
SPSS manual. I focus my attention on the “Analyze Menu” Here is where all the
statistical analyses are carried out.
The Output Window
Through this window you can read the results of your analysis. Depending on the
analysis you are carrying out, you can also see graphs and you can copy your results
into another document (e.g., word) for further description.
The Syntax Window
The syntax window is used for coding your analysis manually. Through this window
the user can code more advanced analyses, which may not be available in the stan-
dard menu. To open the syntax window select File>New>Syntax. In the window
you can enter the program code you want SPSS to perform. This requires a little
more programming. However, when the code is ready to be run you mark it (with
your mouse) and select Run> Selection.
The Chart Editor
The chart editor is used when editing a graph in SPSS. To be able to edit your graph
you need ﬁrst to double-click your graph.

4.3 Data entry
There are basically two ways to enter data into SPSS. One is to manually enter
directly into the Data Editor the other is to import data from a different program
or a text file. For example from Excel, SAS, etc. I will illustrate both options here.
For importing data, I will restrict myself to importing data from excel.
4.4 Keying data into SPSS
As we have seen above, when SPSS is opened, by default the Data Editor is opened
and this is where you can enter your data. Alternatively, to enter data go to
File>New>Data.
Before you start entering your data it is always a good idea to first give names to your
variables. This is done by selecting the variable view in the Data Editor window.
4.4.1 Osteopathic manipulation data set
The following is part of the data collected from a clinical trial1 whose prime objec-
tive was to compare the effect of an osteopathic manipulation with a control group
in measuring influence on blood flow at two different time points. This effect was
assessed in 80 volunteer healthy subjects aged between 17 and 69 years. Blood flow
(in ml/min) was measured from the right superficial femoral artery using Duplex-
Doppler while subjects lying down on a research table at baseline (minute-0: M1),
one minute after manipulation (M2) and four minutes after manipulation (M3).
The variable Patid in the table below represents patient’s identity number. The
variables initials, age, weight, height and gender carry the usual meaning. M1, M2
and M3 are as described above. Use this simple data set to practice data entry in
SPSS.
1
A clinical trial is study that investigates the efficacy of drug (s).

4.4. KEYING DATA INTO SPSS 33
Table 4.1: Osteopathic Manipulation data set
Patid Initials Age Weight Height Gender M1 M2 M3
1 SJ 31 75 178 M 109.5 262.1 136.4
2 TG 30 69 178 M 103.2 145.7 121.3
3 SF 38 73 176 M 221.2 231.7 111.9
4 WD 24 78 179 M 230.0 281.3 196.2
5 VF 54 73 162 F 112.4 120.4 139.7
6 SM 64 75 168 M 226.8 369.4 247.1
7 DWM 61 65 160 F 103.7 84.9 109.5
8 GM 34 60 166 F 178.5 139.6 154.6
9 VM 38 64 165 F 103.7 132.4 107.1
10 DWF 47 63 167 M 150.6 158.8 110.4
11 BE 49 85 172 M 149.1 72.0 96.2
12 CV 55 91 177 M 193.5 286.1 245.5
13 CG 25 69 170 F 183.4 270.6 183.7
Exercise
Enter these data in your SPSS Data Editor window without labelling the variables.
If you enter the data in SPSS without first giving names to the variables, SPSS labels
the variables as var00001, var00002, etc. Do you see this?
Next try to give names to the variables. As described above, you can give names to
your variables via the variable view in the Data Editor window. Alternatively you
can double click the variable.
Now click on the first cell of the first column “Name” and type the name of the first
variable as indicated in Table 3. That is, Patid, and then move on to the second cell
and type the name of the second variable and so on.
Under Type you define which type your variable is (numeric, string etc.). If you
place the marker in the Type cell, a button like the one in Figure 1 below appears.
Figure 1: Defining variables
This button indicates that you can click it and a window like the one below in Figure
2 will show:

Figure 2: Variable Type
Numeric is selected if your variable exists of numbers. String is selected if your
variable is a text (Male/Female). The same way you can specify Values and Missing.
By selecting Label you get the possibility to further explain the respective variable in
a sentence or so. This is often a very good idea since the variable name is restricted
to only 8 characters. Missing is selected when deﬁning if missing values occur among
the observations of a variable.
In Values you can enter a label for each possible response value of a discrete variable
(e.g. 1 = Male and 2 = Female).
When entering a variable name the following rules must be obeyed in SPPS for it to
work:
i. The name has to start with a letter and not end with a full stop (.).
ii. No more than 8 characters can be entered.
iii. Do not enter space or other characters like e.g.! ? ‘, and *.
iv. No two variable names must be the same.
When all data are entered and variable names are given you can save your data via
select File>Save As. . . in the menu.
4.5 Opening an existing dataset
If the dataset already exists in SPSS ﬁle you can easily open it. Select File>Open. . . and
the dataset will automatically open in the Data Editor.

4.6. IMPORTING DATA 35
4.6 Importing data
Sometimes the data are available in a different format than an SPSS data file. E.g.
the data might be available as an Excel, SAS, or text file. As already mentioned we
describe how to import data from excel.
Importing data from Excel
If you want to use data from an Excel file in SPSS there are two ways to import the
data.
i. One is to simply mark all the data in the Excel window (excluding the variable
names) you want to enter into SPSS. Then copy and past them into the SPSS
data window. The disadvantage by using this method is that the variable
names cannot be included meaning that you will have to enter these manually
after pasting the data.
ii. The other option (where the variable names are automatically entered) is to
do the following:
• Open SPSS, select File> Open>Data. Choose the drive where the data are
stored and then double click on the file you want to open or mark the file and
click on the open icon on the open file menu.
Under Files of type you select Excel, press ‘Open’, and the data now appear
in the Data Editor in SPSS.
4.7 Exporting data
Exporting data from SPSS to a different program is done by selecting File Save
As. . . Under Save as type you select the format you want the data to be available in
e.g. Excel.
4.8 ANOVA for one-way classification in SPSS
Let us now see how we can use SPSS to perform analysis of variance for one way
classification. I will use the machine data set discussed in Section 5.3.4 to illustrate
the construction of the analysis of variance table. As described above, getting out-
puts in SPSS is simple. Assuming that you have already entered the data, what you
need to do next is to analyze the data by following the root below:
Analyze>Compare Means>One-Way ANOVA
If you click on the last option (One-Way ANOVA) you will see a window like the
one below:

The only dependent variable in this example is “volume” and the factor is “machine”.
You can also include descriptive statistics in your outputs by clicking on the ”Op-
tions” and then select descriptive.
Below is the SPSS ANOVA table for the machine data set.
SPSS ANOVA table-Machine data
Source of Sum of df Mean Square F Sig.
Variation Squares
Between Groups 0.152 3 5.072E-02 0.834 0.500
Within Groups 0.729 12 6.078E-02
Total 0.882 15
From the above ANOVA table we see that, the results presented in SPSS are approx-
imated to three decimal places. By default, SPSS, like any other software package
gives the p-value (s) of the test (s)-indicated as Sig. in the last column of the table.
The p-value indicates “how much evidence against the null hypothesis” has been
observed in the outcomes of the experiment. Based on the given p-value (> 0.5) we
do not reject the null hypothesis (remember we are testing the hypotheses at 0.05
level of signiﬁcance), the conclusion we reached by comparing the F calculated value
(0.83) and the critical F-value (3.49) from the table. For comparison purposes of the
two ANOVA tables-the one we obtained before through mathematical calculations
and the one from SPSS above, I reproduce below the ANOVA table obtained by
mathematical computations. Are they similar?
Between treatment 3 0.152145 0.051 0.83
Within treatment 12 0.729355 0.061
Total 15 0.881500
Exercise (optional)
Use the Pea section data set to perform analysis of variance for one way classiﬁcation

4.8. ANOVA FOR ONE-WAY CLASSIFICATION IN SPSS 37
with equal replication. Compare your ANOVA table with the one obtained through
mathematical computations.
Note: The above two examples-the machine and pea section data sets illustrates
respectively what is termed as unbalanced and balanced data. Unbalanced in the
ﬁrst case in the sense that there are unequal numbers of replications of machines
and balanced in the second case in the sense that the various sugar types are all
replicated equal number of times (10 times).

Chapter 5
Completely Randomized Design
5.1 Introduction
When the experimental units are assumed to be fairly uniform or homogeneous,
that is, no sources of variations other than the treatments are expected, grouping
them (applying error/local control principle) will be pointless in the sense that very
little (in terms of precision) may be gained. Thus, the simplest experimental design,
which incorporates only the ﬁrst two principles (randomisation and replication) of
experimental designs, is the completely randomized design or CRD.
CRD is a design in which the treatments are assigned completely at random to the
experimental units, or vice-versa. Since we assume that there are no other sources of
variations in the experiment except the treatments under investigation, then CRD
imposes no restrictions, such as blocking on the allocation of the treatments to the
experimental units.
5.2 Layout
Suppose that we have t treatments under investigation and that the ithtreatment is
to be replicated ri times, i =1, 2, . . . , t. For an experiment with t treatments each
one replicated ri times, the total number of experimental units N =
t
i=1
ri. When
ri = r, that is, the case of equal replication, N=rt.
Deﬁnition: layout refers to the placement of treatment to the experimental units
subject to conditions of the design. Randomisation in CRD can be carried out by
using a random number table or any other probabilistic procedures.
Example
Suppose there are three treatments to be compared in a CRD. Suppose further
that the treatments are replicated 4, 3 and 5 times respectively. Thus, a total of
39

40 CHAPTER 5. COMPLETELY RANDOMIZED DESIGN
N =
t
i=1
ri=4 + 3 +5=12 experimental units. One possible layout of this experiment
is as follows:
T2
1
T1
2
T2
3
T3
4
T3
5
T1
6
T3
7
T1
8
T1
9
T3
10
T2
11
T3
12
5.3 Statistical analysis
The analysis of CRD is the same as that of one way classification. Let Yij be the
yield on the jthplot receiving treatment i. Thus, the model is:
Yij = µ + ti + eij, i=1, 2, . . . , t; j=1, 2, . . . r
Where:
µ is the grand mean (average) yield over all the N plots,
ti is the ith treatment effect
eij is the experimental error
Sums of squares are computed in the same way we discussed in one way classification.
5.3.1 Statistical hypotheses
The statistical hypotheses of interest as we stated before are:
Ho : µ1 = µ2 = ... = µt That is, the µi are all equal
H1 : µi = µj for at least one i = j. That is, the µi are not all equal.
Or simply
Ho :There is no variation among the treatments

5.4. ADVANTAGES AND DISADVANTAGES OF CRD 41
Source of Variation DF SS MS F-ratio
Treatments t-1 SSA SSA
t−1 = MSA MSA
MSE
Error N − t SSE SSE
N−t = MSE
Total N-1 SST
5.3.2 Test procedure
At level of significanceα, if F = MSA
MSE > Fα, [(t − 1) , (N − t)] then there is evidence
for no significance variation, i.e. we reject the null hypothesis. Otherwise, e do not
reject.
5.4 Advantages and disadvantages of CRD
5.4.1 Advantages
• Useful in small preliminary experiments and also in certain types of animal or
laboratory experiments where the experimental units are homogeneous.
• Flexibility in the number of treatments and the number of their replications.
• Provides maximum number of d.f. for the estimation of experimental error-
The precision of small experiment increases with error d.f.
5.4.2 Disadvantages
• Its use is restricted to those cases in which homogeneous experimental units
are available- local control not utilised. Thus, presence of entire variation may
inflate the experimental error.
• Rarely used in field experiments because the plots are not homogeneous.
5.5 Example
A sample of plant material is thoroughly mixed and 15 aliquots taken from it for
determination of potassium contents. 3 laboratory methods (I, II, and III) are em-
ployed. “I” being the one generally used. 5 aliquots are analysed by each method,
giving the following results (µg/ml).
I 1.83 1.81 1.84 1.83 1.79
Method II 1.85 1.82 1.88 1.86 1.84
III 1.80 1.84 1.80 1.82 1.79
Examine whether methods II and III give results comparable to those of method I.
Use α = 0.05

Calculations
The statistical model for this problem is Yij = µ + ti + eij. Here, i=1, 2, 3, j=1,2,
3, 4, 5.
Grand total, G =
3
i=1
5
j=1
Yij=1.83+1.81+. . . +1.79=27.4
Total number of observations, N =
k
i=1
ni =
3
i=1
ni = n1 + n2 + n3=5+5+5=15. In
the particular situation at hand (equal replication), N =rt =5×3=15
Correction factor, C.F=
3
i=1
5
j=1
Yij
2
rt = (27.4)2
15 = 750.76
15 =50.0507
Total sum of squared observations or uncorrected total sum of squares
3
i=1
5
j=1
Y 2
ij = (1.83)2
+ (1.81)2
+ ... + (1.79)2
= 50.0602
Total SS (SST) =
3
i=1
5
j=1
Y 2
ij − G2
rt =50.0602-50.0507=0.0095
=0.0095
Treatment (Method) totals: I=9.10, II=9.25, III=9.05
Treatment SS (SSTr) =1
r
k
i=1
Y 2
i − G2
rt , Yi =
r
j=1
Yij
=
1
5
(9.10)2
+ (9.25)2
+ (9.05)2
− 50.0507
=50.055-50.0507
=0.0043
Error SS (SSE) =SST-SSTr
=0.0095-0.0043
=0.0052
Source of Variation DF SS MS F-ratio
Between treatments 2 0.0043 0.00215 4.9654
Error (within treatments) 12 0.0052 0.00043
Total 14 0.0095

5.5. EXAMPLE 43
F0.05, 2, 12 = 3.89
Statistical hypothesis
Ho : µ1 = µ2 = µ3That is, the µi are all equal
H1 : µi = µjfor at least one i = j. That is, the µi are not all equal
Or
Ho: Methods do not differ
H1: Methods differ
Decision
Since the F calculated value (4.9654)> the critical F-value (3.89) at 0.05 level of
significance, we reject the null hypothesis and thus conclude that the laboratory
results depends on the method of analysis. That is, there exist significance variations
among the three laboratory methods.
To examine whether methods II and III give results comparable to those of method
I, we need to carry out further analysis using the t-test (LSD) as follows:
Let the mean of method I be denoted by ¯Y1., of method II by ¯Y2.and that of method
III by ¯Y3.
Thus, ¯Y1. = 9.10
5 = 1.82, ¯Y2. = 9.25
5 = 1.85, ¯Y3. = 9.05
5 = 1.81
Statistical Hypotheses
Here we need to test the hypotheses:
H02 : µ1 = µ3 vs. H12 : µ1 = µ3
H03 : µ1 = µ3 vs. H13 : µ1 = µ3
Test procedure
Reject: H02 if
| ¯Y2. − ¯Y1.| > LSD = s 2
r × tN−t,α/2
and H03 if | ¯Y3. − ¯Y1.| > LSD = s 2
r × tN−t,α/2
Exercises
1. Complete the test.
2. Eight varieties, A − H, of black currant cuttings are planted in square plots in a
nursery, each plot containing the same number of cuttings. Four plots of each variety
are planted, A and the shoot length made in the first growing season measured.

The plot totals are:
A: 46 29 39 35 E: 16 37 24 30
B: 37 31 28 44 F: 41 28 38 29
C: 38 50 32 36 G: 56 48 44 44
D: 34 19 29 41 H: 23 31 29 37
B and C are standard varieties; assess the remaining six for vigour in comparison
with B and C. Use α = 0.05

Chapter 6
Randomised Block Design
6.1 Introduction
CRD discussed in Chapter 3 will seldom be used if the experimental units are not
alike. Hence, when experimental units may be meaningfully grouped, e.g., by
area of ﬁeld, device, hospital, salesmen, etc, clearly a completely randomised design
(CRD) will be insuﬃcient. In this situation an alternative strategy for assigning
treatments to the experimental units, which takes advantage of the grouping, may
be used. The alternative strategy that we are going to discuss is what we call the
randomised block design or Randomised Complete Block Design (RCBD).
In the randomised block design:
• The groups are called blocks
• Each treatment appears the same number of times in each block; hence the
term complete block design
• The simplest case is that where each treatment appears exactly once in each
block. Here, because the number of replicates=number of experimental
units for each treatment,
we therefore have: number of replicates=number of blocks=r
• Blocks are often called replicates for this reason
• To set up such randomised block design the following steps are involved:
(i) Divide the units into r more homogeneous groups commonly known as blocks.
(ii) Assign the treatments at random to the experimental units within each block.
This randomisation has to be done afresh for each block.
Hence, the term randomised block design
45

46 CHAPTER 6. RANDOMISED BLOCK DESIGN
Motivation: experimental units within blocks are alike as possible, so observed
differences among them should be mainly attributed to the treatments. To ensure
this interpretation holds, in the conduct of the experiment, all experimental units
within a block should be treated as uniform as possible.
Intuitively speaking, randomised block design is an improvement over the CRD.
In the RBD the principle of local control can be applied along with the other two
principles of experimental design (randomisation and replication).
Number of experimental units (N )
Suppose we want to compare the effects of t treatments, each treatment being repli-
cated an equal number of times, say r times. Then we need N =rt experimental
units.
6.2 Layout
To illustrate the layout of an RBD, consider 4 treatments, each replicated 3 times.
So we need N =rt= 3×x4=12 experimental units which are grouped into 3 blocks
of 4 units.
Suppose the blocks formed after grouping the experimental units are labelled as 1,
2, and 3. To ensure randomness in every process involved in the experiment we
select the block to start with in allocating the treatments to the experimental units
at random. Assume the blocks are selected in the order 3, 1, 2. Thus, we start with
the third block and assign the 4 treatments at random to it. As we have discussed,
to assign the treatments, we may use any probabilistic procedure.
Permutations is one of the probabilistic procedures that may be used to allocate
treatments to experimental units. Suppose one of the permutations of the digits 1
to 4 for the treatment is 4, 1, 3, 2. Therefore we allocate treatment 4 in the first
unit of block 3, treatment 1 in the second unit of block 3, up to treatment 2 in the
fourth unit of block 3. That is, we have the following layout for block 3 (first selected
block).
T4 T1 T3 T2
Repeating the same procedure, suppose we select the permutations 3, 4, 2, 1 for
block 1 and 2, 3, 4, 1 for block 2, finally get the following complete layout.

6.3. STATISTICAL ANALYSIS 47
Block 1 T3 T4 T2 T1
Block 2 T2 T3 T4 T1
Block 3 T4 T1 T3 T2
The analysis of the design is the same as that of two-way classified data with one ob-
servation per cell-experimental unit- (without replication) we discussed in Section
5.5.
We use the same model we have discussed,
Yij = µ + ti + bj + eij, i=1, 2, . . ., t, j=1, 2, . . ., r
In words:
Observation of the ith treatment from the jth block =general mean +ith treatment
effect + jth block effect + experimental error component
RECAP: we partition the total sum of squares into different components:
Total SS=Treatment SS + Block SS + Error SS
6.3.1 Statistical hypotheses
The hypotheses of interest are:
HO1 : t1 = t2 = ... = tk
Ho2 : b1 = b2 = ... = bk
Against their alternative that tis, bjs are not all equal.
ANOVA table
Blocks r-1 SSB SSB
r−1 = MSB MSB
MSE = FB
Treatment t-1 SSTr
SSTr
t−1 = MSTr
MSTr
MSE = FT r
Error (r-1)(t-1) SSE SSE
(r−1)(t−1) = MSE
Total N-1 SST
6.3.2 Test procedure
The calculated F-values for treatments and blocks (FBand FTr) are compared with
the tabulated (critical) F-values at (t-1) and (r-1)(t-1) and (r-1) and (r-1)(t-1) de-
grees of freedom respectively.

In symbols
Fα, [(t − 1), (r − 1)(t − 1)] and Fα, [(r − 1), (r − 1)(t − 1)]
Thus, if FB>Fα, [(r − 1), (r − 1)(t − 1)] we reject the null hypothesis, otherwise we
do not reject. Also if FTr>Fα, [(t − 1), (r − 1)(t − 1)] we reject the null hypothesis,
otherwise we do not reject.
6.4 Advantages and disadvantages of RBD
6.4.1 Advantages
• Greater precision
• Increased scope of inference is possible because more experimental conditions
may be included
6.4.2 Disadvantages
• Large number of treatments increases the block size; as a result the block may
loose homogeneity leading to large experimental error.
• Any missing observation in a unit in a block will lead to either:
(i) discard the whole block
(ii) estimate the missing value from the unit by special missing plot technique.
6.5 Example
The following data are yields in bushels/acre from an agricultural experiment set out
in a randomised complete clock design. The experiment was designed to investigate
the differences in yield for seven hybrid varieties of wheat, labelled A-G here. A field
was divided into 5 blocks, each containing 7 plots. In each plot, the seven plots were
assigned at random to be planted with the seven varieties, one plot for each variety.
A yield was recorded for each plot. Examine whether varieties affect the yield. Use
α=0.05.
Variety
Block A B C D E F G Total
I 10 9 11 15 10 12 11 78
II 11 10 12 12 10 11 12 78
III 12 13 10 14 15 13 13 90
IV 14 15 13 17 14 16 15 104
V 13 14 16 19 17 15 18 112
Total 60 61 62 77 66 67 69 G=462

6.5. EXAMPLE 49
We assume that the measurements are approximately normally distributed, with the
same variance σ2.
Calculations
Total number of experimental observation (N) = r × t= 7×5=35
Grand total (G) =
t
i=1
r
j=1
yij=10 + 9 +. . . + 15 + 18=462
Correction factor (C.F) =G2
N = (462)2
35 =6098.4
Uncorrected total sum of squares
t
i=1
r
j=1
y2
ij=102 +92 +. . . + 152 + 182 =6314.0
Total sum of squares (SST) =
t
i=1
r
j=1
y2
ij-C.F= 6314.0 - 6098.4=215.6
Treatment (variety) sum of squares (SSTr) = 1
r
t
i=1
Y 2
i -C.F
=1
5(602 + ... + 692)-C.F
=6140.0-6098.4
=41.6
Block sum of squares (SSB) = 1
t
r
j=1
Y 2
j -C.F
=1
7(782 + ... + 1122)-C.F
=6232.6-6098.4
=134.2
Error sum of squares (SSE) =Total SS-Treatment SS-Block SS
= 215.6-134.2-41.6=39.8
Treatment (variety) mean squares (MSTr) = SSTr
t−1 = 41.6
6 =6.93
Block mean squares (MSB) = SSB
r−1 = 134.2
4 =33.54
Error mean squares (MSE) = SSE
(t−1)(r−1) = 39.8
24 =1.66.
Finally, we estimate the F-values. For block the F-calculated value is

=MSB
MSE = 33.54
1.66 =20.21 and
for treatments the F-calculated value is MSTr
MSE = 6.93
1.66=4.18
We summarize the calculations in an ANOVA table as follows:
ANOVA Table
Source of variation D.F SS MS F-ratio
Blocks 4 134.2 33.54 20.21
Treatments 6 41.6 6.93 4.18
Error 24 39.8 1.66
Total 34 215.6
To perform the hypothesis test for differences among the treatment means, we com-
pare the F calculated values to the appropriate value from the F table. For level of
significance α=0.05, we have
F0.05;6,24 = 2.51. F-calculated (= 4.18)> F0.05;6,24 = 2.51.
Therefore, we reject H0. There is evidence in these data to suggest that there are
differences in mean yields among the varieties.
To test the hypothesis on block differences, we find F0.05,4,24=2.78. We have 20.21>2.87,
thus, we also reject H0. There is strong evidence in these data to suggest differ-
ences in mean yield across blocks at the 5% level of significance.
In SAS
data hybrid;
input Block $ Variety $ Yield @@;
cards;
I A 10 I B 9 I C 11 I D 15 I E 10 I F 12 I G 11
II A 11 II B 10 II C 12 II D 12 II E 10 II F 11 II G 12
III A 12 III B 13 III C 10 III D 14 III E 15 III F 13 III G 13
IV A 14 IV B 15 IV C 13 IV D 17 IV E 14 IV F 16 IV G 15
V A 13 V B 14 V C 16 V D 19 V E 17 V F 15 V G 18
;
run;
proc print;run;
proc anova;
class Block Variety ;
model Yield=Block Variety;
run;quit;
The SAS System
Obs Block Variety Yield
1 I A 10

6.5. EXAMPLE 51
2 I B 9
3 I C 11
4 I D 15
5 I E 10
6 I F 12
7 I G 11
8 II A 11
9 II B 10
10 II C 12
11 II D 12
12 II E 10
13 II F 11
14 II G 12
15 III A 12
16 III B 13
17 III C 10
18 III D 14
19 III E 15
20 III F 13
21 III G 13
22 IV A 14
23 IV B 15
24 IV C 13
25 IV D 17
26 IV E 14
27 IV F 16
28 IV G 15
29 V A 13
30 V B 14
31 V C 16
32 V D 19
33 V E 17
34 V F 15
35 V G 18
Class Level Information
Class Levels Values
Block 5 I II III IV V
Variety 7 A B C D E F G
Number of observations 35
Dependent Variable: Yield
Sum of
Model 10 175.7714286 17.5771429 10.59 <.0001
Error 24 39.8285714 1.6595238
R-Square Coeff Var Root MSE Yield Mean
0.815266 9.759281 1.288225 13.20000

Block 4 134.1714286 33.5428571 20.21 <.0001
Variety 6 41.6000000 6.9333333 4.18 0.0052
6.6 Reasons for blocking in RBD
Note from these results that the blocking served to explain much of the overall vari-
ation. To appreciate this further, suppose that we had not blocked the experiment,
but instead had just conducted the experiment according to a completely random-
ized design. Suppose that we ended up with the same data as in the experiment
above.
Under these conditions variety is the only classification factor for the plots, and we
would construct the following analysis of variance table for one way-classification as
discussed in the previous sections.
ANOVA Table
Between treatments (varieties) 6 41.6 6.93 1.12
Within treatments (error) 28 174.0 6.21
Total 34 215.6
The test for differences in mean yield for the varieties (treatments) would be to
compare F=1.12 to F0.05,6,28=2.45. Note that we would thus not reject H0 of no
treatment differences at the 5% level of significance.
Concluding Remark
From the above example, it is immediately clear that if the different sources of
variation are not properly identified (e.g., due to erroneously accounting for the
experimental design), then invalid conclusions will be drawn.
The example discussed above clearly demonstrates the aspect of wrongly identify-
ing the experimental design. In the one-way classification experiment and analysis
presented above, there is no accounting for the variation in the data that is actually
attributable to a systematic source, position in the field (the factor used to block
the experiment). The one-way analysis has no choice but to attribute this variation
to experimental error; that is, it regards this variation as just part of the inherent
variation among experimental units that we cannot explain. The result is that the
Error SS in the one-way analysis contains both variation due to position in the field
(which is actually systematic variation) and inherent variation.
Here, note that 143.2+39.8=174.0 and 4+24=28.
This is the Error SS for the one-way classification analysis. Which actually may be
regarded as ignoring the blocks (because what we really did was to pretend that the

6.6. REASONS FOR BLOCKING IN RBD 53
blocks didn’t exist) and thus resulting into big MSE in which we could not reject the
H0. By blocking the experiment, and explicitly acknowledging position in the field
as a potential source of variation, MSE was sufficiently reduced so that we could
identify variety differences.
It can be learned from this example that:
• Blocking may be an effective means of explaining variation (increasing preci-
sion) so that differences among treatments that may really exist are more likely
to be detected.
• The data from an experiment set up according to a particular design should
be analysed according to the appropriate procedure for that design. The
above shows that if we set up the experiment according to a randomised com-
plete block design, but then analyse it as if it had been set up according to
a completely randomised design, erroneous inferences results, in this case,
failure to identify real treatment differences. Remember, the design of an
experiment dictates the analysis!!
Exercise
Four different plant densities A-D are included in an experiment on the growth of
lettuce. The experiment is laid out as a randomised block, and the same number of
plants is harvested from each plot, giving the weights (recorded) below. Examine
whether density appears to affect the yield. Use α = 0.01

Block
Density I II III IV V VI
A 2.7 2.6 3.1 3.0 2.5 3.0
B 3.0 2.8 3.1 3.2 2.8 3.1
C 3.3 3.3 3.5 3.4 3.0 3.2
D 3.2 3.0 3.3 3.2 3.0 3.1

Chapter 7
Latin Square Design
7.1 Introduction
There are often situations where it may be necessary to account for two sources
of variation by blocking. If the number of treatments and levels of each blocking
factor is large, the size of the experiment may become unwieldy or resources may be
limited. Thus, in agricultural field experiments (and other situations), a particular
setup is often used that allows differences among treatments to be assessed with less
recourses.
The principle of local control was used in the RBD by grouping the units in one
way; i.e. according to blocks. The grouping can be carried one step forward and
we can group the units in two ways, each way corresponding to a known source of
variation among the units, and get the Latin Square Design (LSD). This design is
used with advantage in agricultural experiments where the fertility contours are not
always known. It has also been used successfully in industry and in the laboratory.
Latin square design is a design, which uses the principle of local control twice.
RBD removes one systematic source of variation in addition to treatments, but LSD
removes two such sources. Hence, LSD is a three-way classification.
In a field experiment if two probable fertility trends can be thought of, in directions
at right angles, both need to be made the basis of blocking. Thus when there is a
slope of the land being used, and also a climatic trend (e.g. effects of wind, rain) at
right angles to this, a randomised block cannot take out all the known variation.
7.2 Layout
In field experiments, the physical layout is that of a square with rows of plots. In
this set up the layout is such that every letter (A, B, C,. . . ) the set of treatments
occurs exactly once in each row and in each column. For four letters A, B, C, and
D the layout would be as shown below.
55

56 CHAPTER 7. LATIN SQUARE DESIGN
Column 1 2 3 4 5
1 E B A D C
2 C A D E B
Row 3 B E C A D
4 A D B C E
5 D C E B A
This type of setup would be useful when for example variability due to soil differences,
etc, arises in two directions. Each plot would constitute a single experimental unit.
This particular kind of setup with two blocking variables (rows and columns), in
which the numbers of rows, columns and treatments are the same, is known as a
Latin square.
Notation
Because the number of treatments, rows and columns are the same, the number
of replicates on each treatment is equal to the number of treatments, rows, and
columns. We will denote this as t. For given value of t, there may be several ways
to construct a Latin square. This is actually as mathematical exercise. Extensive
listings of ways to construct Latin squares for different values of t are often given in
texts on experimental design (see for example, Montgomery, 2001).
Selection of LSD
The totality of LSD’s obtained from a single LSD by permuting rows, columns and
treatments (letters) is called a transformation set.
e.g. A B C D fixed
B C D A
C D A B
D A B C
A B C D
C D A B
D A B C
B C D A
A k×k Latin Square with k letters A, B, C, . . . in the natural order occurring in the
first column is called a standard square (square in canonical form).
e.g. A B C D
B C D A
C D A B
D A B C
From a standard k × k Latin Square, we may obtain k! (k-1)! Different LSD’s by
permuting all the k columns and the (k-1) rows except the first row. Hence there

7.3. STATISTICAL ANALYSIS 57
are in all k! (k-1)! Different LSDs with the same standard square. Thus the total
number of different LSDs in a transformation set is k! (k-1)! times the number of
standard LSDs in the set. In order to give all k × k LSDs equal probability of being
selected, we select one LSD from all k × k LSDs and then randomise the columns
and rows, excluding the first row (if it is the fixed one).
Randomisation consists of choosing one of the possible designs for given t at random.
Then randomly assign the letters A, B, C, etc to the treatments of interest
7.2.1 Linear additive model
To write down a model, we need to be a bit careful with the notation. The key is
that, although we have three classifications (row, column and treatment) we do not
have t × t × t = t3 observations; rather we only have t × t = t2
The mathematical model will now be,
yijk = µ + ti + rj + ck + eijk
where:
yijk observation for the ith treatment appearing in row j, column k
µ is an overall mean
rj, ck represents the effects of the jth row and kth column
ti represents the effect of the treatment appearing at position, j,k
eijk error associated with the experimental unit appearing at position j,k
The analysis proceeds along the same lines as for RBD, but instead of the one sum
of squares for blocks; systematic variation is now taken out by two sums of squares,
which are always called Rows (SSR) and columns (SSC).
7.3.1 Calculation of sums of squares
To setup the analysis of variance we define Rjand Ck as the totals of all plots in the
jth row and kth column respectively in the layout, the sums of squares required are:
Total SS SST =
t
i=1
t
j=1
t
k=1
y2
ijk − G2
t2
Row SS (SSR)=1
t
t
j=1
R2
j − G2
t2
Column SS (SSC)=1
t
t
k=1
C2
k − G2
t2

Treatment SS (SSTr) = 1
t
t
i=1
T2
i − G2
t2
Error SS (SSE)= SST –(SSR+SSC+SSTr) or
SSE =SST – SSR –SSC -SSTr
The degrees of freedom for SSR, SSC, SSTr are each (t-1); for SST, (t2-1), and so
for SSE, (t2-1)-3 (t-1), reducing to (t-1)(t-2).
Table 7.1: Three way ANOVA table
Source of DF SS MS F-ratio
variation
Rows t-1 SSR SSR
t−1 = MSR MSR
MSE = FR
Columns t-1 SSC SSC
t−1 = MSC MSC
MSE = FC
Treatments t-1 SSTr SSTr
t−1 = MSTr
MSTr
MSE = FTr
Error (t-1)(t-2) SSE SSE
(t−1)(t−2) = MSE
Total t2-1 SST
7.4 Advantages and disadvantages of LSD
7.4.1 Advantages
• Eliminates from the error two major sources of variation. Hence LSD is an
improvement over RBD in controlling error by planned grouping just as the
RBD is an improvement over CRD.
• LSD is a 3-way incomplete layout since LSD considers treatments, rows, and
columns at the same number of levels t, we would need a complete three way
layout of t3 number of experimental units. However, since we are using t2
number of experimental units, then it is said to be a 3-way incomplete layout.
7.4.2 Disadvantages
• A serious limitation of the LSD is that the number of replicates must be the
same as the number of treatments, the larger the square the more is the repli-
cates, hence the bigger the blocks (columns and rows). Hence larger squares
(over 12×12 ) are seldom used in the sense that the squares does not remain
homogeneous. On the other hand, small squares provide only a few degrees of
freedom for the error. Preferable LSDs are form 5×5 to 8×8.
• The analysis depends heavily on the assumption that there are no interactions
present.
• Analysis becomes very diﬃcult where there are missing observations.

7.5. EXAMPLE 59
7.5 Example
The following is a 5×5 Latin square for data taken from a manurial experiment with
sugarcane. The five treatments were as follows:
A: no manure
B: no inorganic manure
C, D and E: three levels of farm yard manure.
Column
Row I II III IV V
I A:52.5 E: 46.3 D:44.1 C:48.1 B:40.9
II D:44.2 B: 42.9 A:51.3 E:49.3 C:32.6
III B:49.1 A:47.3 C:38.1 D:41.0 E:47.2
IV C:43.2 D:42.5 E:67.2 B:55.1 A:45.3
V E: 47.0 C:43.2 B:46.7 A:46.0 D:43.2
Analyse the data to find out if there are any treatment effects. Use α = 0.05and
α = 0.01
Calculations
The statistical model for this problem is
yijk = µ + ti + rj + ck + eijk, i =1,2,. . . ,t;j=1,2,. . . t; k=1,2,. . . t
Since we have 5 rows, 5 columns, and 5 treatments (letters) appearing only once in
each row and in each column, hence the design is a Latin square (i.e. 5×5 Latin
square). So the model becomes,
yijk = µ + ti + rj + ck + eijk; i=1, 2, 3, 4, 5; j=1, 2, 3, 4, 5; k=1, 2, 3, 4, 5
The total number of experimental units (N) = t2= 5×5=25
The grand total (G) =
t
i=1
t
j=1
t
k=1
yijk
=
5
i=1
5
j=1
5
k=1
yijk=52.5+46.3+. . . +46.0+43.2= 1154.3
Correction factor (C.F) =
⎛
⎜
⎜
⎝
t
i=1
t
j=1
t
k=1
yijk
t
⎞
⎟
⎟
⎠
2
= G
t
2
or G2
t2
=
⎛
⎜
⎜
⎝
5
i=1
5
j=1
5
k=1
yijk
5
⎞
⎟
⎟
⎠
2
= 1154.3
52
2
= 1332408.49
25 =53296.3333
=53296.3333 (4.dec.places)
Total SS (SST) =
t
i=1
t
j=1
t
k=1
y2
ijk − G2
t2 (or C.F)

=
5
i=1
5
j=1
5
k=1
y2
ijk − G2
52 , but
5
i=1
5
j=1
5
k=1
y2
ijk = 54273.51
⇒SST= 54273.51-53296.3333=977.1767
SST= 977.1767
Row SS (SSR)=1
t
t
j=1
R2
j − G2
t2
=1
5
5
j=1
R2
j − G2
52
Row totals:
R1=52.5+46.3+44.1+48.1+40.9=231.9
R2=44.2+42.9+51.3+49.3+32.6=220.3
R3=49.1+47.3+38.1+41.0+47.2=222.7
R4=43.2+42.5+67.2+55.1+45.3=253.3
R5=47.0+43.2+46.7+46.0+43.2=226.1
⇒SSR=1
5 R2
1 + R2
2 + R2
3 + R2
4 + R2
5 − C.F
= 1
5 231.92 + 220.32 + 222.72 + 253.32 + 226.12 − 53296.3333
=1
5 (267187.09) − 53296.3333
=53437.4180-53296.3333=141.0847
Column SS (SSC) =1
t
t
k=1
C2
k − G2
t2
=1
5
5
k=1
C2
k − G2
52
Column totals:
C1=52.5+44.2+49.1+43.2+47.0=236.0
C2=46.3+42.9+47.3+42.5+43.2=222.2
C3=44.1+51.3+38.1+67.2+46.7=247.4
C4=48.1+49.3+41.0+55.1+46.0=239.5
C5=40.9+32.6+47.2+45.3+43.2=209.2
⇒SSC=1
5 C2
1 + C2
2 + C2
3 + C2
4 C2
5 − C.F
=1
5 236.02 + 222.22 + 247.42 + 239.52 + 209.22 − 53296.3333
=1
5 (267400.49) − 53296.3333
=53480.0980-53296.3333
=183.7647

7.5. EXAMPLE 61
Treatment SS (SSTr) =1
t
t
i=1
T2
i − G2
t2
=1
5
5
i=1
T2
i − G2
52
Treatment totals:
A=52.5+51.3+47.3+45.3+46.0=242.4
B=40.9+42.9+49.1+55.1+46.7=234.7
C=48.1+32.6+38.1+43.2+43.2=205.2
D=44.1+44.2+41.0+42.5+43.2=215.0
E=46.3+49.3+47.2+67.2+47.0=257.0
⇒SSTr =1
5 T2
1 + T2
2 + T2
3 + T2
4 + T2
4 − C.F
=1
5 242.42 + 234.72 + 205.22 + 215.02 + 257.02 −53296.3333
=1
5 (268222.89) −53296.3333
=53644.5780-53296.3333
=348.2447
Error sum of squares (SSE)=SST-(SSR+SSC+SSTr)
=SST-SSR-SSC-SSTr
=977.1767-141.0847-183.7647-348.2447=304.0826
ANOVA Table
Source of DF SS MS F-ratio
variation
Rows 4 141.0847 35.2712 1.3919
Columns 4 183.7647 45.9412 1.8130
Treatments 4 348.2447 87.0612 3.4357
Error 12 304.0826 25.3402
Total 24 977.1767
F0.05, 4,12=3.26, F0.01, 4,12=5.41
Hypotheses:
H01: No treatment effects
H02: No row effects
H03: No column effects
Against their alternatives
Test procedure
The hypothesis of no treatment effect is not rejected at the 1% (0.01) level of
significance since the calculated F value (3.4357) is less than the tabulated F value
(5.41), but rejected at the 5% (0.05) level of significance since the calculated F value
(3.4357) is greater than the tabulated F value (3.26). Thus, the amount of sugarcane

produced will depend upon which type of manure is used. Or manures aﬀect yields.
In SAS
data lsd;
input Block $ Column $ Manure $ Yield @@;
cards;
I I A 52.5 I II E 46.3 I III D 44.1 I IV C 48.1 I V B 40.9
II I D 44.2 II II B 42.9 II III A 51.3 II IV E 49.3 II V C 32.6
III I B 49.1 III II A 47.3 III III C 38.1 III IV D 41.0 III V E 47.2
IV I C 43.2 IV II D 42.5 IV III E 67.2 IV IV B 55.1 IV V A 45.3
V I E 47.0 V II C 43.2 V III B 46.7 V IV A 46.0 V V D 43.2
;
proc print;run;
proc anova;
class Block Column Manure ;
model Yield=Block Column Manure;
run;quit;
Obs Block Column Manure Yield
1 I I A 52.5
2 I II E 46.3
3 I III D 44.1
4 I IV C 48.1
5 I V B 40.9
6 II I D 44.2
7 II II B 42.9
8 II III A 51.3
9 II IV E 49.3
10 II V C 32.6
11 III I B 49.1
12 III II A 47.3
13 III III C 38.1
14 III IV D 41.0
15 III V E 47.2
16 IV I C 43.2
17 IV II D 42.5
18 IV III E 67.2
19 IV IV B 55.1
20 IV V A 45.3
21 V I E 47.0
22 V II C 43.2
23 V III B 46.7
24 V IV A 46.0
25 V V D 43.2
Dependent Variable: Yield
Sum of
Source DF Squares MS F-Value Pr > F
Model 12 673.0752 56.0896 2.21 0.0916
Error 12 304.0952 25.3413

7.5. EXAMPLE 63
R-Square Coeff Var Root MSE Yield Mean
0.688800 10.90274 5.034011 46.17200
Source DF Anova SS MS F Value Pr > F
Block 4 141.0784 35.2696 1.39 0.2948
Column 4 183.7584 45.9396 1.81 0.1912
Manure 4 348.2384 87.0596 3.44 0.0431
Exercises
1. Using the ANOVA table above, examine whether there are any significance dif-
ferences between the rows and between the columns at 1% level of significance.
2. A supermarket organisation buys in a particular foodstuff from four suppliers
A, B, C, D and subjects samples of this to regular tasting tests by expert panels.
Various characteristics are scored, and the total score for the product is recorded.
Four tasters a, b, c, d at four sessions obtained the results below. Analyse and
comment on these. Use α = 0.05
Taster
a b c d
1 A: 21 B: 17 C: 18 D: 20
Session 2 B: 20 D: 22 A: 23 C: 19
3 C: 20 A: 24 D: 22 B: 19
4 D: 22 C: 21 B: 22 A: 26
3. Five different aptitude tests, A-E are applied on five successive days to five
different students who are considered comparable in intelligence. None of them has
previously attempted tests of this type, and so it is required to remove any possible
differences between days, which could be attributed to a learning effect. Investigate
the validity of the claim that the tests measure the same qualities, and also examine
differences between students and between days.
Scores Day 1 2 3 4 5 Student Totals for
totals tests
1 E: 56 B: 62 A: 65 D: 59 C: 76 318 A: 331
2 C: 74 A: 65 D: 60 E: 61 B: 70 330 B: 332
Student 3 B: 63 E: 59 C: 80 A: 66 D: 64 332 C: 393
4 A: 64 D: 63 B: 67 C: 81 E: 64 339 D: 310
5 D: 64 C: 82 E: 64 B: 70 A: 71 351 E: 304
Day totals 321 331 336 337 345 1670 1670

Chapter 8
Factorial Experiments
8.1 Introduction
In the previous discussions we considered factor(s) at different levels separately and
examined their significance. In practice, sometimes the interest is to evaluate the
effects of a combination of more than one factor each at two or more levels.
Experiments where the effects of more than one factor, say variety, manure, etc., each
at two or more levels, are considered together are called factorial experiments,
while experiments with one factor at varying levels, say only variety or manure, may
be called simple experiments.
It is customary to represent the factors by small letters a, b, c, etc. A treatment is
then determined by a combination of different levels of factor aibjck etc. For exam-
ple, if we have two factors a and b each at two levels, zero and one (i.e. i = 0, l, j
= 0, 1) then the four treatment combinations are aobo, aob1, a1bo and a1b1. The
comparisons among the treatment combinations are called the effects, which are
represented by capital, letters A, B, C, D etc.
When each treatment combination is used the same number of times, the factor-
ial experiment is known as complete factorial experiment. The experiment is
described as pn factorial experiment when there are n factors and each factor is con-
sidered at p levels. For example a three factors experiment with each factor having
two levels, then we say we have a 23 factorial experiment. In this course we shall
consider only the simplest cases, i.e. cases of n factors each at 2(or 3) levels or
what are known as 2n(3n) experiments, where n is any positive integer greater than
or equal to 2. Generalisation to any complex situations (factorial experiments) is
straightforward.
65

66 CHAPTER 8. FACTORIAL EXPERIMENTS
8.2 Main effects and interaction effects
The effects in a factorial experiment are composed of main effects and interaction
effects.
A main effect of a factor is defined as a measure of the average change in effect
produced by changing the levels of the factor. It is measured independently of other
factors.
Factors are said to interact when they are not independent. But “interaction”
in a factorial experiment is a measure of the extent to which the effect of changing
the levels of one or more factors depends on the levels of the other factors.
Interactions between two factors are referred to as first order interaction, those
concerning three factors are referred to as second order interaction and so on.
8.3 The 22
factorial experiments
Let the symbols aibj (i=o, l, j=o,l) represent both the treatment combination and
yields from all experimental units or plots.
Effect of factor a at level b0 of factor b = a1b0 – a0b0.
Effect of factor a at level b1 of factor b = a1b1 – a0b1.
Therefore, the main effect of factor a = average change produced by varying the
levels of factor a.
= 1
2 [(a1bo − aobo) + (a1b1 − aob1)]
= 1
2 [b0 (a1 − ao) + b1 (a1 − ao)]
= 1
2 [(a1 − ao) (bo + b1)]
Therefore, the main effect of factor a = 1
2 (a1 − ao) (bo + b1) = A
Similarly the main effect of factor b.
Effect of factor b at level a0 of factor a
= a0b1-a0b0
Effect of factor b at level a1, of factor a
= a1b1-a1b0

8.3. THE 22 FACTORIAL EXPERIMENTS 67
Therefore, the main effect of factor b
= 1
2 [(aob1 − aobo) + (a1b1 − a1bo)]
= 1
2 [(b1 − b0) a0 + (b1 − b0) a1]
= 1
2 [(b1 − b0) (a0 + a1)]
= 1
2 (b1 − b0) (a1 + a0) = B
If the two factors “a” and “b” were acting independently the effect of factor a at
level b0 and the effect of factor a at level b1 or the effect of factor b at level a0 and
the effect of factor b at level a1 should be equal, but in general they will be different.
This difference is a measure of the extent to which the factors interact. Hence A×B,
the interaction between two factors “a” and “b” each at 2 levels, zero and one is
given by
A × B =
1
2
[(a1b1 − a0b1) − (a1b0 − a0b0)]
A × B =
1
2
(a1 − a0) (b1 − b0)
It is clear from this relation that interaction between factors “a” and “b” i.e. A×B
is the same as that between “b” and “a” i.e. B×A.
The overall mean is represented by M
i.e. M = 1
4 [a0b0 + a0b1 + a1b0 + a1b1]
= 1
4 [a0(b0 + b1) + a1(b0 + b1)]
=1
4 [(a0 + a1)(b0 + b1)]
= 1
4 (a1 + a0) (b1 + b0)
Replacing the symbols a0 and b0 by 1 and the symbols a1 and b1 by simple aand b
respectively, the preceding comparisons may be expressed by
A = 1
2 (a − 1) (b + 1)
B = 1
2 (a + 1) (b − 1)
AB = 1
2 (a − 1) (b − 1)

M = 1
4 (a + 1) (b + 1)
Expanding say A, A = 1
2 [ab + a − b − 1]
= 1
2 [ab − b + a − 1]
Then, these effects can be conveniently written in a table of plus and minus signs as
shown below:
Effect Treatment Combination Divisor
(1) a b ab
M + + + + 4
A - + - + 2
B - - + + 2
AB + - - + 2
Note: It should be noted that the effects A, B, and AB are three mutually orthogonal
contrasts of the yields of the 4 treatments each based on 1 d.f. i.e. The sum of
products of the corresponding coefficients of the contrasts say A and AB is equal to
zero.
8.4 The 23
factorial experiments
In this case we consider 3 factors a, b, and c each at 2 levels. Hence we get 8 different
treatment combinations, which are listed below.
a0b0c0, a1b0c0, a0b1c0, a0b0c1, a1b1c0, a1b0c1,a0b1c1, a1b1c1 or
(1), a, b, c, ab, ac, bc, abc
The main effects and interactions as defined before can be represented by the fol-
lowing relations:
A = 1
4 (a − 1) (b + 1) (c + 1)
B = 1
4 (a + 1) (b − 1) (c + 1)
C = 1
4 (a + 1) (b + 1) (c − 1)
AB = 1
4 (a − 1) (b − 1) (c + 1)
AC =1
4 (a − 1) (b + 1) (c − 1)
BC = 1
4 (a + 1) (b − 1) (c − 1)

8.5. SUM OF SQUARES DUE TO FACTORIAL EFFECTS 69
ABC = 1
4 (a − 1) (b − 1) (c − 1)
The overall mean in this case is written as
M = 1
8 (a + 1) (b + 1) (c + 1)
The divisor (8) is due to the fact hat we have 8 different treatment combinations (as
listed above) to average out.
Expanding A we have,
A = 1
4 [− (1) + (a) − (b) + (ab) − (c) + (ac) − (bc) + (abc)]
Similarly, expanding B we have
B = 1
4 [− (1) − (a) + (b) + (ab) − (c) − (ac) + (bc) + (abc)]
The expression above can also be summarized by the following plus and minus signs
table.
Effect Treatment Combination Divisor
(1) a b ab c ac bc abc
M + + + + + + + + 8
A - + - + - + - + 4
B - - + + - - + + 4
C - - - - + + + + 4
AB + - - + + - - + 4
AC + - + - - + - + 4
BC + + - - - - + + 4
ABC - + + - + - - + 4
The above table can be extended to include up to n factors all at two levels by
corresponding the expression:
1
2n−1 (a ± 1) (b ± 1) (c ± 1)
Where a minus sign appears in any factor on right if the corresponding letter is
on the left or give to each of the treatment combination a plus sign where the
corresponding factor is at the second level and a minus sign where it is at the first
level.
8.5 Sum of squares due to factorial effects
To conduct the tests of significance using the analysis of variance technique, we need
to estimate the sum of squares. In factorial experiments the basic sum of squares

are computed in the usual way with the addition that the treatment sum of squares
is further partitioned into component parts of main effects and interaction.
The design structure may be CRD, RBD or LSD but it is the treatments that have
a factorial structure.
To compute the sum of squares let us consider a 22 factorial experiment, which has
been carried out in an RBD with r replications or blocks. The statistical model as
we discussed before would be:
yij = µ + ti + bj + eij
The block SS, Treatment SS and error SS are computed in the usual way. However,
since our interest is in the main effect and interaction effects. We obtain their SS as
follows.
Define the effect totals by []
i.e. [A] = − [1] + [a] − [b] + [ab]
Then the SS due to any main effect or the interaction effect is obtained by multiplying
the square of the effect total by the reciprocal of 4r, where r is the common replication
number. Thus.
SS due to main effect of A = [A]2
4r with d.f. = 1;
SS due to main effect of B = [B]2
4r with d.f. = 1;
SS due to interaction effect of AB = [AB]2
4r with d.f. = 1;
With this model, the analysis of variance table would be as follows:
Table 8.1: ANOVA table for a 22 experiment in r randomised blocks
Source of Variation d.f. S.S. M.S. F-ratio
Blocks r - 1 SS (Blocks) MS (Blocks) MS(Blocks)
Treatments
Main effect A 1 [A]2
4r MSA MSA/MSE
Main effect B 1 [B]2
4r MSB MSB/MSE
Interaction AB 1 [AB]2
4r MS(AB) MS(AB)/MSE
Error 3(r - 1) By subtraction MSE
Total 4r- 1 SST - -
Note: the total D.F for a randomised block design is rt-1. Where r and t are
respectively the replication number and the treatments in the RBD. Since in the

8.6. TESTS OF SIGNIFICANCE OF FACTORIAL EFFECTS 71
22 experiment four treatment combinations are formed, hence, the total degrees of
freedom in the 22 is 4r-1 as shown in the above ANOVA table. The error degrees of
freedom is obtained in the usual way (i.e., by subtracting the block and treatment
degrees of freedom from the total degrees of freedom).
8.6 Tests of significance of factorial effects
The test for the significance of any factorial effect (main effect or interaction), may
be obtained by computing.
F = MS due to factorial effect
MSE , where MSE is the error MS of the analysis of variance
table of the corresponding design. This F follows the F distribution with df = (1,
3(r-1)). Hence the hypothesis of absence of a factorial effect is rejected at the level
α if for our data.
F > Fα; 1,3(r-1); otherwise, the hypothesis is not rejected.
3(r - 1) is the error df for a 22 – experiment conducted in an RBD with r blocks (see
above ANOVA table).

The general formula for sum of squares of the effect is
[effect]2
2nr
where n is the number of factors in the experiment and r the replication number
(blocks).
Example:
A 22 experiment in six randomised blocks was conducted in order to obtain an idea
of the interaction: Spacing × number of seedlings per hole, along with the effects of
different types of spacing and different numbers of seedlings per hole, while adopting
the Indian method of cultivation. The levels of the two factors are:
S :
80cm spacing in between,
10cm spacing in between,
N :
3 seedlings per hole,
4 seedlings per hole.
The field plan and yield of dry Aman paddy (in kg) are as follows.
(1) s ns n
117 106 109 114
ns (1) s n
114 120 117 114
(1) n s ns
111 117 114 106
ns n s (1)
93 121 112 108
ns s (1) n
75 97 73 38
(n) (1) ns s
58 81 105 117
Analyse the data to find out if there are significant treatment effects – main or
interaction.
To find or computes the sum of squares for main effects and interaction effect, we
first find the effect totals:
First we compute the treatment totals. For each of the four treatment combinations
we sum the corresponding observations in all six blocks. For example, for treatment
n we have 114 + 114 + 117 + 121 + 38 + 58 which are observations from blocks
I, II, III, IV, V and VI respectively. This total is 562. Similarly, summing all
corresponding observations for the other treatments we have:
[ns]=607, [s]=663, [1]=610
Therefore, we obtain the effect totals as follows:
[N] = [n] + [ns] − [s] − [1]

8.6. TESTS OF SIGNIFICANCE OF FACTORIAL EFFECTS 73
= 562 + 607 – 663 – 610
= 1169 – 1273
= - 104
[S] = [s] − [n] + [ns] − [1]
= 663 – 562 + 607 – 610
= 98
[NS] = − [n] − [s] + [ns] + [1]
= 562 - 663 + 607 + 610
= 1225 + 1217
= -8
Thus, SS due to N = (−104)2
24 = 250.667;
SS due to S = (98)2
24 = 400.167;
SS due to NS = (−8)2
24 = 2.667;
We next perform the randomised block analysis.
The six block totals are:
Block I: 446, Block II: 465, Block III: 448, Block IV: 439, Block V : 283, Block VI:
361
Grand total G = 446 + . . . + 361 = 2442; N = rt=6×4= 24
⇒Correction factor (C.F.) = (2442)2
24 = 5963364
24
= 248, 473.5
Uncorrected total sum of square
i j
y2
ij= 259,024.
⇒Total sum of square (SST) =
i j
y2
ij-C.F = 259.024 – 248,473.5
= 10,550.5
Block sum of square (SSB) =1
4
6
j=1
Y 2
j − C.F = (446)2
+...+(361)2
4 − 248, 473.5

= 254,744 – 248,473.5
= 6,270.5
Treatment sum of squares (SSTr) =1
6
4
i=1
Y 2
i − C.F = (610)2
+...+(607)2
6 − 248, 473.5
= 249,327 – 248,473.5
= 853.5
Error sum of square (SSE) = 10,550.5 – 6,270.5 – 853.5 = 3,426.5
Note: The treatment SS (853.5) computed above is the sum of the three factorial
effects (main-N, S, and interaction-NS).
Source of Variation d.f. S.S. M.S. F-ratio
Blocks 5 6,270.5 1,254.1
N 1 450.667 450.667 1.973
S 1 400.167 400.167 1.752
NS 1 2.667 2.667 < 1
Error 15 3,426.5 228.483
Total 23 10,550.5 - -
F005; (1,15) = 4.54
Hypotheses
H0: There are no significant factorial effects-main and interaction-present in the
experiment.
H1: There are significant factorial effects-main and interaction-present in the exper-
iment.
Since all the F-ratios are not > Fα ; (1,15) we do not reject the null hypothesis
and conclude that there are no significant main or interaction effects present in the
experiment at the 5% level.
It should be noted here that, since we have three F-ratios (see the above ANOVA
table) , three different hypotheses can be stated. Consequently, three conclusions
can also be drawn depending on which F-ratio is greater or less than the critical
F-values.
8.7 Yates’ method of computing factorial effect totals
Yates gives systematic method of obtaining the various effect totals for any 2n-
experiment without writing down the algebraic expressions. We shall describe it for
the 22-experiment, but it can be easily extended to the case of any 2n-experiment.

8.7. YATES’ METHOD OF COMPUTING FACTORIAL EFFECT TOTALS 75
The steps are as follows:
• Write down the four (4) treatment combinations systematically in the first
column, stating with the treatment combination (1) and then introducing the
letters a, b in turn. After introducing a letter, write down its combination
with all the previous treatment combinations and then introduce a new letter.
Repeat this until all the letters (n letters in the case of a 2n-experiment) have
been exhausted.
• Write down the treatment totals from all the replicates in the second column
against appropriate treatment combination.
• Put the values in column 2 into consecutive pairs (i.e. 1 and 2, 3 and 4, etc).
The obtain column three by adding the values of these pairs up to half way
and subtracting the pairs in the other half (the second subtracting the first in
the pairs).
• Break the values in the third column into consecutive pairs and put the sums
and differences members of these pairs in order in the fourth column.
For a 22-experiment, the fourth column values give the factorial effect totals corre-
sponding to the treatment combination occurring in the corresponding positions of
the first column.
For a 2n-experiment, repeat n times the operations of column 3 and 4. The procedure
ends at the (n+n) th column, the first entry in the last column being always the grand
total.
Treatment Treatment Third column Fourth column Effect Totals
combination Totals
(1) [1] [1] + [a] [1]+[a]+[b]+[ab] Grand Total
a [a] [b] + [ab] [a]-[1]+[ab]-[b] [A]
b [b] [a]-[1] [b]+[ab]-[1]-[a] [B]
ab [ab] [ab]-[b] [ab]-[b]-[a]+[1] [AB]
Exercises:
1. A 22 factorial experiment i.e. 2 factors, varieties and manures and each at 2 levels
was carried out in a randomised block design with 3 replicates. The yields given in
the following table are hypothetical.
Treatment combination
Replicates v1m1 v1m2 v2m1 v2m2
5 7 8 10
4 4 7 5
6 4 9 12
Using Yates’ method Perform the analysis of variance test for the significance of the
effects of varieties and manure and their interaction.

2. Write down the analysis of variance table for a 23 experiment.
3. Give an example to illustrate the fundamental idea of interaction in factorial
experiments.
4. Using your own choice of factor(s), write down an expression from the following
statement:
The effect of changing a factor from its first level to second level in the presence of
the first level of the second factor, and the effect of changing a factor from its first
level to the second level in the presence of second level of the second factor.

Chapter 9
Multiple Comparisons
9.1 Introduction
The F tests used so far for testing hypotheses regarding differences among more than
2 treatment means showed whether or not differences among the different means
under comparison are significant, but they did not tell us whether a given mean or
group of means differs significantly from another given mean or group of means.
If we reject the null hypothesis the best we can say is that there is a difference among
the treatment means somewhere. Based on this analysis we cannot say how these
differences occur. For example, it may be that all the means are the same except
one. Alternatively, all means may differ from all others. However, on the basis of
this test, we cannot tell. Knowing how the mean differs is the kind of information
an investigator would really wants to obtain!
The concept of multiple comparisons is related to trying to glean more information
from the data on the nature of differences among means. In Section 5.6 we discussed
the least significance difference (LSD) method which engages a comparison of a pairs
of means. Thus, Using this method if an experimenter is confronted with k means
to get an idea on how the means differs/compares, he/she may need to test for
significant differences between all possible pairs, that is, to perform:
k
2
=
k (k − 1)
2
two-sample t-test as we described in Section 5.6. If k(the number of means) is large,
using the LSD method would require a large number of tests as a result much time
will be required before one completes the tests. Aside from the fact that this would
require a large number of tests even if k is relatively small, these tests would not
be independent, and it would be virtually impossible to assign an overall level of
significance to this procedure.
Note that the discussion of multiple comparisons is really only meaningful when the
number of treatmentst ≥ 3; if t = 2 then there are only two treatments means and
77

78 CHAPTER 9. MULTIPLE COMPARISONS
thus only one possible comparison of interest, that is, whether the two treatments
differs. Thus, throughout our discussion of multiple comparisons we will assume that
there are at least 3 treatments under consideration.
9.2 Multiple comparisons procedures
Several multiple comparisons procedures have been proposed to overcome the above
difficulties (i.e., large number of tests if k is large and non-independent tests). These
include:
• Bonferroni method
• Scheffé’s method
• Tukey’s method
• Duncan’s new multiple range test
The concept of multiple comparisons is a difficult issue, thus, understanding the
principles and the problem underlying the idea of multiple comparison is much more
important than jut being familiar with the technical mathematical procedures in-
volved. Thus, to complete your understanding of the principles and the problem
underlying the notion of multiple comparisons, you are strongly advised to consult
the book by Neter et al (1996).
The fundamental idea of multiple comparisons procedures is to control the compar-
isonwise error rate. The Bonferroni procedure, for instance, modifies the level
of significance α to 2α/k (k − 1) for each of k (k − 1) /2 differences. Therefore, this
requires entering the t-table with level of significance α/k (k − 1) rather than α/2.
9.2.1 Duncan’s new multiple range-test
For illustration purposes of the multiple comparisons procedures I will use the Dun-
can’s new multiple range-test (References to the other multiple comparisons
tests are mentioned in details in the book by Neter et al).
The assumptions underlying the Duncan’s multiple range-test are, essentially, those
of one way analysis of variance for which the sample sizes are equal.
Idea: Duncan’s multiple range-test compares the range of any set of p means with
an appropriate least significant range, Rp given by:
Rp = s¯x.rp
Here, s¯xis an estimate of σ¯x = σ/
√
n and is computed by means of the formula

9.2. MULTIPLE COMPARISONS PROCEDURES 79
s¯x =
MSE
n
Where MSE is the error mean square in the analysis of variance table. The value
rpdepends on the desired level of significance and the number of degrees of freedom
corresponding to MSE, and it may be obtained from statistical tables. For example,
on pages 14 and 15 of the Basic Sciences Unit, Sokoine University of Agriculture
Statistical Tables, for α=0.05 and 0.01 and p=2, 3, . . . 10, 12, 16, 18, 20 and for
various degrees of freedom from 1 to 100. Please make sure that you make your own
copy of these two pages.
Example: Suppose an experiment was conducted to investigate the tin-coating
weight among four different laboratories (A, B, C, D) each replicated 12 times
(n=12). Suppose further that, using the F test, the hypothesis of equal mean tin-
coating weights among the four laboratories is rejected at α=0.05 level of signifi-
cance. Thus, we wish to perform a Duncan’s multiple range test to determine which
laboratory means differ from which others. Assume α=0.05 and MSE=0.0015, with
DF=44. The laboratory means are respectively: 0.268, 0.227, 0.230, and 0.250 for
A, B, C and D.
To perform Duncan’s multiple range test, first we arrange the four means as follows
in an increasing order of magnitude.
Laboratory B C D A
Mean 0.227 0.230 0.250 0.268
Since Rp = s¯x.rp, thus, next we need to compute s¯x:
s¯x =
MSE
n
=
0.0015
12
=0.011
By linear interpolation we get the following values of rp for α=0.05 and 44 degrees
of freedom.
p 2 3 4
rp 2.85 3.00 3.09
Multiplying each value of rp by s¯x to obtain Rp = s¯x.rp, we have:
p 2 3 4
RP 0.031 0.033 0.034
The range (max-min) of all four means is 0.268-0.227=0.041. Comparing the range
(0.041) the least significant range R4=0.034 we see that, the range (=0.041) exceeds

the least significant range R4 (=0.034). This result should have been expected, since
using the F test, the null hypothesis of equal means was rejected at α=0.05.
To test for significant differences among three adjacent means, that is, among the
means 0.227, 0.230, and 0.250, and among the means 0.230, 0.250 and 0.268 we obtain
ranges of 0.023 and 0.038 respectively. Comparing the range (0.023) and the least
significant range, R3=0.033 we see that the range (0.023) of the first three adjacent
means does not exceed the least significant range (0.033), thus, the corresponding
differences are not significant at α=0.05 level of significance. Since the second
range value (0.038) exceeds the R3=0.033, the differences observed in the second set
of adjacent means are significant.
For adjacent pair of means (i.e., B and C, C and D, D and A) we have the following
values of range: 0.003, 0.02 and 0.018 respectively. None of these values exceeds the
least significant range R2=0.031. All these results can be summarized by writing as
follows:
0.227 0.230 0.250 0.268
0.250 0.268
where a line is drawn under any set of adjacent means for which the range is less
than the appropriate value of Rp. That is, under any set of adjacent means for which
differences are not significant. In this example we thus conclude that Laboratory A
averages higher tin-coating weight than Laboratories B and C.
Exercise: For the pea section data presented on page 19 of the course notes, suppose
we wished to make a statement about how the treatments (sugar treatments and
the control) differs. Summarize your conclusion of how the treatments differ by
performing Duncan’s multiple rage-test. Use α=0.05.
IN SAS
The GLM Procedure
Class Level Information
Class Levels Values
sugar 5 CNTL FRU2 GLU1FRU1 GLU2 SUC2
Number of observations 50
ANOVA TABLE
Dependent Variable: length
Sum of

Model 4 1077.320000 269.330000 49.37 <.0001
Error 45 245.500000 5.455556
R-Square Coeff Var Root MSE length Mean
0.814412 3.770928 2.335713 61.94000
Source DF Type I SS Mean Square F Value Pr > F
sugar 4 1077.320000 269.330000 49.37 <.0001
Source DF Type III SS Mean Square F Value Pr > F
sugar 4 1077.320000 269.330000 49.37 <.0001
t Tests (LSD) for length
NOTE: This test controls the Type I comparisonwise error rate,
not the experimentwise error rate.
Alpha 0.05
Error Degrees of Freedom 45
Error Mean Square 5.455556
Critical Value of t 2.01410
Least Significant Difference 2.1039
Means with the same letter are not significantly different.
t Grouping Mean N sugar
A 70.100 10 CNTL
B 64.100 10 SUC2
C 59.300 10 GLU2
C
C 58.200 10 FRU2
C
C 58.000 10 GLU1FRU1
Duncan’s Multiple Range Test for length
NOTE: This test controls the Type I comparisonwise error rate,
not the experimentwise error rate.
Alpha 0.05

Number of Means 2 3 4 5
Critical Range 2.104 2.212 2.284 2.335
Duncan Grouping Mean N sugar
A 70.100 10 CNTL
B 64.100 10 SUC2
C 59.300 10 GLU2
C
C 58.200 10 FRU2
C
C 58.000 10 GLU1FRU1
Tukey’s Studentized Range (HSD) Test for length
NOTE: This test controls the Type I experimentwise error rate,
but it generally has a higher Type II error rate than REGWQ.
Alpha 0.05
Critical Value of Studentized Range 4.01842
Minimum Significant Difference 2.9681
Tukey Grouping Mean N sugar
A 70.100 10 CNTL
B 64.100 10 SUC2
C 59.300 10 GLU2
C
C 58.200 10 FRU2
C
C 58.000 10 GLU1FRU1
Bonferroni (Dunn) t Tests for length
NOTE: This test controls the Type I experimentwise error rate,
but it generally has a higher Type II error rate than REGWQ.
Alpha 0.05
Critical Value of t 2.95208

Bon Grouping Mean N sugar
A 70.100 10 CNTL
B 64.100 10 SUC2
C 59.300 10 GLU2
C
C 58.200 10 FRU2
C
C 58.000 10 GLU1FRU1
Scheffe’s Test for length
NOTE: This test controls the Type I experimentwise error rate.
Alpha 0.05
Critical Value of F 2.57874
Scheffe Grouping Mean N sugar
A 70.100 10 CNTL
B 64.100 10 SUC2
C 59.300 10 GLU2
C
C 58.200 10 FRU2
C
C 58.000 10 GLU1FRU1

Chapter 10
Multiple Linear Regression
10.1 Introduction
In practice, there are many situations, which involve a description of the relationship
between one dependent variable and a set of explanatory variables. For example, we
can make a better prediction of the performance (measured in terms of number of
ﬁsh to be captured) of a group of ﬁshermen if we consider not only their education
(relevant knowledge and skills), but also their years of experience, their ages, and
their character. Also, we can make a better prediction of the amount of milk (in
litres) to be produced by a group of newly bought animals (e.g., cows) by SUA farm
management if we consider not only their breed, but also the type of feeds they are
given, their health condition, and the quality of cages where they are kept. A social
scientist may wish to know how best drug use (Y ) among a group of adolescents can
be predicted using academic involvement (X1) and peer association (X2).
The concepts of linear regression were discussed in MTH 106, hence all the important
conceptual issues involved in studying the relationship between variables as we
discussed in MTH 106, remains to be of the same value in this course too. Recall:
in MTH 106:Introductory Statistics, we discussed methods for obtaining a regression
equation of the form Yi = β0 + β1Xi + εi, i = 1, ..., n based on values from two
variables X and Y . We called the variable Y as the dependent or response and
the variable X as the independent or explanatory or regressor. We now turn
to a situation where we collect data on the dependent variable Y and k (k > 1)
explanatory variables. A regression model that involves more than one explanatory
variable is called a multiple regression model. I will reproduce some of the results
you obtained in MTH 106 without too many details.
10.2 Multiple Regression Models
Consider the following example. Suppose that the yield (in kg) of conversion in a
chemical process depends on temperature and the catalyst concentration. A multiple
regression model that might describe this relationship is given by:
85

86 CHAPTER 10. MULTIPLE LINEAR REGRESSION
Y = β0 + β1X1 + β2X2 + ε
where Y denote the yield, X1 denotes the temperature, and X2 denotes the catalyst
concentration. This is a multiple linear regression model with two explanatory
or predictor variables, X1 and X2.
In general, as mentioned above, the response Y may be related to k explanatory
or predictor variables. The model
Y = β0 + β1X1 + β2X2 + ... + βkXk + ε
is called a multiple linear regression model with k explanatory variables. The
parameters β0, β1, β2,..., βk are called the regression coeﬃcients/parameters.
10.2.1 Estimation of the Model Parameters
The least-squares method discussed in MTH 106 can be used to estimate the re-
gression parameters or coeﬃcients. Recall: the least-squares estimation method
consists of choosing, for any given set of observations, the values of β0, β1, β2,...,βk,
which will minimize the sum of squares of the residuals,
n
i=1
e2
i . Consider the
multiple regression equation below:
Yi = β0 + β1Xi1 + β2Xi2 + ... + βkXik + εi
The least-squares function is given by
S(β0, β1, β2, ..., βk) =
n
i=1
e2
i
=
n
i=1
(Yi − β0 − β1Xi1 − β2Xi2 − ... − βkXik)2
Taking the partial derivate of the above equation with respect to each parameter
and equating the resulting equations to zero we obtain the following equations
Y = b0.n + b1. X1 + b2. X2 + ... + bk. Xk
X1Y = b0. X1 + b1. X2
1 + b2. X1X2 + ... + bk. X1Xk
X2Y = b0. X2 + b1. X1X2 + b2. X2
2 + ... + bk. X2Xk
...
XkY = b0. Xk + b1. XkX1 + b2. XkX2 + ... + bk. X2
k
For a multiple regression model with two explanatory variables, X1 and X2, that is,
ˆY = b0 + b1X1 + b2X2 the above equations reduce to
Y = b0.n + b1. X1 + b2. X2 (1)
X1Y = b0. X1 + b1. X2
1 + b2. X1X2 (2)
X2Y = b0. X2 + b1. X1X2 + b2. X2
2 (3)

10.2. MULTIPLE REGRESSION MODELS 87
It can be shown that the formulas for the least-squares estimates b0, b1, and b2 for
the multiple regression prediction equation ˆY = b0 + b1X1 + b2X2 are
b1 = sY
s1
[
rY X1
−rY X2
rX1X2
1−r2
X1X2
]
b2 = sY
s2
[
rY X2
−rY X1
rX1X2
1−r2
X1X2
]
b0 = ¯Y − b1
¯X1 − b2
¯X2
where:
Y is the dependent variable
X1 and X2 are the independent or explanatory variables
¯Y sample mean for Y
¯X1 and ¯X2 are sample means for variables X1 and X2 respectively
sY is standard deviation for variable Y
s1 and s2 are standard deviations for variables X1 and X2 respectively
rY X1 and rY X2 are Karl-Pearson correlation coefficients between the variables Y and
X1 and between the variables Y and X1 respectively
rX1X2 is Karl-Pearson correlation coefficient between the variables X1 and X2.
Note: the Karl-Pearson correlation coefficients are calculated in the usual way as
we discussed in MTH 106. It is important that you remind yourself how to carry
out the calculations.
10.2.2 Interpretation of Regression Parameters in Multiple Regres-
sion Models
The coefficients a, b1, b2,..., bk in the multiple regression prediction equation
ˆY = a + b1X1 + b2X2 + ... + bkXk
can be given interpretations similar to the coefficients in the simple linear regression
prediction equation ˆY = a + bX discussed in MTH 106. That is, the a s are inter-
cepts and the b s are the slopes.
That is, a, the Y -intercept (in the above multiple regression equation), represents
the predicted value of Y when X1 = 0, X2 = 0,..., and Xk = 0. b1 represents the
change in Y for a one-unit change in X1 when all of the remaining explanatory vari-
ables in the model, that is, X2, X3,...,Xk are held constant. Similarly, b2 represents
the change in Y for a one-unit increase in X2 when all the remaining explanatory
variables in the model, that is, X1, X3,...,Xk are held constant. Also, b3 represents
the change in Y for a one-unit change in X3 when all of the remaining explanatory
variables in the model, that is, X1, X2,...,Xk are held constant. This interpretation
holds true with all of the remaining coefficients in the model.

For a multiple regression model with two explanatory variables, we have a, the Y -
intercept, represents the predicted value of Y when X1 = 0 and X2 = 0, b1 represents
the change in Y for a one-unit change in X1 when X2 is held constant. Similarly, b2
represents the change in Y for a one-unit change in X2 when X1 is held constant.
10.3 Example
Consider the following table, which presents data on life expectancy (Y ), per capita
national product (GNP), (X1), and the percentage of urban population (X2) for six
countries.
Country Life expectancy, Y GNP, X1 % of urban population, X2
1 38 80 7
2 44 150 16
3 47 250 35
4 54 550 40
5 63 820 76
6 70 1060 94
Using the above data, fit the multiple linear regression line of the form given below
and interpret the regression coefficients.
Yi = β0 + β1X1 + β2X2 + ε
Solution
For the data in the above table, you can verify the following:
¯Y = 52.6667, sY = 12.0941, rY X1 = 0.99281,
¯X1 = 485.0000, sX1 = 394.6011, rY X2 = 0.98729,
¯X2 = 44.6667, sX2 = 33.9745, rX1X2 = 0.97998
Substituting these values into the formulas we have:
b1 = 12.0941
394.6011 [0.99281−(0.98729)(0.97998)
1−(0.97998)2 ]=0.01955
b2 = 12.0941
33.9745 [0.98729−(0.99281)(0.97998)
1−(0.97998)2 ]=0.12892
b0 = 52.6667 − (0.01955)(485.0000) − (0.12892)(44.6667) = 37.42652
The least-squares fit (prediction equation) with the regression coefficients reported
to five decimal places is
ˆY = 37.42652 + 0.01955X1 + 0.12892X2

10.3. EXAMPLE 89
Interpretation of Regression Parameters
As mentioned above, the interpretation of the regression coeﬃcients is analogous to
that of the simple linear regression model. The Y intercept, b0=37.42652 represents
the expected life expectancy of people in a particular country when gross national
product in that country is 0 and when there is no (i.e., there is zero) percentage of
urban population or when all people in that country are living in rural areas. The
slope of gross domestic product (b1) computed as 0.01955 means that, for a country
with a given percentage of urban population, the expected life expectancy of the
people is estimated to increase by 0.01955 for each one-unit increase in gross national
product. Likewise, the slope of percentage of urban population (b2) computed as
0.12892 means that, for a country with a given gross national product, the expected
life expectancy of the people is estimated to increase by 0.12892 for each one-unit
increase in percentage of urban population.
10.3.1 Prediction of the Dependent Variable Y for Given Values of
the Explanatory Variables
As discussed in MTH 106, regression models can be used to predict unknown values
of a dependent variable, Y using known values of explanatory variable, X for simple
linear regression. Analogous to the discussion in MTH 106, we can also use the
multiple regression model to predict unknown values of a dependent variable using
known values of the explanatory variables.
Example
Predict the life expectancy of people living in a country that has GNP value of 68
and percentage of urban population of 80.
Using the ﬁtted multiple regression equation ˆY = 37.42652+0.01955X1 +0.12892X2
with X1 = 68 and X2 = 80 we have
ˆY = 37.42652 + (0.01955)(68) + (0.12892)(80)=49.06952.
Therefore, the life expectancy of people in a country with a GNP value of 68 and
percentage urban population of 80 is 49.06952
Exercise
Predict the life expectancy of people in a country that has GNP value of 56 and
urban percentage population of 62.
Note that the quantities that are required to substitute in the formulas for b0, b1,
and b2 can be computed using any software package. In SAS for example, we have:

====================================================================================
The CORR Procedure
Simple Statistics
Variable N Mean Std Dev Sum Minimum Maximum
Y 6 52.66667 12.09408 316.00000 38.00000 70.00000
X1 6 485.00000 394.60106 2910 80.00000 1060
X2 6 44.66667 33.97450 268.00000 7.00000 94.00000
Pearson Correlation Coefficients, N = 6
Prob > |r| under H0: Rho=0
Y X1 X2
Y 1.00000 0.99281 0.98729
<.0001 0.0002
X1 0.99281 1.00000 0.97998
<.0001 0.0006
X2 0.98729 0.97998 1.00000
0.0002 0.0006
====================================================================================
Also, the parameter estimates can be computed in SAS as the printouts below show
(see the outputs under ”Parameter Estimates”):
====================================================================================
The REG Procedure
Dependent Variable: Y
Sum of Mean
Source DF Squares Square F Value Pr > F
Model 2 724.65072 362.32536 162.66 0.0009
Error 3 6.68261 2.22754
Root MSE 1.49249 R-Square 0.9909
Dependent Mean 52.66667 Adj R-Sq 0.9848
Coeff Var 2.83385
Parameter Estimates
Parameter Standard
Variable DF Estimate Error t Value Pr > |t|
Intercept 1 37.42606 1.08666 34.44 <.0001
X1 1 0.01955 0.00850 2.30 0.1049
X2 1 0.12894 0.09868 1.31 0.2825
====================================================================================

10.3. EXAMPLE 91
10.3.2 Assessing the Fitted Multiple Regression Model
Recall: in MTH 106 we discussed that once a regression model has been developed,
we can compute the coefficient of determination r2. In multiple, regression, since
there are at least two explanatory variables, the coefficient of multiple determi-
nation represents the proportion of the variation in Y that is explained by the set
of explanatory variables selected. To illustrate the coumputation of the coefficient
of determination, we consider the case of two explanatory variables. The coefficient
of determination (rY X12 ) is equal to regression sum of squares (SSR) divided by the
total sum of squares (SST). That is
rY X12 = SSR
SST
where:
SSR=b0 Y + b1 X1Y + b2 X2Y − n ¯Y 2
SST= Y 2 − n ¯Y 2
In the life expectancy example compute the coefficient of multiple determination.
Solution
Consider the following table.
Country Y X1 X2 X1Y X2Y Y 2
1 38 80 7 3040 266 1444
2 44 150 16 6600 704 1936
3 47 250 35 11750 1645 2209
4 54 550 40 29700 2160 2916
5 63 820 76 51660 4788 3969
6 70 1060 94 74200 6580 4900
Total 316 2910 268 176950 16143 17374
From the above computational table, SSR=724.8171067, SST=731.3312267, and
thus
rY X12 = 724.8171067
731.3312267 =0.991 (approximated to three decimal places). Note that the
value of the coefficient of multiple determination is also available in the SAS
printouts above written as R-Square=0.9909
Interpretation
The coefficient of multiple determination, 0.99, can be interpreted to mean that
from the sample, 99.1% of the variation in life expectancy can be explained by the
variation in gross national product and the variation in percentage of urban popu-
lation. In this case therefore, the model is a good fit of the data since most of the
variations in the dependent variable (Y ) are explained by the explanatory variables.
Only about 9% of the variation in Y is due to other factors.

10.3.3 Testing for the Significance of the Relationship Between the
Dependent Variable and the Explanatory Variables
To ascertain that the multiple linear regression model is approporiate to describe
the relationship between the dependent variable and a set of explanatory variables,
we can use the ANOVA technique discussed previously. Through the ANOVA tech-
nique (see ANOVA table below), we can determine whether there is a significant
relationship between the dependent variable and a set of explanatory variables. For
a multiple linear regression model with two explanatory variables, the hypotheses to
be tested are as follows:
H0 : β1 = β2 = 0.
That is, in words, there is no linear relationship between the dependent variable and
the explanatory variables.
H1 : At least one βj = 0.
That is, in words, at least one regression coefficient is not equal to 0.
The null hypothesis is tested with an F test, which is equal to the regression mean
square (MSR) divided by the error mean square (MSE). That is,
F = MSR
MSE
where:
MSR = SSR
p and MSE = SSE
n−p−1
with p representing the number of explanatory variables in the regression model.
Decision
The decision rule is to reject H0 at the α level of significance if Fcalculated > Fp,n−p−1(F−
tabulated); otherwise do not reject H0.
Source df Sum of Squares Mean Squares F
Regression p SSR=b0 Y + b1 X1Y + b2 X2Y − n ¯Y 2
MSR = SSR
p
F = MSR
MSE
Error n-p-1 SSE= Y 2
− b0 Y − b1 X1Y − b2 X2Y MSE = SSE
n−p−1
Total n-1 SST= Y 2
− n ¯Y 2
For the life expectancy data, we illustrate the calculations as follows.
Note that we have already computed SSR=724.8171067 and SST=731.3312267.
Thus, from SST=SSR-SSE, we have SSE=SST-SSE=731.3312267-724.8171067=6.51412.
MSR = 724.8171067
2 = 362.4085533, MSE = 6.51412
3 = 2.171373333. Hence F =
362.4085533
2.171373333 = 166.9029217

10.4. EXERCISE 93
ANOVA Table for life expectancy data
Source df Sum of Squares Mean Squares F
Regression 2 724.8171067 362.4085533 166.9029217
Error 3 6.51412 2.171373333
Total 5 731.3312267
The above ANOVA table is very similar to the one given in the SAS printouts above
under the ”Analysis of Variance”
Decision
The critical value of F from the statistical table at α=0.05 level of significance
(F0.05;2,3)=9.55. Since F = 166.9 > F0.05;2,3 = 9.55, we reject the null hypothesis
and conclude that at least one of the explanatory variables (gross national prod-
uct and/or percentage of urban population) is related to life expectancy. You can
also decide whether or not to reject the null hypothesis by looking at the p-value
given as Pr>F in the SAS printouts under the ”Analysis of Variance”. Since
p-value=0.0009 < 0.05 (the level of significance), we can also reject H0 as decided
using the hand calculation results.
10.4 Exercise
A soft drink bottler is analyzing the vending machine service routes in his distribu-
tion system. He is interested in predicting the amount of time required by the route
driver to service the vending machines in an outlet. This service activity includes
stocking the machine with beverage products and minor maintenance or housekeep-
ing. The industrial engineer responsible for the study has suggested that the two
most important variables affecting the delivery time (Y ) are the number of cases
of product stocked (X1), and the distance walked by the route driver (X2). The
engineer has collected 25 observations on delivery time, which are shown in the table
below. Use the data to answer the questions that follow.

No. Delivery time (Min.) Number of cases (X1) Distance (Feet)
1 16.68 7 560
2 11.50 3 220
3 12.03 3 340
4 14.88 4 80
5 13.75 6 150
6 18.11 7 330
7 8.00 2 110
8 17.83 7 210
9 79.24 30 1460
10 21.50 5 605
11 40.33 16 688
12 21.00 10 215
13 13.50 4 255
14 19.75 6 462
15 24.00 9 448
16 29.00 10 776
17 15.35 6 200
18 19.00 7 132
19 9.50 3 36
20 35.10 17 770
21 17.90 10 140
22 52.32 26 810
23 18.83 9 450
24 19.83 8 635
25 10.75 4 150
(a) Fit the multiple linear regression model of the form given below. Compare the
estimates with the ones given in the SAS printouts.
Yi = β0 + β1X1 + β2X2 + ε
(b) Predict the amount of time (in minutes) required to deliver 19 cases of the soft
drink for a distance of 840 feet.
(c) Calculate the coeﬃcient of multiple determination and interpret. Compare your
hand calculated value with the one given in the SAS printouts.
(d) Construct an analysis of variance table and use it to check the appropriateness
of the ﬁtted regression model to describe the relationship between the dependent
variable (delivery time) and the two explanatory variables (that is, number of cases
and distance). Compare the your calculations with the SAS printouts.

10.4. EXERCISE 95
======================================================================================
Simple Statistics
Variable N Mean Std Dev Sum Minimum Maximum
Time 25 22.38720 15.52413 559.68000 8.00000 79.24000
Cases 25 8.76000 6.88162 219.00000 2.00000 30.00000
Distance 25 409.28000 325.18809 10232 36.00000 1460
Pearson Correlation Coefficients, N = 25
Prob > |r| under H0: Rho=0
Time Cases Distance
Time 1.00000 0.96467 0.89174
<.0001 <.0001
Cases 0.96467 1.00000 0.82422
<.0001 <.0001
Distance 0.89174 0.82422 1.00000
<.0001 <.0001
======================================================================================
The REG Procedure
Dependent Variable: Time
Sum of Mean
Source DF Squares Square F Value Pr > F
Model 2 5550.96670 2775.48335 262.06 <.0001
Error 22 233.00060 10.59094
Root MSE 3.25437 R-Square 0.9597
Dependent Mean 22.38720 Adj R-Sq 0.9561
Coeff Var 14.53675
Parameter Estimates
Parameter Standard
Variable DF Estimate Error t Value Pr > |t|
Intercept 1 2.34407 1.09501 2.14 0.0436
Cases 1 1.61580 0.17047 9.48 <.0001
Distance 1 0.01439 0.00361 3.99 0.0006
======================================================================================

Chapter 11
Data Transformation
11.1 Introduction
When we want to use statistical tests to test certain hypotheses about one or more
sets of data, it is useful if we can assume that the data comes from a Normal Distri-
bution. This is because the tests, which require the assumption of normality, are, in
general, more powerful than those, which do not require such assumptions. In other
words, many statistical procedures require the data to be normally distributed. As a
general rule the more non-normal the data the more likely a misleading result. For
this reason it is important to be able to check the assumption of normality before
trying to solve a problem that requires the assumption.
Transformation of data to normality may be informative and useful statistically. The
normal distribution is inarguably the most important and the most frequently used
distribution in both the theory and application of statistics. If X is a normal random
variable, then the probability distribution of X is
f (x) =
1
σ
√
2π
e− 1
2 (x−µ
σ )
2
, −∞ < x < ∞
11.2 Parameters of normal distribution
Recap: In MTH 106, we discussed the two parameters of the normal distribution
namely the mean µand the standard deviation σ(or the varianceσ2).
Notation: IfX is a random variable that follows the normal distribution with these
parameters, we write:
X ∼ N µ, σ2
97

98 CHAPTER 11. DATA TRANSFORMATION
11.2.1 Shape of the normal distribution
The shape of the normal distribution is symmetric and unimodal. It is called the
bell-shaped or Gaussian distribution named after its inventor, Gauss.
The visual appearance is given below.
11.3 Reasons for data transformation
In Section 4.2 we discussed the three assumptions underlying the analysis of vari-
ance technique that have to be met if valid conclusions are to be drawn. These
assumptions are:
• The observations and hence the errors, are normally distributed
• The observations have the same variance σ2
• All observations, both across and within samples, are unrelated (independent)
These assumptions are important to ensure that the distribution of the F statistic
upon which decisions can be made is really the F distribution.
We have already discussed that these assumptions are not necessarily true for any
given situation. In fact, they are probably never exactly true. For many data
sets, however, they may be a reasonable approximation, in which case the ANOVA
technique we have discussed may still be fairly reliable. In other cases, they may be
seriously violated; in such cases, the resulting inferences may be misleading
Each of the above assumptions should be met before progressing onto the analy-
sis. However, if the experiment has been designed appropriately the assumption
of independence of observations (assumption 3 above) is always met by the experi-
menter. As mentioned above, both the homogeneity of variance and the normality
assumptions need not necessarily be true.

11.4. TESTING FOR NORMALITY 99
11.4 Testing for normality
There are a large number of useful tools (formal and graphical methods) to assess
normality. Histograms and Shapiro-Wilk test are the most commonly used graphical
and formal tests of normality respectively. Shapiro-Wilks is diﬃcult to calculate
by hand, but it is available in almost all software packages available to date. In
this class, however, we will not discuss any formal test of neither constant variance
(homogeneity of variance) nor normality.
11.5 Common data transformations
Although many forms of continuous data the assumption of normality and constant
variance is a reasonable one, they are many situations where the data are in the form
of count or proportions, which are not continuous across a large range of values.
For example, we may count the number of birds of a certain specie observed in
a particular area or proportions of insects surviving insecticide treatment. In these
situations the assumptions of constant variance and normality are certainly violated.
Question: What can we do in order to meet the assumption of the analysis of
variance? In order to return our data to normality and establish homogeneity of
variance we can use transformations. These are simply mathematical operations
that are applied to the data.
The analysis of variance technique may still be used in these situations provided
that a suitable transformation is made. That is, although the distribution of Y (the
response variable) may not be normal with constant variance for all treatments
and blocks, but it may be possible to transform the data and analyze them on the
transformed scale, where the assumptions are more realistic/reasonable.
Selection of an appropriate transformation of the data, say t is often based on the
type of data. The values t (Yij) are treated as the data and analyzed in the usual
way. Some common data transformations are:
• Logarithmic: t (Y ) = log Y
• Square root: t (Y ) =
√
Y This is often appropriate for count data with small
values.
• Arc sin: t (Y ) = arcsin
√
Y or sin−1
√
Y This transformation is appropriate
when the data are in the form percentages or proportions
Example: Consider the following data. Before transformation
15 20 32 29 27 45 17 28 80 23 50 49 48 42 42
39 98 76 35 43

Tests for Normality
Test --Statistic--- -----p Value------
Shapiro-Wilk W 0.888395 Pr < W 0.0251
Kolmogorov-Smirnov D 0.20365 Pr > D 0.0282
Cramer-von Mises W-Sq 0.126763 Pr > W-Sq 0.0455
Anderson-Darling A-Sq 0.792409 Pr > A-Sq 0.0346

11.5. COMMON DATA TRANSFORMATIONS 101
After transformation (logarithm transformation)
Tests for Normality
Test --Statistic--- -----p Value------
Shapiro-Wilk W 0.975912 Pr < W 0.8712
Kolmogorov-Smirnov D 0.127035 Pr > D >0.1500
Cramer-von Mises W-Sq 0.035353 Pr > W-Sq >0.2500
Anderson-Darling A-Sq 0.223563 Pr > A-Sq >0.2500
NOTE: The basic message of this discussion is that it is often the case in real life that
the standard assumptions on which analysis of variance is predicted are violated!
Violation of assumptions is worth an entire course in itself. Data transformation
is one way of handling violations of the assumptions. If you encounter a problem
which requires the use of the analysis of variance technique and the assumptions are
severely violated, your best bet is to consult a statistician!

Chapter 12
Analysis of Frequency Data
12.1 Introduction
In MTH 106 you learned that data can be grouped into classes for descriptive or
inferential purposes. For example, we might classify students’ scores for different
degree programmes to enable us to visualize the distribution of scores and permitting
us to calculate some descriptive statistics such as mean, median, mode etc. However,
this sort of data presentation is not often enough.
Researches in many disciplines have shown that it is more informative if measure-
ments are classified into more than one variable at a time. In political science, we
may classify an individual as a C.C.M or C.U.F follower at the same time as a Muslim
or Christian. In medicine, we may classify an individual as a smoker or non-smoker
and, at the same time, as an individual with or without coronary disease, a fruit fly
may be classified as male or female and according to parent mating, and so on. In
each case there are two variables of classification.
In all these cases we are interested in the relationship (independency or dependency)
between the first variable of classification and the second variable. Analysis of fre-
quency data or cross-classification of data can achieve this.
Recap: Recall our discussion of experimental designs, the object on which a mea-
surement is taken is called a sampling unit. If measurements are taken on two (or
more) variables for each sampling unit, we say that we have bivariate (or multivari-
ate) data. Thus, just as univariate data are classified in a one way table, bivariate
data are classified in a two way table.
12.2 Objective of two-way classification
Classifying measurements on the basis of two variables puts us in a better position
to assess whether the two variables are related, as a matter of intellectual curiosity,
103

104 CHAPTER 12. ANALYSIS OF FREQUENCY DATA
or, as frequency happens, we might wish to predict one variable from knowledge of
the other.
This last chapter of MB 201 course deals primarily with test of independence based
on data arranged in a two-way contingency table.
Example: Relationship between education level and perception of air pollution in
Dar es Salaam City. (Source: W. Mendenhall et al (1978). Second. Ed. Statistics:
a Tool for the Social Sciences, pg306. Slightly modiﬁed!)
Education Level
Perception
of air pollution No education Primary School Graduate Totals
Low 25 17 61 103
Medium 27 29 57 113
High 66 100 545 711
Totals 118 146 663 927
In constructing a frequency table for studying the relationship between two variables,
the categories of one variable are used to label the rows of the table while the
categories of the other variable provide labels for the columns of the table.
Notation: Consider two attributes A and B divided into r (rows) and c(columns)
classes respectively. That is A1, A2,. . . .., Ar and B1, B2, . . . .., Bc. The various
cell frequencies can be expressed in the following table known as an r×c contingency
table. Let Ai be the number of individuals possessing the attribute Ai (i=1,2,. . . ..,r),
Bj the number of individuals possessing the attribute Bj. (j=1,2. . . , c) and AiBj
the number of individuals possessing both the attributes Ai and Bj, (i= 1, 2,. . . r;
j=1,2,. . . , c). Also
r
i=1
Ai =
c
j=1
Bj = N, is the total frequency.
Let AiBj, the number of individuals possessing both the attributes Ai and Bj=Oij
as shown below in an r×c contingency table.
Characteristic A Characteristic B Totals
B1 B2.... Bc
A1 O11 O12.... O1c a1
A2 O21 O22.... O2c a2
A3 O31 O32.... O3c a3
. . . . . . . . . . . .
Ar Or1 Or2 Orc ar
Totals bi b2... bc N
Interest: The problem of interest is to test if the two attributes A and B under
consideration are independent or not.

12.3. THE CHI-SQUARE TEST OF INDEPENDENCE 105
12.3 The Chi-square test of independence
For large N, the total number of frequency, it can be shown that the test statistic
of independence is:
χ2
=
r
i=1
c
j=1
(Oij − Eij)
Eij
2
=
r
i=1
c
j=1
Observed − Expected
Expected
2
Which is distributed as a χ2 (chi − square) variate with (r − 1) (c − 1)d.f.
Where Eij = N.P (AiBj) is the expected number of individuals possessing both the
attributes Ai and Bj.
But P (AiBj) = ai
N ·
bj
N ; i = 1, 2.., r, j = 1, 2, ...c (because Ai and Bj are independent)
Hence, Eij =
aibj
N
By using this formula we can find out expected frequencies for each of the cell
frequencies Oij, i = 1, 2, ...., r, j = 1, 2, ...., c
Hypothesis
The null hypothesis specifies only that each cell probability will equal the product of
its respective row and column probabilities and therefore imply independence of the
two classifications. The alternative hypothesis is that this equality does not hold for
at least one cell.
Under the null hypothesis that the attributes are independent, the theoretical (ex-
pected) cell frequencies are calculated as follows:
P(Ai) = ai
N , i = 1, 2, ....r.Is the probability that a person possesses the attribute Bj.
P(Bj) =
bj
N , = 1, 2, ..., c,Is the probability that a person possesses the attribute Bj.
P (AiBj) =Probability that a person possesses the attributes Ai and Bj = P(Ai).P(Bj)
(By compound probability theorem, since the attributes Ai and Bj are independent,
under the null hypothesis)
P (AiBj) =
ai
N
·
bj
N
; (i = 1, 2, ..., r, j = 1, 2..., c)
Let the expected number of persons possessing both the attributes Ai and Bj be Eij
= N. P(AiBj).
= N.
ai
N
·
bj
N
; i = 1, 2.., r, j = 1, 2, ...c

Eij =
aibj
N
By using this formula we can ﬁnd out expected frequencies for each of the cell
frequencies Oij, i = 1, 2, ...., r, j = 1, 2, ...., c
Test Statistic
The test statistic for the independence of attributes (for large N) is
χ2
=
r
i=1
c
j=1
(Oij − Eij)
Eij
2
=
r
i=1
c
j=1
Observed − Expected
Expected
2
Which is distributed as a χ2 (chi − square) variate with (r − 1) (c − 1)d.f.
Decision
If χ2>χ2
α,(r−1)(c−1)we reject the null hypothesis of independence of attributes. Oth-
erwise we do not reject.
Example (hypothetical). A random sample of SUA students was selected and
asked their opinions about “Semesterization” at SUA. The results are given below.
The same number of each sex was included with each class. Test the hypothesis at
5% level that the opinions are independent of the class grouping.
Numbers
Class Support Semester Oppose Semester Total
B.Sc Agric.Gen/ANS 120 80 200 = a1
B.Sc. Hort., FCS 130 70 200 = a2
B.Sc. AQU, AEA 70 30 100=a3
M.Sc.(Forestry) 80 20 100=a4
Total b1 = 400 b2=200 600
Solution
Hypothesis:
Ho: The opinion about semesterization is independent of the class grouping or the
opinion about semesterization is not related to the class grouping.
Hi: The opinion about semesterization is dependent of the class grouping.
Here the frequencies are arranged in the form of a 4 x 2 contingency table. Hence
the d.f are (4-1) x (2-1) = 3 x 1 = 3. Hence we need to compute independently only
three expected frequencies and remaining expected frequencies can be obtained by
subtraction from the row and column totals.

Eij = Expected number of individuals possessing both the attributes
=
aibj
N
, i = 1, 2, ..., r, j = 1, 2, .., c
E11 =
a1b1
N
⇒ E11 (120) =
200 × 400
600
= 133.33
E21 =
a2b1
N
⇒ E21 (130) =
100 × 400
600
= 133.33
E31 =
a2b1
N
⇒ E31 (70) =
100 × 400
600
= 66.67
E41 =
a4b1
N
= b1 = (E11 + E21 + E31)
= 400 − (133.33 + 133.33 + 66.67)
= 66.67
E41 = 66.67
E12 = a1 − E11
E22 = a2 − E21 = 200 − 133.33 = 66.67
E32 = a3 − E31 = 100 − 66.67 = 33.33
E42 = a4 − E41 or b2 − (E12 + E22 + E32) = 33.33
Hence we have the following table of expected frequency.
Expected cell frequency table
Calculation for chi-square
χ2
=
r
i=1
c
j=a
(0ij − Eij)2
Eij
= 12.7428
Tabulated (critical) value of χ2 for (4 − 1) (3 − 1) = 3.d.f at 5% level of signiﬁcance
is 7.815. Since the value for the test statistic, χ2 = 12.7428 exceeds the critical value
of χ2, we reject the null hypothesis. Hence we conclude that the opinions about
semesterization are dependent on the class groupings.

Number
Class Supported Semester Oppose Semester Total
B.Sc Agric.Gen/ANS 133.33 66.67 200
B.Sc. Hort., FCS 133.33 66.67 200
B.Sc.AQU, AEA 66.67 33.33 100
M.Sc.(Forestry) 66.67 33.33 100
Total 400.00 200.00 600
O E O-E (O-E) (O-E)2/E
120 133.33 -13.33 177.6889 1.3327
130 133.33 -3.33 11.0889 0.0832
70 66.67 3.33 11.0889 0.1663
80 66.67 13.33 177.6889 2.6652
80 66.67 13.33 177.6889 2.6052
70 66.67 3.33 11.0889 0.1663
30 33.33 -3.33 11.0889 0.3327
20 33.33 -13.33 177.6889 5.3312
Total 400 Total 400
IN SAS
DATA cross;
input group $ opinions $ students;
cards;
A_AEA SUPPORT 120
A_AEA S_OPPOSE 80
HORT_FST SUPPORT 130
HORT_FST S_OPPOSE 70
HE_AEA SUPPORT 70
HE_AEA S_OPPOSE 30
MSCFOR SUPPORT 80
MSCFOR S_OPPOSE 20
;
RUN;
PROC PRINT;RUN;
PROC FREQ DATA=cross;
Title ’Cross-classification of SUA opinions data’;
Tables group opinions
group*opinions/CHISQ expected;
weight students;
run; quit;
Next are outputs of the above SAS program
Cross-classification of SUA opinions data
The FREQ Procedure
Table of group by opinions
group opinions

Frequency|
Expected |
Percent |
Row Pct |
Col Pct |SUPPORT |S_OPPOSE| Total
----------------------------
A_AEA | 120 | 80 | 200
| 133.33 | 66.667 |
| 20.00 | 13.33 | 33.33
| 60.00 | 40.00 |
| 30.00 | 40.00 |
----------------------------
HE_AEA | 70 | 30 | 100
| 66.667 | 33.333 |
| 11.67 | 5.00 | 16.67
| 70.00 | 30.00 |
| 17.50 | 15.00 |
----------------------------
HORT_FST | 130 | 70 | 200
| 133.33 | 66.667 |
| 21.67 | 11.67 | 33.33
| 65.00 | 35.00 |
| 32.50 | 35.00 |
----------------------------
MSCFOR | 80 | 20 | 100
| 66.667 | 33.333 |
| 13.33 | 3.33 | 16.67
| 80.00 | 20.00 |
| 20.00 | 10.00 |
----------------------------
Total 400 200 600
66.67 33.33 100.00
The FREQ Procedure
Statistics for Table of group by opinions
Statistic DF Value Prob
------------------------------------------------------
Chi-Square 3 12.7500 0.0052
Likelihood Ratio Chi-Square 3 13.3803 0.0039
Mantel-Haenszel Chi-Square 1 8.2362 0.0041
Phi Coefficient 0.1458
Contingency Coefficient 0.1442
Cramer’s V 0.1458
Sample Size = 600
------------------------------------------------------
Limitation of χ2 Test
The chi-square distribution is essentially a continuous distribution but it cannot
maintain its character of continuity if cell frequency is less than 5. If any theoretical

(expected) cell frequencies are less than 5, then for the application of χ2- test, it is
pooled with the preceding or succeeding frequency so that the pooled frequency is
more or equal to 5 and finally adjust for the d.f. lost in pooling.
Example
Two researchers X and Y adopted different sampling techniques while investigat-
ing the same group of students to find the number of students falling in different
intelligence levels. The results are as follows:
No. of students in each level
Researcher Below Aver. Aver. Above Aver. Genius Total
X 86 60 44 10 200
Y 40 33 25 2 100
Total 126 93 69 12 300
Would you say that the sampling techniques adopted by the researchers are signifi-
cantly different? (Given χ2
0.05 for 2.d.f and 3.d.f are 5.991 and 7.82 respectively).
Solution:
Ho: The data obtained are independent of the sampling technique adopted by the
two researchers.
against its alternative hypothesis (exercise: state).
Here we have a 2 x 4 contingency table and d.f. (2-1) x (4-1) = 3 x 1 = 3. Hence
we need to compute only 3 independent expected frequencies and the remaining
expected frequencies can be obtained by subtraction from the marginal row and
column totals.
Under the null hypothesis of independence, we have
E11 =
a1b1
N
⇔ E11 (86) =
200x126
300
= 84,
E12
a1b2
N
⇔ E12 (60) =
200x93
300
= 62,
E13 =
a1b3
N
⇔ E13 (44) =
200x69
300
= 46.
Hence we have the following expected frequencies’ Tables
Since the last frequency (E24) is less than 5, we use the technique of pooling as shown
below.
Calculation for chi-square

No. of students in each level
Researcher Below aver. Aver. Above aver. Genius Total
X 84 62 46 8 200
Y 42 31 23 4 100
Total 126 93 69 12 300
O E O-E (O-E)2 (O-E)2/E
86 84 2 4 0.048
60 62 -2 4 0.064
44 46 -2 4 0.087
10 8 2 4 0.500
40 42 -2 4 0.095
33 31 2 4 0.129
25
2 27 23
4 0 0 0
T=300 T=300 0.923
After pooling, χ2 =
t
i=j
c
j=1
(Oij −Eij)2
Eij
= 0.923 and the
d.f = (4−1)×(2−1)−1 = 3×1−1 = 2 since 1 d.f is lost in the process of pooling.
The tabulated value of χ2 for 2.d.f at 5% level of significance is 5.991.
Since the calculated value is less than the tabulated one, the null hypothesis is
accepted at 5% level of significance and we conclude that the data obtained are
independent of the sampling technique adopted by the two researchers.
Exercise
1. A survey was conducted to evaluate the effectiveness of a new flu vaccine that had
been administered in a small community. The vaccine was provided free of charge
in a two-shot sequence over a period of 2 weeks. Some people received the two-short
sequence, some appeared only for the first shot, and others received neither.
A survey of 1000 local inhabitants provided the following information.
Condition No vaccine Once short Two-shorts Total
Flu 24 9 13 46
No flu 289 100 565 954
Total 313 109 578 1000
Do the data present sufficient evident to indicate that the vaccine was successful in
reducing the number of the flu cases in the community? Use α = 0.05
2. A sample of 2000 medical records was examined and the following data resulted.
Assume that these results were the outcomes of a random sample of a certain pop-
ulation and test that the two classification are independent with α = 0.05.

Died of cancer Died of all
Status intestines other causes Total
Smokers 22 1178 1200
Non-smokers 26 774 800
Total 48 1952 2000
3. Suppose that it is desired to find out whether there is any significant association
between educational attainment and job performance for a group of 200 employees.
Educational attainment is classified into three classes namely: secondary school or
lower, college, and graduate, while job performance is classified as excellent, good,
and fair.
Educational attainment
Job rating Seco. school or lower College Graduate Total
Excellent 10 40 10 60
Good 30 30 20 80
Fair 10 30 20 60
Total 50 100 50 200
4. A certain company wishes to determine whether absenteeism is related to age.
A random sample of 400 employees is selected and classified according to age and
cause of absenteeism as follows:
Age
Cause Under 30 30-50 Over 50 Total
Illness 80 56 104 240
Oher 40 72 48 160
Total 120 128 152 400

Chapter 13
Review Exercises
13.1 Exercise I
1. What is designing an experiemnt?
2. Name three principles of experimental designs
3. During cooking, doughnuts absorb fat in various amounts. Ivy wished to learn
if the amount absorbed depends on the type of fat used. For each of four fats, six
batches of doughnuts were prepared, a batch consisting of 24 doughnuts. The data
below are grams of fat absorbed per batch, coded by deducting 100g to give simpler
ﬁgures.
Fat 1 2 3 4
64 78 75 55
72 91 93 66
68 97 78 49
77 82 71 64
56 85 63 70
95 77 76 68
(a) Name the principle(s) of experimental design involved in this experiment and
brieﬂy explain how the principle(s) you have named have been utilized.
(b) Below is an incomplete SAS analysis of variance table of the data. Complete the
table in whatever way you feel is appropriate given the description of the data and
experiment.
==========================================================================
Sum of
==========================================================================
Between fat - 1636.500000 - - 0.0069
Within fat - 2018.000000 -
Corrected Total - 3654.500000
==========================================================================
113

114 CHAPTER 13. REVIEW EXERCISES
R-Square Coeff Var Root MSE amount Mean
0.447804 13.62020 10.04490 73.75000
fat 3 1636.500000 545.500000 5.41 0.0069
13.2 Exercise II
A researcher has developed a new herbicide that can control a parasitic weed in red
clover fields in a certain valley. The herbicide can be applied as a seed treatment on
clover, or as a post-emergence spray, but optimum rates have not been established.
Widely grown varieties of clover may differ in their tolerance to the herbicide. The
researcher would like to develop recommendations for use of the herbicide. Most of
the clover is grown for seed, but forage production is also important. The parasite is
prevalent on several acres of land that are available with a cooperative farmer who
grows clover near the valley.
Design an experiment that would meet the objectives of the researcher.
i. What type of experimental design will you use?
ii. List the treatments of the experiment. Be sure to include any necessary con-
trols.
iii. Draw a diagram to indicate the field layout. For one replication, show how the
treatments will be randomized and assigned to experimental units.
iv. Break out the ANOVA in terms of sources of variation and degrees of freedom.
v. Defend your choice of treatments, sites and experimental design. Include any
basic assumptions you have made as well as ways that you will minimize error
and increase precision.
13.3 Exercise III
1. A toxicologist would like to assess differences in carcinogenicity among 3 com-
pounds (A, B, and C) in laboratory mice. He has available 3 groups of mice: (1)
12 mice raised in the toxicologist’s lab; (2) 12 mice obtained from a commercial lab;
(3) 12 special genetically engineered mice. He suspects that mice of all types will
respond poorly to compounds A and B, but that the genetically engineered (3) will
prove more resistant to compound C than the others. Thus, he assigns all 12 mice
from group 3 to receive exposure to C, and then assigns all 12 group (1) mice to B
and all group (2) mice to A based on the flip of a fair coin.
(a) Comment on the proposed experimental design. Do you see any problems? (b)
Would it be possible to improve the design? If not, state why. If so, describe an
improved design

13.4. EXERCISE IV 115
2. (i) State and explain a linear model which can be used for a one-way analysis
of variance. Explain clearly what each term in the model represents and state any
assumptions required for the analysis to be valid.
(ii) A study was undertaken to investigate the water holding capacity of the soil
in three different areas of woodland. In each area, a number of soil samples were
collected randomly and sent to the same laboratory for analysis. The following table
gives the water holding capacity (in milliliters per gram) of the soil sample collected
in each area.
Woodland A 72 51 38 87 77 65 70 66 64 74
Woodland B 35 33 29 50 44 17 47 58
Woodland C 54 62 88 65 80 53
Carry out a suitable analysis of these data, starting the assumptions you have made
and explaining what you conclude as a result of your analysis.
13.4 Exercise IV
1 (a) What is the important statistical reason for blocking in experiments?
(b) Water samples were taken at four different positions in a river to determine
whether the quality of dissolved oxygen, a measure of water pollution, varied from
one position to another position and from one region to another region. Position 1
and 2 were selected above an industrial plant, one near the shore and the other in
midstream respectively; position 3 was adjacent to the industrial water discharge for
the plant; and position 4 was slightly downriver in midstream. Five water specimens
were randomly selected at each position, but one specimen, corresponding to position
4 and region 5, was lost in the laboratory. The table below shows the mean dissolved
oxygen content (the greater the pollution the lower the dissolved oxygen readings).
Position R1 R2 R3 R4 R5
1 5.9 6.1 6.3 6.1 6.0
2 6.3 6.6 6.4 6.4 5.6
3 4.8 4.3 5.0 4.7 5.1
4 6.0 6.2 6.1 5.8 x
i. Estimate the missing observation, x
ii. Give the rejection region for testing the hypothesis: H0 : µ1 = µ2 = µ3 = µ4
using the F-statistic
iii. Do the data provide sufficient evidence to indicate a difference in mean dis-
solved oxygen content for the four positions? Use α = 0.05
iv. Compare the mean dissolved oxygen content in midstream above the plant
with the mean content adjacent to the plant. Use α = 0.05

2 (a) Briefly discuss the criteria considered for a good experimental design.
(b) In an experiment with 4 treatments and 8 replicates per treatment in a completely
randomized design the means of treatment were: A: 172, B: 140, C: 178, and D: 151.
If the residual standard error was 26,
i. Compute the standard error on treatment means.
ii. Using the least significant difference (LSD) method establish which means differ
significantly.Use α = 0.05
13.5 Exercise V
1 (a) Give two differences between completely randomised design and randomised
block design.
(b) A clinical psychologist wished to compare three methods for reducing hostility
levels in University students. A certain psychological test (HLT) was used to measure
the degree of hostility. High scores on this test were taken to indicate great hostility.
Eleven students obtaining high and nearly equal scores were used in the experiment.
Five were selected at random from among the 11 problem cases and treated by
method A. Three were taken at random from the remaining six students and treated
by method B. The other three students were treated by method C. All treatments
continued throughout a semester. Each Student was given the HLT test again at the
end of the semester, with the following results:
Method Scores on the HLT Test
A 73 83 76 68 80
B 54 74 71
C 79 95 87
Do the data provide sufficient evidence to indicate a difference in mean student
response to the three methods after treatment? Use α= 0.05
2 Using example (s) briefly describe the Duncan’s New Multiple Range test (DNMR)
for comparing any set of p-means.
13.6 Ecercise VI
(1) In each of parts (a) and (b), an investigator would like to design an experiment
to answer particular question(s) of interest. The investigator may also have certain
constraints on what kind of experiment is feasible. To help the investigator design the
experiment in the best way to meet the objective, provide the following information:
i. Identify the treatments of interest

13.6. ECERCISE VI 117
ii. Name the type of design you think is most appropriate for meeting the stated
goals
iii. Give reason(s) for your choice and describe how you would set up the experi-
ment, including numbers of experimental units
(a) Miss. Cristel, a family and consumer studies specialist, has just opened her
restaurant somewhere in town. Being a graduate who followed MTH 201-Biometry,
she would like to determine which of 4 brands of imported pasta she should purchase
for the restaurant. She would like to conduct an experiment where she uses each type
of pasta in entrées on the restaurant menu and obtains a “taste rating” for each by
having a famous chef taste each dish. The restaurant has 4 entrées in which pasta is
used on the menu, and there are 4 assistant chefs who are responsible for preparing
these dishes. Miss. Cristel will only let the famous chef purchase one brand of pasta,
so she’d like to know the one that is best overall. Furthermore, the famous chef will
only be in town for one day; thus Miss. Cristel, would like to do an experiment that
could be completed quickly but would still give about possible average differences
among the pastas.
Treatments:
Design:
Reason(s):
(b) A medical researcher is studying the usefulness of three different blood pressure
medications, A, B, and C for lowering blood pressure in middle-aged men. She would
like to set up an experiment in which men are given the three medications (1 med-
ication per man) and, after three months, a measurement of reduction in systolic
blood pressure is taken for each man. Previous research suggests that whether a
man weighs more than 20% over his ideal weight may have an effect on the reduc-
tion achieved. The researcher thus would like to know whether the blood pressure
medication selected for a man should be based on knowledge of the man’s weight
status.
Treatments:
Design:
Reason(s):
(2) An experiment was conducted to investigate differences in weight loss for obese
women among 4 types of strict medical weight –loss diet (I, II, III, IV). The inves-
tigators had reason to suspect that how much weight a woman would lose might
depend on her family history, so they decided to include in the study women of
3 types: A, women with no family history of obesity; B, women whose mothers
are obese and fathers are not; and C, women whose fathers are obese but mothers
are not. 4 women of each type were randomly chosen. The 4 women of each type
were randomly assigned to the 4 diets, 1 woman per diet. After a year, the weight
lost in pounds was recorded for each woman. Each observation in the table below
corresponds to one woman.
(a) According to what kind of experimental design was this experiment conducted?
(b) Which diet(s) differ? Examine at alpha=0.05.

Type I II III IV Total
A 41.25 88.00 56.75 61.00 247.00
B 32.00 81.00 37.50 66.75 217.25
C 21.00 33.50 23.50 32.50 110.50
Total 94.25 202.50 117.75 160.25 574.75
13.7 Exercise VII
1. The data below shows the shelf-life in days of sample from three diﬀerent consumer
products:
Sample1: 407 411 407
Sample2: 404 406 408 405 402
Sample3: 410 408 406 408
(a) Calculate:
i. the total variation
ii. the variation between samples
iii. the variation within samples
(b) Write in words the null hypothesis testable using the above data.
2. Sixteen pigs, 4 from each of 4 litters (born same time) were available for an
experiment to compare the eﬀect on growth rate of four additives to a basic diet for
pigs. The experimenter and his supervisor suggested the following designs:
i. Four pens each contain four animals of one litter. One animal in each pen is
given one additive at random, all additives being used in each pen.
ii. Each litter in a single pen, and given one additive (group feeding) chosen at
random.
iii. Four pens each contain one pig from each litter. Additives are allocated so
that each pen has one pig on each additive and also every litter has one pig on
each additive.
Suppose the experimenter consulted you, being a graduate of Sokoine University
of Agriculture who followed MTH 201: Biometry, and you made the comments
below. For each comment, explain for which design it correctly applies and why the
comment is correct for that design and not for the others:
(a) There is no true replication in this design since the pen is the experimental unit.
(b) The design provides more residual (error) degrees of freedom than the other two.

13.8. EXERCISE VIII 119
(c) This could be analyzed as a Latin square.
(d) The effects of litters cannot be distinguished from effects of additives in this
design.
(e) This is the only design that separates the effects of pens from the differences
between litters.
(f) If done this way, there will be only 6 degrees of freedom for the error/residual.
Note
1. A pen can be taken to be a room or structure, in which one or several animals
can be kept, fed and measurements taken on the animals.
2. A litter is a group of animals of same mother, born at the same time, and therefore
similar.
13.8 Exercise VIII
Six fertilizer treatments were applied to plots of sugar beet, and the crop yield
recorded for each. The treatments differed only in the amount of fertilizer applied,
not in its concentration.
Treatment (1) (2) (3) (4) (5) (6)
Amount (Cwt/acre) X 05 1 2 3 4 6
Yield (kg/plot) Y 10 16 26 35 50 72
(a) Draw a scatter diagram of Y against X
(b) Fit the simple linear regression line y = α + βX + ε and enter it on the scatter
diagram
(c) Test for the individual parameters
(d) Determine a 95% confidence intervals for α and β
(e) Compute the coefficient of determination and give interpretation.
(f) Carry out the analysis of variance to test for the significance of the slope β
(g) Predict the value of yield (lg/plot) for the amount of fertilizer X = 5 (Cwt/acre).
Compute the standard error of the predicted value and hence determine the 95%
confidence interval of the predicted value.

Solution
(a) Homework
Calculations
xi yi xiyi x2
i y2
i
0.5 10 5 0.25 100
1 16 16 1 256
2 26 52 4 676
3 35 105 9 125
4 50 200 16 2500
6 72 432 36 5184
16.5 209 810 66.25 9941
(b) b =
n xiyi− xi yi
n x2
i −( xi)
2
= 6×810−16.5×209
6×66.25−(16.5)2
= 4860−3448.5
3975−27.25 = 1411.75
125.25 = 11.27145709
b = 11.2715
a = ¯y − b¯x but ¯y = 1
n
n
i=1
yi and ¯x = 1
n
n
i=1
xi
Therefore,
a = 209
6 − 11.2715 × 16.5
6 = 34.8333 – 30.996625= 3.836675
a = 3.84 (2 dec. places).
Hence, the ﬁtted regression line of y on x is ˆyi = 3.84 + 11.2715 xi
(c) Test for individual parameters:
Test for α
Hypotheses:
H0: α= 0 Vs. H1: α = 0

Test Statistic
t =
a − α
sa
∼ tα
2
,n−2
sa =
s2 x2
i
n (xi − ¯x)2
It can be shown that (xi − ¯x)2
=
n
i=1
x2
i −
n
i=1
x
2
n
Thus, for computation purpose the above expression becomes
sa =
s2 x2
i
n
⎡
⎢
⎣
n
i=1
xi −
n
i=1
x2
i
n
⎤
⎥
⎦
s2
=
1
n − 2
y2
i −
( yi)2
n
− b2
x2
i −
( xi)2
n
= 1
6−2 9941 − (209)2
6 − 127.0467123 66.25 − (16.5)
6
2
,because
b2=(11.2715)2=127.0467123
=
1
4
{(2660.8333) − 127.0467123 (20.875)}
=
1
4
{2660.833 − 2652.100119}
=
1
4
(8.7331808) = 2.1832952
s2
= 2.1832952
⇒ sa =
2.1832952 × 66.25
6 × 20.875
=
144.643307
125.25
=
√
6.929020695
sa = 1.154836782
since α =0, we have
tc =
a
sa
∼ tα
2
, n − 2
tc =
3.8367
1.154836782
= 3.322287667

tα
2
, n − 2 =
t0.05
2
, 4 = t0.025,4 = 2.776
tc (= 3.322287667) < tα
2
, n − 2 (= 2.776) We reject H0 i.e. α = 0 and therefore
conclude that α = 0
Test for β
Hypotheses
Ho: β = 0 Vs. Hi: β = 0
Test statistic
tc = b−β
sb
∼ tα
2
, n − 2
where sb = s2
(xi−¯x)2
Note that (xi − ¯x)2
=
n
i=1
x2
i −
n
i=1
x
2
n
sb =
2.1832952
20.875
sb =
√
0.104588991 = 0.323402213
tc =
11.2715
0.323402213
= 34.85288453
tα
2
, n − 2 = t0.025, 4 = 2.776 < tc (= 34.85288453) We reject Ho ⇒ β = 0
(d) 95% conﬁdence interval
For α
a ± tα
2
, n − 2.sa
sa=1.154836782
3.8367 + 2.776 ×1.154836782= 3.8367 + 3.205826907= (0.630873093, 7.042526907)
(ii) For β
b± tα
2
, n − 2. sb= 11.2715 + 2.776 ×0.323402213= 11.2715 ± 0.897764543
(e) R2 = b2 sxx
syy
, sxx = (xi − ¯x)2
= 20.875
syy = (yi − ¯y)2
= 2660.8333
R2
=
127.0467123 × 20.875
2660.8333
=
2652.100119
2660.8333
= 0.996717877

R2
= 99.672%
Interpretation
The ﬁtted regression line of y on x explains 99.67% of the total variation in the data.
(f) Analysis of Variance Test
The total variation in the data is partitioned into:
Total variation (SST)= Regression sum of squares (SSR) + Deviation sum of squares
(SSE).
Regression sum of squares (SSR) = b yi (xi − ¯x) = b2 (xi − ¯x)2
= 127.0467123 ×20.875
SSR = 2652.100119
Total (variation) Sum of squares (SST) = (yi − ¯y)2
= 2660.8333
Deviation sum of squares (SSE) = SST–SSR = 2660–8333–2652.100119
= 8.7331808
Hypotheses:
Ho: There is no linear dependence of y on x (β = 0)
H1: There is a linear dependence of y on x (β = 0)
ANOVA Table
Source of Variation d.f S.S MS F
Regression 1 2652.1001 2652.1001 1214.7236
Deviations 4 8.7332 2.1833
Total 5 2660.830
F0.05, 1,4 = 7.71
Since Fcal (1214.72356) > F theoretical (7.71), Hence we reject the null hypothesis
and conclude that there is a linear dependence of y on x or y is linearly related to x
at 5% level of signiﬁcance.
Note: If Fcal < F theoretical, then we say that there is no linear relation at all
between y and x, then y is simply varying randomly about its mean ¯y, and is neither
increasing (b positive) nor decreasing (b negative) with changes in x.
(g) ˆYp = a + b xp
= 3.8367 + 11.271 ×5= 60.1942
Standard error of the predicted value is given by

Sp = 1 +
1
n
+
(xp − ¯x)2
(xi − ¯x)2 s2
Consider (xp − ¯x)2
= (5 − 2.75)2
= 5.0625
n=6, (xi − ¯x)2
=
n
i=1
x2
i −
n
i=1
x
2
n =20.875, s2=2.1832952
Substituting these values in the above equation for spwe have,
sp = 1 +
1
6
+
5.0625
20.875
× 2.1832952
=
7
6
+ 0.24251497 × 2.1832952
= (1.166666667 + 0.24251497) × 2.1832952
=
√
1.409181637 × 2.1832952 =
√
3.076659504
sp = 1.754040967
95% C.I. is given by
ˆyp ± tα
2
n − 2. sp, but ˆyp = a + bxp = 60.1942
60.1942 ± t0.05
2
, 4 × 1.75404040907
60.1942 ± t0.05
2
, 4 × 1.75404040907
60.1942 ± 4.869217558
13.9 Exercise IX
1.For each of the following situations, identify the treatment, the experimental
units, and the sampling unit.
(a) A restaurant manager is interested in comparing the density of nuts in carrot
cakes produced by the 3 bakeries in her part of town where she might buy cakes for
the restaurant. She obtains 5 carrot cakes from each bakery. Each cake is cut into
eight pieces. 2 of theses are selected at random, and a nut-density measurement is
obtained for each piece.
Treatments:
Experimental units:
Sampling units:

13.9. EXERCISE IX 125
(b) At a large California winery, Chablis wine is produced in batches once a week,
where a batch consists of 100 1-gallon bottle of wine. The quality control inspector at
the winery would like to investigate the consistency of taste of the wine from batch to
batch. From the large warehouse where the batches are stored, he randomly selects
10 batches. From each of these batches, he takes 3 bottles. The official taster for
the winery takes a sip from each bottle and records a taste rating for that bottle.
Treatments:
Experimental units:
Sampling units:
(c) An education researcher is investigating whether or not there are differences in
math achievement for middle school students when they are taught using 3 different
audio-visual aids. He recruits 15 teachers, each of whom teaches 1 math class per day.
Each teacher is randomly assigned to use one of the 3 audio-visual aids in his/her
class, 5 teachers (classes) per aid. A gain score (post-test score-pre-test score) is
obtained from each student in each class.
Treatments:
Experimental units:
Sampling units:
2. Short answer
A reliability expert has conducted an experiment to investigate whether there are
differences in mean lifetime for 3 different brands (I, II, III) of light bulbs. He
obtained 20 bulbs of each type and observed the lifetime for each bulb. Based on his
data, he constructs an analysis of variance table and observes a value of the F ratio
that exceeds the relevant critical value for a level 0.05 test. In his report he has the
following statement:
“At level of significance 0.05, we reject the hypothesis that all three brands have
the same mean lifetime. Thus, we conclude that the three brands have 3 different
lifetimes.”
Do you see anything wrong with this statement? If not, say why not. If so, say what
you think is wrong.
3. The manager of a manufacturing plant is assessing the usefulness of a new process
to produce a certain type of small alloy gasket manufactured by the plant. On each
of 5 randomly chosen days, the process is run to produce several hundred gaskets,
from which the manager randomly selects between 2 to 7 gaskets. For these gaskets,
a radius measurement (mm) is obtained:
Run Radius Sum Sum squared # gaskets
1 1.7 1.3 1.4 1.5 5.9 34.81 4
2 2.0 1.7 2.1 1.5 1.6 8.9 79.21 5
3 1.5 1.1 1.3 1.7 1.7 1.6 1.1 10.0 100.00 7
4 0.8 1.8 1.3 3.9 15.21 3
5 1.0 1.4 2.4 5.76 2
Totals 31.1 234.99 21

Let Yij be the radius measurement obtained for the jth gasket on the ith run, where
ri=number of gaskets from run i. Some summary statistics:
5
i=1
ri
j=1
Yij = 31.1,
5
i=1
ri
j=1
Y 2
ij = 48.13
Assume that radius measurements are reasonably assumed to be approximately nor-
mally distributed, and that variation among measurements is similar within all pos-
sible runs of the process.
Because you have taken MTH 201: Biometry, the manager asks you for help. She
has had no statistics, so the best she can do is telling you her question of interest
which is as follows: “ I am interested in determining using these data whether or not
the radii of this type produced with this process will be similar across many runs of
the process we may do in the future”
(a) Write down an additive linear model that best describes Yij defining the symbols
in your model in terms of the particular situation.
(b) Write down a set of statistical hypotheses that you believe best addresses the
issue of interest to the manager.
(c) Construct an analysis of variance for these data.
(d) Conduct a test of your hypotheses in (b) at level of significance 0.05. State the
conclusion as a meaningful sentence (meaningful for the manager)
4. Botanist studying the absorption of salts by living plant cells conducted the fol-
lowing experiment. The botanist prepared 5 dishes containing potato slices. For
each dish, he added a bromide solution. For each dish, he waited a different du-
ration of time (X, in hours), and then analyzed the potato slices in the dish for
absorption of bromide ions (Y, in mg/100g). The data and some summary statistics
are summarized below:
X 22.0 46.0 67.0 90.0 95.0
Y 0.7 6.4 9.9 12.8 15.8
n
i=1
Xi = 320.0,
n
i=1
X2
i = 24214.0,
n
i=1
Yi = 45.60,
n
i=1
Y 2
i = 552.94
n
i=1
XiYi = 3626.1
Plot of the data (exercise).
(a) From observation of the plot, the botanist felt that a straight line model was
appropriate to describe the relationship with intercept β0 and slope β1. Write down

a statistical version of this model (you may not need to define all symbols), and
estimate β0 and β1 by the method of least squares.
(b) Construct an analysis of variance for these data.
(c) State a set of hypotheses relevant for investigating whether there is an association
between duration and absorption. Conduct the test at level α = 0.05 and state your
conclusion as a meaningful sentence.
Solutions
1 (a) A restaurant manager is interested in comparing the density of nuts in carrot
cakes
produced by the 3 bakeries in her part of town where she might buy cakes for the
restaurant. She obtains 5 carrot cakes from each bakery. Each cake is cut into
eight pieces. 2 of theses are selected at random, and a nut-density measurement is
obtained for each piece.
Treatments: Bakery
Experimental units: Carrots cake
Sampling units: Piece of cake
(b) At a large California winery noted for cheap wine, Chablis wine is produced in
batches once a week, where a batch consists of 100 1-gallon bottle of wine. The
quality control inspector at the winery would like to investigate the consistency of
taste of the wine from batch to batch. From the large warehouse where the batches
are stored, he randomly selects 10 batches. From each of these batches, he takes 3
bottles. The official taster for the winery takes a sip from each bottle and records a
taste rating for that bottle.
Treatments: Batches.
Experimental units: Bottle.
Sampling units: Bottle (a bottle is sipped, thus sampled only once).
(c) An education researcher is investigating whether or not there are differences in
math achievement for middle school students when they are taught using 3 different
audio-visual aids. He recruits 15 teachers, each of whom teaches 1 math class per day.
Each teacher is randomly assigned to use one of the 3 audio-visual aids in his/her
class, 5 teachers (classes) per aid. A gain score (post-test score-pre-test score) is
obtained from each student in each class.
Treatments: Audio-visual aids.
Experimental units: Teachers (class)-the treatments are applied through the
teachers to the entire class.
Sampling units: Individual students-measurements are taken on each student in
the class.
2. A reliability expert has conducted an experiment to investigate whether there
are differences in mean lifetime for 3 different brands (I, II, III) of light bulbs. He
obtained 20 bulbs of each type and observed the lifetime for each bulb. Based on his
data, he constructs an analysis of variance table and observes a value of the F ratio

that exceeds the relevant critical value for a level 0.05 test. In his report he has the
following statement:
“At level of significance 0.05, we reject the hypothesis that all three brands have
the same mean lifetime. Thus, we conclude that the three brands have 3 different
lifetimes.”
Do you see anything wrong with this statement? If not, say why not. If so, say what
you think is wrong.
Yes indeed, there is something wrong with this statement. The expert is confused
about what the alternative hypothesis is in the analysis of variance. If we reject the
null hypothesis (in this case the mean lifetime are the same for all 3 brands), then
the best we can say is that the means differ somehow; however, we do not know
how. Just because the means are not all the same does not mean that they must
all be different-it could be for example, that one brand has a different mean lifetime
from the other 2, which are the same!.
3. (a) Write down an additive linear model that best describes Yij defining the
symbols in your model in terms of the particular situation.
Yij = µ + ri + εij
where:
µ is the overall mean radius measurement
ri is the deviation due to the fact that the measurement was made on the ith run of
the process or the ith run effect or the effect of the ith run.
εij represents the error associated inherent variation among the experimental units
(gaskets)
(b) Write down a set of statistical hypotheses that you believe best addresses the
issue of interest to the manager.
It is clear that the manager is not just interested in the 5 runs for which she has
data- her statement suggests that she wants to make a more general inference about
the behavior of all runs she might ever do. The 5 runs may be regarded as random
sample from all such runs. Thus, it makes better sense to regard the rias random
effects, where the population of all such effects (for all possible runs) has variance
σ2
r . Her question is best stated as one about the value of σ2
r .
H0 : σ2
r = 0versus Ha : σ2
r = 0
(c) Construct an analysis of variance for these data.
Correction factor (C.F) =(31.1)2/21=46.0576, thus Total SS=48.13-46.0576=2.0724
Treatment (Run) SS=34.81
4 + 79.21
5 + ...5.76
2 = 46.7802 − 46.0576 =0.7226
Hence, Error SS=Total SS-Treatment SS=2.0724-0.7226=1.3498

ANOVA Table
Source D.F S.S M.S F-ratio
Run 4 0.7226 0.1806 2.141
Error 16 1.3498 0.0844
Total 20 2.0724
(d) Conduct a test of your hypotheses in (b) at level of signiﬁcance 0.05. State the
conclusion as a meaningful sentence (meaningful for the manager)
We have F=2.141 not >F0.05,4,16 =3.01. We do not reject H0. There is not enough
evidence in these data to suggest that there is variation in radius measurements on
this type of gasket from run to run. (Remember that failing to reject H0 does not
mean that we are accepting it -all we can say is that we did not have enough evidence
from this experiment to detect the diﬀerences. The researcher may want to conduct
a larger experiment that may have better power for detecting a departure from the
null hypothesis if it exists).
4. Exercise
END OF LECTURE NOTES

biometry MTH 201

More Related Content

What's hot

Similar to biometry MTH 201

More from musadoto

Recently uploaded

biometry MTH 201
