![Quality score encoding
• Formula: score + offset =>
look for ascii symbol
• Two variants:
offset=64(Illumina 1.0-
before 1.8);
offset=33(Sanger, Illumina
1.8+).
• A quality score is typically:
[0, 40]
(33): !"#$%&'()*+,-./0123456789:;<=>?@ABCDEFGHI
(64): @ABCDEFGHIJKLMNOPQRSTUVWXYZ[]^_`abcdefgh
Figures from Wikepedia](https://image.slidesharecdn.com/bioinfoformatvisualization-130926112041-phpapp01/85/Next-generation-sequencing-format-and-visualization-with-ngs-plot-13-320.jpg)

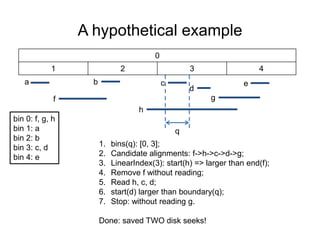

![A hypothetical example
0
1 2 3 4
a b c
d
e
f g
h
bin 0: f, g, h
bin 1: a
bin 2: b
bin 3: c, d
bin 4: e
q
1. bins(q): [0, 3];
2. Candidate alignments: f->h->c->d->g;
3. LinearIndex(3): start(h) => larger than end(f);
4. Remove f without reading;
5. Read h, c, d;
6. start(d) larger than boundary(q);
7. Stop: without reading g.
Done: saved TWO disk seeks!](https://image.slidesharecdn.com/bioinfoformatvisualization-130926112041-phpapp01/85/Next-generation-sequencing-format-and-visualization-with-ngs-plot-25-320.jpg)
Uploaded byLi Shen
Next-generation sequencing format and visualization with ngs.plot
The document discusses data formats and visualization in next-generation sequencing (NGS) analysis, focusing on the Shenlab's capabilities in this area. It explains the differences between first-generation and next-generation sequencing technologies, provides an overview of various sequencing methodologies, and details formats for storing sequencing data such as FASTQ and SAM/BAM. Additionally, it covers data analysis tools for quality control, alignment, and visualization of genomic data.
More Related Content
Similar to Next-generation sequencing format and visualization with ngs.plot
![谷歌留痕技术 [ 𝙩𝙤𝙥 𝟮𝟯𝟯. 𝙘 𝙤𝙢 ]](https://cdn.slidesharecdn.com/ss_thumbnails/top233-260130174328-3833018c-thumbnail.jpg?width=640&height=640&fit=bounds)
Next-generation sequencing format and visualization with ngs.plot
- 1. Data formats andvisualization in next-generation sequencing analysis Li Shen, Asst. Prof. Neuro core Sep 2013
- 2. Introduction to theShenlab Lab location: Icahn 10-20 office suite Two focuses: 1. Next-generation sequencing analysis 2. Novel software development for NGS http://neuroscience.mssm.edu/shen/index.html
- 3. DNA sequencing overview Primer Templatesequence DNA polymerase/ligase A C G T 5’ 3’ 5’3’ 1. How to “freeze” the procedure? 2. What kind of signal to generate? 3. How to capture the signals? Sanger sequencing Pyrosequencing Solexa sequencing SOLiD sequencing Ion Torrent sequencing SMRT sequencing …and many others Extending sequence
- 4. What is “next-generation”sequencing? -- first-generation sequencers: – Sanger sequencer: 384 samples per single batch -- next-generation sequencers: -- Illumina, SOLiD sequencer: billions per single batch, ~3 million fold increase in throughput! Massively Parallel:

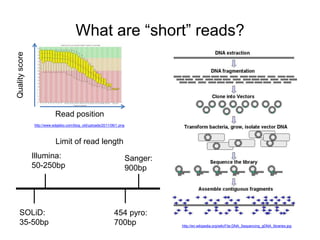

- 5. What are “short”reads? http://www.edgebio.com/blog_old/uploads/2011/06/1.png http://en.wikipedia.org/wiki/File:DNA_Sequencing_gDNA_libraries.jpg Read position Qualityscore Illumina: 50-250bp SOLiD: 35-50bp 454 pyro: 700bp Sanger: 900bp Limit of read length

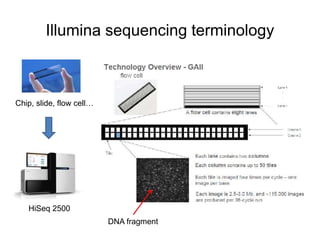

- 6. Illumina sequencing terminology Chip,slide, flow cell… HiSeq 2500 DNA fragment
- 7. Information flow ofsequencing data fastq SAM/BAM coverage HISEQ2:197:D08GUACXX:8:2105:21056:104282 0 chr10 3000101 255 51M * 0 0 AAGGTCACCAAAGGCCCACCTTGTCTTTACCTTATTTGTTCTA AATTTTTT =@@DA:ADDHD;AA?:AAFHGIHHBDEFHIDGB9CFH<?F<DEEIG GHEII XA:i:0 MD:Z:51 NM:i:0 HISEQ2:197:D08GUACXX:6:1105:9303:81340 0 chr10 3000301 255 51M * 0 0 GTGTTATTTCACAAGGTGAAGATAGAGCTTGGTGGCTGCCAG AGAGATTAA BB@FFFFFHHHHHJJJFGIJIIJJJJJJIJJJHIJJJIIJJJJIGIGIJII XA:i:0 MD:Z:51 NM:i:0 HISEQ2:197:D08GUACXX:7:2102:2396:174630 16 chr10 3000373 255 51M * 0 0 CTGAATCTTCTCCTAAGTATCATCCTGAAGAACAAAATTCCTCT TTTGCTT JJIJJJJJJJJJJJJJJJIIJJJJJIJJJJJHJJJJJJHHHHHFFFFFCCC XA:i:0 MD:Z:51 NM:i:0 HISEQ2:197:D08GUACXX:8:2108:12162:127556 0 chr10 3000388 255 51M * 0 0 AGTATCATCCTGAAGAACAAAATTCCTCTTTTGCTTAAAATTCA CTGGGGA 7 Image analysis
- 8.
- 9. What is FASTQ? •Text-based format for storing both biological sequences and corresponding quality scores. • FASTQ = FASTA + QUALITY • A FASTQ file uses four lines per sequence. @SEQ_ID GATTTGGGGTTCAAAGCAGTATCGATCAAA +SEQ_ID(Optional) !''*((((***+))%%%++)(%%%%).1** 1 2 3 4

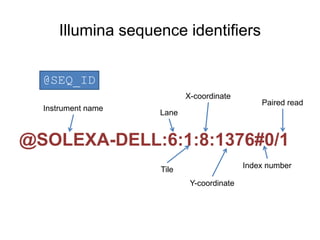

- 10. Illumina sequence identifiers @SOLEXA-DELL:6:1:8:1376#0/1 Instrumentname Lane Tile X-coordinate Y-coordinate Index number Paired read @SEQ_ID

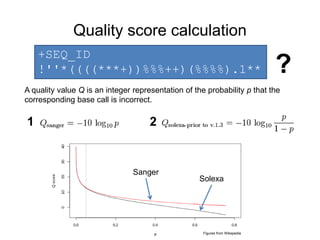

- 11. Quality score calculation +SEQ_ID !''*((((***+))%%%++)(%%%%).1**? A quality value Q is an integer representation of the probability p that the corresponding base call is incorrect. 1 2 Sanger Solexa Figures from Wikepedia
- 12. Quality score interpretation PhredQuality Score Probability of incorrect base call Base call accuracy 10 1 in 10 90% 20 1 in 100 99% 30 1 in 1000 99.9% 40 1 in 10000 99.99% 50 1 in 100000 99.999% Materials from Wikepedia

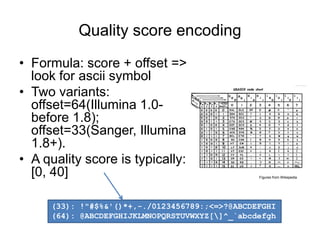

- 13. Quality score encoding •Formula: score + offset => look for ascii symbol • Two variants: offset=64(Illumina 1.0- before 1.8); offset=33(Sanger, Illumina 1.8+). • A quality score is typically: [0, 40] (33): !"#$%&'()*+,-./0123456789:;<=>?@ABCDEFGHI (64): @ABCDEFGHIJKLMNOPQRSTUVWXYZ[]^_`abcdefgh Figures from Wikepedia

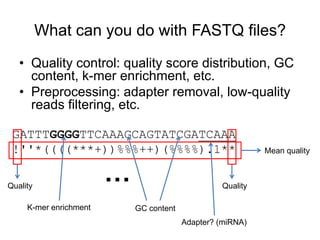

- 14. What can youdo with FASTQ files? • Quality control: quality score distribution, GC content, k-mer enrichment, etc. • Preprocessing: adapter removal, low-quality reads filtering, etc. GATTTGGGGTTCAAAGCAGTATCGATCAAA !''*((((***+))%%%++)(%%%%).1** Mean quality GC contentK-mer enrichment Adapter? (miRNA) Quality Quality …
- 15.

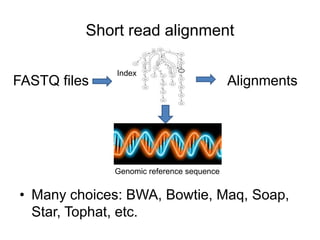

- 16. Short read alignment •Many choices: BWA, Bowtie, Maq, Soap, Star, Tophat, etc. FASTQ files Alignments Index Genomic reference sequence
- 17.

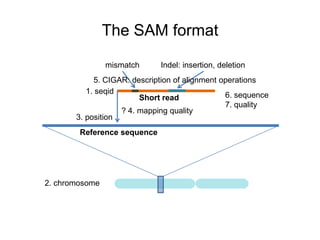

- 18. The SAM format 2.chromosome Short read Reference sequence 1. seqid 3. position ? 4. mapping quality mismatch Indel: insertion, deletion 5. CIGAR: description of alignment operations 6. sequence 7. quality

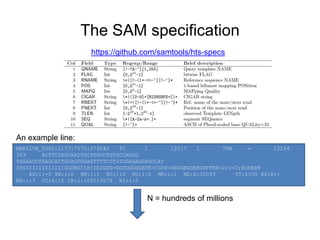

- 19. The SAM specification https://github.com/samtools/hts-specs MARILYN_0005:2:77:7570:3792#097 1 12017 1 76M = 12244 303 ACTTCCAGCAACTGCTGGCCTGTGCCAGGG TGGAAGCTGAGCACTGGAGTGGAGTTTTCCTGTGGAGAGGAGCCAT IHGIIIIIIIIIIIIGGDBDIIHIIEIGDG=GGDDGGGGEDE>CGDG<GBGGBGDEEGDFFEB>2;C<C;BDDBB8 AS:i:-5 XN:i:0 XM:i:1 XO:i:0 XG:i:0 NM:i:1 MD:Z:32C43 YT:Z:UU XS:A:+ NH:i:3 CC:Z:15 CP:i:102519078 HI:i:0 An example line: N = hundreds of millions

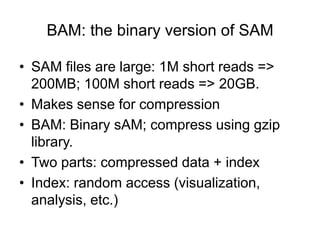

- 20. BAM: the binaryversion of SAM • SAM files are large: 1M short reads => 200MB; 100M short reads => 20GB. • Makes sense for compression • BAM: Binary sAM; compress using gzip library. • Two parts: compressed data + index • Index: random access (visualization, analysis, etc.)

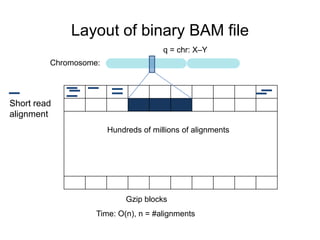

- 21. Layout of binaryBAM file Short read alignment Hundreds of millions of alignments Gzip blocks Time: O(n), n = #alignments q = chr: X–Y Chromosome:

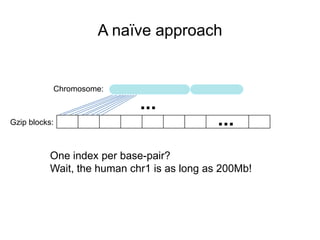

- 22. A naïve approach Chromosome: ... ... Oneindex per base-pair? Wait, the human chr1 is as long as 200Mb! Gzip blocks:

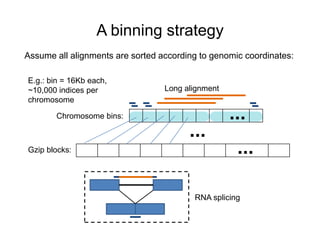

- 23. A binning strategy Chromosomebins: E.g.: bin = 16Kb each, ~10,000 indices per chromosome Gzip blocks: ... Long alignment RNA splicing Assume all alignments are sorted according to genomic coordinates: ... ...

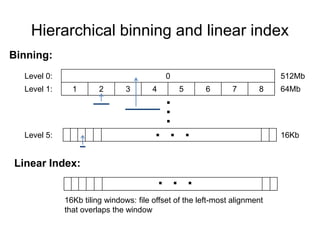

- 24. Hierarchical binning andlinear index 0 1 2 3 4 5 6 7 8 512Mb 64Mb Level 0: Level 1: . . .Level 5: 16Kb . . . Linear Index: 16Kb tiling windows: file offset of the left-most alignment that overlaps the window Binning: . . .
- 25. A hypothetical example 0 12 3 4 a b c d e f g h bin 0: f, g, h bin 1: a bin 2: b bin 3: c, d bin 4: e q 1. bins(q): [0, 3]; 2. Candidate alignments: f->h->c->d->g; 3. LinearIndex(3): start(h) => larger than end(f); 4. Remove f without reading; 5. Read h, c, d; 6. start(d) larger than boundary(q); 7. Stop: without reading g. Done: saved TWO disk seeks!
- 26.

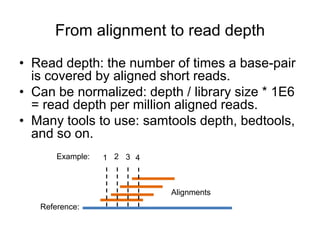

- 27. From alignment toread depth • Read depth: the number of times a base-pair is covered by aligned short reads. • Can be normalized: depth / library size * 1E6 = read depth per million aligned reads. • Many tools to use: samtools depth, bedtools, and so on. 1 2 3 4 Reference: Alignments Example:

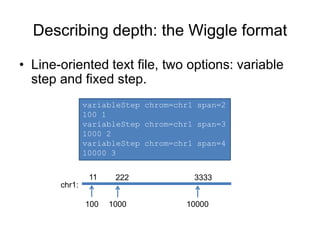

- 28. Describing depth: theWiggle format • Line-oriented text file, two options: variable step and fixed step. variableStep chrom=chr1 span=2 100 1 variableStep chrom=chr1 span=3 1000 2 variableStep chrom=chr1 span=4 10000 3 11 222 3333 chr1: 100 1000 10000
- 29. Wiggle: fixed step fixedStepchrom=chr1 start=100 step=100 span=3 1 2 3 111 222 333 chr1: 100 200 300 Reference: w w w w … fixedStep chrom=chr? start=??? step=w span=w Dump your data here

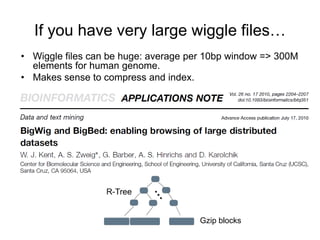

- 30. If you havevery large wiggle files… • Wiggle files can be huge: average per 10bp window => 300M elements for human genome. • Makes sense to compress and index. Gzip blocks
- 31. Genome browser v.s. Pros: verycomprehensive Cons: data have to be transmitted via network Pros: locally installed Cons: less genome annotation UCSC genome browser

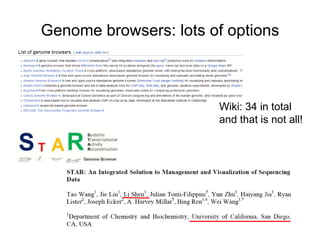

- 32. Genome browsers: lotsof options Wiki: 34 in total and that is not all!
- 33. DEMO: GENOME BROWSER Alignment,BAM, Wiggle, Peak calling, BED…
- 34. NGS.PLOT: GLOBAL VISUALIZATION FORNEXT GENERATION SEQUENCING DATA

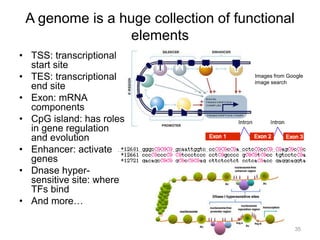

- 35. A genome isa huge collection of functional elements • TSS: transcriptional start site • TES: transcriptional end site • Exon: mRNA components • CpG island: has roles in gene regulation and evolution • Enhancer: activate genes • Dnase hyper- sensitive site: where TFs bind • And more… Images from Google image search 35

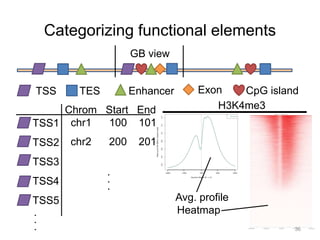

- 36. Categorizing functional elements TSSTES Enhancer CpG islandExon GB view TSS1 TSS2 TSS3 TSS4 TSS5 . . . Chrom Start End chr1 100 101 chr2 200 201 . . . Avg. profile Heatmap H3K4me3 36

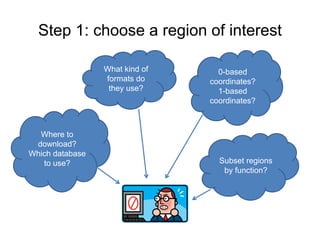

- 37. Step 1: choosea region of interest Where to download? Which database to use? What kind of formats do they use? 0-based coordinates? 1-based coordinates? Subset regions by function?
- 38. ngs.plot collects lotsof genome annotations Variable Count Description Database 3 Refseq , Ensembl and ENCODE Genome 9 dm3, hg19, mm10, mm9, rn4, rn5, sacCer3, Tair10, Zv9 Biotype 7 tss, tes, genebody, cgi, dhs, enhancer, exon Gene type 4 protein_coding, lincRNA, miRNA, pseudogene Cell line 9 Gm12878, H1hesc, Hepg2, Hmec, Hsmm, Huvec, K562, Nhek, Nhlf Total functional elements: 15,944,952
- 39. H3K27me3 SEM bar SmoothingShade Flanking region Robustestimation total hc none diff prod pca max Gene ranking algo.: 39 Step 2: plot something at this region

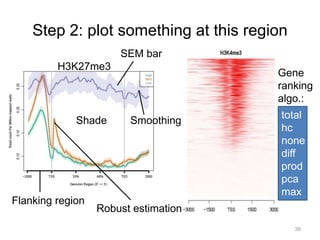

- 40. ngs.plot: a globalvisualization tool for NGS data • Written in R, easy-to-use command line program. ngs.plot.r -G genome -R tss -C chipseq.bam -O output 40

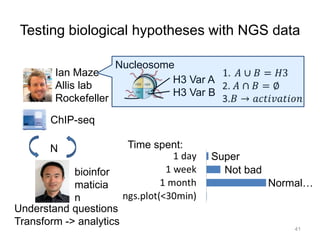

- 41. Testing biological hypotheseswith NGS data Ian Maze Allis lab Rockefeller Nucleosome H3 Var A H3 Var B ChIP-seq N Understand questions Transform -> analytics bioinfor maticia n Time spent: Super Not bad Normal… 41

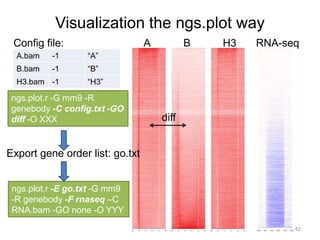

- 42. Visualization the ngs.plotway A B H3 RNA-seq A.bam -1 “A” B.bam -1 “B” H3.bam -1 “H3” Config file: ngs.plot.r -G mm9 -R genebody -C config.txt -GO diff -O XXX diff Export gene order list: go.txt ngs.plot.r -E go.txt -G mm9 -R genebody -F rnaseq –C RNA.bam -GO none -O YYY 42

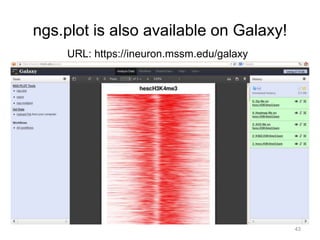

- 43. ngs.plot is alsoavailable on Galaxy! URL: https://ineuron.mssm.edu/galaxy 43
- 44. DEMO: NGS.PLOT Global visualizationmade easy…
