BioChip.pptx

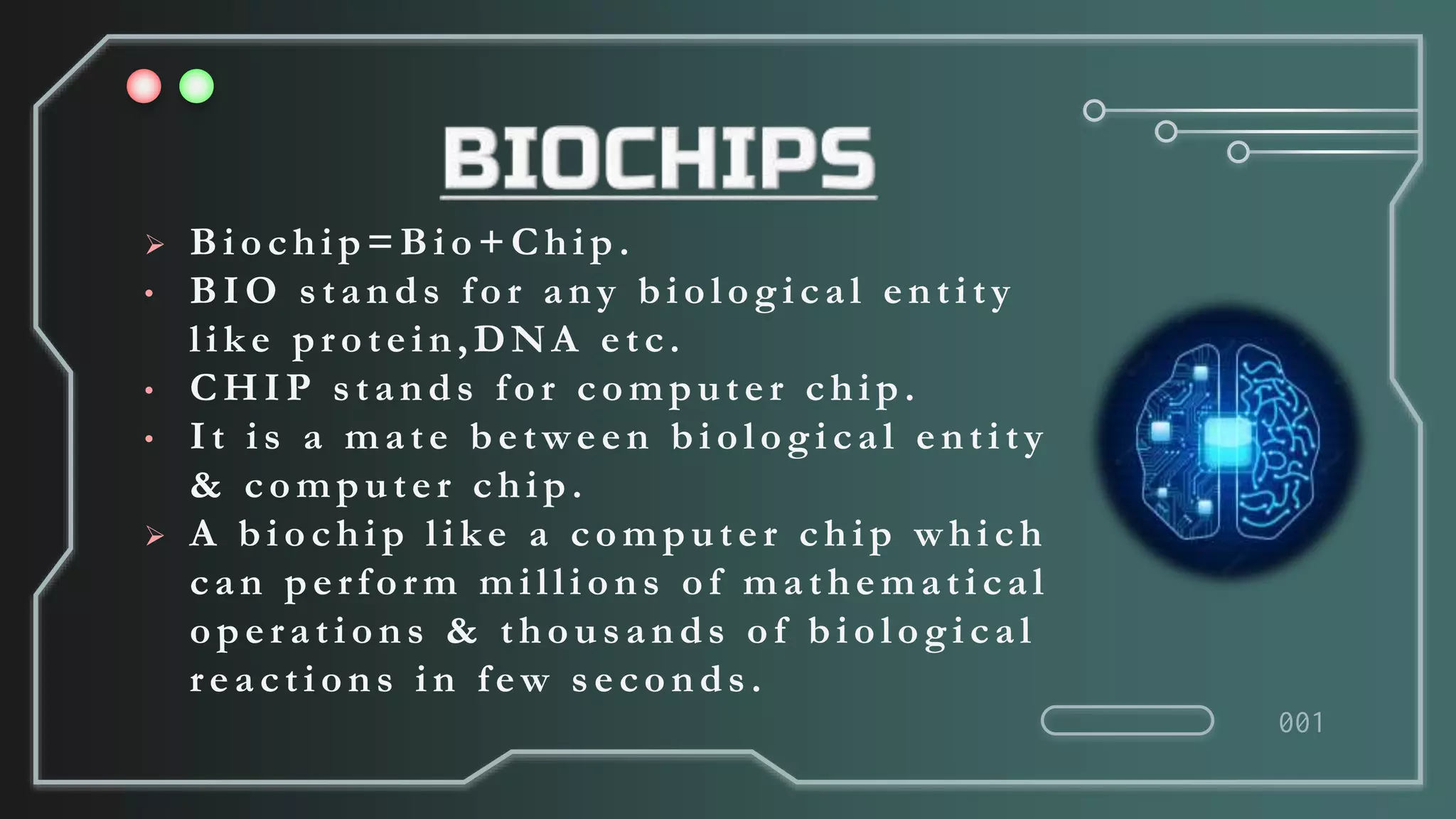

1. Biochip= Bio+Chip .
• BIO s tands for any biological entity
lik e protein,DNA etc.
• CHIP s tands for computer chip.
• It is a mate between biological entity
& computer chip.
A biochip lik e a computer chip which
can perform millions of mathematical
operations & thous ands of biological
reactions in few s econds .
001
2. A biochip is a collection of miniaturized test sites (microarrays)
arranged on a solid substrate that permits many tests to be
performed at the same time in order to achieve higher
throughout the speed.
It is new type of computer logic bio security device implanting in
our body that can identify us uniquely and can used to track our
location.
The biochip uses the radio frequency identification (RFID)
system that uses low frequency radio signals to communicate
between a biochip and reader.
It is the outcome of the fields of computer science,electronics
and biology.
It’s a bio-security device that accurately track information
regarding what a person is doing,and who is actually doing it.
What is Bio-Chip Technology
3. Components of
Biochip
A biochip implant system consists of two components-
1. The Reader
2. The Transponder
Computer Microchip
Antenna Coil
Capacitor
Glass Capsule
003

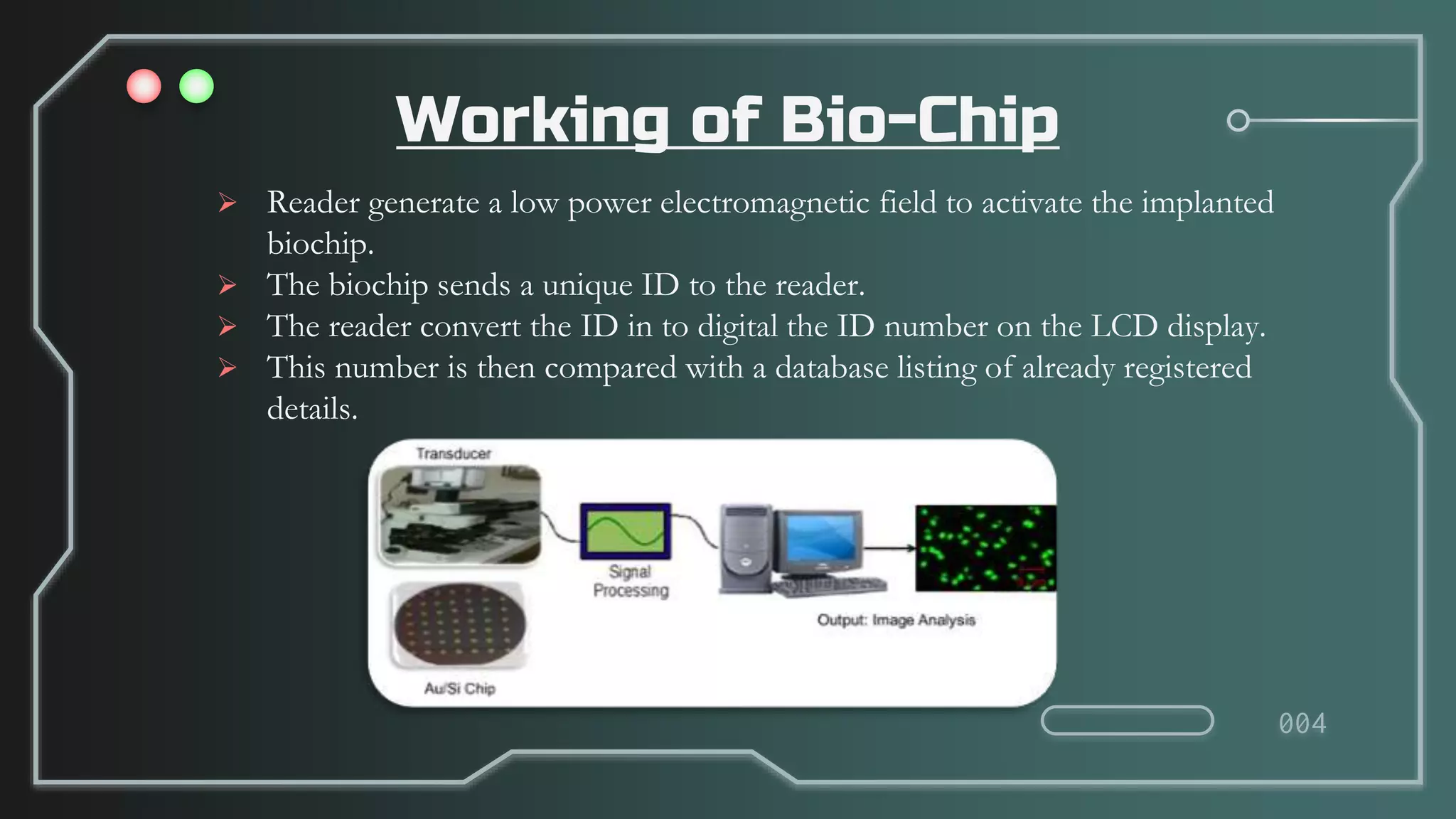

4. Working of Bio-Chip
004
Reader generate a low power electromagnetic field to activate the implanted
biochip.
The biochip sends a unique ID to the reader.
The reader convert the ID in to digital the ID number on the LCD display.
This number is then compared with a database listing of already registered
details.

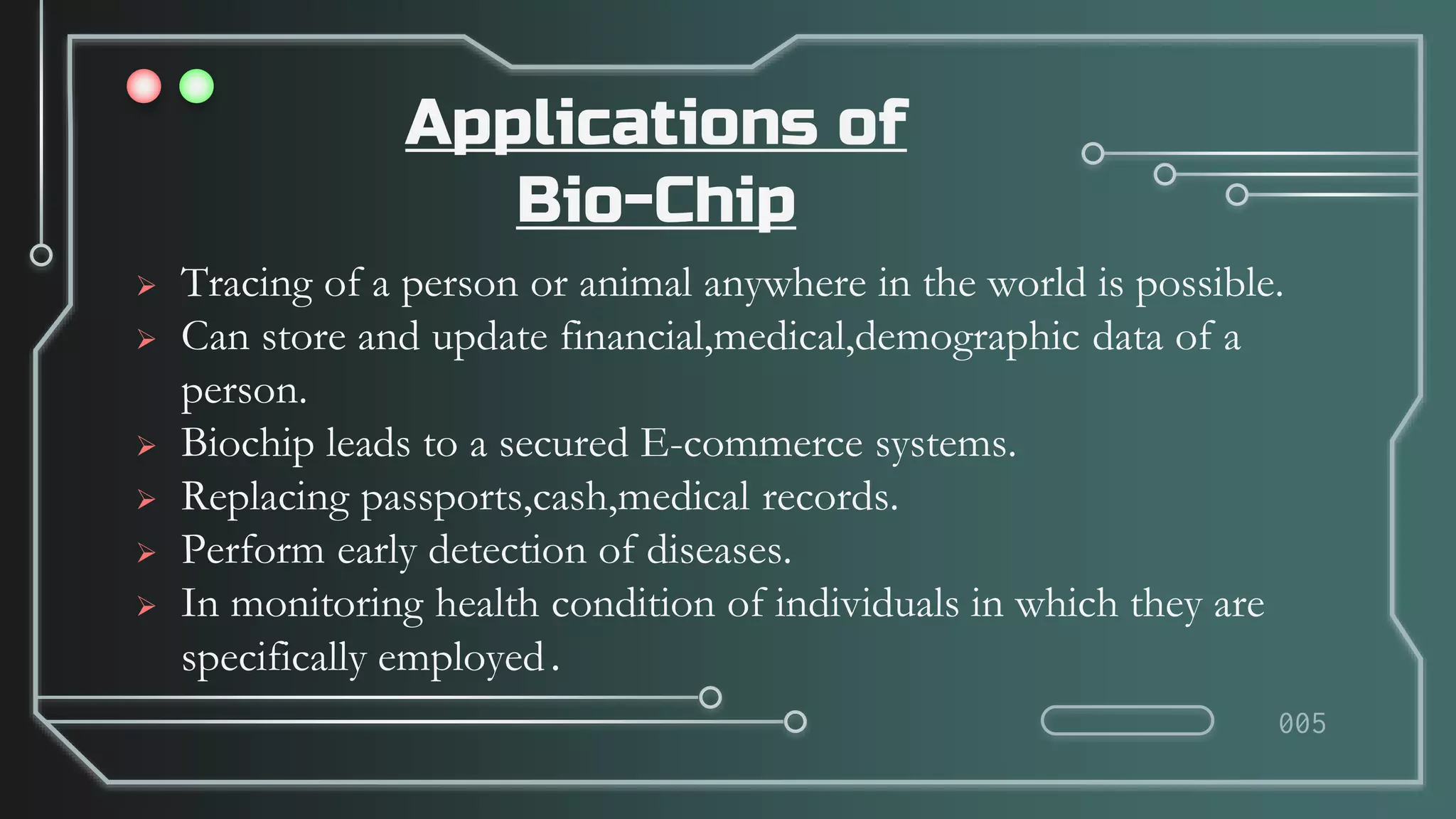

5. Applications of
Bio-Chip
Tracing of a person or animal anywhere in the world is possible.
Can store and update financial,medical,demographic data of a
person.
Biochip leads to a secured E-commerce systems.
Replacing passports,cash,medical records.
Perform early detection of diseases.
In monitoring health condition of individuals in which they are
specifically employed.
005
