State of the Map '09 presentation. Covering spatial data quality and comparison of Ordnance Survey data (Meridian 2, 10K Raster, MasterMap ITN) to OSM for England. Some material appeared in previous presentation.

1. Beyond good enough? Spatial Data Quality and OpenStreetMap data Dr Muki Haklay Department of Civil, Environmental and Geomatic Engineering, UCL m.haklay@ucl.ac.uk With contributions from AamerAther (M.Eng 2009) and NaureenZulfiqar (M.Eng 2008) Ordnance Survey data was kindly provided by the Ordnance Survey research unit. OSM data was provided by GeoFabrik & CloudMade

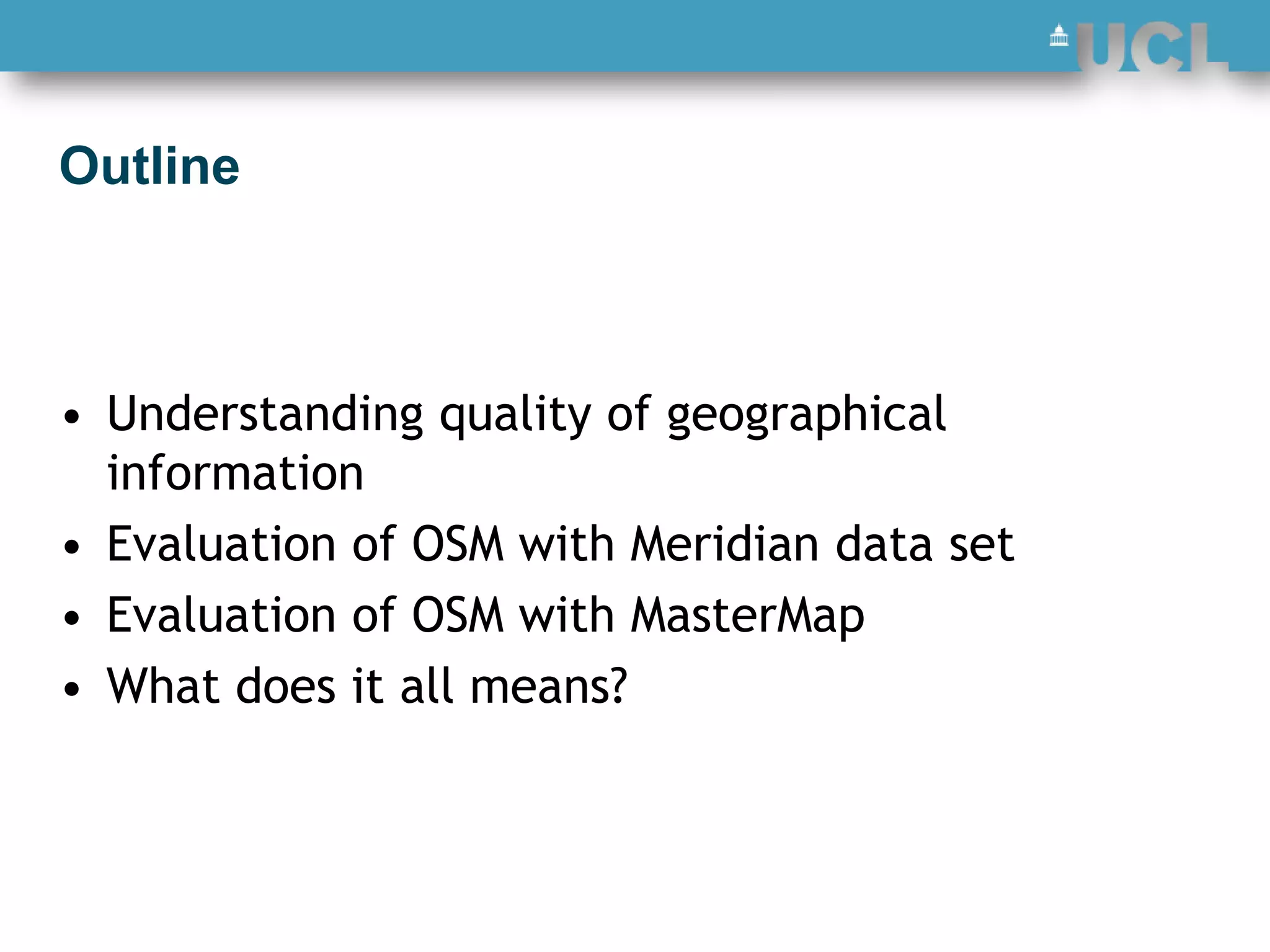

2. Outline Understanding quality of geographical information Evaluation of OSM with Meridian data set Evaluation of OSM with MasterMap What does it all means?

3. The quality issue How good it the data? First question: good for what? Subjective quality – fitness for purpose/use Second question: how to measure? Objective quality – but need to evaluate it in light of the first question

4. The quality issue How good it the data? Positional accuracy – the position of features or geographic objects in either two or three dimensions Temporal accuracy – how up to date is the data? Does it presents the existing situation and when will it be updated? Thematic/attribute accuracy – for quantitative attributes (width) and qualitative attributes (geographic names) Completeness – The presence and absence of objects in a dataset at a particular point in time Logical consistency –adherence to the logical rules of the data structure, attribution and relationships

5. The ‘problem’ We know little about the people that collect it, their skills, knowledge or patterns of data collection Loose coordination and no top-down quality assurance processes – can’t produce good data It is not complete and comprehensive – there are white areas

6. Who collects?

7. Who collects? (c) Dair Grant (cc) Shaun McDonald (cc) Chris Fleming

8. Working together

10. Users Participation inequality – small group of users collect most of the information, lots of users collect very little Little ‘on the ground’ collaboration. Important as this is can be the main source of quality assurance - ‘Given enough eyeballs, all bugs are shallow’ (Raymond, 2001) But does Linus’ law apply to OSM?!?

11. Accuracy and Completeness- Study I Comparing OSM to OS Meridian 2 roads layer Maridian 2 -Motorways, major and minor roads are... Complex junctions are collapsed to single nodes and multi-carriageways to single links... some minor roads and cul-de-sacs less than 200m are not represented... Private roads and tracks are not included... Nodes are derived from 1:1,250-1:2,500 mapping, with 20m filter around centre line generalisation

12. Positional Accuracy A B Meridian 2 and OSM – Motorway comparison

13. Goodchild and Hunter (1997), Hunter (1999) method Assuming that one dataset is of higher quality Create buffer around the dataset with known width Calculate the percentage of the evaluated dataset that falls within the buffer

14. Motorway comparison Buffer of 20m Average of 80% - ranging from 59.81% to 88.80%

15. Estimating positional accuracy

16. Positional accuracy On each tile, 100 points sample with evaluation of distance between OSM and Meridian 2 Can see significant variability: from about 3m to over 8m

17. Completeness – bulk method Assumption: as Meridian 2 is generalised, for each completed sq km: Total length(OSM roads)>Total length(Meridian 2 roads) Dividing England to 1km grid squares, and running a comparison for each cell

19. London

20. Birmingham

21. Manchester and Liverpool

22. Length comparison For 29.3% of the area of England, OSM is getting nearer completion and as good as Meridian 2 (March 2008). Estimated at %45-50 today. When adding to this attributes, the percentage drops to 24.5% (March 2008). Estimated %35 today. Centres of major cities are well mapped.

23. Completeness - visual comparison

24. Completeness – visual comparison

25. Completeness – difference by user?

26. Comparison II – Ordnance Survey Master Map Data used for comparison: OS MasterMap Integrated Transport Network (ITN) layer ITN consists of road network information The most accurate and up-to-date geographic reference for Great Britain’s road structure Any major real world changes are updated within 6 months Used for numerous applications e.g. Transport management systems, road routing, emergency planning...

27. Four test locations chosen: TQ28se TQ38se TQ17ne TQ37sw

28. Buffer analysis – again based on Goodchild and Hunter (1997) buffer comparison technique: Buffer width (X): X ITN OSM Comparison methodology

29. Buffer overlap results: 109 roads examined covering over 328 km Results of Master Map comparison

30. TQ38se (East London) TQ28se (North/Central London)

31. TQ37sw (South London) TQ17ne (West London)

35. Quality not linked to length

36. What does it mean? OSM is better than Meridian 2 in terms of positional accuracy, and less accurate than MasterMap The differences that were found in comparison I are a mix of the positional inaccuracies of both Meridian 2 and OSM. The higher overlap with MasterMap tells us that OSM was the more accurate of the two...

37. However ...

38. What are they paying for? Meridian is officially not complete, clearly not accurate in terms of position, and without clear ‘6 month of major changes update’ rule Hypothesis: When people buy geodata, they pay for the errors, or the notion that the errors are well known and quantified. Are they?

39. Putting a price tag on OSM ? 1 seat of Meridian 2 for England - £1272 OSM is 35% complete (positional and attribute) ... ... But higher positional accuracy than Meridian 2 So maybe £500 per seat? If so, each Sq Km of OSM is worth about 40p or 0.5€ .

40. Linus’ law and OSM – inconclusive

41. So should I use OSM? OSM is fit for many purposes to which Meridian 2 is suitable Positional accuracy is satisfactory for many applications. Attribute accuracy is also satisfactory. Completeness in major urban area is satisfactory – and if the work is at a specific location, it is easy to improve and complete the dataset

42. Conclusions OSM quality is beyond good enough, it is a product that can be used for a wide range of activities Better quality proxies, can be developed (for example, by user) Quality procedures should also developed with passive sensing from mobile devices More work is required on Linus’ Law

43. Further reading Haklay, M., 2008, How good is OpenStreetMap information? A comparative study of OpenStreetMap and Ordnance Survey datasets for London and the rest of England, submitted to Environment and Planning B. Haklay, M. And Weber, P., 2008, OpenStreetMap – User Generated Street Map, IEEE Pervasive Computing. Haklay, M., Singleton, A., and Parker, C., 2008, Web mapping 2.0: the Neogeography of the Geoweb, Geography Compass Haklay, M., 2008, Open Knowledge – learning from environmental information, presented at the Open Knowledge Conference (OKCon) 2008, London, 15 March. Haklay, M., 2007, OSM and the public - what barriers need to be crossed?presented at State of the Map conference, Manchester, UK, 14-15 July. To get a copy, write to m.haklay@ucl.ac.uk , or get them on povesham.wordpress.com
