Civil engineering involves planning, designing, constructing, and maintaining structures and infrastructure. The document outlines the main branches and scope of civil engineering. It discusses surveying and leveling, building planning and construction, advanced construction techniques, structural engineering, geotechnical engineering, water resources engineering, transportation engineering, environmental engineering, and town planning. Civil engineers work on projects before, during, and after construction through tasks like feasibility studies, design, project management, construction supervision, and maintenance.

1. DEPARTMENT OF CIVIL ENGINEERING
6/16/2014 1PREPARED BY CHIRAG BHANGALE

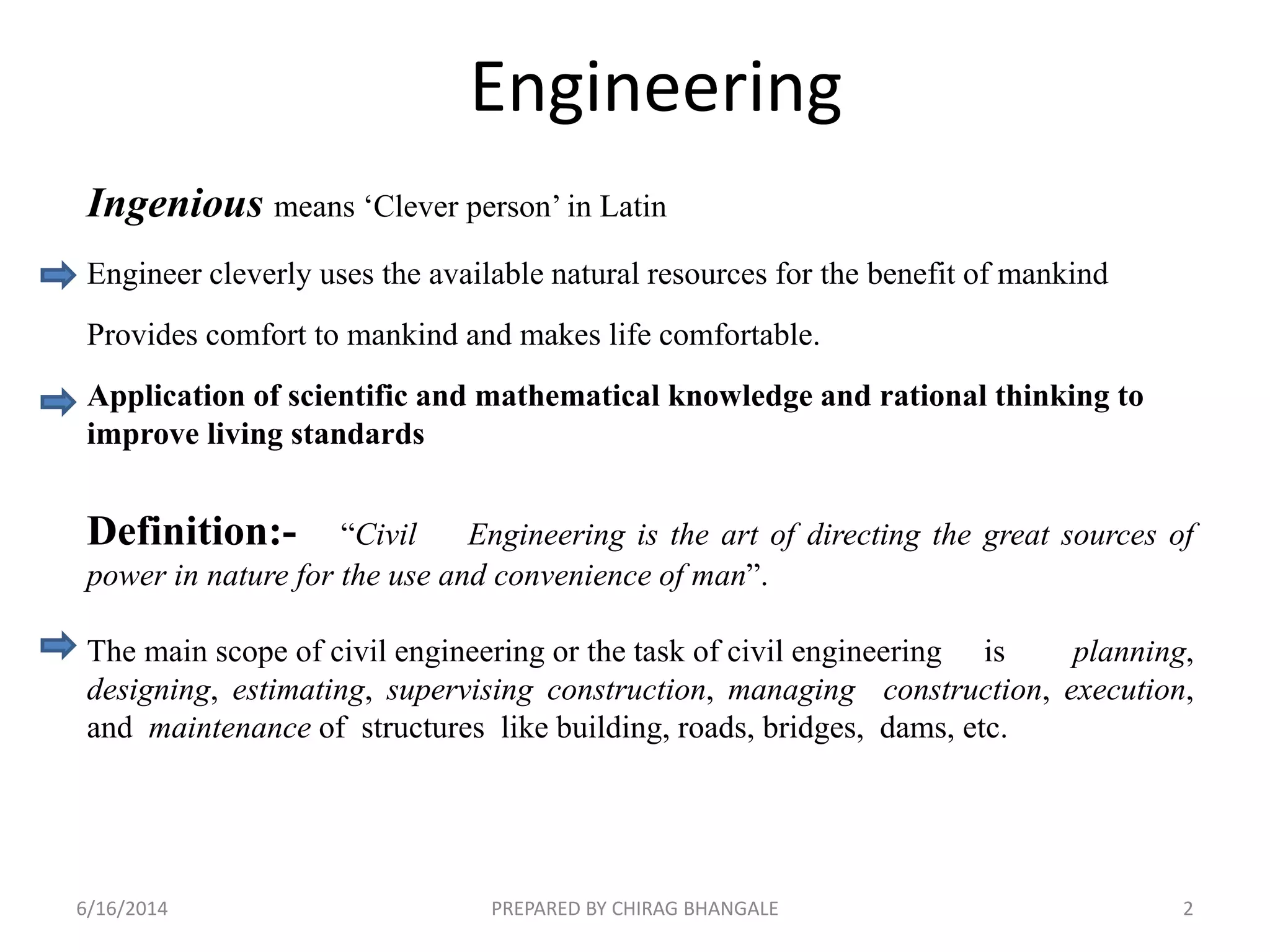

2. Engineering
Ingenious means ‘Clever person’ in Latin
Engineer cleverly uses the available natural resources for the benefit of mankind
Provides comfort to mankind and makes life comfortable.
Application of scientific and mathematical knowledge and rational thinking to
improve living standards
Definition:- “Civil Engineering is the art of directing the great sources of
power in nature for the use and convenience of man”.
The main scope of civil engineering or the task of civil engineering is planning,
designing, estimating, supervising construction, managing construction, execution,
and maintenance of structures like building, roads, bridges, dams, etc.
6/16/2014 2PREPARED BY CHIRAG BHANGALE

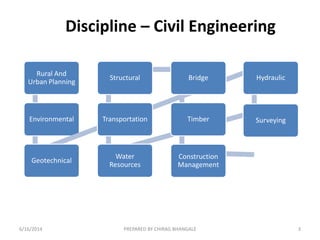

3. Discipline – Civil Engineering
Rural And
Urban Planning
Environmental
Geotechnical
Hydraulic
Surveying
Water
Resources
Transportation
Structural Bridge
Timber
Construction
Management
6/16/2014 3PREPARED BY CHIRAG BHANGALE

4. BRANCHES & SCOPE OF CIVIL ENGINEERING
6/16/2014 4PREPARED BY CHIRAG BHANGALE

5. BRANCHES & SCOPE OF CIVIL
ENGINEERING
• Civil engineering may be divided into the following
fields:
• Surveying & leveling
• Building, Planning and construction
• Advanced Construction
• Structural Engineering
• Geotechnical Engineering
• Water Resources Engineering
• Transportation Engineering
• Environmental Engineering
• Town Planning & etc.,6/16/2014 5PREPARED BY CHIRAG BHANGALE

6. SURVEYING & LEVELLING
6/16/2014 6PREPARED BY CHIRAG BHANGALE

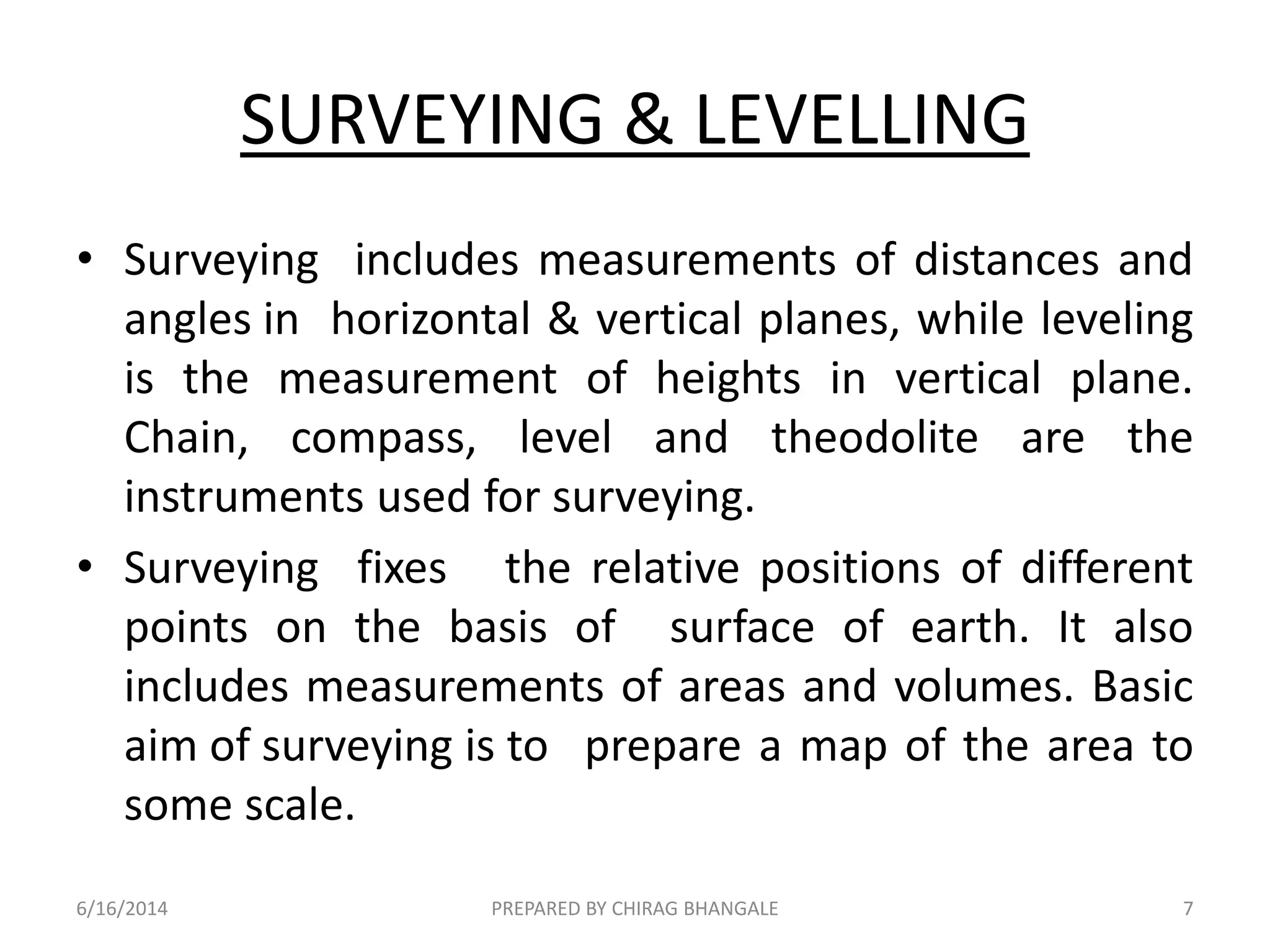

7. SURVEYING & LEVELLING
• Surveying includes measurements of distances and
angles in horizontal & vertical planes, while leveling
is the measurement of heights in vertical plane.
Chain, compass, level and theodolite are the
instruments used for surveying.
• Surveying fixes the relative positions of different
points on the basis of surface of earth. It also
includes measurements of areas and volumes. Basic
aim of surveying is to prepare a map of the area to
some scale.
6/16/2014 7PREPARED BY CHIRAG BHANGALE

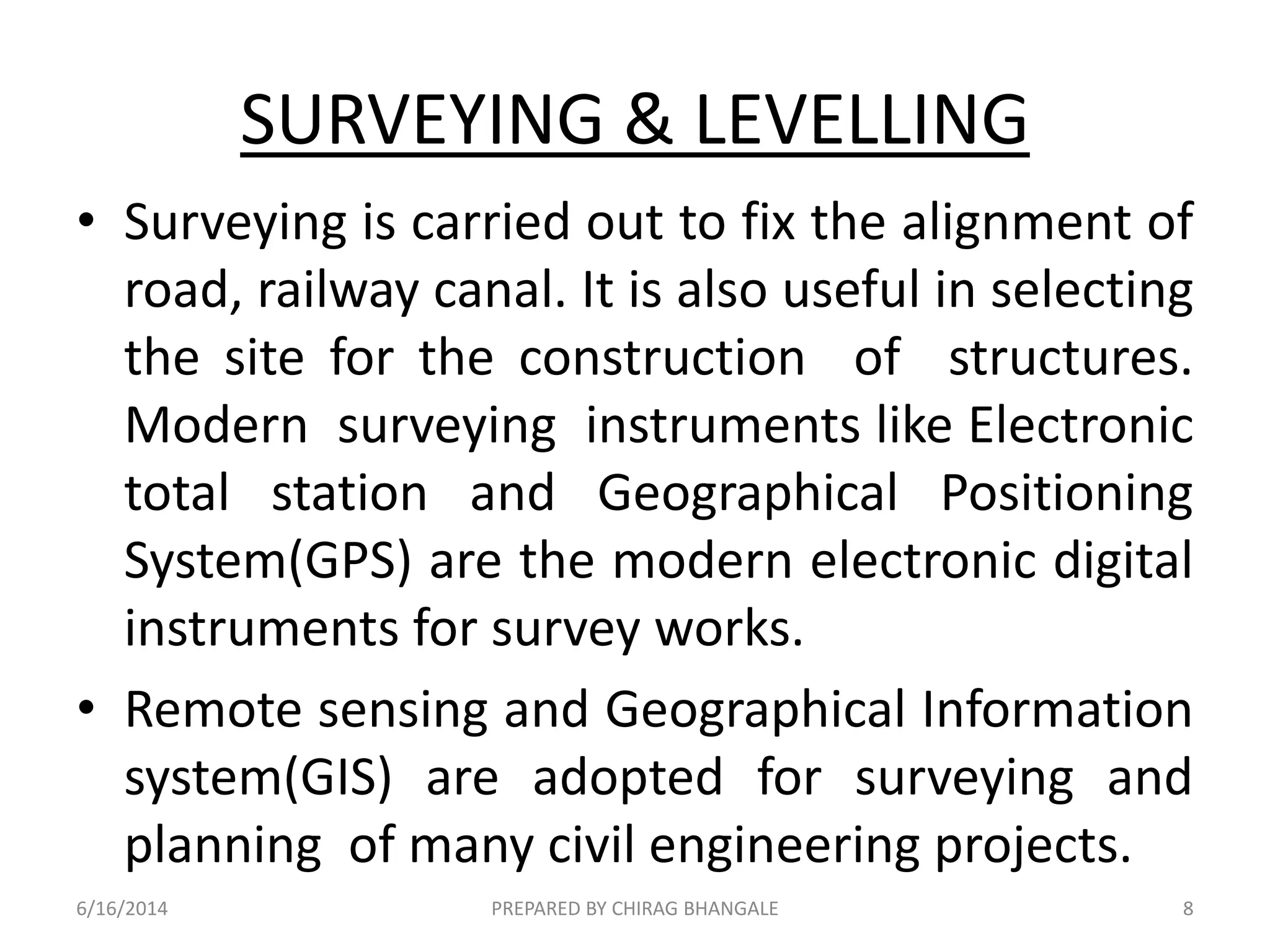

8. SURVEYING & LEVELLING
• Surveying is carried out to fix the alignment of
road, railway canal. It is also useful in selecting
the site for the construction of structures.
Modern surveying instruments like Electronic
total station and Geographical Positioning
System(GPS) are the modern electronic digital
instruments for survey works.
• Remote sensing and Geographical Information
system(GIS) are adopted for surveying and
planning of many civil engineering projects.
6/16/2014 8PREPARED BY CHIRAG BHANGALE

9. BUILDING PLANNING &
CONSTRUCTION
6/16/2014 9PREPARED BY CHIRAG BHANGALE

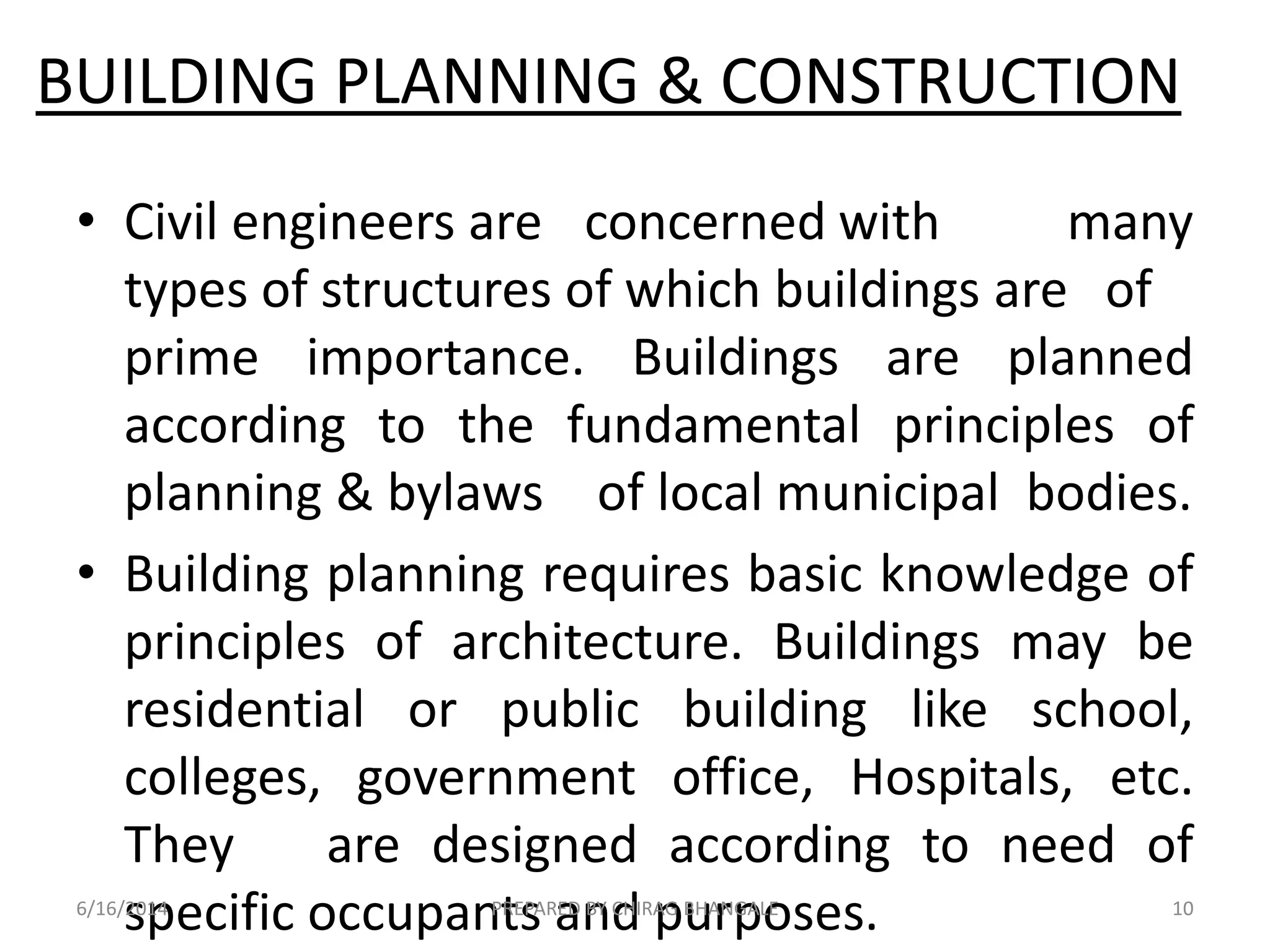

10. BUILDING PLANNING & CONSTRUCTION
• Civil engineers are concerned with many
types of structures of which buildings are of
prime importance. Buildings are planned
according to the fundamental principles of
planning & bylaws of local municipal bodies.
• Building planning requires basic knowledge of
principles of architecture. Buildings may be
residential or public building like school,
colleges, government office, Hospitals, etc.
They are designed according to need of
specific occupants and purposes.6/16/2014 10PREPARED BY CHIRAG BHANGALE

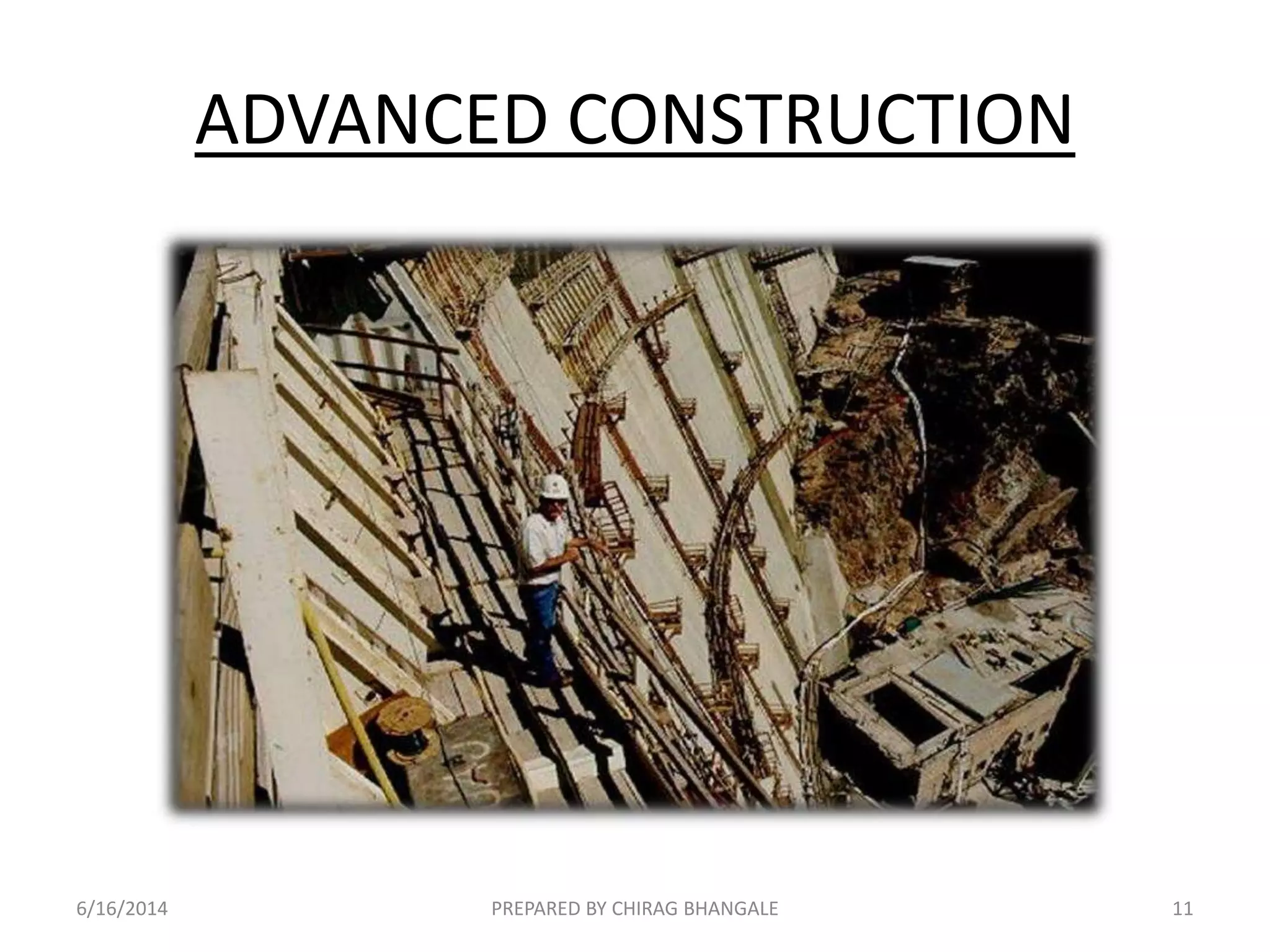

11. ADVANCED CONSTRUCTION
6/16/2014 11PREPARED BY CHIRAG BHANGALE

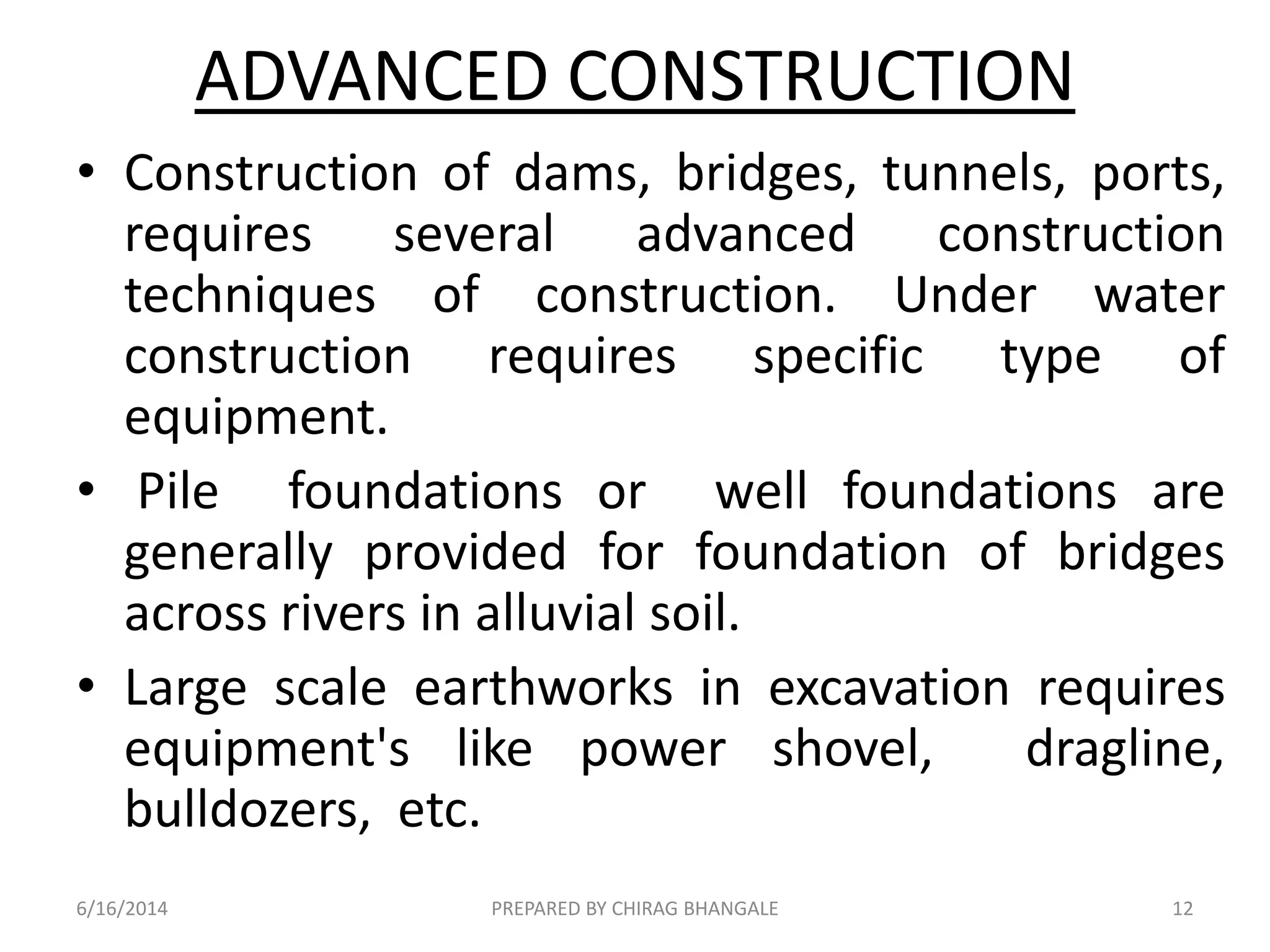

12. ADVANCED CONSTRUCTION
• Construction of dams, bridges, tunnels, ports,
requires several advanced construction
techniques of construction. Under water
construction requires specific type of
equipment.
• Pile foundations or well foundations are
generally provided for foundation of bridges
across rivers in alluvial soil.
• Large scale earthworks in excavation requires
equipment's like power shovel, dragline,
bulldozers, etc.
6/16/2014 12PREPARED BY CHIRAG BHANGALE

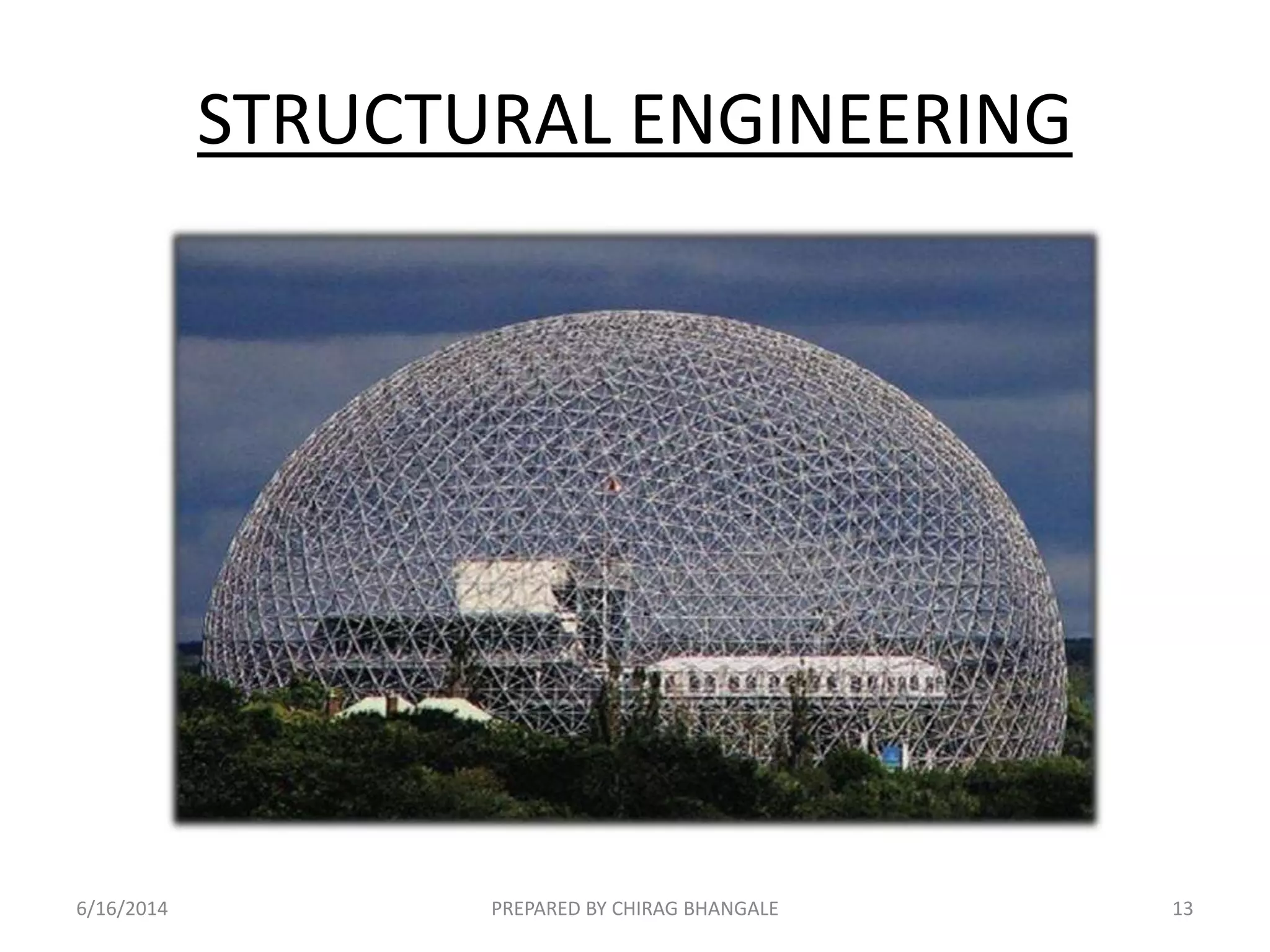

13. STRUCTURAL ENGINEERING
6/16/2014 13PREPARED BY CHIRAG BHANGALE

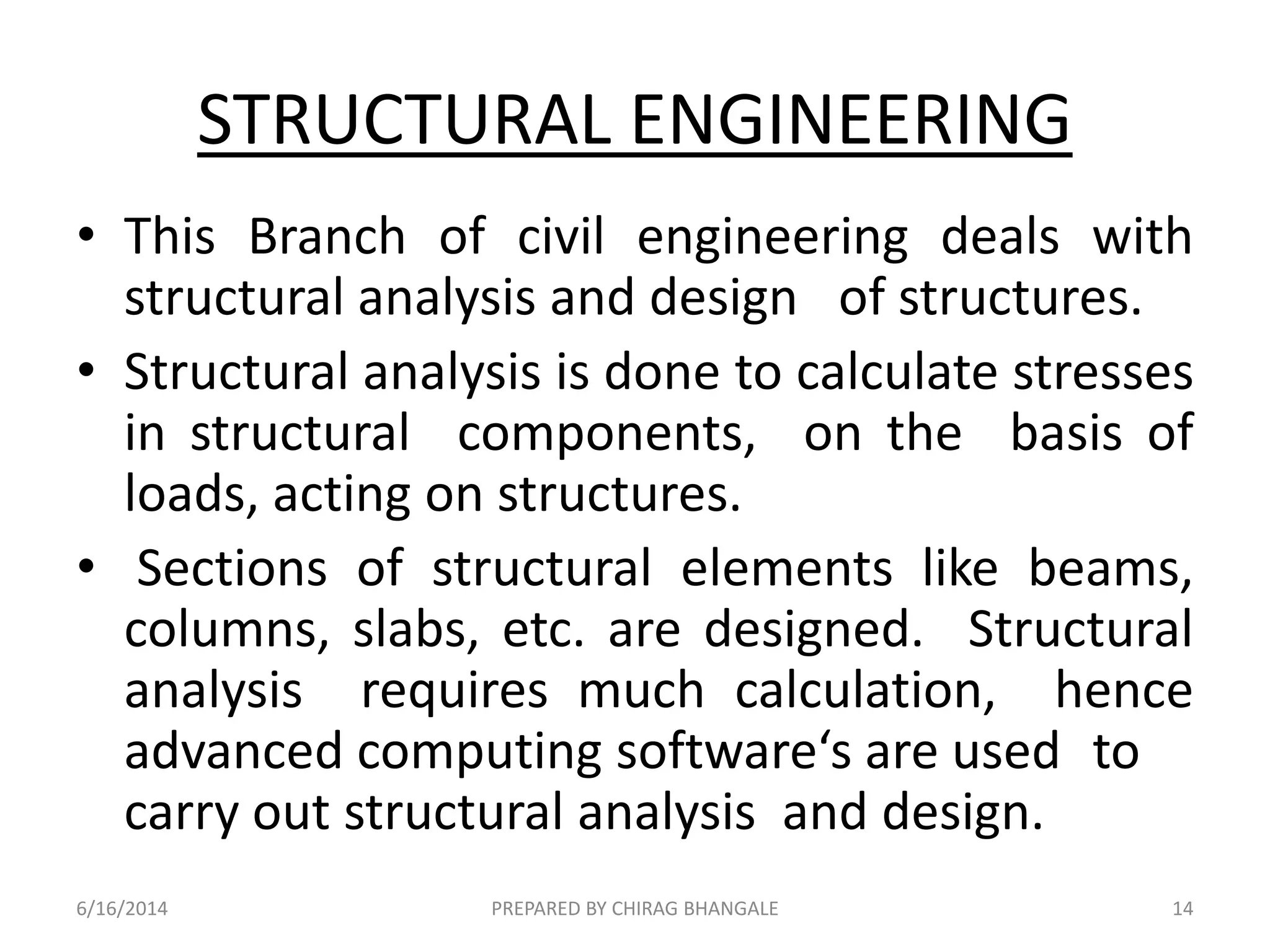

14. STRUCTURAL ENGINEERING
• This Branch of civil engineering deals with
structural analysis and design of structures.
• Structural analysis is done to calculate stresses
in structural components, on the basis of
loads, acting on structures.
• Sections of structural elements like beams,
columns, slabs, etc. are designed. Structural
analysis requires much calculation, hence
advanced computing software‘s are used to
carry out structural analysis and design.
6/16/2014 14PREPARED BY CHIRAG BHANGALE

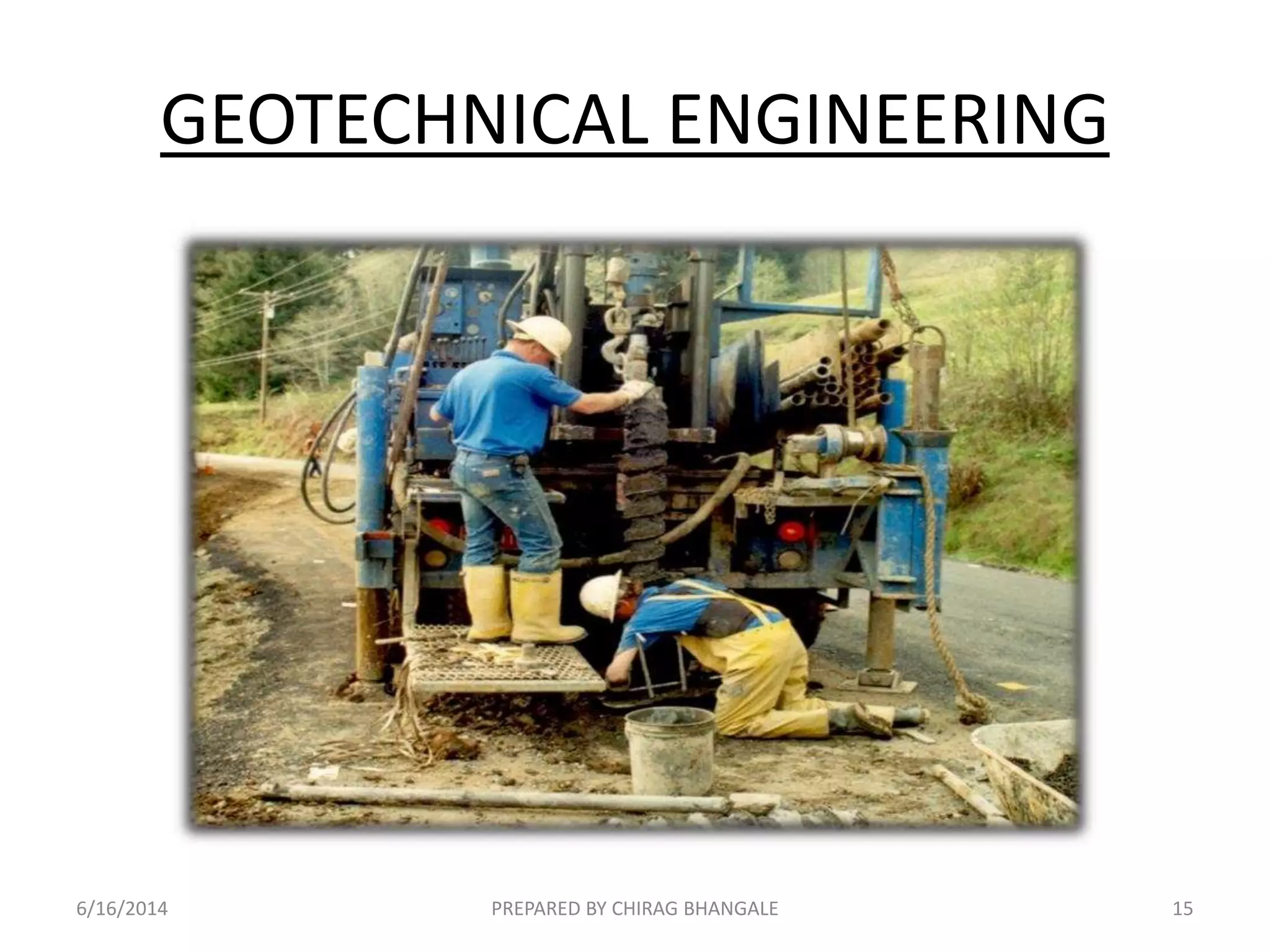

15. GEOTECHNICAL ENGINEERING
6/16/2014 15PREPARED BY CHIRAG BHANGALE

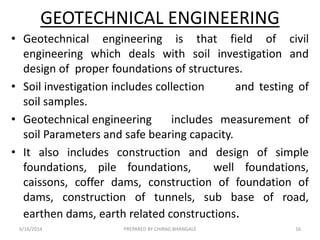

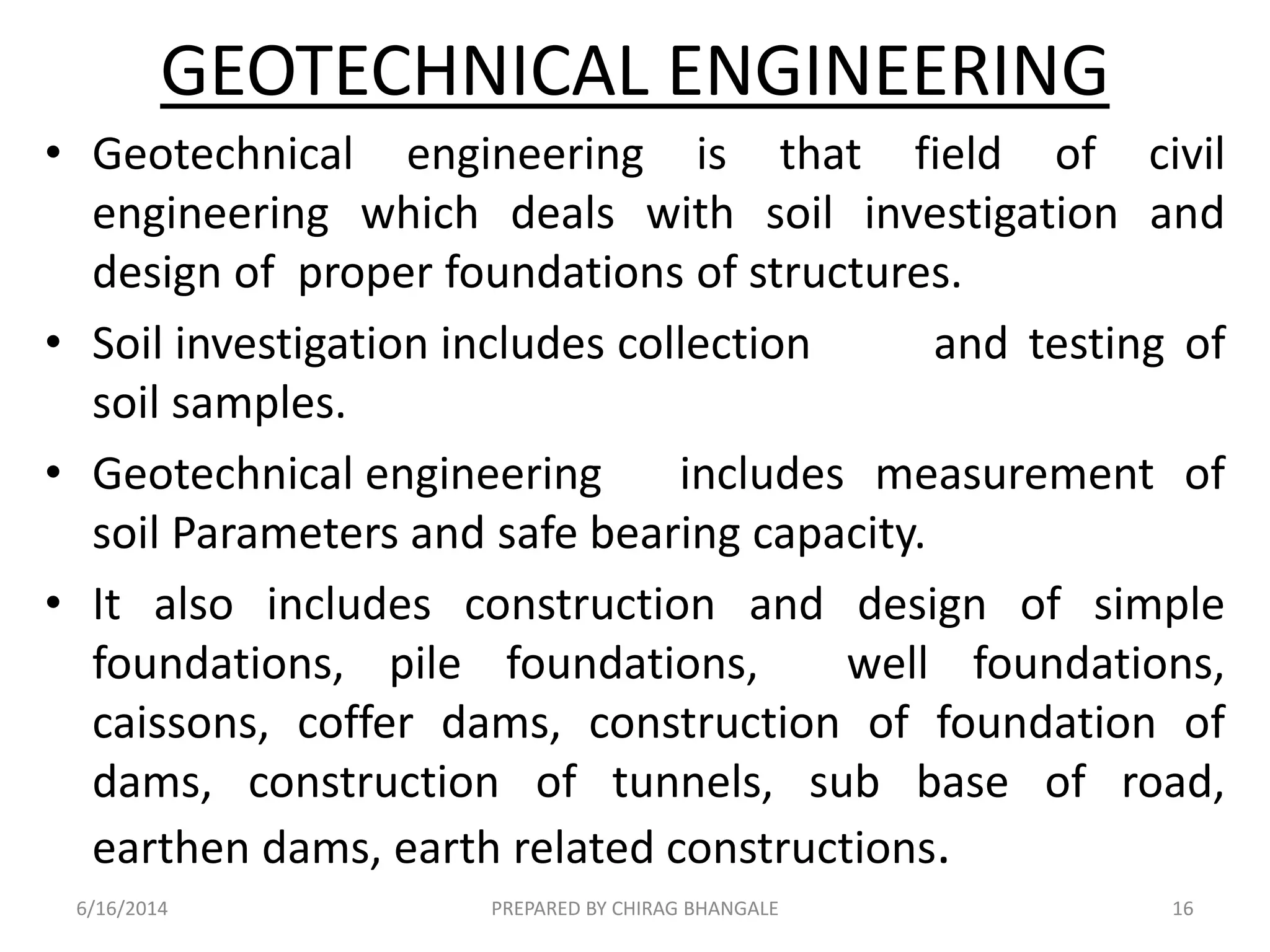

16. GEOTECHNICAL ENGINEERING
• Geotechnical engineering is that field of civil
engineering which deals with soil investigation and
design of proper foundations of structures.
• Soil investigation includes collection and testing of
soil samples.
• Geotechnical engineering includes measurement of
soil Parameters and safe bearing capacity.
• It also includes construction and design of simple
foundations, pile foundations, well foundations,
caissons, coffer dams, construction of foundation of
dams, construction of tunnels, sub base of road,
earthen dams, earth related constructions.
6/16/2014 16PREPARED BY CHIRAG BHANGALE

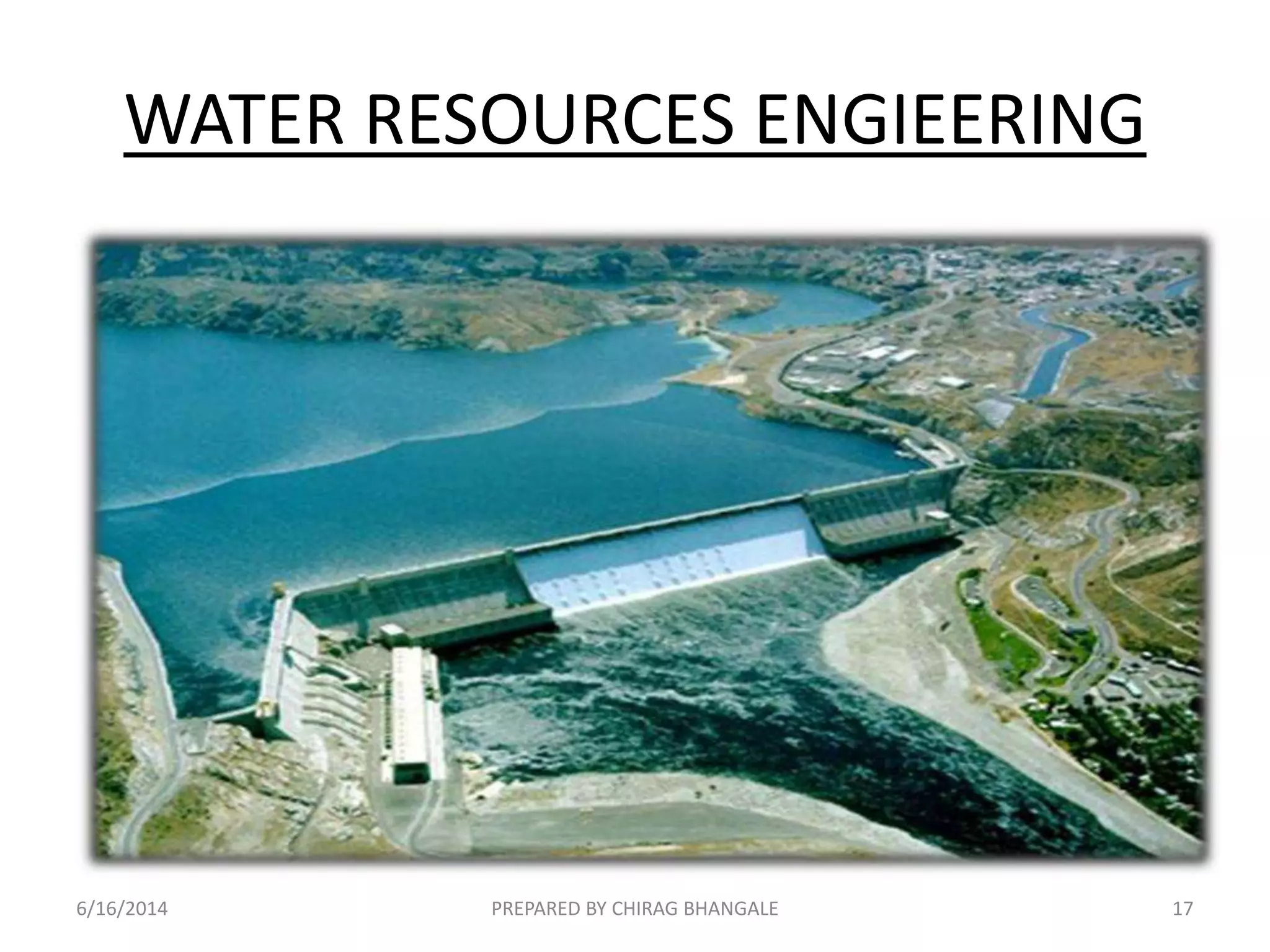

17. WATER RESOURCES ENGIEERING
6/16/2014 17PREPARED BY CHIRAG BHANGALE

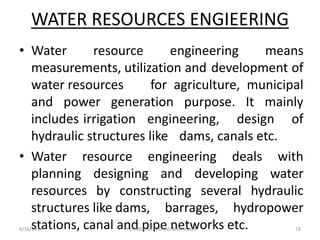

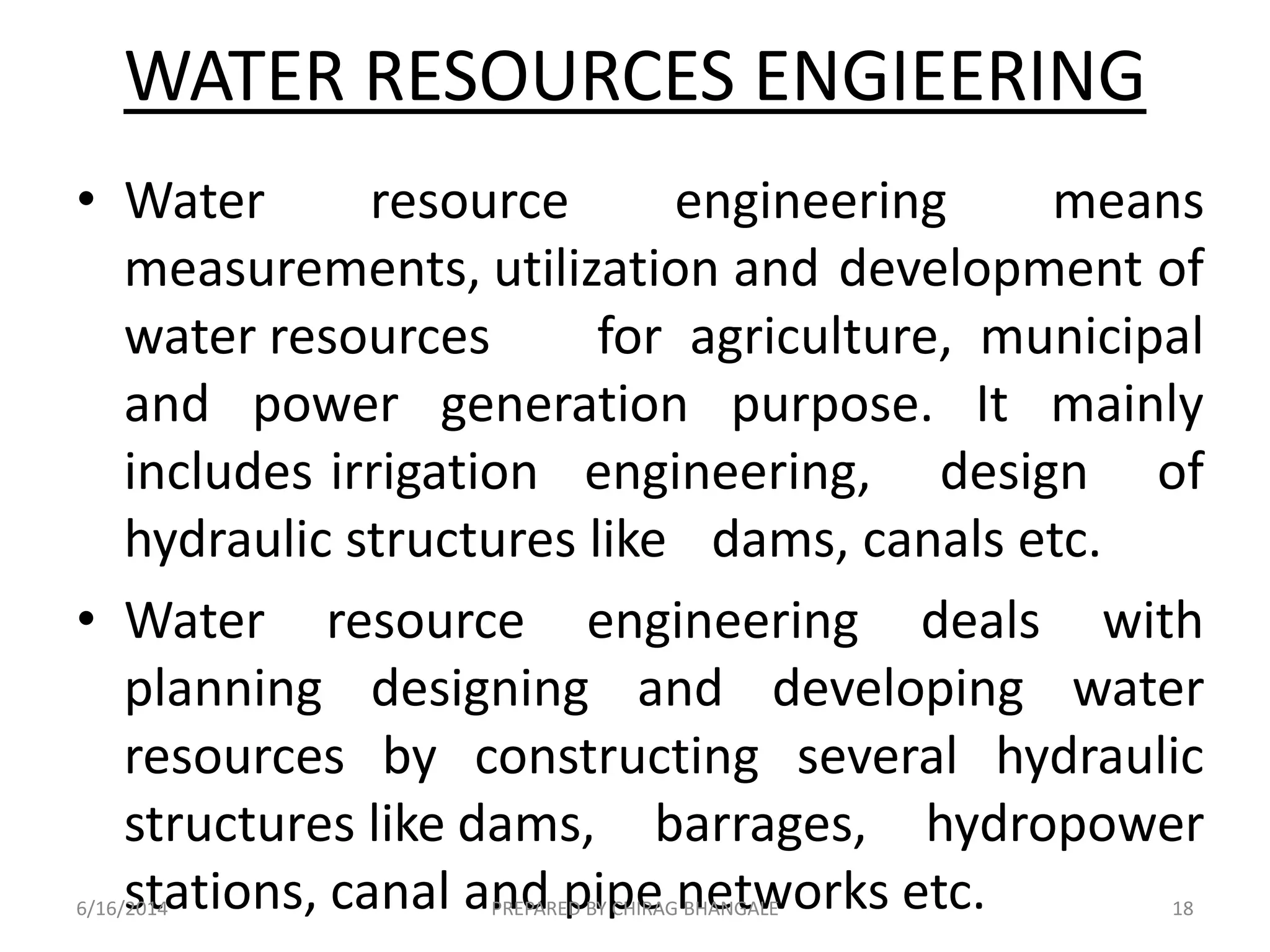

18. • Water resource engineering means
measurements, utilization and development of
water resources for agriculture, municipal
and power generation purpose. It mainly
includes irrigation engineering, design of
hydraulic structures like dams, canals etc.
• Water resource engineering deals with
planning designing and developing water
resources by constructing several hydraulic
structures like dams, barrages, hydropower
stations, canal and pipe networks etc.
WATER RESOURCES ENGIEERING
6/16/2014 18PREPARED BY CHIRAG BHANGALE

19. TRANSPORTATION ENGINEERING
6/16/2014 19PREPARED BY CHIRAG BHANGALE

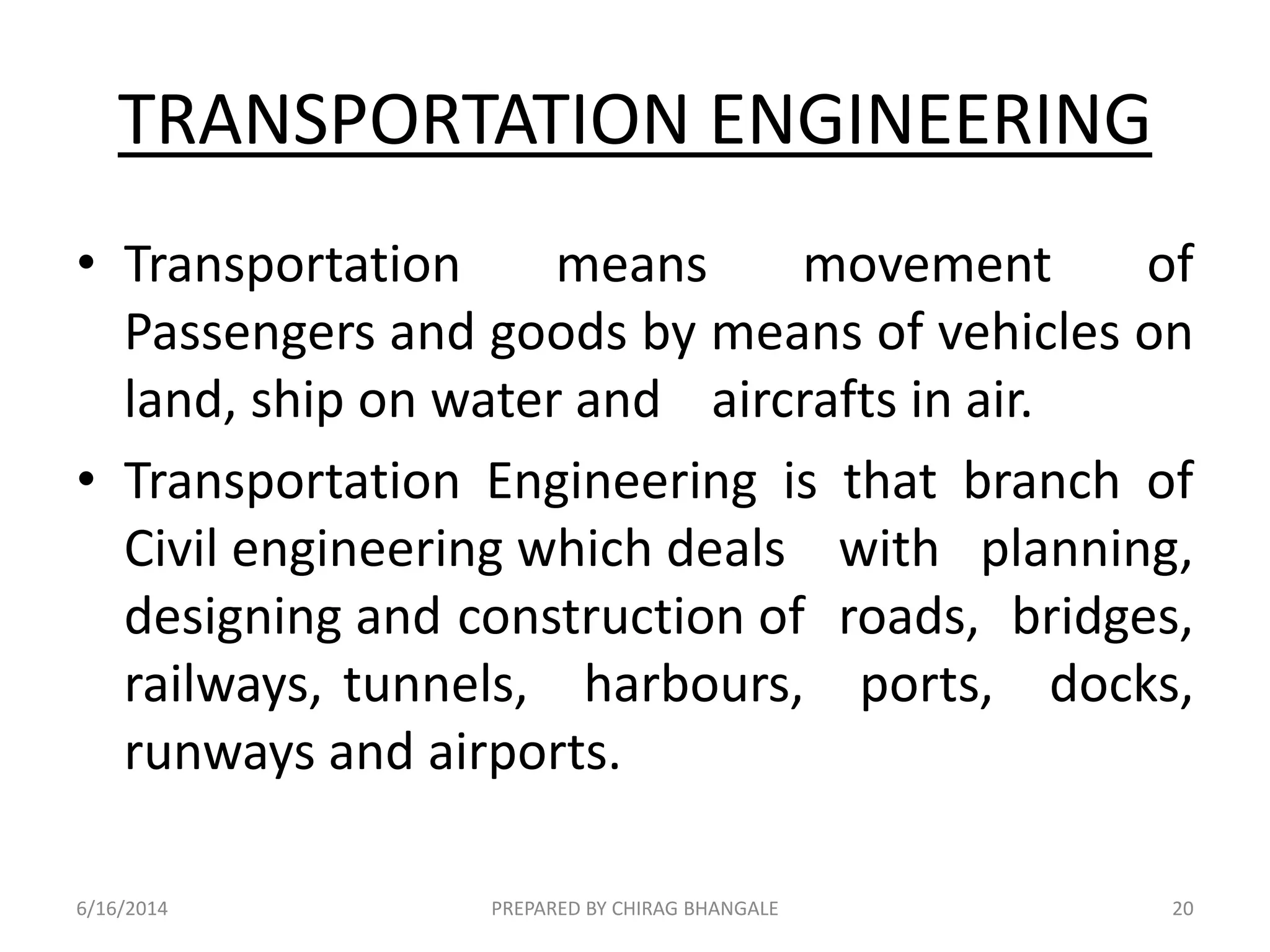

20. TRANSPORTATION ENGINEERING
• Transportation means movement of
Passengers and goods by means of vehicles on
land, ship on water and aircrafts in air.
• Transportation Engineering is that branch of
Civil engineering which deals with planning,
designing and construction of roads, bridges,
railways, tunnels, harbours, ports, docks,
runways and airports.
6/16/2014 20PREPARED BY CHIRAG BHANGALE

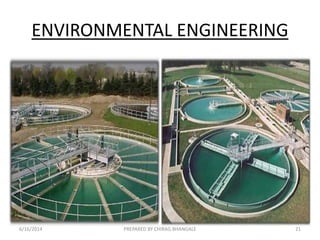

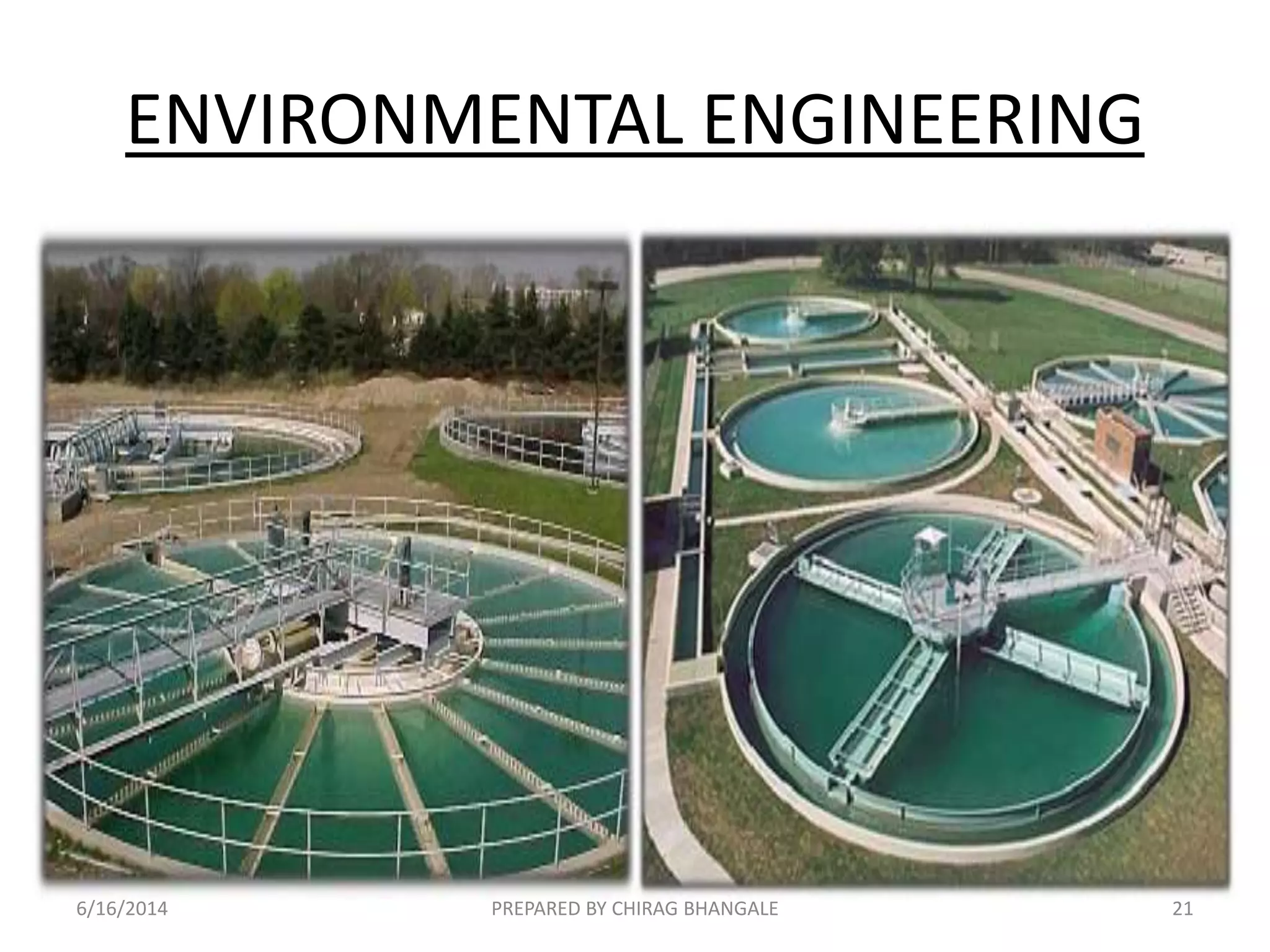

21. ENVIRONMENTAL ENGINEERING
6/16/2014 21PREPARED BY CHIRAG BHANGALE

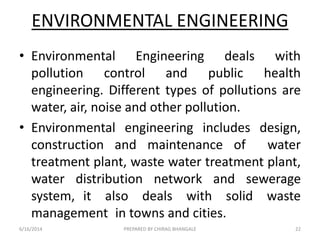

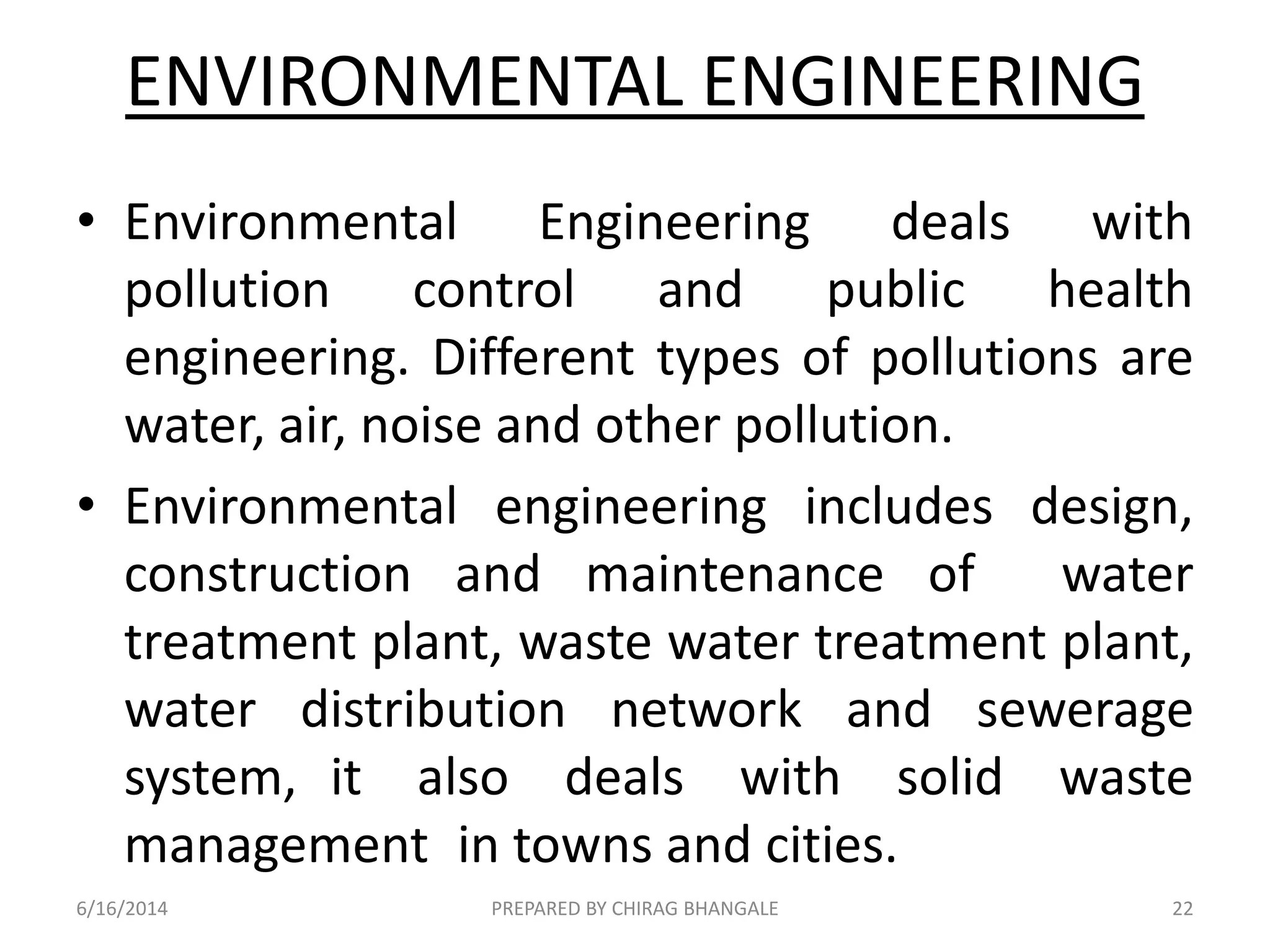

22. ENVIRONMENTAL ENGINEERING
• Environmental Engineering deals with
pollution control and public health
engineering. Different types of pollutions are
water, air, noise and other pollution.
• Environmental engineering includes design,
construction and maintenance of water
treatment plant, waste water treatment plant,
water distribution network and sewerage
system, it also deals with solid waste
management in towns and cities.
6/16/2014 22PREPARED BY CHIRAG BHANGALE

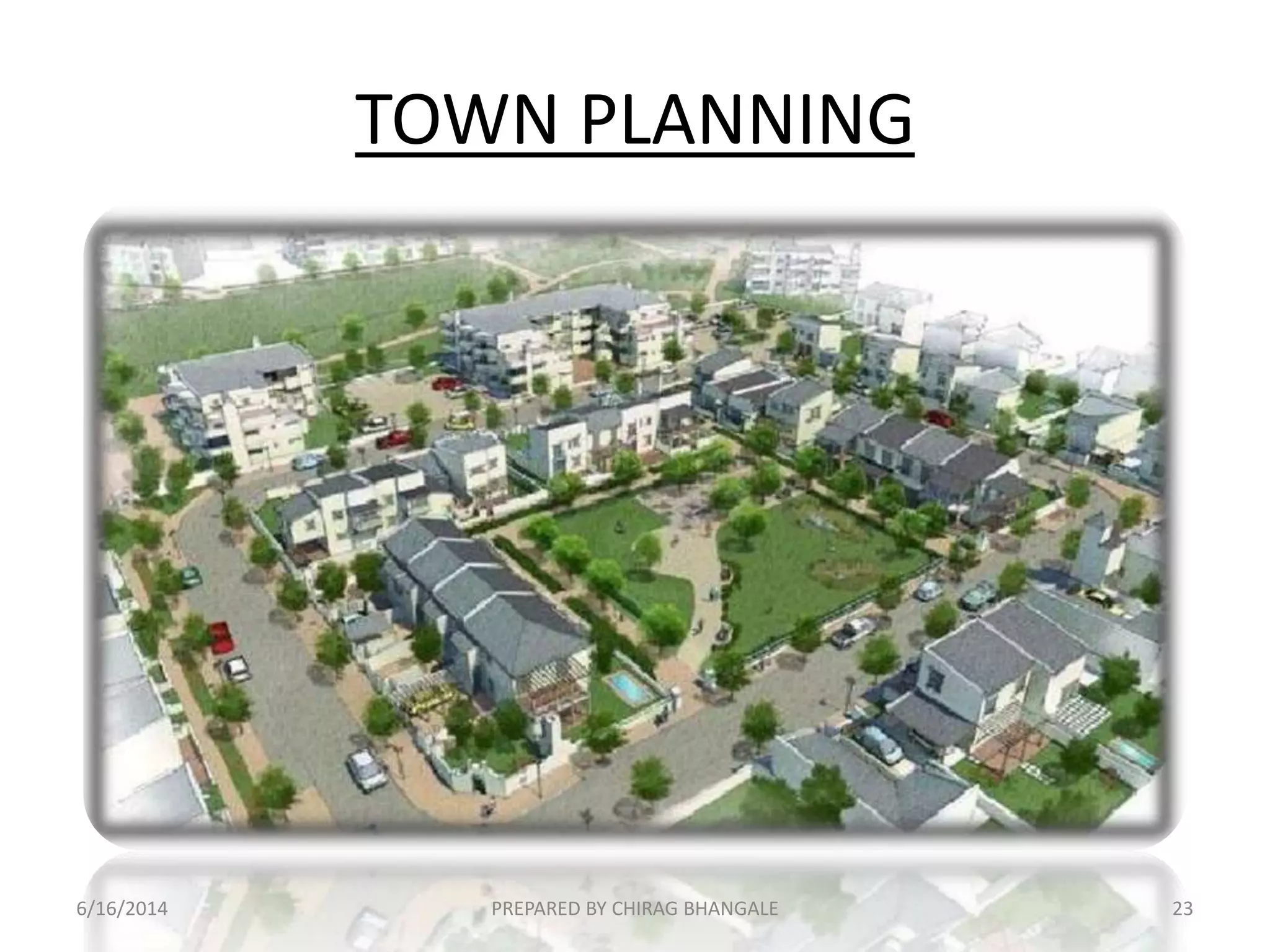

23. TOWN PLANNING
6/16/2014 23PREPARED BY CHIRAG BHANGALE

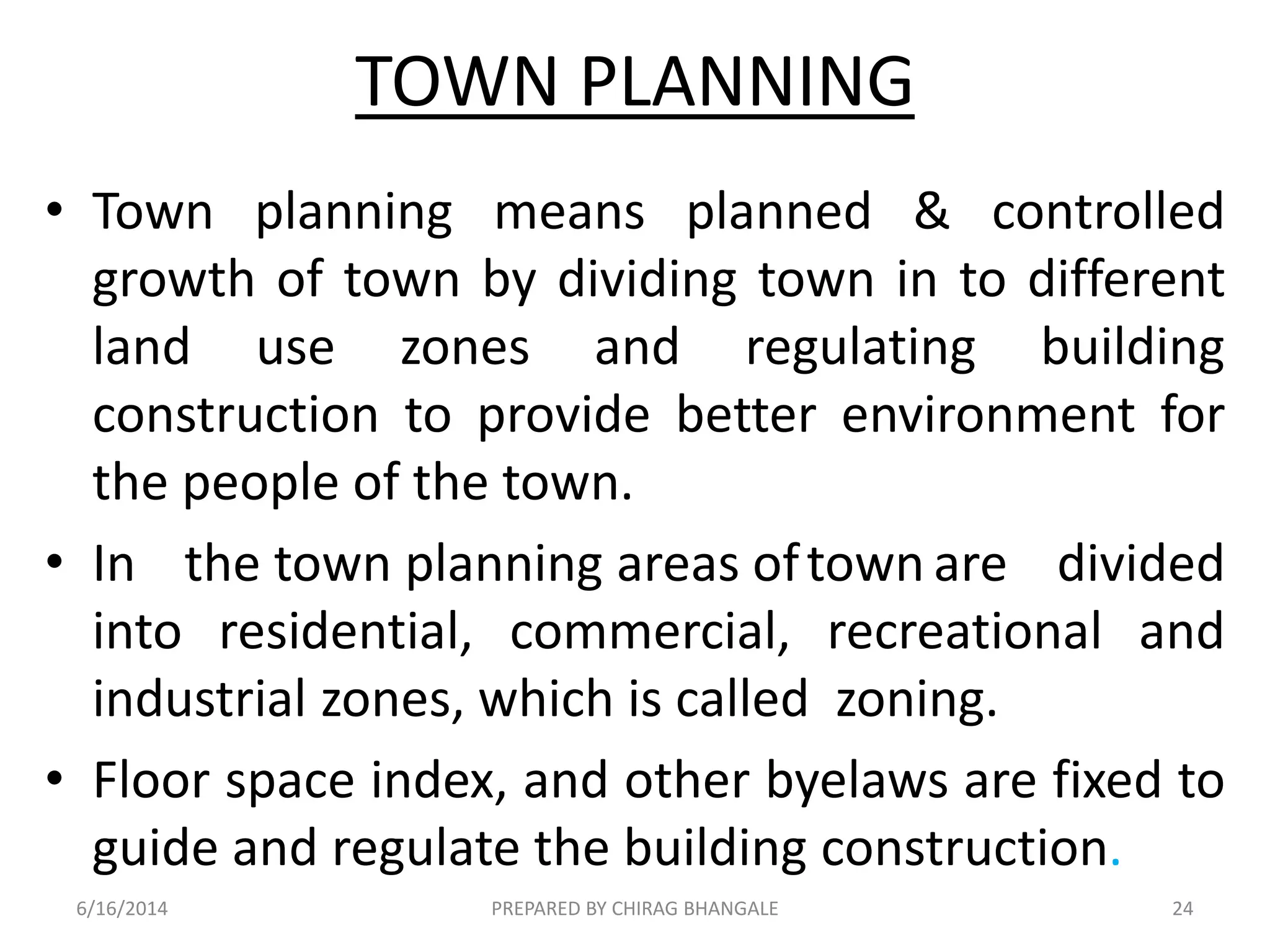

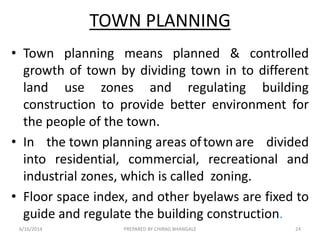

24. TOWN PLANNING
• Town planning means planned & controlled
growth of town by dividing town in to different
land use zones and regulating building
construction to provide better environment for
the people of the town.
• In the town planning areas oftown are divided
into residential, commercial, recreational and
industrial zones, which is called zoning.
• Floor space index, and other byelaws are fixed to
guide and regulate the building construction.
6/16/2014 24PREPARED BY CHIRAG BHANGALE

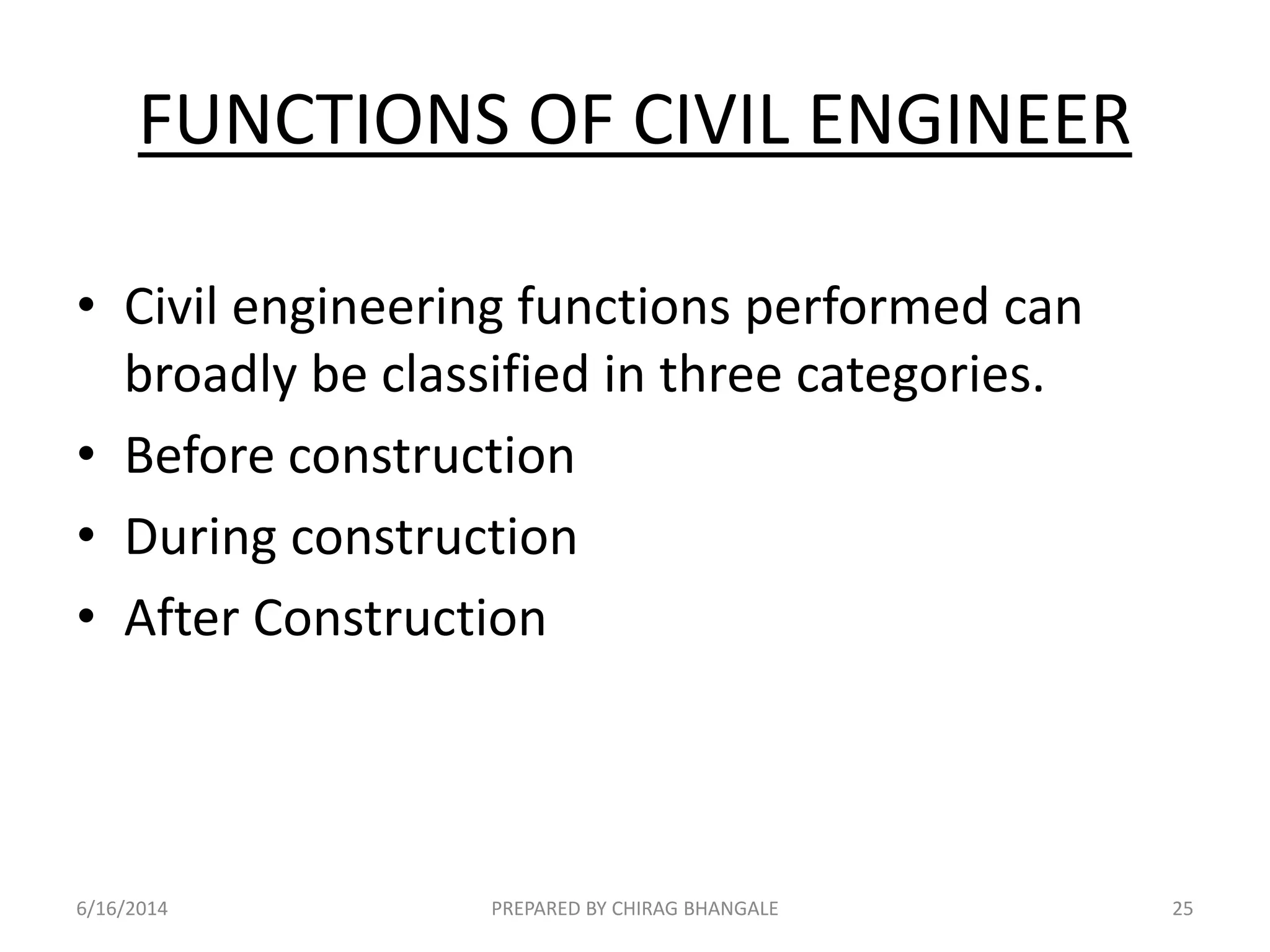

25. FUNCTIONS OF CIVIL ENGINEER
• Civil engineering functions performed can
broadly be classified in three categories.
• Before construction
• During construction
• After Construction
6/16/2014 25PREPARED BY CHIRAG BHANGALE

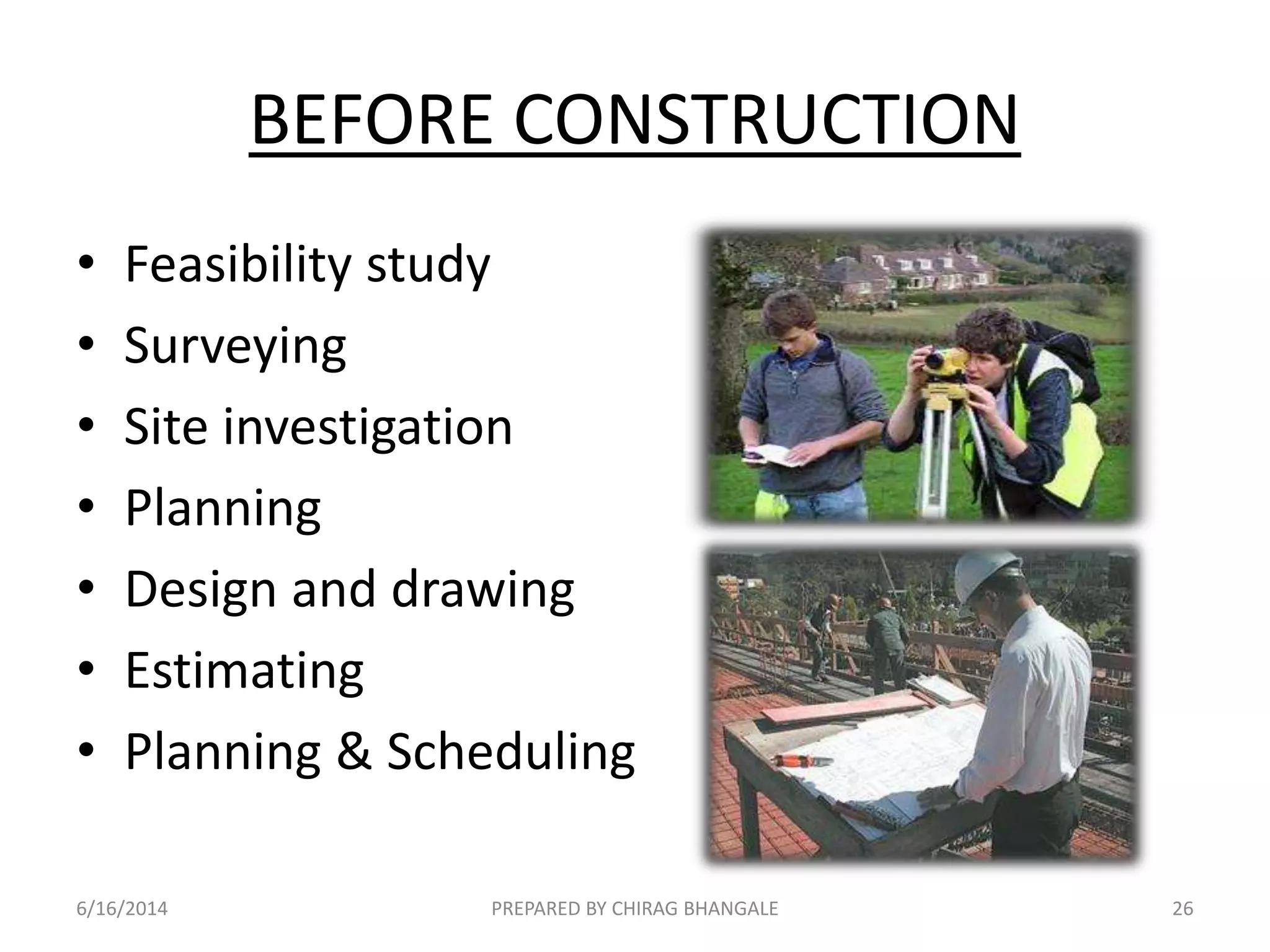

26. BEFORE CONSTRUCTION
• Feasibility study
• Surveying
• Site investigation
• Planning
• Design and drawing
• Estimating
• Planning & Scheduling
6/16/2014 26PREPARED BY CHIRAG BHANGALE

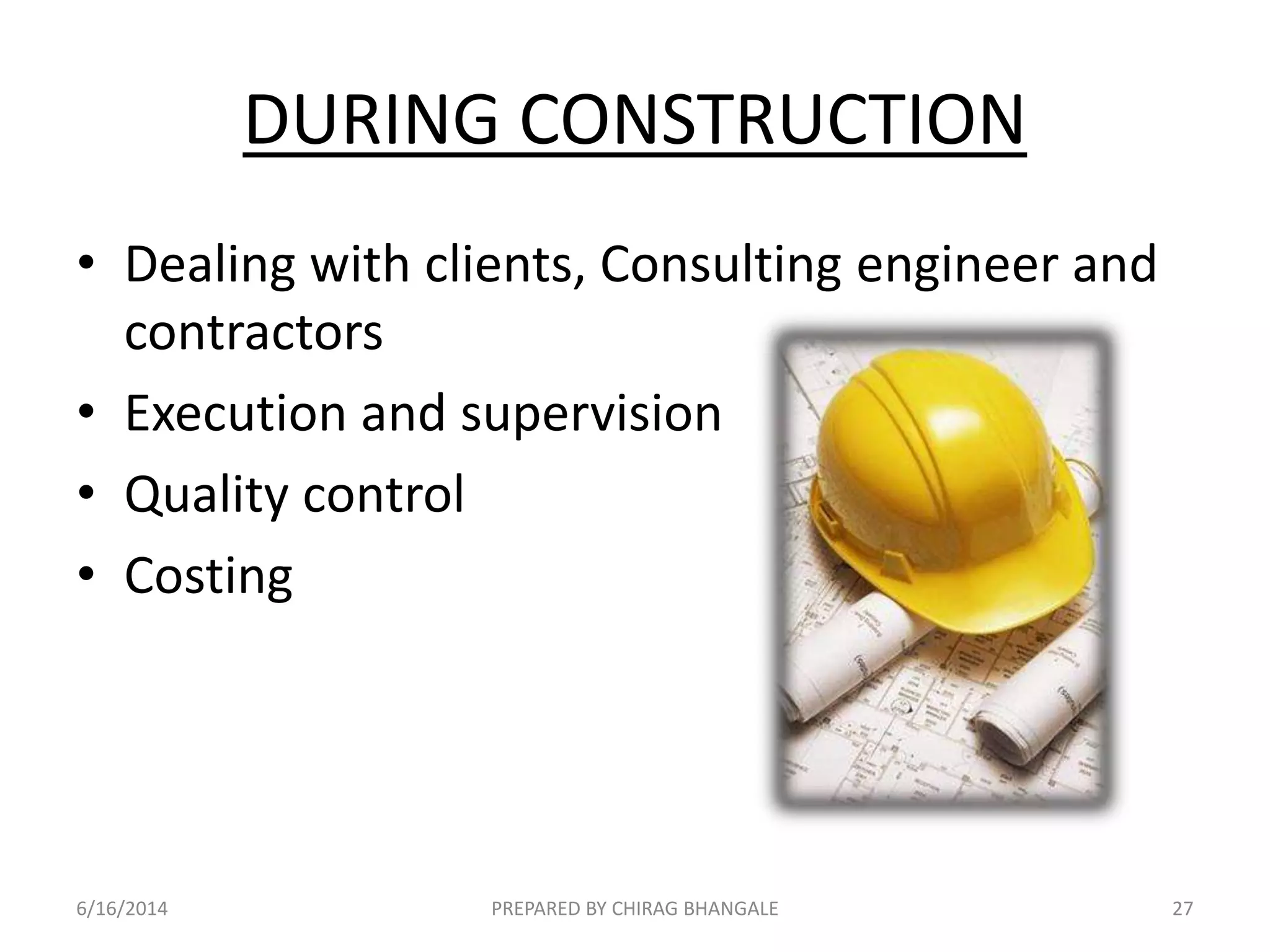

27. DURING CONSTRUCTION
• Dealing with clients, Consulting engineer and
contractors
• Execution and supervision
• Quality control
• Costing
6/16/2014 27PREPARED BY CHIRAG BHANGALE

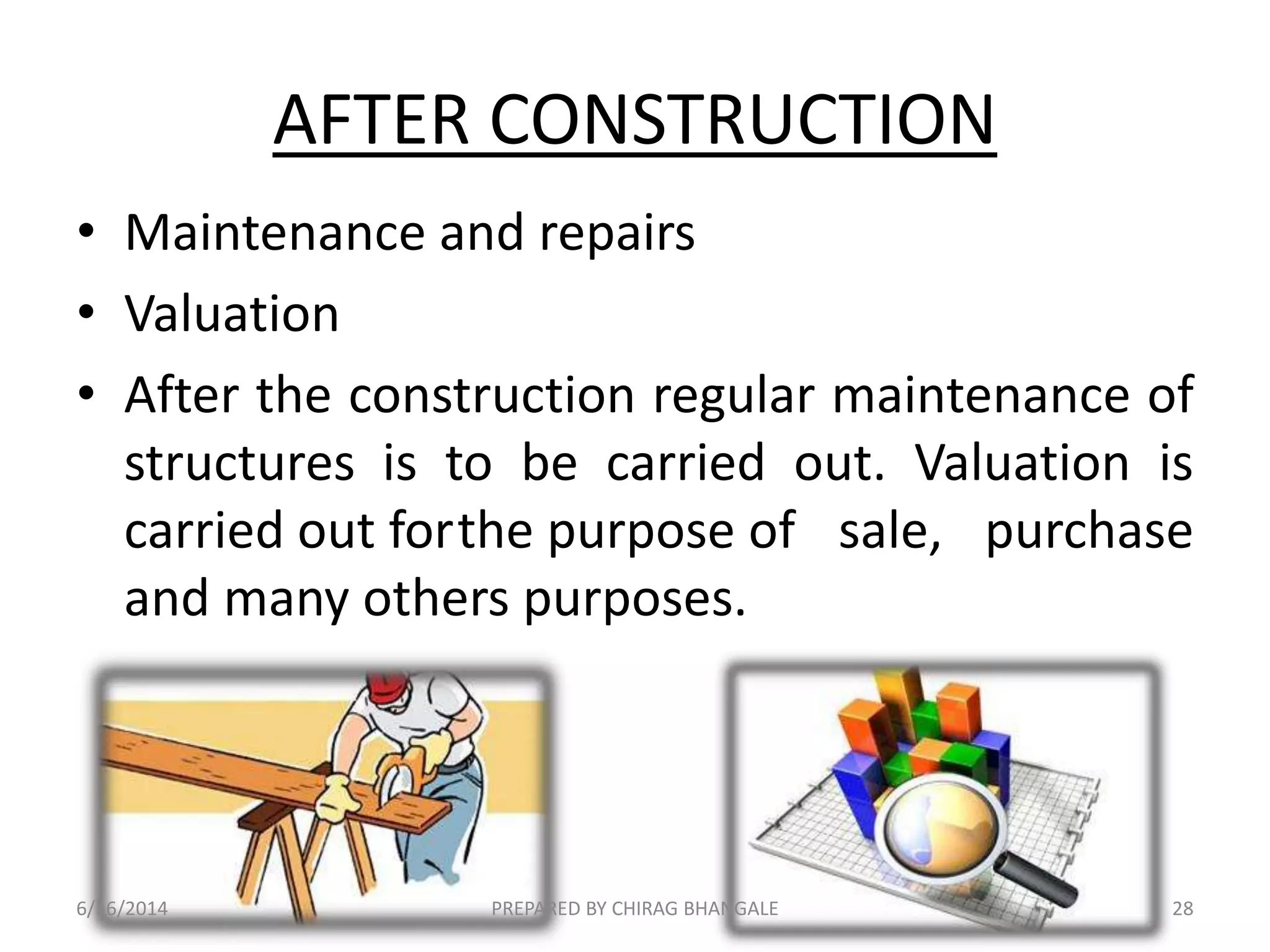

28. AFTER CONSTRUCTION
• Maintenance and repairs
• Valuation
• After the construction regular maintenance of
structures is to be carried out. Valuation is
carried out forthe purpose of sale, purchase
and many others purposes.
6/16/2014 28PREPARED BY CHIRAG BHANGALE

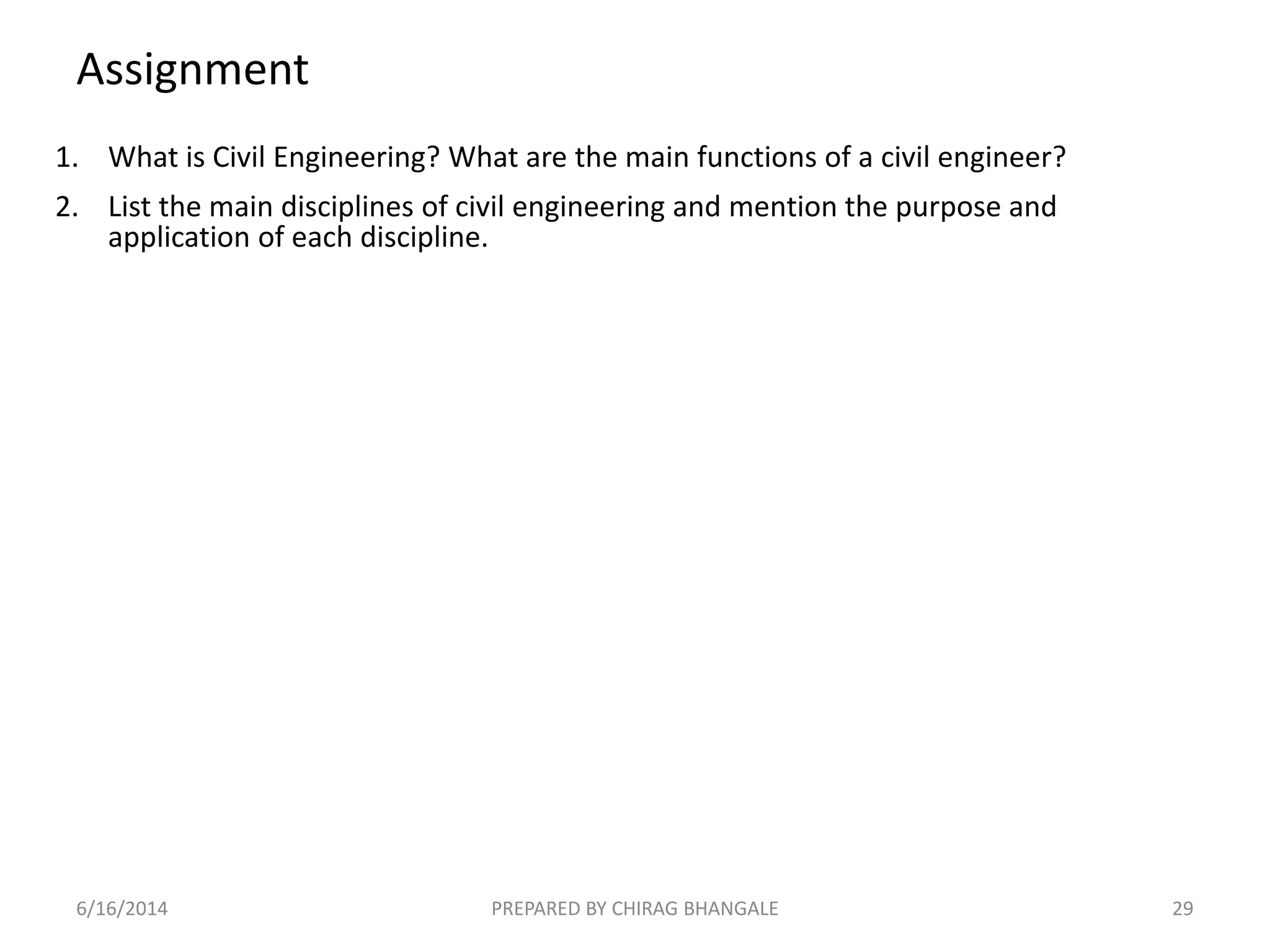

29. Assignment
1. What is Civil Engineering? What are the main functions of a civil engineer?
2. List the main disciplines of civil engineering and mention the purpose and
application of each discipline.
6/16/2014 29PREPARED BY CHIRAG BHANGALE
