BASICS OF NCS/EMG
BY
DR ABDUL ALI.
PGR NEUROLOGY DEPARTMENT BMCH QUETTA
Electrodiagnostic studies (EDX)
• An extension of neurological examination.
• Includes
• Nerve conduction studies (NCSs),
• Needle electromyography (EMG)
• Late responses,
• Blink reflexes,
• Some other specialized examinations. NCSs and
needle
• EMG form the core of the EDX studies.

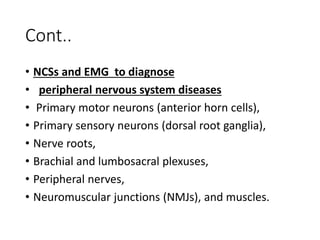

Cont..
• NCSs and EMG to diagnose
• peripheral nervous system diseases
• Primary motor neurons (anterior horn cells),
• Primary sensory neurons (dorsal root ganglia),
• Nerve roots,
• Brachial and lumbosacral plexuses,
• Peripheral nerves,
• Neuromuscular junctions (NMJs), and muscles.
Basic mechanism.
• Neurophysiology of Axon.
• The specialized axonal membrane
• Always impermeable to large negatively charged
anions(inside axon).
• Relatively impermeable to sodium in the resting
state.
• Membrane + active Na+/K+ pump = move sodium
outside in exchange for potassium, leads to
concentration gradients across the membrane =
resting membrane potential.

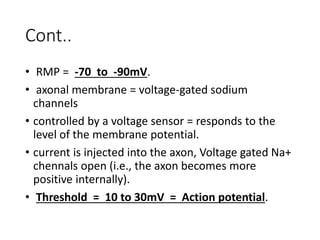

Cont..
• RMP = -70 to -90mV.
• axonal membrane = voltage-gated sodium
channels
• controlled by a voltage sensor = responds to the
level of the membrane potential.
• current is injected into the axon, Voltage gated Na+
chennals open (i.e., the axon becomes more
positive internally).
• Threshold = 10 to 30mV = Action potential.
Recording NCS/EMG
• NCS = surface electrodes over the skin,
• EMG potentials = needle electrode placed within
the muscle
• Both intracellular electrical potentials are
transmitted through tissue to the recording
electrodes.
• volume conduction . The process of an intracellular
electrical potential being transmitted through
extracellular fluid and tissue .
Volume conduction recording.
Near field potential
• Close to the source of
current
• Wave character =
distance b/t source of
current and rec
electrodes (A.P)
• Routine NCS EMG are
Volume Conducted near
field potential.
Far field potential
• Electrical potentials
that are distributed
widely and instantly.
• Two recording
electrodes, one closer
and the other farther
from the source,
essentially see the
source at the same
time.

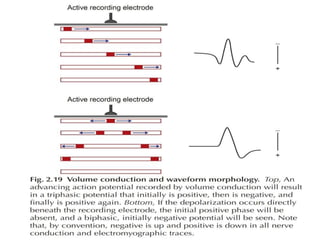

Volume Conducted near field potential
• Produce a characteristic triphasic waveform as an
advancing action potential approaches and then
passes beneath and away from a recording
electrode.
• Sensory and mixed nerve studies.
• Initial positive phase = Negative phase = Trailing
positive tive phase.
• If a volume-conducted, near-field action potential
begins directly under the recording electrode, the
initial deflection will be negative = Biphasic
waveform= negative phase followed by positive
phase.
Principles of stimulation
• Supramaximal stimulation
current intensity is slowly increased until the
amplitude of the recorded potential reaches a
plateau. The current intensity then is increased an
additional 20%–25% to ensure that the potential no
lon-ger increases. It is only at this point that
supramaximal stimulation is achieved.
• Optimize the stimulation site
• placement of the stimulator at the optimal location
directly over the nerve, which yields the highest
CMAP amplitude with the least stimulus intensity

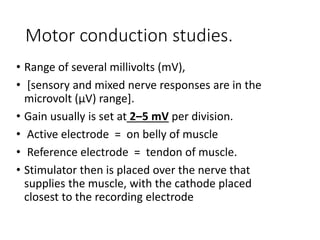

Motor conduction studies.
• Range of several millivolts (mV),
• [sensory and mixed nerve responses are in the
microvolt (μV) range].
• Gain usually is set at 2–5 mV per division.
• Active electrode = on belly of muscle
• Reference electrode = tendon of muscle.
• Stimulator then is placed over the nerve that
supplies the muscle, with the cathode placed
closest to the recording electrode
Cont...

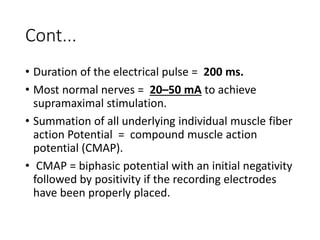

• Duration of the electrical pulse = 200 ms.
• Most normal nerves = 20–50 mA to achieve
supramaximal stimulation.
• Summation of all underlying individual muscle fiber
action Potential = compound muscle action
potential (CMAP).
• CMAP = biphasic potential with an initial negativity
followed by positivity if the recording electrodes
have been properly placed.

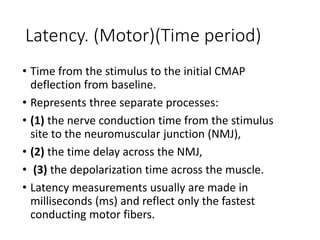

Latency. (Motor)(Time period)
• Time from the stimulus to the initial CMAP
deflection from baseline.
• Represents three separate processes:
• (1) the nerve conduction time from the stimulus
site to the neuromuscular junction (NMJ),
• (2) the time delay across the NMJ,
• (3) the depolarization time across the muscle.
• Latency measurements usually are made in
milliseconds (ms) and reflect only the fastest
conducting motor fibers.

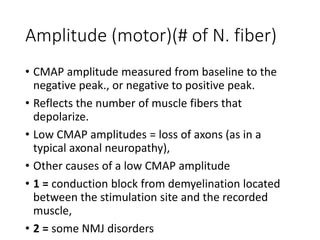

Amplitude (motor)(# of N. fiber)
• CMAP amplitude measured from baseline to the
negative peak., or negative to positive peak.
• Reflects the number of muscle fibers that
depolarize.
• Low CMAP amplitudes = loss of axons (as in a
typical axonal neuropathy),
• Other causes of a low CMAP amplitude
• 1 = conduction block from demyelination located
between the stimulation site and the recorded
muscle,
• 2 = some NMJ disorders
Area
• CMAP area = area above the baseline to the
negative peak.
• A negative peak CMAP area is another measure
reflecting the number of muscle fibers that
depolarize.
• Differences in CMAP area between the distal and
proximal stimulation sites take on special
significance in the determination of conduction
block from a demyelinating lesion.

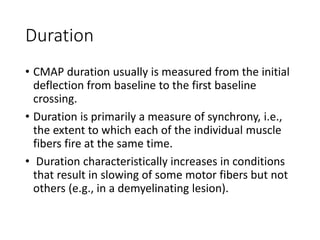

Duration
• CMAP duration usually is measured from the initial
deflection from baseline to the first baseline
crossing.
• Duration is primarily a measure of synchrony, i.e.,
the extent to which each of the individual muscle
fibers fire at the same time.
• Duration characteristically increases in conditions
that result in slowing of some motor fibers but not
others (e.g., in a demyelinating lesion).

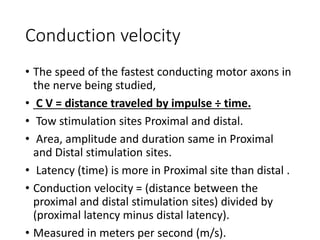

Conduction velocity
• The speed of the fastest conducting motor axons in
the nerve being studied,
• C V = distance traveled by impulse ÷ time.
• Tow stimulation sites Proximal and distal.
• Area, amplitude and duration same in Proximal
and Distal stimulation sites.
• Latency (time) is more in Proximal site than distal .
• Conduction velocity = (distance between the
proximal and distal stimulation sites) divided by
(proximal latency minus distal latency).
• Measured in meters per second (m/s).
Sensory conduction studies.
• Range in microVolts.
• Gain usually is set at 10–20 μV per division.
• Electrical pulse of 100 or 200 ms in duration.
• Normal sensory nerves require a current in the
range of 5–30 mA to achieve supramaximal
stimulation.
• Sensory nerve action potential (SNAP), is a
compound potential that represents the
summation of all the individual sensory fiber action
potentials.
• Biphasic or triphasic.

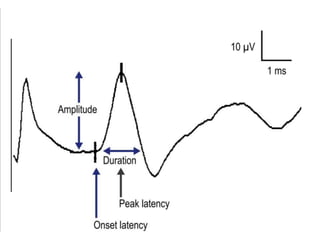

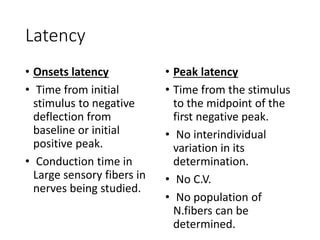

Latency
• Onsets latency
• Time from initial
stimulus to negative
deflection from
baseline or initial
positive peak.
• Conduction time in
Large sensory fibers in
nerves being studied.
• Peak latency
• Time from the stimulus
to the midpoint of the
first negative peak.
• No interindividual
variation in its
determination.
• No C.V.
• No population of
N.fibers can be
determined.

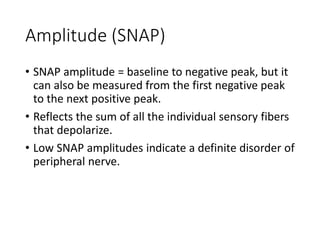

Amplitude (SNAP)
• SNAP amplitude = baseline to negative peak, but it
can also be measured from the first negative peak
to the next positive peak.
• Reflects the sum of all the individual sensory fibers
that depolarize.
• Low SNAP amplitudes indicate a definite disorder of
peripheral nerve.

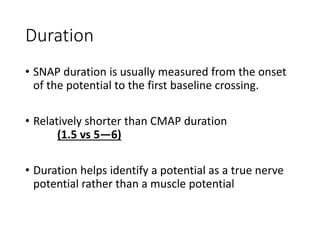

Duration
• SNAP duration is usually measured from the onset
of the potential to the first baseline crossing.
• Relatively shorter than CMAP duration
(1.5 vs 5—6)
• Duration helps identify a potential as a true nerve
potential rather than a muscle potential

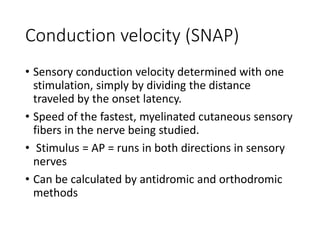

Conduction velocity (SNAP)
• Sensory conduction velocity determined with one
stimulation, simply by dividing the distance
traveled by the onset latency.
• Speed of the fastest, myelinated cutaneous sensory
fibers in the nerve being studied.
• Stimulus = AP = runs in both directions in sensory
nerves
• Can be calculated by antidromic and orthodromic
methods
Antidromic. Orthodromic.
• Stimulating toward the
sensory receptor.
• Amplitude is higher and
directly proportional to
the proximity of the
recording electrode to
the underlying nerve.
• Small potentials, often
pathological.
• But CMAP= difficulty to
identify latency.
• Stimulating away from
the sensory receptors.
• Amplitude is lower
because recording
electrode is away from
underlying nerve.
• No CAMP, only specific
sensory latency.

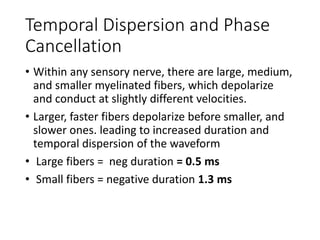

Temporal Dispersion and Phase
Cancellation
• Within any sensory nerve, there are large, medium,
and smaller myelinated fibers, which depolarize
and conduct at slightly different velocities.
• Larger, faster fibers depolarize before smaller, and
slower ones. leading to increased duration and
temporal dispersion of the waveform
• Large fibers = neg duration = 0.5 ms
• Small fibers = negative duration 1.3 ms
Cont...

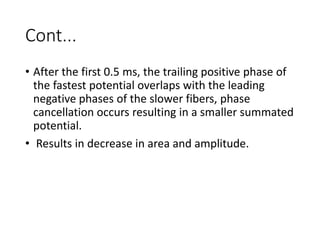

• After the first 0.5 ms, the trailing positive phase of
the fastest potential overlaps with the leading
negative phases of the slower fibers, phase
cancellation occurs resulting in a smaller summated
potential.
• Results in decrease in area and amplitude.

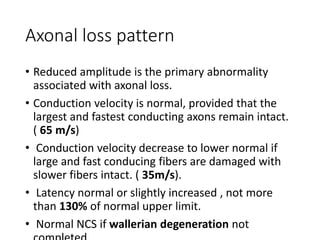

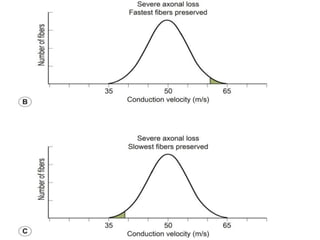

Axonal loss pattern
• Reduced amplitude is the primary abnormality
associated with axonal loss.
• Conduction velocity is normal, provided that the
largest and fastest conducting axons remain intact.
( 65 m/s)
• Conduction velocity decrease to lower normal if
large and fast conducing fibers are damaged with
slower fibers intact. ( 35m/s).
• Latency normal or slightly increased , not more
than 130% of normal upper limit.
• Normal NCS if wallerian degeneration not

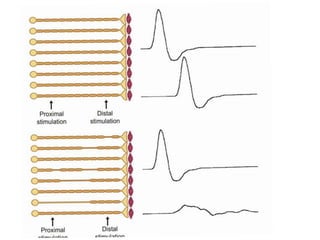

Demyelination pattern
• Demyelination = marked slowing of conduction
velocity (slower than 75% of the lower limit of
normal).
• Marked prolongation of distal latency (longer than
130% of the upper limit of normal).
• Any motor, sensory, or mixed nerve conduction
velocity that is slower than 35 m/s in the arms or
30 m/s in the legs signifies unequivocal
demyelination.
• Temporal dispersion.

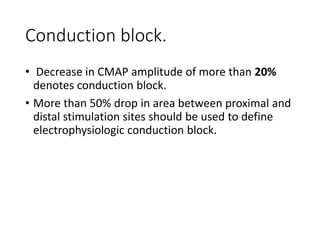

Conduction block.
• Decrease in CMAP amplitude of more than 20%
denotes conduction block.
• More than 50% drop in area between proximal and
distal stimulation sites should be used to define
electrophysiologic conduction block.
Basic overview of nerve conduction studies
Basic overview of nerve conduction studies

More Related Content

Similar to Basic overview of nerve conduction studies

PERIPHERAL NERVES.pptx
PERIPHERAL NERVES.pptxPERIPHERAL NERVES.pptx
PERIPHERAL NERVES.pptxNainaJoshi9

Nerve conduction studies
Nerve conduction studiesNerve conduction studies
Nerve conduction studiesmahmood wajeeh

Nerve conduction study
Nerve conduction studyNerve conduction study
Nerve conduction studyGaraka Rabel

L1-_EMGMNCV.power point presentation for ncv
L1-_EMGMNCV.power point presentation for ncvL1-_EMGMNCV.power point presentation for ncv
L1-_EMGMNCV.power point presentation for ncvPranavTrehan2

emgpresentation-161114163\359.pptx abcdefghijh
emgpresentation-161114163\359.pptx abcdefghijhemgpresentation-161114163\359.pptx abcdefghijh
emgpresentation-161114163\359.pptx abcdefghijhpiyushbhardwaj93

Fundamentals of nerve conduction study
Fundamentals of nerve conduction studyFundamentals of nerve conduction study
Fundamentals of nerve conduction studyNeurologyKota

Basics of electro myo graphy study (EMG)
Basics of electro myo graphy study (EMG)Basics of electro myo graphy study (EMG)
Basics of electro myo graphy study (EMG)Joe Antony

NEUROMUSCULAR MONITORING
NEUROMUSCULAR MONITORINGNEUROMUSCULAR MONITORING
NEUROMUSCULAR MONITORINGdrdeepak016

Basics of peripheral nerve stimulation
Basics of peripheral nerve stimulationBasics of peripheral nerve stimulation
Basics of peripheral nerve stimulationDrYaminiVS

ELECTROMYOGRAPHY.pptx
ELECTROMYOGRAPHY.pptxELECTROMYOGRAPHY.pptx
ELECTROMYOGRAPHY.pptxBatul Dawoodi

018 neuromuscular monitoring
018 neuromuscular monitoring018 neuromuscular monitoring
018 neuromuscular monitoringbothyshiri

EMG Lecture 10-1-2015.ppt electromyography
EMG Lecture 10-1-2015.ppt electromyographyEMG Lecture 10-1-2015.ppt electromyography
EMG Lecture 10-1-2015.ppt electromyographyPallaviBR4UB20EI021

EMG Final year bpT.pptx
EMG Final year bpT.pptxEMG Final year bpT.pptx
EMG Final year bpT.pptxDrYeshaVashi


Similar to Basic overview of nerve conduction studies (20)

PERIPHERAL NERVES.pptx
PERIPHERAL NERVES.pptxPERIPHERAL NERVES.pptx
PERIPHERAL NERVES.pptx

Nerve conduction studies
Nerve conduction studiesNerve conduction studies
Nerve conduction studies

Interpretation of NCS and EMG
Interpretation of NCS and EMG Interpretation of NCS and EMG
Interpretation of NCS and EMG

E.M.G and N.C.V.pptx
E.M.G and N.C.V.pptxE.M.G and N.C.V.pptx
E.M.G and N.C.V.pptx

Ncs
NcsNcs
Ncs

Nerve conduction study
Nerve conduction studyNerve conduction study
Nerve conduction study

L1- EMG+MNCV.ppt
L1- EMG+MNCV.pptL1- EMG+MNCV.ppt
L1- EMG+MNCV.ppt

L1-_EMGMNCV.power point presentation for ncv
L1-_EMGMNCV.power point presentation for ncvL1-_EMGMNCV.power point presentation for ncv
L1-_EMGMNCV.power point presentation for ncv

emgpresentation-161114163\359.pptx abcdefghijh
emgpresentation-161114163\359.pptx abcdefghijhemgpresentation-161114163\359.pptx abcdefghijh
emgpresentation-161114163\359.pptx abcdefghijh

Emg presentation
Emg presentationEmg presentation
Emg presentation

Additional notes on MG.pptx
Additional notes on MG.pptxAdditional notes on MG.pptx
Additional notes on MG.pptx

Fundamentals of nerve conduction study
Fundamentals of nerve conduction studyFundamentals of nerve conduction study
Fundamentals of nerve conduction study

Basics of electro myo graphy study (EMG)
Basics of electro myo graphy study (EMG)Basics of electro myo graphy study (EMG)
Basics of electro myo graphy study (EMG)

NEUROMUSCULAR MONITORING
NEUROMUSCULAR MONITORINGNEUROMUSCULAR MONITORING
NEUROMUSCULAR MONITORING

Basics of peripheral nerve stimulation
Basics of peripheral nerve stimulationBasics of peripheral nerve stimulation
Basics of peripheral nerve stimulation

ELECTROMYOGRAPHY.pptx
ELECTROMYOGRAPHY.pptxELECTROMYOGRAPHY.pptx
ELECTROMYOGRAPHY.pptx

Basics of emg
Basics of emgBasics of emg
Basics of emg

018 neuromuscular monitoring
018 neuromuscular monitoring018 neuromuscular monitoring
018 neuromuscular monitoring

EMG Lecture 10-1-2015.ppt electromyography
EMG Lecture 10-1-2015.ppt electromyographyEMG Lecture 10-1-2015.ppt electromyography
EMG Lecture 10-1-2015.ppt electromyography

EMG Final year bpT.pptx
EMG Final year bpT.pptxEMG Final year bpT.pptx
EMG Final year bpT.pptx


Recently uploaded

Ready Set Go Children Sermon about Mark 16:15-20
Ready Set Go Children Sermon about Mark 16:15-20Ready Set Go Children Sermon about Mark 16:15-20
Ready Set Go Children Sermon about Mark 16:15-20rejz122017

Molecular docking- Laxman I. Nimbale.pptx
Molecular docking- Laxman  I. Nimbale.pptxMolecular docking- Laxman  I. Nimbale.pptx
Molecular docking- Laxman I. Nimbale.pptxluckynimbale8892

Databricks Machine Learning Associate Exam Dumps 2024.pdf
Databricks Machine Learning Associate Exam Dumps 2024.pdfDatabricks Machine Learning Associate Exam Dumps 2024.pdf
Databricks Machine Learning Associate Exam Dumps 2024.pdfSkillCertProExams

LITTLE ABOUT LESOTHO FROM THE TIME MOSHOESHOE THE FIRST WAS BORN
LITTLE ABOUT LESOTHO FROM THE TIME MOSHOESHOE THE FIRST WAS BORNLITTLE ABOUT LESOTHO FROM THE TIME MOSHOESHOE THE FIRST WAS BORN
LITTLE ABOUT LESOTHO FROM THE TIME MOSHOESHOE THE FIRST WAS BORNtntlai16

BIG DEVELOPMENTS IN LESOTHO(DAMS & MINES
BIG DEVELOPMENTS IN LESOTHO(DAMS & MINESBIG DEVELOPMENTS IN LESOTHO(DAMS & MINES
BIG DEVELOPMENTS IN LESOTHO(DAMS & MINESfuthumetsaneliswa

Using AI to boost productivity for developers
Using AI to boost productivity for developersUsing AI to boost productivity for developers
Using AI to boost productivity for developersTeri Eyenike

STM valmiusseminaari 26-04-2024 PUUMALAINEN Ajankohtaista kansainvälisestä yh...
STM valmiusseminaari 26-04-2024 PUUMALAINEN Ajankohtaista kansainvälisestä yh...STM valmiusseminaari 26-04-2024 PUUMALAINEN Ajankohtaista kansainvälisestä yh...
STM valmiusseminaari 26-04-2024 PUUMALAINEN Ajankohtaista kansainvälisestä yh...Sosiaali- ja terveysministeriö / yleiset

Unlocking Exploration: Self-Motivated Agents Thrive on Memory-Driven Curiosity
Unlocking Exploration: Self-Motivated Agents Thrive on Memory-Driven CuriosityUnlocking Exploration: Self-Motivated Agents Thrive on Memory-Driven Curiosity
Unlocking Exploration: Self-Motivated Agents Thrive on Memory-Driven CuriosityHung Le

The Concession of Asaba International Airport: Balancing Politics and Policy ...
The Concession of Asaba International Airport: Balancing Politics and Policy ...The Concession of Asaba International Airport: Balancing Politics and Policy ...
The Concession of Asaba International Airport: Balancing Politics and Policy ...Kayode Fayemi

ECOLOGY OF FISHES.pptx full presentation
ECOLOGY OF FISHES.pptx full presentationECOLOGY OF FISHES.pptx full presentation
ECOLOGY OF FISHES.pptx full presentationFahadFazal7

2024 mega trends for the digital workplace - FINAL.pdf
2024 mega trends for the digital workplace - FINAL.pdf2024 mega trends for the digital workplace - FINAL.pdf
2024 mega trends for the digital workplace - FINAL.pdfNancy Goebel

Introduction to Artificial intelligence.
Introduction to Artificial intelligence.Introduction to Artificial intelligence.
Introduction to Artificial intelligence.thamaeteboho94

BIG DEVELOPMENTS IN LESOTHO(DAMS & MINES
BIG DEVELOPMENTS IN LESOTHO(DAMS & MINESBIG DEVELOPMENTS IN LESOTHO(DAMS & MINES
BIG DEVELOPMENTS IN LESOTHO(DAMS & MINESfuthumetsaneliswa

globalisation project report displayed overview
globalisation project report displayed overviewglobalisation project report displayed overview
globalisation project report displayed overviewasadzafar8520

SOLID WASTE MANAGEMENT SYSTEM OF FENI PAURASHAVA, BANGLADESH.pdf
SOLID WASTE MANAGEMENT SYSTEM OF FENI PAURASHAVA, BANGLADESH.pdfSOLID WASTE MANAGEMENT SYSTEM OF FENI PAURASHAVA, BANGLADESH.pdf
SOLID WASTE MANAGEMENT SYSTEM OF FENI PAURASHAVA, BANGLADESH.pdfMahamudul Hasan

SaaStr Workshop Wednesdays - RevenueCat.pdf
SaaStr Workshop Wednesdays - RevenueCat.pdfSaaStr Workshop Wednesdays - RevenueCat.pdf
SaaStr Workshop Wednesdays - RevenueCat.pdfsaastr

BEAUTIFUL PLACES TO VISIT IN LESOTHO.pptx
BEAUTIFUL PLACES TO VISIT IN LESOTHO.pptxBEAUTIFUL PLACES TO VISIT IN LESOTHO.pptx
BEAUTIFUL PLACES TO VISIT IN LESOTHO.pptxthusosetemere

"I hear you": Moving beyond empathy in UXR
"I hear you": Moving beyond empathy in UXR"I hear you": Moving beyond empathy in UXR
"I hear you": Moving beyond empathy in UXRMegan Campos


Recently uploaded (20)

Ready Set Go Children Sermon about Mark 16:15-20
Ready Set Go Children Sermon about Mark 16:15-20Ready Set Go Children Sermon about Mark 16:15-20
Ready Set Go Children Sermon about Mark 16:15-20

Molecular docking- Laxman I. Nimbale.pptx
Molecular docking- Laxman  I. Nimbale.pptxMolecular docking- Laxman  I. Nimbale.pptx
Molecular docking- Laxman I. Nimbale.pptx

Databricks Machine Learning Associate Exam Dumps 2024.pdf
Databricks Machine Learning Associate Exam Dumps 2024.pdfDatabricks Machine Learning Associate Exam Dumps 2024.pdf
Databricks Machine Learning Associate Exam Dumps 2024.pdf

in kuwait௹+918133066128....) @abortion pills for sale in Kuwait City
in kuwait௹+918133066128....) @abortion pills for sale in Kuwait Cityin kuwait௹+918133066128....) @abortion pills for sale in Kuwait City
in kuwait௹+918133066128....) @abortion pills for sale in Kuwait City

LITTLE ABOUT LESOTHO FROM THE TIME MOSHOESHOE THE FIRST WAS BORN
LITTLE ABOUT LESOTHO FROM THE TIME MOSHOESHOE THE FIRST WAS BORNLITTLE ABOUT LESOTHO FROM THE TIME MOSHOESHOE THE FIRST WAS BORN
LITTLE ABOUT LESOTHO FROM THE TIME MOSHOESHOE THE FIRST WAS BORN

BIG DEVELOPMENTS IN LESOTHO(DAMS & MINES
BIG DEVELOPMENTS IN LESOTHO(DAMS & MINESBIG DEVELOPMENTS IN LESOTHO(DAMS & MINES
BIG DEVELOPMENTS IN LESOTHO(DAMS & MINES

Using AI to boost productivity for developers
Using AI to boost productivity for developersUsing AI to boost productivity for developers
Using AI to boost productivity for developers

STM valmiusseminaari 26-04-2024 PUUMALAINEN Ajankohtaista kansainvälisestä yh...
STM valmiusseminaari 26-04-2024 PUUMALAINEN Ajankohtaista kansainvälisestä yh...STM valmiusseminaari 26-04-2024 PUUMALAINEN Ajankohtaista kansainvälisestä yh...
STM valmiusseminaari 26-04-2024 PUUMALAINEN Ajankohtaista kansainvälisestä yh...

Unlocking Exploration: Self-Motivated Agents Thrive on Memory-Driven Curiosity
Unlocking Exploration: Self-Motivated Agents Thrive on Memory-Driven CuriosityUnlocking Exploration: Self-Motivated Agents Thrive on Memory-Driven Curiosity
Unlocking Exploration: Self-Motivated Agents Thrive on Memory-Driven Curiosity

The Concession of Asaba International Airport: Balancing Politics and Policy ...
The Concession of Asaba International Airport: Balancing Politics and Policy ...The Concession of Asaba International Airport: Balancing Politics and Policy ...
The Concession of Asaba International Airport: Balancing Politics and Policy ...

ECOLOGY OF FISHES.pptx full presentation
ECOLOGY OF FISHES.pptx full presentationECOLOGY OF FISHES.pptx full presentation
ECOLOGY OF FISHES.pptx full presentation

2024 mega trends for the digital workplace - FINAL.pdf
2024 mega trends for the digital workplace - FINAL.pdf2024 mega trends for the digital workplace - FINAL.pdf
2024 mega trends for the digital workplace - FINAL.pdf

Introduction to Artificial intelligence.
Introduction to Artificial intelligence.Introduction to Artificial intelligence.
Introduction to Artificial intelligence.

BIG DEVELOPMENTS IN LESOTHO(DAMS & MINES
BIG DEVELOPMENTS IN LESOTHO(DAMS & MINESBIG DEVELOPMENTS IN LESOTHO(DAMS & MINES
BIG DEVELOPMENTS IN LESOTHO(DAMS & MINES

Abortion Pills Fahaheel ௹+918133066128💬@ Safe and Effective Mifepristion and ...
Abortion Pills Fahaheel ௹+918133066128💬@ Safe and Effective Mifepristion and ...Abortion Pills Fahaheel ௹+918133066128💬@ Safe and Effective Mifepristion and ...
Abortion Pills Fahaheel ௹+918133066128💬@ Safe and Effective Mifepristion and ...

globalisation project report displayed overview
globalisation project report displayed overviewglobalisation project report displayed overview
globalisation project report displayed overview

SOLID WASTE MANAGEMENT SYSTEM OF FENI PAURASHAVA, BANGLADESH.pdf
SOLID WASTE MANAGEMENT SYSTEM OF FENI PAURASHAVA, BANGLADESH.pdfSOLID WASTE MANAGEMENT SYSTEM OF FENI PAURASHAVA, BANGLADESH.pdf
SOLID WASTE MANAGEMENT SYSTEM OF FENI PAURASHAVA, BANGLADESH.pdf

SaaStr Workshop Wednesdays - RevenueCat.pdf
SaaStr Workshop Wednesdays - RevenueCat.pdfSaaStr Workshop Wednesdays - RevenueCat.pdf
SaaStr Workshop Wednesdays - RevenueCat.pdf

BEAUTIFUL PLACES TO VISIT IN LESOTHO.pptx
BEAUTIFUL PLACES TO VISIT IN LESOTHO.pptxBEAUTIFUL PLACES TO VISIT IN LESOTHO.pptx
BEAUTIFUL PLACES TO VISIT IN LESOTHO.pptx

"I hear you": Moving beyond empathy in UXR
"I hear you": Moving beyond empathy in UXR"I hear you": Moving beyond empathy in UXR
"I hear you": Moving beyond empathy in UXR


Basic overview of nerve conduction studies

  • 1.
  • 2. BASICS OF NCS/EMG BY DR ABDUL ALI. PGR NEUROLOGY DEPARTMENT BMCH QUETTA
  • 3. Electrodiagnostic studies (EDX) • An extension of neurological examination. • Includes • Nerve conduction studies (NCSs), • Needle electromyography (EMG) • Late responses, • Blink reflexes, • Some other specialized examinations. NCSs and needle • EMG form the core of the EDX studies.
  • 4. Cont.. • NCSs and EMG to diagnose • peripheral nervous system diseases • Primary motor neurons (anterior horn cells), • Primary sensory neurons (dorsal root ganglia), • Nerve roots, • Brachial and lumbosacral plexuses, • Peripheral nerves, • Neuromuscular junctions (NMJs), and muscles.
  • 5. Basic mechanism. • Neurophysiology of Axon. • The specialized axonal membrane • Always impermeable to large negatively charged anions(inside axon). • Relatively impermeable to sodium in the resting state. • Membrane + active Na+/K+ pump = move sodium outside in exchange for potassium, leads to concentration gradients across the membrane = resting membrane potential.
  • 6. Cont.. • RMP = -70 to -90mV. • axonal membrane = voltage-gated sodium channels • controlled by a voltage sensor = responds to the level of the membrane potential. • current is injected into the axon, Voltage gated Na+ chennals open (i.e., the axon becomes more positive internally). • Threshold = 10 to 30mV = Action potential.
  • 7. Recording NCS/EMG • NCS = surface electrodes over the skin, • EMG potentials = needle electrode placed within the muscle • Both intracellular electrical potentials are transmitted through tissue to the recording electrodes. • volume conduction . The process of an intracellular electrical potential being transmitted through extracellular fluid and tissue .
  • 8. Volume conduction recording. Near field potential • Close to the source of current • Wave character = distance b/t source of current and rec electrodes (A.P) • Routine NCS EMG are Volume Conducted near field potential. Far field potential • Electrical potentials that are distributed widely and instantly. • Two recording electrodes, one closer and the other farther from the source, essentially see the source at the same time.
  • 9. Volume Conducted near field potential • Produce a characteristic triphasic waveform as an advancing action potential approaches and then passes beneath and away from a recording electrode. • Sensory and mixed nerve studies. • Initial positive phase = Negative phase = Trailing positive tive phase. • If a volume-conducted, near-field action potential begins directly under the recording electrode, the initial deflection will be negative = Biphasic waveform= negative phase followed by positive phase.
  • 10.
  • 11. Principles of stimulation • Supramaximal stimulation current intensity is slowly increased until the amplitude of the recorded potential reaches a plateau. The current intensity then is increased an additional 20%–25% to ensure that the potential no lon-ger increases. It is only at this point that supramaximal stimulation is achieved. • Optimize the stimulation site • placement of the stimulator at the optimal location directly over the nerve, which yields the highest CMAP amplitude with the least stimulus intensity
  • 12. Motor conduction studies. • Range of several millivolts (mV), • [sensory and mixed nerve responses are in the microvolt (μV) range]. • Gain usually is set at 2–5 mV per division. • Active electrode = on belly of muscle • Reference electrode = tendon of muscle. • Stimulator then is placed over the nerve that supplies the muscle, with the cathode placed closest to the recording electrode
  • 13. Cont... • Duration of the electrical pulse = 200 ms. • Most normal nerves = 20–50 mA to achieve supramaximal stimulation. • Summation of all underlying individual muscle fiber action Potential = compound muscle action potential (CMAP). • CMAP = biphasic potential with an initial negativity followed by positivity if the recording electrodes have been properly placed.
  • 14. Latency. (Motor)(Time period) • Time from the stimulus to the initial CMAP deflection from baseline. • Represents three separate processes: • (1) the nerve conduction time from the stimulus site to the neuromuscular junction (NMJ), • (2) the time delay across the NMJ, • (3) the depolarization time across the muscle. • Latency measurements usually are made in milliseconds (ms) and reflect only the fastest conducting motor fibers.
  • 15. Amplitude (motor)(# of N. fiber) • CMAP amplitude measured from baseline to the negative peak., or negative to positive peak. • Reflects the number of muscle fibers that depolarize. • Low CMAP amplitudes = loss of axons (as in a typical axonal neuropathy), • Other causes of a low CMAP amplitude • 1 = conduction block from demyelination located between the stimulation site and the recorded muscle, • 2 = some NMJ disorders
  • 16. Area • CMAP area = area above the baseline to the negative peak. • A negative peak CMAP area is another measure reflecting the number of muscle fibers that depolarize. • Differences in CMAP area between the distal and proximal stimulation sites take on special significance in the determination of conduction block from a demyelinating lesion.
  • 17. Duration • CMAP duration usually is measured from the initial deflection from baseline to the first baseline crossing. • Duration is primarily a measure of synchrony, i.e., the extent to which each of the individual muscle fibers fire at the same time. • Duration characteristically increases in conditions that result in slowing of some motor fibers but not others (e.g., in a demyelinating lesion).
  • 18.
  • 19. Conduction velocity • The speed of the fastest conducting motor axons in the nerve being studied, • C V = distance traveled by impulse ÷ time. • Tow stimulation sites Proximal and distal. • Area, amplitude and duration same in Proximal and Distal stimulation sites. • Latency (time) is more in Proximal site than distal . • Conduction velocity = (distance between the proximal and distal stimulation sites) divided by (proximal latency minus distal latency). • Measured in meters per second (m/s).
  • 20.
  • 21. Sensory conduction studies. • Range in microVolts. • Gain usually is set at 10–20 μV per division. • Electrical pulse of 100 or 200 ms in duration. • Normal sensory nerves require a current in the range of 5–30 mA to achieve supramaximal stimulation. • Sensory nerve action potential (SNAP), is a compound potential that represents the summation of all the individual sensory fiber action potentials. • Biphasic or triphasic.
  • 22. Latency • Onsets latency • Time from initial stimulus to negative deflection from baseline or initial positive peak. • Conduction time in Large sensory fibers in nerves being studied. • Peak latency • Time from the stimulus to the midpoint of the first negative peak. • No interindividual variation in its determination. • No C.V. • No population of N.fibers can be determined.
  • 23.
  • 24. Amplitude (SNAP) • SNAP amplitude = baseline to negative peak, but it can also be measured from the first negative peak to the next positive peak. • Reflects the sum of all the individual sensory fibers that depolarize. • Low SNAP amplitudes indicate a definite disorder of peripheral nerve.
  • 25. Duration • SNAP duration is usually measured from the onset of the potential to the first baseline crossing. • Relatively shorter than CMAP duration (1.5 vs 5—6) • Duration helps identify a potential as a true nerve potential rather than a muscle potential
  • 26. Conduction velocity (SNAP) • Sensory conduction velocity determined with one stimulation, simply by dividing the distance traveled by the onset latency. • Speed of the fastest, myelinated cutaneous sensory fibers in the nerve being studied. • Stimulus = AP = runs in both directions in sensory nerves • Can be calculated by antidromic and orthodromic methods
  • 27. Antidromic. Orthodromic. • Stimulating toward the sensory receptor. • Amplitude is higher and directly proportional to the proximity of the recording electrode to the underlying nerve. • Small potentials, often pathological. • But CMAP= difficulty to identify latency. • Stimulating away from the sensory receptors. • Amplitude is lower because recording electrode is away from underlying nerve. • No CAMP, only specific sensory latency.

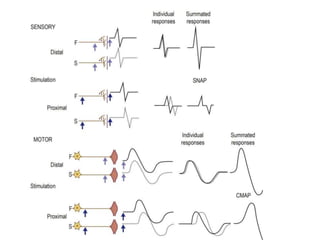

  • 28. Temporal Dispersion and Phase Cancellation • Within any sensory nerve, there are large, medium, and smaller myelinated fibers, which depolarize and conduct at slightly different velocities. • Larger, faster fibers depolarize before smaller, and slower ones. leading to increased duration and temporal dispersion of the waveform • Large fibers = neg duration = 0.5 ms • Small fibers = negative duration 1.3 ms
  • 29. Cont... • After the first 0.5 ms, the trailing positive phase of the fastest potential overlaps with the leading negative phases of the slower fibers, phase cancellation occurs resulting in a smaller summated potential. • Results in decrease in area and amplitude.
  • 30.
  • 31. Axonal loss pattern • Reduced amplitude is the primary abnormality associated with axonal loss. • Conduction velocity is normal, provided that the largest and fastest conducting axons remain intact. ( 65 m/s) • Conduction velocity decrease to lower normal if large and fast conducing fibers are damaged with slower fibers intact. ( 35m/s). • Latency normal or slightly increased , not more than 130% of normal upper limit. • Normal NCS if wallerian degeneration not
  • 32.
  • 33. Demyelination pattern • Demyelination = marked slowing of conduction velocity (slower than 75% of the lower limit of normal). • Marked prolongation of distal latency (longer than 130% of the upper limit of normal). • Any motor, sensory, or mixed nerve conduction velocity that is slower than 35 m/s in the arms or 30 m/s in the legs signifies unequivocal demyelination. • Temporal dispersion.
  • 34. Conduction block. • Decrease in CMAP amplitude of more than 20% denotes conduction block. • More than 50% drop in area between proximal and distal stimulation sites should be used to define electrophysiologic conduction block.
