Barcodes are codes represented by lines that identify products through a barcode scanner connected to a computer system. Barcodes use varying widths of black and white lines or spaces to represent numbers and letters. There are different types of barcodes like linear barcodes, which use combinations of narrow and wide bars, and 2D barcodes, which can represent more data in a given area. Barcodes are read by scanning the lines with light and measuring the white spaces and black bars to decode and process the data they represent. They provide benefits like increased speed and accuracy of data entry over manual systems. However, barcodes can be damaged or not scan if the label is on an oddly shaped product.

1. Barcodes and barcode
scanners
Ayo ogunwuyi

2. What are barcodes
Barcodes are simply information on a product disguised in
code spaces used to identify products in stores . The lines
in a bar code represent numbers and letters which, when
read by a bar code scanner, can be decoded, recorded and
processed by a computer system

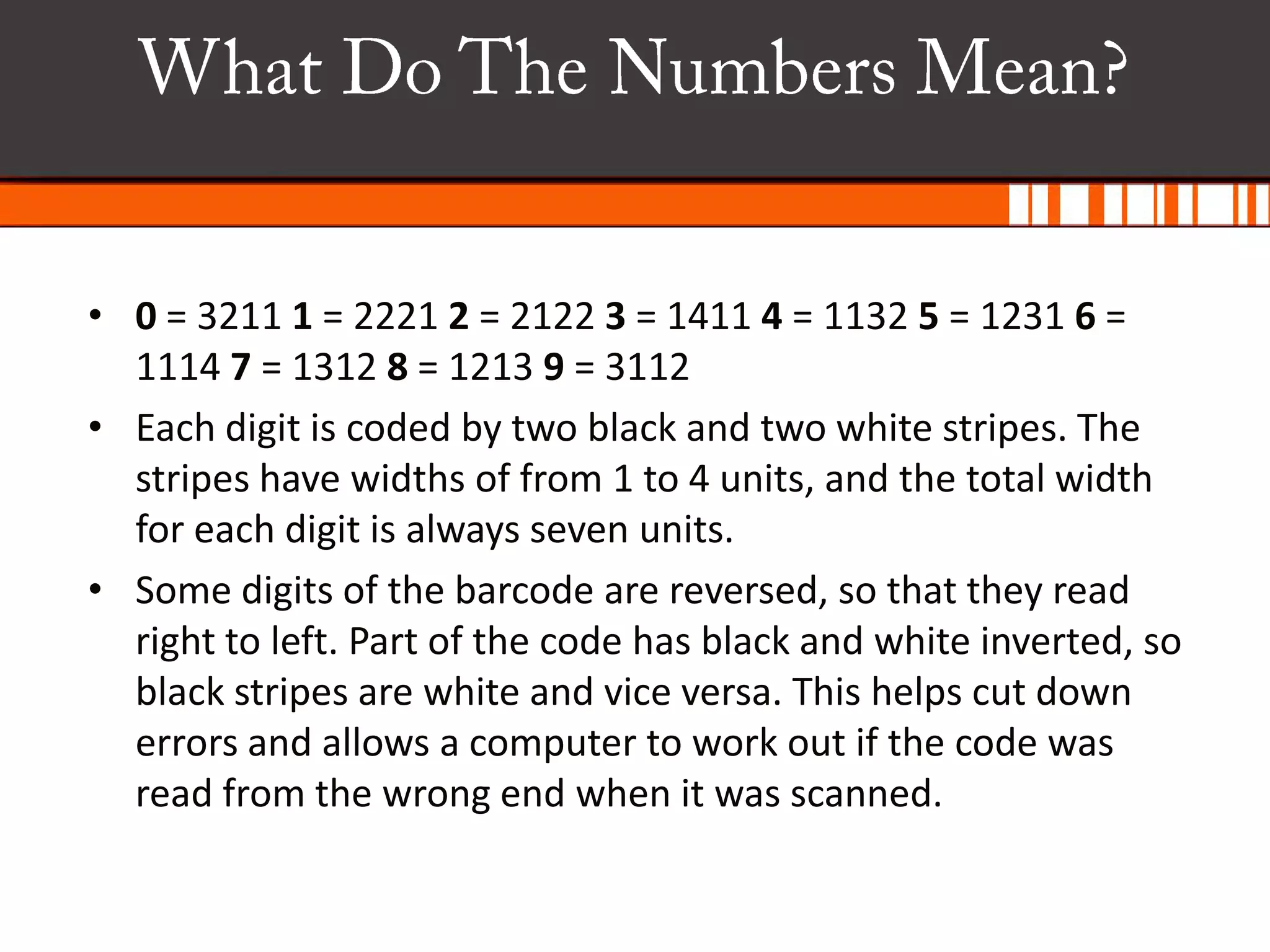

3. • 0 = 3211 1 = 2221 2 = 2122 3 = 1411 4 = 1132 5 = 1231 6 =
1114 7 = 1312 8 = 1213 9 = 3112
• Each digit is coded by two black and two white stripes. The
stripes have widths of from 1 to 4 units, and the total width
for each digit is always seven units.
• Some digits of the barcode are reversed, so that they read
right to left. Part of the code has black and white inverted, so
black stripes are white and vice versa. This helps cut down
errors and allows a computer to work out if the code was
read from the wrong end when it was scanned.

4. • Linear barcodes-are created by translating the
supported characters that should be displayed
into combination of narrow and wide bars
which are combined into a barcode.
• Matrix (2D) barcodes-is a two-dimensional
way to represent information. It is similar to a
linear (1-dimensional) barcode, but can
represent more data per unit area.

5. Of Barcodes
Some examples include:
Linear barcodes 2D barcodes
Code 128 Barcode types and use
Data Matrix
UPC PDF417
Interleaved 2 of 5 Maxi code
Data Matrix is used for automotive item identification
UPC/EAN is used for Items for sale worldwide
Maxi code is used for US Department of defense
Code 128 is used for Shipping cartons

6. • Barcodes can be read by shining a light across the stripes or
by scanning the stripes like they do in grocery stores. A video
image is captured and measures the lengths of the white
spaces and black bars. They are then analyzed and data are
decoded, stored and processed.

7. •
•
•
•

8. •Time/Accuracy of data input.
• Speed of entering data into your computer
system.
• Timeliness of information for more
effective management of resources,
inventories, etc.
• Labor savings realized through elimination
of manual systems.

9. • Damaged Labels
• Upfront Cost
• Printer Requirements
• Odd Shaped Merchandise

10. Barcodes: Color & Contrast
Good

11. Barcodes: Color & Contrast
Bad

12. Bibliography
http://www.slideshare.net/MaxineHorn/creativ
e-barcode-presentation-2011
http://www.activebarcode.com/howto/powerp
oint2010.html
http://www.barcodeman.com/info/color_bc.ph
p
