Who are VisionID?
Founded in 2000, VisionID Ltd. is a 100% Irish owned company that has successfully positioned itself as Ireland’s leading provider of solutions to
the Life Sciences arena utilising technologies such as Barcode, Data Capture, Mobile Computing and Wireless Networks.

Our product portfolio incorporates:

ƒ Rugged Mobile Computing Solutions ƒ Vision Systems
ƒ Barcode Scanning & Verification ƒ RFID (Radio Frequency Identification) Solutions
ƒ Barcode Label Printing ƒ Direct Part Mark Solutions
ƒ MES / ERP Integrated Systems ƒ Atex Compliant Equipment
ƒ ePedigree & Serialisation ƒ VisionID possess close relationships with the world leading
ƒ Label Validation / Verification manufacturers such as Motorola, Zebra, Cognex and Intermec.
Coupled with the hardware element we use our Professional Services Team to address key client requirements such as:
ƒ Service & Support – once a solution is installed we offer a range of different Service options to ensure the system continues to work
ƒ Installation and Configuration of the relevant hardware. We possess a particular expertise in Wireless Networks and Security.
ƒ Training – we can train our end users across the full product range we provide.
ƒ Software Solutions, both Custom and “Off the Shelf” – addressing areas such as Inventory/Warehouse Management, Asset Management
and Mobile Paper based applications.

VisionID Life Sciences Specialties
VisionID specialise in the provision of Traceability and Mobile Enablement solutions. From the moment raw materials are received, to the moment
finished goods are shipped, VisionID’s Life Sciences Solution Set improves quality and compliance.

By combining Handheld Mobile Computing and Barcode Scanning/Printing technologies VisionID’s Life Sciences Solution Set allows you to track
and trace by lot or batch the parts used in your manufacturing process to ensure traceability across the supply chain.

VisionID has solutions to improve efficiency and quality throughout the manufacturing and supply chain processes. Wherever testing, tracking,
recording, documentation, production, or packaging takes place, VisionID solutions provide the control and accuracy your industry demands. From
our industrial grade bar code readers to the industry’s most advanced mobile computers, VisionID’s Solution Set will integrate smoothly into your
existing IT backbone while keeping you ahead of the technology curve.

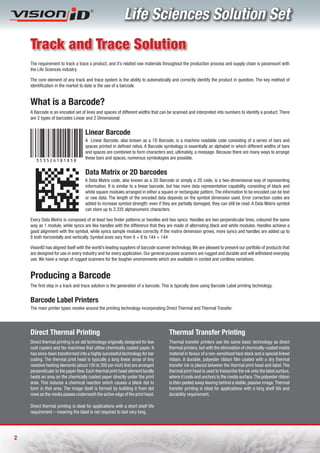

Track and Trace Solution
The requirement to track a trace a product, and it’s related raw materials throughout the production process and supply chain is paramount with
the Life Sciences industry.

The core element of any track and trace system is the ability to automatically and correctly identify the product in question. The key method of
identification in the market to date is the use of a barcode.

What is a Barcode?
A Barcode is an encoded set of lines and spaces of different widths that can be scanned and interpreted into numbers to identify a product. There
are 2 types of barcodes Linear and 2 Dimensional:

Linear Barcode
A Linear Barcode, also known as a 1D Barcode, is a machine readable code consisting of a series of bars and
spaces printed in defined ratios. A Barcode symbology is essentially an alphabet in which different widths of bars
and spaces are combined to form characters and, ultimately, a message. Because there are many ways to arrange
these bars and spaces, numerous symbologies are possible.
3535261818 5 8

Data Matrix or 2D barcodes
A Data Matrix code, also known as a 2D Barcode or simply a 2D code, is a two-dimensional way of representing
information. It is similar to a linear barcode, but has more data representation capability, consisting of black and
white square modules arranged in either a square or rectangular pattern. The information to be encoded can be text
or raw data. The length of the encoded data depends on the symbol dimension used. Error correction codes are
added to increase symbol strength: even if they are partially damaged, they can still be read. A Data Matrix symbol
can store up to 2,335 alphanumeric characters.

Every Data Matrix is composed of at least two finder patterns or handles and two syncs. Handles are two perpendicular lines, coloured the same
way as 1 module, while syncs are like handles with the difference that they are made of alternating black and white modules. Handles achieve a
good alignment with the symbol, while syncs sample modules correctly. If the matrix dimension grows, more syncs and handles are added up to
8 both horizontally and vertically. Symbol sizes vary from 8 × 8 to 144 × 144

VisionID has aligned itself with the world’s leading suppliers of barcode scanner technology. We are pleased to present our portfolio of products that
are designed for use in every industry and for every application. Our general purpose scanners are rugged and durable and will withstand everyday
use. We have a range of rugged scanners for the tougher environments which are available in corded and cordless variations.

Producing a Barcode
The first step in a track and trace solution is the generation of a barcode. This is typically done using Barcode Label printing technology.

Barcode Label Printers
The main printer types revolve around the printing technology incorporating Direct Thermal and Thermal Transfer.

Direct Thermal Printing Thermal Transfer Printing
Direct thermal printing is an old technology originally designed for low Thermal transfer printers use the same basic technology as direct
cost copiers and fax machines that utilise chemically coated paper. It thermal printers, but with the elimination of chemically-coated media
has since been transformed into a highly successful technology for bar material in favour of a non-sensitised face stock and a special linked
coding. The thermal print head is typically a long linear array of tiny ribbon. A durable, polyester ribbon film coated with a dry thermal
resistive heating elements (about 100 to 300 per inch) that are arranged transfer ink is placed between the thermal print head and label. The
perpendicular to the paper flow. Each thermal print head element locally thermal print head is used to transcribe the ink onto the label surface,
heats an area on the chemically coated paper directly under the print where it cools and anchors to the media surface. The polyester ribbon
area. This induces a chemical reaction which causes a black dot to is then peeled away leaving behind a stable, passive image. Thermal
form in that area. The image itself is formed by building it from dot transfer printing is ideal for applications with a long shelf life and
rows as the media passes underneath the active edge of the print head. durability requirement.

Direct thermal printing is ideal for applications with a short shelf life
requirement – meaning the label is not required to last very long.

2

Contact Us:
Labels
Labels come in many different formats and a multiple of options. Some of the key factors when choosing the correct label printer are:
ƒ Volume of labels required to print. ƒ Label Size, particularly the width. Most popular is 4 inch
ƒ Type of material that the label is composed of ƒ Environment it is used in
ƒ The graphics or text being printed

The simplest breakdown of label printer types, available across the manufacturers is:

Desktop Label Printers
Desktop Label Printers are ideal for small usage applications which
roughly require 500 2”x4” labels per day. Casings tend to be plastic
and therefore not ideal for the more industrial applications

Mobile Label Printers
Mobile Label Printers are more and more popular due to the flexibility
they can bring to applications. When configured with options such as
Bluetooth or wireless connectivity are prevalent in applications such as
Field Force Automation, Retail, Hospitality and Services. These printers
have the capability of using a varied choice of receipt and label media.

Mid – Range Label Printers
Mid – Range Label Printers are applicable to most industries as they
can handle larger volumes and also more rugged casings than the
desktop ranges. Depending on the printer you could comfortably handle
anywhere up to 5,000 labels per day.

High-End Label Printers
High-End Label Printers are generally used in mission critical or very high
volume printing most commonly found in production or warehousing
applications. Capable of operating 24 hours a day and with a multiple
of options to handle the most delicate of label formats.

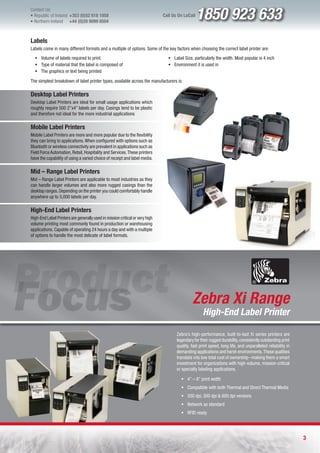

Zebra Xi Range
High-End Label Printer

Zebra’s high-performance, built-to-last Xi series printers are
legendary for their rugged durability, consistently outstanding print
quality, fast print speed, long life, and unparalleled reliability in
demanding applications and harsh environments. These qualities
translate into low total cost of ownership –making them a smart
investment for organizations with high-volume, mission-critical
or specialty labeling applications.

ƒ 4” – 8” print width
ƒ Compatible with both Thermal and Direct Thermal Media
ƒ 200 dpi, 300 dpi & 600 dpi versions
ƒ Network as standard
ƒ RFID ready

3

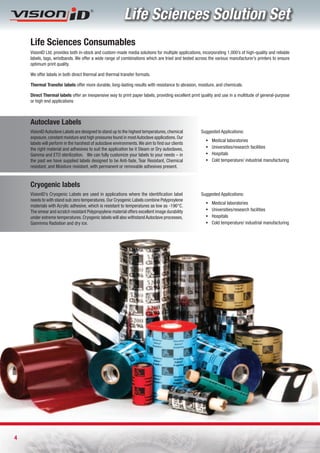

Life Sciences Consumables
VisionID Ltd. provides both in-stock and custom-made media solutions for multiple applications, incorporating 1,000’s of high-quality and reliable
labels, tags, wristbands. We offer a wide range of combinations which are tried and tested across the various manufacturer’s printers to ensure
optimum print quality.

We offer labels in both direct thermal and thermal transfer formats.

Thermal Transfer labels offer more durable, long-lasting results with resistance to abrasion, moisture, and chemicals.

Direct Thermal labels offer an inexpensive way to print paper labels, providing excellent print quality and use in a multitude of general-purpose
or high end applications

Autoclave Labels
VisionID Autoclave Labels are designed to stand up to the highest temperatures, chemical Suggested Applications:
exposure, constant moisture and high pressures found in most Autoclave applications. Our
ƒ Medical laboratories
labels will perform in the harshest of autoclave environments. We aim to find our clients
the right material and adhesives to suit the application be it Steam or Dry autoclaves, ƒ Universities/research facilities
Gamma and ETO sterilization. We can fully customize your labels to your needs – in ƒ Hospitals
the past we have supplied labels designed to be Anti-fade, Tear Resistant, Chemical ƒ Cold temperature/ industrial manufacturing
resistant, and Moisture resistant, with permanent or removable adhesives present.

Cryogenic labels
VisionID’s Cryogenic Labels are used in applications where the identification label Suggested Applications:
needs to with stand sub zero temperatures. Our Cryogenic Labels combine Polyproylene
ƒ Medical laboratories
materials with Acrylic adhesive, which is resistant to temperatures as low as -196°C.
The smear and scratch resistant Polypropylene material offers excellent image durability ƒ Universities/research facilities
under extreme temperatures. Cryogenic labels will also withstand Autoclave processes, ƒ Hospitals
Gammma Radiation and dry ice. ƒ Cold temperature/ industrial manufacturing

4

Contact Us:
Sizes and Shapes
Specific applications generally require specific consumables. VisionID can access an extensive library of standard dies for manufacturing die-cut,
pressure-sensitive labels. These dies range in shape and size to produce anything from tiny, round-edge hang tags to large chemical drum labels.
We can often save you the time and expense of having to create a new die by using one that exists in our vast library of rotary dies. If necessary,
a new die can be produced quickly and economically.

Pre-printed Labels
VisionID preprint information - corporate logos in custom colours, company addresses, product illustrations, or standardised forms on nearly all of
our materials. We can provide print to your specifications using up to six Pantone Matching System (PMS) inks and we can also flood coat materials
to produce coloured labels.

Label Adhesives
VisionID can offer a variety of adhesives to meet your application requirements. Some are permanent; others are removable, patterned, or tamper-
evident. We’ll recommend an adhesive that will work with your facestock, in your environment, on your labelling surface.

Ribbons
VisionID provide Thermal Transfer Ribbons for all leading brands including Zebra, Intermec, Datamax, and TEC.

We can assure you that using our expertise we can provide the appropriate thermal transfer ribbon for your application, available in wax, resin, or
wax/resin formulations. You can be assured that when used together, our combination of ribbons and labels will provide optimal performance and
can go a long way to extend the life of your printhead.

Wax - We can offer several performance wax ribbons formulated for high-quality printing on
both coated and uncoated paper facestocks.

Wax/Resin – These ribbons are formulated to offer high-quality, durable barcodes, text, and
graphics on coated paper facestocks and synthetic materials.

Resin - ribbons provide exceptional solvent resistance for the harshest environments.

RFID Supplies
VisionID can supply a variety of RFID consumables for use in the Life Sciences arena.

RFID labels & label printing supplies for the Irish business and manufacturing sectors. VisionID
provides many combinations of supplies for every budget and need including attachable,
implantable and insertion tags in Low Frequency (LF), High Frequency (HF) and Ultra High
Frequency (UHF) formats.

Tags
VisionID has the right tag that will withstand high heat, chemicals, and solvents and can offer
both direct thermal and thermal transfer version.

5

Reading a Barcode
A barcode scanner is an electronic device for reading printed barcodes . Like a flatbed scanner, it consists of a light source, a lens and a light sensor
translating optical impulses into electrical ones. Additionally, nearly all barcode readers contain decoder circuitry analyzing the barcode’s image
data provided by the sensor and sending the barcode’s content to the scanner’s output port, typically USB, RS232 or PS2.

Types of Barcode Scanners:
Handheld Barcode Scanners
Handheld Barcode Scanners are best used in applications where the user is required to scan items of varying shapes or sizes, or may be at a
distance from the operator, such as pallet stored on the top of a warehouse rack. Primary Barcode Scanner Types:

Corded Barcode Scanners
This type of scanner is connected directly to a defined workstation, using different cable combinations. USB is now the most popular, but other
options are available such as PS/2, AT/XT, RS232 etc.

Cordless Barcode Scanners
Cordless scanners allow the user to roam up to a 50 feet radius, by transmitting the scanned information to its cradle, via Bluetooth or Wireless,
which is in turn connected directly to the defined workstation.

Dataman 100/200 Series
Fixed-Mount ID Readers

The DataMan 100 Series readers feature the industry leading reading performance in the same exceptionally small product
size as the DataMan 200 Series with USB and RS-232 communication options. The DataMan 100 Series readers are ideal
for integration into challenging applications on the factory floor that require the highest performance in very limited space.

ƒ Three-position adjustable lens
ƒ Integrated lighting and LED aimer
ƒ Train and trigger button for ease of setup
Can also use standard C-Mount lenses as an option The DataMan 200 Series readers feature the industry leading reading
performance of the DataMan readers with the addition of Ethernet connectivity and the world’s first
introduction of variable focus, liquid lens technology to a fixed-mount reader product.

ƒ POE Ethernet Connectivity–allows for real-time data and image transfer, and
easier integration with plant controllers and information networks.
ƒ Optional Variable Focus, Liquid Lens Technology–autofocus is achieved
with a single software command; there is no need to manually adjust
the focus on the line.
ƒ Laser aiming–easily seen through the entire depth of field, enabling
operators to quickly position the code to the reader.
ƒ Integrated–lighting, camera, processor, and communications all in an
exceptionally small, industrial-rated housing.

6

Contact Us:
Fixed Position Barcode Scanners
Fixed Position scanners are typically used in applications where accurate, unattended automated data entry is required, such as tracking items
throughout a manufacturing line, or machine-sortation of packages along a conveyor belt. Fixed Position scanners are available in short or long
working distances for greater flexibility. Typically, omni-directional or rastering style scanners are used, enabling items to pass and to be read
without precise positioning of the barcodes, resulting in accurate first-pass scans

Direct Part Marking
In many situations a standard printed barcode label will not withstand the rigours of the product environment. In these situations using a Direct
Part Mark is the optimum solution. VisionID possesses a particular expertise within this field.

Tracking individual components can be a costly proposition when standard product labeling techniques fail to measure up over time. Direct Part
Marking (DPM) provides a permanent marking solution that ensures readability throughout the life of your products, even when subjected to harsh
environments during the manufacturing process.

This method of identification is becoming very popular in the Life Sciences sector, because of the durability and longevity of the mark, be it barcode,
both linear and 2D Data Matrix or pure text.

There are many business benefits to the implementation of Direct Part Marking:
ƒ True “Cradle to Grave” traceability of product
ƒ Improvement of Manufacturing Processes
ƒ Identification of quality defects throughout the Manufacturing Process
ƒ Eliminates Manual Data Entry and therefore Human Error
ƒ Supports Data Logging and Automatic Data Collection
ƒ Consequently reducing the overall cost of manufacturing

Types of Direct Part Marking
Initially, the code has to be marked in some way and the method is dependent on the material to be marked, the required lifespan of the mark,
the accessibility of the area to be marked, production speed / volume etc. The most common methods of marking are Laser-etching, Dot peening,
Ink-jetting and Chemical-etching.

Dot Peening
Dot Peening is achieved by pneumatically or electromechanically striking a carbide- or diamond tipped stylus
against the material being marked.

Advantages: Low initial cost, permanent mark
Disadvantages: Slow, Contact / Impact marking

Laser Etching
Laser Etching applies heat to the surface of the material that causes the surface of the part to melt, vaporise or
change in some way to produce a mark.

Advantages: High quality mark, non-contact, permanent mark
Disadvantages: High initial cost

Ink Jet Printers
Ink Jet Printers precisely propel ink drops to the part surface, after which the fluid evaporates and leaves a coloured
die that creates the pattern of modules that make up the mark.

Advantages: High speed, low initial cost, non-contact
Disadvantages: Consumable costs, less permanent

Electro-Chemical Etching
Electro-Chemical Etching is a process whereby the mark is produced by oxidizing metal from the surface being
marked through a stencil impression.

Advantages: Low initial cost, not surface-changing
Disadvantages: Slow, consumable costs

Do you need to etch your products? Contact us today to discuss.

7


Medical Device Manufacturer
Vertical: Medical Device Manufacturing Territory: Nationwide

About
A top international medical device company had its first International
manufacturing facility established in Ireland over 10 years ago. The company
is a worldwide developer, manufacturer and marketer of medical devices
with approximately 28,000 employees and revenue in excess of $6 billion

The Requirement
As a world leading manufacturer of medical devices the requirement
for state of the art AutoID equipment is crucial, especially in the intense
environments to which this equipment will be used. VisionID was asked
to supply a suitable solution that would allow barcode label printing for
the cleanroom and warehouse environments, as well as supplying label
solutions for each printer that would adhere to the company’s strict
validation process.

Secondary to this company’s requirements was a series of barcode readers
that would allow for the accurate reading of printed barcodes as well as
etched DPM (direct part mark) 2D codes which were being etched to
the surface of medical device product, the accurate reading of the DPM
would be carried out during the manufacturing process and would prove
to be a key component due to the quantity and quality of the information
being recorded.

DPM (Direct Part Marking) provides a permanent marking solution that
ensures readability throughout the life of a product, even when subjected
to harsh environments. The most common methods of marking are laser-
etching, Dot peening, Ink-jetting and Chemical-etching.

Knowing that VisionID had a good working relationships with the worlds
leading manufacturers of Auto ID solutions, as well as having a dedicated
Service and Support department it was easy for this multi national
manufacturer to choose VisionID as it’s supplier of AutoID solutions.

Printer Solution
For best printing quality that would prove fast, accurate and economical VisionID chose to supply Zebra 105SL, 170xiIII and TLP2844 label printers.
Each printer had its own unique characteristic that best addressed the atmospheres it was located in as well as the printing requirement.

The Zebra 105SL combines enhanced memory, processing capability and
features with rugged and reliable all-metal construction. Proven platform
longevity plus fast processing and print speed make it the choice of experienced
users who value reliability, productivity, consistent print quality, network
compatibility and superior service and support.

The industrial-strength Zebra 170XiIIIPlus with 203 or 300 dpi print resolution
can print large volumes labels up to 6.6 inches (168 mm) wide at 12 inches
per second, promoting greater productivity with less roll changes or execute
intricate, high resolution print applications. With its all metal construction, this
printer is ideal for tough applications including compliance labels, product
identification labels and pallet shipping/receiving labels, either on demand
or in batches.

8

Contact Us:
The direct thermal Zebra
TLP2844 barcode label printer
is ideal for applications requiring
a space-saving, desktop-size,
4.09” (104 mm) printer. This
user-friendly printer delivers
optimal performance in today’s
on-demand desktop labeling
applications. The TLP2844 has a
sturdy construction with a double-
walled ABS casing.

Barcode Scanners
A number of barcode scanners were commissioned for use throughout
the manufacturing facilities. The core requirement was for fast and
accurate scanning of linear barcodes however a specific requirement
for scanning of etched DPM 2D barcodes was specified, VisionID were
happy to oblige.

Motorola/Symbol LS 2208, an Motorola/Symbol LS4208 - This
affordable handheld barcode handheld laser scanner delivers
scanner providing fast and exceptional performance in a
reliable scanning in an ergonomic, very small package. A single
lightweight form. Ideal for the circuit board design ensures
warehouse setting due to its sturdiness and an ergonomic
durable working range, from near- shape maximises user comfort.
contact to 17 inches (43cm) away. Data capture is easy due to one-
Multiple on-board interfaces will pass scanning technology with
ensure integration with a variety multi-line rastering scan pattern.
of host systems.

The Symbol DS6707-DPM is a The Cognex DataMan 8500
premier general purpose scanner, readers incorporate Cognex’s
offering the maximum in data patented UltraLight® technology
capture flexibility. The Symbol for superior image formation
DS6707-DP is able to capture on any mark type and surface.
images and read virtually all 1D UltraLight illumination provides
and 2D bar codes and direct part dark field, bright field and diffuse
marks (DPM), including the most lighting all in one electronically
challenging mark, dot peen. This controlled light. This enable the
highly versatile device is ideal Dataman 8500 to read everything
in industries that depend on a from the most challenging DPM
wide variety of data types, such codes to the easiest printed
as healthcare, aerospace and barcodes.
automotive.

The Outcome
VisionID were quick to grasp the requirements of this manufacturer and absorb the underlying issues
of quality that is inherent in the medical device manufacturing process. Because of VisionID’s expertise
in this arena it was able to advise on best printing and scanning solutions that would adhere to the
quality, accuracy and compatibility issues outlined.

A detailed understanding of DPM technology allowed VisionID to educate this manufacturer on all issues
concerning and to advise on best technology solutions that would lead to world class manufacturing
processes that adhered to the most stringent of requirements laid down by the industry’s regulatory
bodies.

9


Dataman 8000 Series
Handheld DPM Reader

The most advanced handheld ID reader ever
The rugged DataMan® 8000 Series of readers offers the industry’s most
advanced technology for reading 1D and 2D codes regardless of size, quality,
printing method or surface, and is the only handheld ID reader that offers
Industrial Ethernet communication and liquid lens technology.

Superior Code Reading Performance for Optimum Read Rates
The DataMan 8000 Series of handheld industrial ID readers features patented
IDMax® technology and two powerful algorithms, 1DMax™ and 2DMax™, to
decode virtually every type of code, every time, with unsurpassed read rates.

1DMax Technology
For 1D barcodes, the 1DMax algorithm is our best-in-class reading tool
optimised for omnidirectional barcode reading that can handle extreme
variations.

2DMax Technology
For 2D codes, 2DMax technology pioneered the adoption of 2D Data Matrix
coding in many industries for direct part marking (DPM) and high speed
printed applications.

Liquid Lens Technology = Automatic Variable Focus for all Applications

The new DataMan 8000 Series is the first to offer integrated liquid lens
technology in an industrial handheld ID reader. The adjustable focus of the
liquid lens gives maximum depth of field flexibility enabling you to use the
system close up for very small 2D direct part marks as well as at a greater
distance to read longer 1D barcodes, with extremely fast response times.

Industrial Ethernet and Modular Communications
for Maximum Flexibility
The DataMan 8000 Series of ID readers is also the first
handheld reader to offer Ethernet communication capability
for easy integration into your factory network for real-time
product and part traceability.

Another first for the DataMan 8000 Series is the modularity of
the communication. Customers can install their readers with
the RS-232/USB communication module for their needs today
and then simply purchase the Ethernet module at a later date
if their communications needs change. The DataMan 8000
Series interchangeable communication modules enable the
additional benefit of standardisation on one reader platform.

10

Contact Us:
DPM Verification
Verification is required in many instances to check the quality
of code, particularly at time of marking.

This can provide immediate feedback as to any changes to
the marking process. For example, the Verifier can monitor tip
wear on a dot peen machine by monitoring dot size, and flag
the operator.

At the marking stage, during the manufacturing process and
throughout the products lifecycle, the mark will be required to
be read. Depending on the situation and the environment, this
could be with a handheld reader tethered to a host computer
or with a remote Bluetooth connection. The information could
be gathered with a Mobile Computer with inbuilt reader and
wirelessly transmitted back to the host. Fixed Position readers
are used for automatically collecting the data on some form of
automated transfer or a presentation type reader used in an
application where the user needs to be “hands-free”

Dataman 100V
Fixed-mount Verifier

The Cognex DataMan 100V verifier allows users to quickly measure code quality to all current industry
quality standards.

ƒ Integrated design provides users with an easy-to-use verification solution for reliable and
repeatable results.
ƒ Contract Compliant lighting option available with the stand and integrated bright field
and dark field lighting (as shown). This advanced lighting design with both 30 degree and
90 degree angle lighting allows the DataMan 100V to grade the widest range of mark types
and surfaces including mirrored surfaces.
ƒ Verification to all industry standards including AIM DPM Guidelines, ISO15415 and AS9132

The DataMan 100 Verification System provides manufacturers with a solution to verify the widest range
of parts using a verifier that conforms to the ISO15426-2 verification system standards.

In addition to breakthrough code reading, there are DataMan® products for every step of the direct
part marking (DPM) process, including quality verification, and data validation. Easy-to-use and reliable
DataMan products enable quality control solutions for applications that require the highest read rates
for 2D Data Matrix codes—critical to product traceability.

11

Serialisation & ePedigree
One of the primary drivers for the proliferation of 2D barcode usage within the Life Sciences sector is the emergence of counterfeit drugs and medical
devices. In order to combat this the industry is adopting a move to full supply chain visibility via item level serialization and ePedigree. Compliance
with new regulations such as those listed below guards against counterfeiting unauthorized diversion of product.
ƒ CIP13 for the French Market
ƒ Brazilian UIM mandate
ƒ Turkish Ministry of Health’s (MOH) serialisation requirements
ƒ Californian E-Pedigree Mandate

Serialisation
Serialisation mandates in Europe and elsewhere have driven the imperative for companies to examine their packaging information requirements.
Due to progressive global regulatory expectations manufacturers need to promptly employ serialisation solutions to ensure compliance

Current and pending regulatory requirements necessitate that manufacturers deploy track and trace, authentication and e-pedigree: an electronic
record specifying the product’s chain of custody, which is more efficient and accurate than paper records.

Serialising products at the item level enables the above processes, allowing manufacturers to address global regulations as well as patient safety
and anti-diversion initiatives.

Momentum for serialisation waned after California’s Board of Pharmacy put back the implementation deadline for ePedigree from 2011 to 2015, but
with the new deadline on the horizon, coupled with the potential for an earlier pronouncement from the Food and Drug Administration, companies
are moving ahead with due-diligence programmes. In the interim of course, initiatives from governments in countries such as Brazil, China and
Turkey, as well as the prospect of federal guidance on pedigree and Europe’s deliberations surrounding the proposed directive on falsified medicines,
have put serialisation firmly back on the agenda for many companies.

12

Contact Us:
ePedigree
An ePedigree is simply an electronic document which satisfies a pedigree
requirement. The primary purpose of an ePedigree is to protect consumers
from contaminated medicine or counterfeit drugs.

On January 5, 2007 EPCglobal ratified the Pedigree Standard as an international
standard that specifies an XML description of the life history of a product across
a complex supply chain.

The basic data elements of an original ePedigree are:
ƒ Lot
ƒ Potency
ƒ Expiration
ƒ National Drug Code and Electronic Product Code
ƒ Manufacturer
ƒ Distributor, Wholesaler or Pharmacy
ƒ Unique identifier of the salable unit
As of 2008, most states have enacted some degree of pedigree requirement and many have also mandated ePedigree. However, the existing
ePedigree requirements amount to little more than requiring that pharmaceutical supply chain companies be able to provide reports in formats
such as pdf, text files or spreadsheets.

As the product moves down the supply chain, each company is required to carry forward all previous ePedigree information. In this way, the final
point of sale has the complete record of every unit thus ensuring the security of the supply chain. There are a number of ways to track and trace
individual units including OCR fonts, 1D and 2D barcoding and RFID tags. VisionID has many years experience in track and trace solutions and has
brought this experience to bear assisting clients with serialisation projects.

SERVER CABINET LABELLING TURNTABLE

LINE CONTROL

PACKAGING/CARTONING
MODULE

SHRINK WRAPPER

DISTRIBUTION
WAREHOUSE
CASE PACKER
VISION

RFID READER/WRITER
PALLETISER
FIXED POSITION BARCODE SCANNER

LABEL PRINTER/APPLICATOR

Please contact your VisionID account manager to discuss further.

13

Machine Vision Solutions from VisionID
What is Machine Vision?
Machine vision is the technology to replace or complement manual inspections and measurements with digital cameras and image processing. The
technology is used in a variety of different industries to automate the production, increase production speed and yield, and to improve product quality.

Machine vision in operation can be described by a four-step flow:

Imaging Processing and analysis Communication Action

Analyzeƒtheƒimageƒtoƒ Sendƒtheƒresultƒtoƒtheƒsystemƒ Takeƒactionƒdependingƒonƒ
Takeƒanƒimage
obtainƒaƒresult inƒcontrolƒofƒtheƒprocess theƒvisionƒsystem’sƒresult

Application Types
Machine vision applications can be divided into four types from a technical point of view:

Locate
In locating applications, the purpose of the vision system is to find the object
and report its position and orientation. In robot bin picking applications
the camera finds a reference coordinate on the object, for example center
of gravity or a corner, and then sends the information to a robot which
picks up the object.

Measure
In measurement applications the purpose of the vision system is to measure
physical dimensions of the object. Examples of physical dimensions are
distance, diameter, curvature, area, height, and volume. In the example to
the left, a camera measures multiple diameters of cogs.

Inspect
In inspection applications the purpose of the vision system is to validate
certain features, for example presence or absence of a correct label on
a bottle, screws in an assembly, chocolates in a box, or defects. In the
example to the left, a camera inspects brake pads for defects.

Identify
In an identification application the vision system reads various codes and
alphanumeric characters (text and numbers). In the example to the left, a
camera reads the best before date on a bottle. Examples of codes that can
be read simultaneously he same package are barcodes and matrix codes.

14

Contact Us:

In-Sight® 5000 Series
vision systems

Cognex In-Sight® vision systems are unmatched in their ability to inspect,
identify and guide parts. These self-contained, industrial grade vision systems
combine a library of advanced vision tools with high-speed image acquisition
and processing. Best of all, configuring and deploying an In-Sight vision system
has never been easier.

Sight 5000 Series vision systems are the only vision systems in the world that
provide industrial-grade features as standard. Rugged die-cast aluminum and
stainless steel cases that can withstand the punishment of vibration, sealed
M12 connectors, and a protective lens cover for IP67 and IP68 rated protection
against dust and moisture – it all adds up to peace of mind on the factory floor.

Every In-Sight 5000 Series vision system delivers best-in-class performance.
Most models are equipped with a full library of proven Cognex vision tools
through the easy to use In-Sight Explorer software. Tools include
easy-to-train code reading, OCR, inspection, measurement
and colour tools plus, PatMax®, the industry standard
for part location technology.

The new 5 MP (megapixel) In-Sight 5605 vision system
combines industrially rugged In-Sight 5000 series
hardware and best-in-class vision tools with a high
resolution imager for the ultimate standalone vision
system. The In-Sight 5605 system is ideal for high
accuracy defect detection and gauging applications
and allows a larger field of view making it easier for the
vision tools to accurately find the features of interest on
even large size parts, products, and packages.

15

Manufacturing Execution Systems
- ERP Integrated Solutions
On a day to day basis VisionID is integrating various enabling technology solutions with MES & ERP systems within the Life Sciences sector.

MES is an acronym that stands for Manufacturing Execution Systems. It refers to addendum software that fills a specific need. For example, one
MES System creates a production plan from all work orders based on due dates, routing times and work center constraints. These systems are
independent of ERP Systems and hence the reference to addendum software.

Manufacturing Execution Systems (MES) are information technology systems that manage production in factories. The scope of such systems
is somewhat imprecise, but typically includes:
ƒ Presentation of schedules (often derived from ERP or Advanced Planning & Scheduling systems) to workcentres
ƒ Collection of production information (time, quantity, quality,...)
ƒ Analysis of production information (e.g. “How many units of this product did this workcentre produce last month?”)
ƒ Control of planned and unplanned maintenance (although the planning of this is often relegated to other, special-purpose, systems)
ƒ Quality control
ƒ Shipping / dispatch
ƒ Product labelling
ƒ Product traceability (particularly important in safety-critical applications, e.g. pharmaceuticals)
In general, ERP systems tend to include applications that handle financials, order processing, inventory, distribution, customer relationships, etc.
There is a wide variety of offerings among the vendors; some, for example, include native asset management and supply chain applications, while
others enable you to connect / use third-party products.

The ‘strong suit’ of most ERP systems is the integration, from a financial perspective, everything going on within an enterprise. The avowed objective
/ focus is on helping you see / manage / account for the cost of everything going into preparation / delivery / service / sale of ‘products’.

If your business is involved in discrete manufacturing of a product, such as cars or radios or computers that roll off an assembly line - driven either
by orders or forecasted demand or such - there are a lot of ERP systems that can handle your needs.

Where it gets tricky, for example, is when you are producing something like food products or drugs...in batches, according to formulas, etc. Not all
ERP vendors have applications that can manage this kind of ‘manufacturing’ flow. Here is where specialized products, like MES, come into play. If
you want to operate a multi-facility Life Sciences business...you will need something more than an ERP system .

Prevalent examples include Werum’s Pas X, Camstar & Lighthouse

16

Contact Us:

Centocor
Vertical: Biotechnology Territory: Cork - Munster

About Centocor
Centocor is a subsidiary of Johnson & Johnson and manufactures active ingredients for medical products at their Cork site in Ringaskiddy. For
more than 25 years, Centocor has been a leader in the field of biomedicines. Through the dynamic science of biotechnology, they continue to seek
innovative ways to treat cancer, infectious diseases, cardiovascular and metabolic diseases, and immunemediated inflammatory disorders (I.M.I.D.s),
such as rheumatoid arthritis and psoriasis. Centocor’s work has revolutionized the science of immunology. They pioneered monoclonal antibody
technology, a cutting-edge approach that launched a new generation of products to treat immune-related diseases.

The Requirement
As with any world-class pharmaceutical manufacturing facility the requirement for state of the art scanning and printing equipment would prove
paramount. Secondary to this requirement was a reliable in-country supplier who could advise on the best equipment to allow smooth integration of
production, warehouse and back office processes. As well as a focus on actual production facility within the Cork plant there was also a requirement
to automate the warehouse facility to accurately monitor and reconcile throughput of in-bound ingredients and out-bound finished products.

After a detailed tender process Centocor identified VisionID as the best fit to advise and supply AutoID materials for the production and warehouse
facilities. Having close ties to the worlds leading manufacturers of AutoID equipment and a dedicated in-house Service and Support team VisionID
were able to deliver the best solutions for a busy pharmaceutical manufacturing facility.

The Solution
VisionID in association with production and engineering management were quick to gauge which solutions would work best for production and
warehouse end users. A combination of MC9090 handheld devices and LS3408 scanners from Symbol (Motorola) and Z4M printers from Zebra
Technologies provided the total solution package that allowed for data capture, storage and printing within a busy pharmaceutical manufacturing facility.

The Symbol MC9090 mobile computer The LS3408 handheld corded scanner The Zebra Z4M is an easy-to-use, cost effective
support current and nextgeneration business- captures 1D bar codes in the harshest of industrial printer that adapts to changing
critical applications that help maximize the conditions, even when labels are at varying application needs. The printer’s intuitive design
efficiency and productivity of mobile workers distances. Featuring the widest working range makes operation easy for both the novice and
inside and outside “the four walls” of the most available, it reads labels as far away as 45 feet the experienced user. The Z4M is ideal for a
demanding environments such as the Centocor and as close as .25 inches. This wide variety of applications, including shipping/
manufacturing and warehouse floors. The scanner is ideal for the Centocor receiving, compliance
MC9090 series of mobile computers combines warehouse and manufacturing labelling, asset tracking,
the latest in mobile operating systems and facilities, with an ergonomic inventory control, and
processing power with advanced data capture design that makes scanning ticketing which was an
options and integrated multi-mode wireless comfortable during long shifts. ideal fit for the Centocor
connectivity including wide area network requirement.
(WAN), 802.11a/b/g wireless LAN (WLAN)
The wireless barcode scanners provided by VisionID work seamlessly with
and Bluetooth-enabled wireless personal area
network (WPAN) for anytime, anywhere voice, our global SAP environment. We are very pleased with the solution and
video and data connectivity. on going support provided by VisionID and would have no hesitation in
recommending them.

The Outcome
The Centocor facility at Ringaskiddy now forms the strategic manufacturing centre of a new
global supply chain for the company for many of their existing and new pipeline recombinant
mammalian cell fermentation and monoclonal antibody products. This new manufacturing unit will
produce products for the detection and treatment of many human diseases on a commercial scale
but also is used to produce smaller quantities of drug material for clinical trials. The equipment
commissioned for this facility will prove key to future growth as well as product integrity and
VisionID are proud to be a part of this process.

17


Clonmel Healthcare / STADA
Vertical: Pharmaceutical Territory: Tipperary - Munster
VisionID were chosen by the Stada Group for this project due to their technical
expertise and industry track record in SAP integration. VisionID supported all
of our needs from day one of the project specification all the way through to
the implementation. It is very beneficial for us to work with a company who are
proficient in all the key areas of Wireless Infrastructure, Mobile Devices and Print
Solutions which ensured a seamless roll out for this project from our perspective.

About Clonmel Healthcare / STADA Production Ireland
Clonmel Healthcare Ltd./STADA Production Ireland are Stada owned pharmaceutical manufacturing,
Sales and Distribution companies employing over 270 staff across two locations - the manufacturing
plant in Clonmel and the Sales and Marketing office in Dublin. Together the companies have a combined
turnover in excess of €60 million in Ireland with a strong growth of 11% and also have a substantial export
business to Europe along with a strong position in the generic antibiotic market in the United States.

In 2006 Clonmel Healthcare embarked on a brand redevelopment strategy following the findings of a
major customer research report commissioned by the company. In early 2007 the new corporate identity
was launched. The new distinctive brand mark represents Clonmel Healthcare’s core values of quality,
customer service and dynamism and retains the strength of our heritage and strong link to our Irish roots.

Clonmel Healthcare currently has a large portfolio of products covering three distinct business units;
Prescription medicines, Speciality medicines and the ClonMedica Consumer Division. Their prescription
products cover a wide range of therapeutic areas including CNS, cardiovascular, NSAID, gastro-intestinal
and anti-infectives. Within the Special Products Division we have medicines for the treatment of Parkinson’s
disease, Testosterone Deficiency Syndrome and the management of diabetes. The ClonMedica product
range focuses on three main areas; women’s and babies health, skincare and health supplements.

Clonmel Healthcare is committed to providing less expensive, quality medicines to the Irish market.

The Requirement
Clonmel Healthcare/STADA Production Ireland, as part of the Stada Group, was tasked with implementing the Global SAP project in the Tipperary
production, warehouse and distribution facilities. As with any world-class pharmaceutical manufacturing facility the requirement for state of the
art scanning and printing equipment would prove paramount. Secondary to this requirement was a reliable in-country supplier who could advise
on the best equipment to allow smooth integration of production, warehouse and back office processes.

As well as a focus on actual production facility within the Clonmel plant there was also a requirement to automate the warehouse facility to accurately
monitor and reconcile throughput of in-bound ingredients and out-bound finished products.

Having established an excellent working relationship over many years Clonmel Healthcare selected VisionID as the best fit to advise and supply
AutoID materials for the production and warehouse facilities. Having close ties to the worlds leading manufacturers of AutoID equipment and a
dedicated in-house Service and Support team VisionID were able to deliver the best solutions for a busy pharmaceutical manufacturing, sales and
distribution facility.

The Solution
VisionID work in conjunction with IT and engineering management were quick to identify which solutions would work best for production and
warehouse end users. The first stage was a comprehensive wireless network site survey of the warehouses conducted by VisionID’s service
engineers to establish the most effective coverage. A combination of Psion Teklogix Workabout Pro handheld devices, Zebra Technologies ZM600
printers, Printronix T5305r printers, ELO Touchscreens, Symbol AP300 access ports with RFS 6000 switch and a complete range of standard and
custom labels and ribbons provided the total solution package that allowed for data capture, storage and printing within a busy pharmaceutical
manufacturing facility.

18

Contact Us:
The Workabout Pro is relied on every day in Based on the 5r Multi-Technology Platform, This plug-n-play zero-touch configuration
mobile-intensive applications such as asset the ThermaLine T5000r family is an industrial access port is a key component of Motorola’s
tracking, meter reading, and mobile ticketing thermal bar code printer designed to operate in award-winning wireless switch system, the
across a variety of industries such as field challenging environments. Through leadership wireless LAN (WLAN) architecture that does
service, courier, retail, warehousing and by design, the T5000r combines reliability, more - yet costs less. Working in conjunction
manufacturing – and the list continues to grow. utility, power and flexibility for demanding with Motorola’s wireless switches, the
environments and provides the open migration AP300 delivers robust and feature-rich IEEE
to RFID for future requirements. The T5000r 802.11a/b/g connectivity. It can also be used
supports the widest range of connectivity and as a sensor in conjunction with Motorola’s
control without sacrificing performance and Wireless Intrusion Protection System (IPS).
provides the ability to meet new application Adoptable as either a Layer 2 or Layer 3 AP, the
and compliance requirements. The T5000r AP300 supports Layer 3 Mobility - substantially
integrates real world experience that readily reducing the cost of deploying, implementing
adapts to emerging standards. The T5000r and managing a WLAN while significantly
firmware can be upgraded to keep pace with increasing features, functionality and the
new thermal bar code printing innovations and security of the WLAN infrastructure.
applications.
The RFS6000 provides a single platform
capable of delivering carrier-grade wireless
voice and data inside and outside the enterprise
for medium to large organizations with 2,000-
It’s more than a data capture device. It’s a 20,000 users. Improve operational efficiency
cellphone and an intelligent workstation too, and reduce the cost of mobility with a powerful
allowing your mobile workers to call customers, comprehensive feature set including Adaptive
upload route maps, and send data back to AP, which delivers unmatched performance,
office headquarters. It has integrated multi- security, reliability and scalability to enable
mode wireless connectivity including wide networks for business mobility at a low TCO.
area network (WAN), 802.11a/b/g wireless
LAN (WLAN) and Bluetooth-enabled wireless
personal area network (WPAN) for anytime,
anywhere voice, video and data connectivity.

Touch simplifies the human/machine ZM600 printers bring added flexibility to
interface for industrial equipment by enabling the popular Z Series platform, which has
the operator’s reactions to be natural and always stood out from the competition in
intuitive. Elo Touch solutions also help reduce terms of both performance and price. With
the complexity of operations by eliminating 10-inches-per-second print speed, industry-
the often cumbersome traditional operator leading throughput, rugged reliability, and VisionID supplied custom and standard labels
interfaces. They simplify the task and reduce a wide selection of options, these full-sized and ribbons as part of the project requirements.
training time for operators while adding more metal printers enhance productivity in tough In addition VisionID holds buffer stock of all
capabilities to the machine itself. The Elo environments and demanding applications consumables ensuring no stock out issues and
reputation for forefront technologies, wide same day delivery of product.
range of solutions, quality, and long-term
reliability ensures it is a preferred touch solution
vendor for all industrial users. Importantly, we
provide a range of touch interfaces that will
continue functioning efficiently throughout the
lifetime of your machine or system.

The Outcome
The seamless SAP integration undertaken by both companies has streamlined operations and
information flow allowing real time updates and improved visibility of stock movements. The
equipment commissioned and ongoing support for this facility will prove key to future growth as
well as product integrity and VisionID are proud to be a part of this process.

19

VisionID MES/ERP Integrated Solutions
With comprehensive MES/ERP experience working with a broad range of Pharmaceutical & Medical Device customer base, VisionID can provide all
hardware requirements to facilitate a seamless transition to your chosen Manufacturing Execution System. The options outlined further on in this
brochure are indicative of typical solutions provided. Our broad product and service portfolio ensures that whatever your requirements VisionID has
the expertise and knowledge to assist in your MES deployment.

Mobile Computing
VisionID supply and support a range of mobile devices from the world’s
leading manufacturers including Motorola, Intermec, and Honeywell.

Mobile Computers
VisionID’s family of integrated voice and data handheld mobile
computers offer essential features to fully maximise the workforce.
Wireless LAN connectivity enables cost effective communications
in the office and within hot spots. Integrated GPS enables real-time
location based applications. Bar code scanning, RFID, signature
capture and more enable the automatic capture of virtually any type
of data and the completion of virtually any transaction out in the field.

Vehicle Mounted
In vehicle fixed mount computers pack all the features
you need to maximise operational efficiency out on the
road into a single easy to use rugged device truly built
for life in the field. These all in one in-cab solutions
provide drivers with mobile 3G voice and data as
well as integrated GPS and telematics, providing a
comprehensive fleet management platform that enables
the collection of a wealth of real-time data, including
mileage, location, driver performance, vehicle metrics,
hours of service and arrival and departure times.

Wearable
The latest technology in wearable PC’s allowing both hands the freedom to work
independently. Arm yourself with advanced real time, hands free mobile computing
and scanning and achieve maximum productivity, operational efficiency and accuracy
in a variety of operational functions.

Rugged Tablet PC’s
Built to withstand harsh environments while
providing information access to and from
the field, products like the Xplore ix104 are
ready to work under the toughest conditions,
hence the reason why more organisations are
choosing rugged tablets. These computers are
ideal solutions for increasing employee mobility
and productivity beyond the office, and reducing
dependence on wired desktops for data and
application access.

20

Contact Us:
Wireless LAN Solutions
Wireless LAN technology solutions can help get the right information to the right
people at the right time. A Wireless solution will provide an interactive exchange
of data from anywhere within a facility, ensuring mission critical information is
visible, available and accessible.

VisionID can provide the necessary Professional Services to compliment your chosen
hardware solution. These Services include:

Wireless LAN Site Survey
A VisionID Wireless Engineer consults with the client after which the specific
requirements are documented. Particular emphasis is placed on the application and bandwidth needs for the Wireless LAN deployment.

The Engineer analyses the site to determine the appropriate equipment and locations for the required coverage and networking functionality.

There are several core factors that have to be considered when implementing a wireless network, these include the number of users of the wireless
network, the bandwidth required (what applications are running) and the latency that is required, for time sensitive solutions such as Voice Calls.

A wireless network design that will fit in with the specific customers needs has to be considered from a traffic management solution and security
considerations. VisionID’s engineers are trained in network analysis and can offer the complete solution and configuration for your needs to include
if required multiple VLAN’s firewalls, QOS and segmentation.

The physical site survey includes:
ƒ Define Access Points locations
ƒ Measurement of signal strength between Access Point devices
and client locations
ƒ Investigation of potential sources of RF interference
ƒ Examination of host connectivity alternatives
ƒ Evaluation of existing network connections, equipment,
safety, security, cabling, power requirements and other key
considerations
ƒ Site Survey Report – Information gathered during the site
survey is collated in a comprehensive Site Survey Report.
This report contains a breakdown of the survey results and a
network design based on desired coverage, including special
requirements such as Security and Redundancy.

Wireless LAN Installation Services
Deployment - Working with your team, VisionID will install
and configure the WLAN equipment, review the installation,
perform an in-place wireless site survey to test the WLAN and
modify the configuration to best fit your needs.

Support - Once the entire solution is in place, VisionID can
provide both on and off-site support based on your needs
and requirements. This may include patch, administrative
and device management and reactive support for your WLAN.

21

Mobile Workstations
Depending on the process flow many companies find it necessary to have fully mobile battery powered workstations with all the functionality
associated with a static location. In recognition of this VisionID now provides a custom solution encompassing all the components of a desk in a
moveable ergonomic workstation. As each customer’s requirements are unique this solution is fully configurable to meet your changing needs.

MD5 Series
Powered Mobile Cart

The MD5 Series of powered carts is designed for use with a PanelPC, a
Tablet PC or a Small Form Factor PC with a single monitor. Features of
the MD5 Series of Cart:

ƒ Computer securely housed to protect against theft.
ƒ Quick and easy PC/LCD integration
ƒ Effortless height adjustment.
ƒ Low friction, anti-static castors for easy manoeuvrability.
ƒ Smooth, easy-to-clean surfaces.
ƒ Unique battery system housed in the small footprint base.
ƒ 1 year on-site warranty as standard

Typical Mobile Cart Configuration
The following is the breakdown of a typical mobile cart solution suitable for use in the Life Sciences sector.

19” Elo Touchscreen
Touch simplifies the human/machine interface for industrial equipment by enabling the
operator’s reactions to be natural and intuitive. Elo touchscreen solutions also help reduce the
complexity of operations by eliminating the often cumbersome traditional operator interfaces

ƒ “Designed for touch” features such as a stable tilt stand
ƒ Long-lasting product cycle
ƒ Available with IntelliTouch Surface Wave Technology, AccuTouch Five-Wire Resistive Technology,
Acoustic Pulse Recognition Technology, or surface capacitive technology
ƒ Sealed touchscreen
ƒ Dual serial/USB interface
ƒ Removable stand and VESA mounting option
ƒ Mounting holes on stand bottom for tabletop security
ƒ Controls on the side rather than the front, plus lockout function for public use
ƒ Digital on-screen display (OSD)
ƒ Worldwide agency approvals

22

Contact Us:

Motorola DS3578 1D & 2D Scanner
Ability to read both 1D and 2D bar codes Increases productivity by
providing one device that can read all industry standard bar codes

ƒ Powerful 624 MHz processor, fast sensor shutter speed and
patent pending fastpulse illumination Superior performance on
1D and 2D bar codes, improving productivity in a wide variety
of applications
ƒ Integrated Bluetooth Class II, Version 1.2 Cable-free convenience,
secure wireless transmissions; reduces repairs due to cable
failure
ƒ Unique aiming pattern Bright central laser dot ensures quick,
accurate scanning - even in bright sunlight
ƒ Omni-directional scanning Speeds reading time by eliminating
the need to line up the bar code with the scan line

SEAL TOUCH Silicone All-in-One
Keyboard with Touch Pad
ƒ Machine washable, Dishwasher Safe
ƒ SEAL SHIELD™ electronic waterproofing process (Patent Pending)
ƒ Silver Seal™ antimicrobial properties
ƒ Integrated touch pad
ƒ Gold USB connector resists corrosion, improves connection and
performance
ƒ SEAL CAP™ USB Cap (Patent Pending)
ƒ Includes Quick-Connect feature
ƒ Designed to NEMA 4X / IP68 specifications
ƒ Connection: USB, Cable length: 2 Metre, Language Layout: United
Kingdom 87 keys, Compatible PC (not NT)

Zebra GX430T Printer
ƒ Print speed: up to 4” (102 mm) per second
ƒ Print method: direct thermal/thermal transfer
ƒ EPL and ZPL programming languages standard
ƒ OpenACCESS design for easy media loading
ƒ Quick and easy ribbon loading system
ƒ Dual-wall reinforced plastic construction
ƒ 32 bit RISC processor
ƒ XML-enabled printing

23

RFID in Life Sciences
What is RFID?
Radio-frequency identification (RFID) is a technology that uses communication via electromagnetic waves to exchange
data between a terminal and an electronic tag attached to an object, for the purpose of identification and tracking. Some tags
can be read from several meters away and beyond the line of sight of the reader.

An RFID system may consist of several components: tags, tag readers, edge servers, middleware, and application software.

The purpose of an RFID system is to enable data to be transmitted by a mobile device, called a tag, which is read by an RFID reader and processed
according to the needs of a particular application. The data transmitted by the tag may provide identification or location information, or specifics
about the product tagged, such as price, colour, date of purchase, etc. The use of RFID in tracking and access applications first appeared during
the 1980s. RFID quickly gained attention because of its ability to track moving objects. As the technology is refined, more pervasive and possibly
invasive uses for RFID tags are in the works.

In a typical RFID system, individual objects are equipped with a small, inexpensive tag. The tag contains a transponder with a digital memory chip
that is given a unique electronic product code. The interrogator, an antenna packaged with a transceiver and decoder, emits a signal activating the
RFID tag so it can read and write data to it. When an RFID tag passes through the electromagnetic zone, it detects the reader’s activation signal. The
reader decodes the data encoded in the tag’s integrated circuit (silicon chip) and the data is passed to the host computer. The application software
on the host processes the data, often employing Physical Markup Language (PML).

Take the example of books in a library. Security gates can detect whether or not a book has been properly checked out of the library. When users
return items, the security bit is re-set and the item record in the integrated library system is automatically updated. In some RFID solutions a return
receipt can be generated. At this point, materials can be roughly sorted into bins by the return equipment. Inventory wands provide a finer detail of
sorting. This tool can be used to put books into shelf-ready order.

FX7400
Fixed RFID Reader

Compact business-class fixed RFID reader
The Motorola FX7400 RFID reader sets a new standard in design for indoor customer-facing and carpeted environments, packing best-in-class
RFID features into a small and attractive form factor that is less than half the size of a typical fixed industrial RFID reader.

The low profile combines with an impressive array of integrated features and functionality to enable highly cost-effective RFID solutions for business-
class applications such as item-level inventory management, IT asset management and more.

Many unique features make this standards-based device easy to deploy and manage:

ƒ Plenum rating, which allows for deployment flexibility in air tight spaces, such as
mounting above a drop ceiling
ƒ Power over Ethernet (PoE), which eliminates the need for an electrical outlet and
power supply
ƒ Auto-discovery to automatically detect devices once they are plugged into the network
ƒ ShowCase II, a new tool which enables remote configuration and management to
ensure that your readers are up, running and ready for operation.

The FX7400 offers a comprehensive set of APIs in .NET and C, and support for leading
business systems including Microsoft BizTalk and IBM WebSphere Sensor Events (WSS) 6.2.

24

Contact Us:
Legislative serialisation options include the use of 2D Data Matrix or RFID technology. In
contrast to an easily duplicated bar code, UHF RFID offers the manufacturer the option
of a permanently locked, factory commissioned unique serial number (referred to as
the UTID) embedded

within the electronic RFID silicon chip. The unique UTID signature, in addition to an
optionally locked drug identification serial number, assigned by the manufacturer,
provides the consumer with yet an additional level of authenticity

RFID in Life Science Applications
As drug manufacturers record the UTID and assign their unique product identifiers,
shipment contents are aggregated and ePedigrees are used to record pertinent information,
such as:
ƒ Product Information
ƒ Item Information
ƒ Transaction Information
ƒ Trading Partner Information
ƒ Signatures & Certifications
ƒ Additionally, an Advanced Shipping Notice (ASN) is electronically forwarded to the
next recipient, in advance of the product receipt.
ƒ Serialized product is verified against the ASN, and the Pedigree certifies authenticity.
ƒ Without line-of-site restrictions, UHF RFID facilitates the confirmation process by
enabling a quick scan of the individually tagged items without opening the case.
By utilising this technology companies can prevent counterfeit products entering the
supply chain.

MC9090-G RFID
Mobile UHF RFID Reader

Industrial-class
handheld RFID reader
The MC9090-G RFID offers added flexibility for
comprehensive tracking of EPC tagged assets.
Handheld RFID readers are specifically used for
their ability to read data in remote areas that fixed
readers cannot reach.

Motorola handheld RFID readers are known for their
outstanding read range and accuracy, and are ideal
for exception processing and ability to pinpoint the
location of a specific item – even in large blocks of
inventory.

These multimodal, wireless LAN-enabled handheld
RFID readers are capable of bar code scanning, digital
imaging and RFID tag reading and writing. And out-of-
the-box deployment ensures quick implementation of
your RFID program with minimal investment.

25

ATEX
Intrinsic Safety (IS) and ATEX approved is a concept developed for operation of electronic equipment
in hazardous environments. For some pharmaceutical manufacturers the need for handheld devices
to comply with dust zone 21 or 22 atmospheres, as well as gas zone 1 environments, is paramount.
The diverse range of intrinsically safe and ATEX approved equipment available from VisionID means
that we can cater for your specialised needs for hazardous area electronic equipment for both
maintenance and production purposes.

At VisionID we have teamed with the leading manufacturers of ATEX approved products including
Extronics, Ecom Instruments and Bartec.

Intrinsically Safe / ATEX approved equipment
VisionID Ltd. uses its relationship with the key manufacturers and its proven experience to provide
solutions in the most delicate environments.

Intrinsic safety (IS) is a protection technique for safe operation of electronic equipment in explosive
atmospheres. The concept was developed for operation of process control instrumentation in
hazardous areas.

There is a European Directive, called the ATEX Directive No.1992/92, and is concerned with the
risks from fire and explosion arising from flammable substances stored or used in the workplace.
Regulations apply at most workplaces where flammable substances are stored or used, for example,
factories where flammable liquids are present or where flammable dusts are produced in the process.

How to determine which
device is best for you
At VisionID we have trained technicians who can advise you of the best solution for working in
hazardous environments. The choices can seem complex however here is a basic guide to the
environment “zones” which determine the type of device required.

Application Types
Zone 0 Zone 1 Zone 2 Zone 20 Zone 21 Zone 22
Aƒplaceƒinƒwhichƒanƒ Aƒplaceƒinƒwhichƒanƒ Aƒ placeƒ inƒ whichƒ anƒ Aƒplaceƒinƒwhichƒanƒ Aƒplaceƒinƒwhichƒanƒ Aƒplaceƒinƒwhichƒanƒ
explosiveƒatmosphereƒ explosiveƒatmosphereƒ explosiveƒatmosphereƒ explosiveƒatmosphereƒ explosiveƒatmosphereƒ explosiveƒatmosphereƒ
consistingƒofƒaƒmixtureƒ consistingƒofƒaƒmixtureƒ consistingƒofƒaƒmixtureƒ inƒtheƒformƒofƒaƒcloudƒ inƒtheƒformƒofƒaƒcloudƒ inƒtheƒformƒofƒaƒcloudƒ
withƒairƒofƒflammableƒ withƒairƒorƒflammableƒ withƒairƒofƒflammableƒ ofƒcombustibleƒdustƒ ofƒcombustibleƒdustƒ ofƒcombustibleƒdustƒ
substancesƒinƒtheƒformƒ substancesƒ inƒ theƒ substancesƒinƒtheƒformƒ inƒ airƒ isƒ presentƒ inƒairƒisƒlikelyƒtoƒoccurƒ inƒ airƒ isƒ notƒ likelyƒ
ofƒgas,ƒvaporƒorƒmistƒisƒ formƒofƒgas,ƒvaporƒorƒ ofƒgas,ƒvaporƒorƒmistƒ continuously,ƒ orƒ inƒ normalƒ operationƒ toƒ occurƒ inƒ normalƒ
presentƒcontinuouslyƒ mistƒisƒlikelyƒtoƒoccurƒ isƒnotƒlikelyƒtoƒoccurƒ forƒ longƒ periodsƒ orƒ occasionally. operationƒ but,ƒ ifƒ itƒ
orƒforƒlongƒperiodsƒorƒ inƒ normalƒ operationƒ inƒ normalƒ operationƒ frequently. doesƒoccur,ƒwillƒpersistƒ
frequently. occasionally. but,ƒ ifƒ itƒ doesƒ occur,ƒ forƒaƒshortƒperiodƒonly.
willƒpersistƒforƒaƒshortƒ
periodƒonly.

Typical ATEX approved units include:
ƒ Bartec MC 9090ex-K (BRICK) with 1D-Standard
Range Scan Engine
ƒ Extronics iCam501, iSCAN100 & iSCAN200
Intrinsically Safe Barcode Readers
ƒ Xplore iX104C3/4 Rugged Tablet PC
All ergonomic characteristics and technical features
required for state-of-the-art industrial applications
are offered by, and not limited to, these mobile
computers.

26

Contact Us:

iWAP103
Universal Zone 1 Access Point Enclosure

Zone 1 Explosion Proof Wireless Access Point enclosure system to allow standard
WLAN hardware to be installed in potentially explosive, harsh, wet, and corrosive
environments

Multi Vendor Platform
Providing your preferred WLAN or RF hardware is within certain size, volumetric and power dissipating
constraints we can install the hardware in our factory.

Rugged Enclosure
Custom enclosure with IP66 ingress protection made from LM6 marine grade aluminium, epoxy
painted for installation in extremely arduous environments.

Future Proof Infrastructure
As new hardware becomes available it can be assessed by Extronics for compliance to the certification
and the existing hardware replaced with the new version meaning the user is installing a future proof
solution.

MC9090ex
Mobile Computer for Zone 1

Industrial-class handheld RFID reader
The MC9090-G RFID offers added flexibility for comprehensive
tracking of EPC tagged assets. Handheld RFID readers are
specifically used for their ability to read data in remote areas
that fixed readers cannot reach.
ƒ International approvals for global usability
Motorola handheld RFID readers are known for their outstanding ƒ WLAN radio standard IEEE 802.11 a/b/g
read range and accuracy, and are ideal for exception processing ƒ Easy battery changing in the Ex area
and ability to pinpoint the location of a specific item – even in
large blocks of inventory. ƒ Expanded storage capacity with replaceable
SD card
These multimodal, wireless LAN-enabled handheld RFID readers ƒ Various versions of replaceable keyboards
are capable of bar code scanning, digital imaging and RFID tag
ƒ Compatibility with MC9090 from Motorola
reading and writing. And out-of-the-box deployment ensures quick
implementation of your RFID program with minimal investment. ƒ Service contracts

27

VisionID Service & Support
When a solution has been implemented and is fully operational, the security of on-going support and servicing is essential to ensure that the
investment continues to deliver the necessary benefits. VisionID provides clients with a comprehensive range of both equipment and software
servicing and technical resources, including 24/7 Internet Support.

At VisionID we understand that responding to our clients’ support requests is a key component to good consumer relationship management. Where
a client has additional or special needs, VisionID can provide solutions designed to best address the most unique requirements.

Both equipment and software servicing and support can be made available based on the customer’s priority, for example, On-Site, Return to Base,
Telephone or via the internet based on “Client Support Centre”, helping to ensure minimal down-time.

VisionID provides authorized printer service, and repair for most leading manufacturers of label and card printers. Our nationwide technicians have
all received certified technical training from the manufacturers supported.

VisionID’s engineers can install and configure your printers on-site. Our on-site setup and installation will have your printers configured for the
optimum print settings, configured for your media and set for the best options for your label printing software.

On-site Maintenance Contracts
VisionID on-site maintenance contracts give you the confidence to know that your equipment is covered by world-class engineering services, 24
hours a day. Your production processes will run freely and there will be limited down time due to our dedicated team of engineering professionals.

Being a certified service partner with a large number of leading global vendors we supply and fit only OEM spare parts for repairs.

There are two standard Standard 2 day response
onsite annual service plans
that can be purchased: Next day response service
Our annual service plans include all travel, labour and non-consumable parts. We can also include onsite preventative maintenance visits incorporated
into the contract cost.

Non-Contract Maintenance
VisionID service centre offer on-site preventative maintenance and repair works for equipment not covered through VisionID service plans. For this
ser-vice there is an initial call out charge and then an hourly rate, parts and print head charge if applicable.

It is VisionID policy to always prioritise contract call-outs over non contract. However, VisionID understand that there is little appetite for down time
at your facility and we will commit to have an engineer at your premises at the earliest opportunity.

Depot Maintenance Contracts
If you do not require an on-site maintenance contract but still seek the confidence of having world class engineers on hand to maintain your
valuable equipment, then our Depot Maintenance Contract will give you the satisfaction of knowing that your equipment can be sent to VisionID
workshop for repair.

From our Central Service Centre in Clonmel our highly trained in-house engineers can repair equipment right down to the component level. Our
Depot Service Plan will give a speedy turn around to your repairs or service needs. Depot Service Plans include all non-consumable parts, labour
and standard return shipping charges.

We also offer a non-contract depot repair, which offers the same excellent level of service except that the non-consumable parts, labour and
standard shipping are chargeable.

Repair Overview
Each barcode/card printer repair includes guaranteed workmanship, realignment and return to factory specifications utilizing only OEM parts.
Our technicians perform thorough testing to ensure proper performance. In addition, all repairs receive VisionID’s standard 8-point service check:
ƒ Clean and reset all sensors to factory specifications. ƒ Clean and reset all electrical connections.
ƒ Adjust torsion rate and tension on ribbon clutches. ƒ Lubricate and adjust moving parts to factory specifications.
ƒ Clean and adjust printhead and platen roller for optimum ƒ Print test labels to ensure proper communication and correct
print quality. printer performance.
ƒ Adjust tension on belts, motors and springs for smooth operation. ƒ Clean inside and outside of printer housing.

28

Contact Us:
Our Engineers are trained to ZASP (Zebra Authorized Service Providers) and IPSP (Intermec Printer Service Partner) levels.

ZASP and IPSP accredited companies have demonstrated an unparalleled commitment to provide quality service and support for all Zebra and
Intermec products. All engineers have completed extensive manufacturer training and are required to recertify on an annual basis. They are endorsed
and certified by Zebra and Intermec to provide on-site repair, as well as installation, maintenance contracts, depot repair and technical support.

By using a qualified Engineer, you have the peace of mind of knowing that trained manufacturer technicians are keeping your printers operating
at optimum performance levels.

Mobile Computing
VisionID is Ireland’s leading provider of Mobile Handheld Solutions. In conjunction with the pure hardware supply VisionID can provide a range of
complimentary Professional Services in this space.

Handheld Managed Services
To realise the full potential of enterprise mobility, you need an experienced
and highly skilled company that knows and understands the challenges of
mobility – and your industry.

We take on the responsibility and assume the risk for your mobile operations
using our experiences to date as well as leveraging on the relevant manufacturer’s
existing staff, tools and expertise. There are a number of benefits of this for
you the client:
ƒ Free Resources to Focus on Core Business
ƒ Reduced Total Cost of Ownership
ƒ Managed to Key Performance Levels
ƒ Sharing Risk with an Accountable Partner
ƒ Access to Leading Expertise, Methodologies and Tools
ƒ Avoid Staffing Challenges

Every major handheld rollout results in a large resource overhead on the customer due to the requirements to configure, deploy and support the units.

Using our past experience VisionID can provide the following Professional Services:
ƒ Device Procurement & Provisioning – in conjunction with the Software Partner we will configure the required units with the relevant settings
and configurations as well as dispatch these to their required destination.
ƒ Helpdesk – depending on your specific requirement we can offer First or Second Line support for the handhelds
ƒ Repair Service – we will manage all repairs of the units in conjunction with the chosen manufacturer.
ƒ Mobile Device Management in the Field – we will work with the client to define the desired and most seamless approach to manage the
devices in the field.
Configuring and managing your mobile devices can be a time consuming process. At VisionID we can provision your mobile devices for your settings.
Have your units delivered with all the settings in place ready to start work.

For managing your devices VisionID can supply you with comprehensive software to allow you to remotely update and control your units. Centrally
managing your units gives you the control to obtain full efficiency from your units.

VisionID Training Services
Having personnel onsite who understand your systems can greatly reduce your downtime in the event of a failure. Basic trouble shooting and having
a good in-house maintenance policy can go a long way to keeping these systems running at 100%.

At VisionID we offer comprehensive training programs covering our solution areas.

We can provide training services basic trouble shooting and best practices to understanding the granular operations of these solutions.

Key training areas include:
ƒ Barcode Label Printer and Maintenance
ƒ Card Printer Configuration and Maintenance
ƒ Label and Card Design Software Training
ƒ Barcode Scanner Configuration and Maintenance
ƒ Handheld Computer Configuration and Maintenance
ƒ Wireless LAN Configuration and Maintenance

29

website: www.visionid.ie
Head Office: Unit 4C Gurtnafleur Business Park, Clonmel, Co. Tipperary, Tel: +353 (0)52 618 1858 Fax: +353(0)52 618 1860, Email: info@visionid.ie
Limerick Office: Annacotty Business Park, Annacotty, Co. Limerick, Tel: +353 (0)61 514 683 Fax:+353 (0)61 749 873, Email: midwest@visionid.ie
Dublin Office: 3013 Lake Drive, Citywest Business Campus, Dublin 24, Tel: +353 (0)1 524 1586 Fax: +353 (0)1 443 0560, Email: dublin@visionid.ie
Northern Ireland Office: 20 Adelaide St. Belfast, BT2 8GB, Northern Ireland, Tel: +44 (0)28 9099 8504, Email: ni@visionid.co.uk

Life Sciences Solution Set

More Related Content

What's hot

Viewers also liked

Similar to Life Sciences Solution Set

More from cmurtagh

Recently uploaded

Life Sciences Solution Set
