1. Arkanoid Game
Computer Graphics
JOGL Implementation Project
Raffaele De Amicis, Giuseppe Conti
Submitted By
Anuradha Jambunathan
Matricola: 128682
12 - 02 - 2008

2. Table of Contents
1 Introduction...........................................................................................3
1.1 OpenGL .................................................................................................3
1.2 JOGL......................................................................................................4
1.3 Open GL Commands ............................................................................5
1.3.1 Color Manipulation Commands .......................................................5
1.3.2 Drawing and Matrix Manipulation Commands ...............................5
1.3.3 Stack Manipulation Commands .......................................................6
1.3.4 Texture manipulation Commands ...................................................6
1.3.5 Viewing manipulation commands ...................................................7
2 Requirements........................................................................................8
3 Design Analysis ..................................................................................10
3.1 Classes and Methods .........................................................................10
3.2 Class Diagram.....................................................................................15
4 Implementation ...................................................................................16
4.1 Collision detection Algorithm............................................................16
4.2 Additional Features ............................................................................17
4.3 Software Details..................................................................................18
5 Conclusion & Future Work ................................................................18
6 References ..........................................................................................19
7 Appendix .............................................................................................20
7.1 Game Screenshot ...............................................................................20

3. 1 Introduction
Computer games are considered to be the fast growing and more
interesting field of study today. The interactive entertainment field makes use of
the latest computer technologies and helps for the development of research in
areas such as computer simulation, computer aided designing, virtual reality,
artificial intelligence etc. Development of games is considered to be the more
creative way of software development. Game development requires more of
innovative thinking and ideas to work in the imaginary world.
OpenGL (Open Graphics Library) is a standard specification which is used
to write software application to create 2D and 3D graphics. Open GL is a platform
independent API which makes it easy to use and has good performance
capability. The Open GL utility library (GLU) provides sophisticated modeling
features which are not available in standard Open GL.
Java Open GL (JOGL) is a library that’s helps to use the OpenGL in java
programming language. It is also easy to program using JOGL with a good
programming knowledge of JAVA. This project is developed using JOGL.
This project is aimed at developing an Arkanoid game also called as Ball
and Bricks game using JOGL. All the inbuilt methods available in Open GL are
not used and the own methods are implemented to demonstrate the same
functionality.
This game is made very simple and interactive for use. The UI designed
makes use of all the features of Open GL learnt during the course. The game is
designed as a 2D game area embedded in a 3D world to give a feel of playing in
3D world to the user.
1.1 OpenGL
OpenGL was developed by Silicon Graphics Inc. (SGI) in 1992. It is a
software interface to graphics hardware. It is a standard specification which
contains of nearly 150 commands that is used to specify the primitives or objects
and create operations that are required to produce 3D applications. It is a

4. hardware independent interface that can be implemented in any hardware
platform.
It has got two main advantages, first to hide the complexity of the
interacting hardware device by providing a single uniform API for the programmer
and secondly it is easy to use and provides a good performance and also focus
on rendering.
Open GL does not have high level complicated commands for creating 3D
objects, whereas these features are provided by the library built top on Open GL.
Open GL utility library (GLU) is used to create complex objects like sphere,
cylinder , quadric surfaces etc.
GL utility library (GLU) contains routines which make use of the Open GL
low level commands for setting up matrices for viewing and specific
transformations etc. Every window system has a library that extends the
functionality of the window system to support the OpenGL rendering.
GLUT which is the OpenGL utility toolkit is a library which is used to
simplify the interaction with the windowing system. GLUT is used to write Open
GL programs without taking care about the windowing system. GLUT provides
following simplified functionalities like opening a window, getting input from
mouse or keyboard, menus etc.
1.2 JOGL
Java OpenGL (JOGL) is a library that helps to use Open GL in java
programming language. It provides full access to Open GL 2.0 and also it
integrates with swing and AWT.
It is used to create hardware supported 3D graphics to the applications
that are written in Java. It is easy because anyone who has a good knowledge in
java can do the program very easily. In this project, the game is developed using
JOGL.

5. 1.3 Open GL Commands
There are nearly 150 commands present in Open GL. In this section we
discuss some of the important commands and the commands which are used in
this project
1.3.1 Color Manipulation Commands
glClearColor – This specifies the clear values for the color buffers. Values given
are between the range 0 and 1.
glColor3f – This specifies the red, green and blue color float explicitly and sets
the current alpha intensity value to 1.
1.3.2 Drawing and Matrix Manipulation Commands
glBegin, glEnd – This command is used as a delimiter of the vertices used to
draw a primitive. All the vertices used for drawing a primitive are used inside this
enclosing block.
glVertex – This command is used within the glBegin and glEnd block to specify
the points used to draw the desired primitive. The current color, textures are
associated with the vertex when this command is called.
glLoadIdentity – This command is used to load the identity matrix by replacing
the current matrix in the stack.
glMatrixMode – This command specifies which matrix is the currently used one.
The mode can take three values which can be one of the following:
a. GL_MODELVIEW - This is used to position the view in the scene.
Used for 3D modeling, all the operations done are applied on the
modelview matrix stack.

6. b. GL_PROJECTION – This defines the way the 3D scene is
projected as 2D scene. All the operations done are applied on the
projection matrix stack.
c. GL_TEXTURE – Applies all the operations on the texture matrix
stack.
glTranslate – This command is used to translate the current position with the
given x, y and z values. The current matrix which is specified previously in the
glMatrixMode is multiplied by the translation matrix. The multiplied result replaces
the current matrix value.
glRotate – This command is used to rotate for the given rotation angle around
the vector x, y and z. Similarly the current matrix which is specified previously in
the glMatrixMode is multiplied by the rotation matrix. The multiplied result
replaces the current matrix value.
glScale - This command is used to produce a desired scaling factor along the x,
y and z axes. Similarly the current matrix which is specified previously in the
glMatrixMode is multiplied by the scaling matrix. The multiplied result replaces
the current matrix value.
1.3.3 Stack Manipulation Commands
glPushMatrix, glPopMatrix – This command is used to push and pop the
current matrix stack used.
1.3.4 Texture manipulation Commands
glGenTextures - This command is used to generate texture names with takes as
parameter the number of texture to be generated and the array where the
generated texture names are stored.

7. glBindTexture – This command is used to bind the name of the texture to the
texture target.
glTexParameteri – This command assigns the values to the texture parameter
specified. The target defines the corresponding texture target.
glTexImage2D – This command is used to specify a 2D texture image
glTexCoord – This command is used to specify the texture coordinates in 1D,
2D or 3D. The glTextCoord2d used in this project specifies the S-Tangent and T-
tangent vales of the texture used.
1.3.5 Viewing manipulation commands
glViewport – This command is used to set the view port area by specifying the
lower left corner pixel points of the rectangle, height and width of the rectangle
area.
gluOrtho2D – This command specifies the 2D projection matrix and sets up the
2D orthographic viewing region. It specifies the left and right vertical clipping
planes and bottom, top horizontal clipping planes.
gluPerspective – This command specifies the view coordinate system into world
coordinate system. The aspect ratio should match the view port aspect ratio in
order to see the image without any distortion.

8. 2 Requirements
This project is aimed at developing an interactive “Arkanoid” game also
called as “Ball and Bricks” game using JOGL. The game interface should be
easy to use by the user and provide a good visual presentation for attracting the
player.
Let us look into the requirements for creating this Arkanoid game
1. The Game developed should be an interactive Arkanoid play.
2. The Arkanoid game developed should have a paddle which helps to
hold the ball.
3. The ball should bounce inside the play area and target to break the
bricks.
4. The ball is allowed only to move inside the play area boundary.
5. Once there is a collision of the ball with the bricks or the play area
boundary or the paddle the ball has to bounce in the corresponding
direction.
6. The Direction of the ball motion must be calculated based on the
direction of the collision.
7. Once the ball hits the target bricks, then the brick should be broken or
destroyed.
8. The game score should be shown based on the number of bricks
destroyed by the user.
9. Each time the ball is dropped or missed then the lives should be
decreased.
10. The maximum number of lives for the player is given as three.
11. The game should be over if all the lives are gone and still there are
some bricks which are not broken.
12. Player should win the game if he breaks all the bricks before all the
lives are finished.
13. Bonus should be given to the player is the ball hits the selected brick
marked in a different color.

9. 14. The Bonus brick should marked in blue color.
15. When the bonus brick is hit by the ball, five bricks adjacent to the
bonus brick should be broken and the score should be increased.
16. The Arkanoid play area should a 2D plane embedded in a 3D
environment.
17. The Game should be played using keyboard control or using mouse as
desired by the player.
18. The User interface should be made more attractive by giving texture
for play area, ball and bricks.
19. There should a combined swing frame which displays the current
score, lives to the user.
20. There should be also some extra features available to change the
background color, rotate the play board after the game etc.
21. The inbuilt Open GL functions like glTranslate; glRotate etc should not
be used. Own matrix operations should be implemented to
demonstrate the above functionalities.
22. The Game should be developed using JOGL.
The game was developed based on the above requirements.

10. 3 Design Analysis
In this section, we discuss the object-oriented approach followed in the
designing of the game, the actual algorithm used to detect collisions,
assumptions and limitations of the game. This game is developed using JOGL
and uses Java Swing technology for presentation.
3.1 Classes and Methods
The various classes and important methods used are discussed below.
Class – BouncingApplication
This Class contains the main method. Used for startup of the application. This
class contains all the swing components used for this game. The Registration of
the GLEventListener, KeyListener, and MousemotionListener is done here.
Methods Description
main() The main method is invoked by JVM and
it instantiates the class (Bouncing
Application) and opens the frame
(JFrame) and registers the event
handlers. Creates the canvas for the
renderer display and creates the visual
components.
Class – BouncingBallRenderer
This class extends the GLEventListener, ActionListener and MenuListener. This
contains all the graphics related methods and the key algorithm used for collision
detection and displaying the graphics.
Methods Description
init(GLAutoDrawable gLDrawable) This method is called the first time and it

11. initializes the graphics display. The
matrixes are set to identity and all
textures are created here. This method
calls the display
display(GLAutoDrawable This method is used for rendering the
gLDrawable)
graphics. This method is called repeated
by using an Animator. This methods
contains all the important methods for
displaying the game and contains the
algorithm used
reshape(GLAutoDrawable This method is called when the window is
gLDrawable, int x, int y, int
resized
width, int height)
drawBoundaryBox(GL gl) This method is used to draw the outer
boundary box of the play area.
drawBricks(GL gl) This method is used to draw or display
the target bricks to break.
checkGameOver() This method is used to check if the game
is over. It can be the case if all the bricks
are broken or all the lives are finished.
updatePlatePosition(GL gl) This method is called to track the new
position of the plate moved by the player
and draw the new position. This is
accomplished by performing the
operations on the Plate Matrix Stack
drawBallOnPlate(GL gl) This method is used to draw the ball on
the plate
updateBallPosition() This method is used to calculate the
movement of the ball. It increments the x
and y value for the movement based on
the direction of the bouncing ball. This

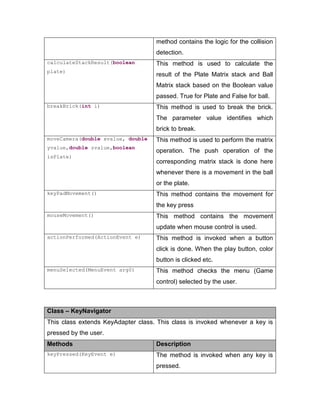

12. method contains the logic for the collision
detection.
calculateStackResult(boolean This method is used to calculate the
plate)
result of the Plate Matrix stack and Ball
Matrix stack based on the Boolean value
passed. True for Plate and False for ball.
breakBrick(int i) This method is used to break the brick.
The parameter value identifies which
brick to break.
moveCamera(double xvalue, double This method is used to perform the matrix
yvalue,double zvalue,boolean
operation. The push operation of the
isPlate)
corresponding matrix stack is done here
whenever there is a movement in the ball
or the plate.
keyPadMovement() This method contains the movement for
the key press
mouseMovement() This method contains the movement
update when mouse control is used.
actionPerformed(ActionEvent e) This method is invoked when a button
click is done. When the play button, color
button is clicked etc.
menuSelected(MenuEvent arg0) This method checks the menu (Game
control) selected by the user.
Class – KeyNavigator
This class extends KeyAdapter class. This class is invoked whenever a key is
pressed by the user.
Methods Description
keyPressed(KeyEvent e) The method is invoked when any key is
pressed.

13. keyReleased(KeyEvent e) The method is invoked when any key is
released.
processMovement(KeyEvent ,boolean This method sets the movement variable
commandIsActive)
according to the key pressed.
Class – MouseNavigator
This class implements the MouseListener, MouseMotionListenerclass. This class
is invoked whenever a mouse movement is performed by the user.
Methods Description
mouseClicked(MouseEvent arg0) The method is invoked when the mouse
is clicked.
mouseMoved(MouseEvent arg0) The method is invoked when mouse is
moved.
Class – MatrixStack
This class contains the matrix operations. 2 Matrix stacks are created one for the
plate and one for the ball.
Methods Description
push(double[][] matrix) The method is invoked when push
operation is performed on the matrix
stack
pop() The method is invoked when pop
operation is performed on the matrix
stack
flushStack() This method clears the matrix stack.

14. Class – NGonBall
This class is used to create a Ngon Ball used for the Game
Methods Description
drawNGon(double x, double y) The method is used to generate the
tuples for the Ngon Ball.
There are some more classes used for applying texture like BitmapLoader for
loading the bmp file, ResourceRetriever, TextureLoader. Not all the methods for
these classes are mentioned above.
Description about all the methods and classes can be retrieved from the java doc
presented in the project.

15. 3.2 Class Diagram
The below figure shows the list of classes used in this project and the
dependencies between the classes.
Fig.1

16. 4 Implementation
In this section the algorithm used for the game is discussed. The main
algorithm consists of the collision detection of the ball with the boundary, bricks
and the plate.
Later in the appendix section the screenshot of the game is shown
4.1 Collision detection Algorithm
1. The ball’s position is updated by incrementing/decrementing the ‘x’ value
and incrementing/decrementing the ‘y’ value.
2. For every display call
// updating with ‘x’ value
a. If ball’s minimum ‘x’ bound equals the left boundary of the play area
i. Increment ‘x’ by 0.1
Else
ii. Decrement ‘x’ by 0.1
b. If ball’s maximum ‘x’ bound equals the right boundary of the play area
i. Decrement ‘x’ by 0.1
Else
ii. Increment ‘x’ by 0.1
c. If ball’s minimum ‘y’ bound equals the top of the plate and if the ‘x’
value of the ball lies within the ‘x’ bounds of the plate
i. Increment ‘y’ by 0.1 and increment/decrement ‘x’ based on the
place of coincidence of the ball.
Else
ii. Decrement ‘Y’ by 0.1 and the ball is missed. So, lives count is
reduced by 1.

17. //To detect collision
d. For each brick
i. If the brick has not been collided
1. If the midpoint of the ball lies within the ‘x’ and ‘y’
bounds brick vertices,
a. Ball collided the brick
b. Increment/decrement ‘x’ and ‘y’ values according
to the movement of the ball i.e. based on the
previous values of the ‘x’ and ‘y’
2. If the top of the ball touches the bottom of the brick
side,
a. Ball collided the brick
b. Increment/decrement ‘x’ and decrement ‘y’
values according to the movement of the ball i.e.
based on the previous values of the ‘x’ and ‘y’
3. If the max/min ‘x’ of the ball touches the sides of the
brick,
a. Ball collided the brick
b. Increment/decrement ‘x’ and decrement ‘y’
values according to the movement of the ball i.e.
based on the previous values of the ‘x’ and ‘y’
4.2 Additional Features
• Three lives are provided for the user
• Game can be played using either keyboard or mouse
• Bonus points are awarded to the user if he breaks the bricks
in blue color.

18. • When the Blue bricks are hit, the five bricks adjacent to it are
broken as bonus.
• Another type of bonus is given, when a green brick is broken
the ball attaches to the plate automatically till the next life is
lost. This feature allows the user to target on more bricks
and increase the score
4.3 Software Details
Development IDE Eclipse Version: 3.2.2
Operating System Windows XP
Other Technologies Used Java Swing
Library Used JOGL 1.1.0
Programming language JAVA
Important Jar files Used for JOGL jogl.jar
gluegen-rt.jar
5 Conclusion & Future Work
Hence in this project an interactive Arkanoid game using JOGL has
been implemented. It also incorporates all the features learnt during the course
for example applying Texture, Ngon object, transformation matrices etc. Hence
this project was a very good start for developing good video games with 2D and
3D features
The following are the possible extensions to the game
• Can have levels with various difficulty like Beginner, Intermediate,
Expert etc.
• Can be extended as a multi player game

19. 6 References
1. “OpenGL RedBook – OpenGL programming Guide “, Dave Astle,Kelvin
Hawkins
2. Tutorial for applying Texture
http://www.paulsprojects.net/tutorials/simplebump/simplebump.html
3. Open GL command Reference
http://www.ncrg.aston.ac.uk/~cornfosd/graphics/opengl/openglman.html
4. Course Lecture slides

20. 7 Appendix
7.1 Game Screenshot
