AJAX allows for developing rich internet applications using a combination of technologies including JavaScript, DOM, XMLHttpRequest and asynchronous HTTP requests. It allows for faster applications with less bandwidth usage through partial page updates. Popular AJAX examples include Google Maps, Gmail and Yahoo Maps. Key benefits are data-driven user interfaces and asynchronous communication between the client and server. Steps in AJAX include a client event triggering an XMLHttpRequest, the request being sent to and processed by the server, and the response updating the HTML DOM. While AJAX provides advantages, it also has limitations such as increased complexity, breaking the back button, and cross-browser issues.

1. AJAX Developing Rich Internet Applications -- Luqman Shareef

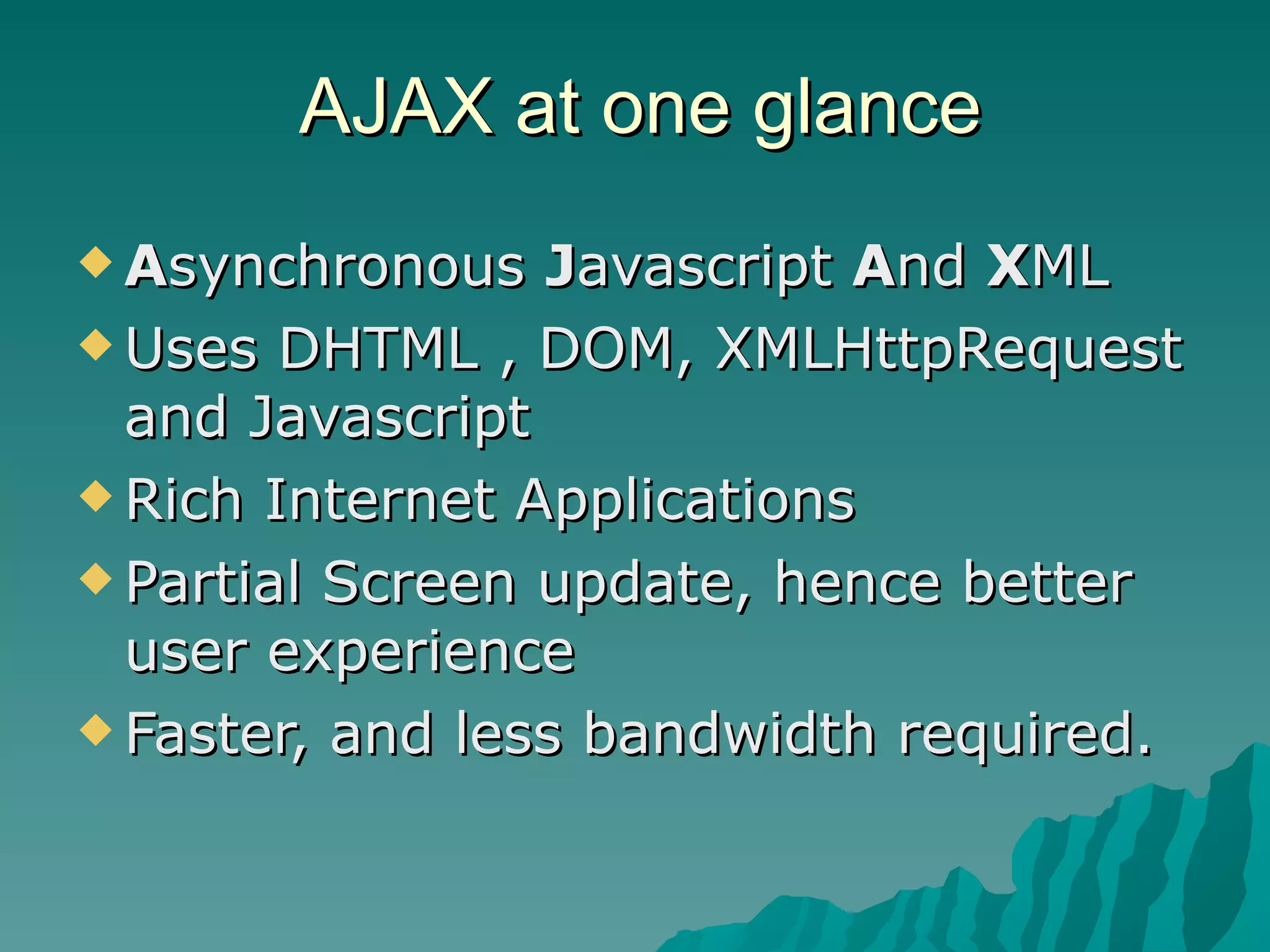

3. AJAX at one glance A synchronous J avascript A nd X ML Uses DHTML , DOM, XMLHttpRequest and Javascript Rich Internet Applications Partial Screen update, hence better user experience Faster, and less bandwidth required.

4. AJAX Examples Google Map ( http://maps.google.com ) Google Suggest ( http://www.google.com/webhp?complete=1&hl=en ) Gmail ( http://gmail.google.com ) Yahoo Maps ( http://maps.yahoo.com )

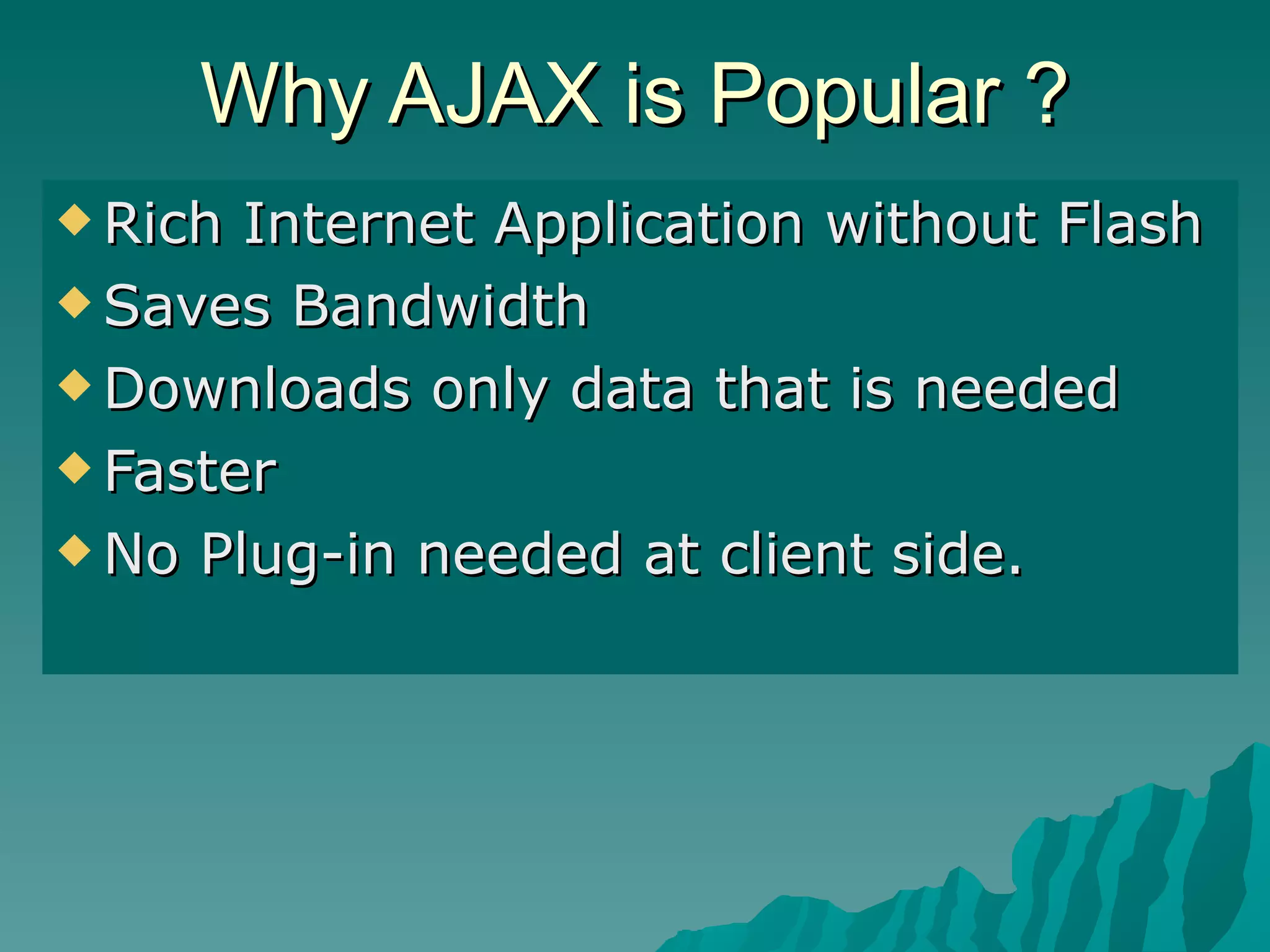

5. Why AJAX is Popular ? Rich Internet Application without Flash Saves Bandwidth Downloads only data that is needed Faster No Plug-in needed at client side.

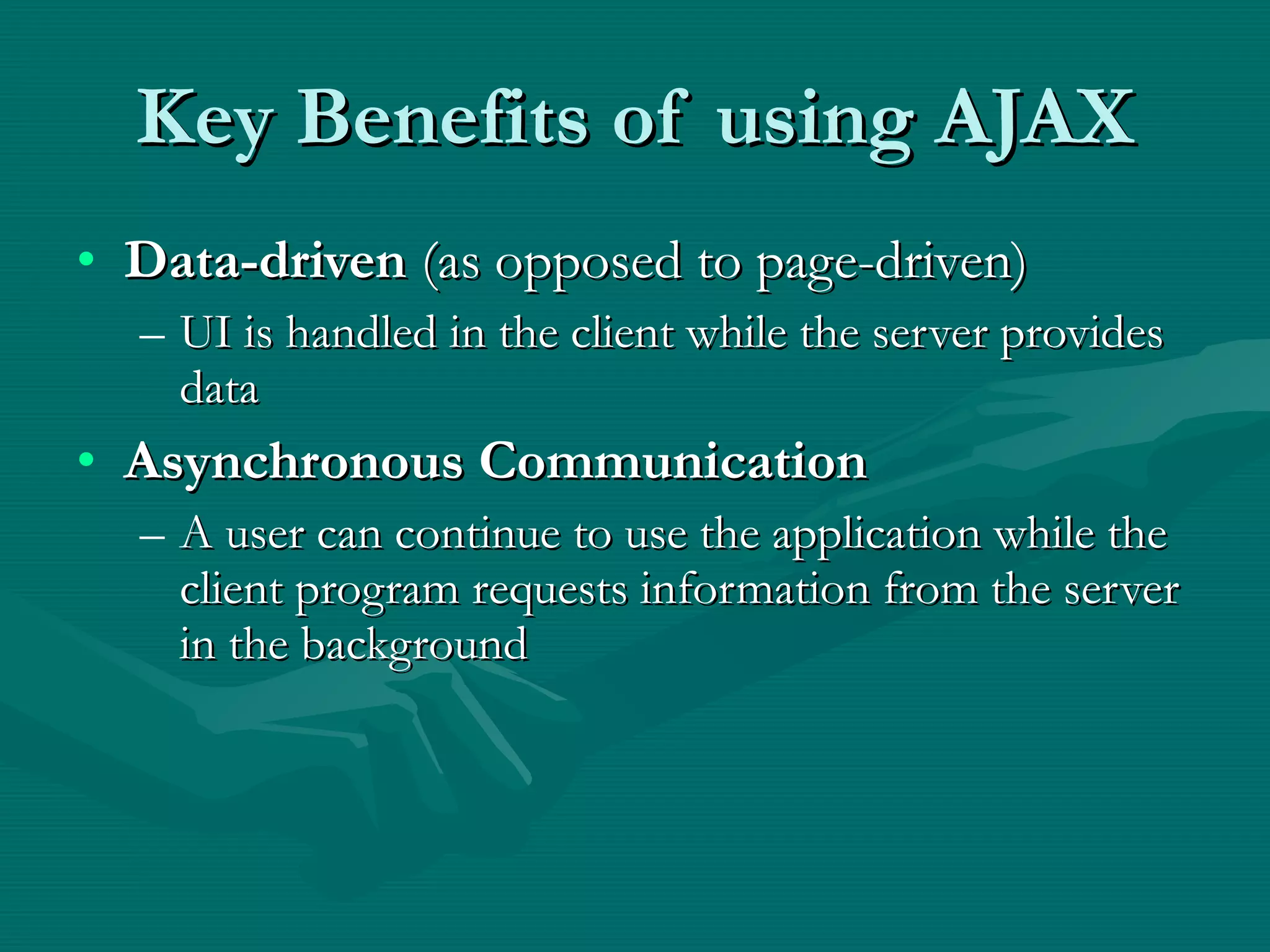

6. Key Benefits of using AJAX Data-driven (as opposed to page-driven) UI is handled in the client while the server provides data Asynchronous Communication A user can continue to use the application while the client program requests information from the server in the background

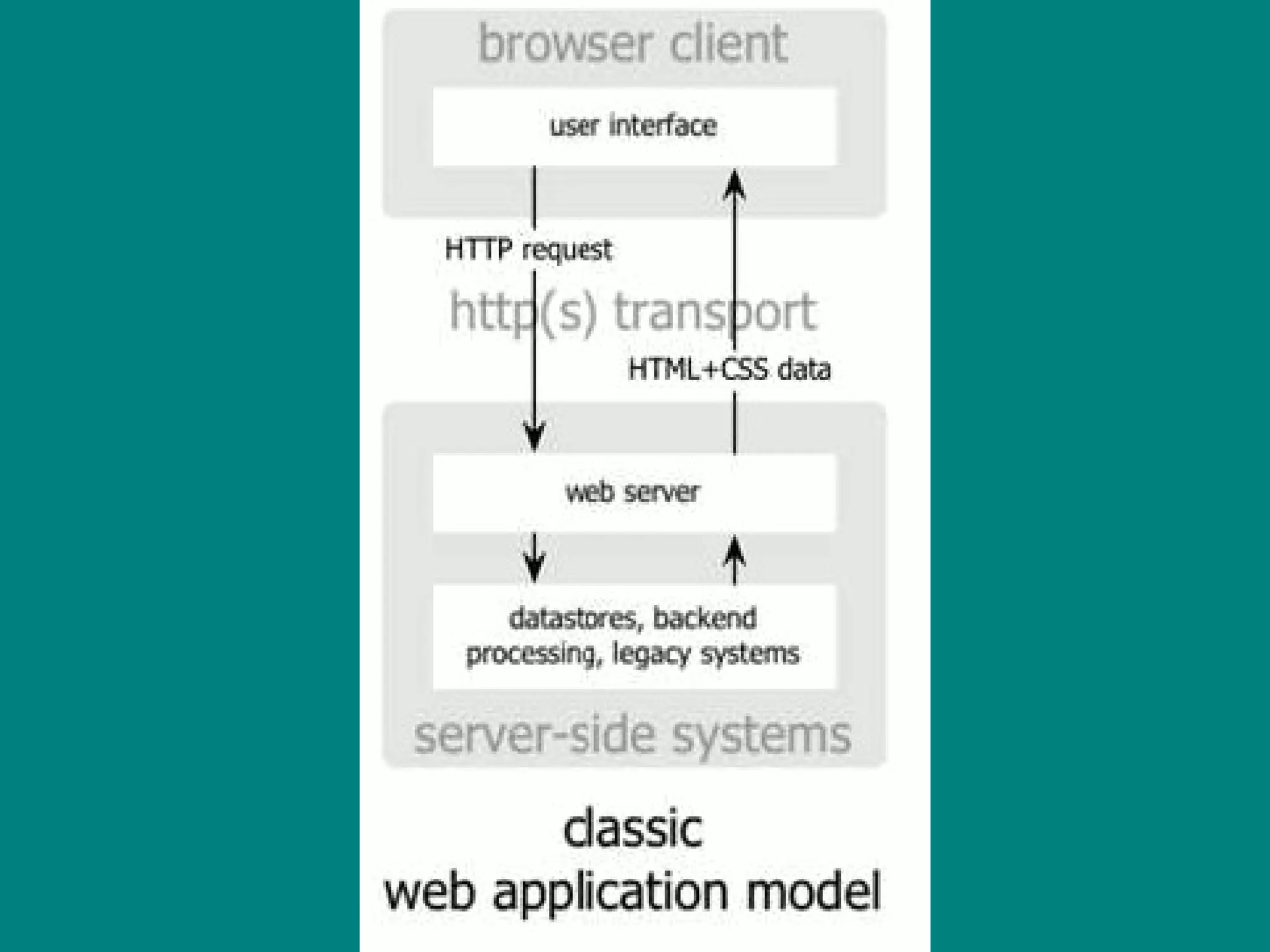

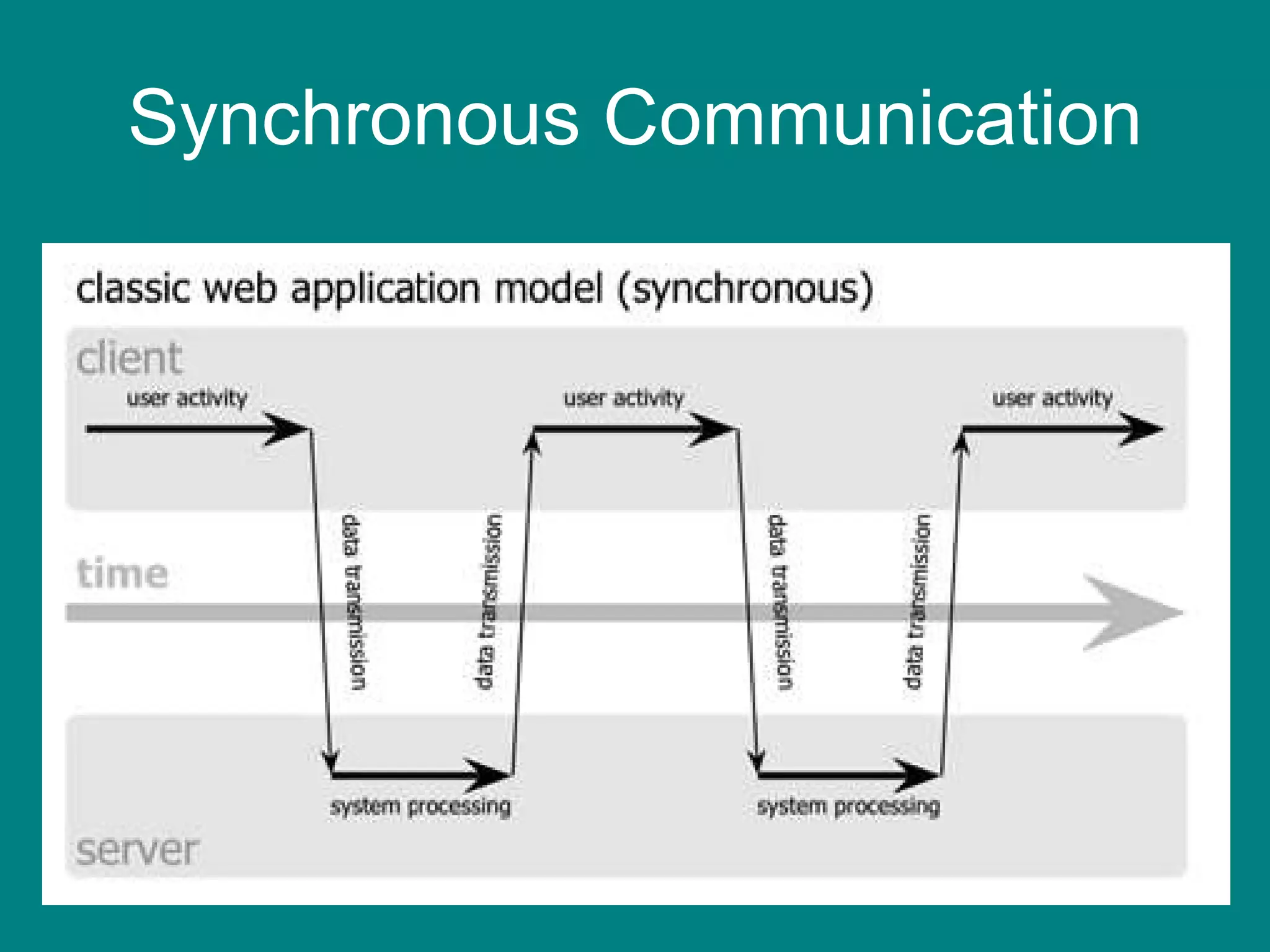

7. Synchronous Communication

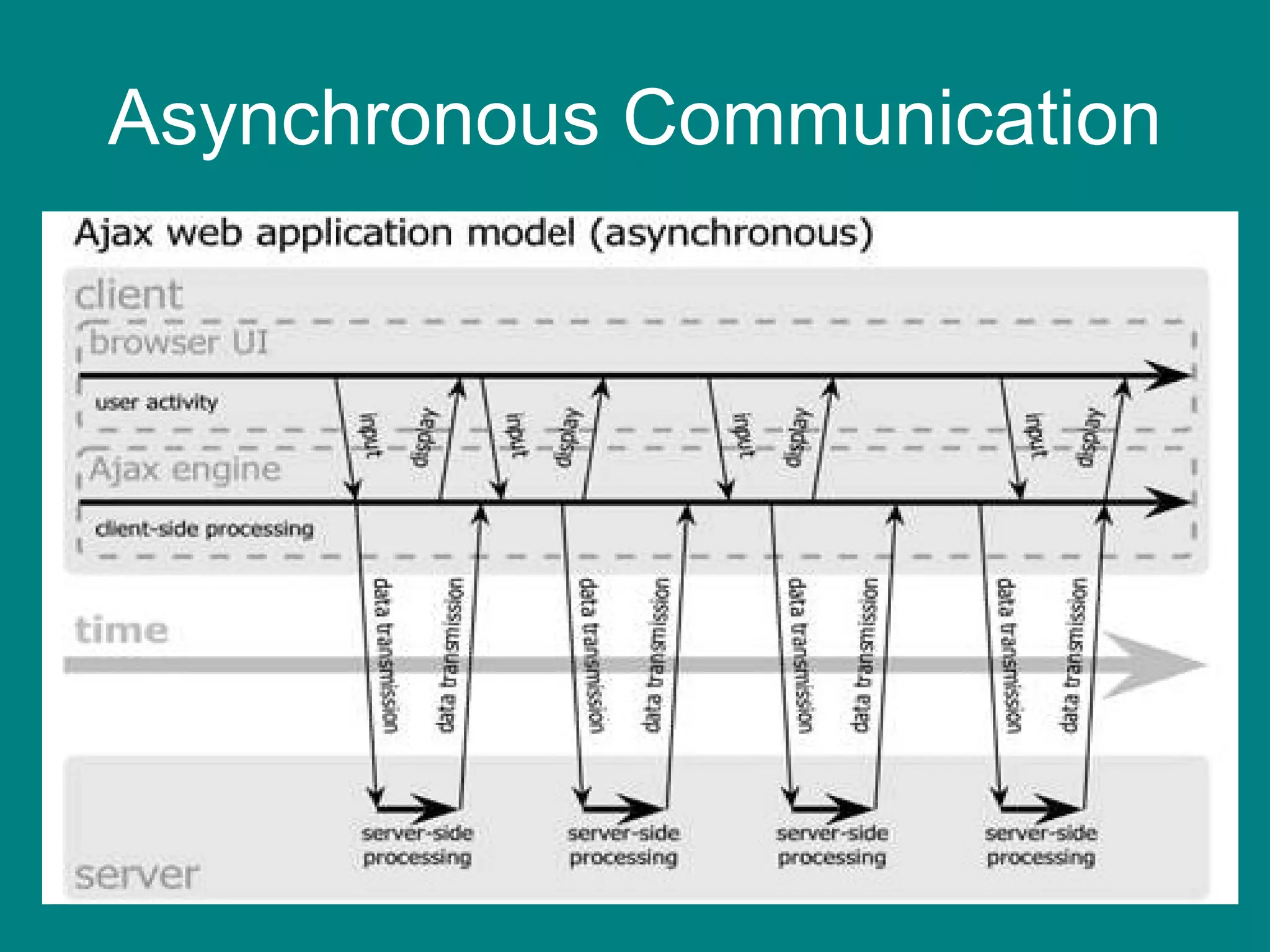

8. Asynchronous Communication

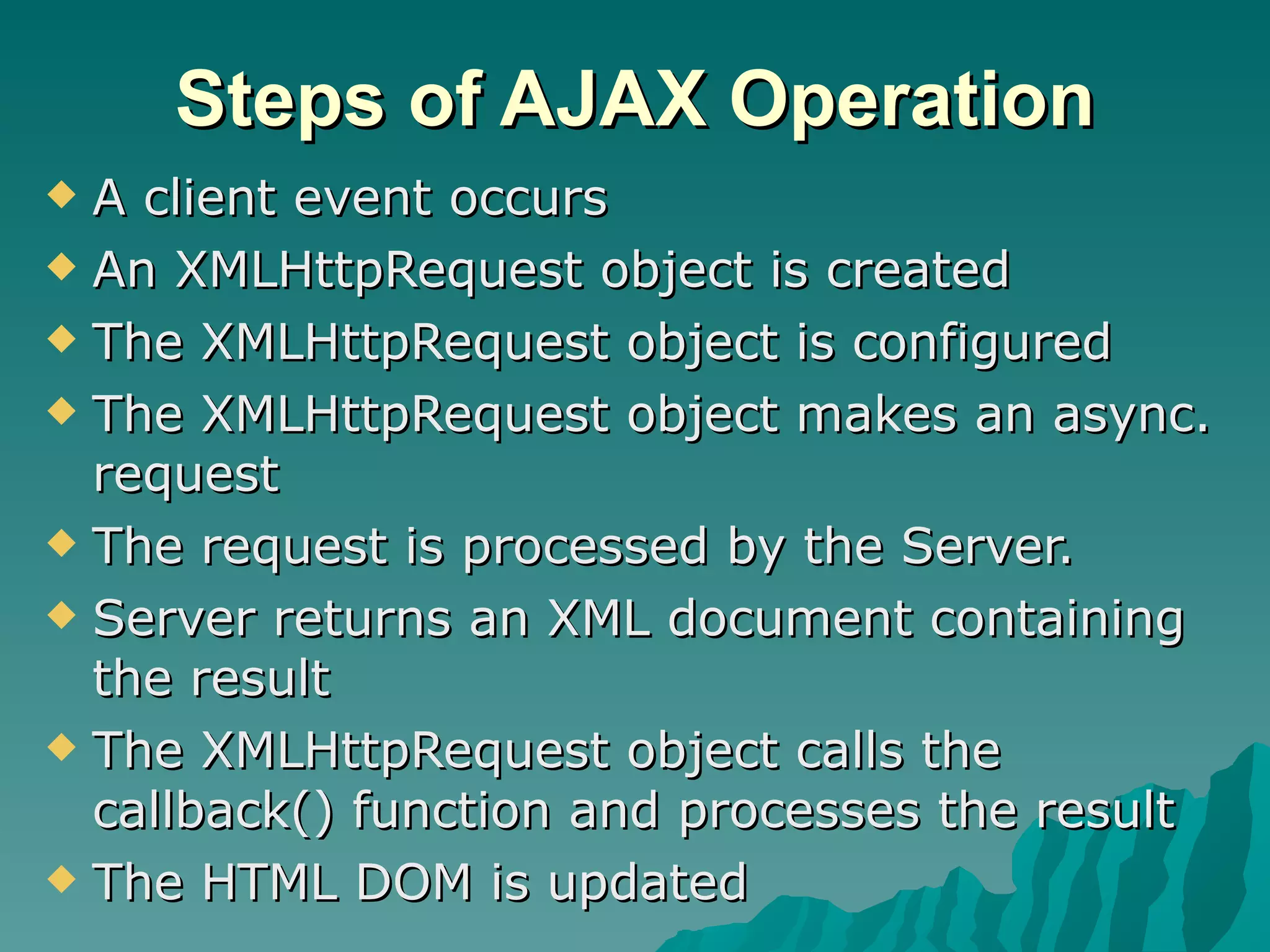

11. Steps of AJAX Operation A client event occurs An XMLHttpRequest object is created The XMLHttpRequest object is configured The XMLHttpRequest object makes an async. request The request is processed by the Server. Server returns an XML document containing the result The XMLHttpRequest object calls the callback() function and processes the result The HTML DOM is updated

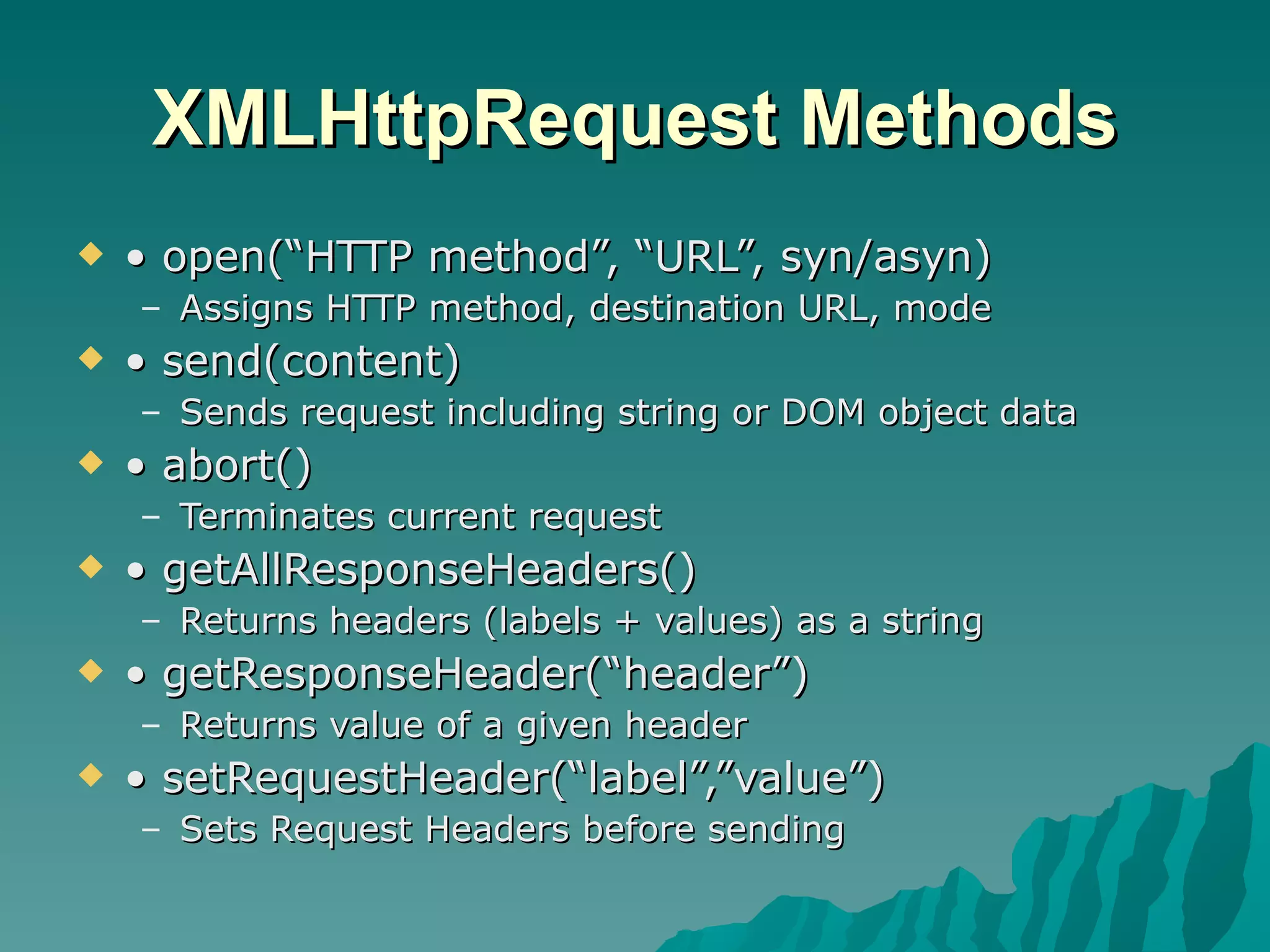

12. XMLHttpRequest Methods • open(“HTTP method”, “URL”, syn/asyn) Assigns HTTP method, destination URL, mode • send(content) Sends request including string or DOM object data • abort() Terminates current request • getAllResponseHeaders() Returns headers (labels + values) as a string • getResponseHeader(“header”) Returns value of a given header • setRequestHeader(“label”,”value”) Sets Request Headers before sending

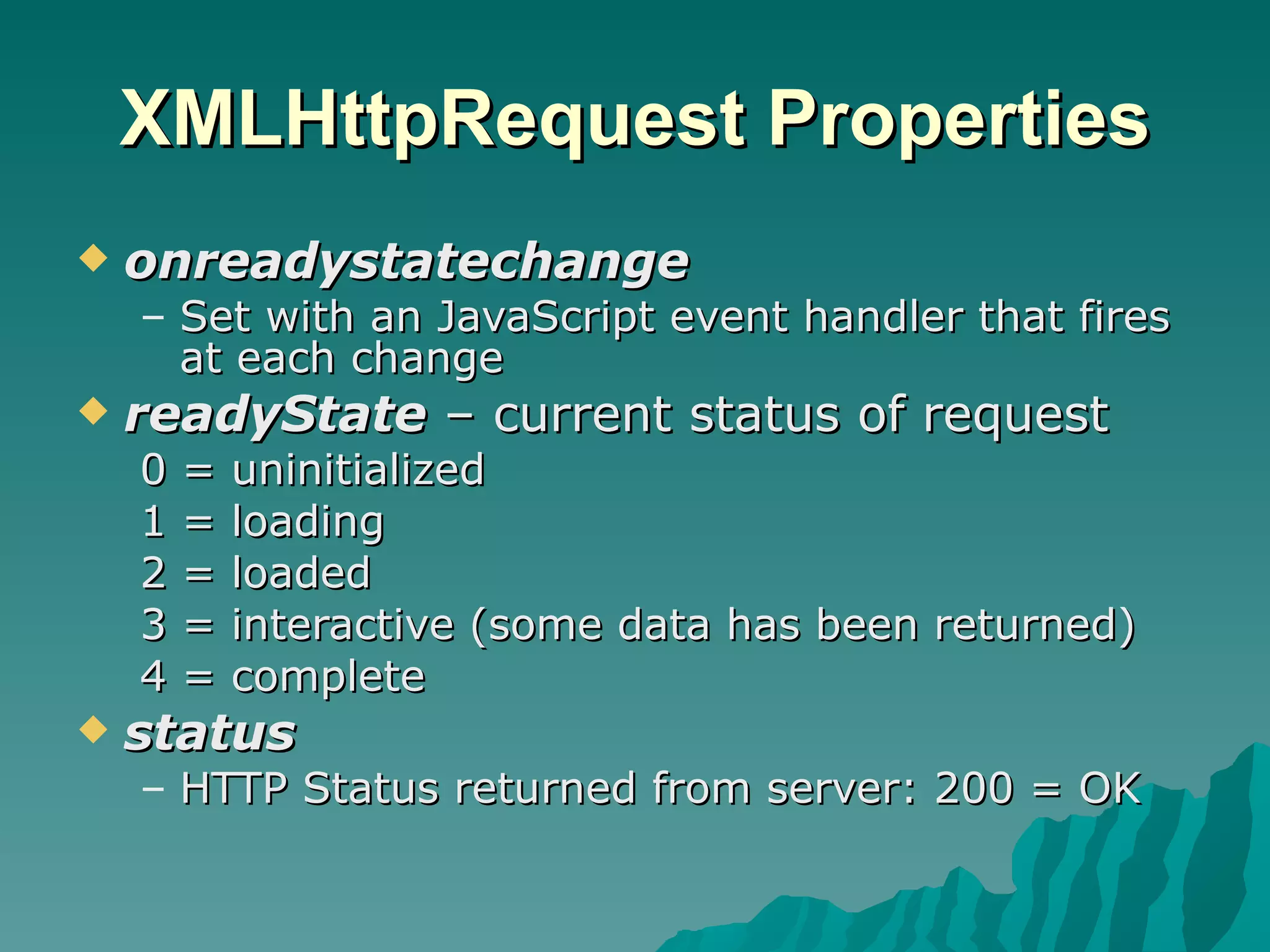

13. XMLHttpRequest Properties onreadystatechange Set with an JavaScript event handler that fires at each change readyState – current status of request 0 = uninitialized 1 = loading 2 = loaded 3 = interactive (some data has been returned) 4 = complete status HTTP Status returned from server: 200 = OK

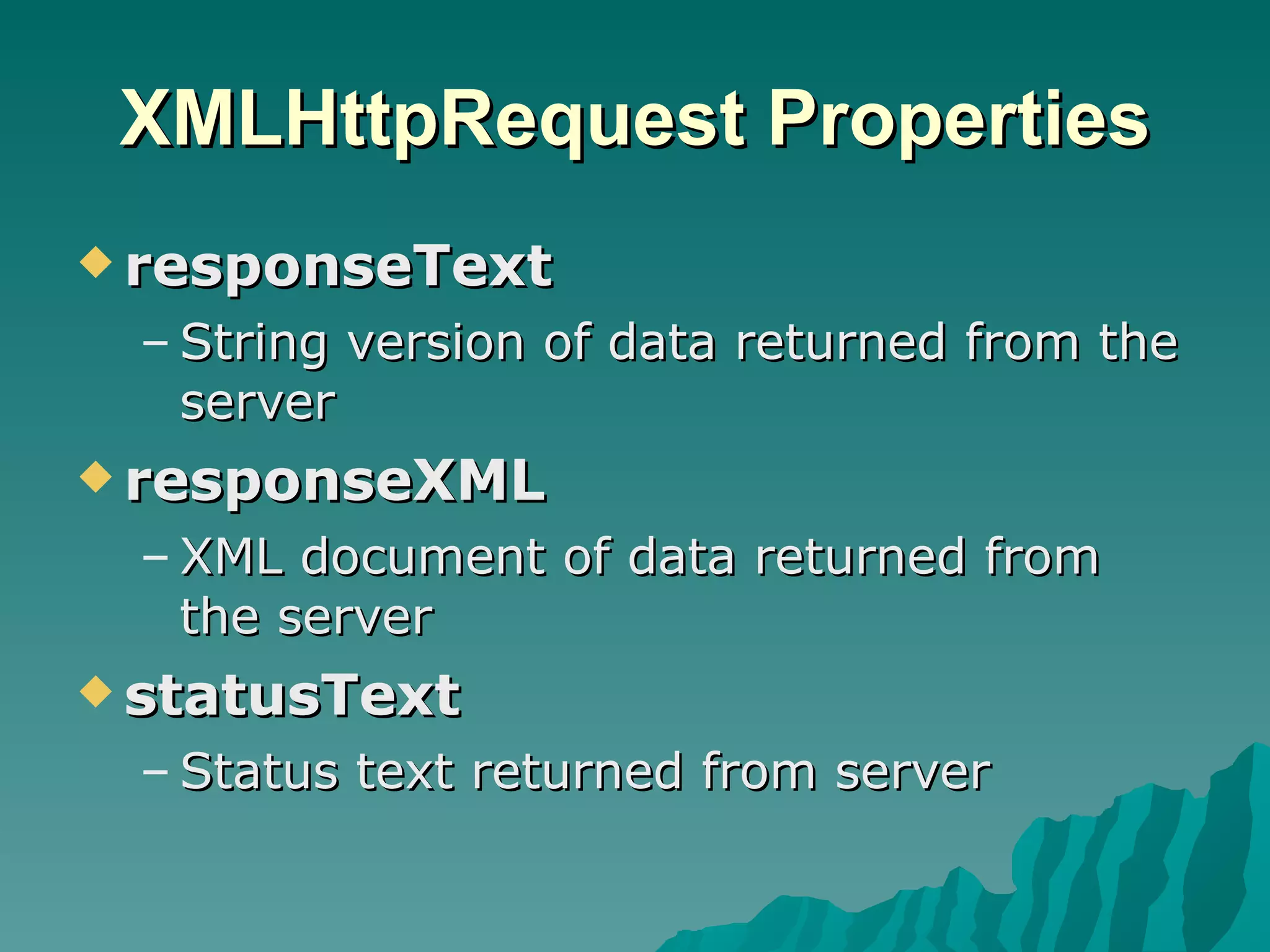

14. XMLHttpRequest Properties responseText String version of data returned from the server responseXML XML document of data returned from the server statusText Status text returned from server

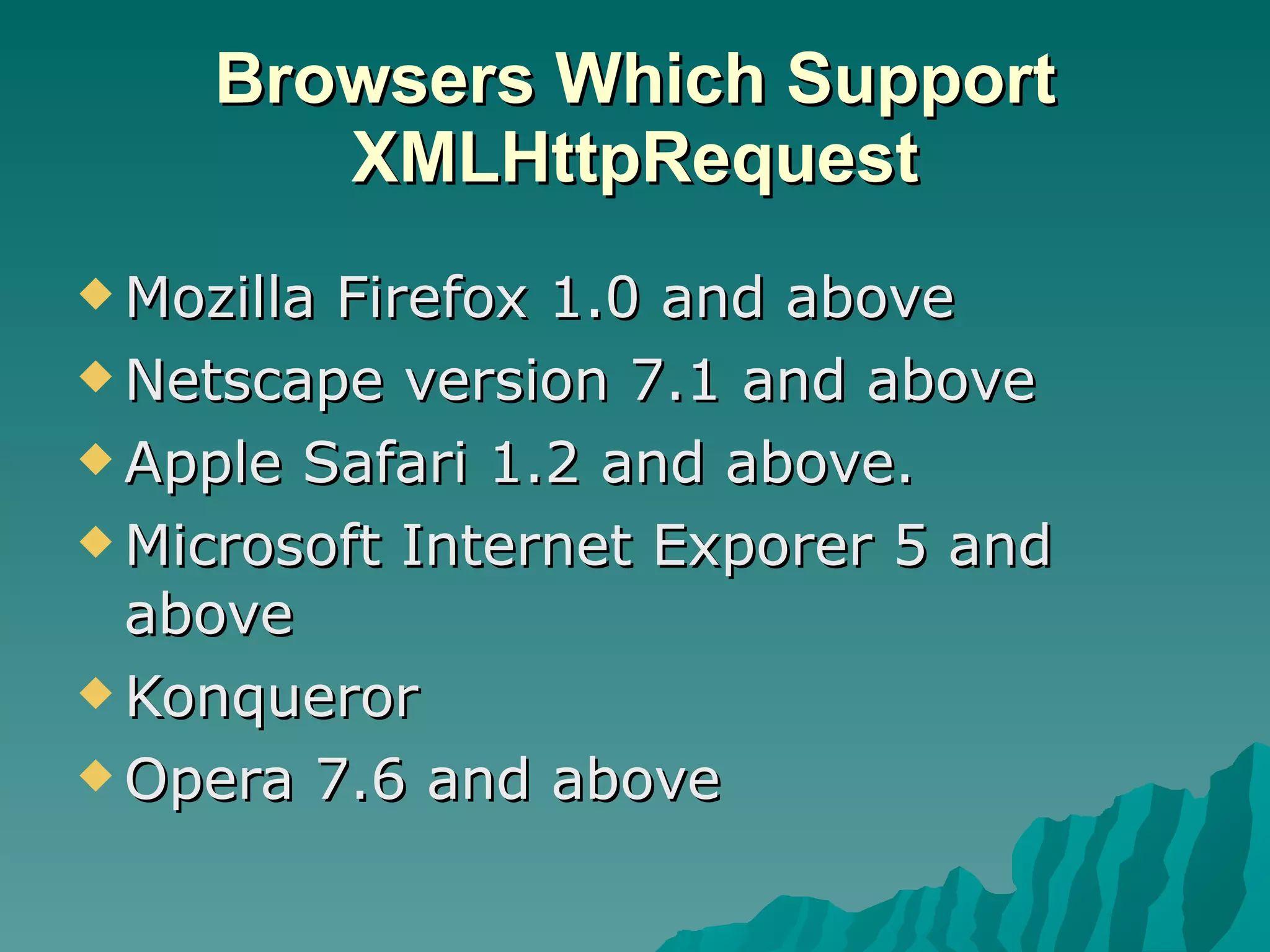

15. Browsers Which Support XMLHttpRequest Mozilla Firefox 1.0 and above Netscape version 7.1 and above Apple Safari 1.2 and above. Microsoft Internet Exporer 5 and above Konqueror Opera 7.6 and above

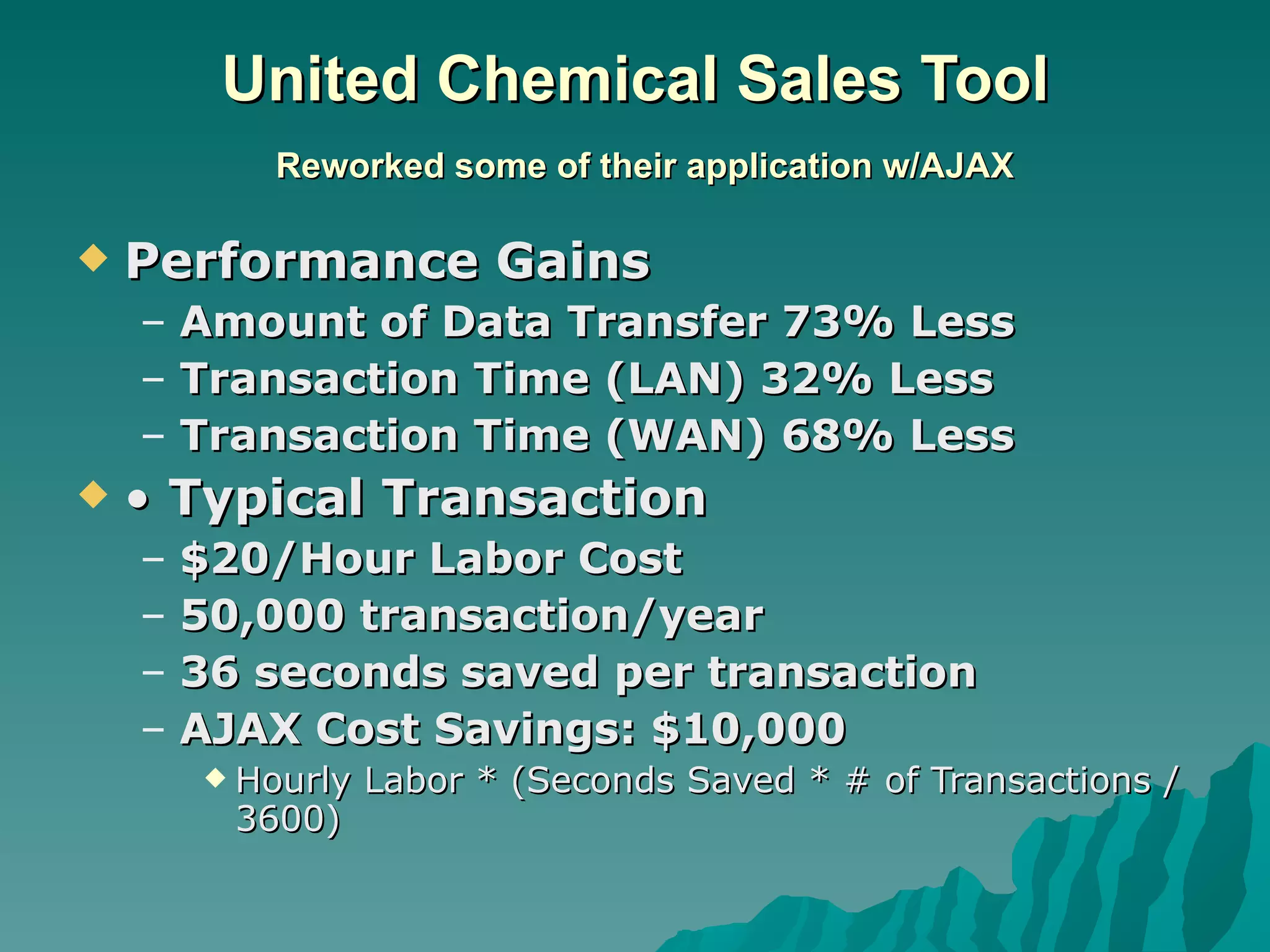

16. United Chemical Sales Tool Reworked some of their application w/AJAX Performance Gains Amount of Data Transfer 73% Less Transaction Time (LAN) 32% Less Transaction Time (WAN) 68% Less • Typical Transaction $20/Hour Labor Cost 50,000 transaction/year 36 seconds saved per transaction AJAX Cost Savings: $10,000 Hourly Labor * (Seconds Saved * # of Transactions / 3600)

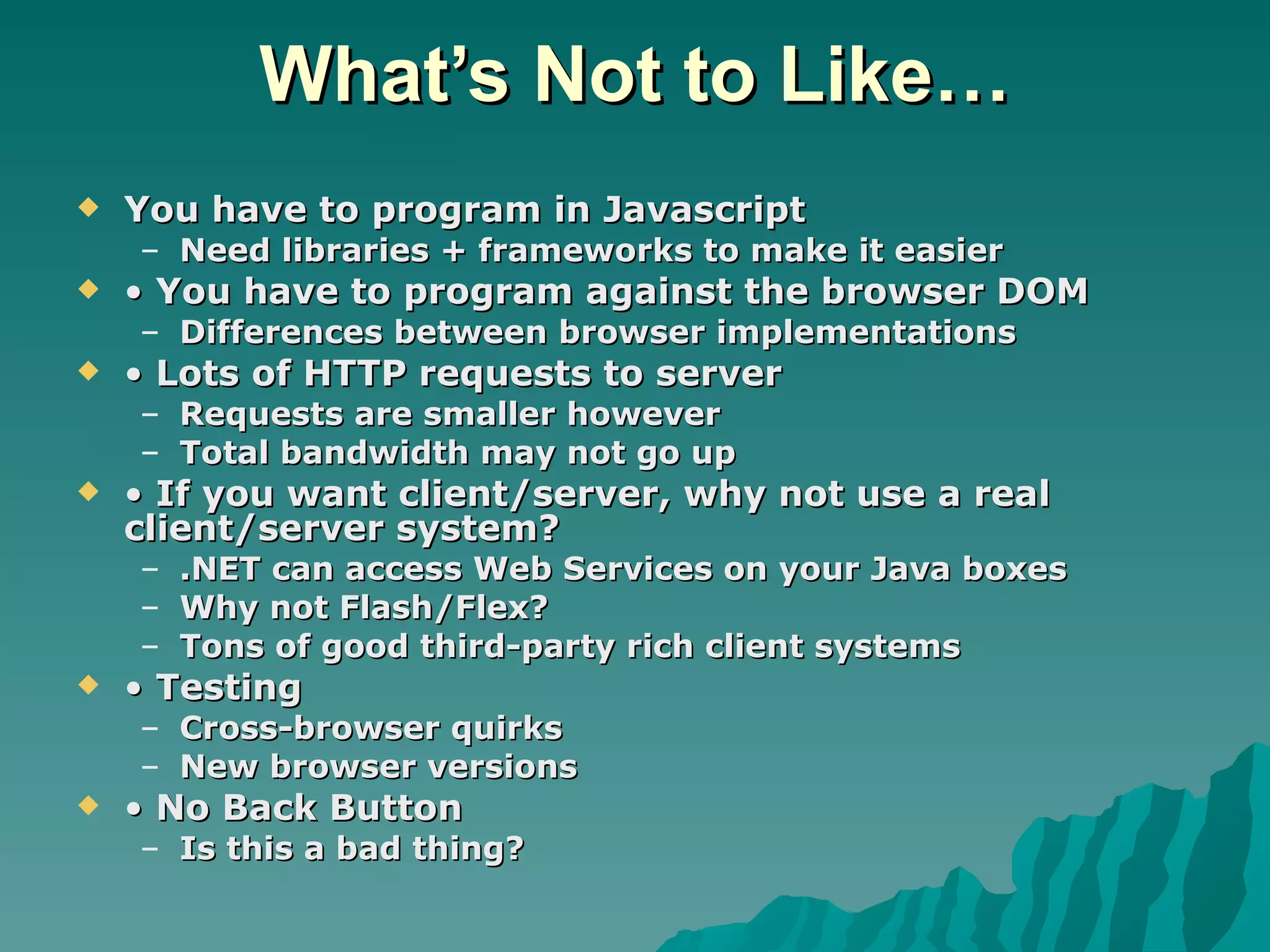

18. What’s Not to Like… You have to program in Javascript Need libraries + frameworks to make it easier • You have to program against the browser DOM Differences between browser implementations • Lots of HTTP requests to server Requests are smaller however Total bandwidth may not go up • If you want client/server, why not use a real client/server system? .NET can access Web Services on your Java boxes Why not Flash/Flex? Tons of good third-party rich client systems • Testing Cross-browser quirks New browser versions • No Back Button Is this a bad thing?

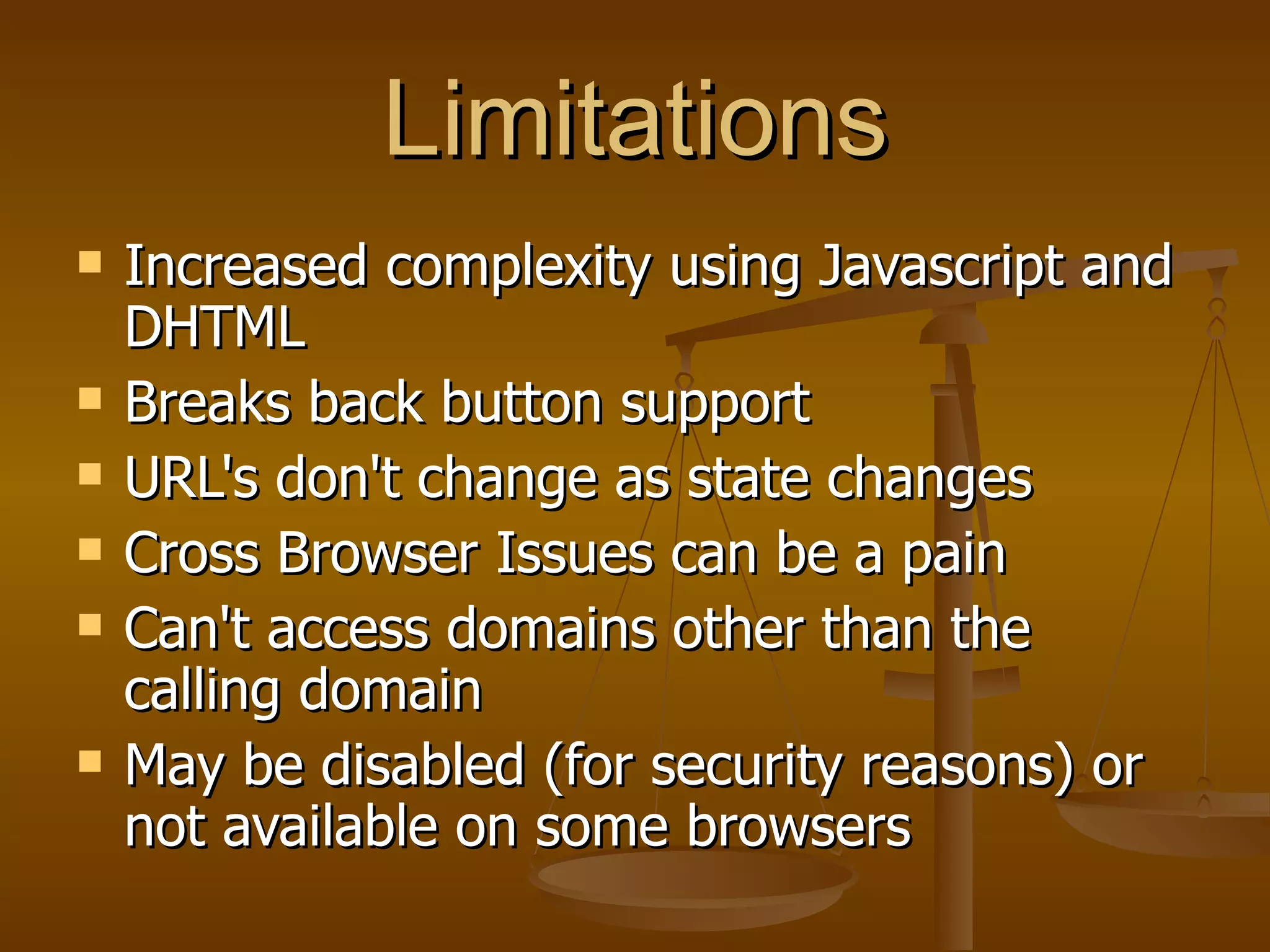

19. Limitations Increased complexity using Javascript and DHTML Breaks back button support URL's don't change as state changes Cross Browser Issues can be a pain Can't access domains other than the calling domain May be disabled (for security reasons) or not available on some browsers

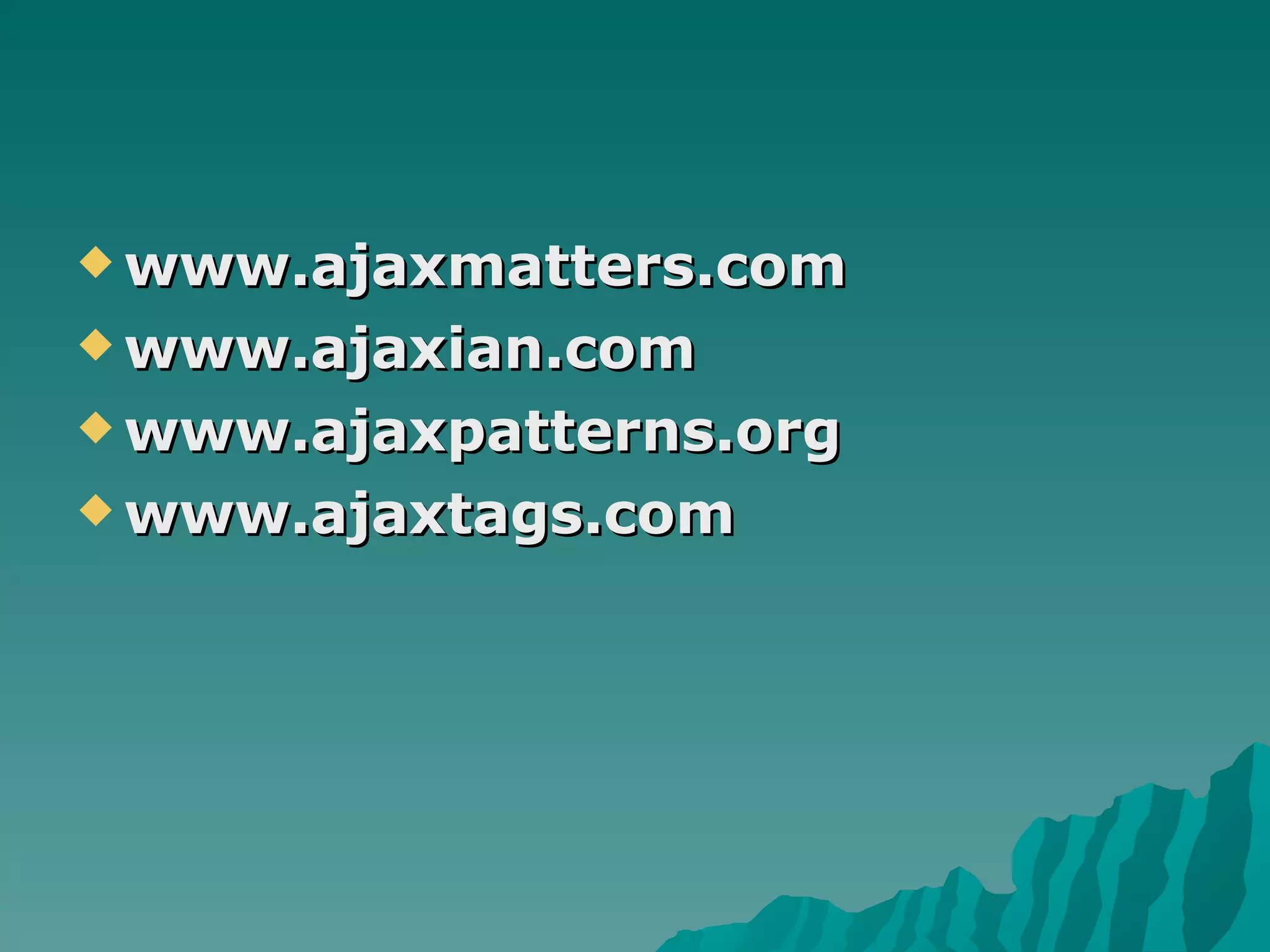

20. www.ajaxmatters.com www.ajaxian.com www.ajaxpatterns.org www.ajaxtags.com

21. Thank You
