• Key Concepts
• Endpoints and Addresses
• Deployment Units
• Mediation Support APIs
• Error Handling
• Interceptors
• Configuration Externalization
• Invoke an Asynchronous Flow
• Usage of Message Files
• UltraESB Clustering
• Metrics and Alerting
• Monitoring and Management
• EMW Framework
2

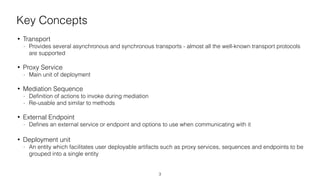

3. Key Concepts
• Transport
- Provides several asynchronous and synchronous transports - almost all the well-known transport protocols
are supported
• Proxy Service
- Main unit of deployment
• Mediation Sequence
- Definition of actions to invoke during mediation
- Re-usable and similar to methods
• External Endpoint
- Defines an external service or endpoint and options to use when communicating with it
• Deployment unit
- An entity which facilitates user deployable artifacts such as proxy services, sequences and endpoints to be
grouped into a single entity
3

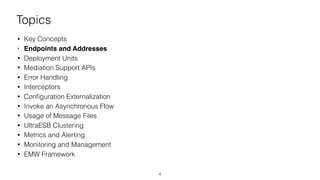

4. Topics
• Key Concepts
• Endpoints and Addresses
• Deployment Units
• Mediation Support APIs
• Error Handling
• Interceptors
• Configuration Externalization
• Invoke an Asynchronous Flow
• Usage of Message Files
• UltraESB Clustering
• Metrics and Alerting
• Monitoring and Management
• EMW Framework
4

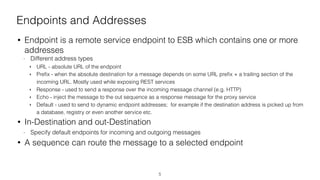

5. Endpoints and Addresses
• Endpoint is a remote service endpoint to ESB which contains one or more
addresses
- Different address types
‣ URL - absolute URL of the endpoint
‣ Prefix - when the absolute destination for a message depends on some URL prefix + a trailing section of the
incoming URL. Mostly used while exposing REST services
‣ Response - used to send a response over the incoming message channel (e.g. HTTP)
‣ Echo - inject the message to the out sequence as a response message for the proxy service
‣ Default - used to send to dynamic endpoint addresses; for example if the destination address is picked up from
a database, registry or even another service etc.
• In-Destination and out-Destination
- Specify default endpoints for incoming and outgoing messages
• A sequence can route the message to a selected endpoint
5

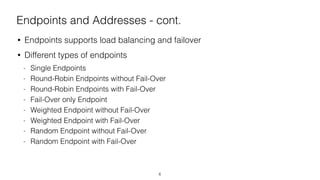

6. Endpoints and Addresses - cont.
• Endpoints supports load balancing and failover
• Different types of endpoints
- Single Endpoints
- Round-Robin Endpoints without Fail-Over
- Round-Robin Endpoints with Fail-Over
- Fail-Over only Endpoint
- Weighted Endpoint without Fail-Over
- Weighted Endpoint with Fail-Over
- Random Endpoint without Fail-Over
- Random Endpoint with Fail-Over
6

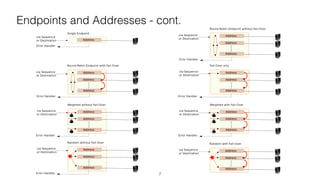

7. Endpoints and Addresses - cont.
7

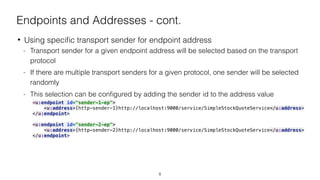

8. • Using specific transport sender for endpoint address
- Transport sender for a given endpoint address will be selected based on the transport
protocol
- If there are multiple transport senders for a given protocol, one sender will be selected
randomly
- This selection can be configured by adding the sender id to the address value
<u:endpoint id="sender-1-ep">
<u:address>{http-sender-1}http://localhost:9000/service/SimpleStockQuoteService</u:address>
</u:endpoint>
<u:endpoint id="sender-2-ep">
<u:address>{http-sender-2}http://localhost:9000/service/SimpleStockQuoteService</u:address>
</u:endpoint>
Endpoints and Addresses - cont.
8

9. Topics
• Key Concepts
• Endpoints and Addresses
• Deployment Units
• Mediation Support APIs
• Error Handling
• Interceptors
• Configuration Externalization
• Invoke an Asynchronous Flow
• Usage of Message Files
• UltraESB Clustering
• Metrics and Alerting
• Monitoring and Management
• EMW Framework
9

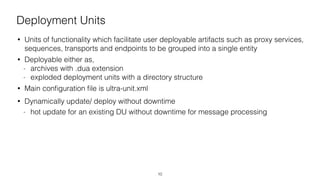

10. Deployment Units
• Units of functionality which facilitate user deployable artifacts such as proxy services,
sequences, transports and endpoints to be grouped into a single entity
• Deployable either as,
- archives with .dua extension
- exploded deployment units with a directory structure
• Main configuration file is ultra-unit.xml
• Dynamically update/ deploy without downtime
- hot update for an existing DU without downtime for message processing
10

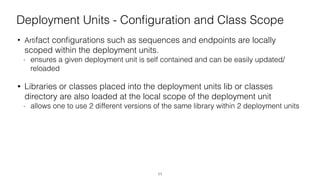

11. Deployment Units - Configuration and Class Scope
• Artifact configurations such as sequences and endpoints are locally
scoped within the deployment units.
- ensures a given deployment unit is self contained and can be easily updated/
reloaded
• Libraries or classes placed into the deployment units lib or classes
directory are also loaded at the local scope of the deployment unit
- allows one to use 2 different versions of the same library within 2 deployment units
11

12. Topics
• Key Concepts
• Endpoints and Addresses
• Deployment Units
• Mediation Support APIs
• Error Handling
• Interceptors
• Configuration Externalization
• Invoke an Asynchronous Flow
• Usage of Message Files
• UltraESB Clustering
• Metrics and Alerting
• Monitoring and Management
• EMW Framework
12

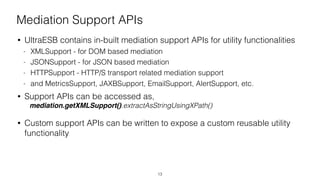

13. Mediation Support APIs
• UltraESB contains in-built mediation support APIs for utility functionalities
- XMLSupport - for DOM based mediation
- JSONSupport - for JSON based mediation
- HTTPSupport - HTTP/S transport related mediation support
- and MetricsSupport, JAXBSupport, EmailSupport, AlertSupport, etc.
• Support APIs can be accessed as,
mediation.getXMLSupport().extractAsStringUsingXPath()
• Custom support APIs can be written to expose a custom reusable utility
functionality
13

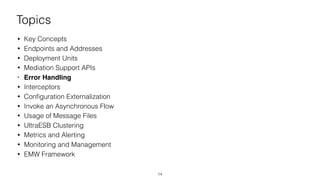

14. Topics
• Key Concepts
• Endpoints and Addresses
• Deployment Units
• Mediation Support APIs
• Error Handling
• Interceptors
• Configuration Externalization
• Invoke an Asynchronous Flow
• Usage of Message Files
• UltraESB Clustering
• Metrics and Alerting
• Monitoring and Management
• EMW Framework
14

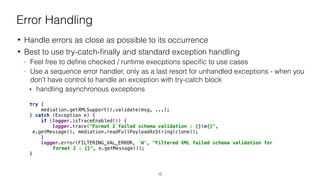

15. Error Handling
• Handle errors as close as possible to its occurrence
• Best to use try-catch-finally and standard exception handling
- Feel free to define checked / runtime execptions specific to use cases
- Use a sequence error handler, only as a last resort for unhandled exceptions - when you
don’t have control to handle an exception with try-catch block
‣ handling asynchronous exceptions
try {
mediation.getXMLSupport().validate(msg, ...);
} catch (Exception e) {
if (logger.isTraceEnabled()) {
logger.trace("Format 2 failed schema validation : {}n{}",
e.getMessage(), mediation.readFullPayloadAsString(clone));
}
logger.error(FILTERING_VAL_ERROR, 'W', "Filtered XML failed schema validation for
Format 2 : {}", e.getMessage());
}
15

16. Topics
• Key Concepts
• Endpoints and Addresses
• Deployment Units
• Mediation Support APIs
• Error Handling
• Interceptors
• Configuration Externalization
• Invoke an Asynchronous Flow
• Usage of Message Files
• UltraESB Clustering
• Metrics and Alerting
• Monitoring and Management
• EMW Framework
16

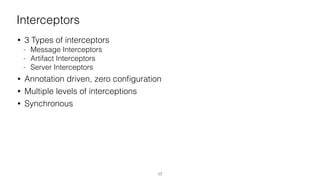

17. Interceptors
• 3 Types of interceptors
- Message Interceptors
- Artifact Interceptors
- Server Interceptors
• Annotation driven, zero configuration
• Multiple levels of interceptions
• Synchronous
17

18. Topics
• Key Concepts
• Endpoints and Addresses
• Deployment Units
• Mediation Support APIs
• Error Handling
• Interceptors
• Configuration Externalization
• Invoke an Asynchronous Flow
• Usage of Message Files
• UltraESB Clustering
• Metrics and Alerting
• Monitoring and Management
• EMW Framework
18

19. Configuration Externalization
• Externalize configurable parameters to an external property file
• Secure parameter values with encryption
- Define string encryptor in ultra-root.xml file
- Define property placeholders in ultra-*.xml configuration files which have
externalized properties
19

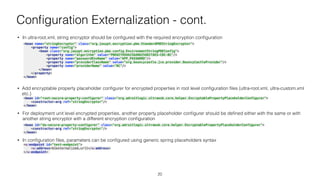

20. Configuration Externalization - cont.
• In ultra-root.xml, string encryptor should be configured with the required encryption configuration
<bean name="stringEncryptor" class="org.jasypt.encryption.pbe.StandardPBEStringEncryptor">
<property name="config">
<bean class="org.jasypt.encryption.pbe.config.EnvironmentStringPBEConfig">
<property name="algorithm" value="PBEWITHSHA256AND256BITAES-CBC-BC"/>
<property name="passwordEnvName" value="APP_PASSWORD"/>
<property name="providerClassName" value="org.bouncycastle.jce.provider.BouncyCastleProvider"/>
<property name="providerName" value="BC"/>
</bean>
</property>
</bean>
• Add encryptable property placeholder configurer for encrypted properties in root level configuration files (ultra-root.xml, ultra-custom.xml
etc.)
<bean id="root-secure-property-configurer" class="org.adroitlogic.ultraesb.core.helper.EncryptablePropertyPlaceholderConfigurer">
<constructor-arg ref="stringEncryptor"/>
</bean>
• For deployment unit level encrypted properties, another property placeholder configurer should be defined either with the same or with
another string encryptor with a different encryption configuration
<bean id="du-secure-property-configurer" class="org.adroitlogic.ultraesb.core.helper.EncryptablePropertyPlaceholderConfigurer">
<constructor-arg ref="stringEncryptor"/>
</bean>
• In configuration files, parameters can be configured using generic spring placeholders syntax
<u:endpoint id="test-endpoint">
<u:address>${externalized.url}</u:address>
</u:endpoint>
20

21. Topics
• Key Concepts
• Endpoints and Addresses
• Deployment Units
• Mediation Support APIs
• Error Handling
• Interceptors
• Configuration Externalization
• Invoke an Asynchronous Flow
• Usage of Message Files
• UltraESB Clustering
• Metrics and Alerting
• Monitoring and Management
• EMW Framework
21

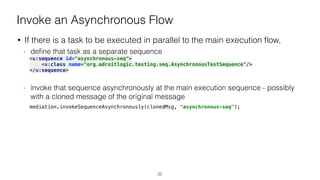

22. Invoke an Asynchronous Flow
• If there is a task to be executed in parallel to the main execution flow,
- define that task as a separate sequence
<u:sequence id="asynchronous-seq">
<u:class name="org.adroitlogic.testing.seq.AsynchronousTestSequence"/>
</u:sequence>
- invoke that sequence asynchronously at the main execution sequence - possibly
with a cloned message of the original message
mediation.invokeSequenceAsynchronously(clonedMsg, "asynchronous-seq");
22

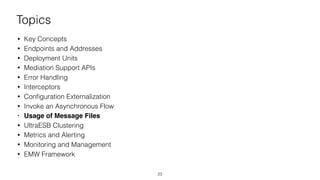

23. Topics
• Key Concepts
• Endpoints and Addresses
• Deployment Units
• Mediation Support APIs
• Error Handling
• Interceptors
• Configuration Externalization
• Invoke an Asynchronous Flow
• Usage of Message Files
• UltraESB Clustering
• Metrics and Alerting
• Monitoring and Management
• EMW Framework
23

24. Usage of Message Files for Large Payload Manipulations
• Message file is a file acquired from the file cache - RAM disk based file
cache
- Memory mapped file created outside the heap
• Effectively handle large payloads without loading payload content to the
heap
- Fast access to the content since it’s a memory mapped file
- No GC overhead since it resides outside from the heap
- No file creation/ deletion overhead since it’s a cached file which is created at start
up
24

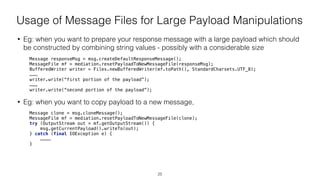

25. Usage of Message Files for Large Payload Manipulations
• Eg: when you want to prepare your response message with a large payload which should
be constructed by combining string values - possibly with a considerable size
Message responseMsg = msg.createDefaultResponseMessage();
MessageFile mf = mediation.resetPayloadToNewMessageFile(responseMsg);
BufferedWriter writer = Files.newBufferedWriter(mf.toPath(), StandardCharsets.UTF_8);
………
writer.write(“first portion of the payload”);
………
writer.write(“second portion of the payload”);
• Eg: when you want to copy payload to a new message,
Message clone = msg.cloneMessage();
MessageFile mf = mediation.resetPayloadToNewMessageFile(clone);
try (OutputStream out = mf.getOutputStream()) {
msg.getCurrentPayload().writeTo(out);
} catch (final IOException e) {
…………
}
25

26. Topics
• Key Concepts
• Endpoints and Addresses
• Deployment Units
• Mediation Support APIs
• Error Handling
• Interceptors
• Configuration Externalization
• Invoke an Asynchronous Flow
• Usage of Message Files
• UltraESB Clustering
• Metrics and Alerting
• Monitoring and Management
• EMW Framework
26

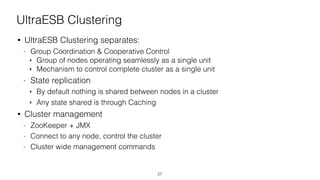

27. UltraESB Clustering
• UltraESB Clustering separates:
- Group Coordination & Cooperative Control
‣ Group of nodes operating seamlessly as a single unit
‣ Mechanism to control complete cluster as a single unit
- State replication
‣ By default nothing is shared between nodes in a cluster
‣ Any state shared is through Caching
• Cluster management
- ZooKeeper + JMX
- Connect to any node, control the cluster
- Cluster wide management commands
27

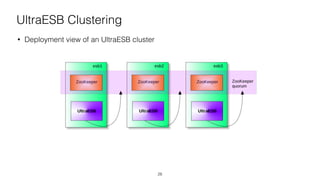

28. UltraESB Clustering
• Deployment view of an UltraESB cluster
28

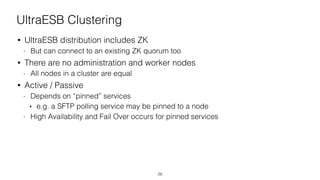

29. UltraESB Clustering
• UltraESB distribution includes ZK
- But can connect to an existing ZK quorum too
• There are no administration and worker nodes
- All nodes in a cluster are equal
• Active / Passive
- Depends on “pinned” services
‣ e.g. a SFTP polling service may be pinned to a node
- High Availability and Fail Over occurs for pinned services
29

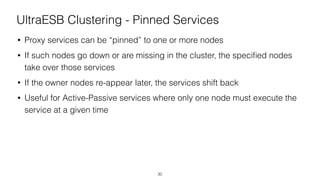

30. UltraESB Clustering - Pinned Services
• Proxy services can be “pinned” to one or more nodes
• If such nodes go down or are missing in the cluster, the specified nodes
take over those services
• If the owner nodes re-appear later, the services shift back
• Useful for Active-Passive services where only one node must execute the
service at a given time
30

31. UltraESB Clustering - Fail-over
• Ability to failover and fail-back automatically
• Failover between nodes or node groups
• Several failover criteria
- On node count
- On node percentage
- On majority
31

32. Topics
• Key Concepts
• Endpoints and Addresses
• Deployment Units
• Mediation Support APIs
• Error Handling
• Interceptors
• Configuration Externalization
• Invoke an Asynchronous Flow
• Usage of Message Files
• UltraESB Clustering
• Metrics and Alerting
• Monitoring and Management
• EMW Framework
32

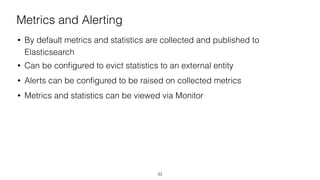

33. Metrics and Alerting
• By default metrics and statistics are collected and published to
Elasticsearch
• Can be configured to evict statistics to an external entity
• Alerts can be configured to be raised on collected metrics
• Metrics and statistics can be viewed via Monitor
33

34. Topics
• Key Concepts
• Endpoints and Addresses
• Deployment Units
• Mediation Support APIs
• Error Handling
• Interceptors
• Configuration Externalization
• Invoke an Asynchronous Flow
• Usage of Message Files
• UltraESB Clustering
• Metrics and Alerting
• Monitoring and Management
• EMW Framework
34

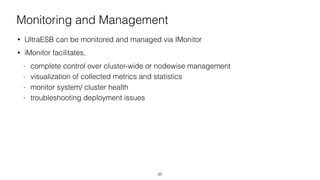

35. Monitoring and Management
• UltraESB can be monitored and managed via IMonitor
• iMonitor facilitates,
- complete control over cluster-wide or nodewise management
- visualization of collected metrics and statistics
- monitor system/ cluster health
- troubleshooting deployment issues
35

36. Topics
• Key Concepts
• Endpoints and Addresses
• Deployment Units
• Mediation Support APIs
• Error Handling
• Interceptors
• Configuration Externalization
• Invoke an Asynchronous Flow
• Usage of Message Files
• UltraESB Clustering
• Metrics and Alerting
• Monitoring and Management
• EMW Framework
36

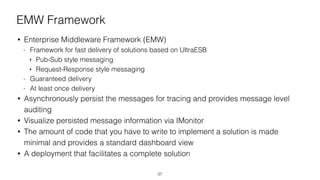

37. EMW Framework
• Enterprise Middleware Framework (EMW)
- Framework for fast delivery of solutions based on UltraESB
‣ Pub-Sub style messaging
‣ Request-Response style messaging
- Guaranteed delivery
- At least once delivery
• Asynchronously persist the messages for tracing and provides message level
auditing
• Visualize persisted message information via IMonitor
• The amount of code that you have to write to implement a solution is made
minimal and provides a standard dashboard view
• A deployment that facilitates a complete solution
37
