Consul is a tool that provides service discovery, configuration, and orchestration. It allows services to register themselves and discover other services via DNS or HTTP. Consul also supports health checking, multi-datacenter capabilities, and key-value storage. The core component is the Consul agent, which can run on every node in client or server mode. Servers are responsible for consensus and storing state while clients forward requests.

1. Consul
by Hashicorp

2. Agenda
● Consul - overview
● Components
● Architecture
● REST endpoints
● REST for kv storage
● Libraries
● Demo of Consul and Consul Pusher

3. Consul is like combining the features of a DNS server plus
Consistent Key/Value Store like etcd plus features of ZooKeeper
for service discovery, and health monitoring like Nagios but all
rolled up into a consistent system.
Essentially, Consul is all the bits you need to have a coherent
domain service model available to provide service discovery, health
and replicated config, service topology and health status. Consul
also provides a nice REST interface and Web UI to see your service
topology and distributed service config.
Consul

4. ▷ Service Discovery - give ability for services to register themselves and to
discover other services via a DNS or HTTP interface. Register external
services such as SaaS providers as well.
▷ Health Checking - can provide health checks associated with a given
service ("is the webserver returning 200 OK"), or with the local node ("is
memory utilization below 90%"). This information can be used by an operator
to monitor cluster health, and it is used by the service discovery components
to route traffic away from unhealthy hosts.
▷ Multi Datacenter - scales to multiple datacenters out of the box with no
complicated configuration This means users of Consul do not have to worry
about building additional layers of abstraction to grow to multiple regions.
▷ Key/Value Storage - hierarchical key/value store for any number of
purposes, including dynamic configuration, feature flagging, coordination,
leader election, and more. The simple HTTP API makes it easy to use.
Components

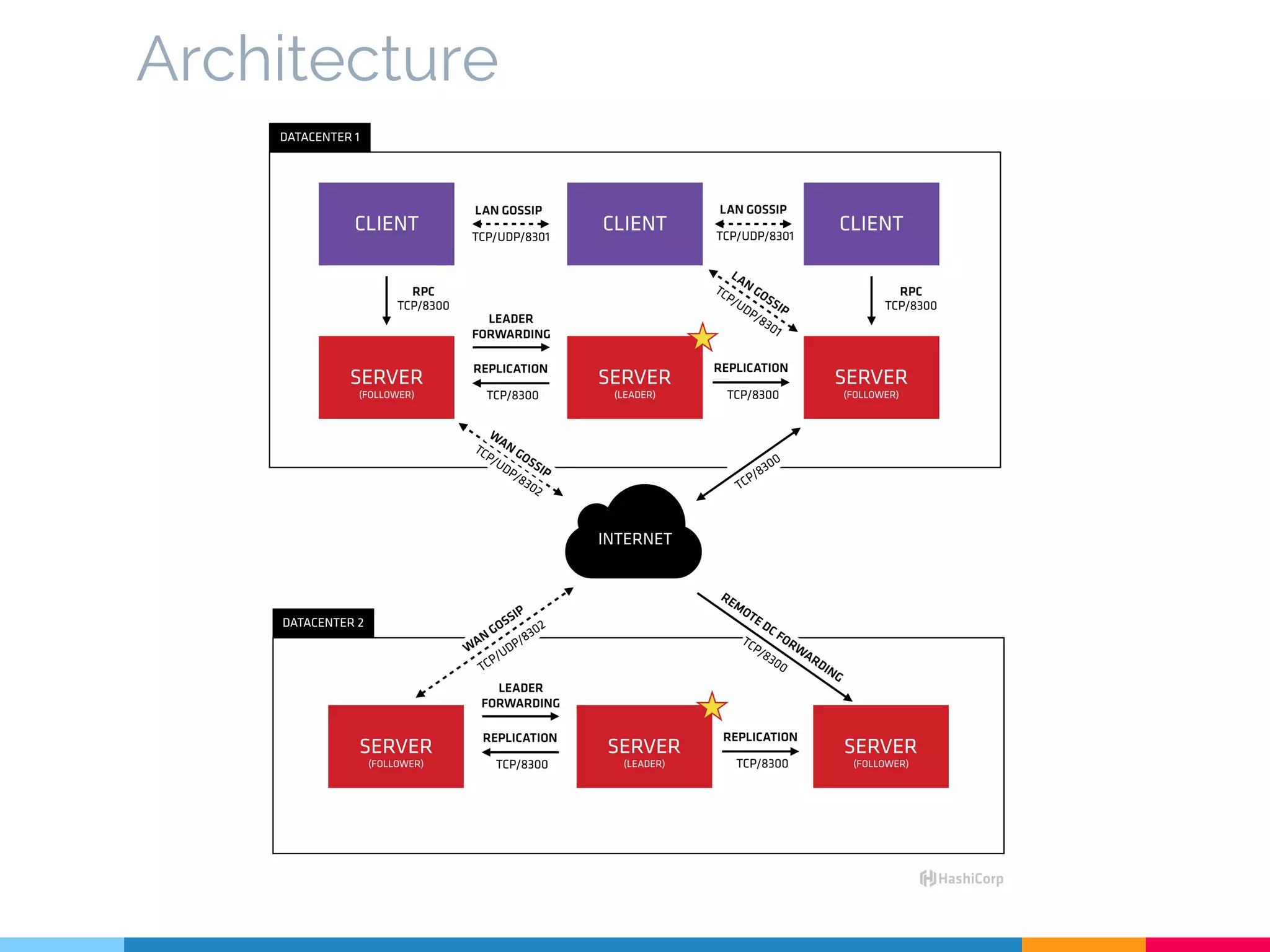

5. Architecture

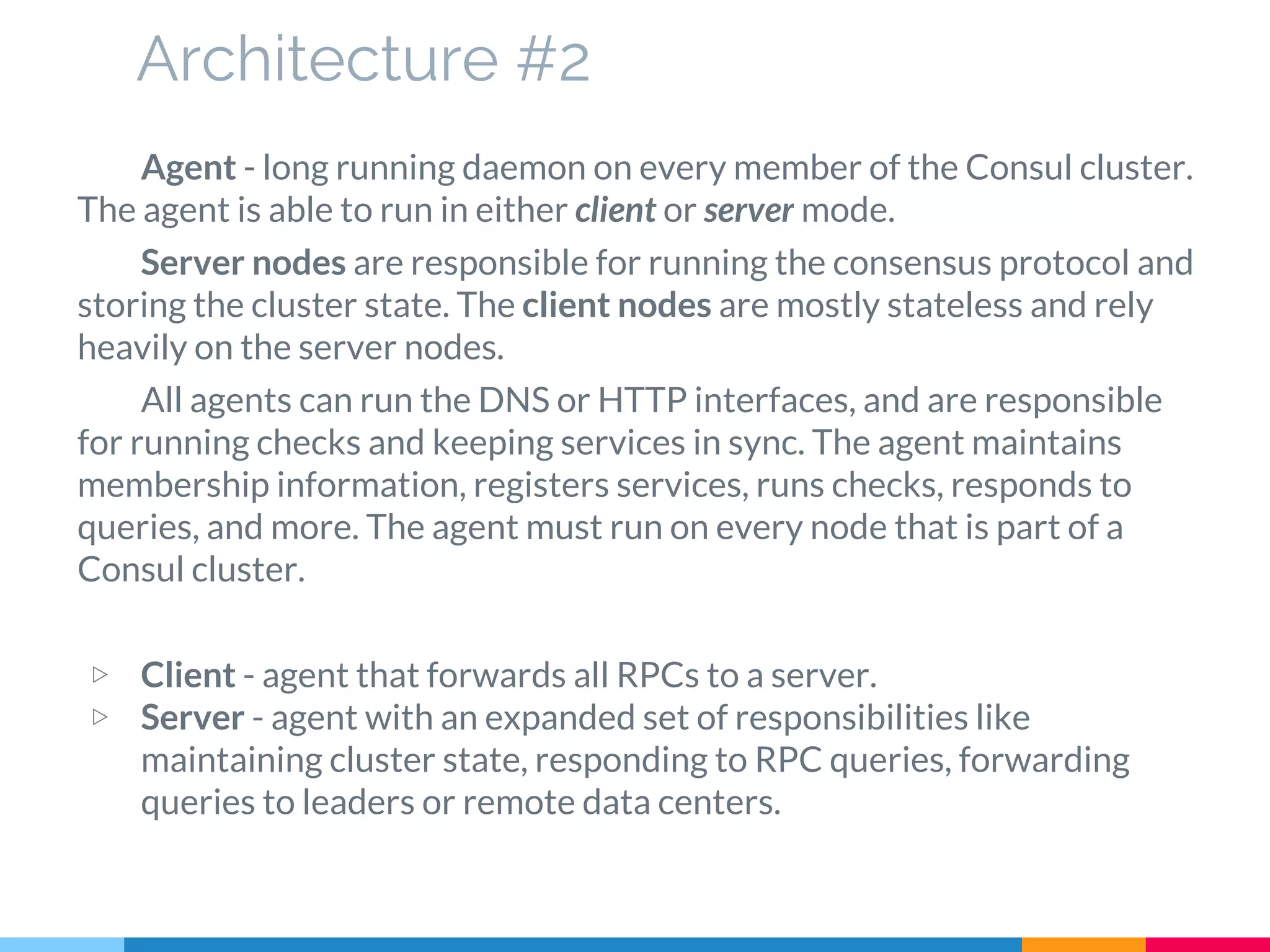

6. Architecture #2
Agent - long running daemon on every member of the Consul cluster.
The agent is able to run in either client or server mode.
Server nodes are responsible for running the consensus protocol and
storing the cluster state. The client nodes are mostly stateless and rely
heavily on the server nodes.
All agents can run the DNS or HTTP interfaces, and are responsible
for running checks and keeping services in sync. The agent maintains
membership information, registers services, runs checks, responds to
queries, and more. The agent must run on every node that is part of a
Consul cluster.
▷ Client - agent that forwards all RPCs to a server.
▷ Server - agent with an expanded set of responsibilities like
maintaining cluster state, responding to RPC queries, forwarding
queries to leaders or remote data centers.

7. REST endpoints
■ kv - key value
■ agent - api for dealing with agent
■ catalog - dealing with data center catalog
■ health - show health checks
■ sessions - group operations and manage consistent view
■ events - fire fast gossip based events
■ acl - setup access control lists and security for Consul
■ status - check status
Each endpoint provides operations which either take JSON, request params and
deliver JSON responses.

8. REST for kv storage
Manages updates, deletes, fetches of individual keys or key prefixes.
▷ curl http://localhost:8500/v1/kv/dev?recurse => fetches all keys recursively
▷ curl http://localhost:8500/v1/kv/dev/db.username => fetches single key (#1)
Output #1
[{
"CreateIndex": 316,
"ModifyIndex": 316,
"LockIndex": 0,
"Key": "dev/db.username",
"Flags": 0,
"Value": "QlRfQ01T"
}]
CreateIndex - internal index value that represents when the entry was created
ModifyIndex - last index that modified this key.
LockIndex - how many times this key has successfully been acquired in a lock.
Key - full path of the entry.
Flags - unsigned integer that can be attached to each entry. Clients can choose to use this however makes sense
for their application.
Value - Base64-encoded blob of data. Note that values cannot be larger than 512kB.

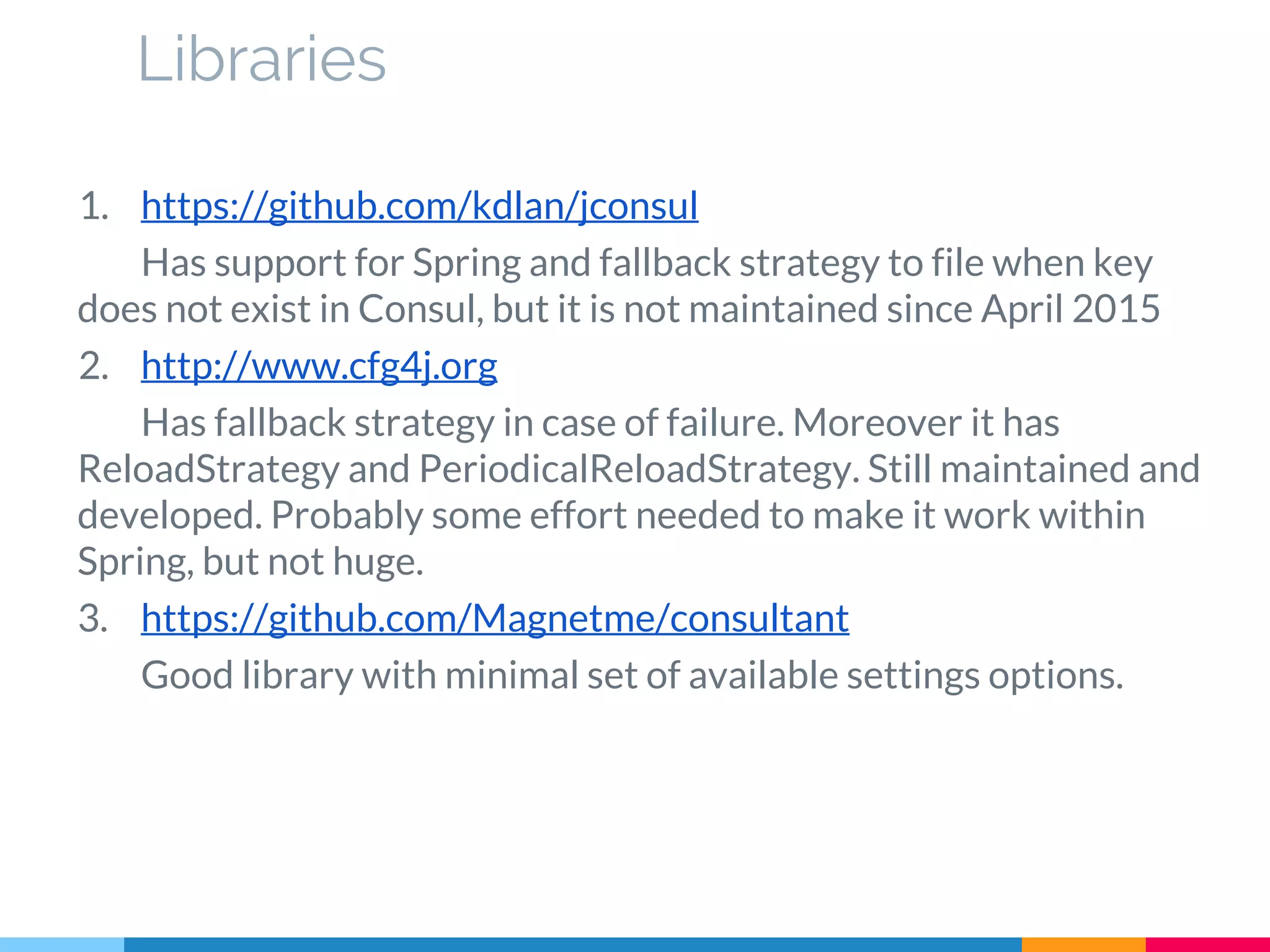

9. Libraries
1. https://github.com/kdlan/jconsul
Has support for Spring and fallback strategy to file when key
does not exist in Consul, but it is not maintained since April 2015
2. http://www.cfg4j.org
Has fallback strategy in case of failure. Moreover it has
ReloadStrategy and PeriodicalReloadStrategy. Still maintained and
developed. Probably some effort needed to make it work within
Spring, but not huge.
3. https://github.com/Magnetme/consultant
Good library with minimal set of available settings options.

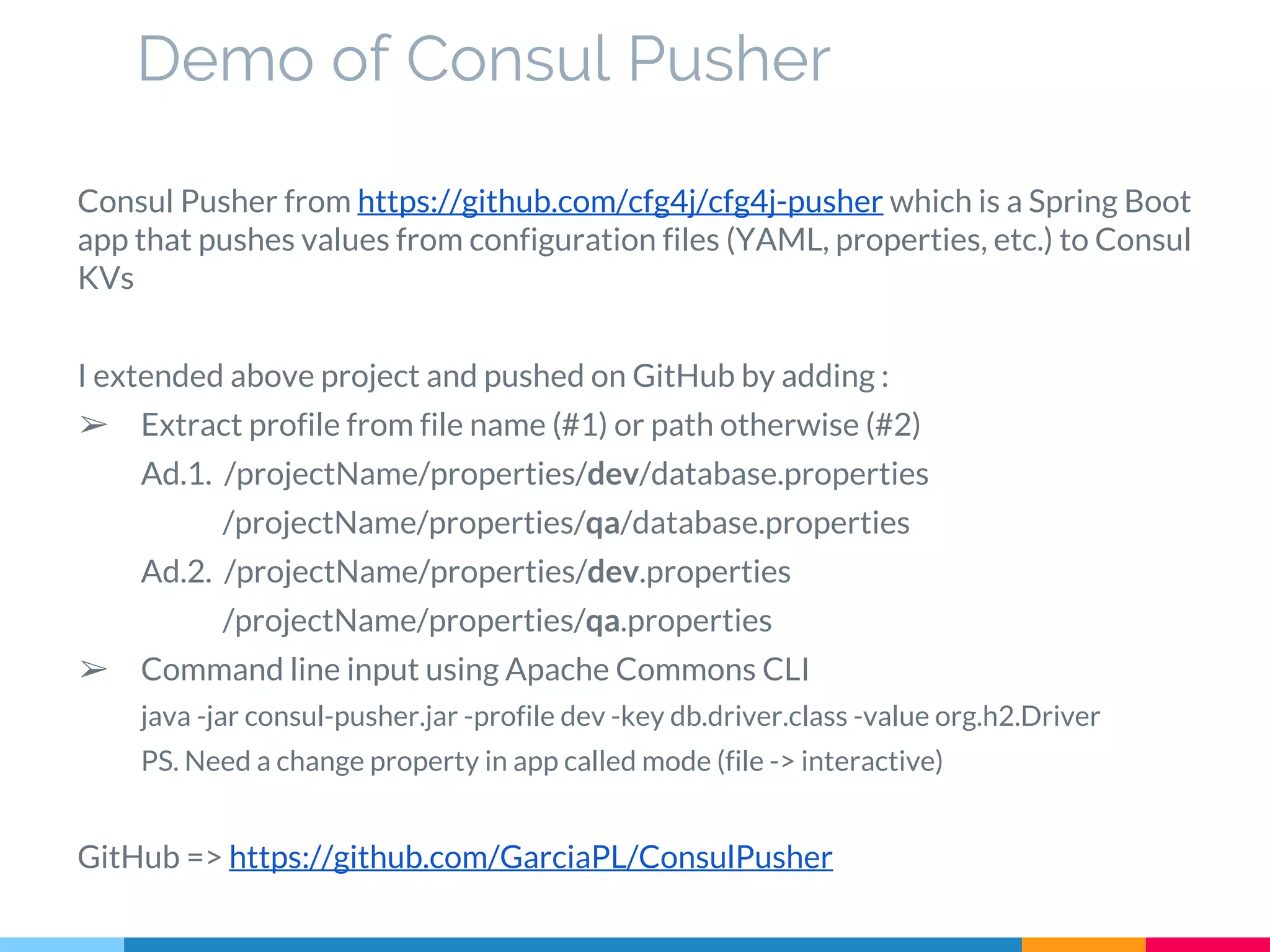

10. Demo of Consul Pusher
Consul Pusher from https://github.com/cfg4j/cfg4j-pusher which is a Spring Boot
app that pushes values from configuration files (YAML, properties, etc.) to Consul
KVs
I extended above project and pushed on GitHub by adding :
➢ Extract profile from file name (#1) or path otherwise (#2)
Ad.1. /projectName/properties/dev/database.properties
/projectName/properties/qa/database.properties
Ad.2. /projectName/properties/dev.properties
/projectName/properties/qa.properties
➢ Command line input using Apache Commons CLI
java -jar consul-pusher.jar -profile dev -key db.driver.class -value org.h2.Driver
PS. Need a change property in app called mode (file -> interactive)
GitHub => https://github.com/GarciaPL/ConsulPusher

11. Demo of Consul
docker run -d -p 8400:8400 -p 8500:8500 -p 8600:53/udp --name alfa -h alfa
-v /tmp/consul:/data progrium/consul -data-dir="/tmp/consul"
-server -bootstrap-expect 3 -ui-dir /ui
JOIN_IP="$(docker inspect -f '{{.NetworkSettings.IPAddress}}' alfa)"
docker run -d --name bravo -h bravo progrium/consul -data-dir="/tmp/consul"
-server -join $JOIN_IP
docker run -d --name charlie -h charlie progrium/consul -data-dir="/tmp/consul"
-server -join $JOIN_IP
1) -data-dir used for persistence of KV’s, /ui used for enabling Web UI
2) -bootstrap-expect 3 specifies amount of servers needed for starting electing leader
3) Alfa will expose ports like 8400 (RPC), 8500 (HTTP) and 8600 (DNS)

12. Thanks!
Any questions ?
Thank you http://www.slidescarnival.com for layout!
References :
1. https://www.consul.io/intro/index.html
2. https://www.consul.io/docs/agent/http/kv.html
3. https://hub.docker.com/r/progrium/consul/
4. http://www.mammatustech.com/Microservice-Servi
ce-Discovery-with-Consul
5. https://launchpad.net/~bcandrea/+archive/ubuntu/
consul
6. https://imaginea.gitbooks.io/consul-devops-handbo
ok/content/
7. https://github.com/cfg4j/cfg4j-pusher
8. https://github.com/GarciaPL/ConsulPusher
