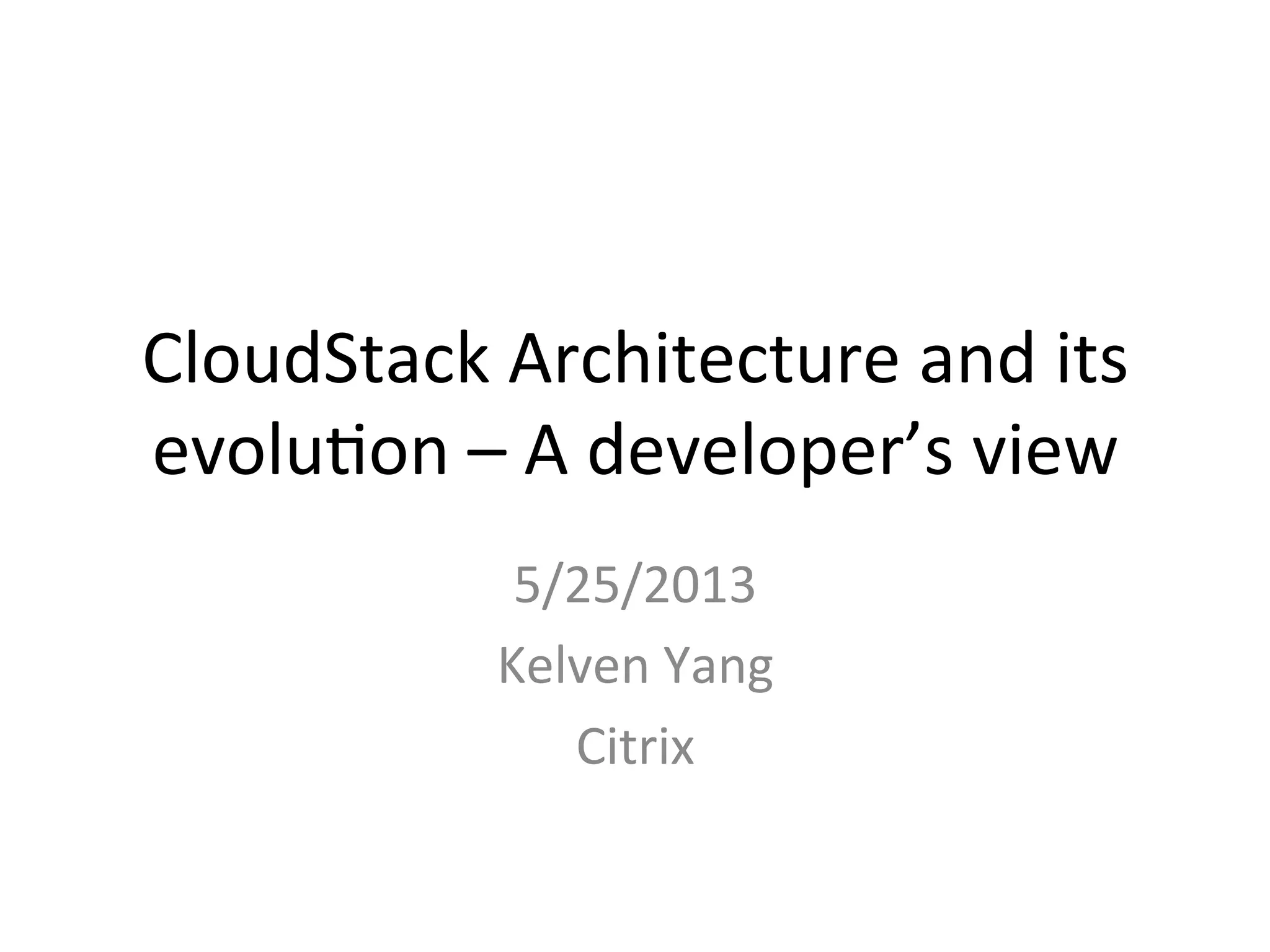

- 1. CloudStack Architecture and its evolu4on – A developer’s view 5/25/2013 Kelven Yang Citrix

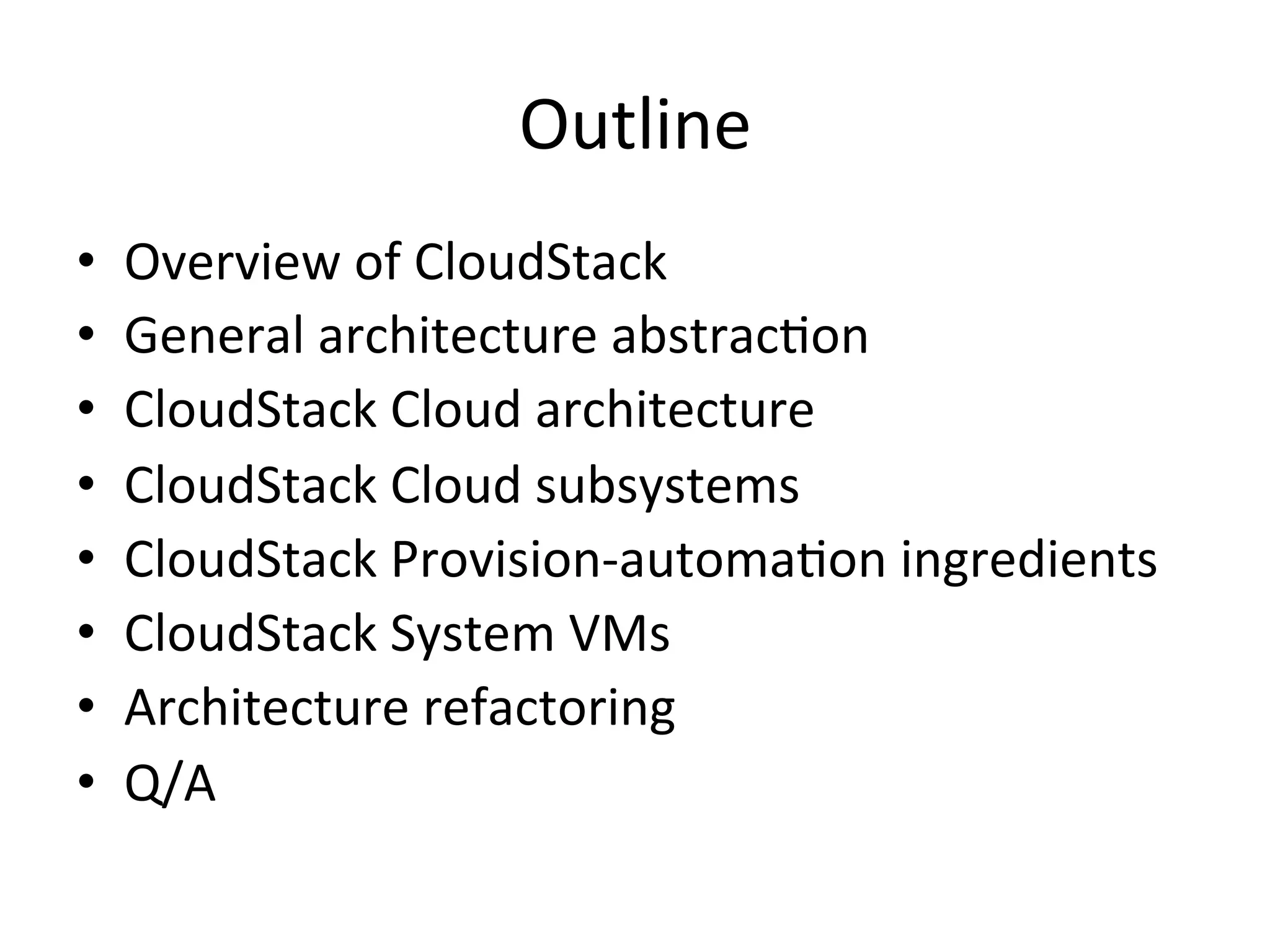

- 2. Outline • Overview of CloudStack • General architecture abstrac4on • CloudStack Cloud architecture • CloudStack Cloud subsystems • CloudStack Provision-‐automa4on ingredients • CloudStack System VMs • Architecture refactoring • Q/A
- 3.
- 4. • Secure, mul4-‐tenant cloud orchestra4on plaOorm – Turnkey plaOorm for delivering IaaS clouds – Hypervisor agnos4c – Scalable, secure and open – Open source, open standards – Deploys on premise or as a hosted solu4on • Deliver cloud services faster and cheaper What is CloudStack? Build your cloud the way the world’s most successful clouds are built
- 5. Compute CloudStack Provides On-‐demand Access to Infrastructure Through a Self-‐Service Portal Network Storage Admin Users Org A Admin Users Org B Users End User Admin
- 6. Open Flexible PlaOorm Compute XenServer VMware KVM Oracle VM Bare metal Hypervisor Storage Local Disk iSCSI NFS Fiber Channel SwiY Block & Object Network Network Type Isola4on Load balancer Firewall VPN Network & Network Services Primary Storage Secondary Storage
- 7.
- 8. General Architecture Abstrac4on • Resource Agent Endpoint for CloudStack to communicate with underlying virtual or physical resource, example of resource could be a hypervisor host or a network element • CloudStack RPC (message bus) Cross component interac4on Cross management server cluster • Asynchronous job execu4on Orchestra4on work-‐flow usually takes 4me to finish, not friendly to synchronous API paradigm
- 9. General Architecture Abstrac4on Business Logic Modules Business Logic Module Business Logic Module API entry Job control ORM Database Object Layer Agent Agent Agent Agent
- 10. General Architecture Abstrac4on Business Logic Module Direct Agent Co-‐located Agent Direct agent – agent running inside management server Co-‐located agent – agent that is co-‐located with external resource (i.e. Host) KVM XenServer Host XAPI
- 11.
- 12. • Hosts • Servers onto which services will be provisioned • Primary Storage • VM storage • Cluster • A grouping of hosts and their associated storage • Pod • Collec4on of clusters • Network • Logical network associated with service offerings • Secondary Storage • Template, snapshot and ISO storage • Zone • Collec4on of pods, network offerings and secondary storage • Management Server Farm • Responsible for all management and provisioning tasks Core CloudStack Components Zone CloudStack Pod Cluster Host Host Network Primary Storage VM VM CloudStack Pod Cluster Secondary Storage
- 13. Pod 1 …. Cluster N Access Layer Host 2 Cluster 1 Conceptual Deployment Architecture Host 1 Ø Hypervisor is the basic unit of scale. Ø Cluster consists of one ore more hosts of same hypervisor Ø All hosts in cluster have access to shared (primary) storage Ø Pod is one or more clusters, usually with L2 switches. Ø Availability Zone has one or more pods, has access to secondary storage. Ø One or more zones represent cloud Primary Storage Zone 1 …. L3 core Secondary Storage Pod N CloudStack Management Server Internet
- 14. Management Server Deployment Architecture -‐ Do Not Distribute Managem ent Server MySQL DB Back Up DB Infrastructure Resources User API Admin API Load Balancer Managem ent Server Managem ent Server Managem ent Server MySQL DB Infrastructure Resources User API Admin API Single-‐node Deployment Mul4-‐node Deployment Ø MS is stateless. MS can be deployed as physical server or VM Ø Single MS node can manage up to 10K hosts. Mul4ple nodes can be deployed for scale or redundancy Ø Commercial: RHEL 5.4+; FOSS: Ubuntu 10.0.4, Fedora 16 Replica4on
- 15.
- 16. Compute Subsystem VirtualMachineGuru HypervisorGuru ServerResource UserVm Guru System VM Guru System VM Gurus Hypervisor Gurus Hypervisor Gurus XenServer Resource Vmware Resource KVM Resource Server context Agent context Orchestra4on flow RPC (Message Bus)
- 17. Compute Subsystem • VirtualMachineGuru Defines pluggable points for various VM managers to implement specific VM orchestra4on logic. UserManagerManager, ConsoleProxyManager etc implements this Interface. • HypervisorGuru Defines pluggable points to insert hypervisor specific logic into the Overall orchestra4on flow. • ServerResource Defined the abstrac4on layer for various hypervisor resource agent to realize the ac4on needed from orchestra4on flow
- 18. Storage Subsystem • Subsystem func4ons § Provision VM volume to storage devices § Manage volume snapshots § Manage Templates and ISOs § Mo4on service to move storage content • Storage classifica4on § Primary Storage Provides VM volume storage at all 4me including run4me Demand high performance storage I/O for read/write access § Secondary Storage (Backup/Object store) Store ready-‐only content (templates, ISOs)
- 19. • Primary Storage • Cluster level storage for VMs • Connected directly to hosts • NFS, iSCSI, FC and Local • Secondary Storage • Zone level storage for template, ISOs and snapshots • NFS or OpenStack SwiY via CloudStack System VM • Templates and ISOs • Imported into CloudStack • Can be private or public Understanding roles in Storage Zone Secondary Storage Pod Cluster Host Host Primary Storage Template
- 20. Network subsystem • Subsystem func4ons § Networking mul4-‐tenancy § Provision user logic network § Manage physical/logical network configura4on § Provide pluggable framework for third-‐party vendors
- 21. CloudStack Management Network Management Server System VM User VM 172.16.0.10 172.16.0.15 172.16.0.20 Hypervisor Host Management server manages physical or virtual resource through management network(s). The network that is used to manage hypervisor host can be different to the network that is used to management system VMs
- 22. Host link-‐local network Management Server System VM User VM 172.16.0.10 172.16.0.15 Hypervisor Host 169.254.0.1 169.254.0.10 Why host link local network? • For hypervisor hosts that have co-‐located agent, host link-‐local network can reduce IP address usage • Hypervisor co-‐located agent/plugin proxy the channel between virtual resource (system VM) and management server
- 23. Mul4-‐tenancy: L2 VLAN isola4on CloudStack Management Server System VM Host Dom0/ Kernel Guest VM Hypervisor Host System VM Host Dom0/ Kernel Guest VM Hypervisor Host CloudStack Management Server 192.168.10.0/24 10.1.0.0/24 on VLAN 100 10.1.0.0/24 on VLAN 200
- 24. Mul4-‐tenancy: Security group isola4on … DB Security Group Web Security Group … … Web VM Web VM Web VM Web VM DB VM Web VM DB VM Web VM
- 25. Network Provisioning NeworkGuru GuestNetworkGuru NetworkElement VirtualRouterElement NetScalarElement RPC(Message Bus) Network orchestra4on flow Network Offering DirectNetworkGuru PhysicalNetwork Configura4on NetworkGuru -‐ helps define, implement shared or a tenant guest network in a lazy manner, it also helps perform resource (IP, MAC address, SDN tenant ID) management in various orchestra4on phases NetworkElement – carries on network related ac4ons PhysicalNetwork – defines a mapping configura4on to help map logic network into physical infrastructure Network Offering – define a feature set template for guest network, help instan4ate network instance in lazy construc4on stage
- 26.
- 27. Offerings • Service Offering CPU speed/CPU core/Memory/HA/Rate Limit/ Tags • Disk Offering Disk size/Local Storage/Tags • Network Offering Rate limit/Traffic Type/Isola4on characteris4cs/ feature masks All types of offerings enable CloudStack to instan4ated related object in a lazy, “fluid” manner
- 28. Tags • Tagging resource objects(Host, Storage, etc) • Tagging offering objects(ServiceOffering, DiskOffering, etc) Perform loosely-‐coupled associa4on between objects, typically between offering Objects and resource objects, resource allocators can take advantage of the associa4on to influent alloca4on affinity
- 29.
- 30. CloudStack System VMs • System VMs op4mize and scale the data-‐path on behalf of CloudStack – Stateless, can be destroyed and recreated from database state – Highly Available – Communicates with Management Server over management network – Usually have 3 interfaces: control, guest and public • Console Proxy VM – Provides AJAX-‐style HTTP-‐only console viewer – Grabs VNC output from hypervisor – Scales out (more spawned) as load increases – Java-‐based server Communicates with MS over message bus • Secondary Storage VM – Provides image (template) management services – Download from HTTP file share or SwiY – Copy between zones – Scale out to handle mul4ple NFS mounts – Java-‐based server communicates with MS over message bus
- 31. System VM contd • SSH keys and password are unique to cloud installa4on • Code can be patched by restar4ng system vm – Mounts a special ISO file with latest code at boot – If ISO contents differ, patch and reboot • Same system vm works on XS, KVM, VMWare – Bootstrap step for the cloud is to install the template for this system vm • Ready to be re-‐purposed for other specialized tasks
- 32.
- 33. Architecture refactoring • Good about CloudStack Ø Simplicity Easy to understand Easy to setup Easy to operate Out of box solu4on to almost any Cloud, from private to public cloud • Bad about CloudStack Ø Tightly-‐coupled This architecture complain is being addressed in Apache CloudStack community
- 34. Architecture refactoring • Modular/Componen4za4on refactoring – Build system to maven – Adopt Spring Framework • Make component wiring consistent and explicit • Loosely-‐coupling – RPC/Message Bus improvement • Async programming model – AsyncCallFuture<T> • VM state sync
- 35. Architecture refactoring • RPC/Message Bus improvement – Interface binding AgentManager/Listener AgentManager defines the RPC/Messaging API, users of RPC/ Messaging implement Listener interface and expliclitly bind to AgentManager – Topic binding Topic constants Users subscribe to topic itself, publisher and subscriber are associated indirectly through topic constants – Hierarchical topic naming conven4on Topic to be similar as DNS names, subscribers at higher level can be no4fied for down-‐level events – Transparently extend message bus to cross boundaries
- 36. Architecture refactoring • Async programming model public void installCallback() { TestContext<String> context = new TestContext<String>(null); AsyncCallbackDispatcher<AsyncSampleEventDrivenStyleCaller, Object> caller = AsyncCallbackDispatcher.create(this); caller.setCallback(caller.getTarget().HandleVolumeCreateAsyncCallback(null,null)).setContext(context); String test = "test"; _ds.createVolumeAsync(test, caller); Assert.assertEquals(test, context.getResult()); } protected Void HandleVolumeCreateAsyncCallback(AsyncCallbackDispatcher<AsyncSampleEventDrivenStyleCaller, String> callback, TestContext<String> context) { String resultVol = callback.getResult(); context.setResult(resultVol); return null; }
- 37. Architecture refactoring • AsyncCallFuture<T> to connect sync and async worlds public void MethodThatWillCallAsyncMethod() { String vol = new String("Hello"); AsyncCallbackDispatcher<AsyncSampleEventDrivenStyleCaller, Object> caller = AsyncCallbackDispatcher.create(this); AsyncCallFuture<String> future = _ds.createVolume(vol); try { String result = future.get(); Assert.assertEquals(result, vol); } catch (InterruptedExcepOon e) { // TODO Auto-‐generated catch block e.printStackTrace(); } catch (ExecuOonExcepOon e) { // TODO Auto-‐generated catch block e.printStackTrace(); } }
- 38. Architecture Refactoring Current VMSync implementa?on • Basic sync unit at host/cluster level • ini4alize sync-‐scope at startup (full sync) • monitor and smoothen state changes and perform delta reports – Resource needs to know about CloudStack specific VM state like migra4ng, star4ng – Resource needs to smoothen state report in reboo4ng case, if reboot is issued from guest OS • Threads from mul4ple sources may collide when performing state changes – Thread from HA/State recovery procedure – Thread from API request – Thread from Host VM state report
- 39. Architecture Refactoring Basic idea of VMSync refactoring • Resource agent is only required to report VM raw power state • CloudStack VM state transi4on is driven by state-‐ transi4on jobs, avoid mul4ple non-‐coorporated driving sources (from HA/API/sync report) • Opera4on job on a VM is serialized for execu4on • Conflict resolu4on – Automa4c policy (HA/force sync) – Manual policy (Alerts, Admin interven4on, user acknowledgement workflow)
- 40. Thank you • Q/A • For more informa4on, please visit h}p:// cloudstack.apache.org/
