1. © ALTEN Calsoft Labs 1

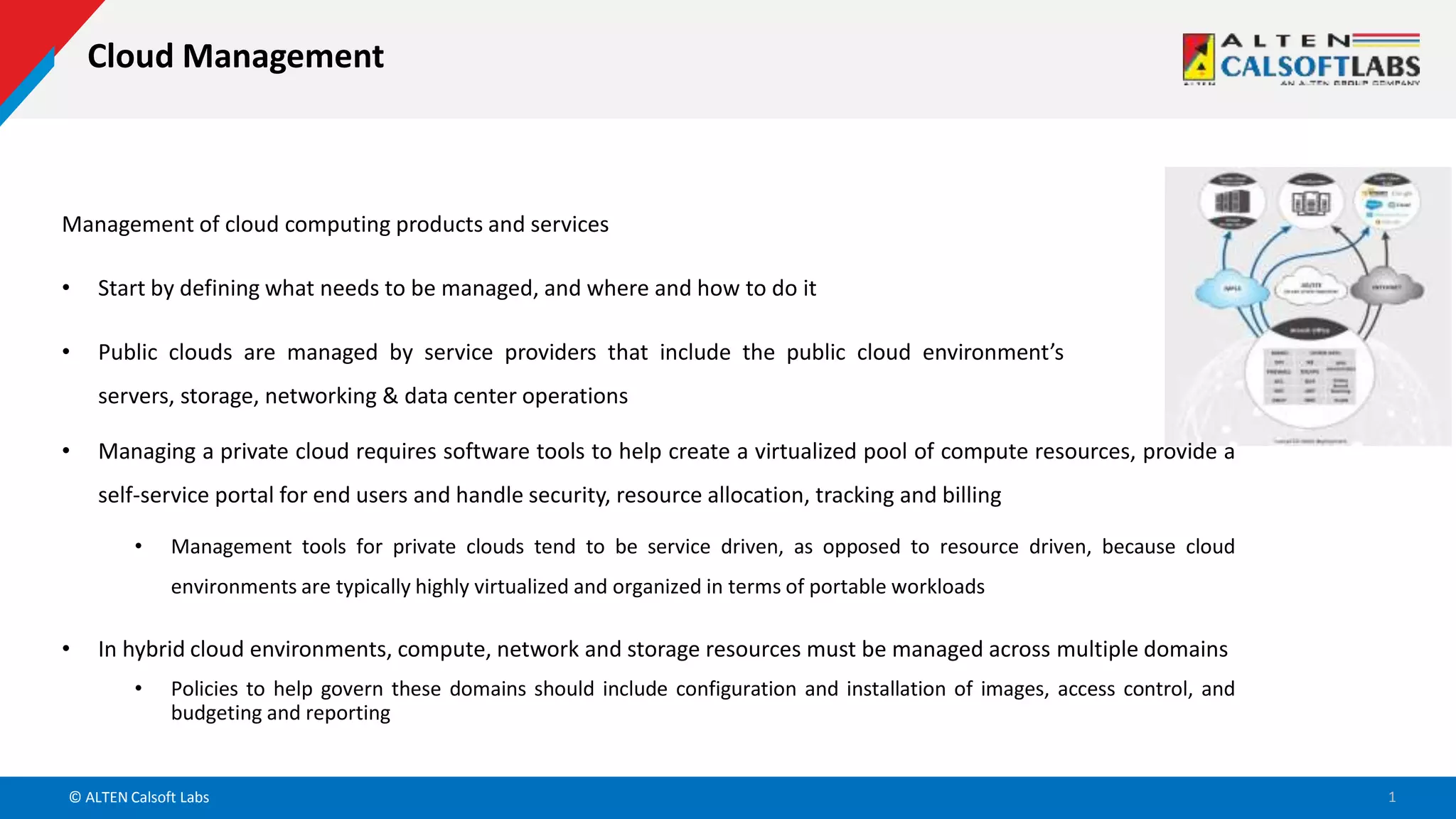

Cloud Management
Management of cloud computing products and services
• Start by defining what needs to be managed, and where and how to do it
• Public clouds are managed by service providers that include the public cloud environment’s
servers, storage, networking & data center operations
• Managing a private cloud requires software tools to help create a virtualized pool of compute resources, provide a
self-service portal for end users and handle security, resource allocation, tracking and billing
• Management tools for private clouds tend to be service driven, as opposed to resource driven, because cloud
environments are typically highly virtualized and organized in terms of portable workloads
• In hybrid cloud environments, compute, network and storage resources must be managed across multiple domains
• Policies to help govern these domains should include configuration and installation of images, access control, and
budgeting and reporting

2. © ALTEN Calsoft Labs 2
Cloud Orchestrator
• A program that manages the interconnections and interactions among cloud-based and on-premises components such as
servers, storage & other networking gear
• By combining tasks into workflows the provisioning and management of various IT components and their associated
resources can be automated
• Common orchestration tools are Puppet, Chef, Ansible, Salt, Jenkins, etc.,
• Allow you to do what you would normally do as part of your build and deployment process in an automated and (more
importantly) consistently repeatable way

3. © ALTEN Calsoft Labs 3
CAM: Centralized Automation Manager
Services
• Data Centre operations
• Private & Public Cloud Infrastructure
Application & Network Services
• DevOps, CI/CD, Configuration Management &
Testing
• Monitoring, Events & Logs, DR
• Cloud Automation
Infra Deploy Monitor
Develop Distribute Manage
• Infrastructure
• System Admin
• Dev Environ
• Debug
• Unit Test
• Testing
• CI/CD
• Package
• E2E Testing
• Prod Environ
• Certify
• Logs
• Installation
• Configuration
• Monitoring
• Log Analysis
• DR
• Scaling
Stages

4. © ALTEN Calsoft Labs

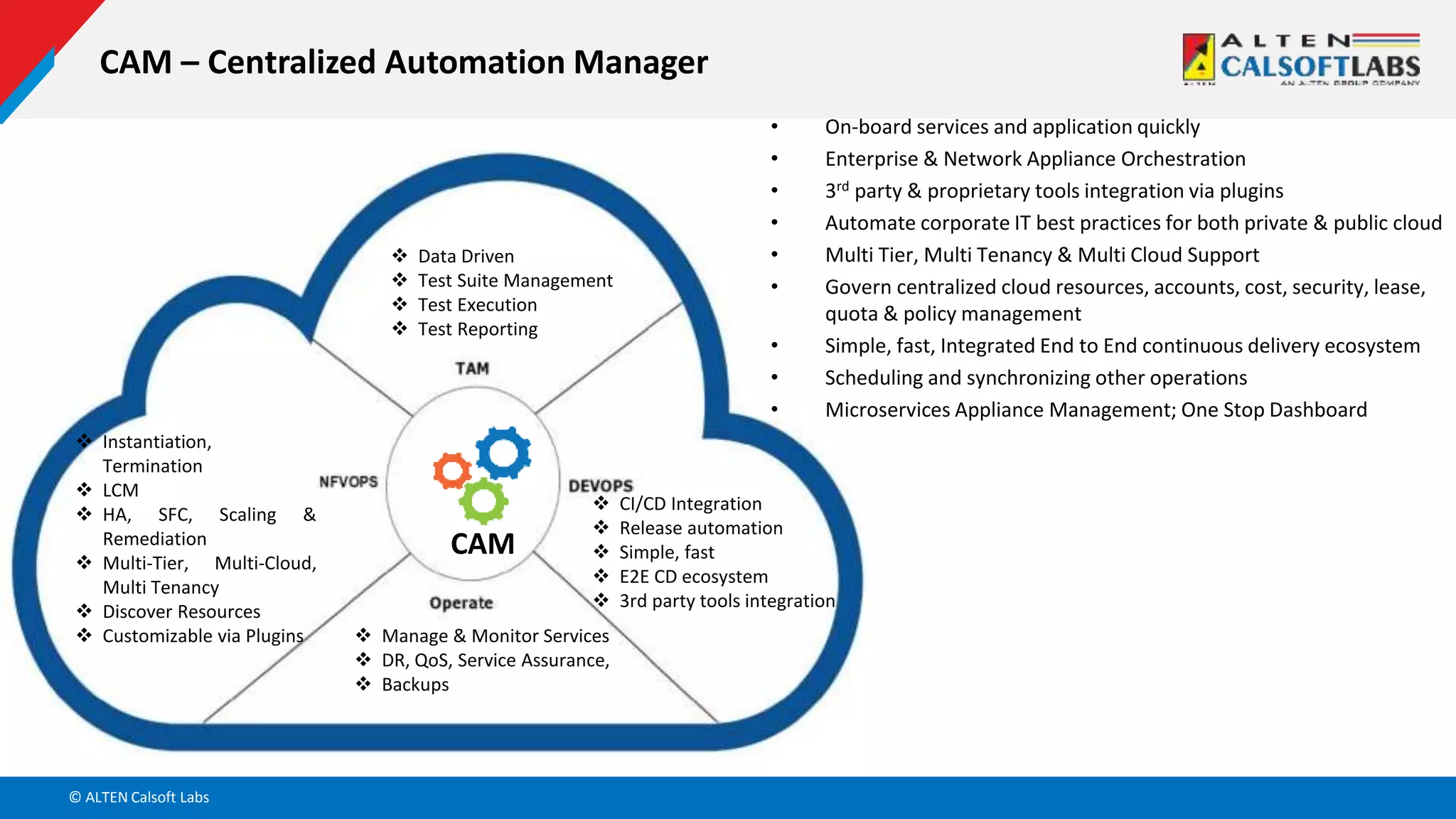

CAM – Centralized Automation Manager
 Instantiation,
Termination
 LCM
 HA, SFC, Scaling &
Remediation
 Multi-Tier, Multi-Cloud,
Multi Tenancy
 Discover Resources
 Customizable via Plugins
 Data Driven
 Test Suite Management
 Test Execution
 Test Reporting
 CI/CD Integration
 Release automation
 Simple, fast
 E2E CD ecosystem
 3rd party tools integration
 Manage & Monitor Services
 DR, QoS, Service Assurance,
 Backups
CAM
• On-board services and application quickly
• Enterprise & Network Appliance Orchestration
• 3rd party & proprietary tools integration via plugins
• Automate corporate IT best practices for both private & public cloud
• Multi Tier, Multi Tenancy & Multi Cloud Support
• Govern centralized cloud resources, accounts, cost, security, lease,
quota & policy management
• Simple, fast, Integrated End to End continuous delivery ecosystem
• Scheduling and synchronizing other operations
• Microservices Appliance Management; One Stop Dashboard

5. © ALTEN Calsoft Labs 5
Cloud Automation Framework
Build & Develop Build & Deploy Operate & Heal
Auto-Provisioning
Auto-Workflow
Auto-SCM
Auto-CI/Build
AutoTest
Diags/Debug
AutoRelease
AutoCM
Monitoring
AutoLMF
SrvAssurance
Workflow Management
Dashboards/UI Events Manager
Automation ManagerPLUGINS/Adapters
Workflow Management
Diagnostics/DebugPolicy Manager
Security Manager
Virtual Infra ManagerExt Tools ManagerBilling Manager
Analytics Engine
REST API
Master Automation Control

6. © ALTEN Calsoft Labs
NFVOPS
REST
API Library
Data X-Change Connector
Types Tools/Technologies
VP
N
VNF’s
Analytics
Engine
VNF
Engine
VIM
Engine
EMS
Engine
NetServ
Engine
Message BusCLI
Engine
Log
Engine
NFVO
Engine
Core
Controller
Action
Engine
VNF
Manager

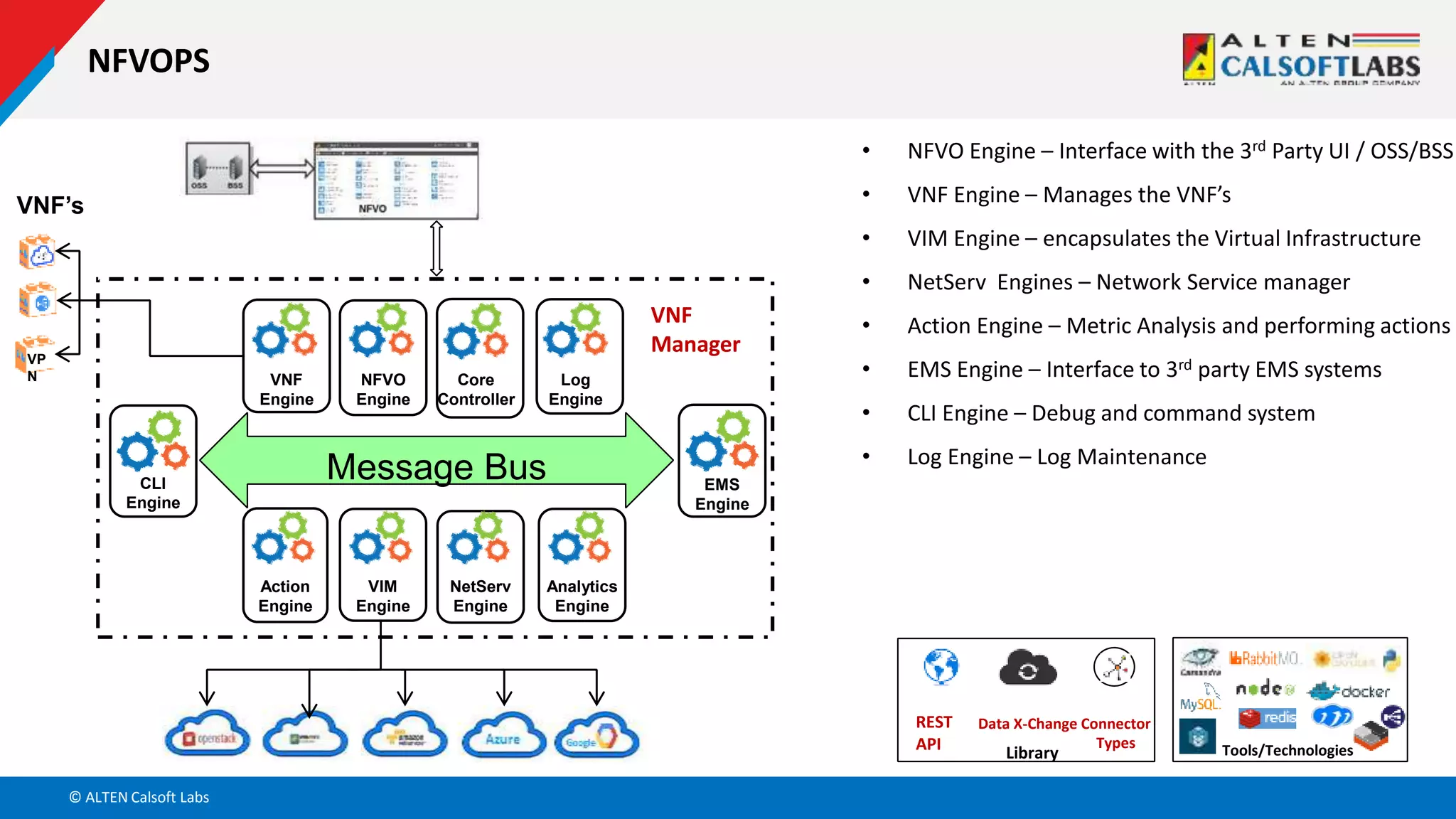

• NFVO Engine – Interface with the 3rd Party UI / OSS/BSS
• VNF Engine – Manages the VNF’s
• VIM Engine – encapsulates the Virtual Infrastructure
• NetServ Engines – Network Service manager
• Action Engine – Metric Analysis and performing actions
• EMS Engine – Interface to 3rd party EMS systems
• CLI Engine – Debug and command system
• Log Engine – Log Maintenance

7. © ALTEN Calsoft Labs 7
NFVOPS - GUI
• ETSI MANO compliant VNF Manager framework
• Provides comprehensive feature set for VNF
onboarding, deployment automation, lifecycle
management and orchestration
• Interfaces for easy integration with third-party
EMS/NMS and NFV Orchestrator (e.g. NFV
Director)
Admin Console
 Policy enforcement for services and VNF instances
 Monitoring, Events, Notification, Messages, Alarms, …
 Allocation/de-allocation of NFVI resources

8. © ALTEN Calsoft Labs
Existing Framework - TAM
Jenkins
Execution
Logger
Configuration
Data
Scripts
Robot Framework
Custom
Libraries
TAM

9. © ALTEN Calsoft Labs
??
Unified Approach
NFVOPS
TAM
NFVOPS
• Instantiation, Termination
• Provisioning, LCM
• HA, Scaling & Remediation
• Enterprise Services
• Multi-Tier, Multi-Cloud, Multi Tenancy
• Usage & metering
• Quota, Policy Enforcement
• Discover Resources
• Customizable via Plugins
TAM
• Data Driven
• Test Suite Management
• Test Execution
• Test Reporting

10. © ALTEN Calsoft Labs
Unified Approach - Continued
??
NFVOPS
TAM
Features
• CI/CD Workflows Integration
• One Stop - Dashboard
• Micro services Architecture Deployment
• Templatized Workflows for pipeline generation
• Blueprints using the Template workflows
• Simple Integration with 3rd party tools
• Support for Containers/Dockers
• Mesos / Kubernetes
• Release automation
• Monitoring & Diagnostics Capabilities
• Seamless Public & Private Cloud Integration
• License & Security management

11. © ALTEN Calsoft Labs 11
- DPDK optimized vCPE fast path framework for
Enterprise or Residential vCPE
- Supports VLAN, NAT, Firewall, Routing, QoS
- Static & Dynamic VRF support; QoS Metering
and Shaping managed at each Subscriber level
- Deployable on bare metal, as VM or
Containers/Dockers
- OpenStack orchestration, Tacker integration
vCPE
- DPDK optimized IPsec VPN Gateway framework
- Support AES, 3DES, MD5, SHA256 encryption
- Tunnel establishment rate @1200 tunnels/sec for
Xeon E5-26xx
- Deployable as Site to Site, or Remote access VPN
- Bare metal (CentOS, Ubuntu), OpenStack and GCE
Supports Virt-IO, SR-IOV
VPN Gateway
- Reusable framework as VNF Component (VNFC)
for enhanced security, application visibility &
control
- Intel DPDK optimized packet handling for high
performance fast path processing
- Enables implementation of ACLs, Stateful
Firewall, IDS/IPS and WAN optimization function
- Delivers upto 25x performance over
conventional Linux appliances based on x86
processors.
vDPI Framework
- ETSI MANO compliant VNF Manager framework
- Features include VNF onboarding, deployment
automation, lifecycle management & orchestration
- Interfaces for easy integration with third-party
EMS/NMS and NFV Orchestrator (e.g. NFV Director)
- Policy enforcement for services and VNF instances
- Monitoring, Events, Notification, Messages, Alarms, …
- Allocation/de-allocation of NFVI resources
NFVOps Framework
Admin Console
VALUE ADDED NFV FRAMEWORK & SOLUTION ACCELERATORS
